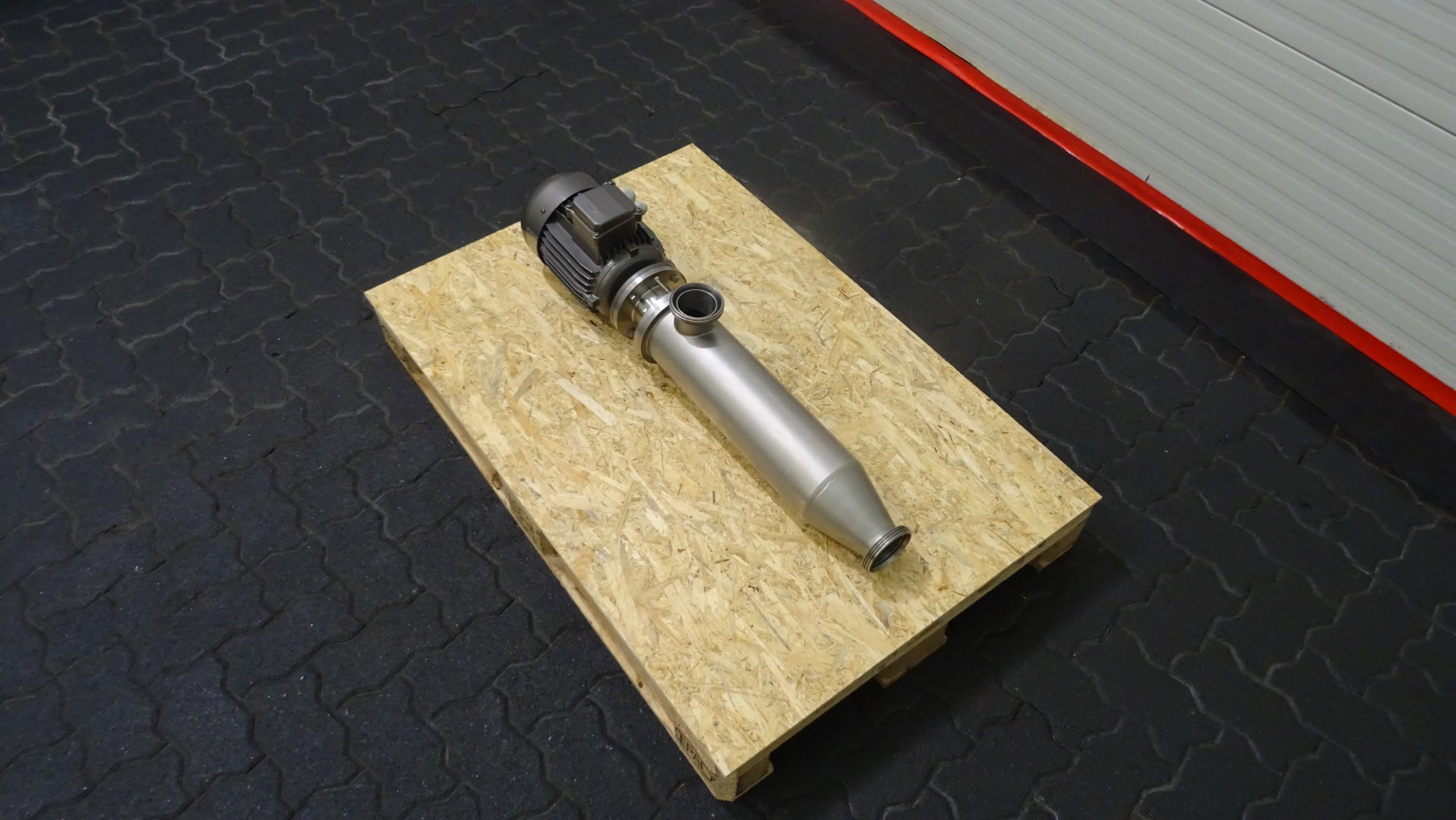

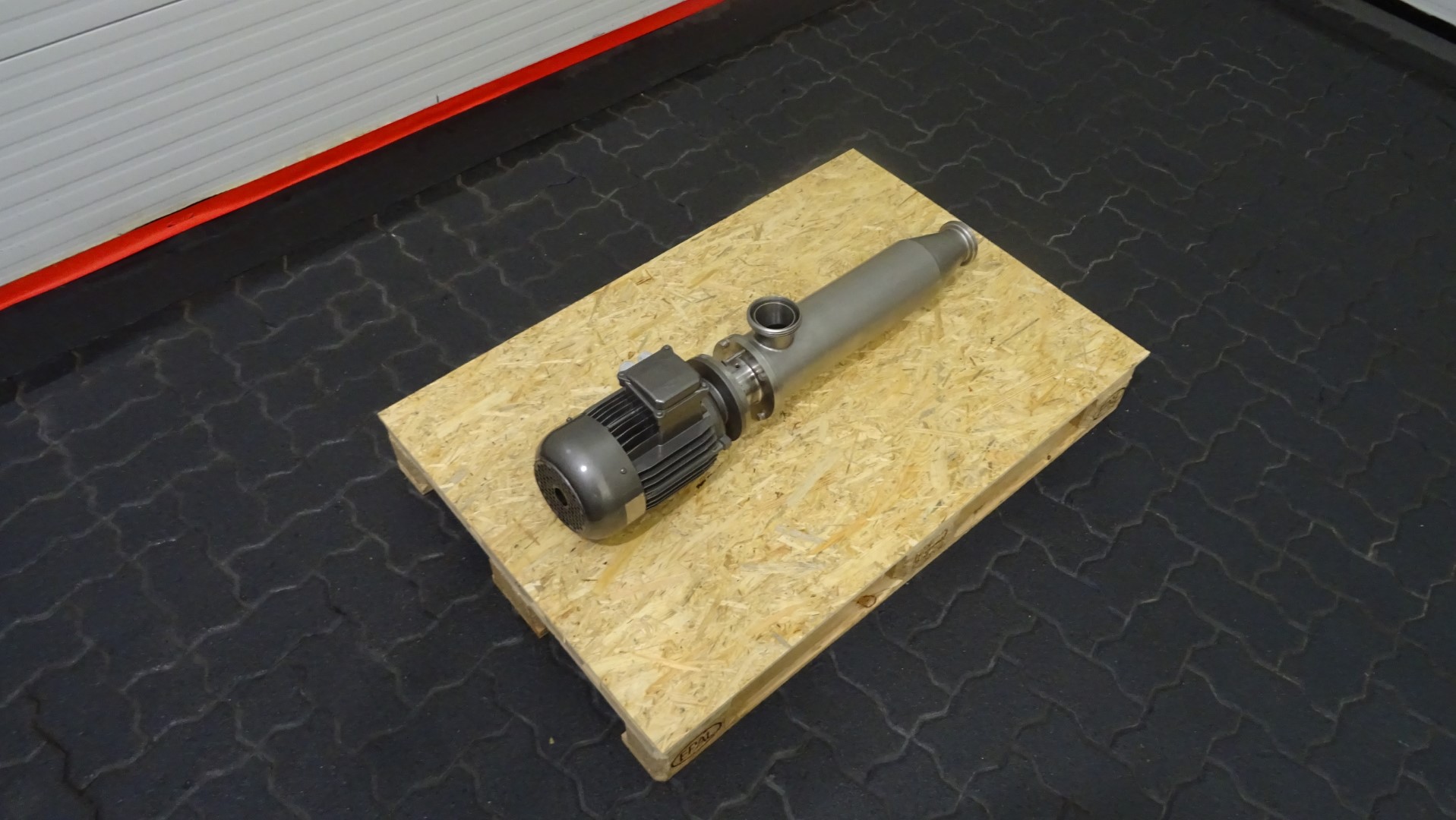

Inline dynamic mixer - GTA RM3-65
or
Call +494072548640
New In Stock
Specifications
| Manufacturer | GTA |
| Model | RM3-65 |
| Condition | Used |
| Stock Number | 1291 |
| Type of Machine | Inline mixer |
| Capacity | up to 4.000 ltr/h |
| Length of rotor | 425 mm |
| Inside diameter of the house | 130 mm |

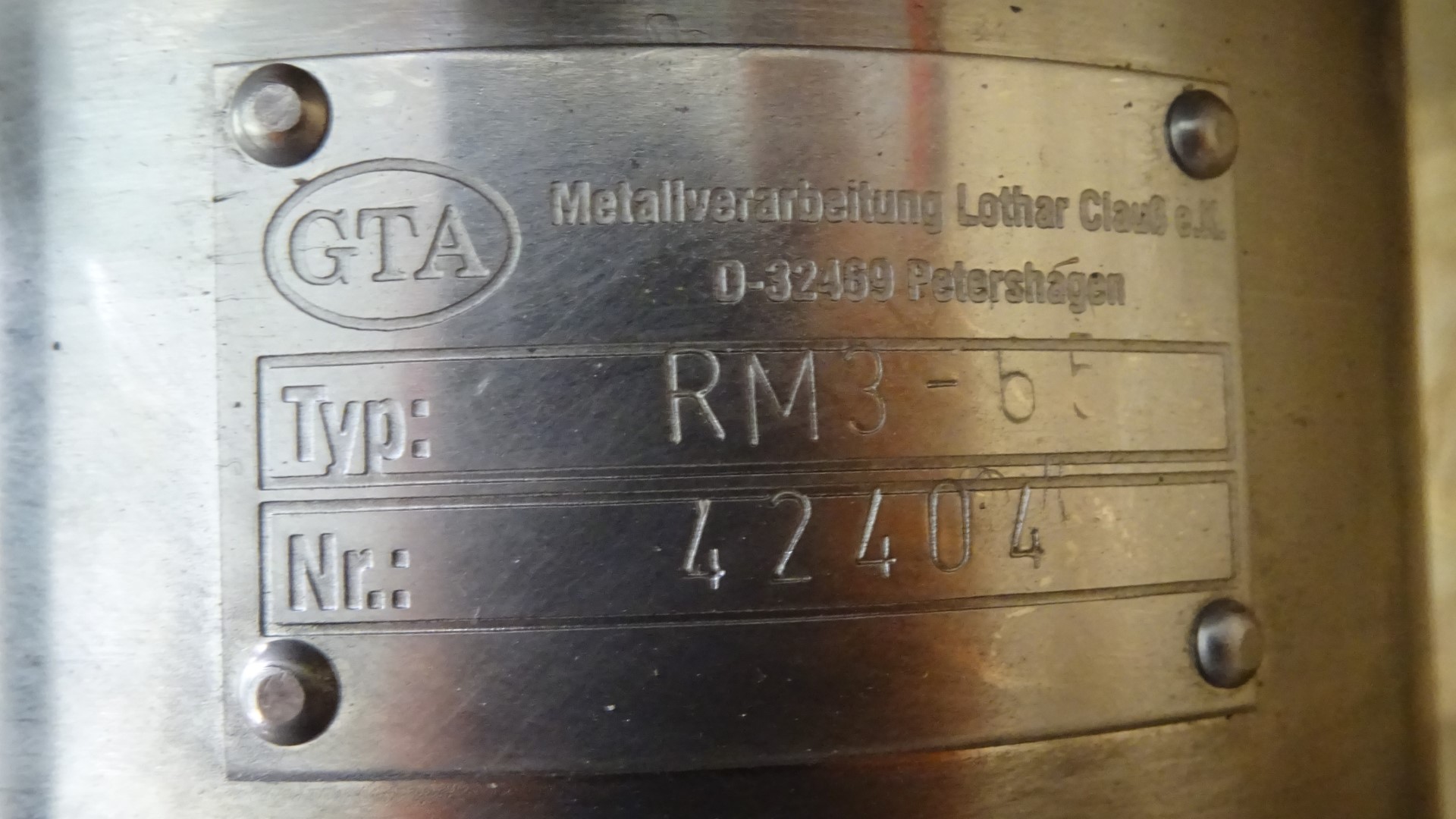

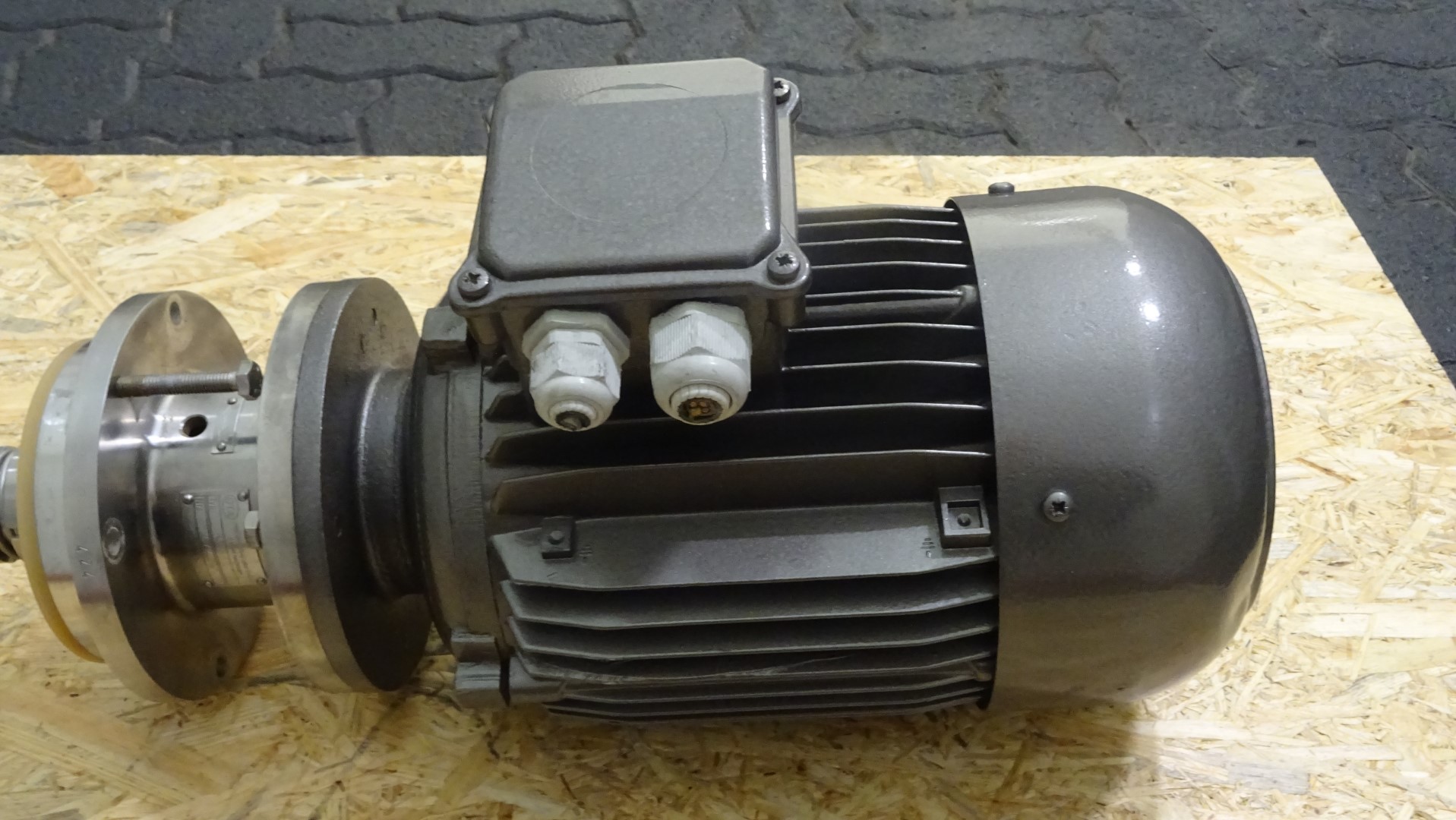

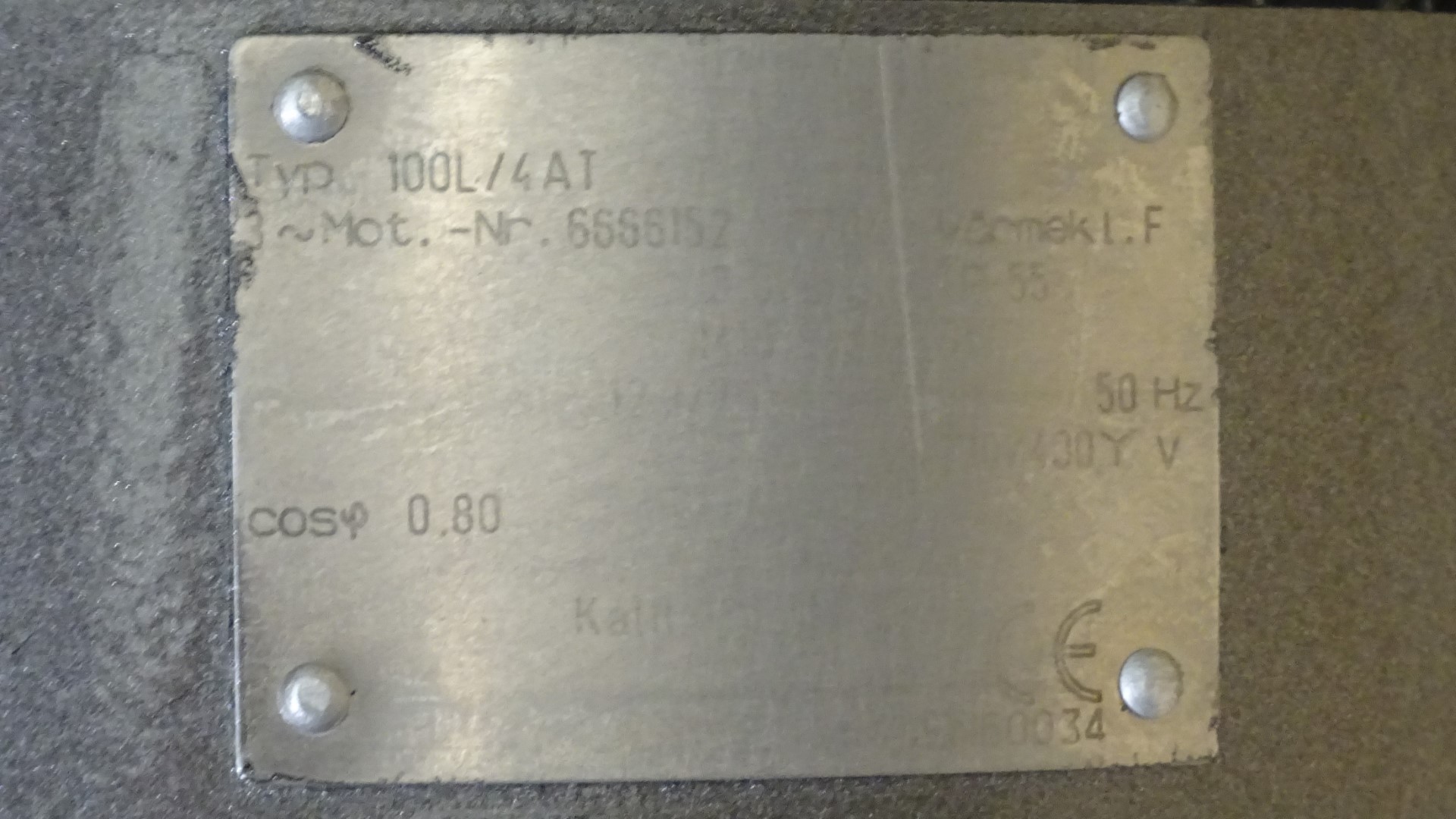

| Motor | ± 3 kW (not visible on nametag) - 400 V - 50 Hz |
| Connections in/out | DN65/DN65 |
| Dimensions | 120 x 45 x 45 cm |
| Weight | 75 kg |
Description

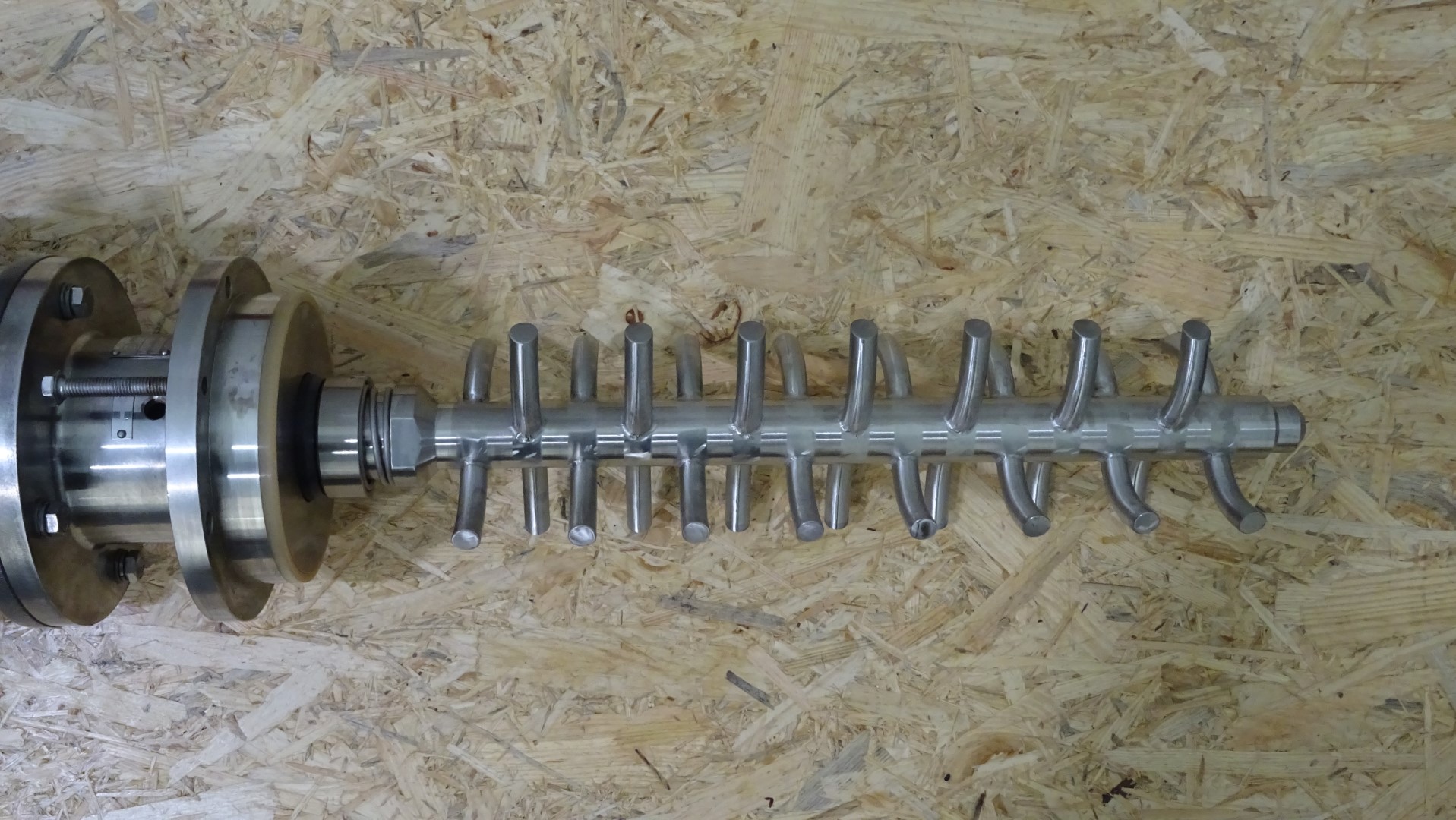

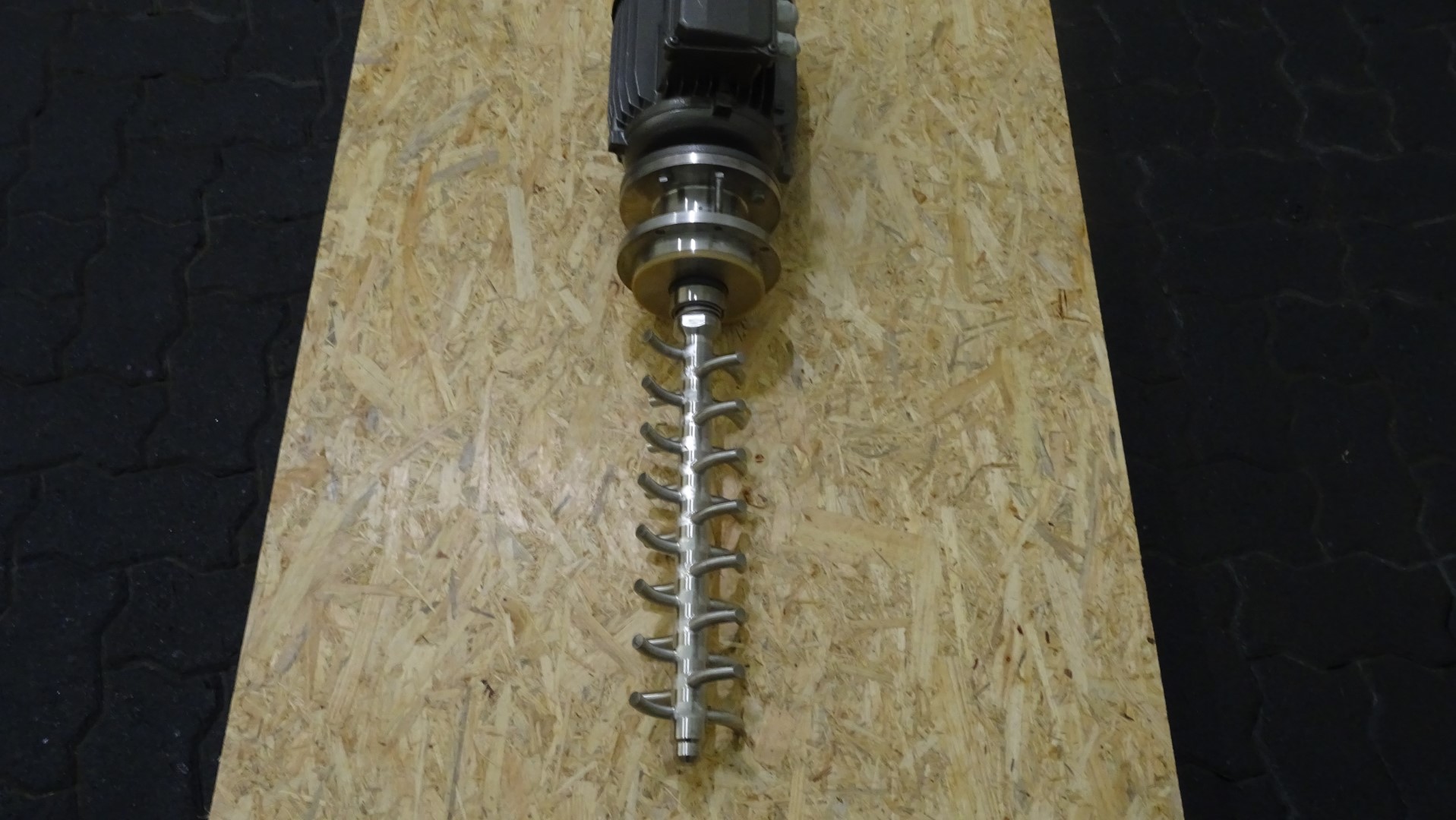

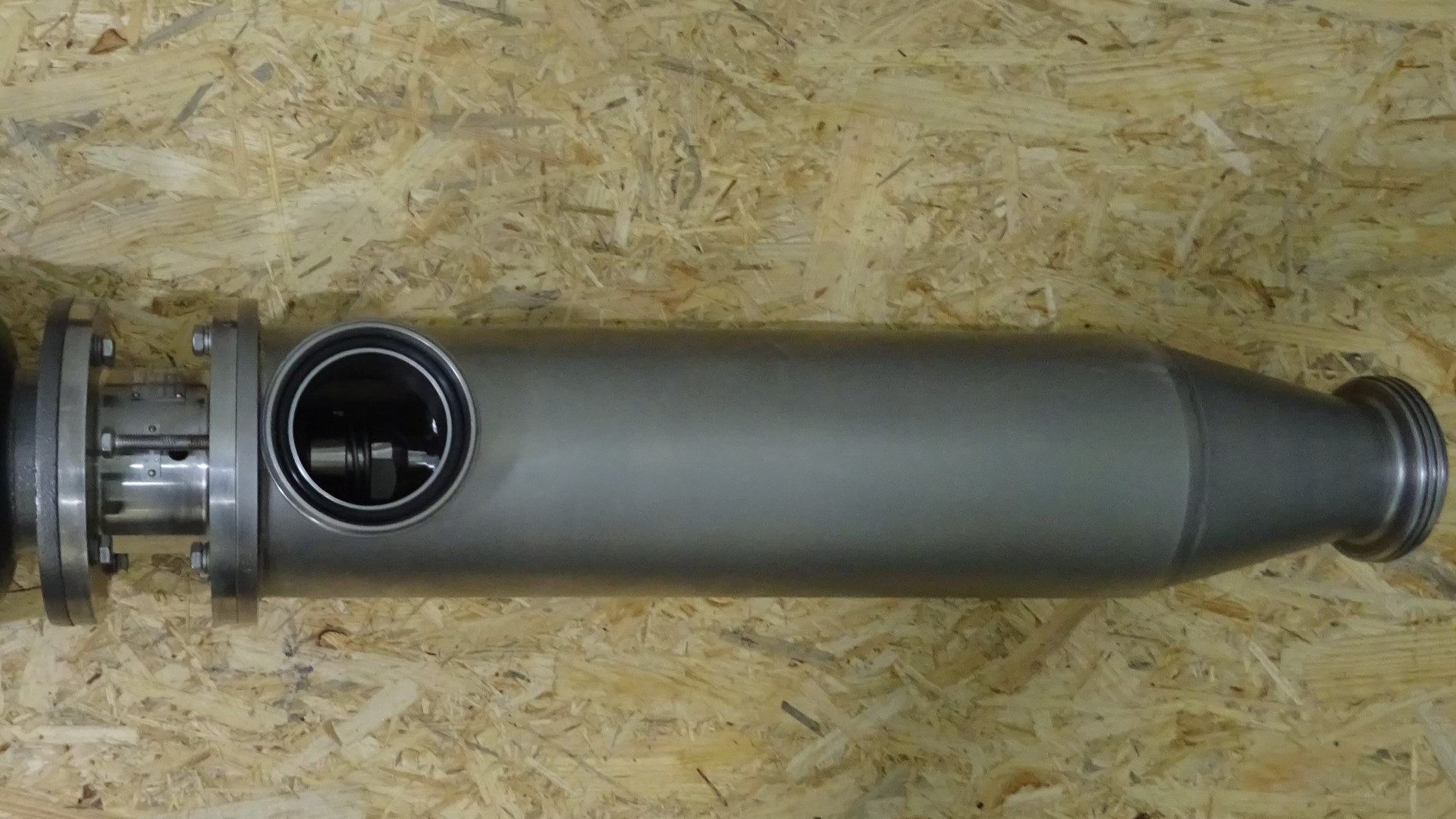

The dynamic in-line flow mixer type RM offers performance, precision and hygiene for the food, chemical and plastics processing industries and for numerous other process mixing processes.The performance spectrum of the dynamic flow mixer RM includes stirring, mixing, gentle mixing and blending, reacting, diluting, coloring, homogenizing and much more. Drive with tubular housing and mixing shaft running therein. Welded mixing elements. Mechanical seal. Vertical design with foot flange. It is a dynamic flow mixer that is suitable for CIP (Cleaning in Place). Capacity: up to 4.000 ltr/h. Lenght of the rotor: 425 mm. Inside diameter of the house 130 mm. Connections in / out: DN65. Motor: ± 3 kW (not visible on nametag) - 400 V - 50 Hz.
