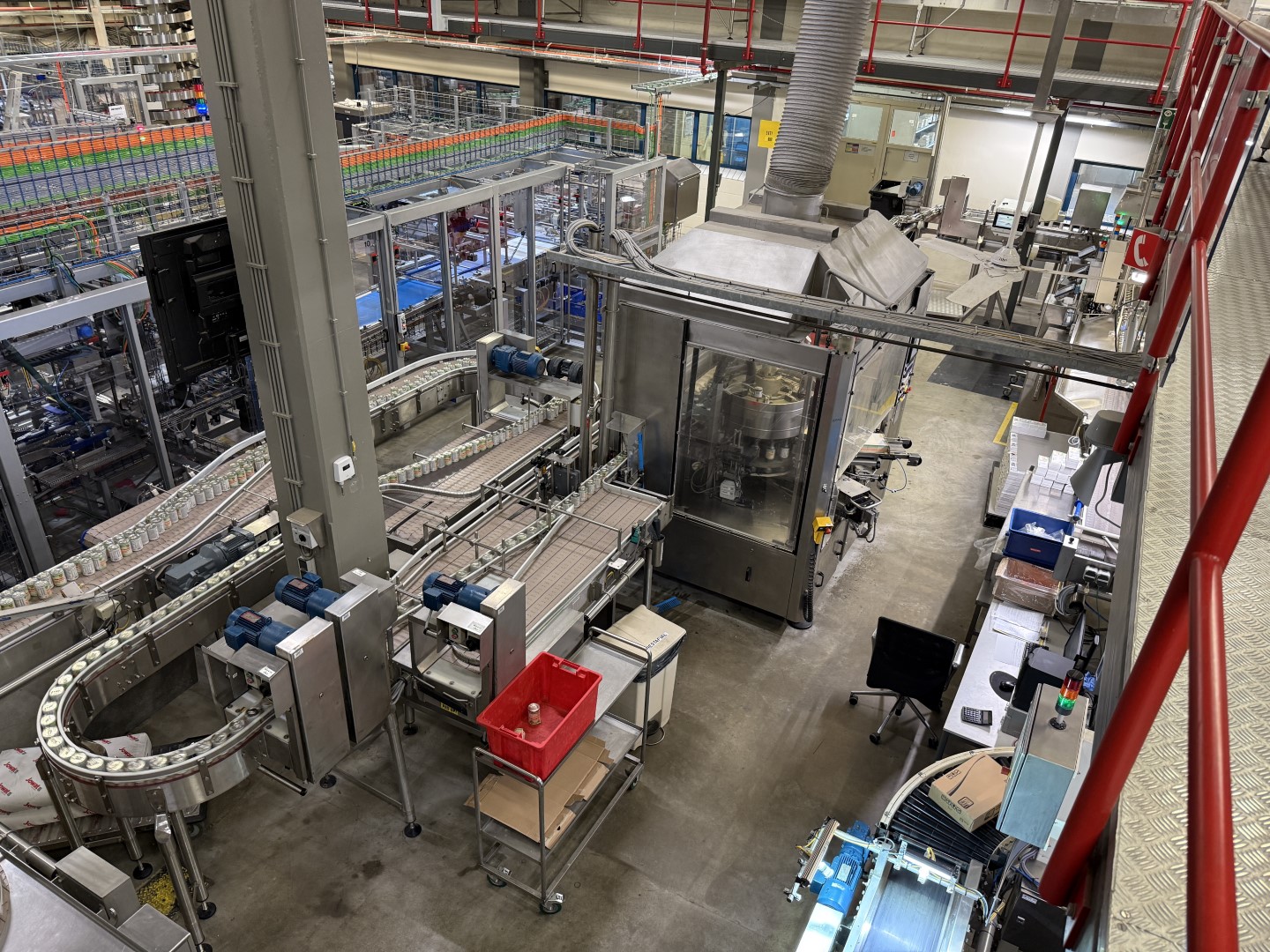

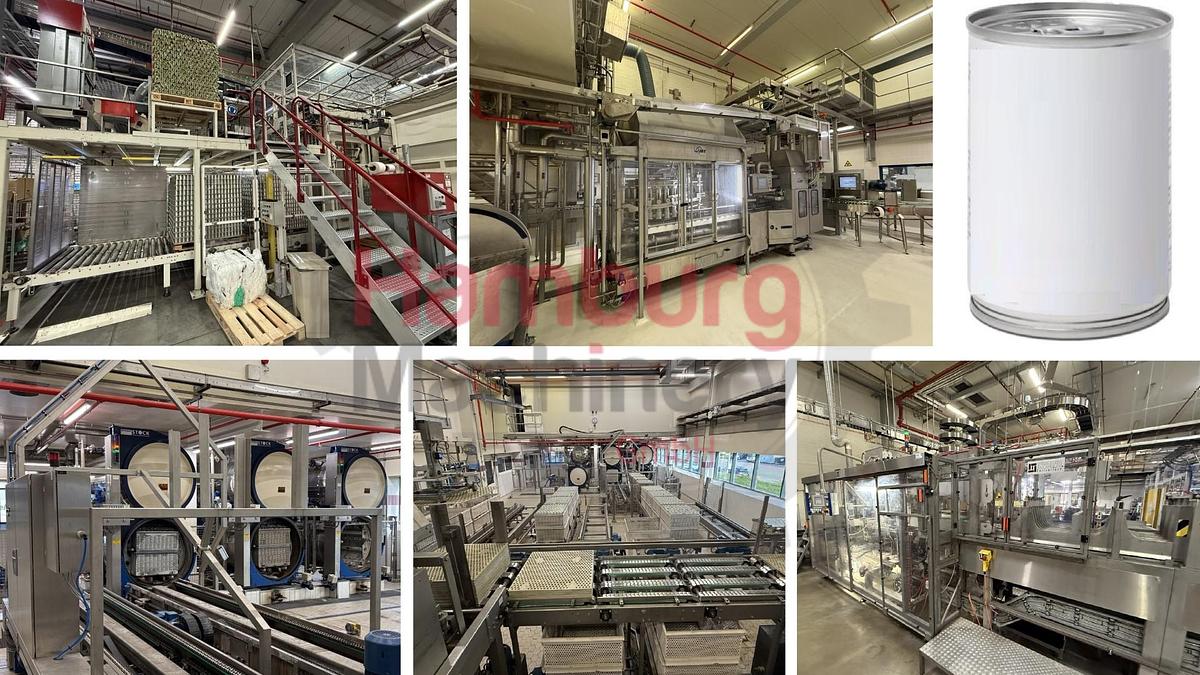

Complete can filling and closing line for liquids (nutrition) in 250 gram aluminium cans

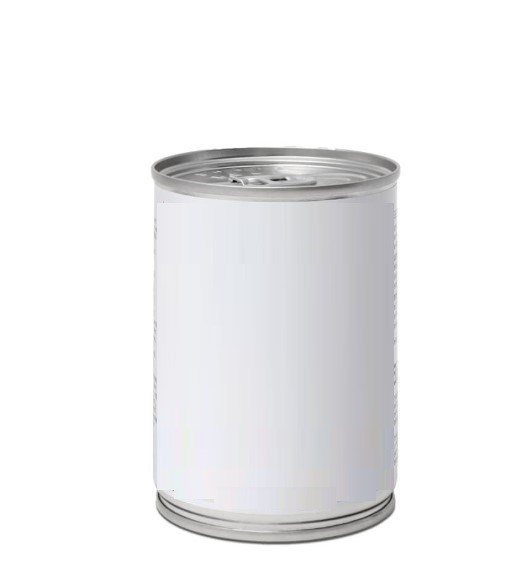

Complete can filling and closing line for liquids (nutrition) in 250 gram aluminium cans. Product: nutrition liquids. Formats: diameter 65 mm, height: 90 mm, filling weight 250 gram. 24x per box. Capacity: up to 500 / 420 cans per minute (30.000 / 25.000 per hour) for different parts of the line (with automatic palletiser) but the last year reduced to 325 cans per minute (19.500 per hour) because of manual palletising of the carton boxes on a pallet. Dismantling date: March / April 2026.

Line exisiting out of:

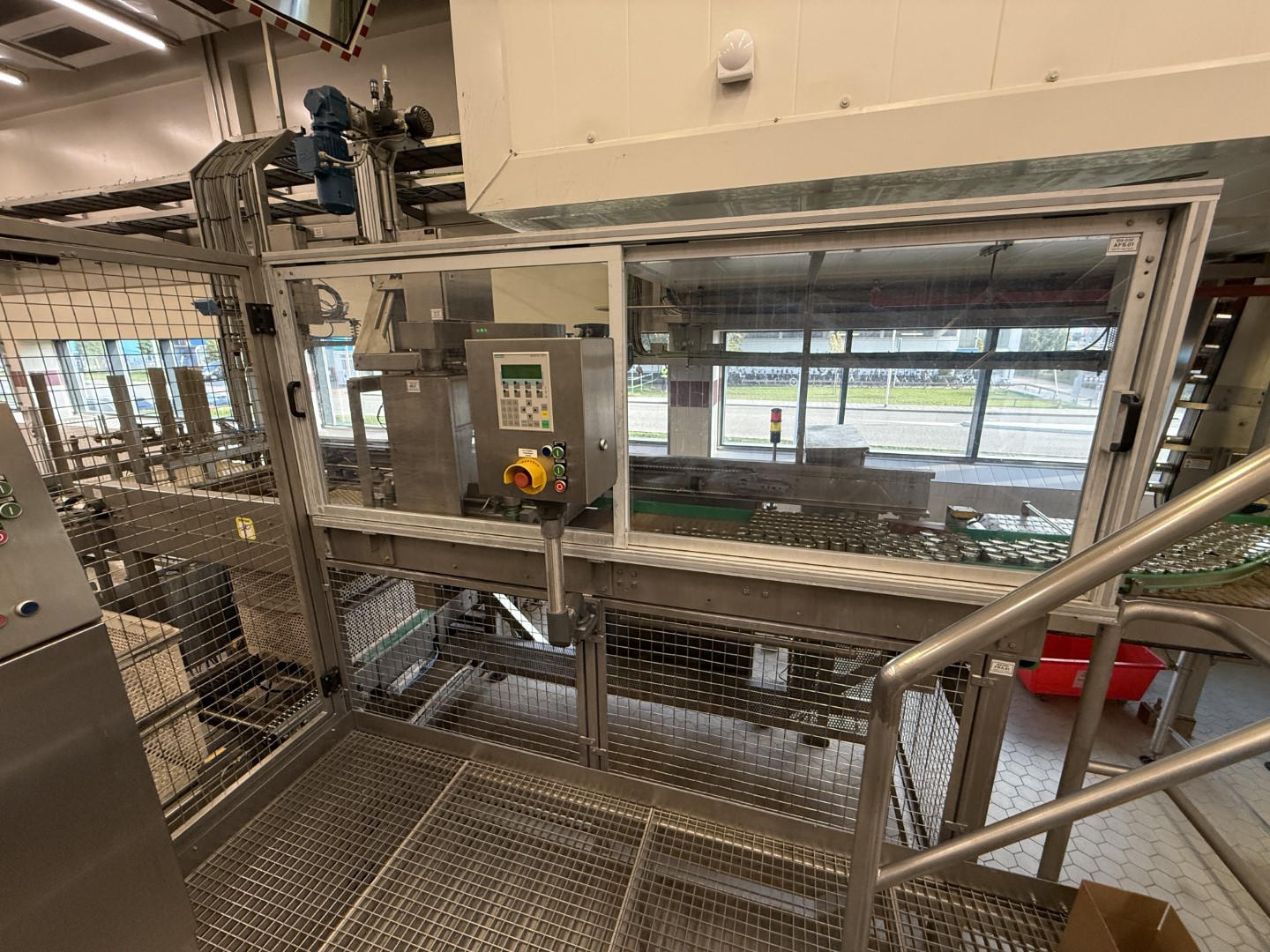

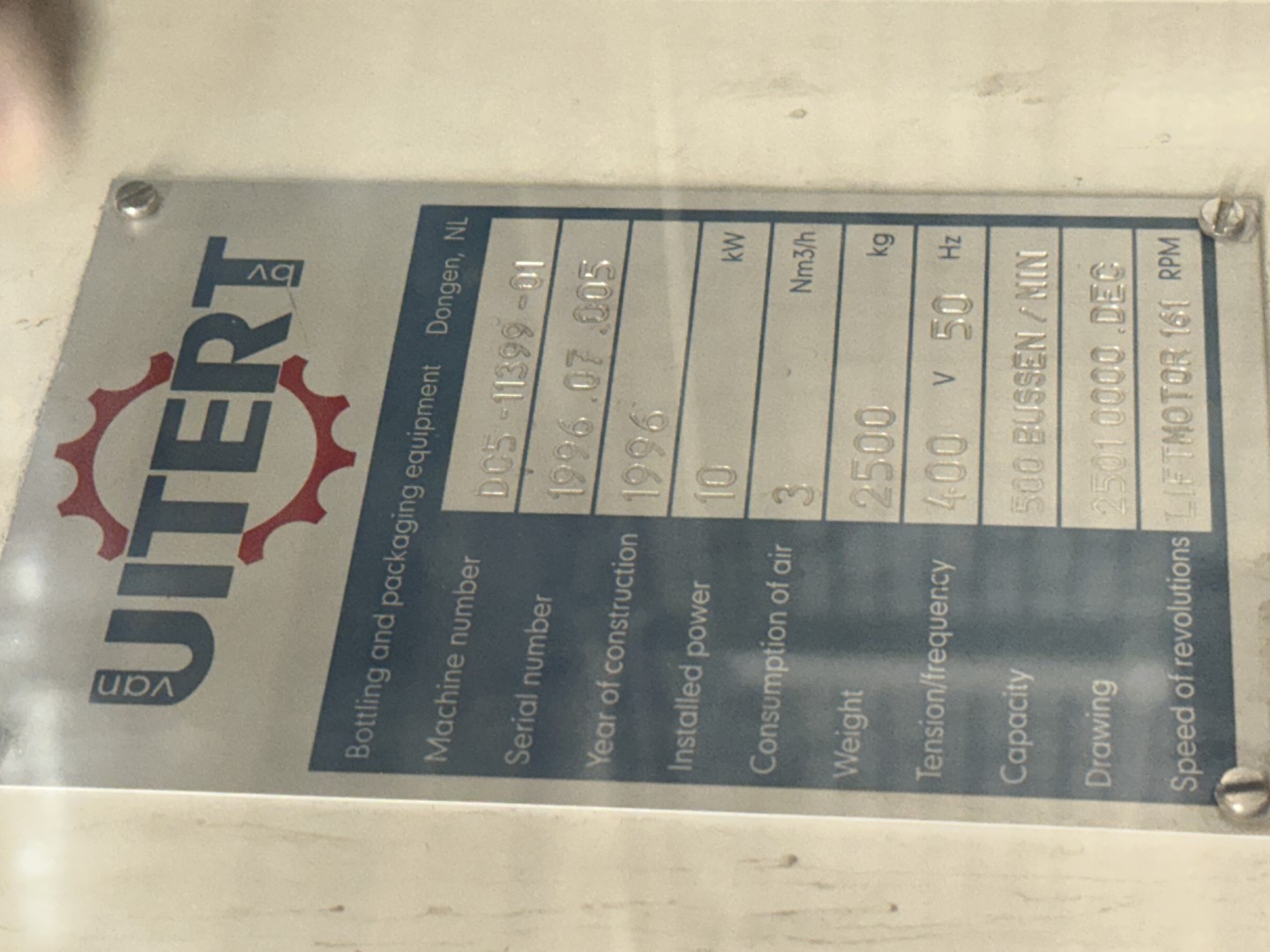

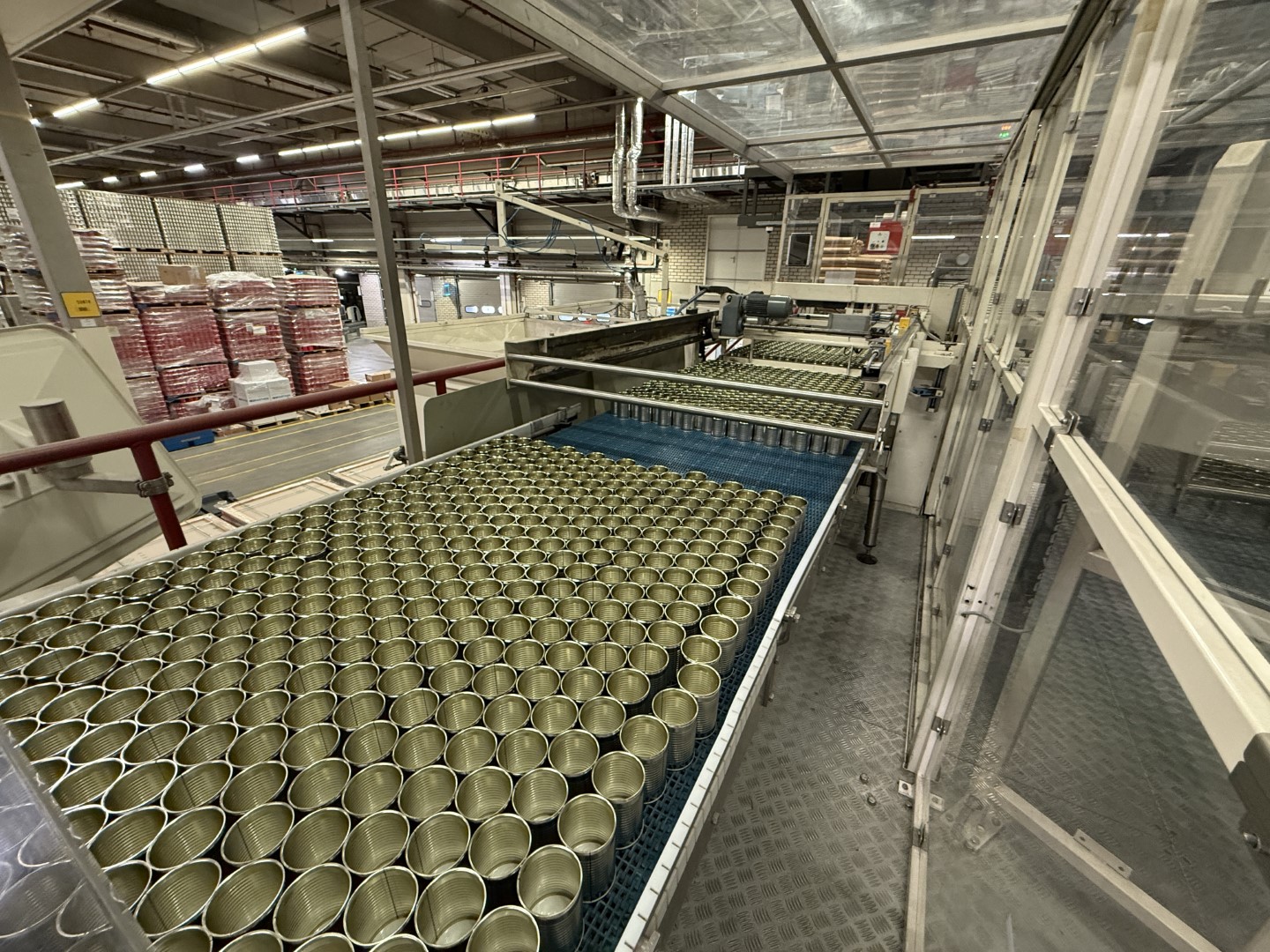

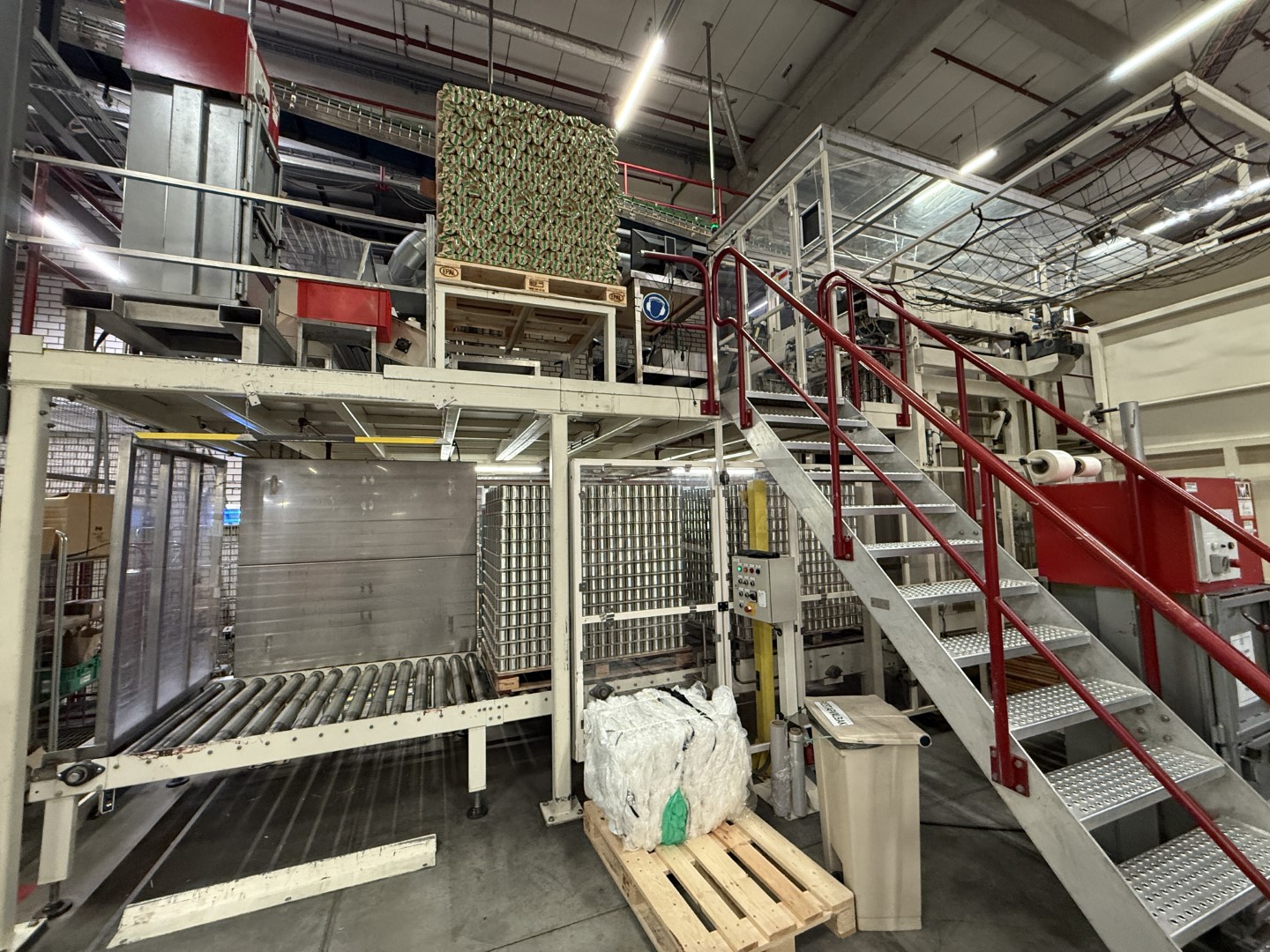

1.        Preformed can de-palletiser machine, separate layer by layer from the pallet including lid sorting unit.

Manufacturer: van Uitert B.V.

Year: 1996

Machine number: D05-11399-01

Serial number: 1996.07.005

Installed power: 10 kW - 400 V - 50 Hz

Consumption of air: 3 Nm3/h

Weight: 2.500 kg

Capacity: up to 500 cans/min = 30.000 cans/h

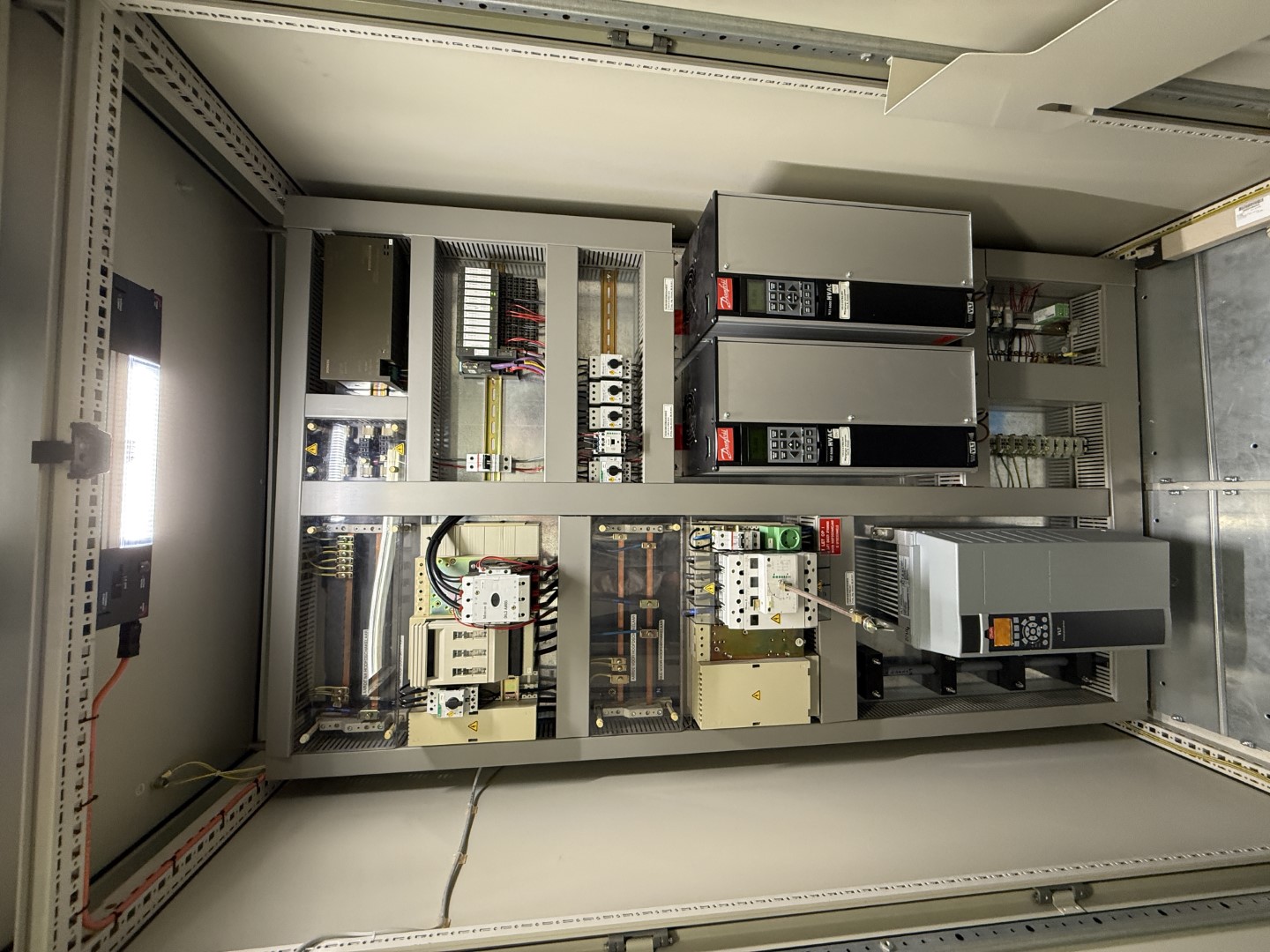

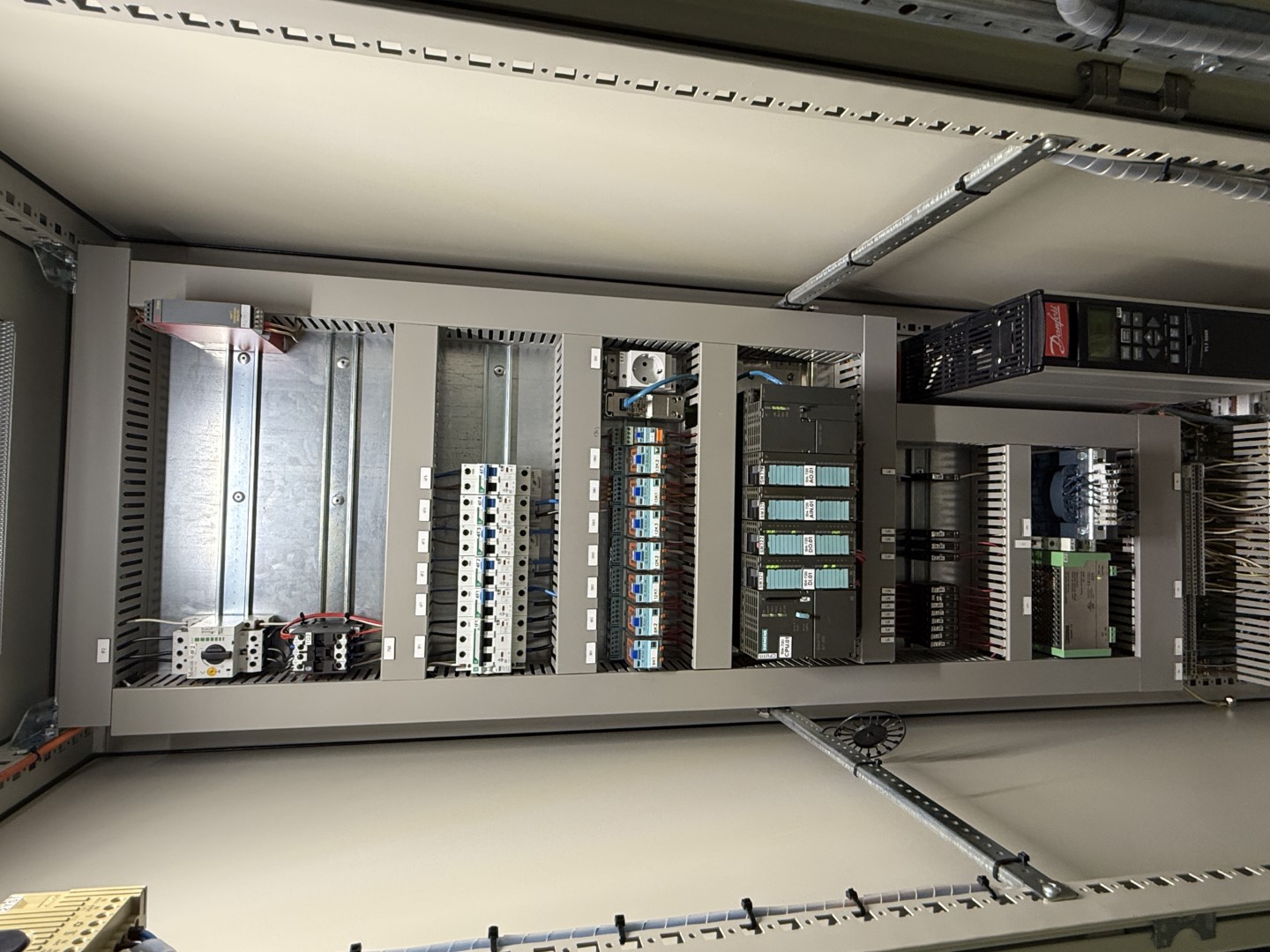

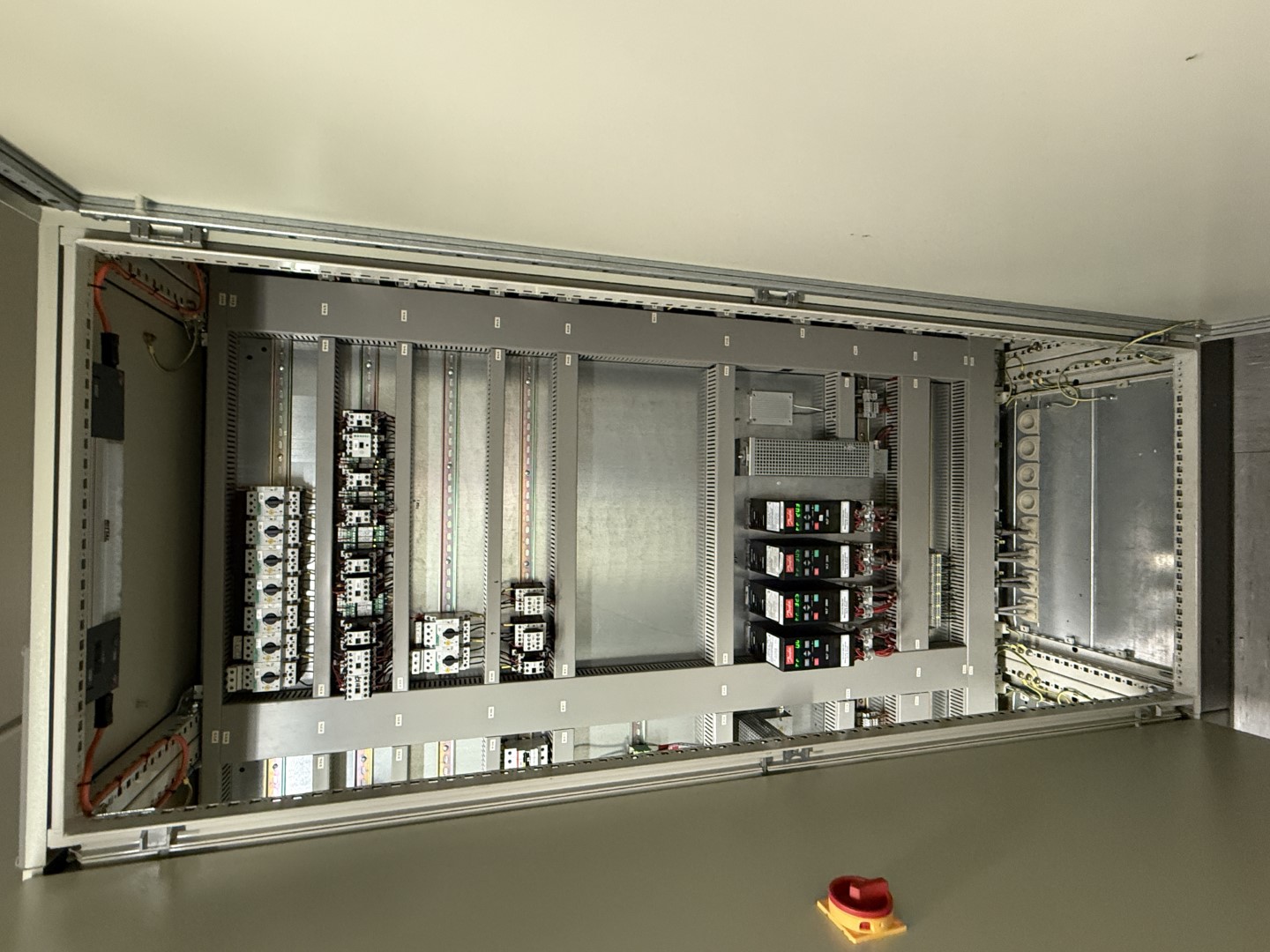

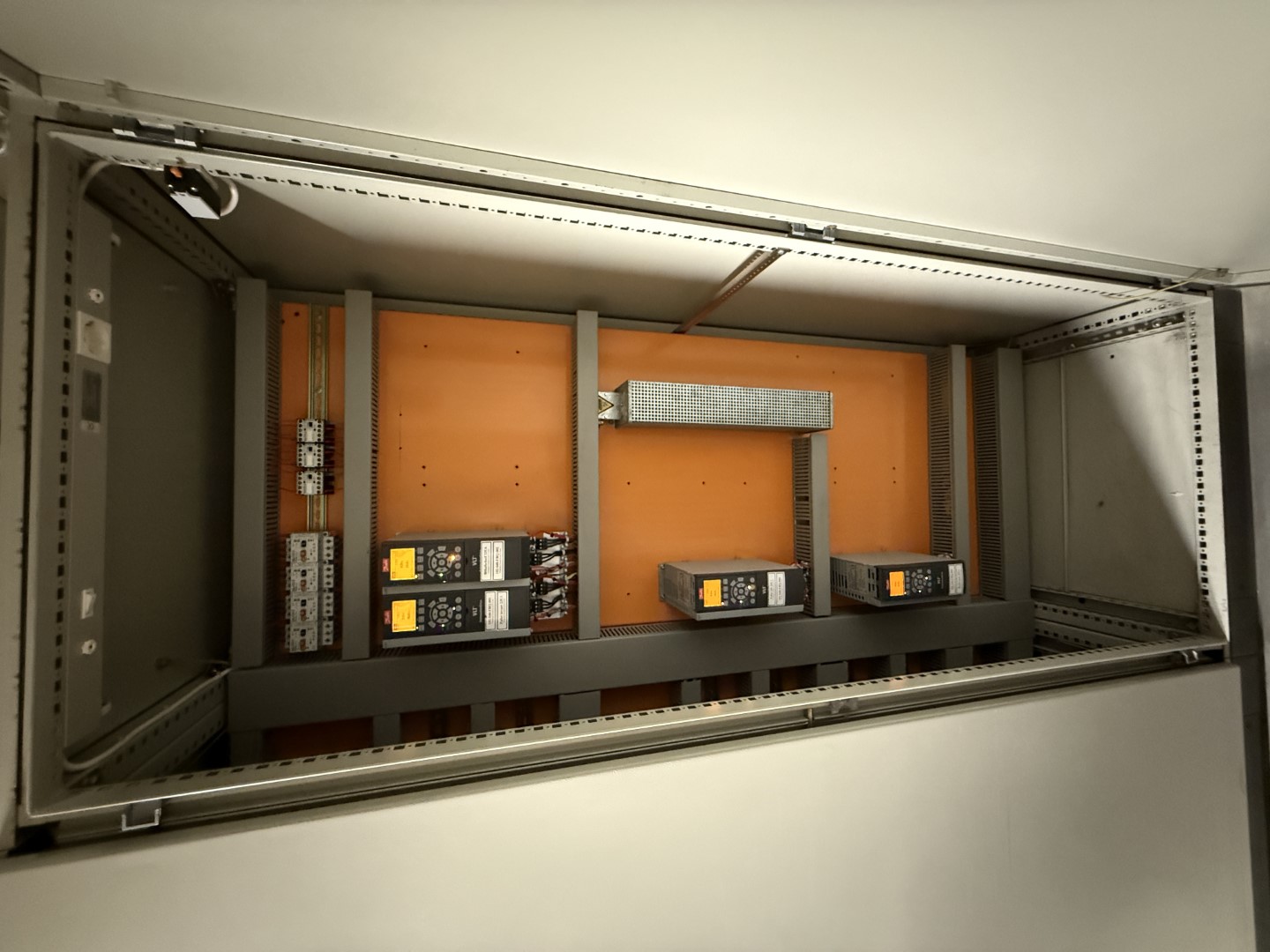

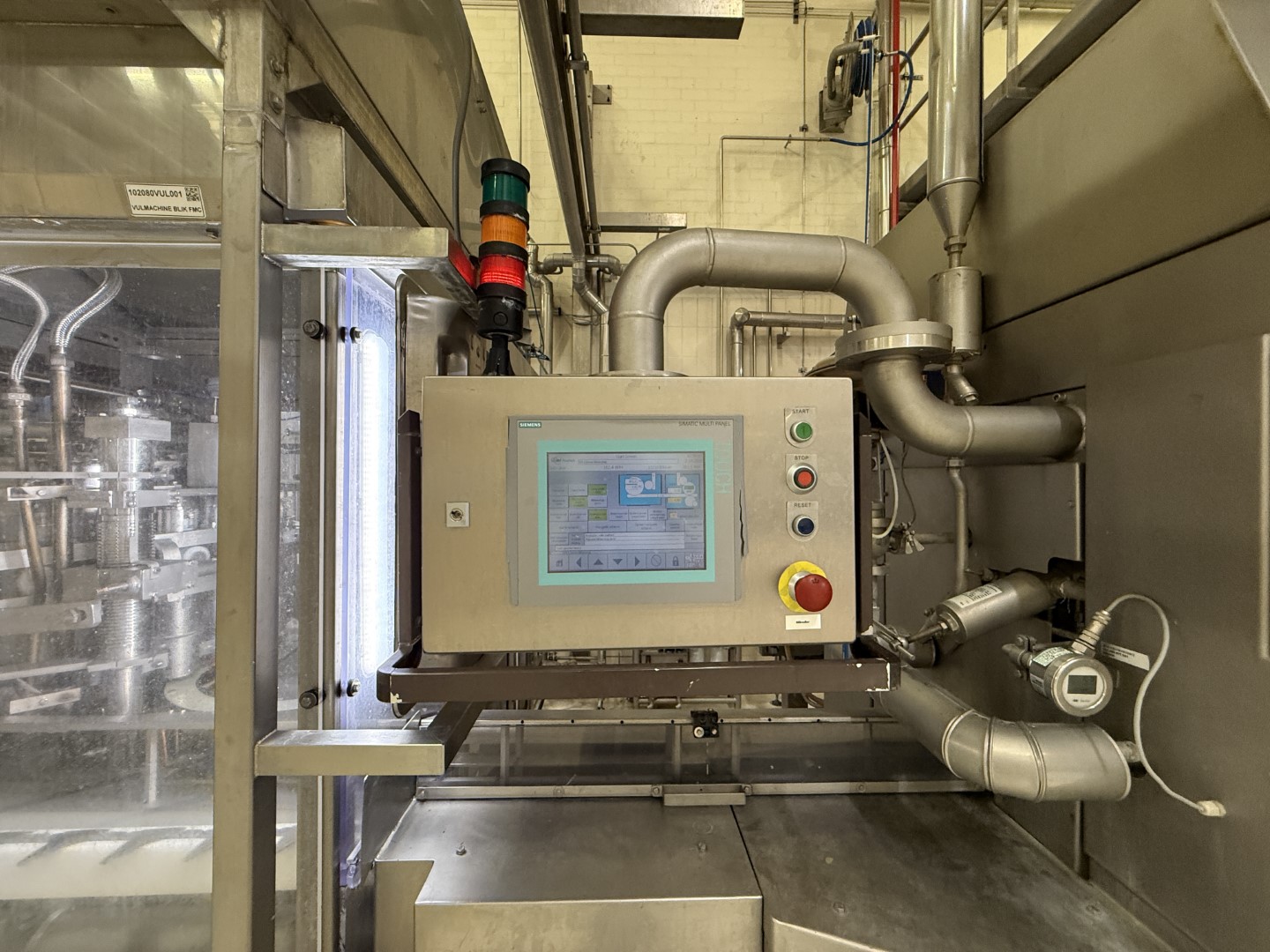

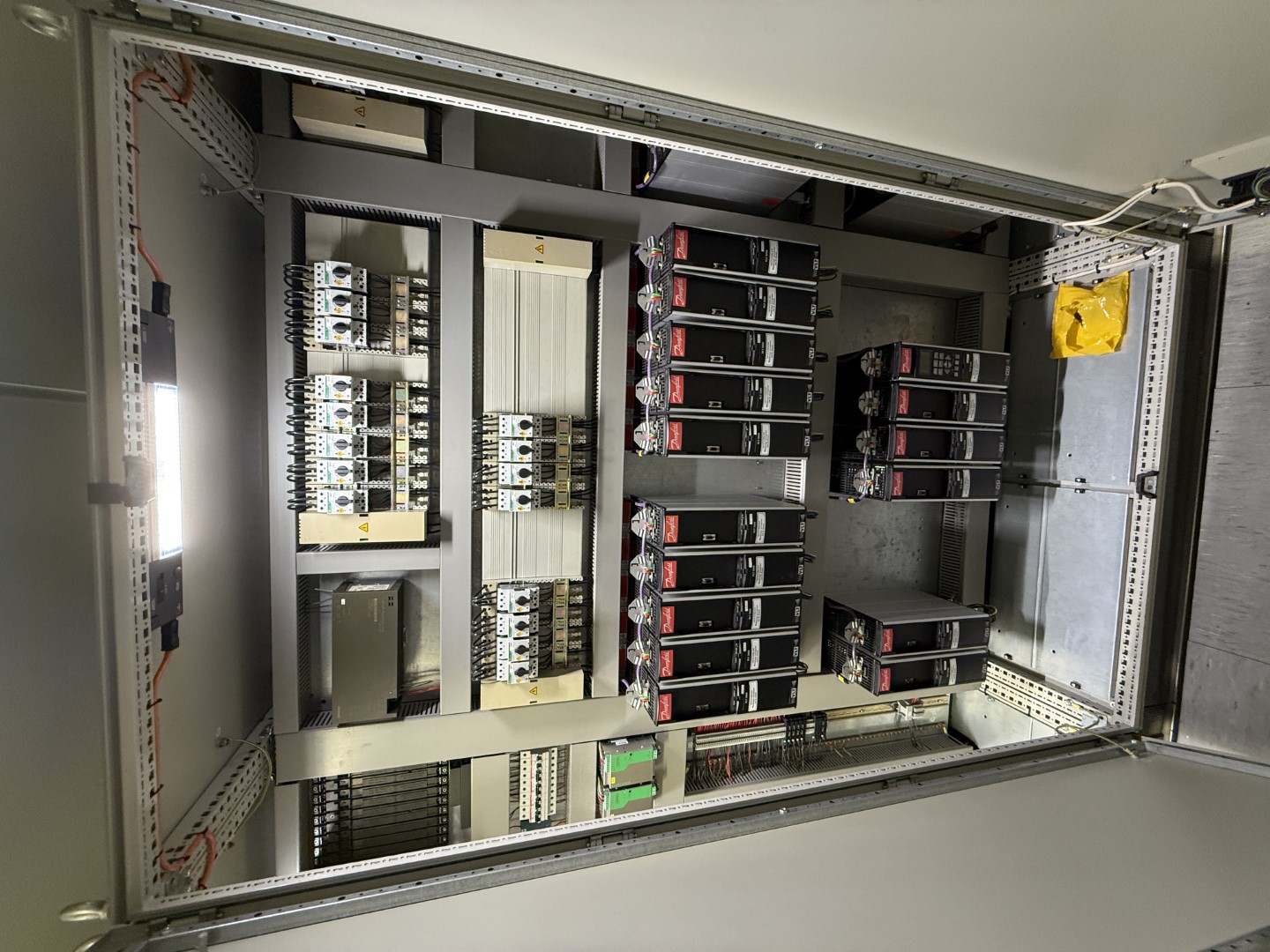

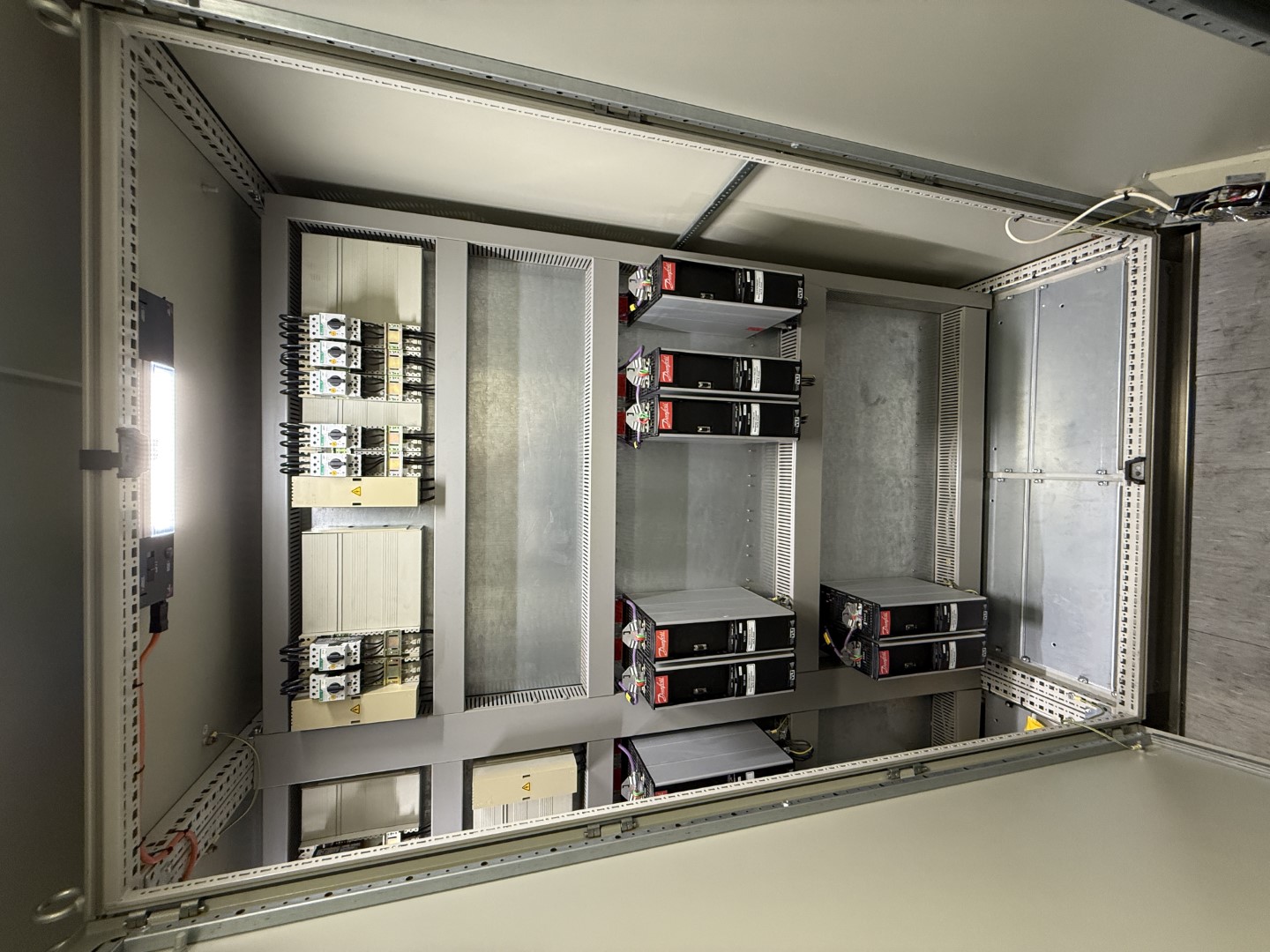

Control panel with Danfoss VLT frequency converters and Siemens S7-300 PLC.

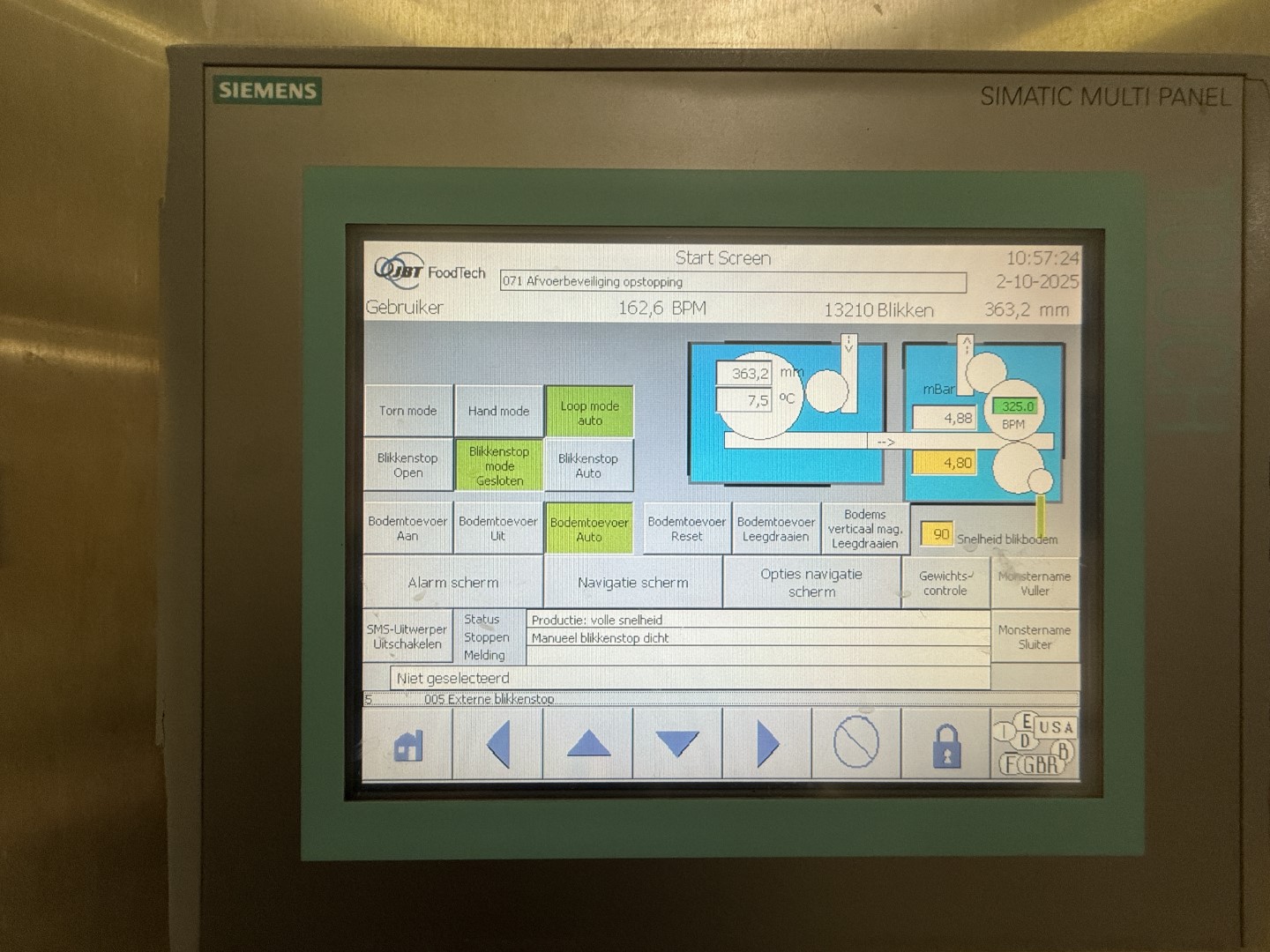

Simatic operation panel.

Infeed buffer conveyor for 3x block pallets.

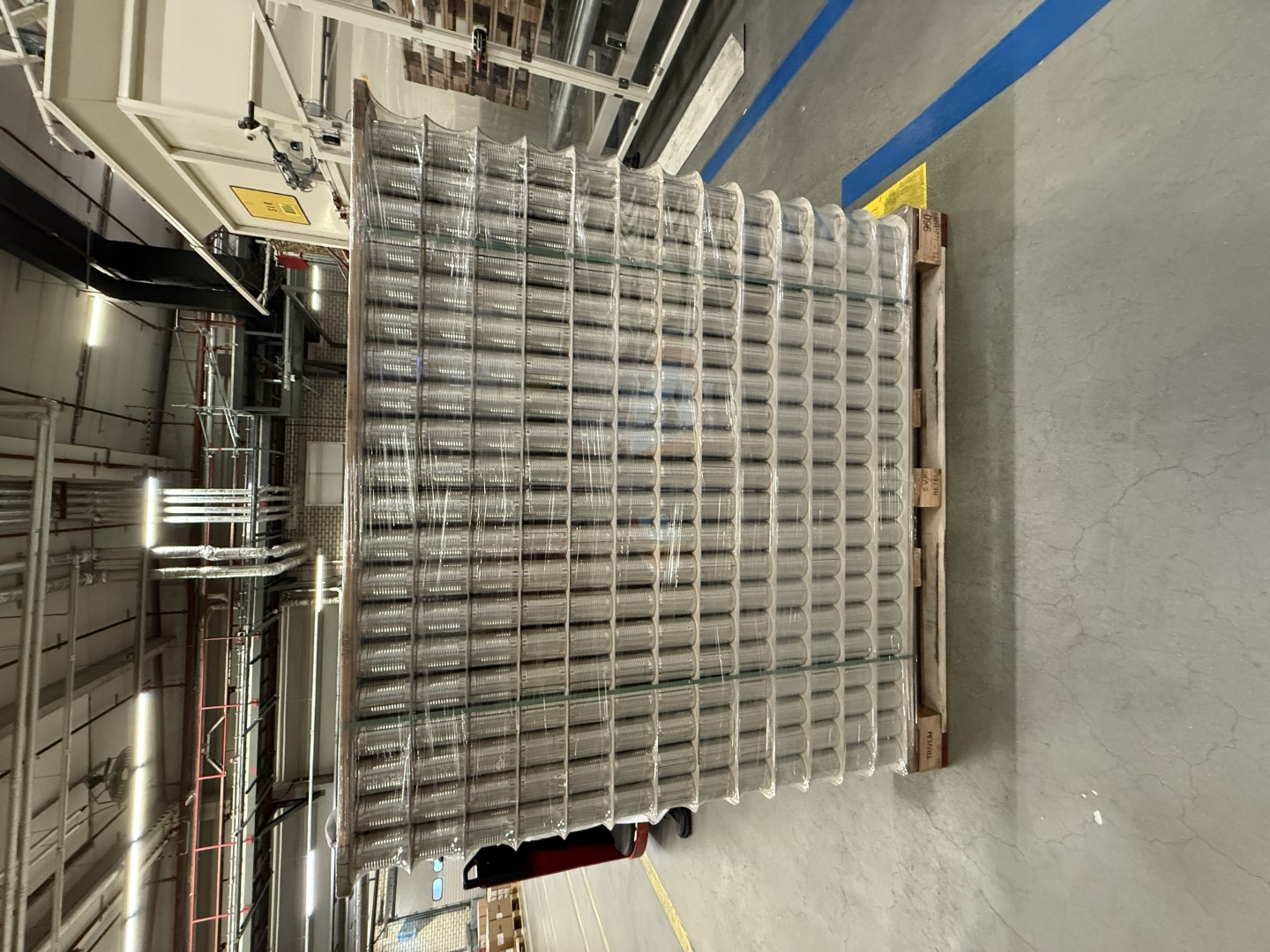

Pallets with 13x layers of 250 gram cans with carton separation between each layer.

3x Collection stations for top wooden part / inbetween cartons and empty pallets.

Infeed buffer station for the lids (14x rows of lids).

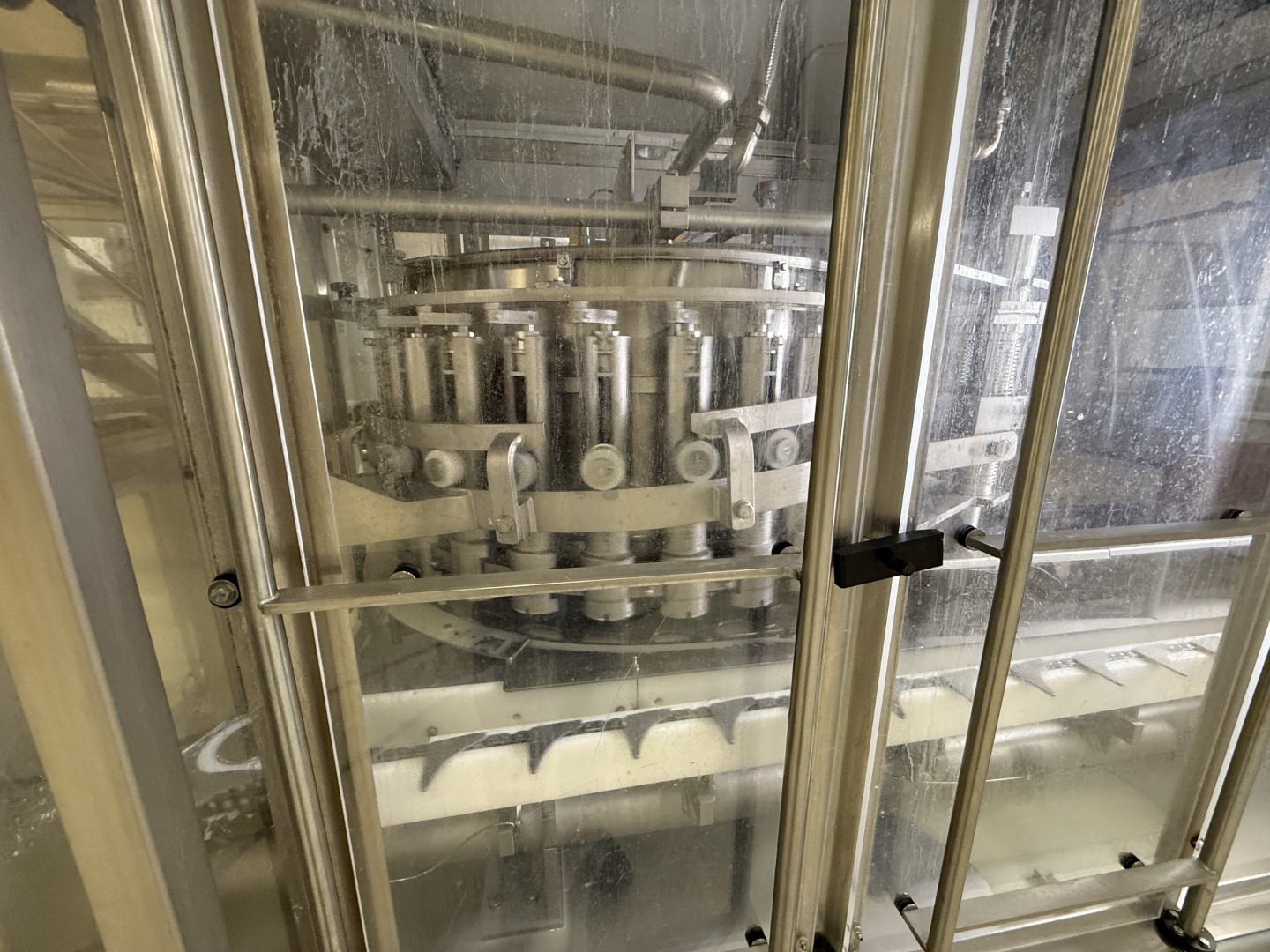

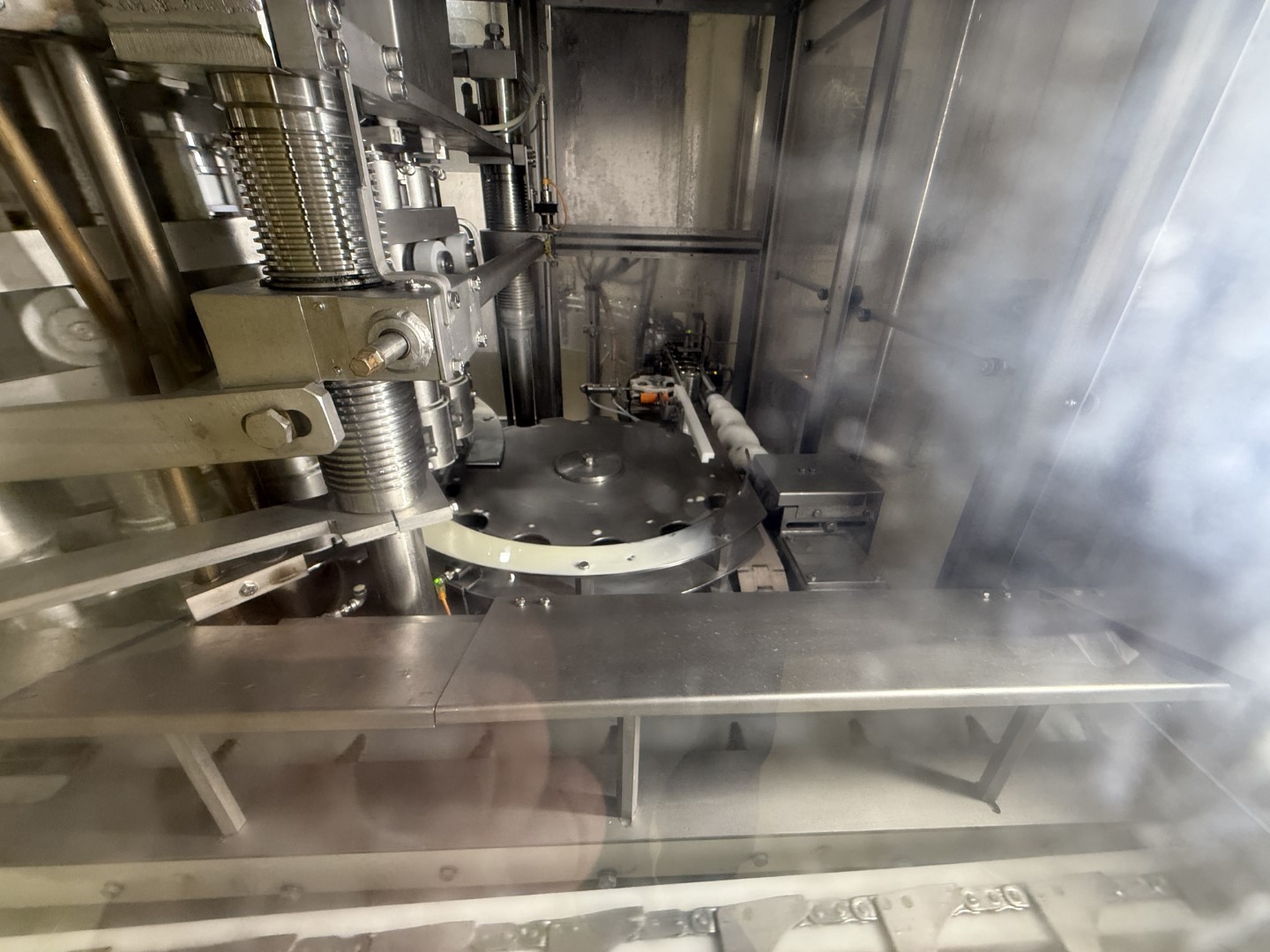

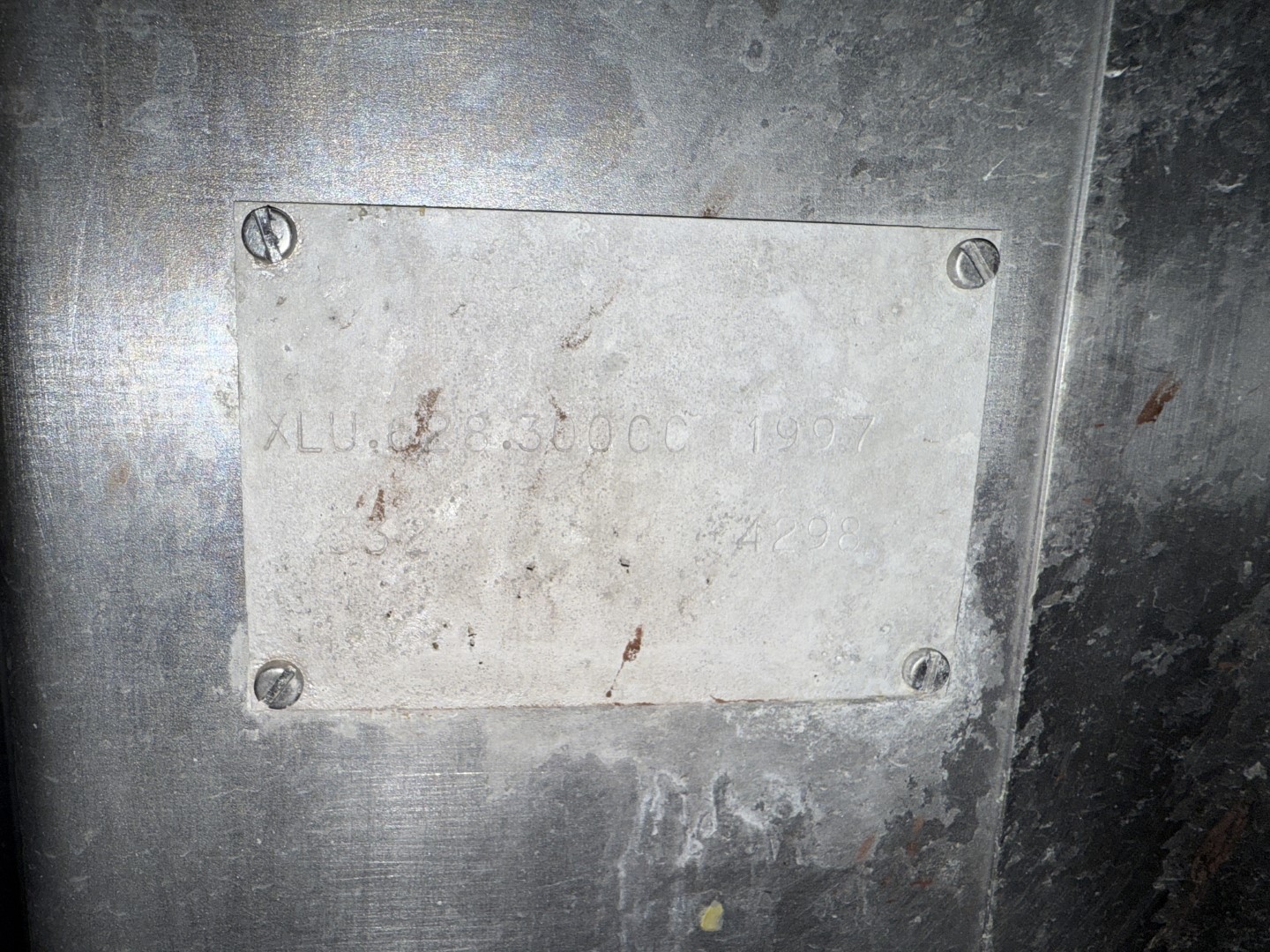

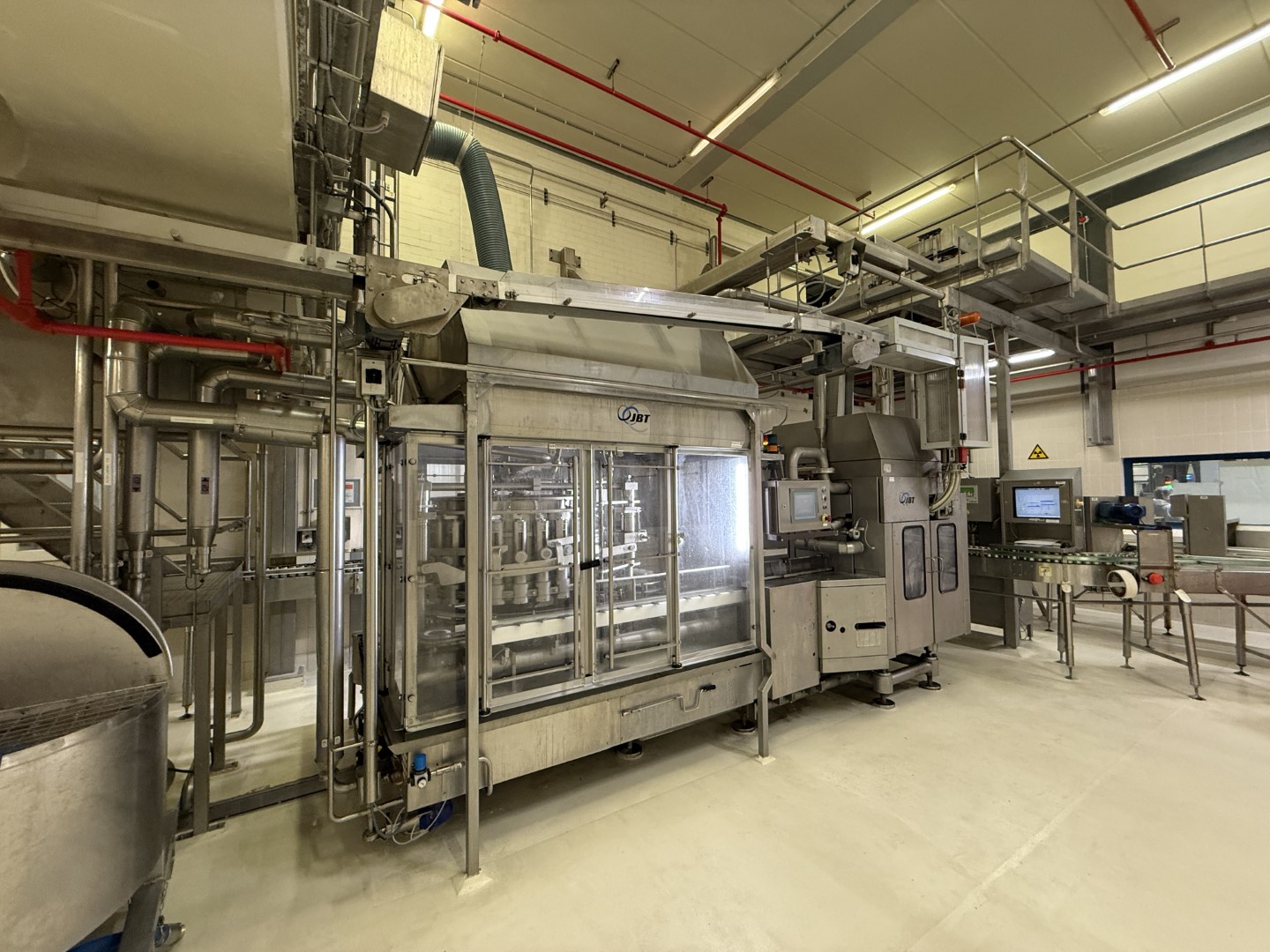

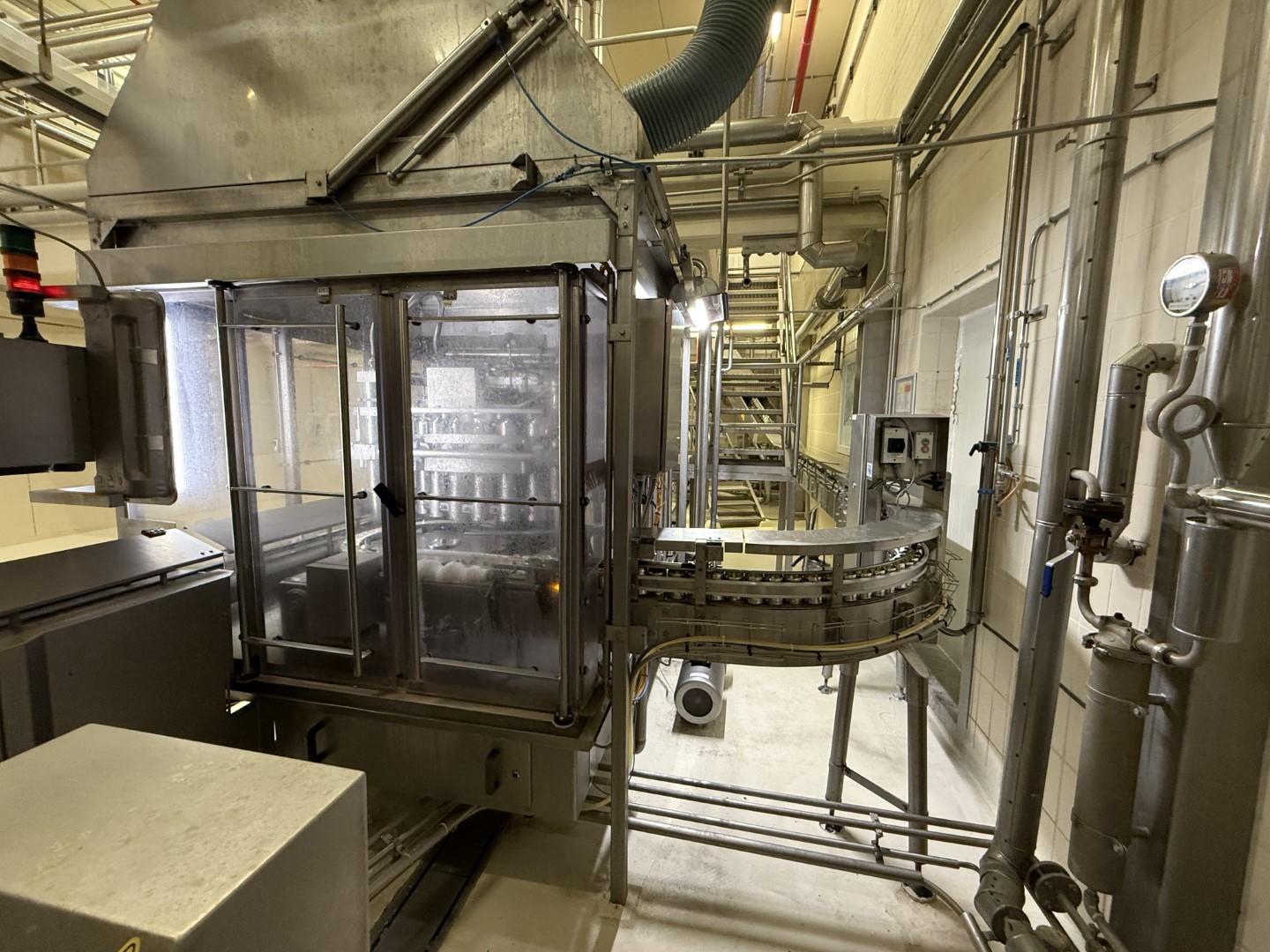

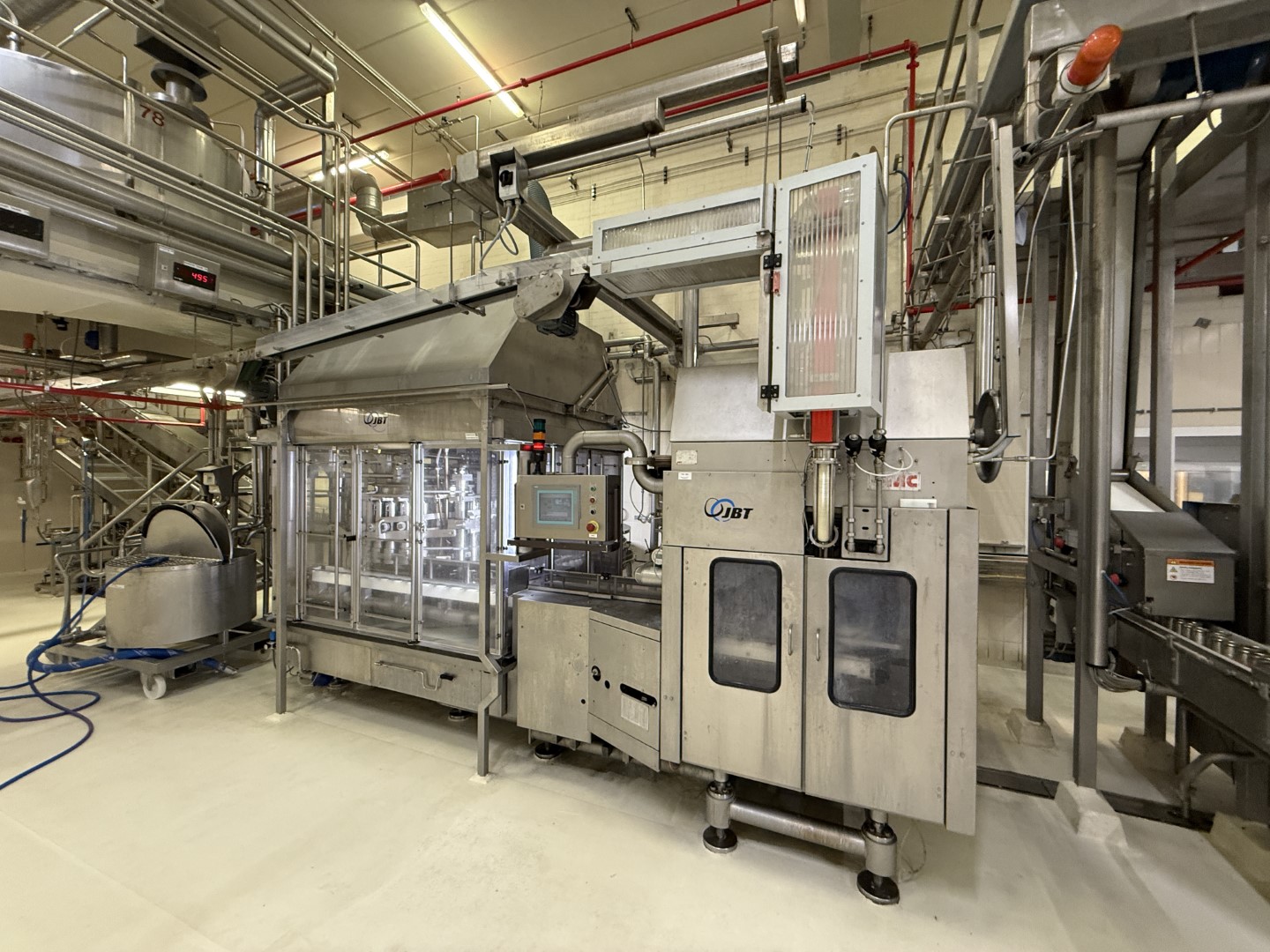

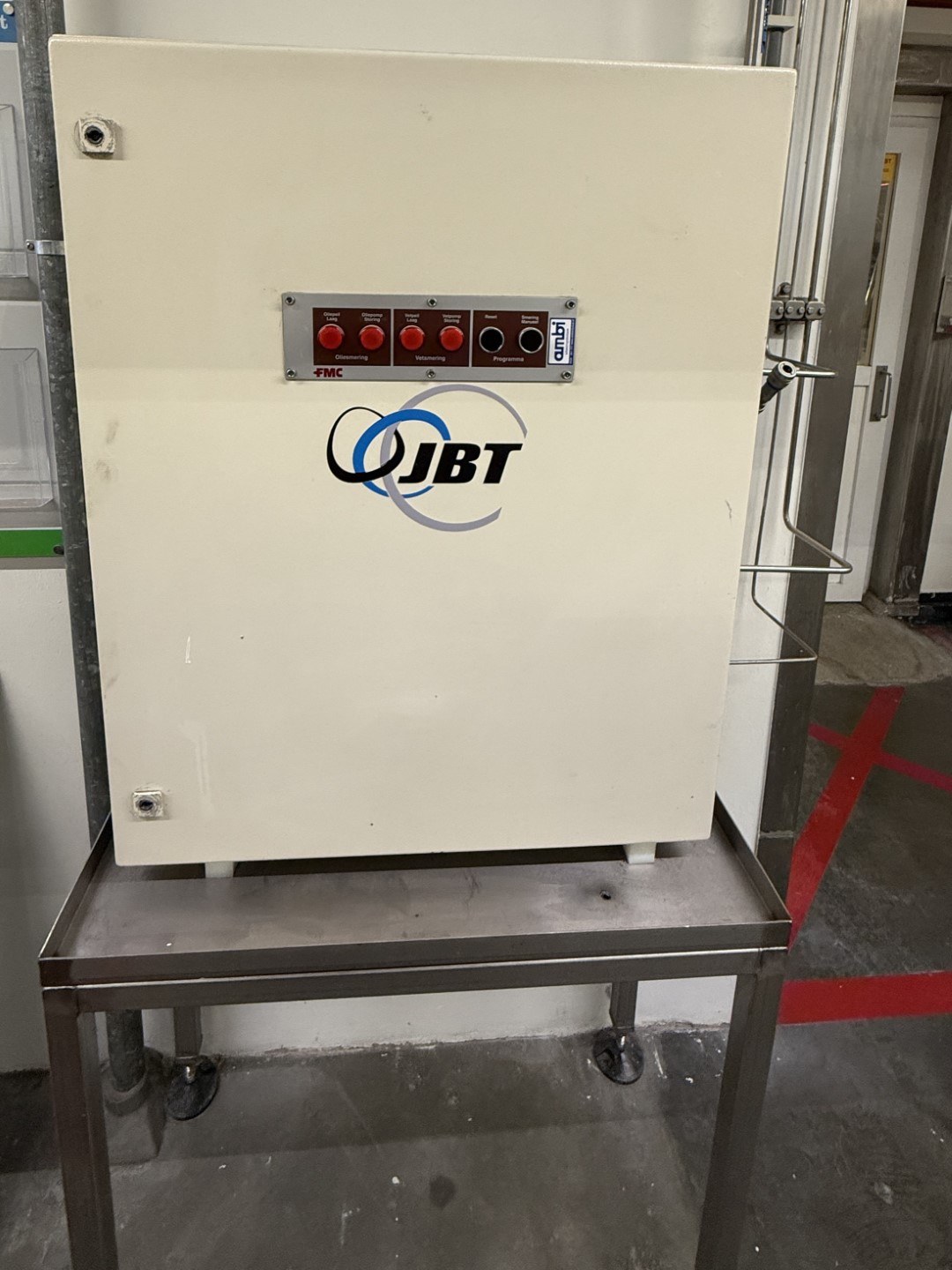

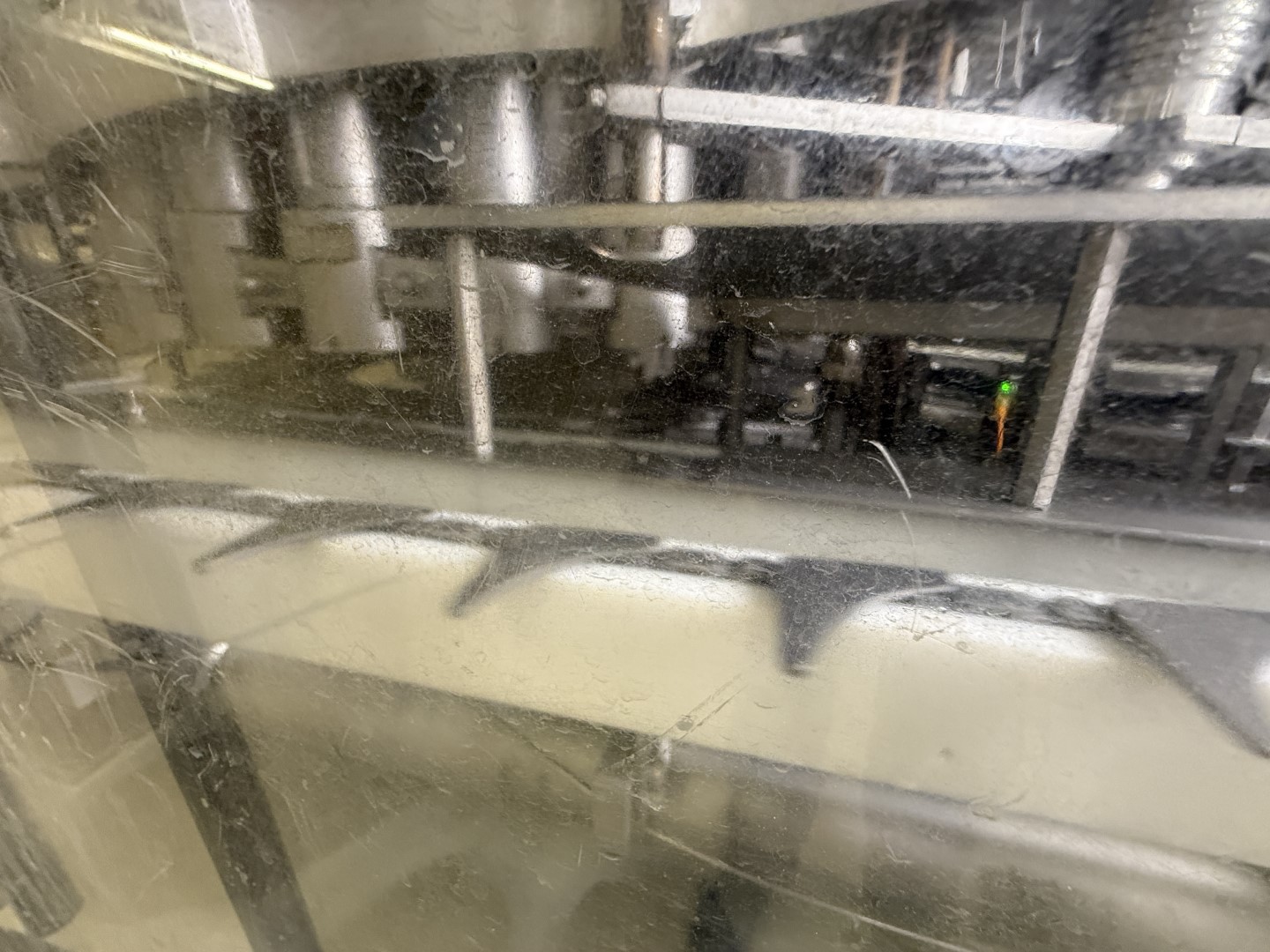

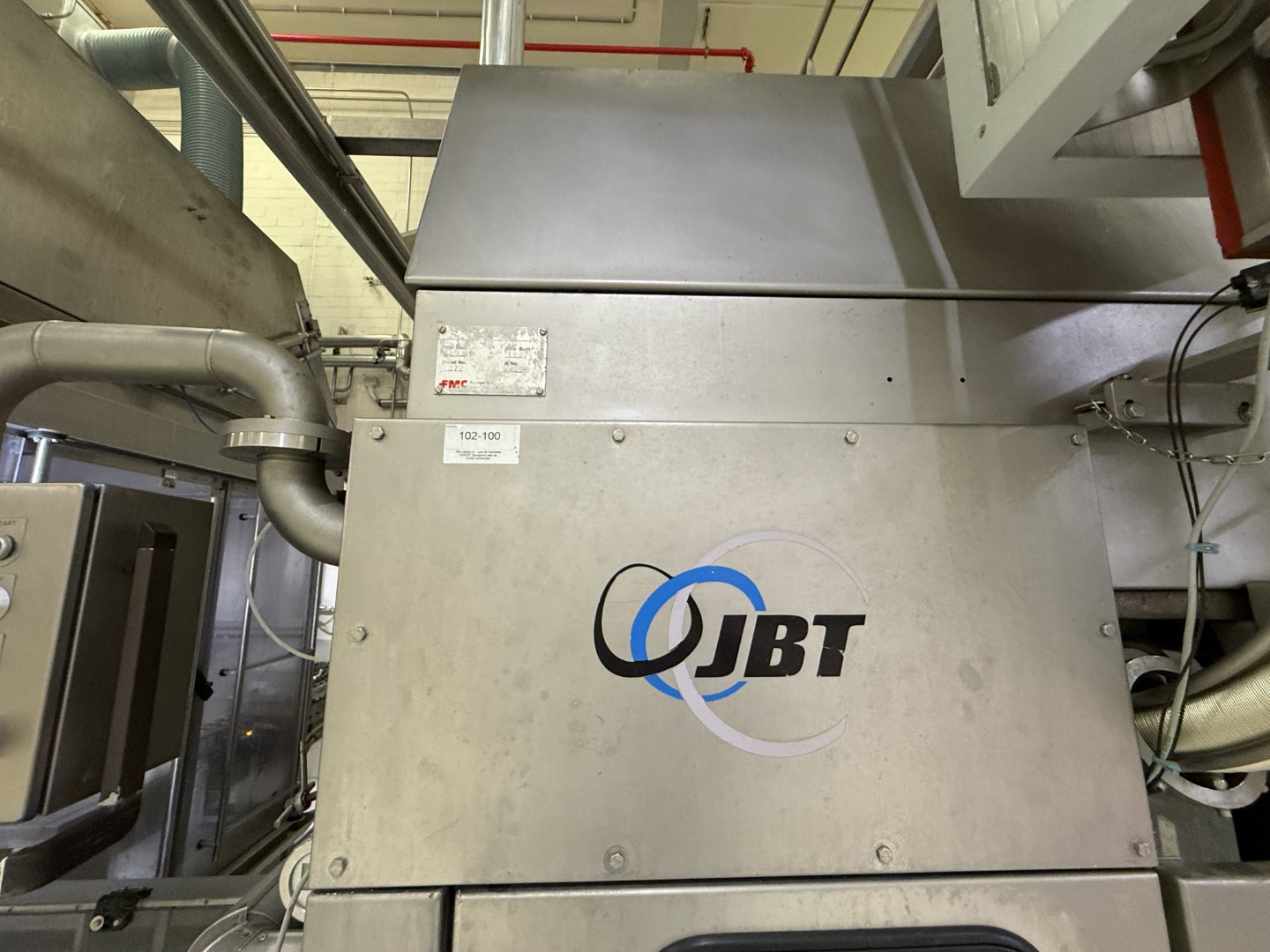

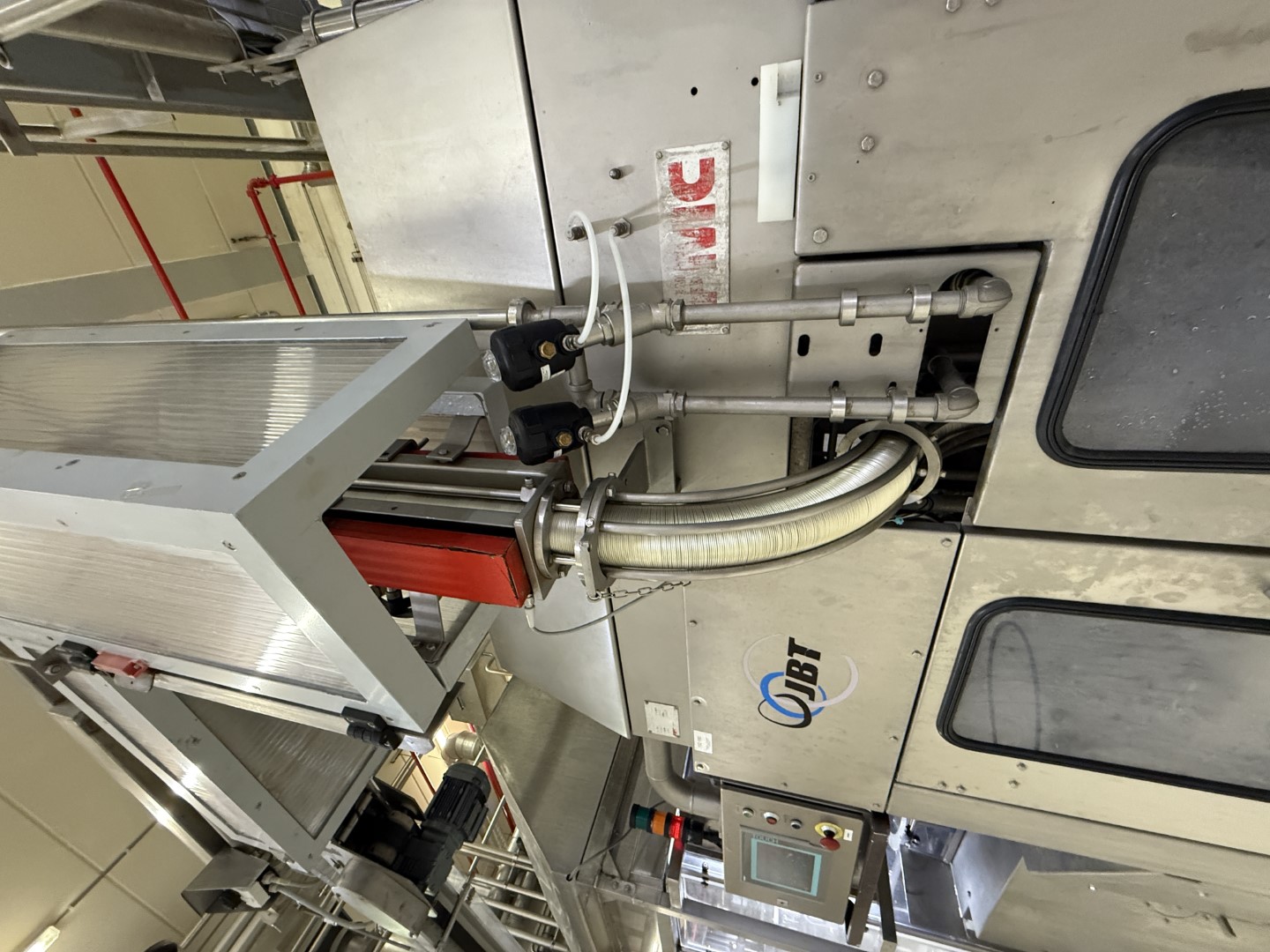

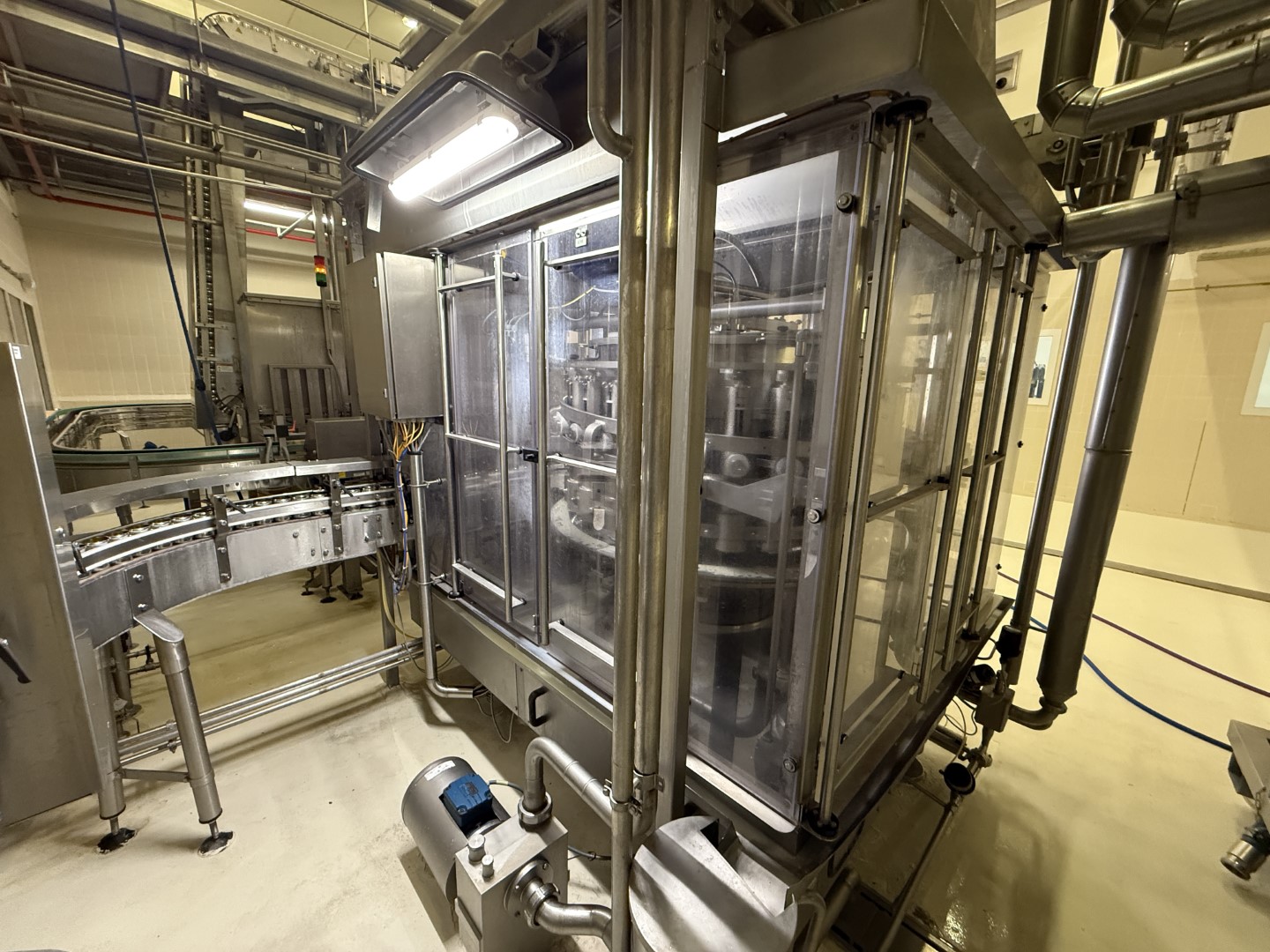

2.        Liquid nutrition filling machine with integrated can seemer.

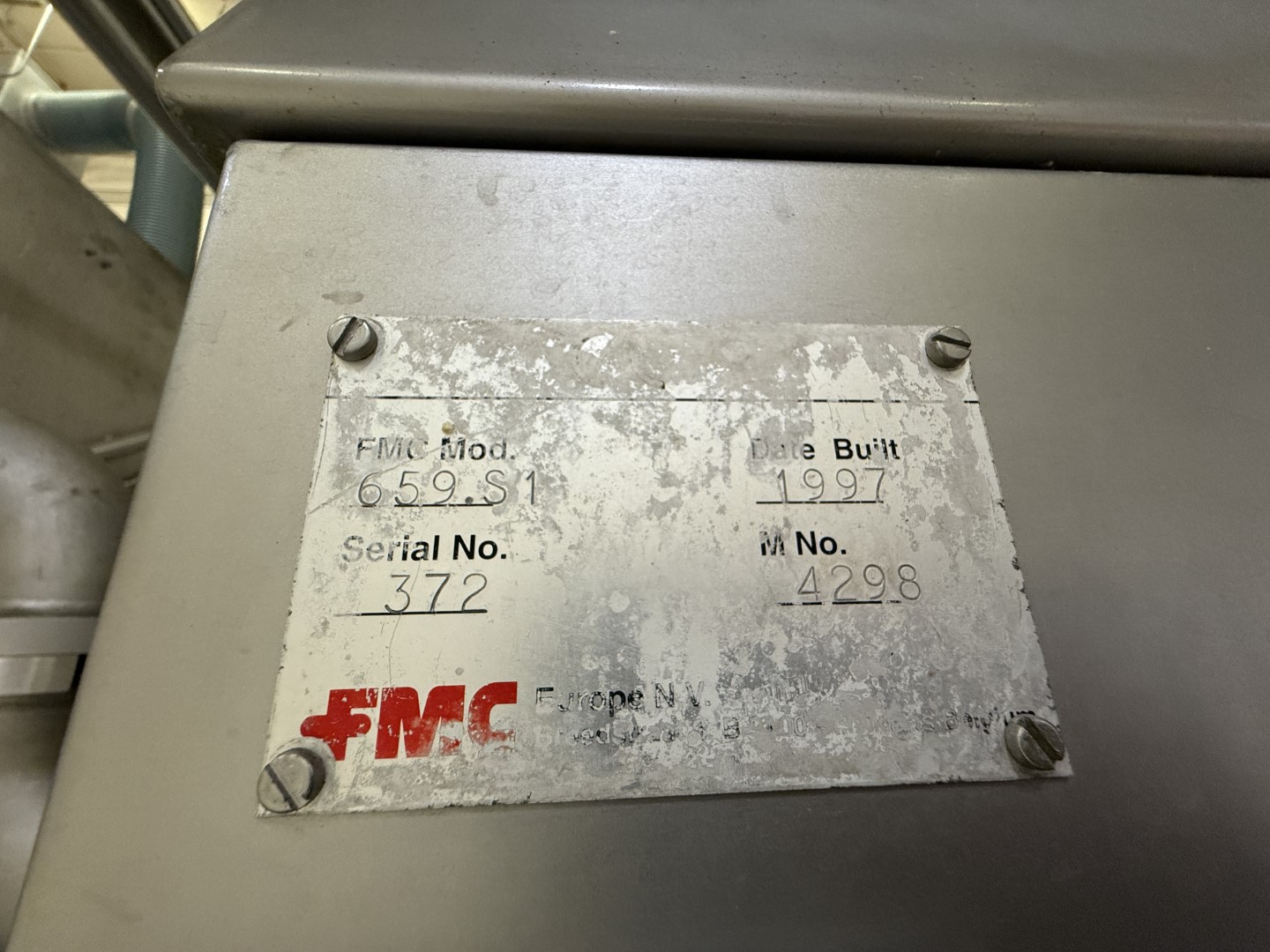

Manufacturer: JBT Stork / FMC

Machine type: Unifiller XLU.628.300CC / 659.S1

Serial number: 4298 / 372

Year: 1997

Power: 400 V – 50 Hz

Capacity: up to 500 cans per minute

Dimensions: ± 600 x 250 x 300 cm

Weight: ± 7.500 kg

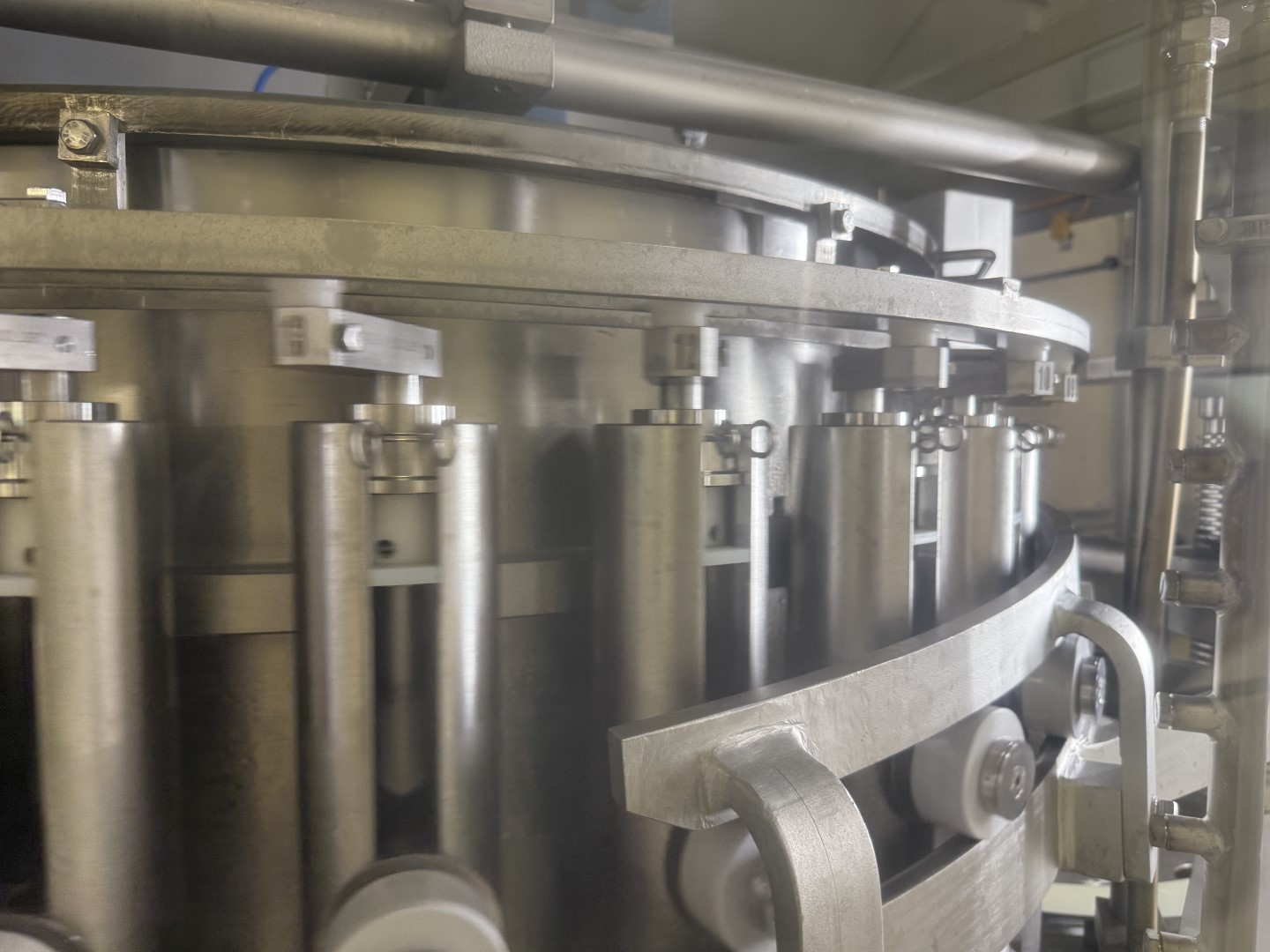

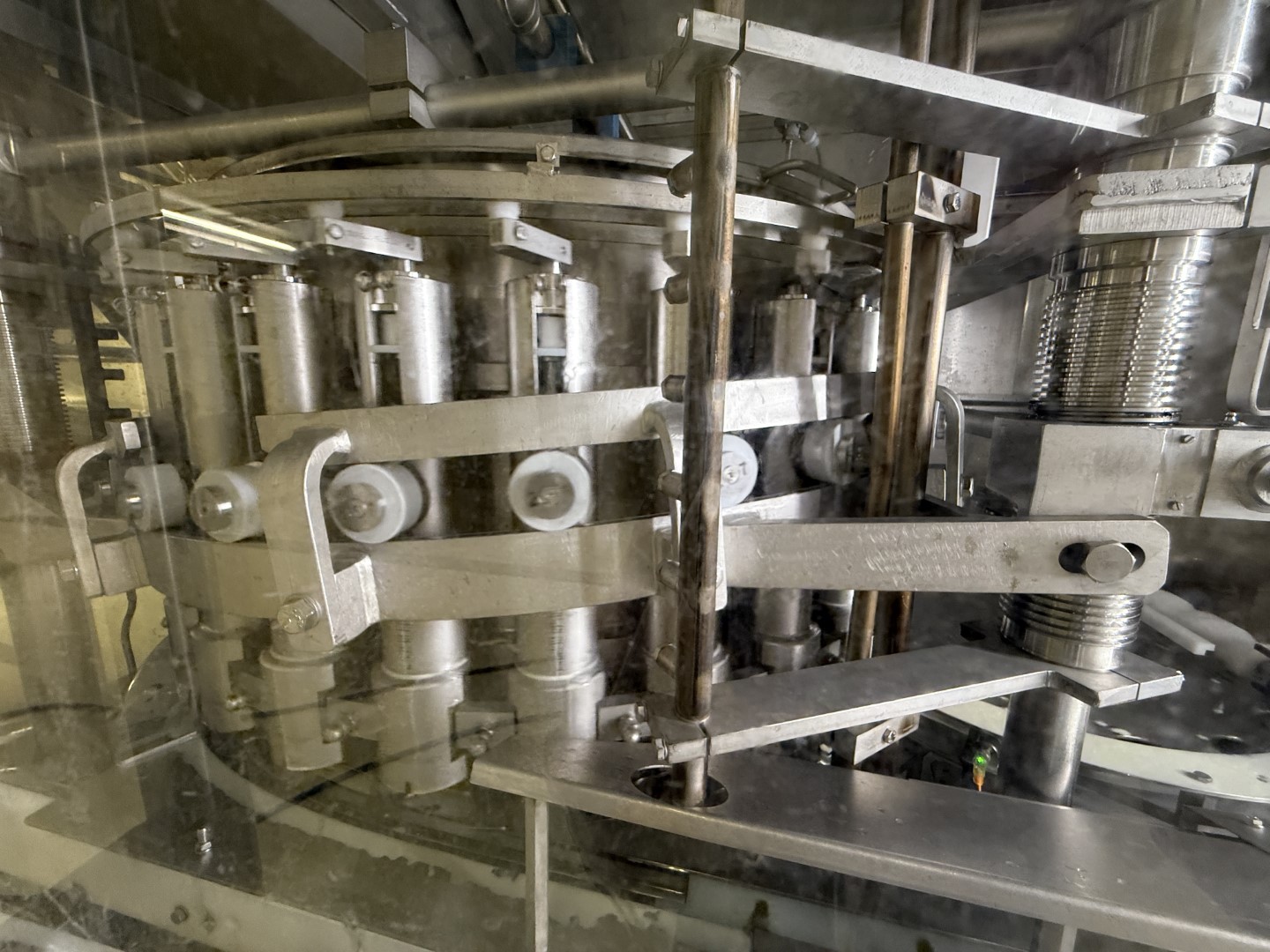

24-Head piston filler for liquid nutrition.

8-Head seemer.

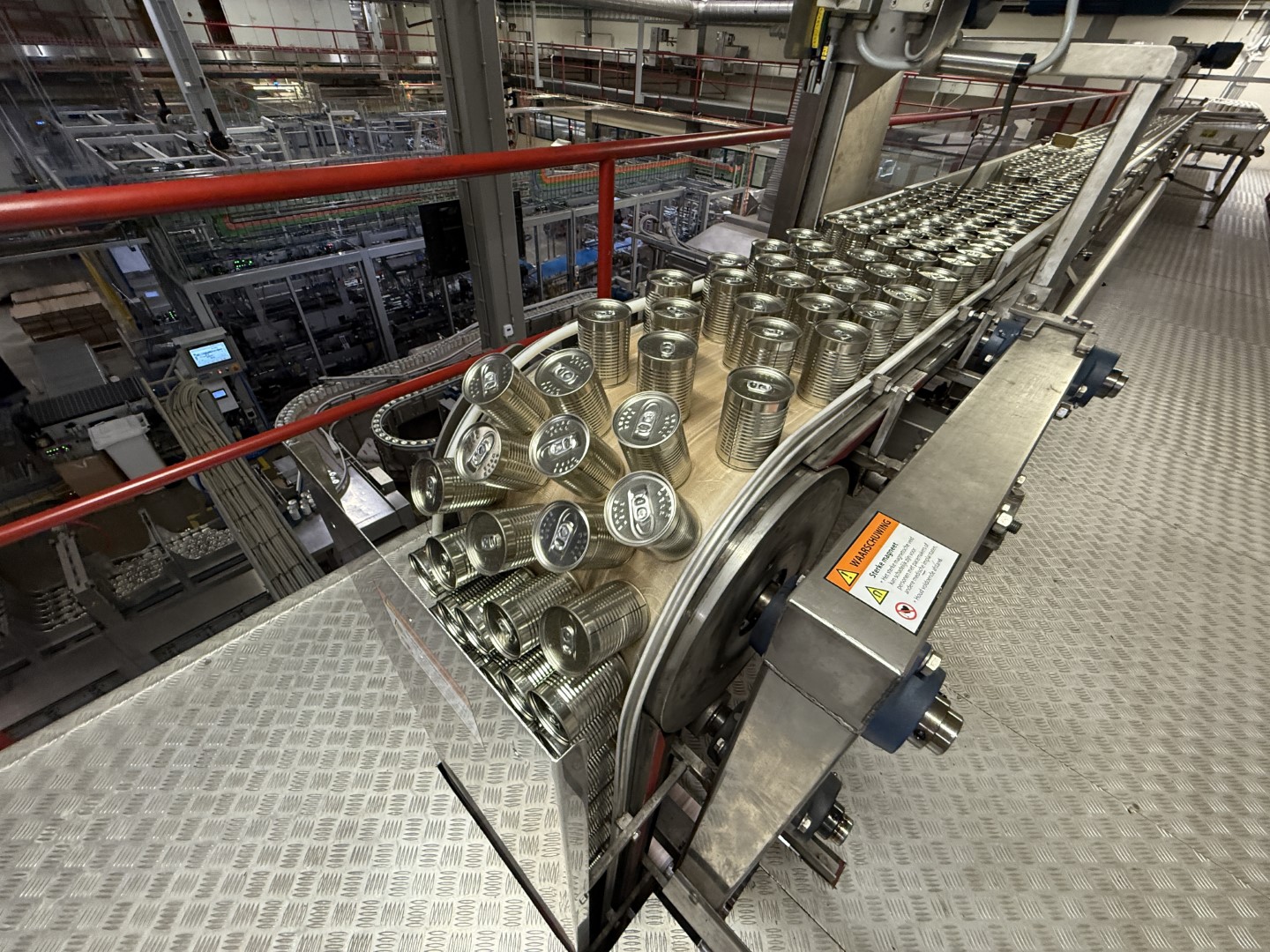

Conveyor feeding system for the empty cans with can turner / rinser.

Feeding system for the lids to the seeming station.

Conveyor outgoing system for the filled cans.

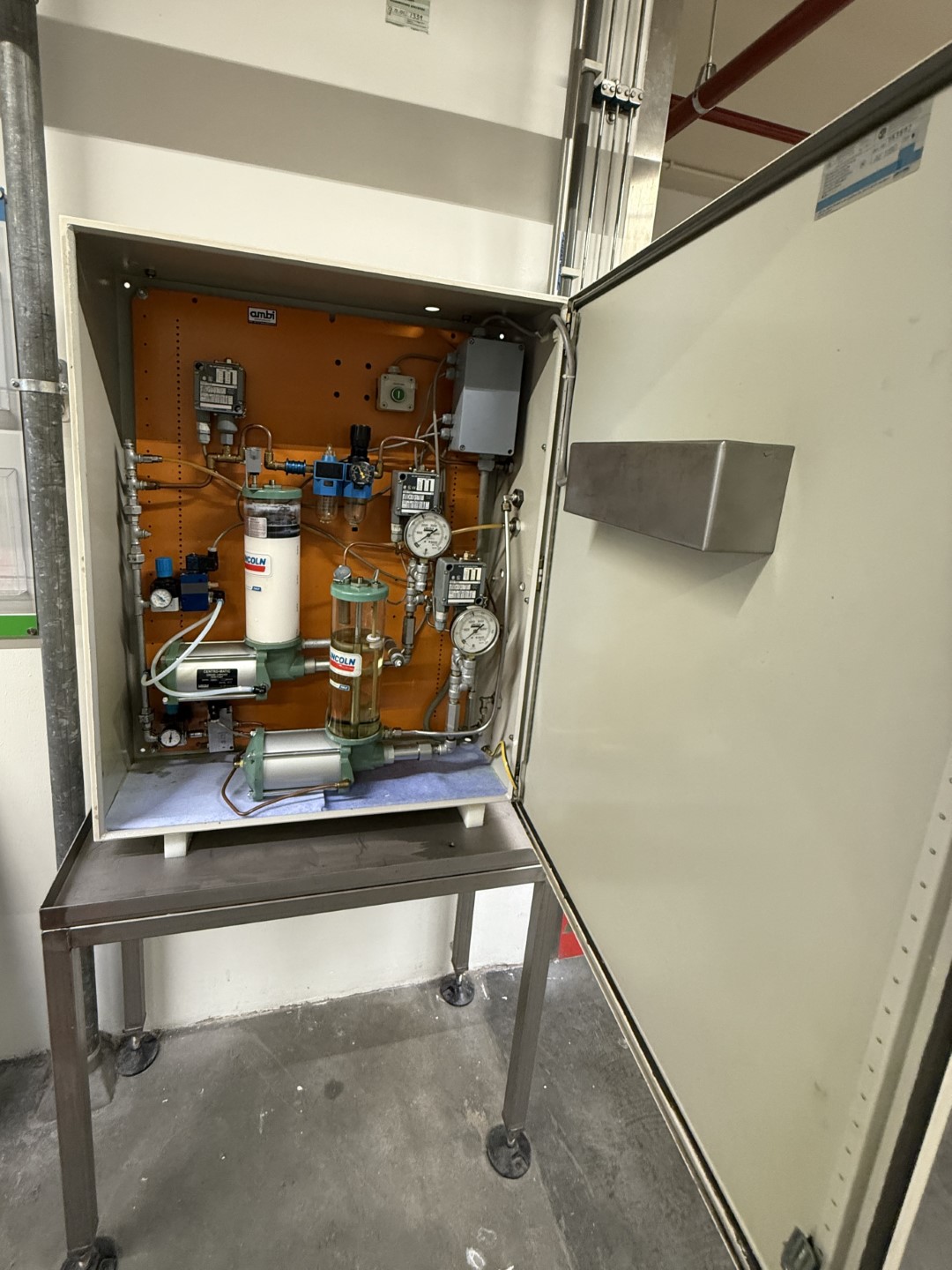

Greasing system.

CIP cleaning system.

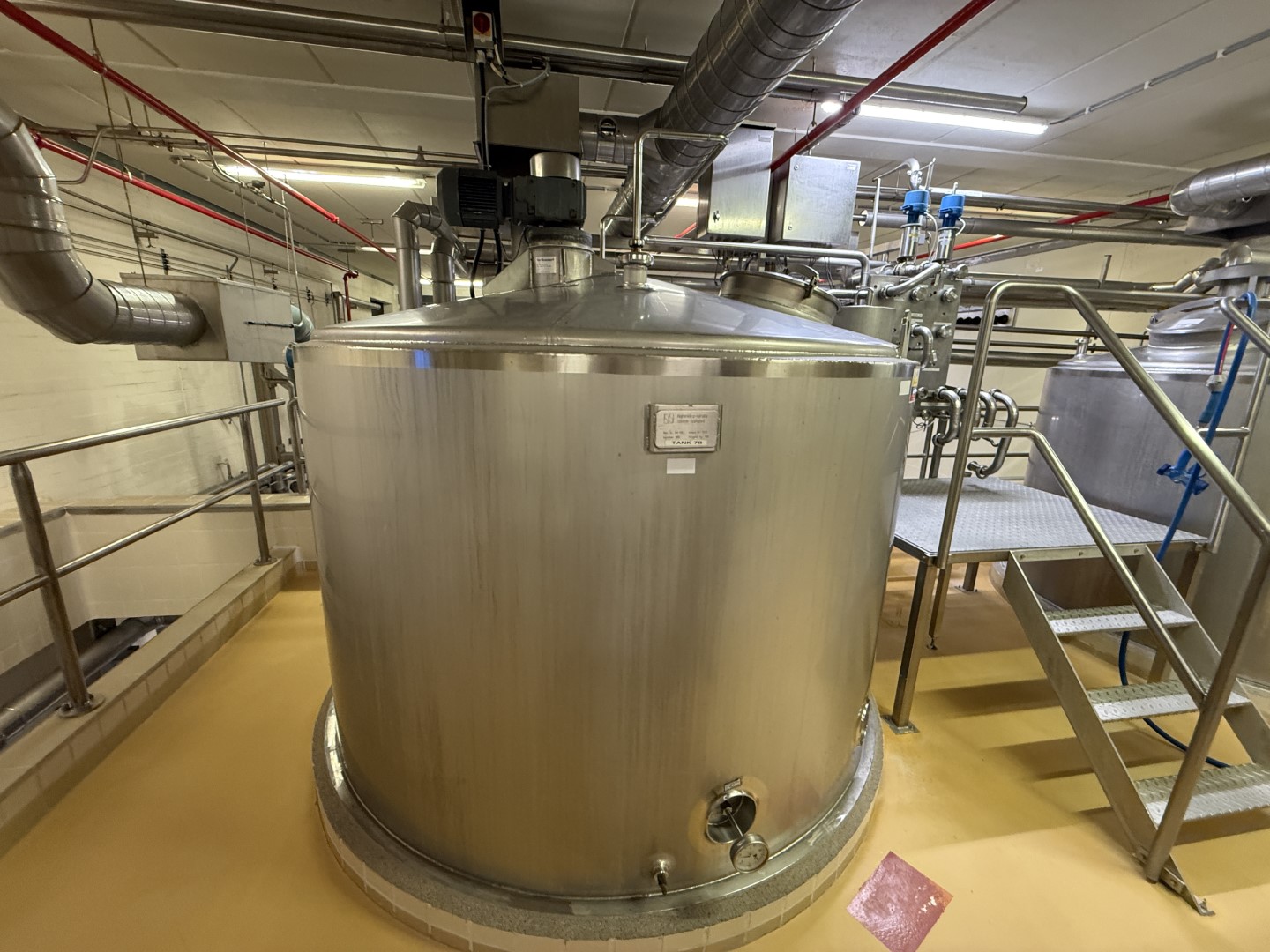

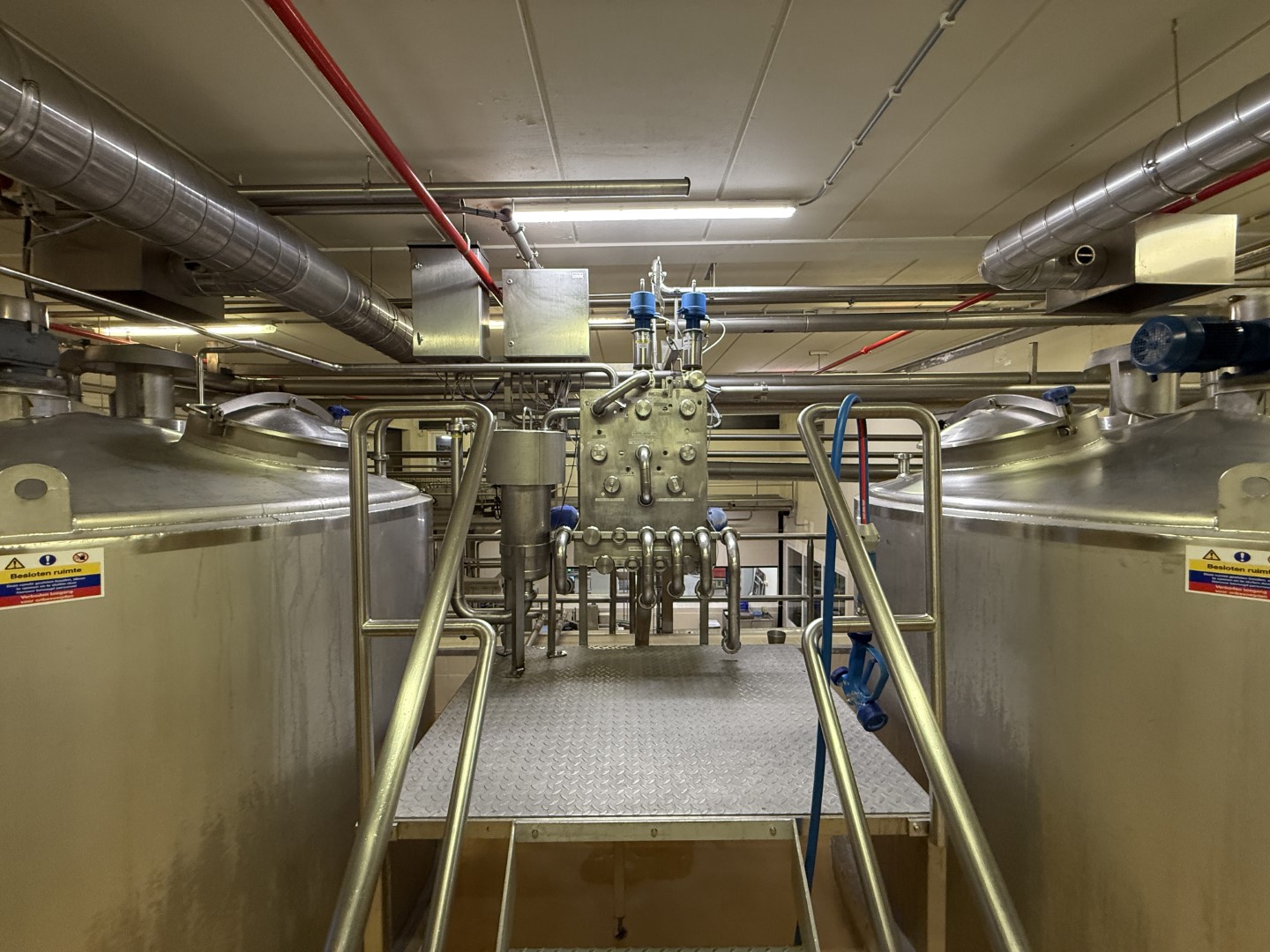

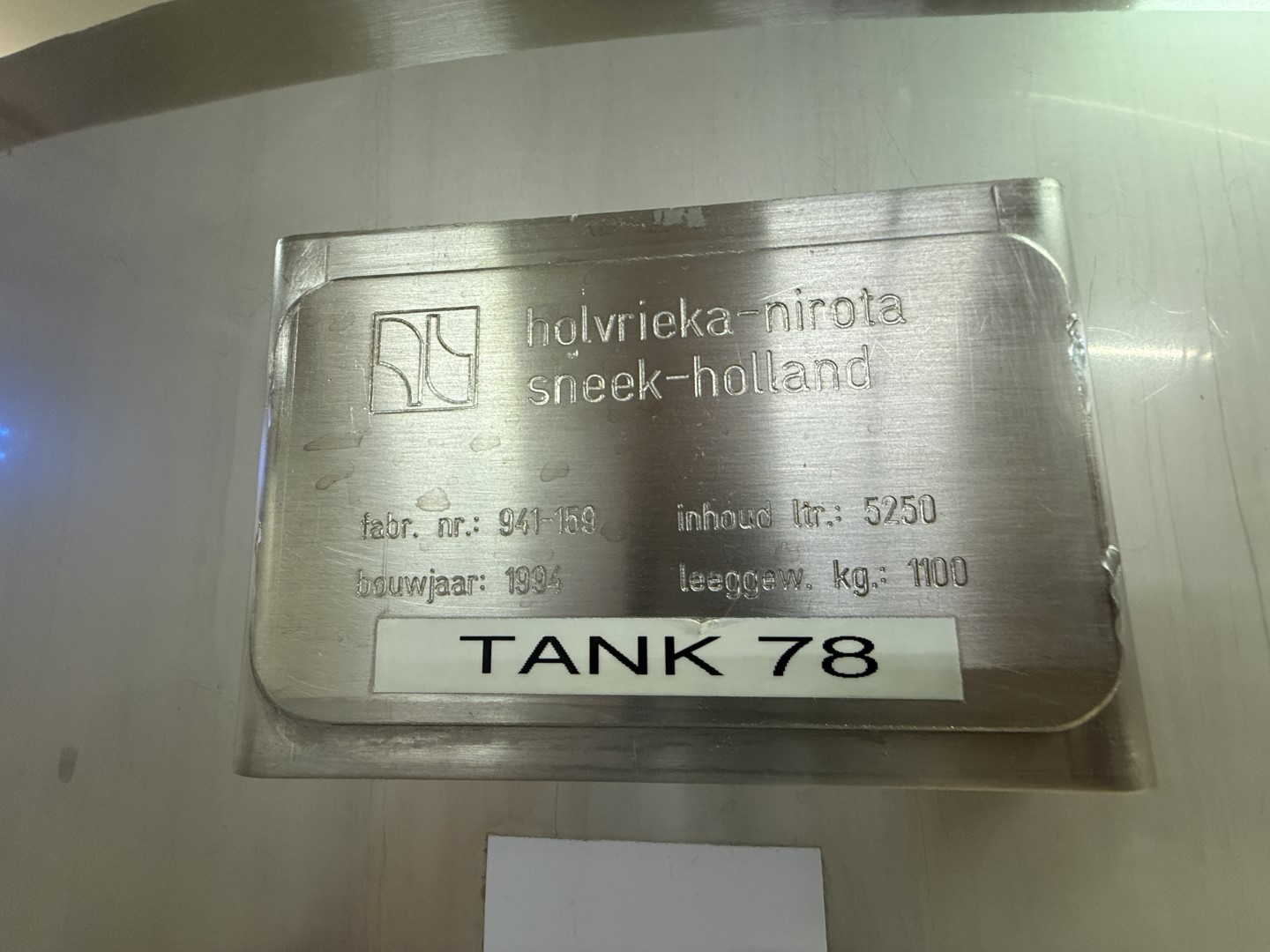

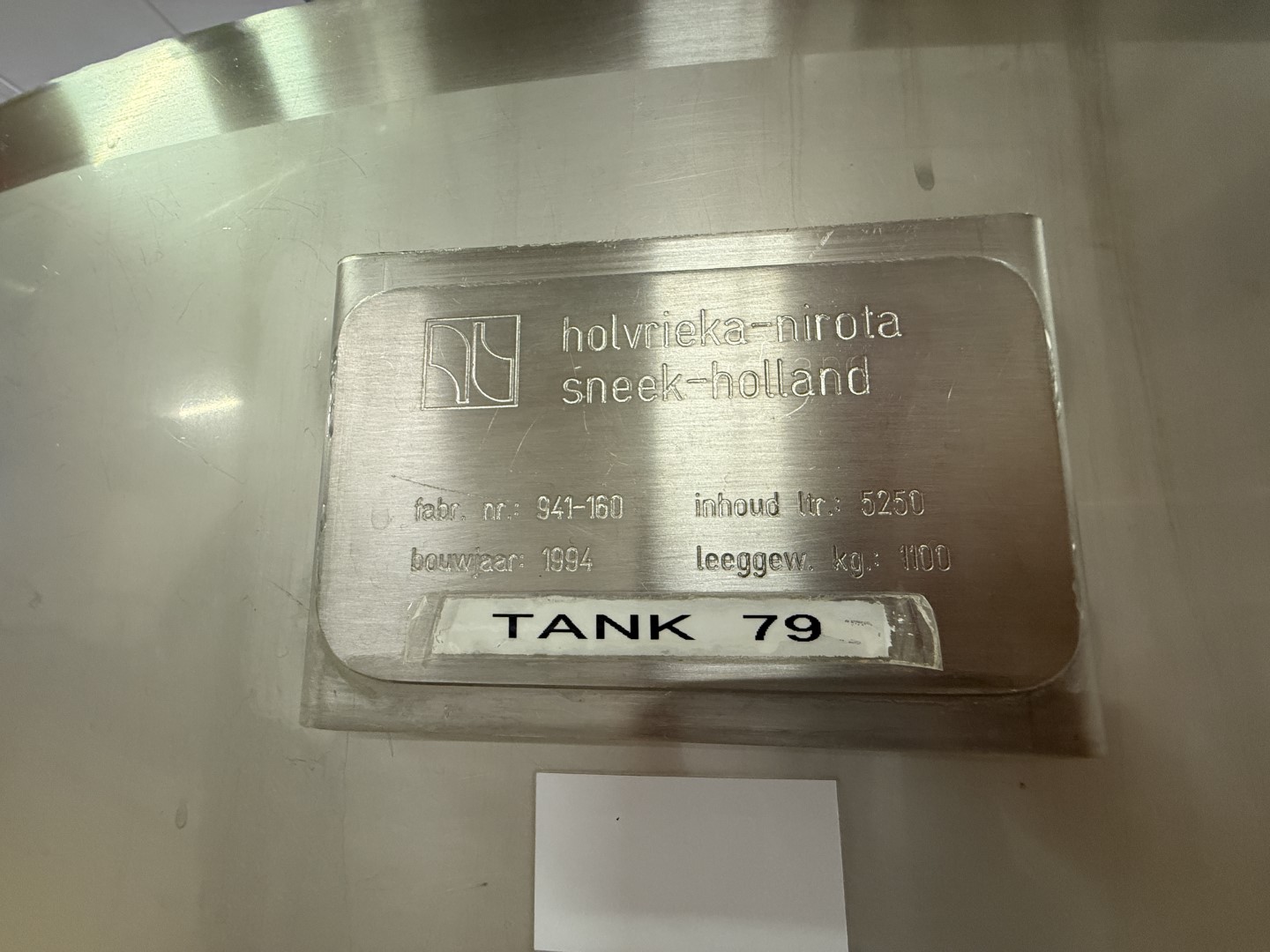

3. 2x Ready product tanks, hanging.

Manufacturer: Holvrieka

Volume: 5.250 liter / each

Serial number: 941-159 / 941-160

Year: 1994

With agitator, manhole and interconnecting valves.

Without legs

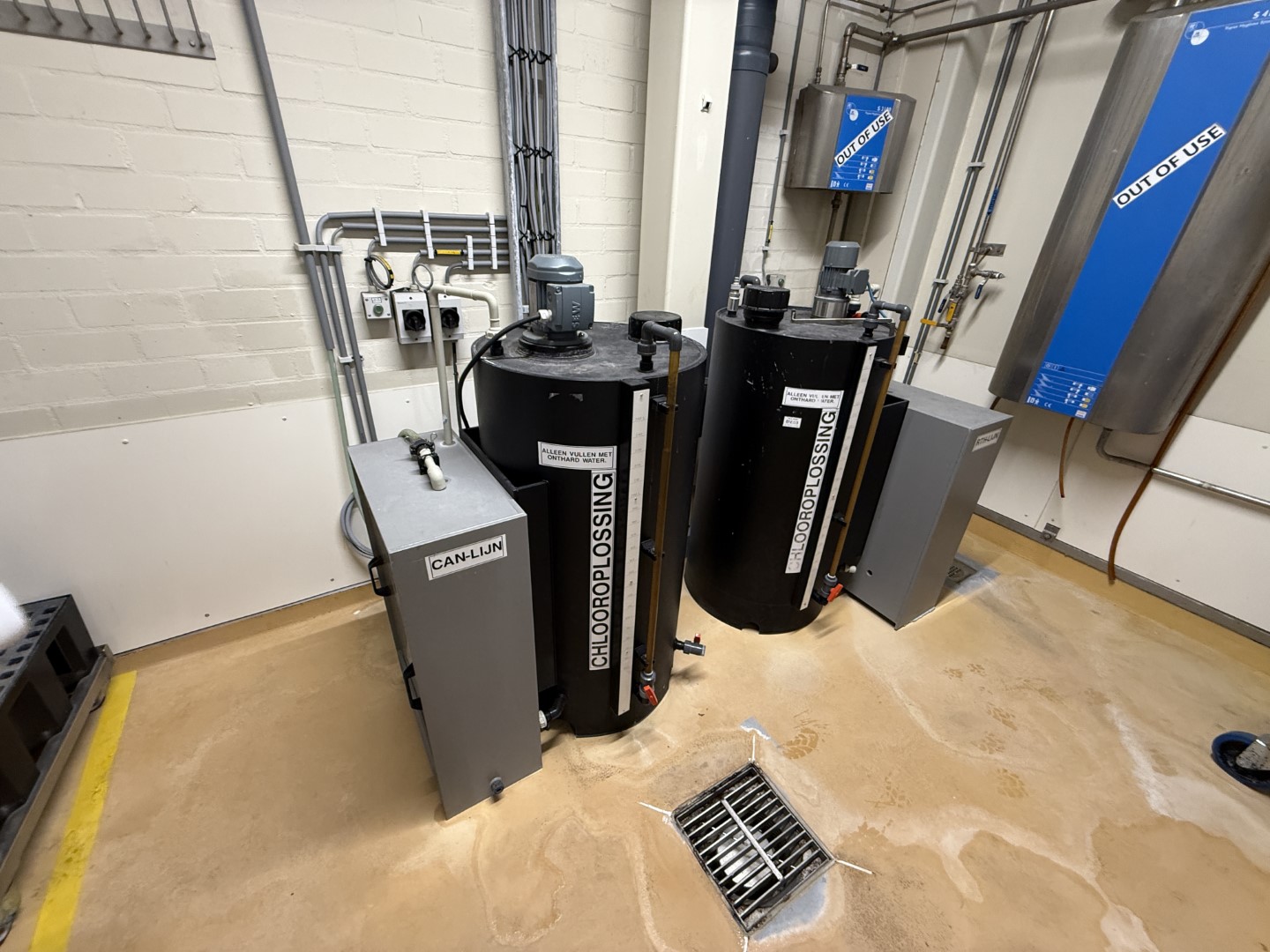

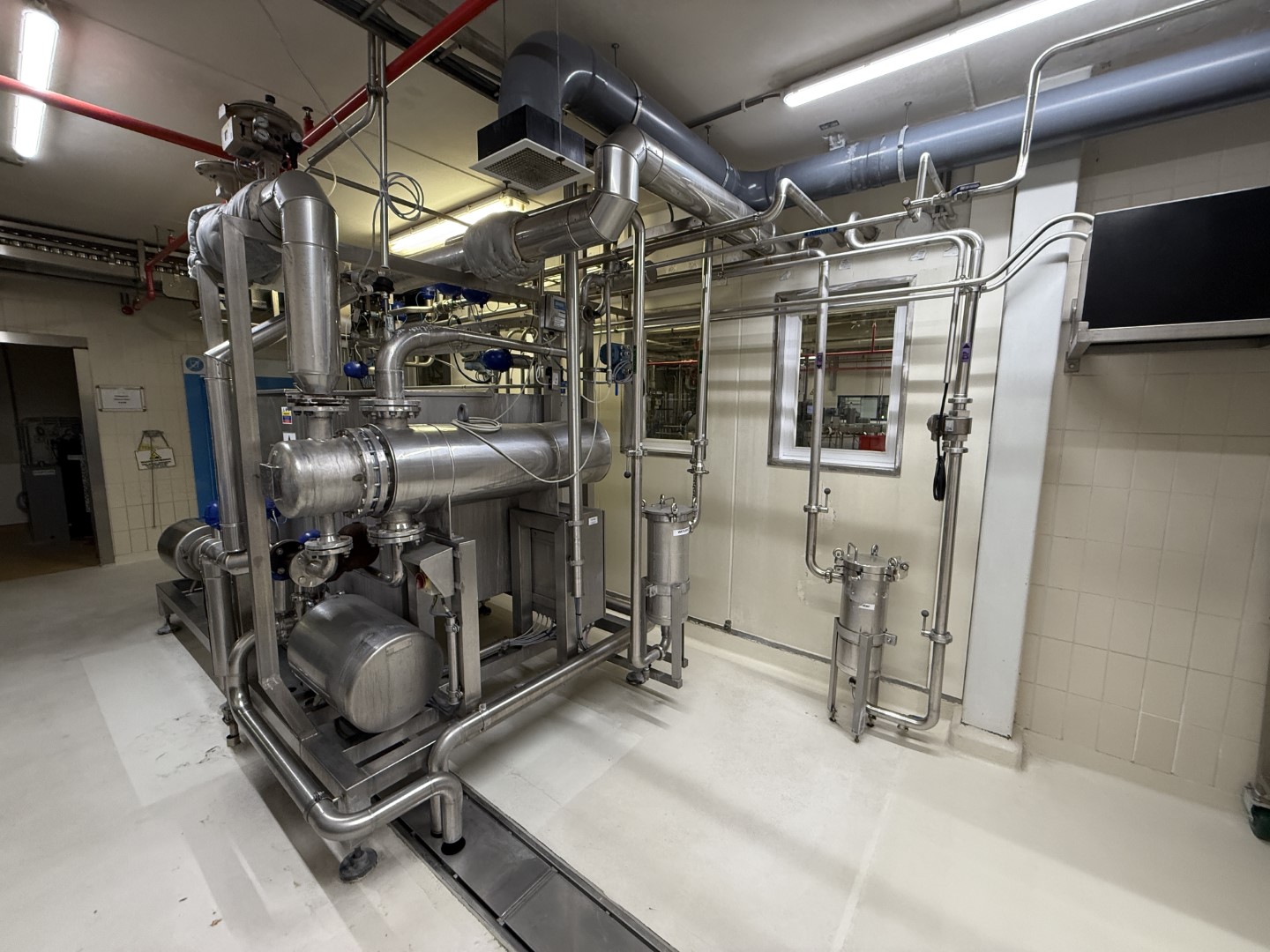

4. NovoTraqua water treatment system.

Manufacturer: Fa. Heiler / CZ-33601

Identify: BETZ CDS7000 Co.

Max. working temp: <= 30°C

Max. filling level: 88% = 4840 mm

Max. volume flow: 25 m3/h

Tank material: PE-HD

Including 8x dosing pumps.

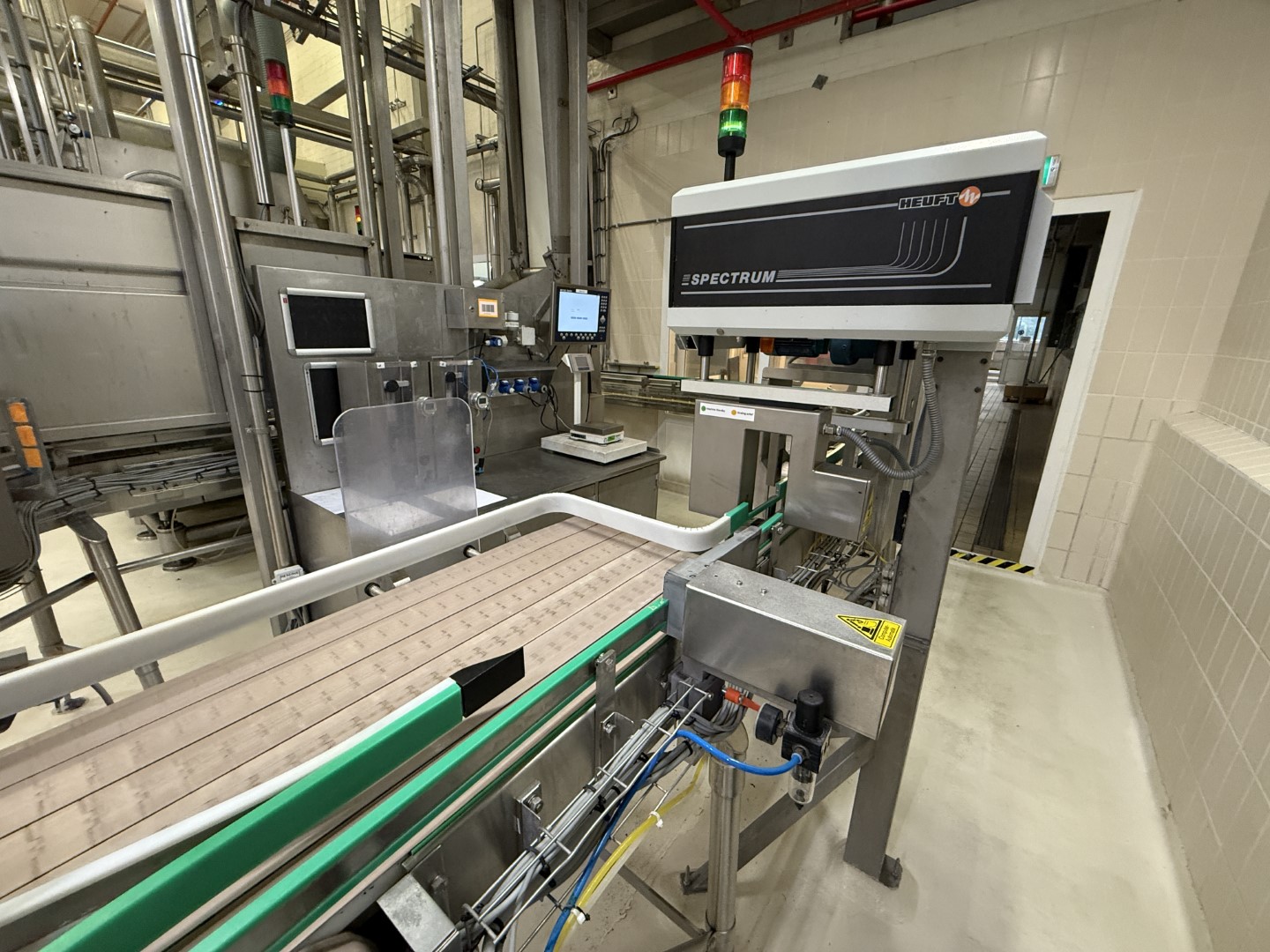

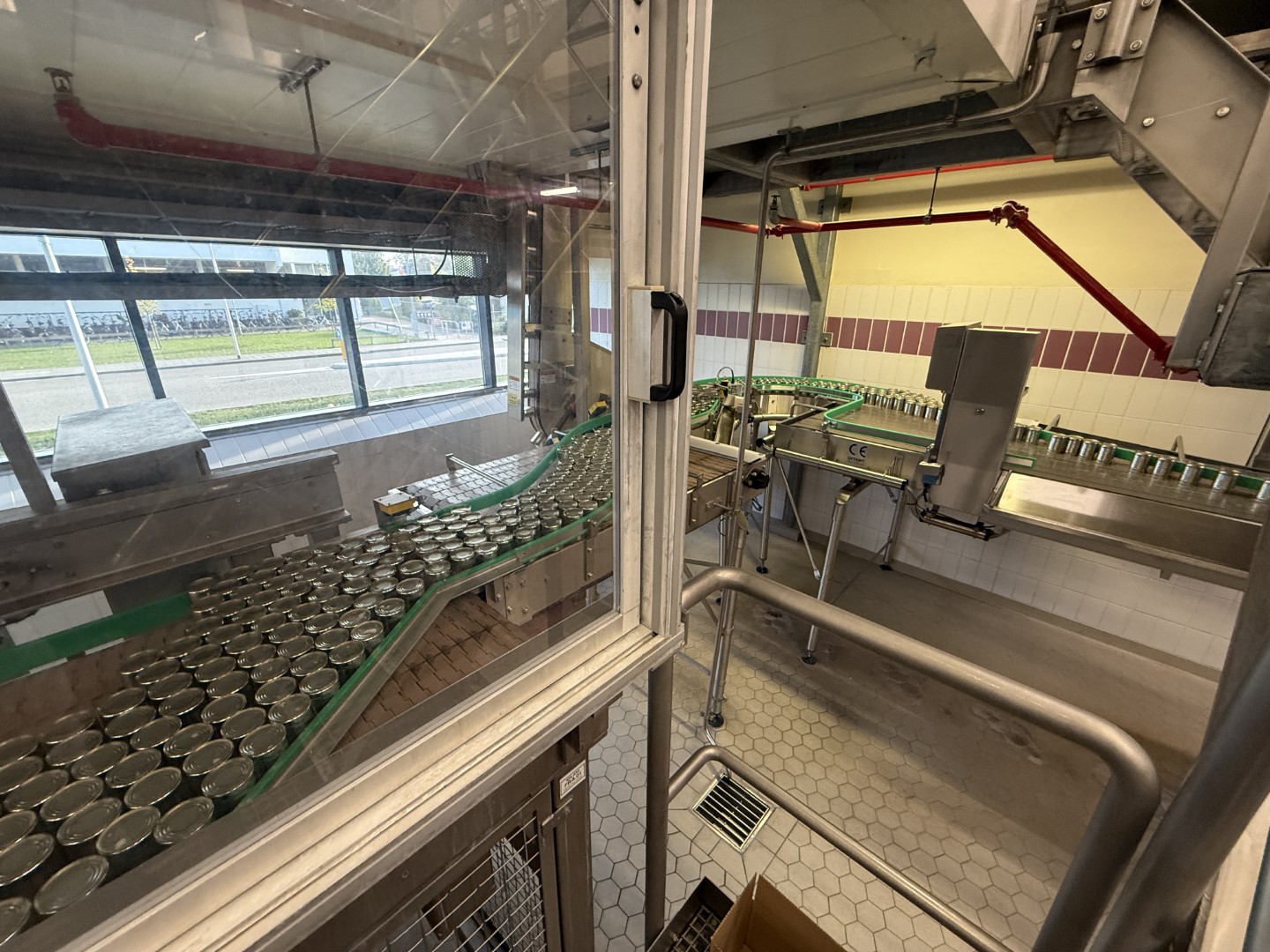

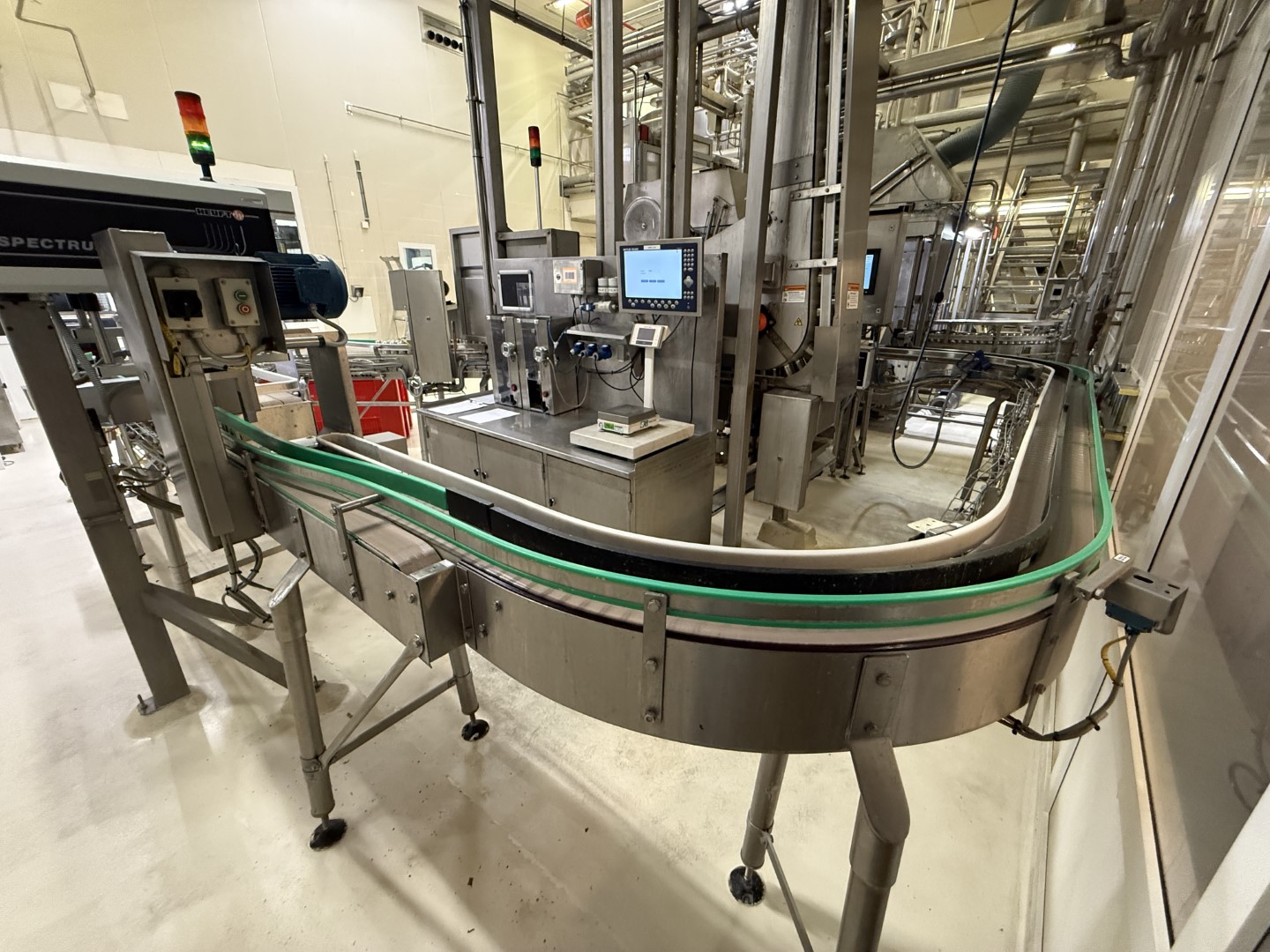

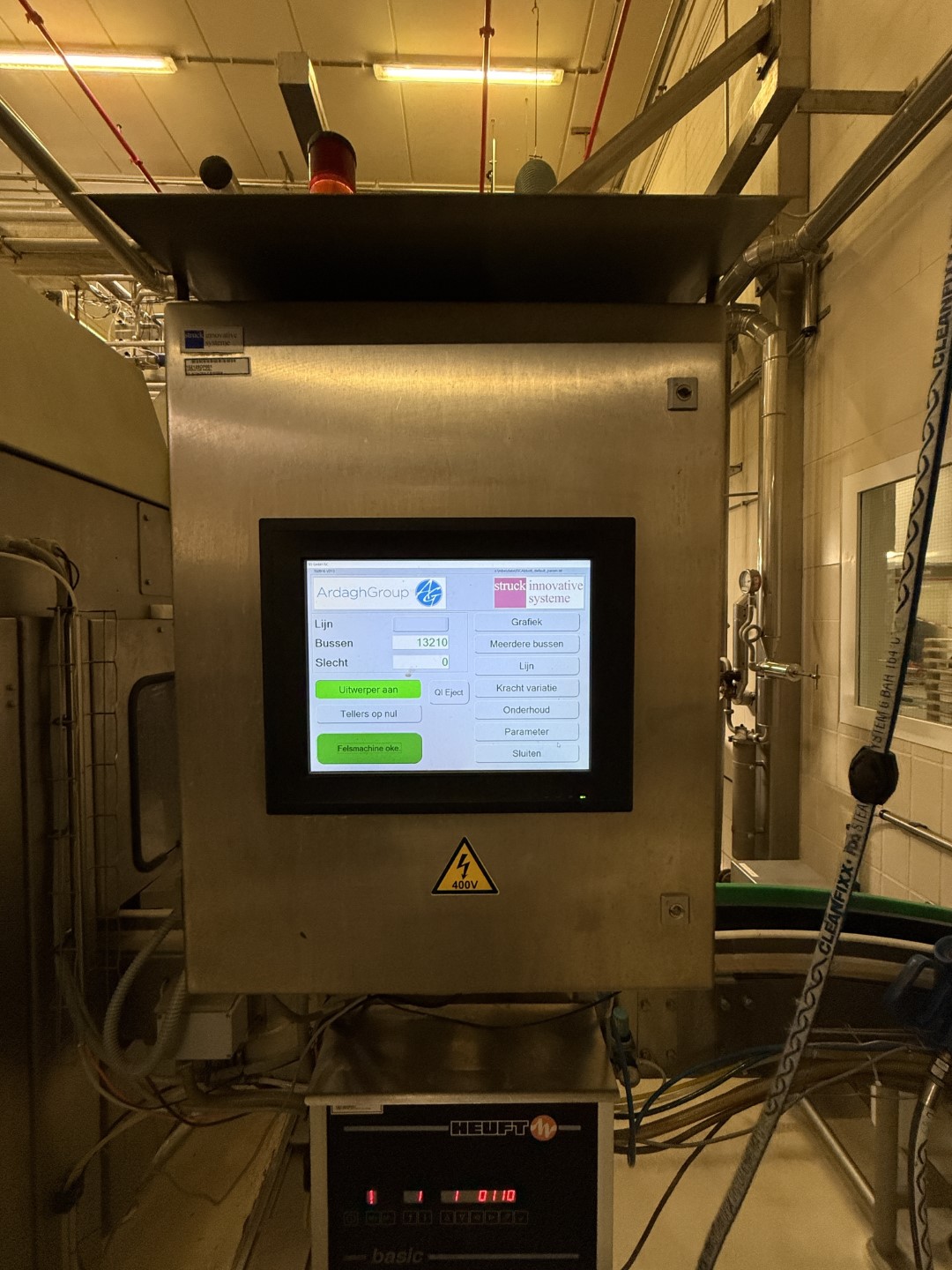

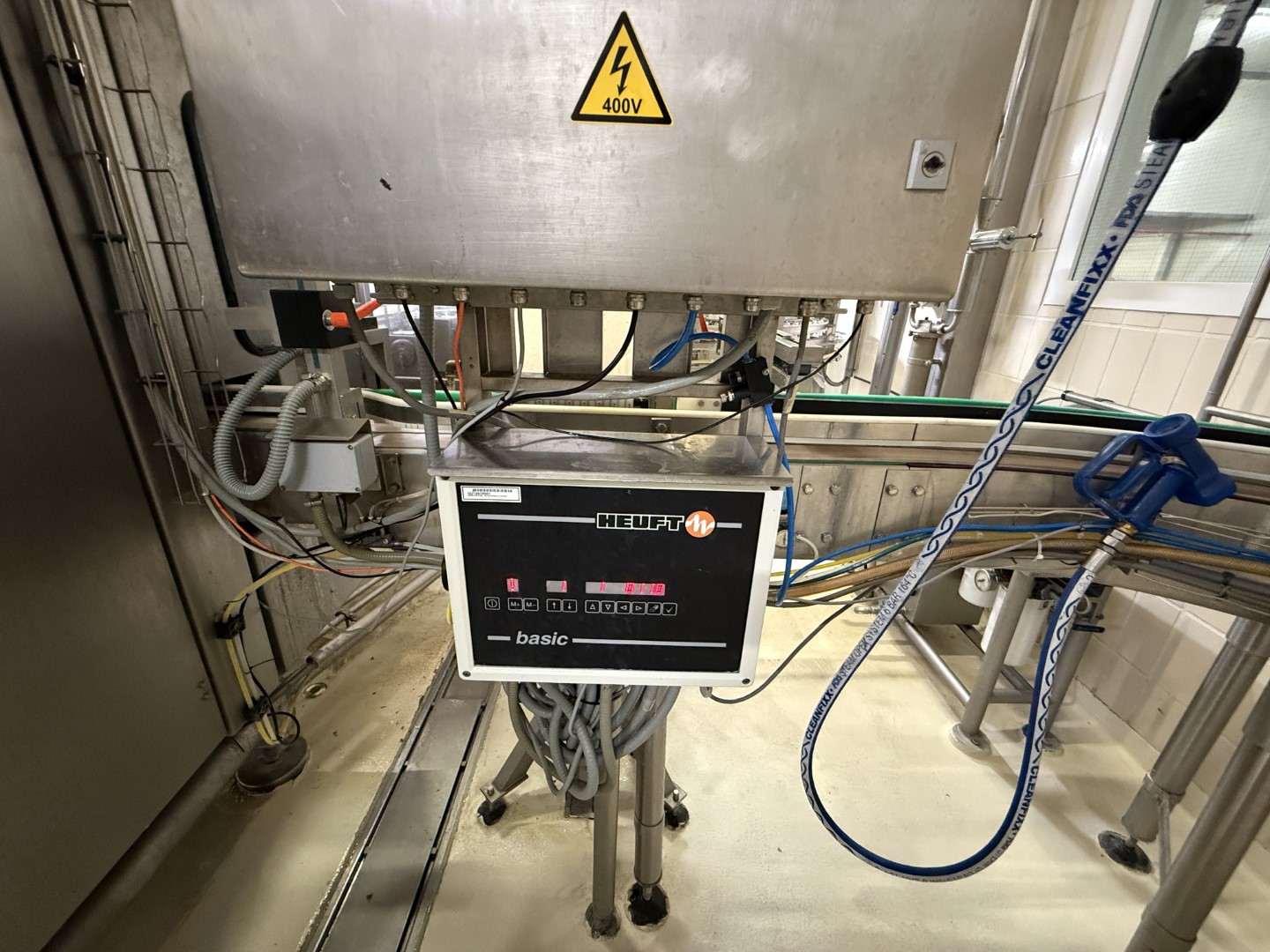

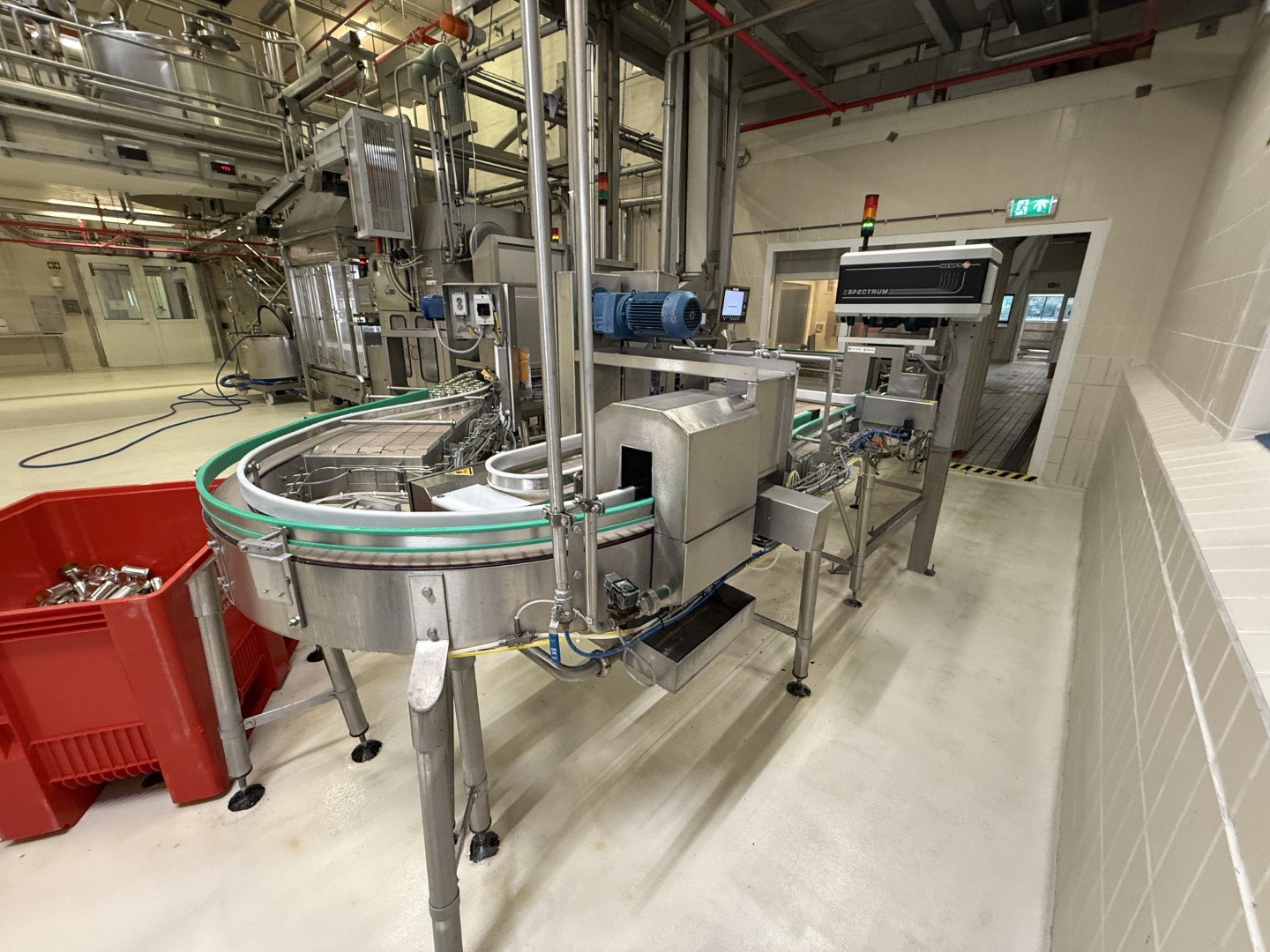

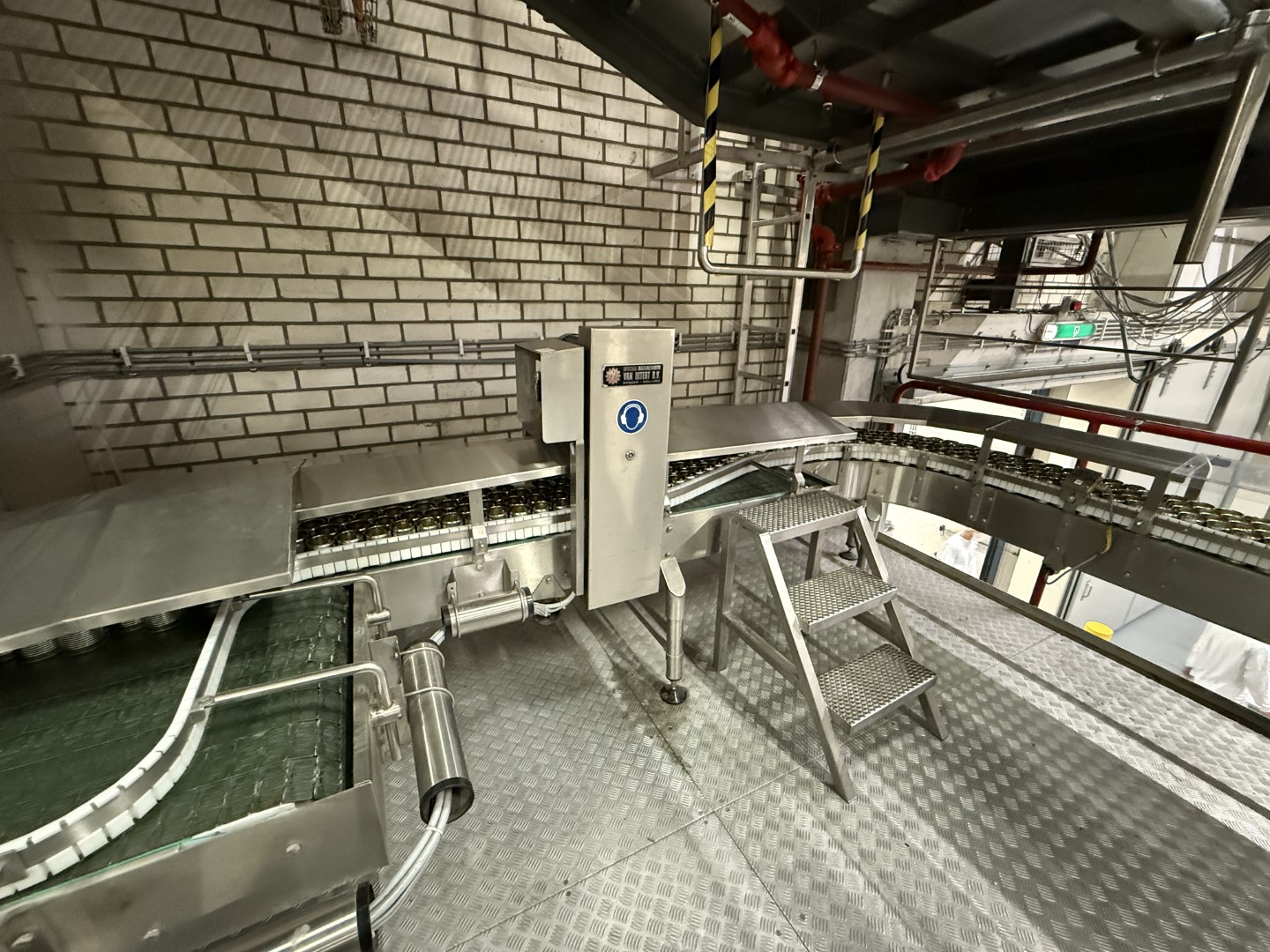

5. Can inspection systems with ejector

Manufacturer: Struck Innovative Systeme / Heuft

Excluding manual pressure tester and manual weighing scale.

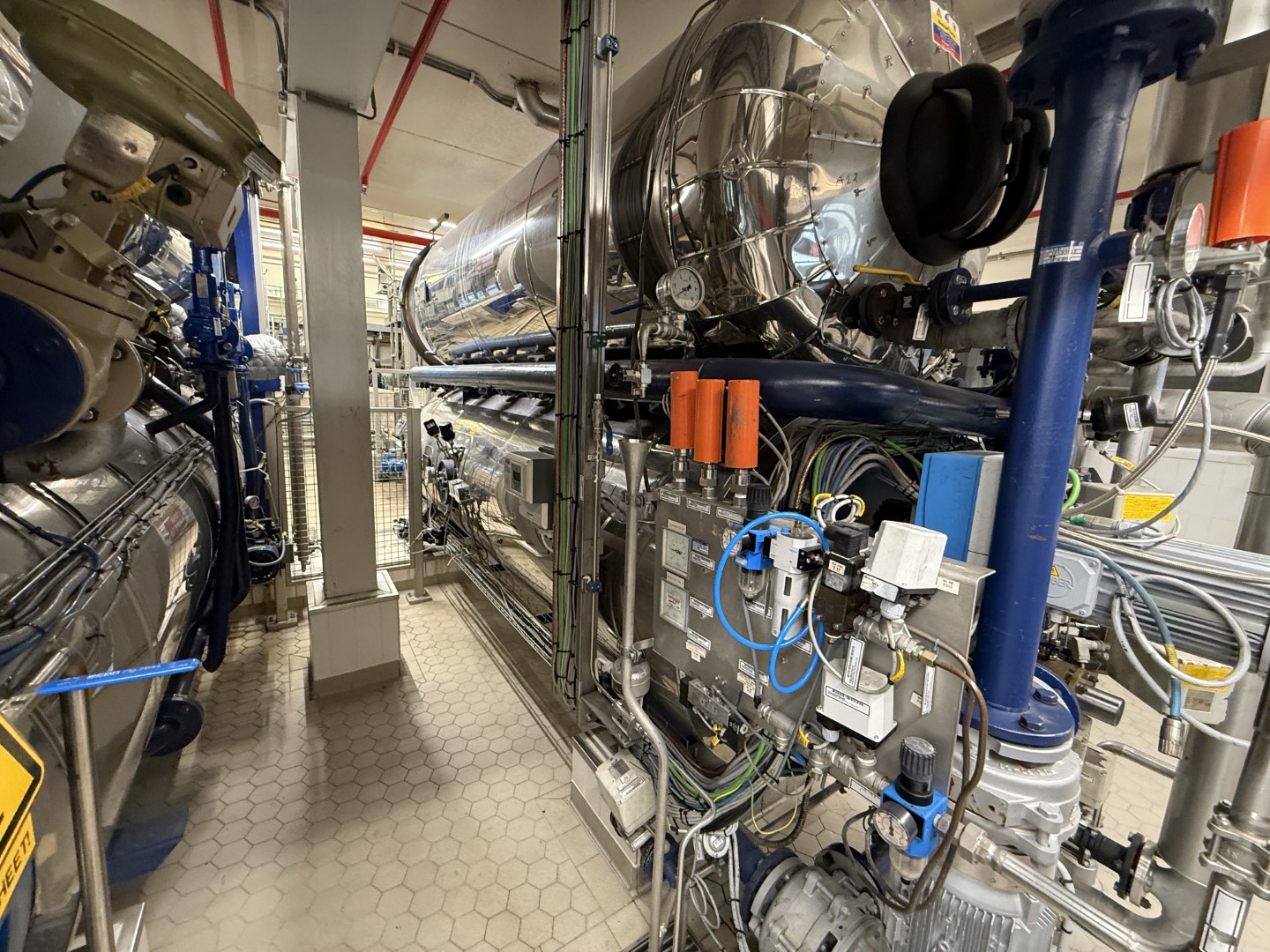

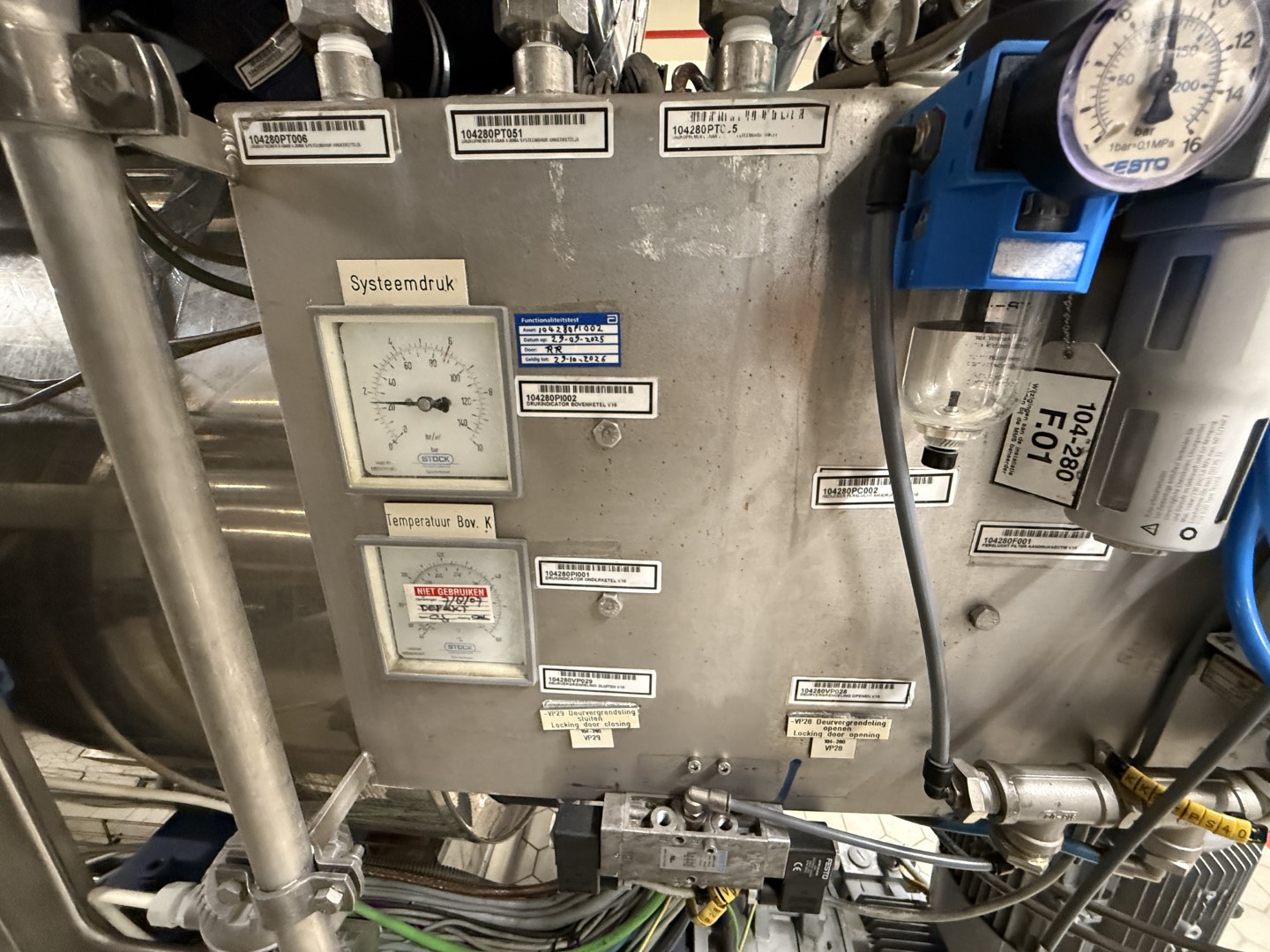

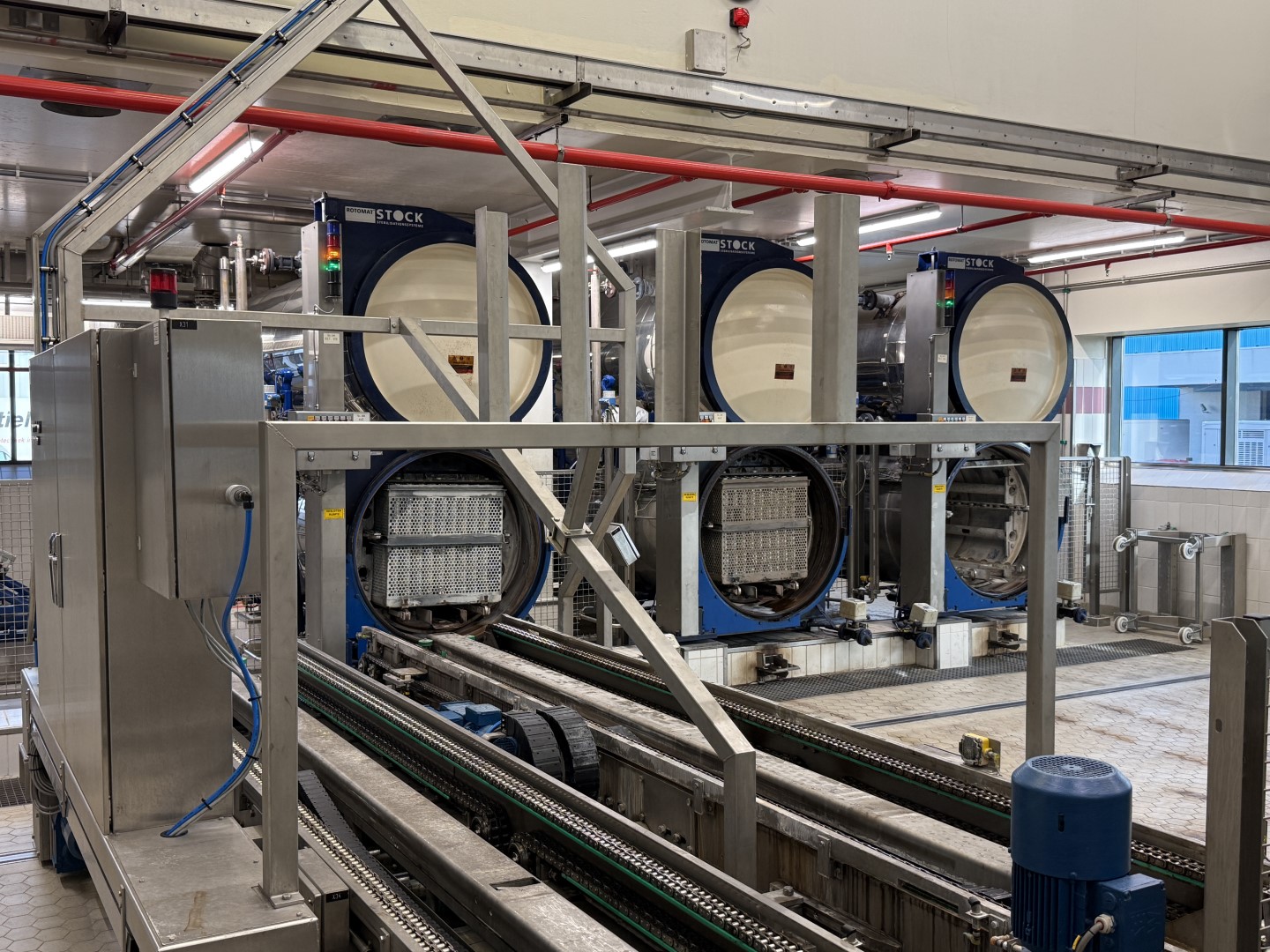

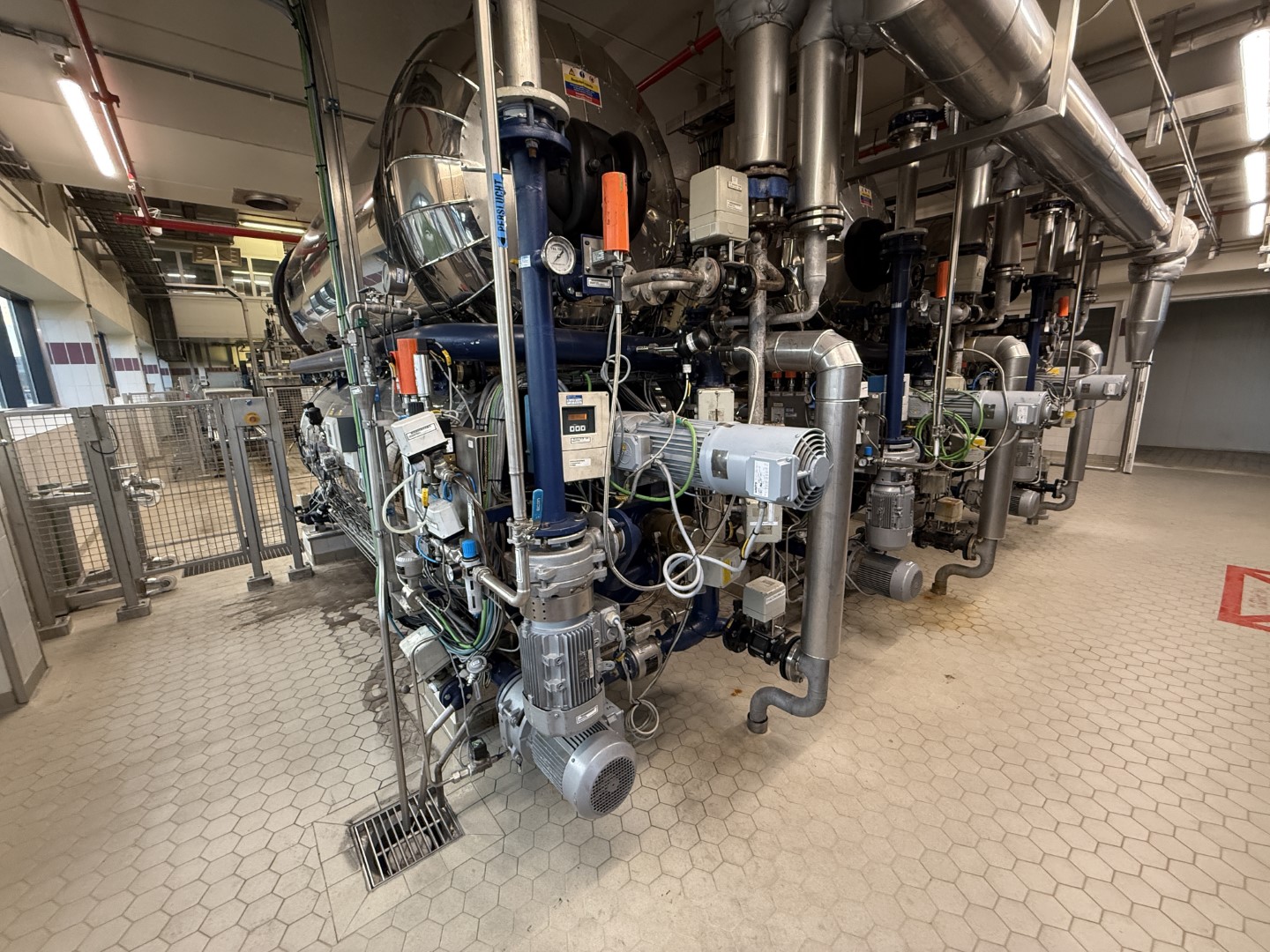

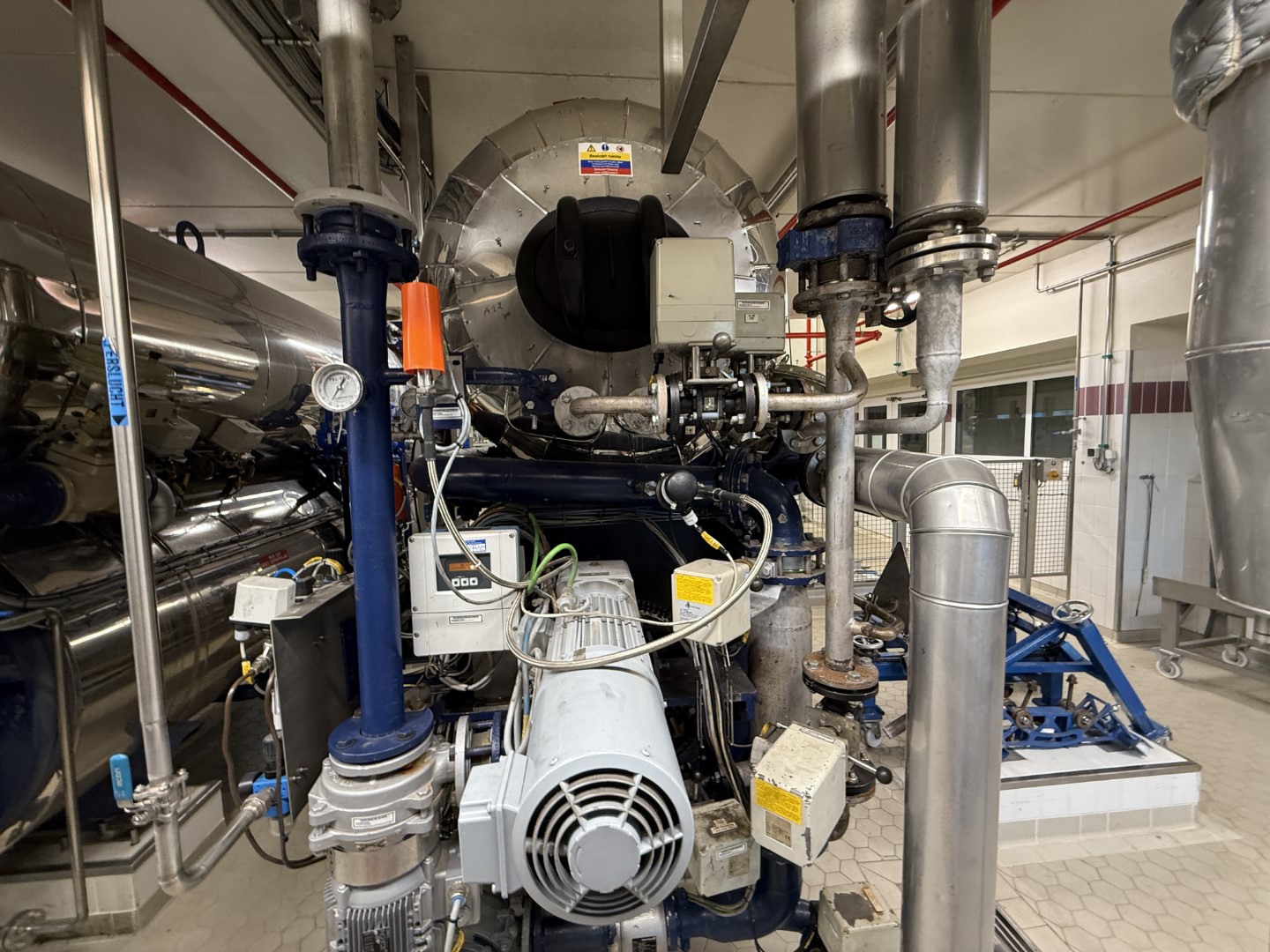

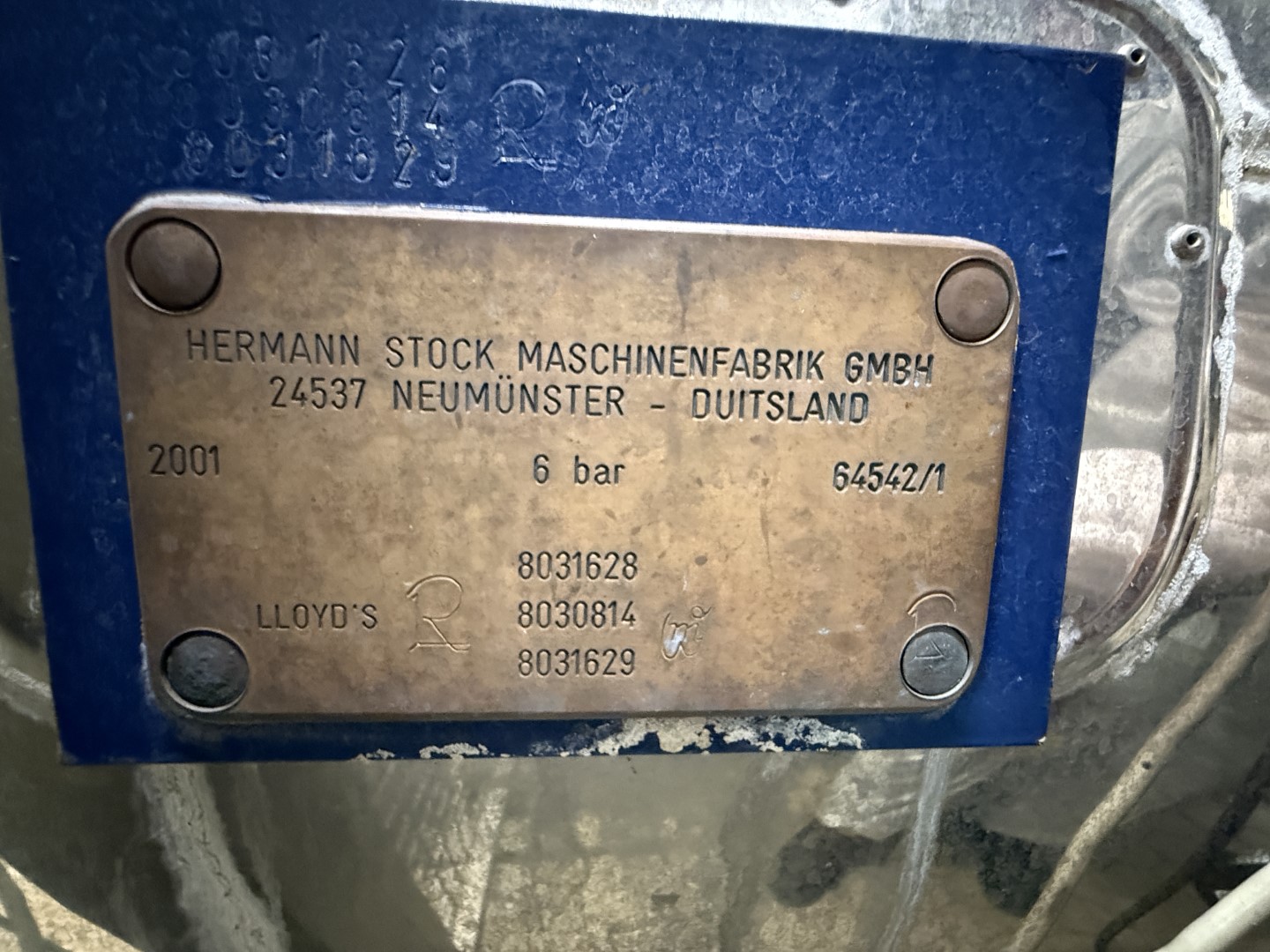

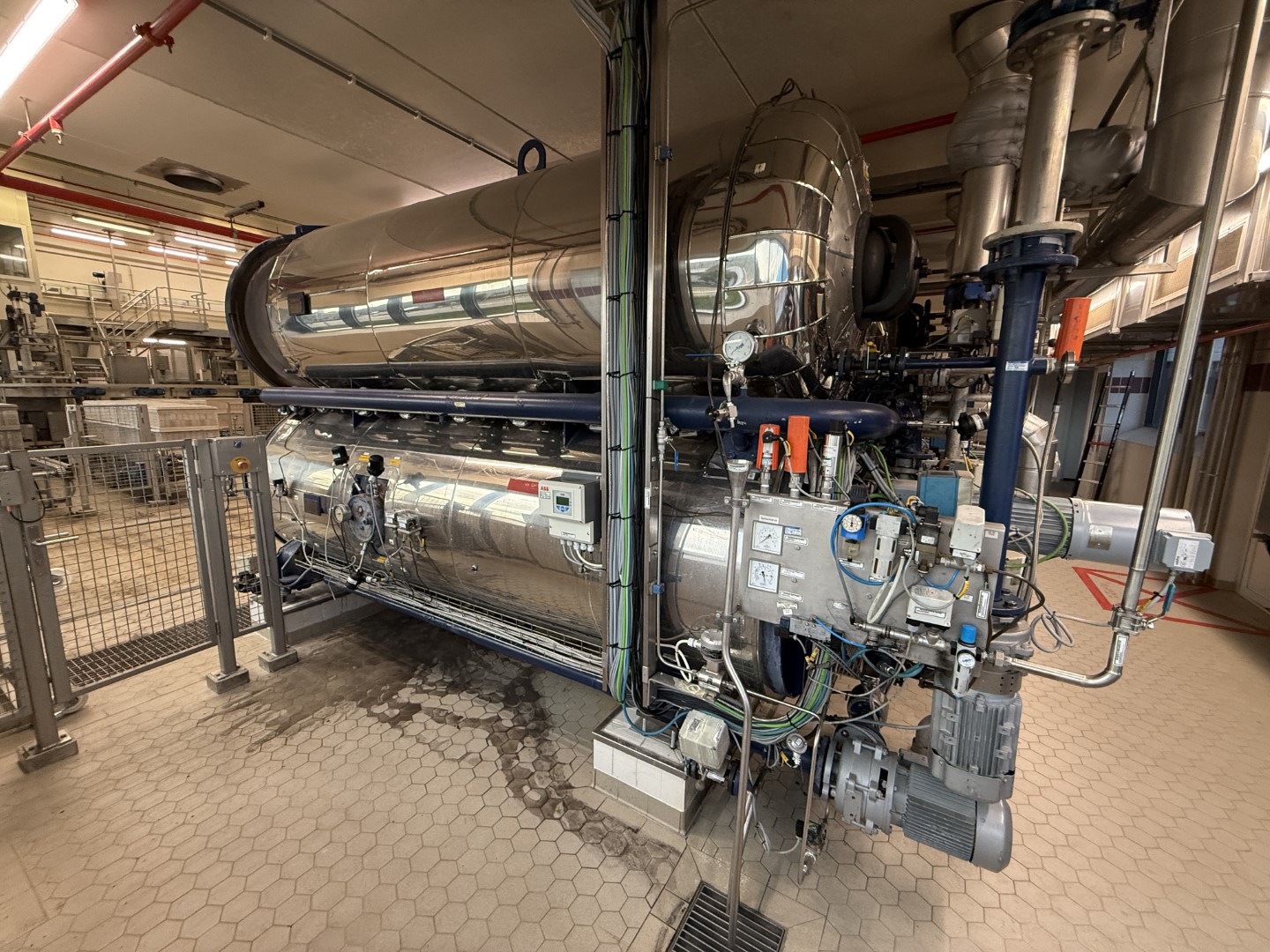

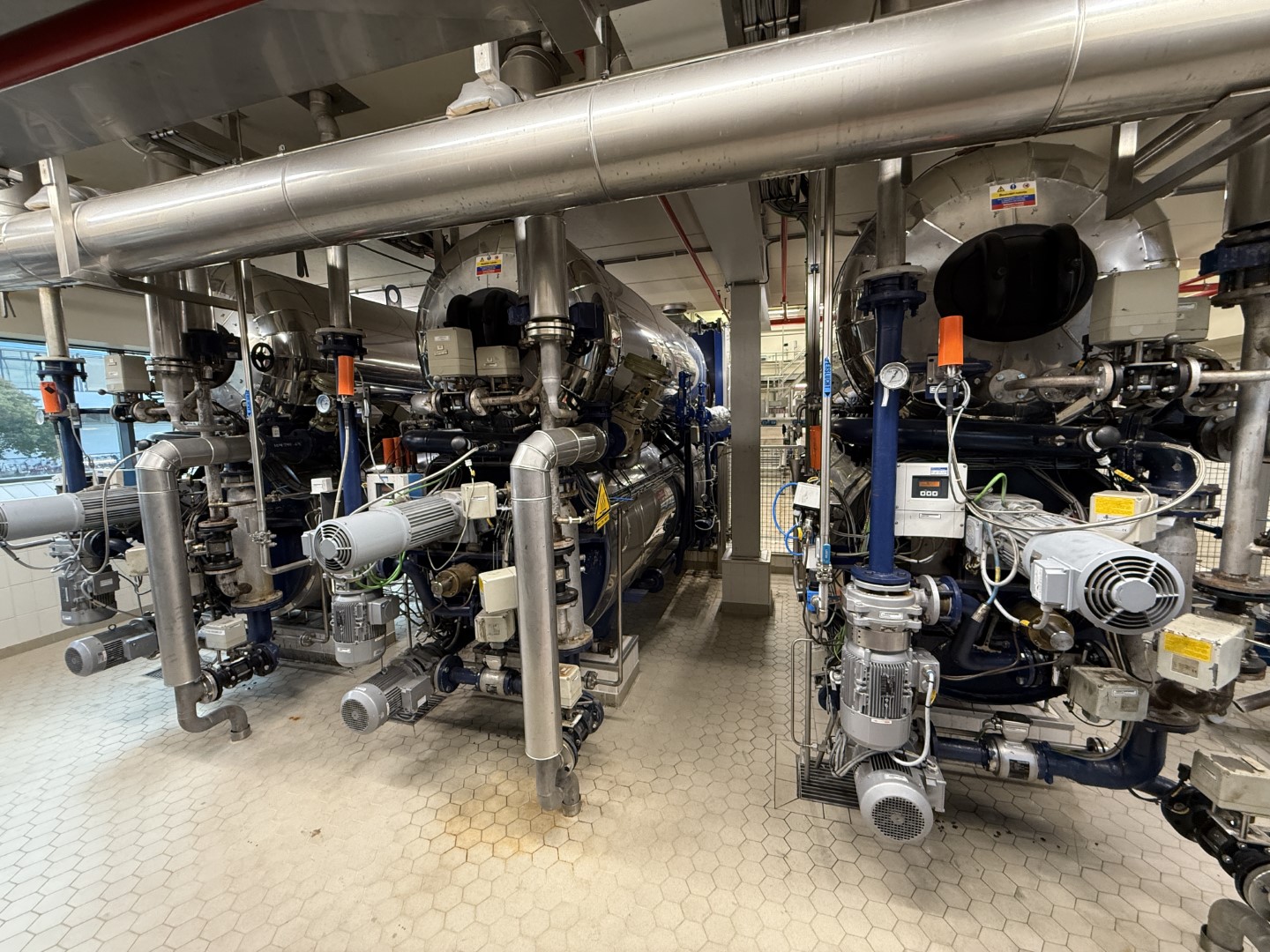

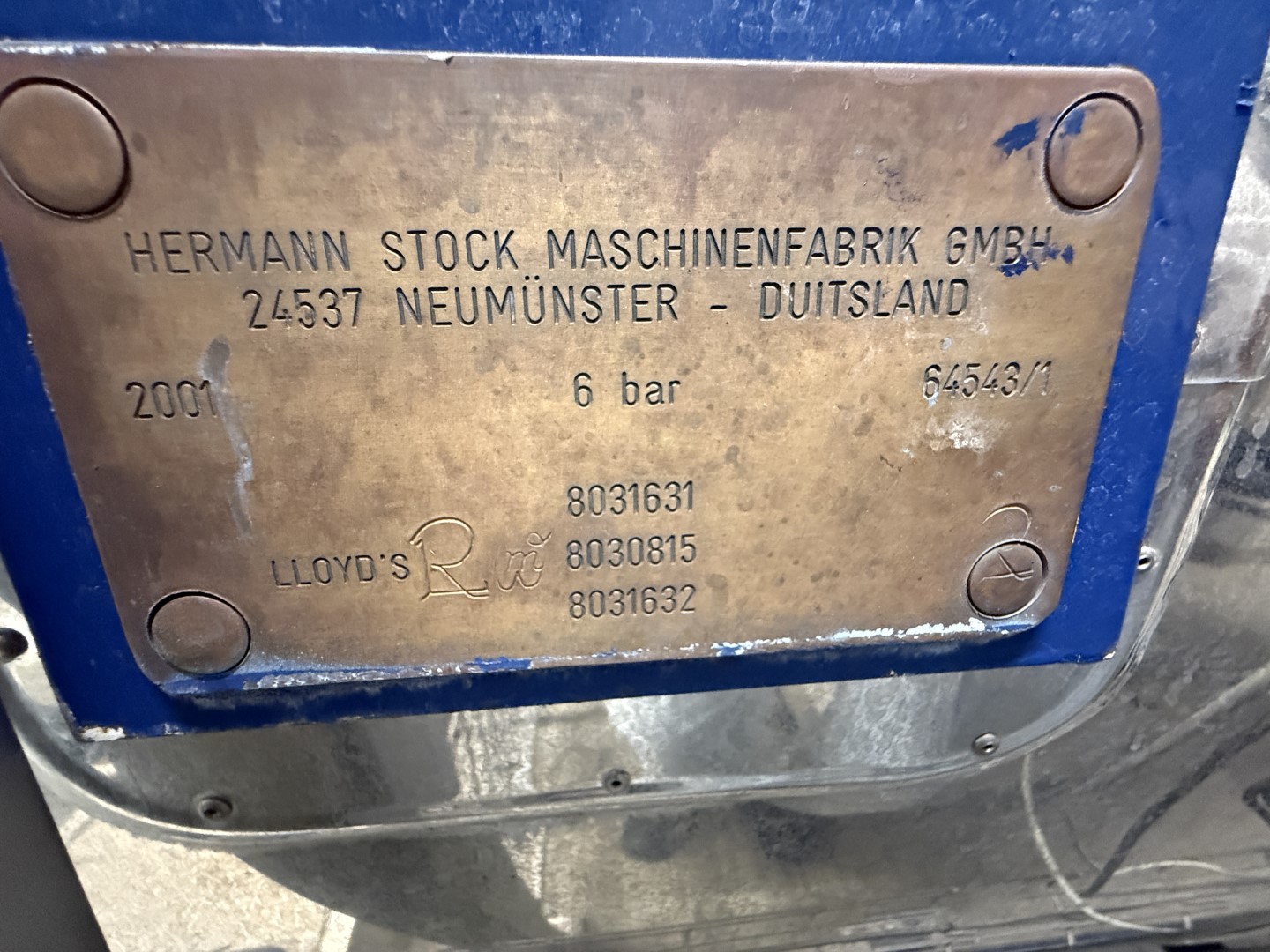

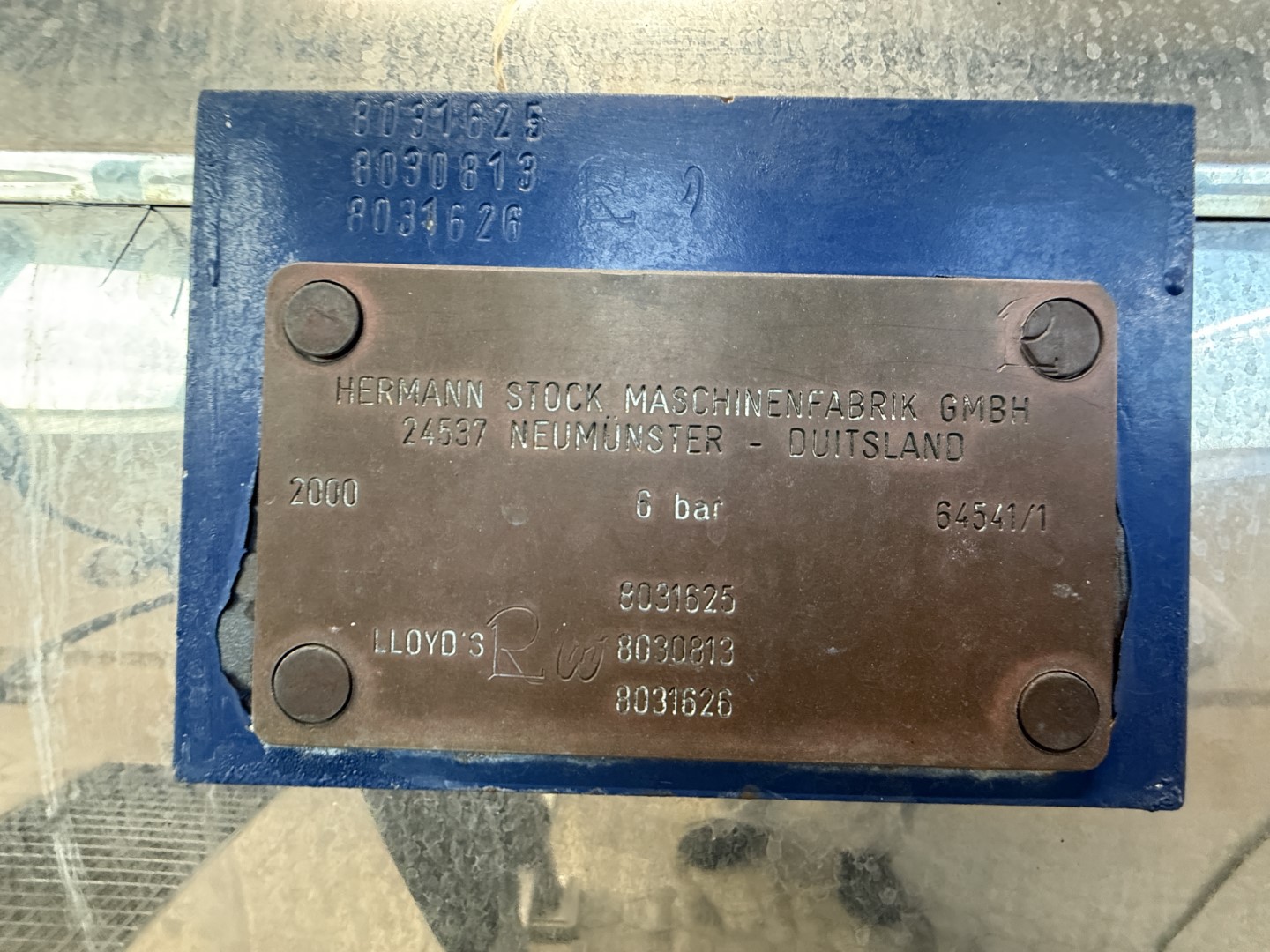

6. 3x Retort systems (autoclave)

Manufacturer: dft Technology / Stock

Model: Rotomat - Full Water Immersion Retort

Serial number: 64541 - 64542 and 64543

Year: 2000 / 2001

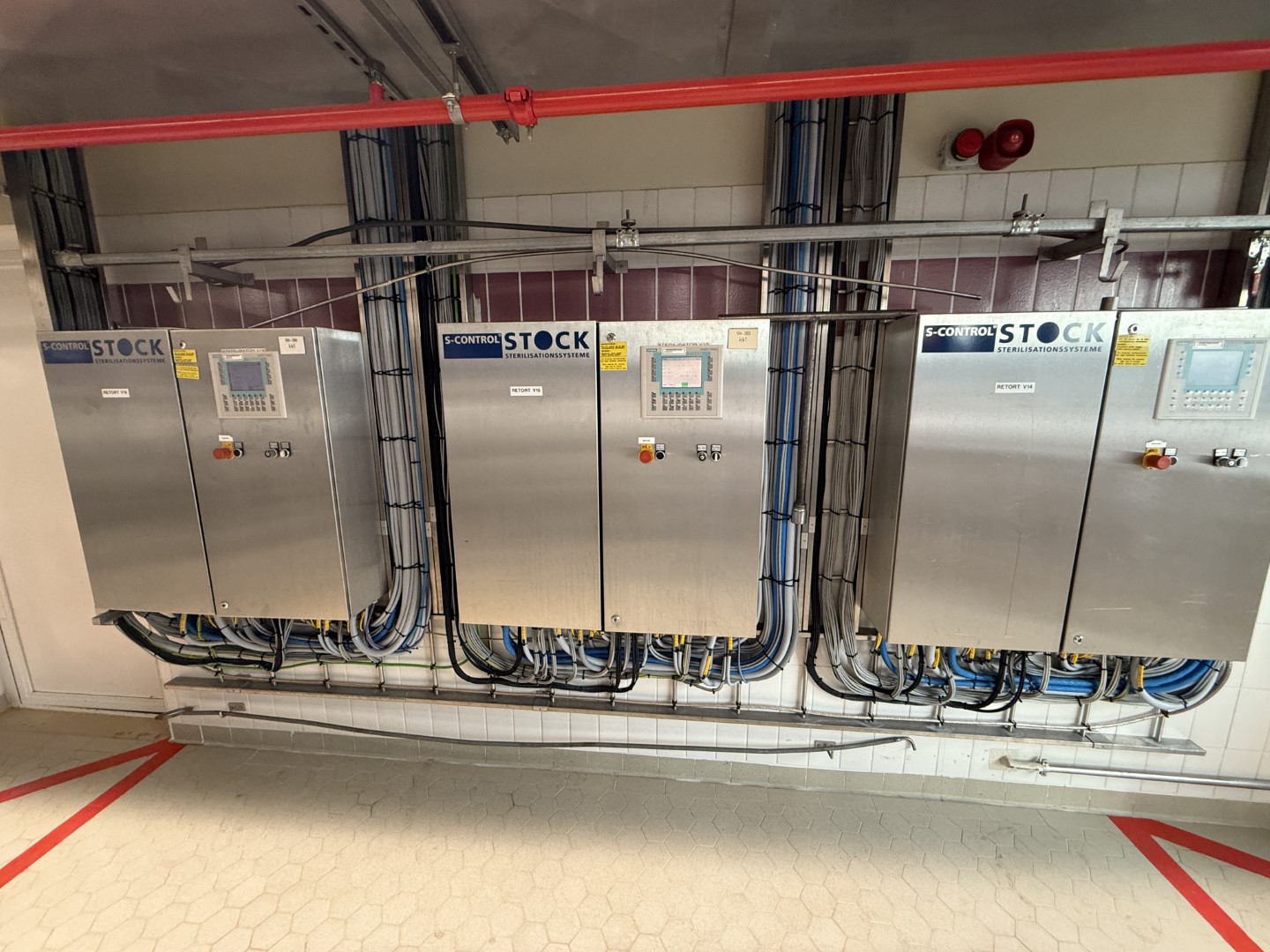

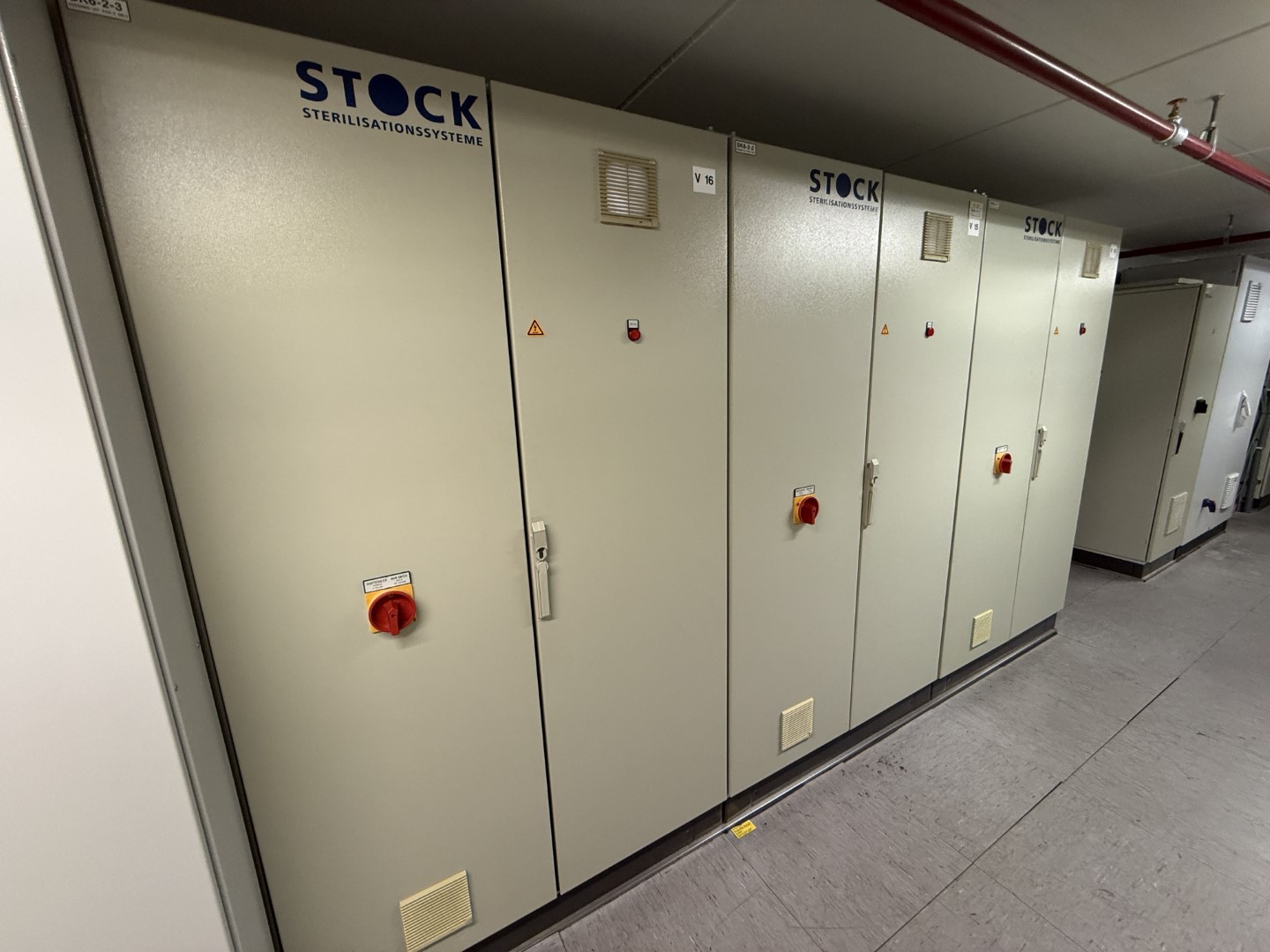

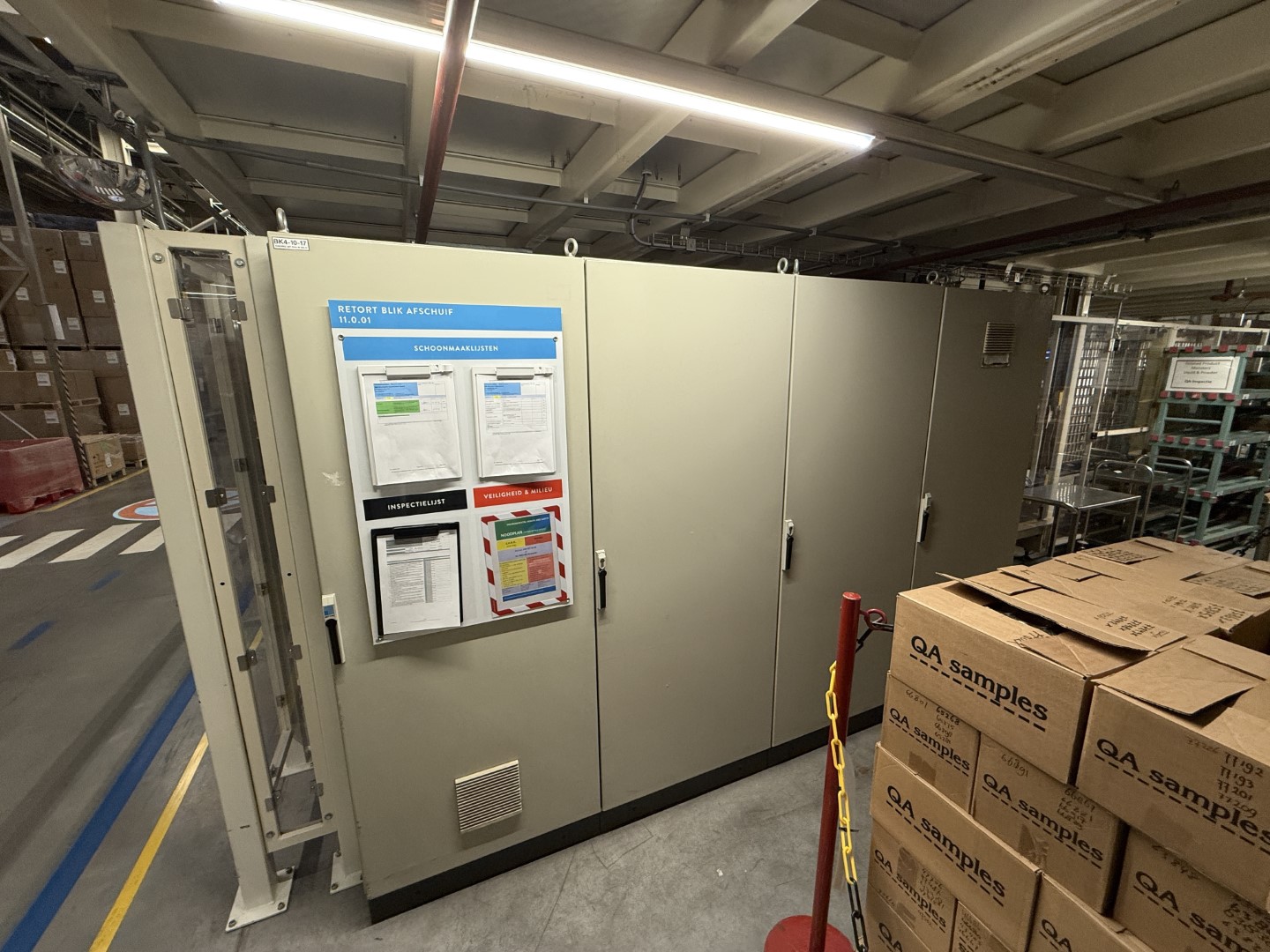

Control panels with Siemens S7-300 PLC and Siemens Simatic panels.

4x containers will be sterilised at the same time inside the retort.

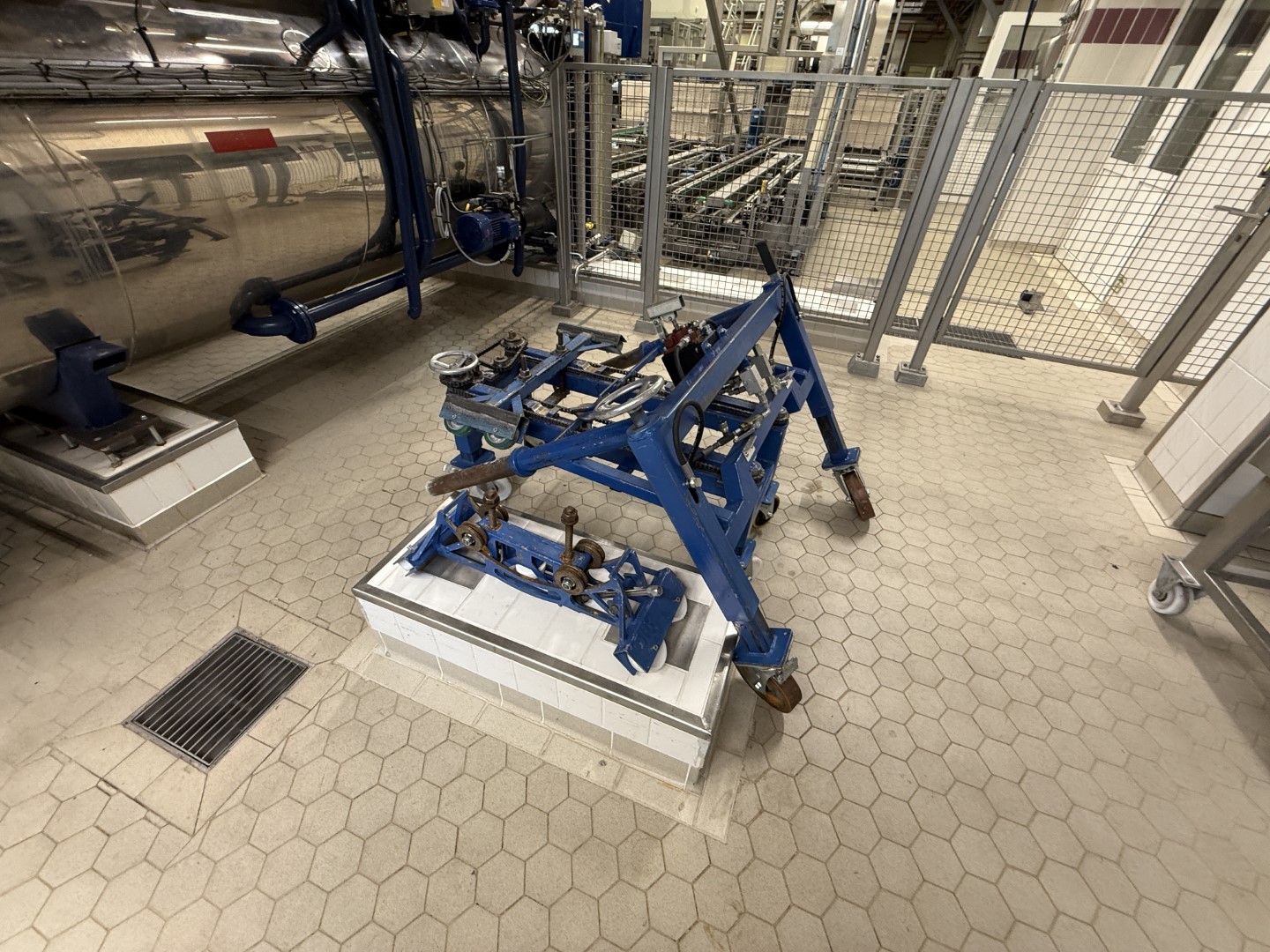

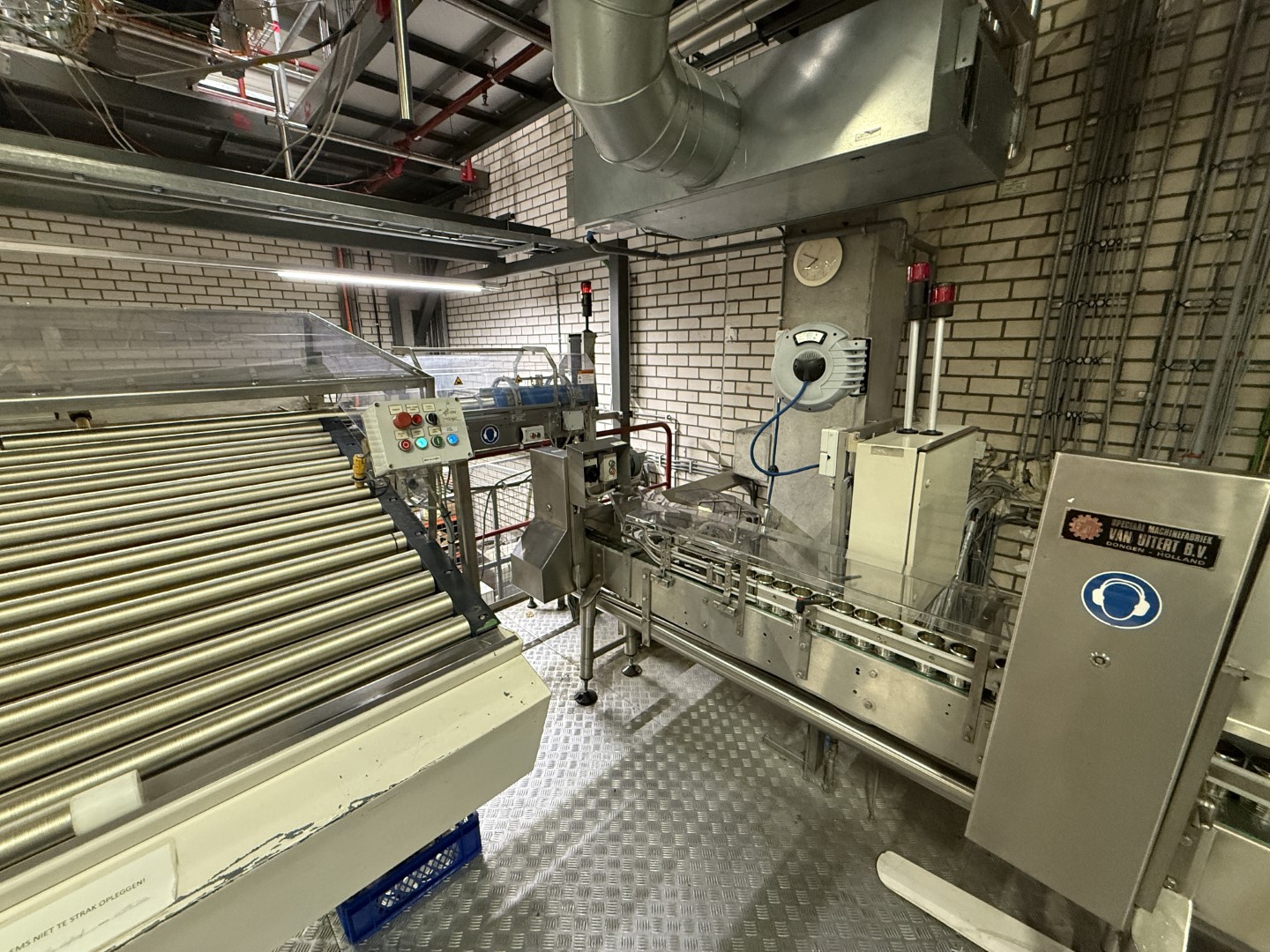

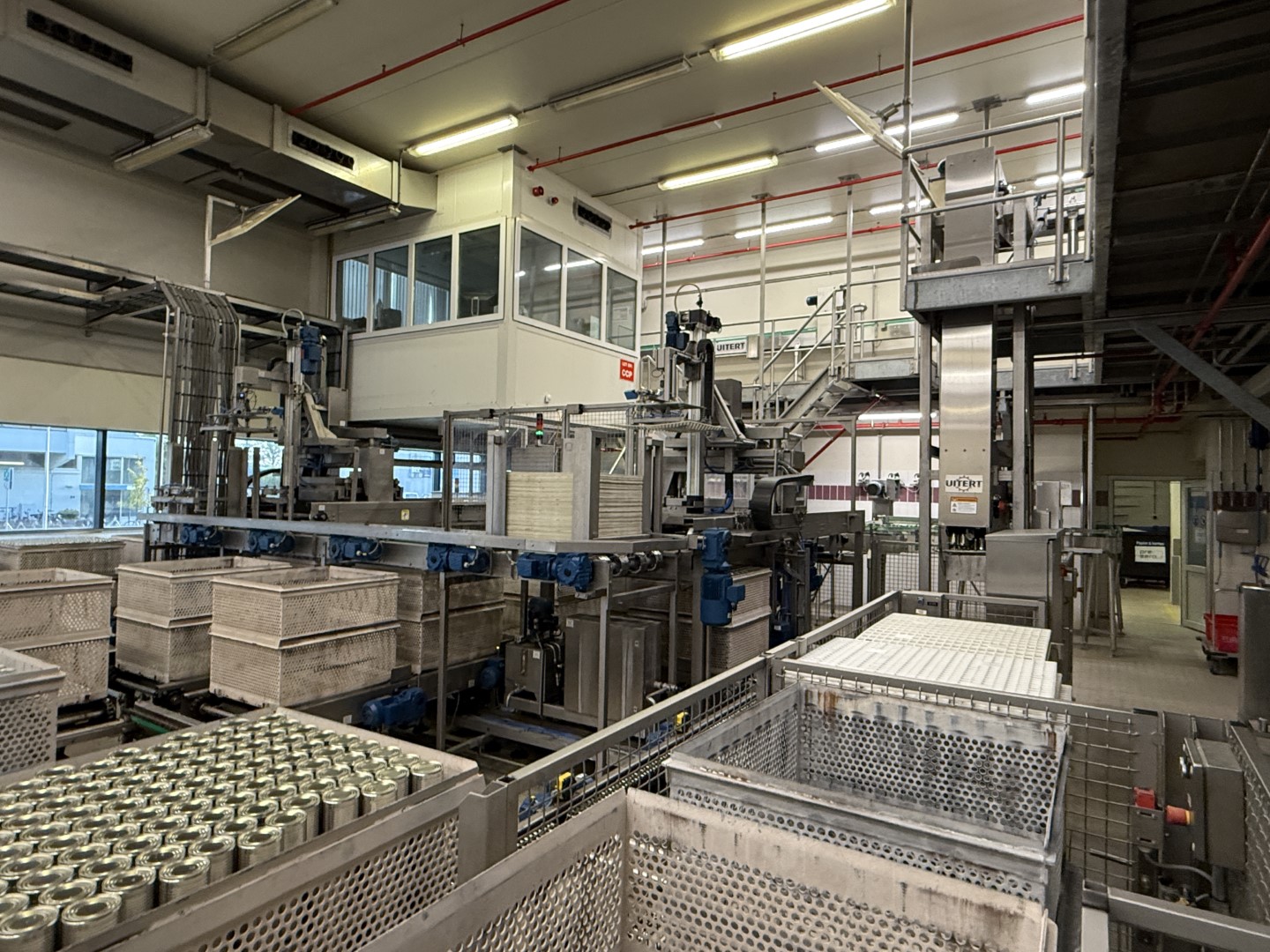

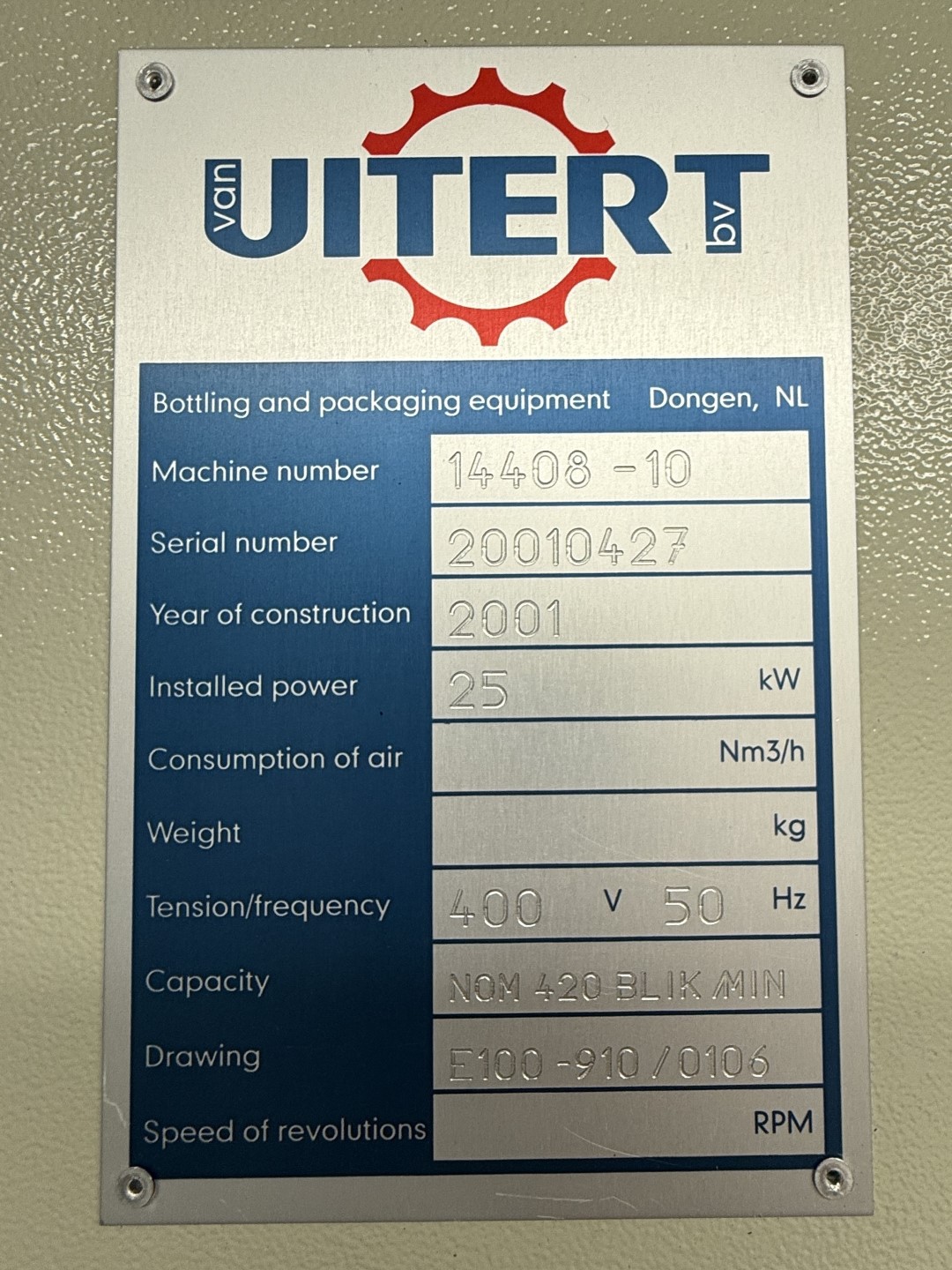

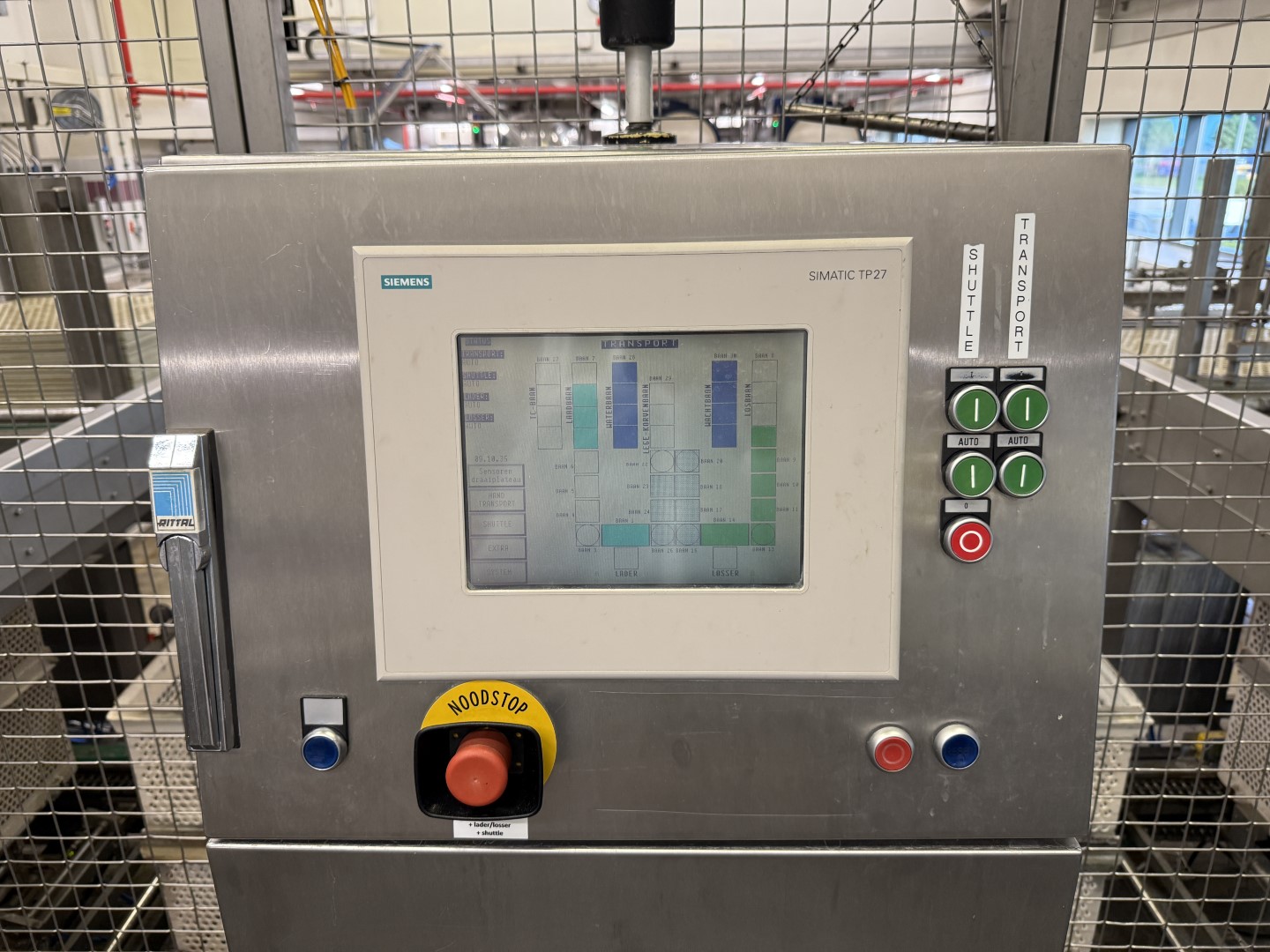

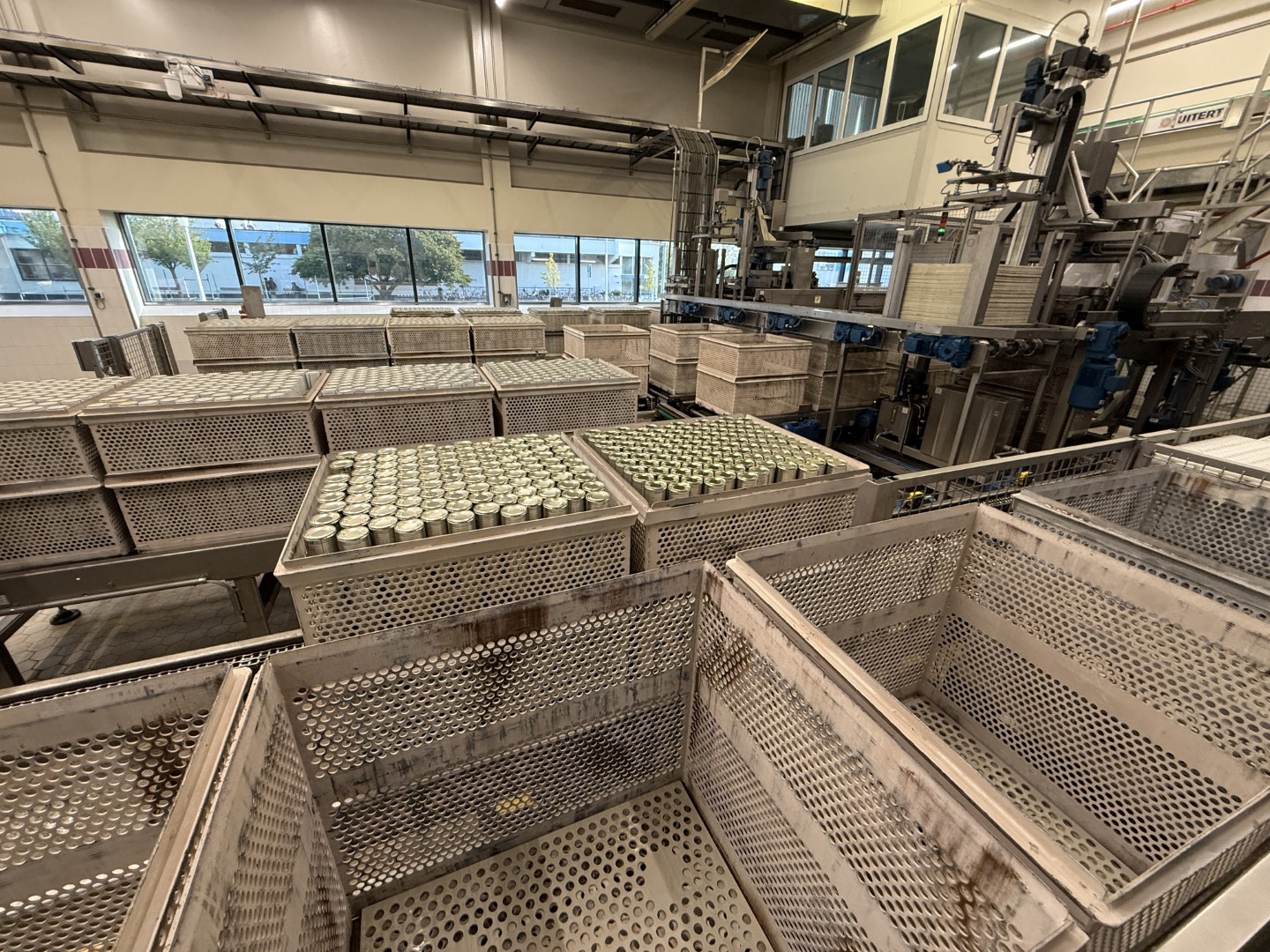

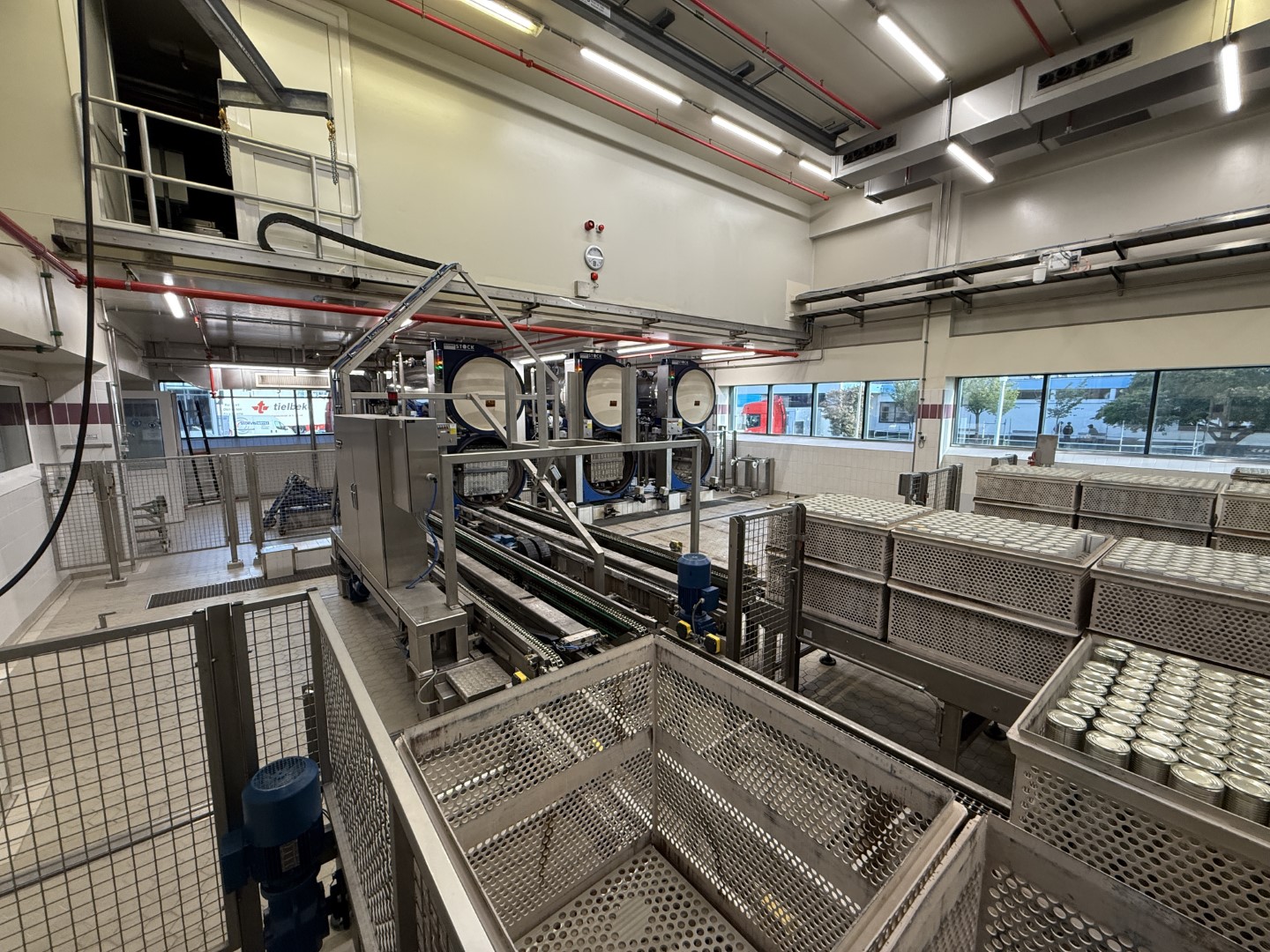

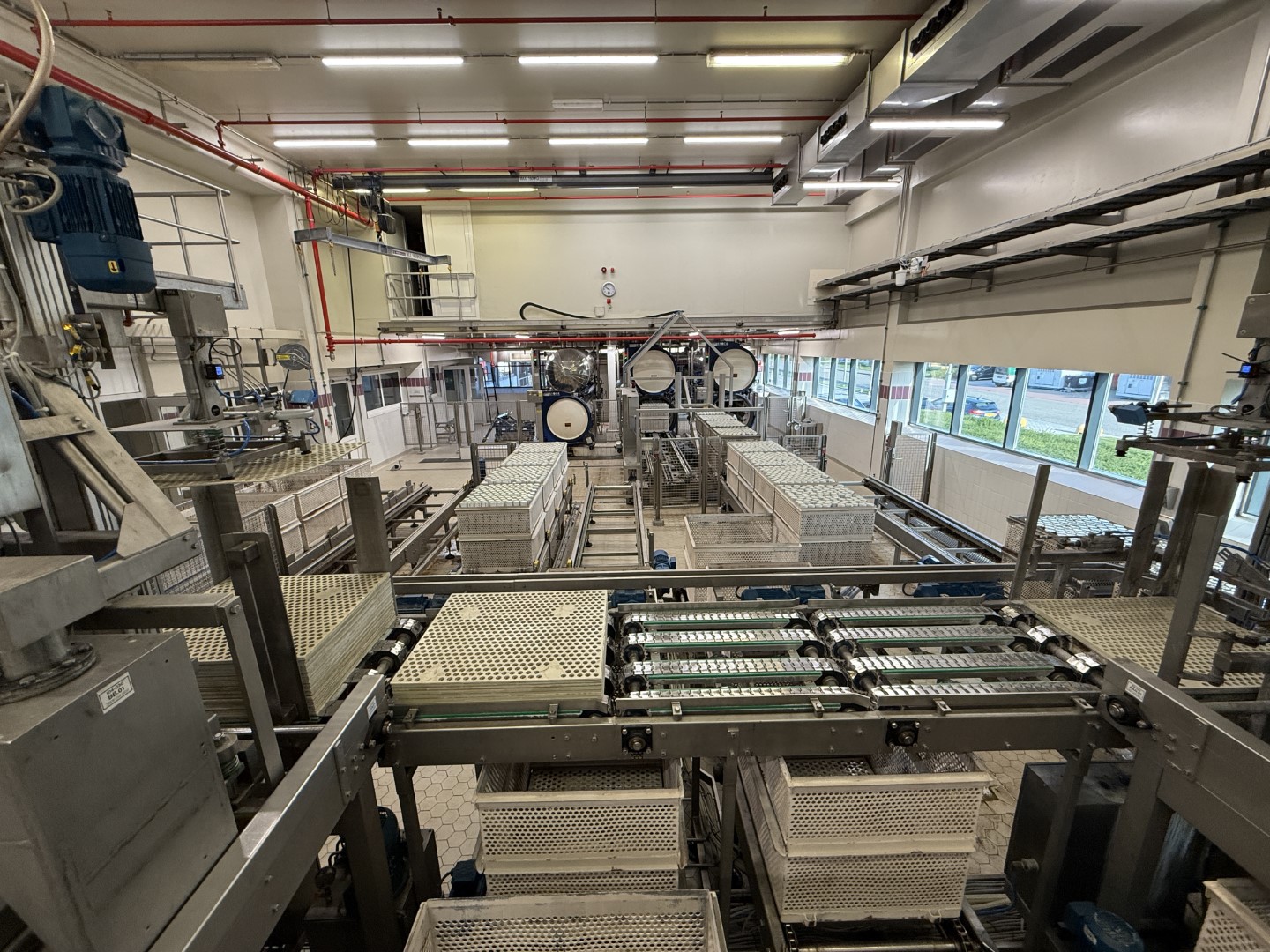

7. Loading and unloading system of the containers

Manufacturer: van Uitert B.V.

Year: 2001

Machine number: 14408-10 / 14408-30

Serial number: 20010427 / 20011009

Installed power: 25 kW / 48 kW - 400 V - 50 Hz

Capacity: up to 420 cans per minute

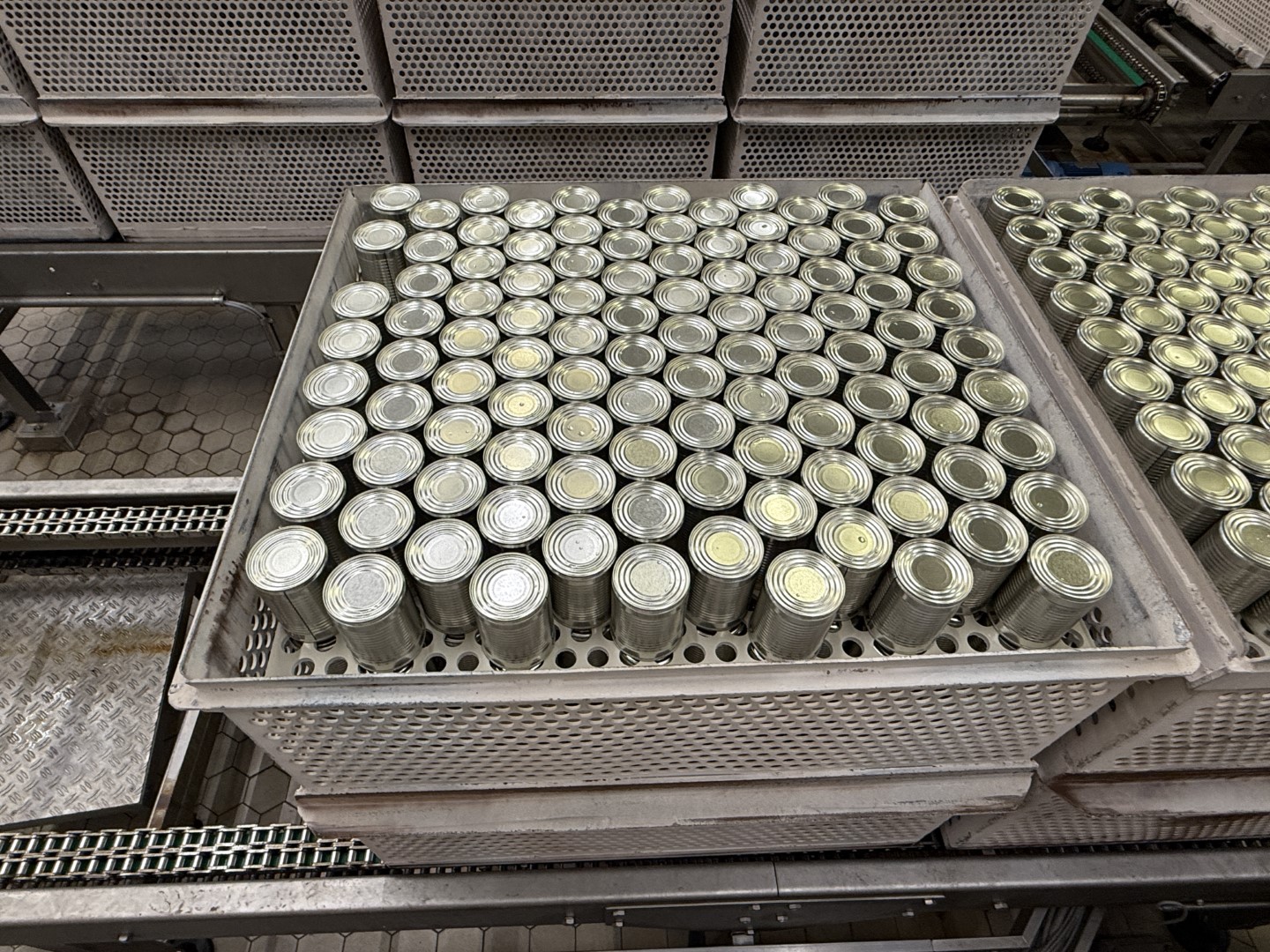

Including intermediate plastic plates between the layers of cans

Inside dimensions of the containers: ± 760 x 700 x 680 mm

Number of cans per layer: 12 x 9 = 108

Number of layers: 7x

Total per container: 756 cans

Including all available stainless steel containers and intermediate plastic plates between the layers of cans.

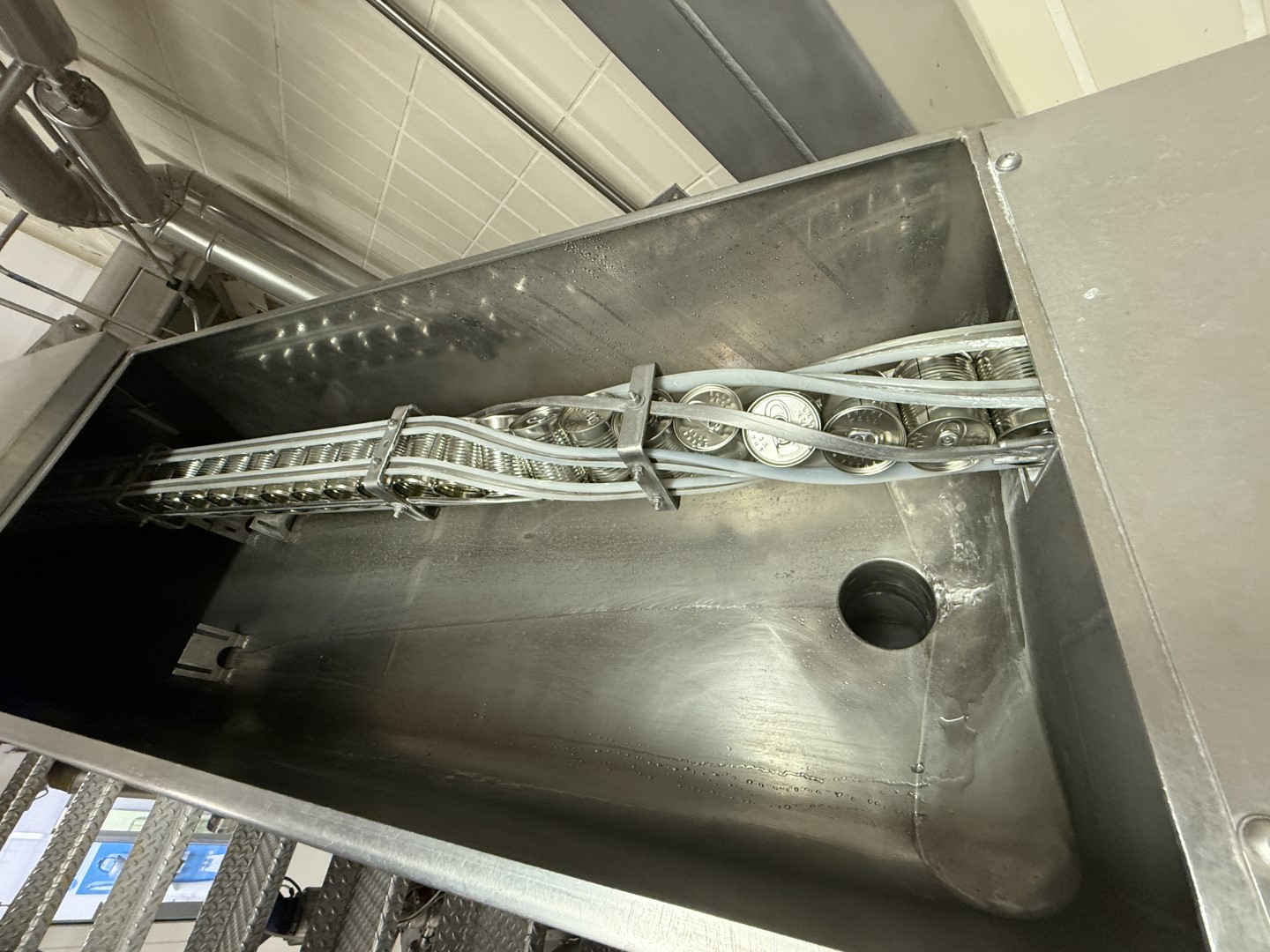

8. Dryer for the cans with air

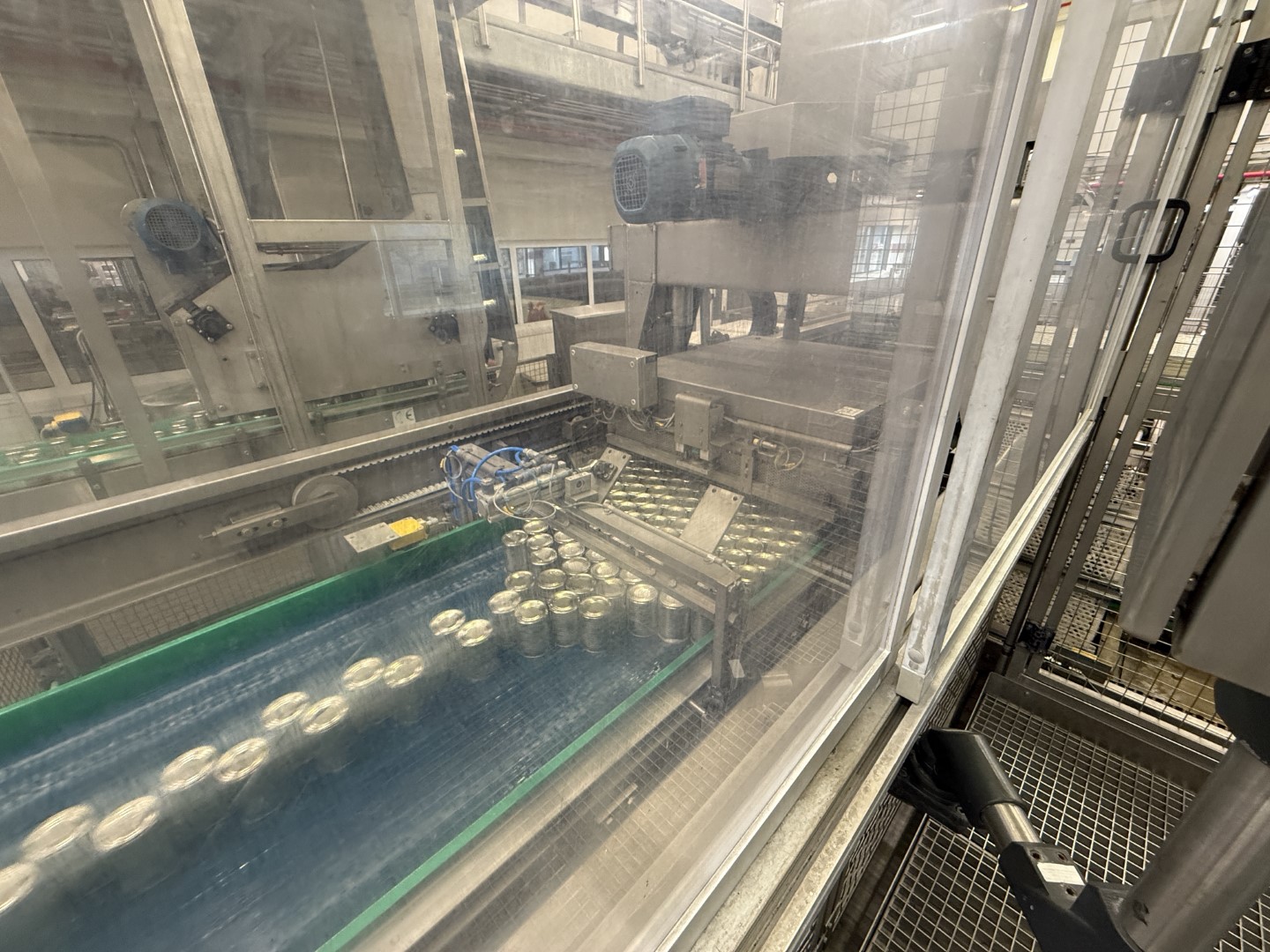

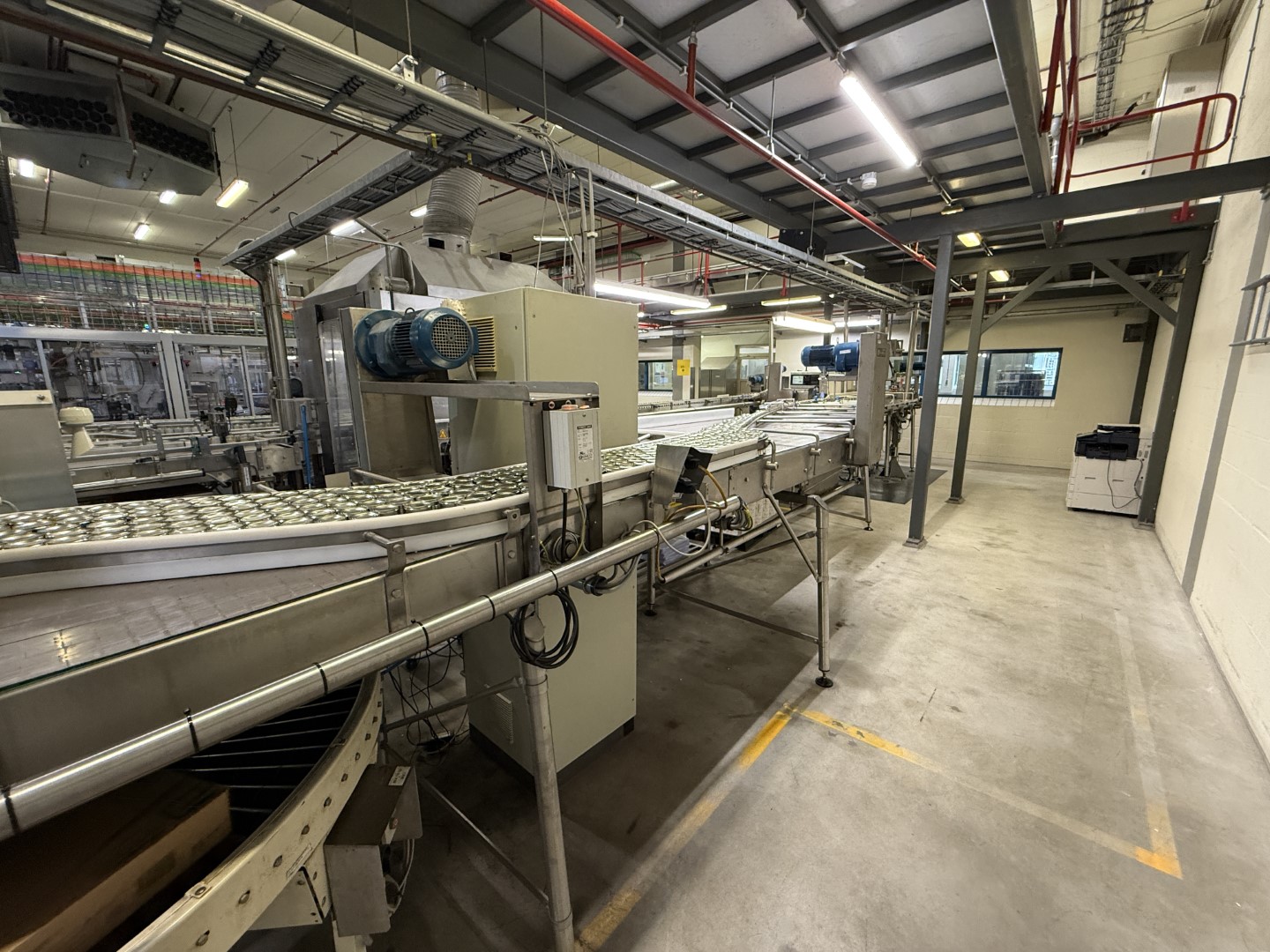

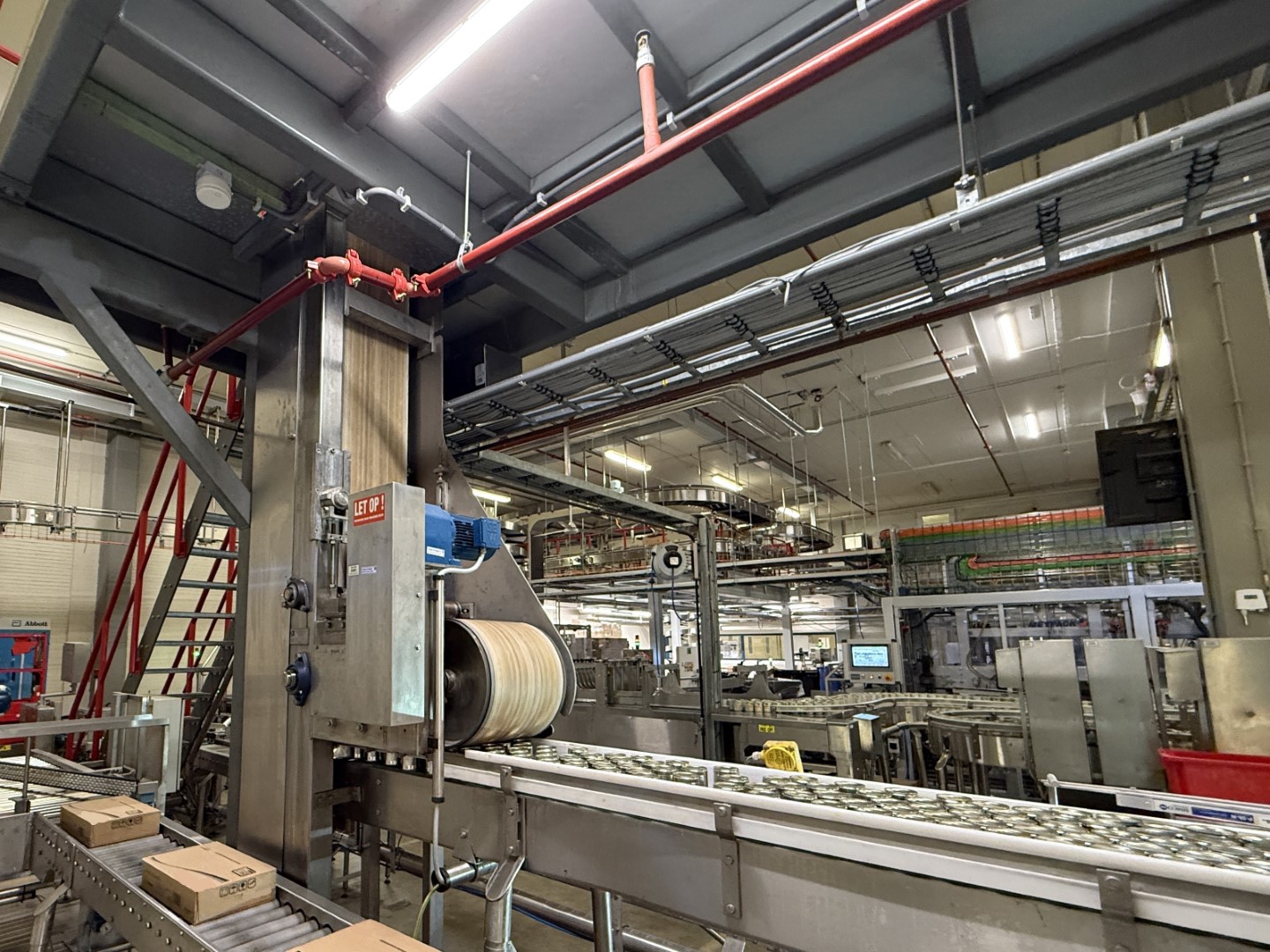

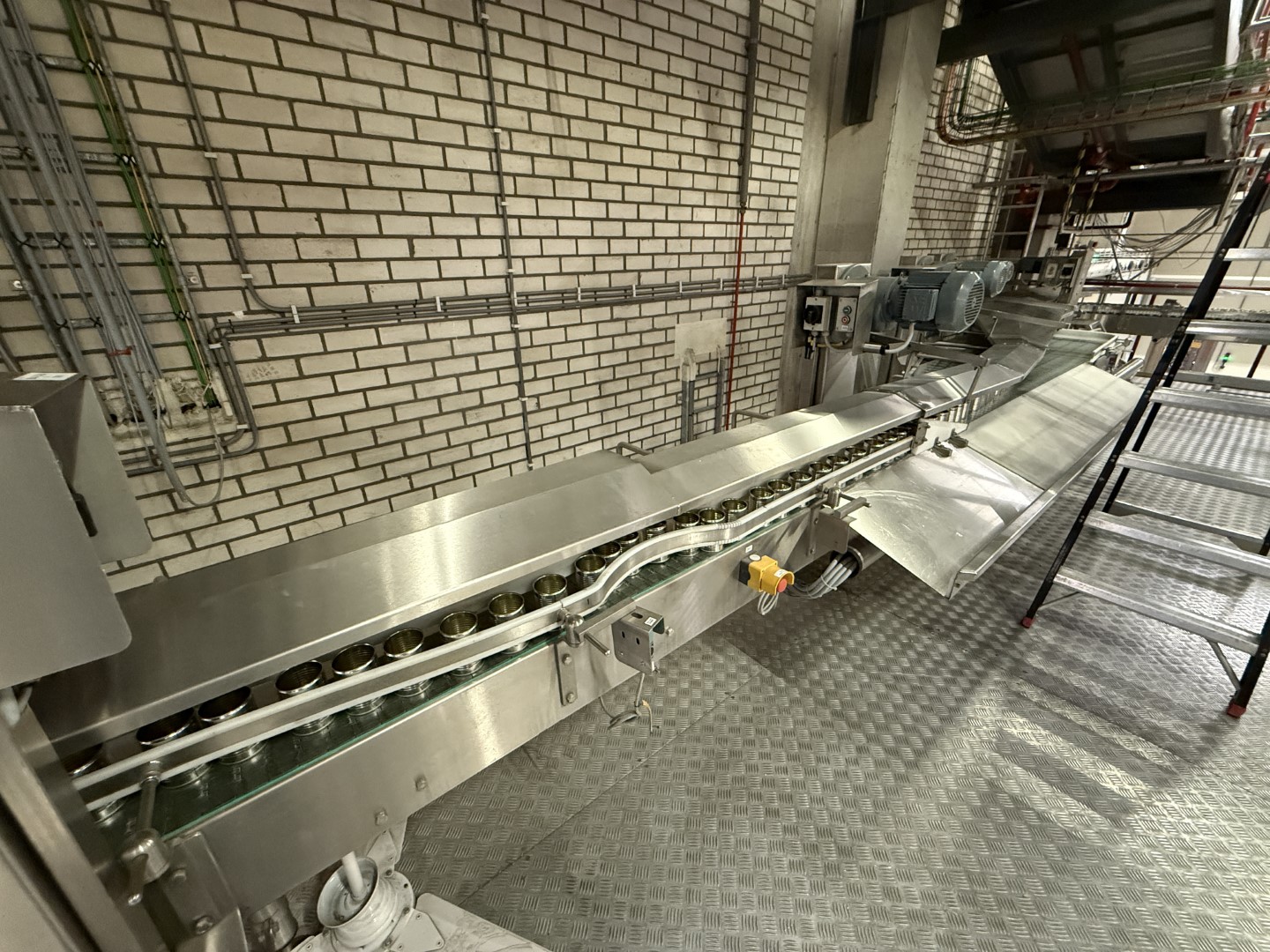

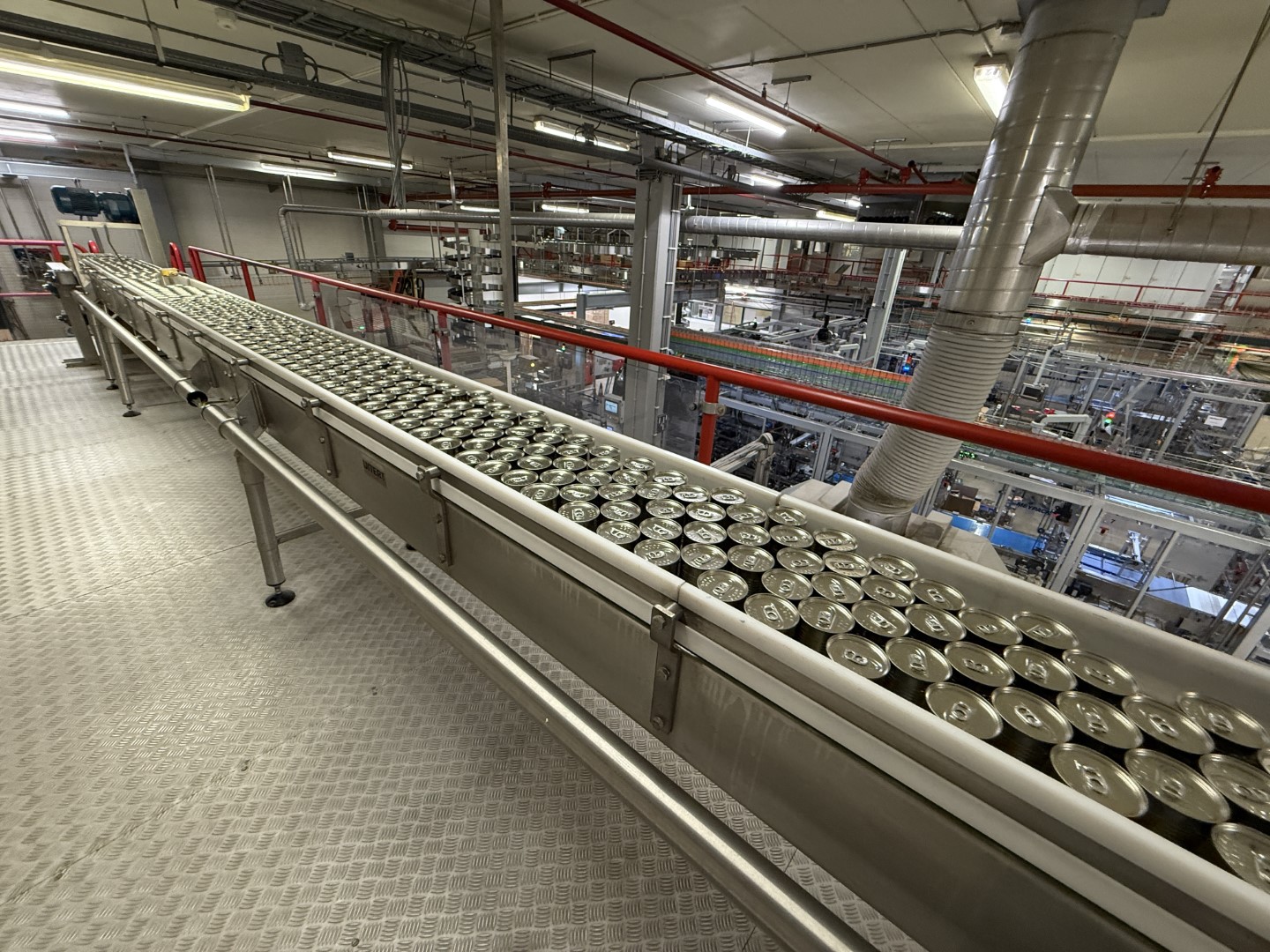

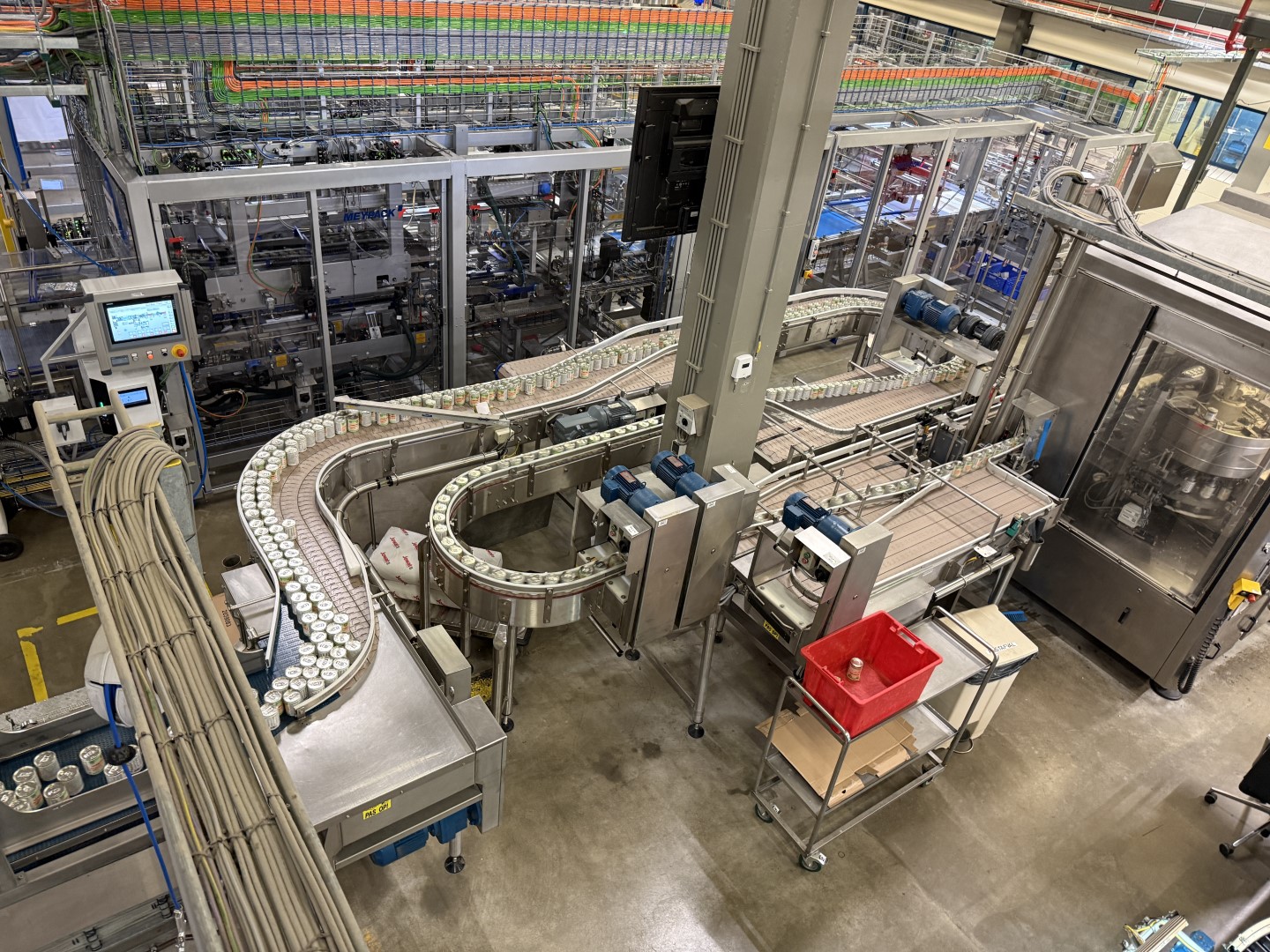

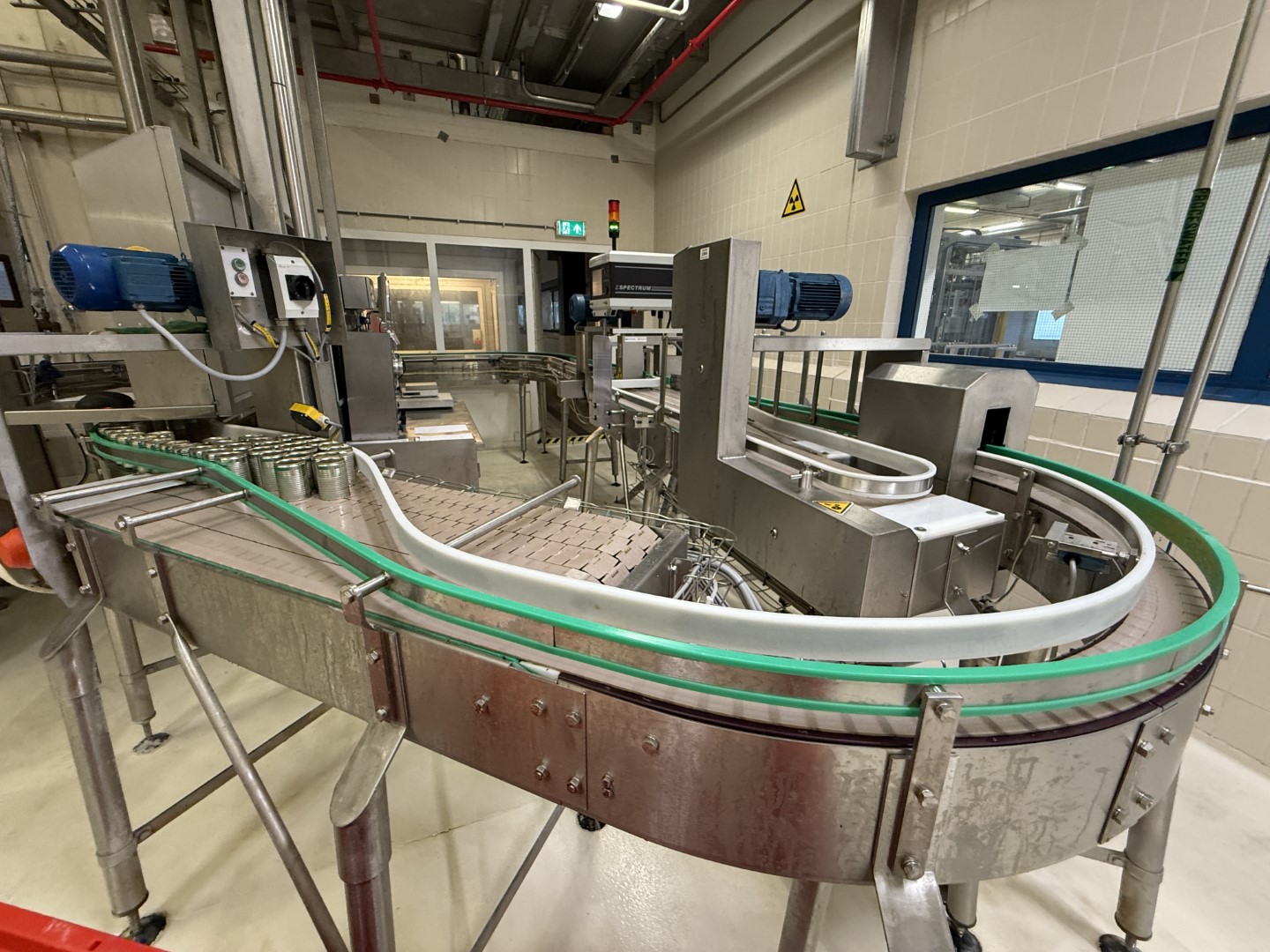

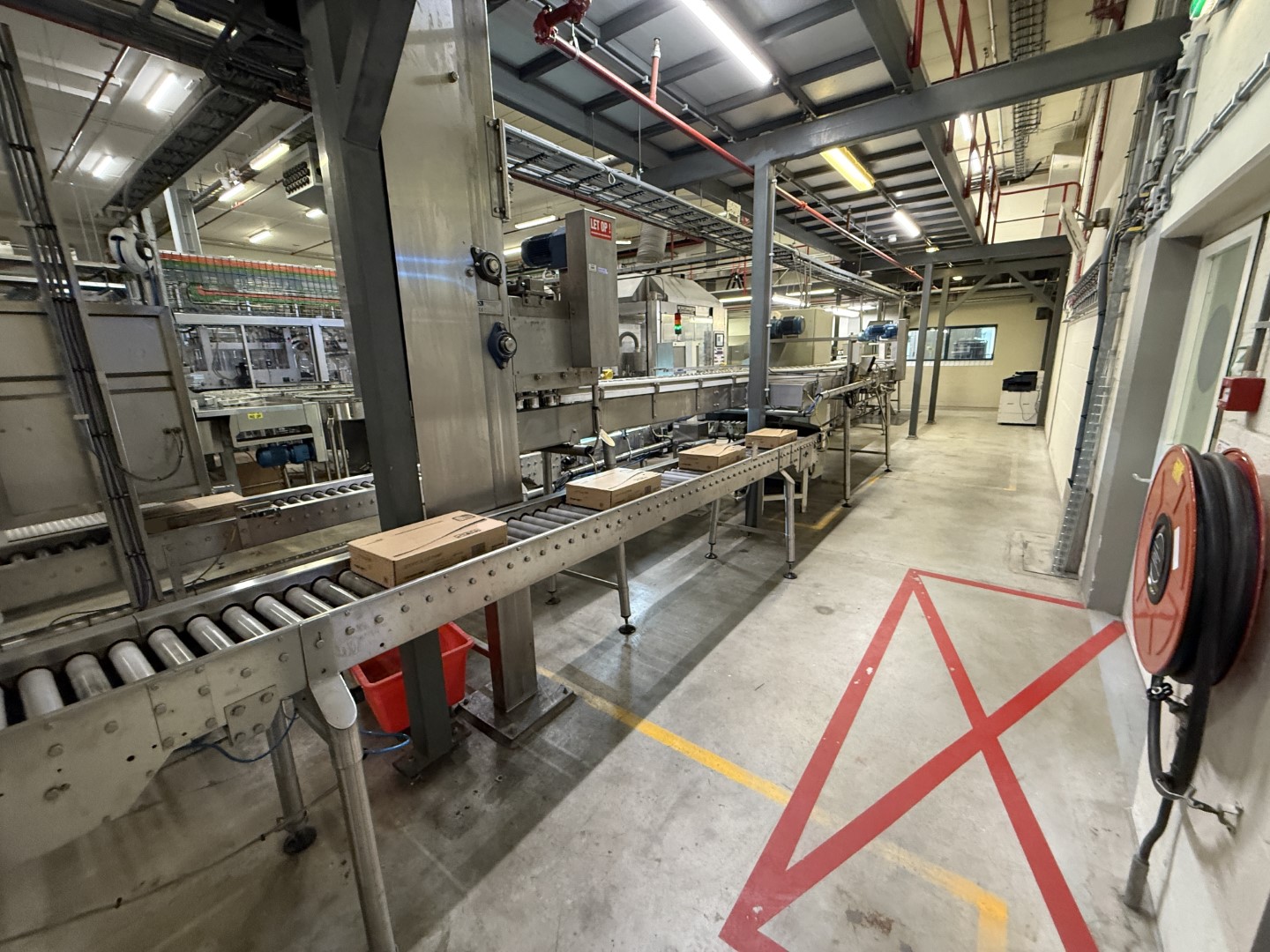

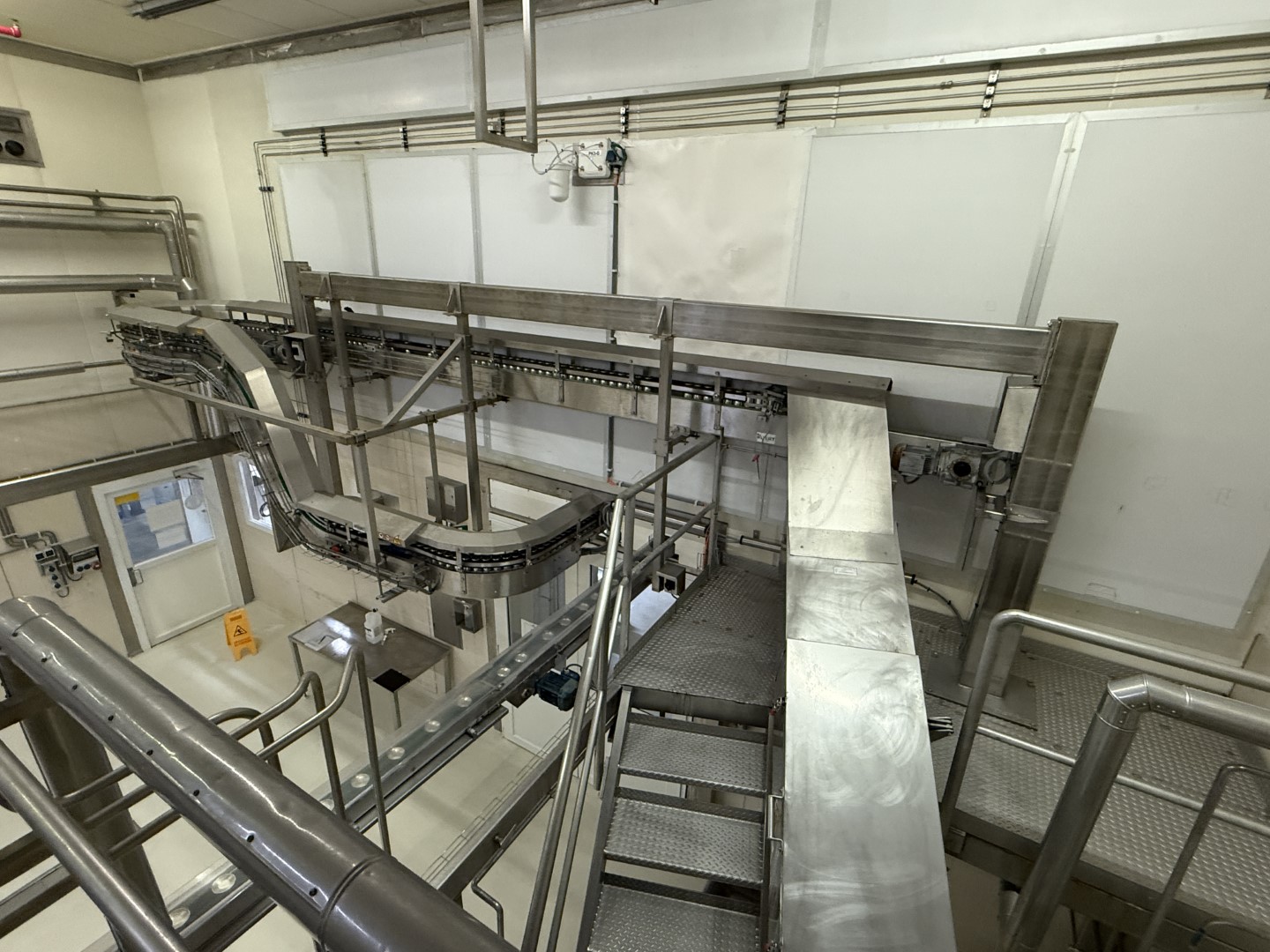

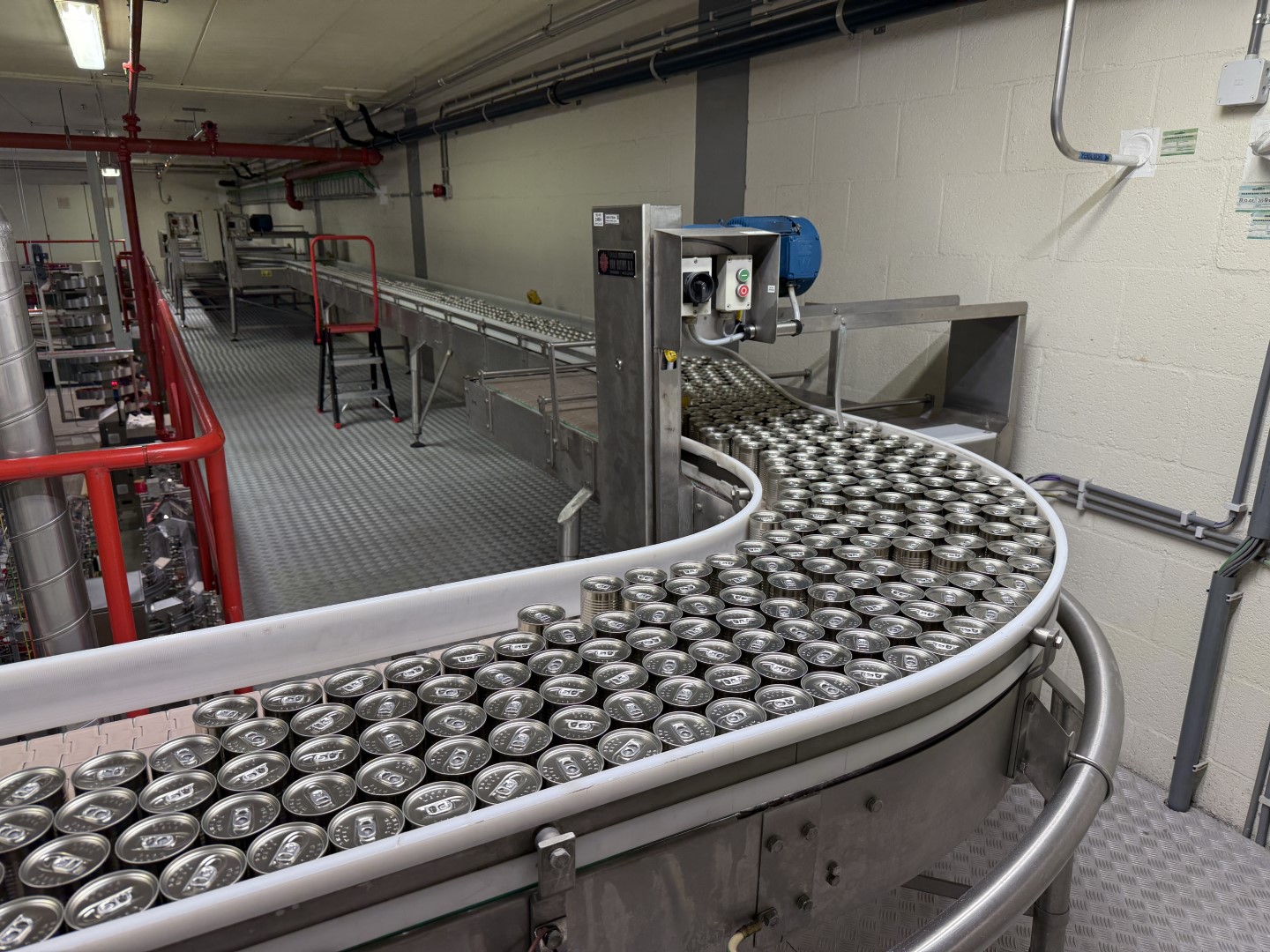

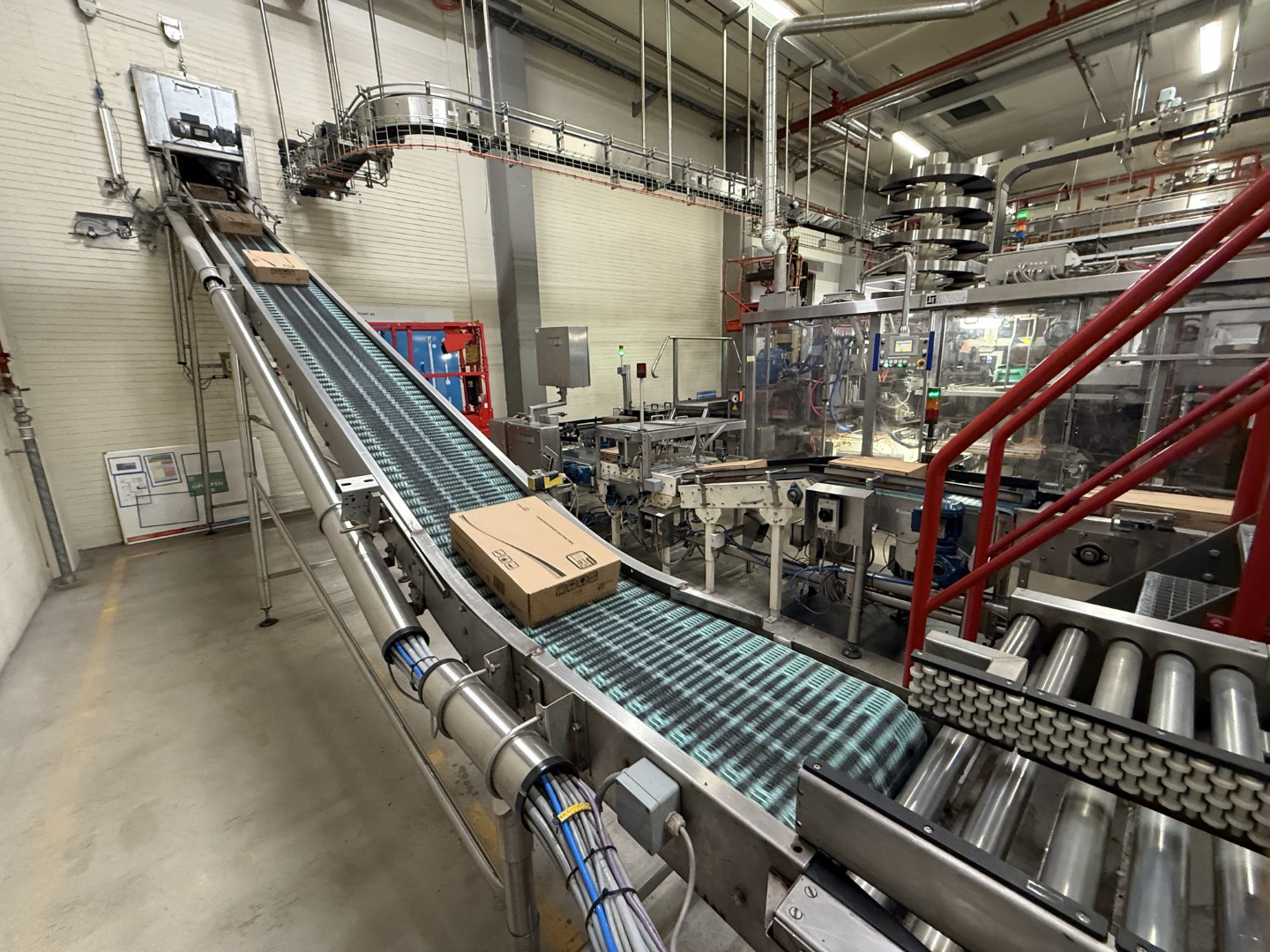

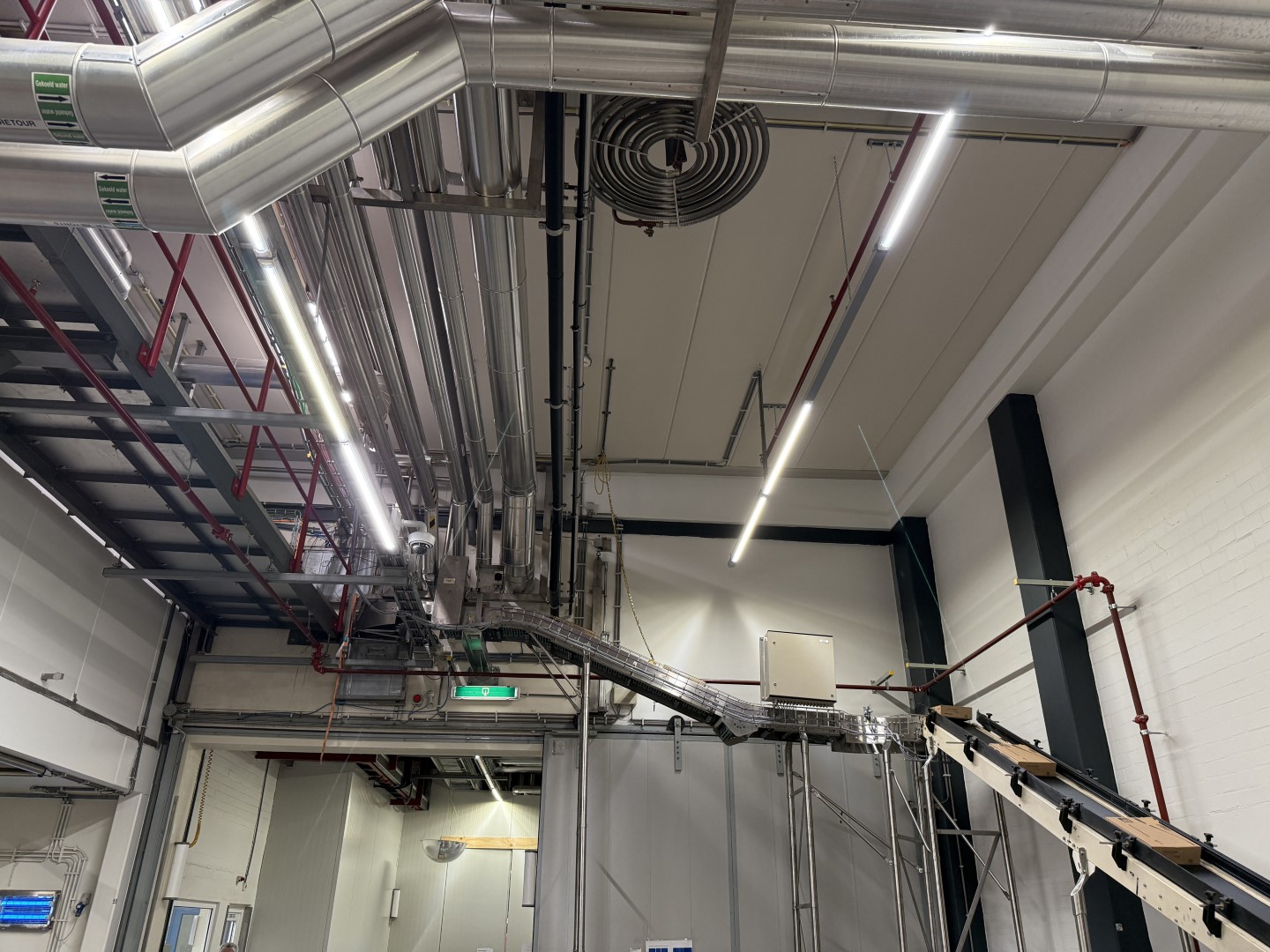

9. Conveyors from the loading / unloading section till the labeller.

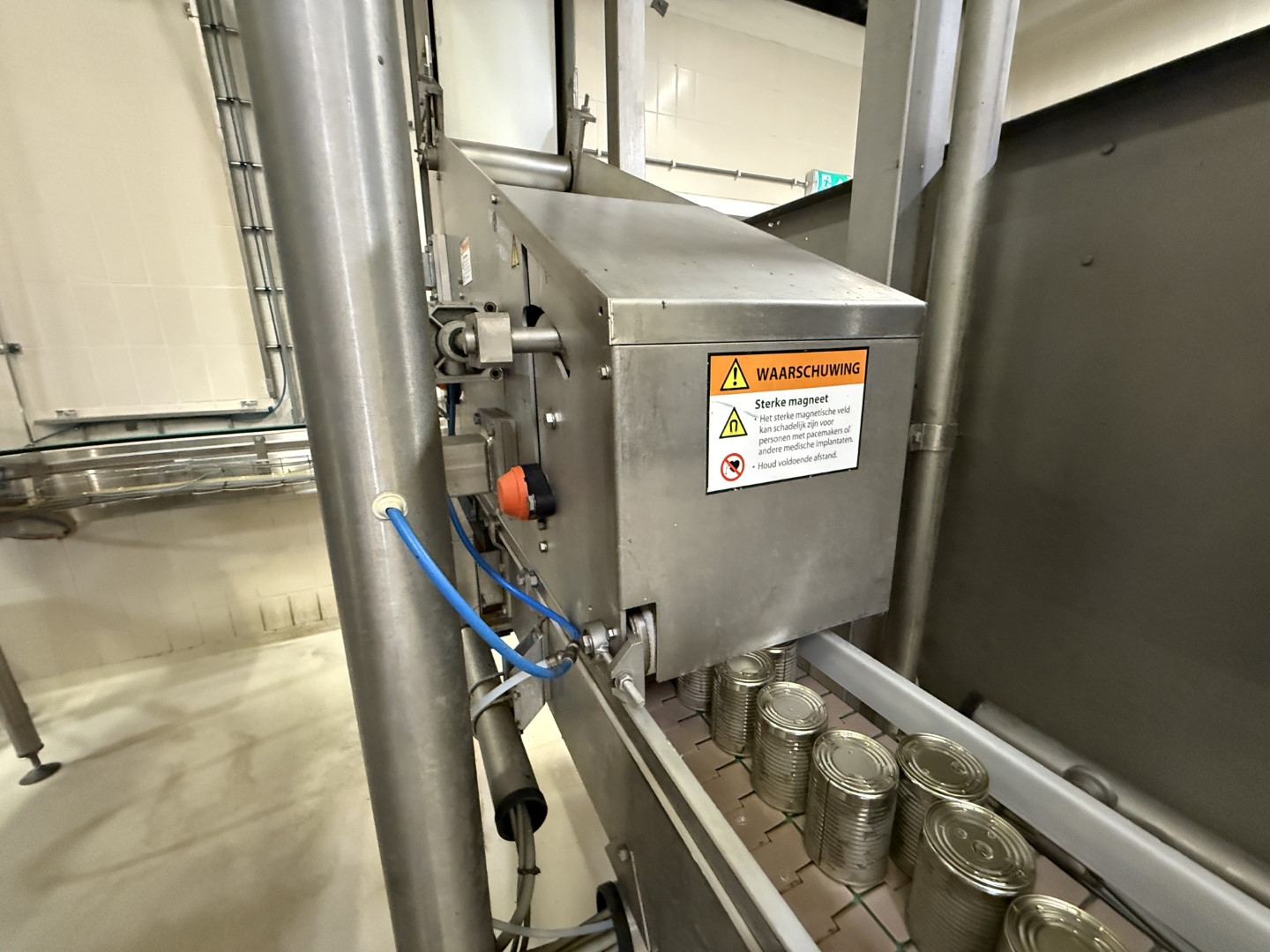

Belt conveyors and magnetic conveyors including buffering.

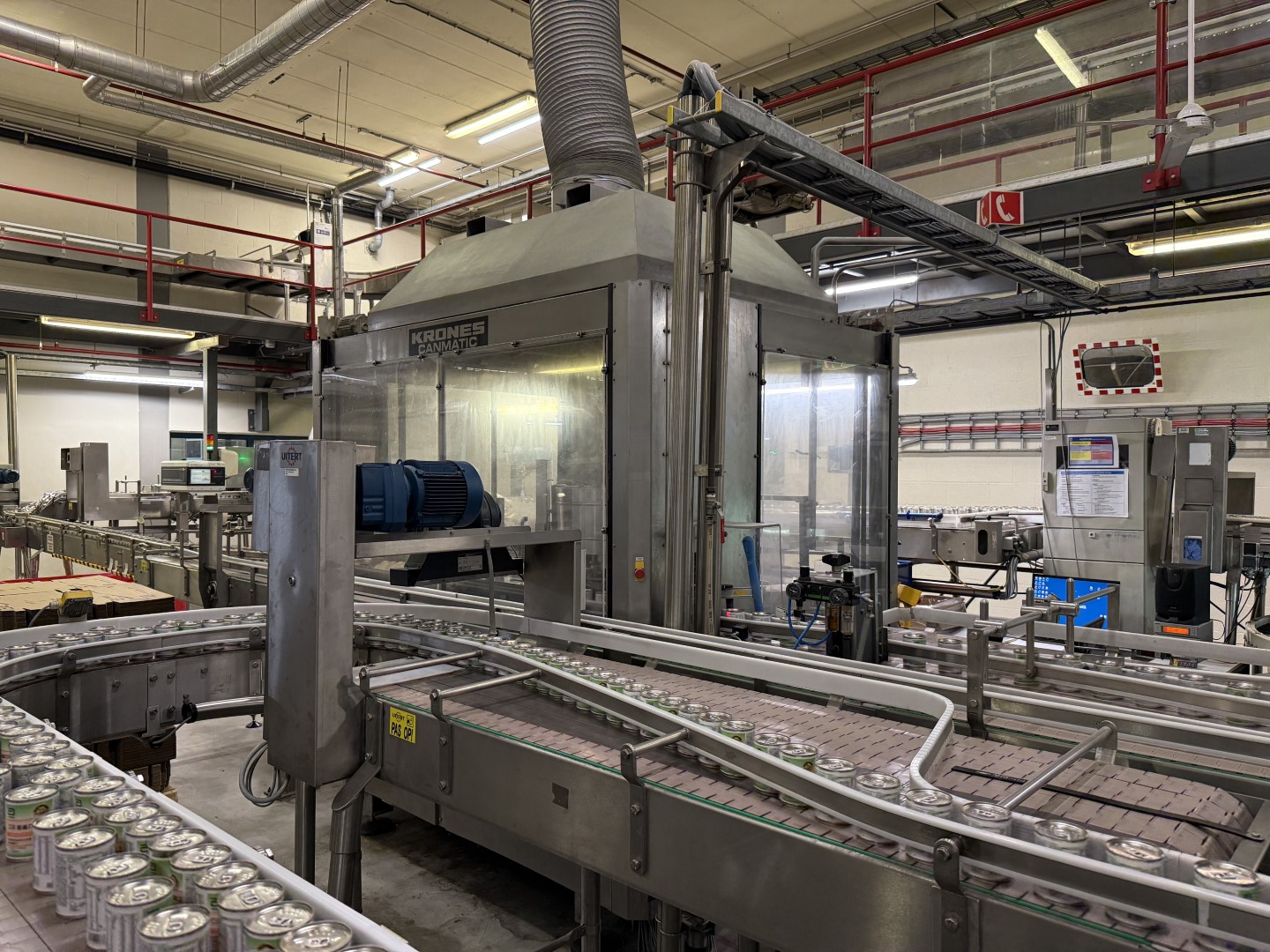

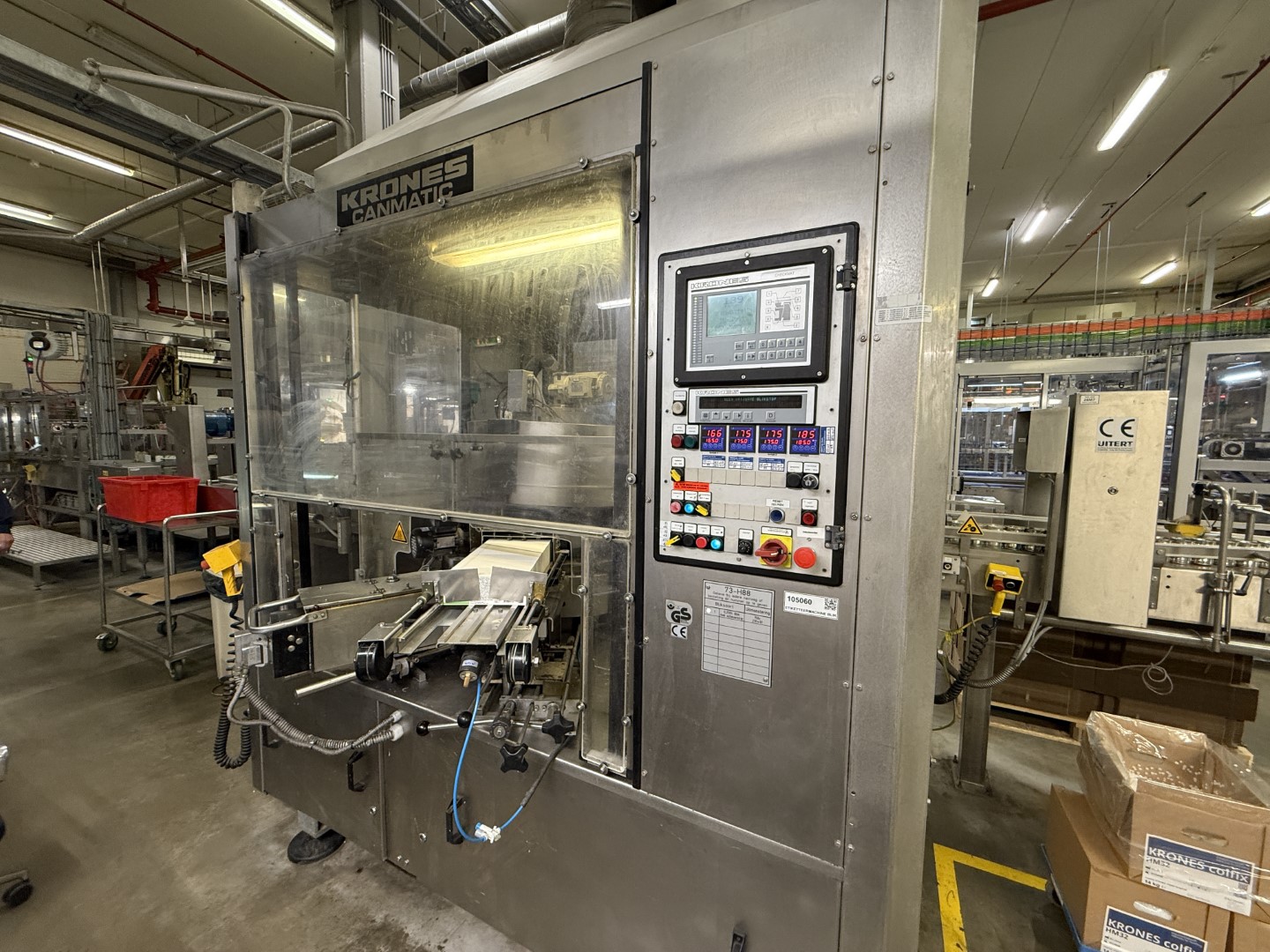

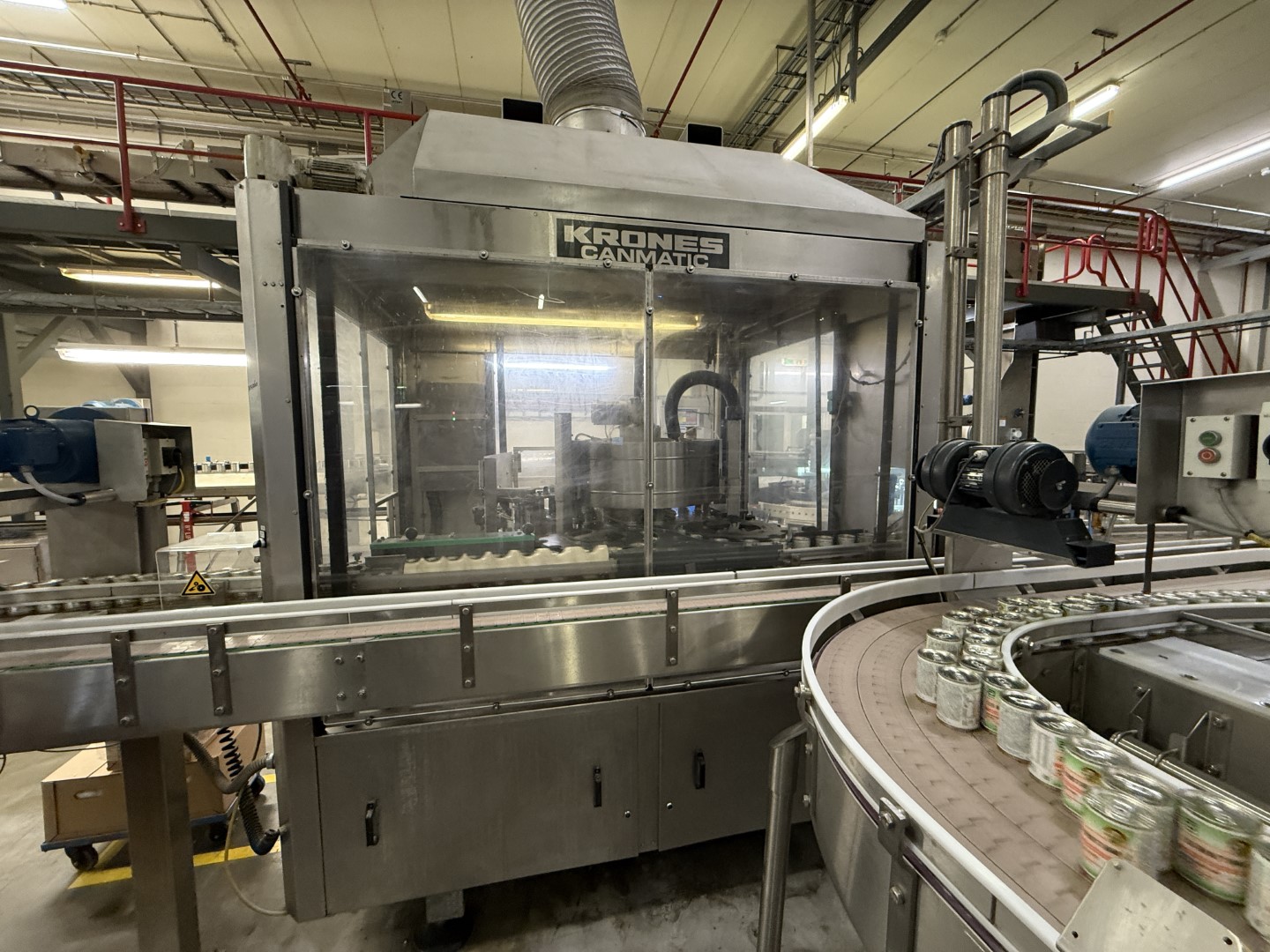

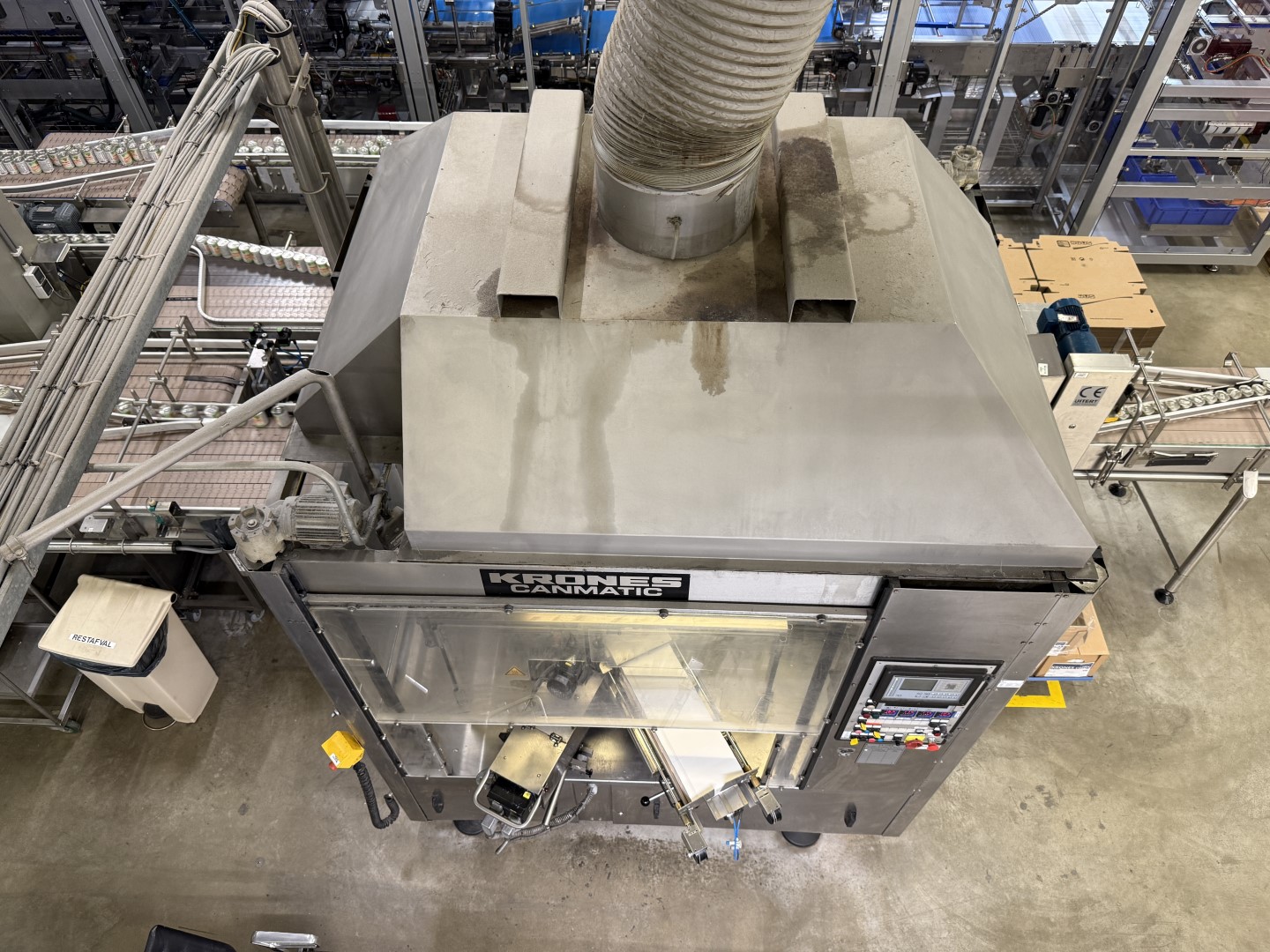

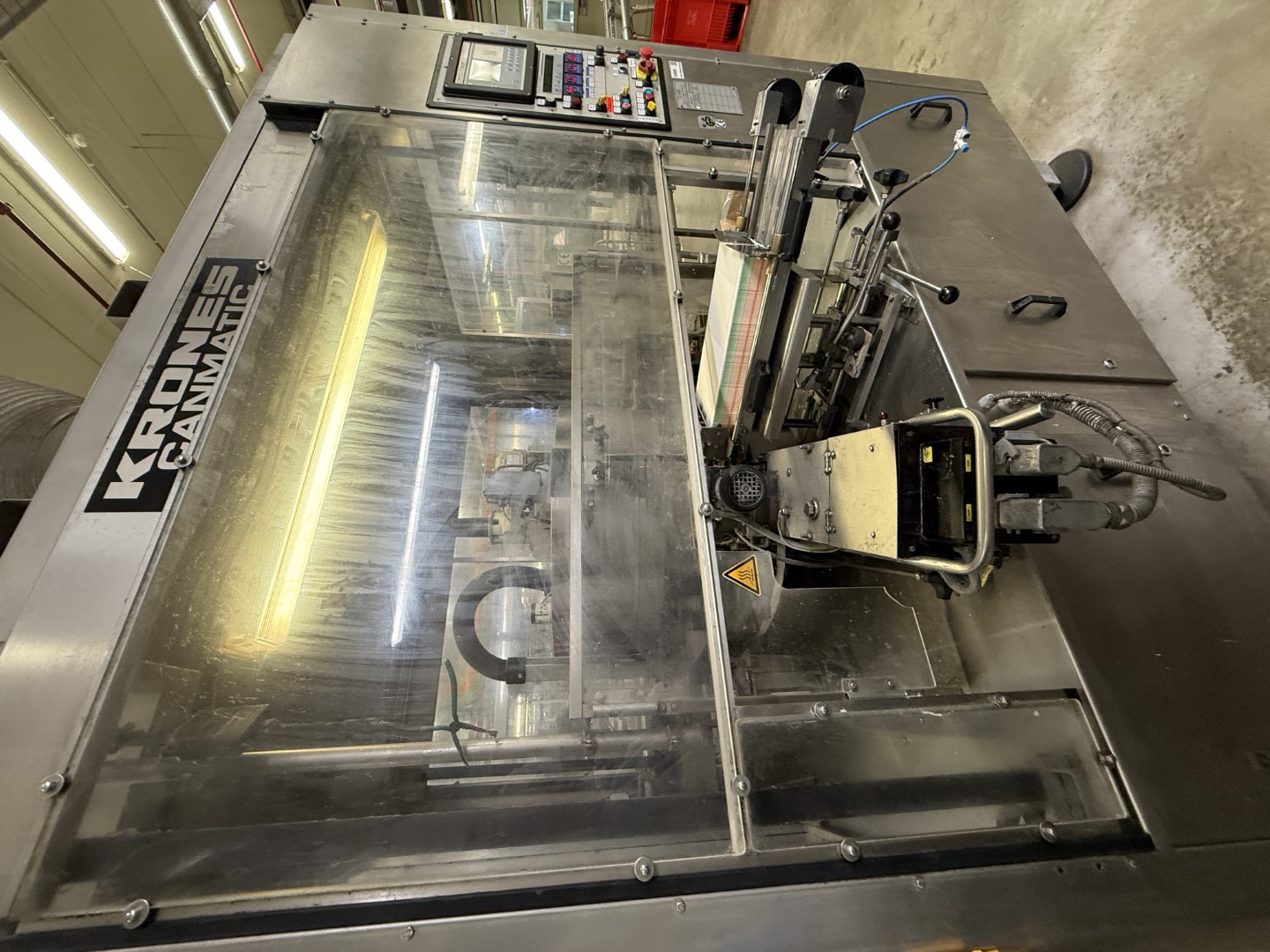

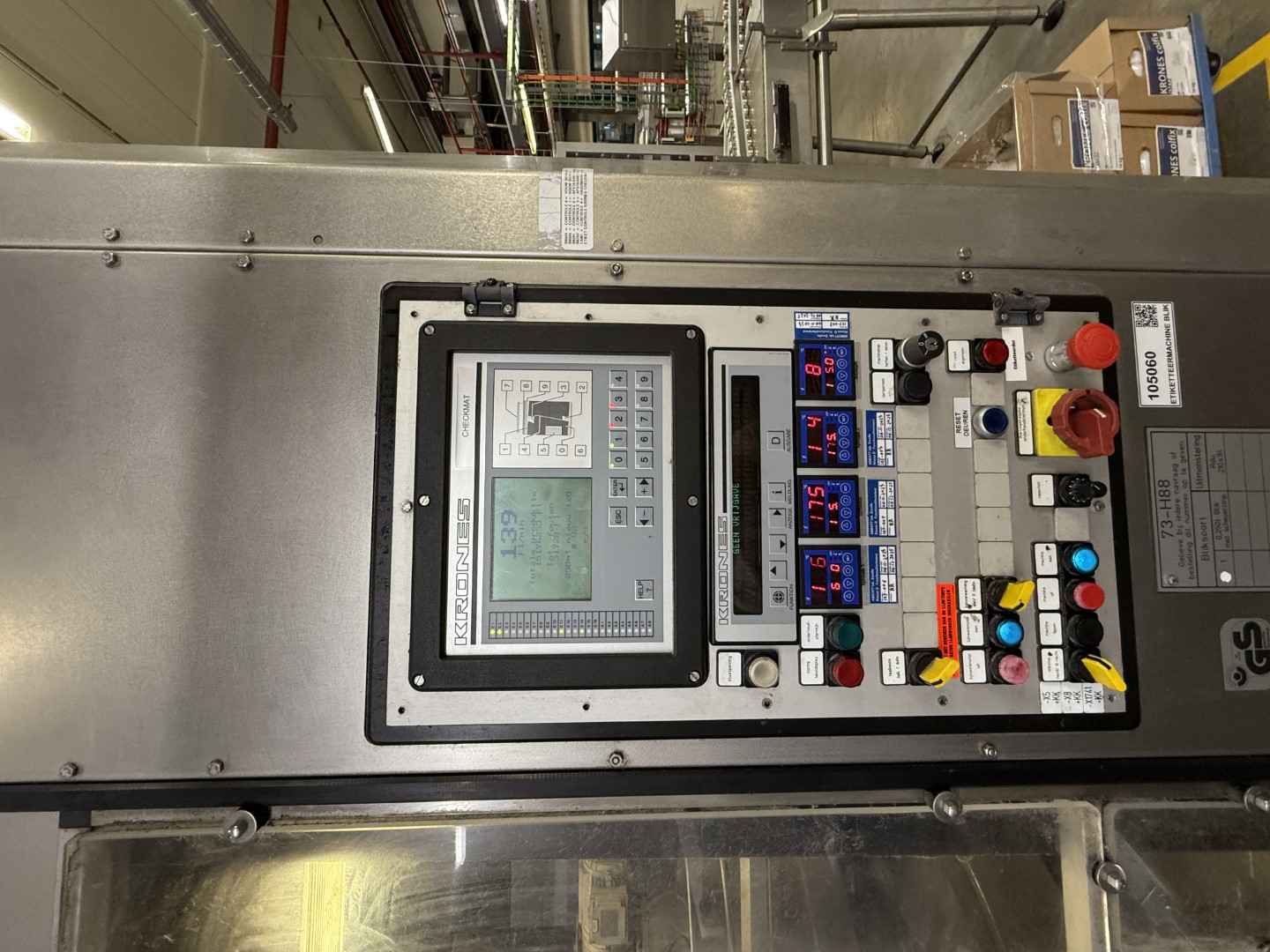

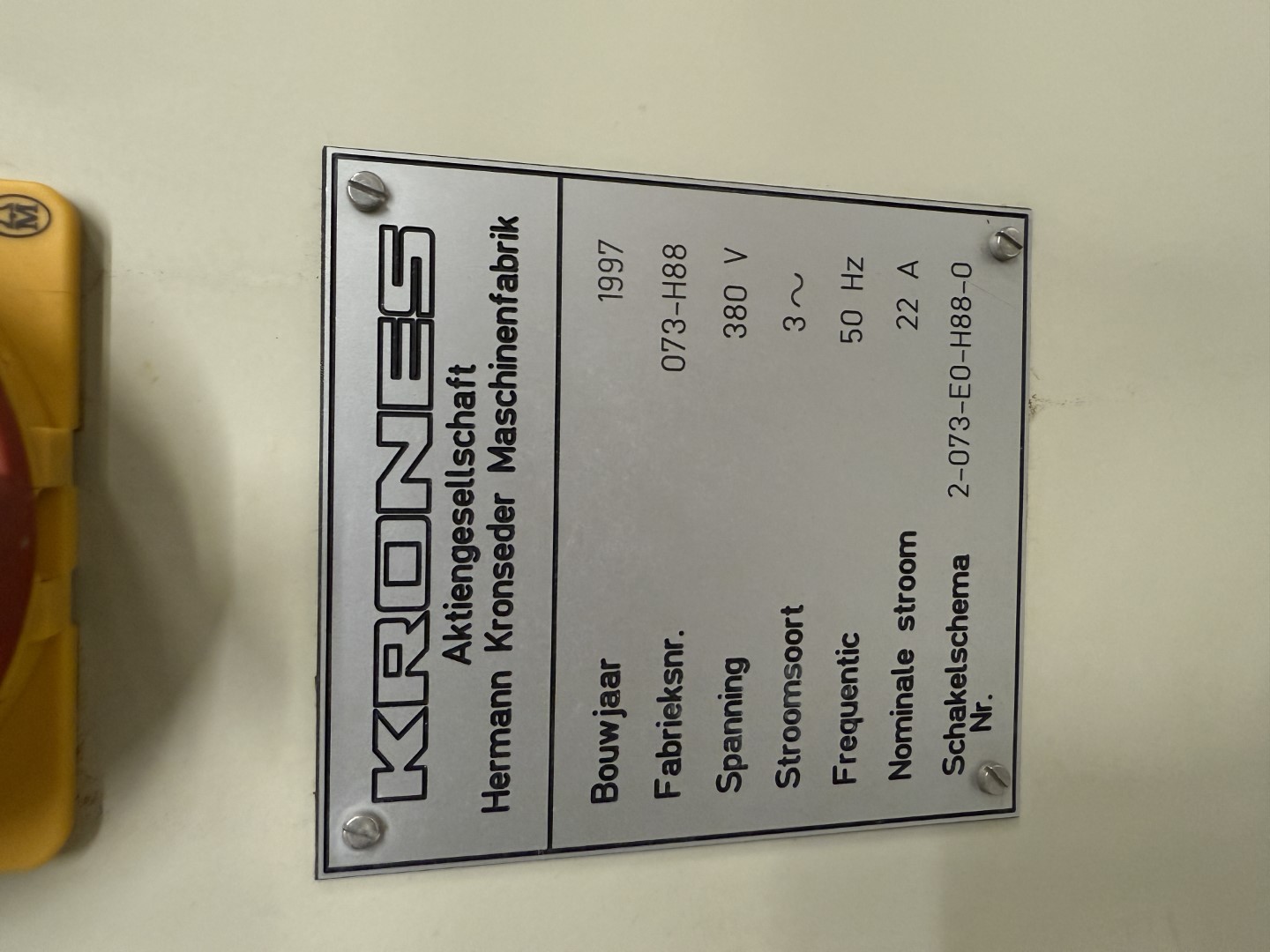

10. Labeller

Manufacturer: Krones

Model: Canmatic

Year: 1997

Serial number: 073-H88

Installed power: 380 V - 50 Hz - 22 A

Capacity: up to 450 cans per minute

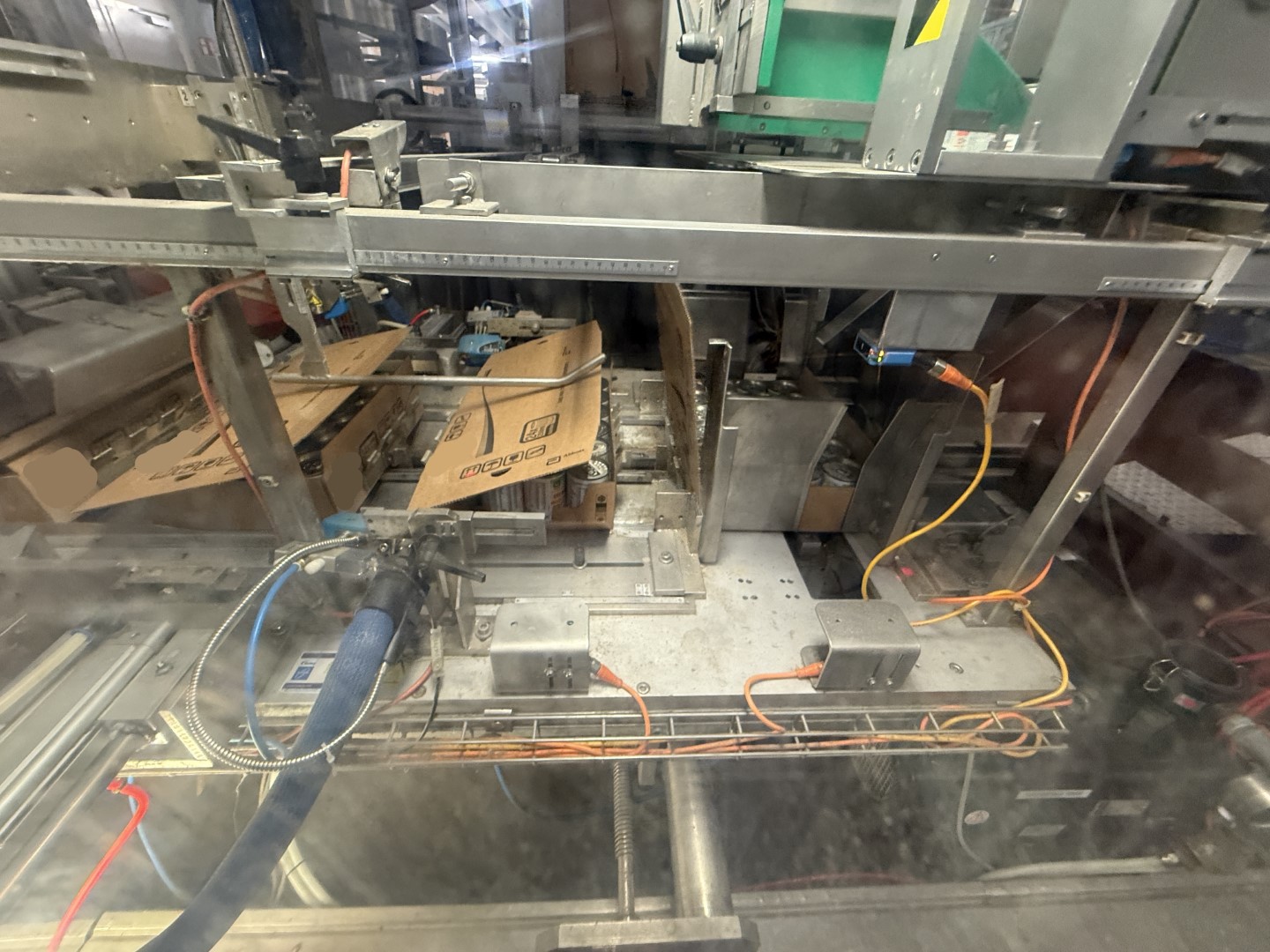

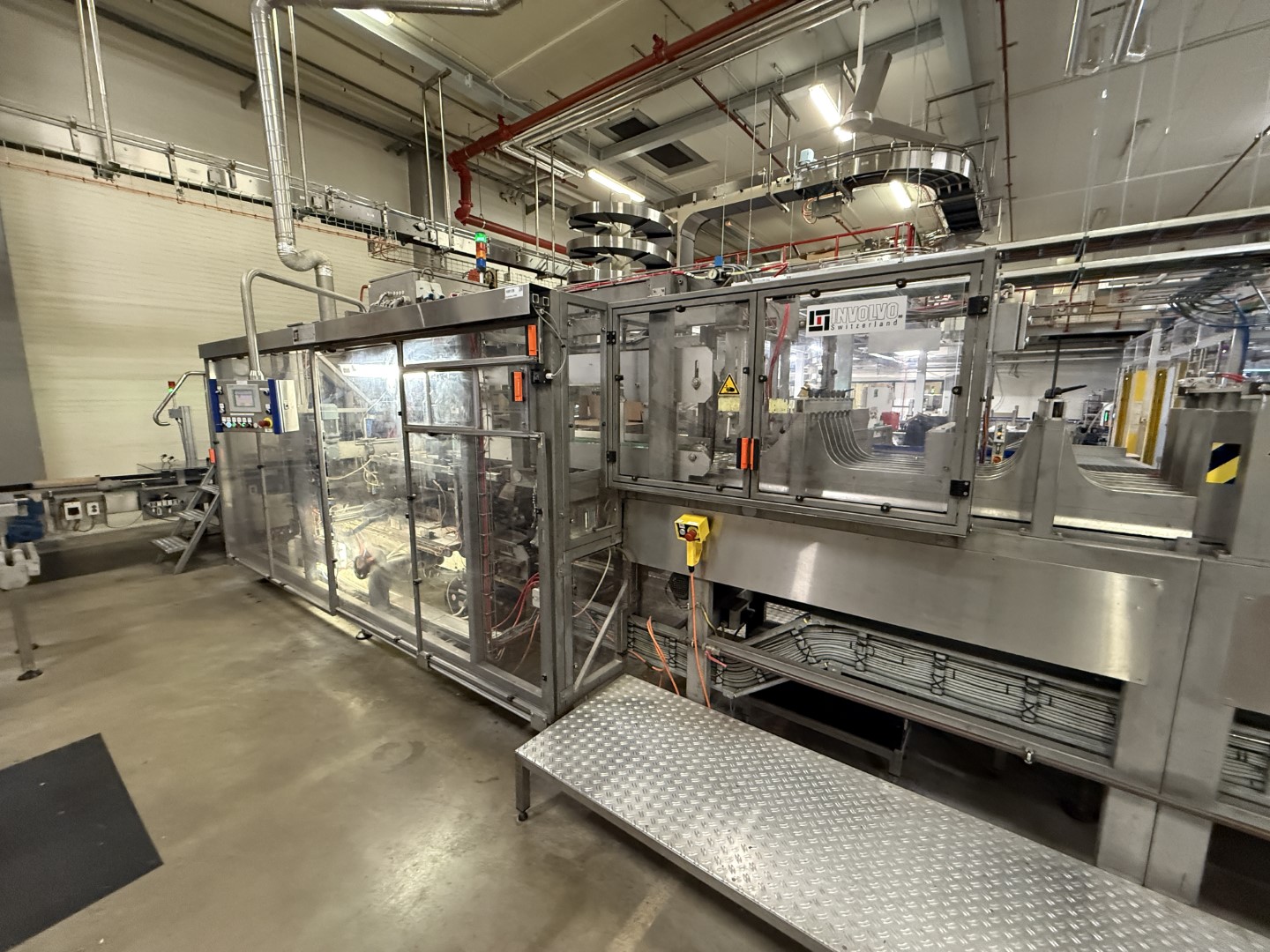

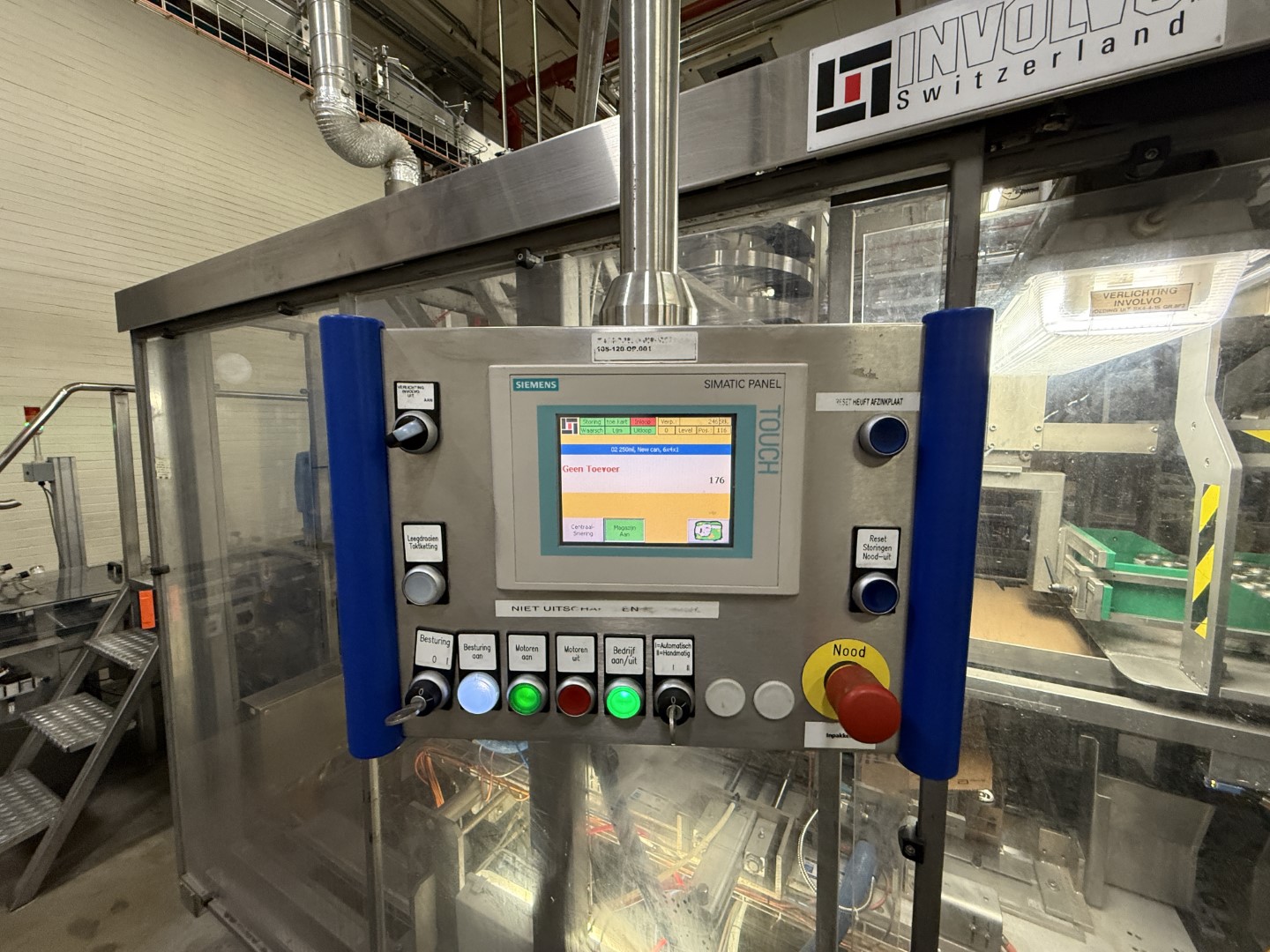

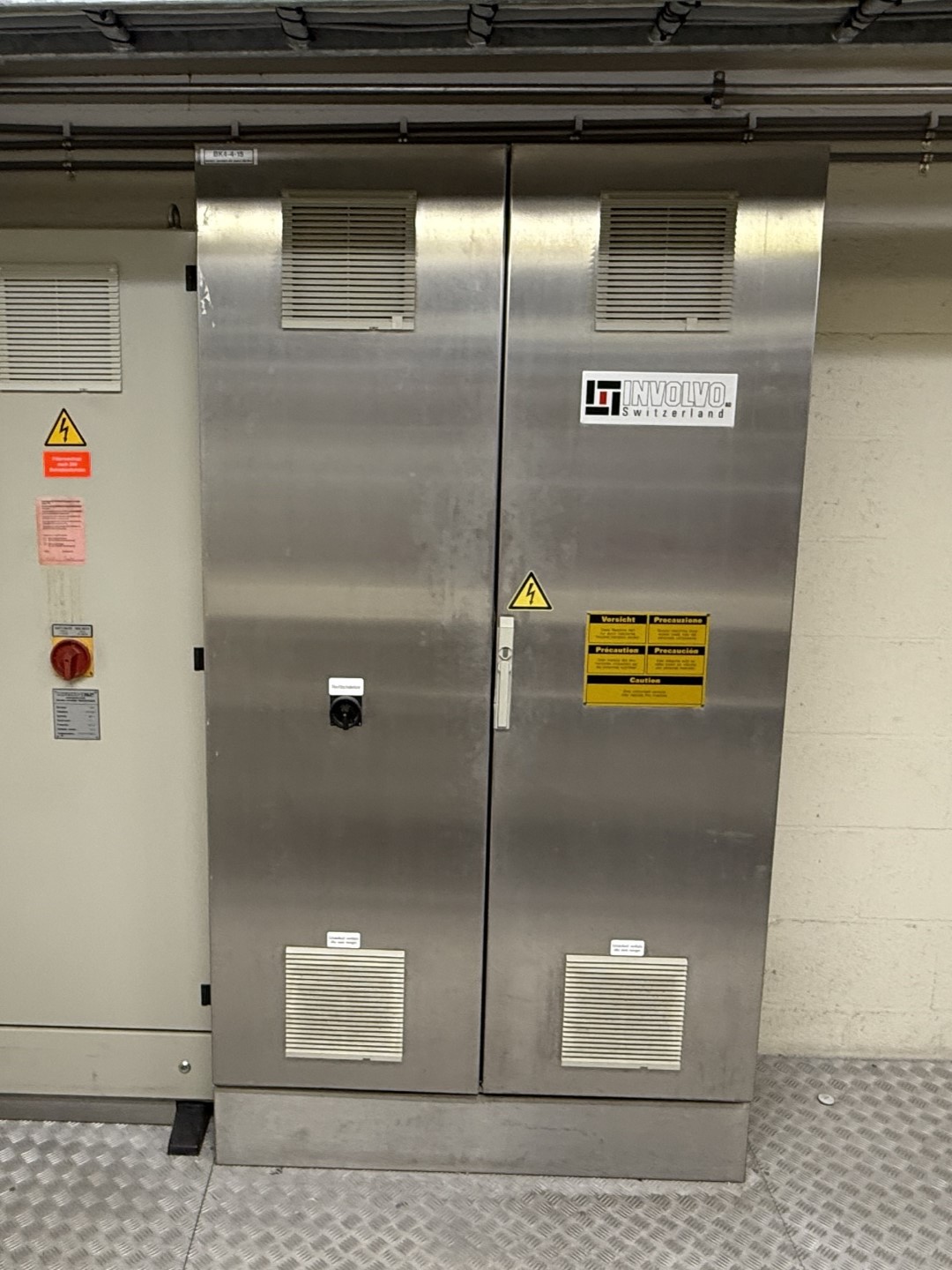

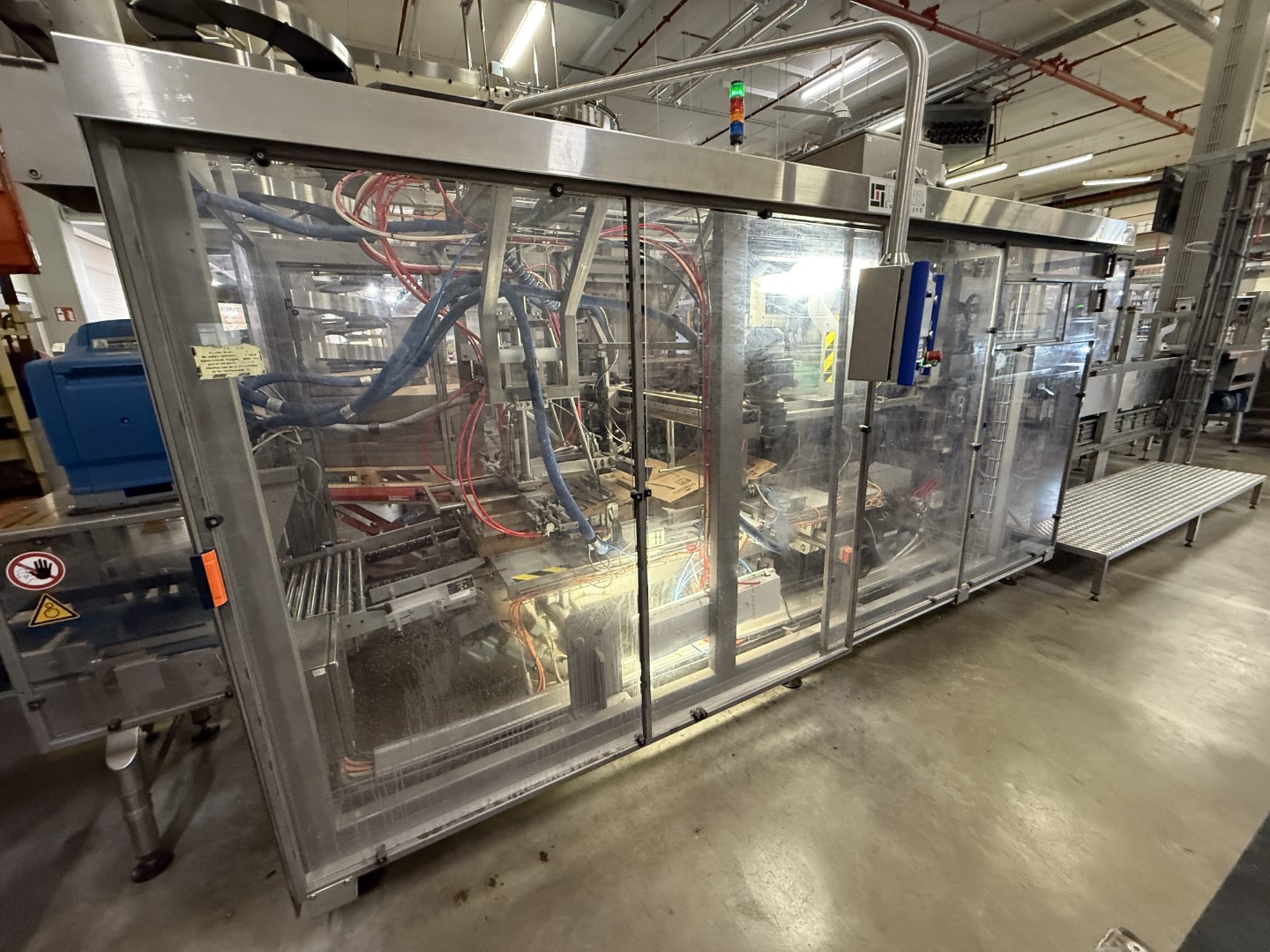

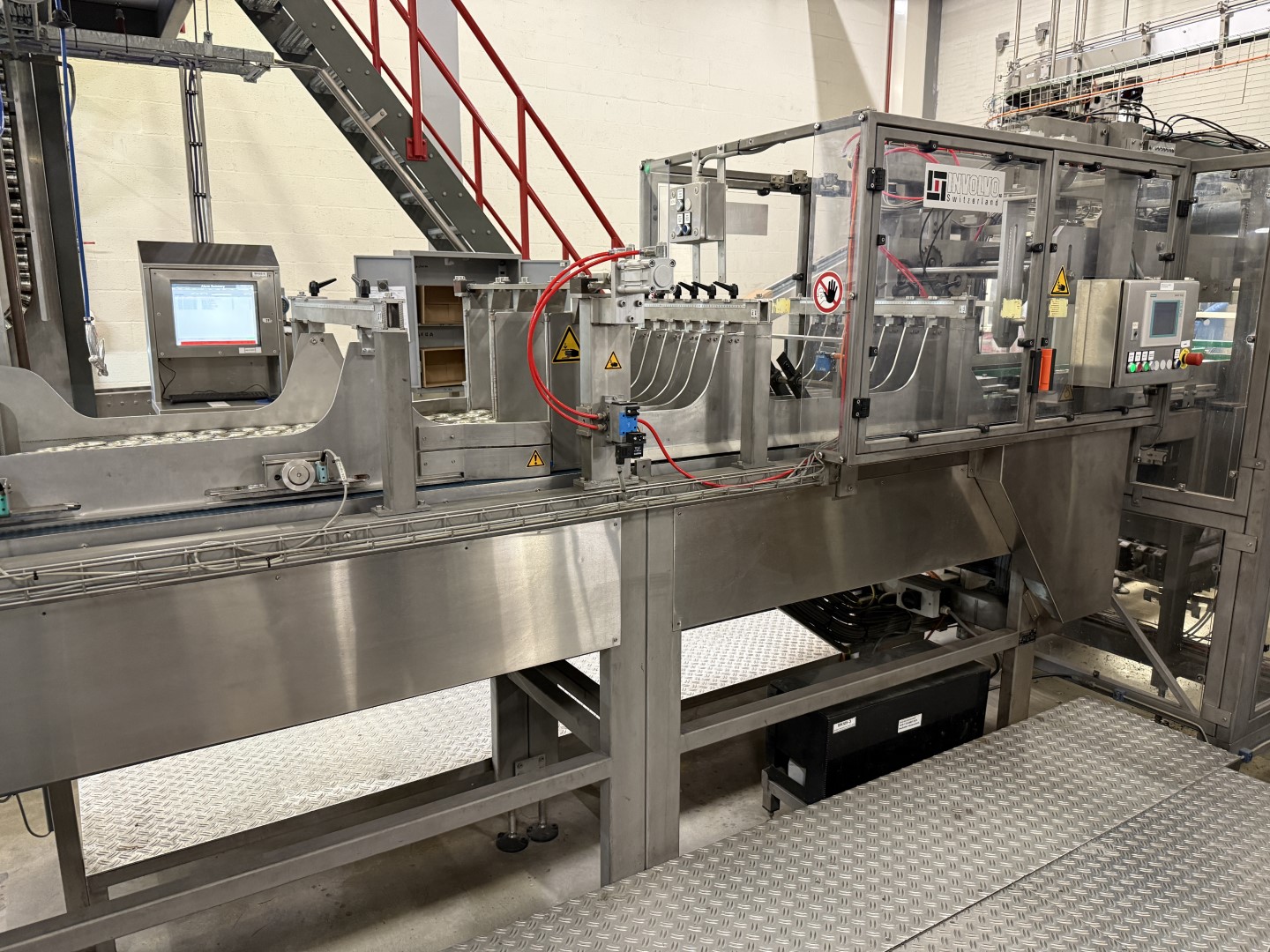

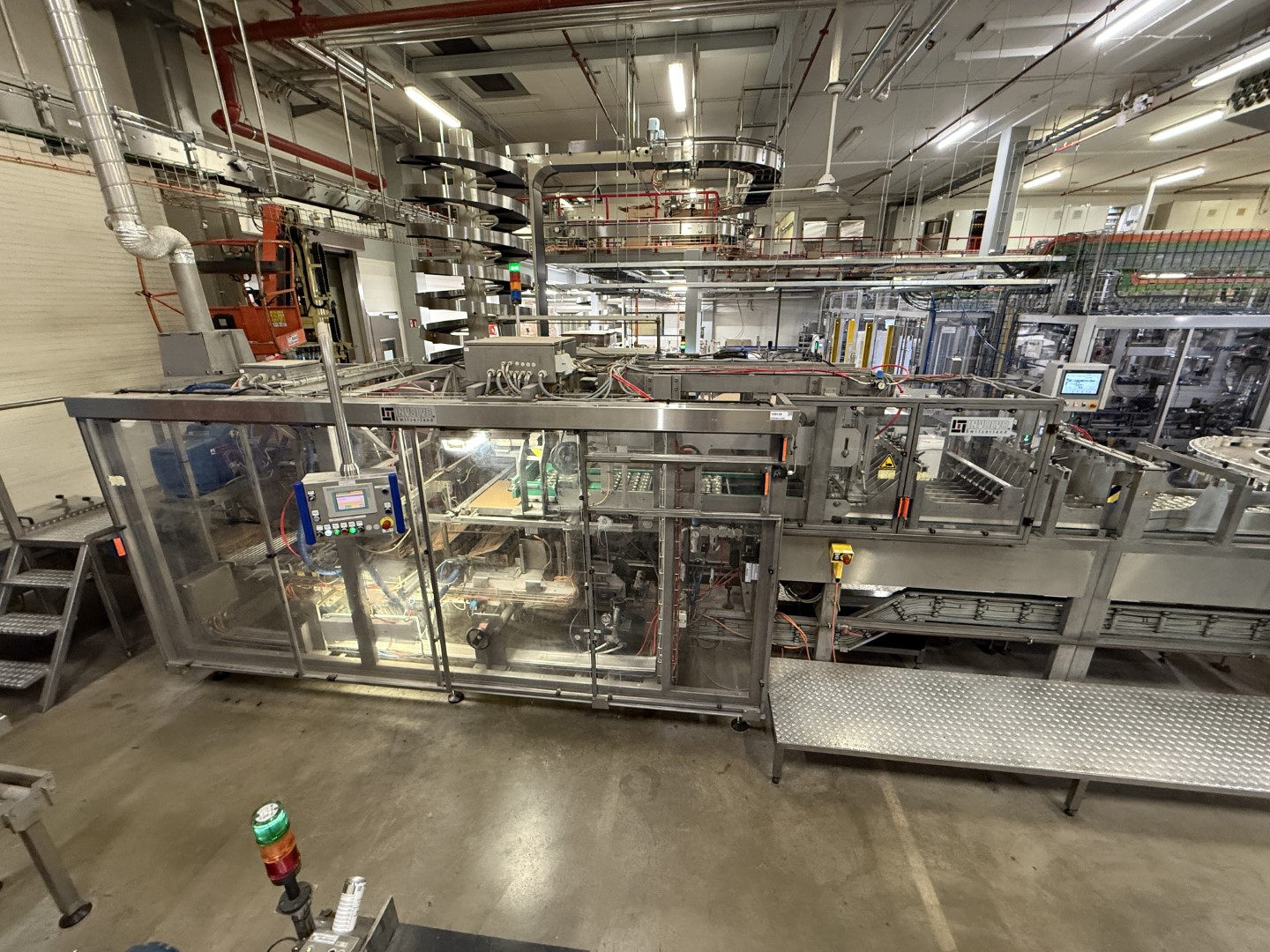

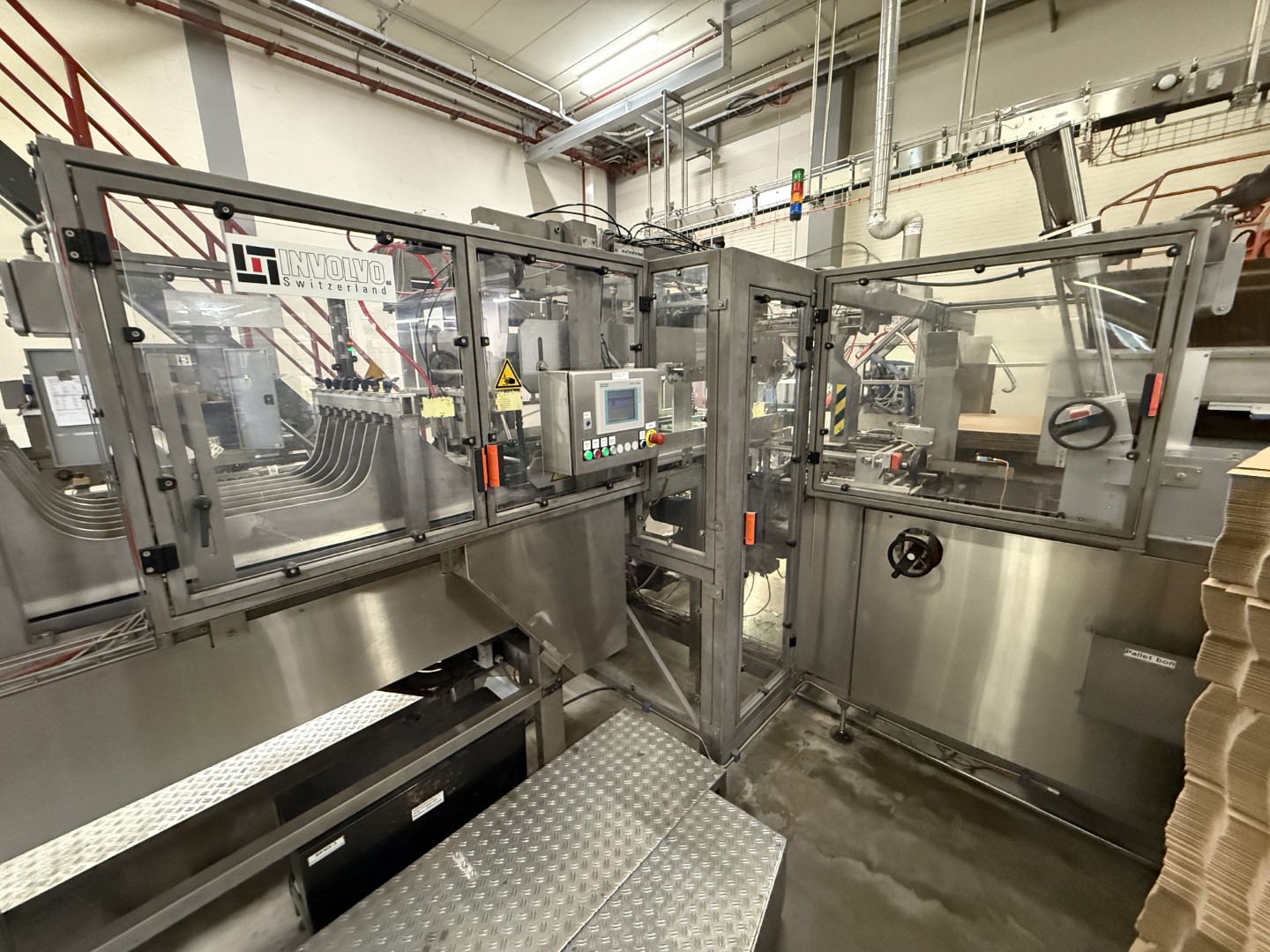

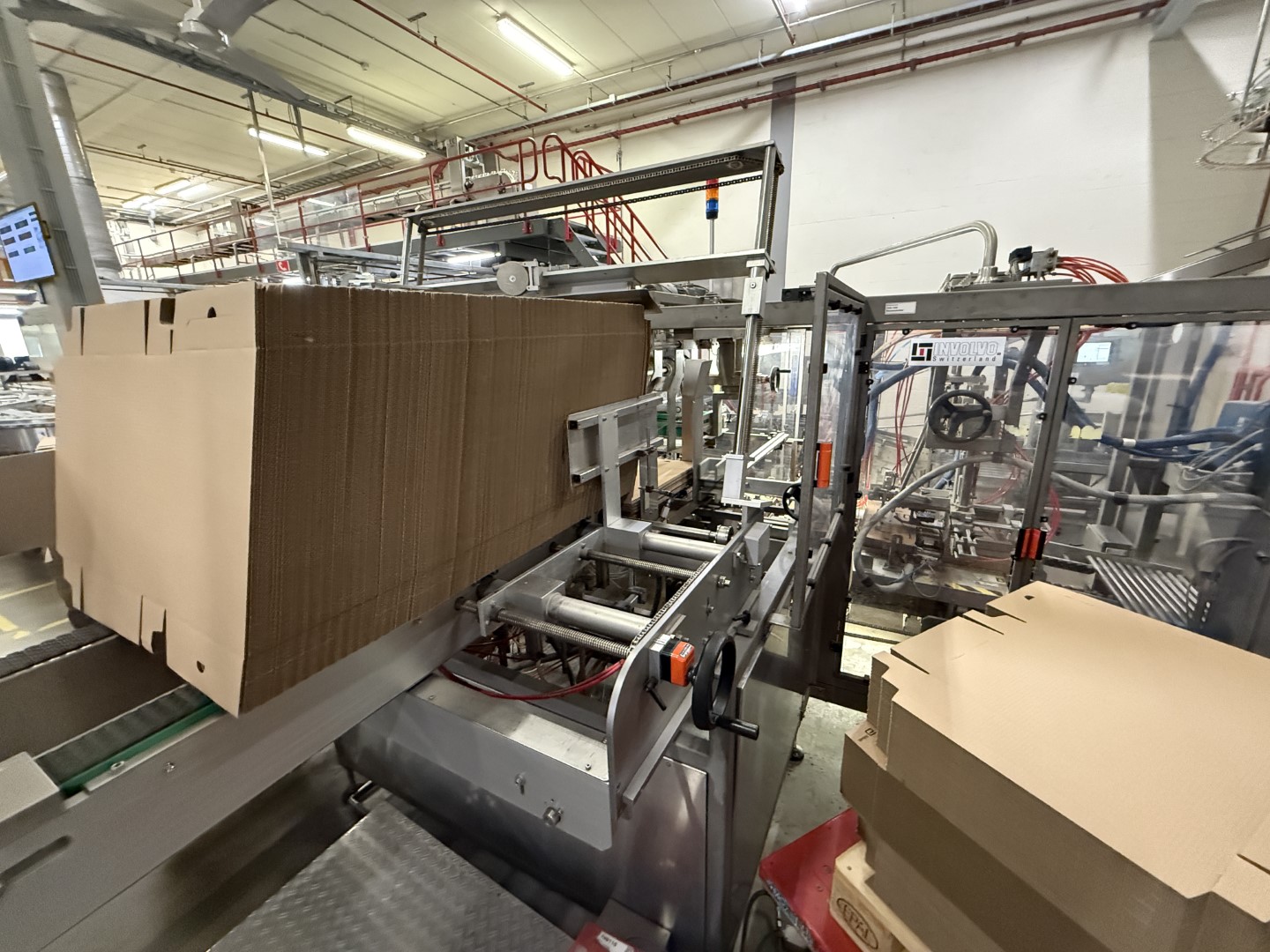

11. Wraparound case packer

Manufacturer: Involvo

Year: 1997

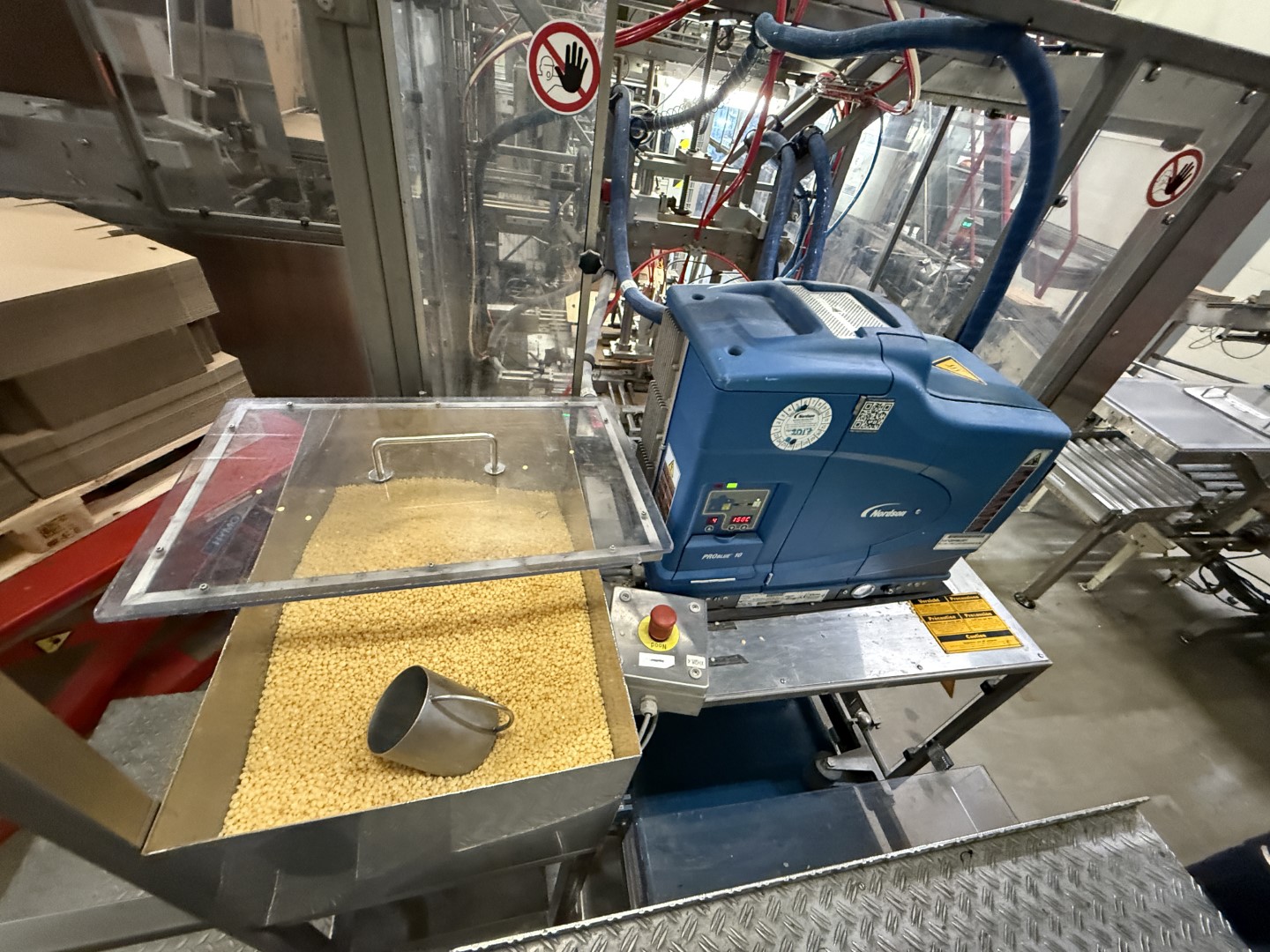

Nordson Problue 10 hotmelt unit.

Pack format 6x4 = 24x per carton

Control panel with Siemens S7-300 PLC and Siemens Simatic Operation panel.

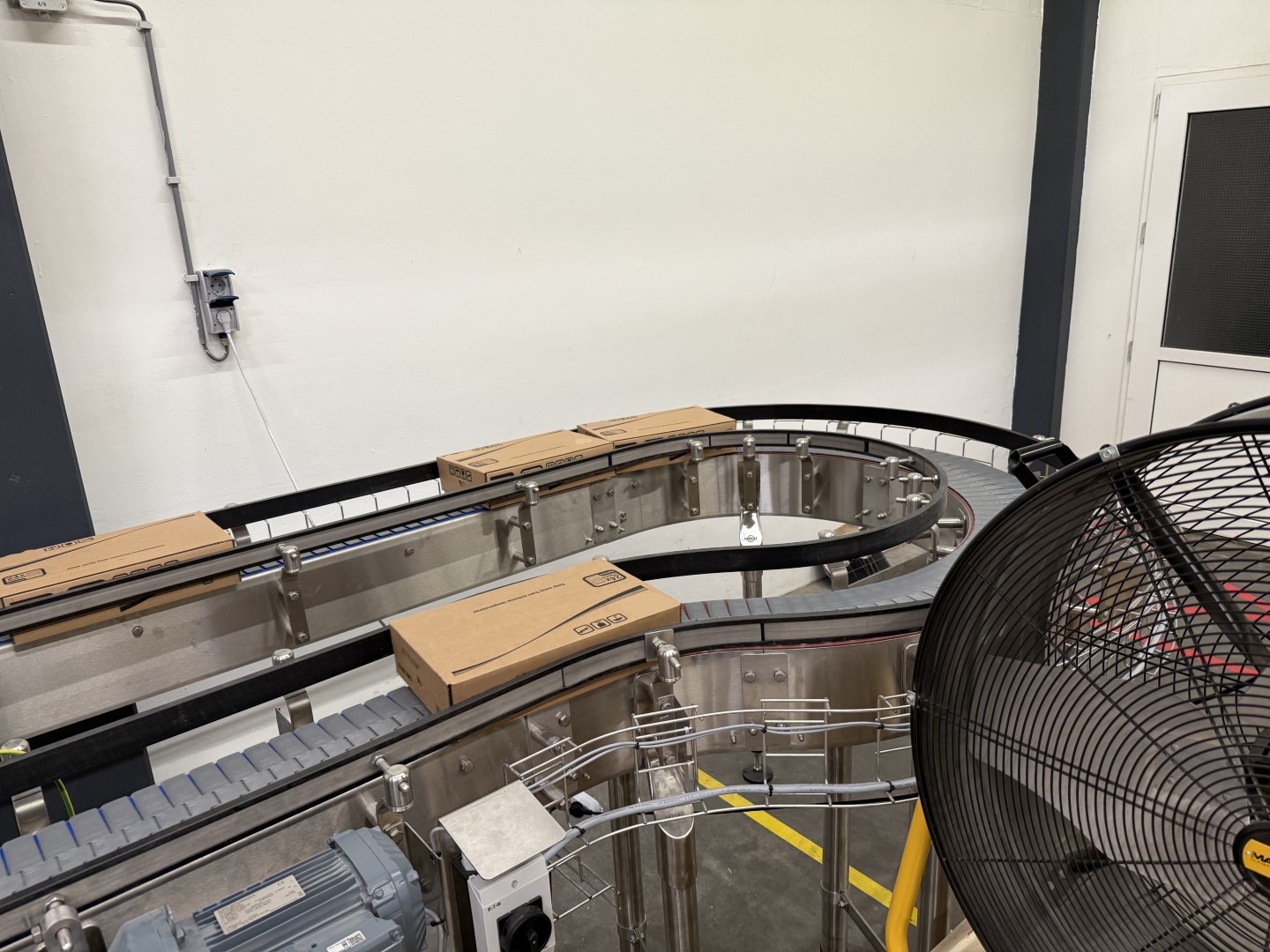

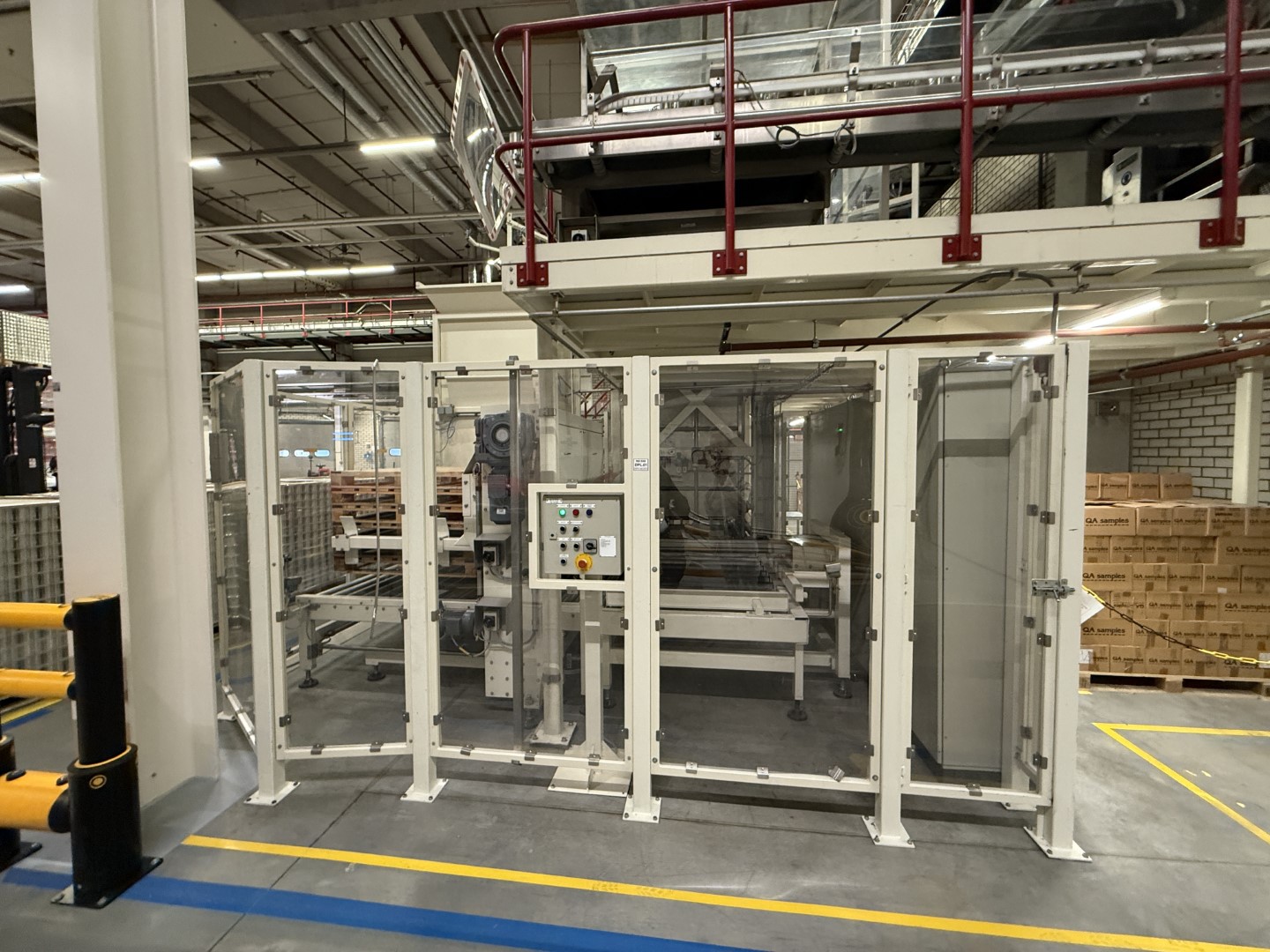

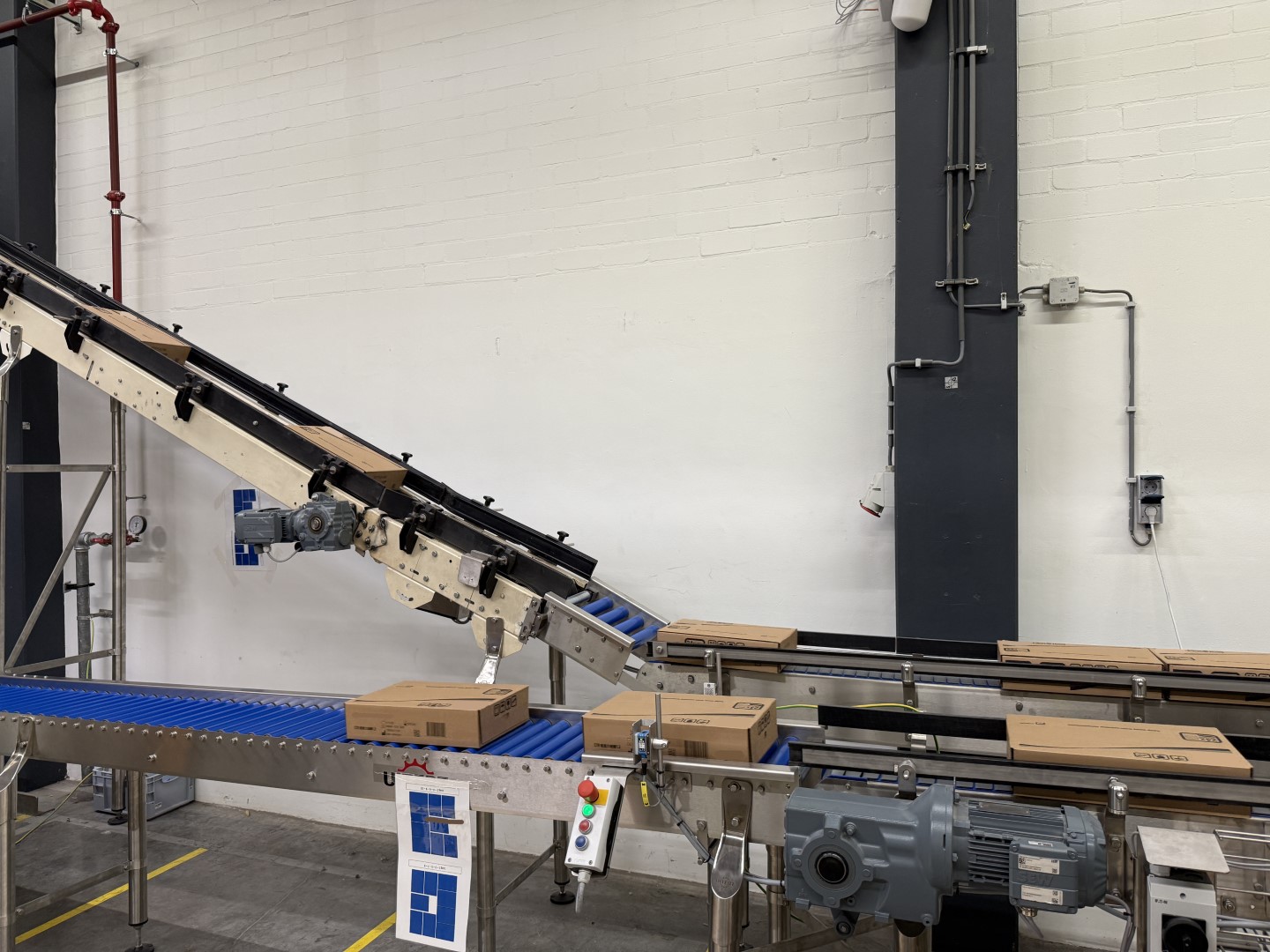

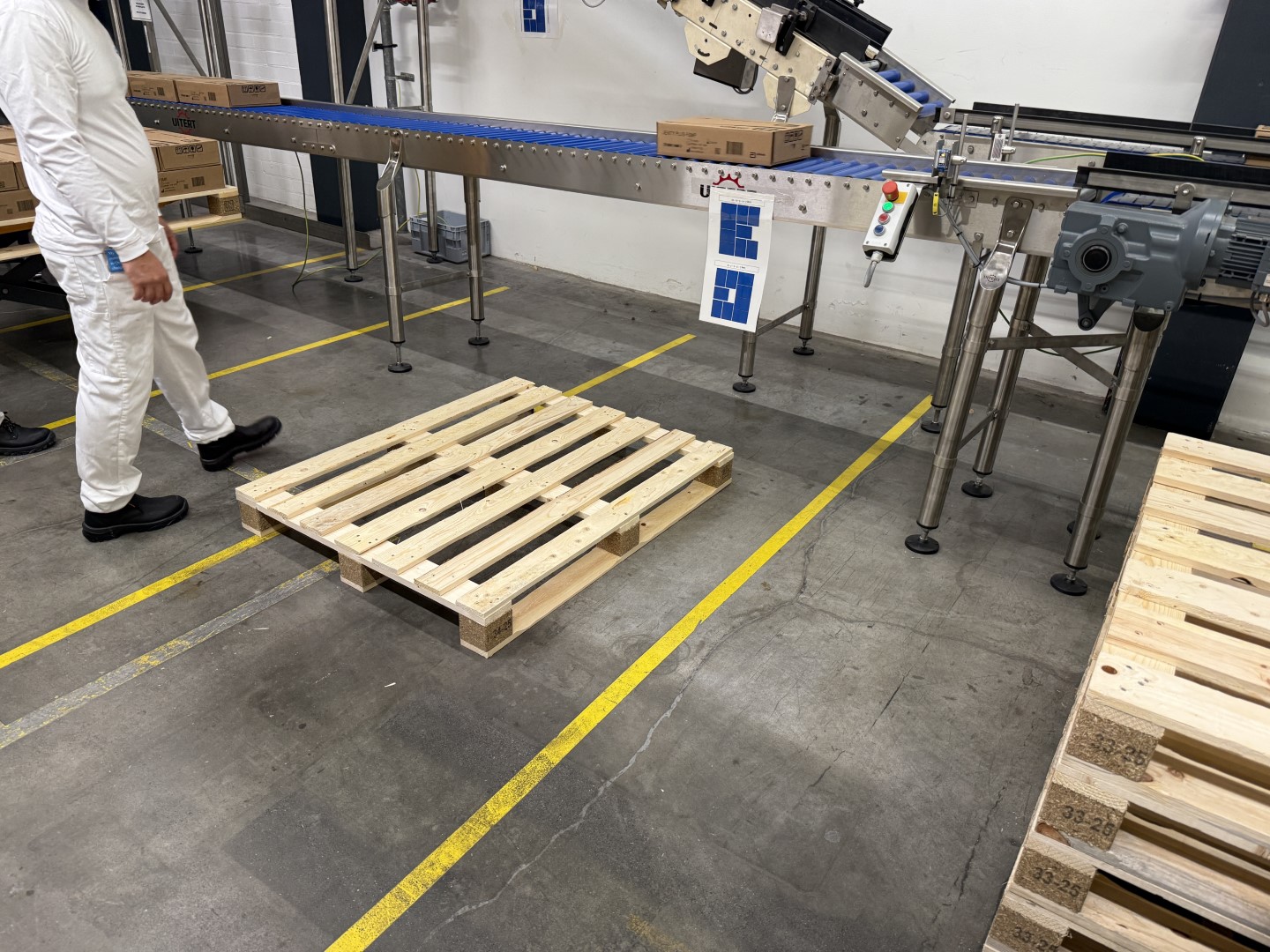

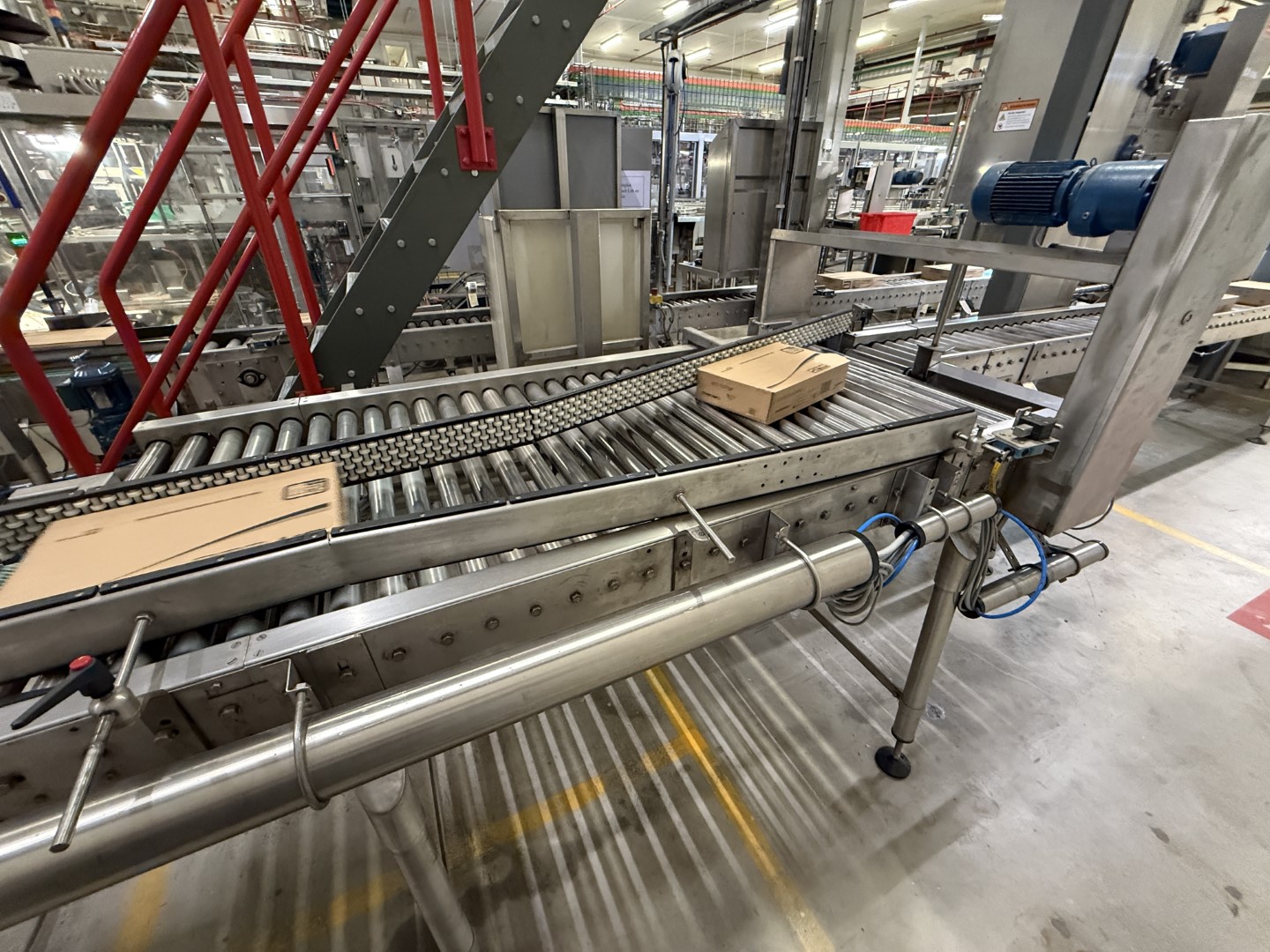

12. Conveyor to manual packaging station

Manual putting the carton on a pallet.

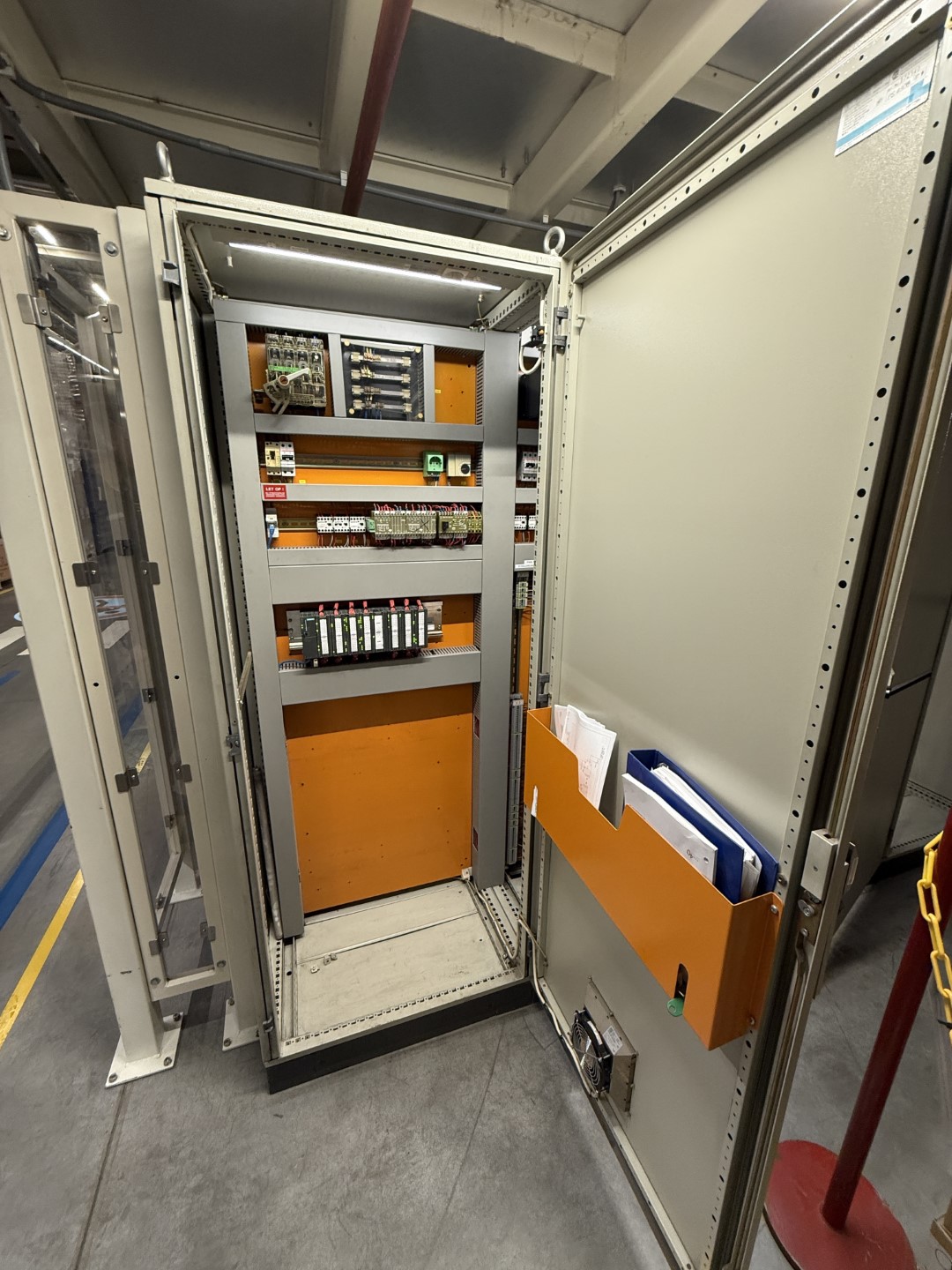

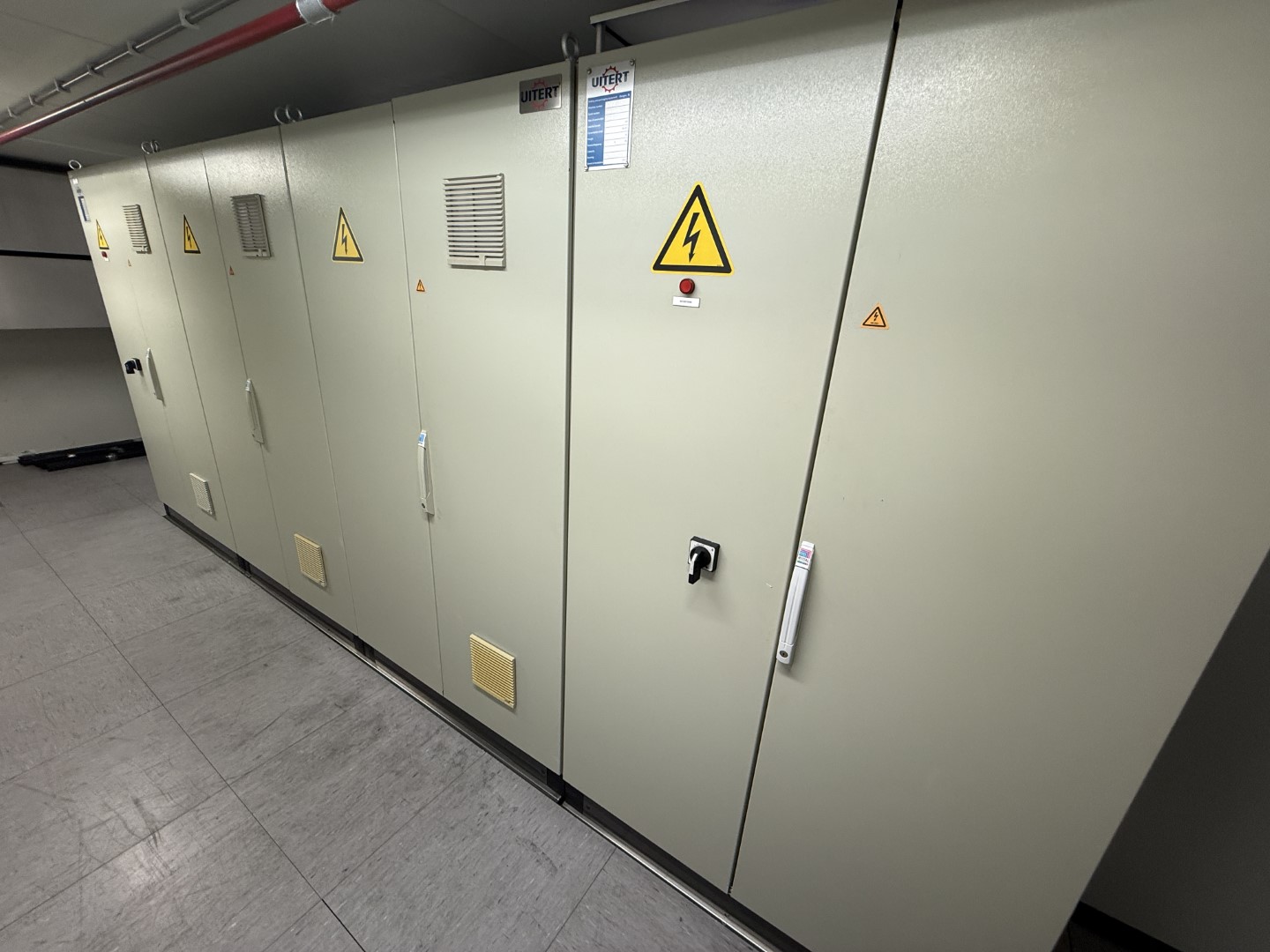

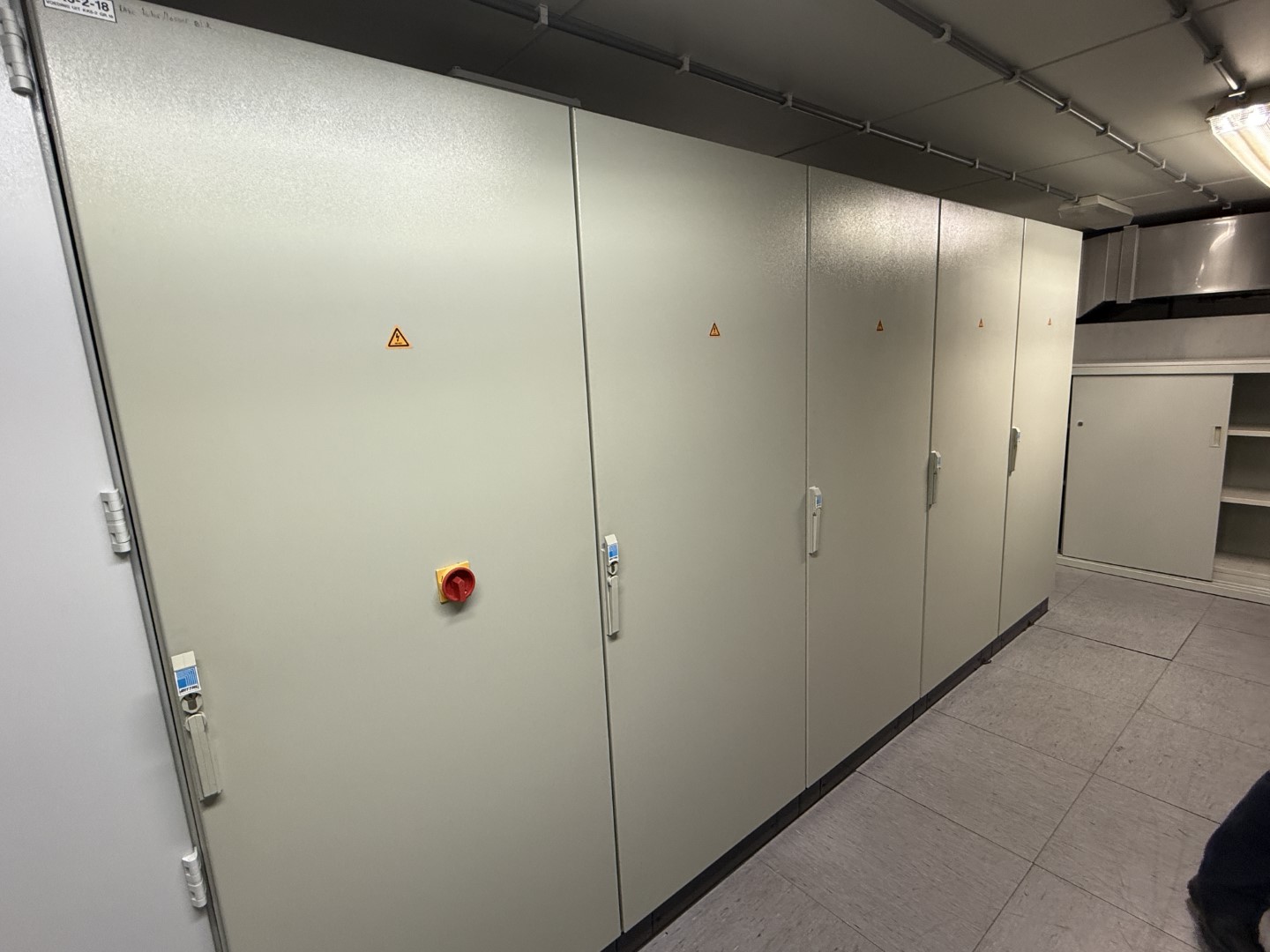

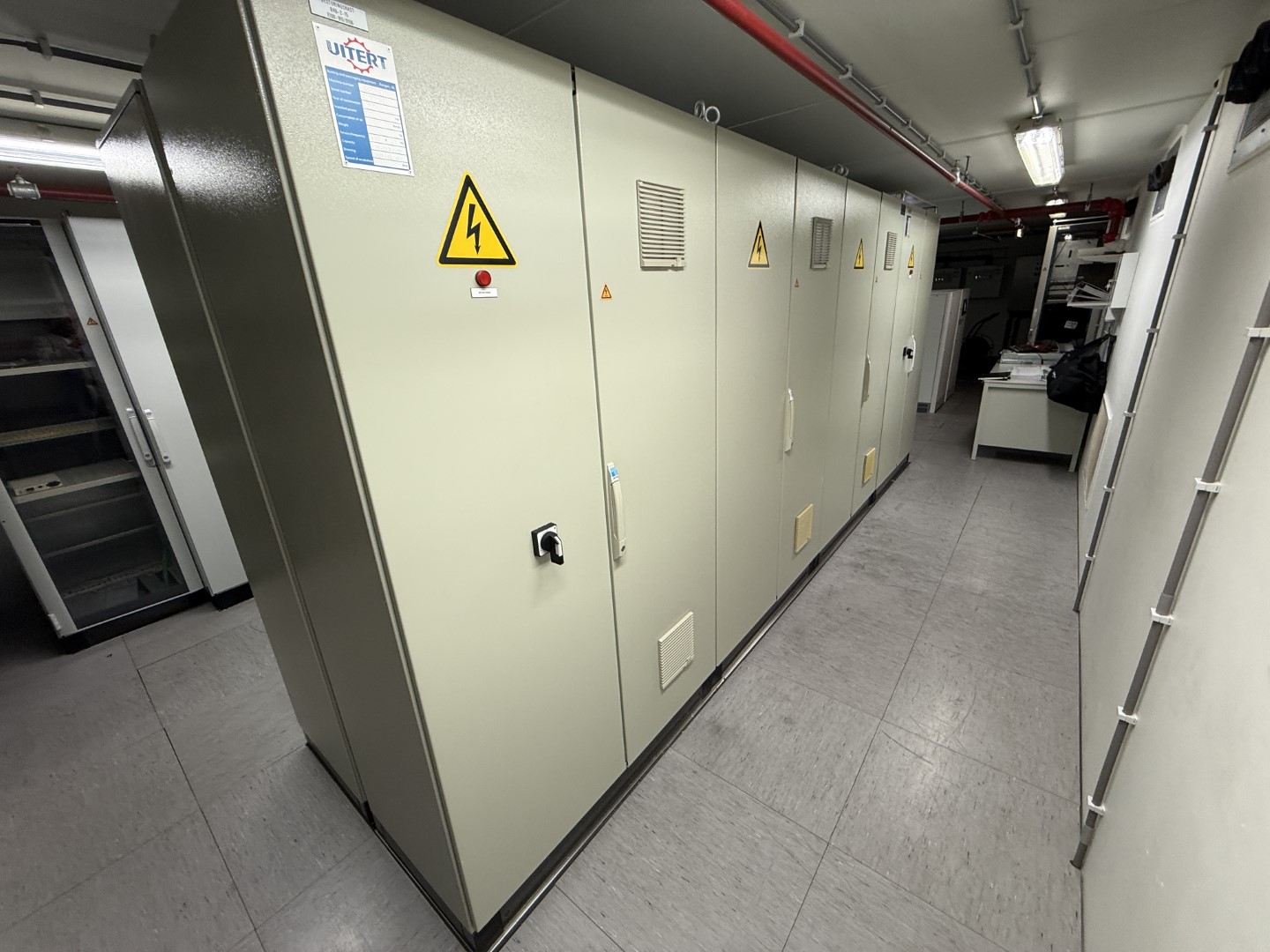

13. Including interconnecting conveyors, control panels, PLC and programs for PLC's and available manuals and electric schemes.

Additional features:

Seller will approve the Buyer if he is allowed to take over the line.
