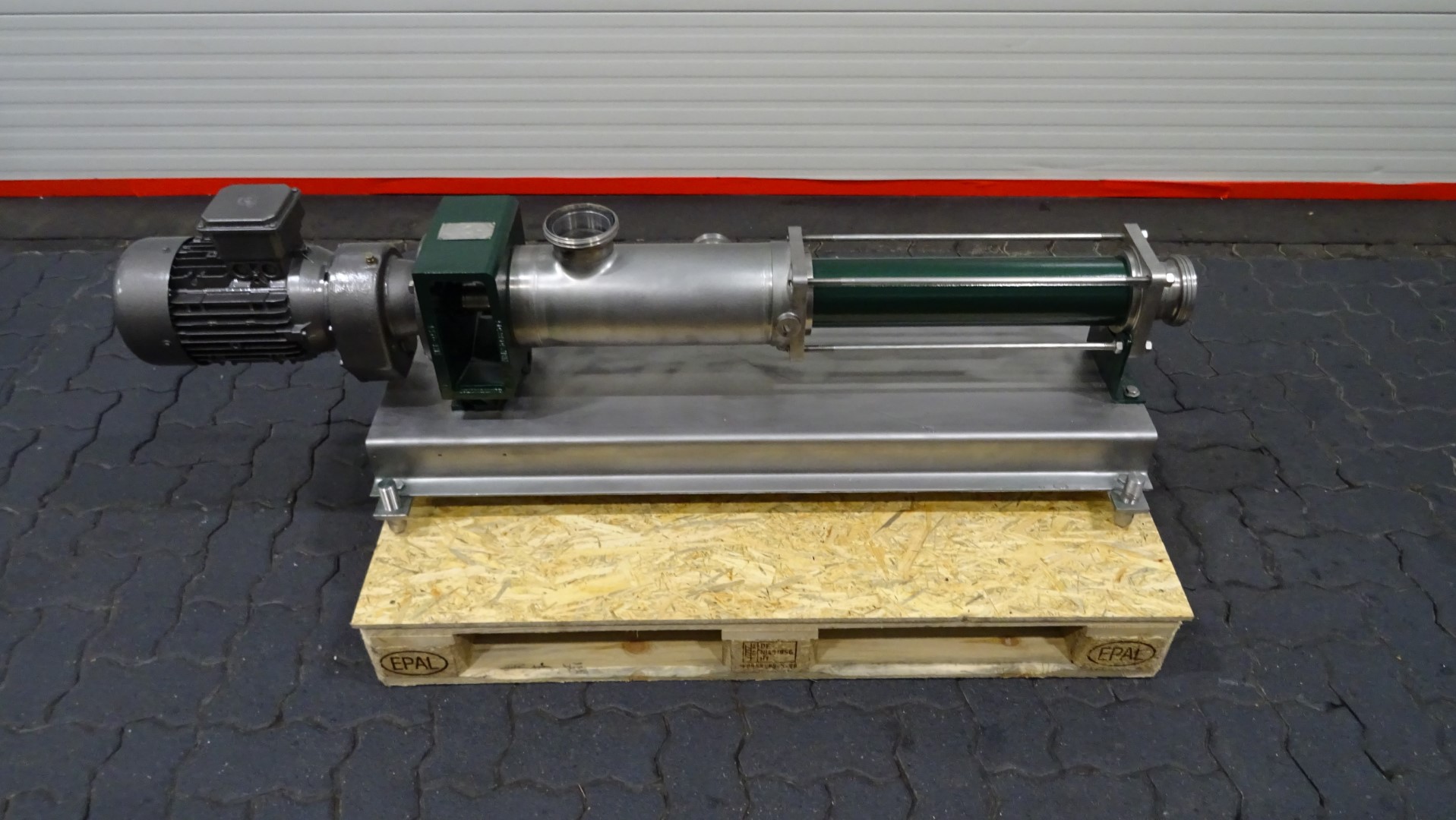

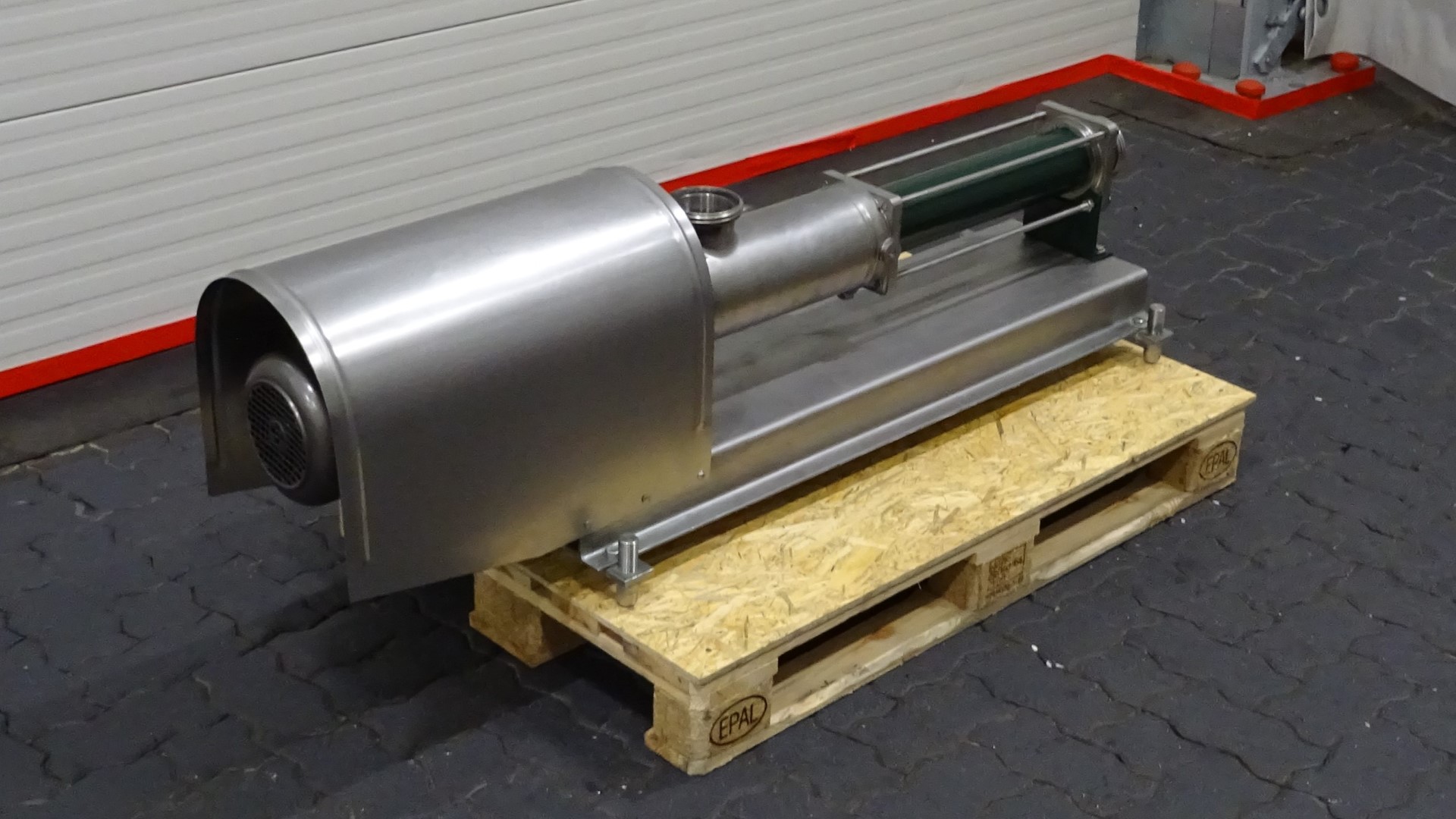

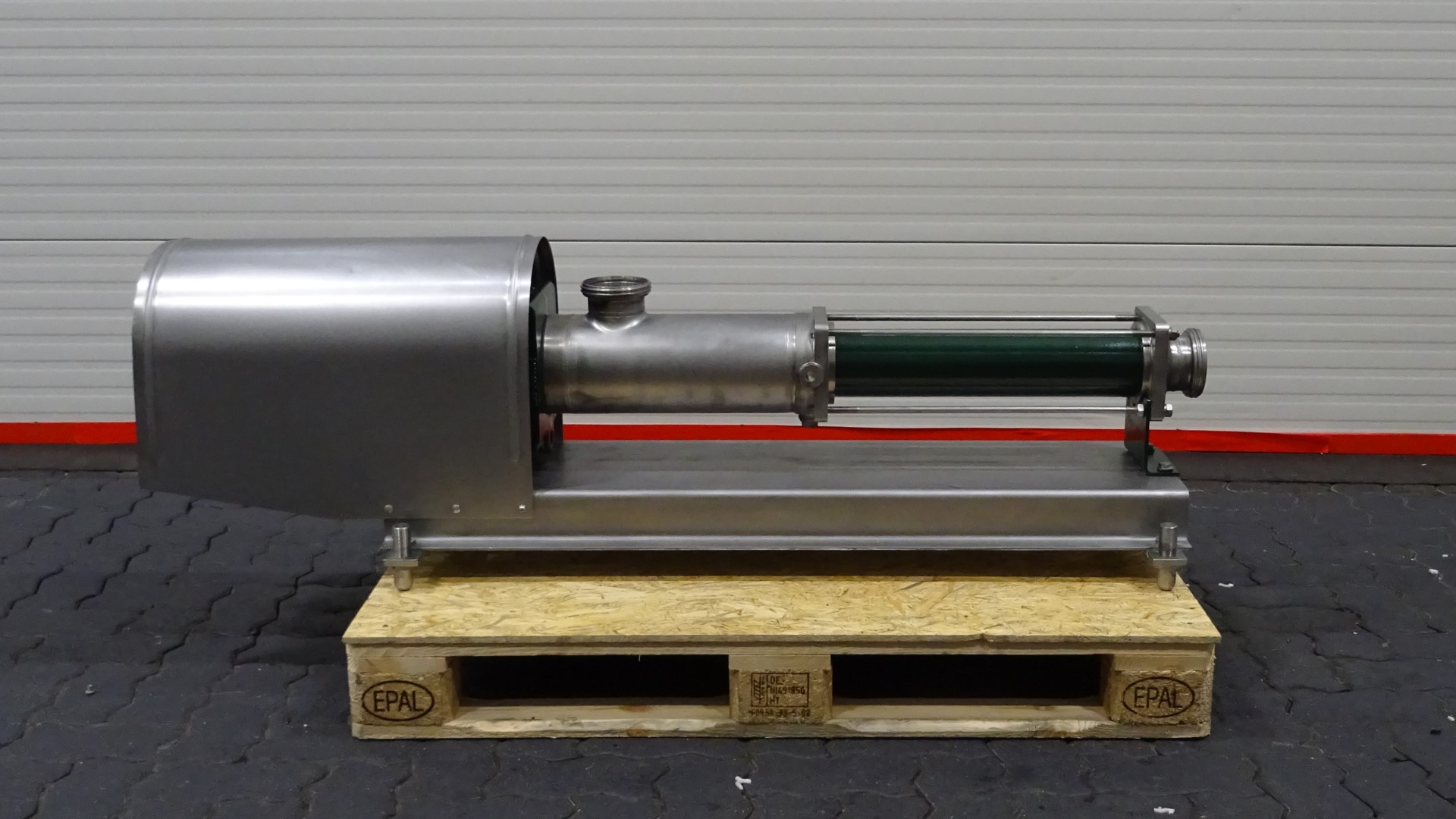

Progressing Cavity Pump / Mono Pump / Screw pump - Netzsch NM045BY02S12B

Location

Hamburg, Germany

Sold

Specifications

ManufacturerNetzsch
ModelNM045BY02S12B
Year2004
ConditionUsed
Serial Number354925
Stock Number1374
Type of MachineProgressing Cavity Pump
Stock Number1374
Capacity1.000 - 2.500 ltr/h
Maximum product pressureup to 8 bar
Rotor speed70 - 180 rpm

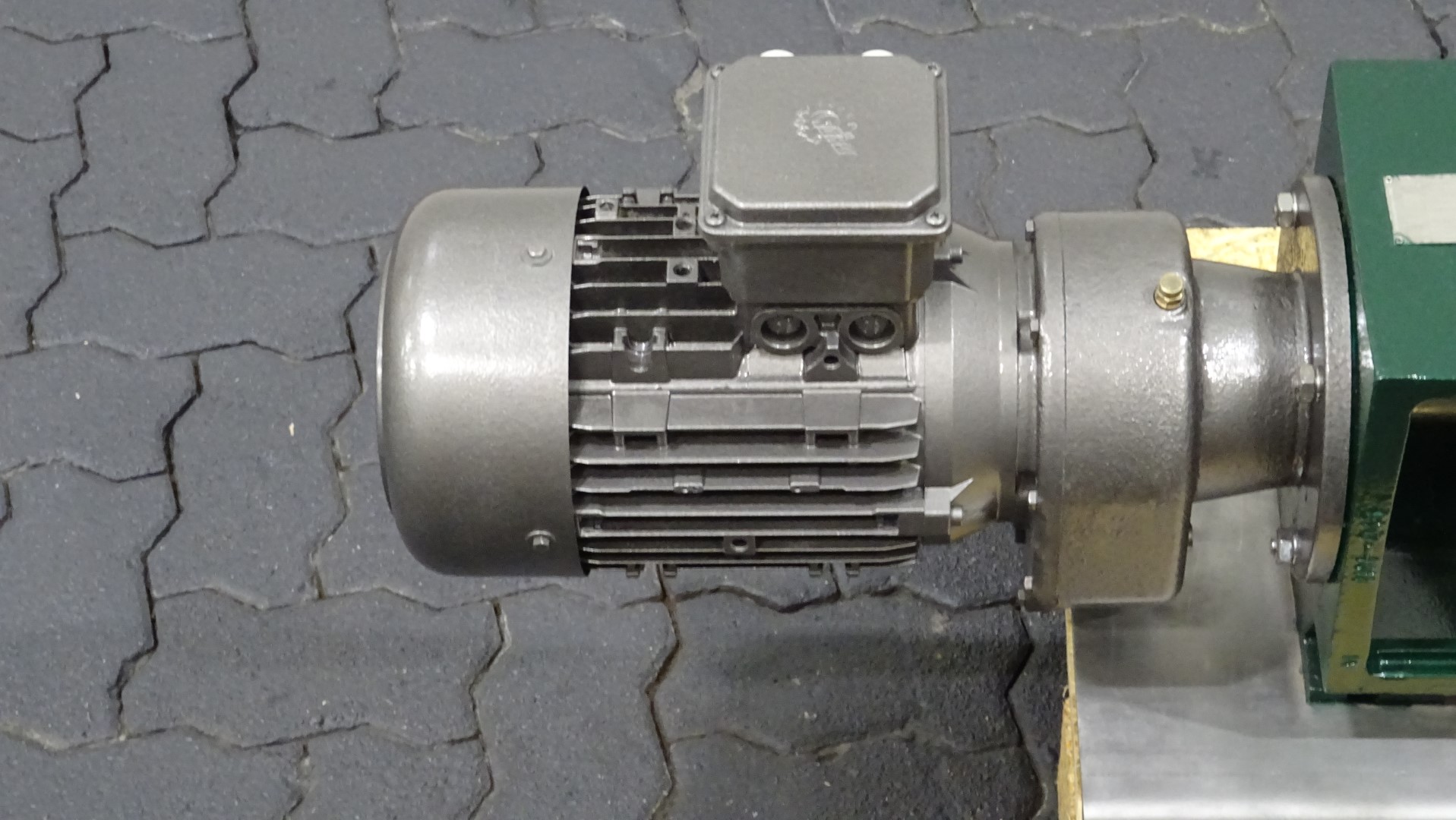

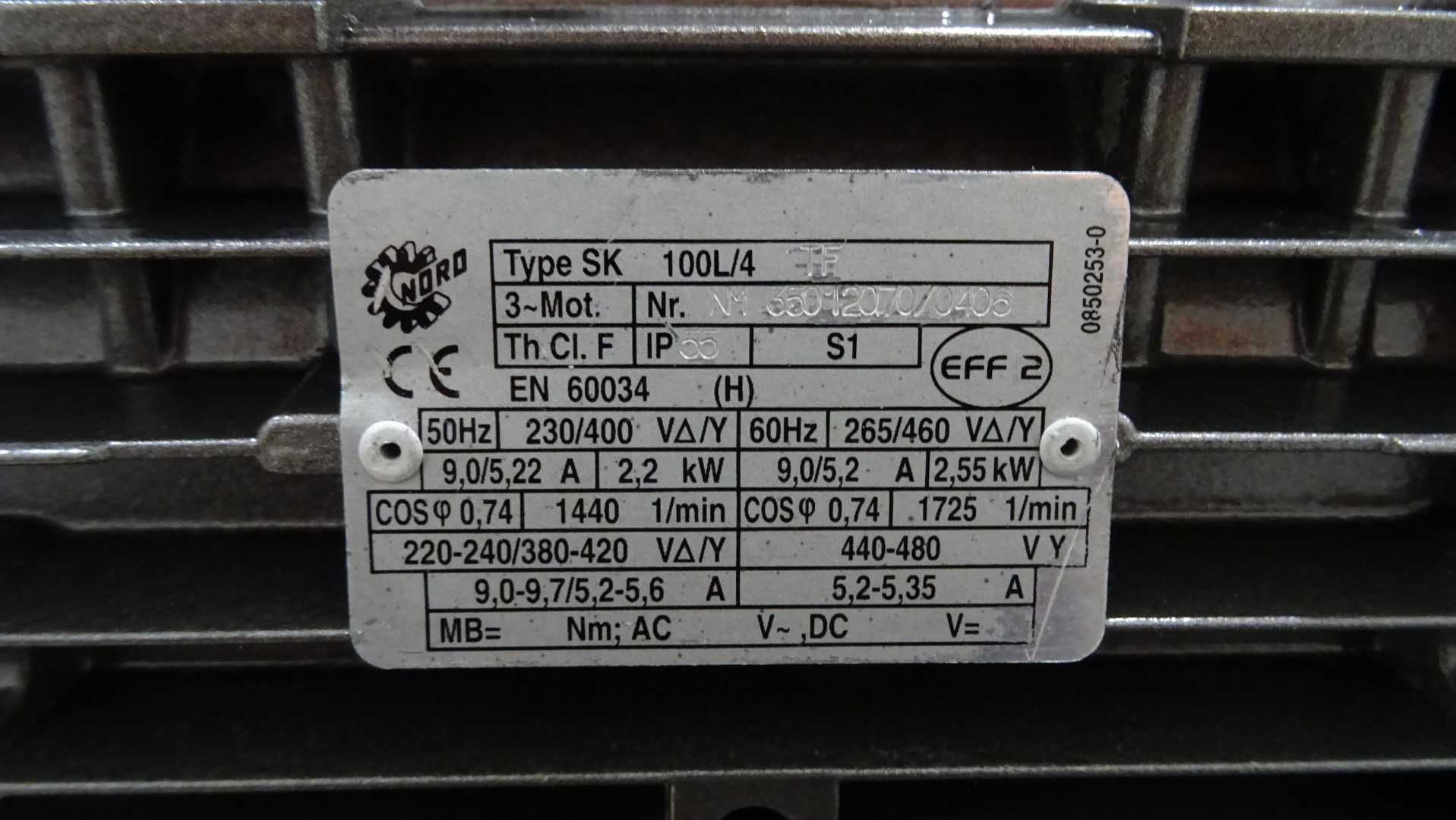

Motor2,2 kW - 230/400 V - 50 Hz - 1.440 rpm - 9,0/5,22 A

Description

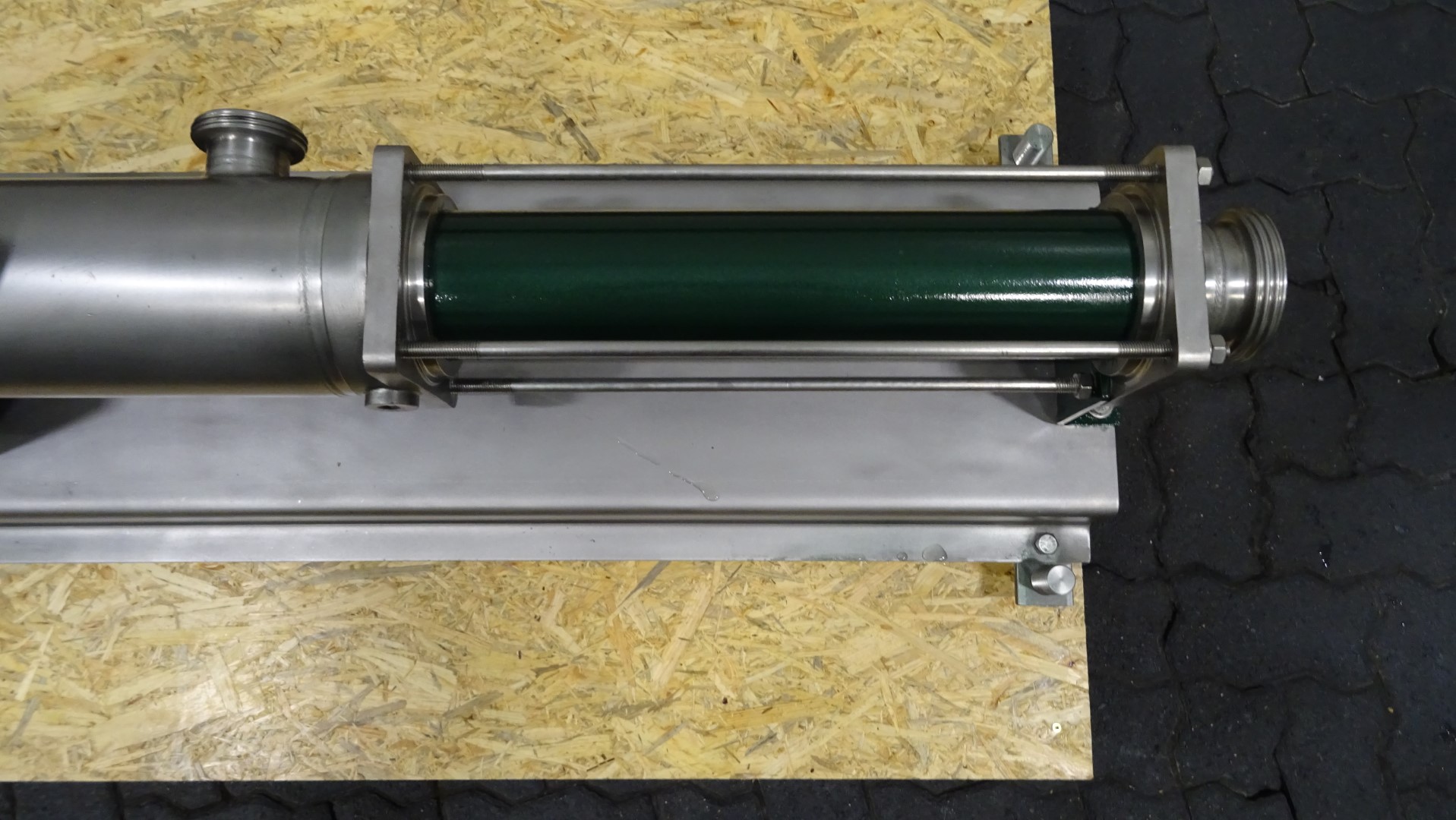

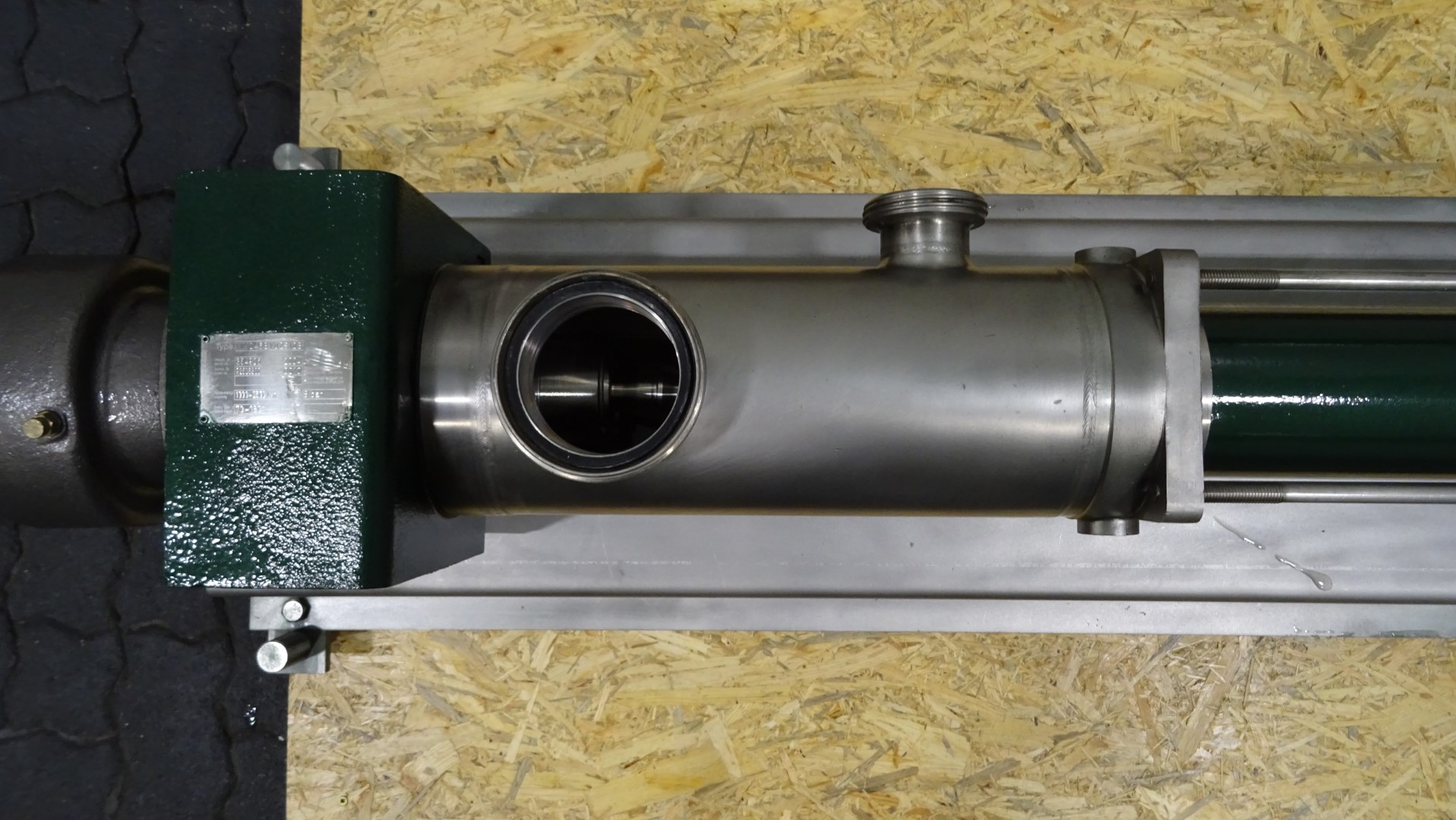

The NETZSCH NM045BY02S12B NEMO® pump is a progressing cavity pump (also known as a mono or screw pump), engineered for the continuous and gentle transfer of challenging media. This pump operates on the well-proven progressing cavity principle, consisting of two primary components: a precision-machined helical rotor and a resilient elastomer stator. The rotor features a single-helix design with a large pitch, deep thread profile, and small core diameter. As the rotor rotates eccentrically within the stator, sealed cavities are formed that convey the product continuously and pulsation-free from inlet to outlet. This pump is previously used in a dairy factory. Motor: 2,2 kW - 230/400 V - 50 Hz - 1.440 rpm - 9,0/5,22 A. Connections on the inlet/outlet: - DN 80. Current capacity: 1.000 - 2.500 ltr/h. Pressure: up to 8 bar. Rotor speed: 70 - 180 rpm.


Key Advantages:

  • Valve-free design with stable, proportional flow rate relative to rotor speed.
  • Excellent self-priming and suction capability.
  • Suitable for inhomogeneous, viscous, abrasive, gaseous, and solids-laden media.
  • Gentle product handling, ideal for shear-sensitive materials.
  • Capable of dosing applications.
  • Designed for Cleaning-in-Place (CIP).


Limitation:

  • The pump must not be operated dry. Even short periods of dry running may result in stator damage.
