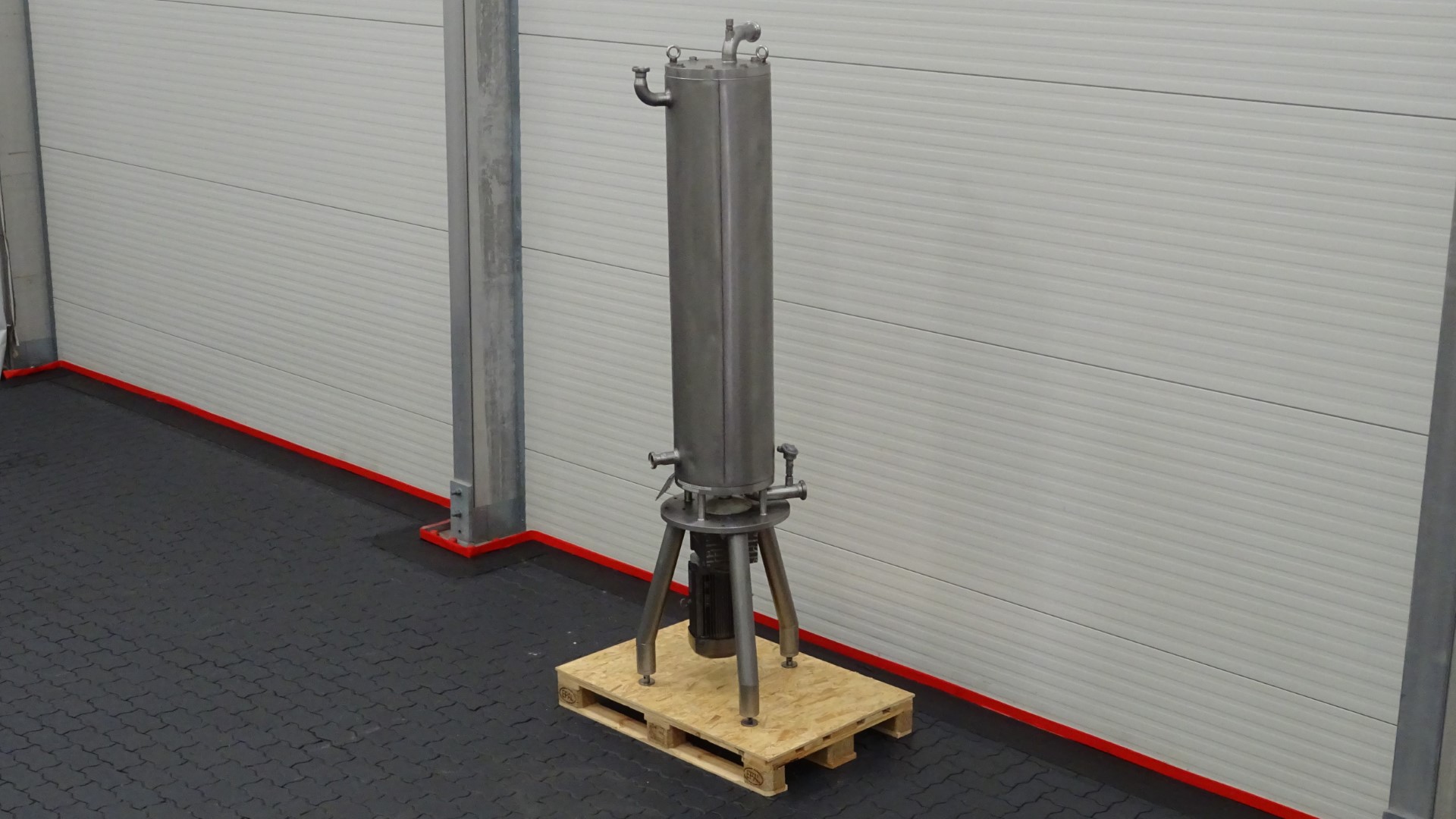

Scraped Surface Heat Exchanger (SSHE) - Terlet Terlotherm Special High Pressure Model
Specifications
| Manufacturer | Terlet - MPE Group NV - Proxes |
| Model | Terlotherm |
| Year | 1997 |
| Condition | Used |
| Serial Number | 97000005 |
| Stock Number | 1391 |
| Type of Machine | Scraped Surface Heat Exchanger (SSHE) |
| Volume | 45 liter |

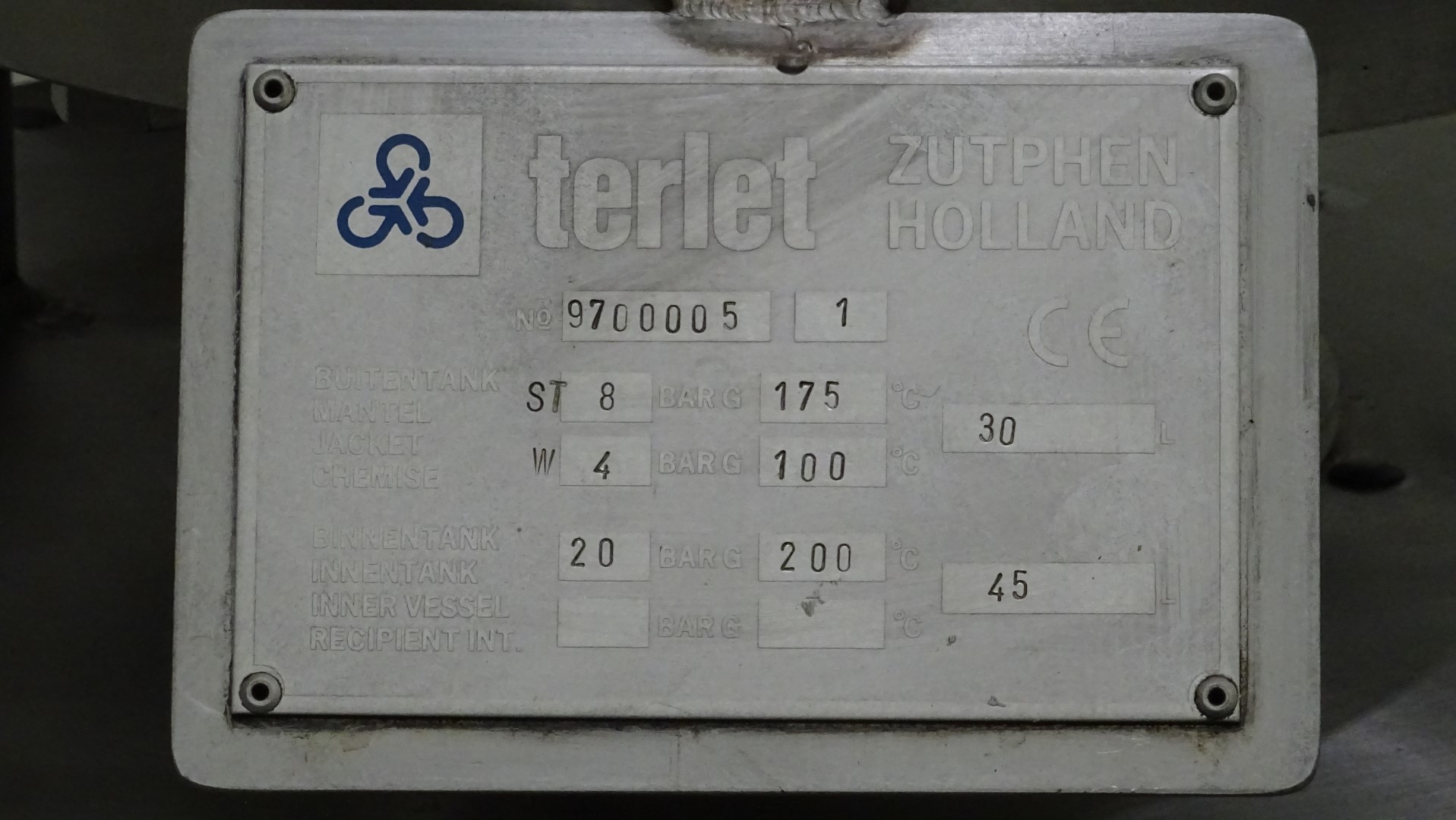

| Inner vessel | 20 Bar - 200 °C - 45 liter |
| Jacket | Steam 8 Bar / Water 4 Bar - Steam 175 °C / Water 100 °C - 30 liter |

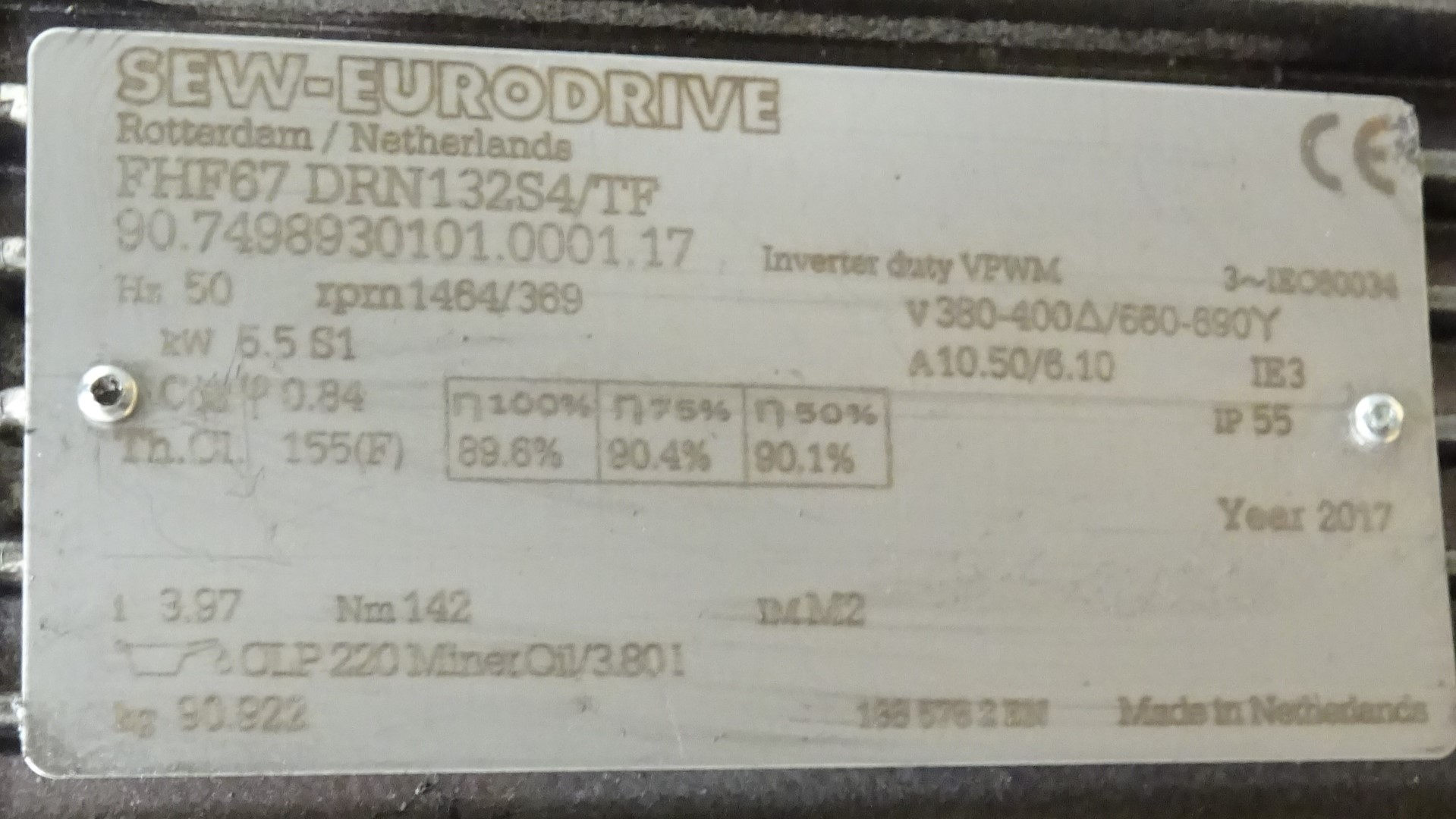

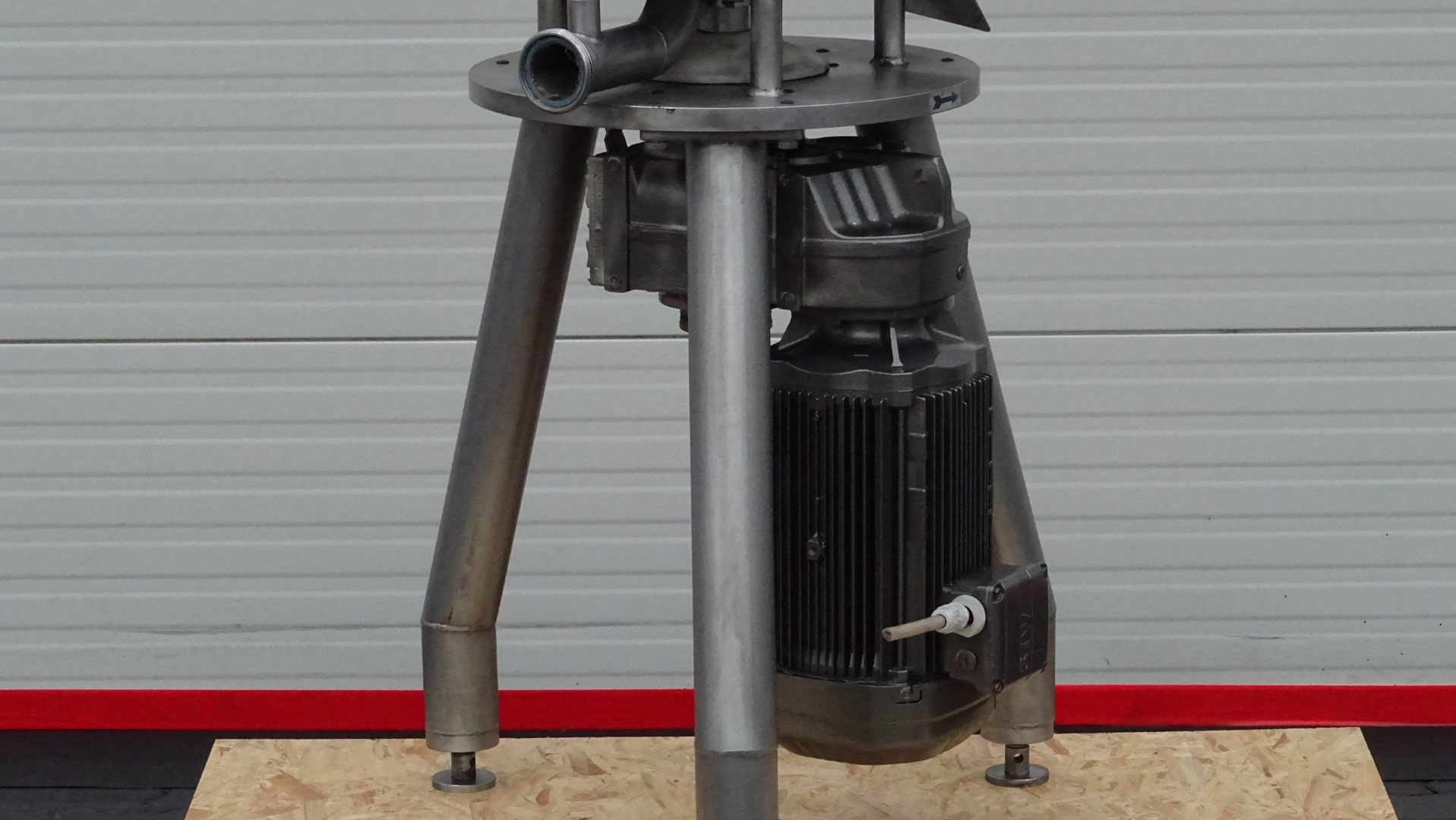

| Motor | 5,5 kW - 1.464 / 369 rpm - 400 V - 50 Hz - 10,5 A |
| Weight | 430 kg |
Description

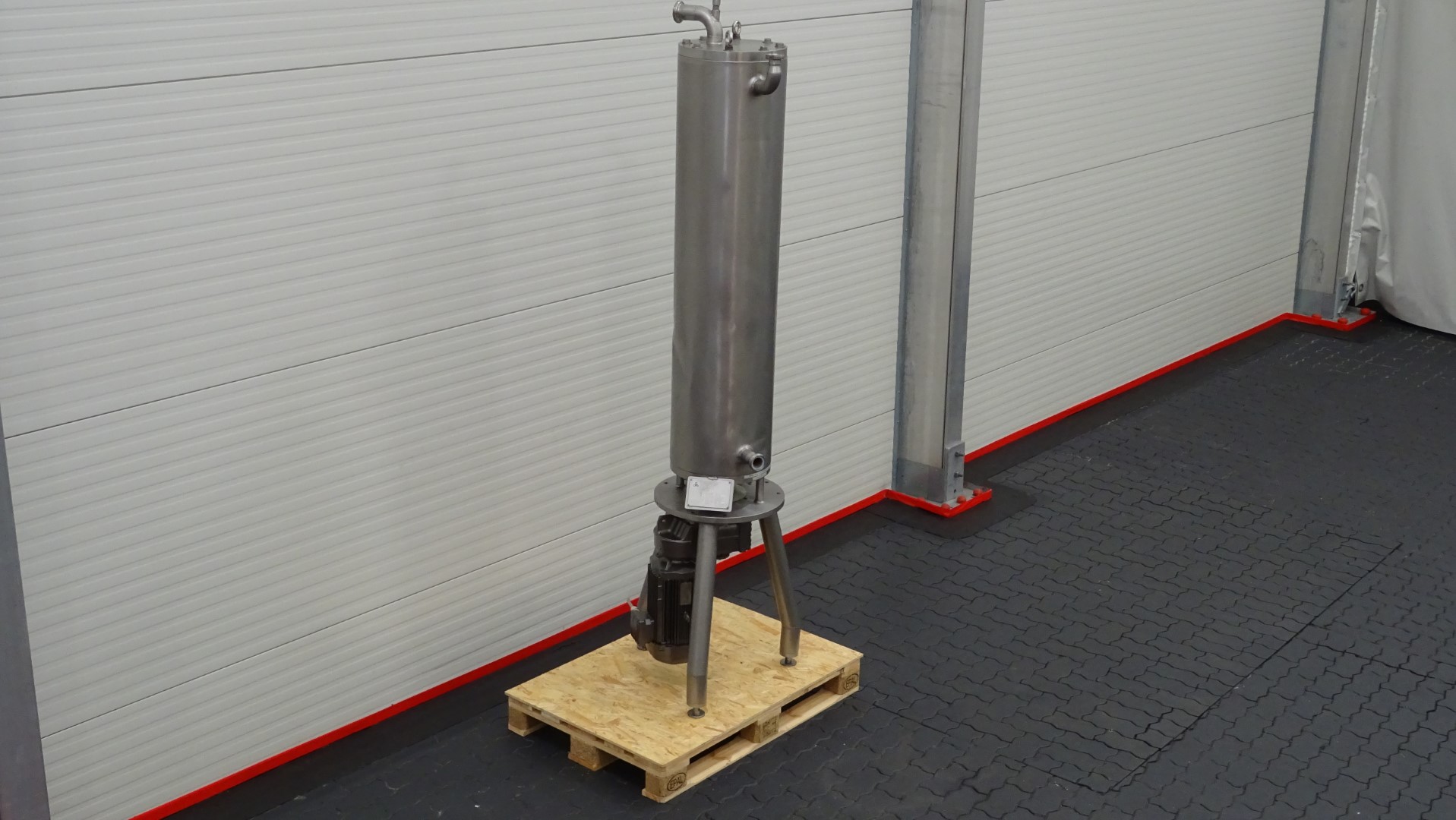

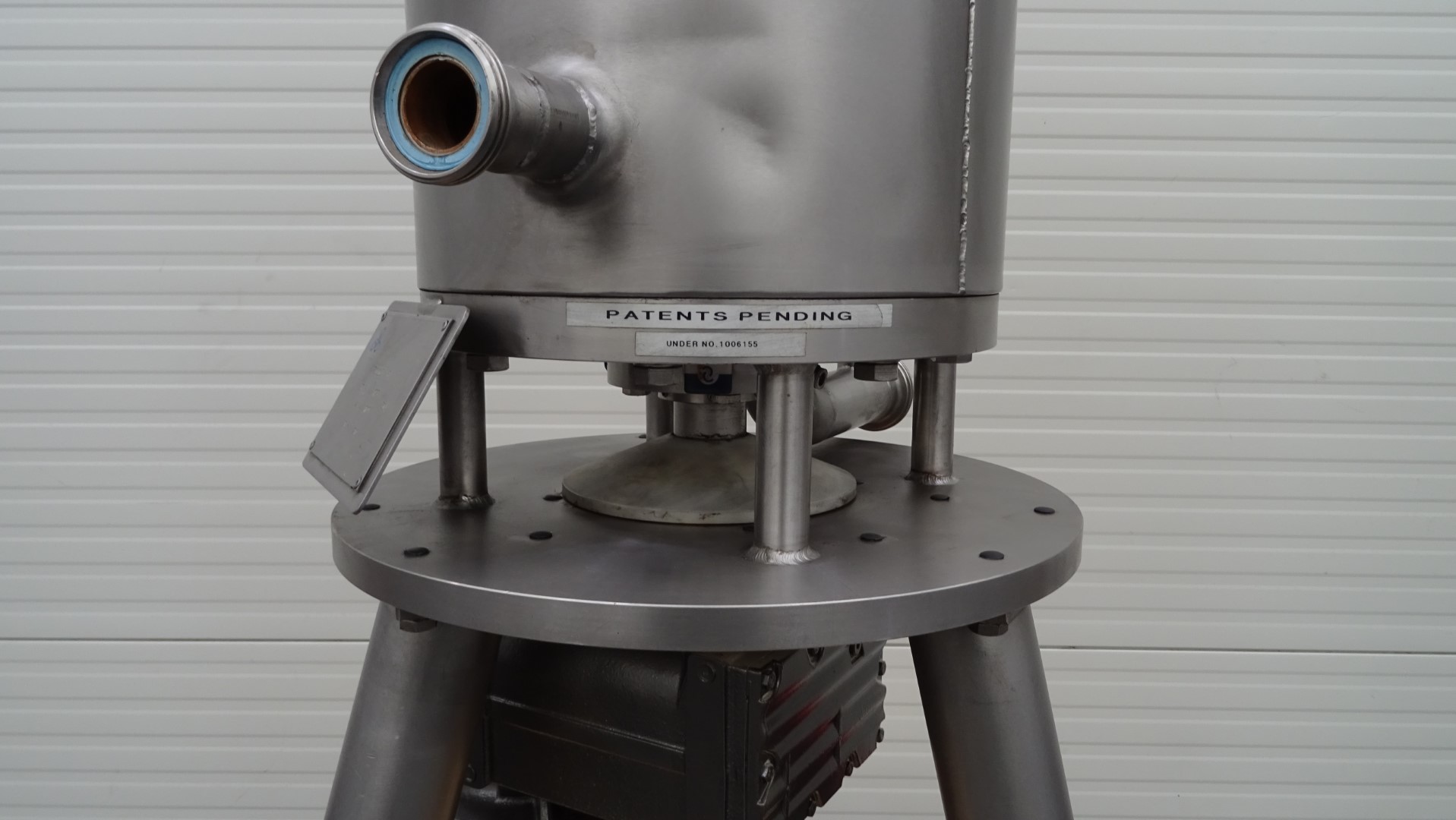

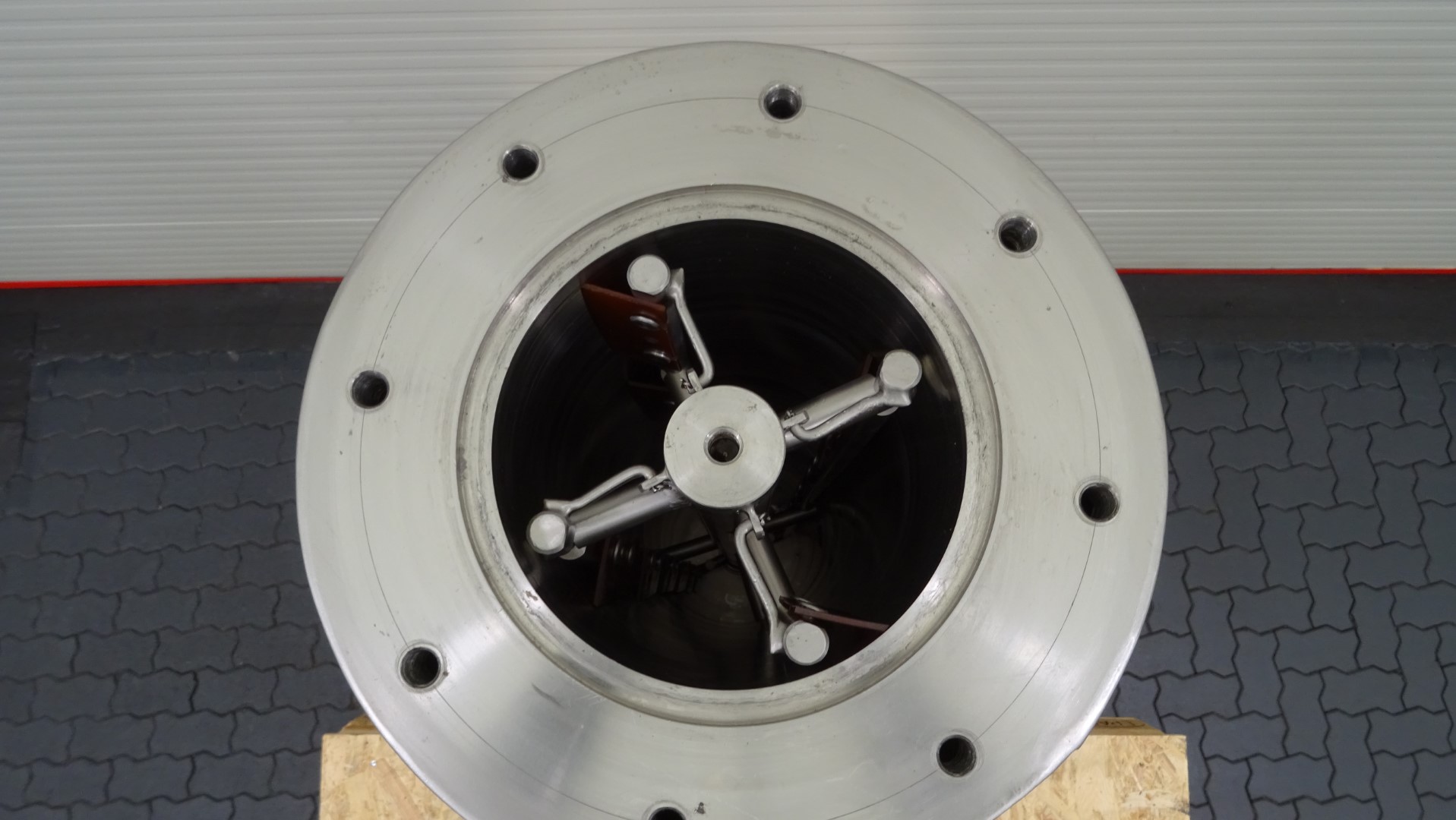

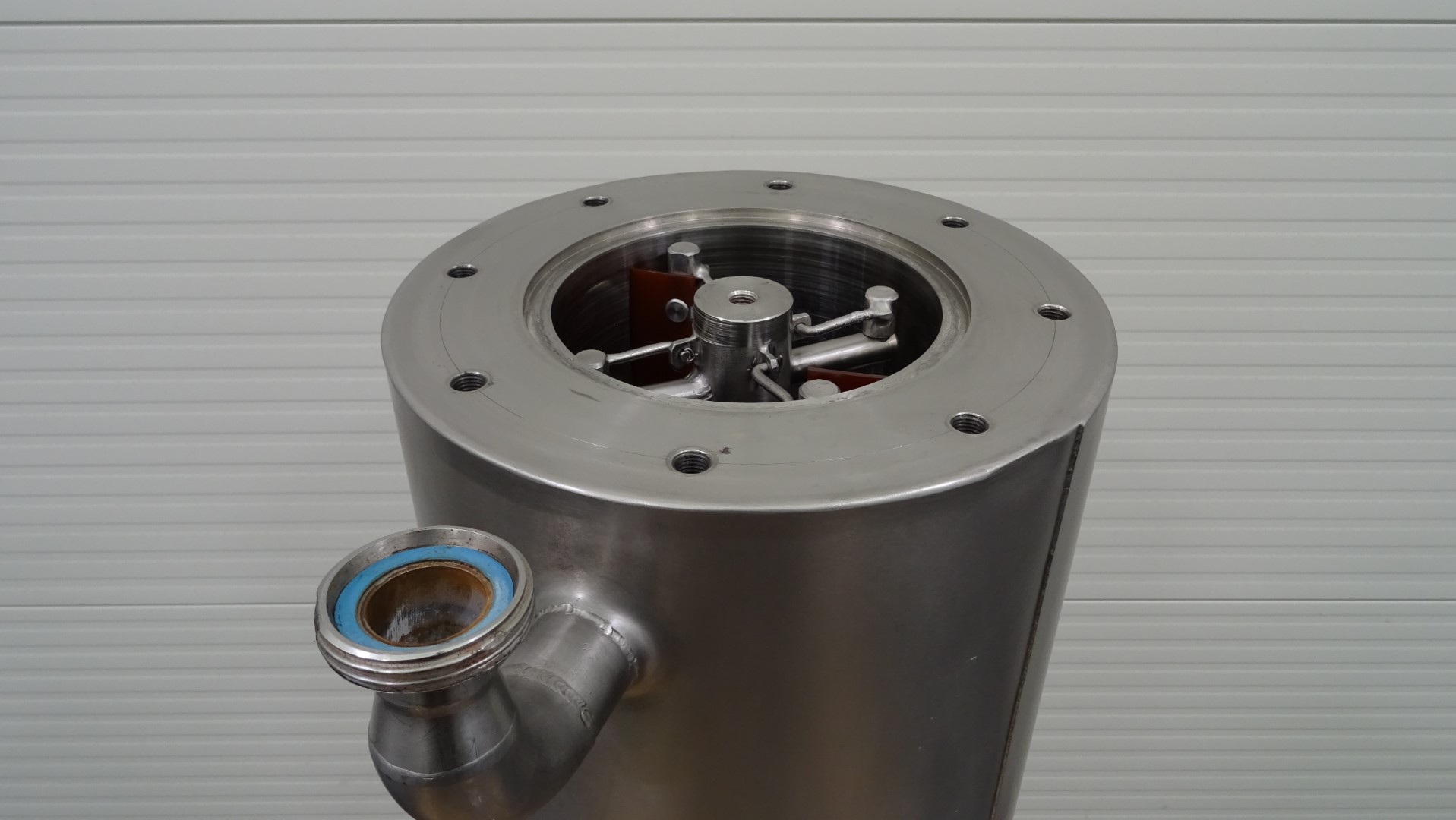

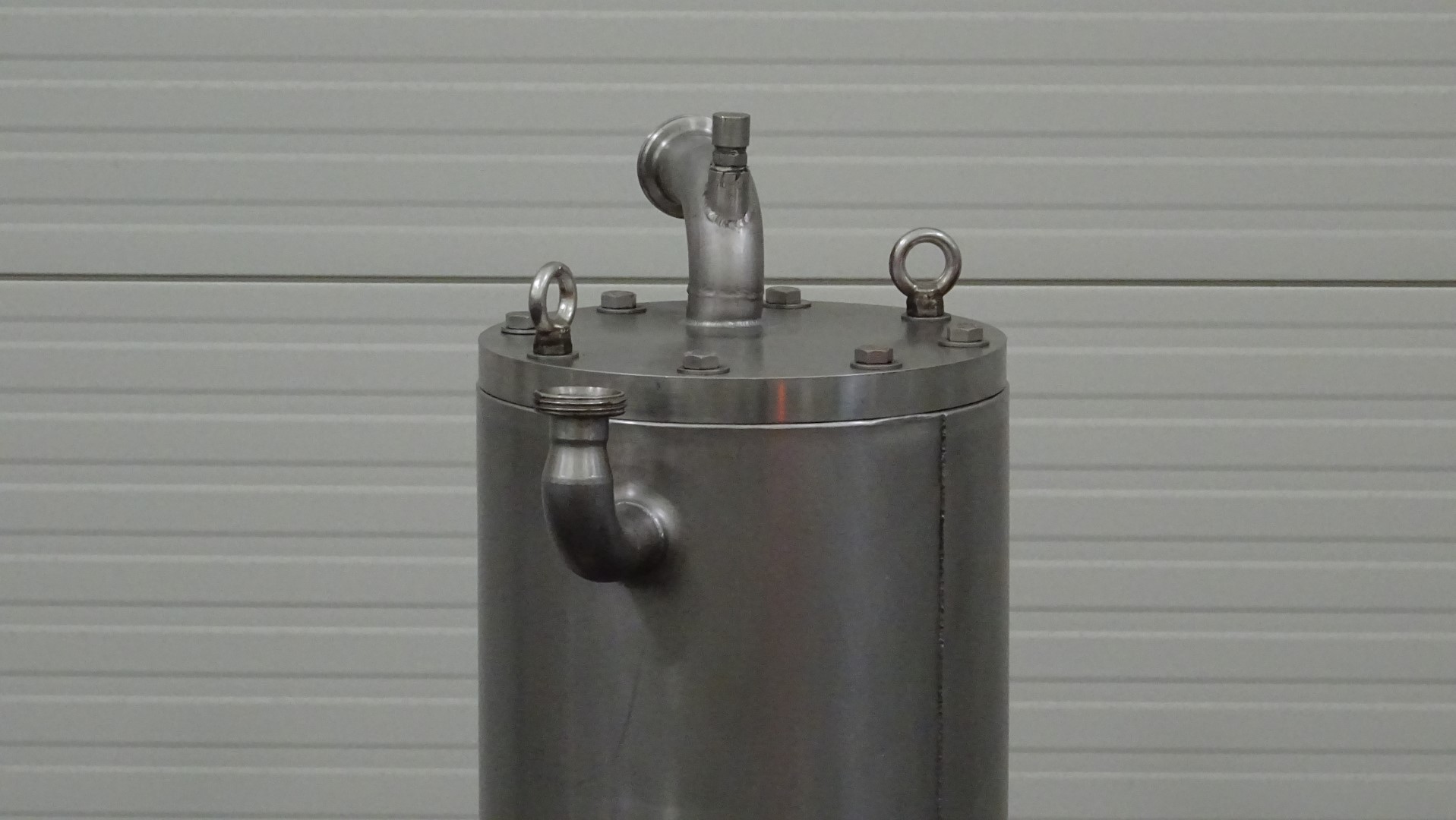

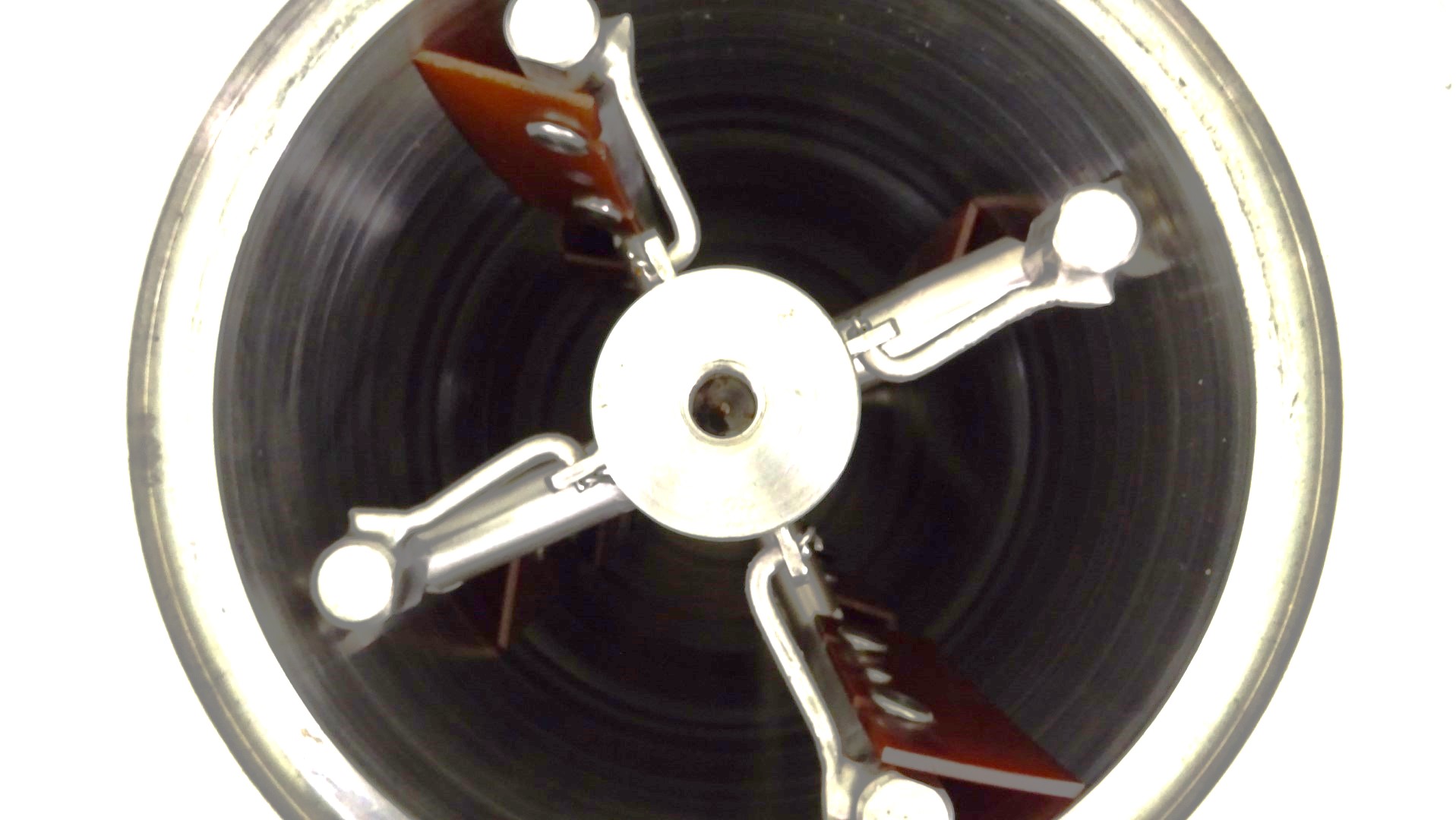

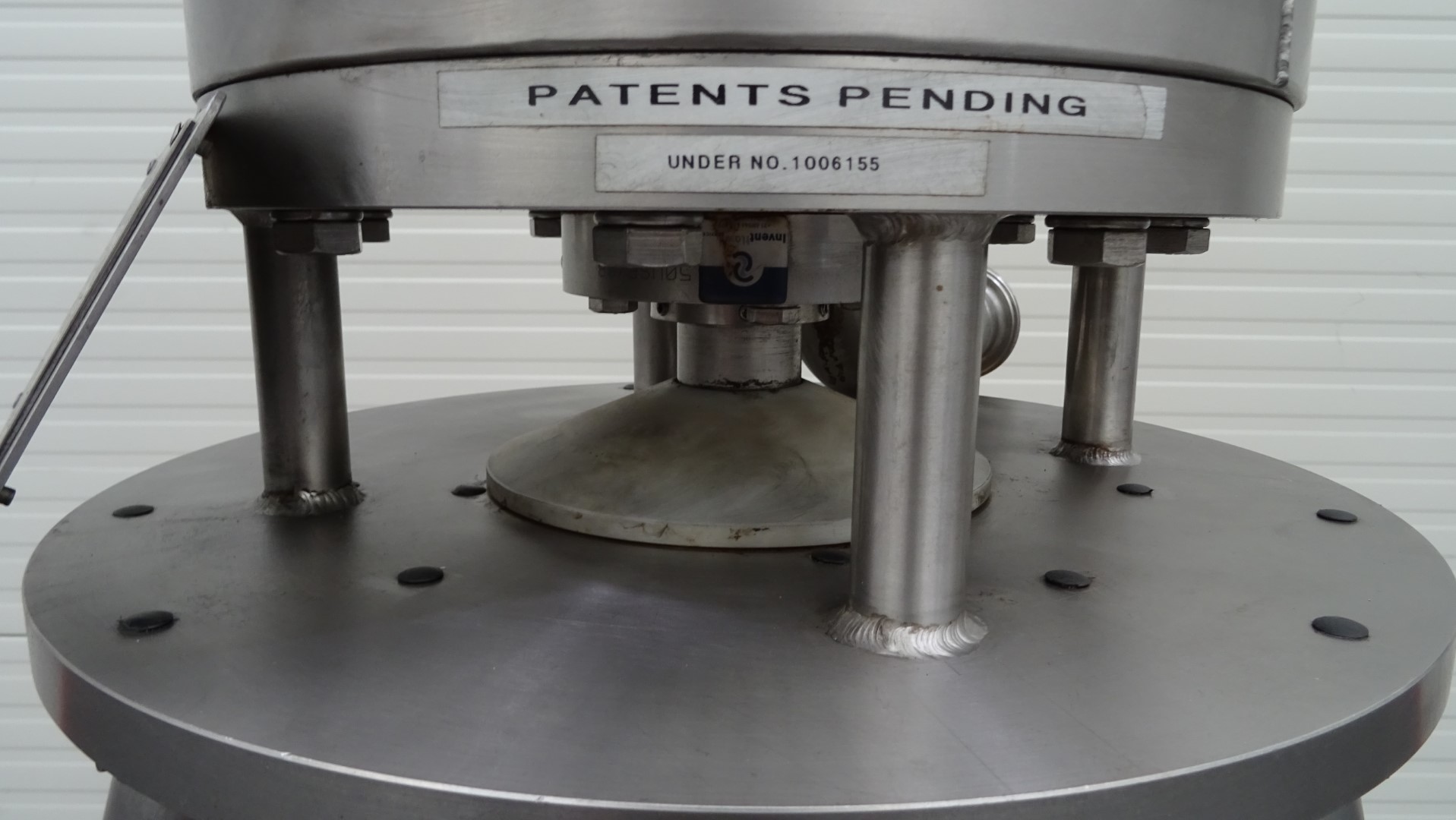

Terlet Terlotherm Scraped Surface Heat Exchangers (SSHE) for inline heating and / or cooling of liquid, viscous and high viscous products with or without whole parts (up to 25 mm), like starch preparations, soups, sauces, dairy products etc. This model is special designed for working under higher pressures. Patent under no. 1006155. Scrapers can be easily replaced. CIP Cleanable. Inspection without removing seal. Lid can be opened with clamps. Large heating area on limited floor area. Tangetiale inlet. Accelaration and deceleration area. No damage to the product. Maintenance friendly, only one seal and one drive. Product volume: 45 liter. Number of scraper rows: 4. Inner vessel: 20 Bar - 200 °C - 45 liter. Jacket: Steam 8 Bar / Water 4 Bar - Steam 175 °C / Water 100 °C - 30 liter. Motor: 5,5 kW - 1.464 / 369 rpm - 400 V - 50 Hz - 10,5 A. Total height: 277 cm.
