Tubular Heat Exchanger (THE) - Tetra Pak Tetra Spiraflo MT-70/4x16s-6-1 + MT-38/1x20s-6
or
Call +494072548640
New In Stock
Specifications
| Manufacturer | Tetra Pak |
| Model | Tetra Pak Tetra Spiraflo MT-70/4x16s-6-1 + MT-38/1x20s-6 |
| Year | 2001 |
| Condition | Used |
| Serial Number | 103325 |
| Stock Number | 1381 |
| Type of Machine | Tubular Heat Exchanger |
| Capacity | 900 - 1.000 kg/h |
| Products | Whey protein |
| Temperature Range | Pre-heater: 10 - 70 °C and Cooler: 65 - 10 °C |
| Holding tube | Yes, 1 - 3 minutes |
| Dimensions | ± 650 x 120 x 200 cm |
Description

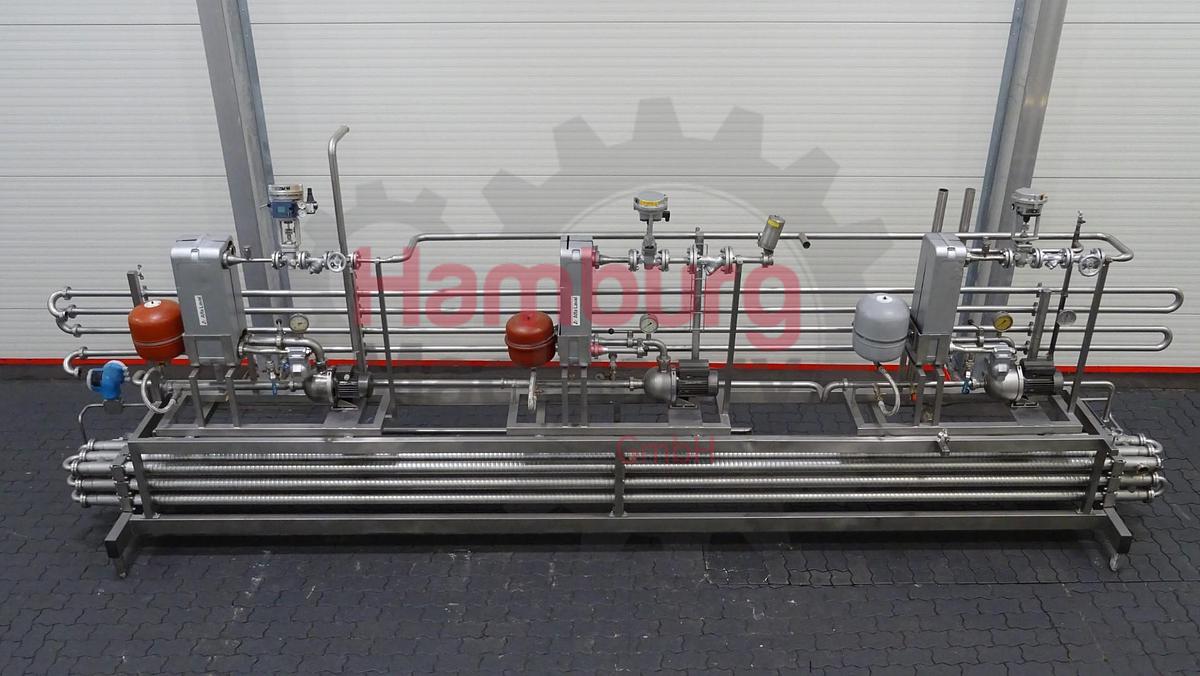

Tetra Pak Tetra Spiraflo Tubular Heat Exchanger (THE) previously used in a dairy for whey protein as pre-heater with indirect hotwater preparation (15 - 70 °C), holding section (1 - 3 minutes) and cooling section (65 - 10 °C).
Unit exist out of:
- 7x tubes for pre-heating (Tetra Pak MT-38/1x20s-6, total surface area: 2,25 m2, product connection DN25, hotwater connection DN20 with indirect hot water system with plate heat exchangers, pumps (CH18-10 A-W-G-BQQV - 7,5 m3/h - 0,72 kW), steam valves (Samson), expansion vats, manual valves and interconnecting piping.
- 9x tubes for cooling (Tetra Pak MT-70/4x16s-6s-1, jacket: 20 bar - 110°C - 16 liter, inside: 50 bar - 110 °C - 3,6 liter, total surface area: 10,17 m2, product connection DN38, (ice)water connection DN50).
- Flowmeter (Endress+Hauser - Promag 300).
- Holding tube, DN 40 (6x 6 meter), complete with bracket and swivel bends, hold-to-heat time 1 to 3 min, manually adjustable to hold-to-heat times of 60 / 120 / 180 sec.
- Skid mounted.
Total ground surface of the Unit: ± 650 x 120 x 200 cm.
