Margarine Pilot Plant - Gerstenberg & Agger HP Pump + Perfector 3x57 + Pin rotor + Inverter and Cooling Unit R22
Specifications
| Manufacturer | Gerstenberg & Agger |
| Model | Margarine Pilot plant Perfector 3x57 |
| Year | 1993 |
| Condition | Used |
| Serial Number | 12211 - 12910 - 12911 |
| Stock Number | 1386 |
| Type of Machine | Pilot margarine plant |
| Capacity | up to 90 kg per hour |
| Products | Margarine |
| Product pressure | up to 80 bar |
| Pilot Crystallizers | Yes, 3 pieces |
| Pilot Pin Rotor | Yes, 1 - 2 - 3 liter |
| Pilot Inverter | Yes |
| Resting tube | Yes |
| Cooling unit | Yes, R22 Freon |
| Ground surface | 4,35 x 2,10 x 2,15 meter + 2,00 x 1,15 x 1,25 meter |
Description

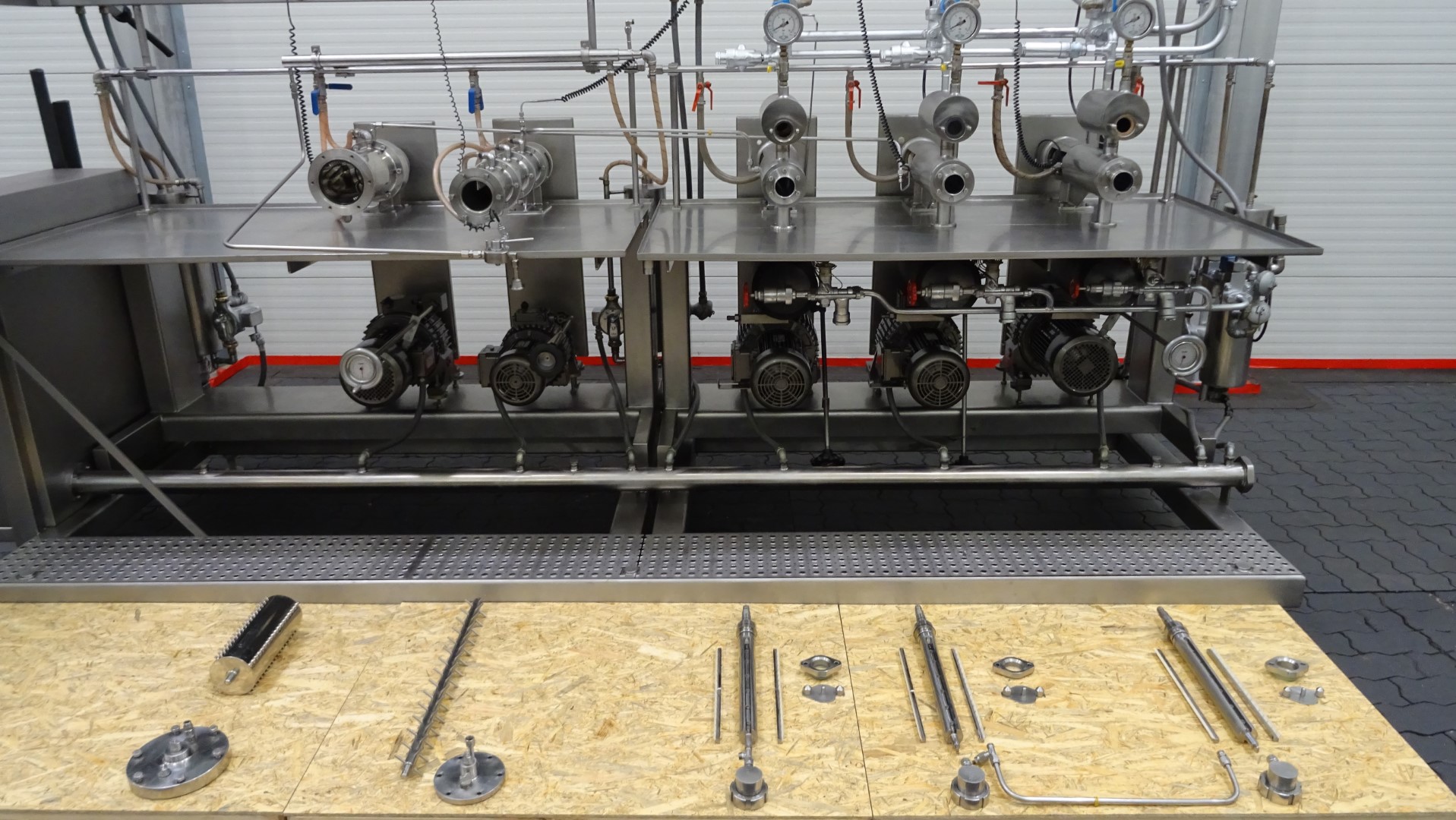

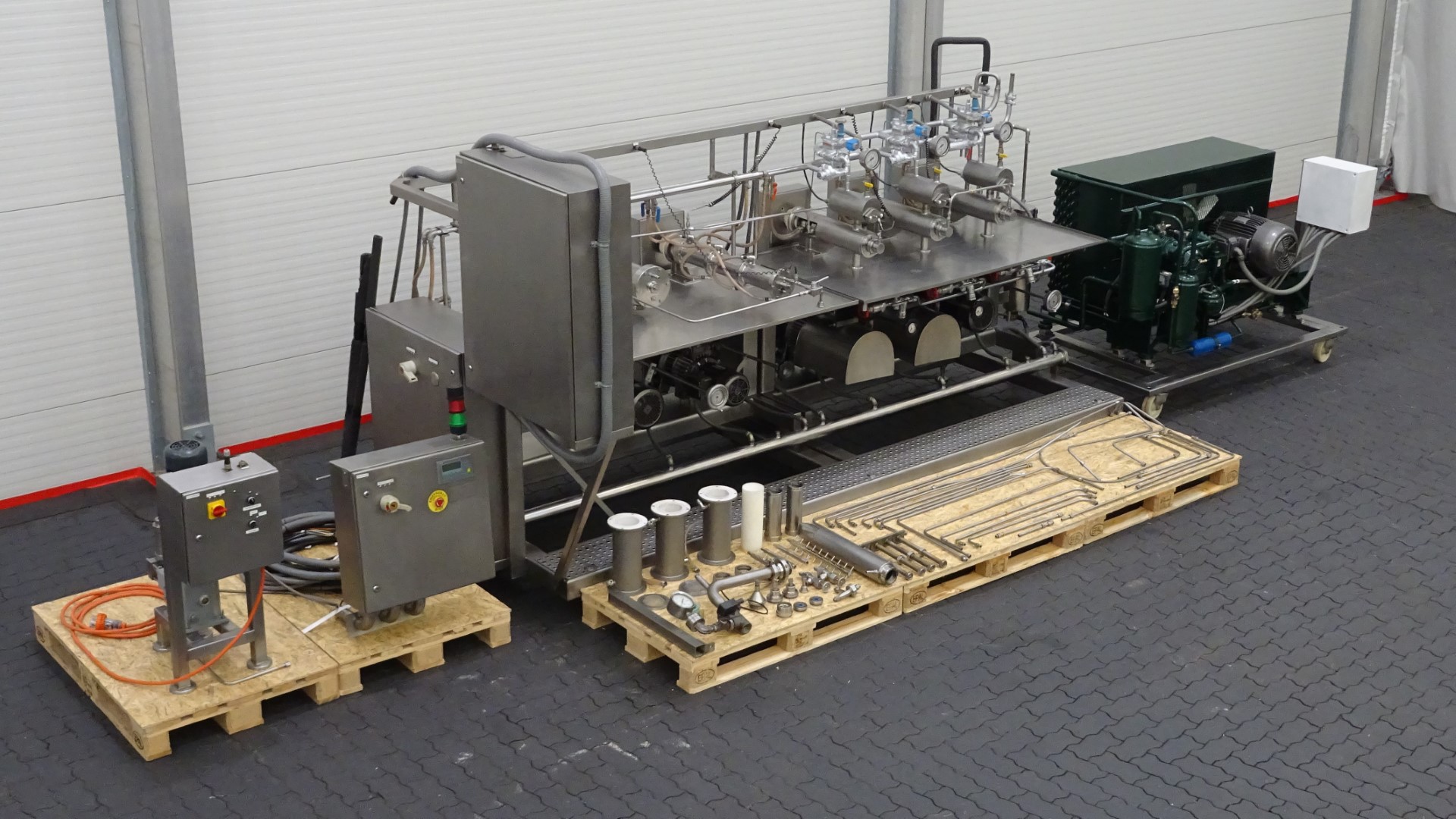

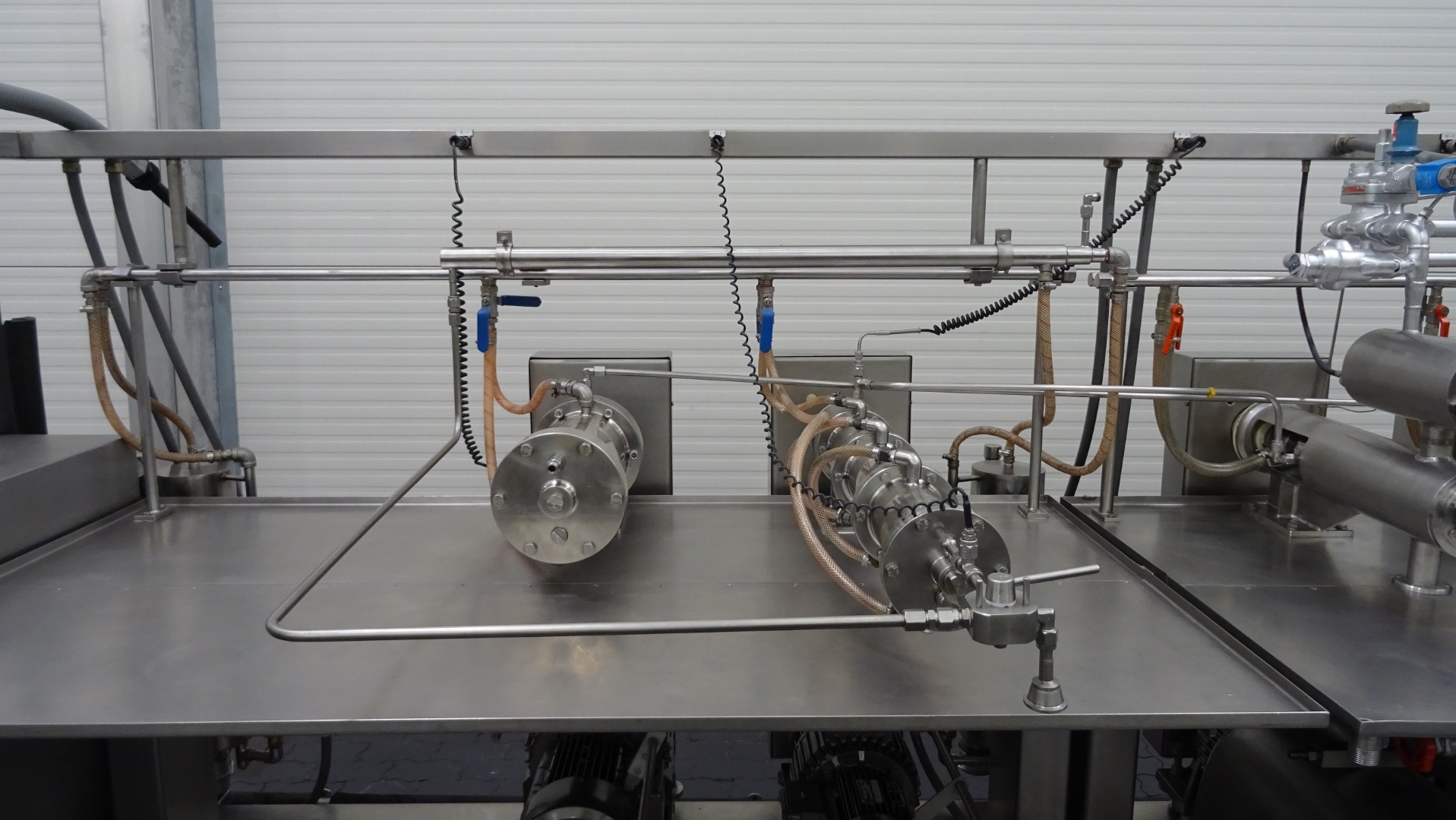

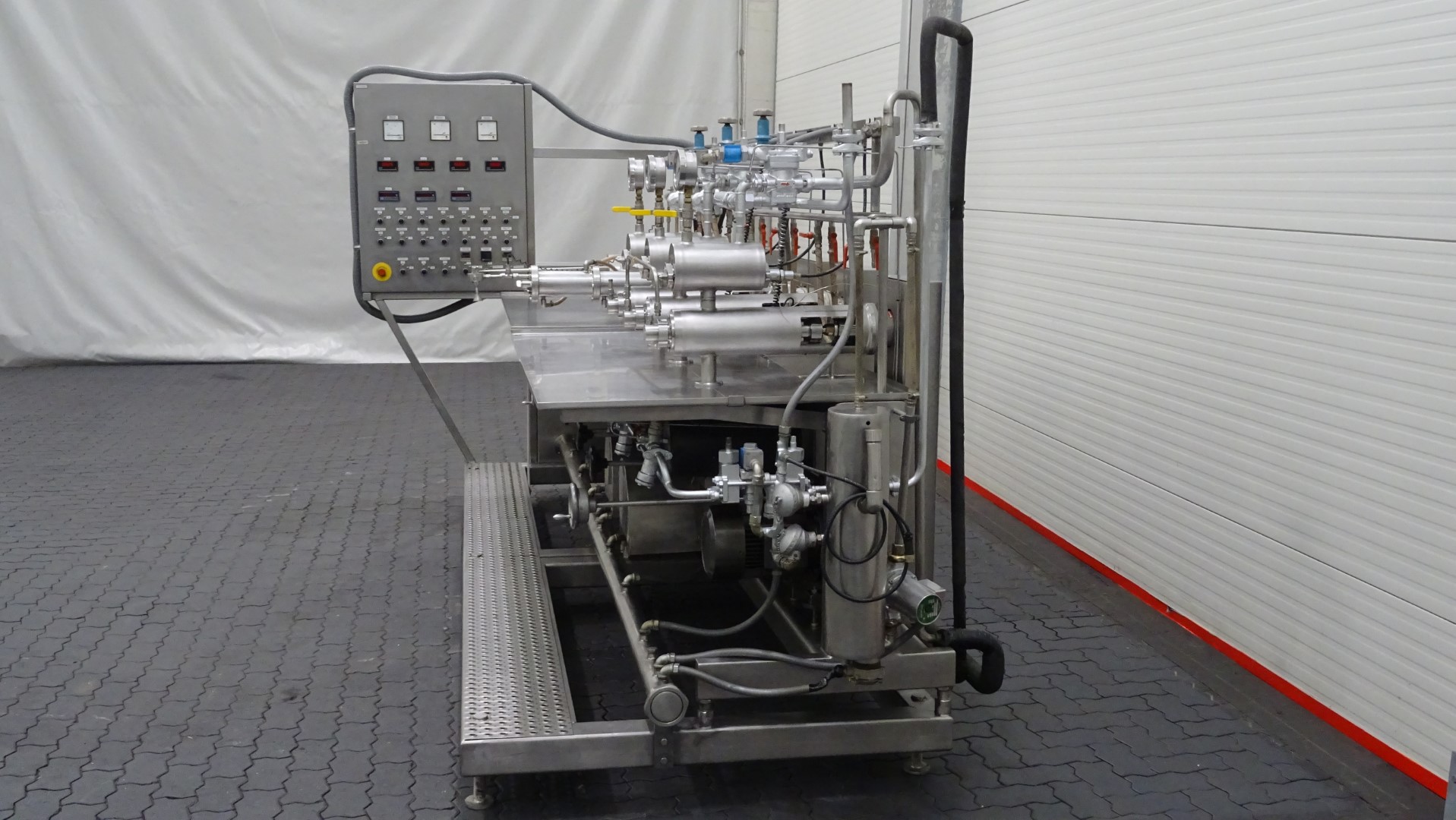

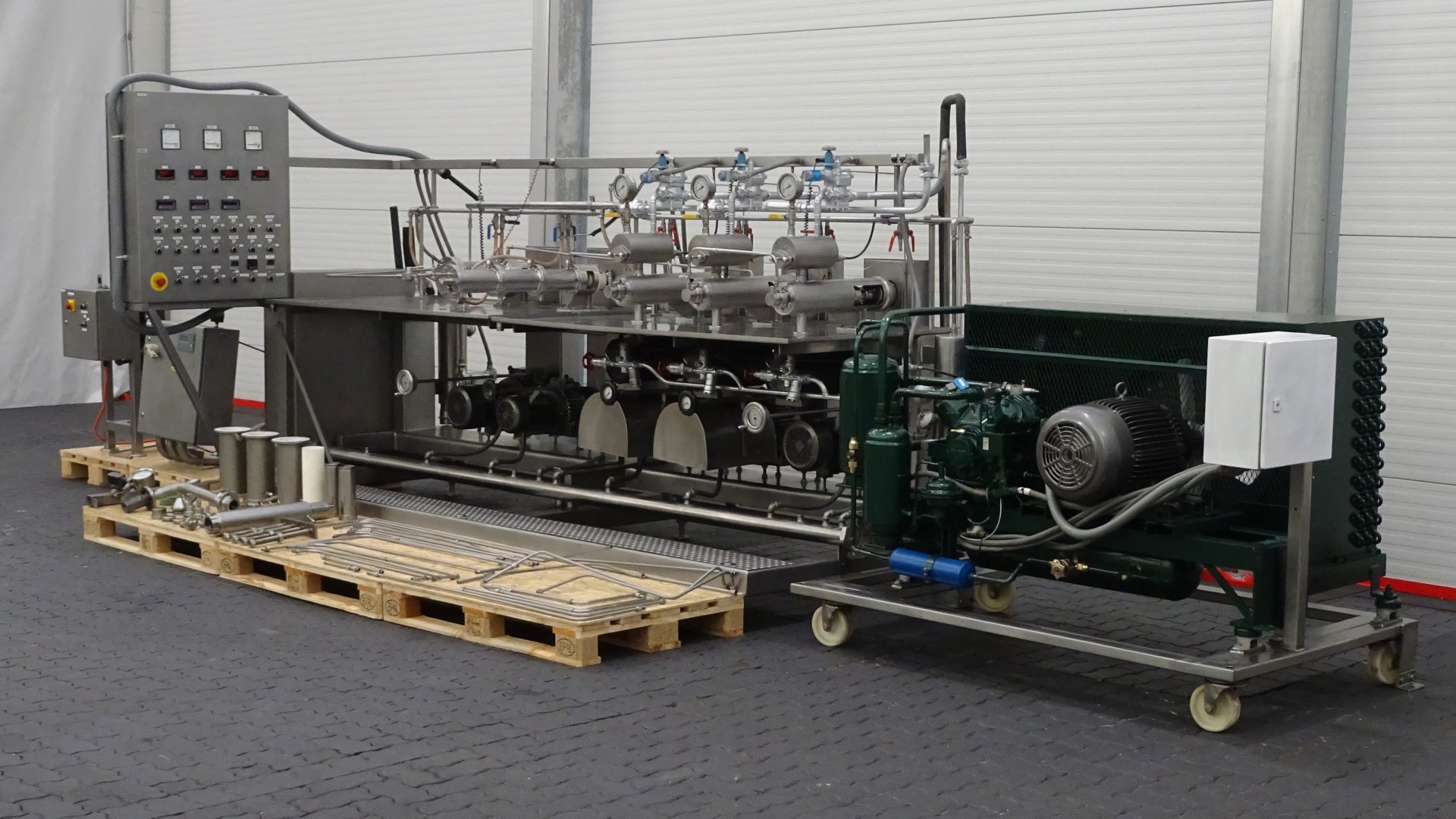

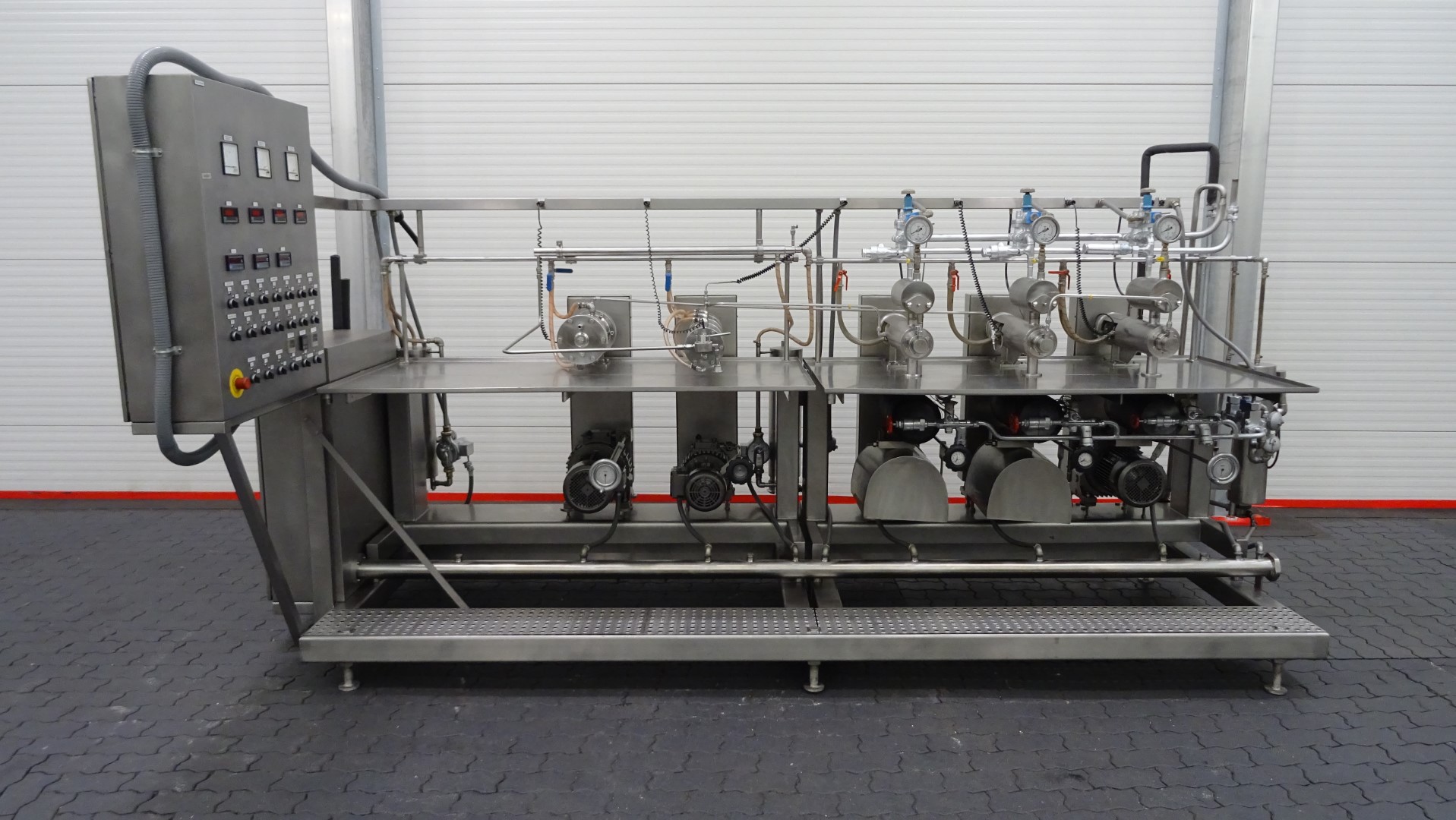

Margarine pilot plant with 1x high pressure pump, 3x crystalizer scrap surface heat exchangers (SSHE), 1x pin worker (1 - 2 and 3 liter), 1x phase inverter, 1x cooling unit (R22) and control panel. Working product pressure of the pilot plant up to 80 bar (8000 kPa). Capacity up to 90 kg per hour.

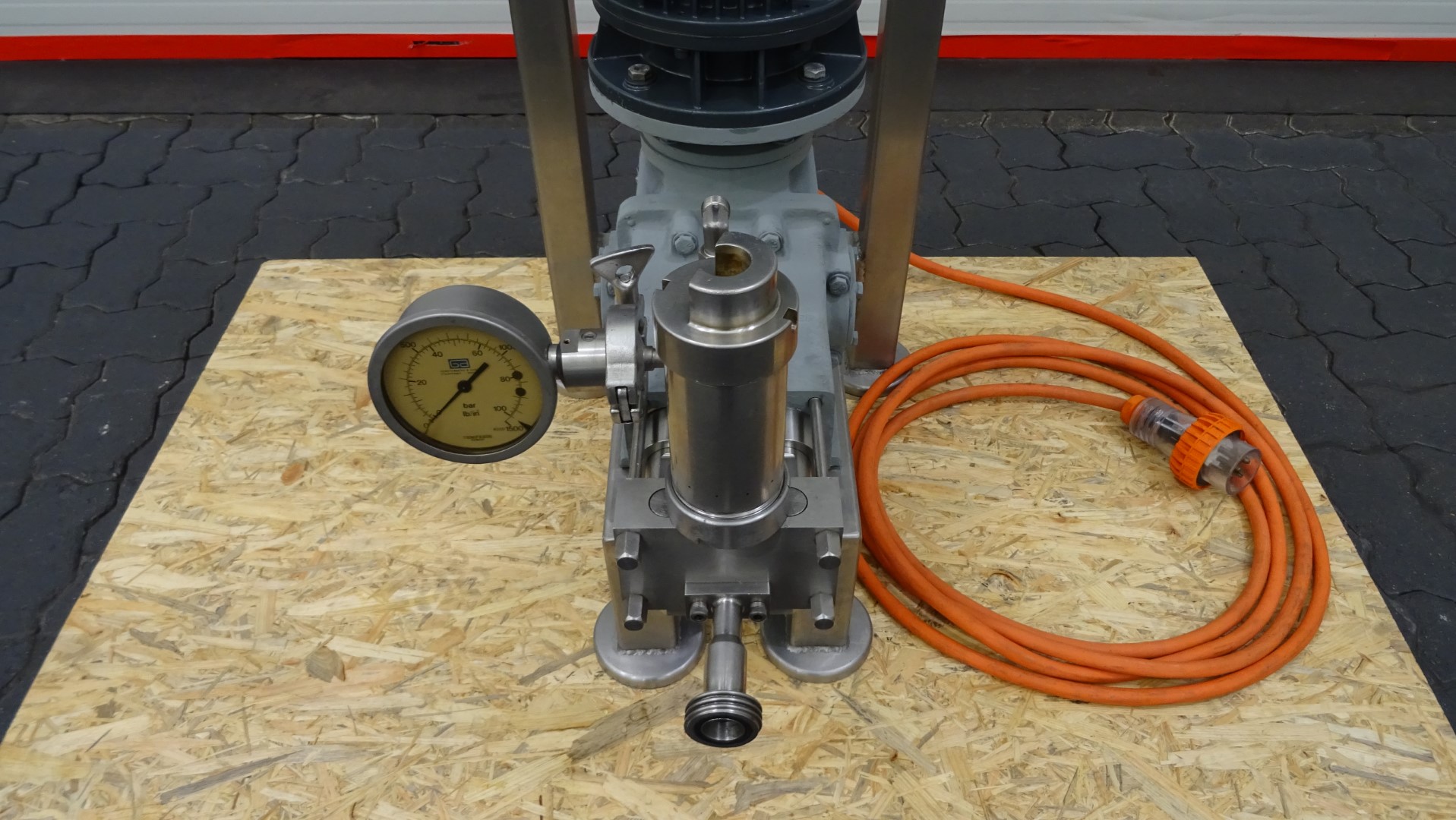

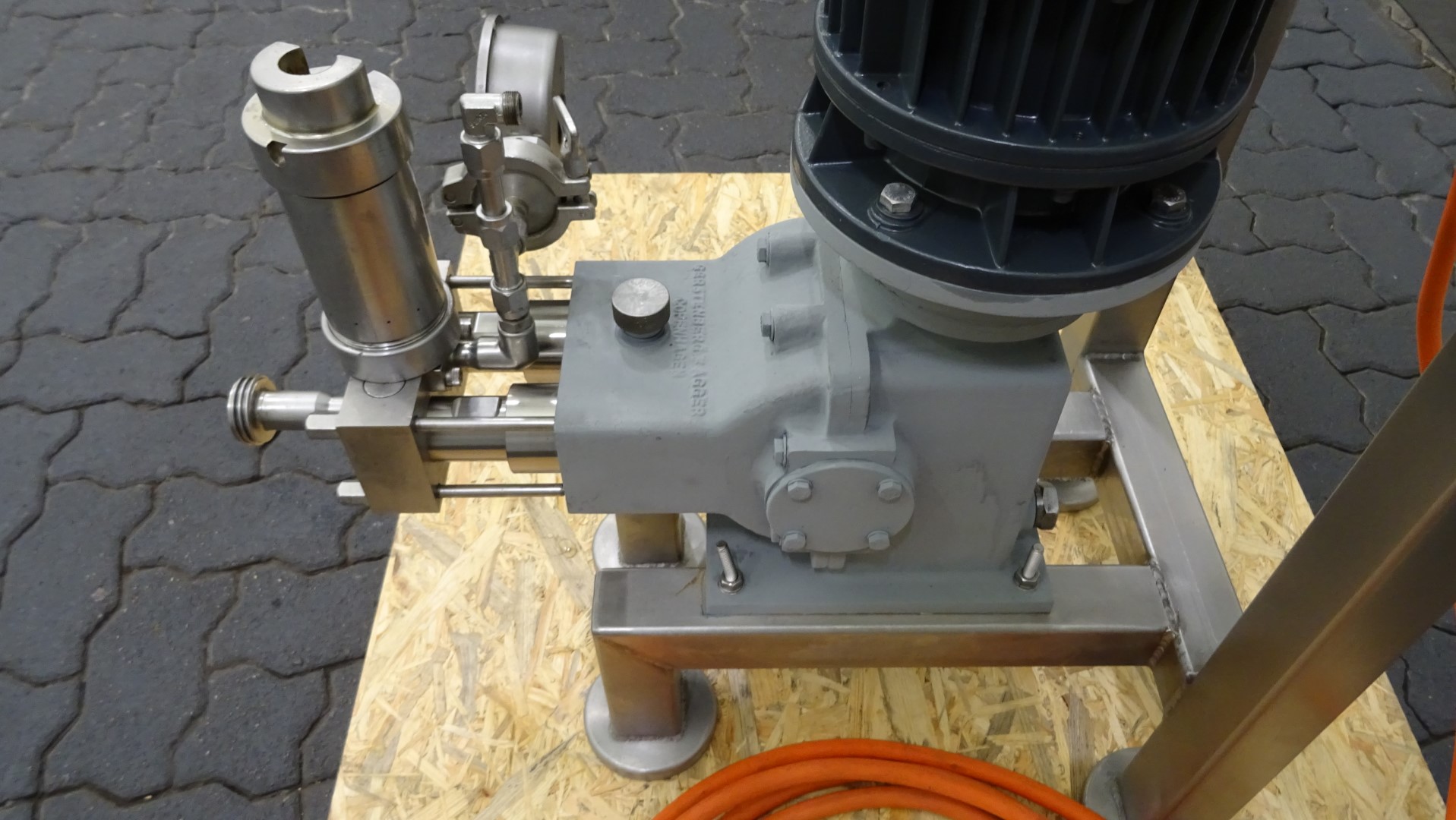

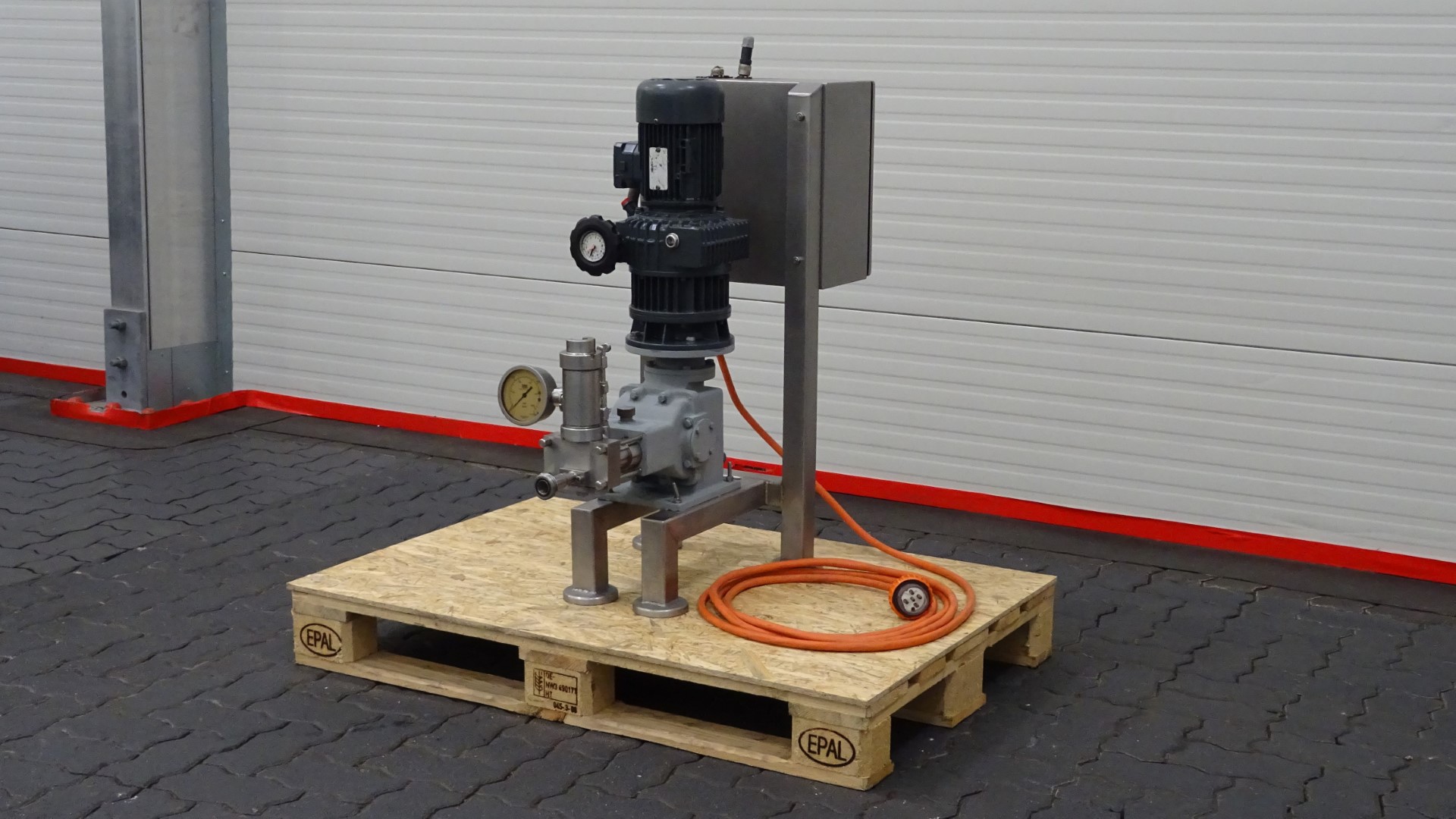

- High Pressure Pump

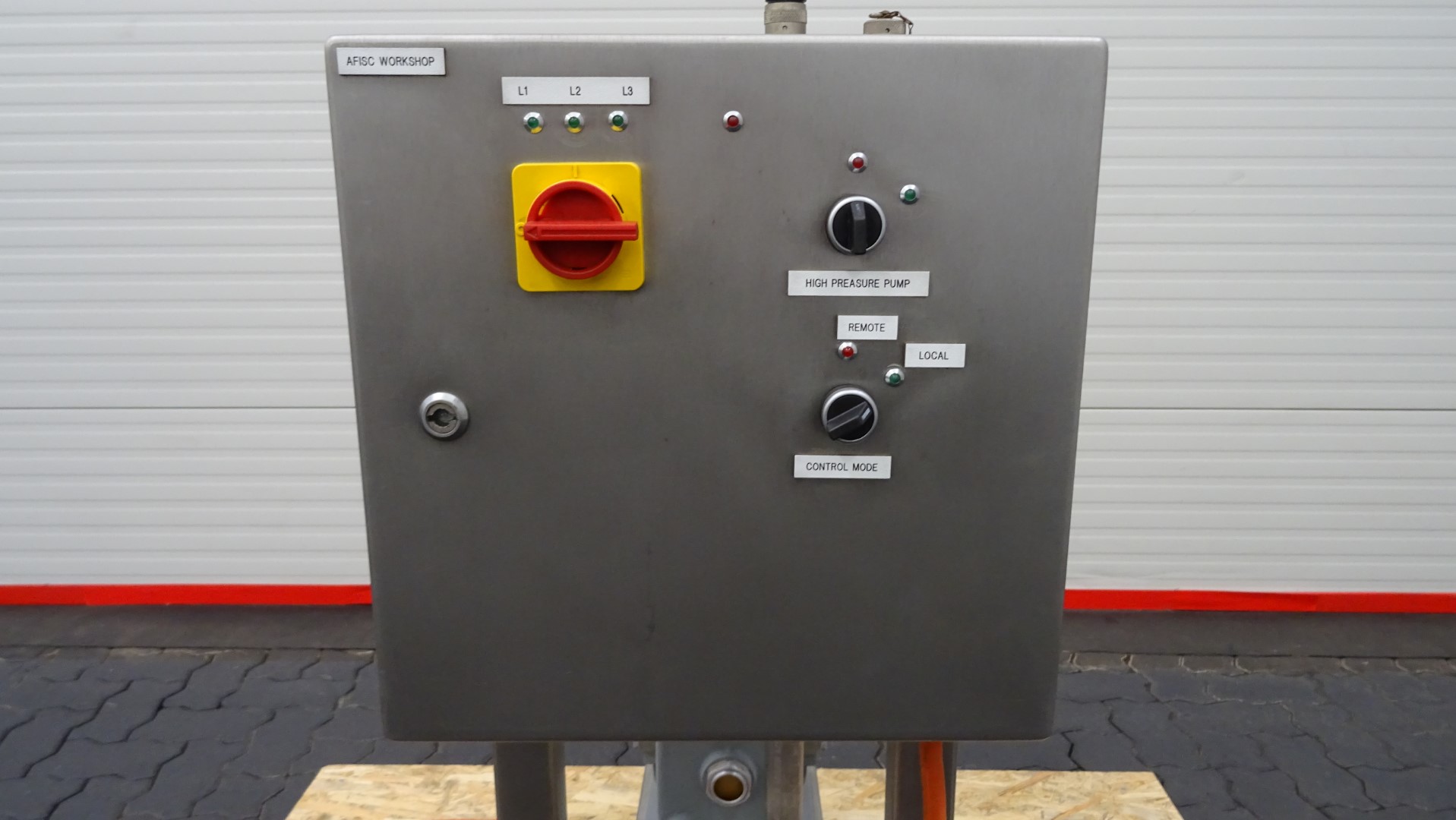

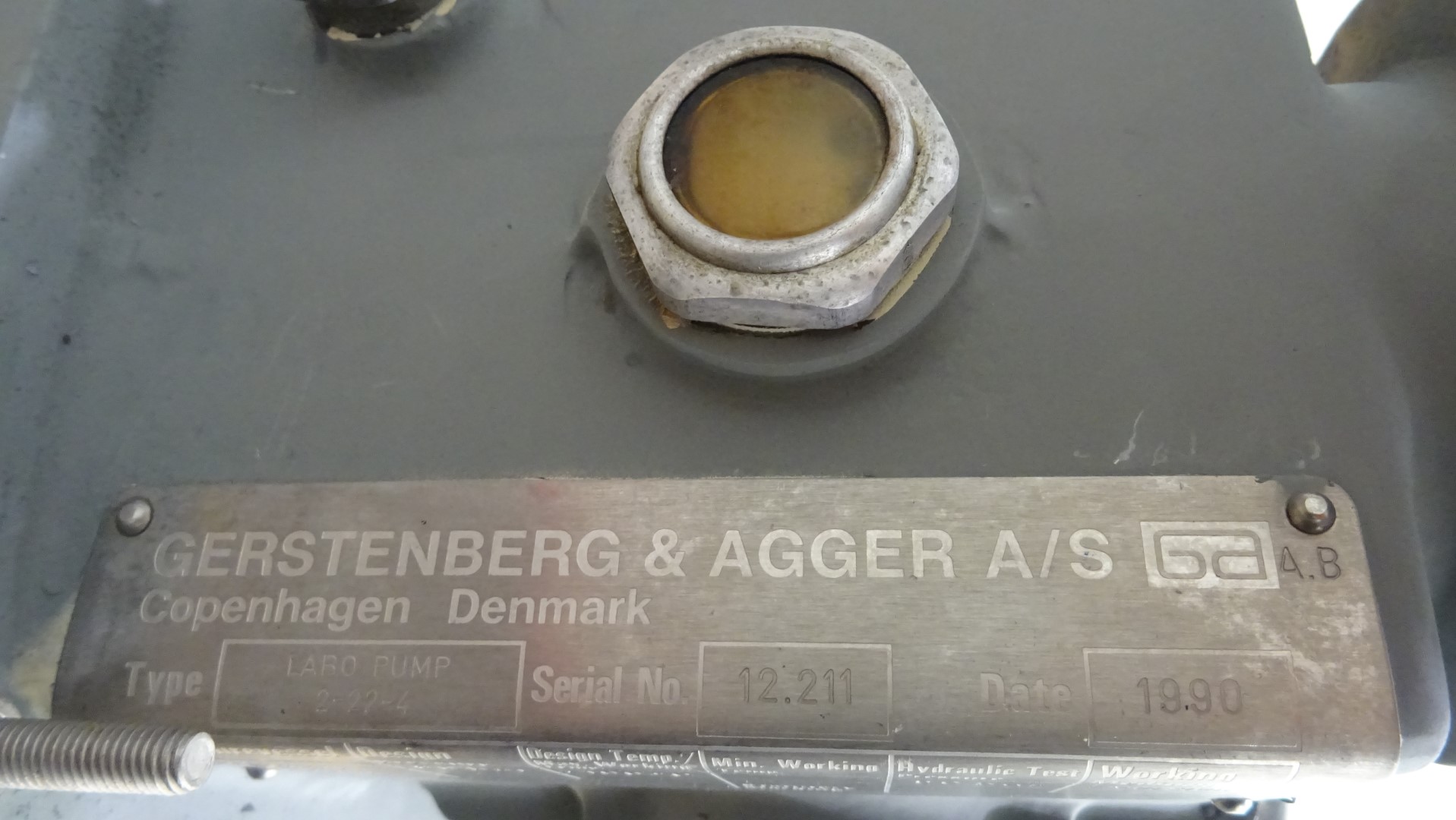

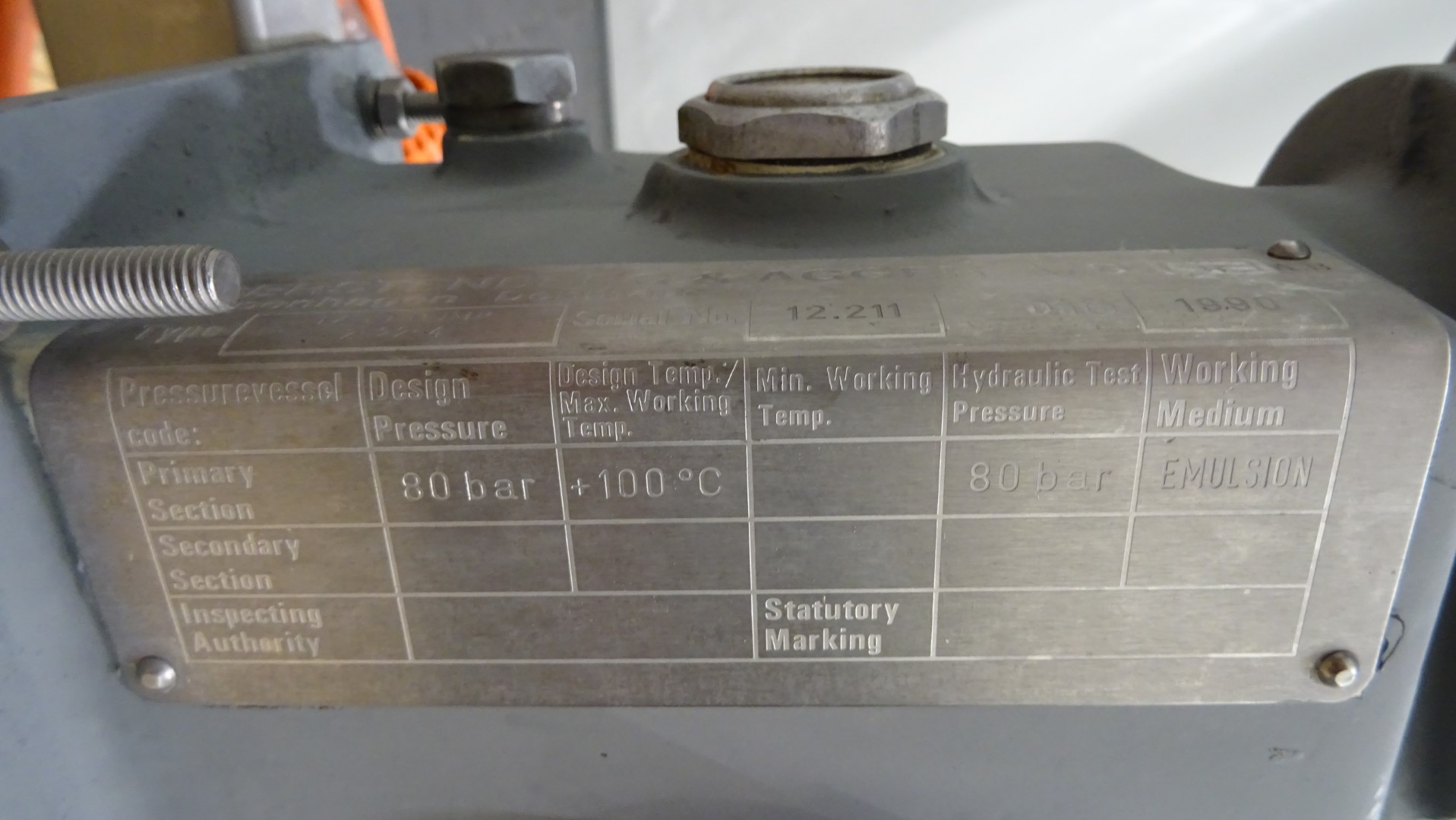

High Pressure Pump for pumping the margarine emulsion through the margarine pilot plant. Gerstenberg & Agger A/S, type Labo Pump 2-22-4 , serial number 12.211, year 1990, product pressure max 80 bar, temperature max 100 °C, capacity max 200 kg/h, motor 415 V - 50 Hz - 1,1 kW. Control panel with Siemens S7-200 PLC.

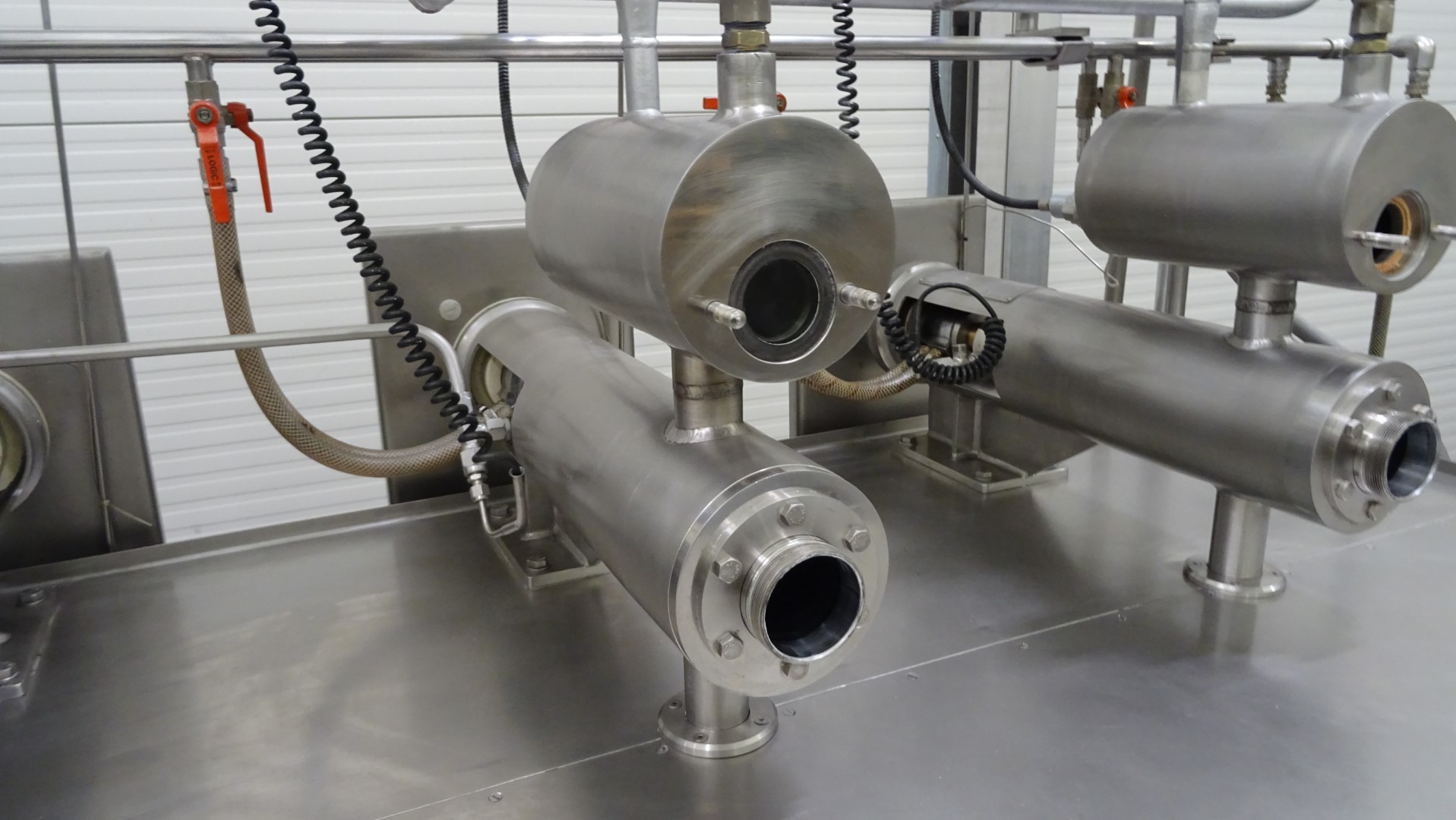

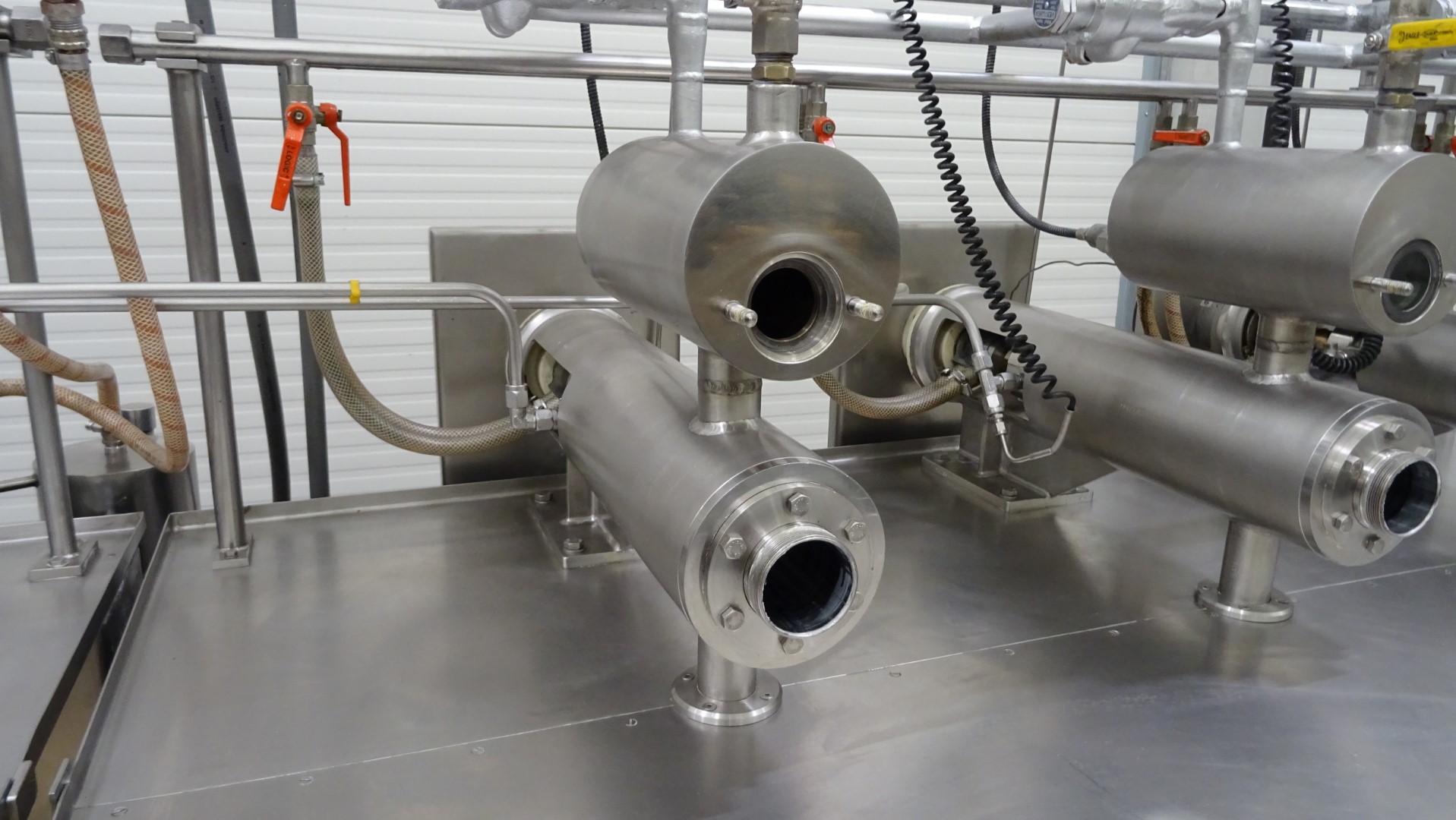

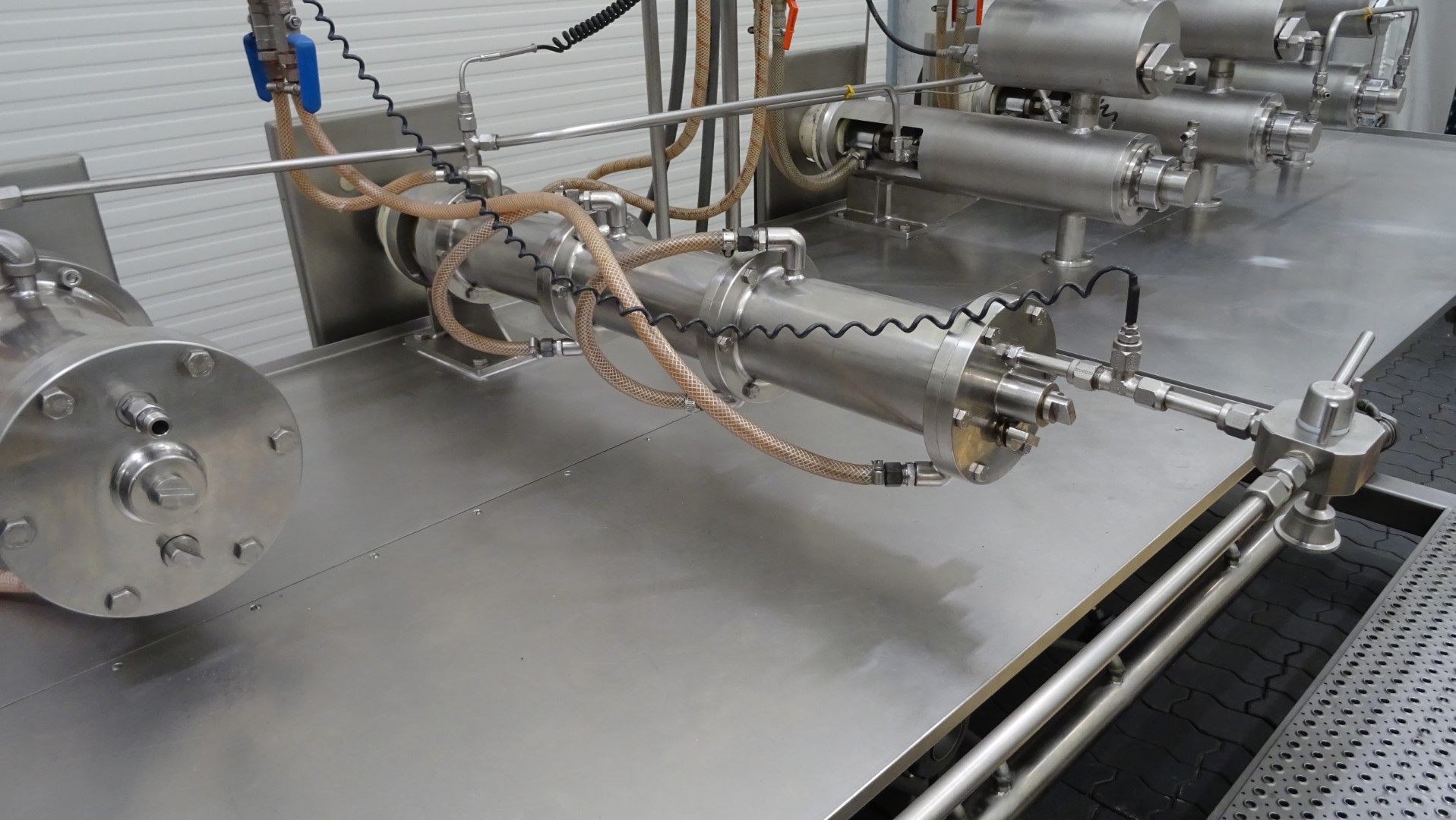

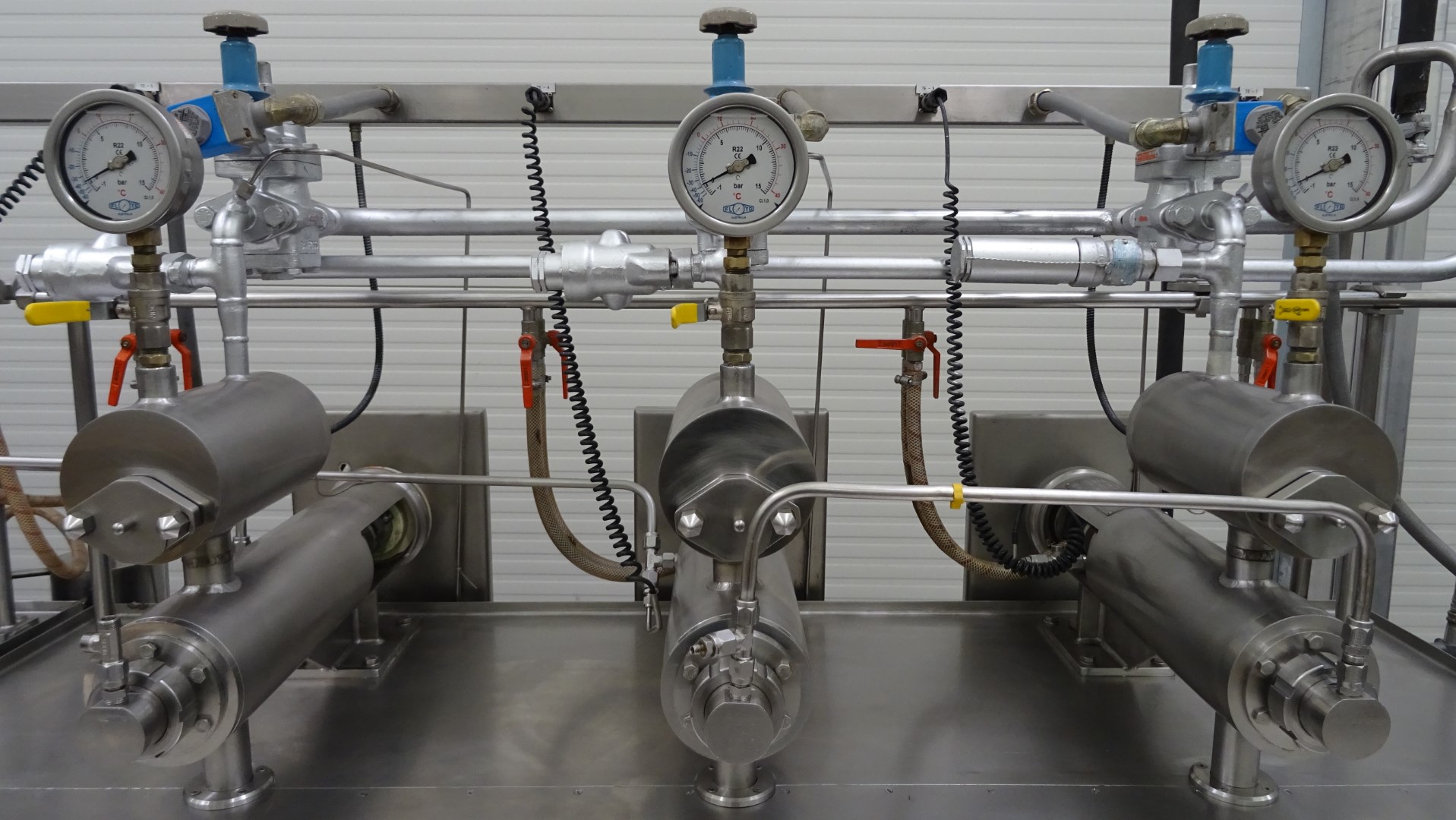

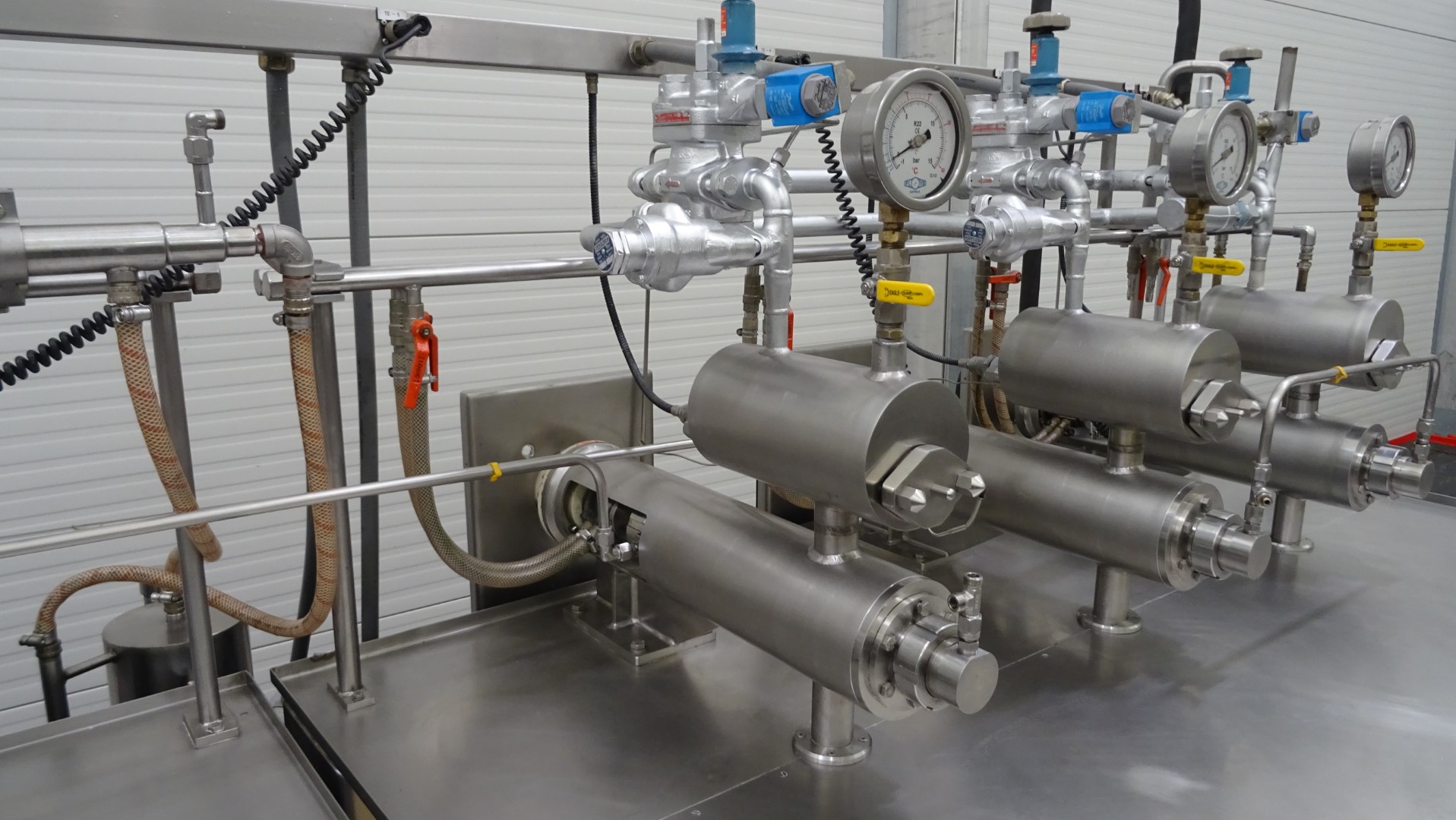

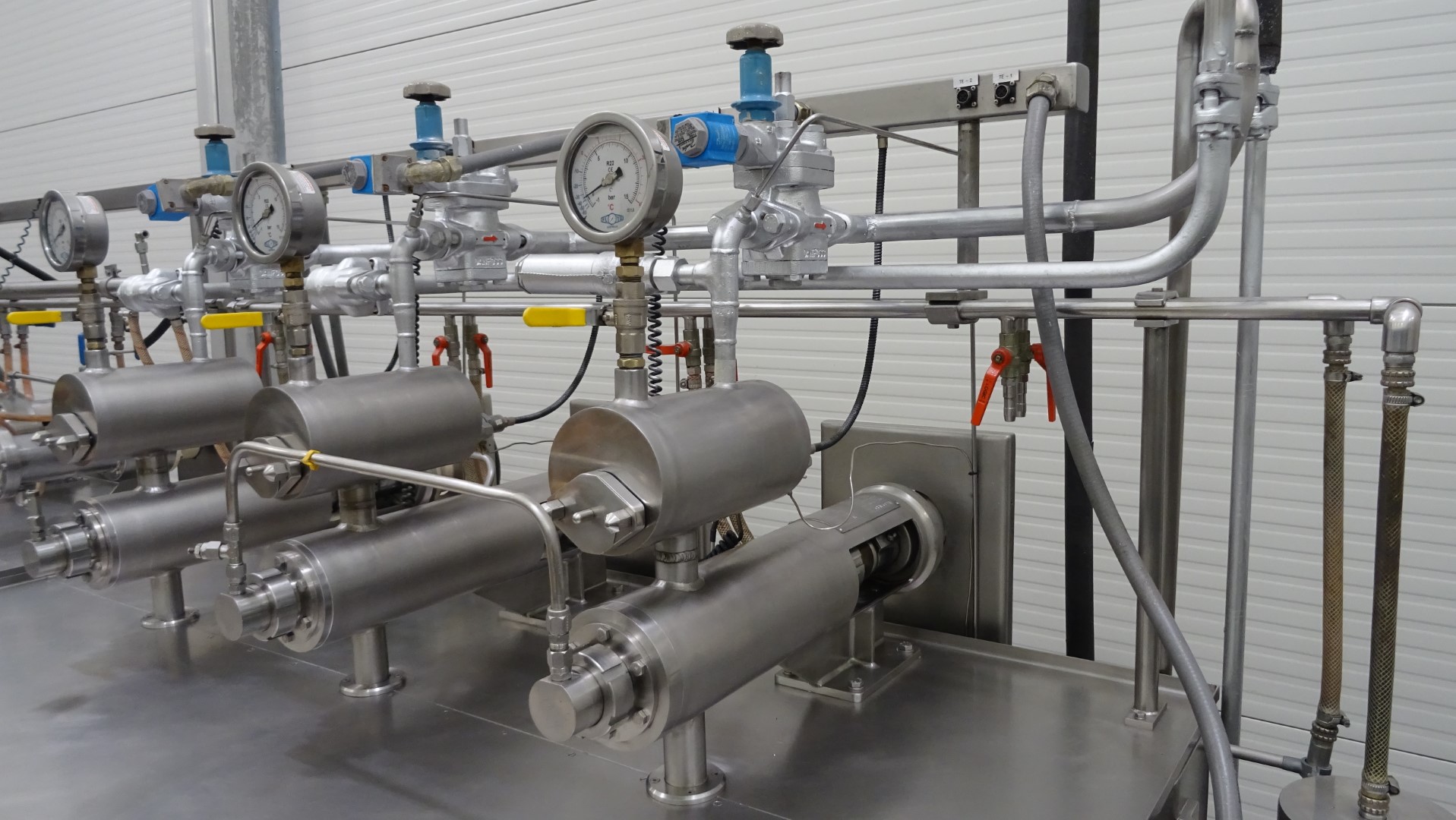

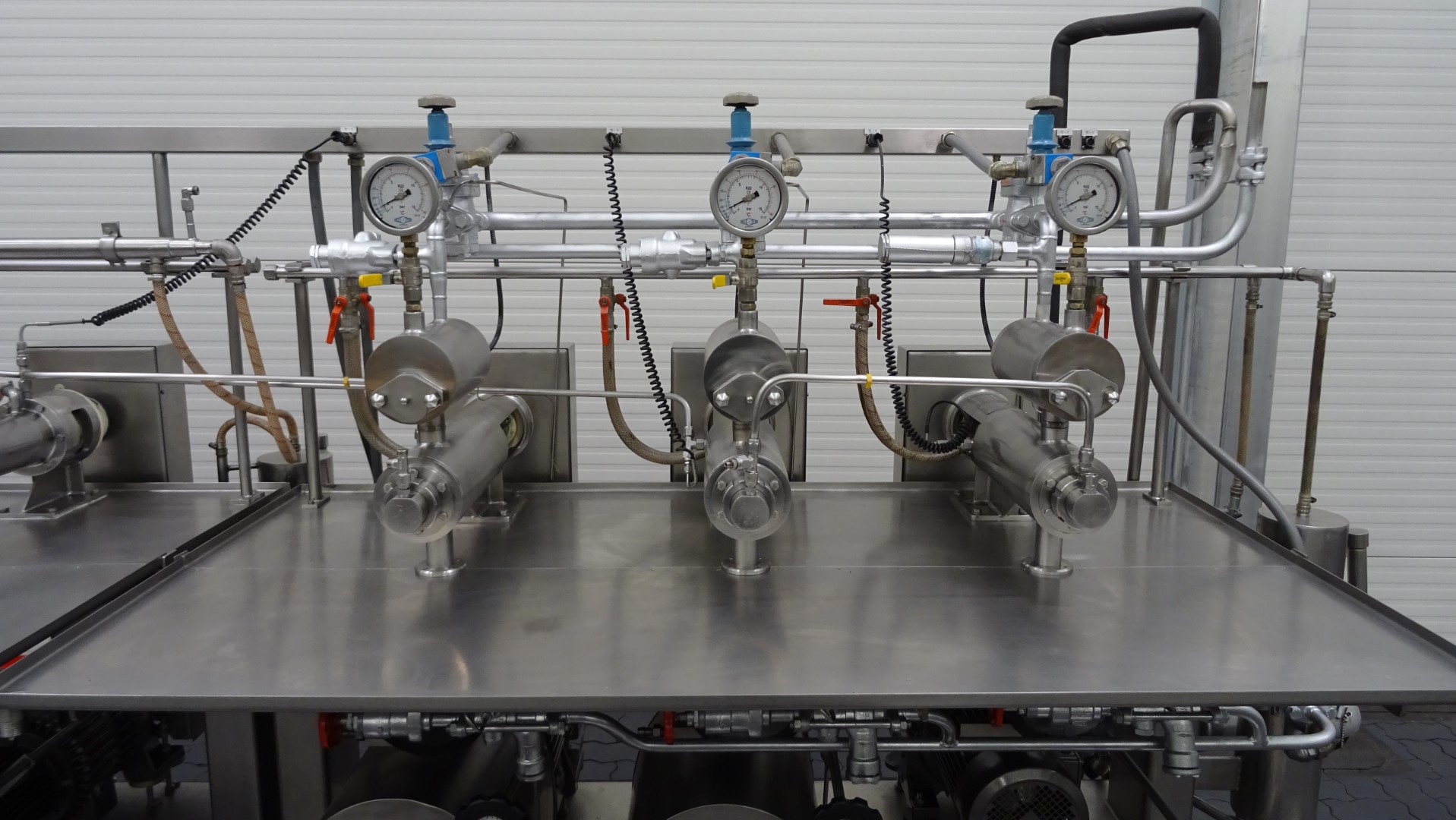

- Scraped Surface Heat Exchanger 01, Cooler.

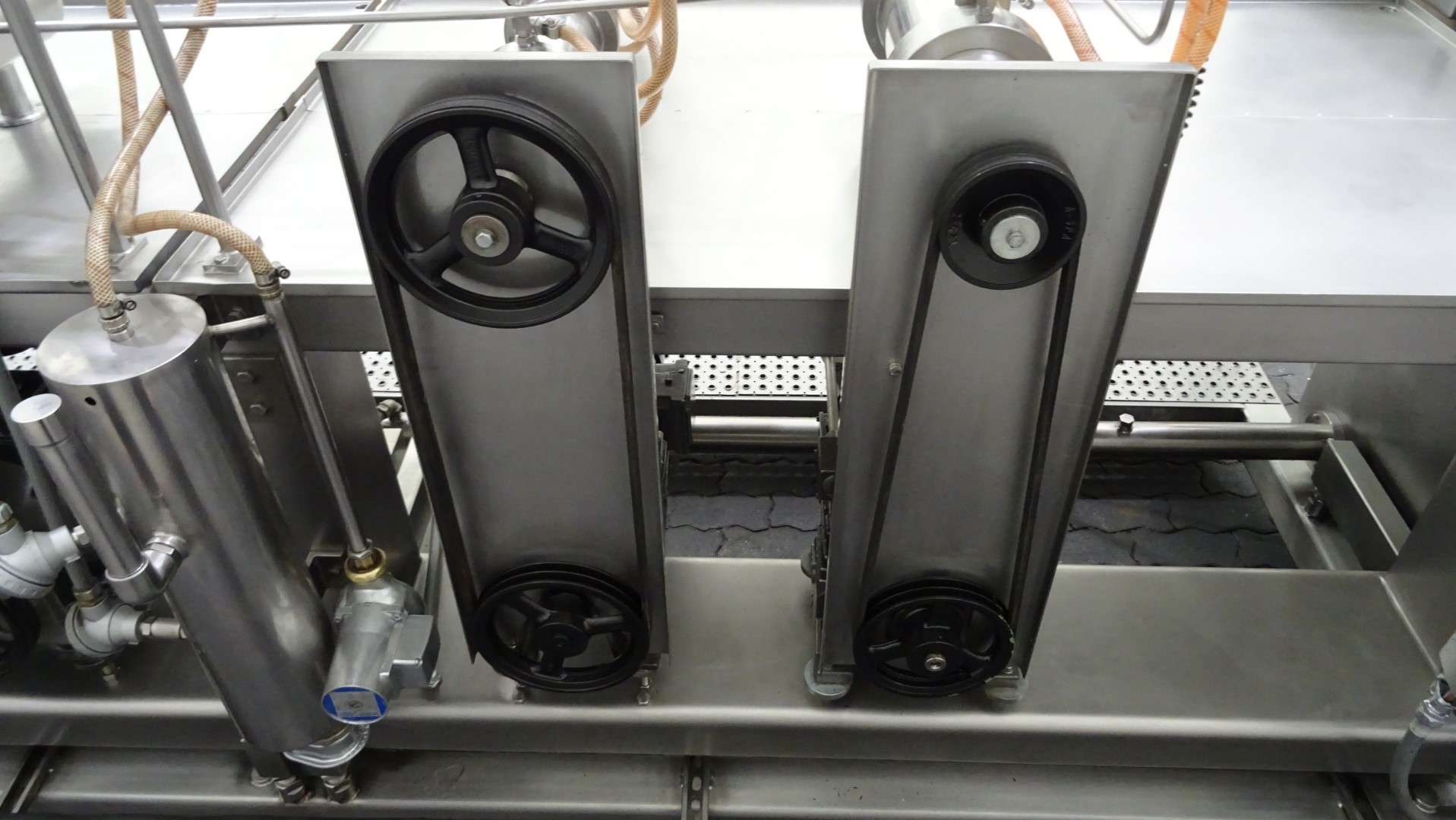

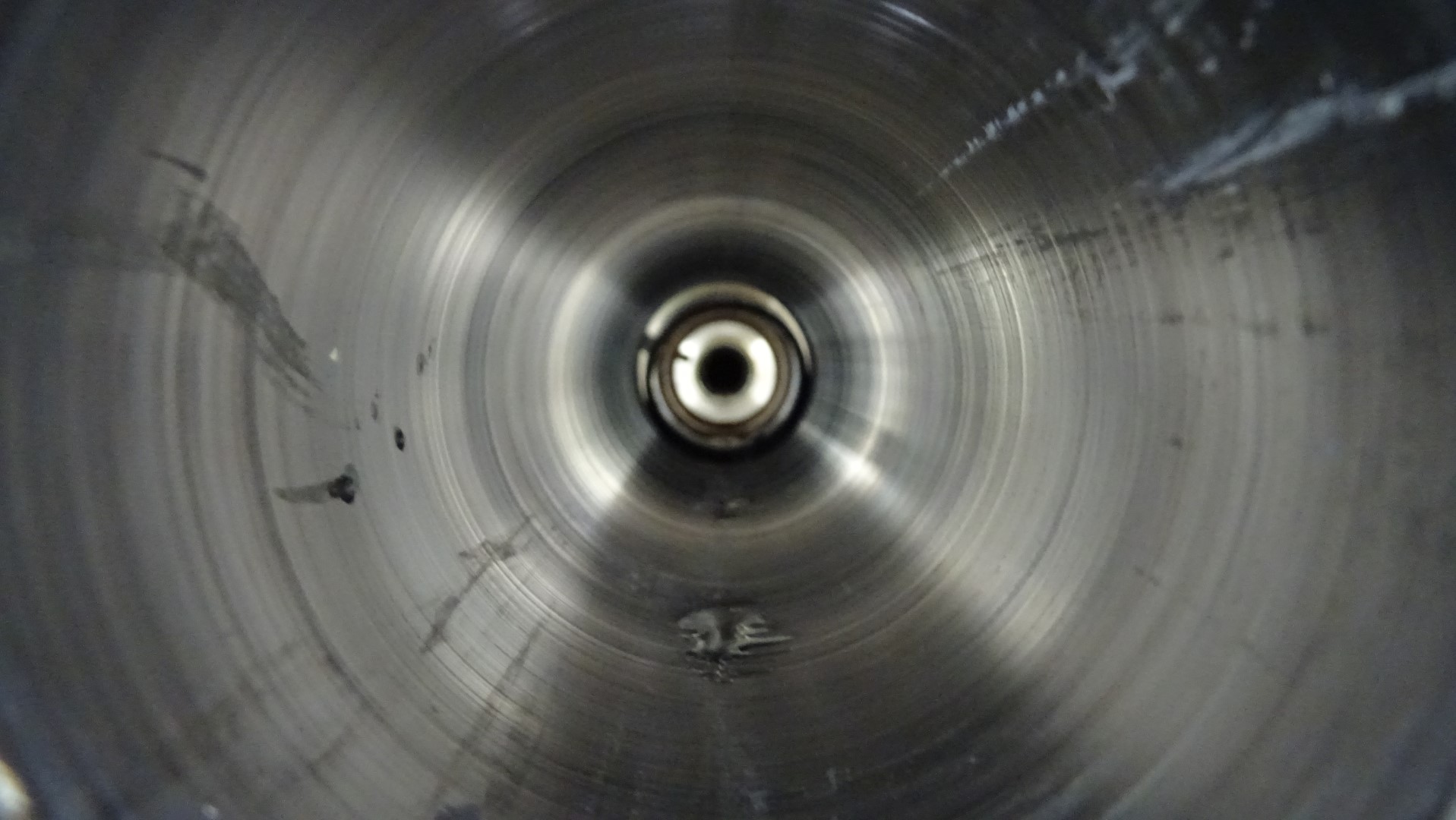

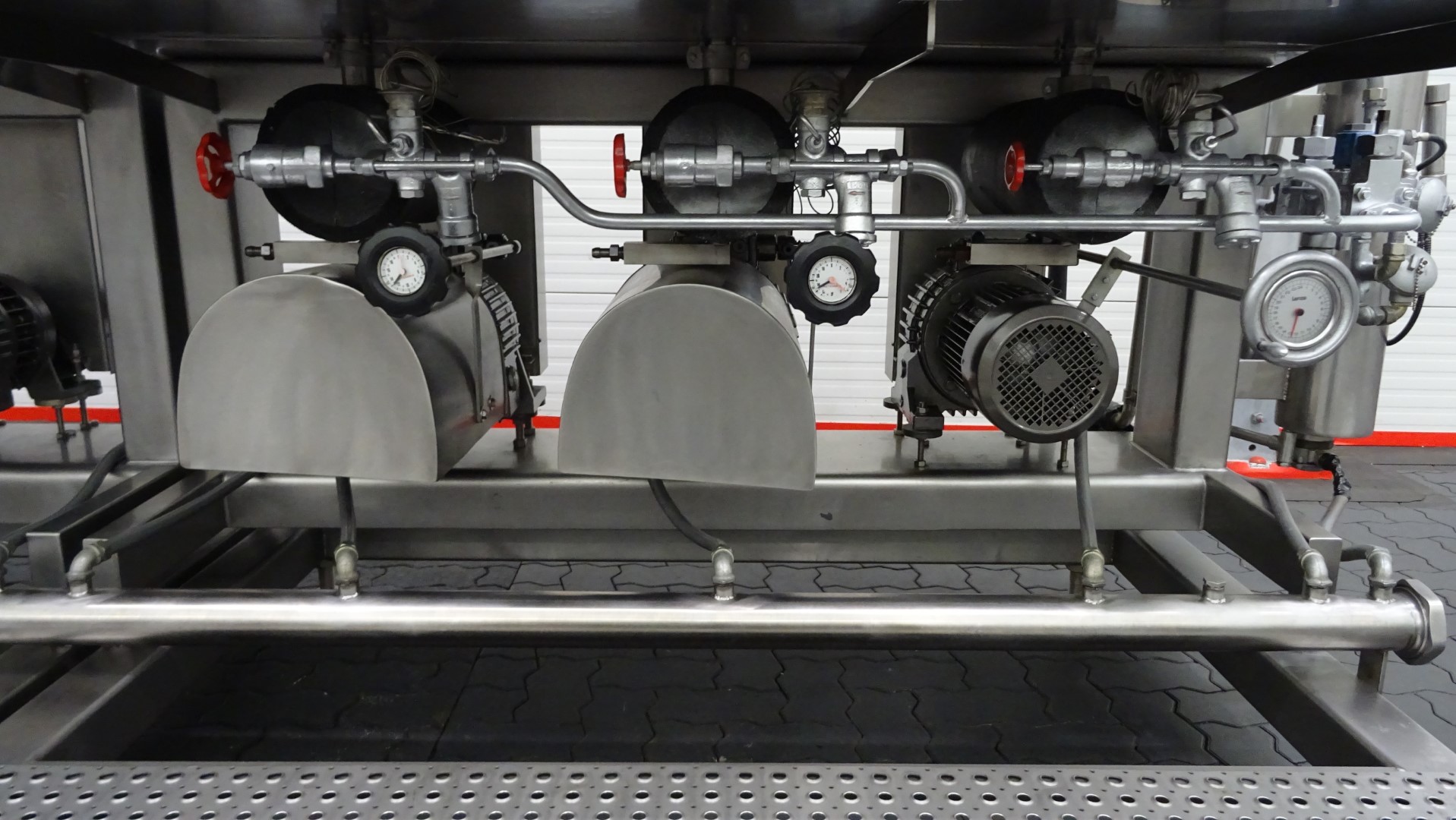

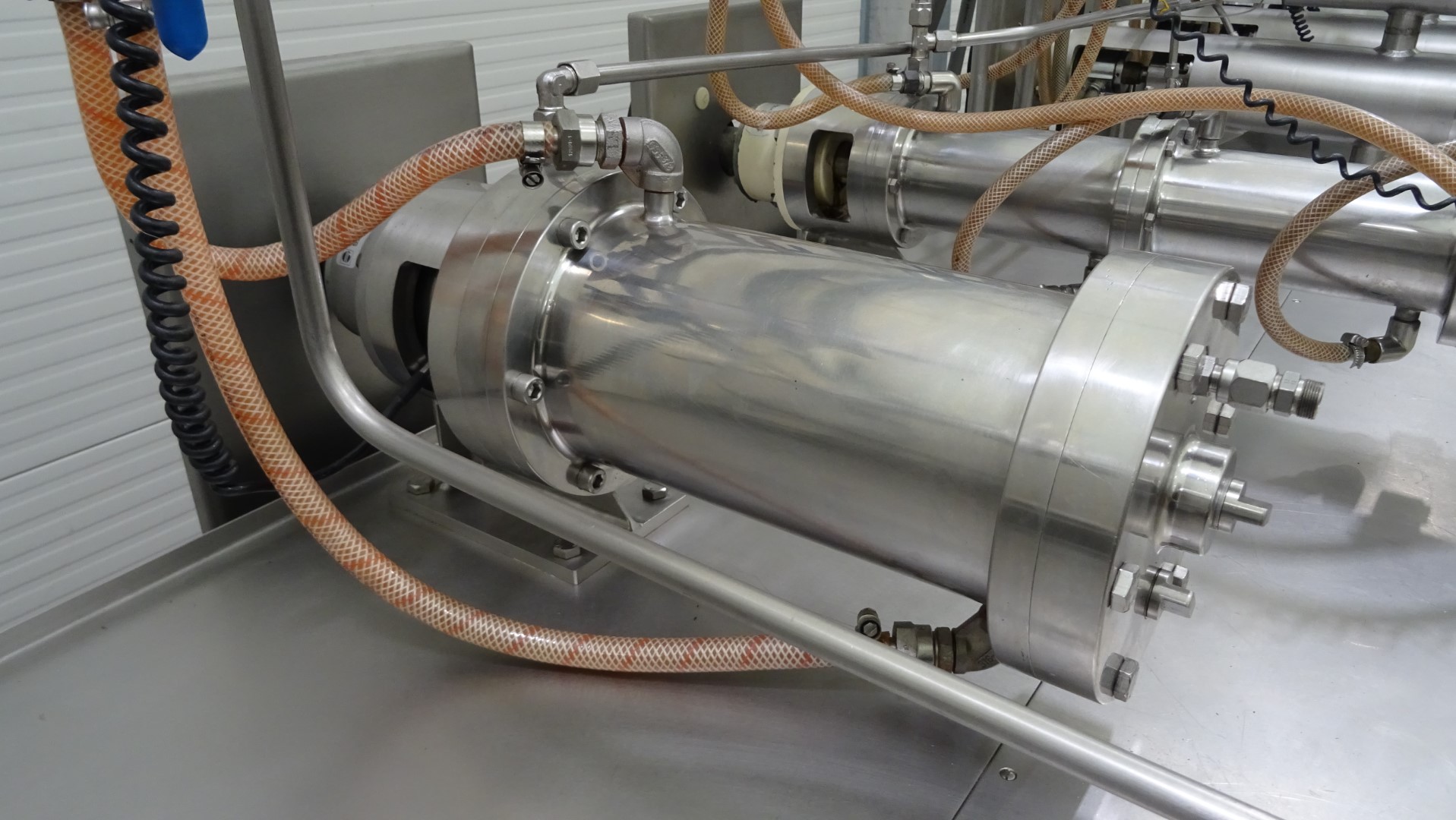

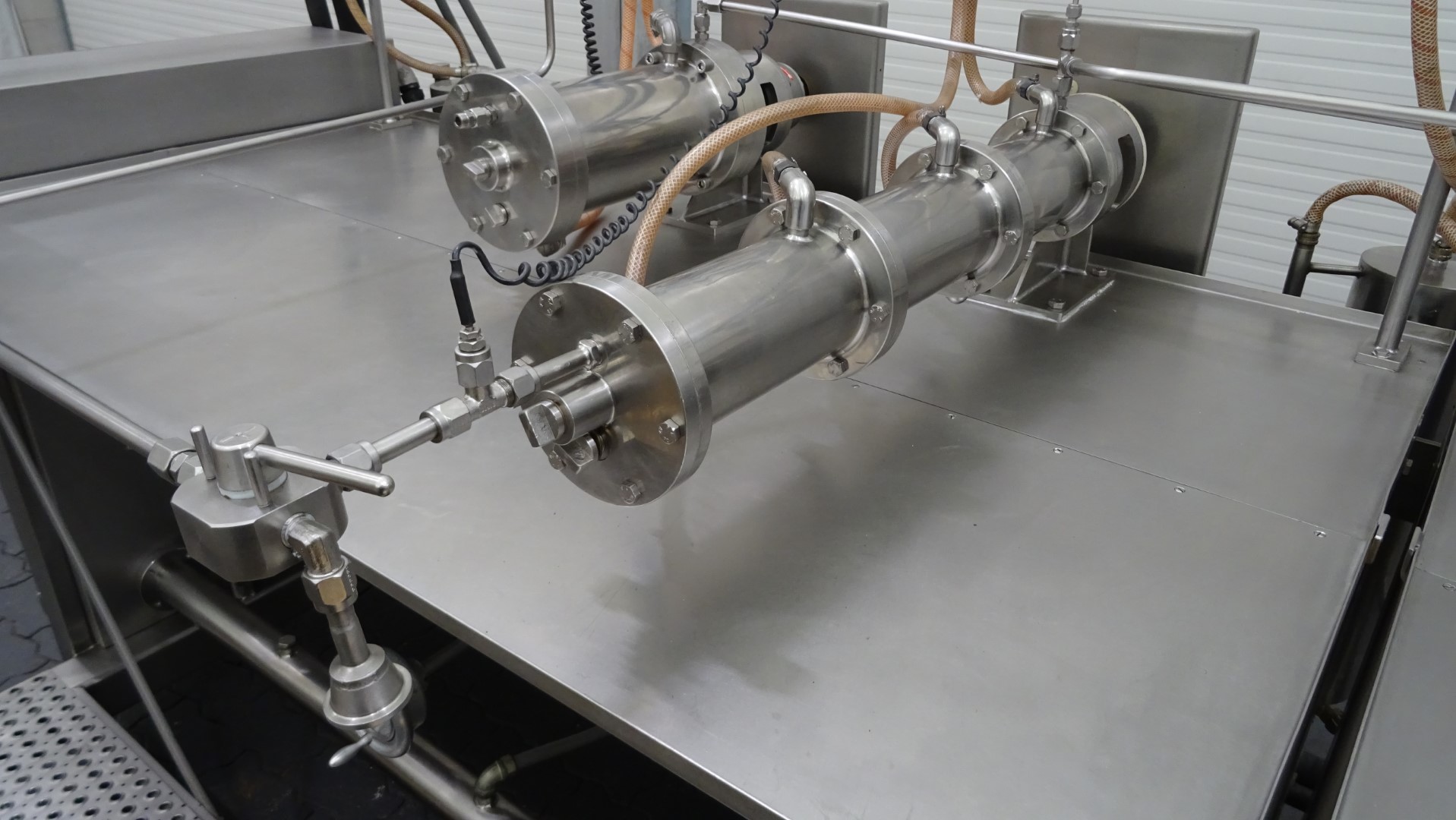

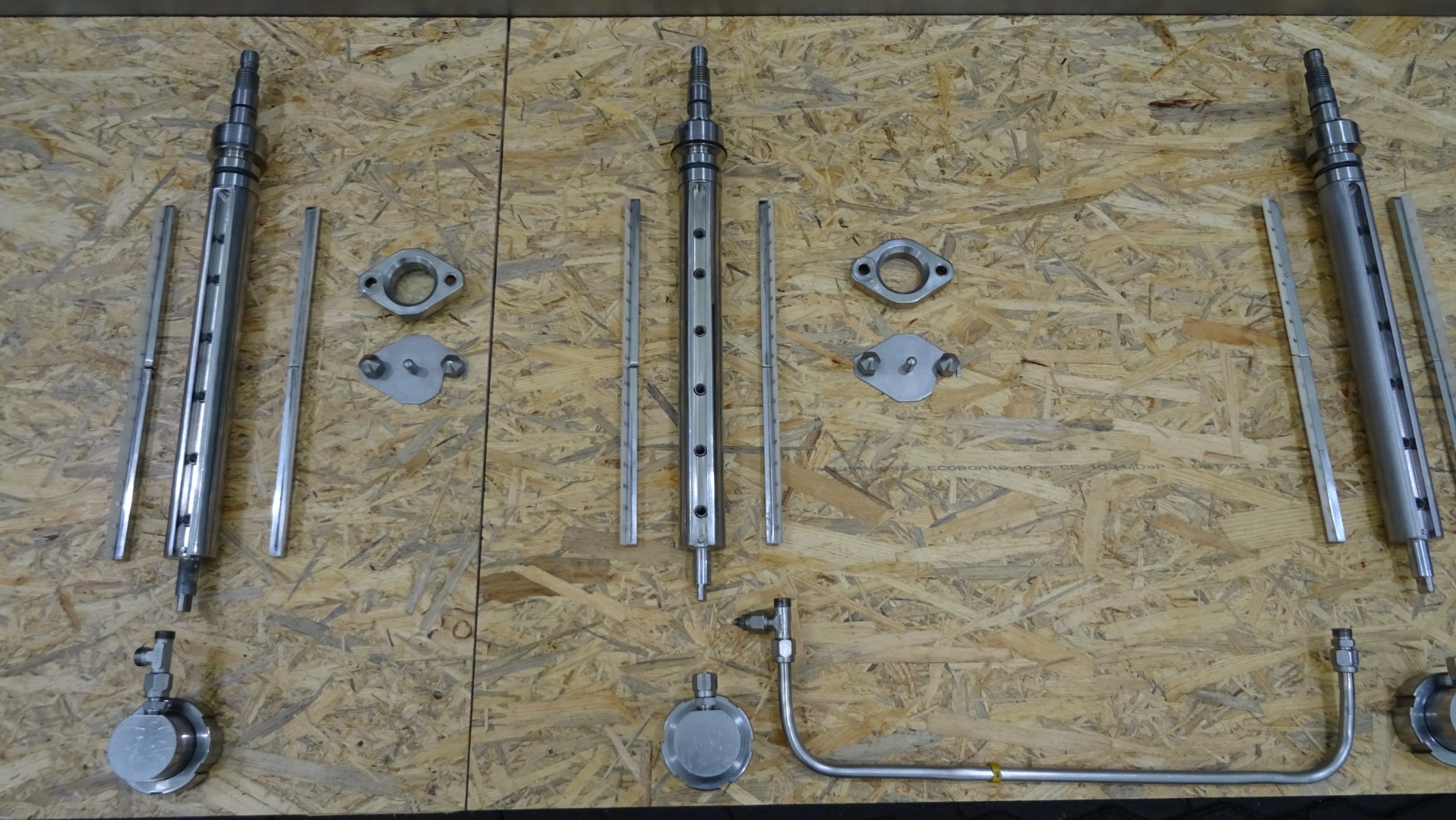

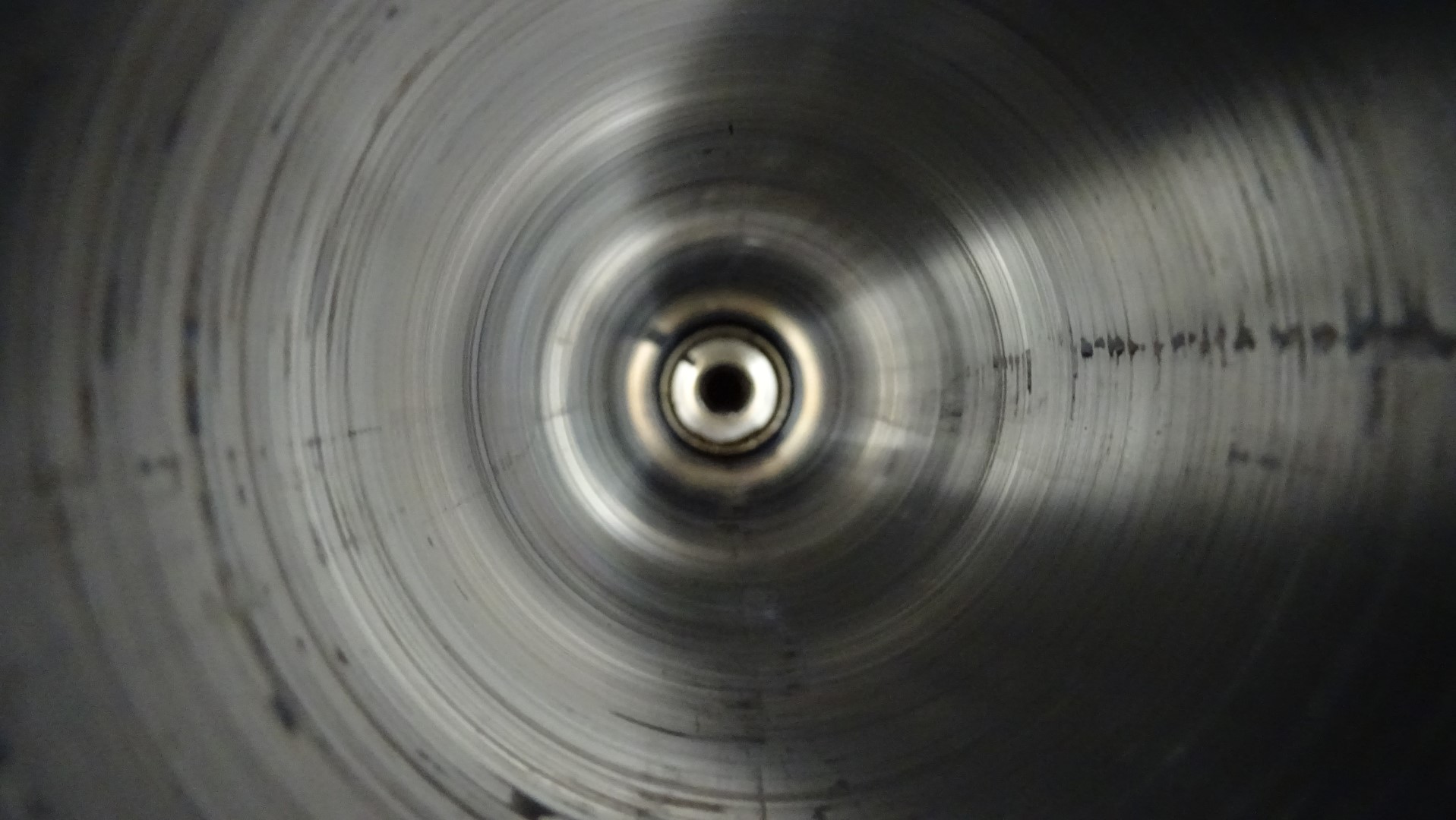

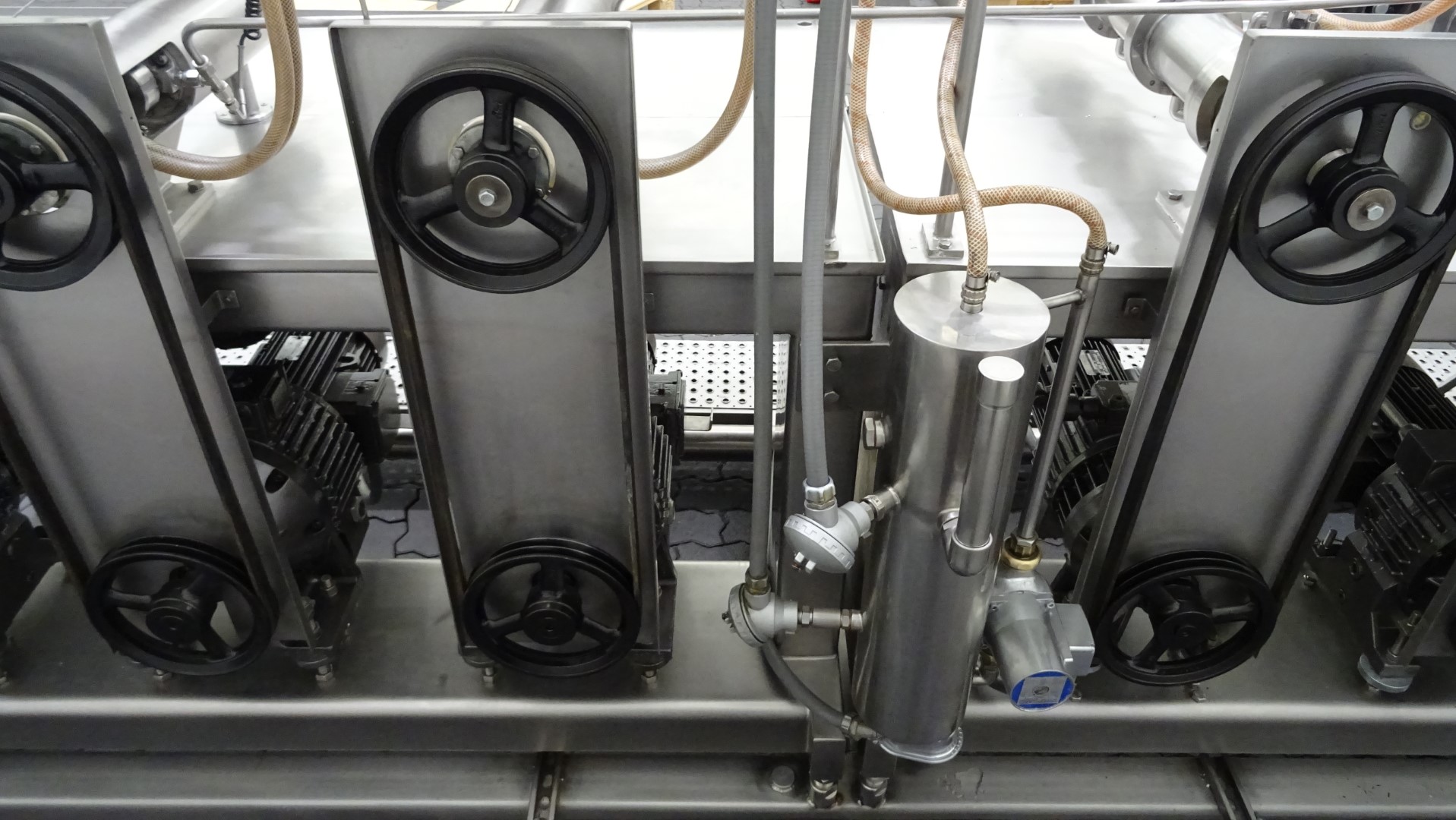

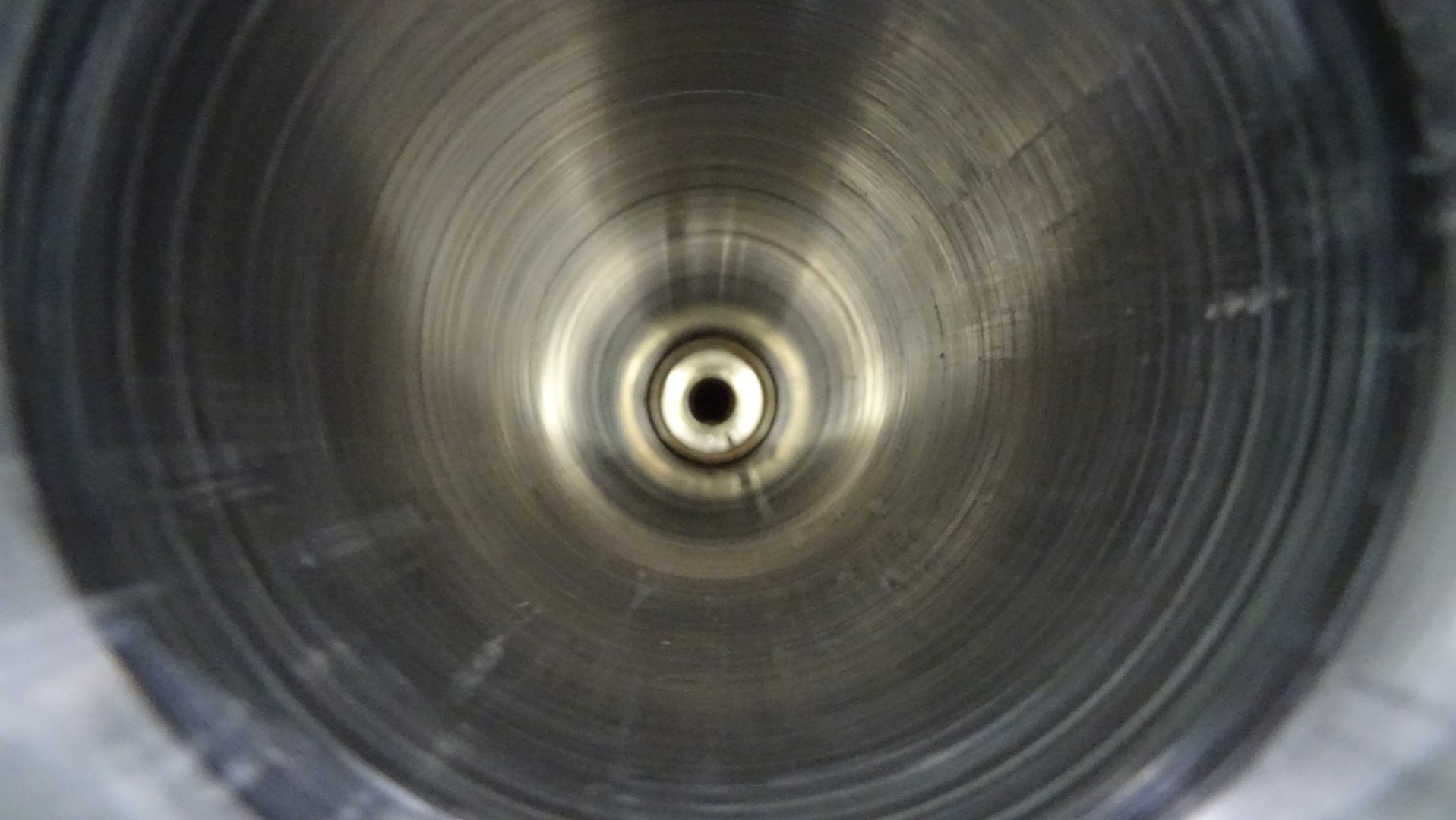

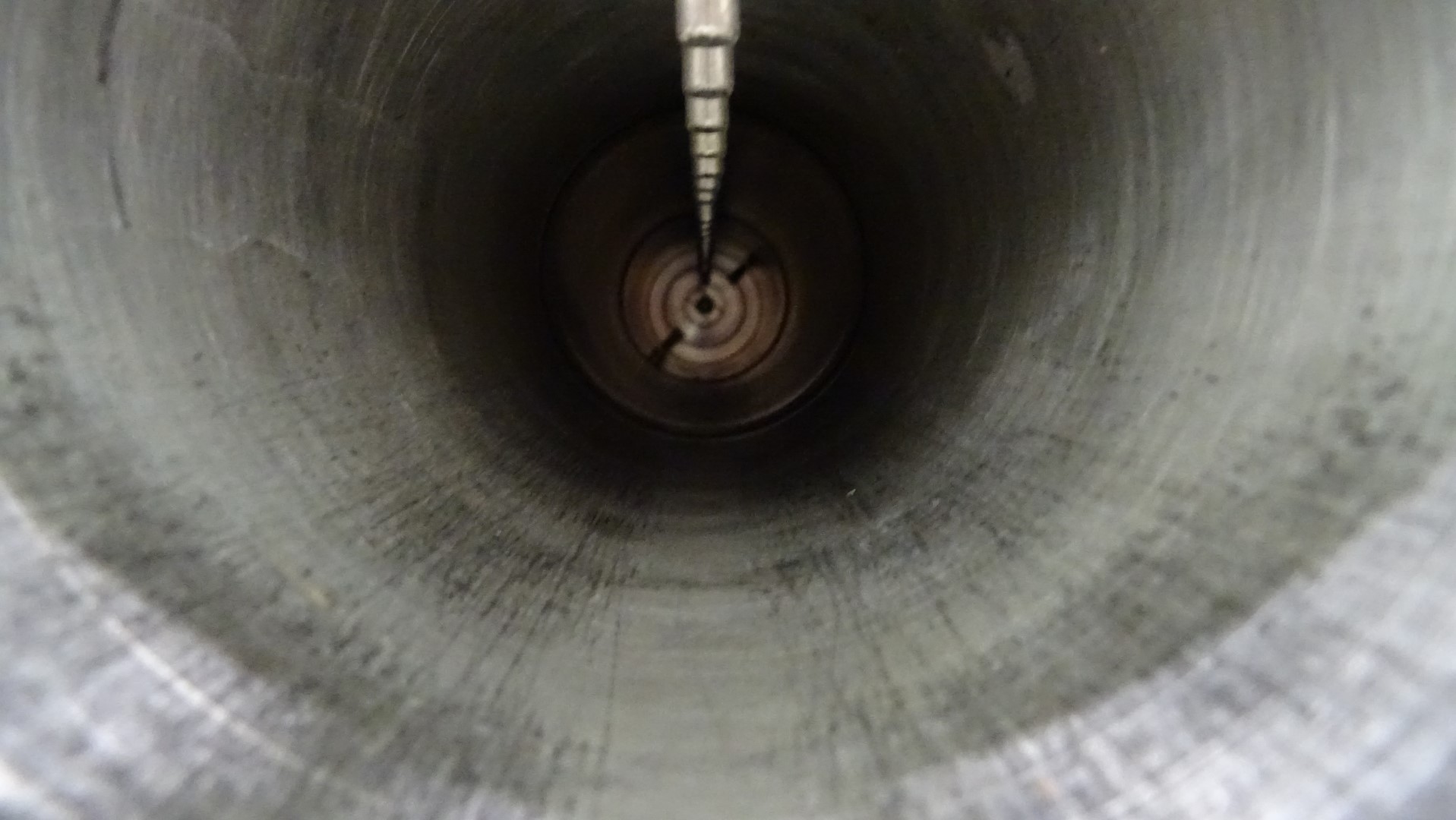

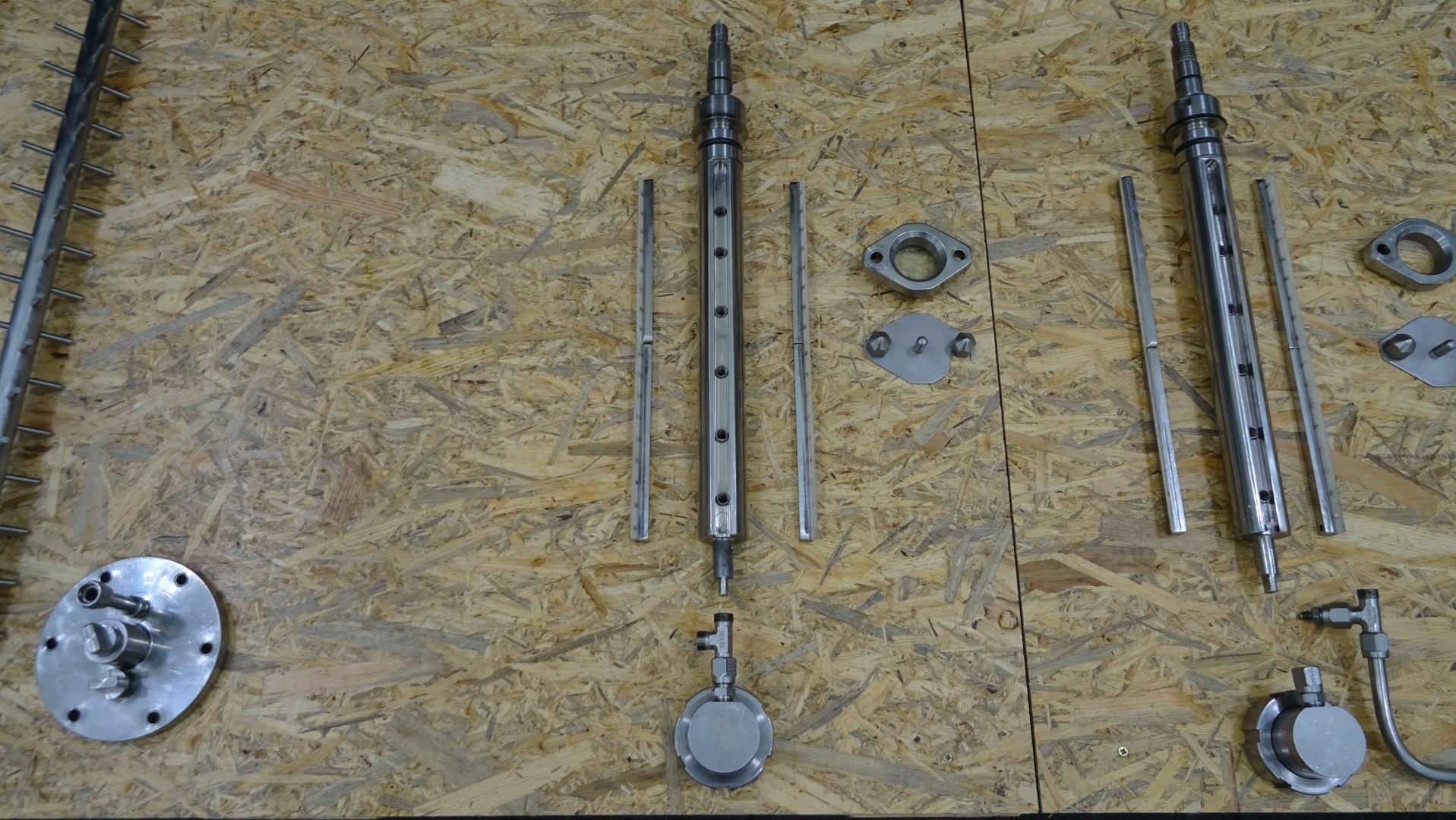

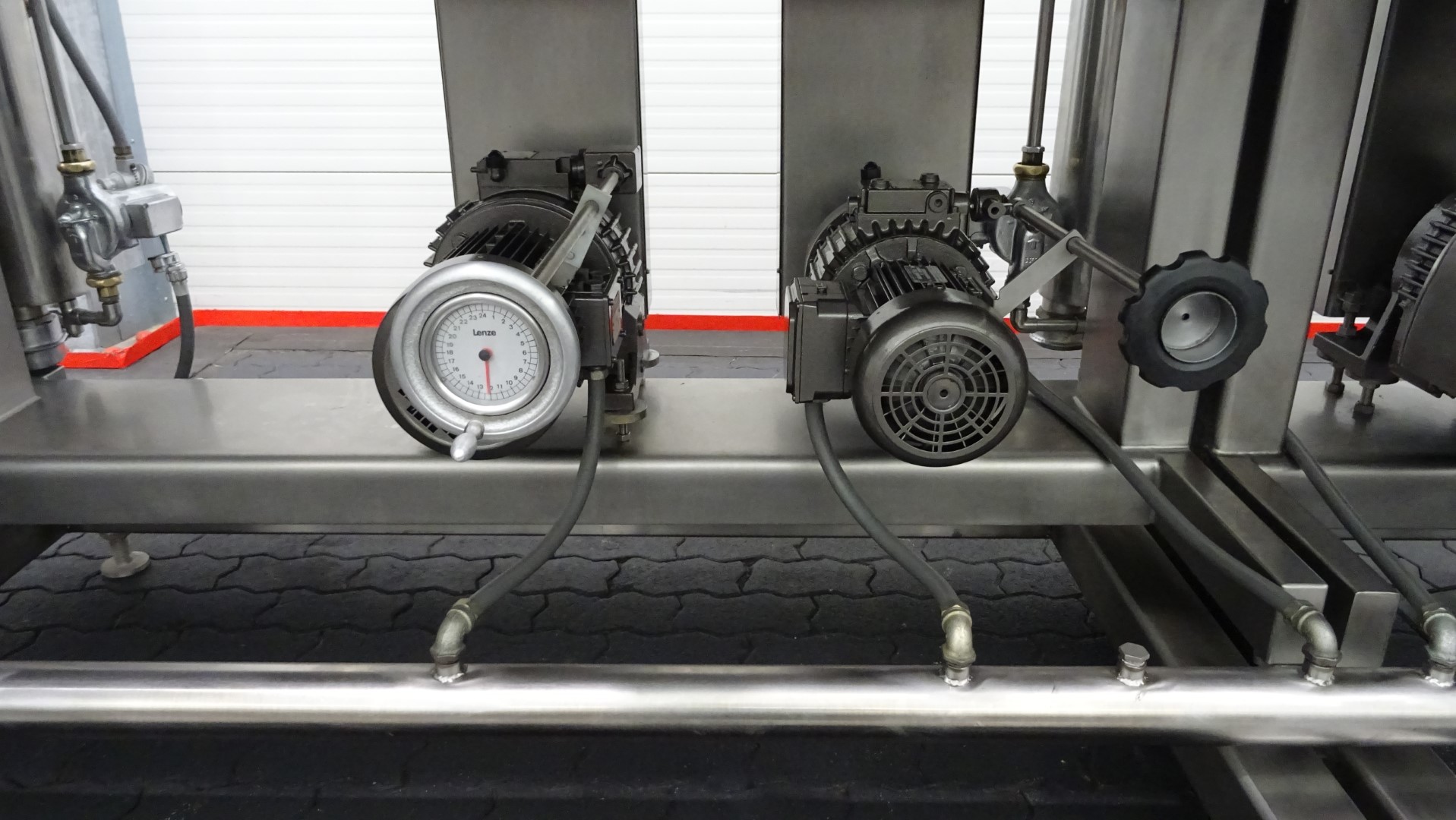

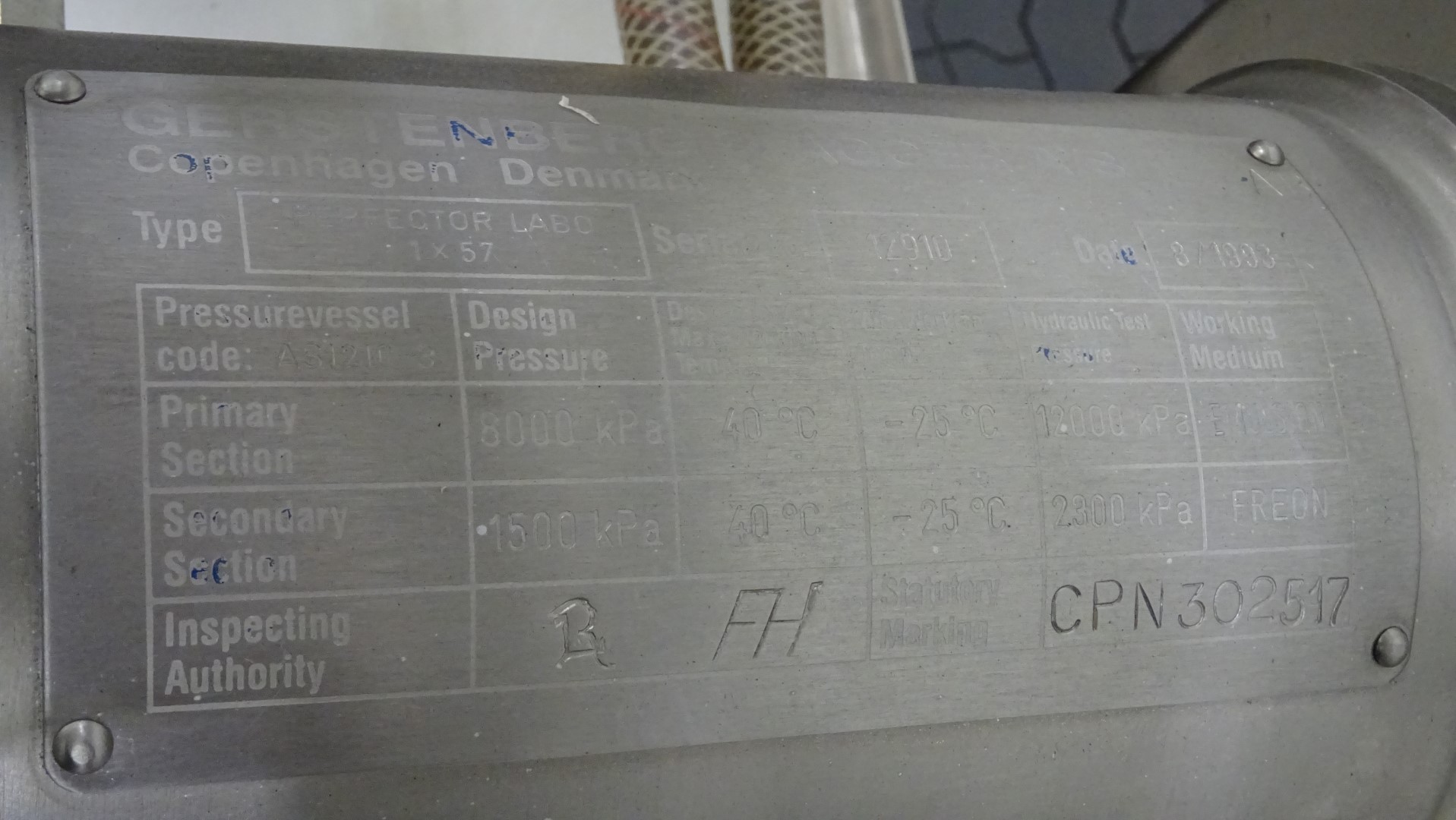

Pilot G&A Perfector - SSHE Cooler Perfector 57 is designed for lenient cooling of medium viscosity, pumpable food like margarine. Gerstenberg & Agger A/S, type Perfector Lab 1x57, serial number 12910, year 1993, duty Margarine. Primary section: design pressure 80 bar, design temperature / max working temperature 40 °C, min working temperature -25 °C, Emulsion. Secondary Chamber: design pressure 15 bar, design temperature / max working temperature 40 °C, min working temperature -25 °C, cooling medium Freon R22. Bulldog knifes. Cooling cylinder length 430 mm and inside diameter 57 mm. Heat transmission surface: 0,057 m3. Volume 1,1 liter. Motor: 415 V - 50 Hz - 4 kW - 1.410 rpm - 15,8/9,2 A and mechanical variator 190-1.000 rpm.
- Scraped Surface Heat Exchanger 02, Cooler.
Pilot G&A Perfector - SSHE Cooler Perfector 57 is designed for lenient cooling of medium viscosity, pumpable food like margarine. Gerstenberg & Agger A/S, type Perfector Lab 1x57, serial number 12910, year 1993, duty Margarine. Primary section: design pressure 80 bar, design temperature / max working temperature 40 °C, min working temperature -25 °C, Emulsion. Secondary Chamber: design pressure 15 bar, design temperature / max working temperature 40 °C, min working temperature -25 °C, cooling medium Freon R22. Bulldog knifes. Cooling cylinder length 430 mm and inside diameter 57 mm. Heat transmission surface: 0,057 m3. Volume 1,1 liter. Motor: 415 V - 50 Hz - 4 kW - 1.410 rpm - 15,8/9,2 A and mechanical variator 190-1.000 rpm.
- Scraped Surface Heat Exchanger 03, Cooler.
Pilot G&A Perfector - SSHE Cooler Perfector 57 is designed for lenient cooling of medium viscosity, pumpable food like margarine. Gerstenberg & Agger A/S, type Perfector Lab 1x57, serial number 12910, year 1993, duty Margarine. Primary section: design pressure 80 bar, design temperature / max working temperature 40 °C, min working temperature -25 °C, Emulsion. Secondary Chamber: design pressure 15 bar, design temperature / max working temperature 40 °C, min working temperature -25 °C, cooling medium Freon R22. Bulldog knifes. Cooling cylinder length 430 mm and inside diameter 57 mm. Heat transmission surface: 0,057 m3. Volume 1,1 liter. Motor: 415 V - 50 Hz - 4 kW - 1.410 rpm - 15,8/9,2 A and mechanical disco variator 175-1.000 rpm.

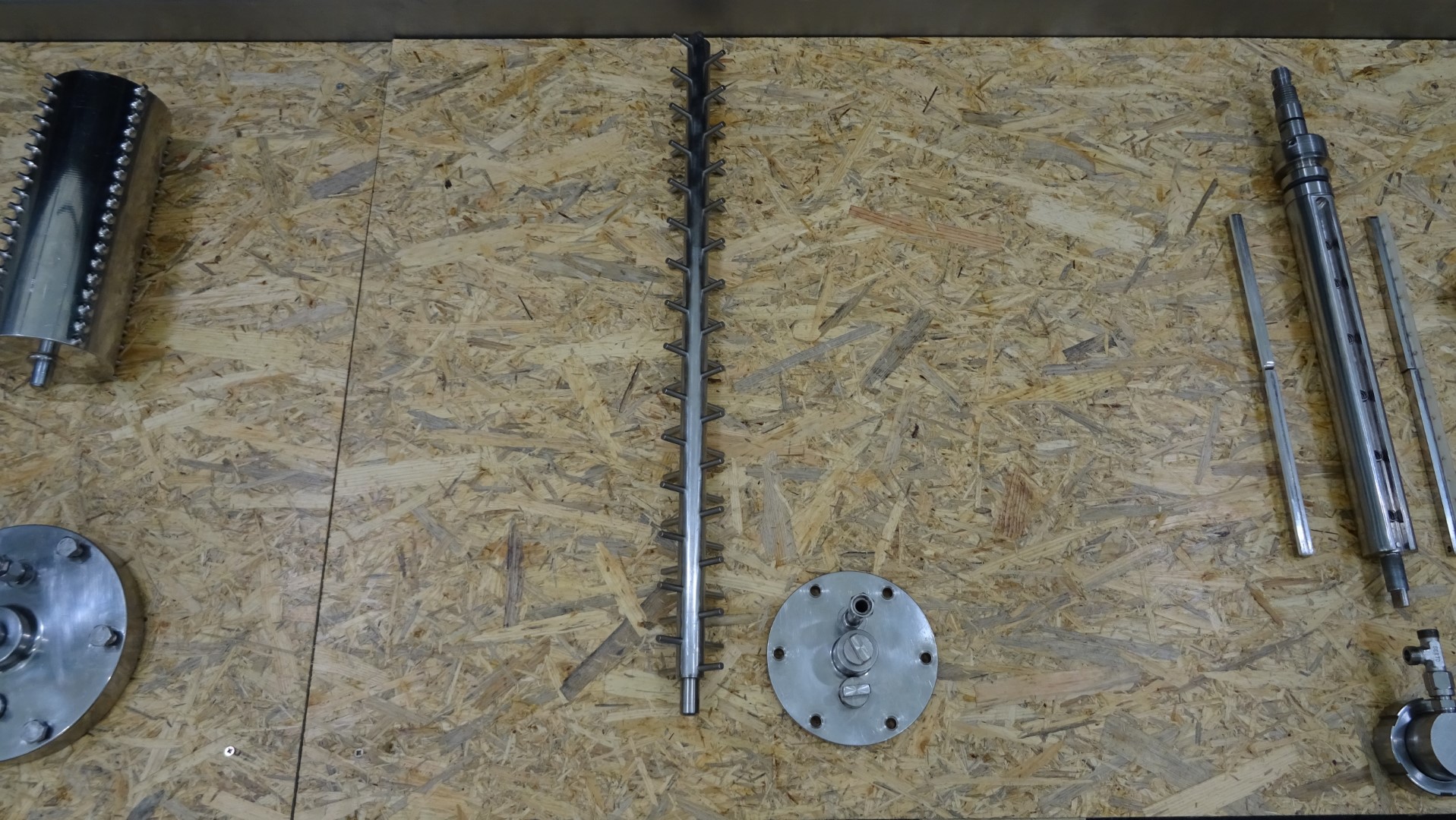

- Pin worker (1 - 2 - 3 liter).

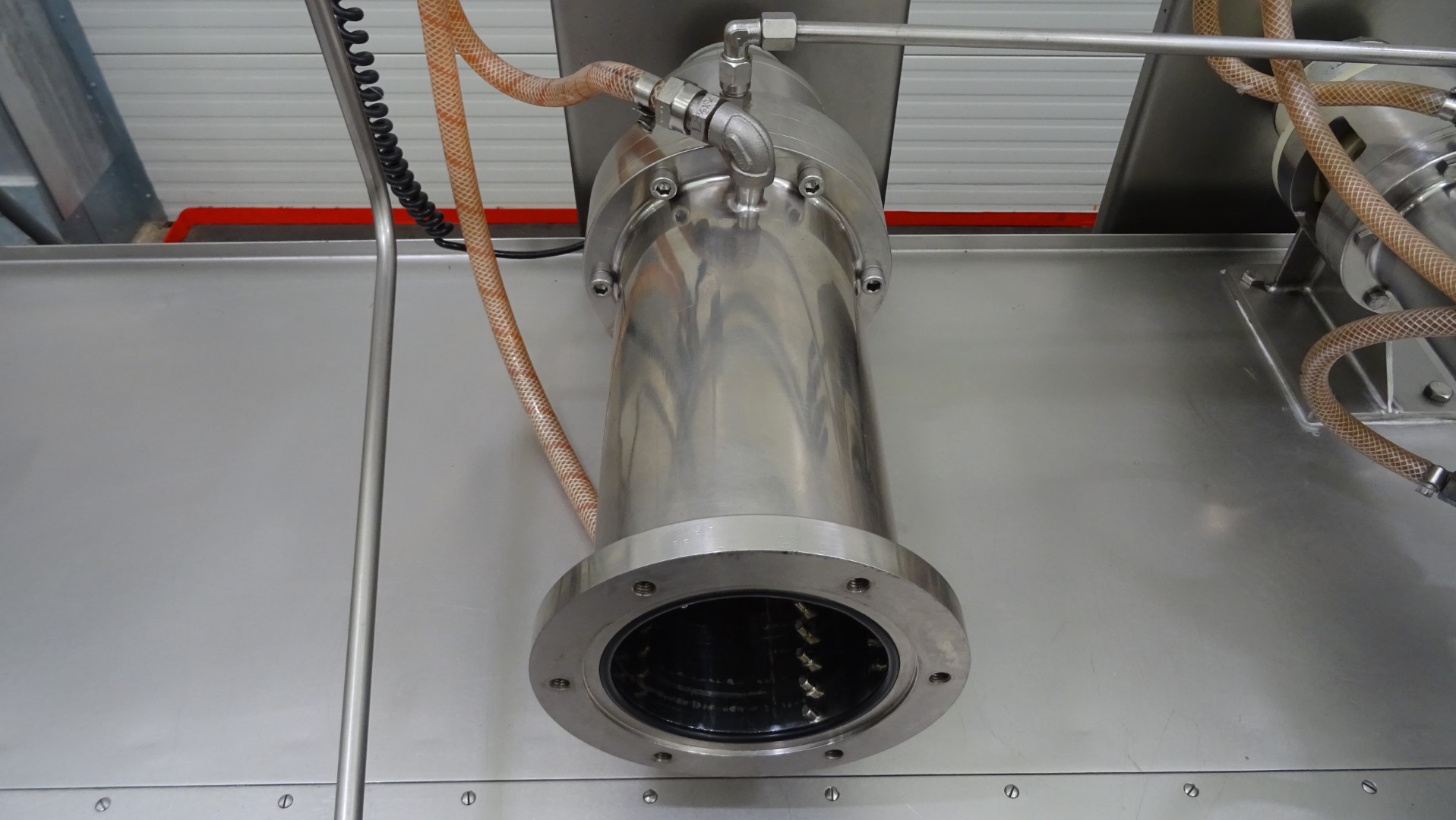

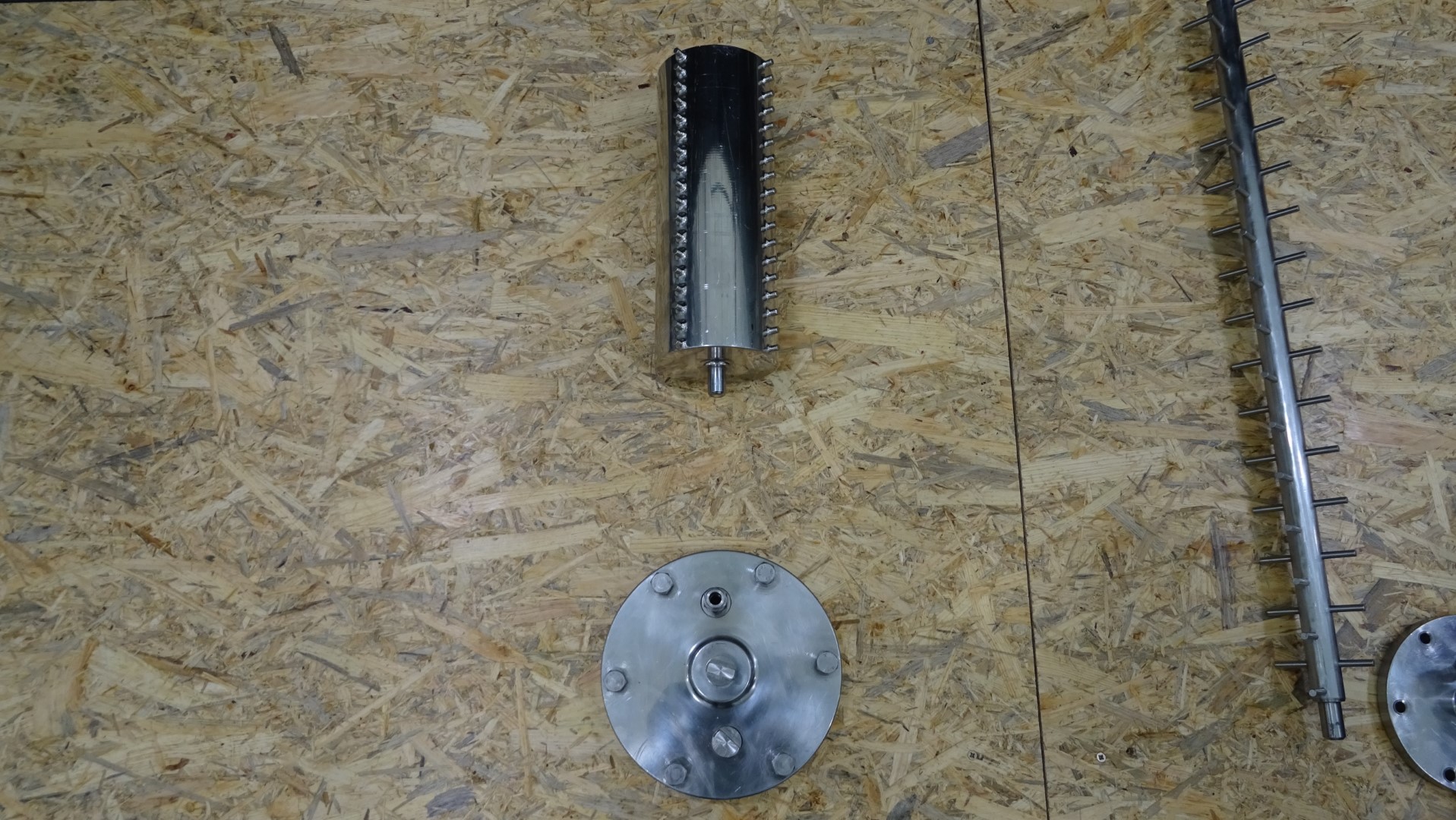

Pilot pin worker is designed for solidification / plasticizing of margarine. Gerstenberg & Agger A/S, type Perfector Labo Pin Rotor Machine, year 1993, barrel volume: 1 - 2 - 3 liter. Motor: 415 V - 50 Hz - 1,5 kW - 1.420 rpm - 6,9/4 A with mechanical variator
- 1x Inverter.

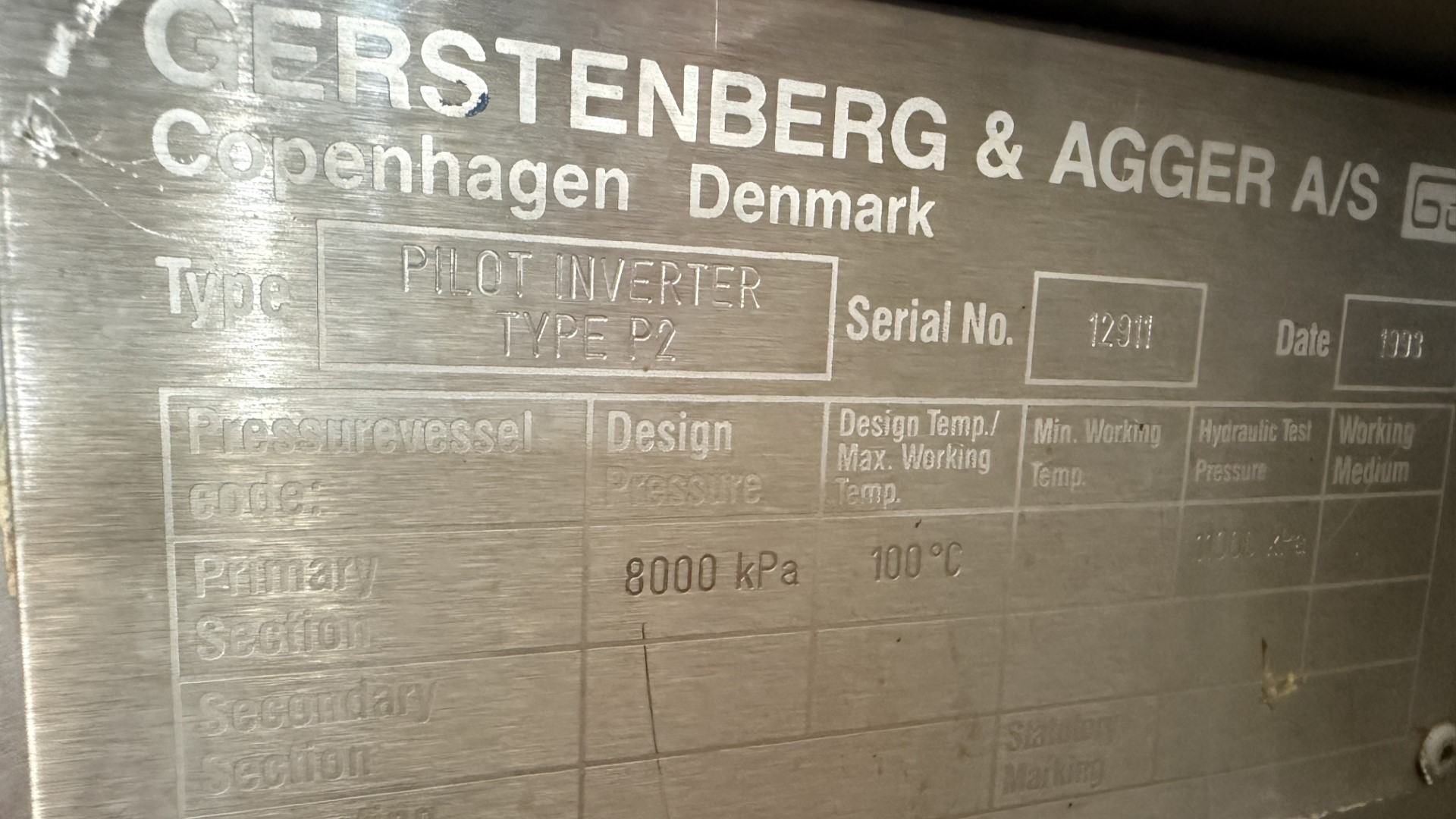

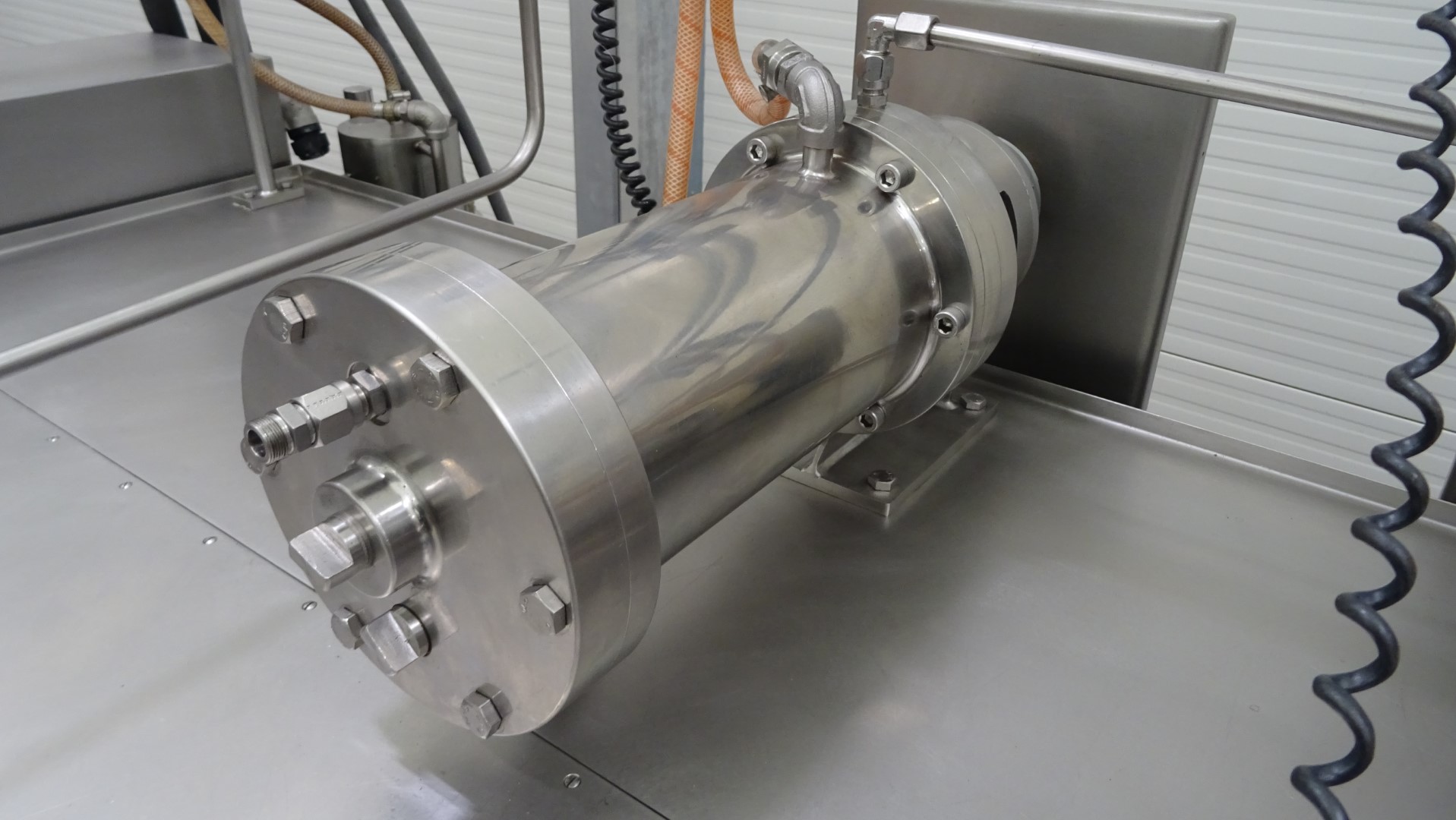

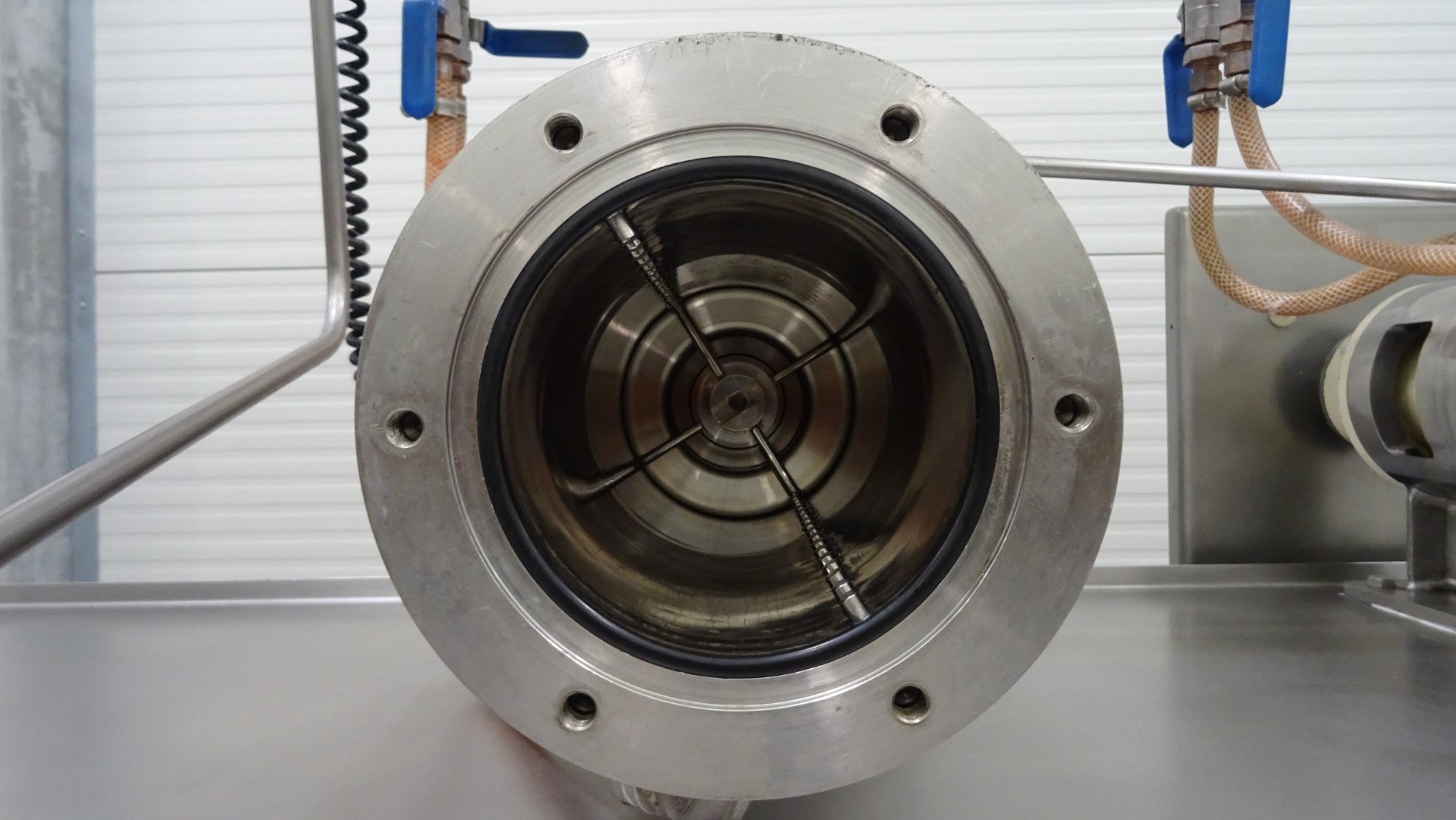

Phase pilot inverter unit / Pilot Microtator for emulsification / cooling of the margarine, high shear between rotor and stator pins incorporates the energy to the product which is necesary for making a stable product. Gerstenberg & Agger A/S, type Pilot Inverter Type P2 , serial number 12911, year 1993, volume 1.1 ltr, product pressure max 80 bar, temperature max 100 °C, motor 415 V - 50 Hz - 4 kW - 1.410 rpm - 5,8/4,2 A with mechanical variator.

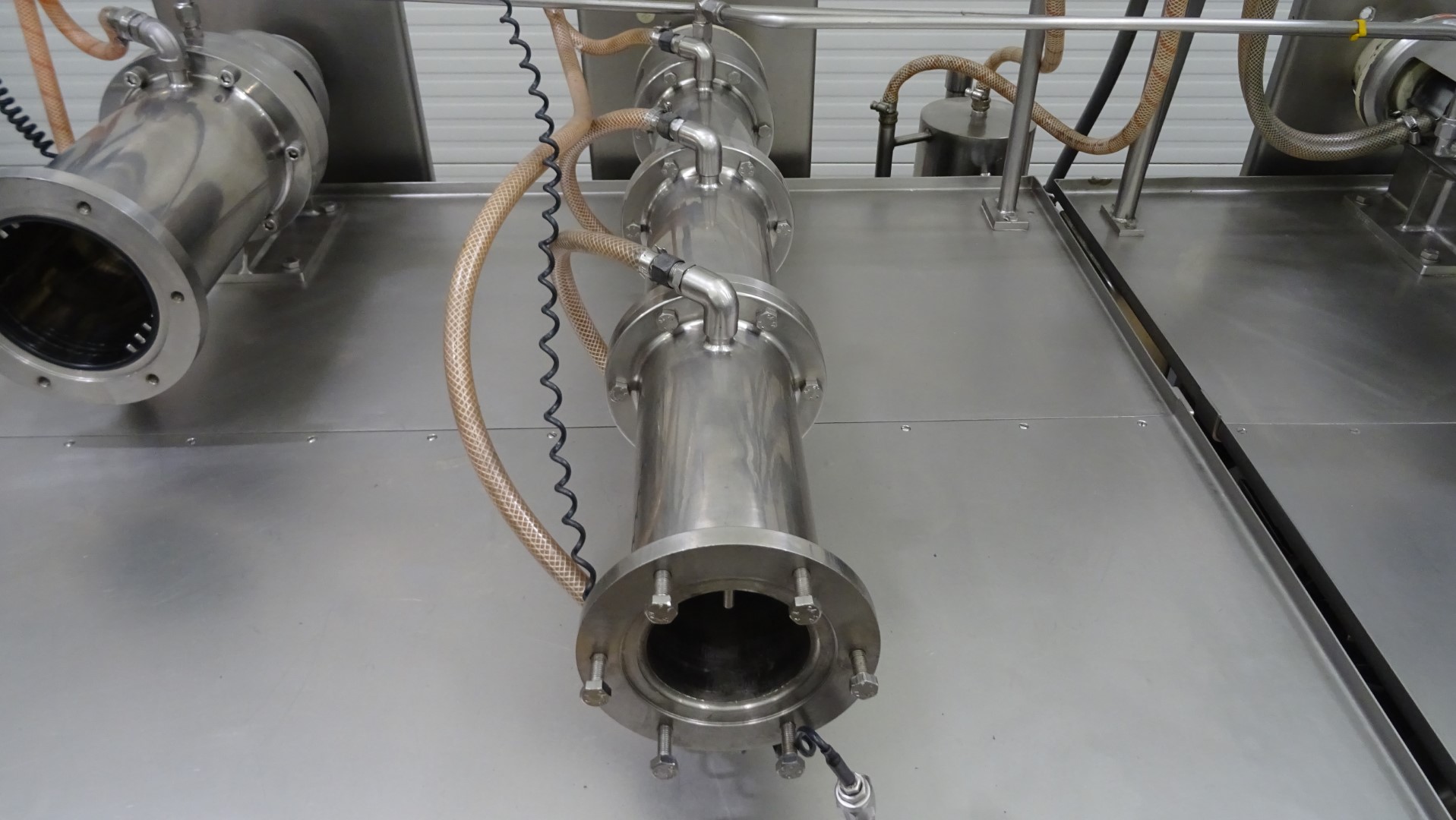

- Holding tube.
Adjustable in 3 different lengths with sieve plates.

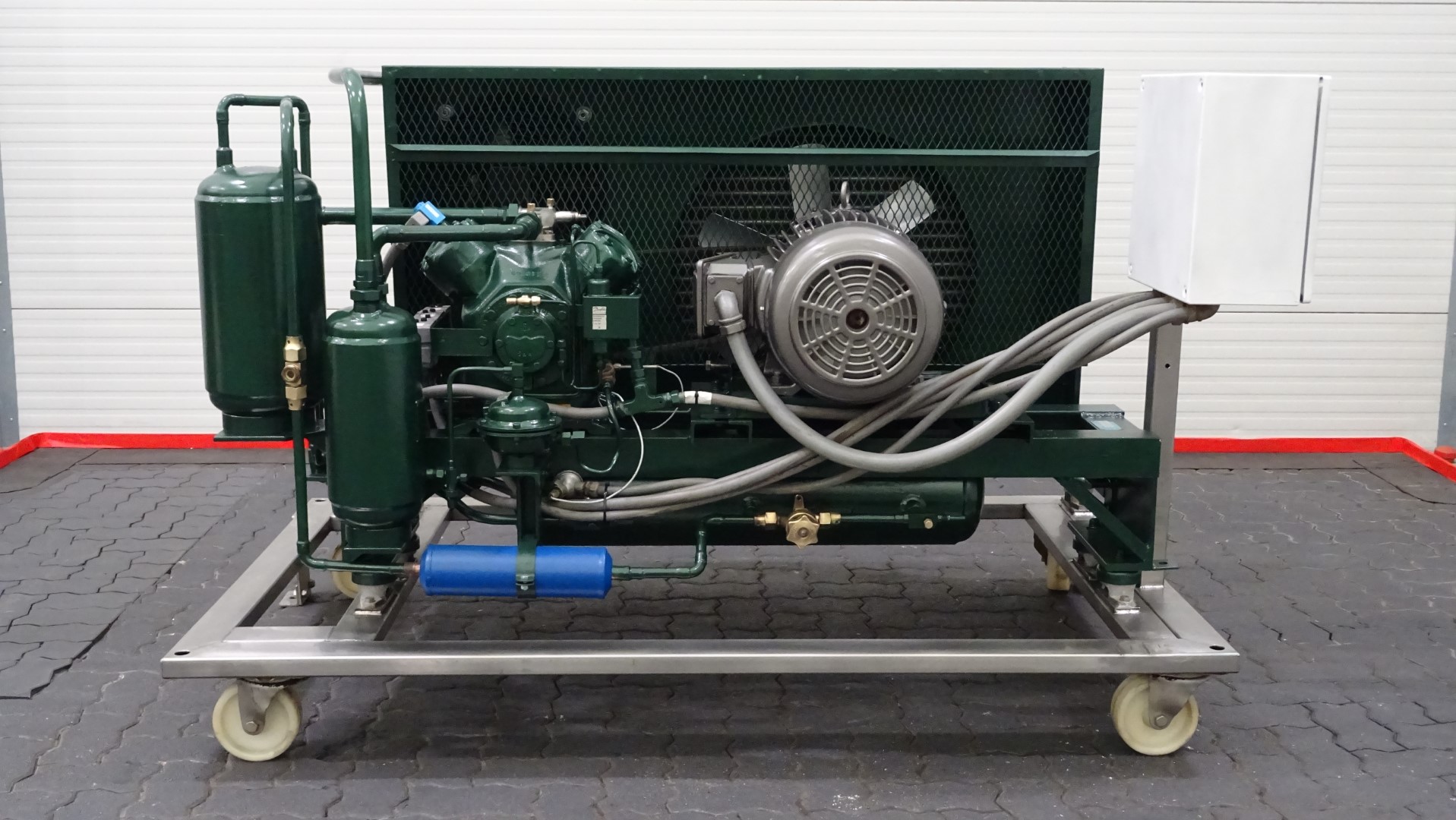

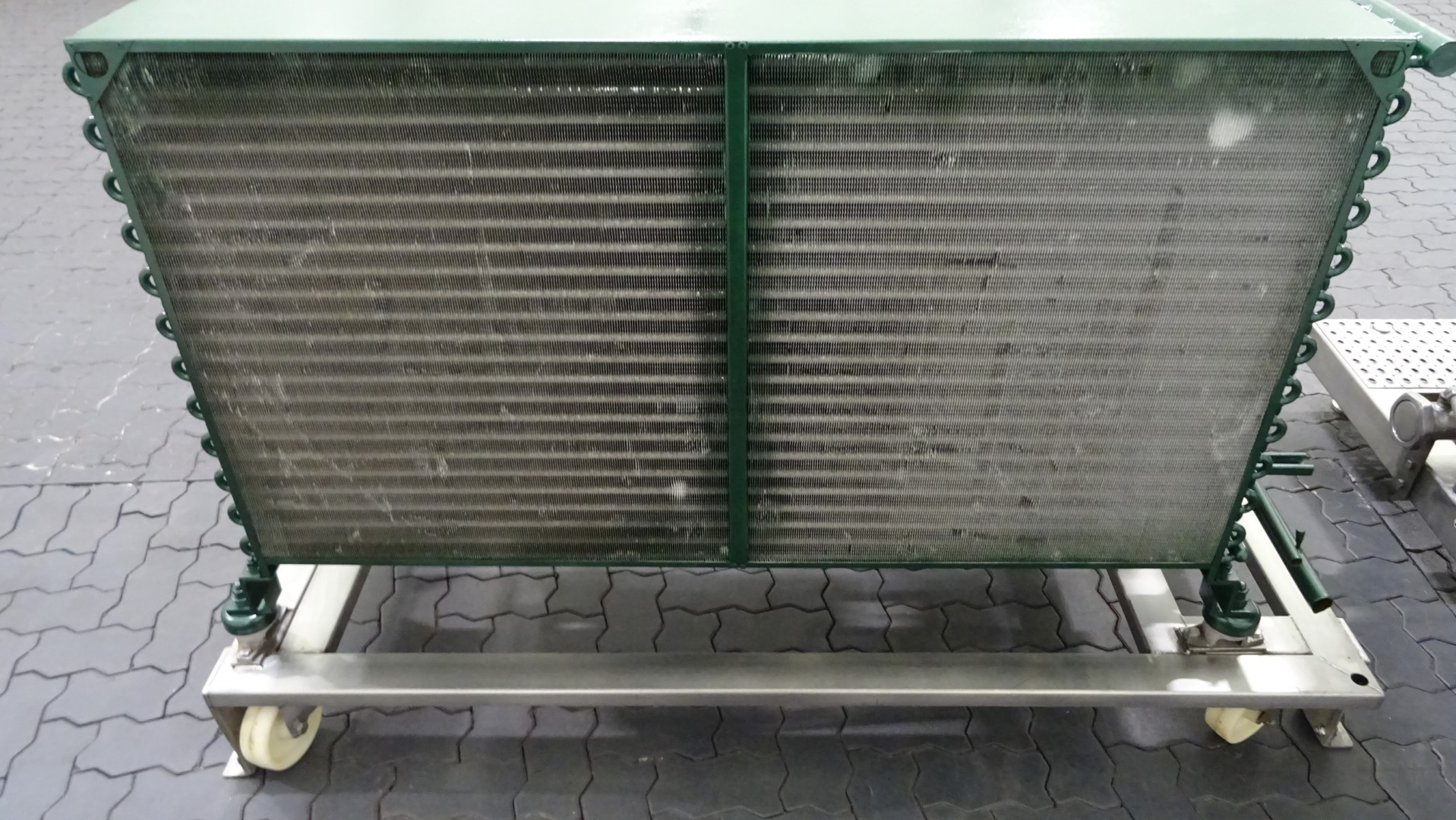

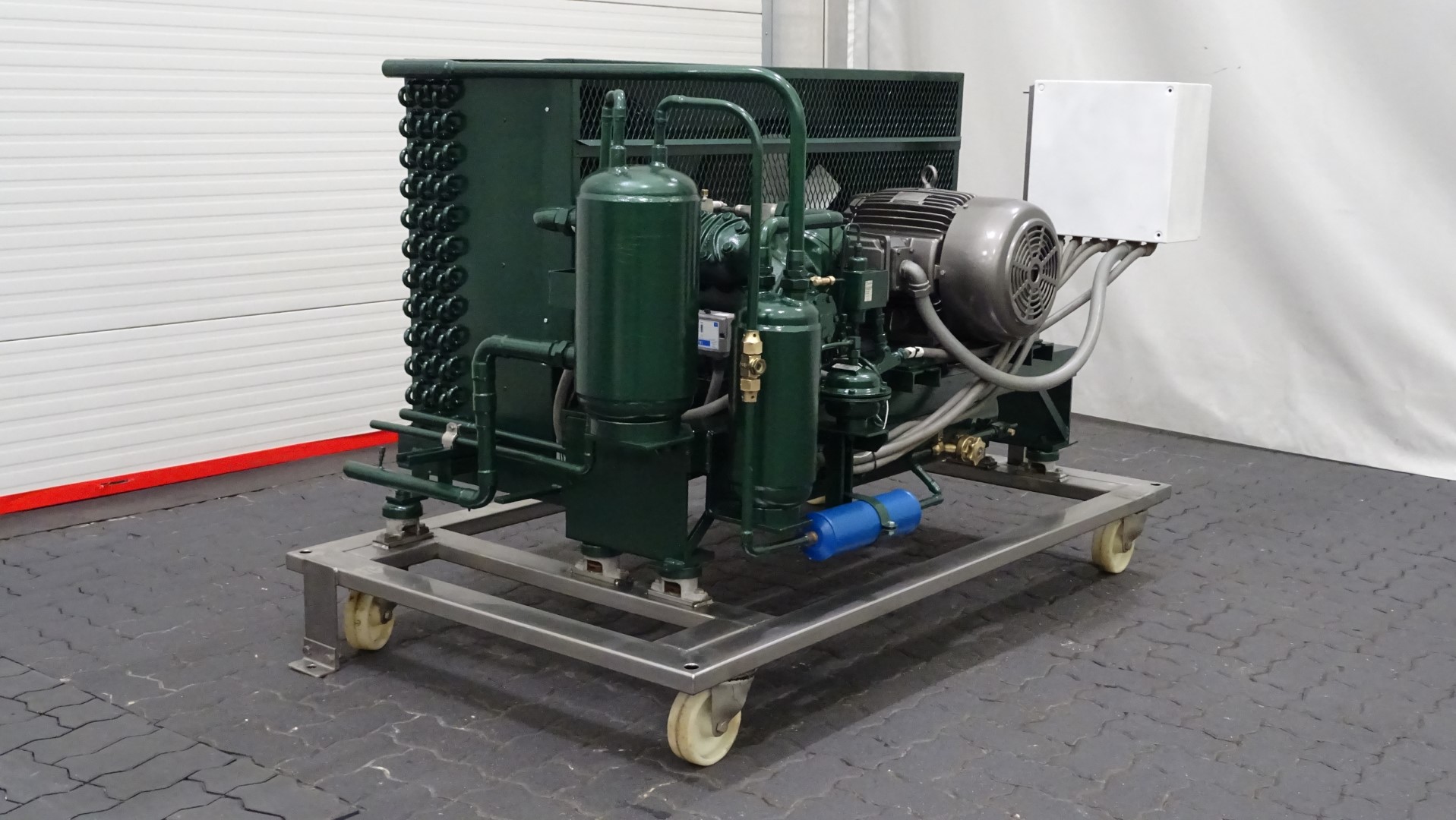

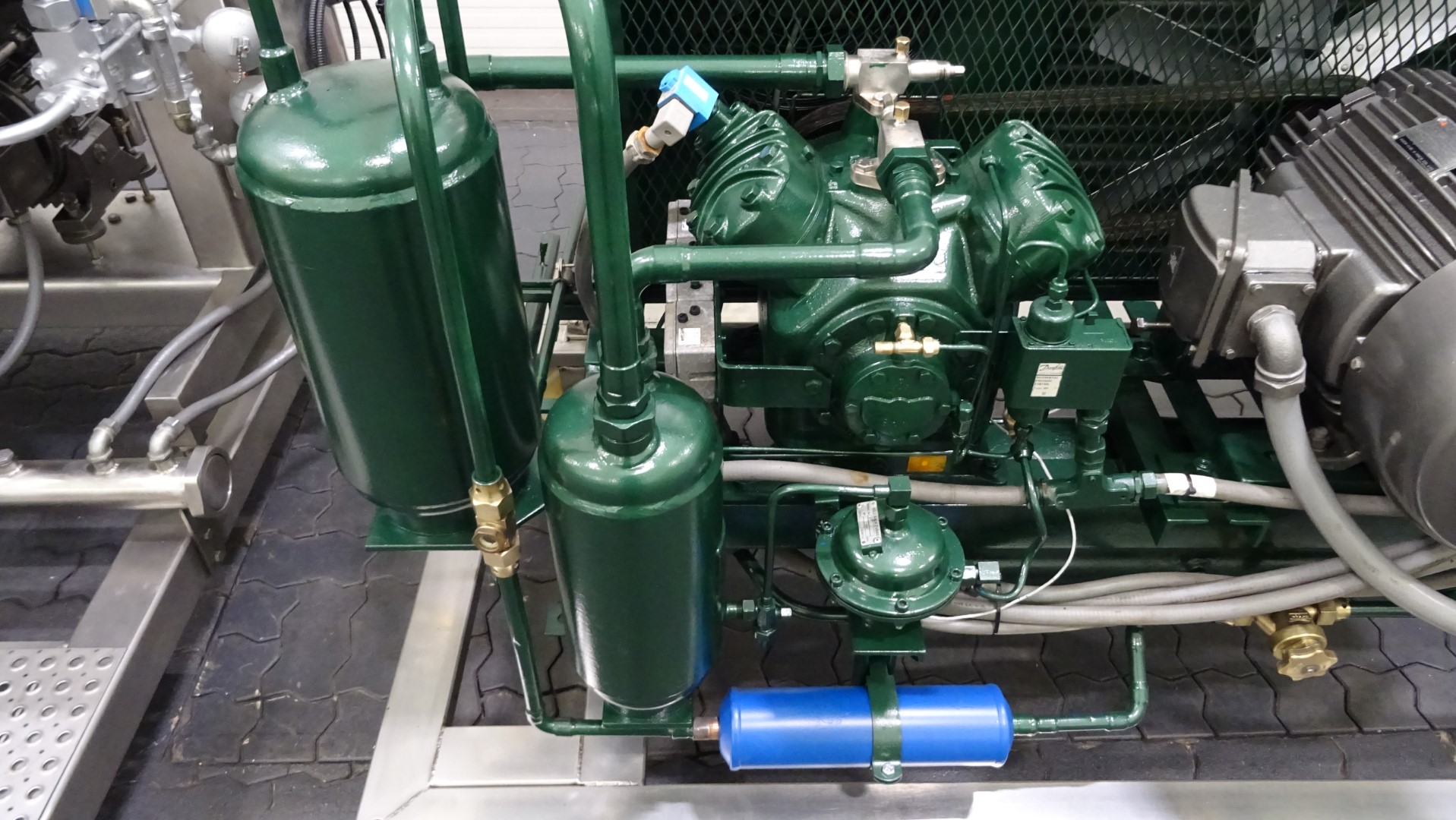

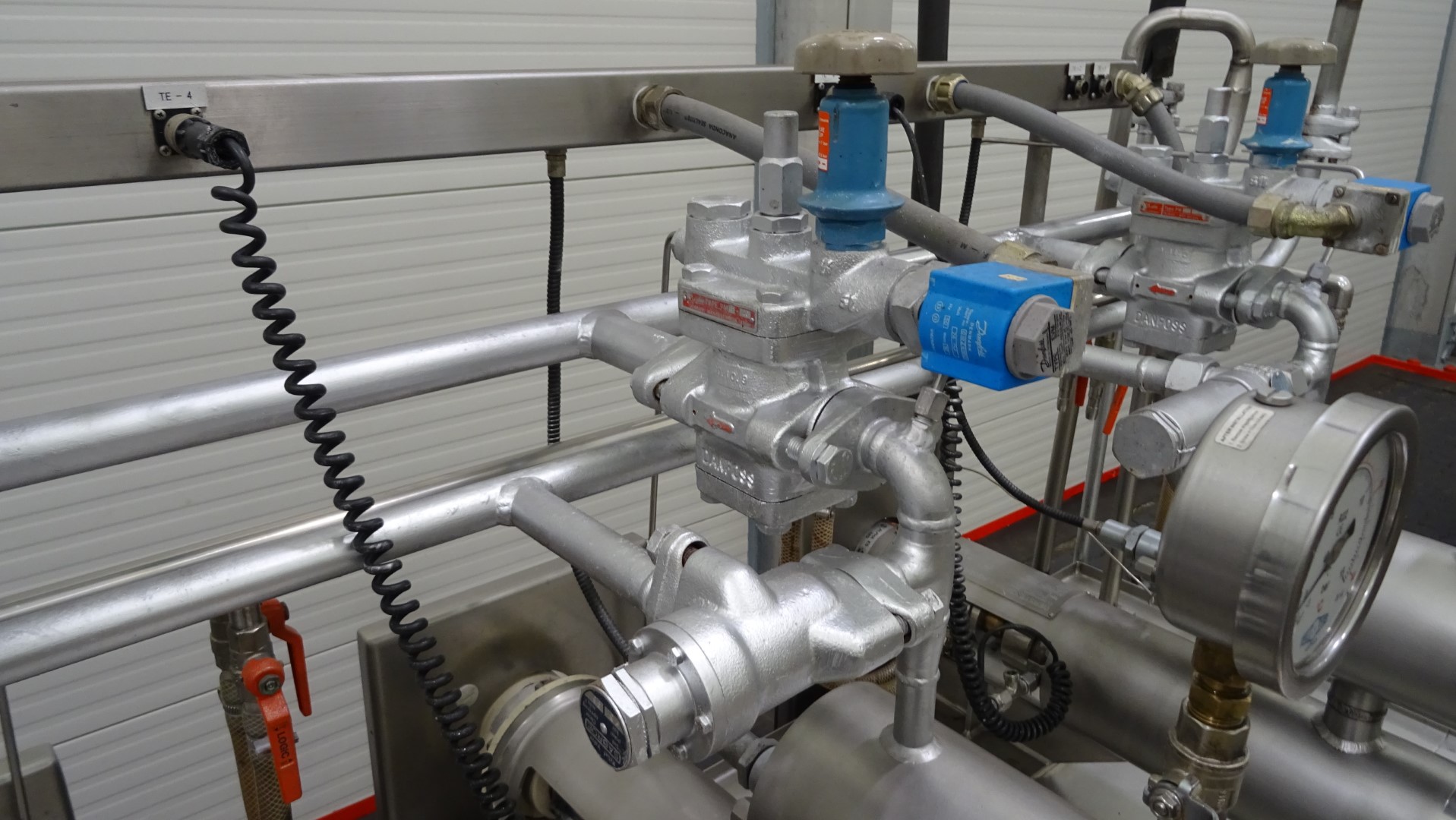

- Cooling unit for Freon R22 on a mobile stainless steel frame.

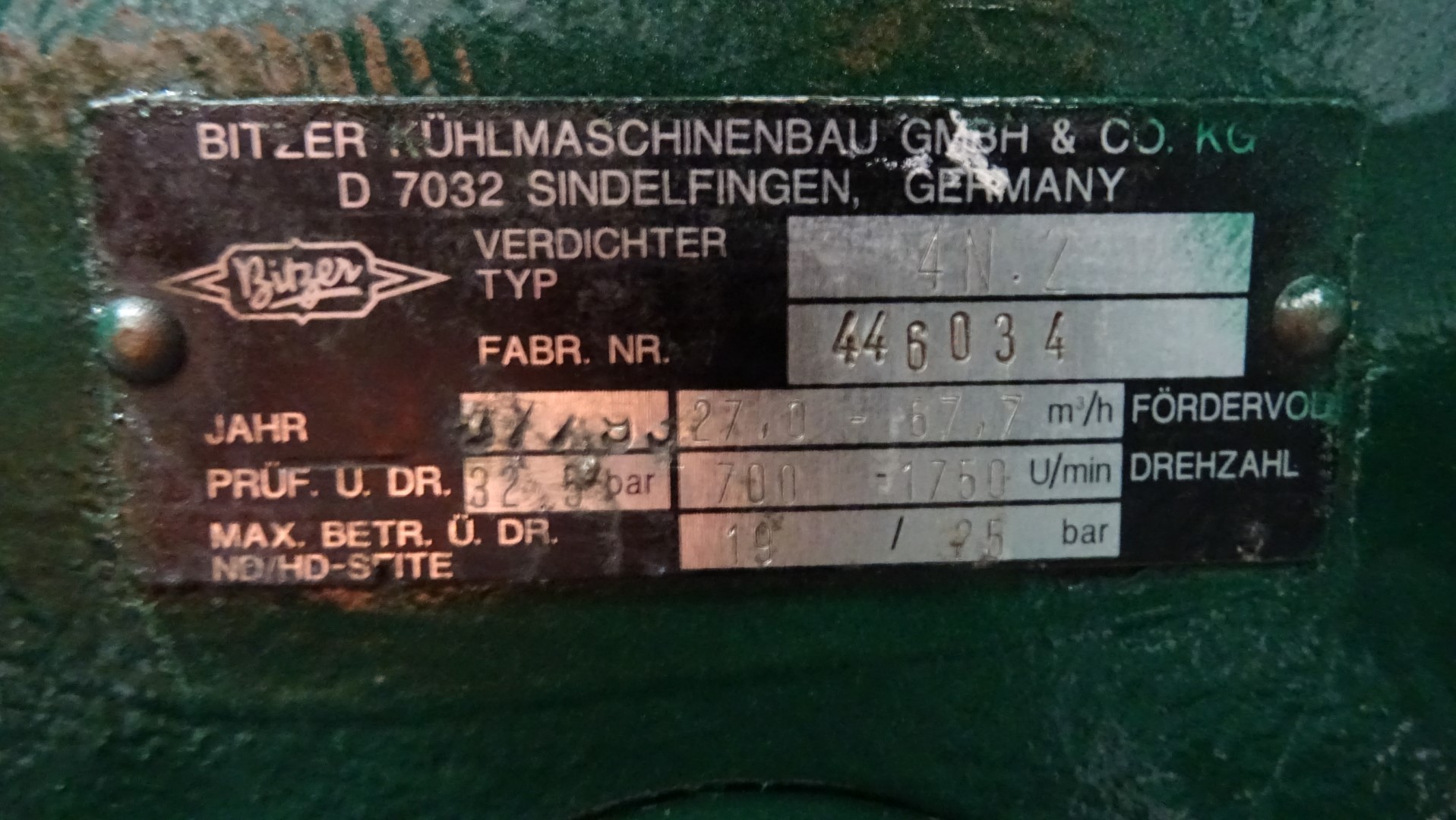

Bitzer Kühlmaschinenbau, compressor type 4N.2, serial number 446034, year: 1993, medium R22, fördervol. 27,0 - 57,7 m3/h, pressure 19/25 bar. Motor: 415 V - 50 Hz - 11 kW - 1.455 rpm - 20 A.
- Accessories.

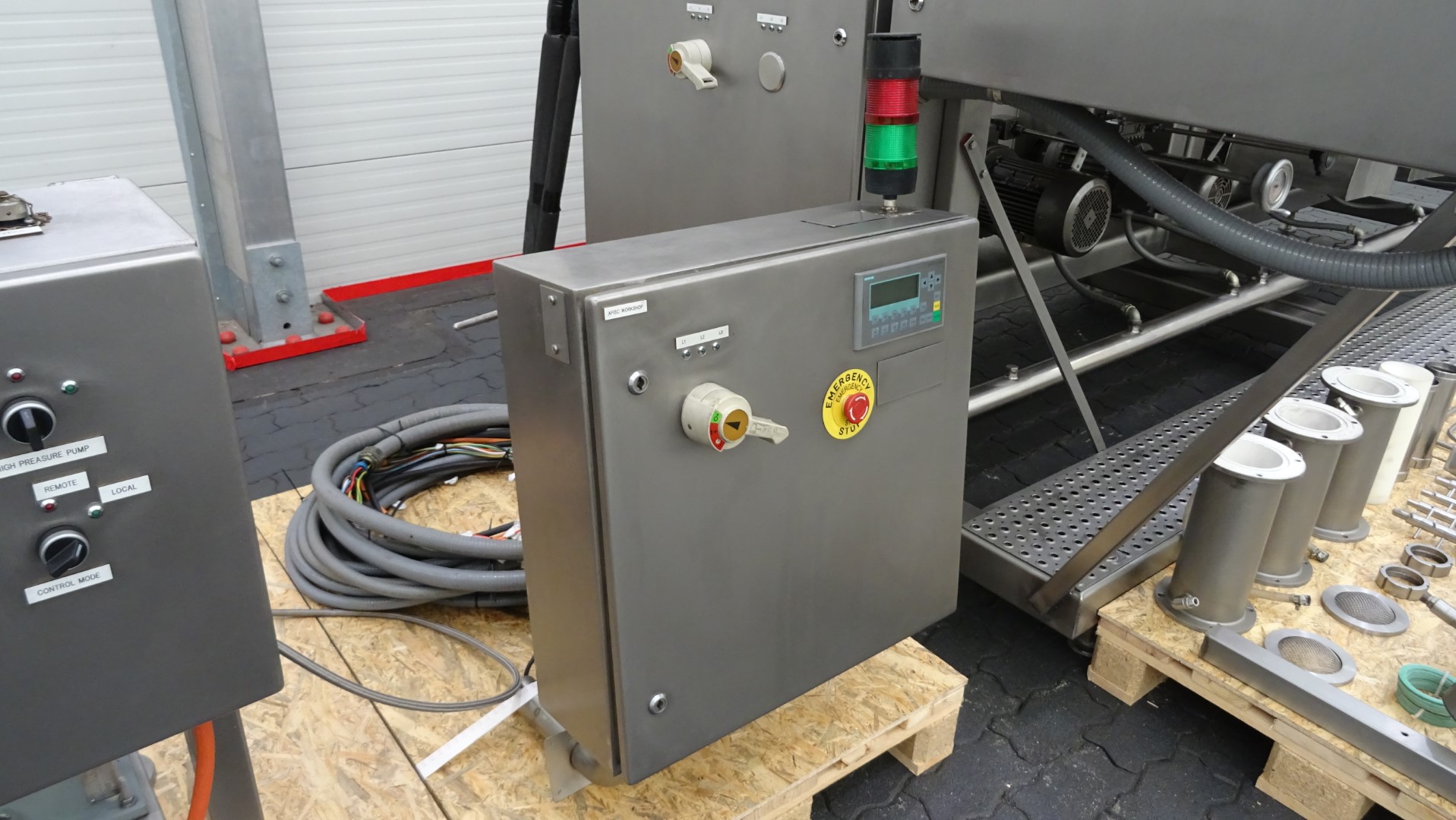

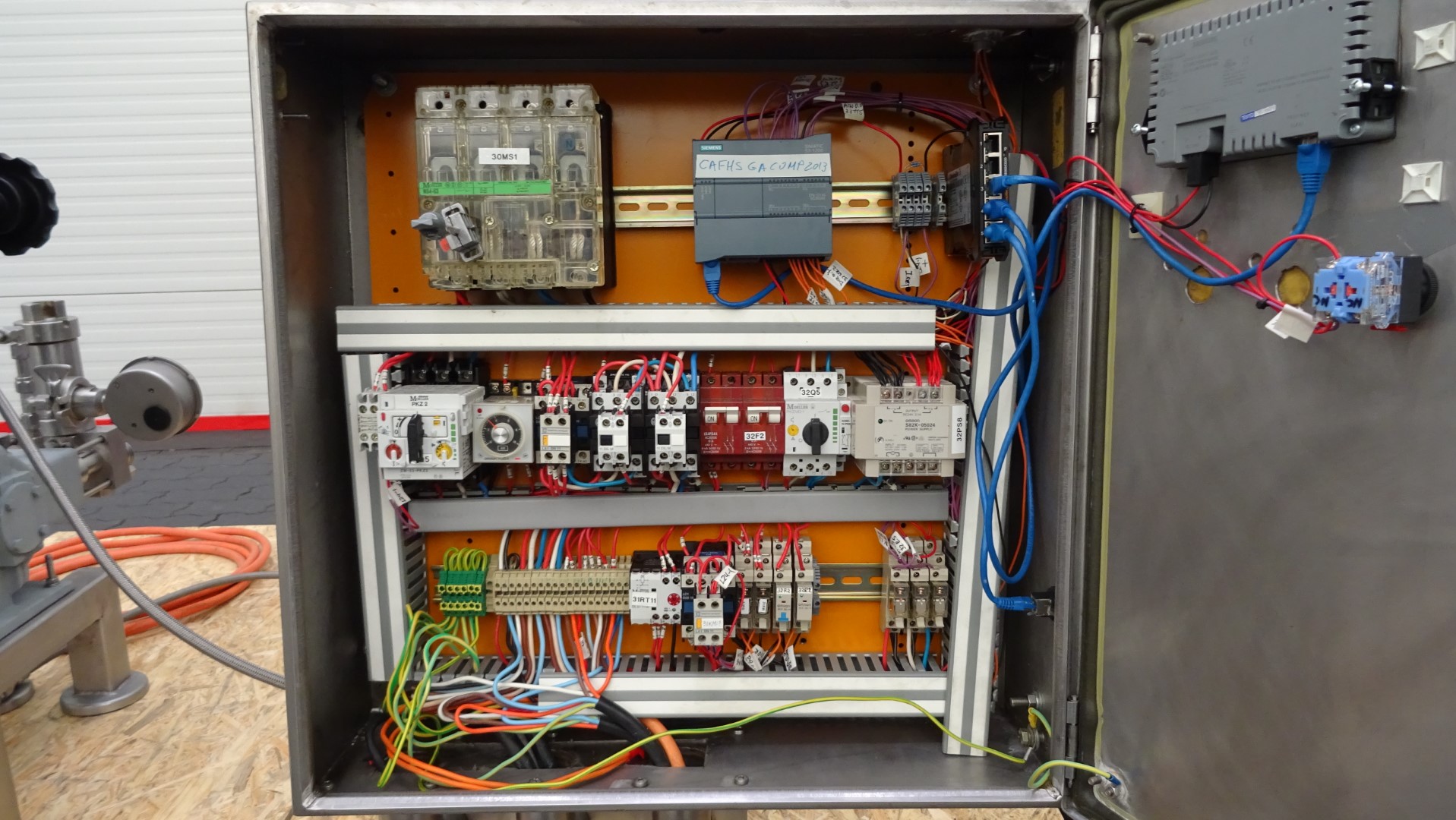

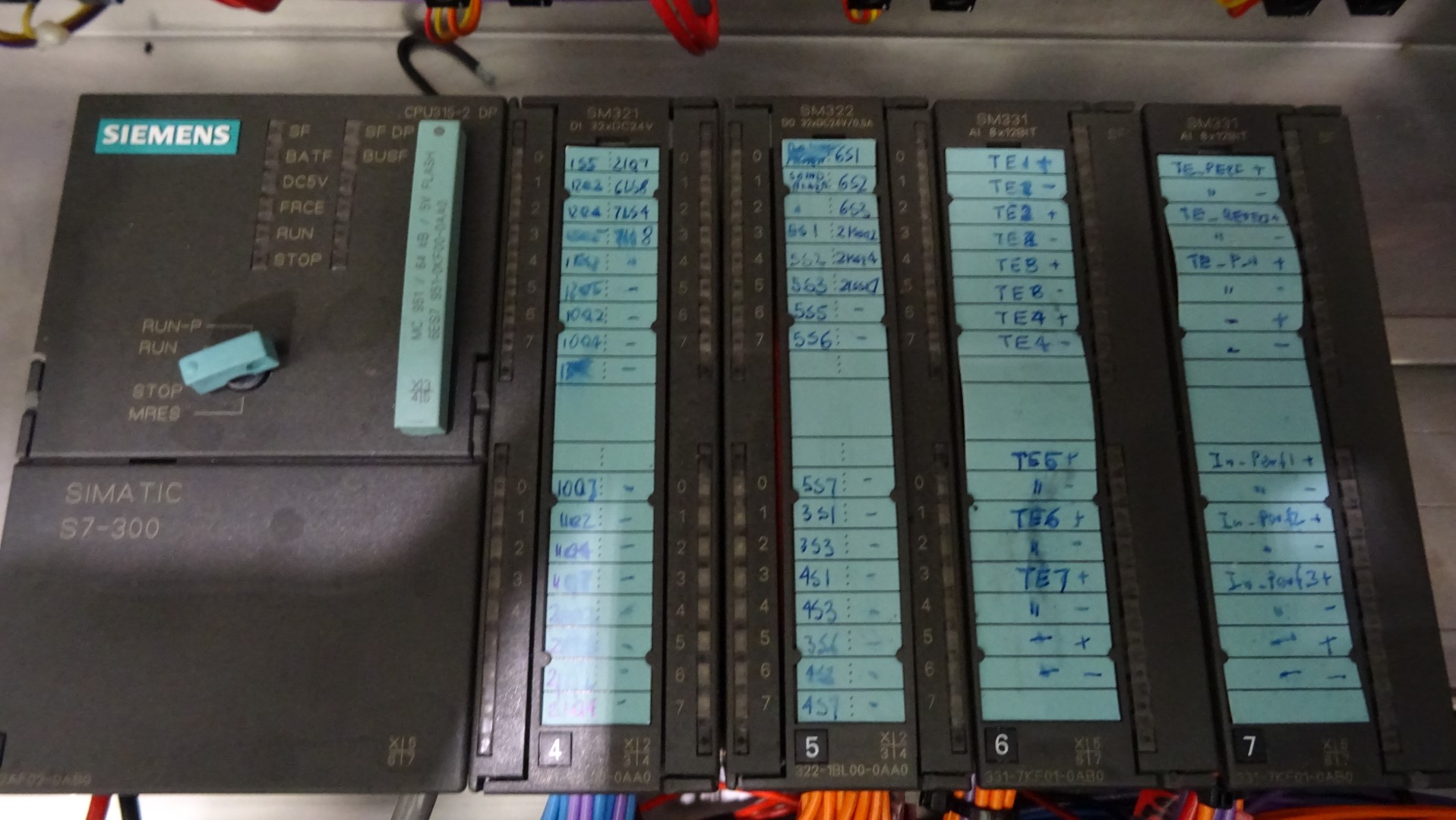

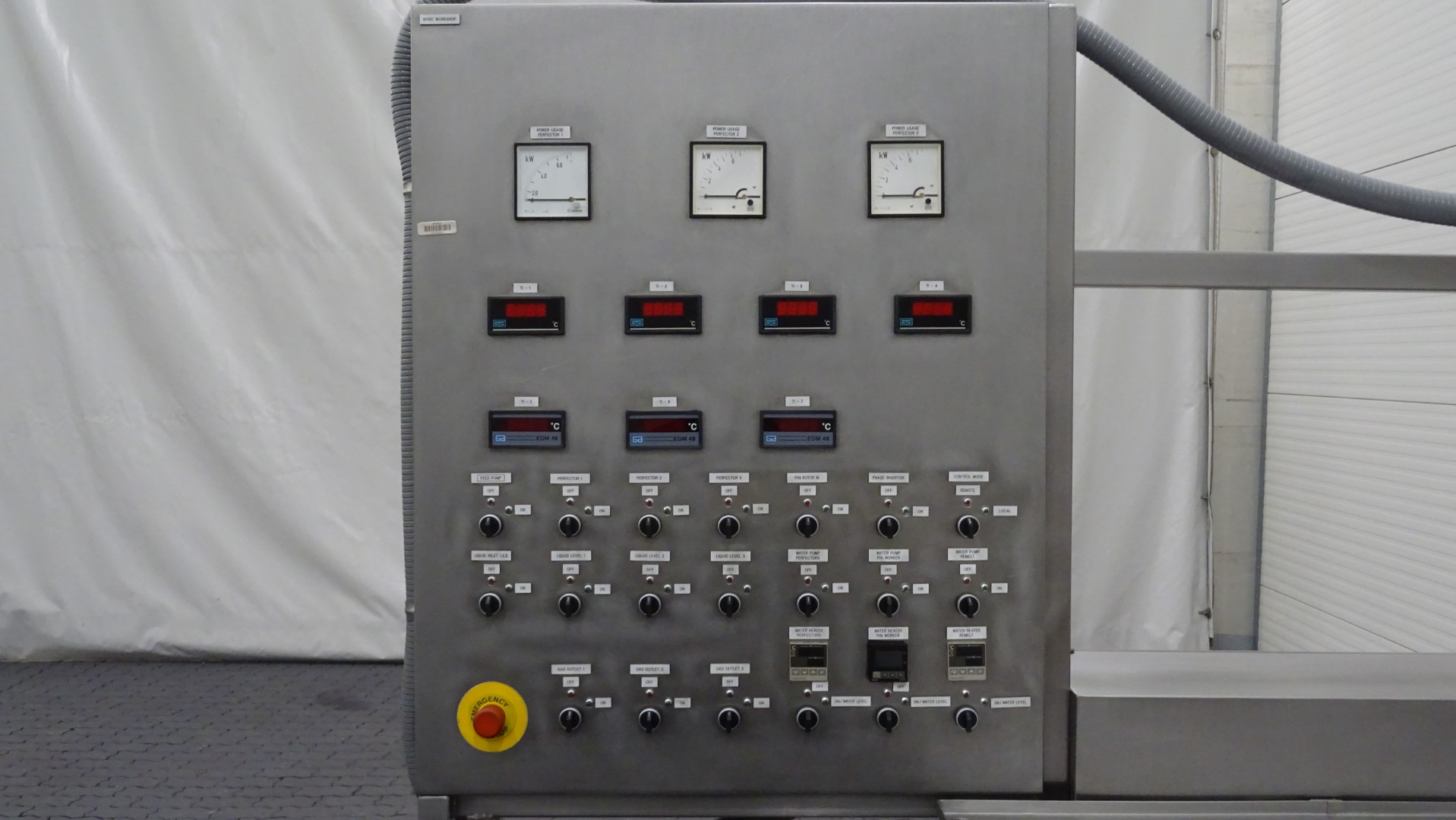

- Stainless steel control panel with Siemens S7-300 PLC, and operation switches.

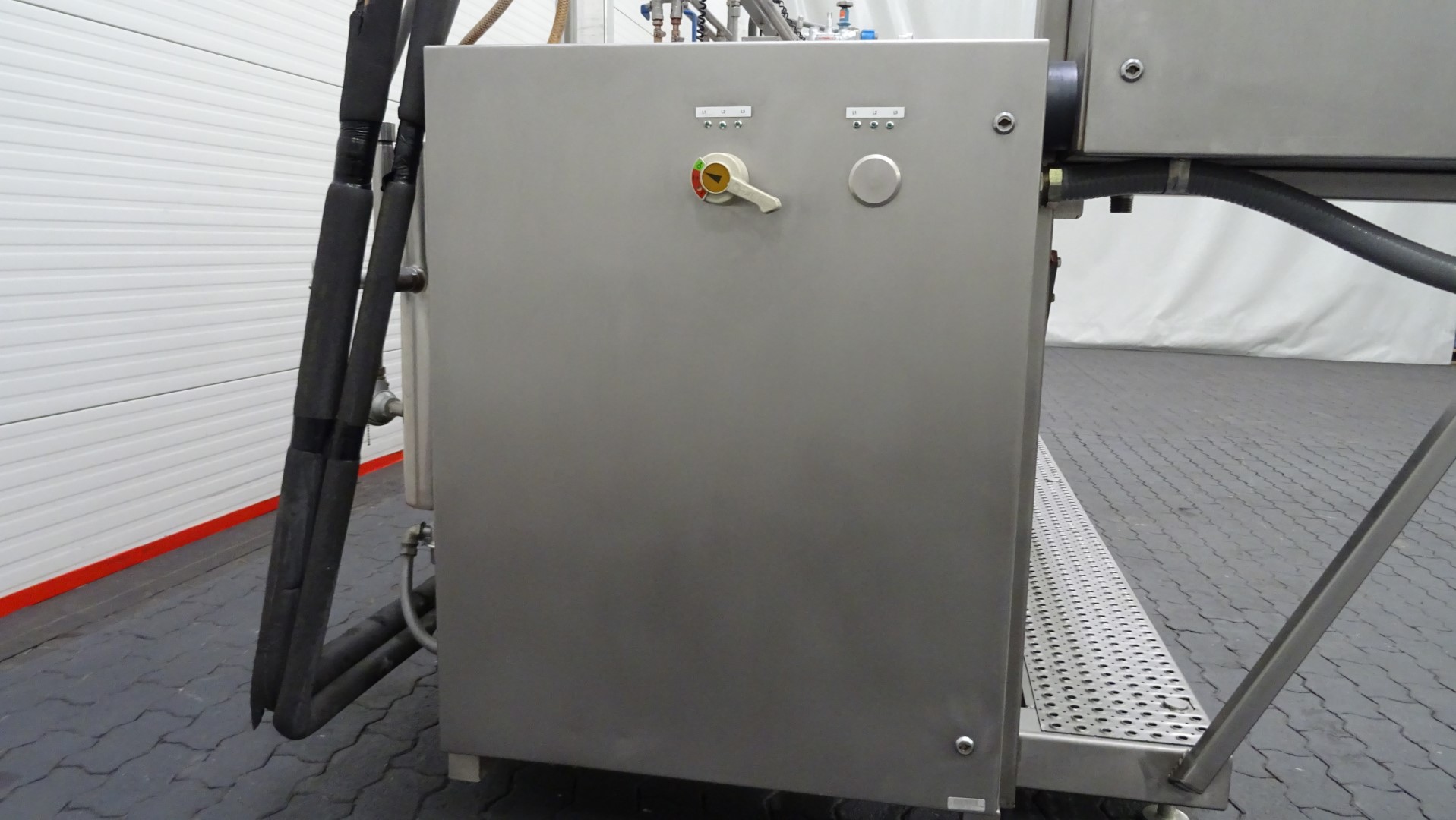

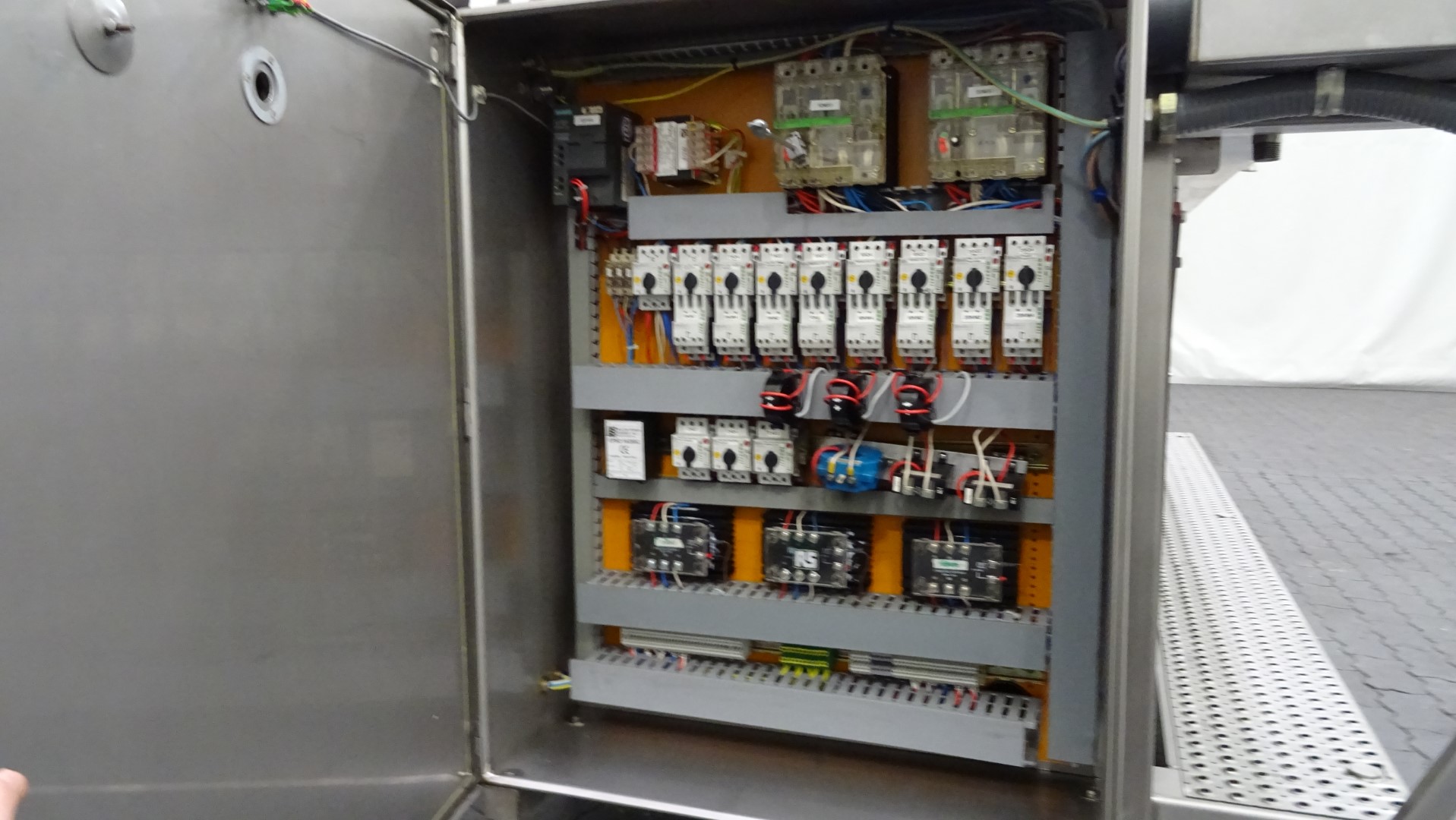

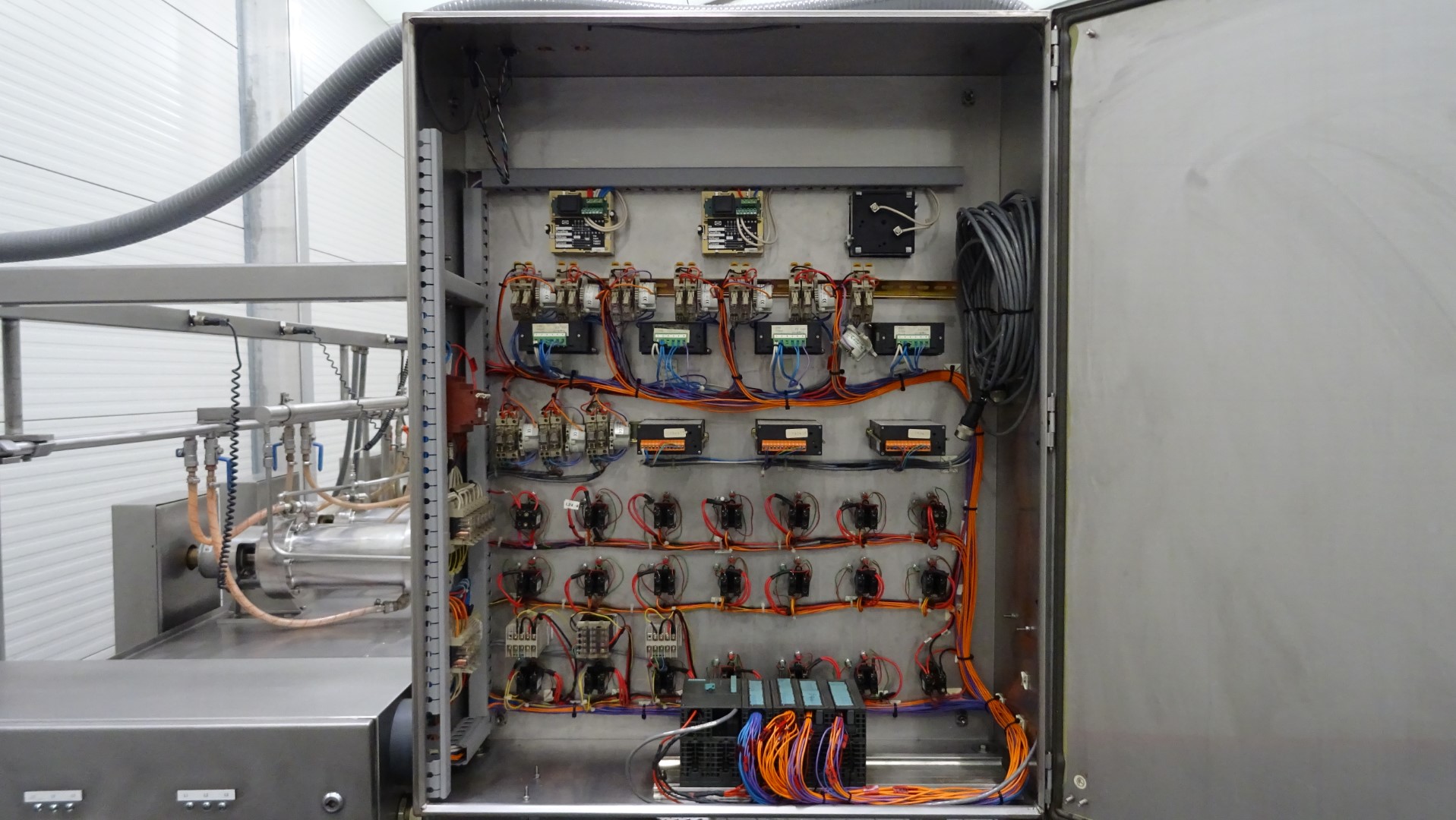

- Stainless steel control panel with all motor groups.

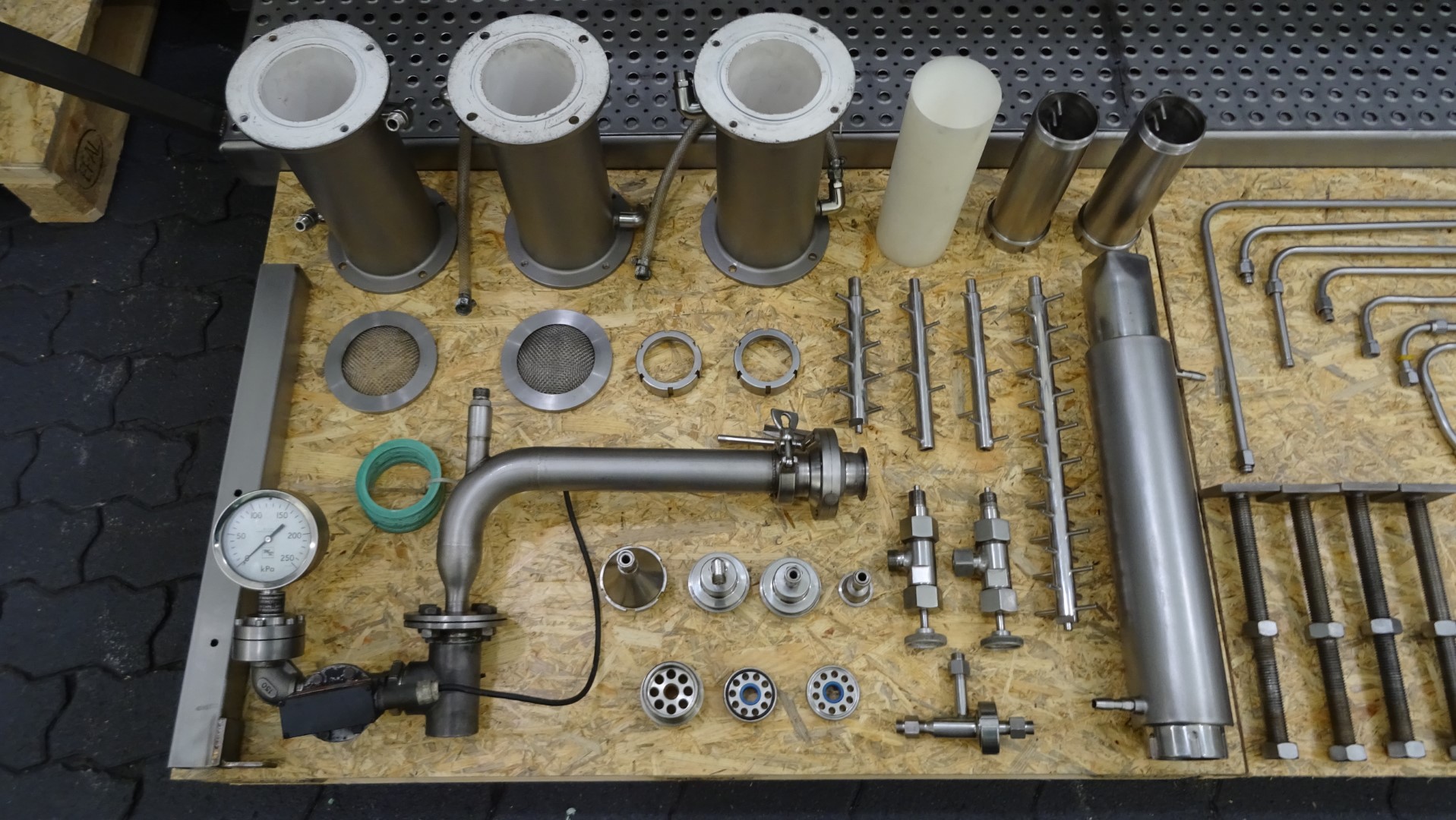

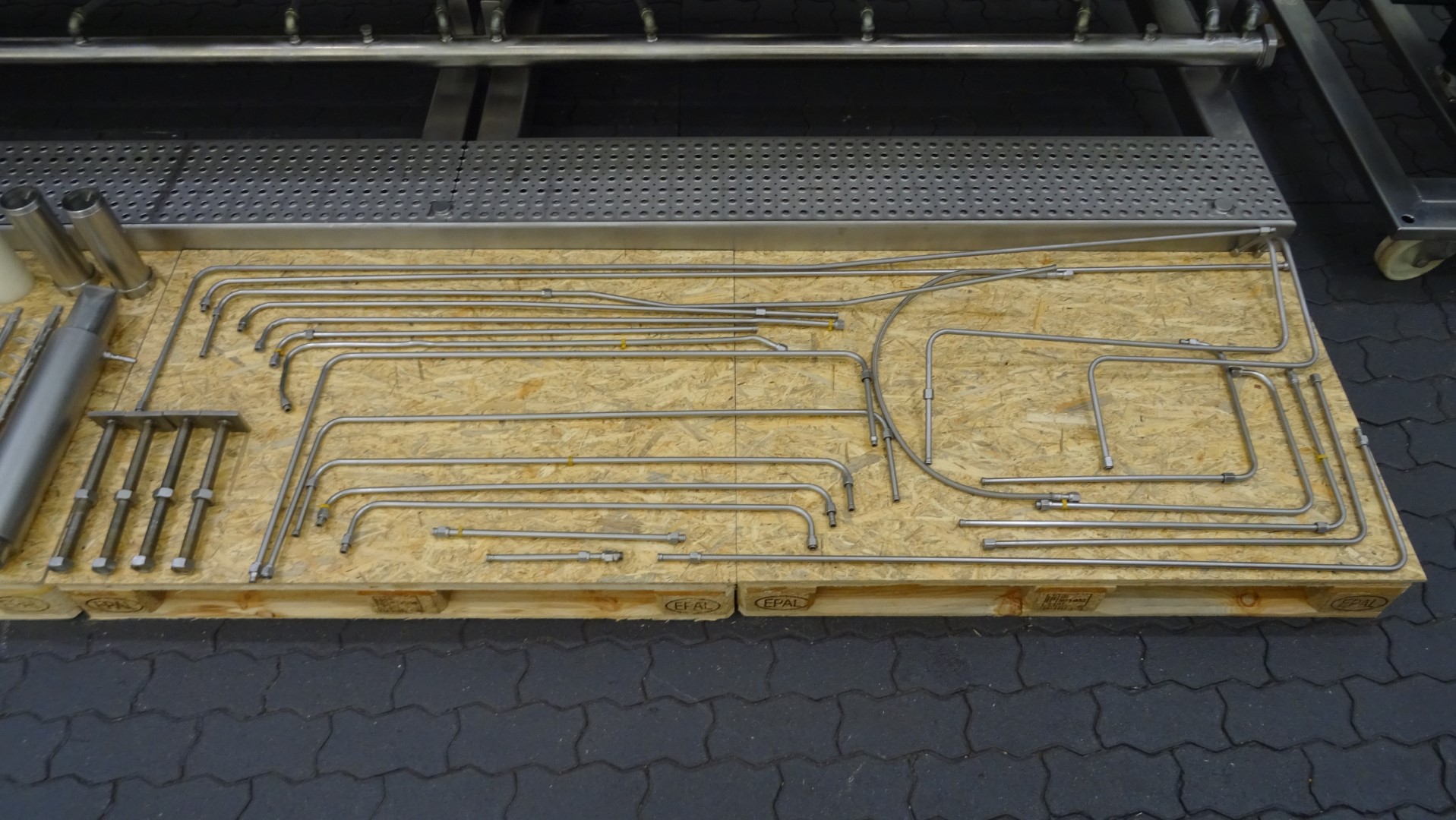

- Interconnecting piping for making different connections between the units.
- Instruction and spare parts manuals in English.
