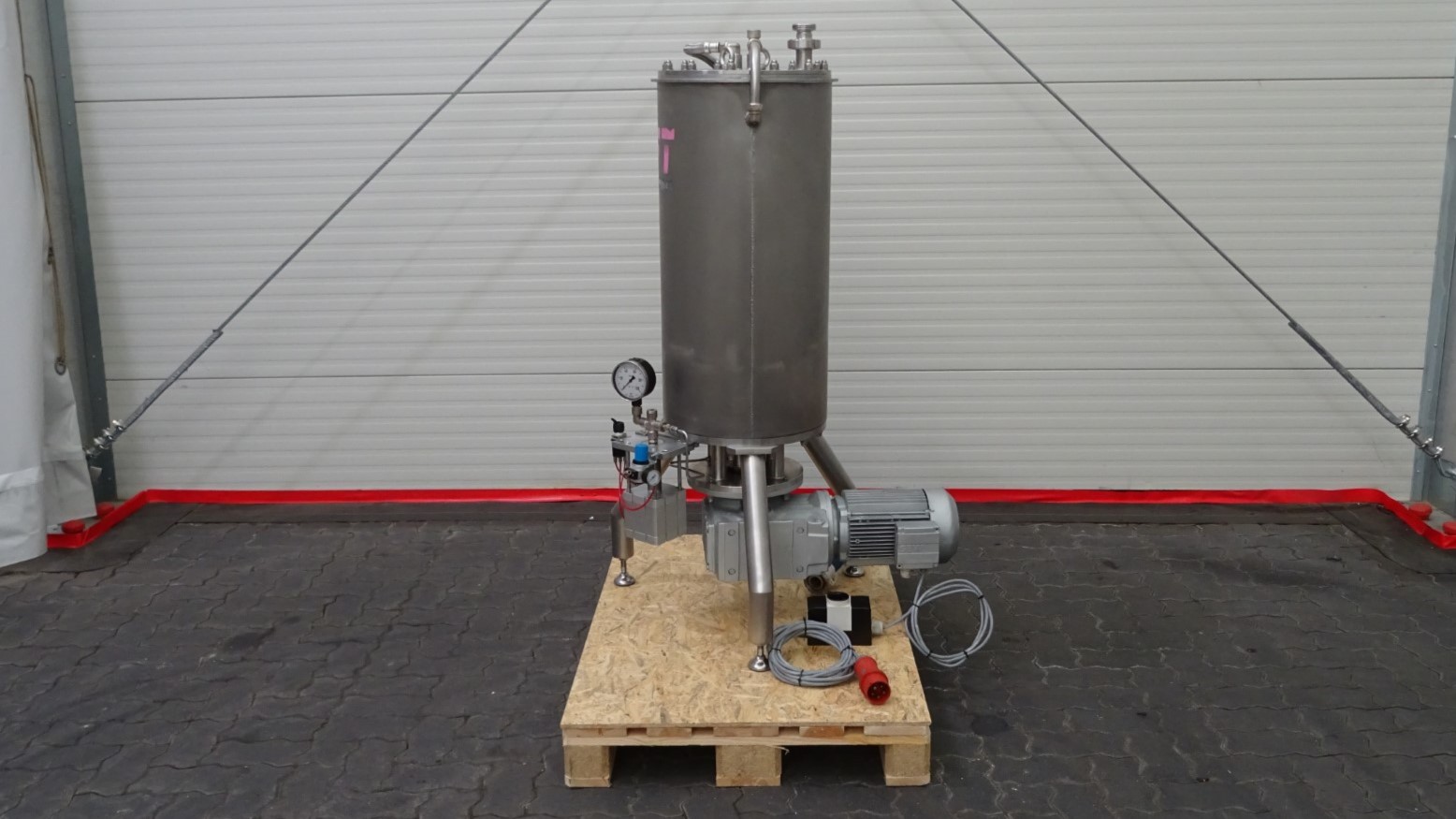

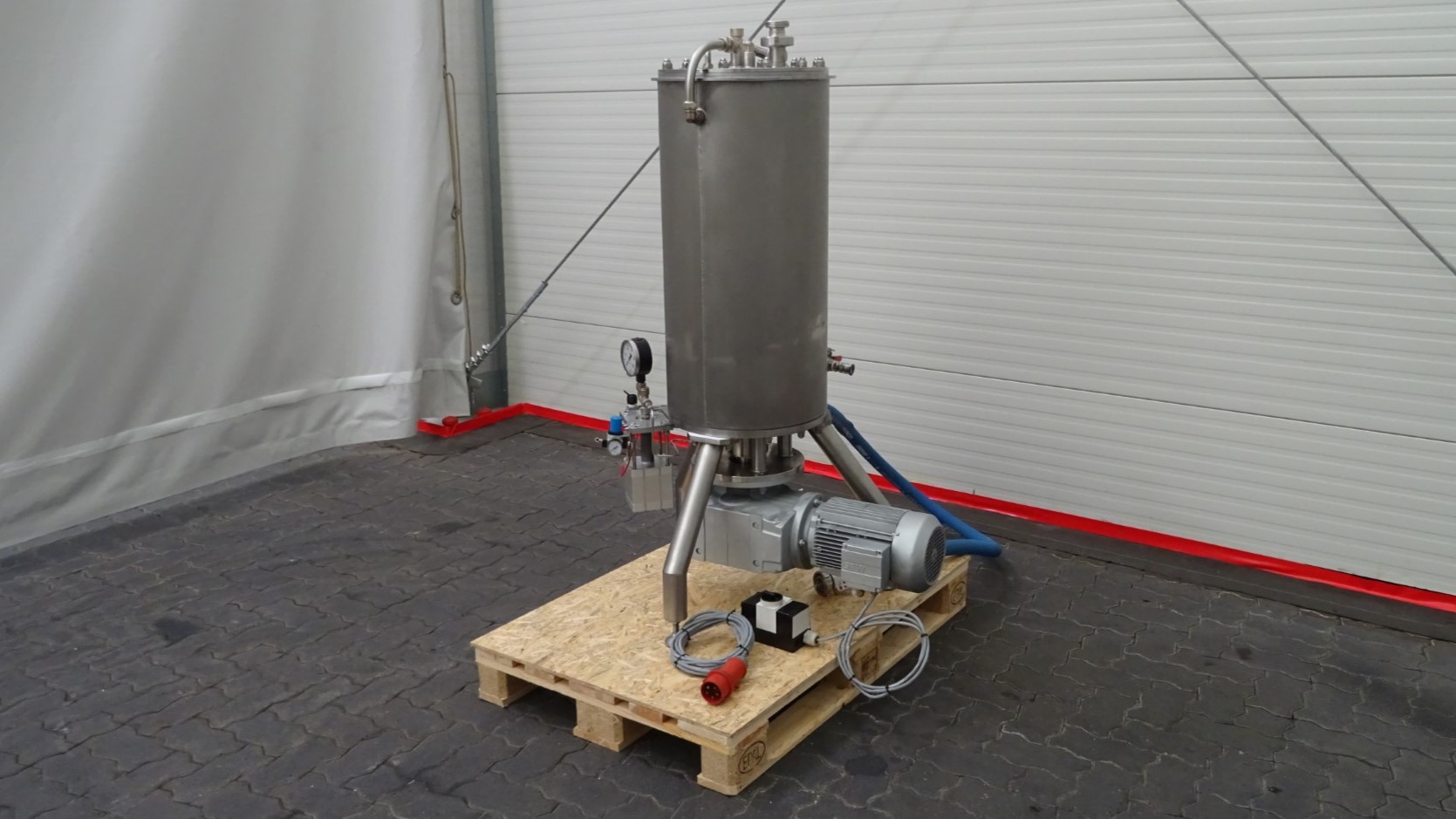

Scraped Surface Heat Exchanger (SSHE) - Tanis Food Tec (TFT) RotoTemp 1,5
Specifications
| Manufacturer | Tanis Food Tec / TFT |
| Model | RotoTemp 1,5 |
| Year | 2010 |
| Condition | Used |

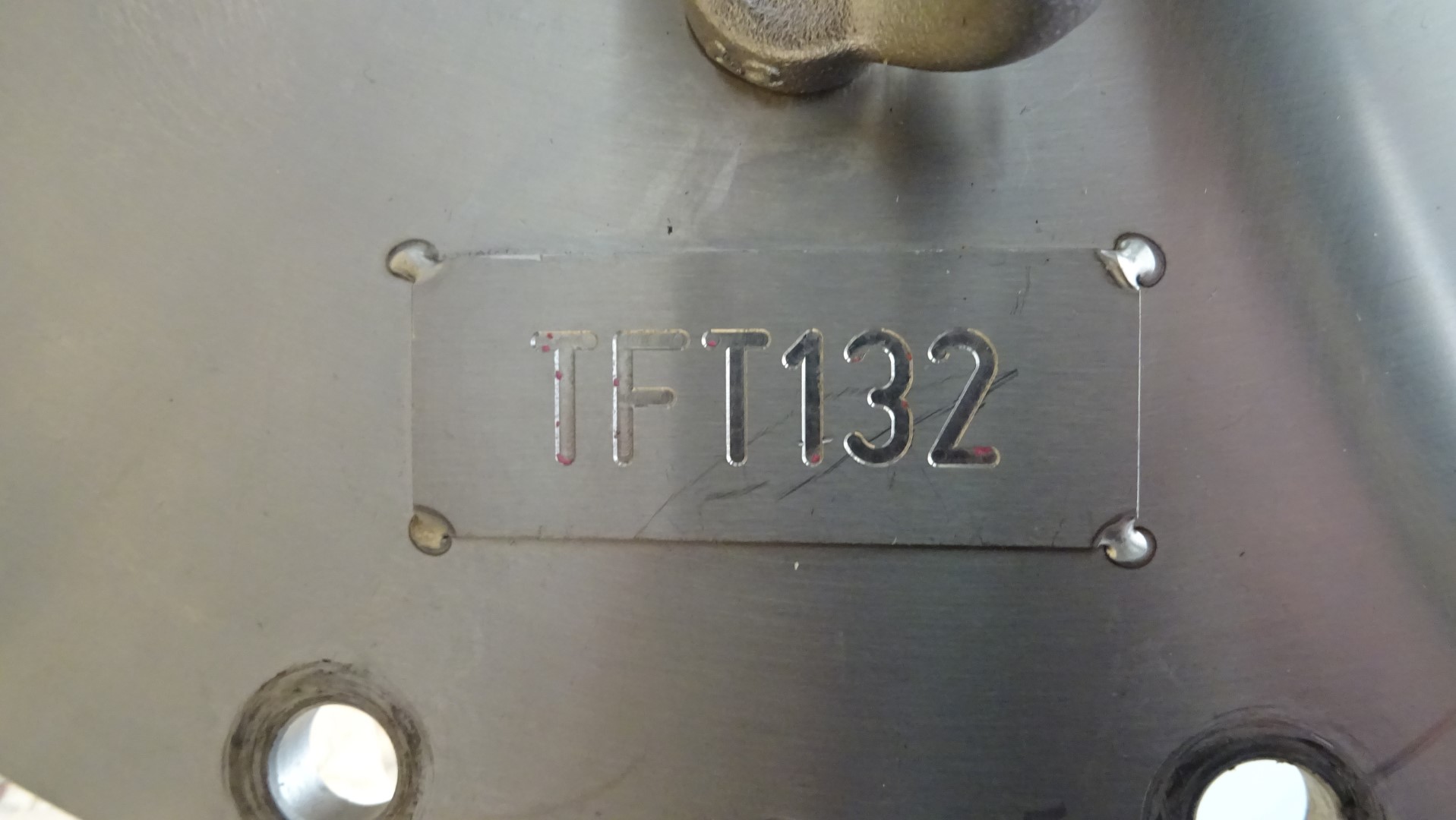

| Serial Number | TFT132 / 821004 |
| Stock Number | 1502 |
| Type of Machine | Scraped Surface Heat Exchanger (SSHE) |
| Heated surface | 1,5 m2 |
| Maximum product pressure | 8 bar |
| Total number of scrapers | 12 pieces |
| Cooling / heating liquid | 3000 ltr/h at 2 - 2.5 bar |
| Motor | 3 kW - n2: 18 rpm - 380 / 514 V - 50 Hz |
| Dimensions | 135 x 95 x 165 cm |
| Weight | 390 kg |
Description

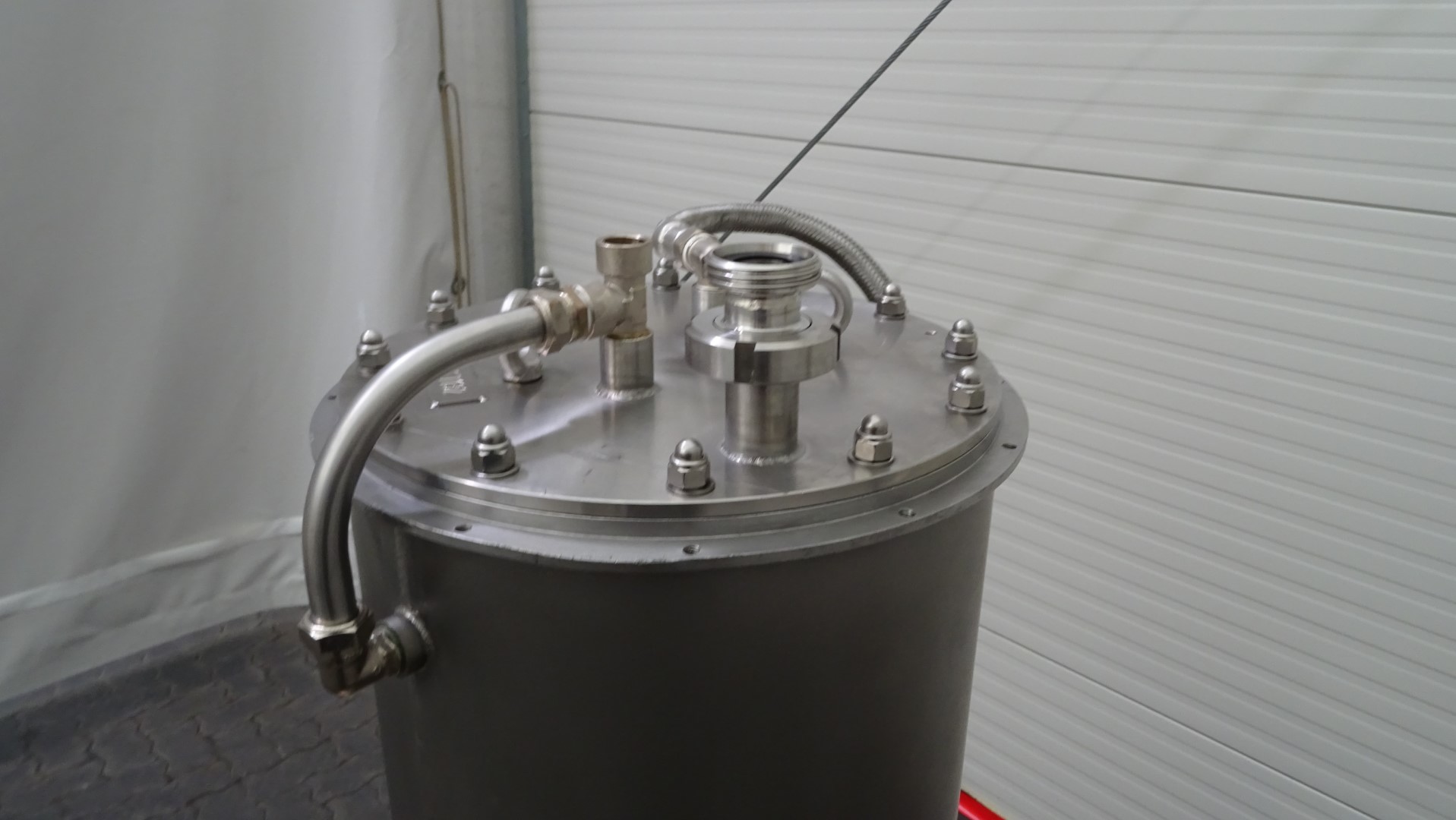

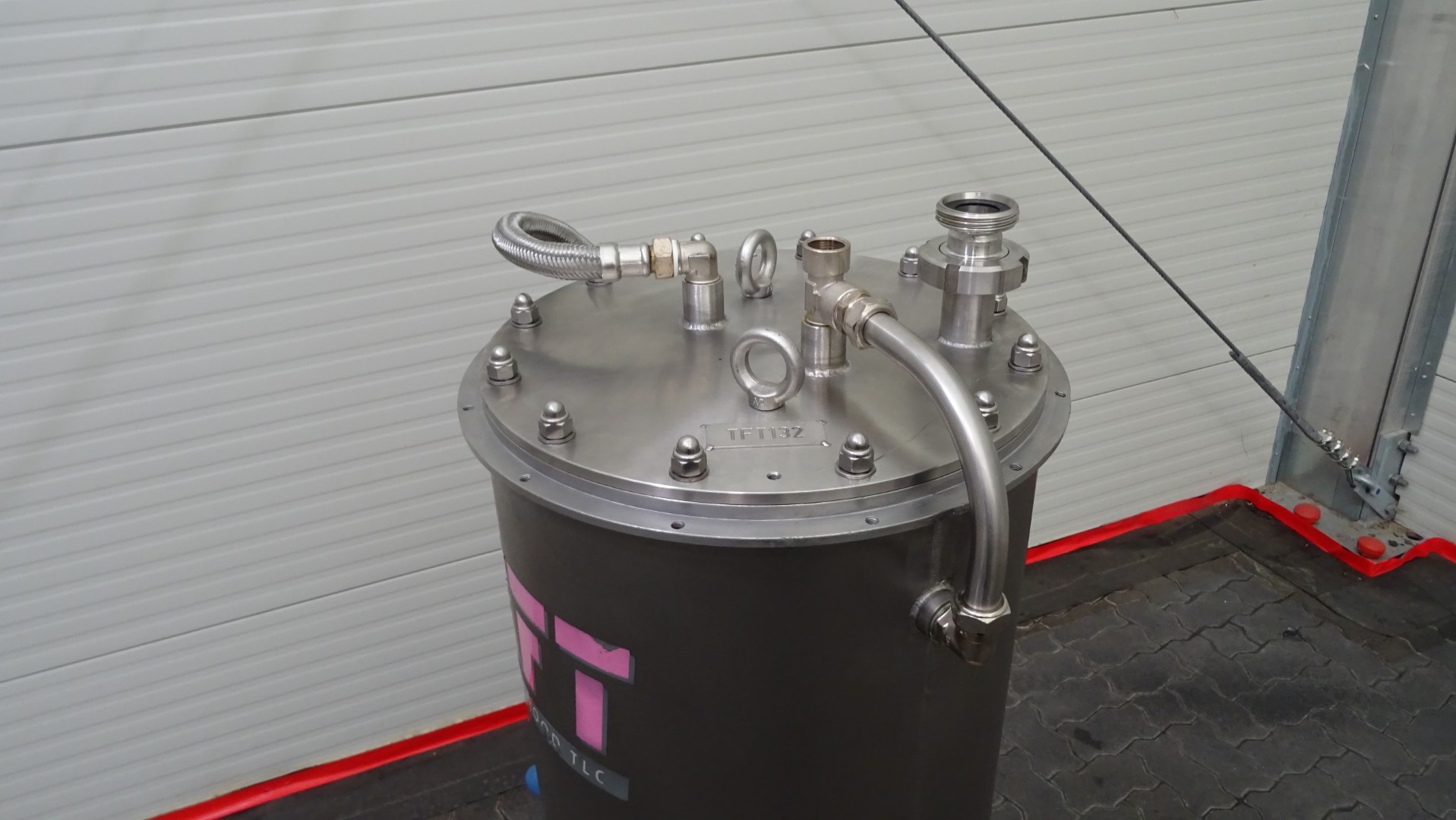

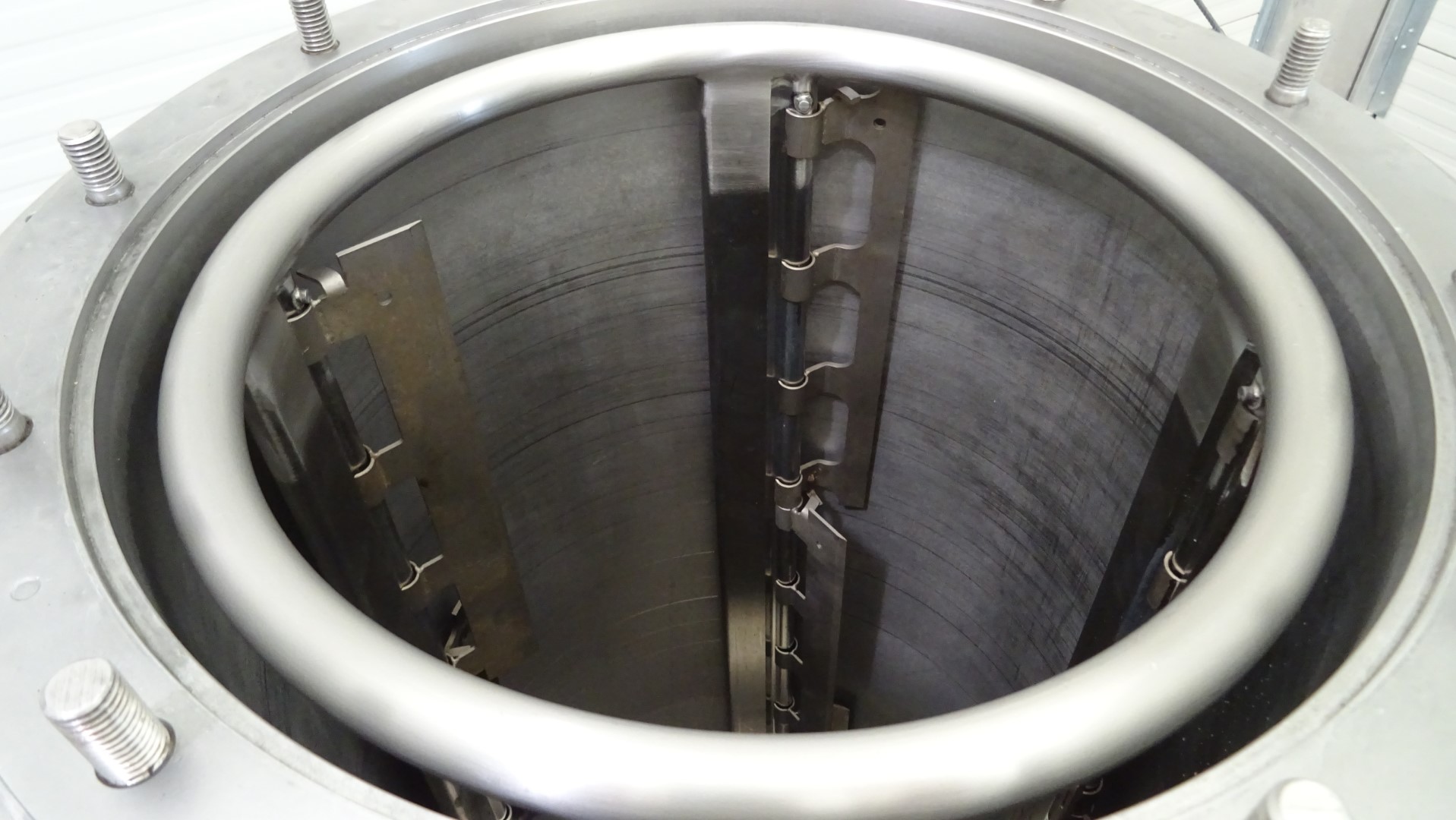

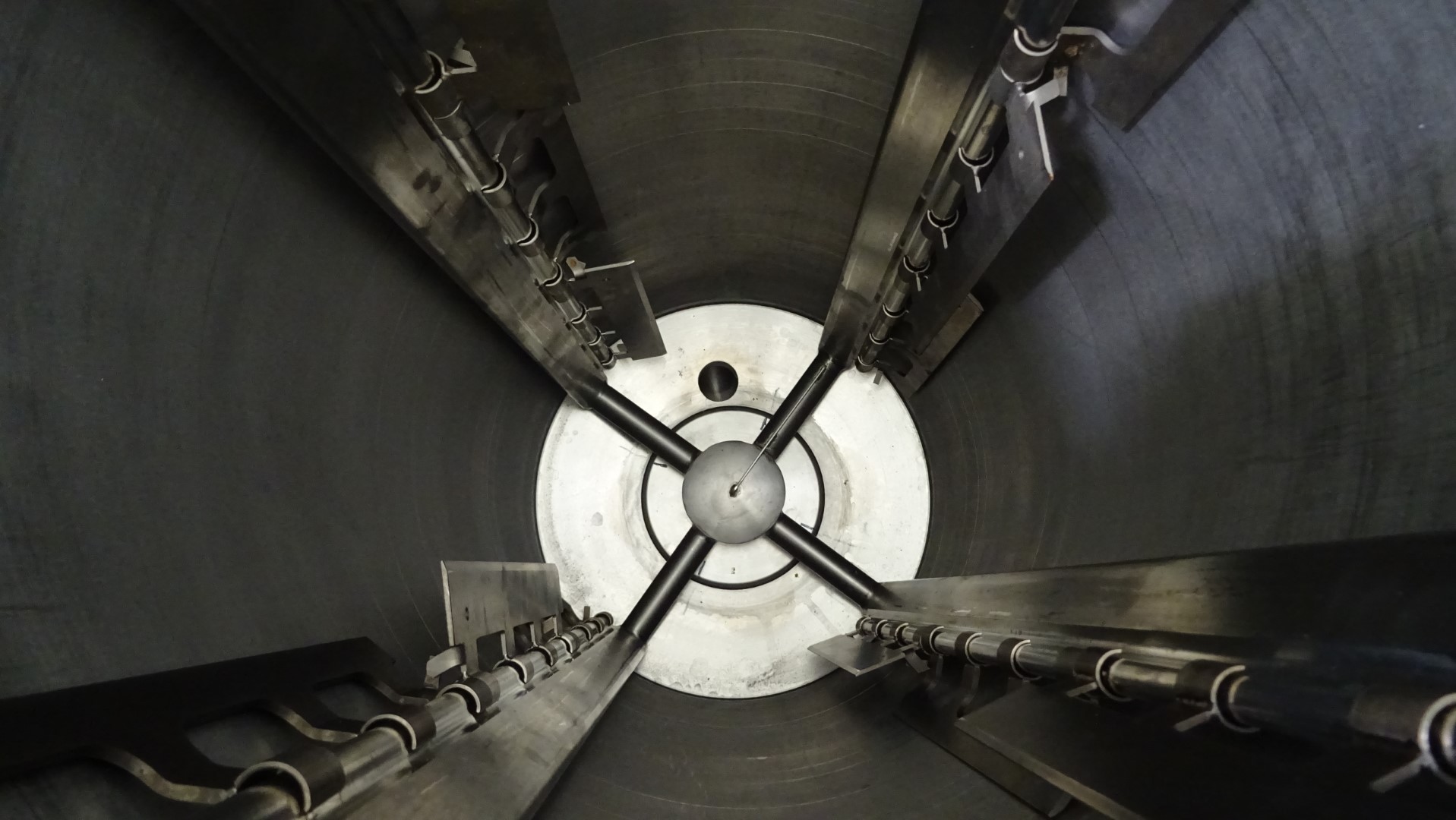

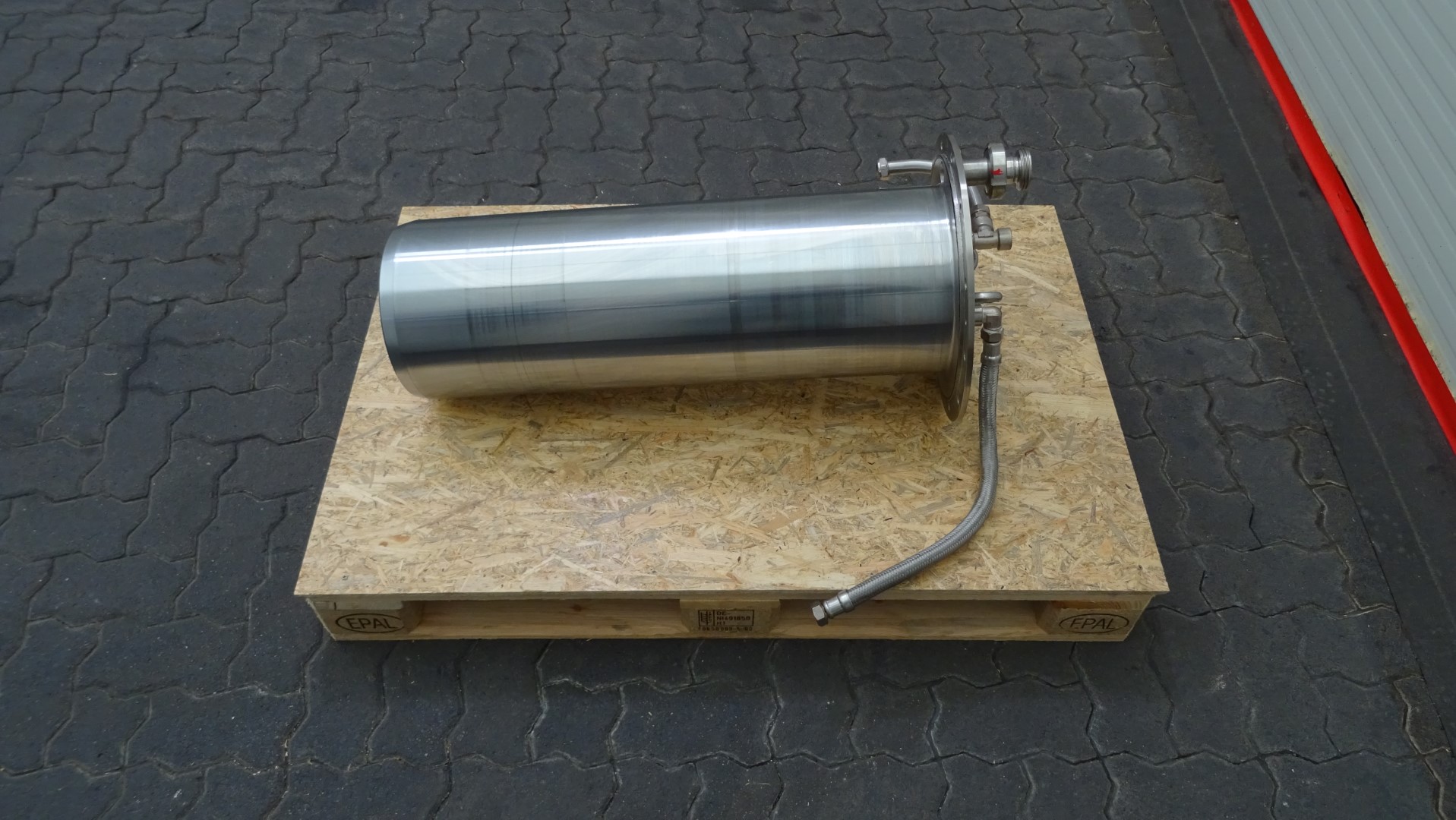

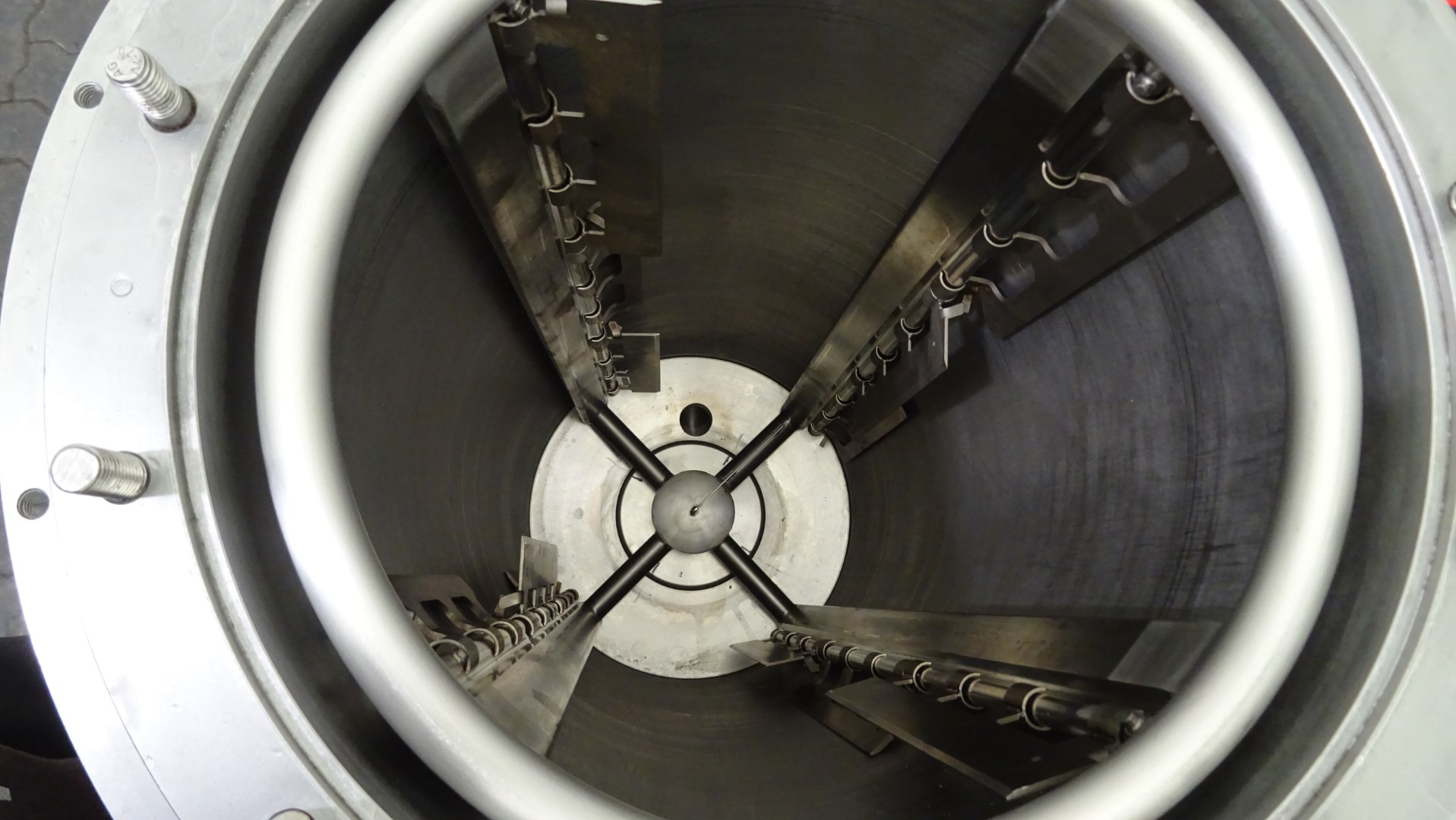

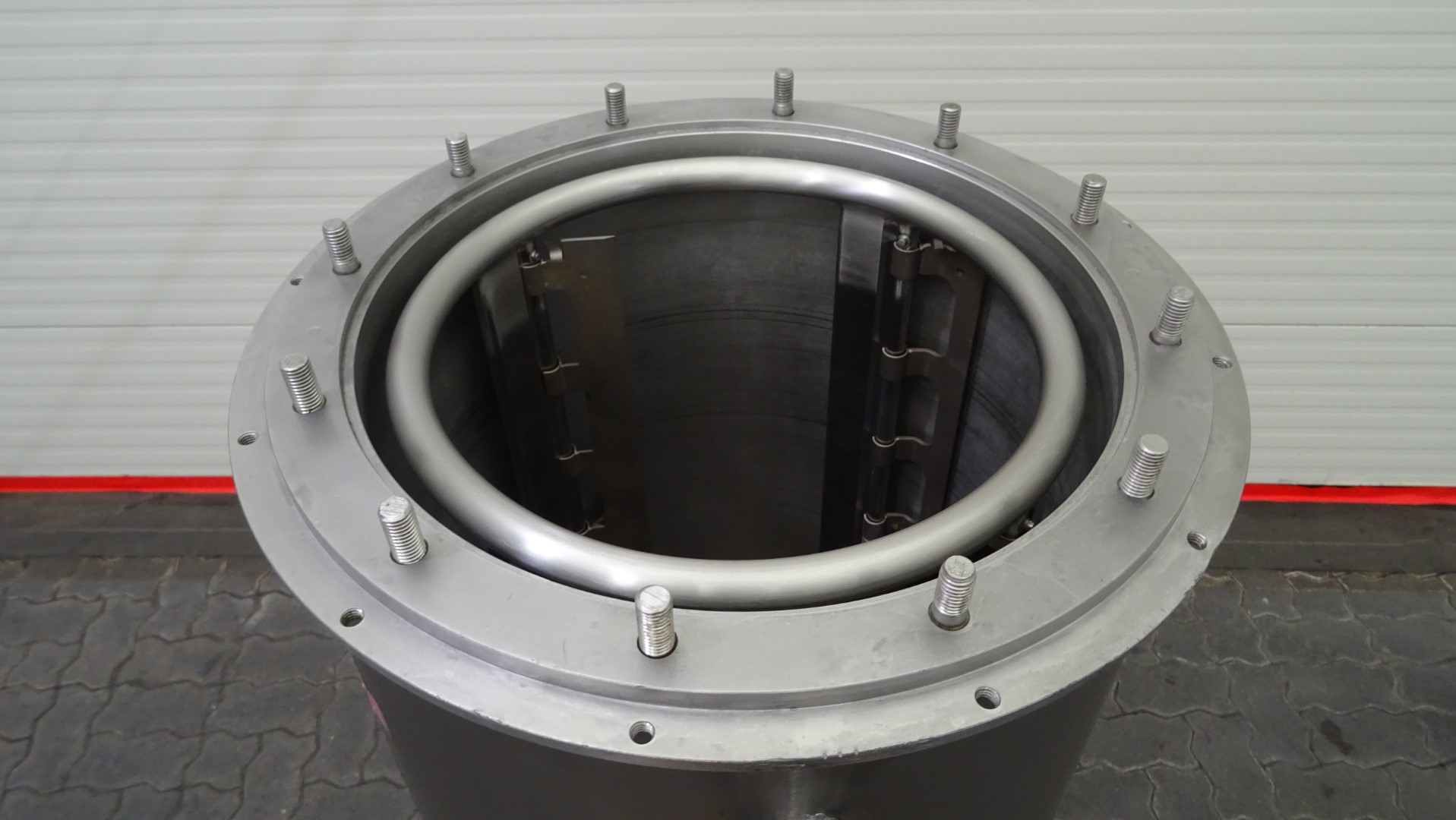

The ROTOTEMP 1,5 is a scraped surface heat exchanger for cooling or heating various products, with a heat exchange surface of 1,5 m2. The heat exchanger consists of a jacketed outside cylinder and a jacketed internal cylinder. The outside jacket is insulated and finished with stainless steel sheeting. The product space is located between the two cylinders. A rotating cage with scrapers is fitted in the product space. The scrapers ensure proper mixing during the tempering process. Because the cylinders are scraped continuously, it is possible to cool crystallizing products without a product layer building on the walls. It is also possible to heat products without the danger of sticking to the walls. Thanks to these characteristics and the design of the installation, it is also possible to accurately perform heat exchange processes for products with high viscosity.
Technical specifications

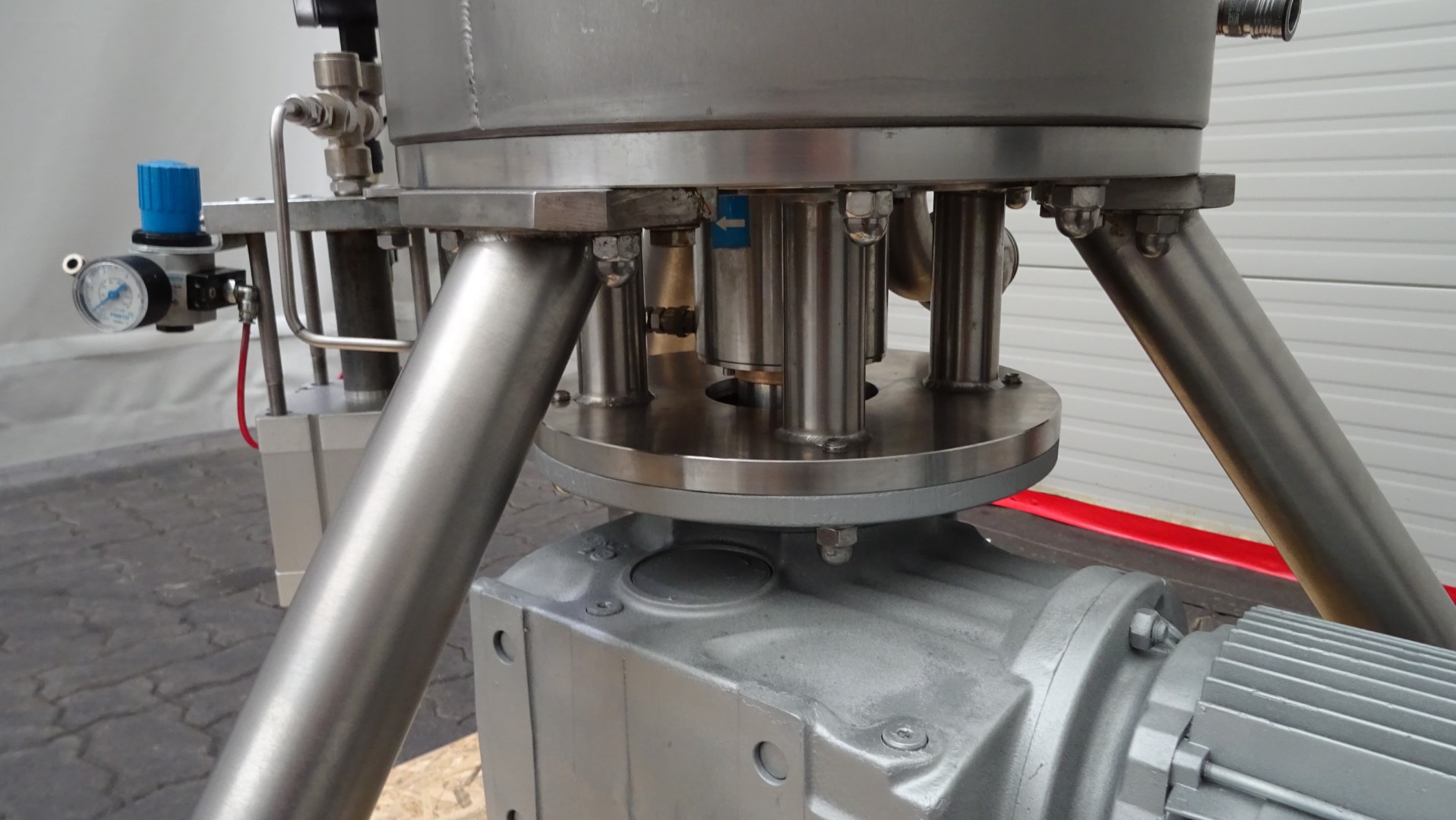

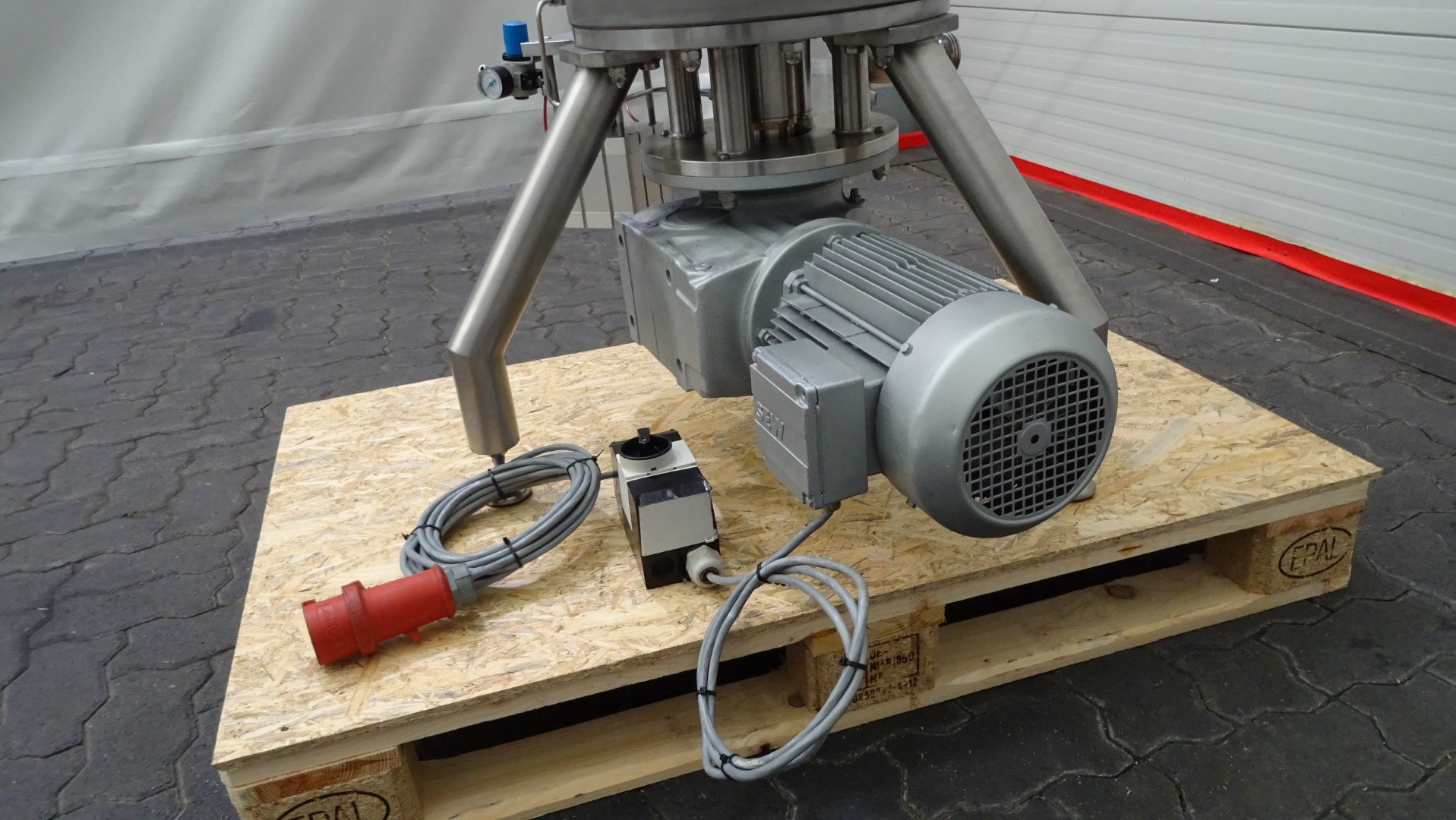

- Drive: 3 kW geared motor.
- Speed: 18 rpm at 50 Hz.
- Material cylinder: stainless steel, with hardened surface.
- Number of scrapers: 12.
- Max. product pressure: 8 bar.
- Product inlet connection: NW40 / 1½" female.
- Product outlet connection: NW40 / 1½" female.

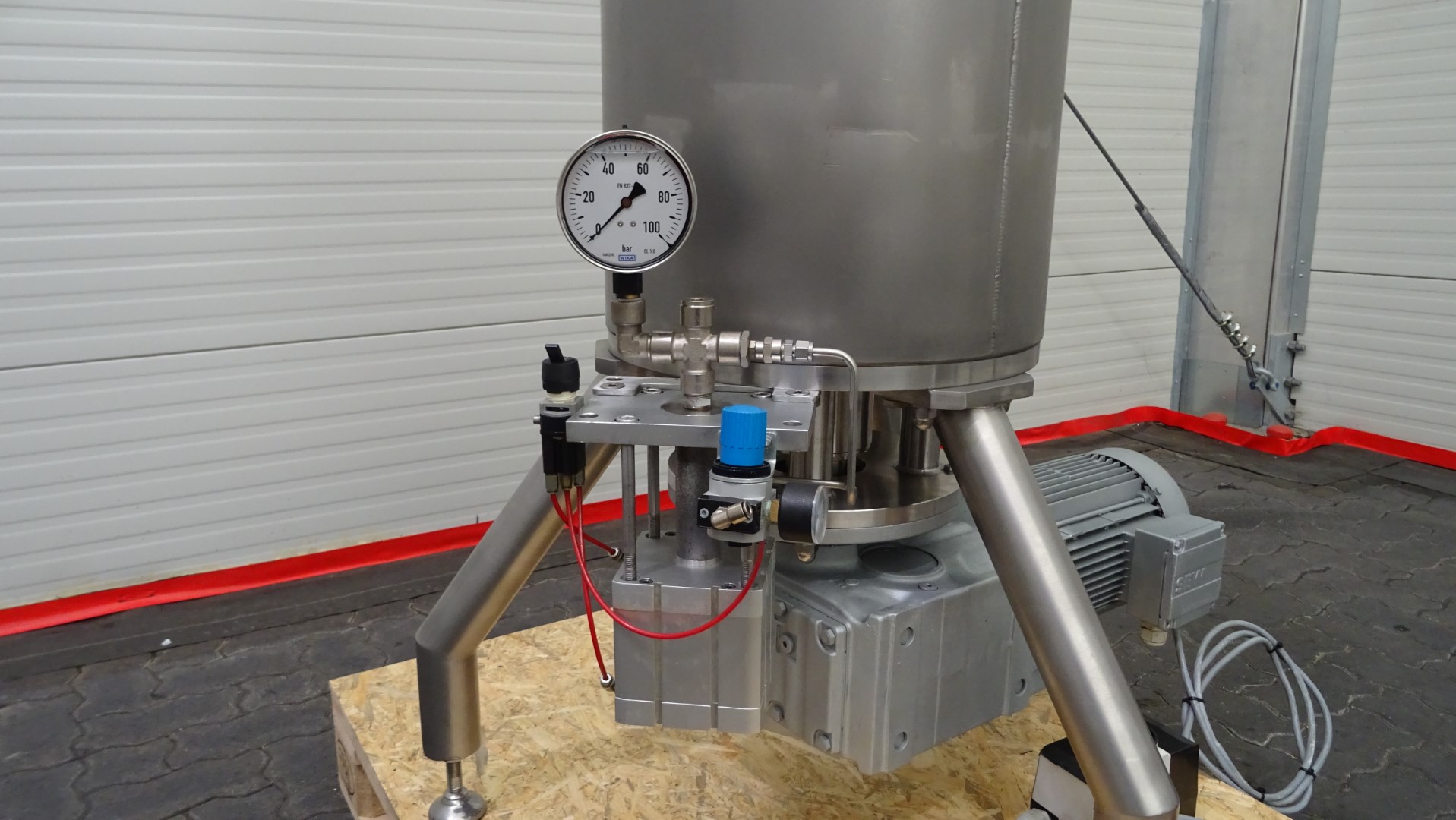

- Temperature sensors: 1 sensor on inlet and 1 sensor on outlet.
- Pressure sensor: 1 sensor on inlet.
- Cooling/heating liquid connections: BSP ¾”.
- Capacity cooling / heating liquid: 3000 ltr/h at 2 - 2.5 Bar.
