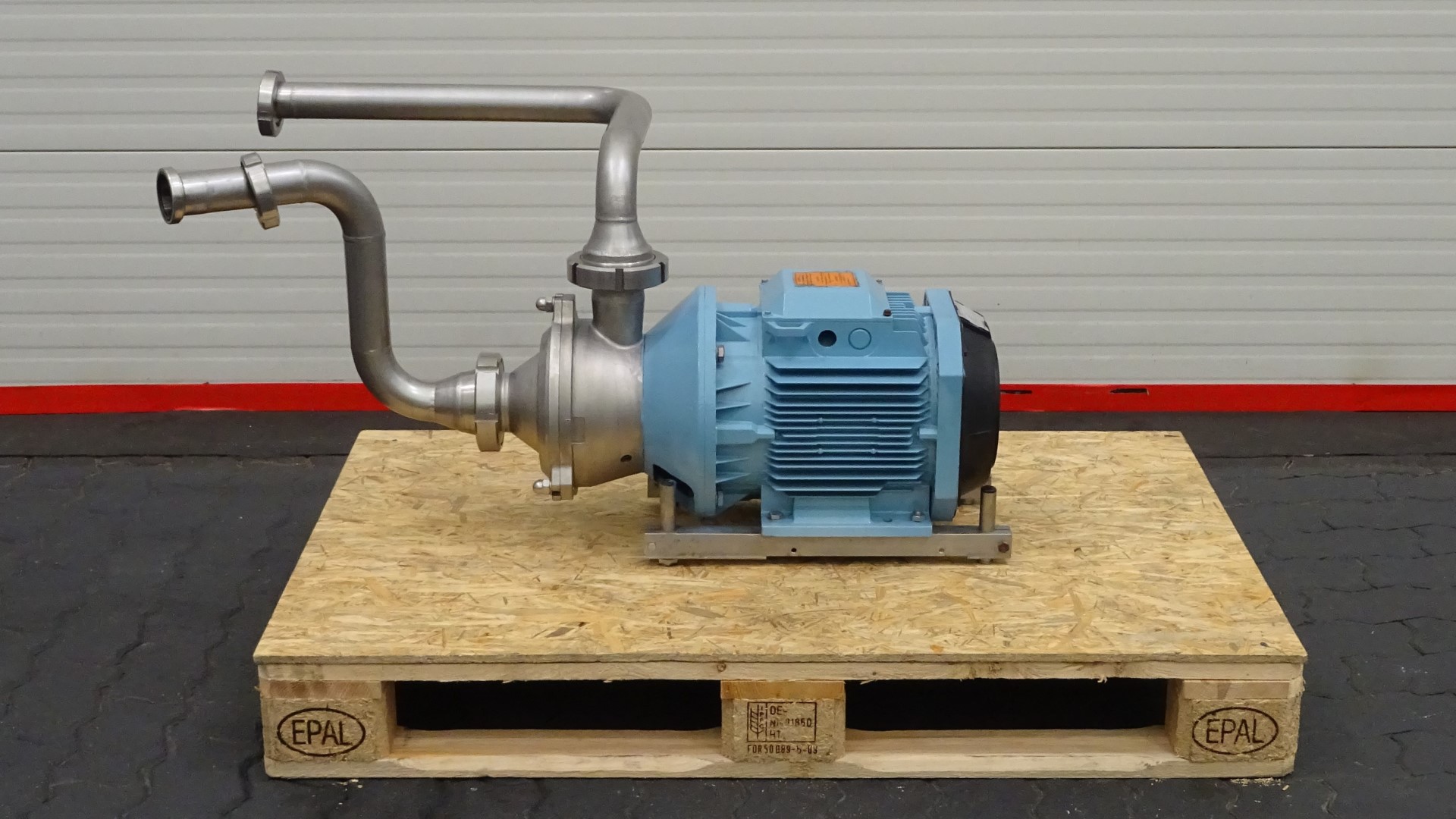

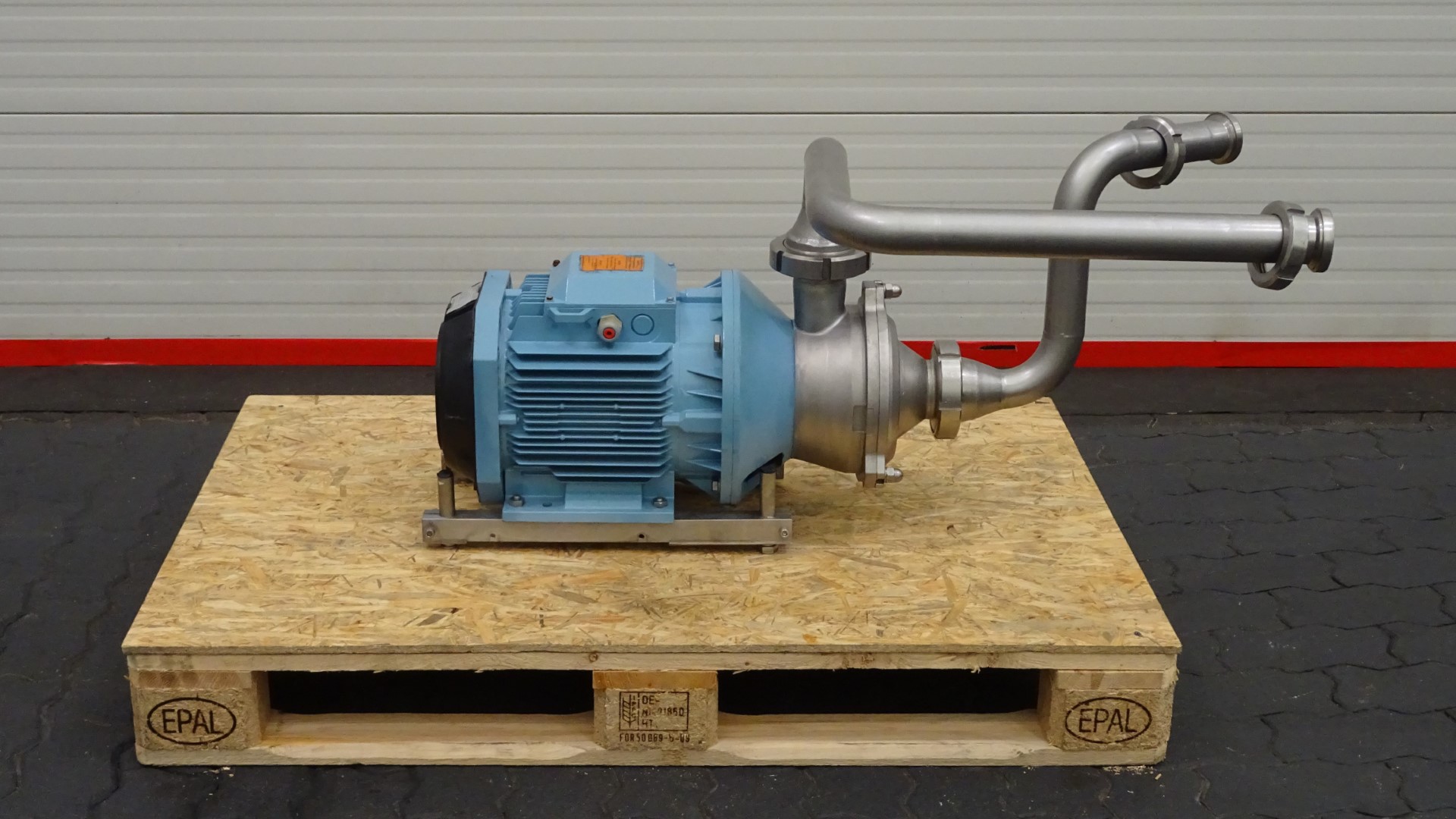

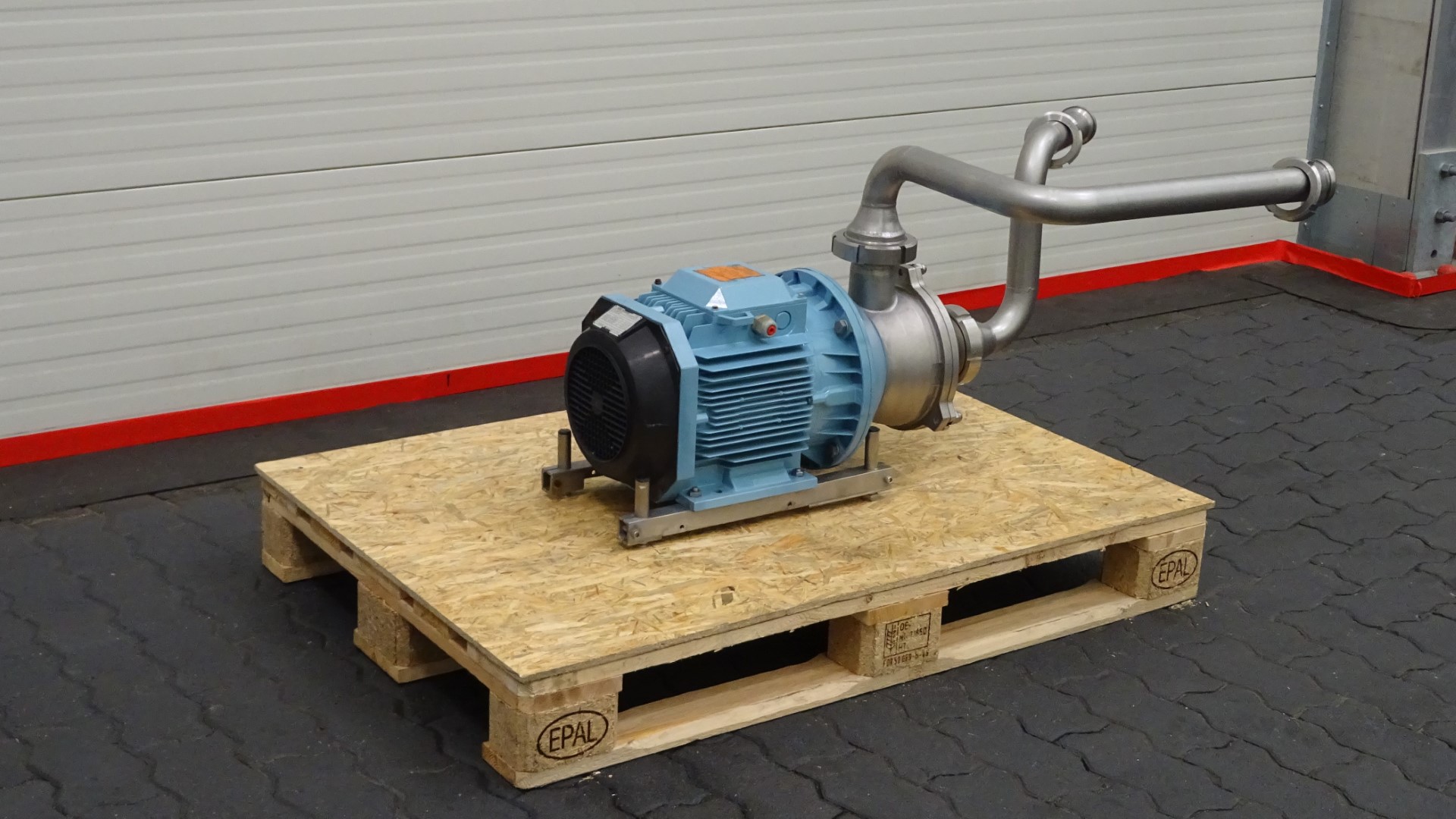

Sanitary Self Priming Liquid-ring Pump Alfa Laval MR-200S
Specifications
| Manufacturer | Alfa Laval |
| Model | MR-200S |
| Condition | Used |
| Stock Number | 1511 |
| Type of Machine | Sanitary Self Priming Liquid-ring Pump |
| Stock Number | 1511 |

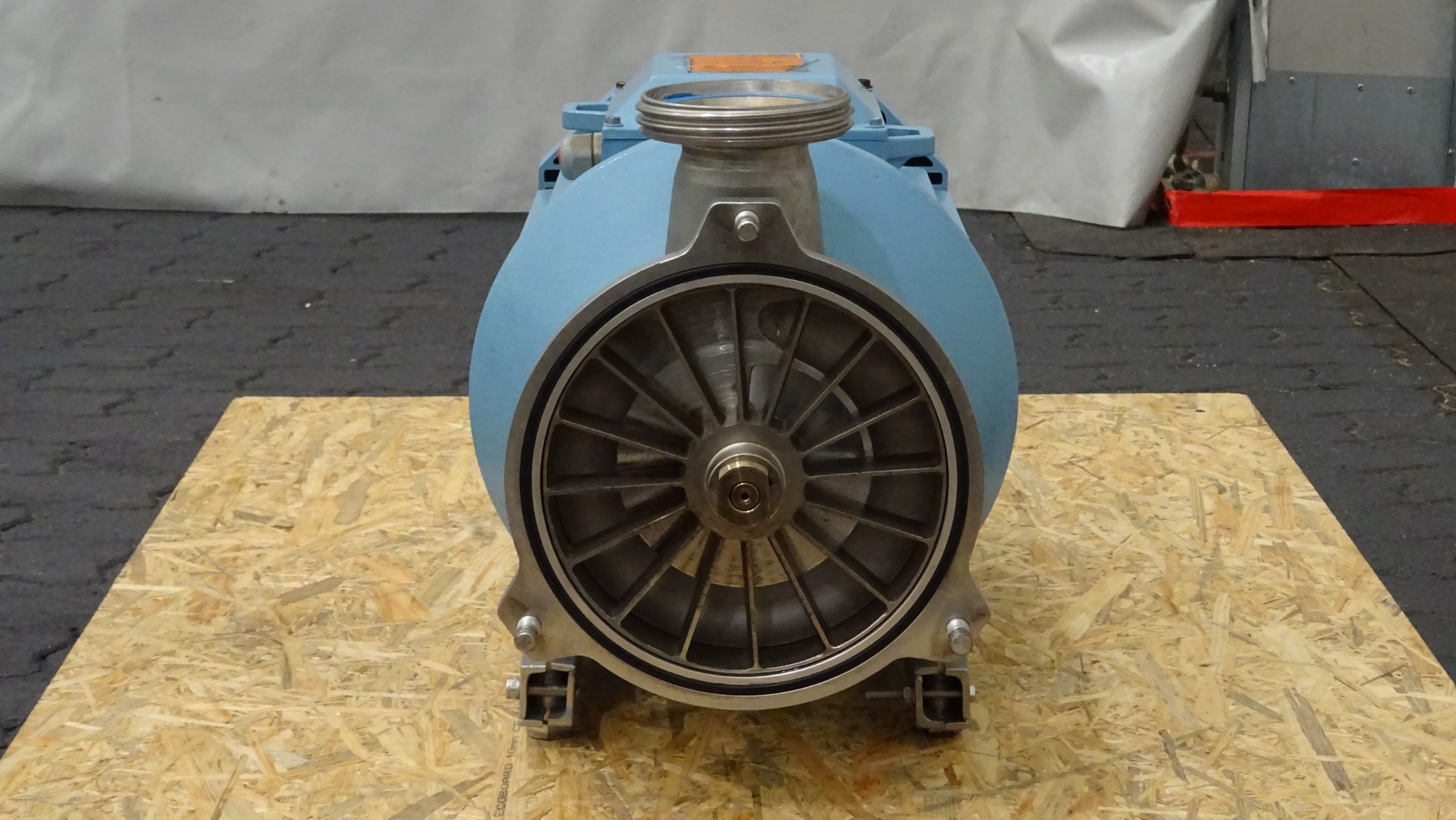

| Diameter of the impellor | 199 mm |

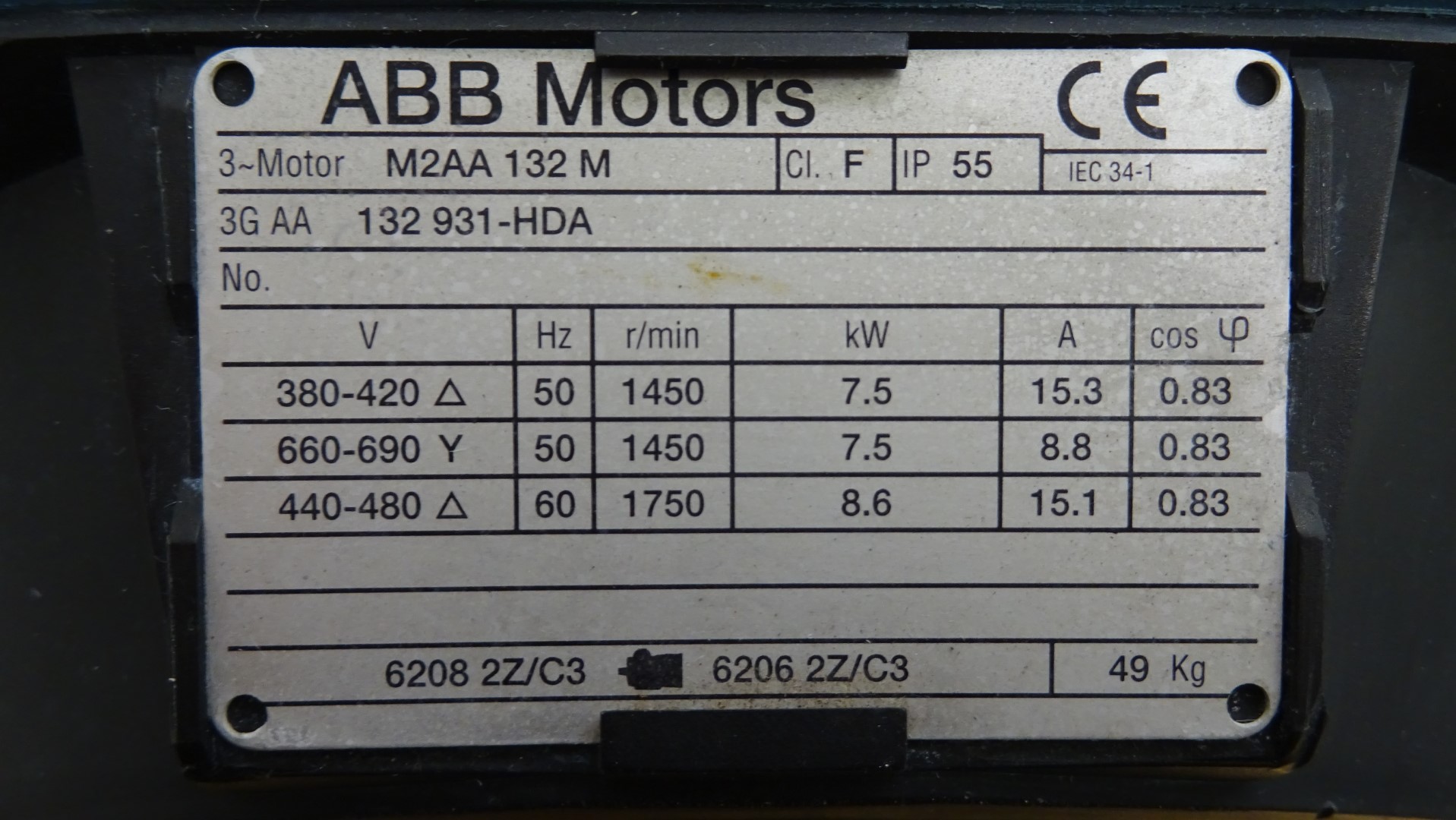

| Motor | 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A |
| Current maximum capacity | 48.000 ltr/h @ 0 Bar |
Description
The Alfa Laval MR-200 Sanitary Self Priming Liquid-ring Pump is a pump specially designed for food, chemical, pharmaceutical and other industries where acid-resistant steel is resistant to the products to be pumped. All products wetted parts, i.e. pump casing, casing cover and impeller are made of acid-resistant steel AlSl 316. Clamp screws and legs are made of stainless steel AlSl 304. lntermediate part is in cast iron which is zinc coated and laquered making it highly corrosion resistant. Motor: 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A. Impeller diameter: 199 mm. Connections on the inlet / outlet: SMS 76 mm (3''). Current maximum capacity (based on the available Alfa Laval performance curves and the current motor): 48.000 ltr/h @ 0 Bar.
