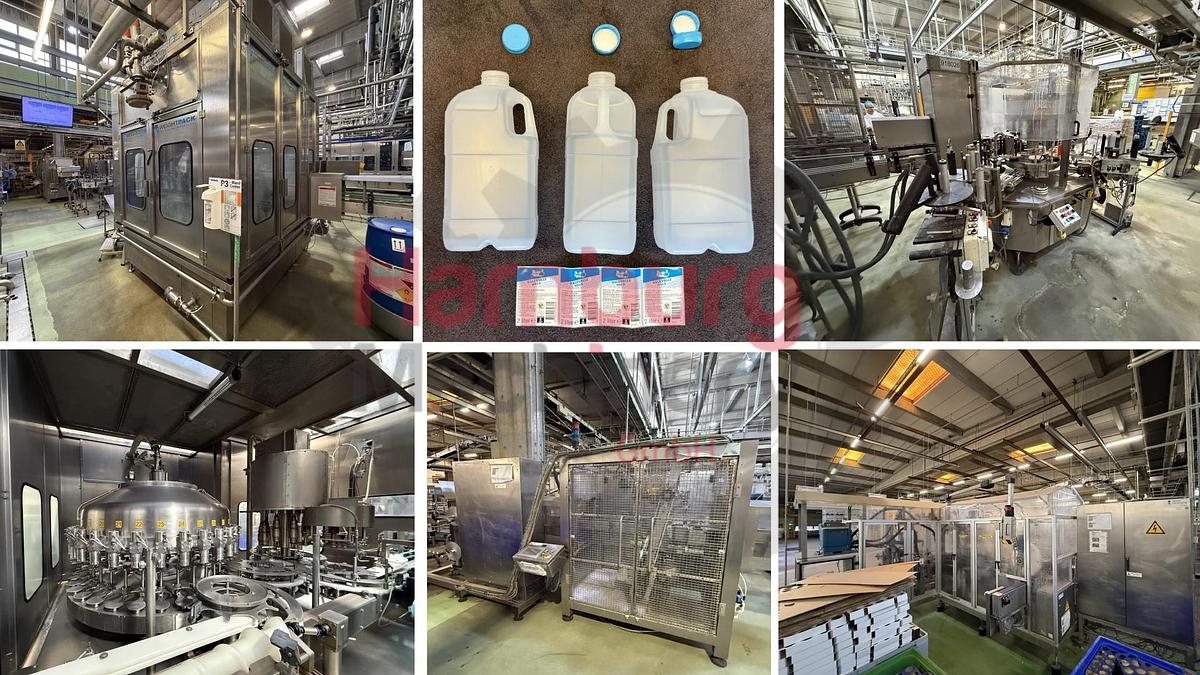

Filling, closing, labelling and packing line for plastic containers of 2 liter with fresh milk - Weightpack WFT 32.10.160

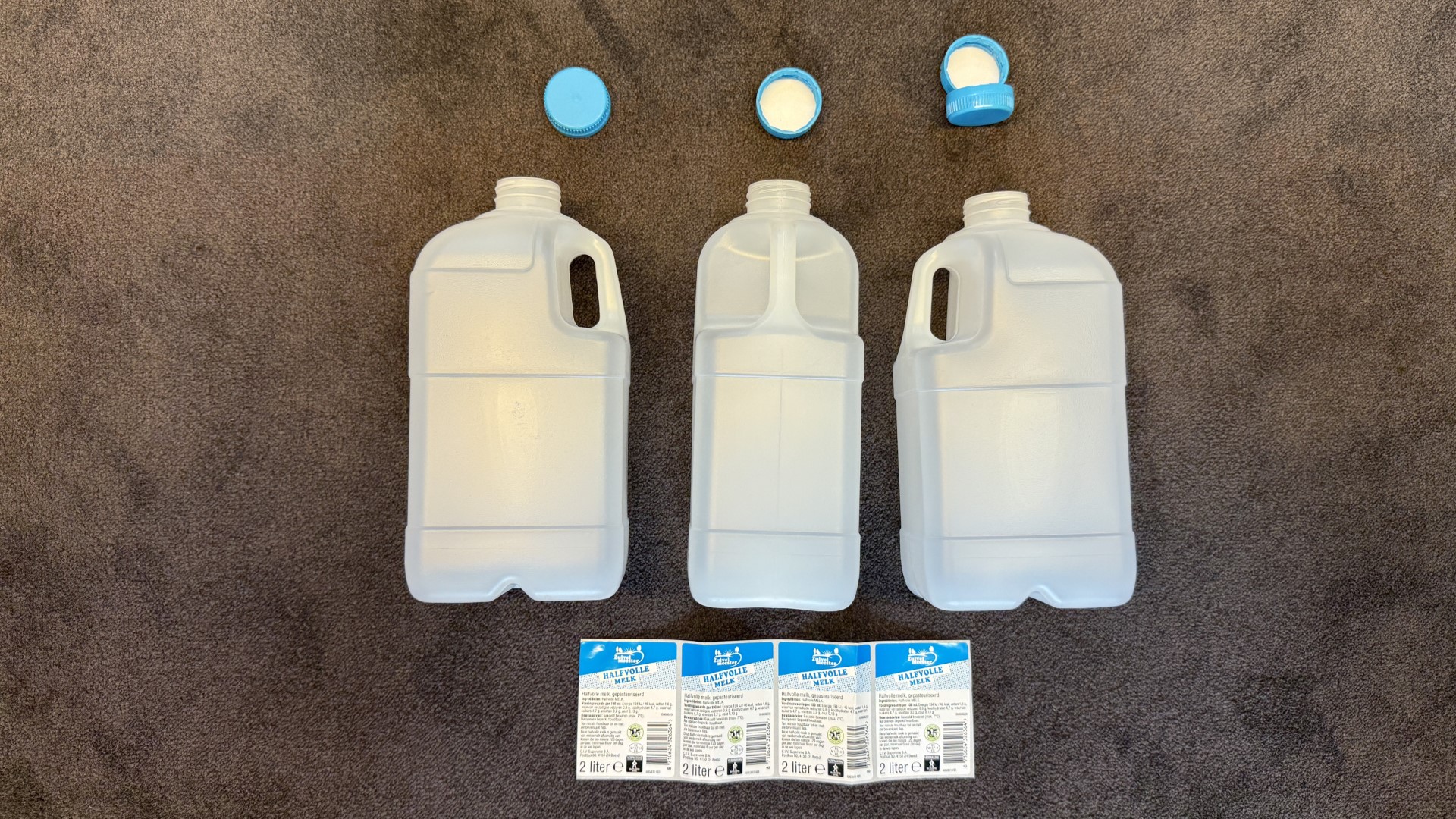

Preformed Bottle Filling, Capping, Labelling and Packing Line for 2-litre plastic containers (jugs/bottles) for fresh milk with screw cap closure. The line is equipped with integrated control systems and is suitable for hygienic operation.

Scope of Supply:

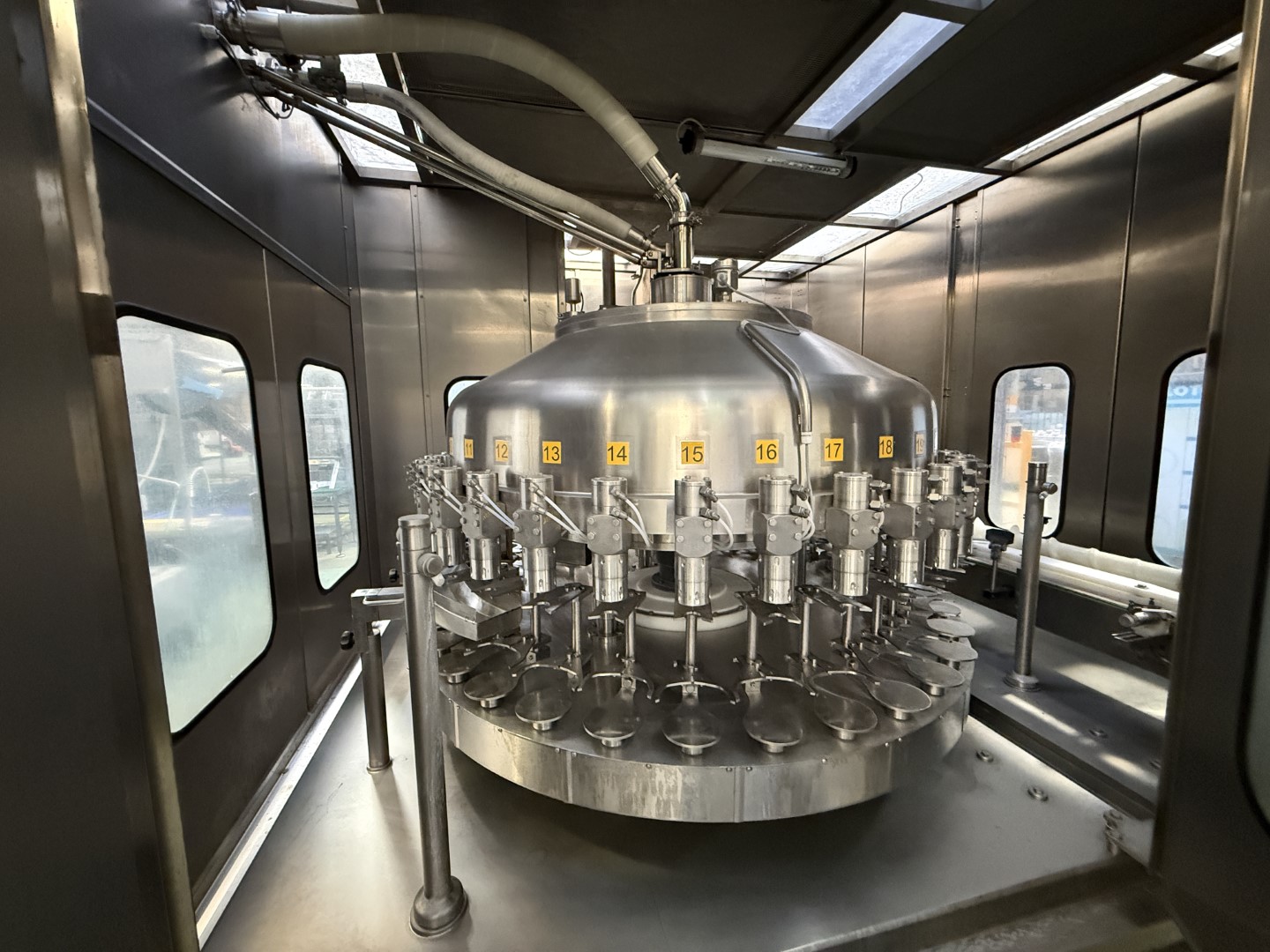

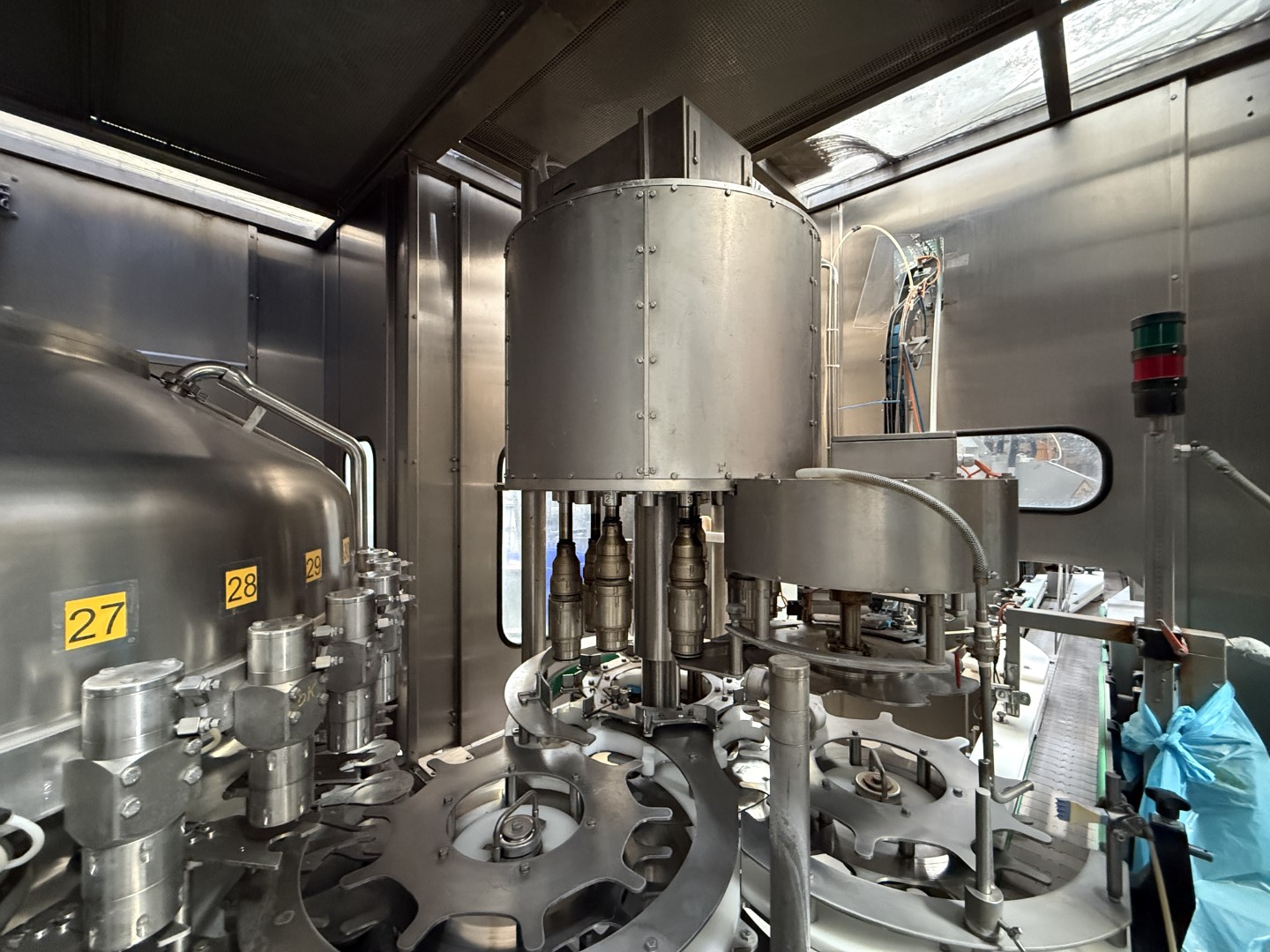

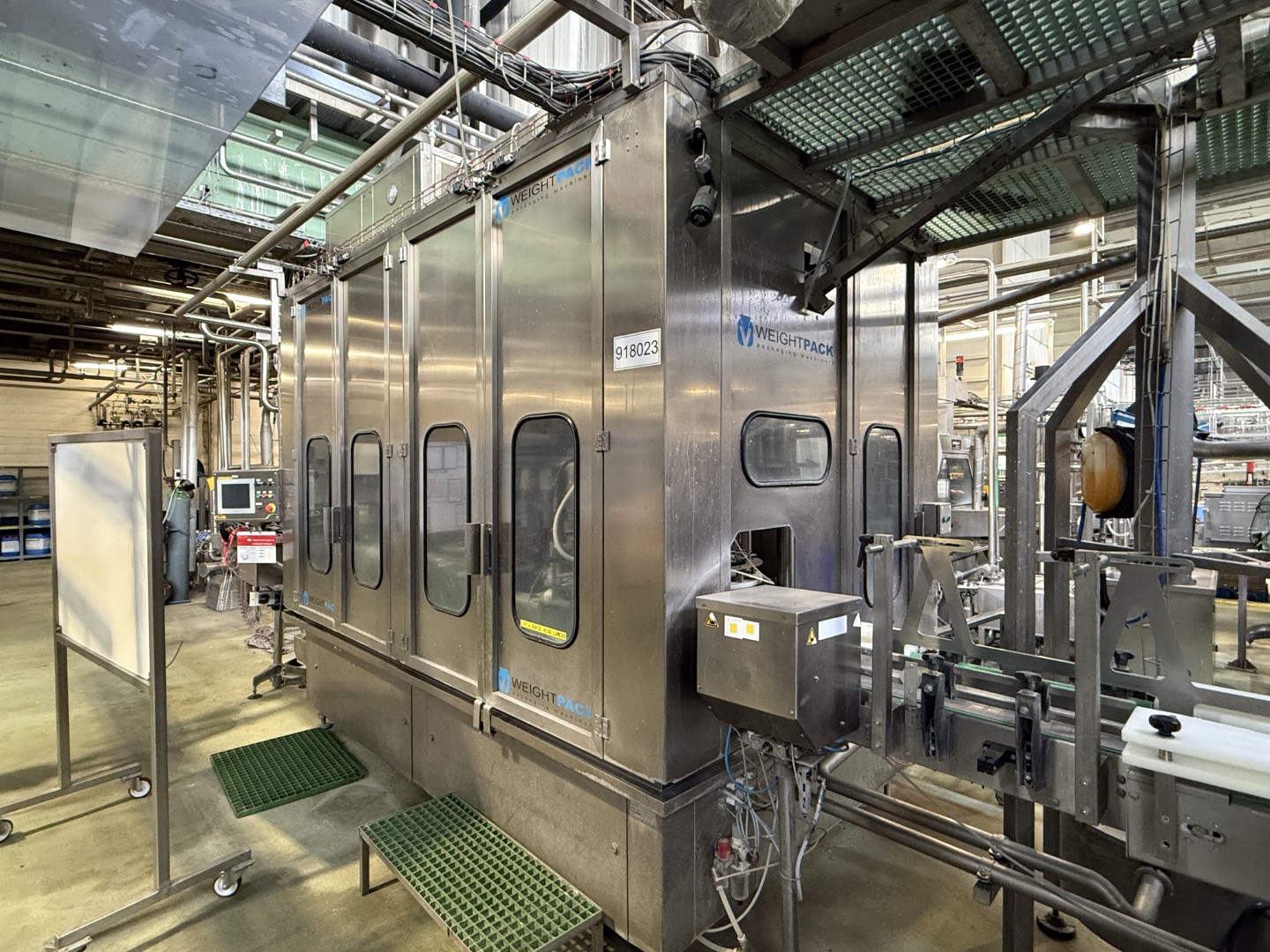

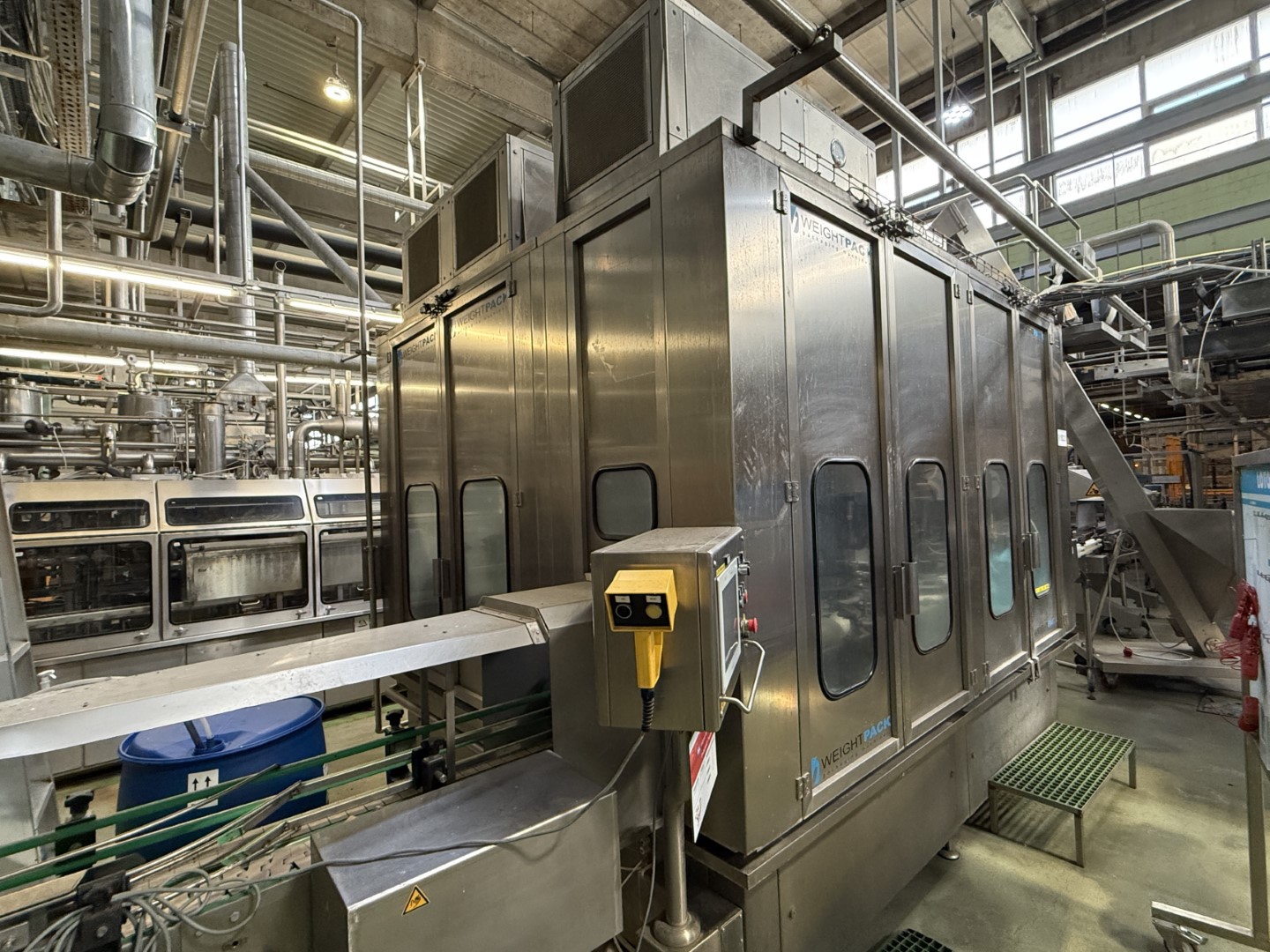

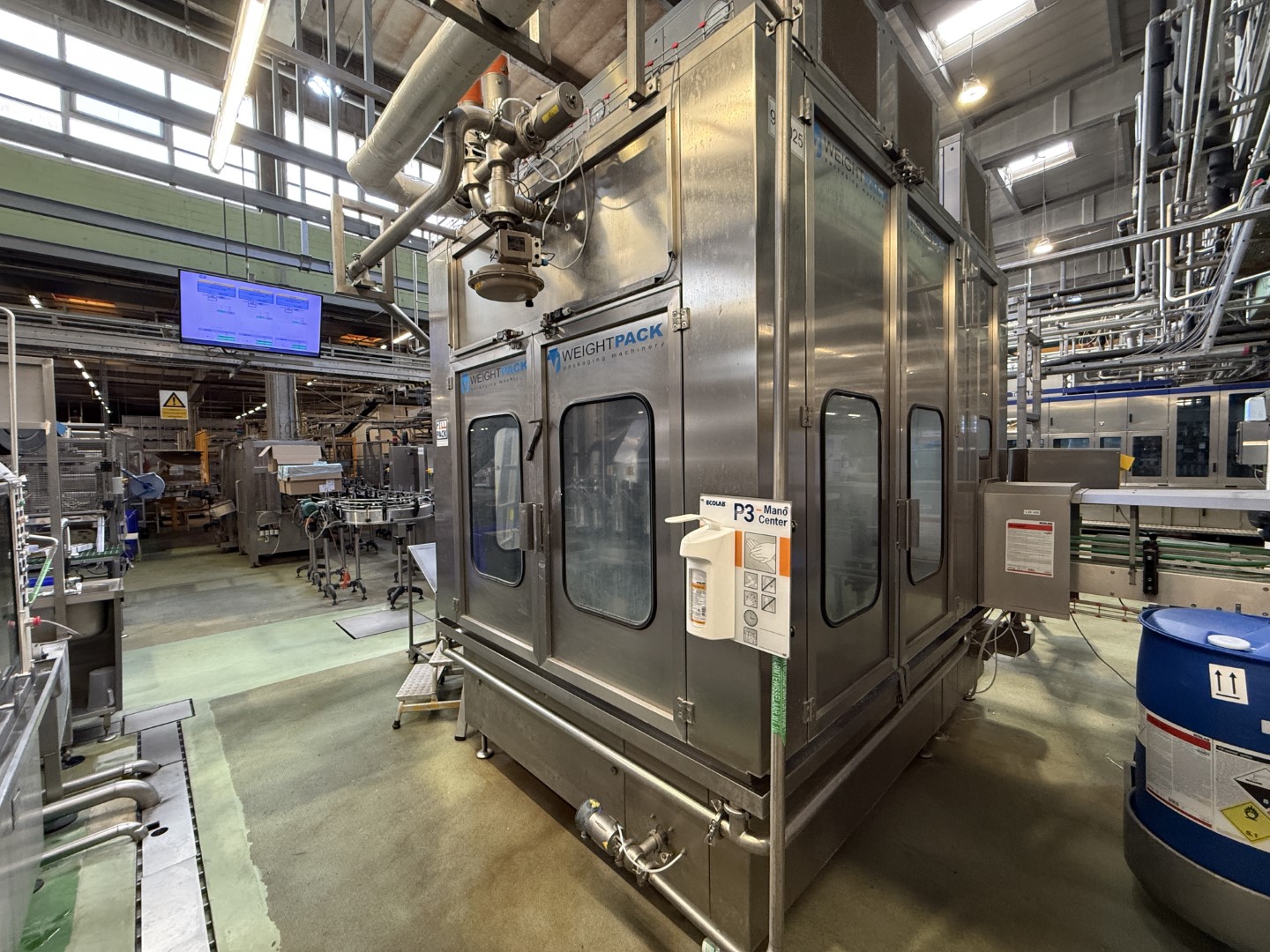

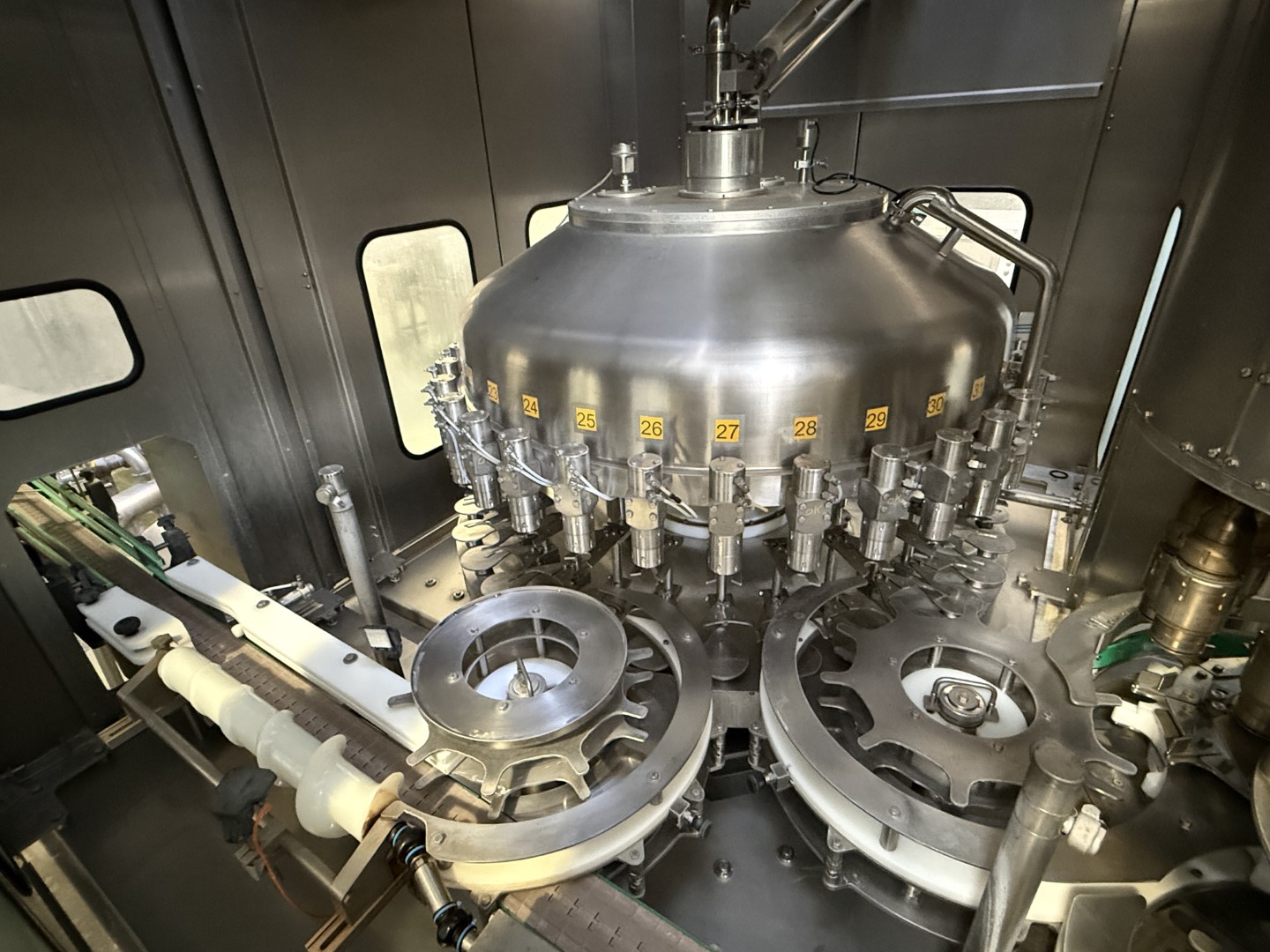

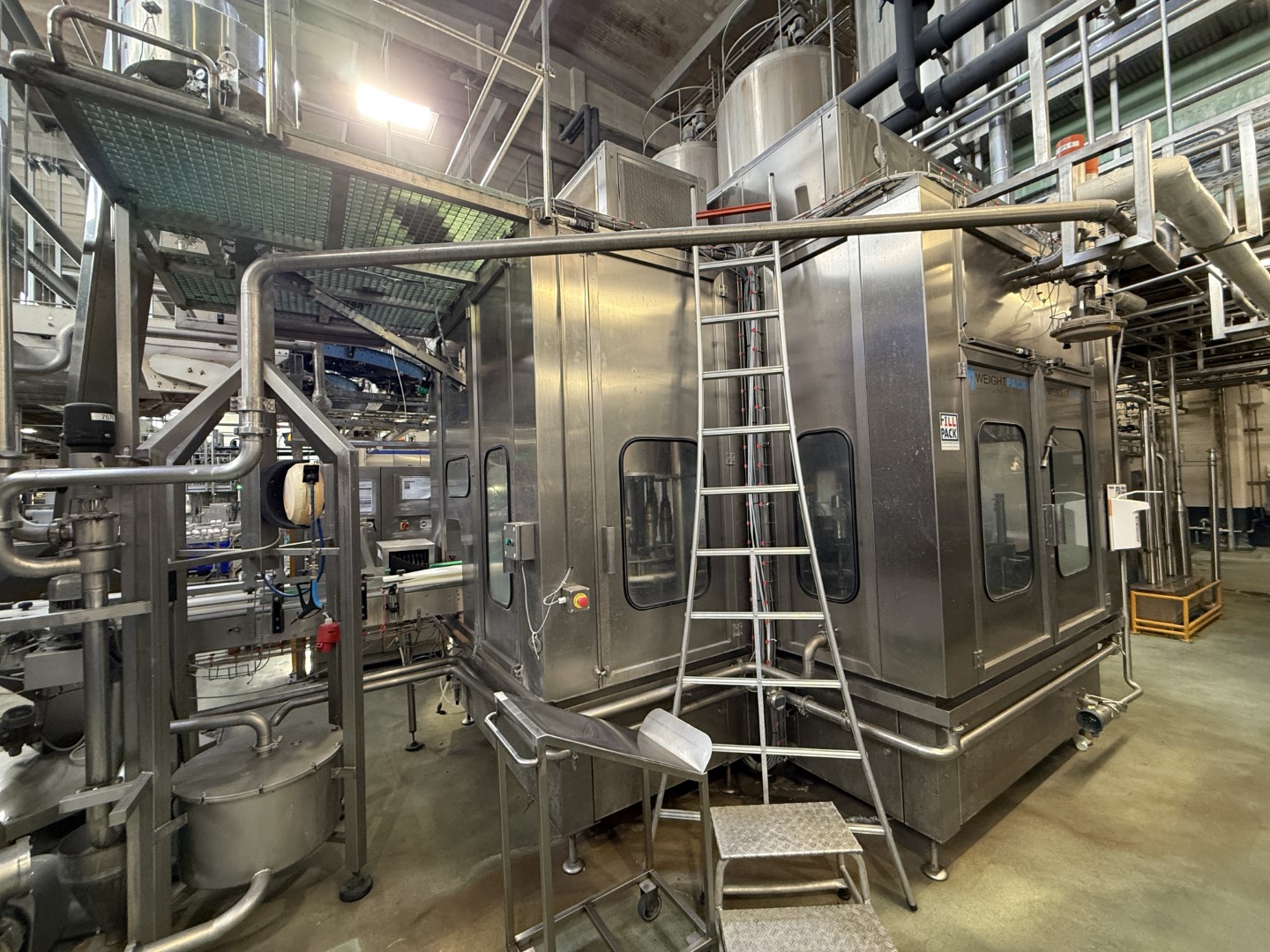

1. Filling and Capping Machine

• Integrated gravity filling and screw capping system.
• Designed for CIP (Clean-in-Place) cleaning.
• Fully enclosed construction with access doors.
• Equipped with sterile air filtration system.

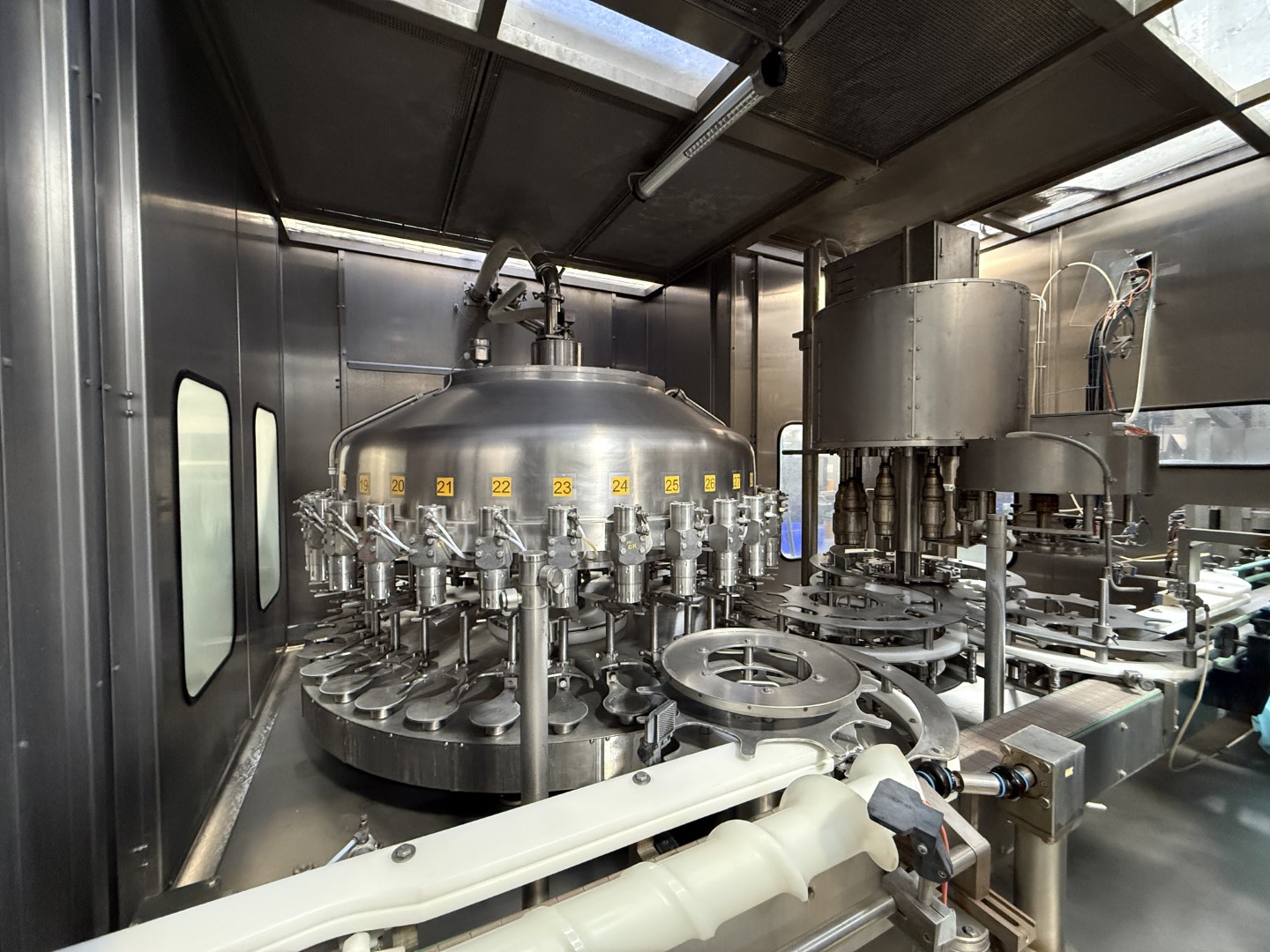

• 32 filling valves and 10 capping heads.

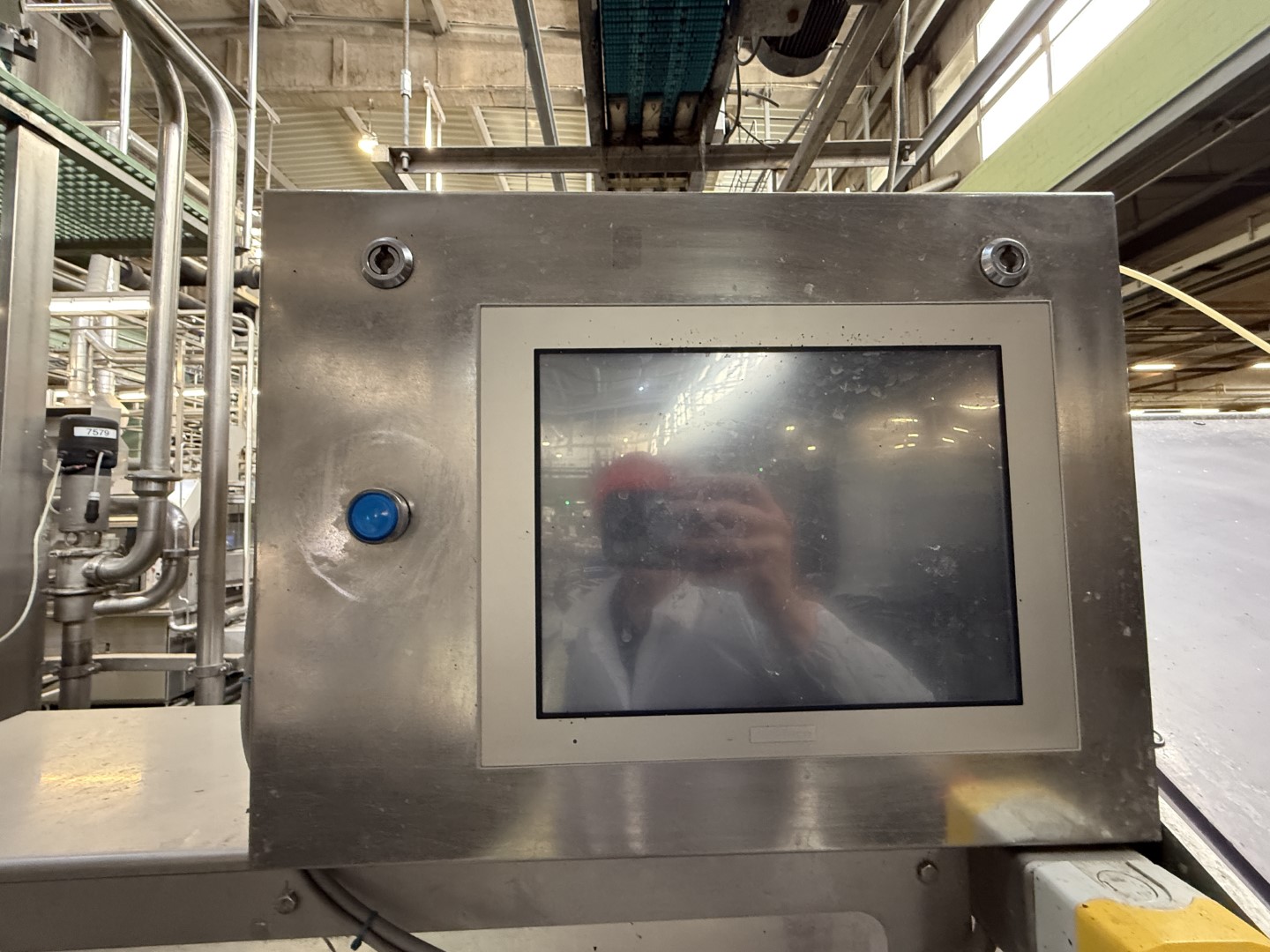

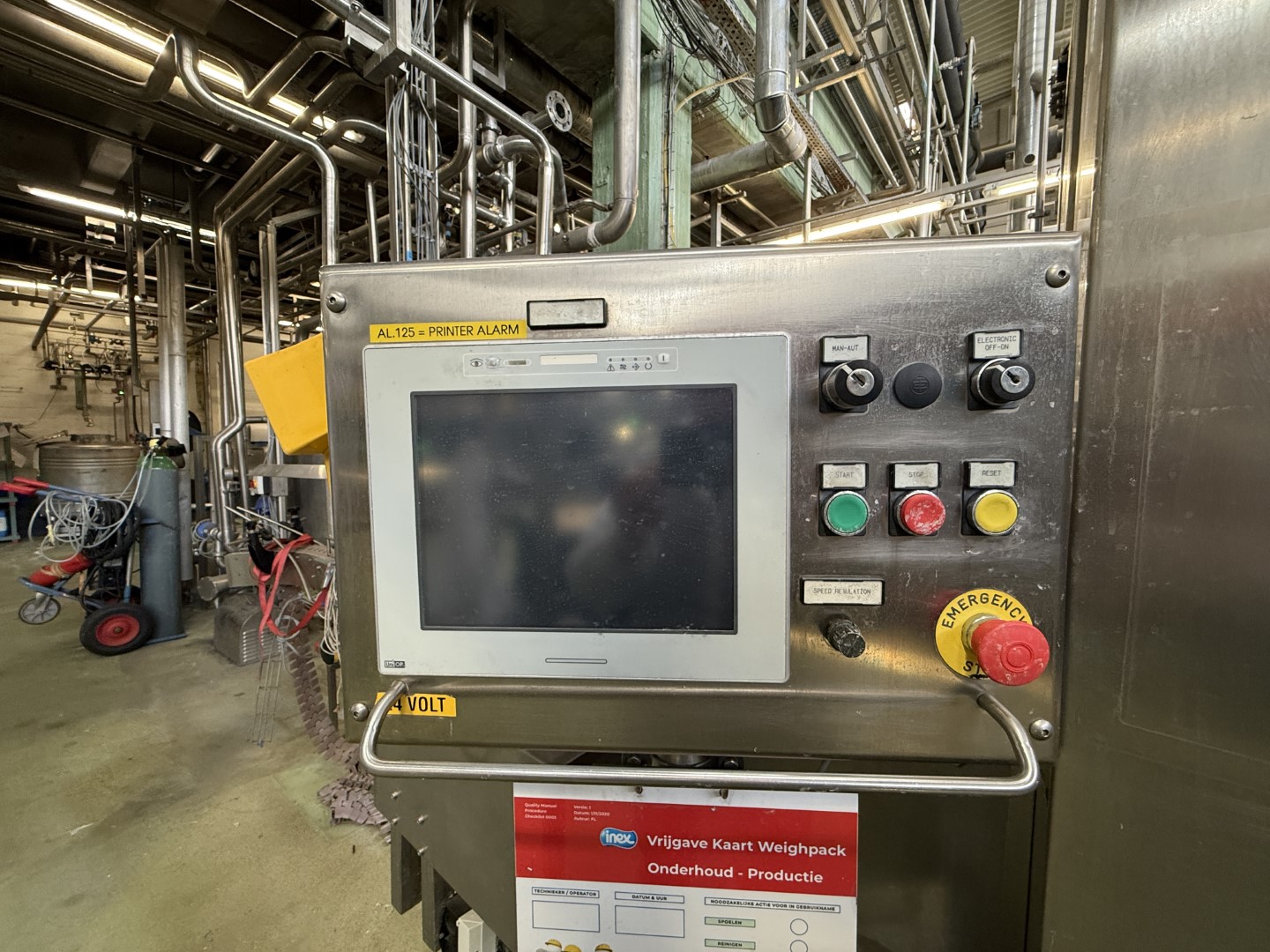

• Touchscreen operator control panel.

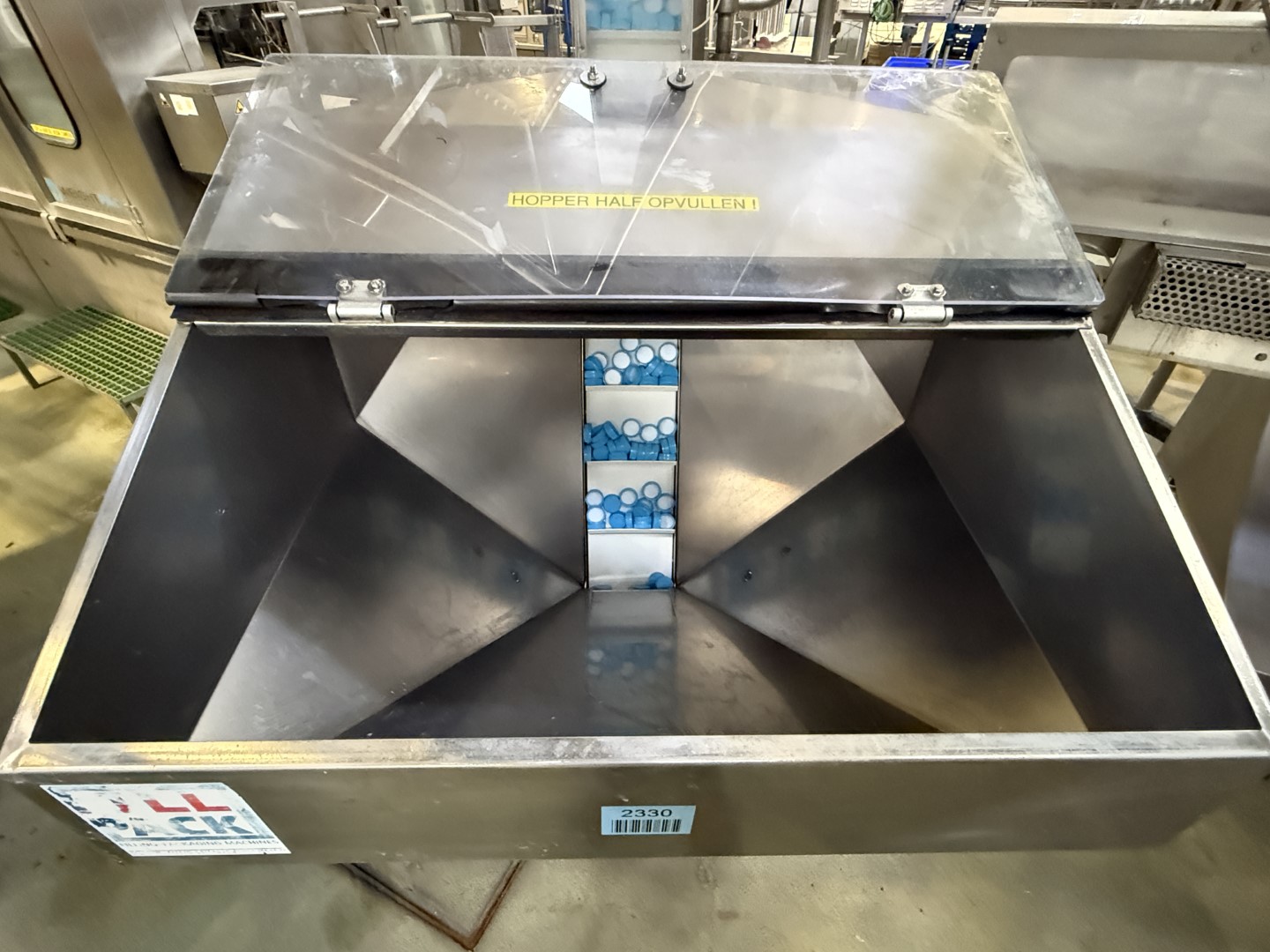

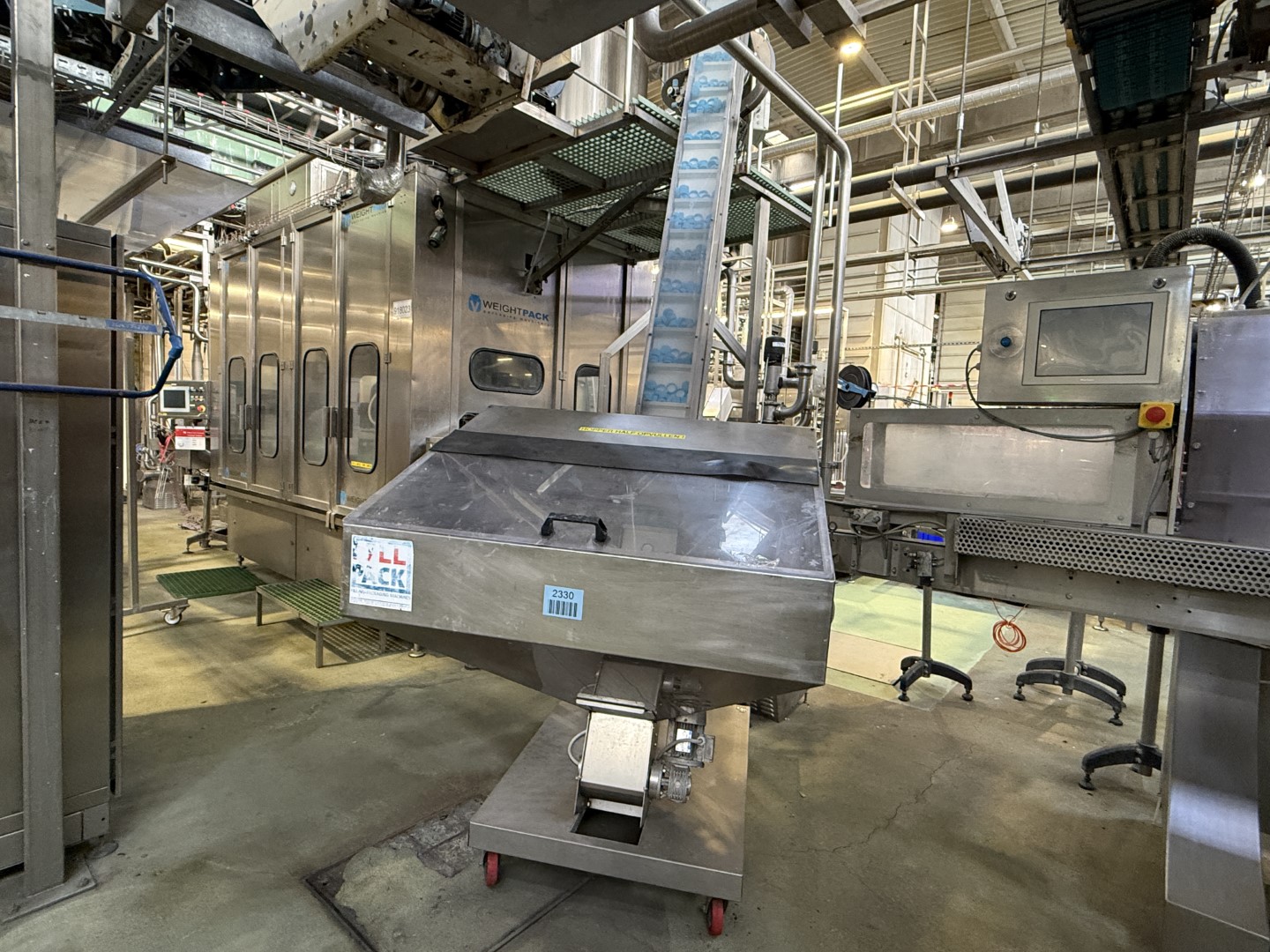

• Cap feeding bunker with conveyor to capping unit.

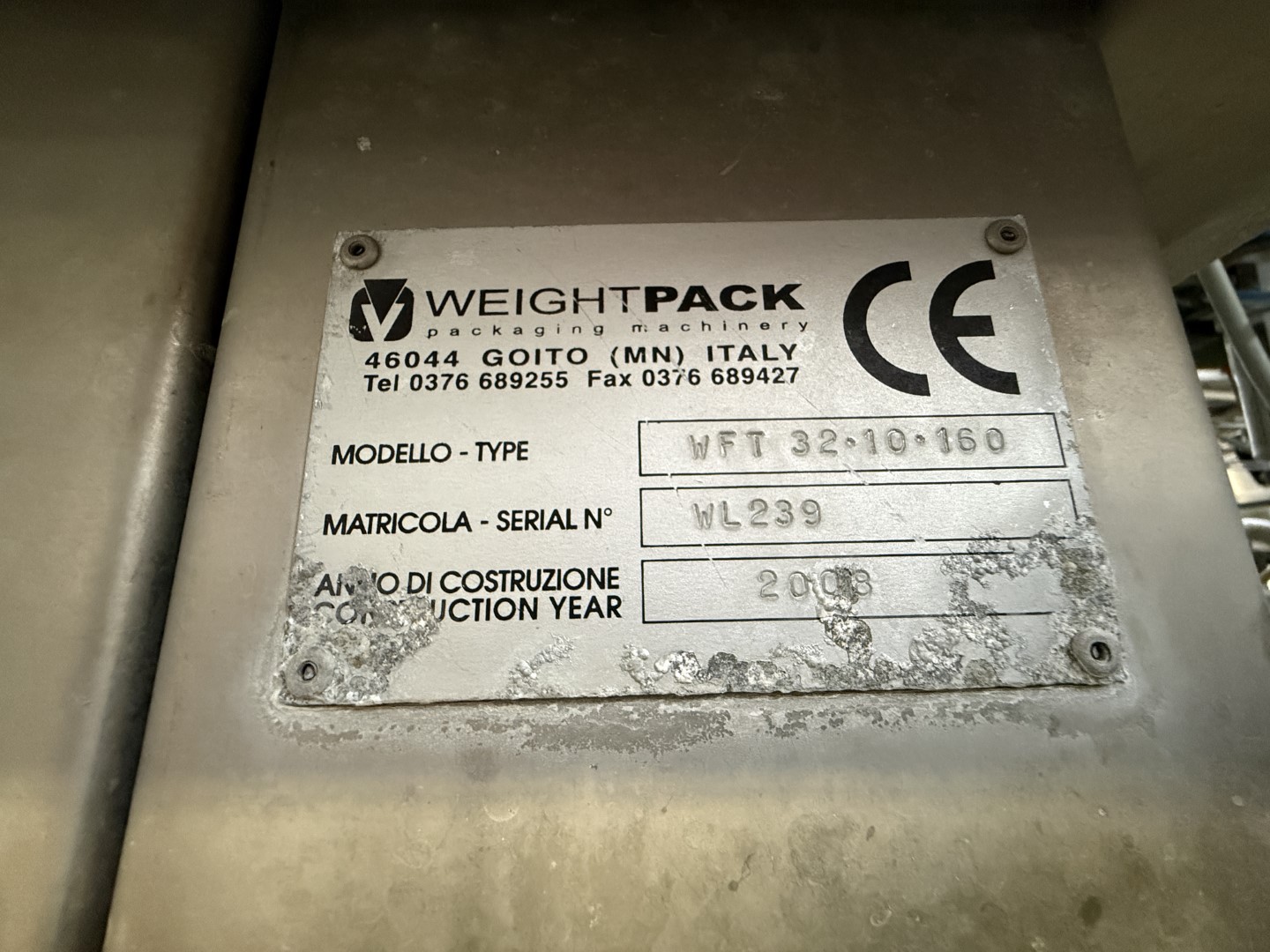

Manufacturer: Weightpack

Model: WFT 32.10.160

Serial Number: WL239

Year: 2008

Capacity: up to 7.000 containers per hour

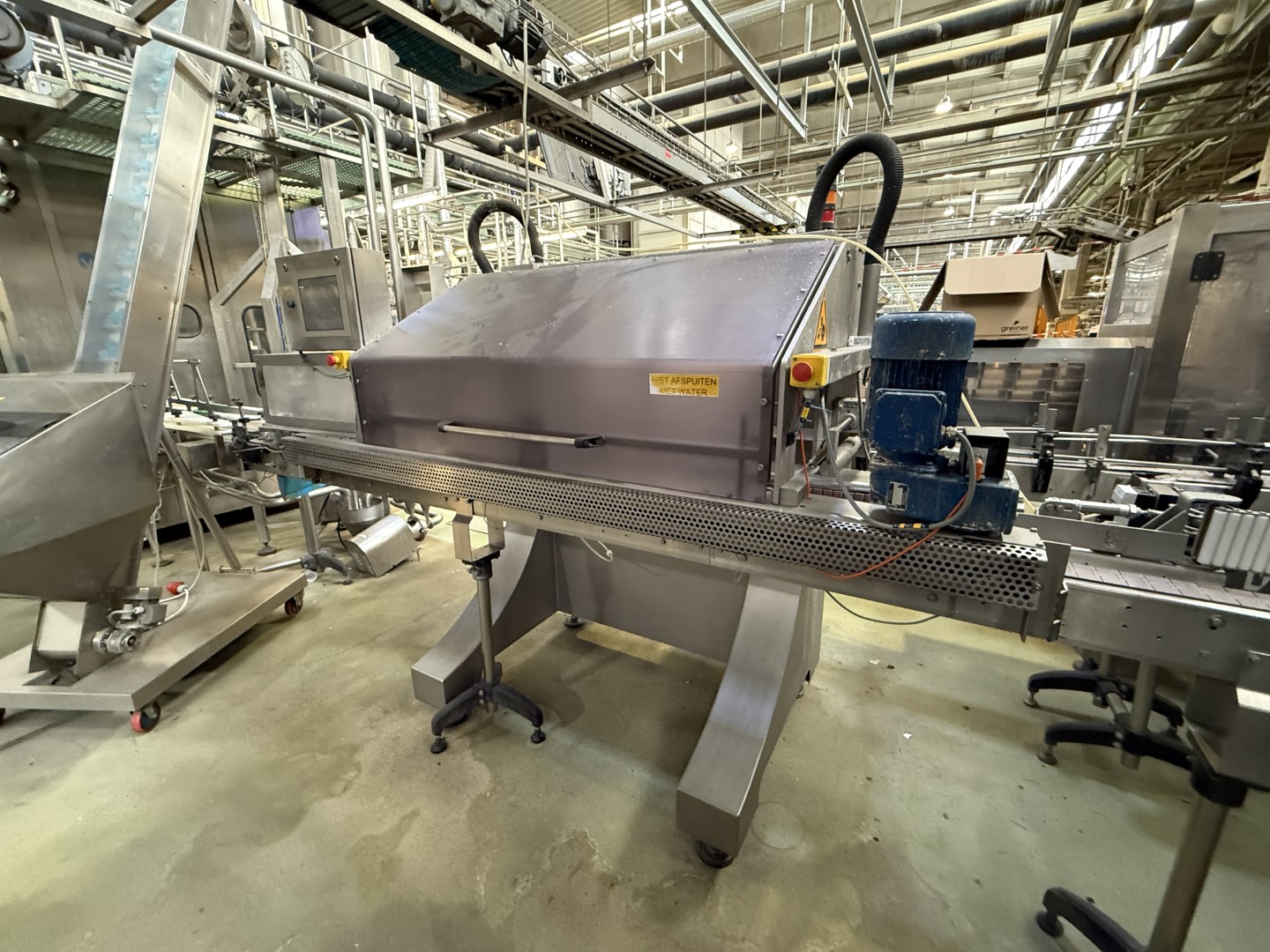

2. Leakage Testing Unit (Squeeze Tester)

Designed to detect container leakage after filling.

Manufacturer: Teledyne TapTone

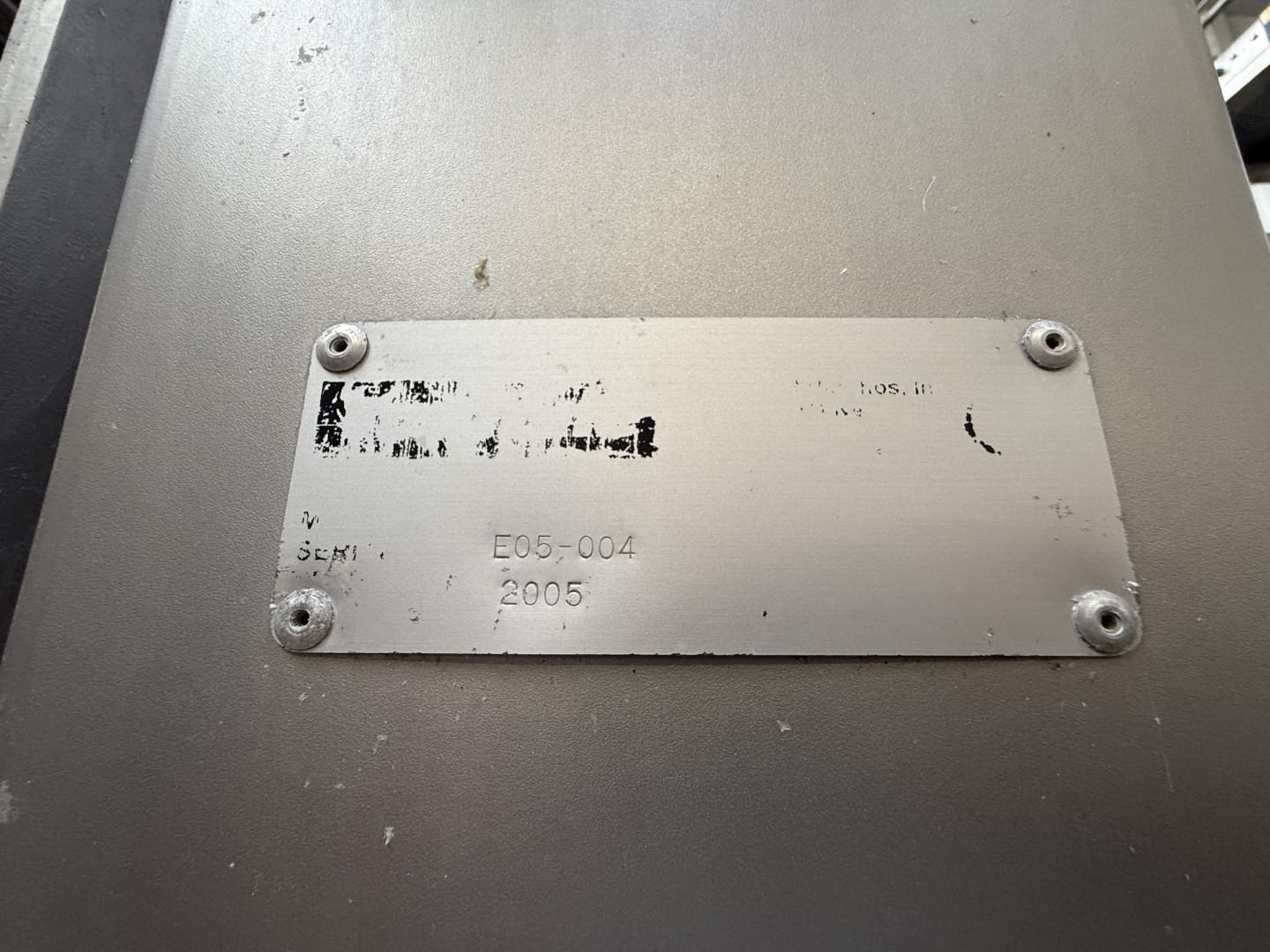

Serial Number: E05-004

Year: 2005

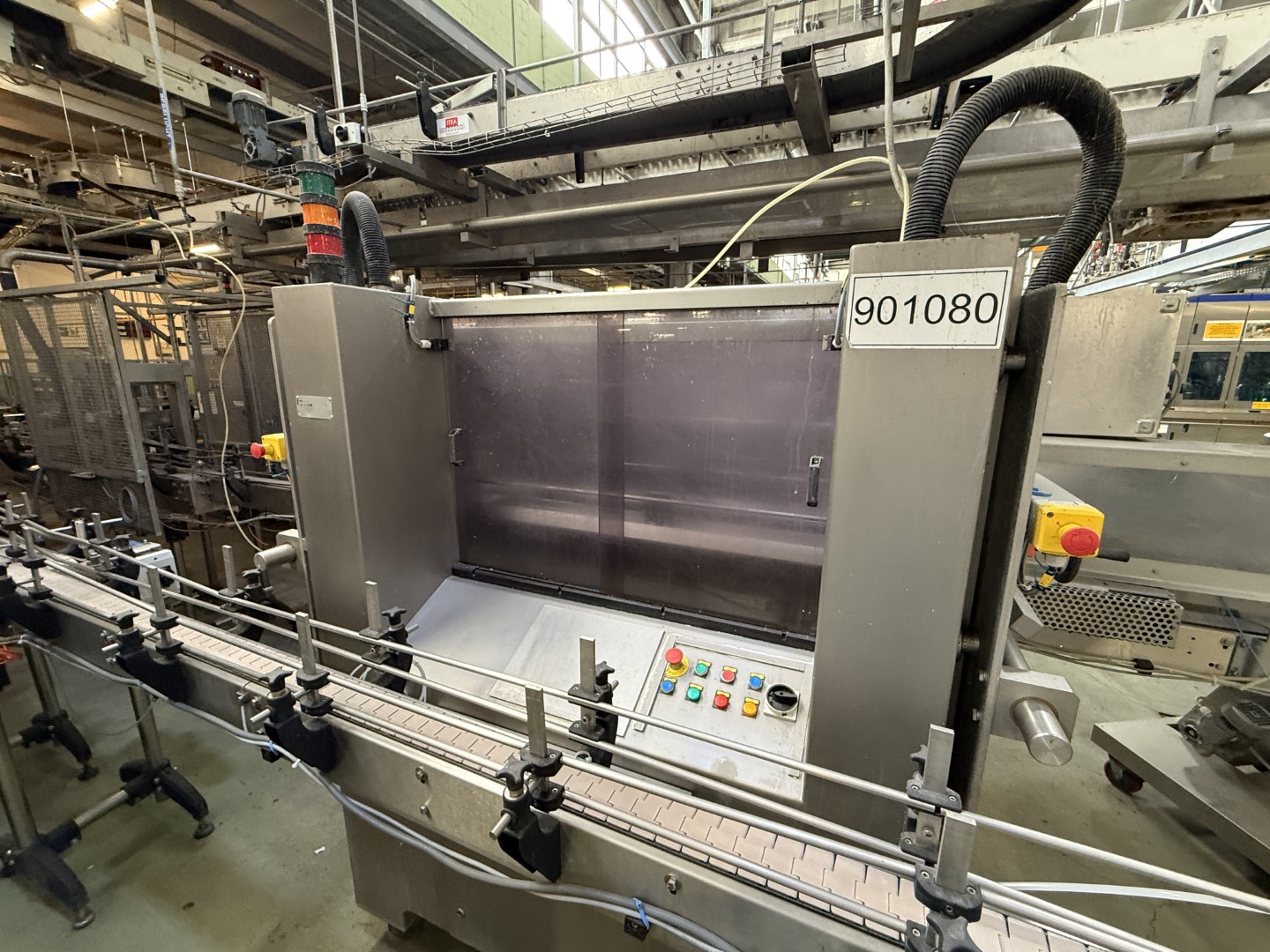

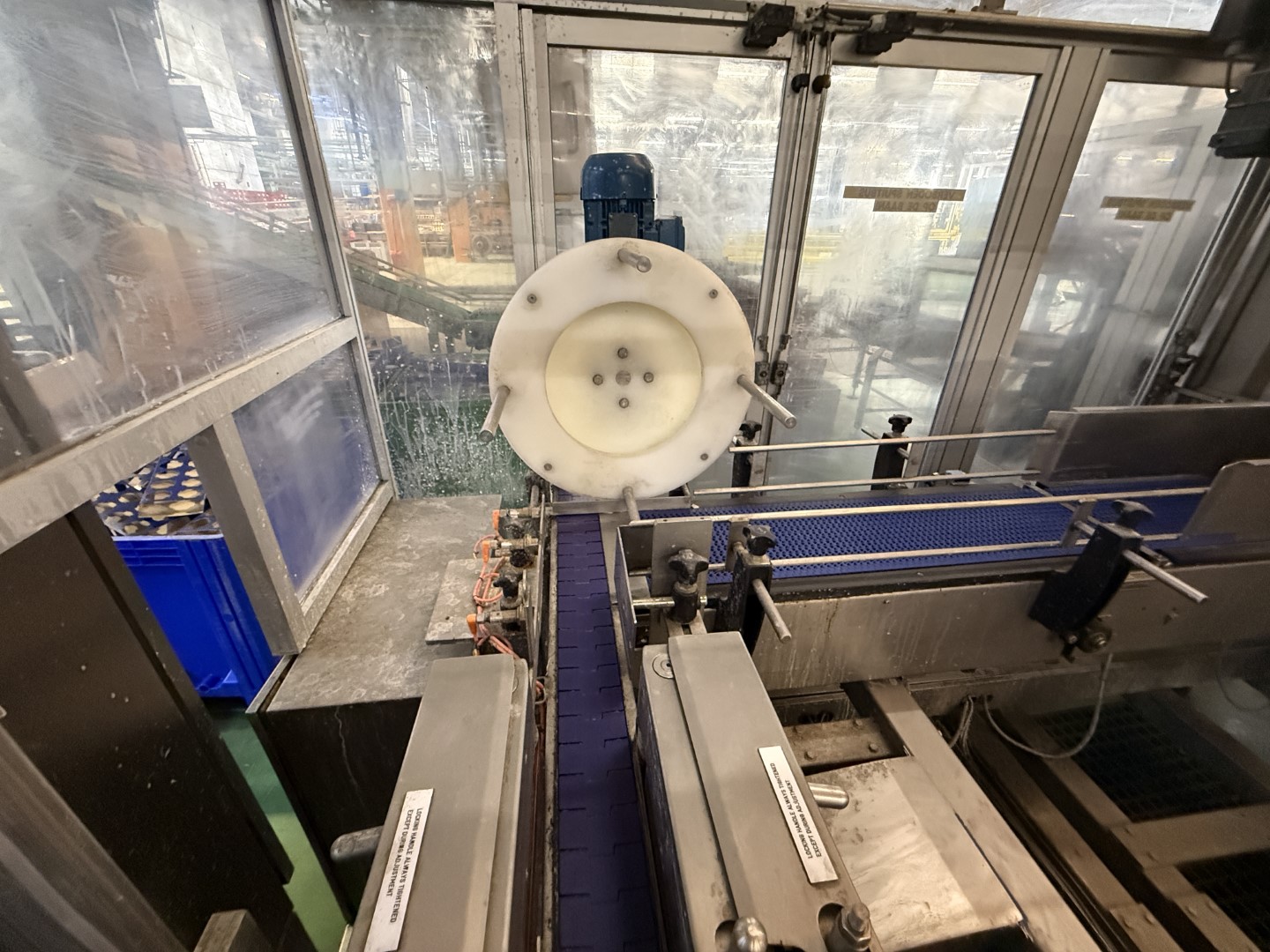

3. Air Cleaning Unit (Air Knife) for bottle cleaning using dry air prior to labelling

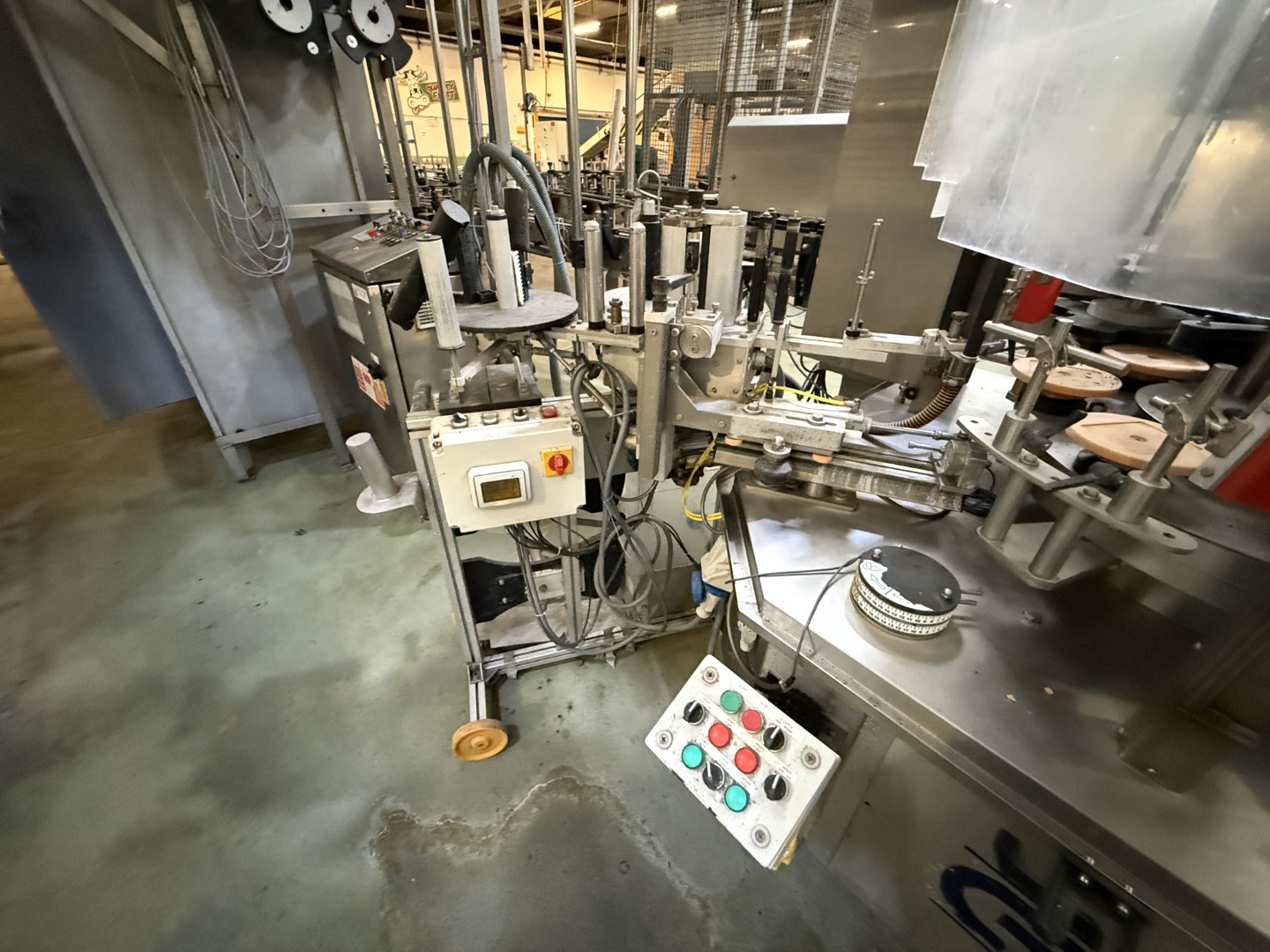

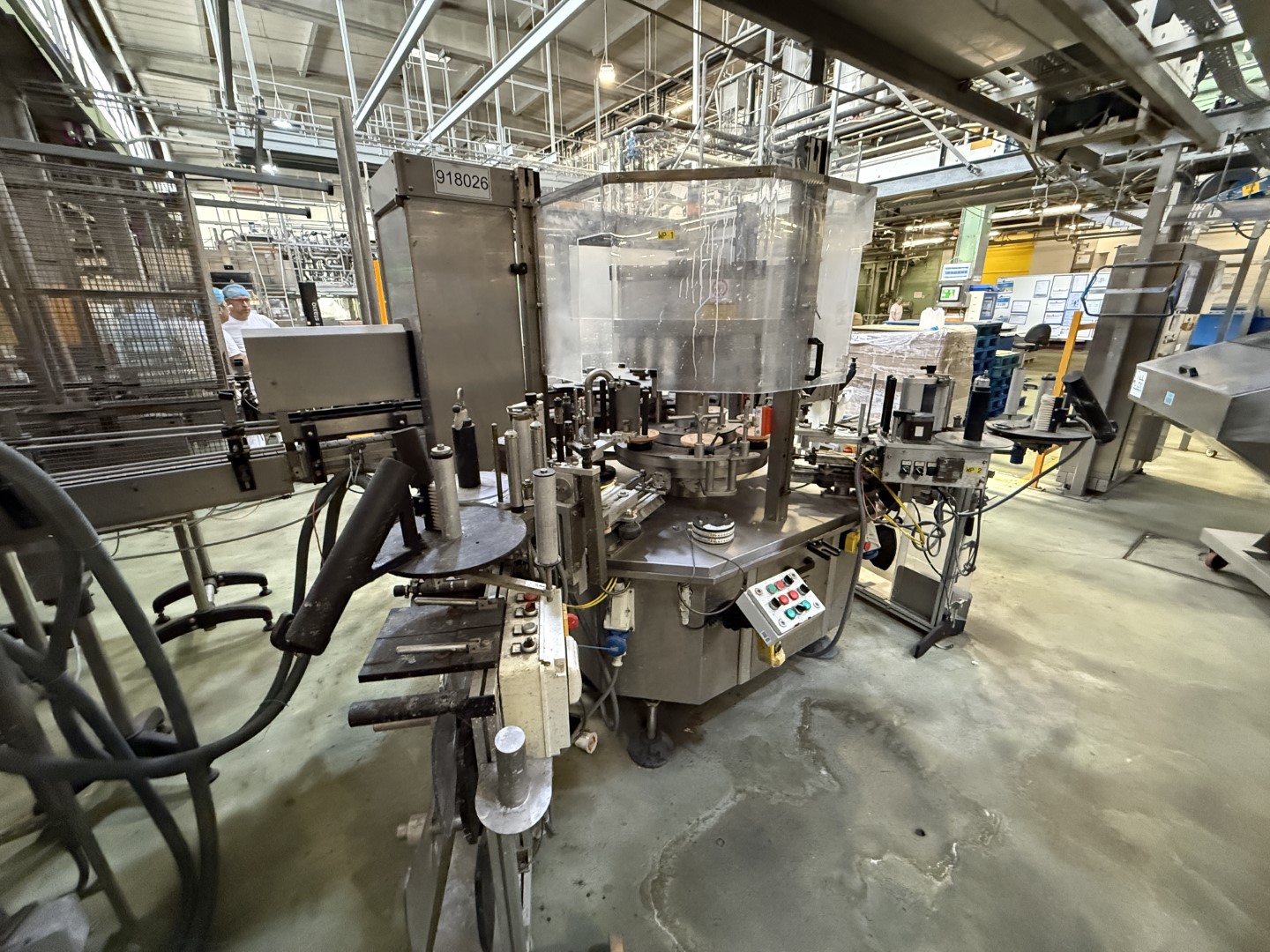

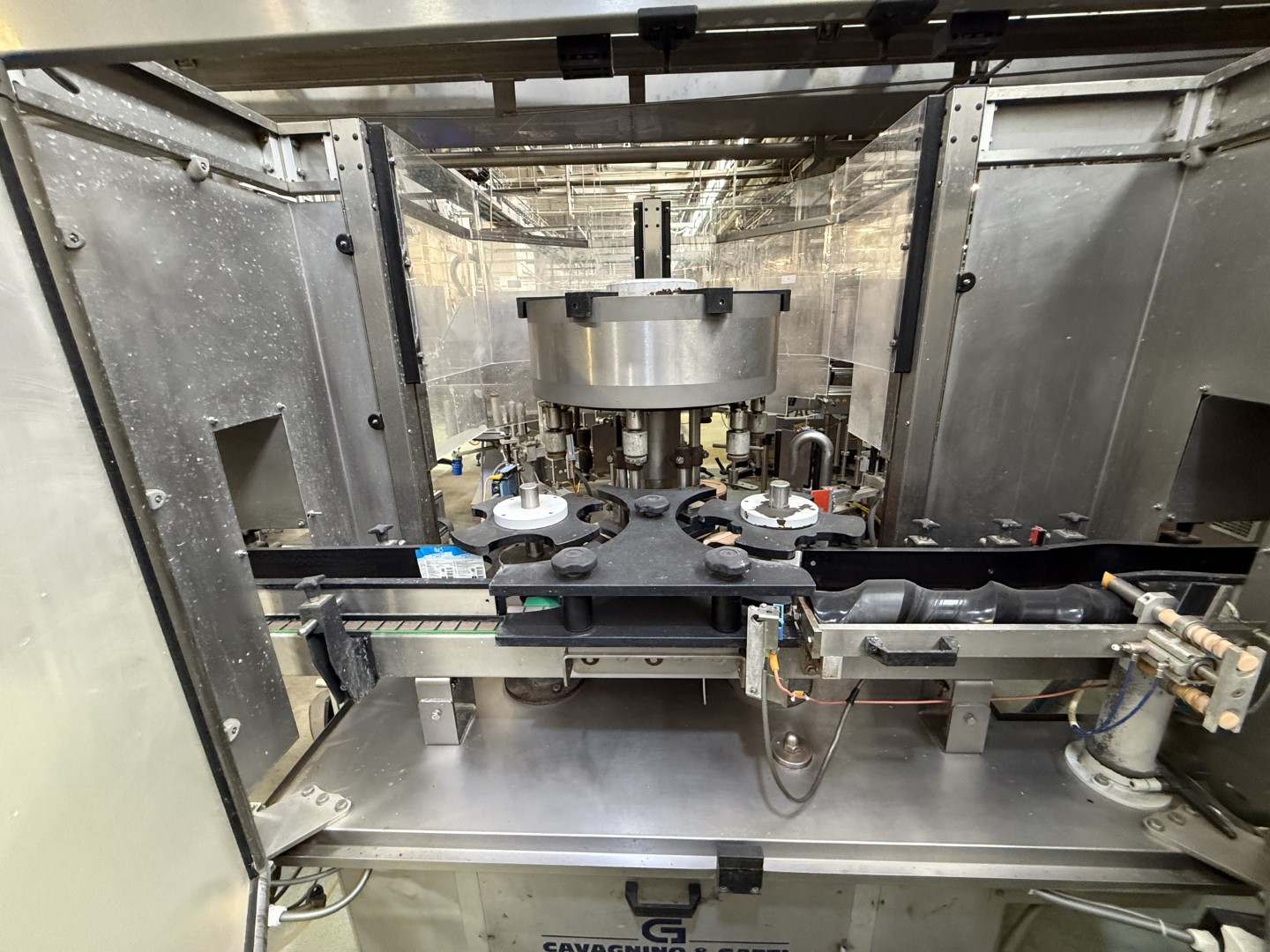

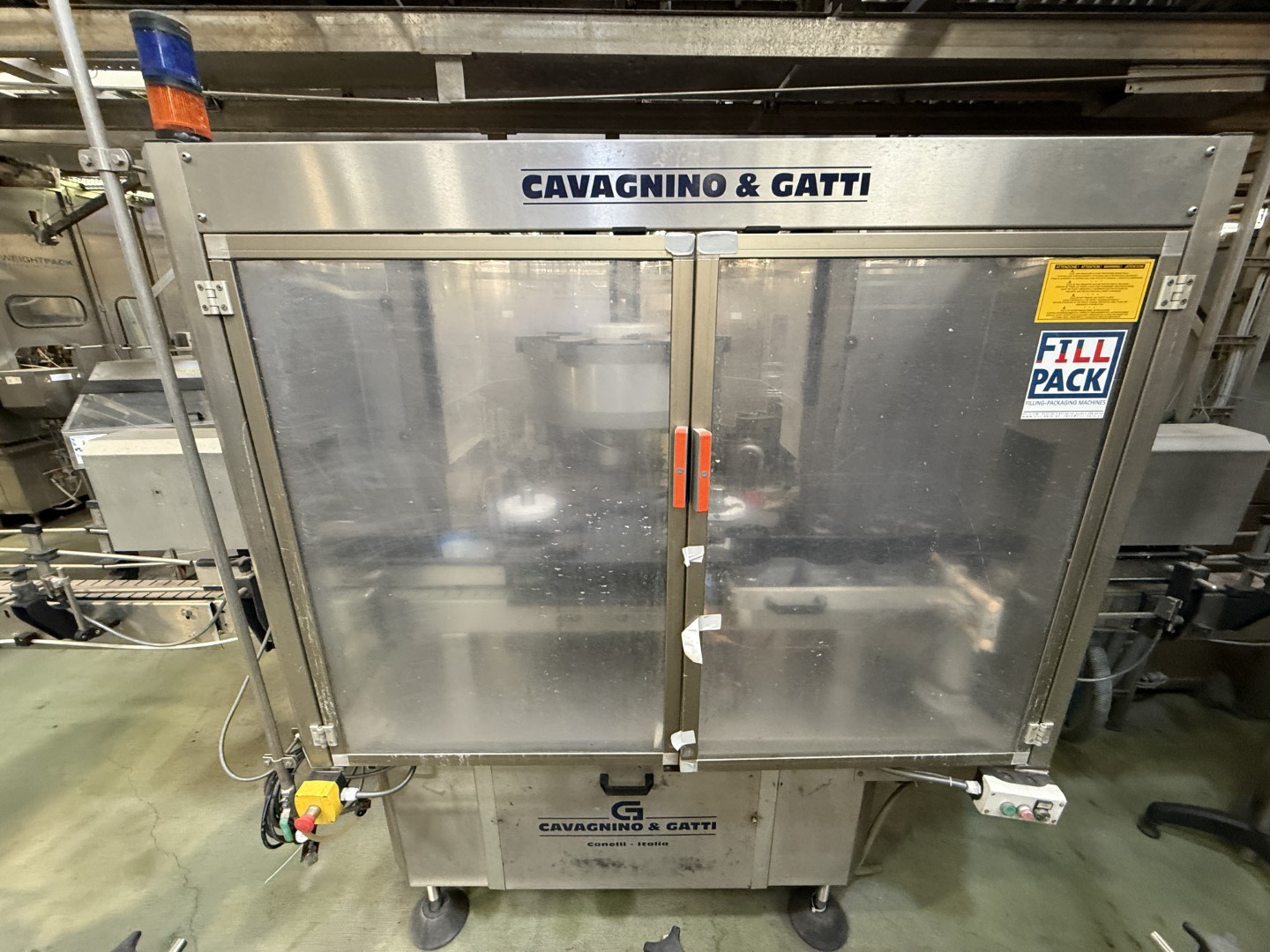

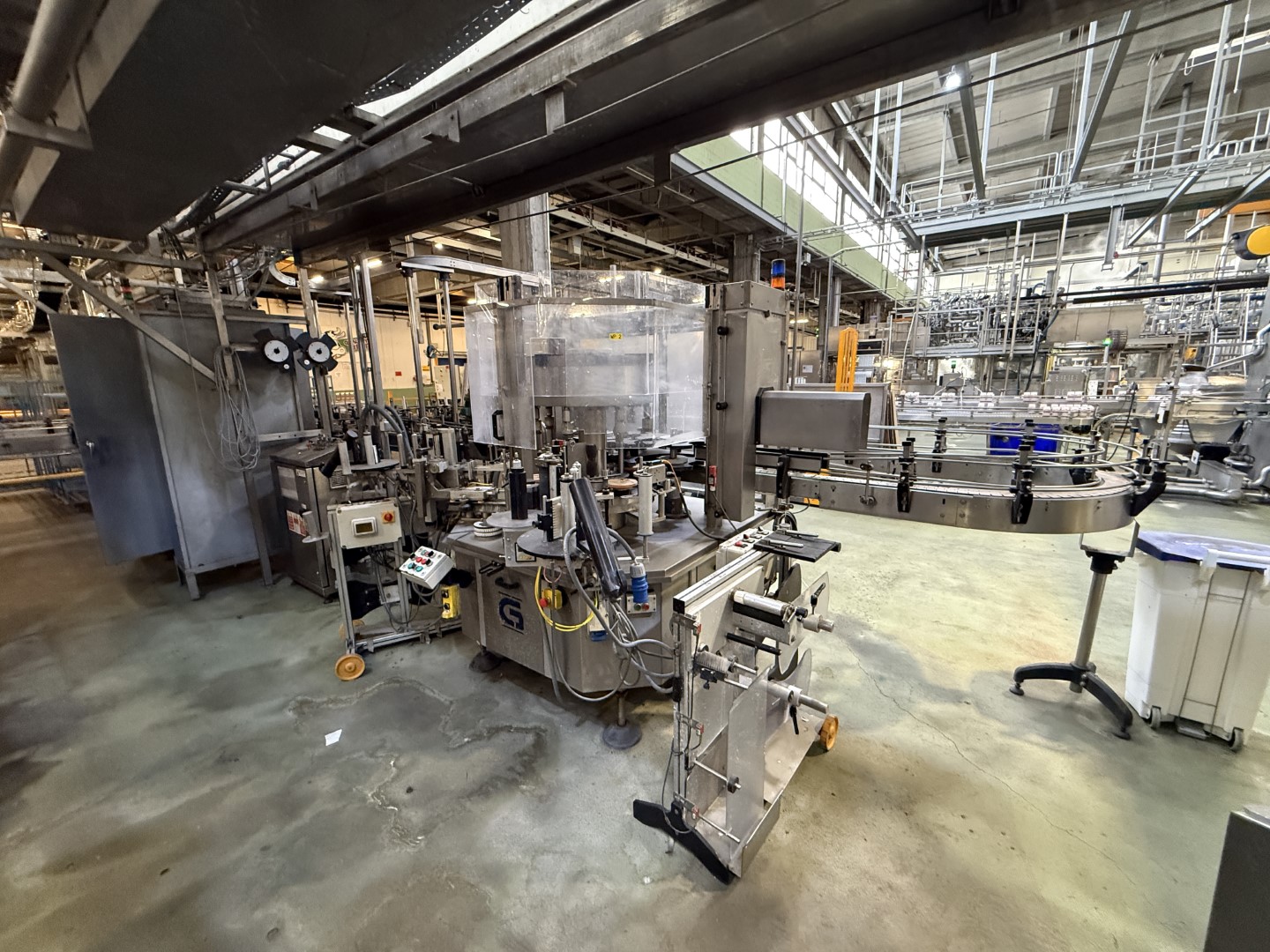

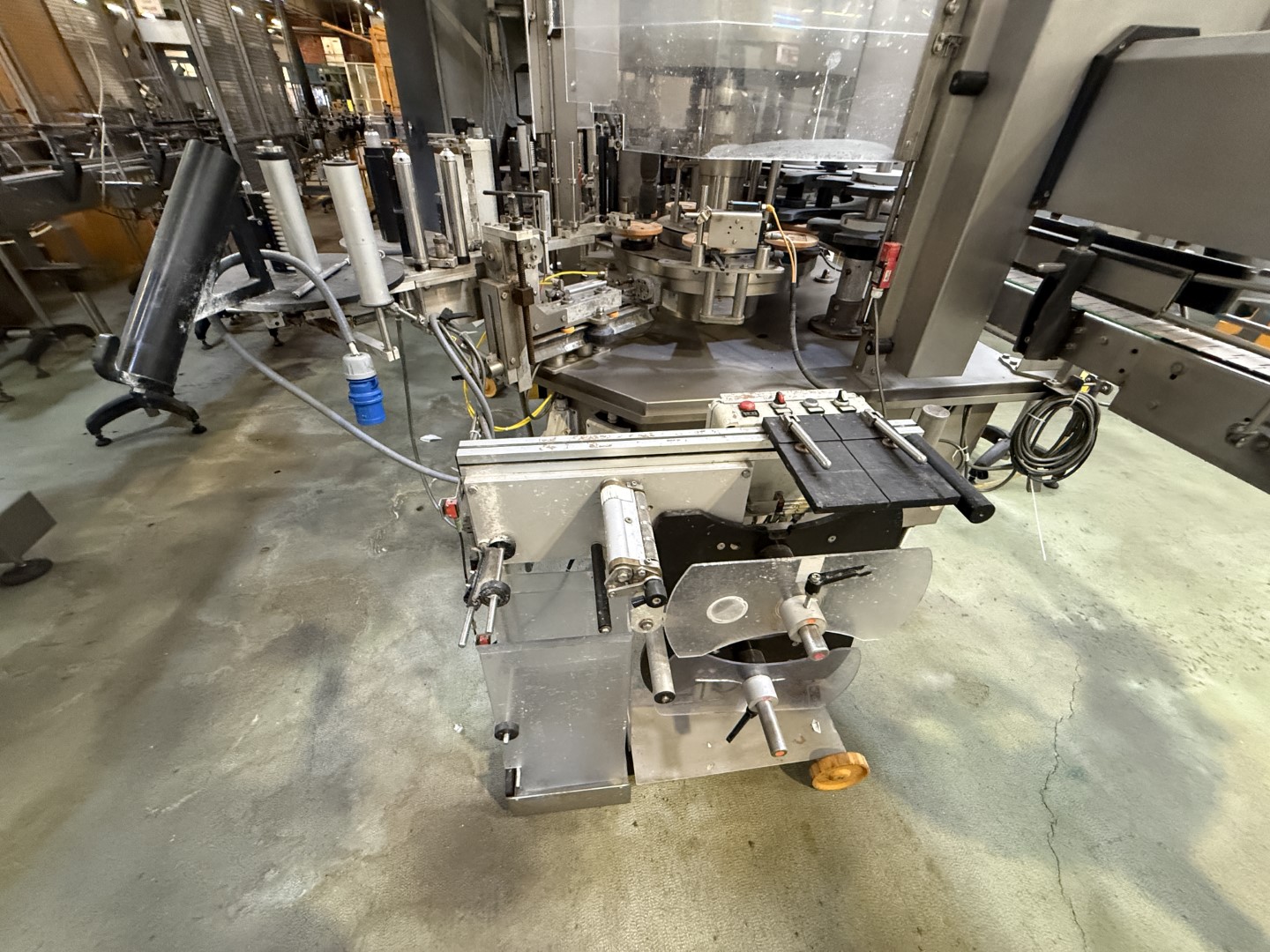

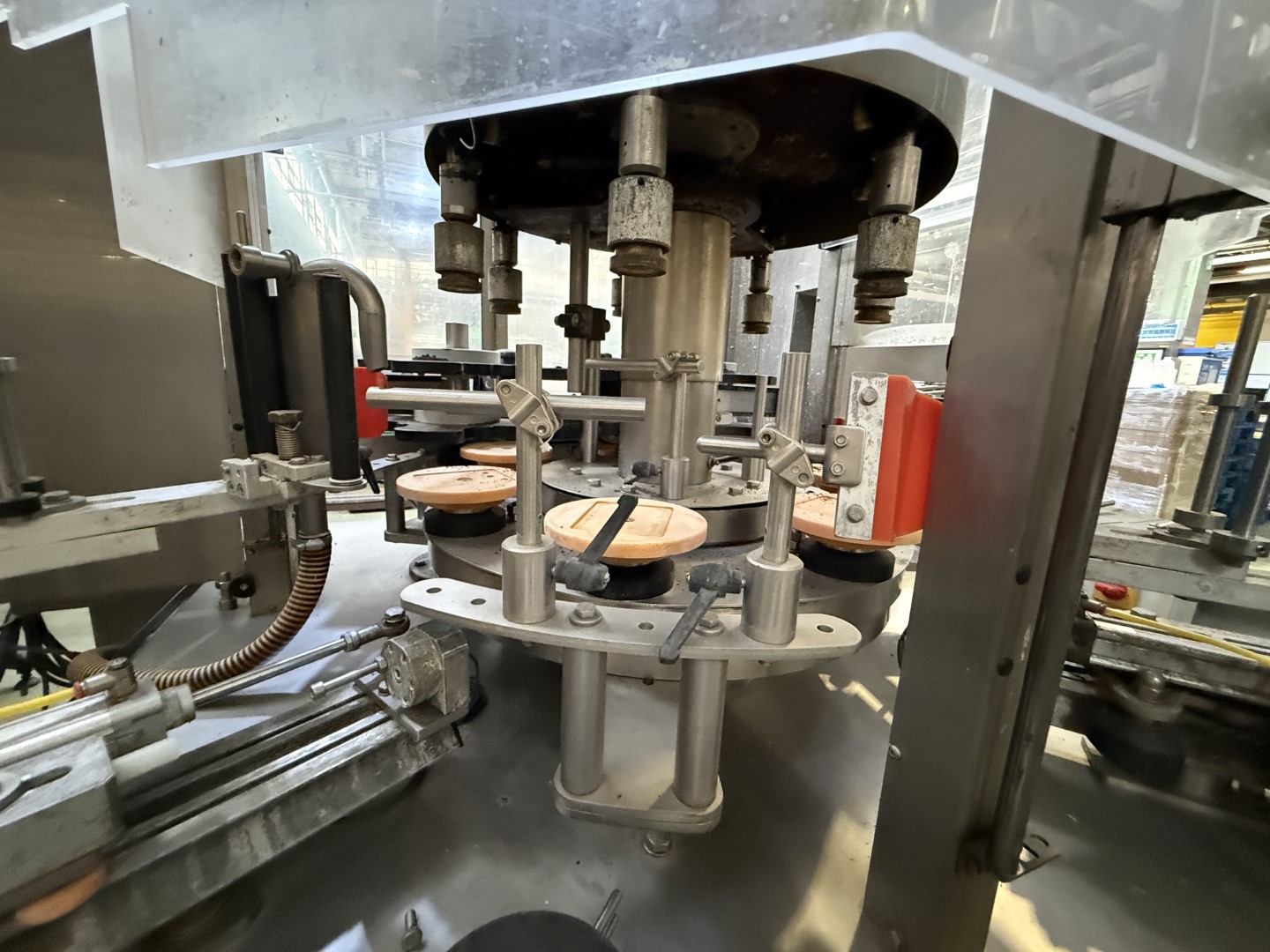

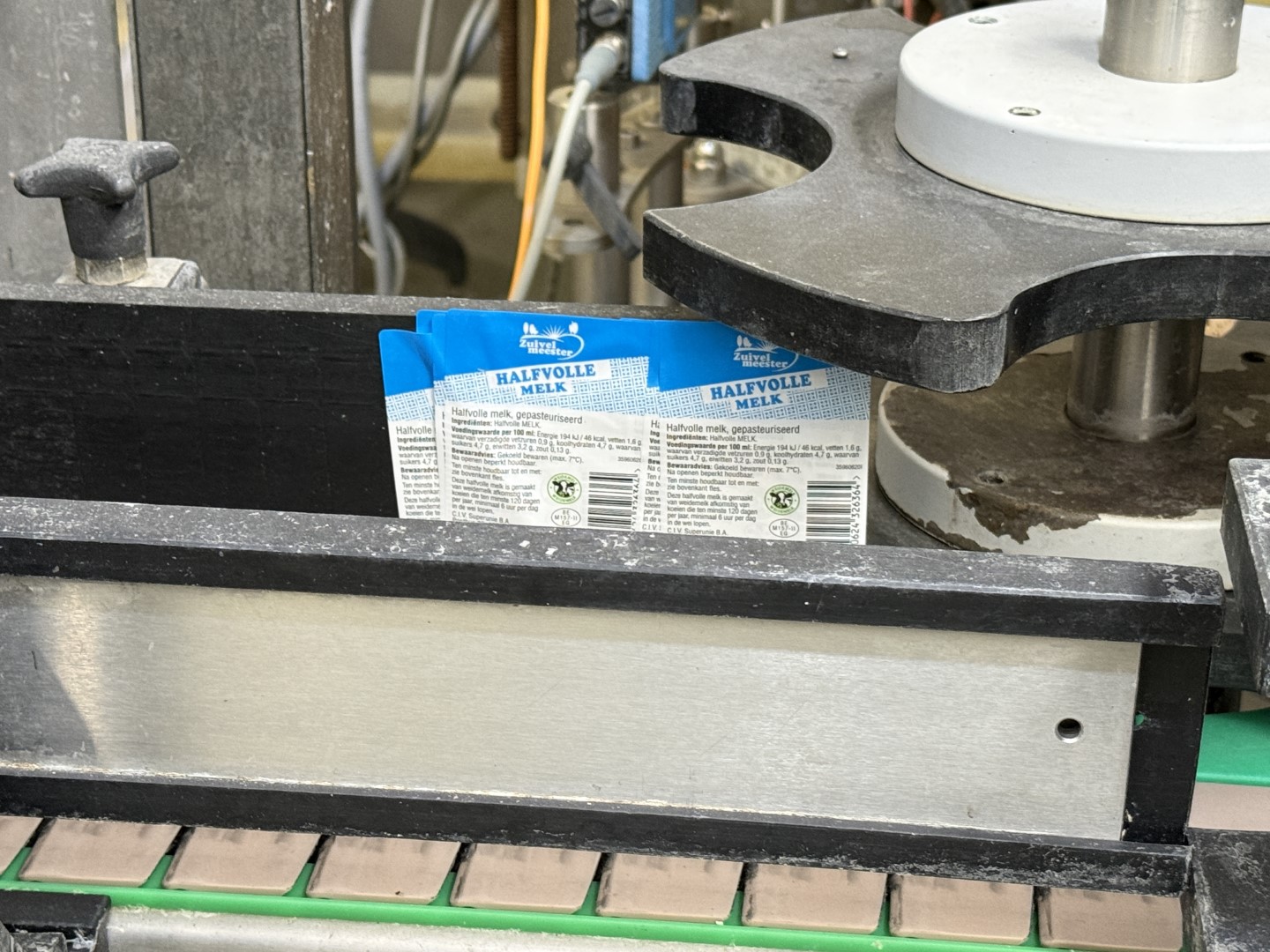

4. Labelling Machine (Cold Glue)

Manufacturer: Cavagnino & Gatti

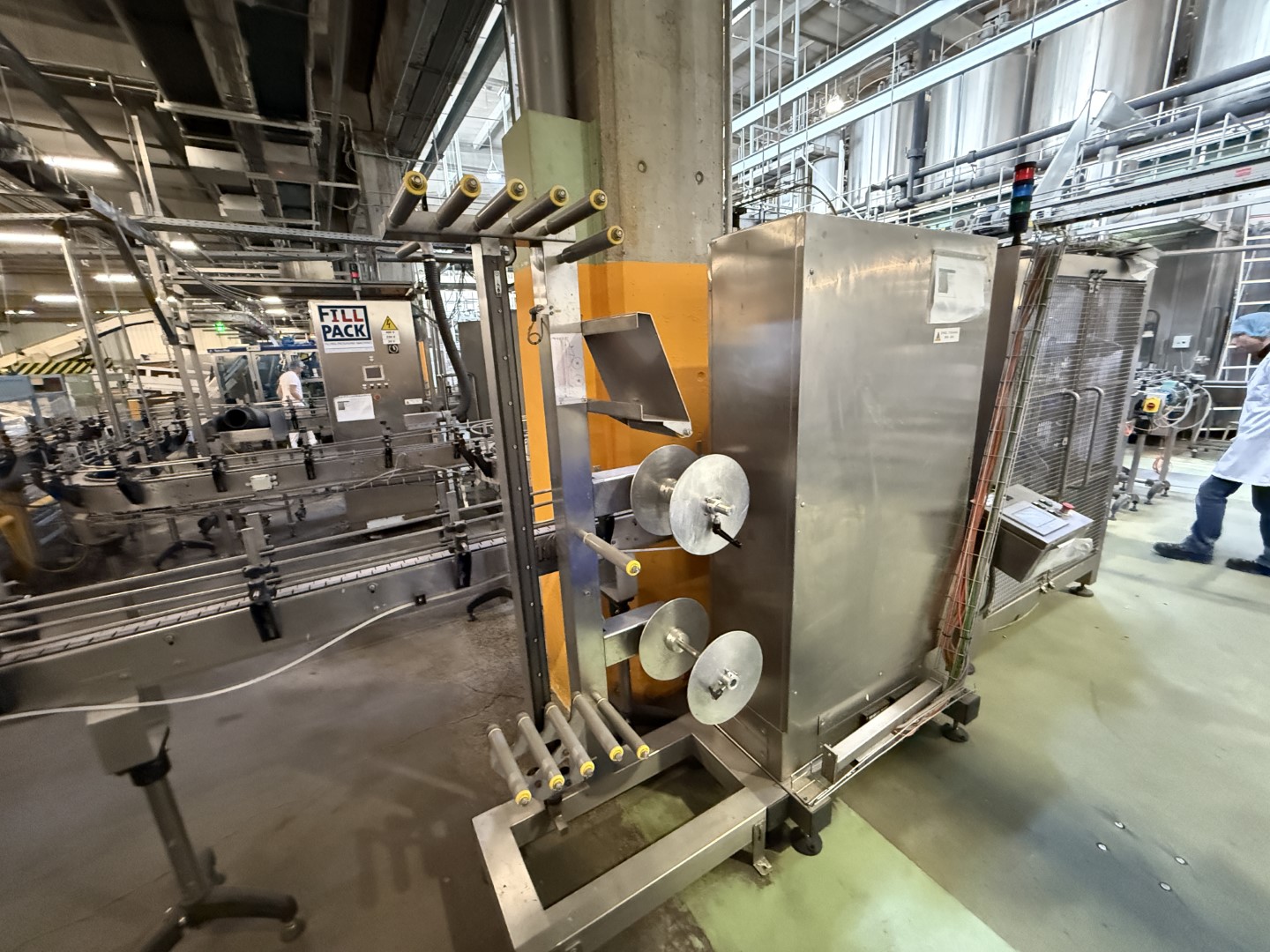

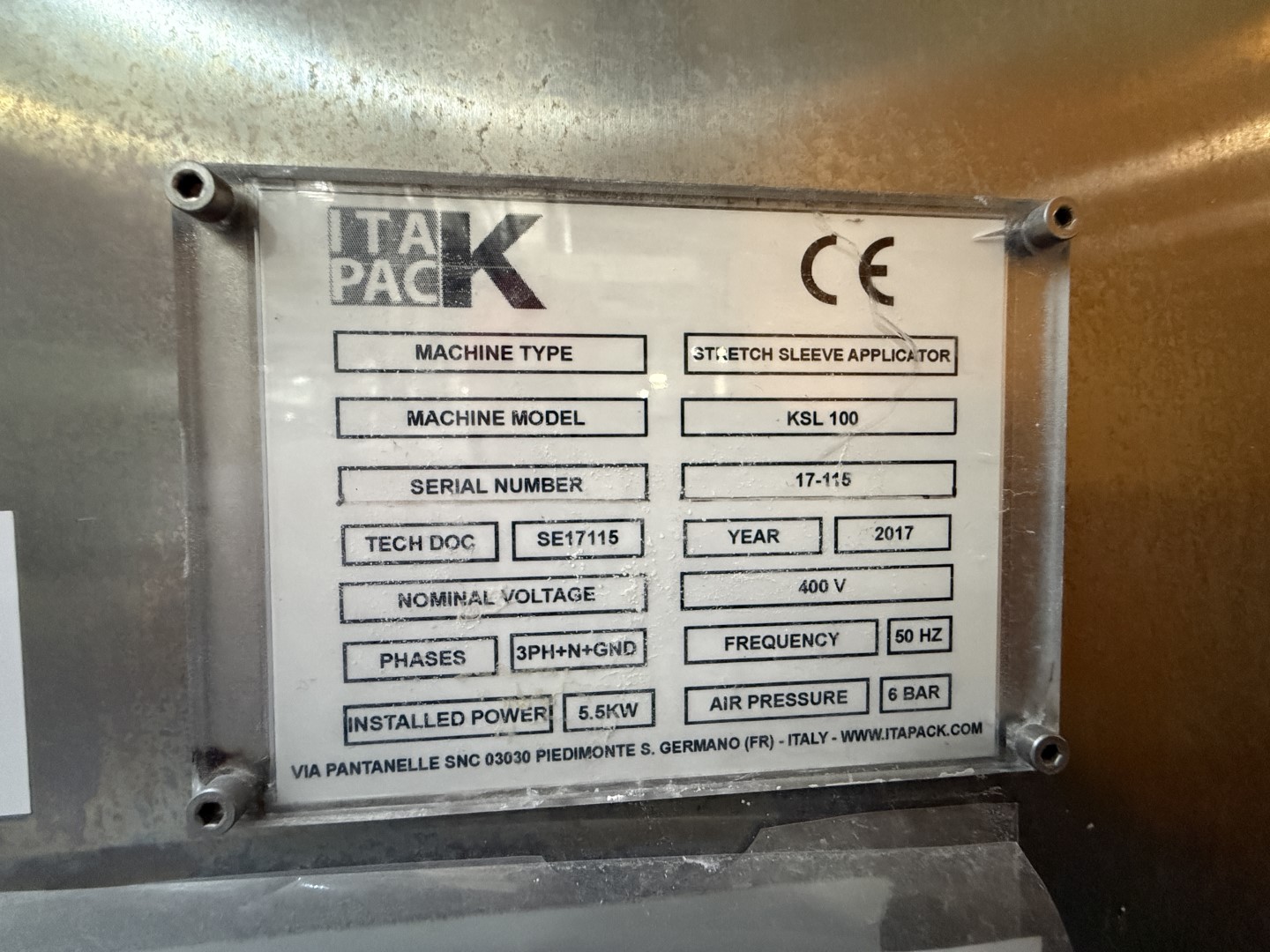

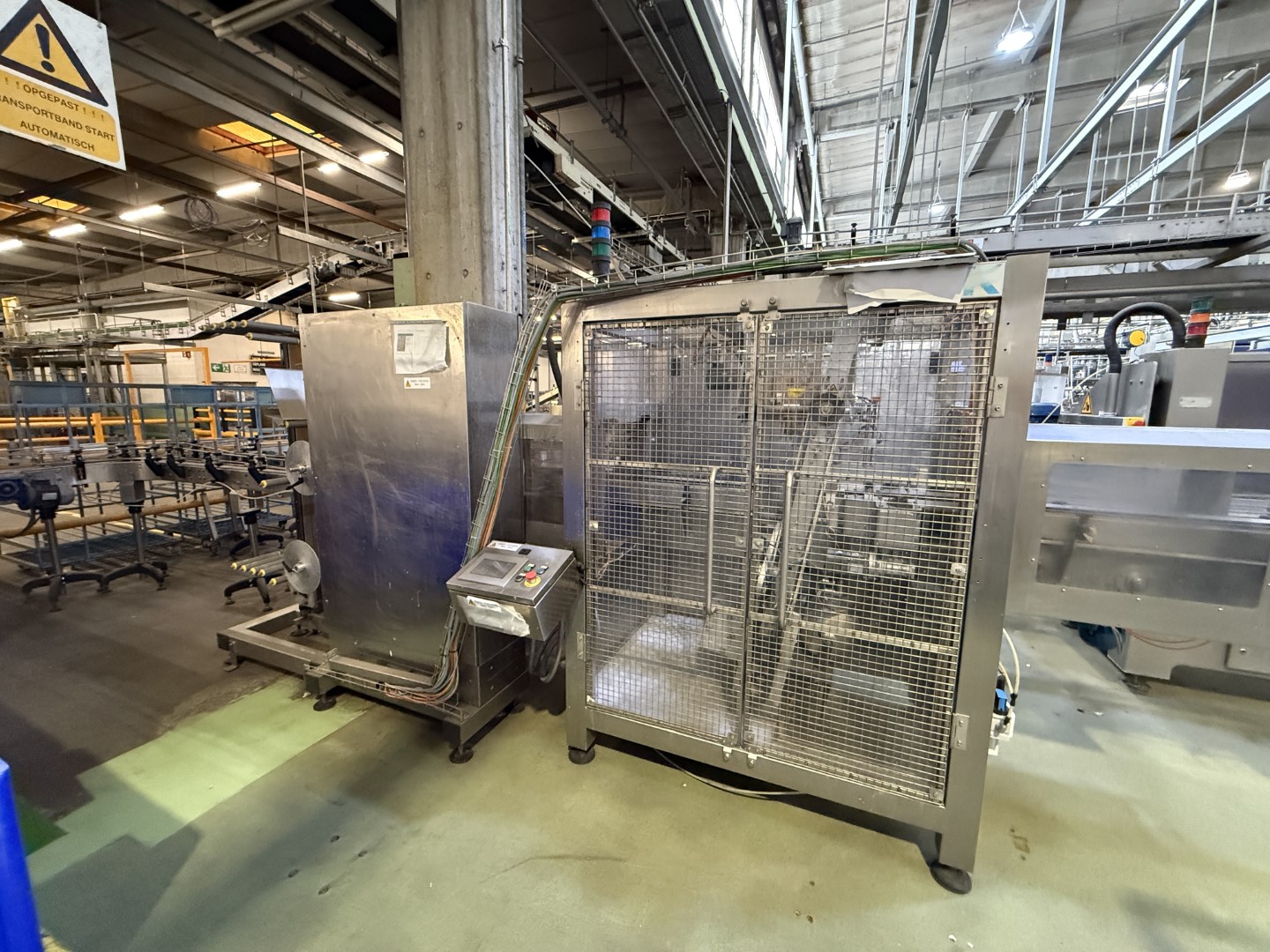

5. Stretch Sleeve Applicator suitable for application of stretchable sleeves

Manufacturer: Itapack

Type: KSL 100

Serial Number: 17-115

Year: 2017

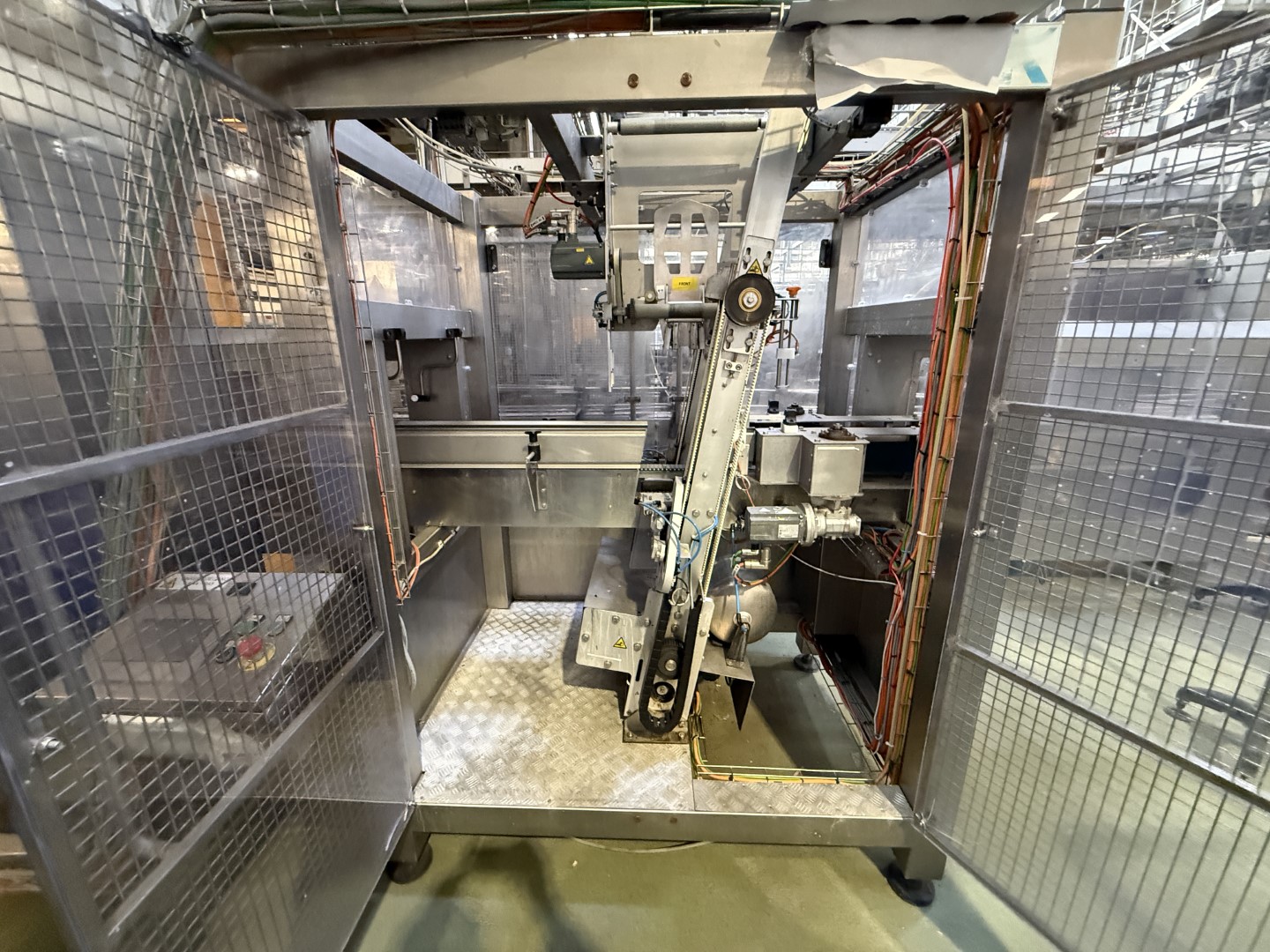

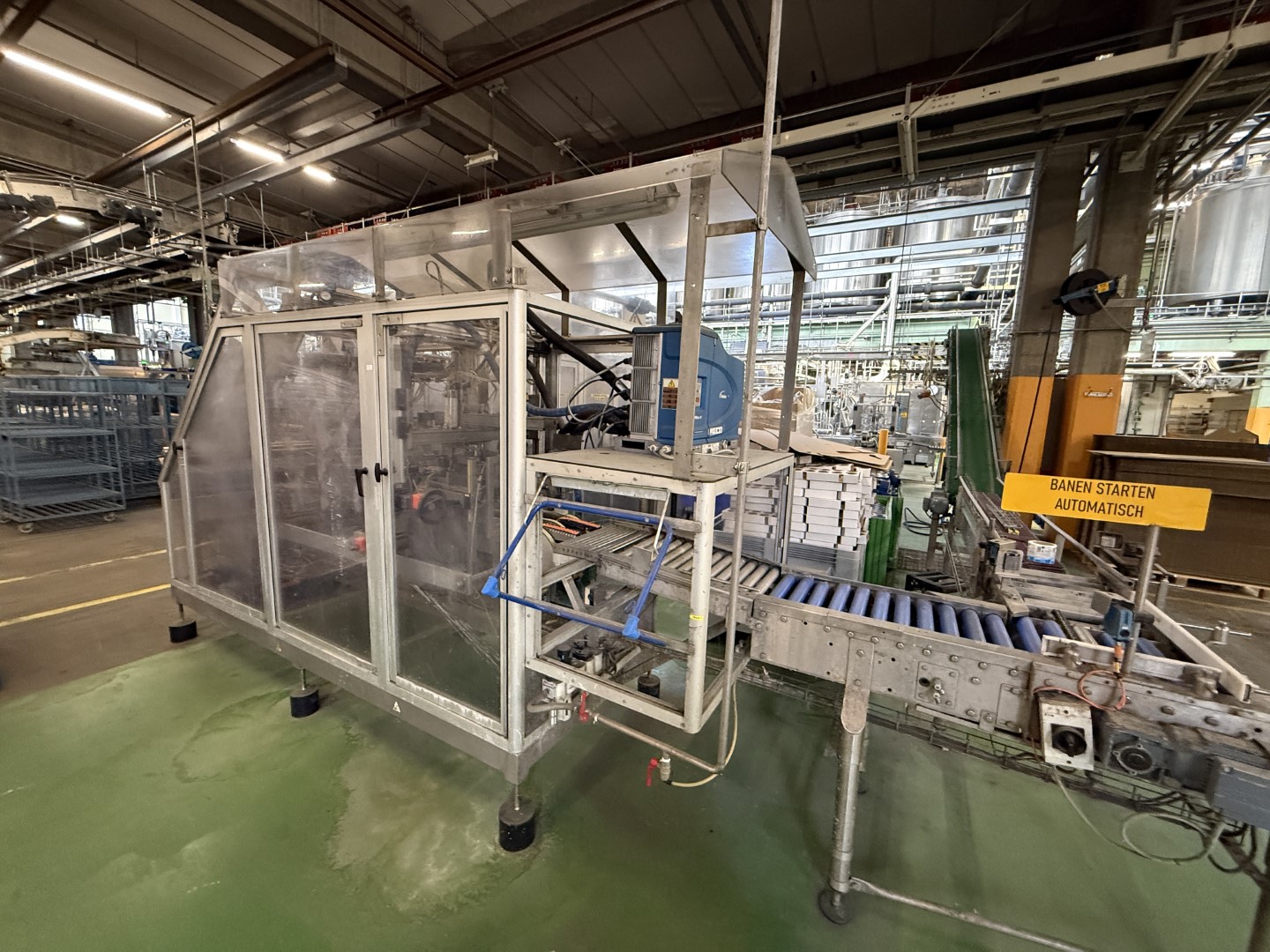

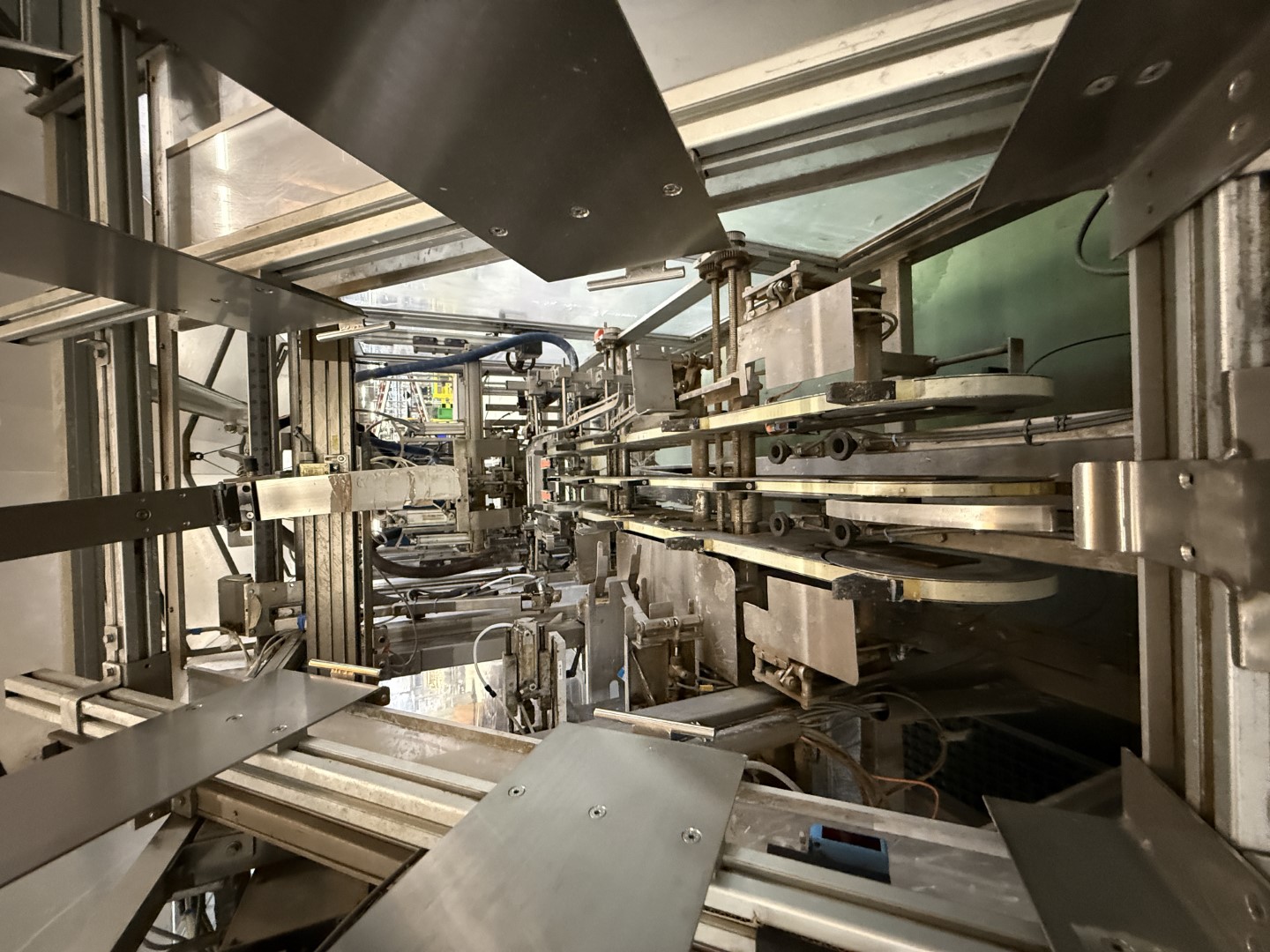

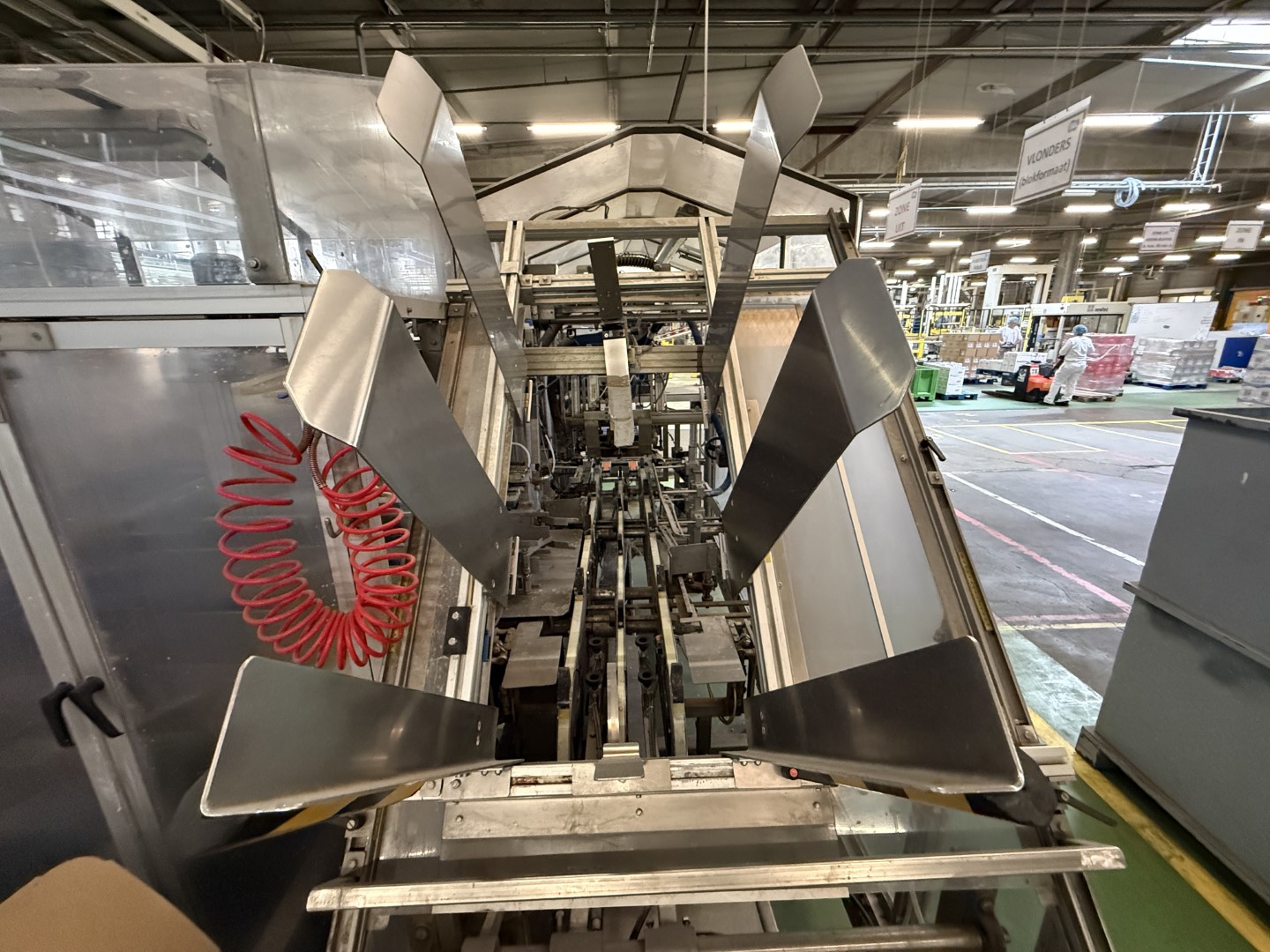

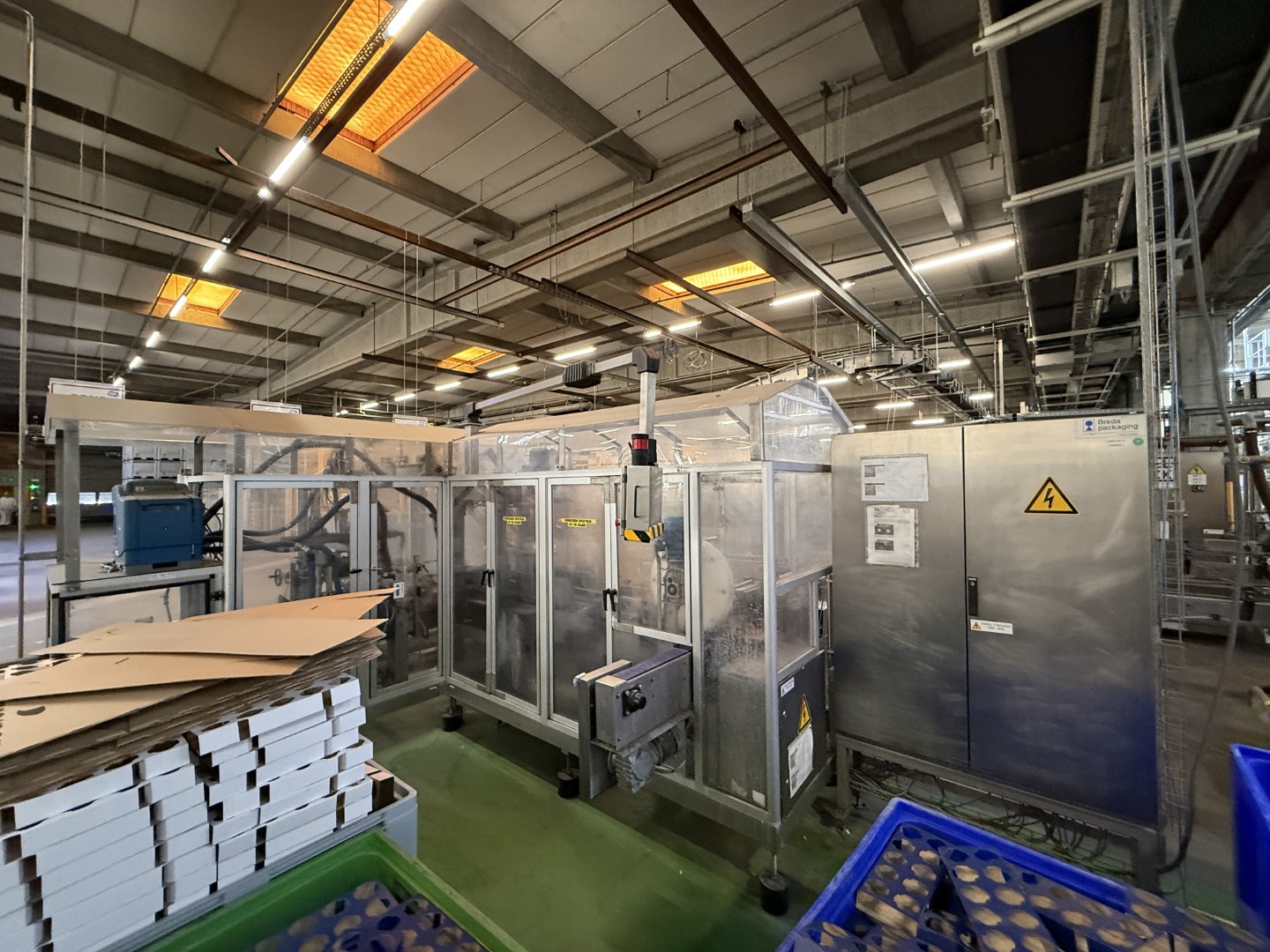

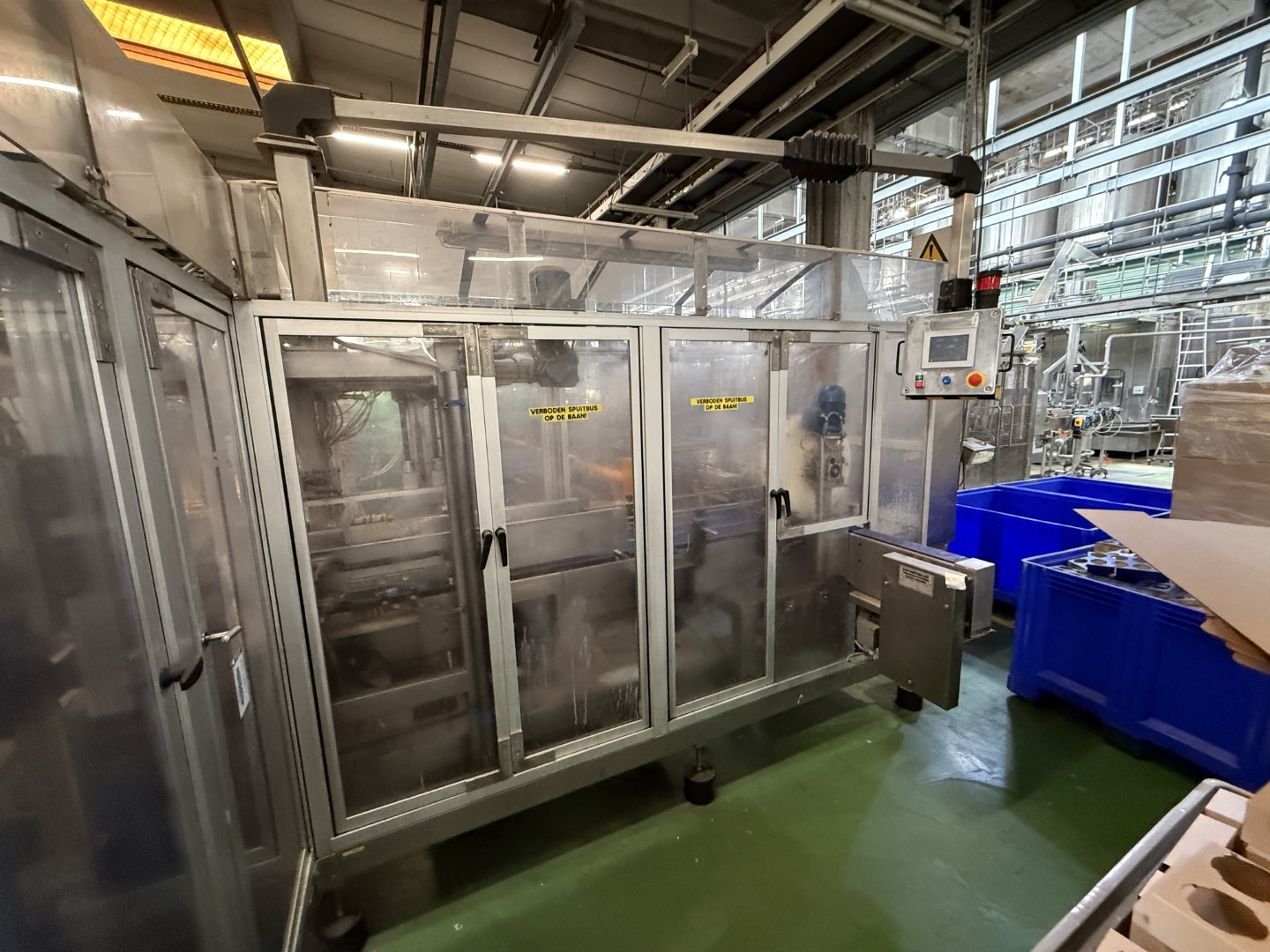

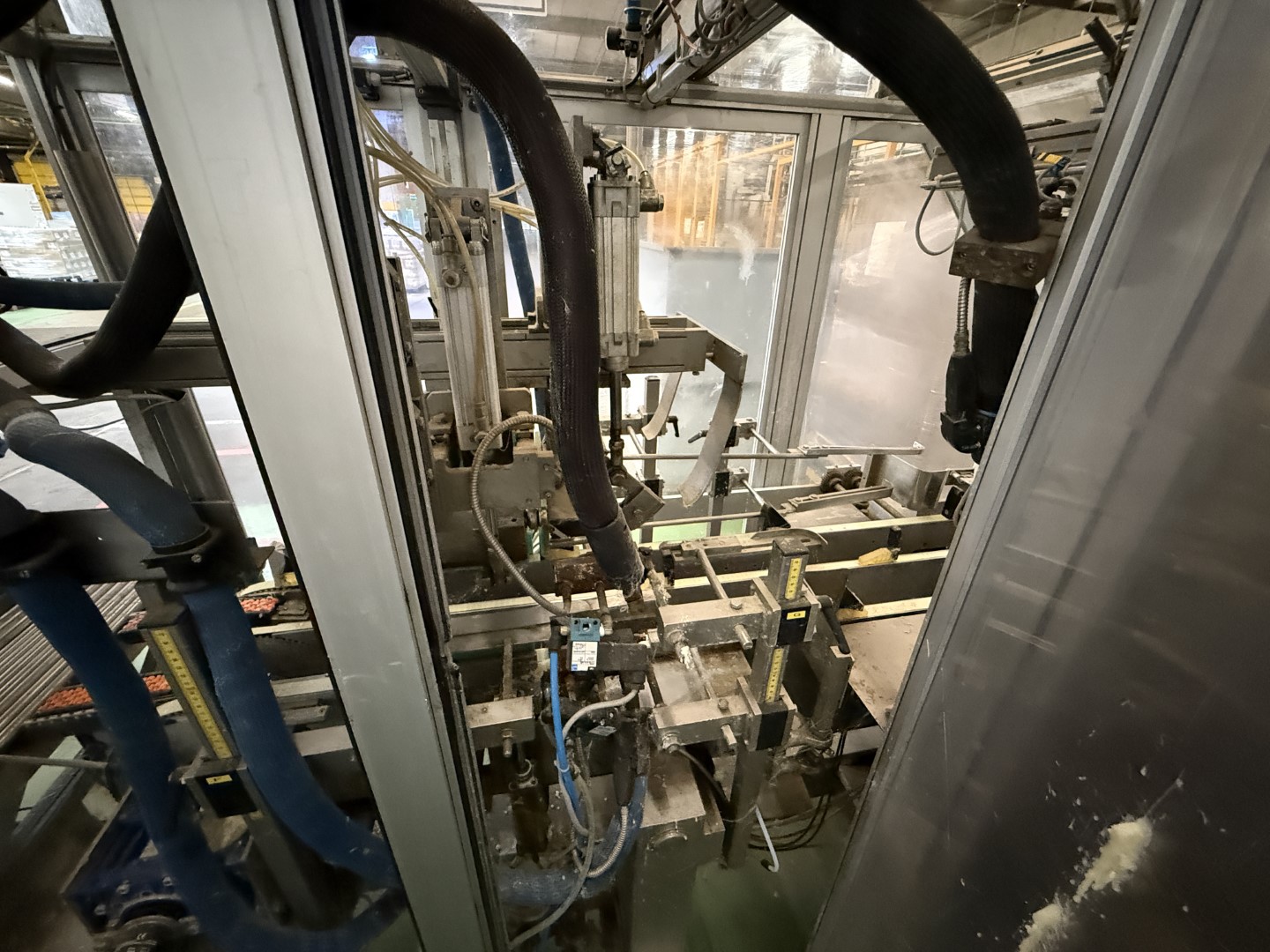

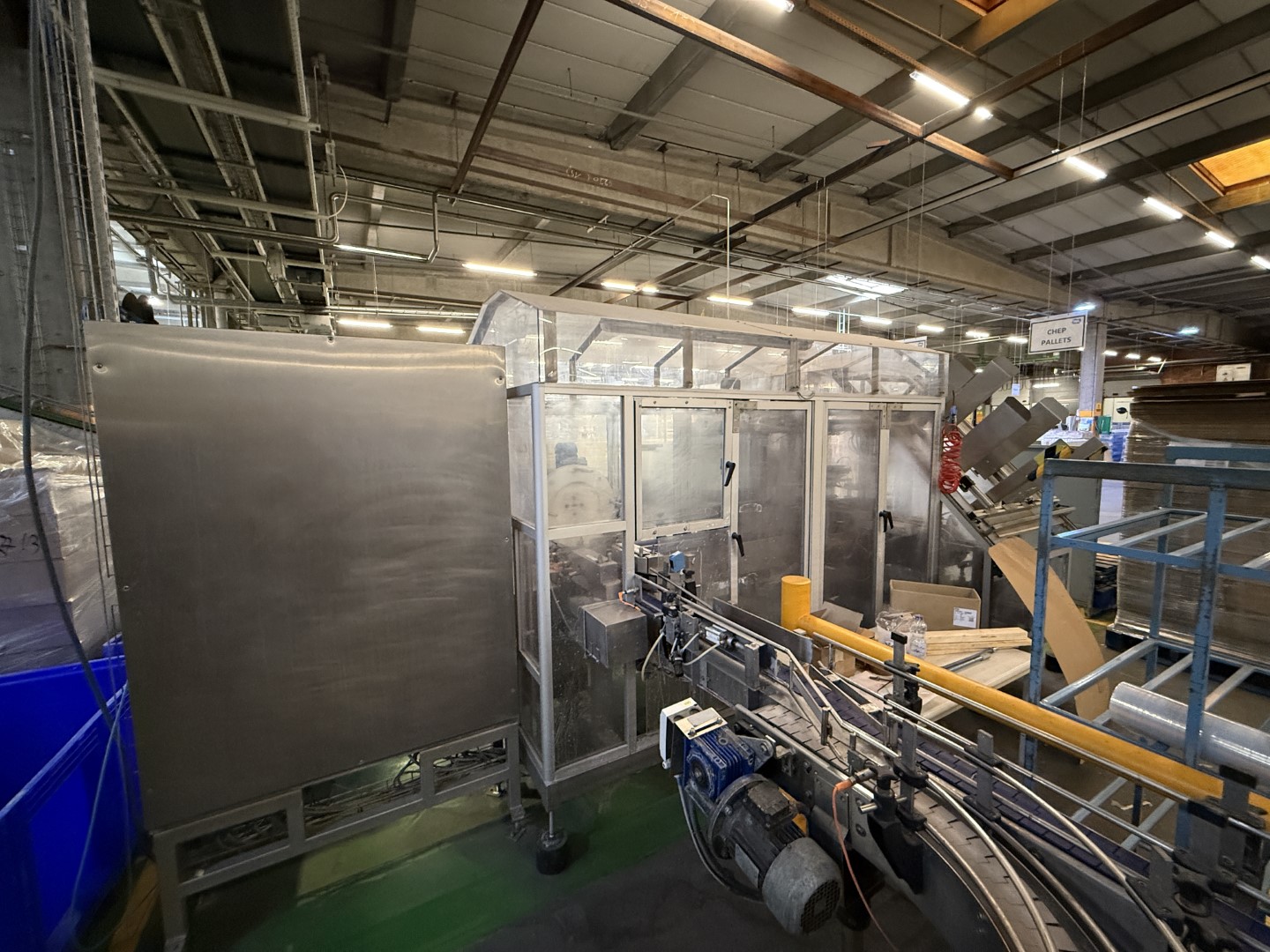

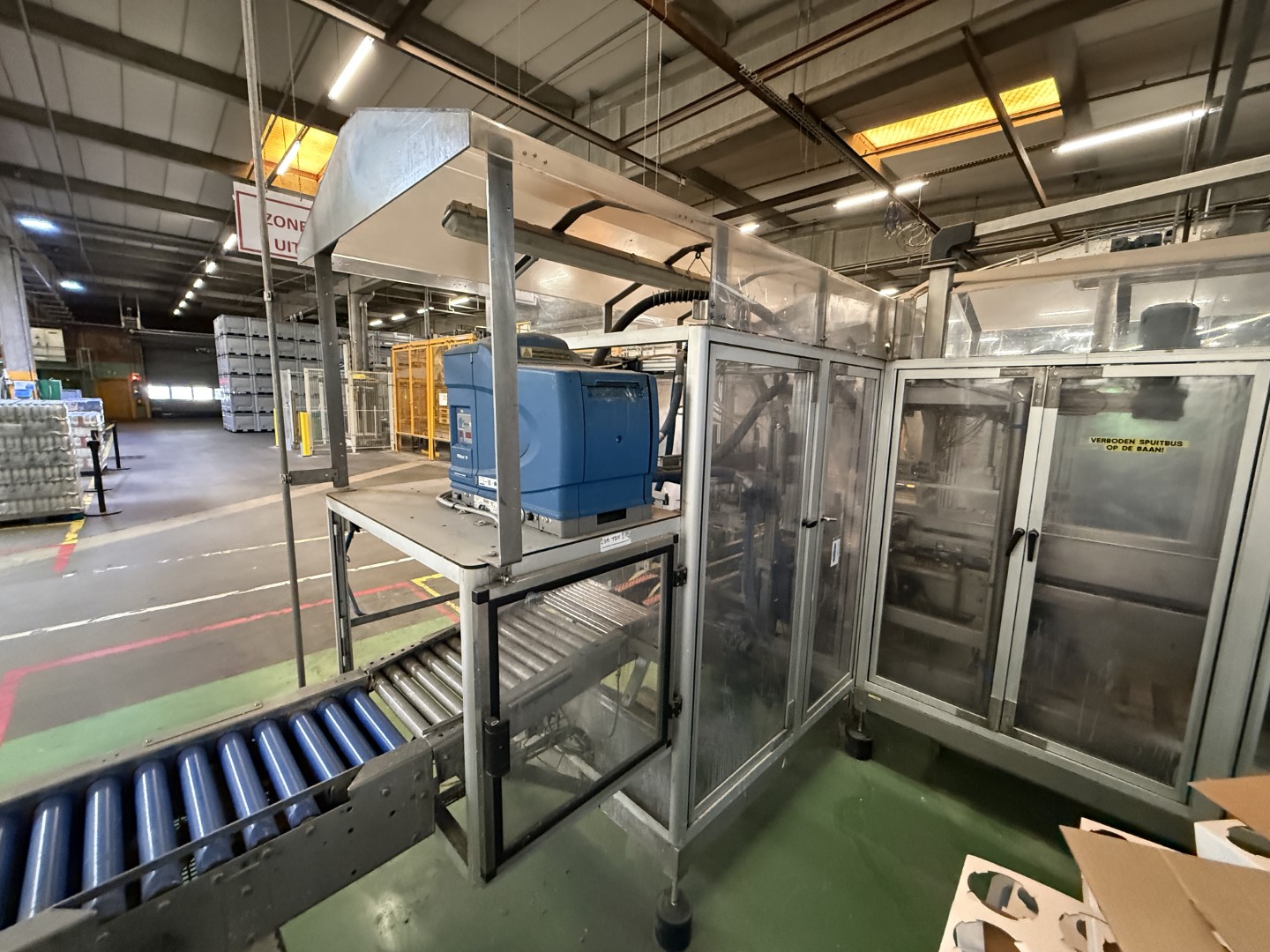

6. Carton Packing Machine with a configuration: 2 x 3 containers per carton (6 units / approx. 12 kg per box). Equipped with Siemens S7-300 PLC control system and Nordson ProBlue hotmelt unit.

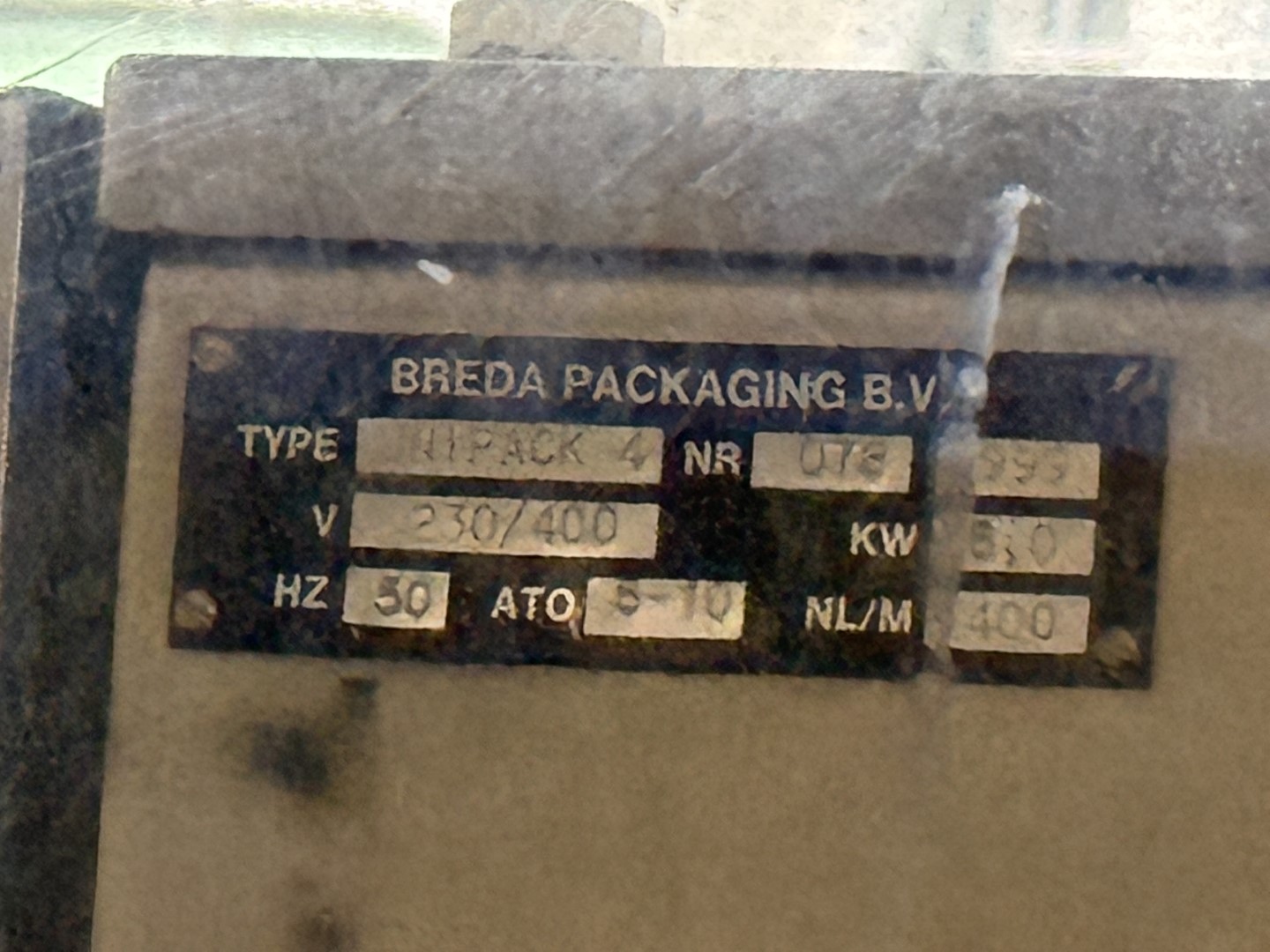

Manufacturer: Breda

Type: Unipack 4 “W”

Serial Number: 078

Year: 1999

Note: This unit currently limits the overall line capacity to a maximum of approximately 3.500 containers per hour !

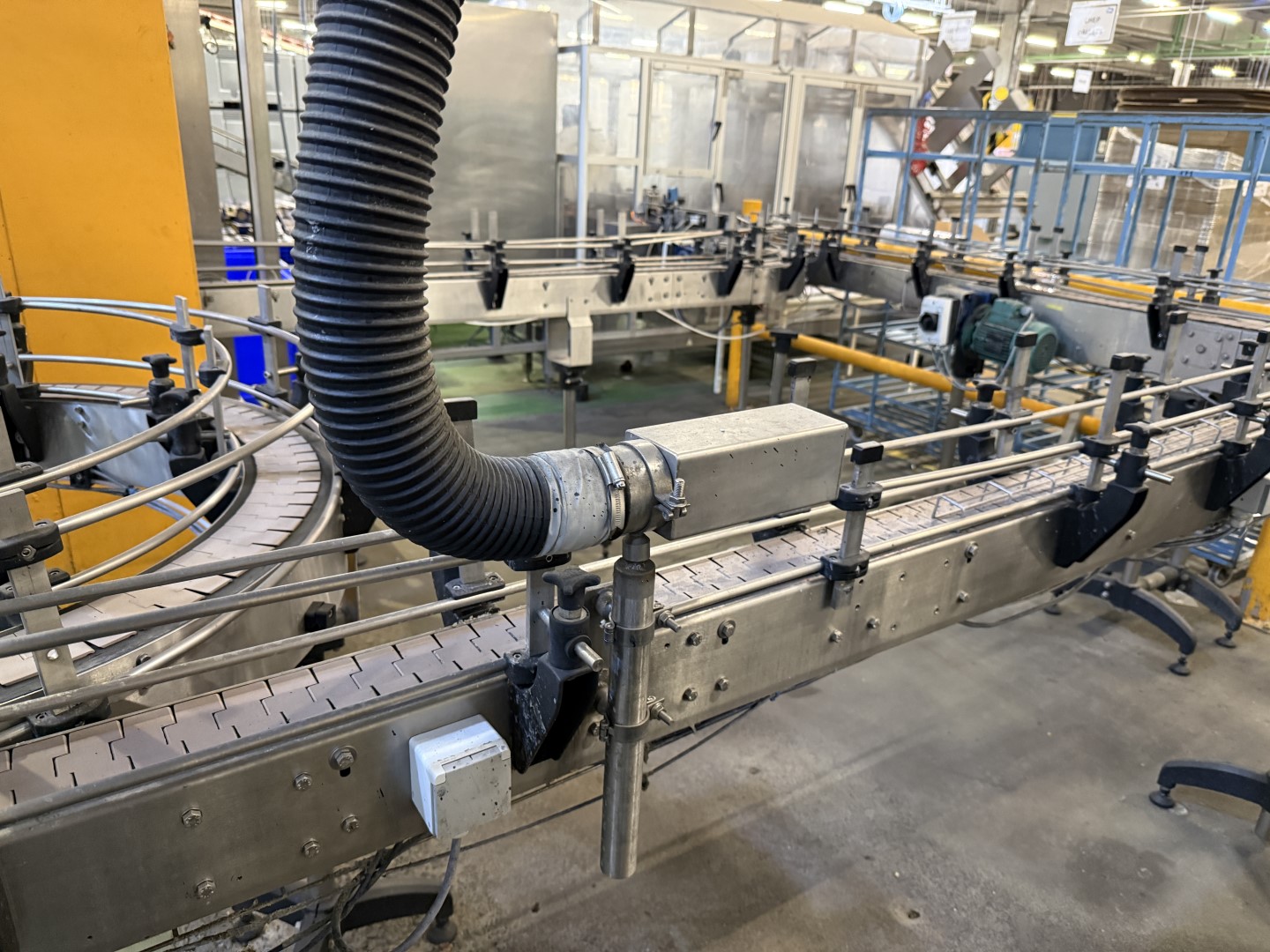

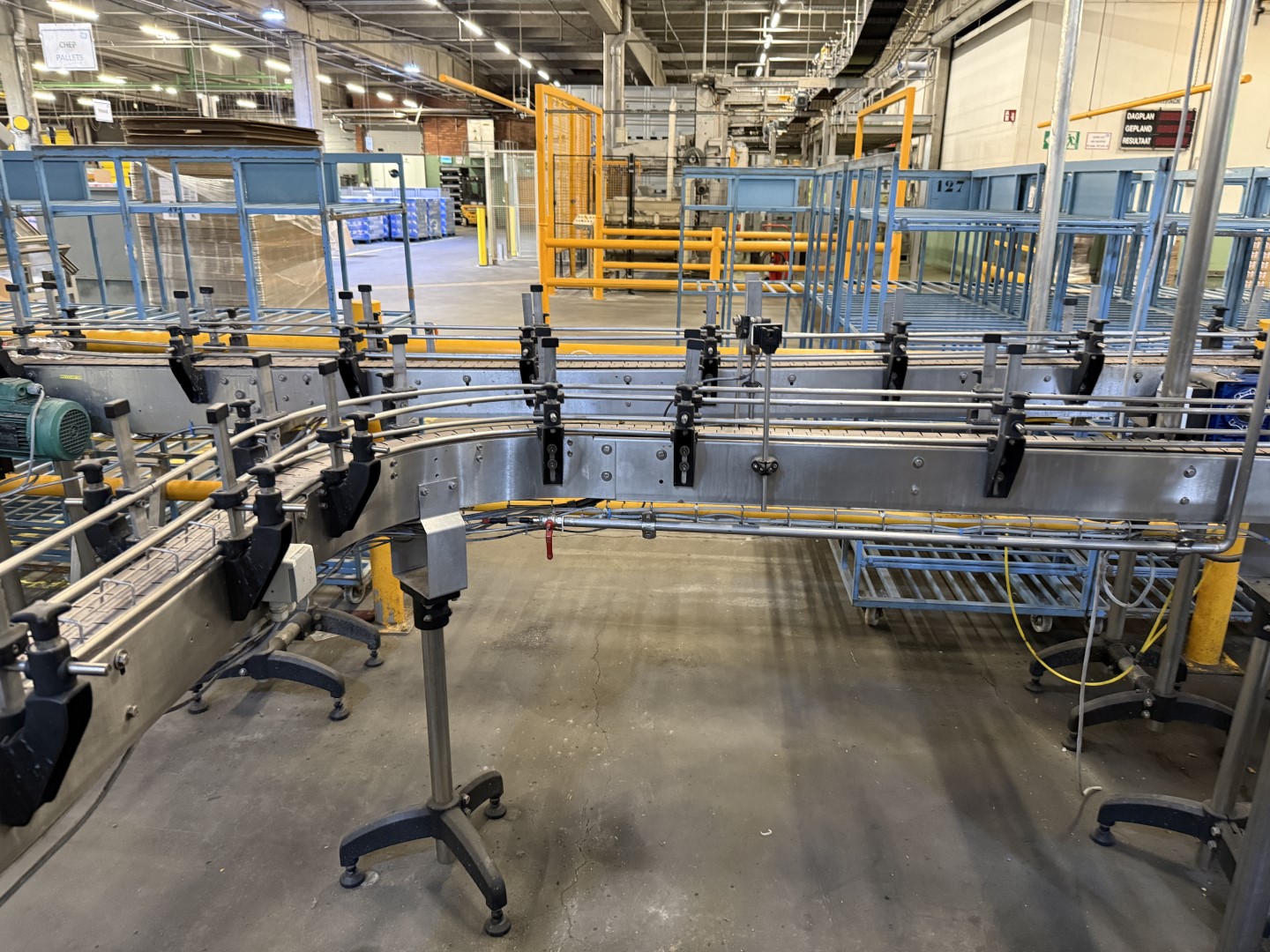

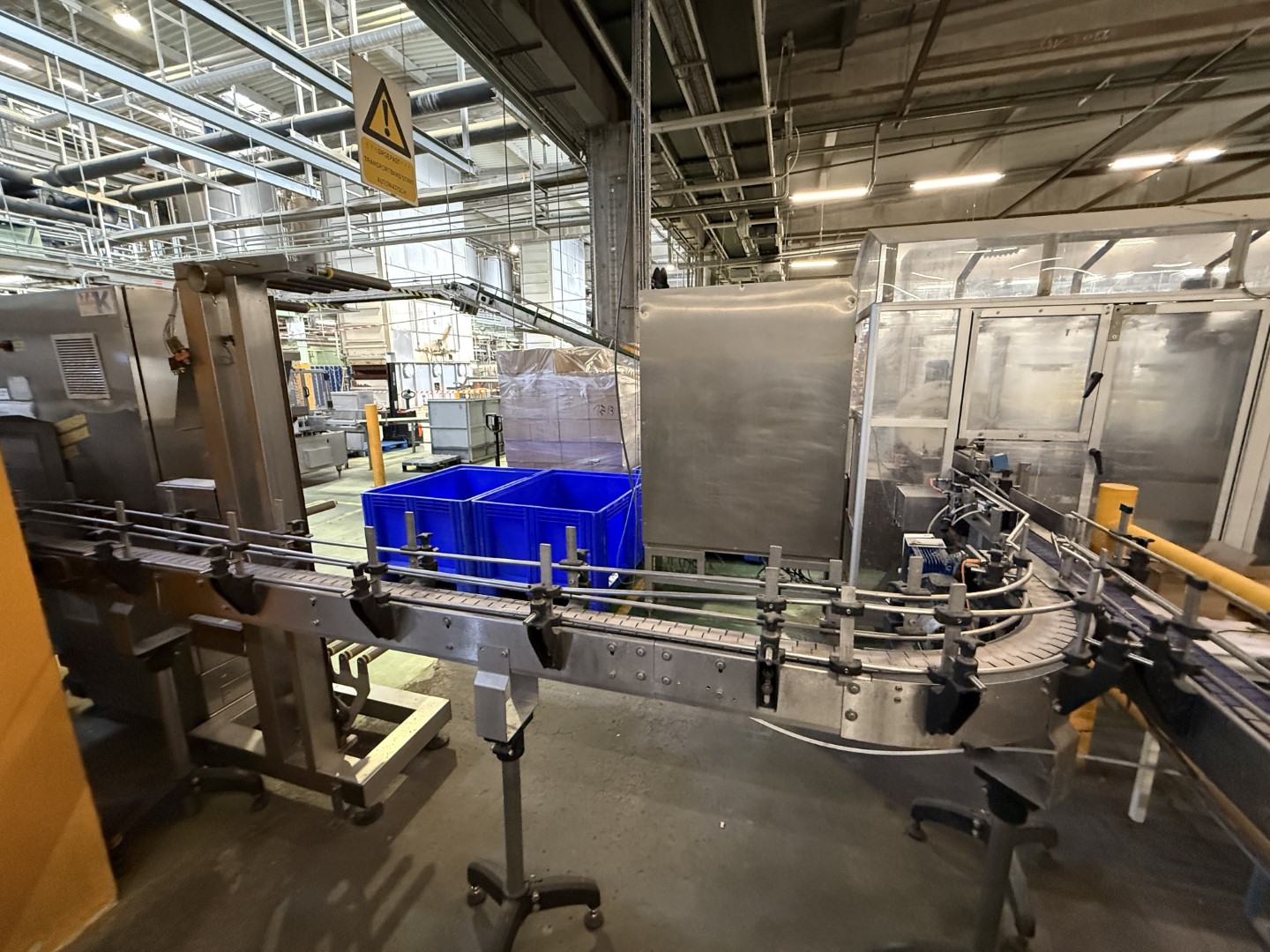

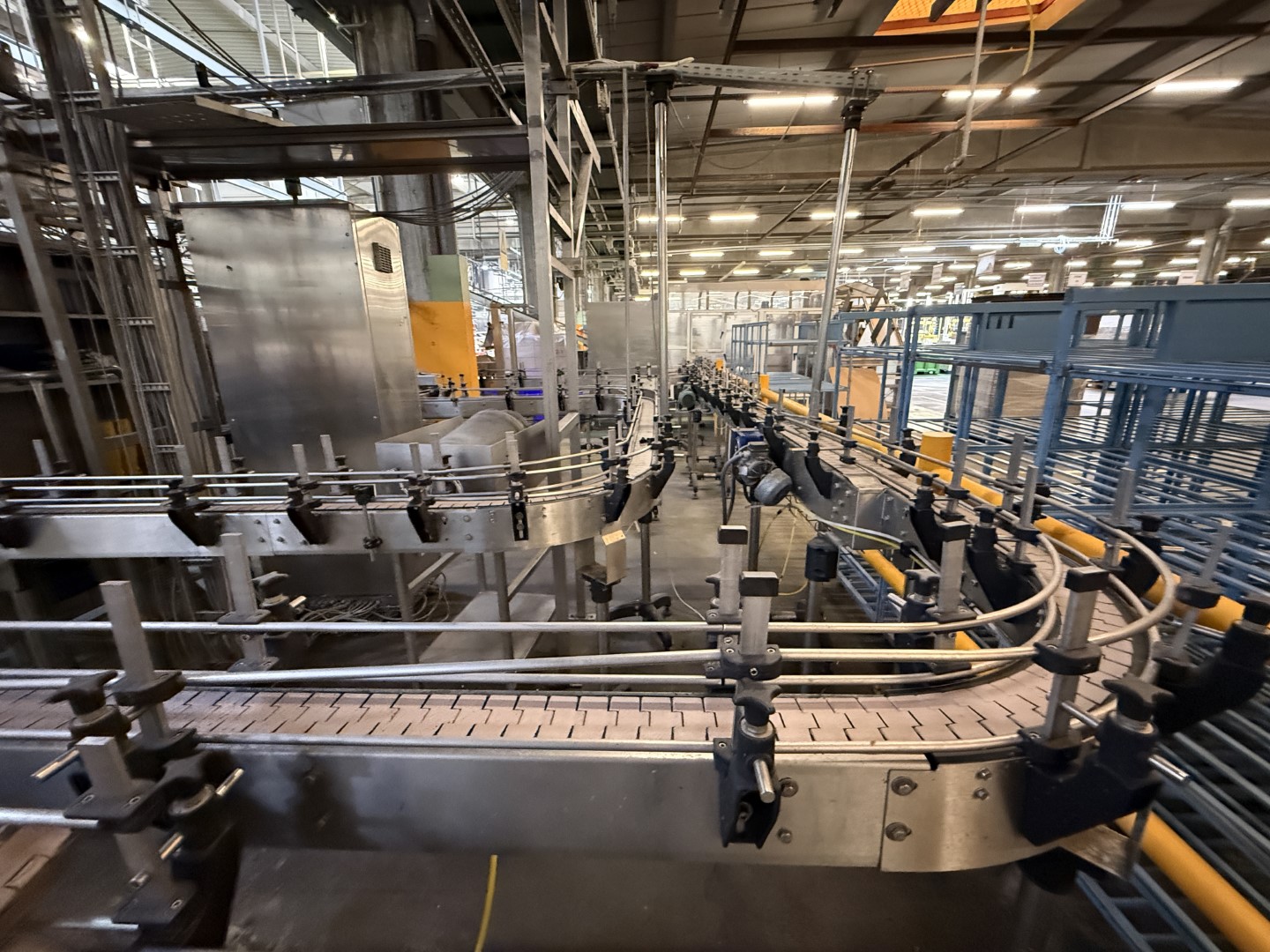

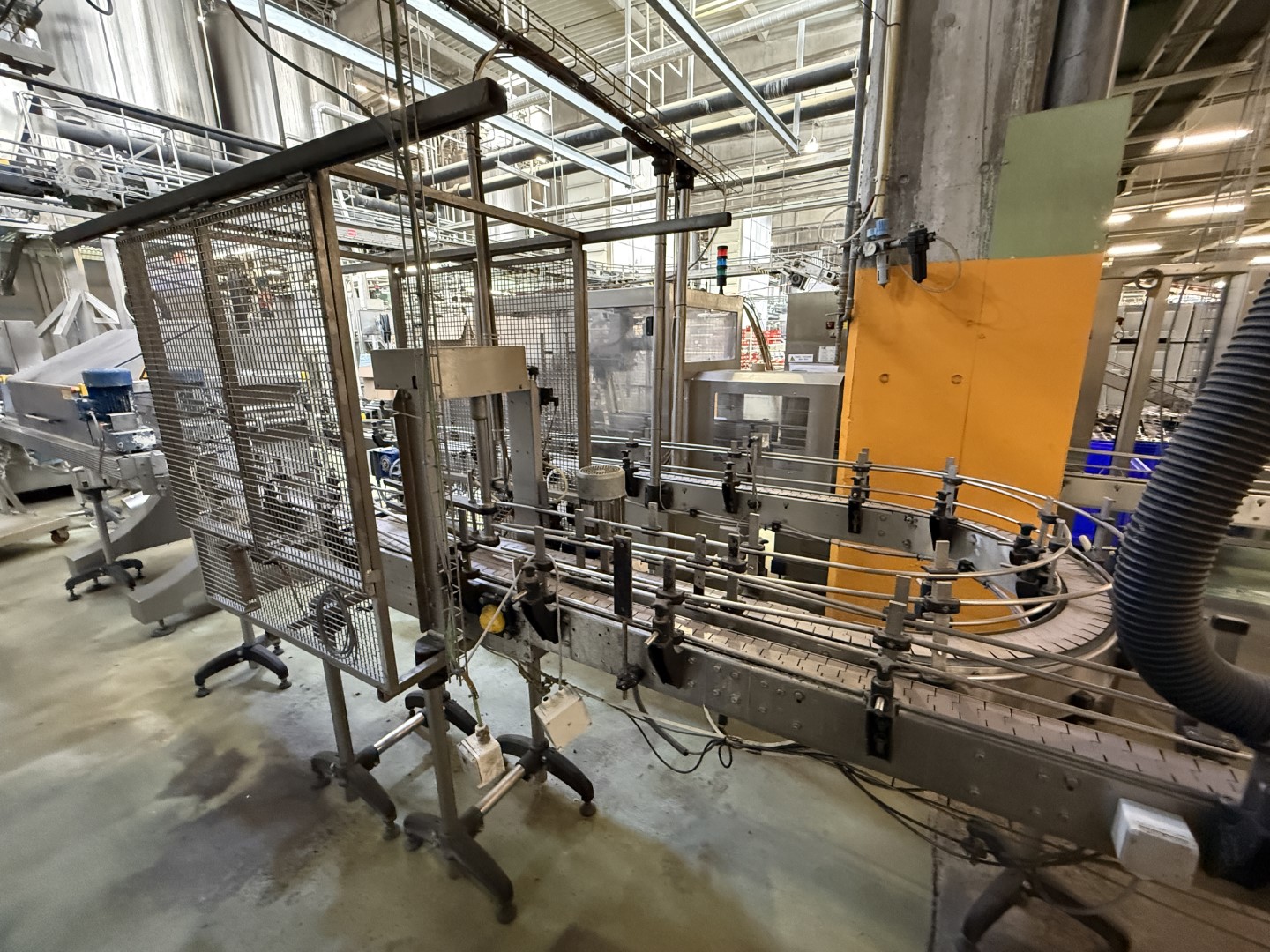

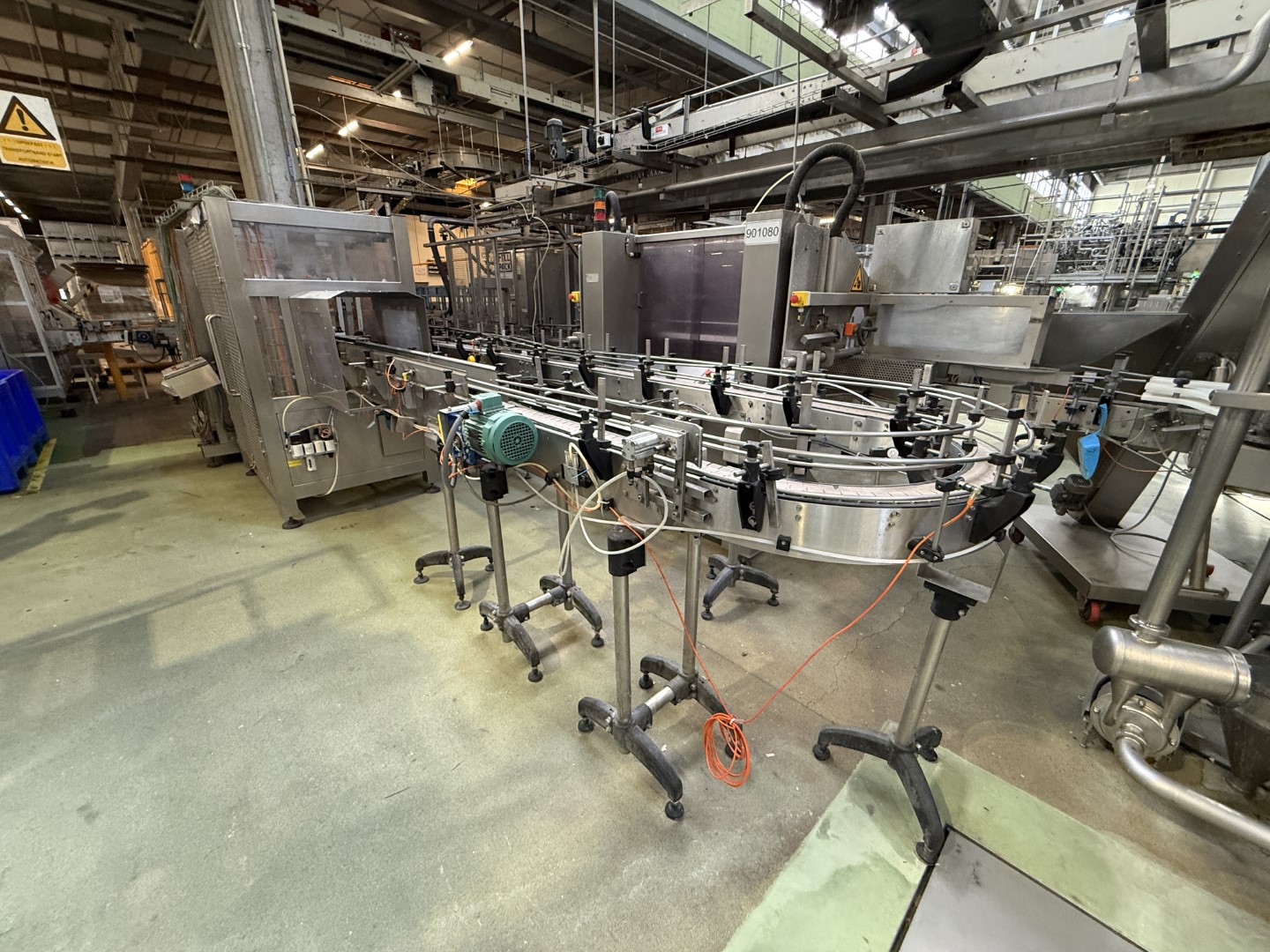

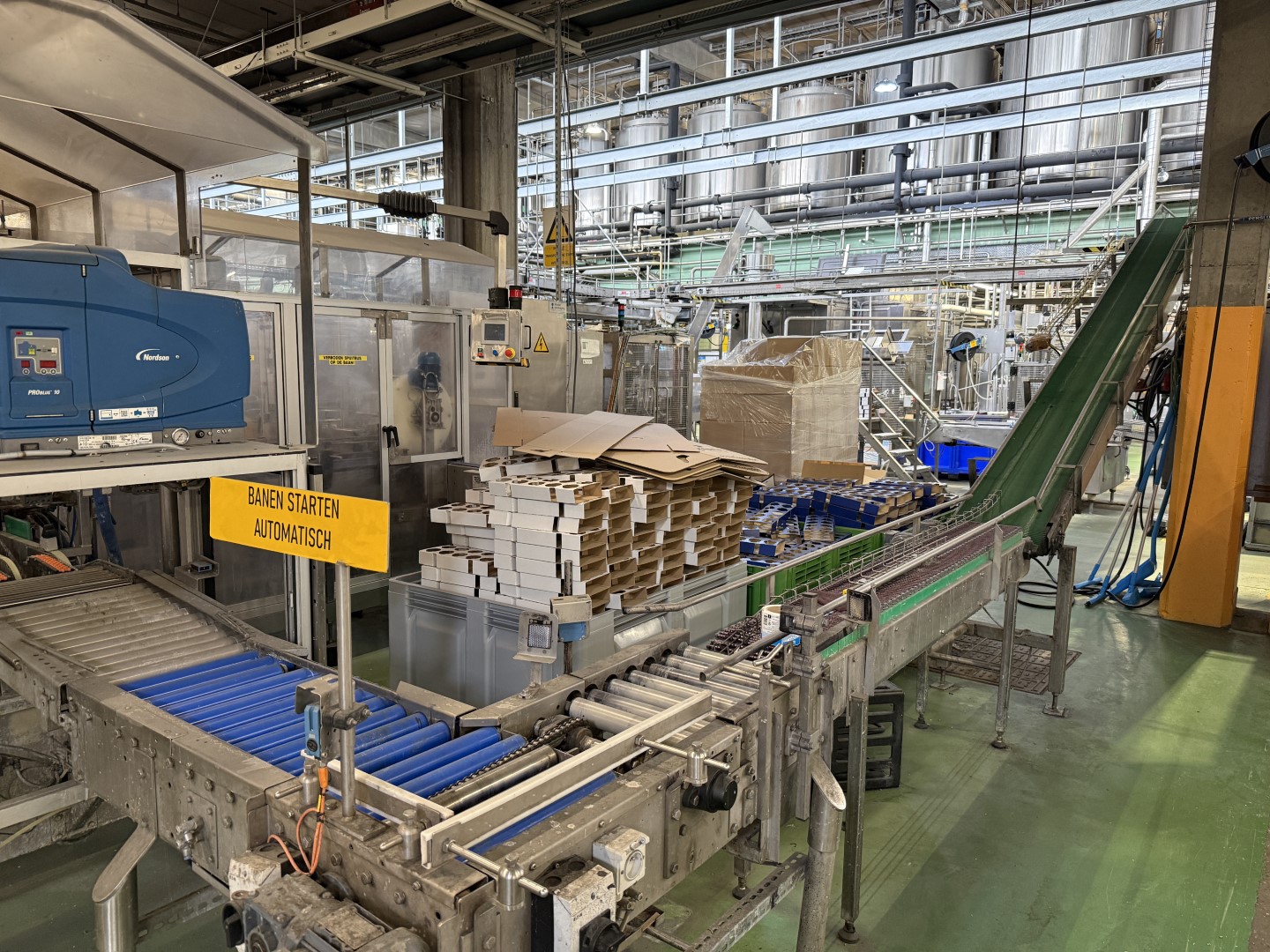

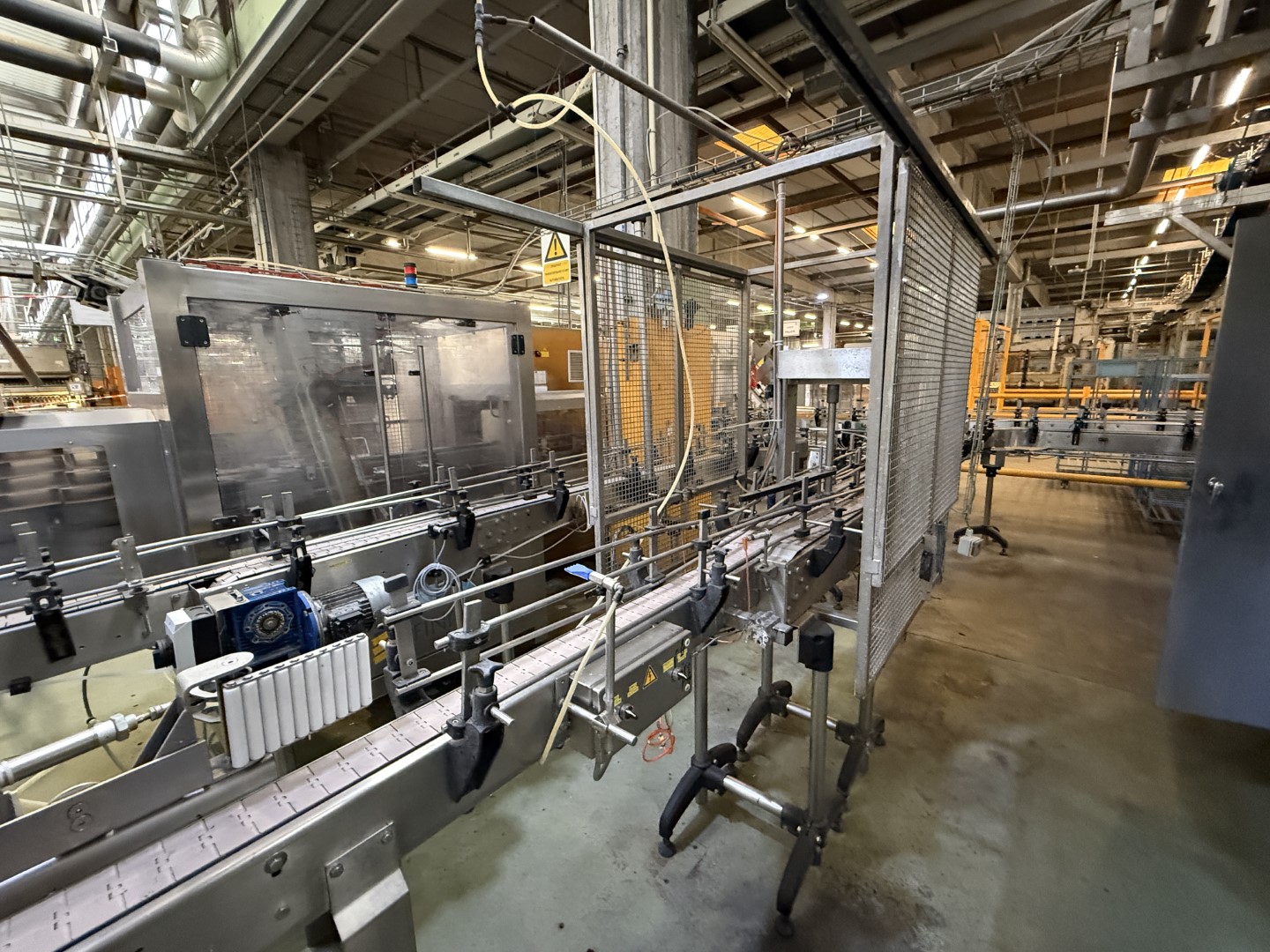

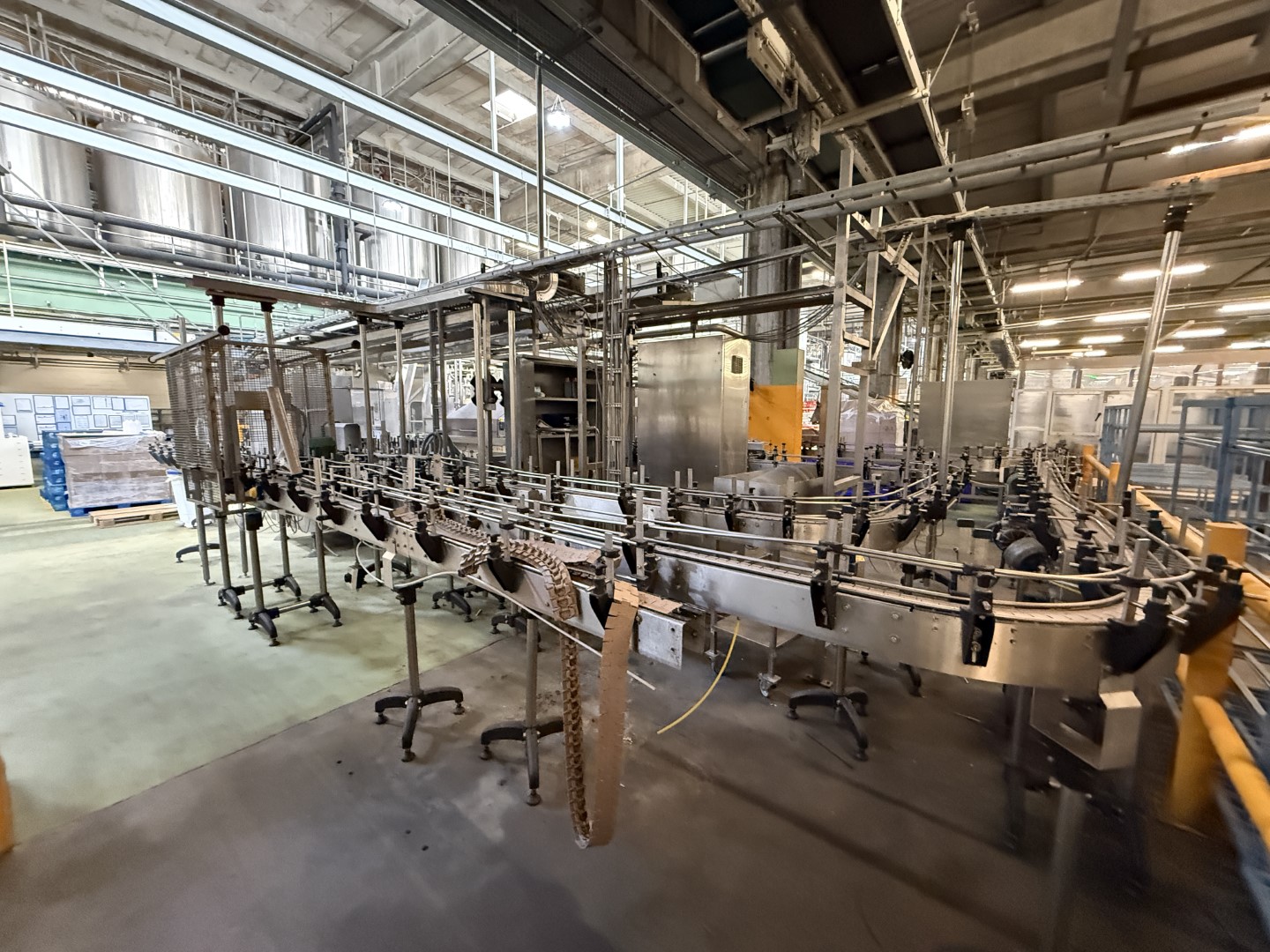

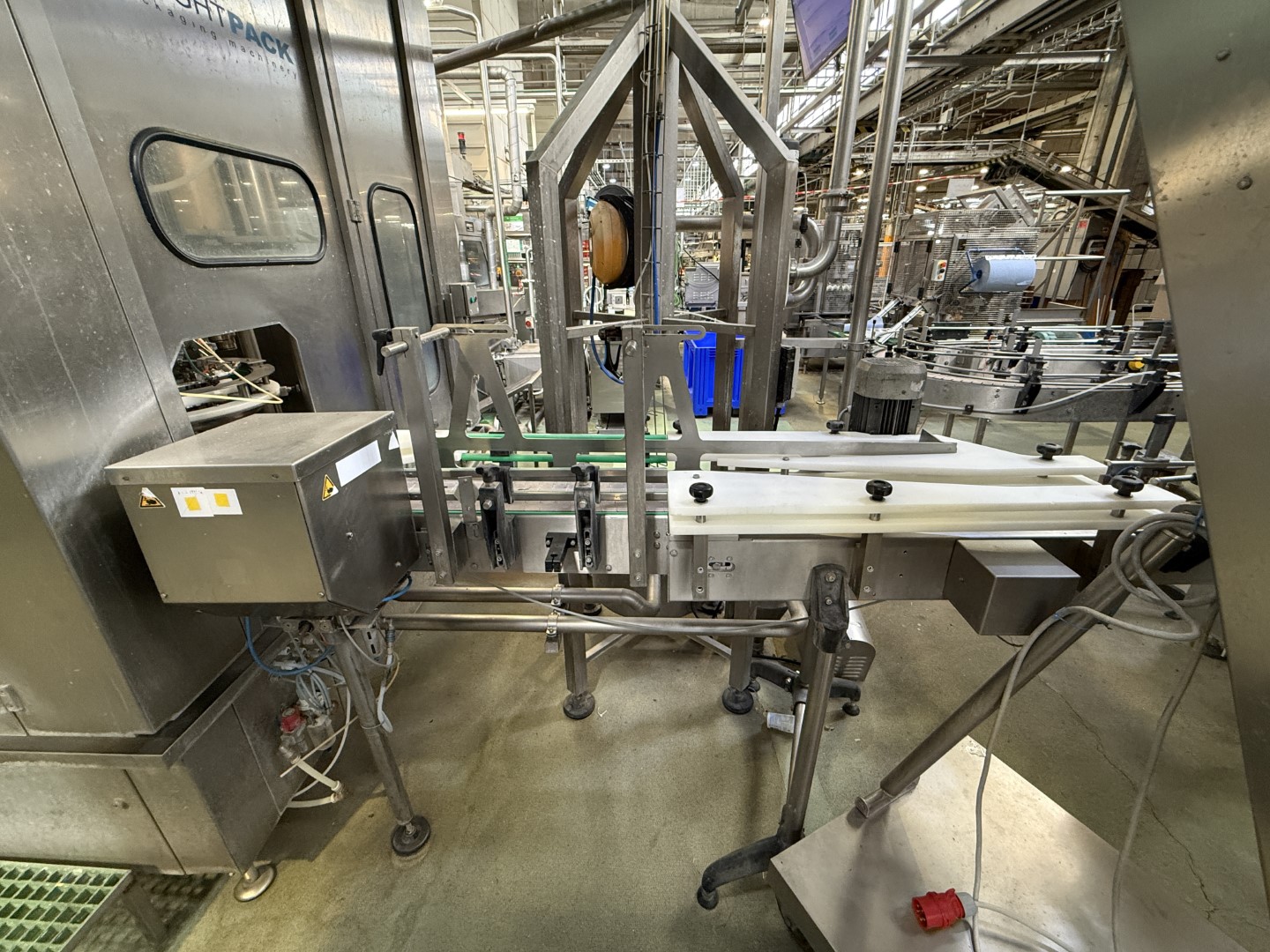

7. Conveyor Systems

• Interconnecting conveyor system with plastic modular belts
• Integrated control system

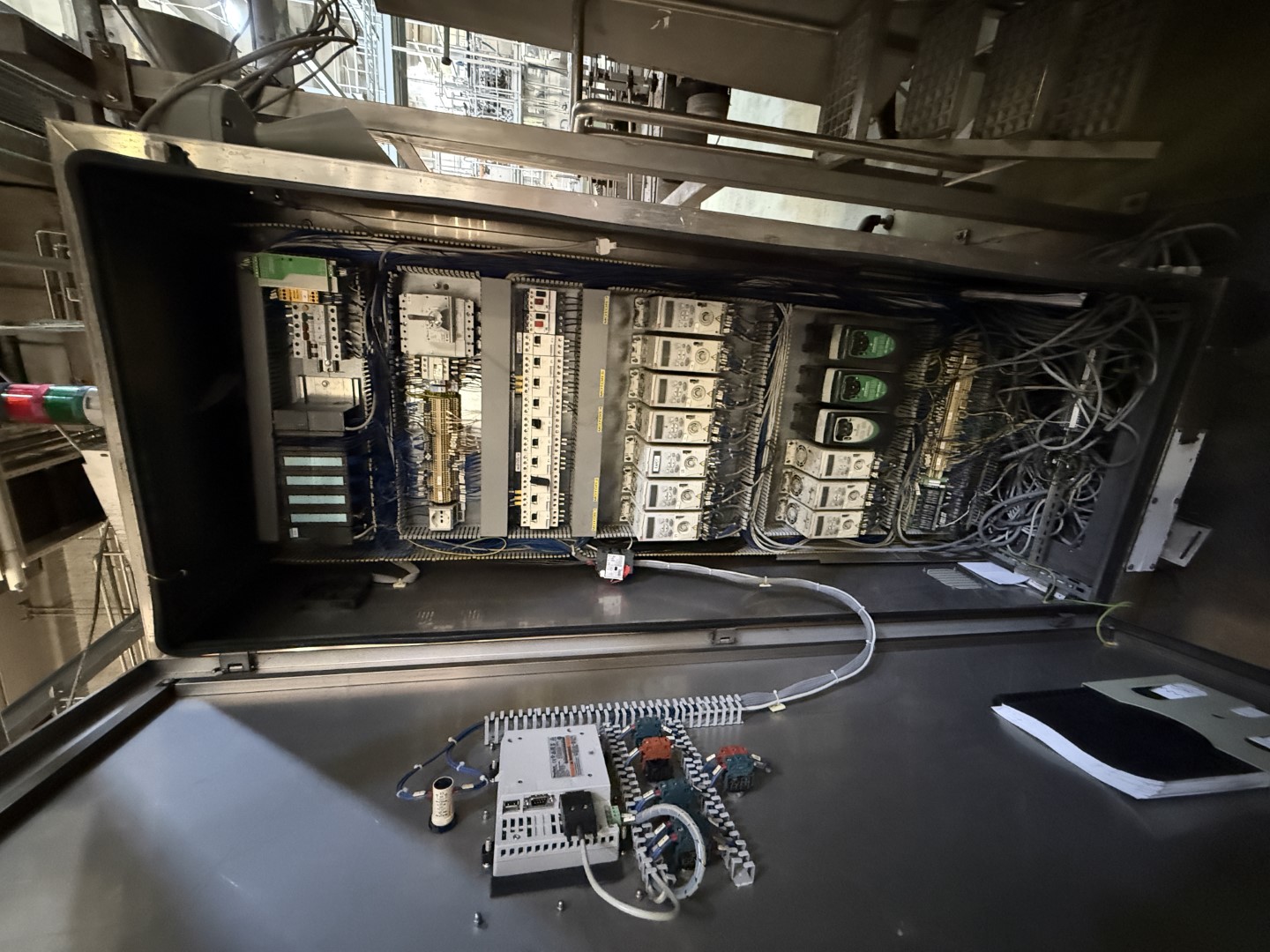

Control System: Fillpack / Siemens S7 PLC

Additional Services:

Dismantling and loading directly from the dairy facility can be offered separately upon request.
