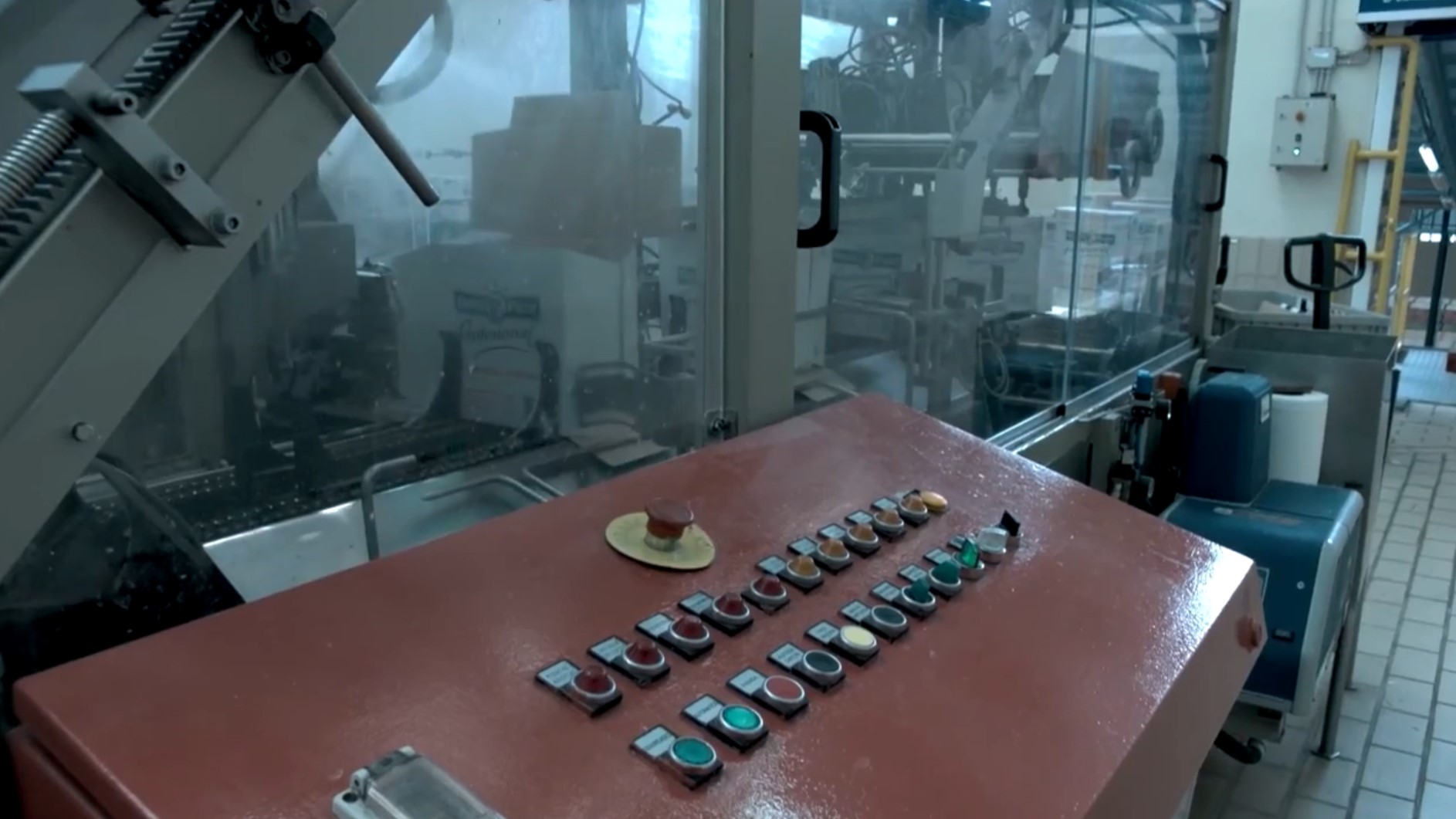

Bottle blowing, filling, closing, sterilizing, labelling and packing line for PE bottles of 1,5 liter with milk - Sidel / Remy / Stork

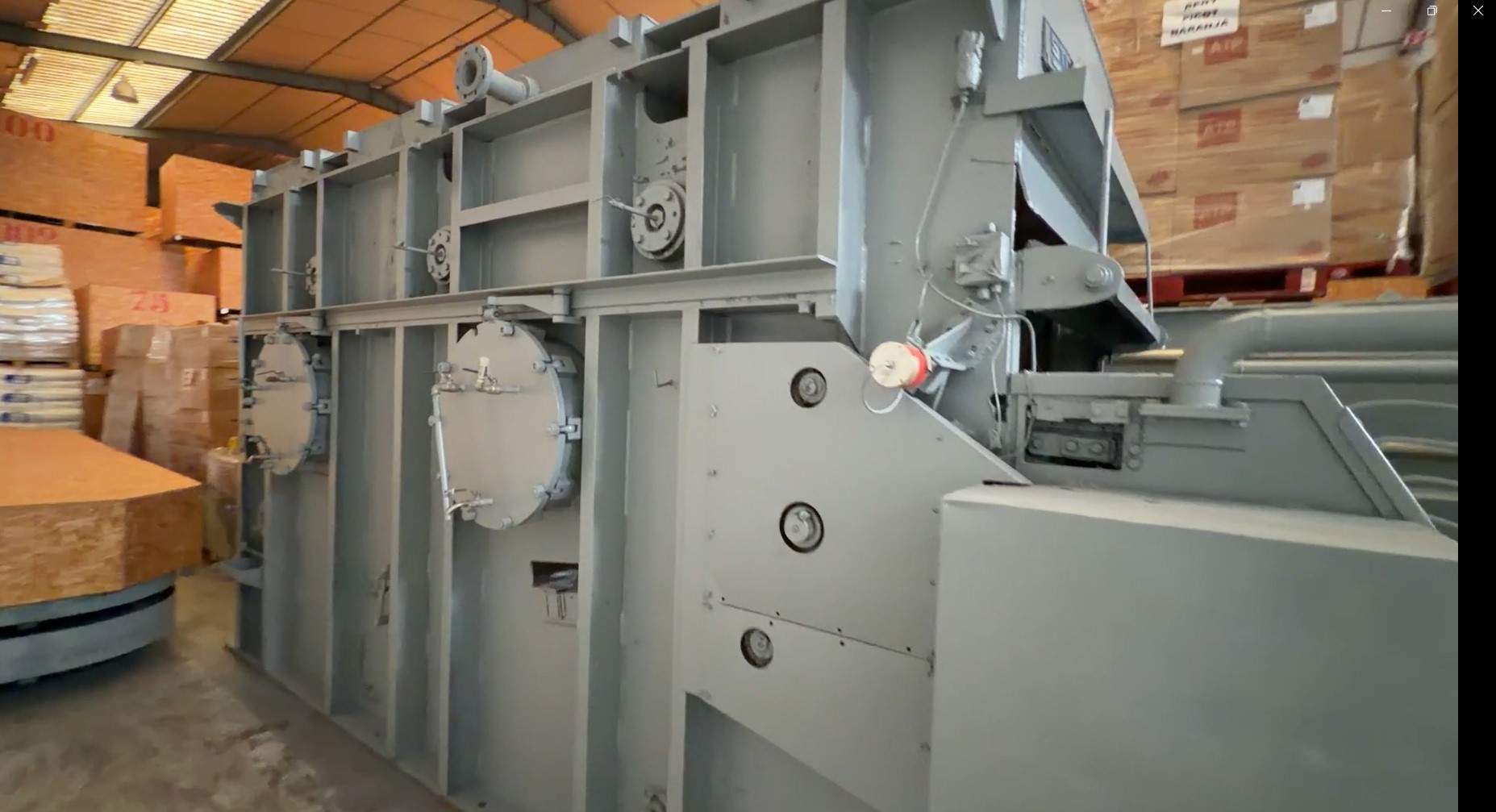

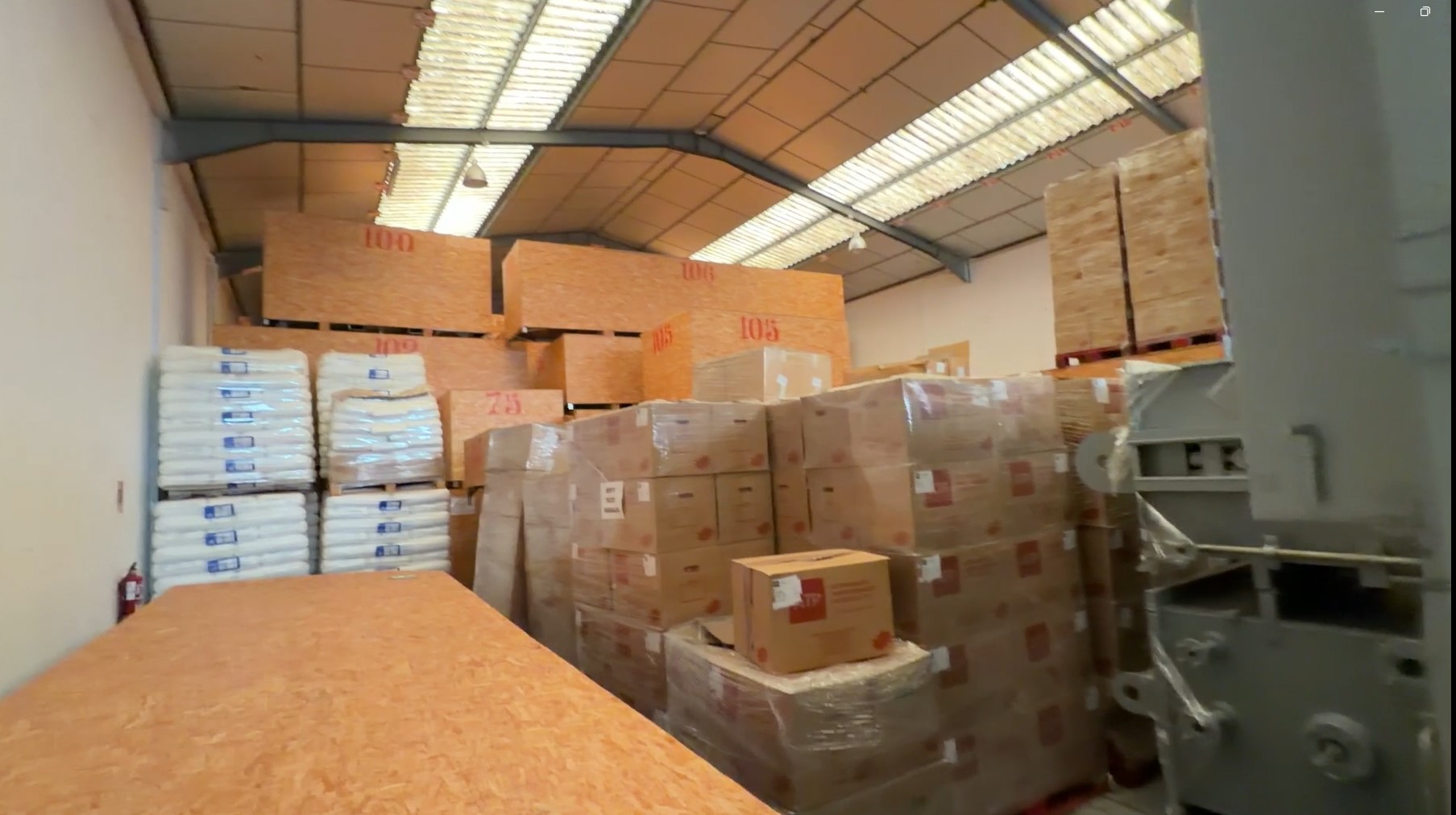

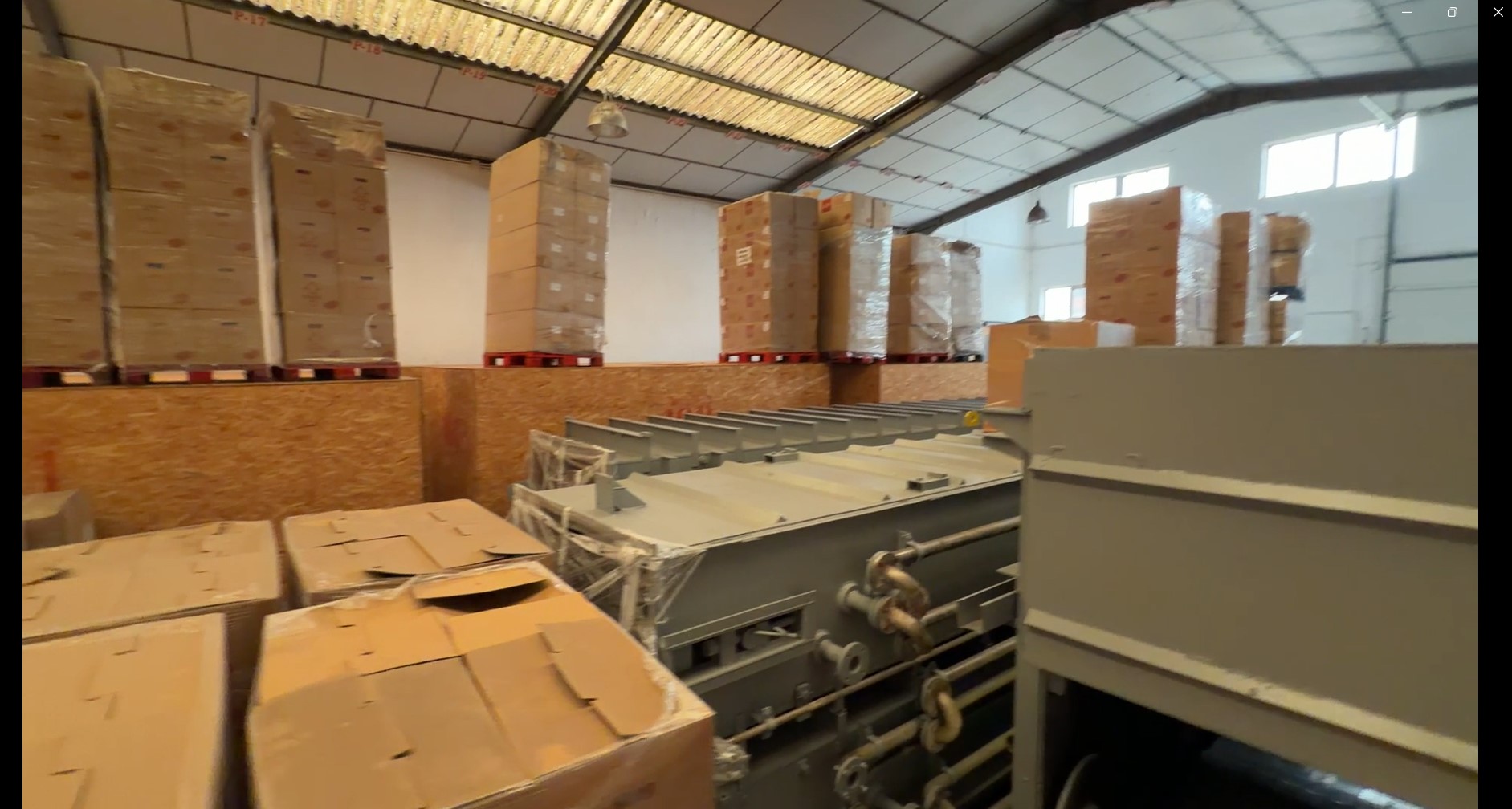

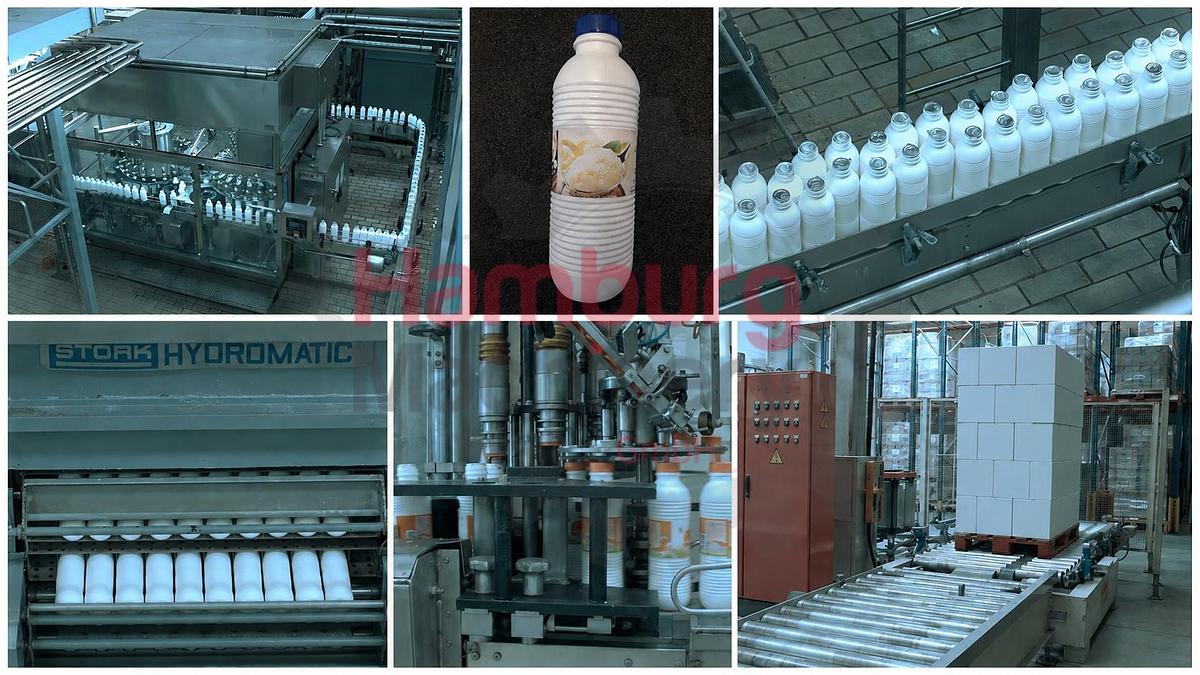

Complete bottle forming, filling and packing line for 1,5 liter sterilized milk with blowers, filler, capper, sterilization towers, palletizers etc. The line is already dismantled and boxed in crates.

General:

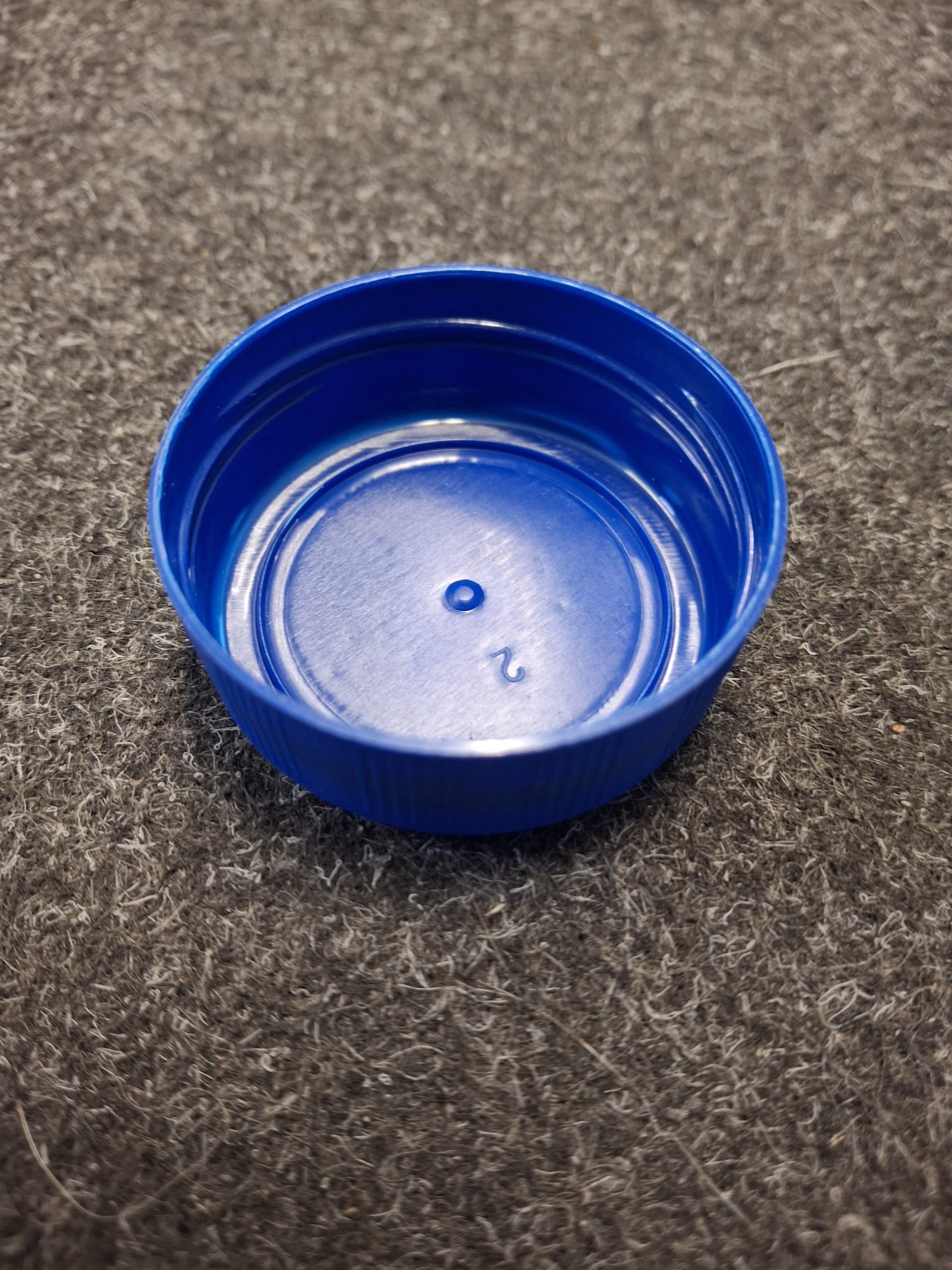

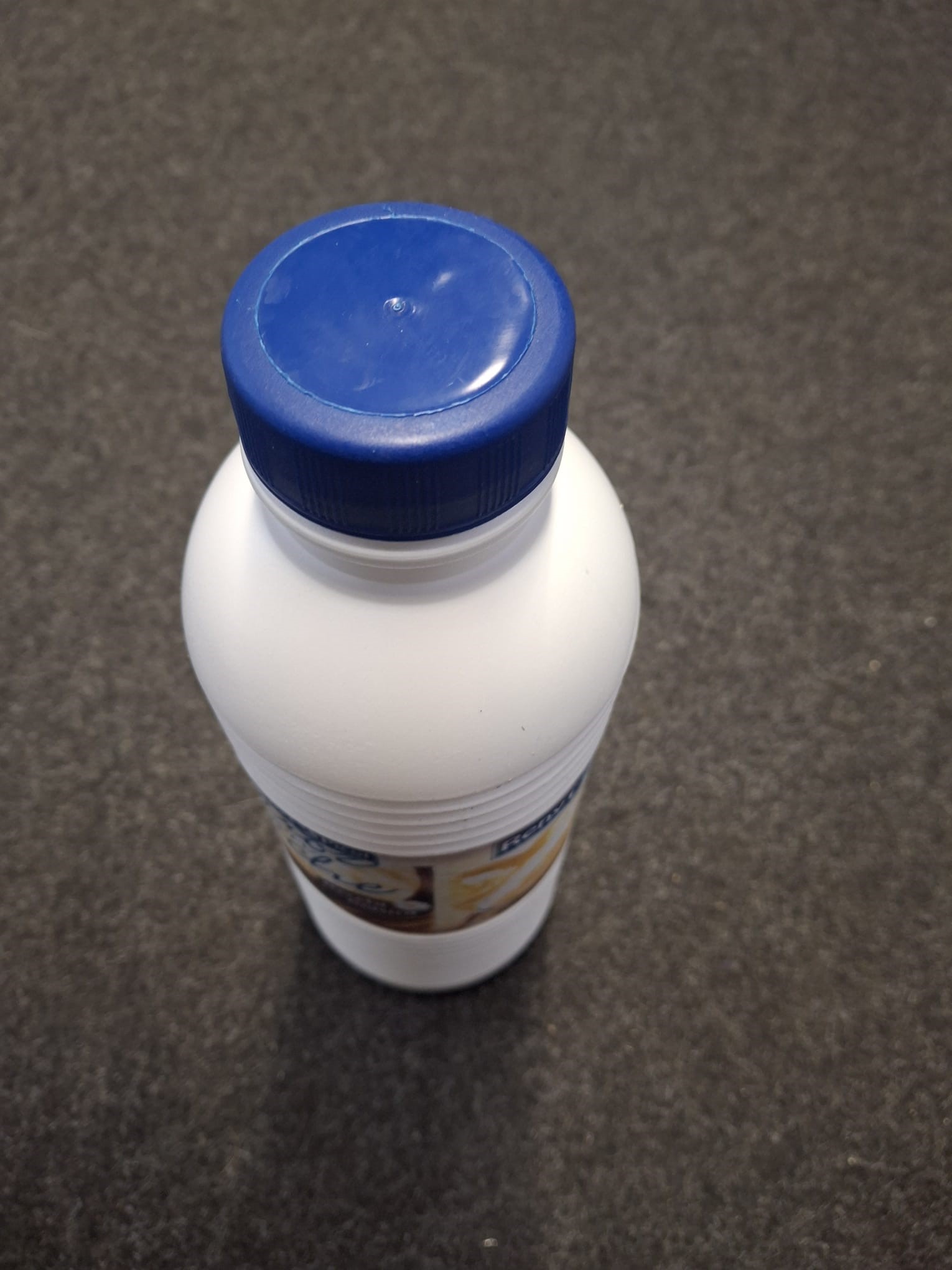

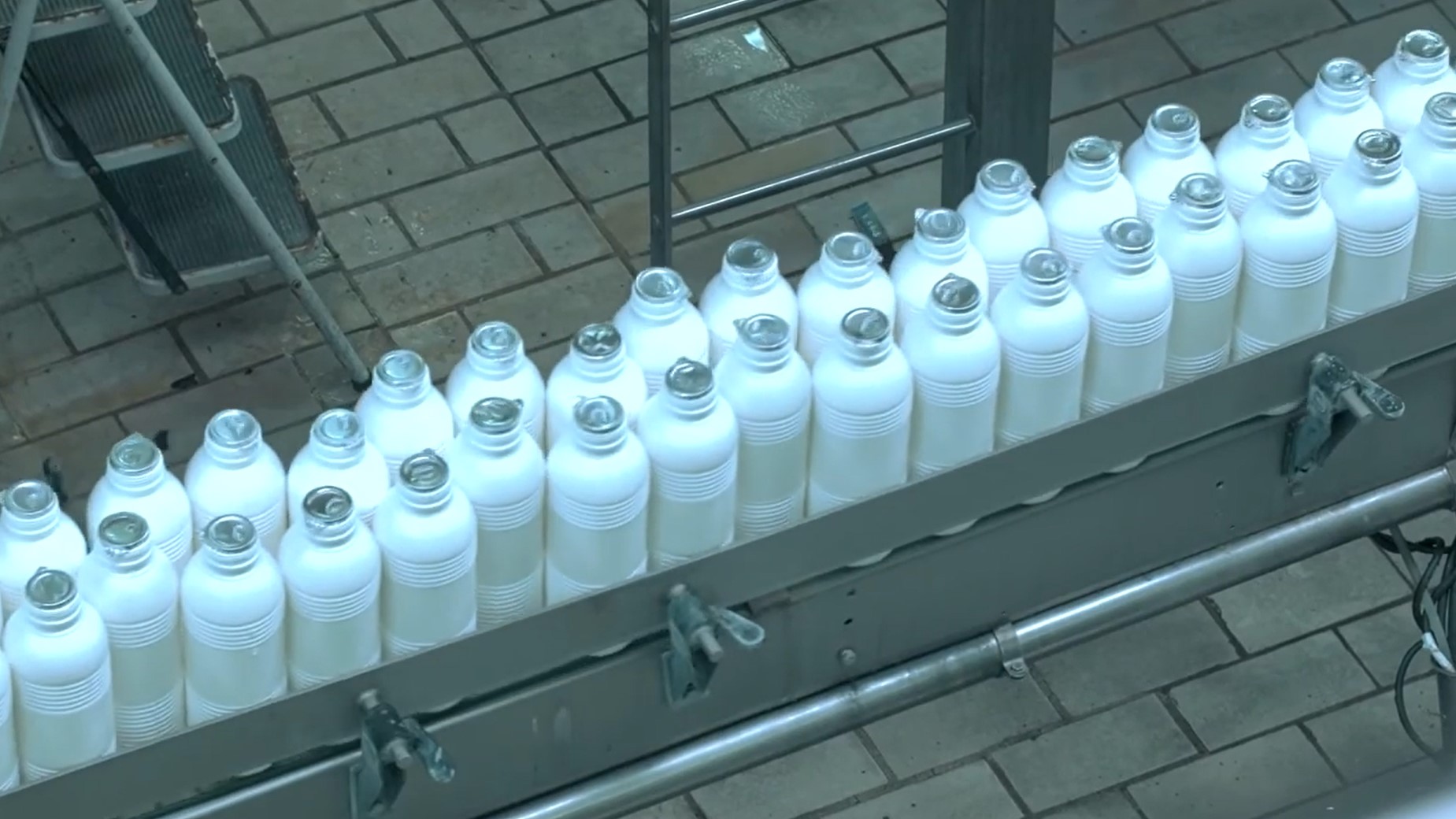

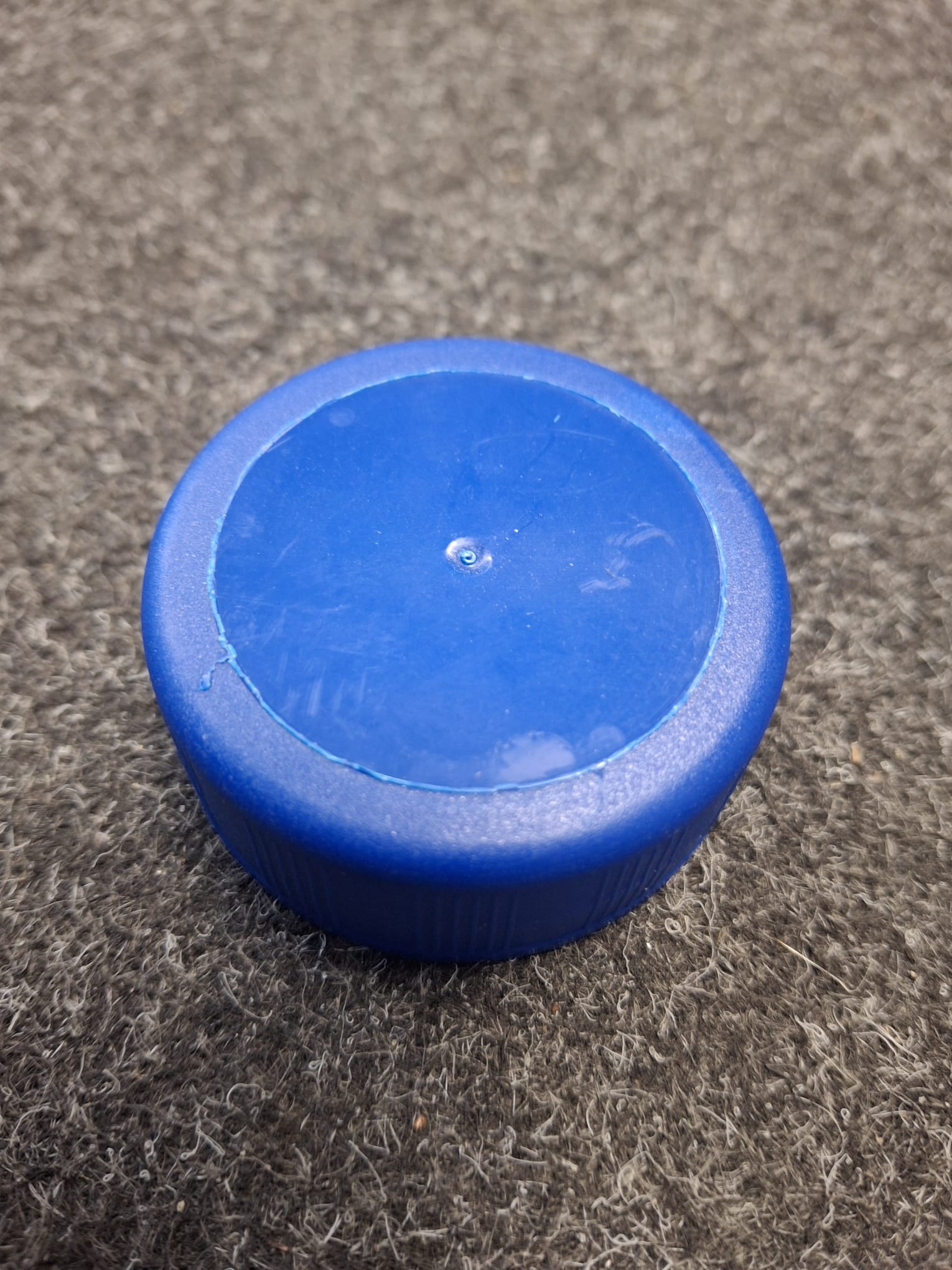

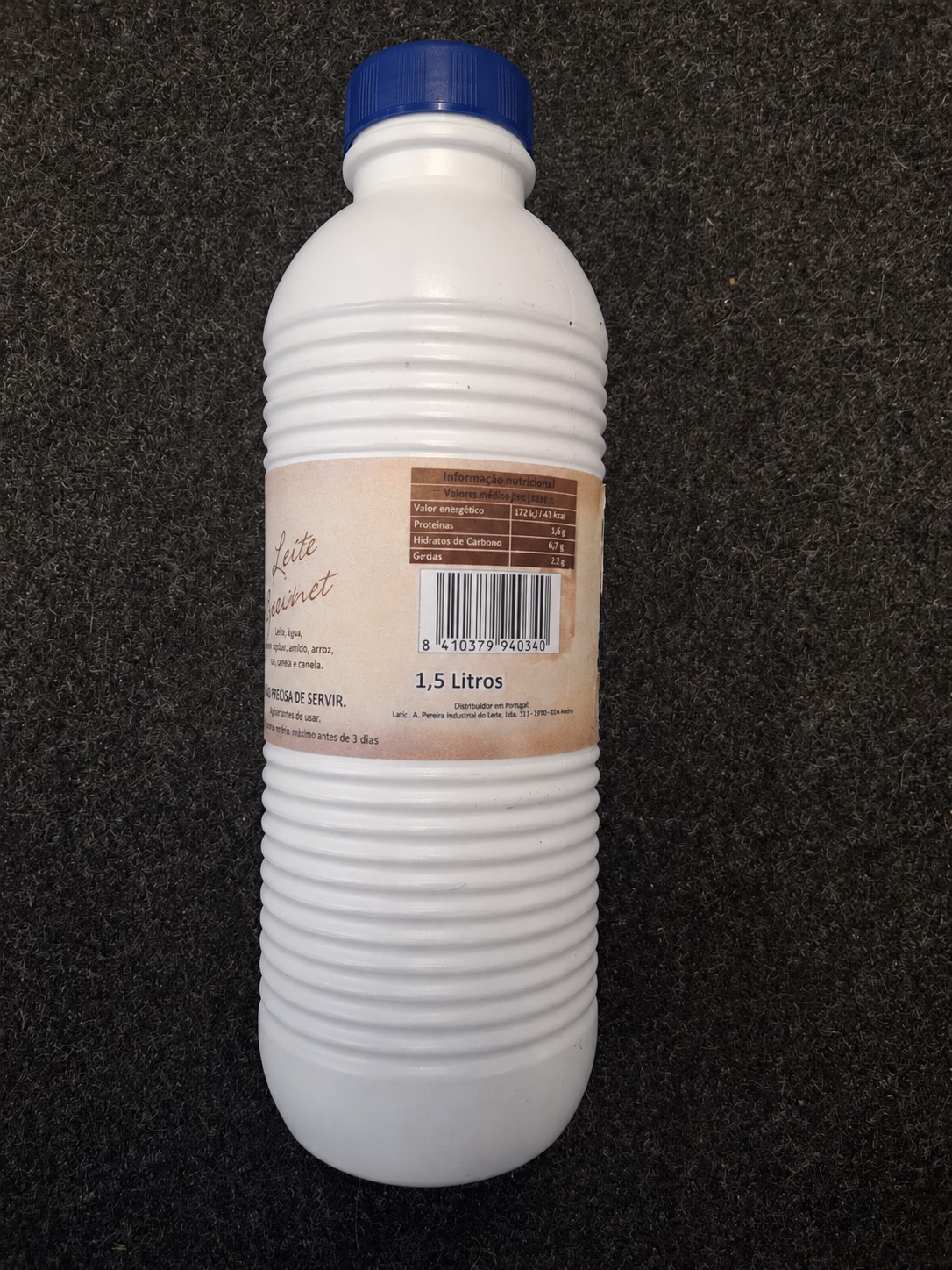

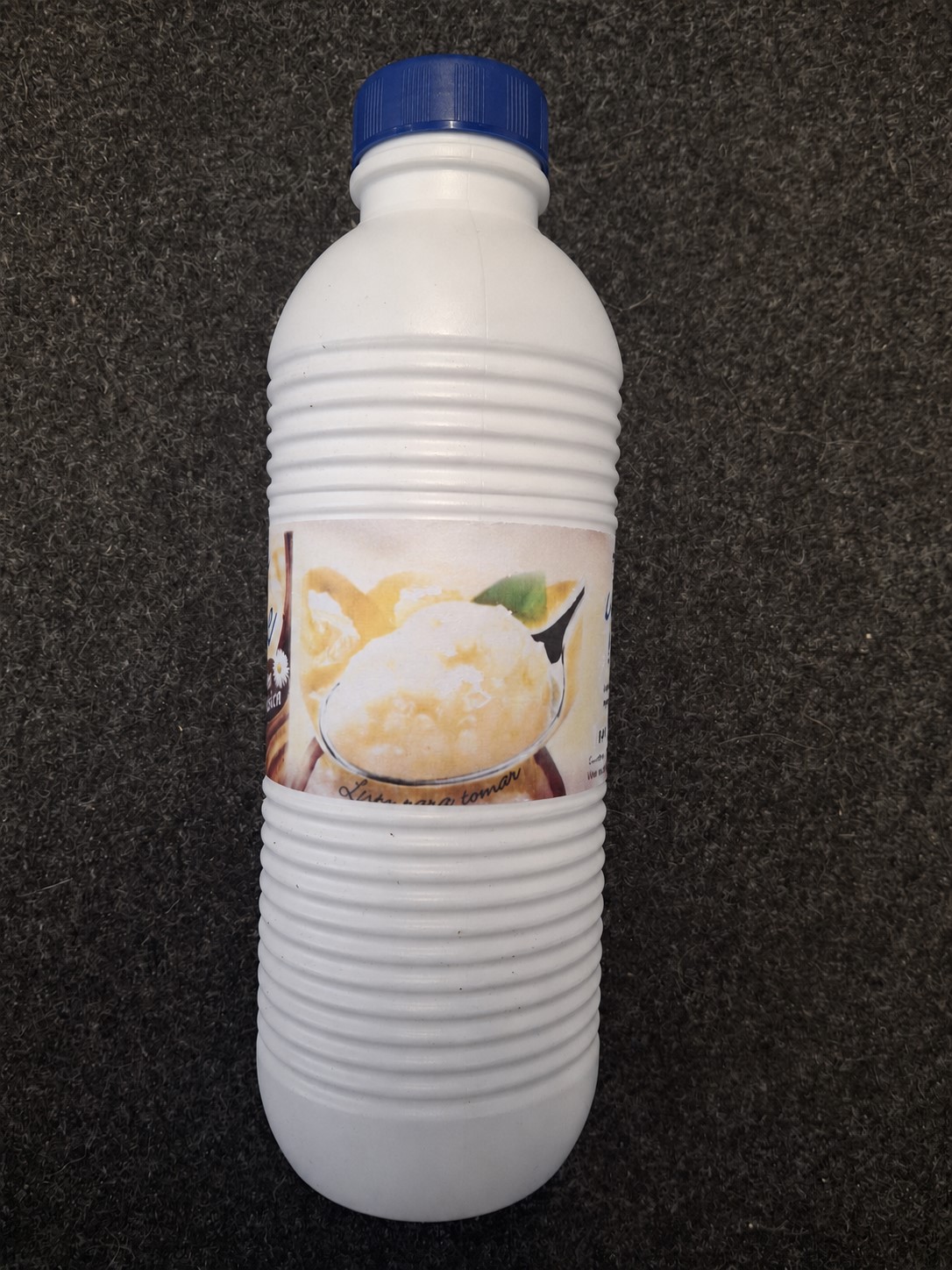

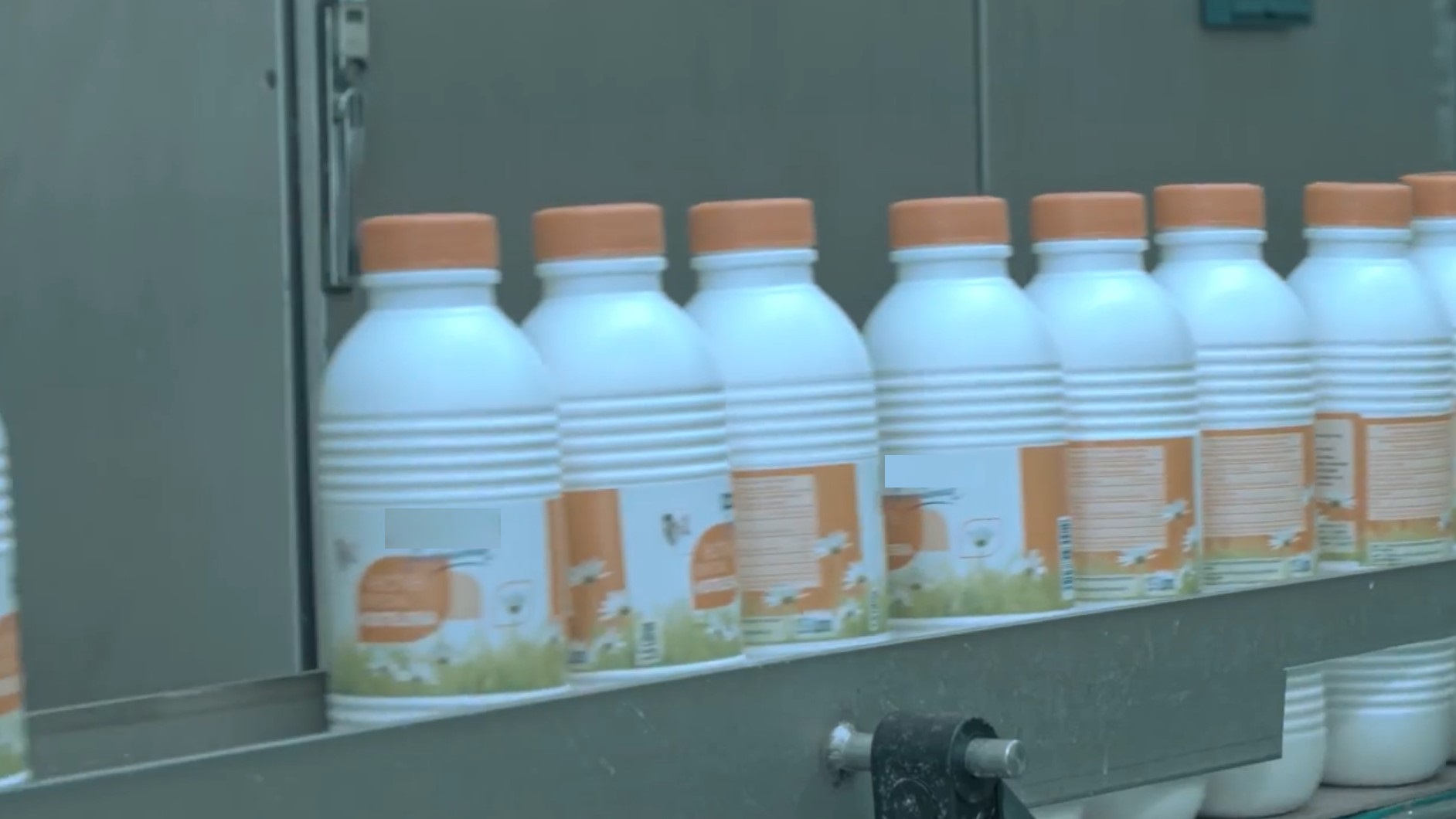

Size of the bottles: 1,5 liter milk bottle with stopper (cap)

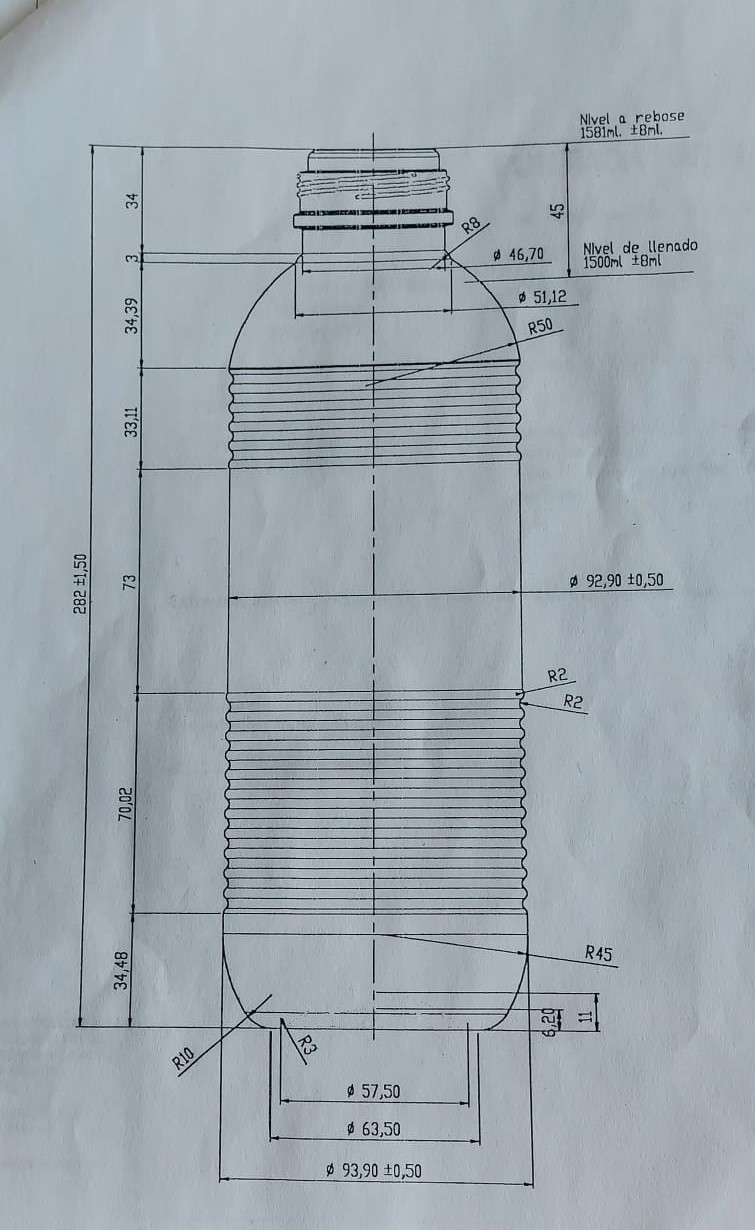

Bottle dimensions: width 93,9 mm, height 282 mm

Weight bottle: 44 gram, weight aluminium 0,4 gram and weight cap 4 gram

Material of the bottle / Compesition: PE (Polyethylene)

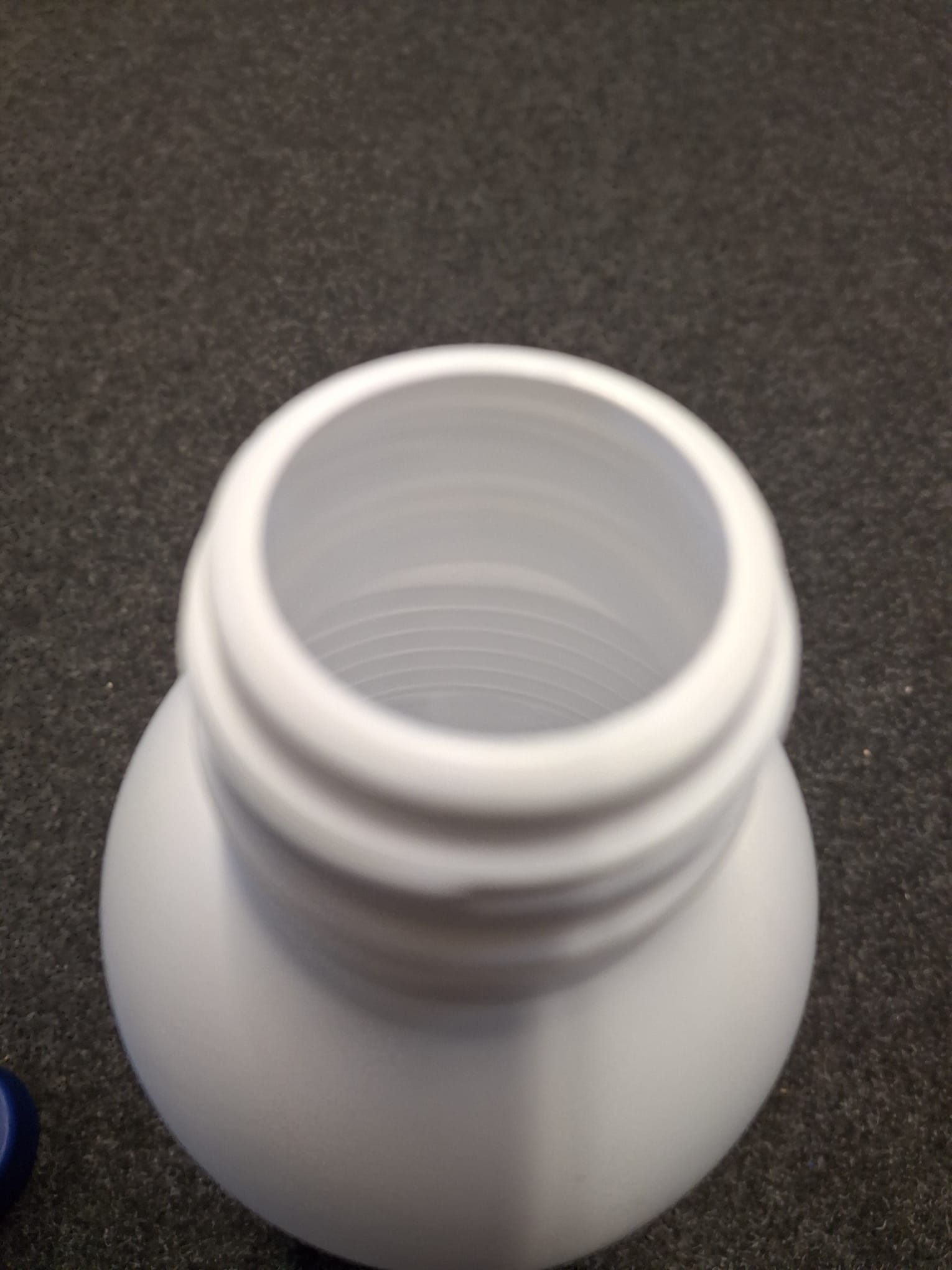

Neck diameter of the bottle: 46,7 mm

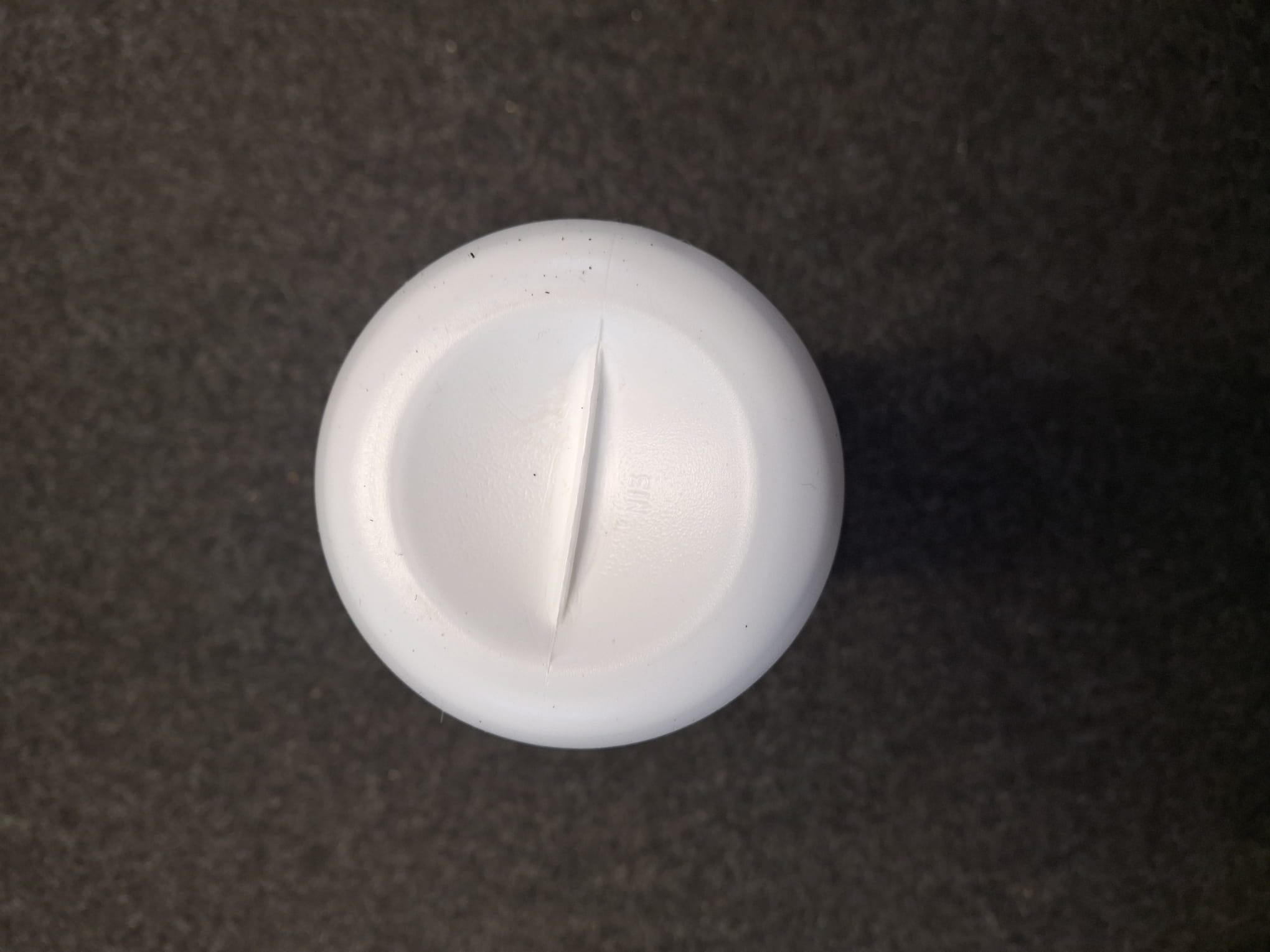

Bottle closed with a aluminum and easy peelable cover

Capacity of the line: 7.000 bottles per hour

Product: Whole cow’s milk, which has been treated with a heating process in such conditions of temperature and time able to ensure the destruction of microorganisms and the inactivity of their resistance forms.

Closed bottle shelf life: 6 months since the date of manufacture

Opened bottle: maximum three days, in the fridge.

Product not suitable for lactose intolerants and allergic to milk and its derivates.

Scope of Supply:

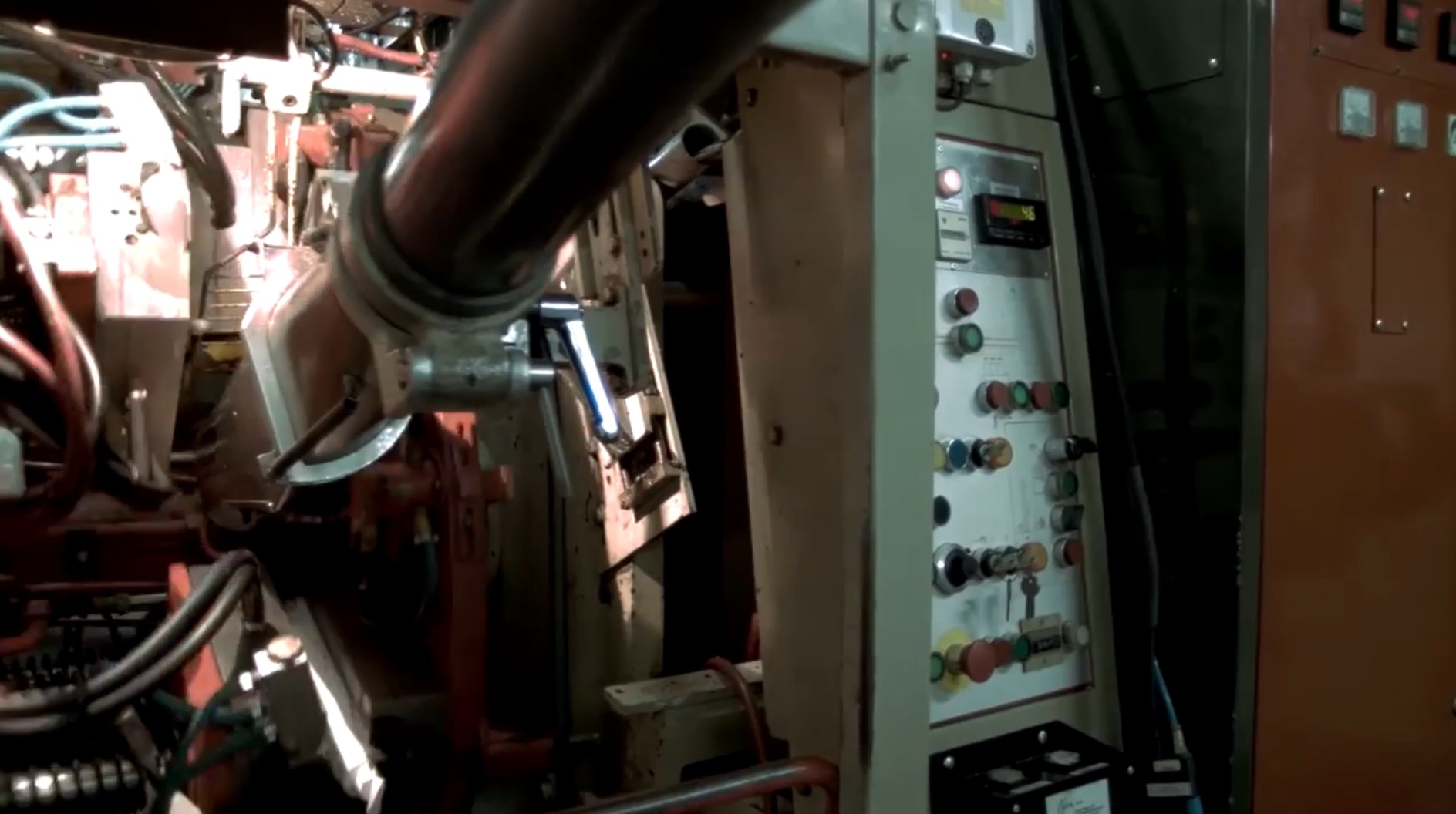

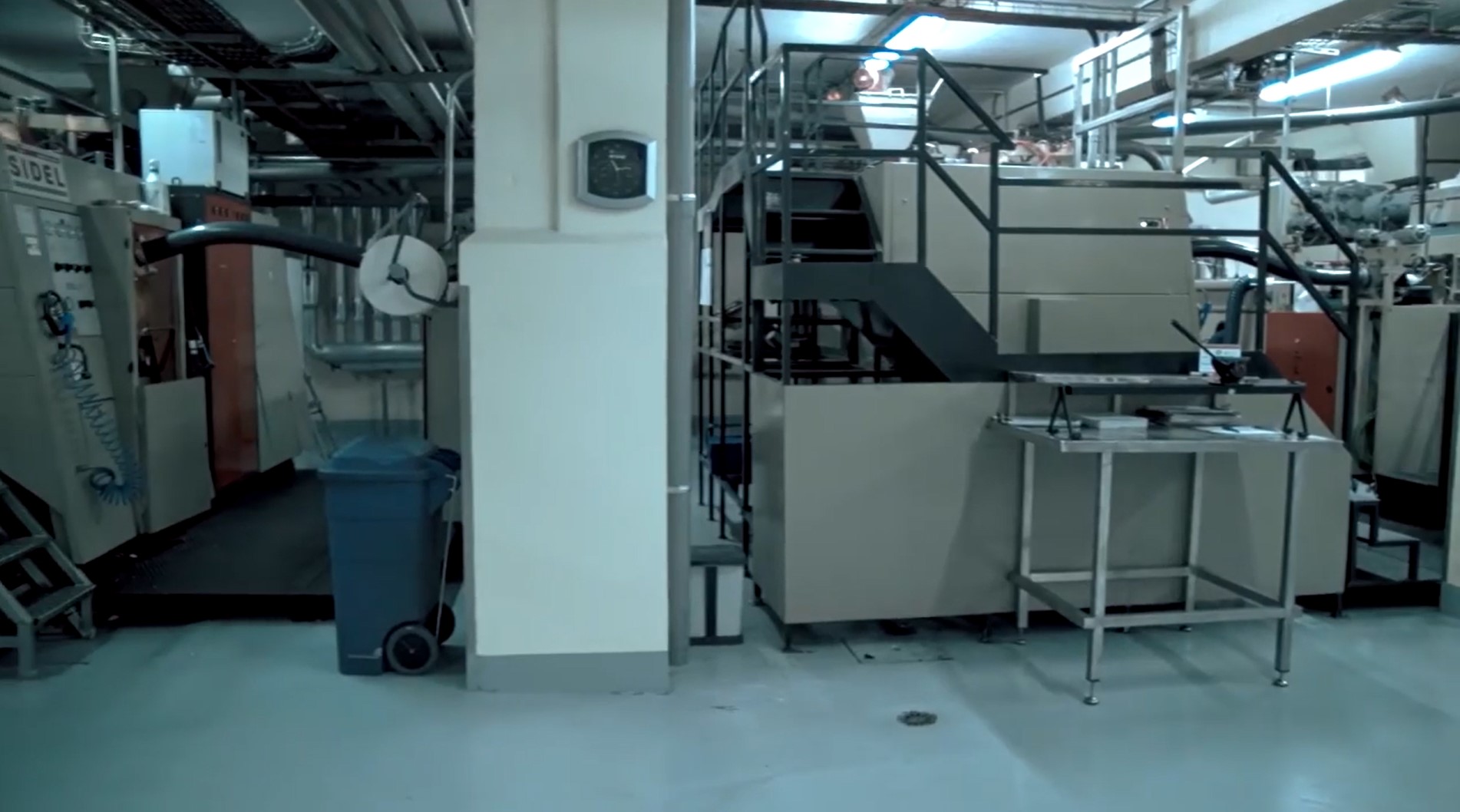

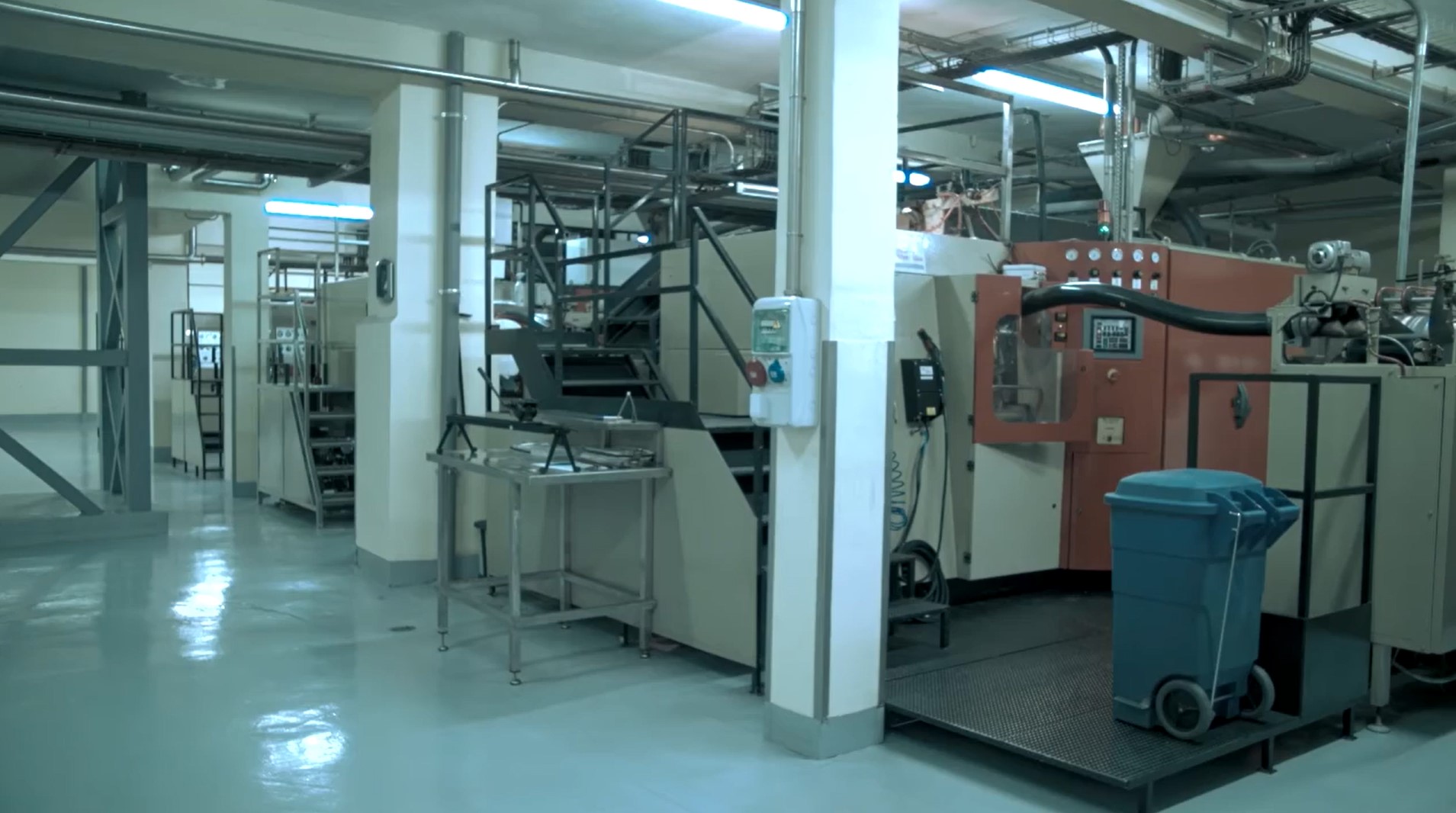

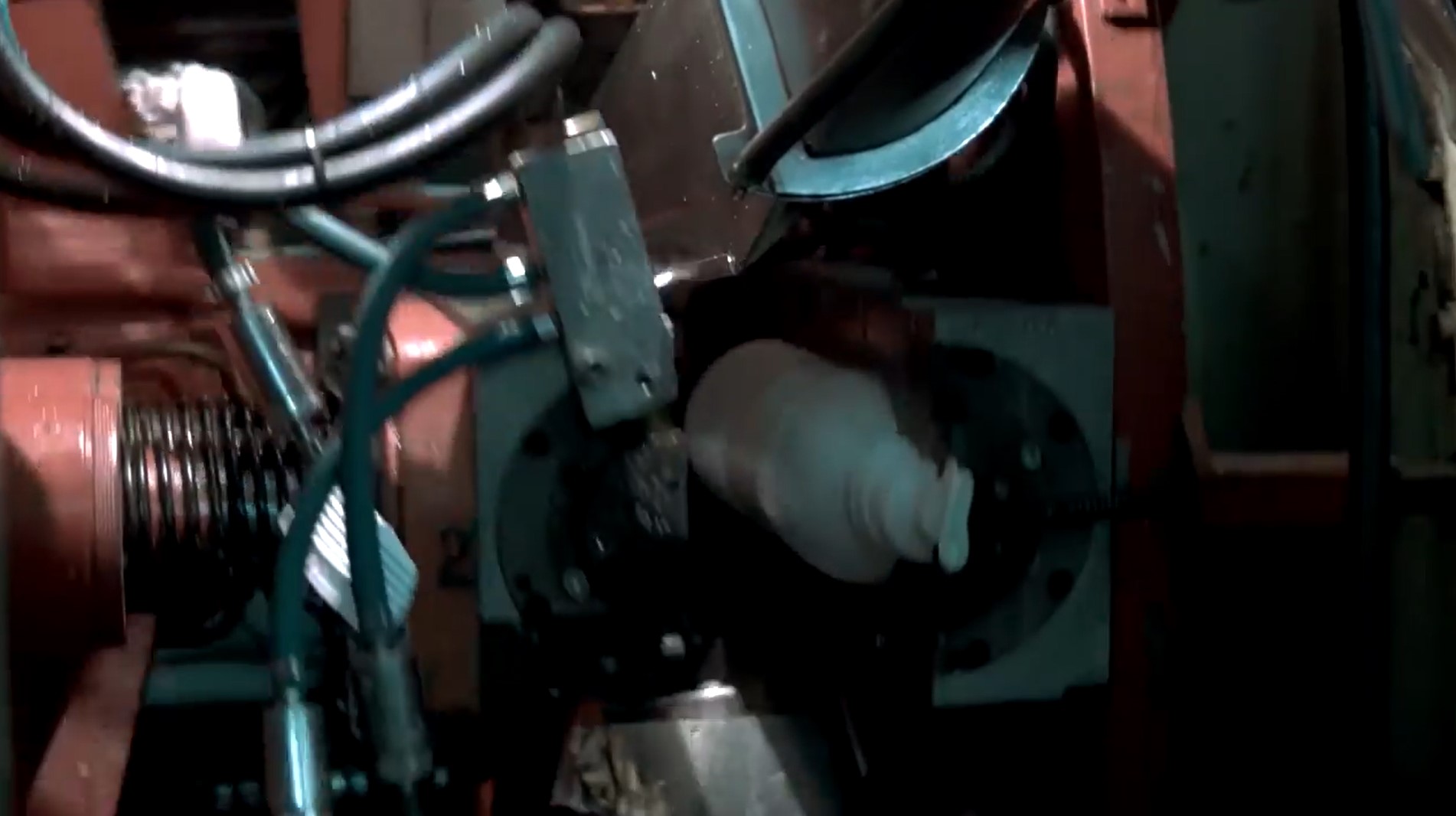

1. Bottle blowers

4x blowers for 1,5 liter bottles

Manufacturer: Sidel

Model/type: DSL3500 / DSL 3

Year of manufacturing: 1981 – 1981 – 2002 – 2002

Serial number: 151 - 165 - 590 - 523

Bottle size: 1,5 liter

Capacity per hour per blower: 1.800 bottles per hour

Total capacity: 7.200 bottles per hour

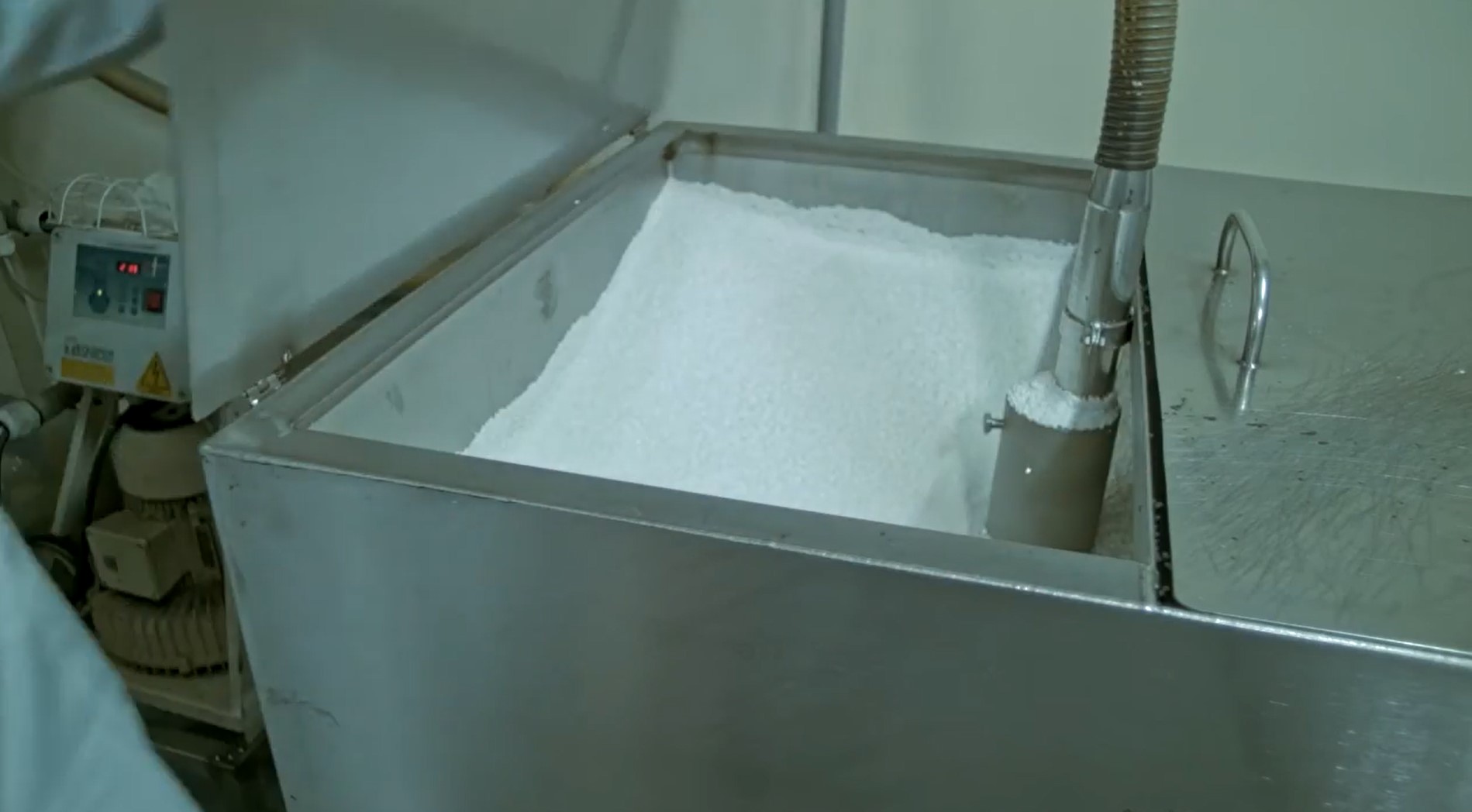

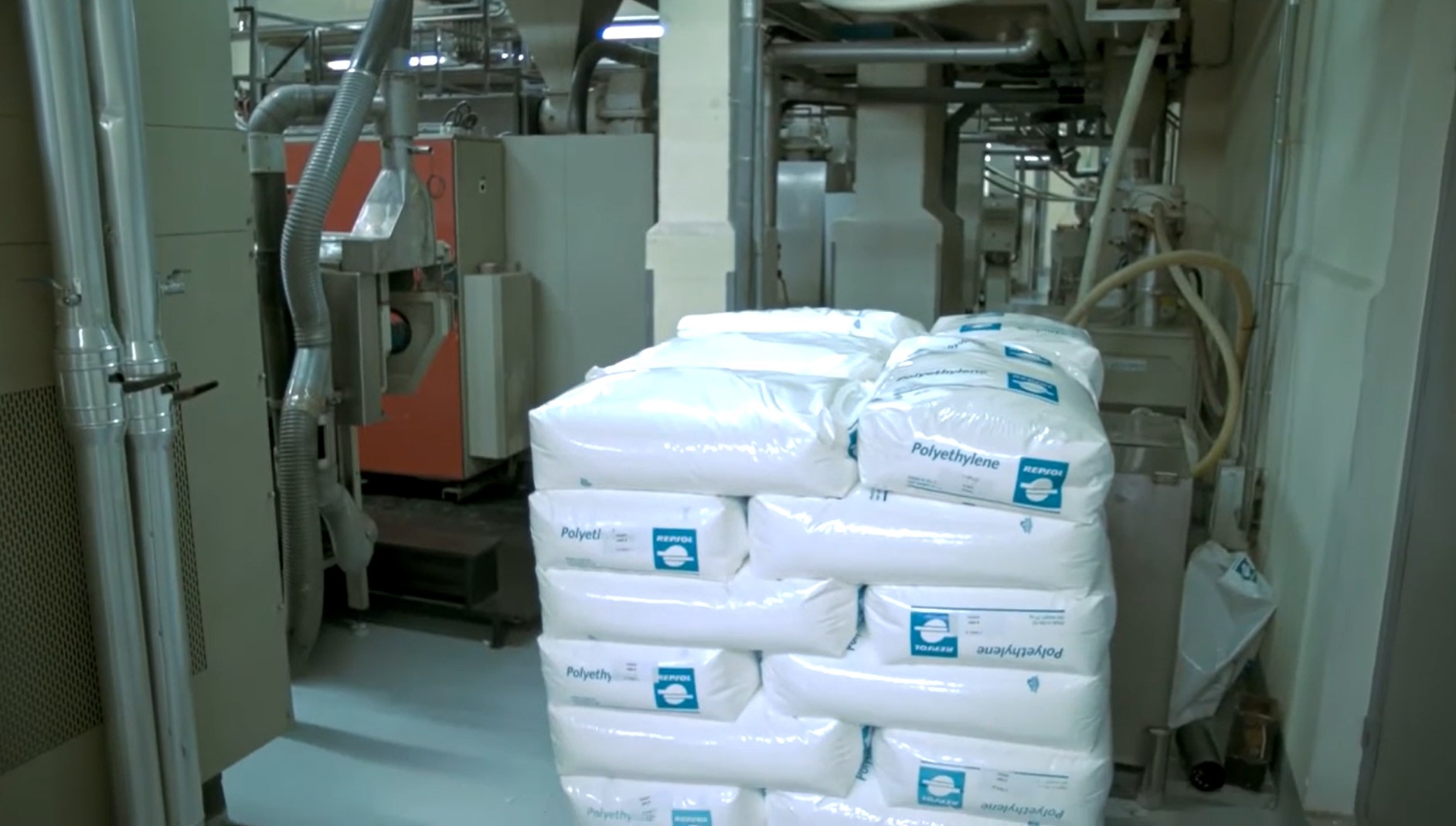

Granulate: Polyethylene

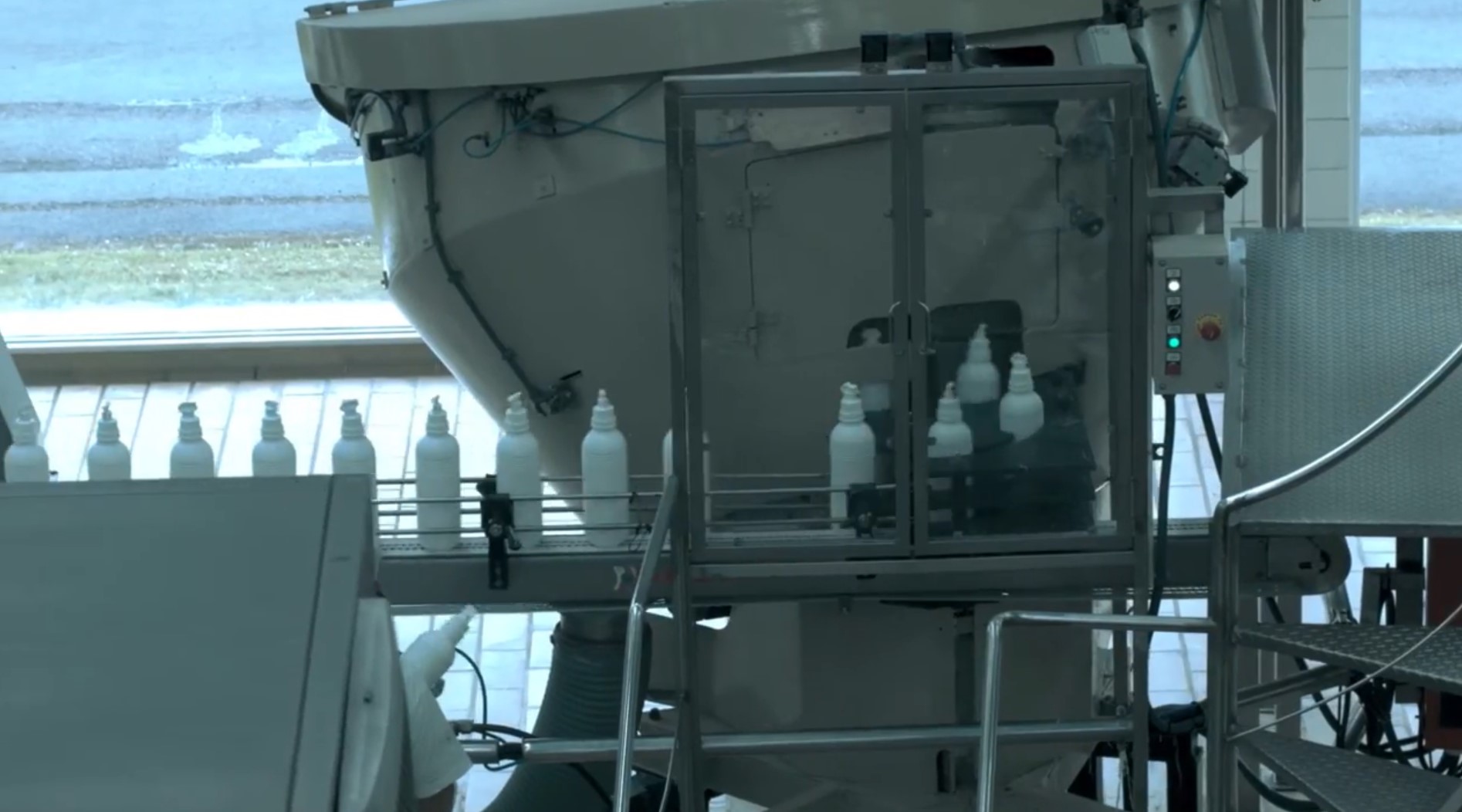

2. Sorting bunker

Manufacturer: Posimat

Model/type: OC-5061

Year of manufacturing: 1985

Serial number: 05061.6.1

Capacity per hour: 7.200 bottles per hour

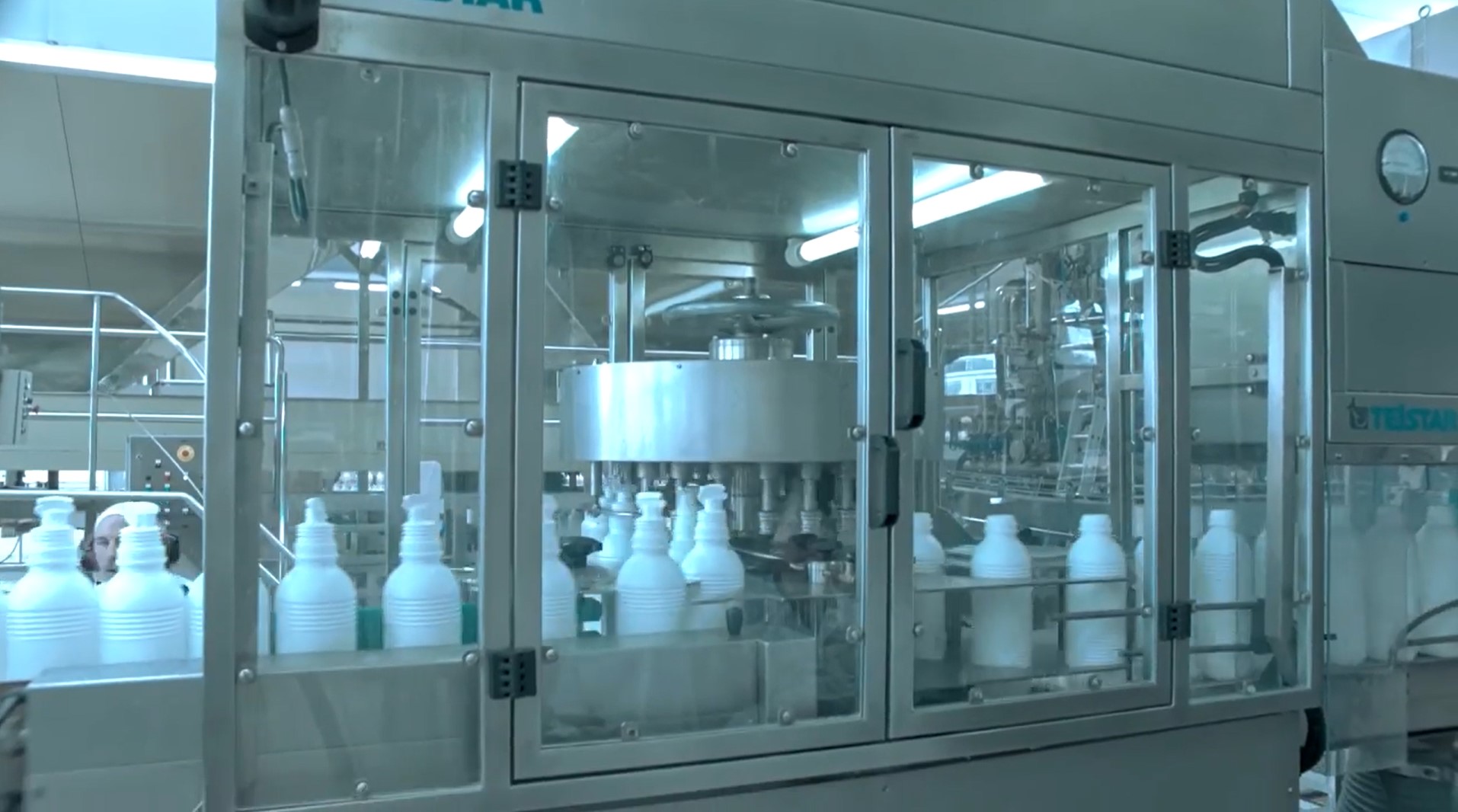

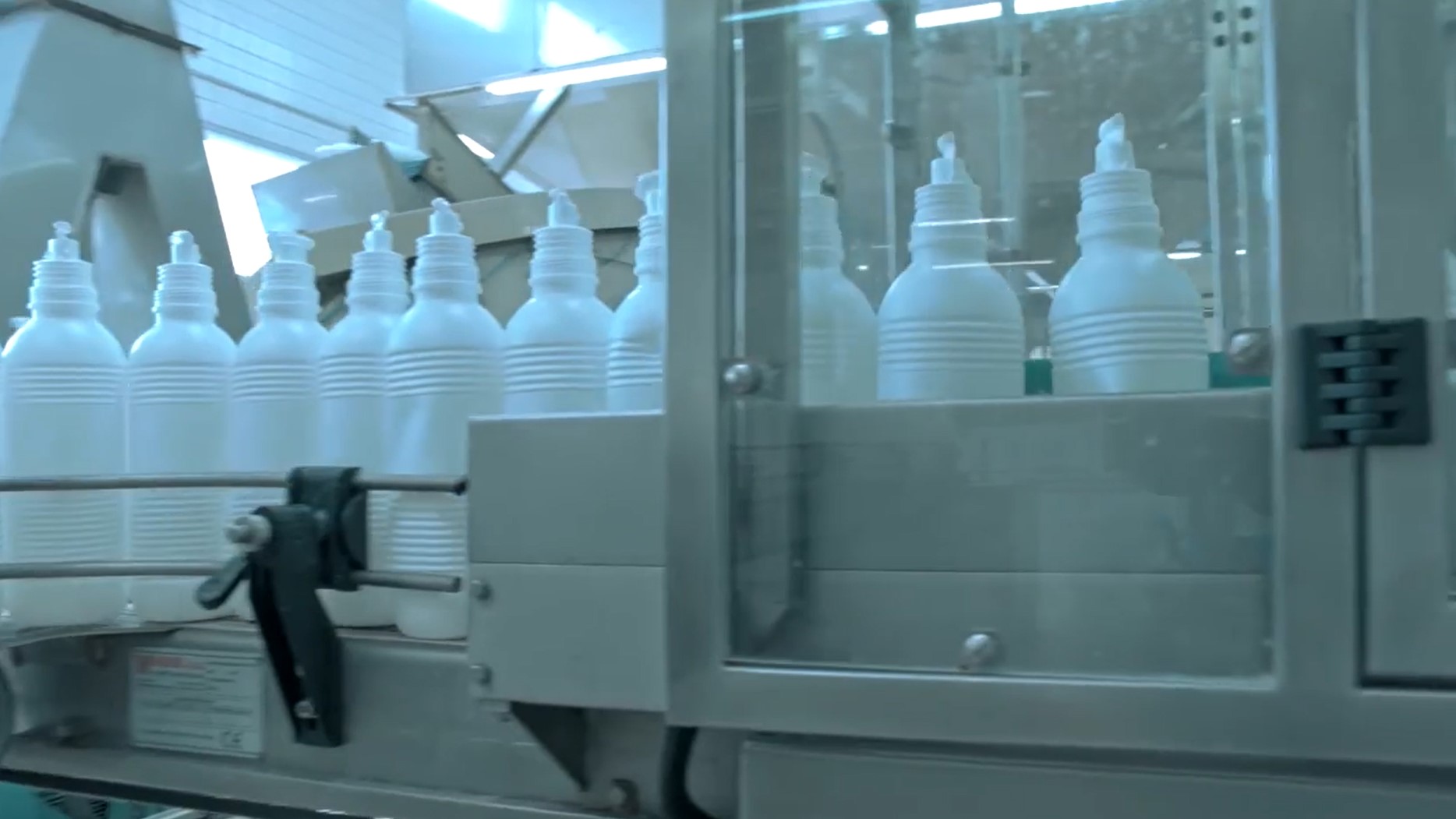

3. Bottlehead cut-off machine

Manufacturer: Telstar

Year of manufacturing: 2002

Sterile air filter on top of the machine

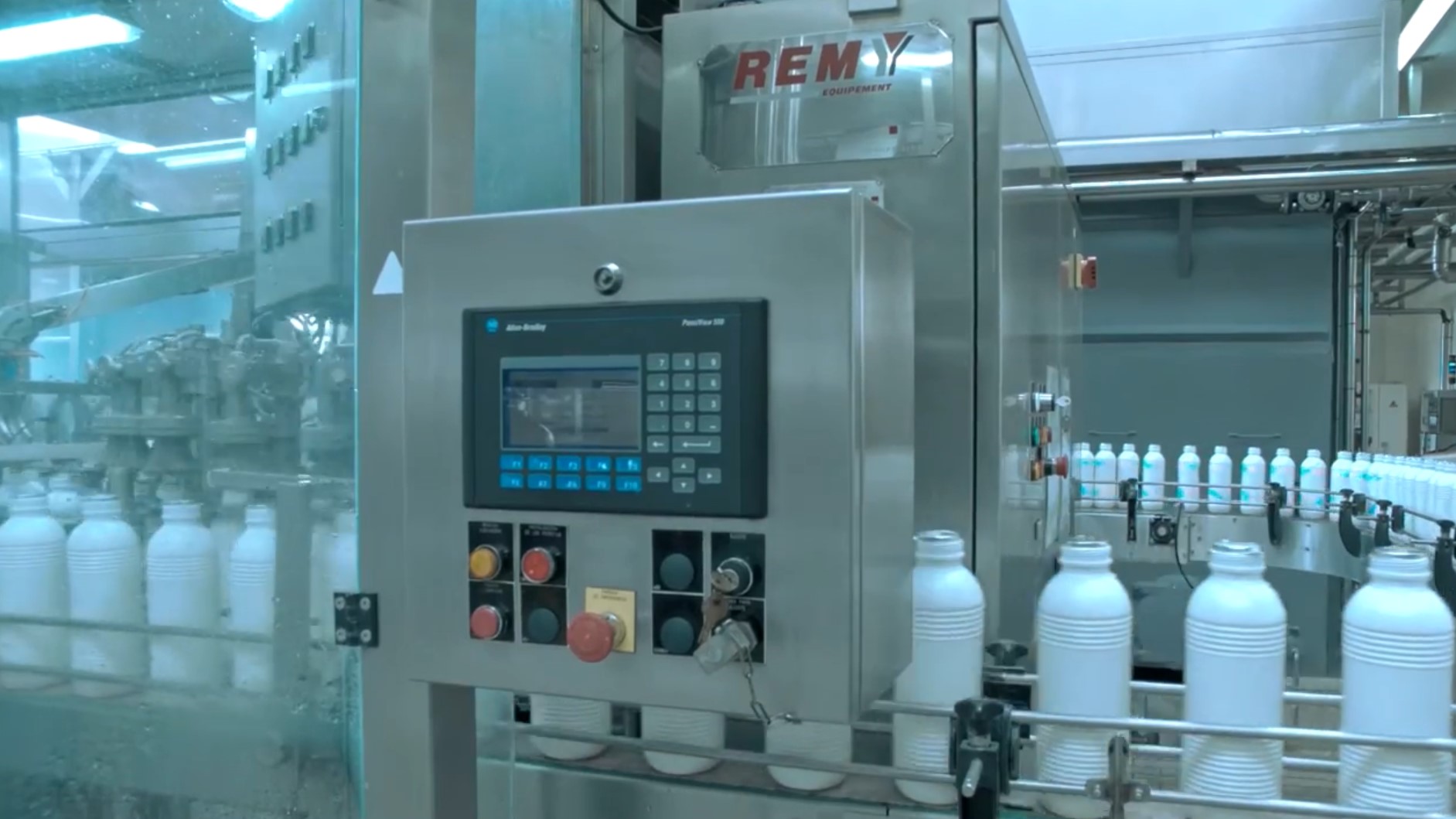

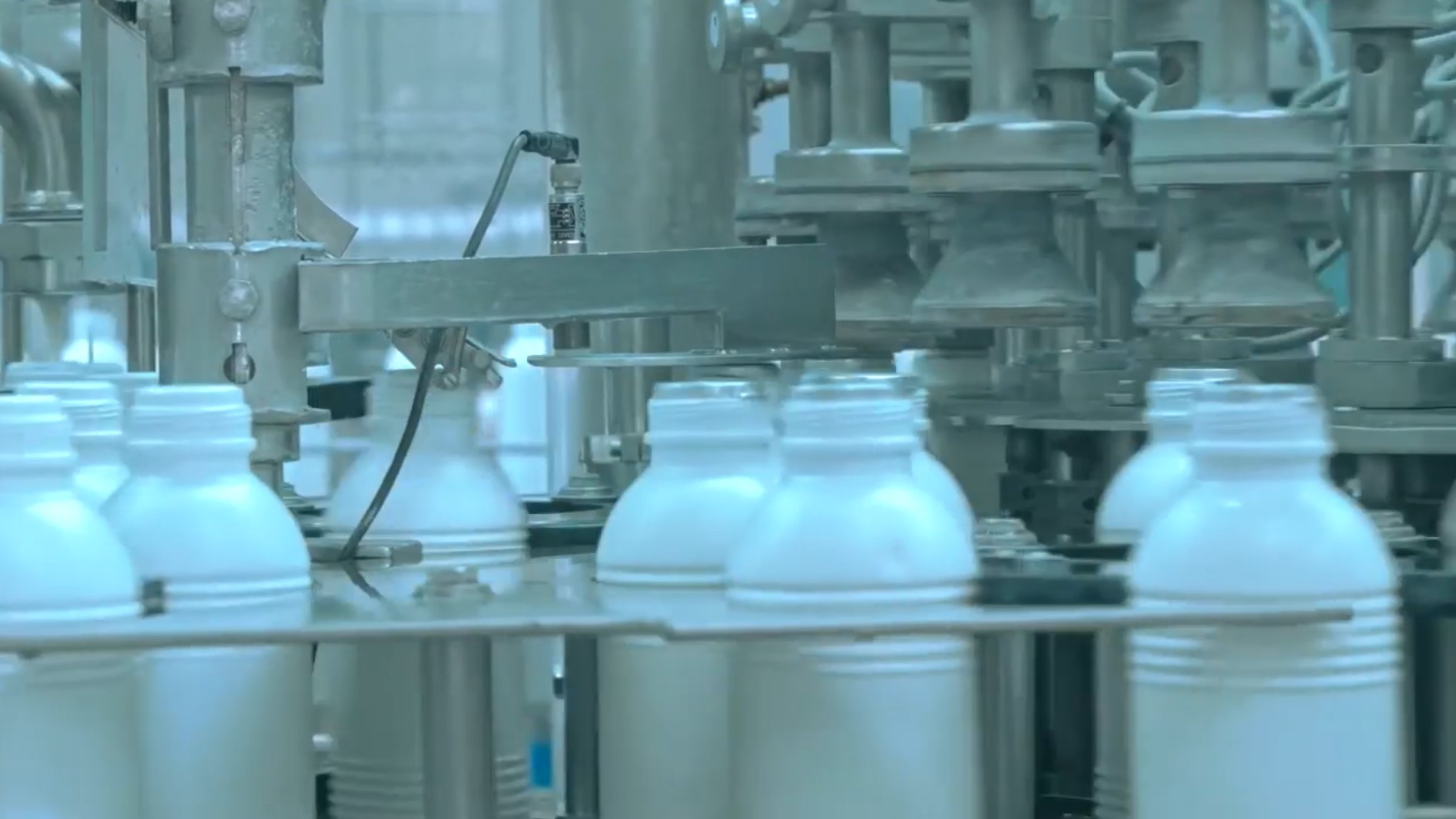

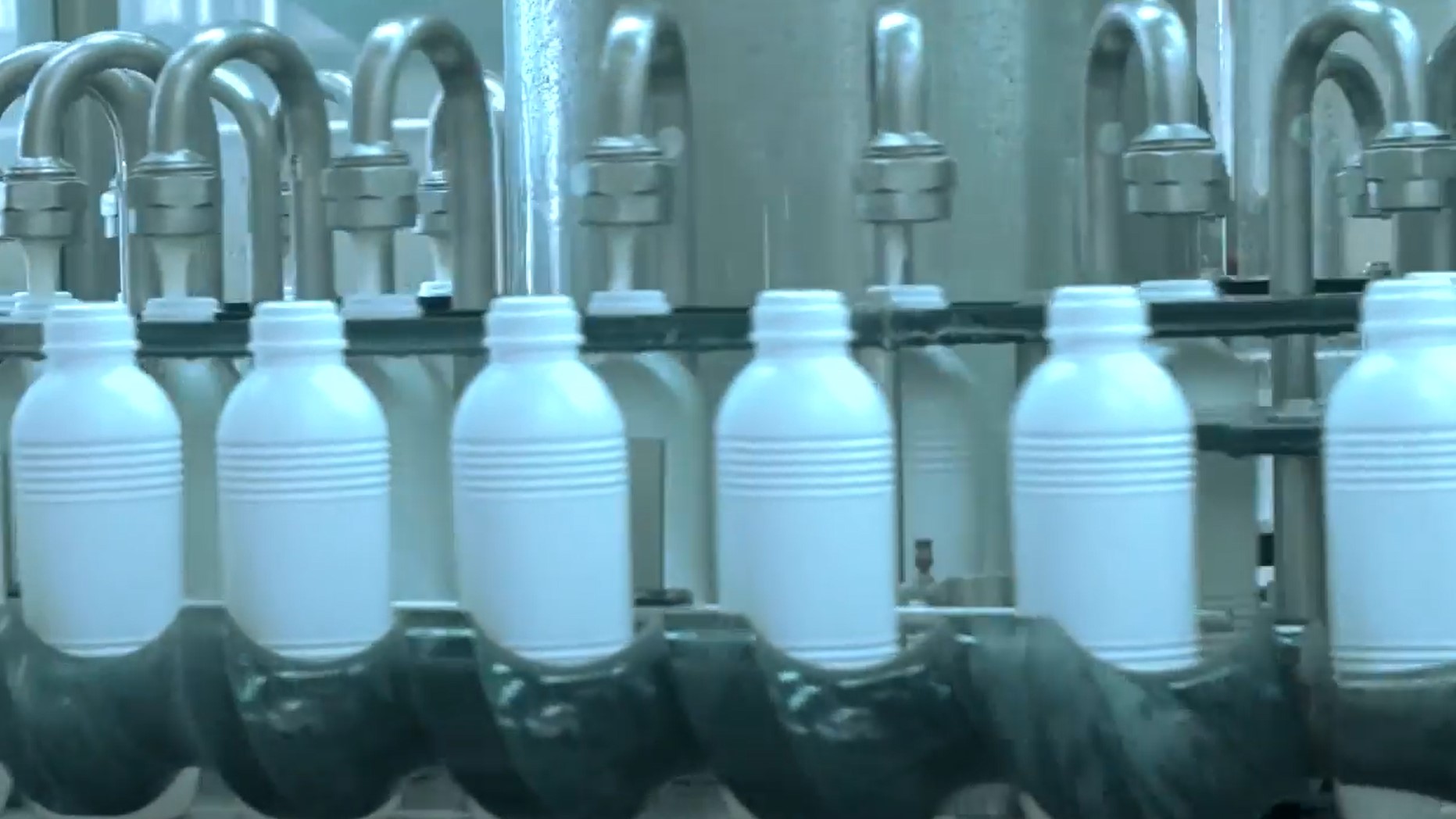

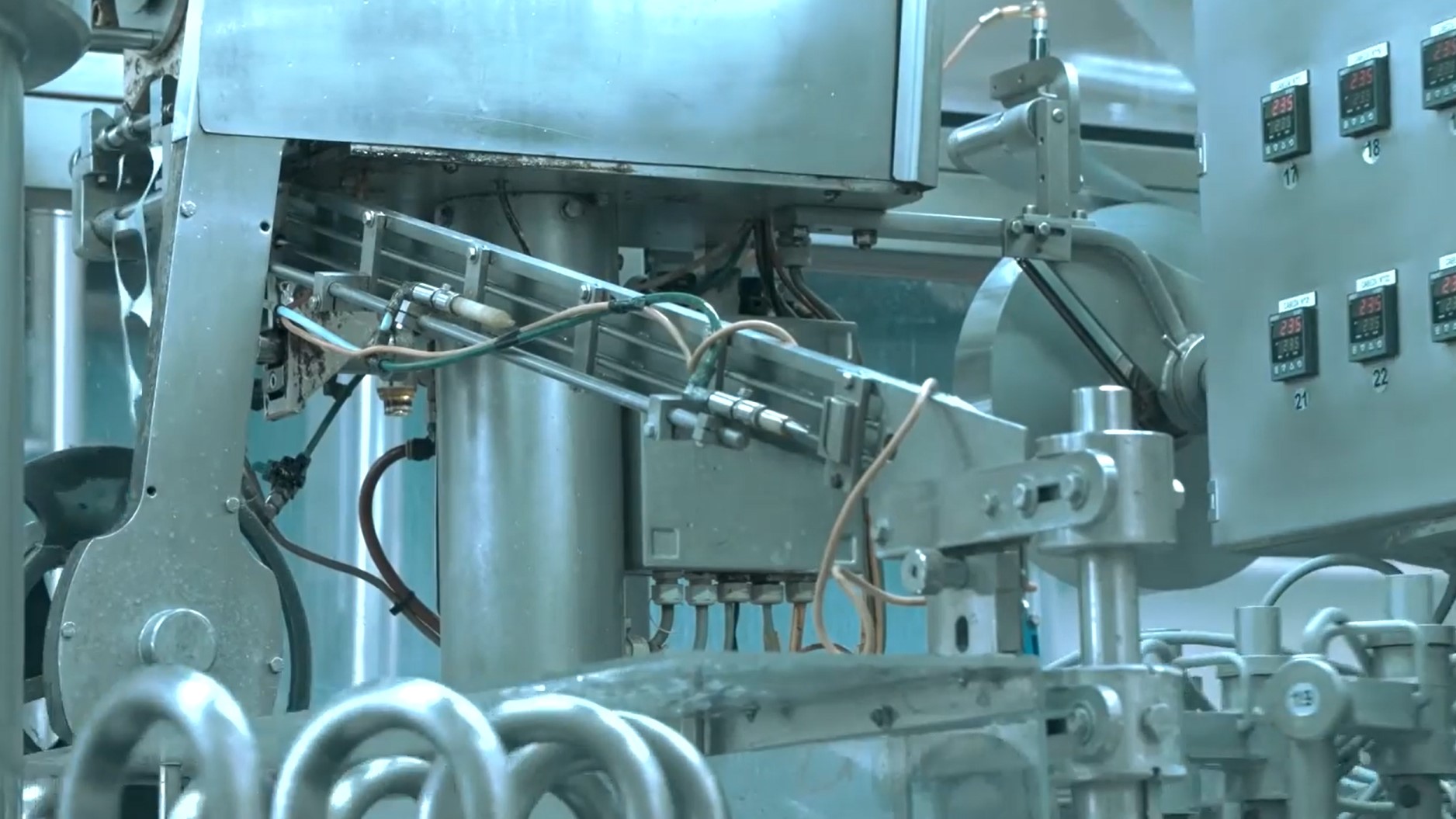

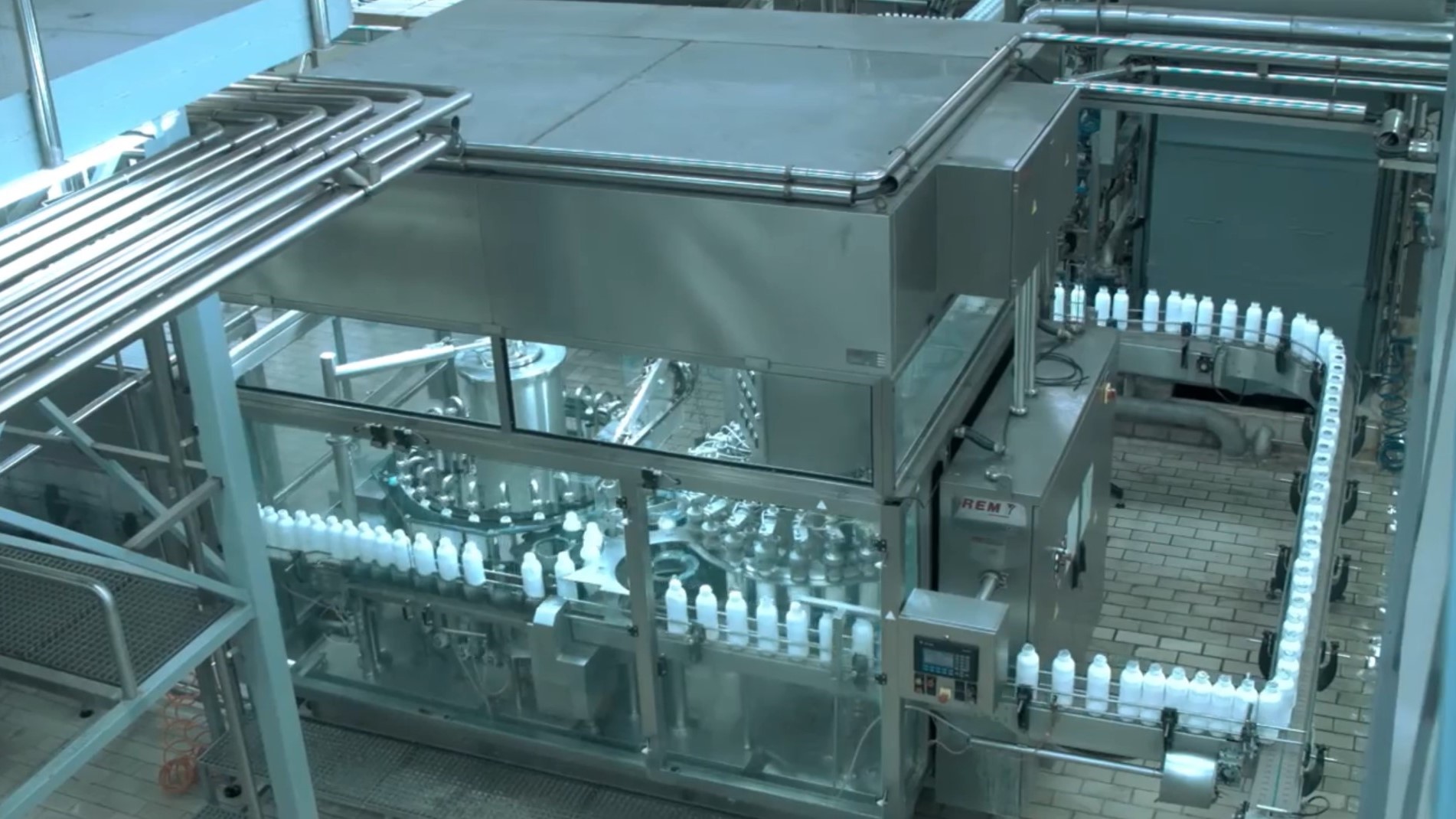

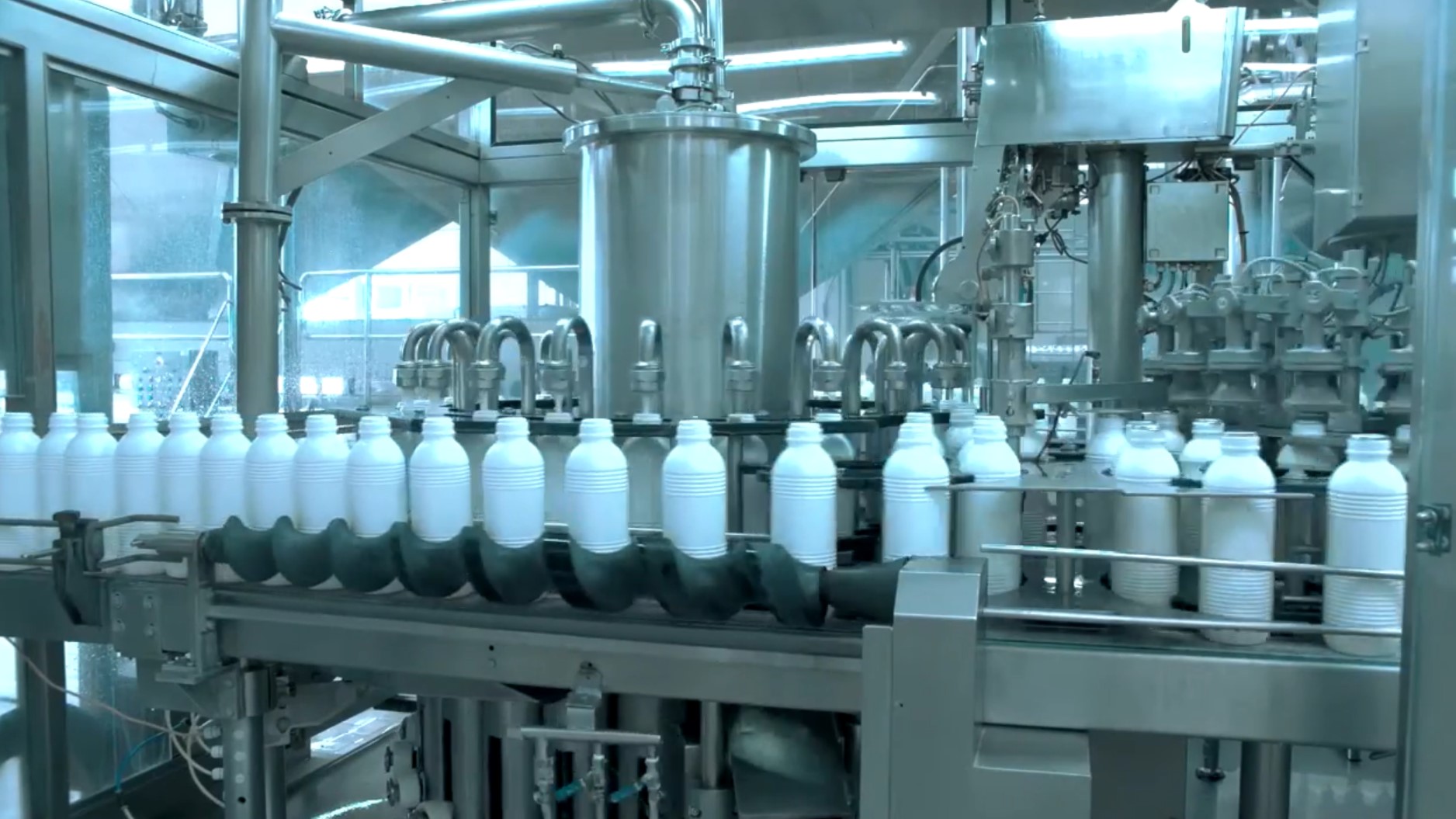

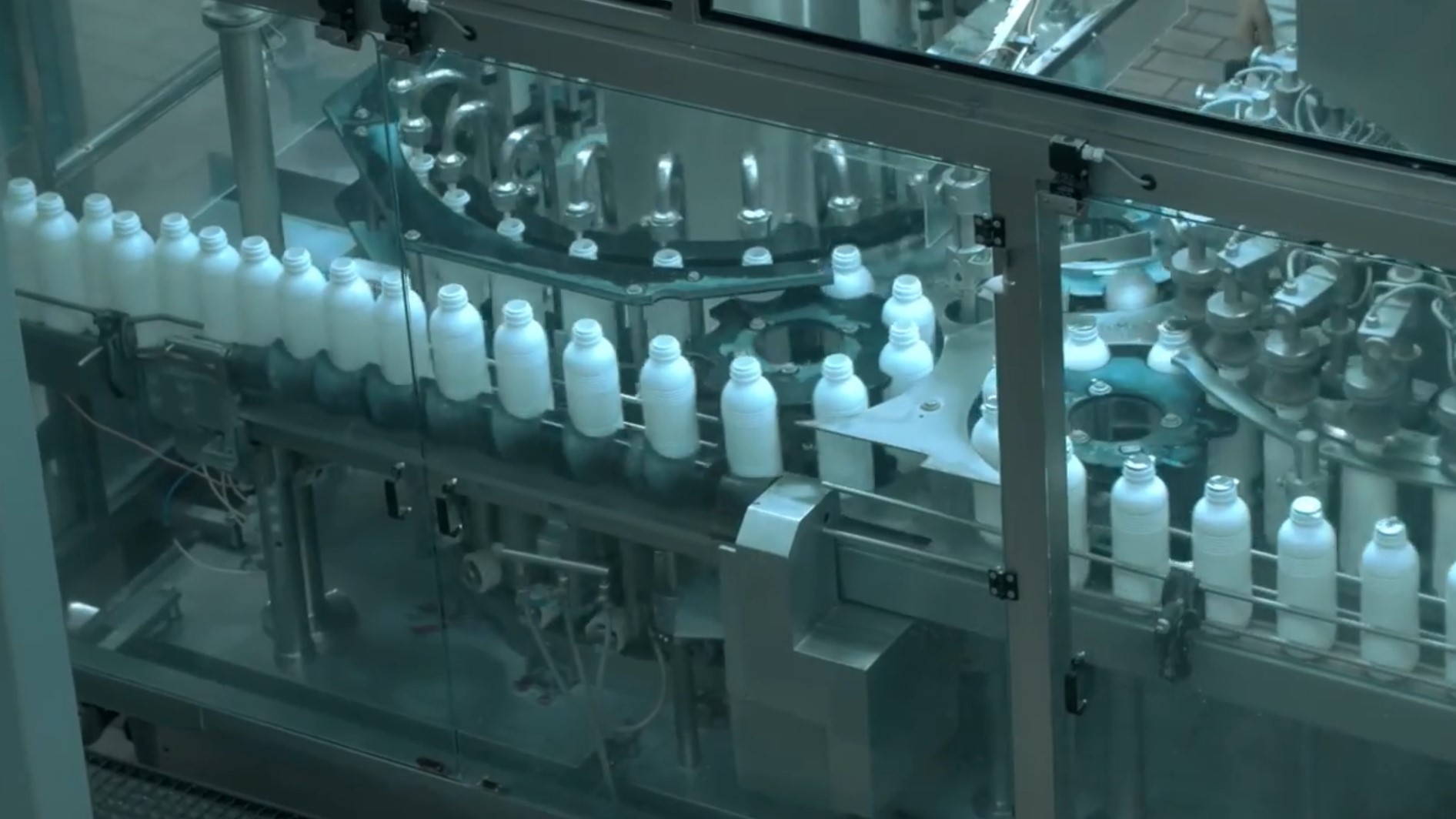

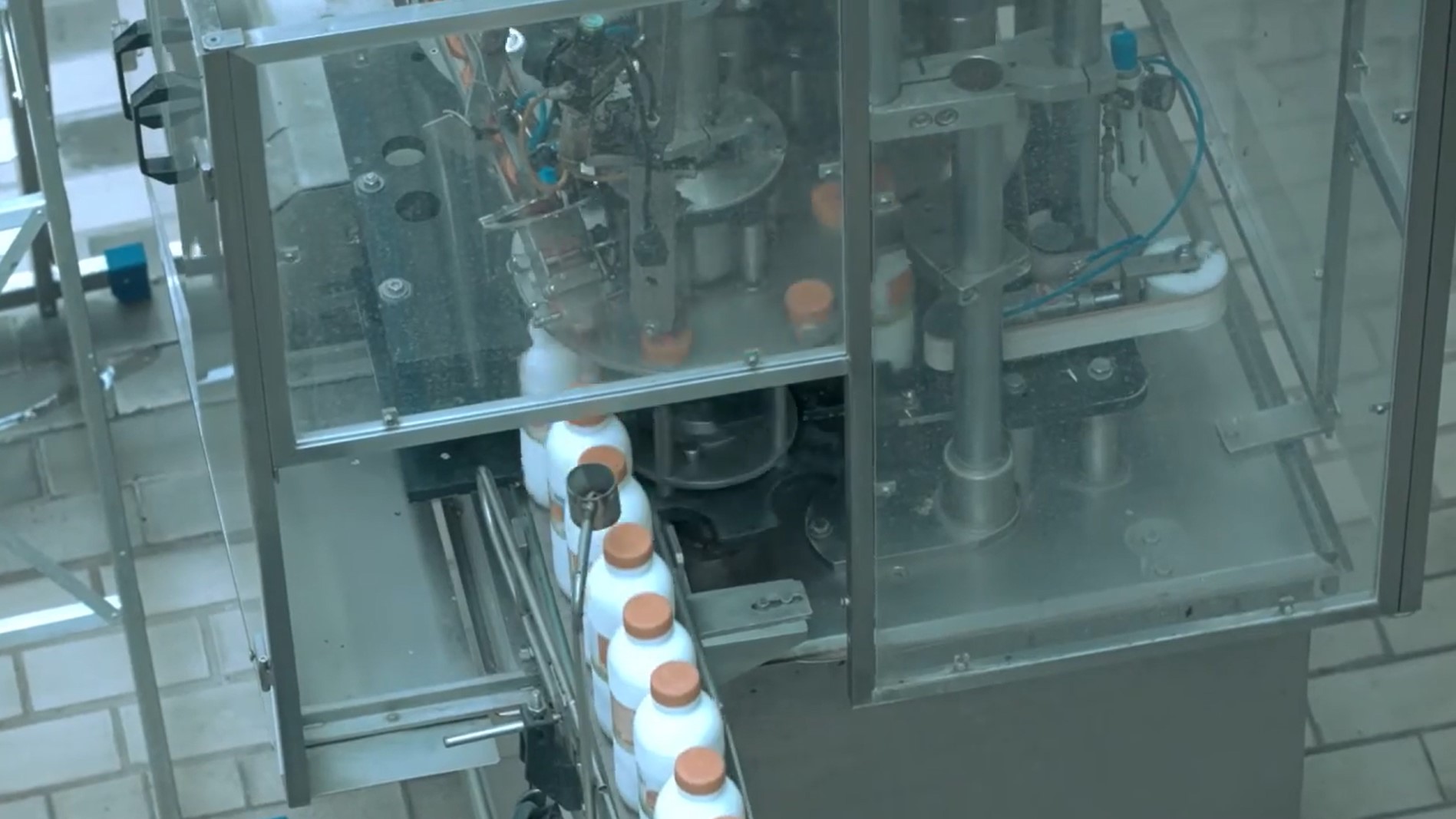

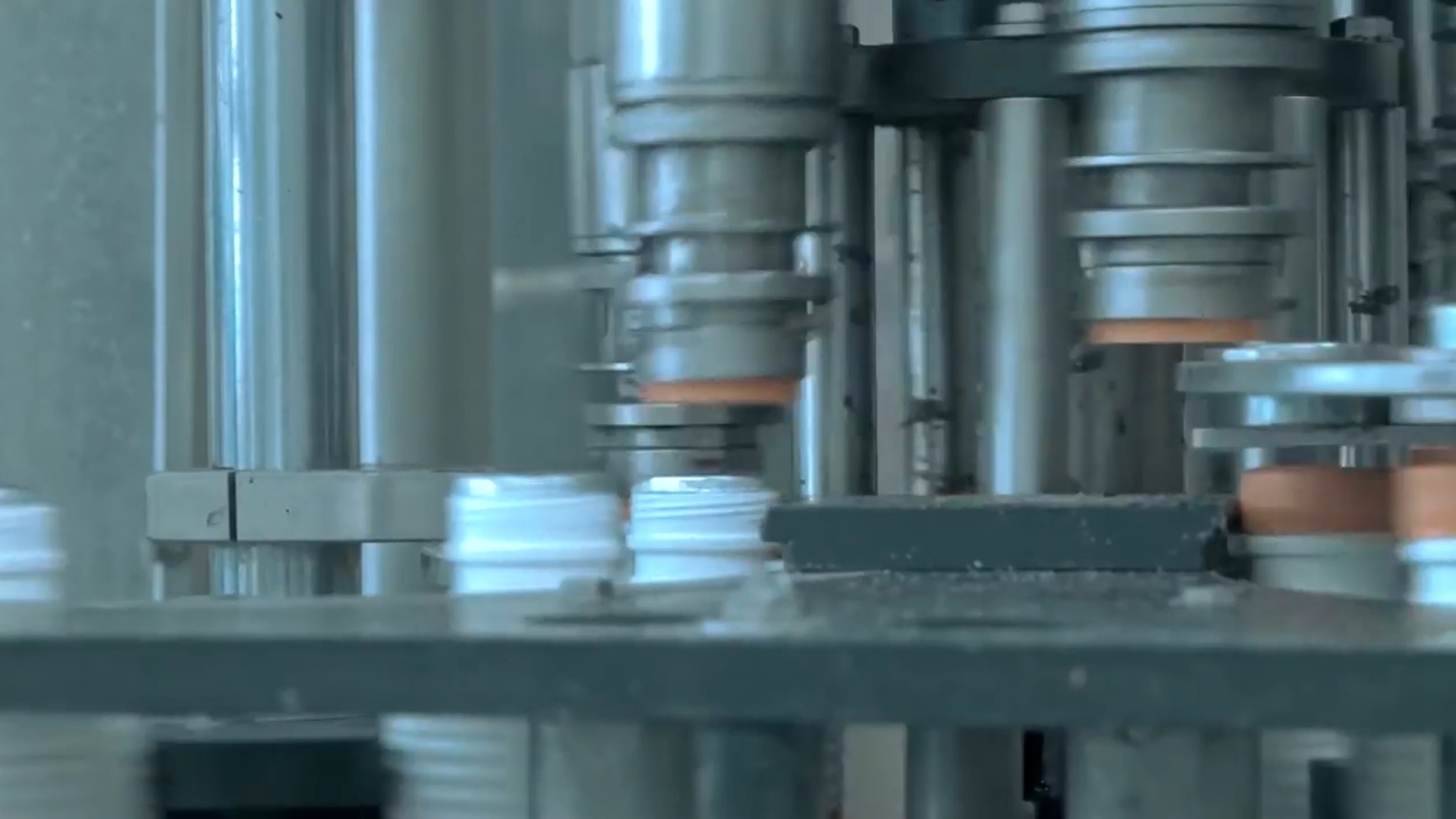

4. Bottle Filling and aluminium sealing machine

Manufacturer: Remy / Sidel

Model/type: 7024 T24R14

Year of manufacturing: 2002

Bottle size: 1,5 liter

Neck diameter of the bottle: 46,7 mm

Capacity per hour: 7.000 bottles per hour

Number of filling heads: 24

Number of closing heads: 24

Gravity filler

Aluminium foil sealing station

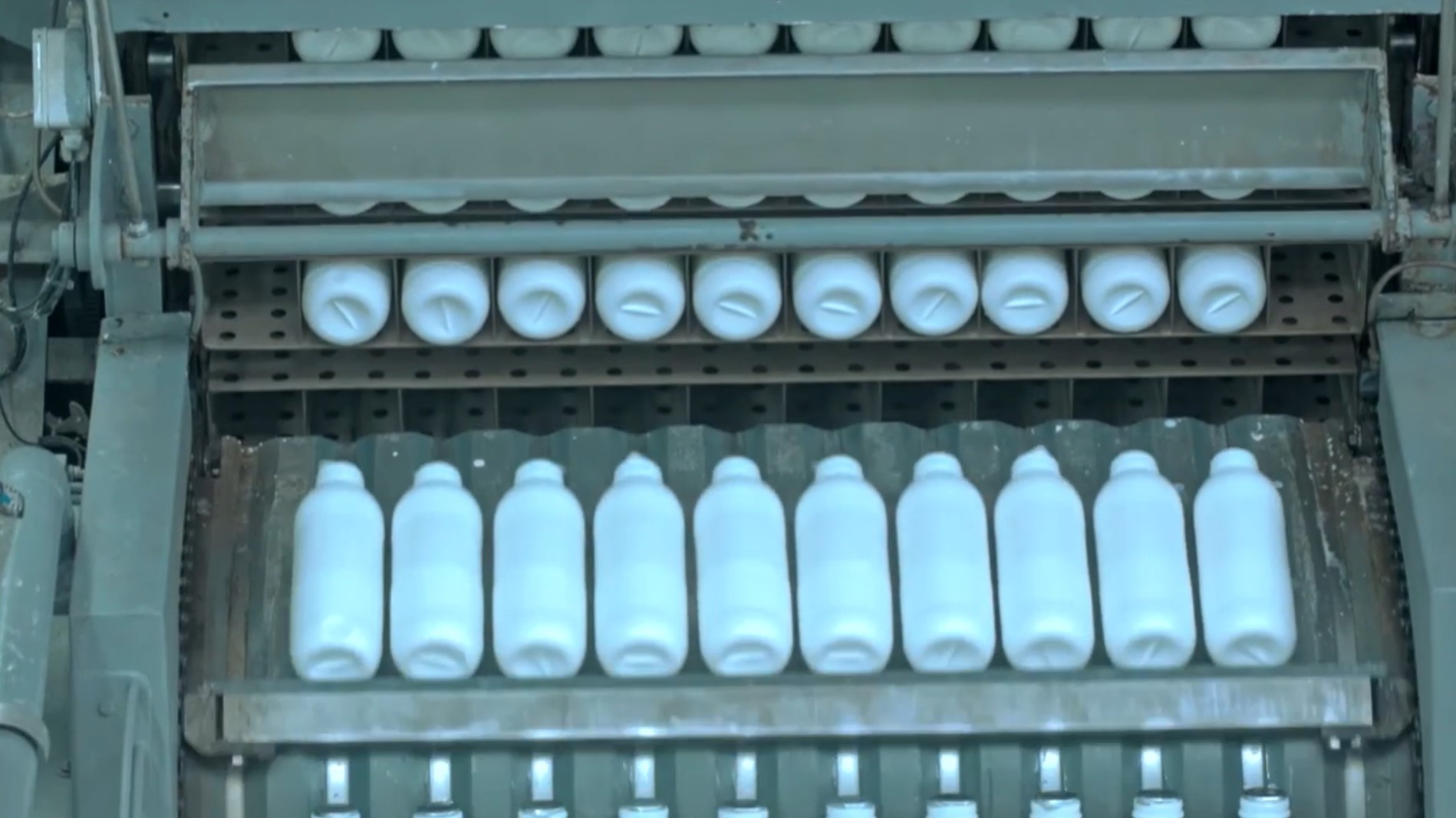

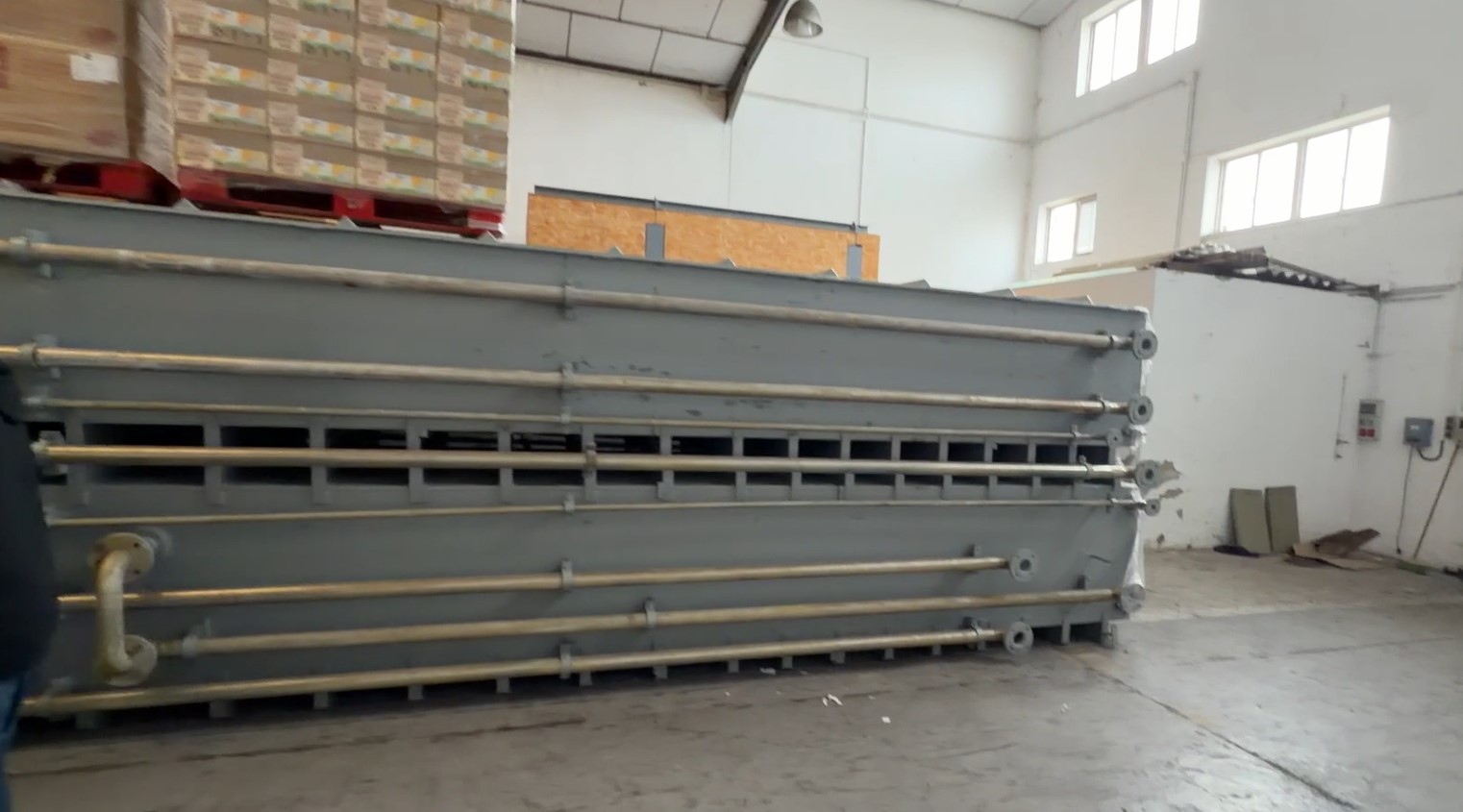

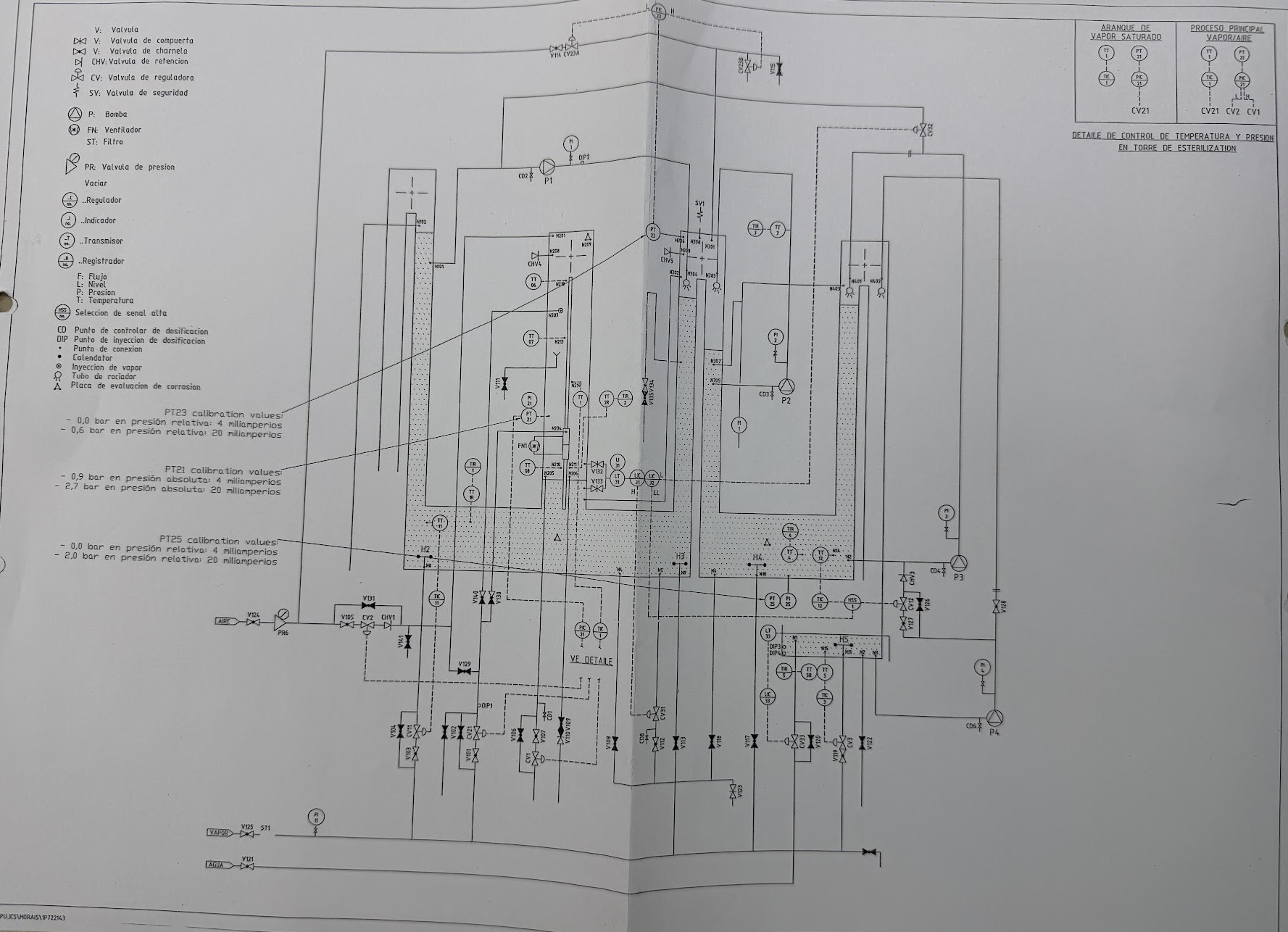

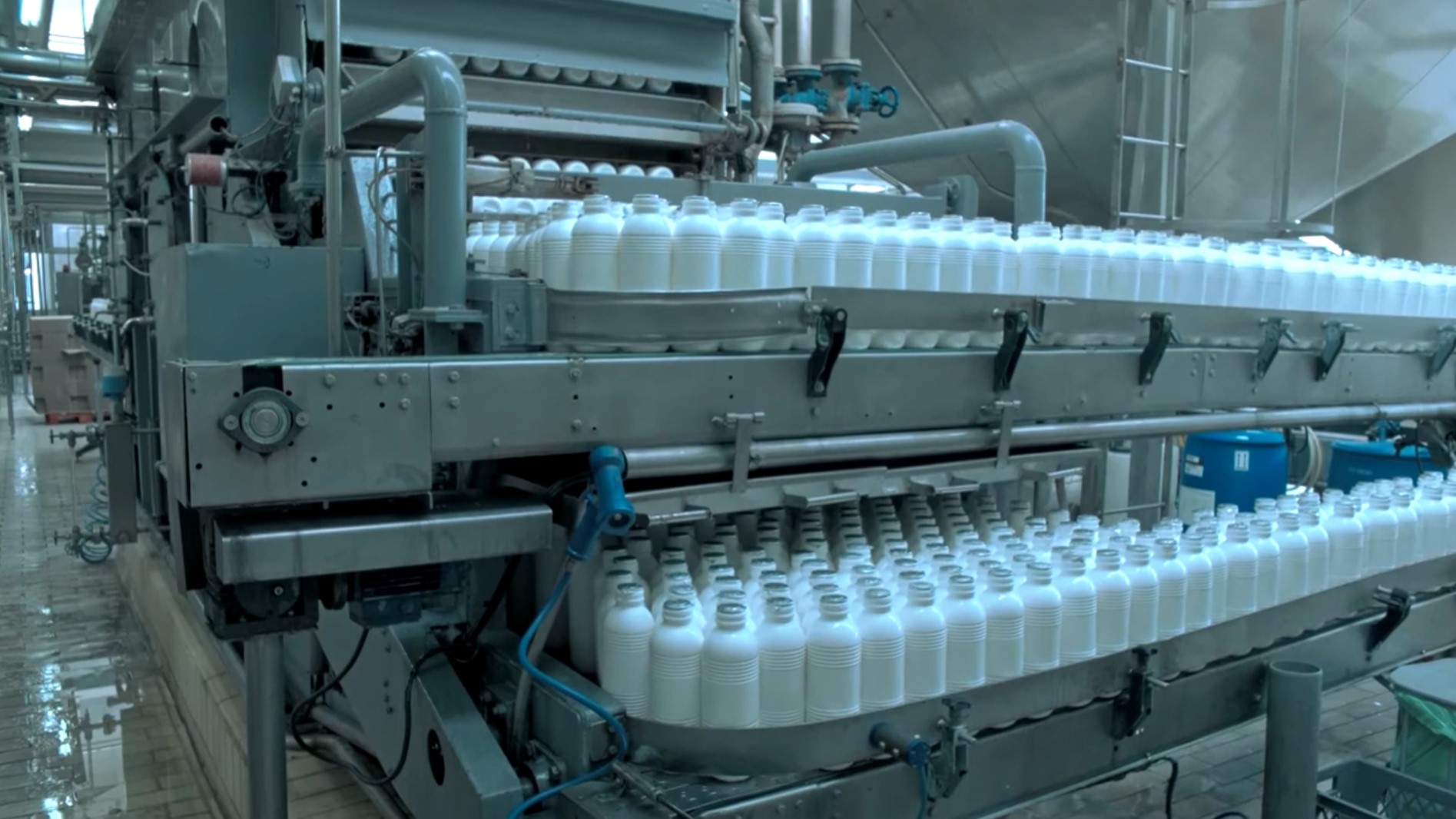

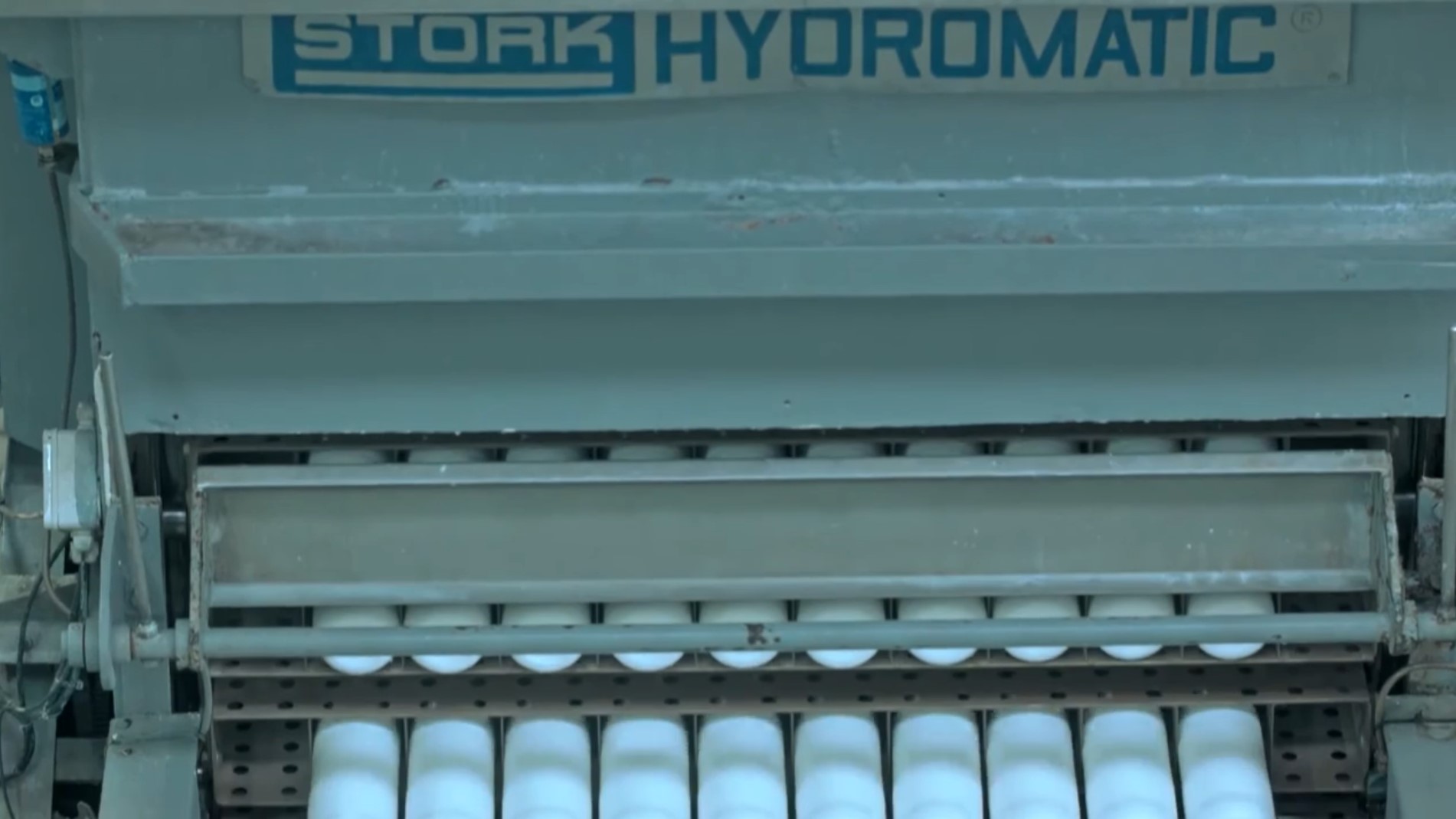

5. Sterilisation tower

Manufacturer: Stork

Model/type: Hydromatic ZCSO 14,6-4/170-F12/150

Year of manufacturing: 1980

Serial number: 18659

Number of bottles per row: 10

Time the bottles stay inside the tower: 15 minutes

Temperature inside the tower: 118 °C

6. Buffer table

Manufacturer: Stork

7. Labeller

Manufacturer: Krones

Model/type: K-073-F76

Year of manufacturing: 1994

How many heads: 10

Capacity per hour: 7.200 labels per hour

Hot glue labelling

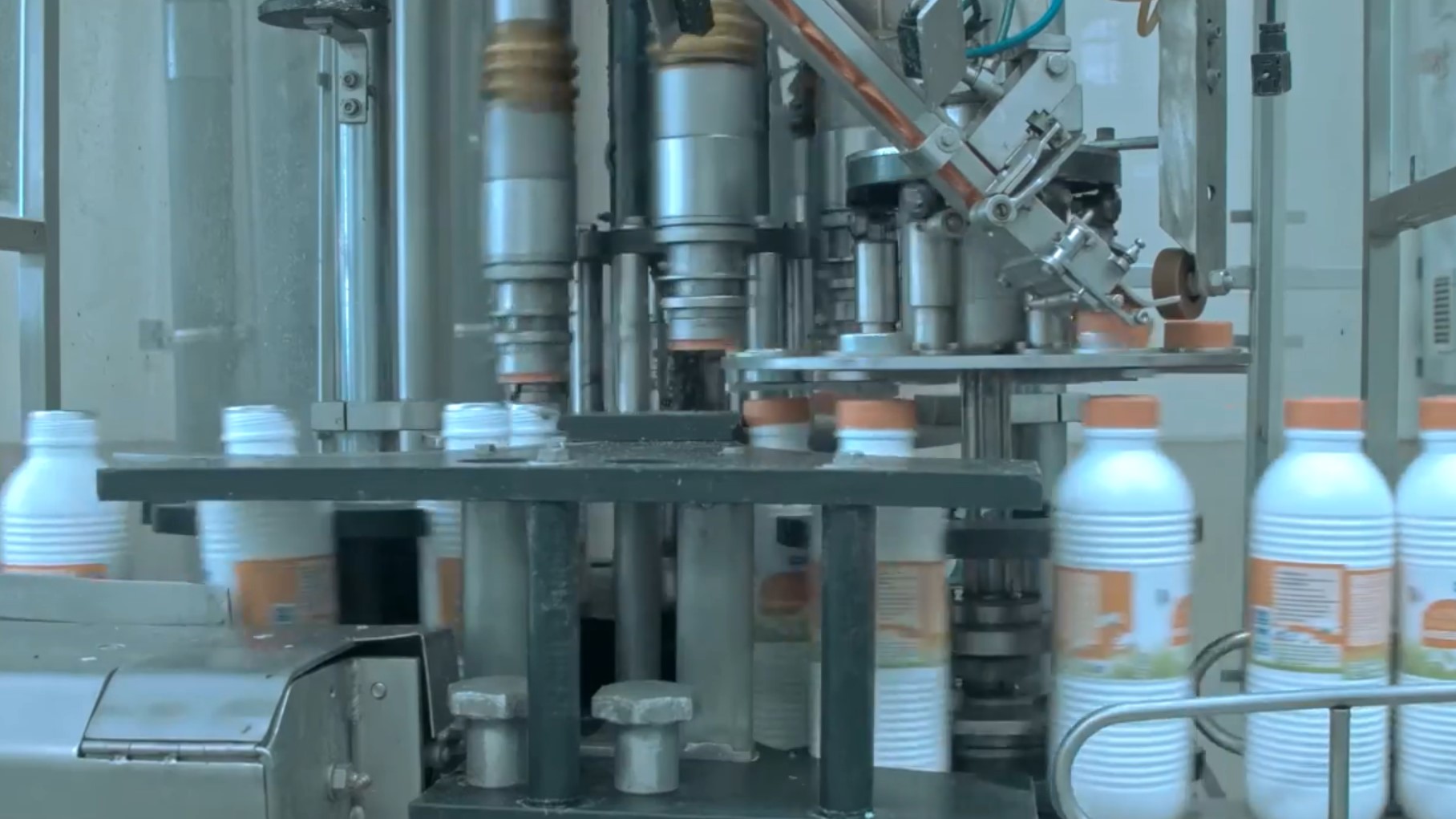

8. Cap applicator with feeding bunker

Manufacturer: Zalkin

Model/type: CA320

Year of manufacturing: 1994

Capacity per hour: 7.200 bottles per hour

9. Inkjet on the bottles

Excluded

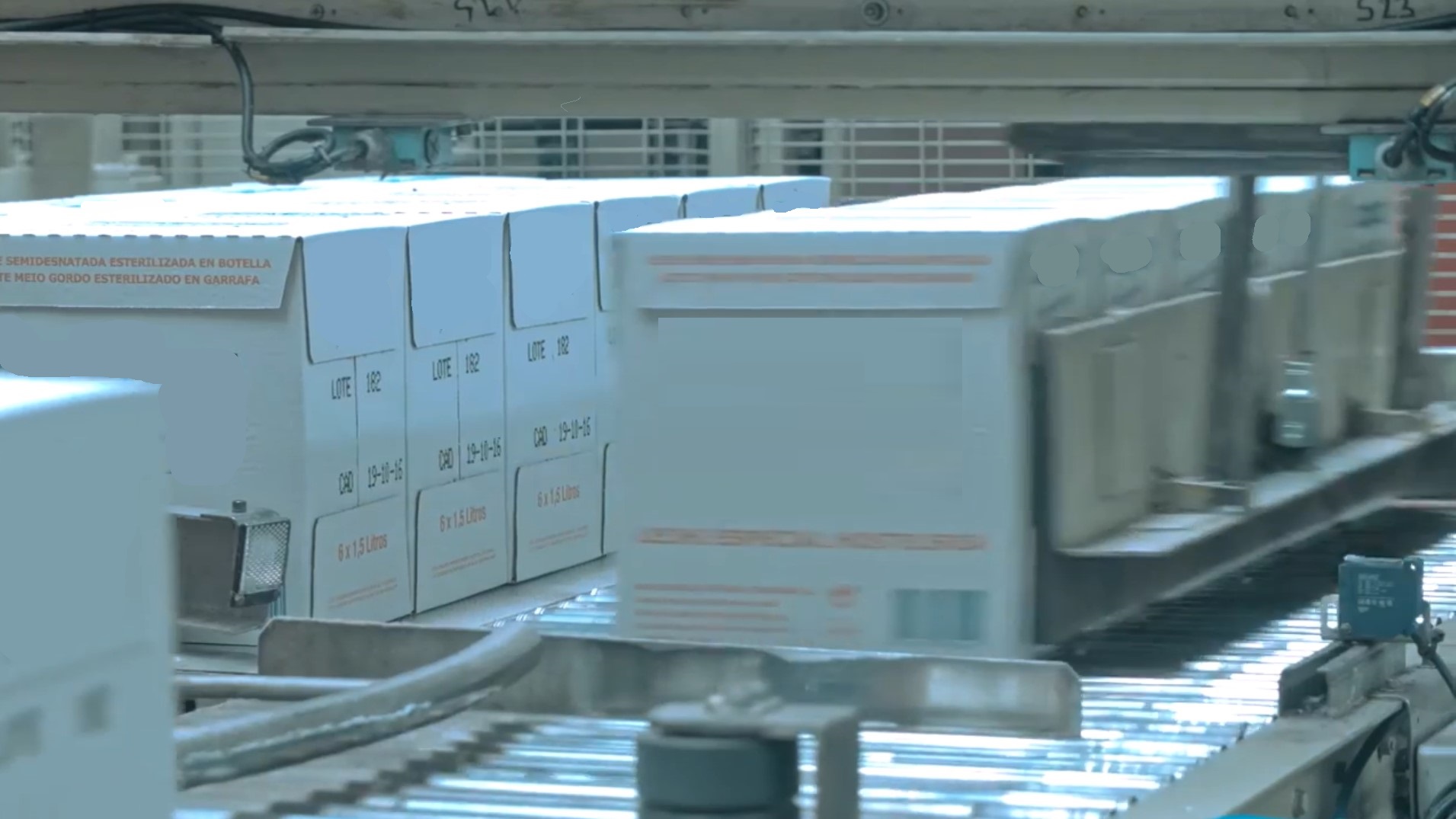

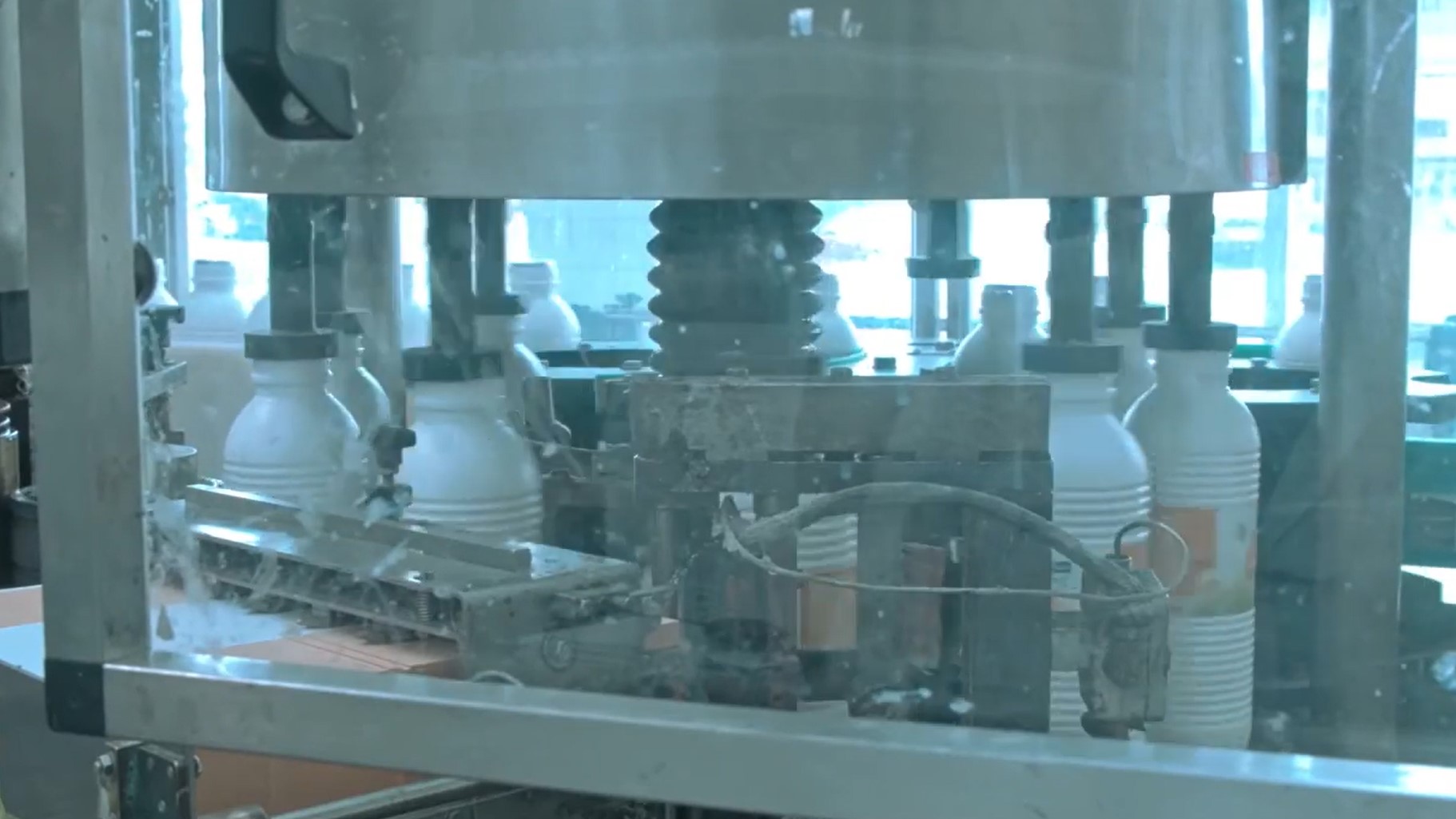

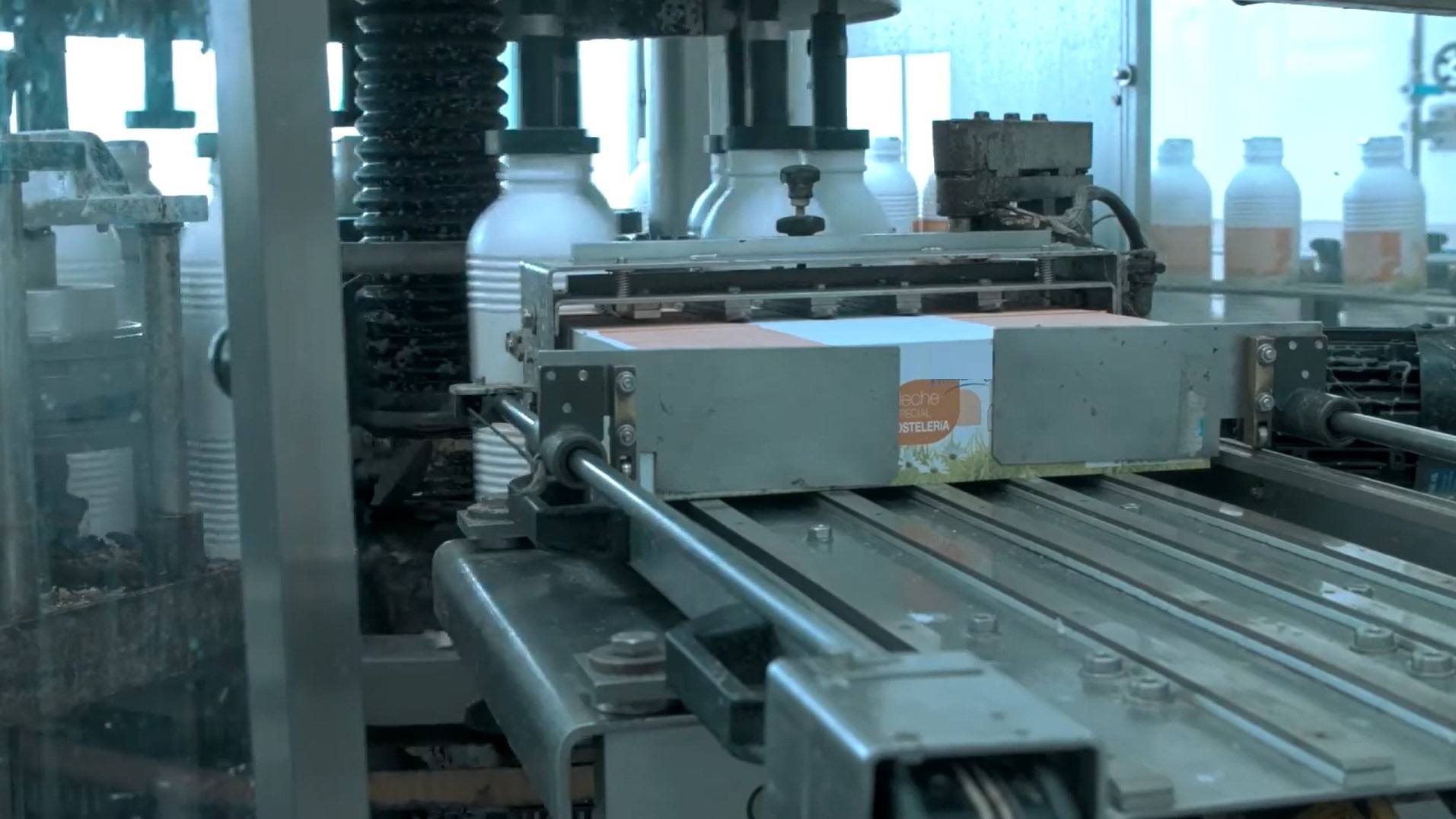

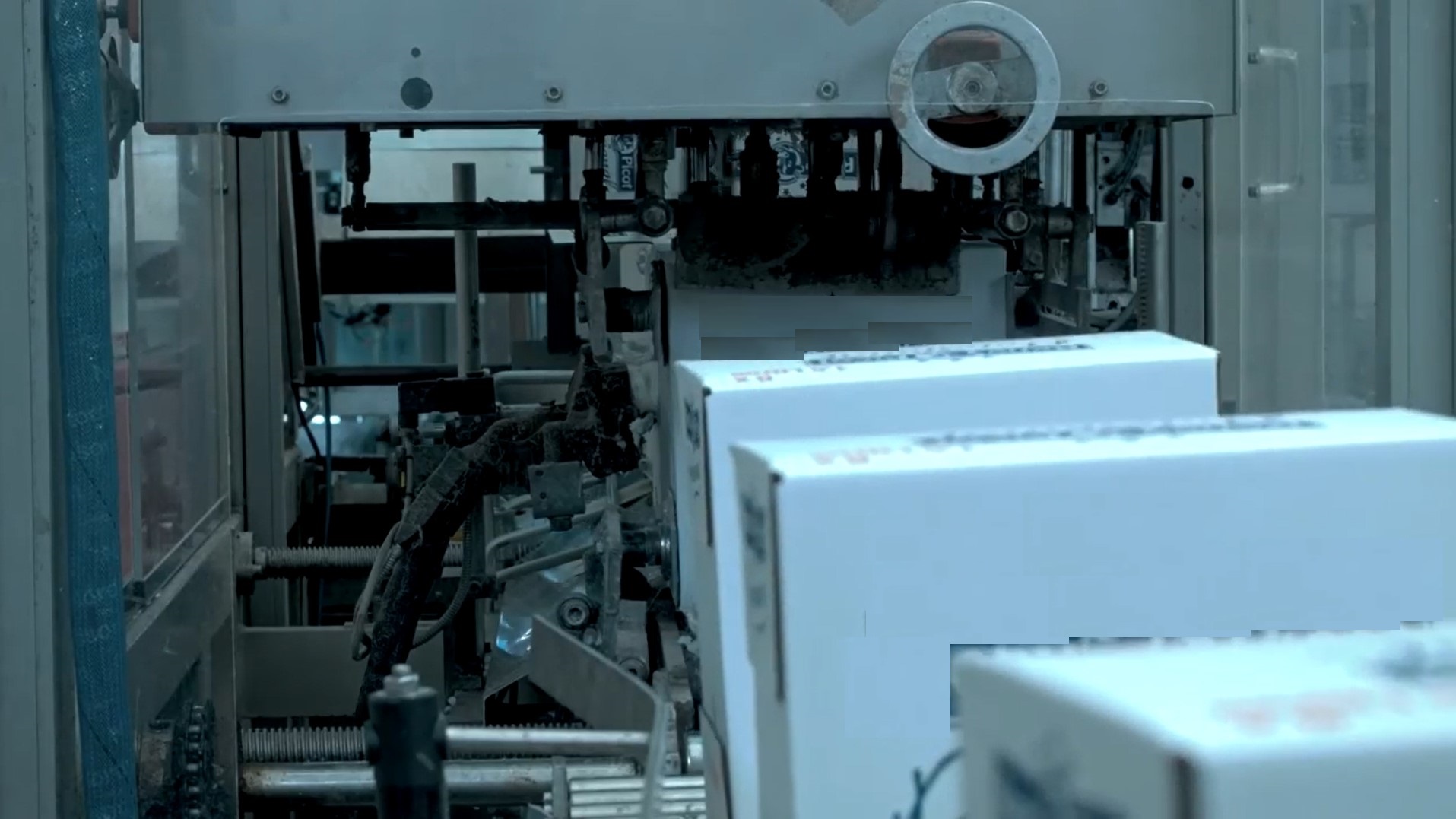

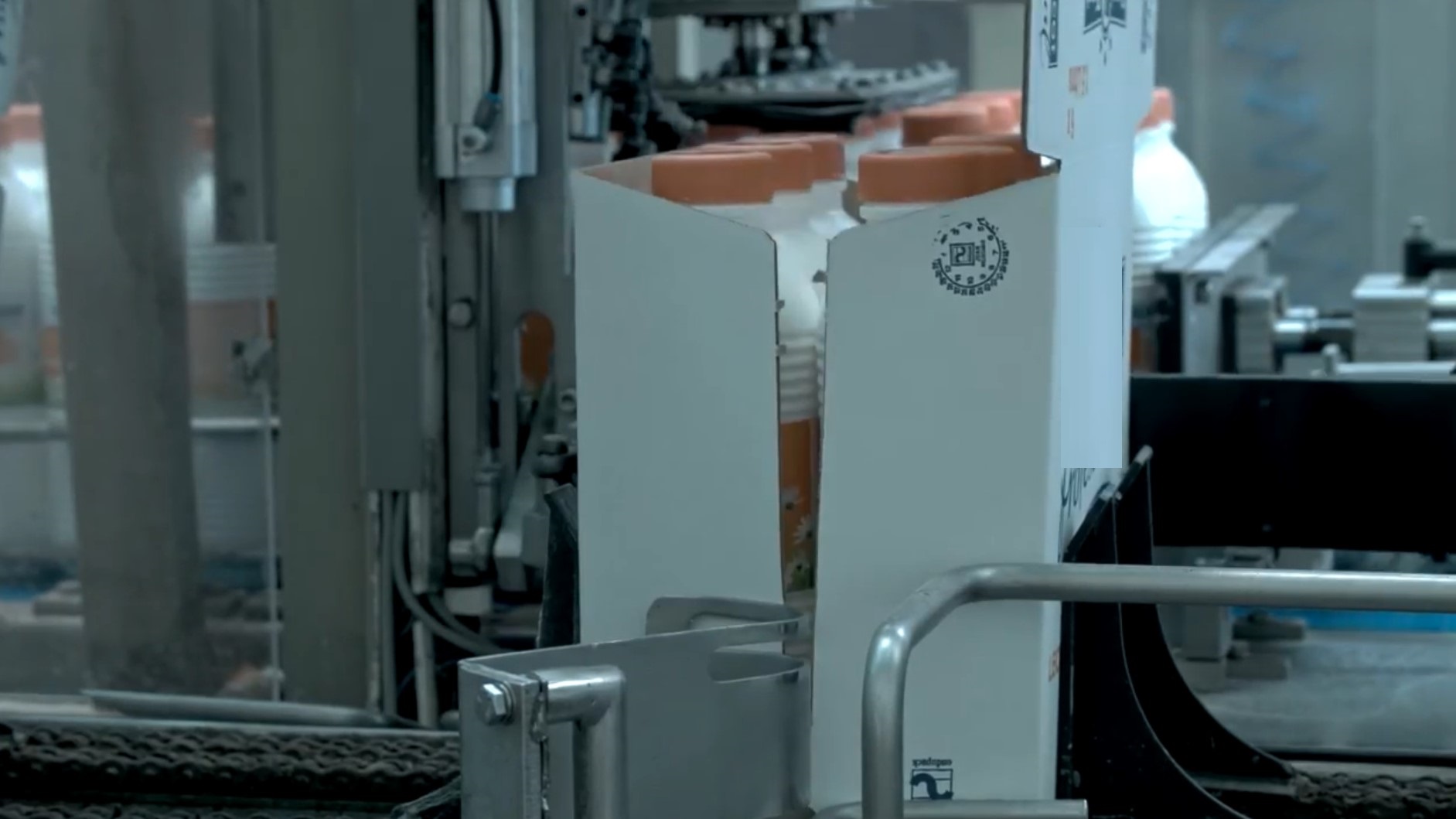

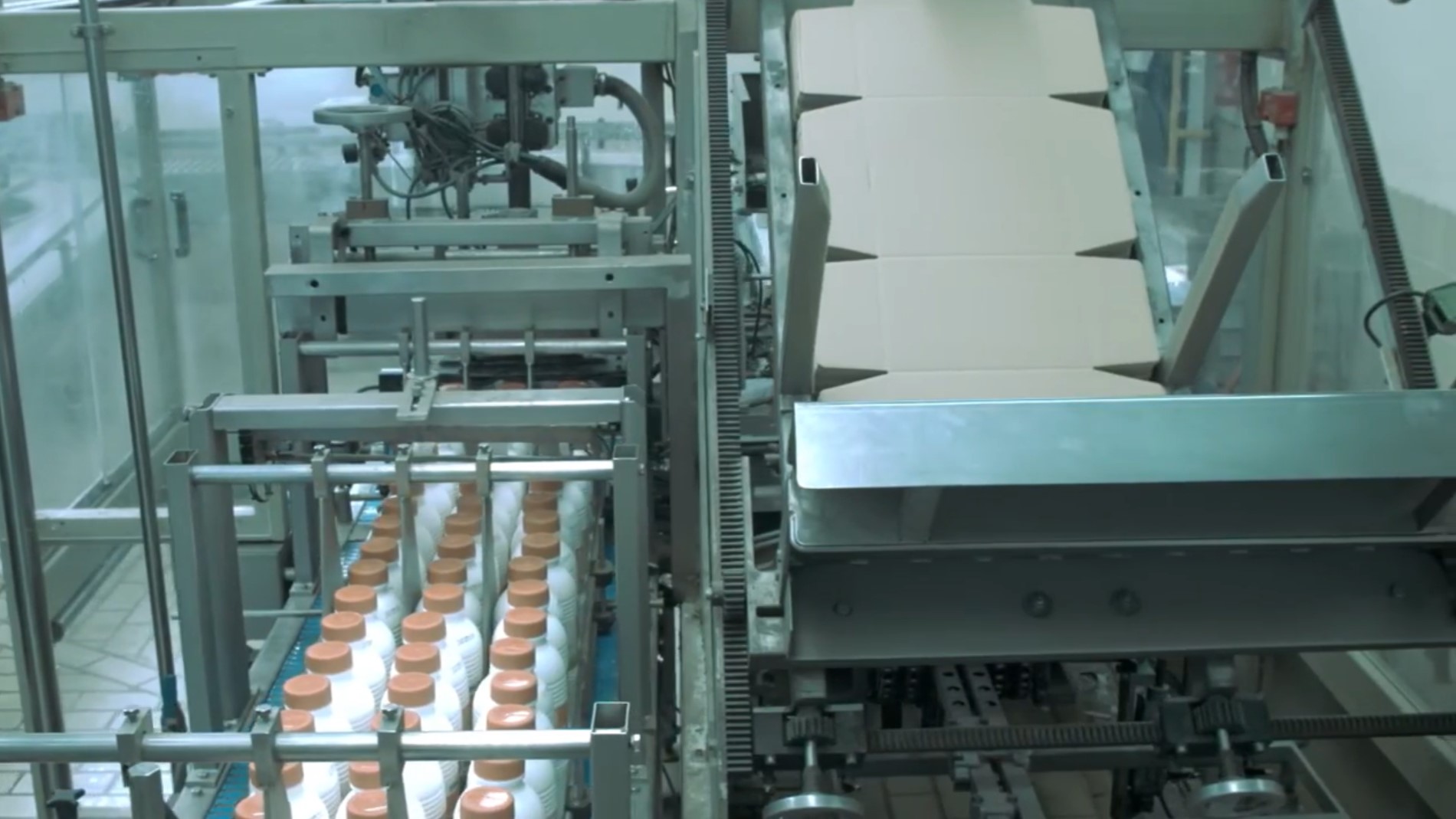

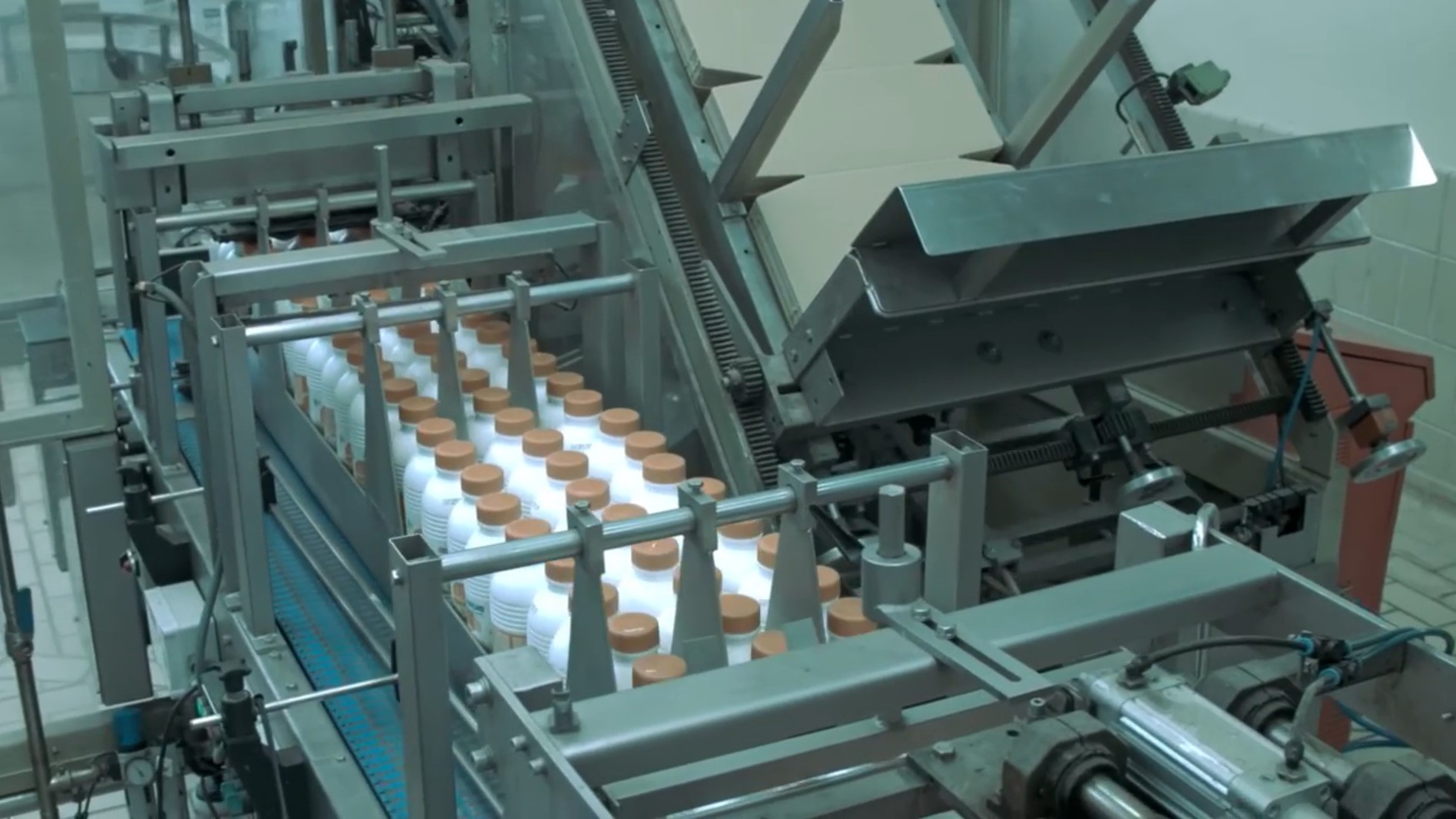

10. Carton box filler

Manufacturer: Enka / Stork

Year of manufacturing: 1980 / 1979

Capacity: 600 per hour / 1100 per hour

Wrap around

Packscheme: 3x2

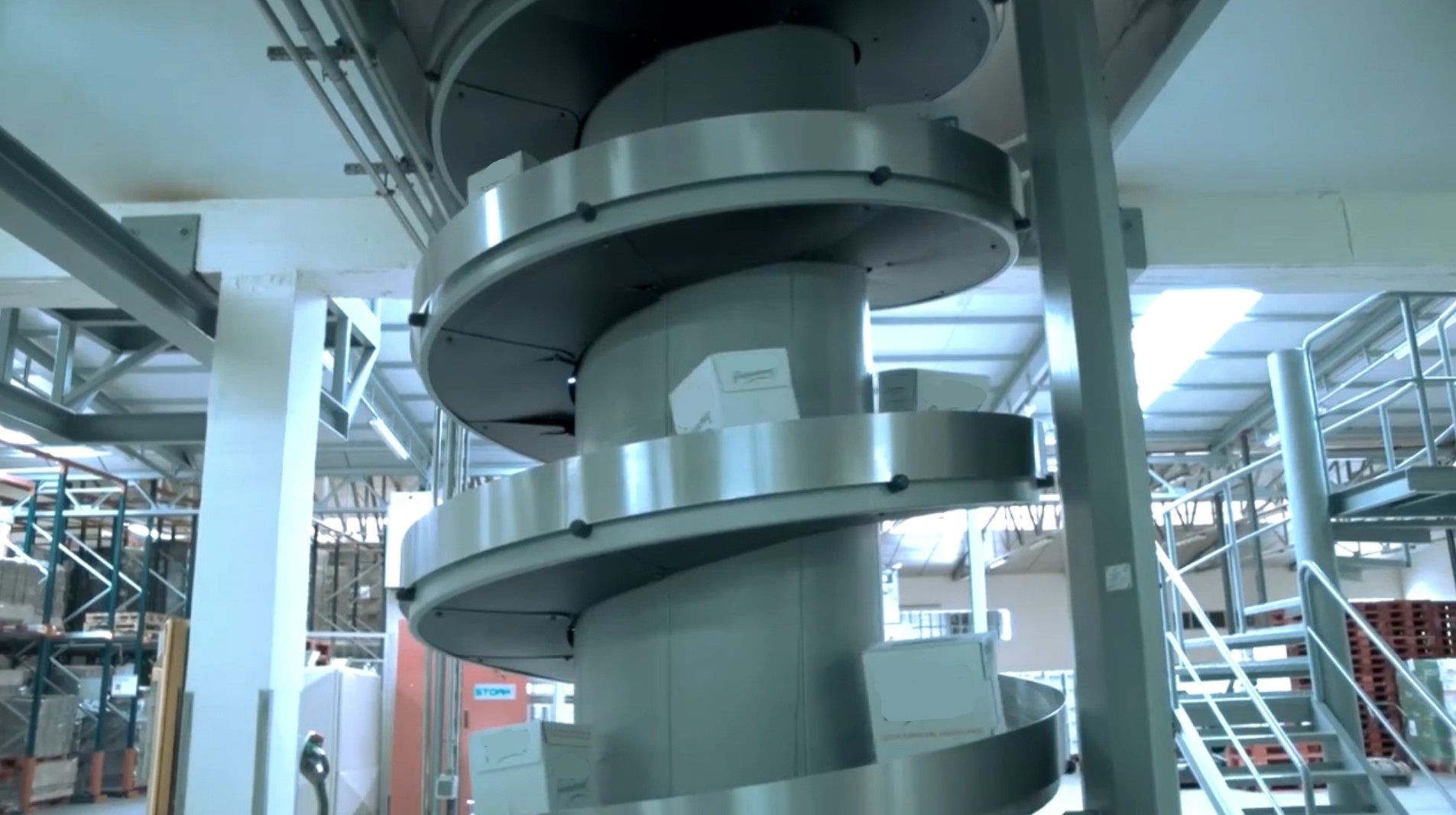

11. Spiral conveyor to level below

Manufacturer: Ambaflex

Model/type: SV

Year of manufacturing: 2007

Serial number: 7273-01

Height from level A to level B: ± 4 meter

12. Inkjet on carton boxes

Excluded

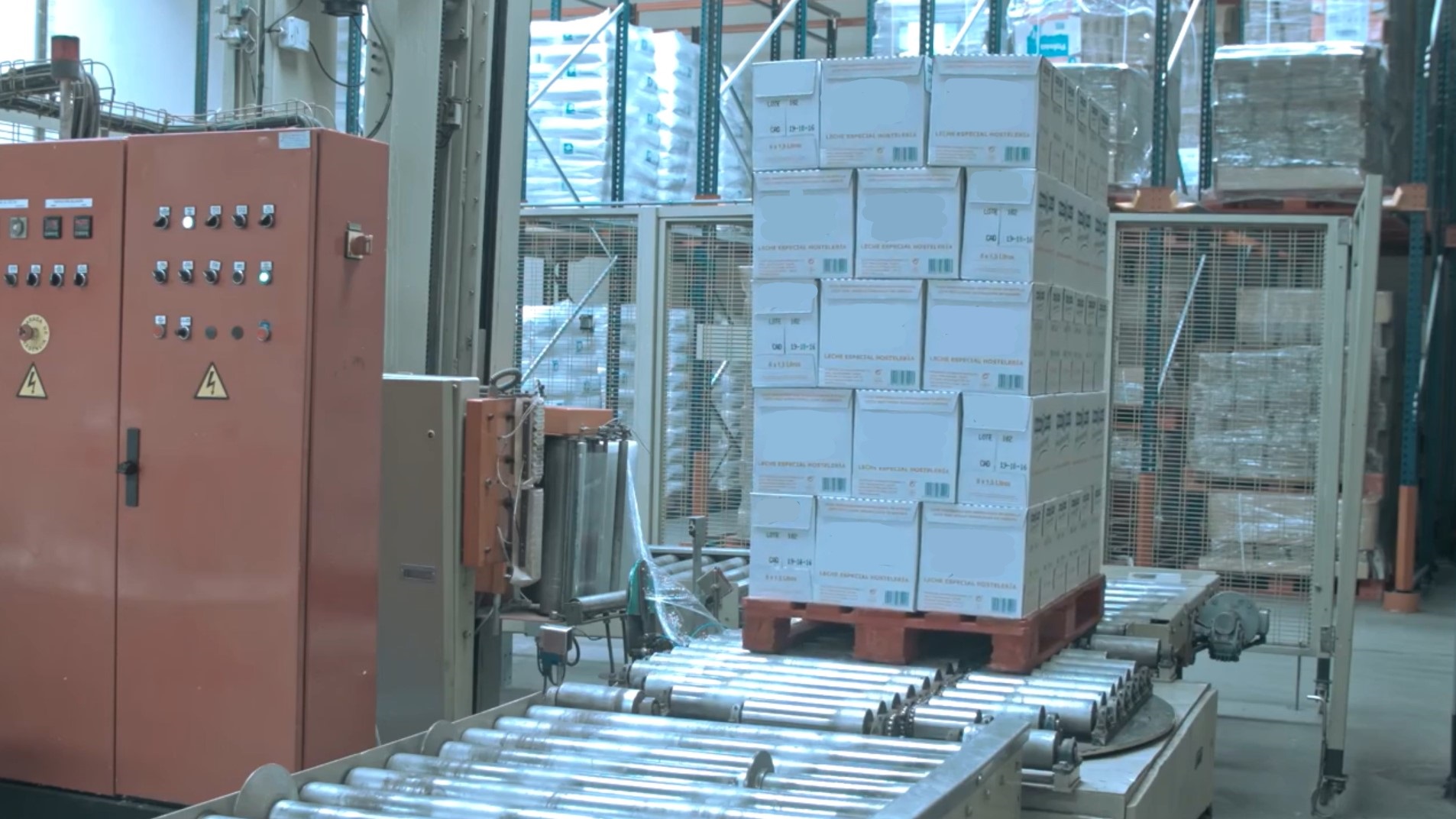

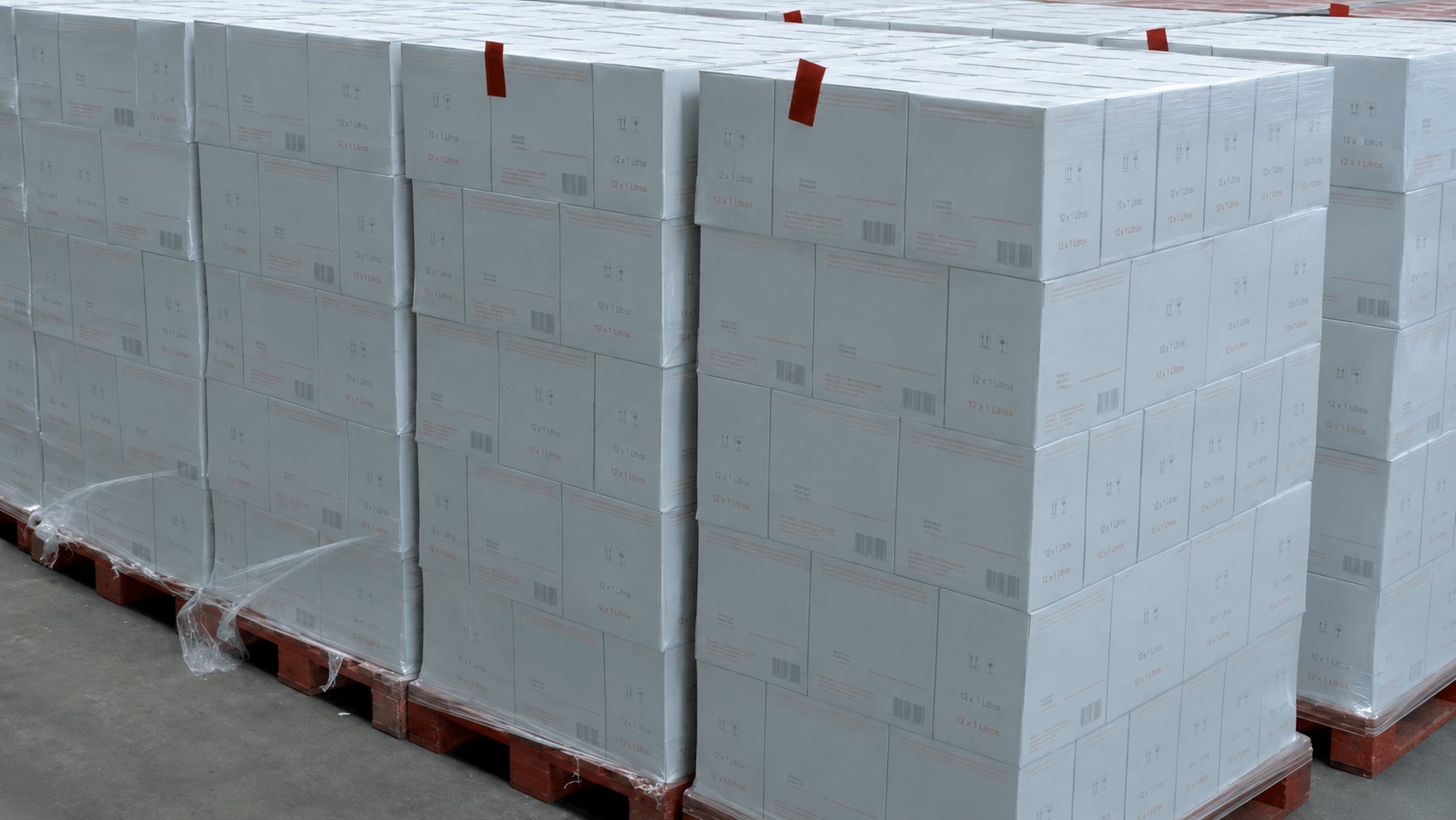

13. Palletiser and stretch foil machine

Manufacturer: Stork

Model/type: SPE-300

Year of manufacturing: 1996

Packscheme on pallet: 16 boxes per layer

Number of layers: 5x

Number of boxes per Euro pallet (80 x 120 cm): 80 boxes

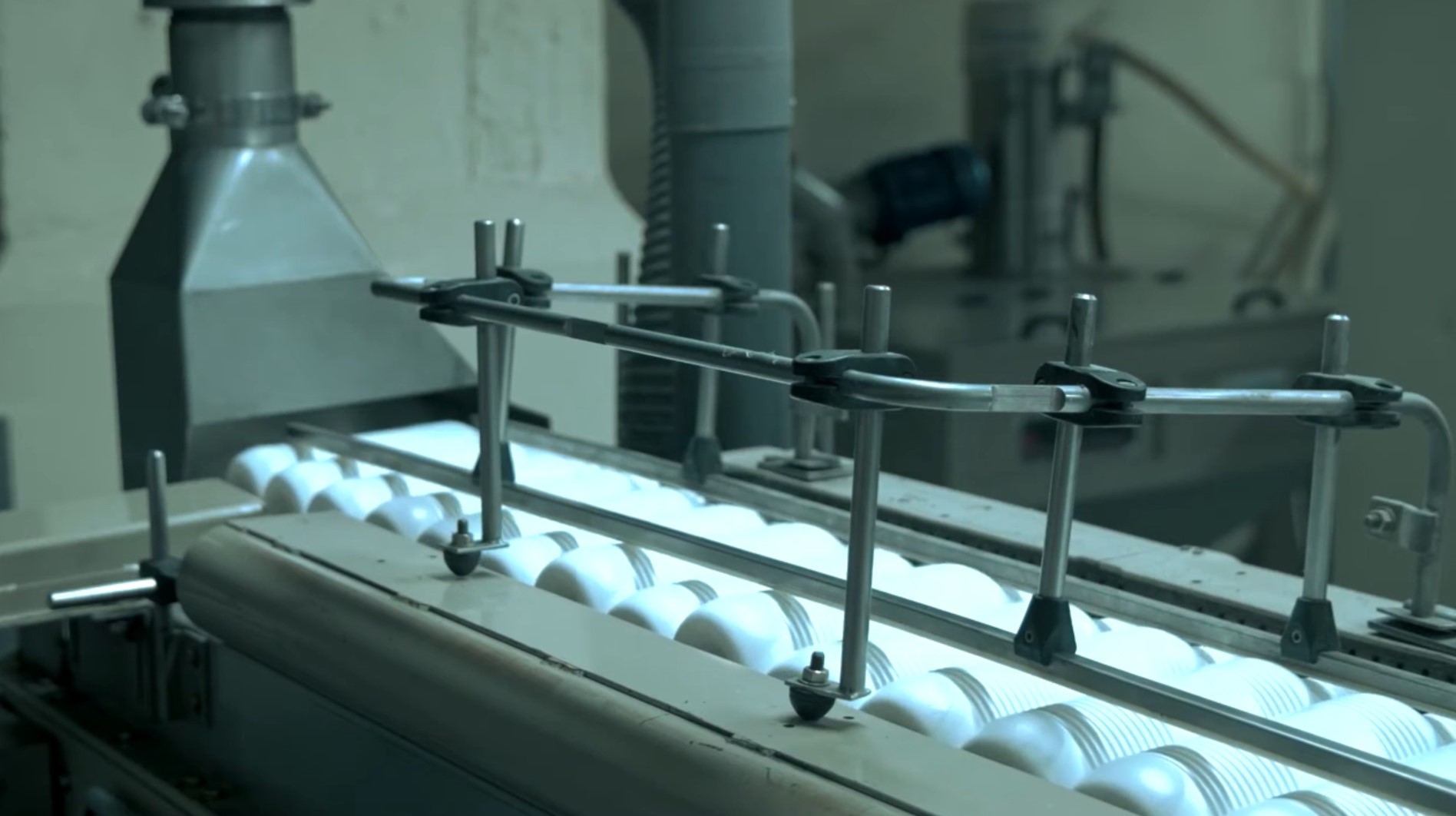

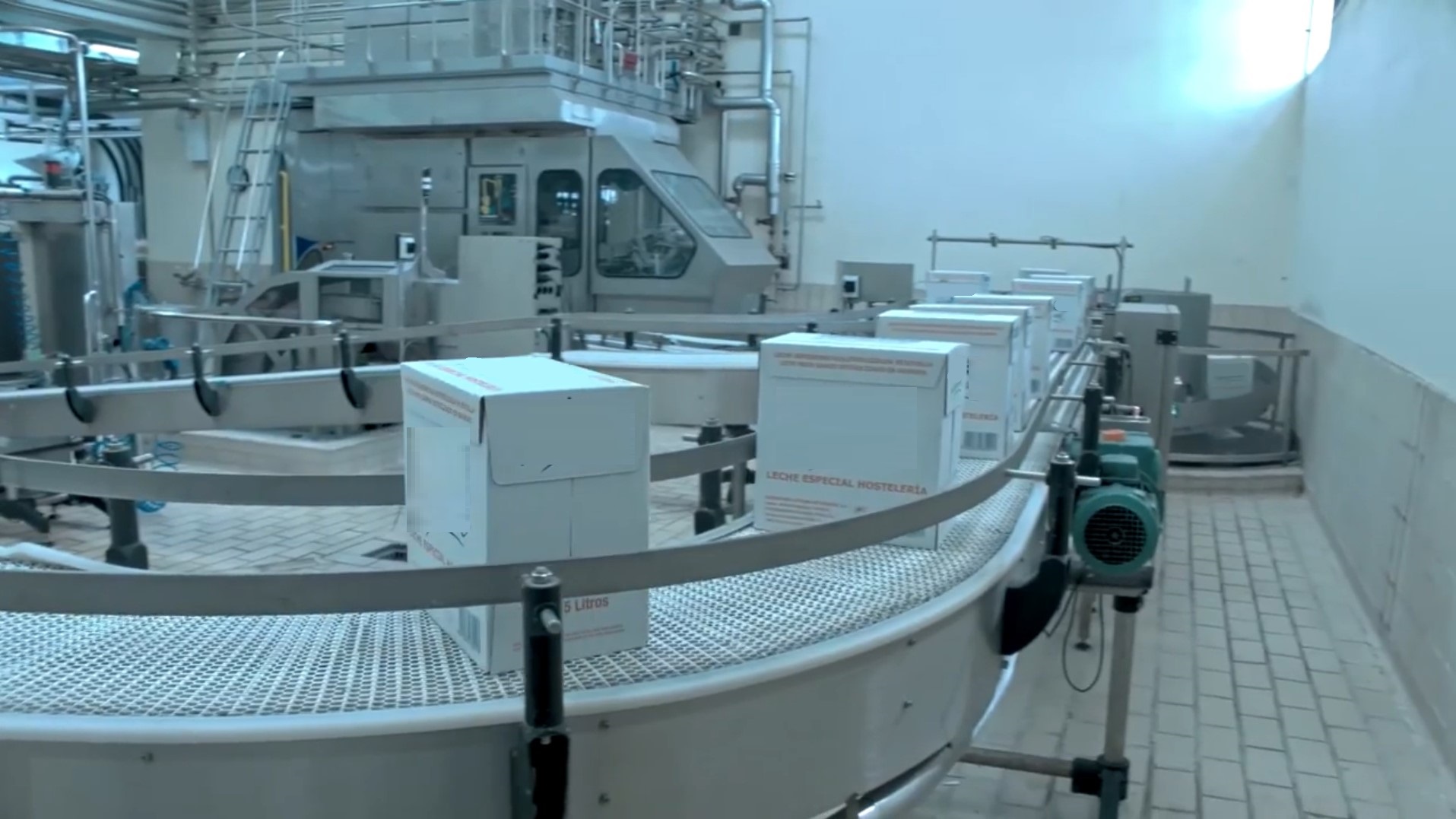

14. All interconnecting conveyors

Additional Services:

Loading directly from the dairy facility can be offered separately upon request.
