High Pressure Homogeniser Tetra Pak TAM25/160BAR
Specifications
| Manufacturer | Tetra Pak |
| Model | TAM25/160BAR |
| Year | 2004 |
| Condition | Used |

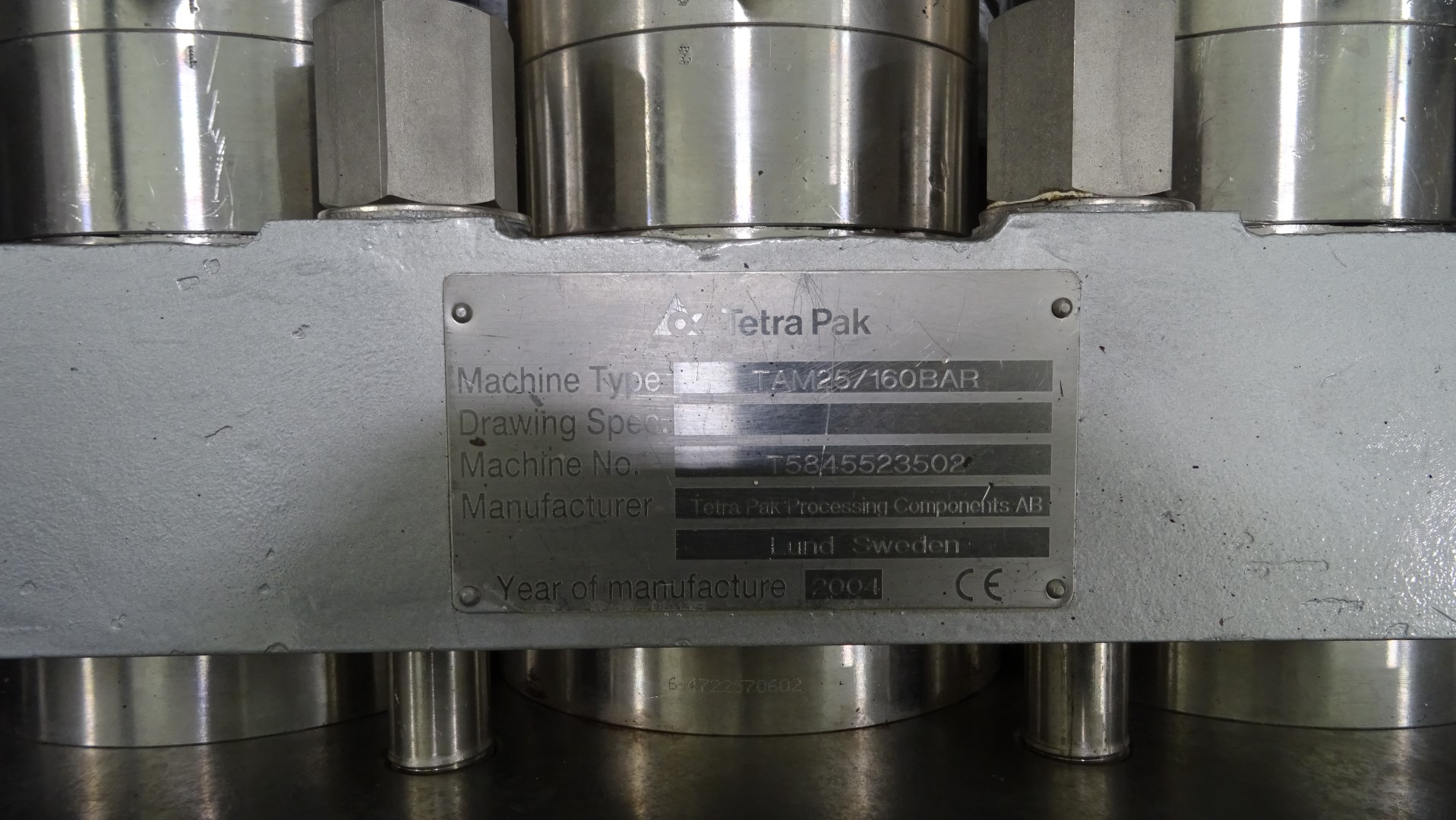

| Serial Number | T5845523502 |
| Stock Number | 1642 |
| Type of Machine | Homogeniser |
| Capacity | 10.000 liter per hour |
| Stages | 2 stages |
| Pressure | 160 bar |
| Valve cylinder | Mushroom valves |
| Piston diameter | 56 mm |

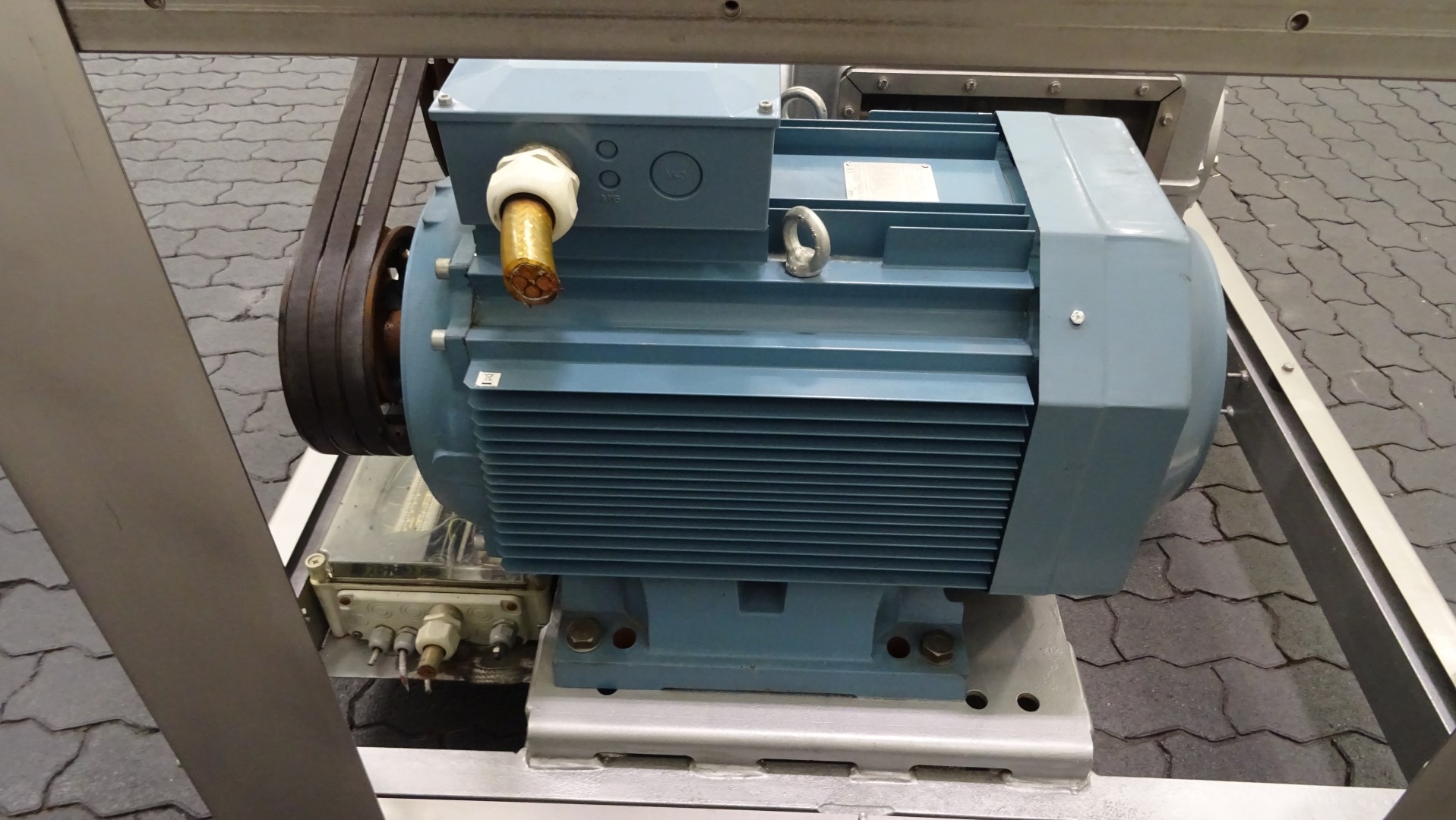

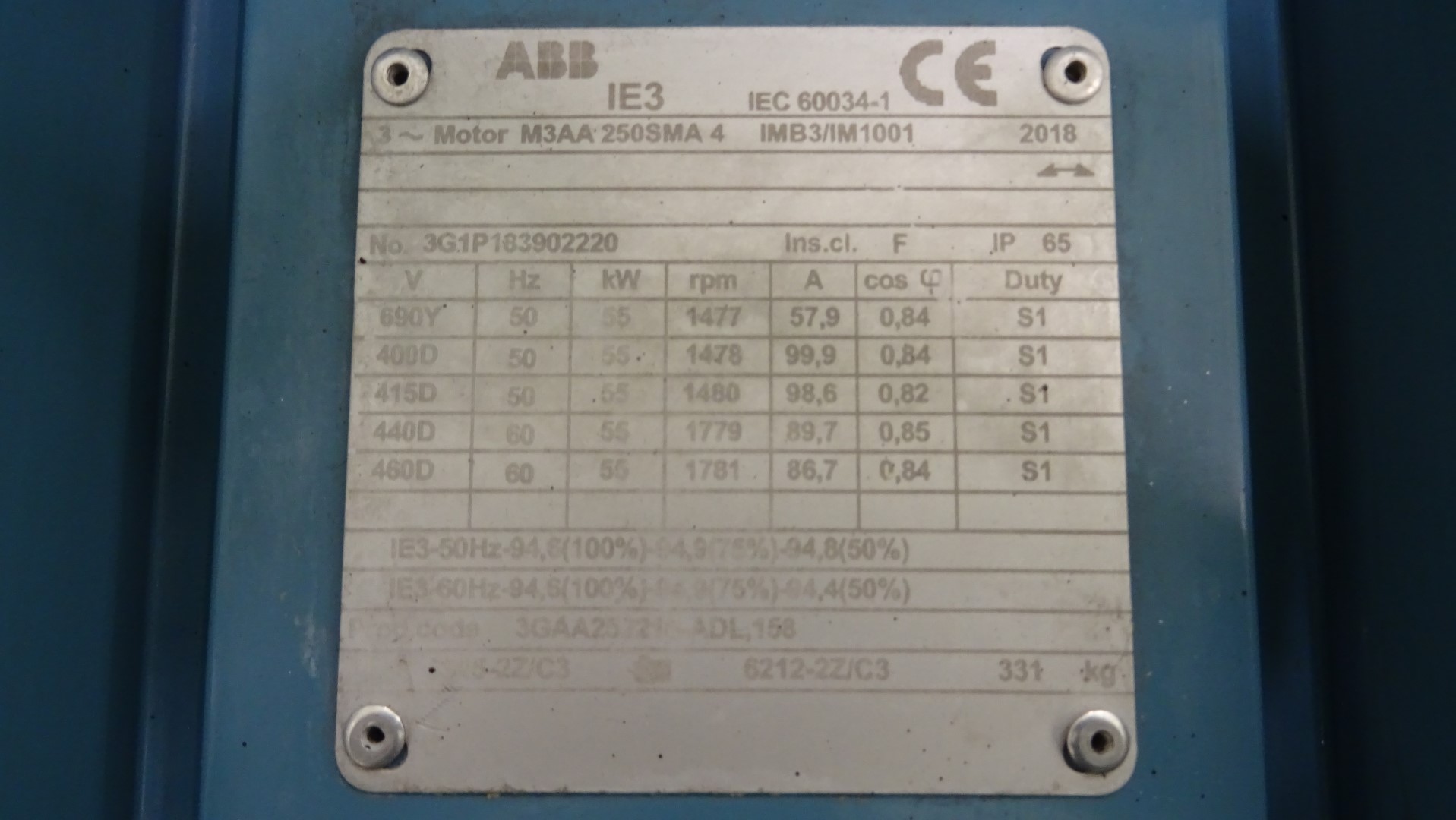

| Motor | 55 kW - 400 V - 99 Amp - 50 Hz - 1.478 rpm |
| Dimensions | 245 x 165 x 160 cm |
| Weight | 2.100 kg |
Description

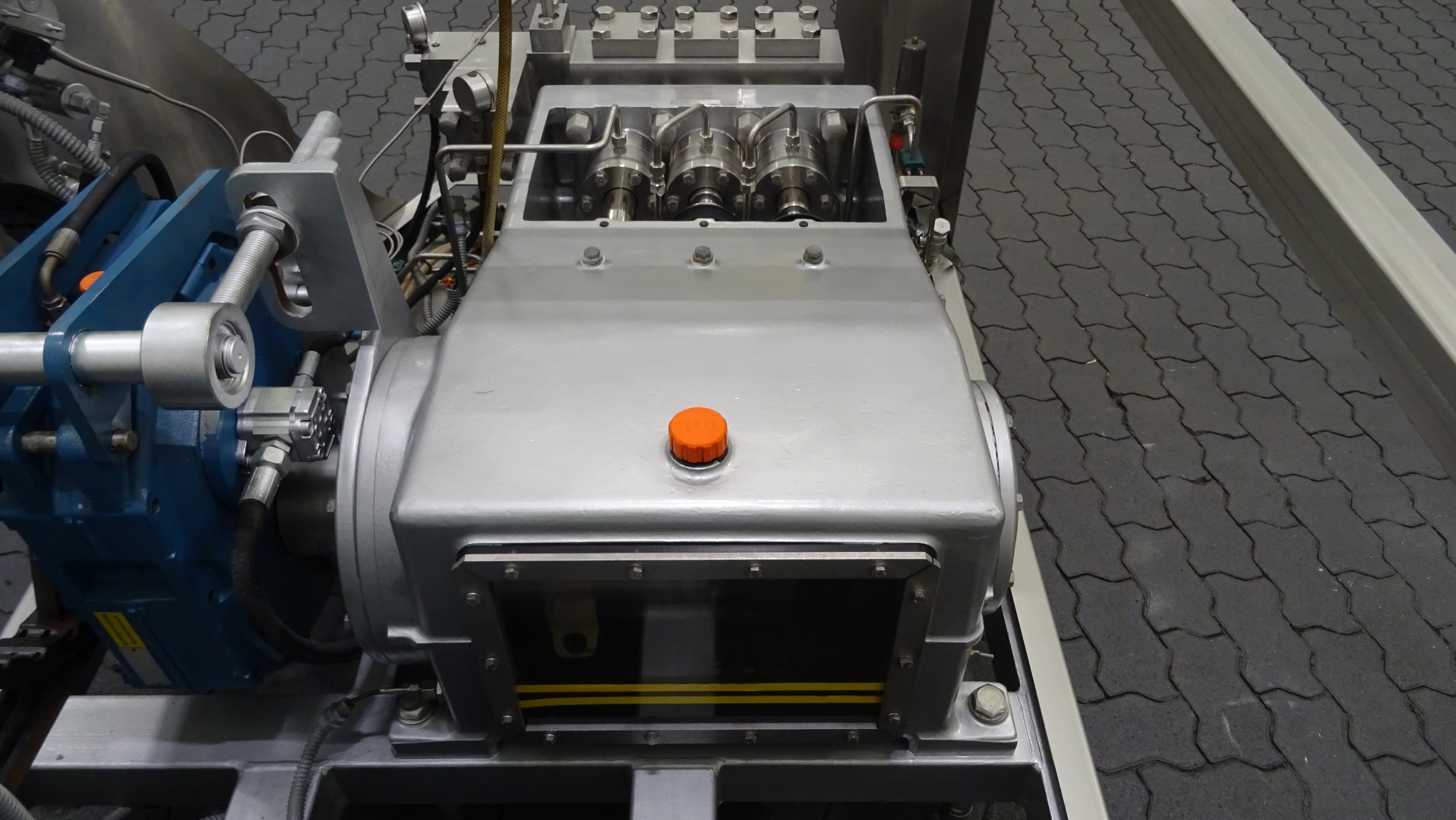

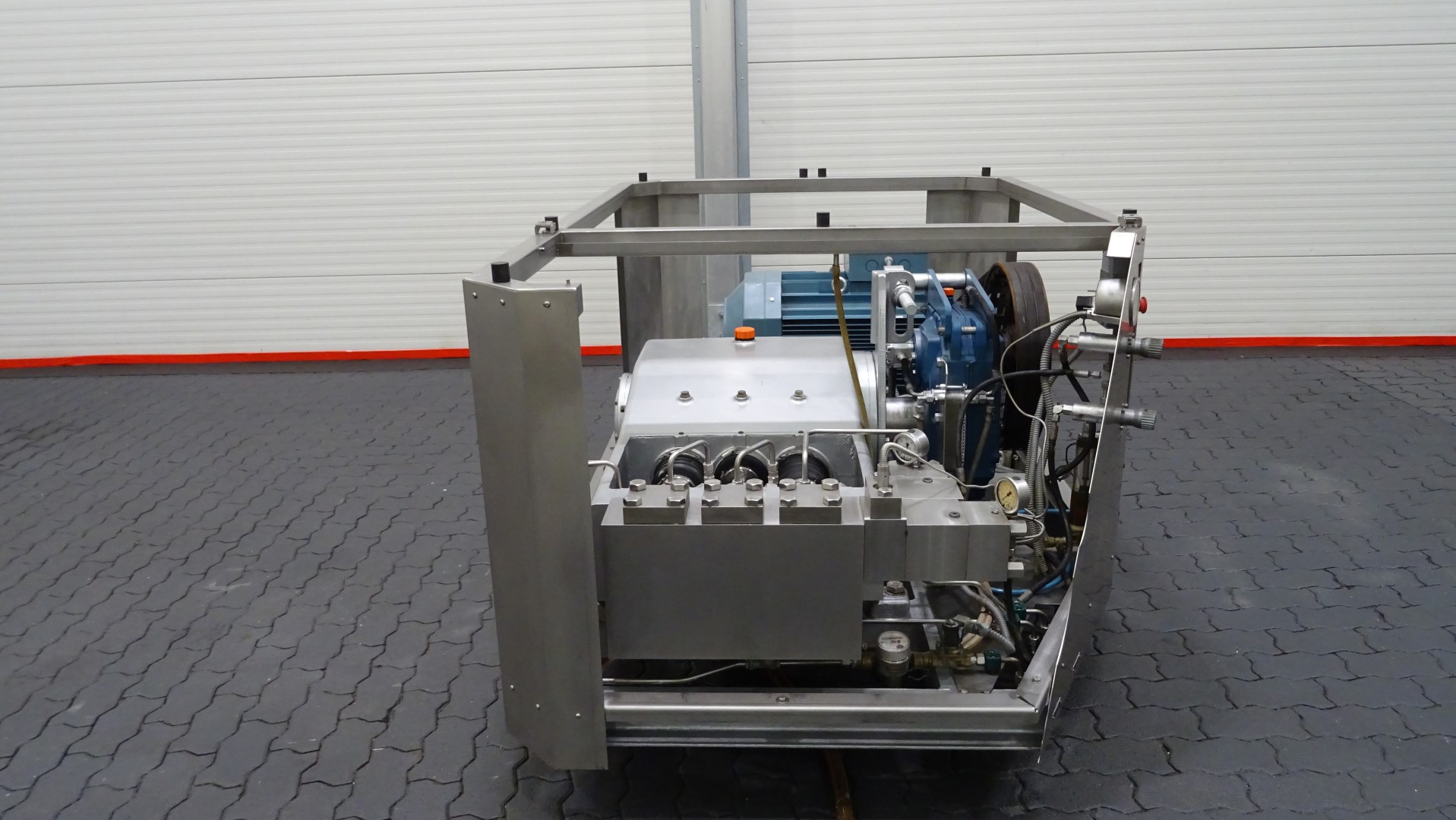

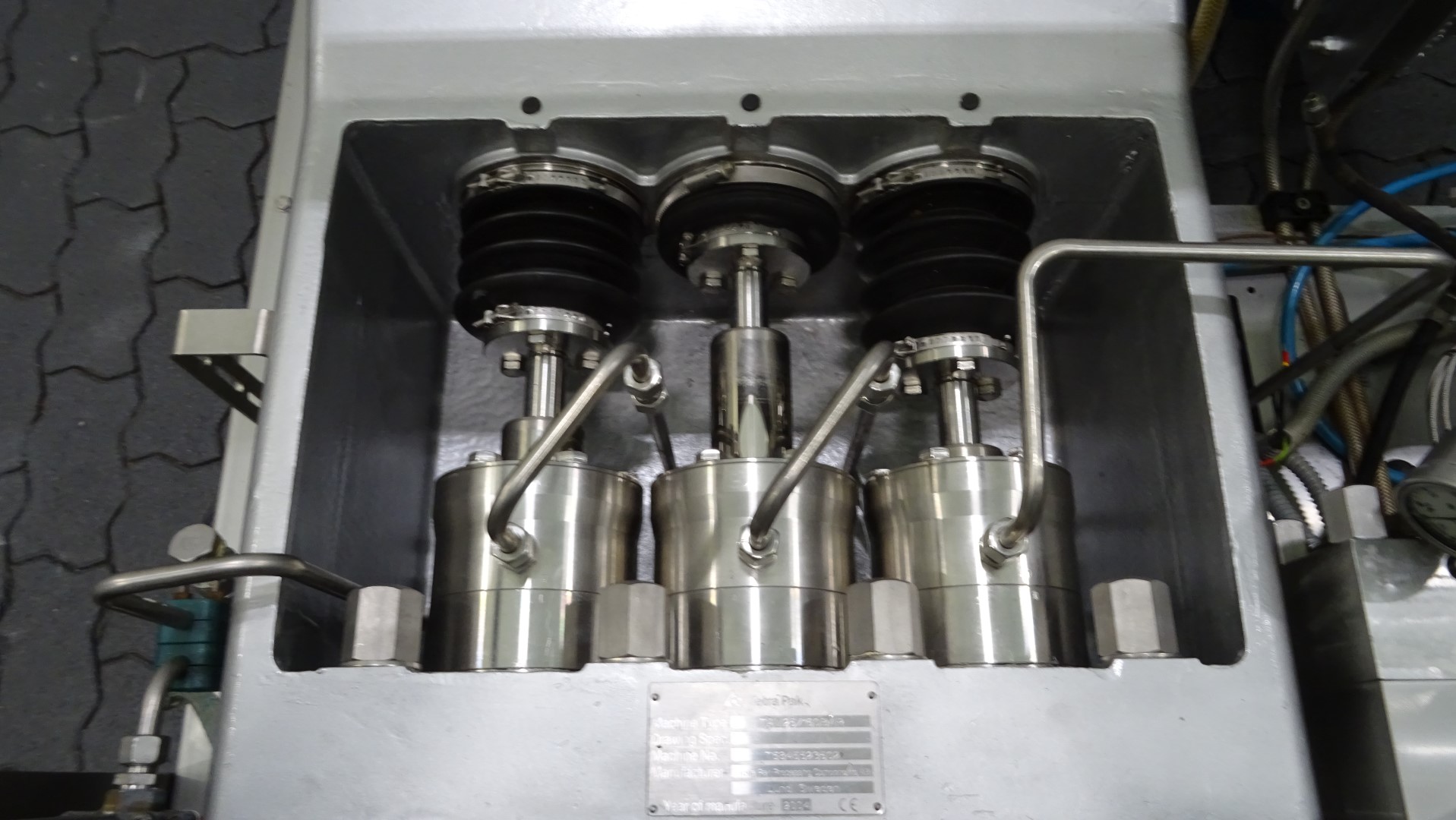

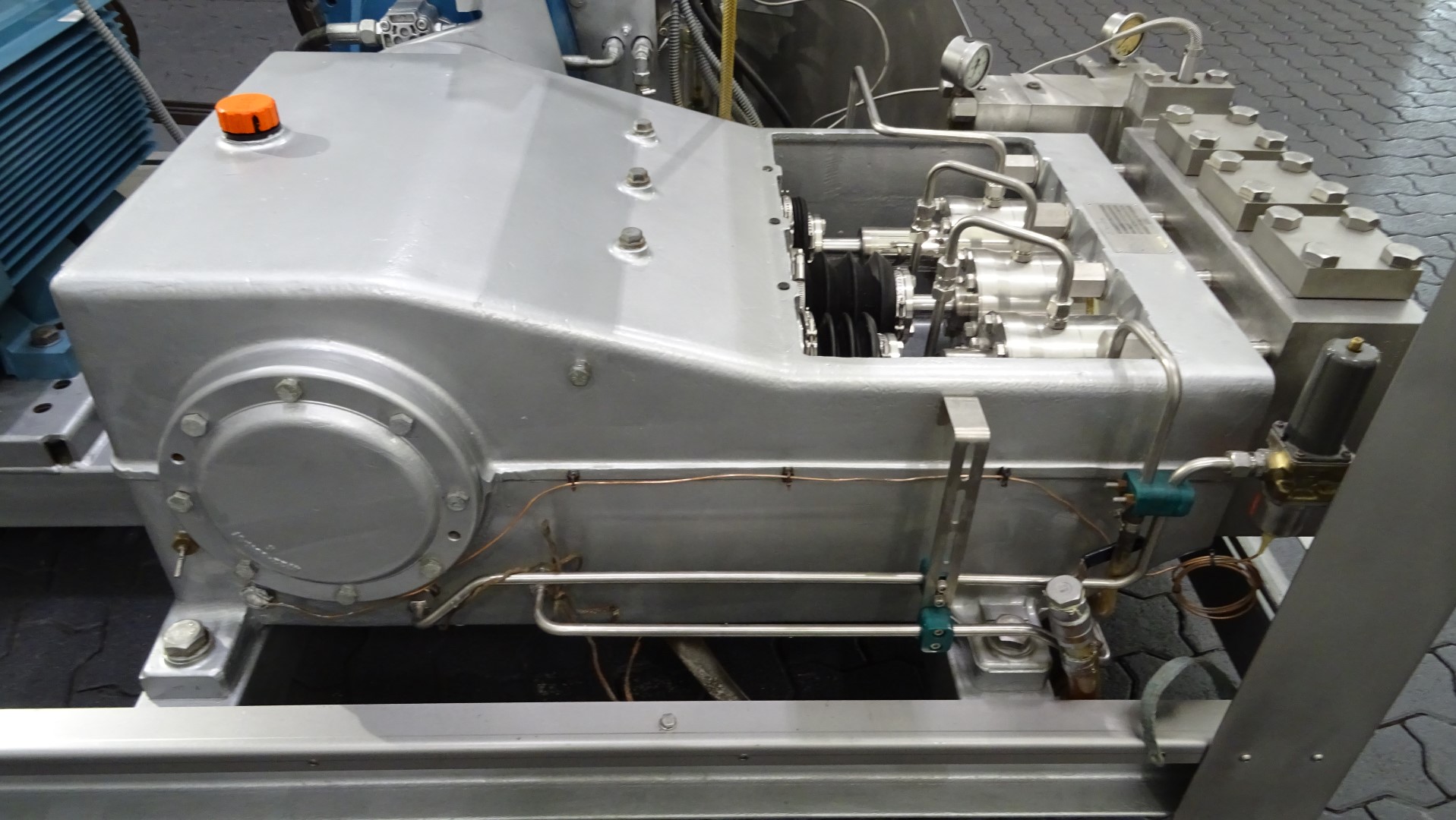

The Tetra Pak Tetra Alex “Modified” 25 (TAM25/160BAR) is an industrial, three-cylinder high-pressure homogeniser designed for the homogenisation of milk and other liquid food products. The machine has a maximum design capacity of up to 12.600 litres per hour at a maximum pressure of 160 bar. With the currently installed motor, the capacity is set at approximately 10,000 litres per hour at 160 bar.

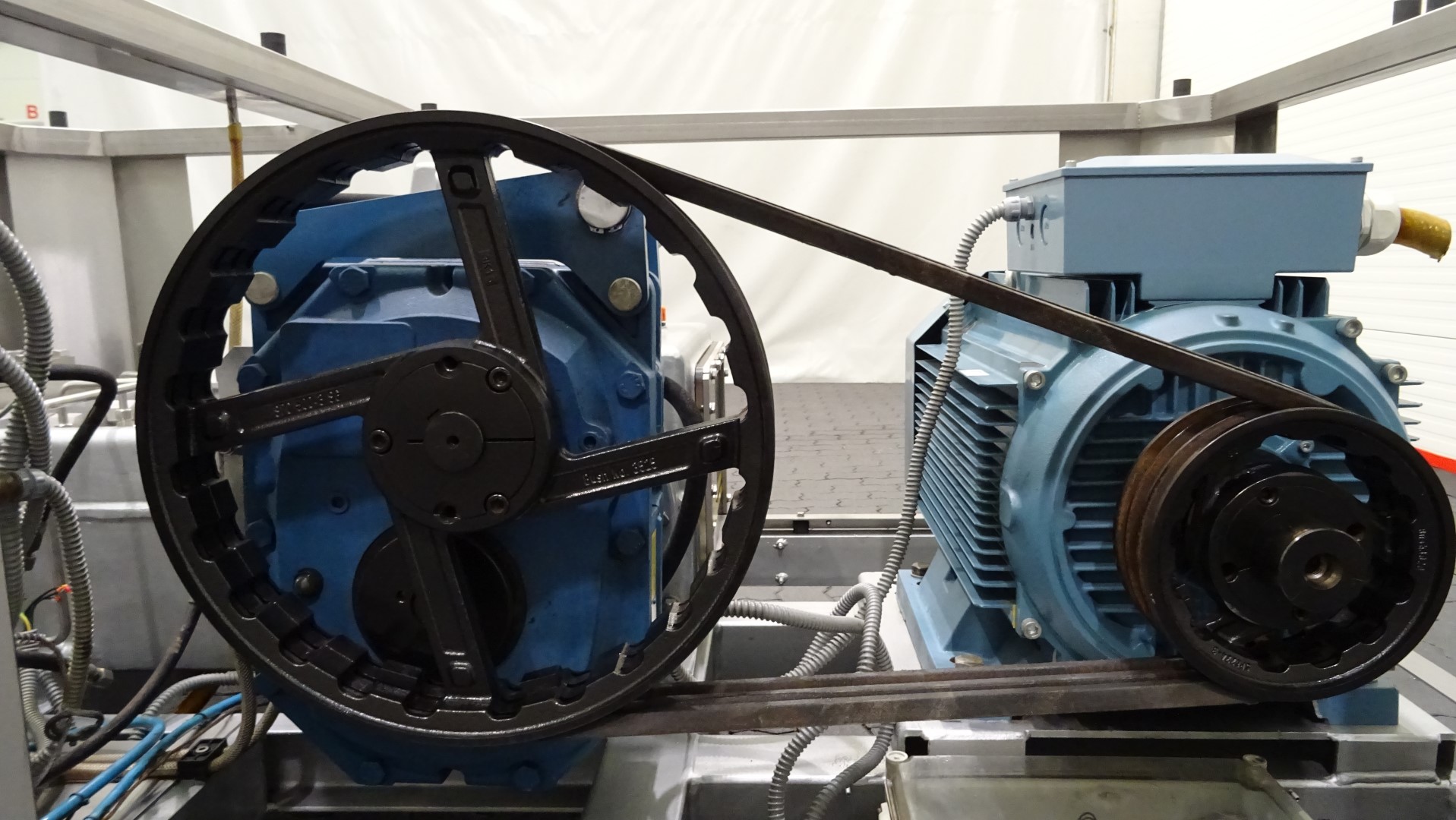

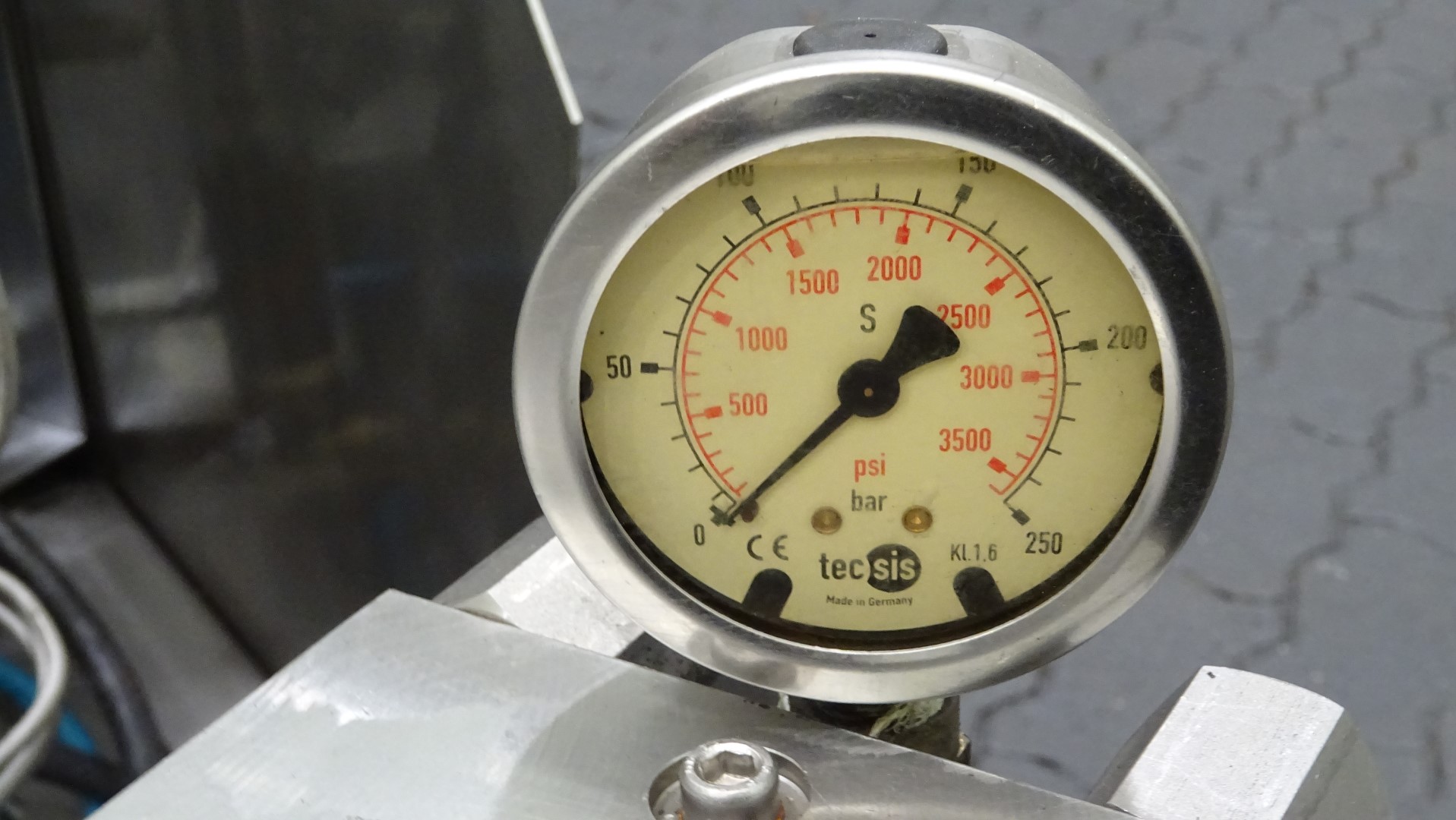

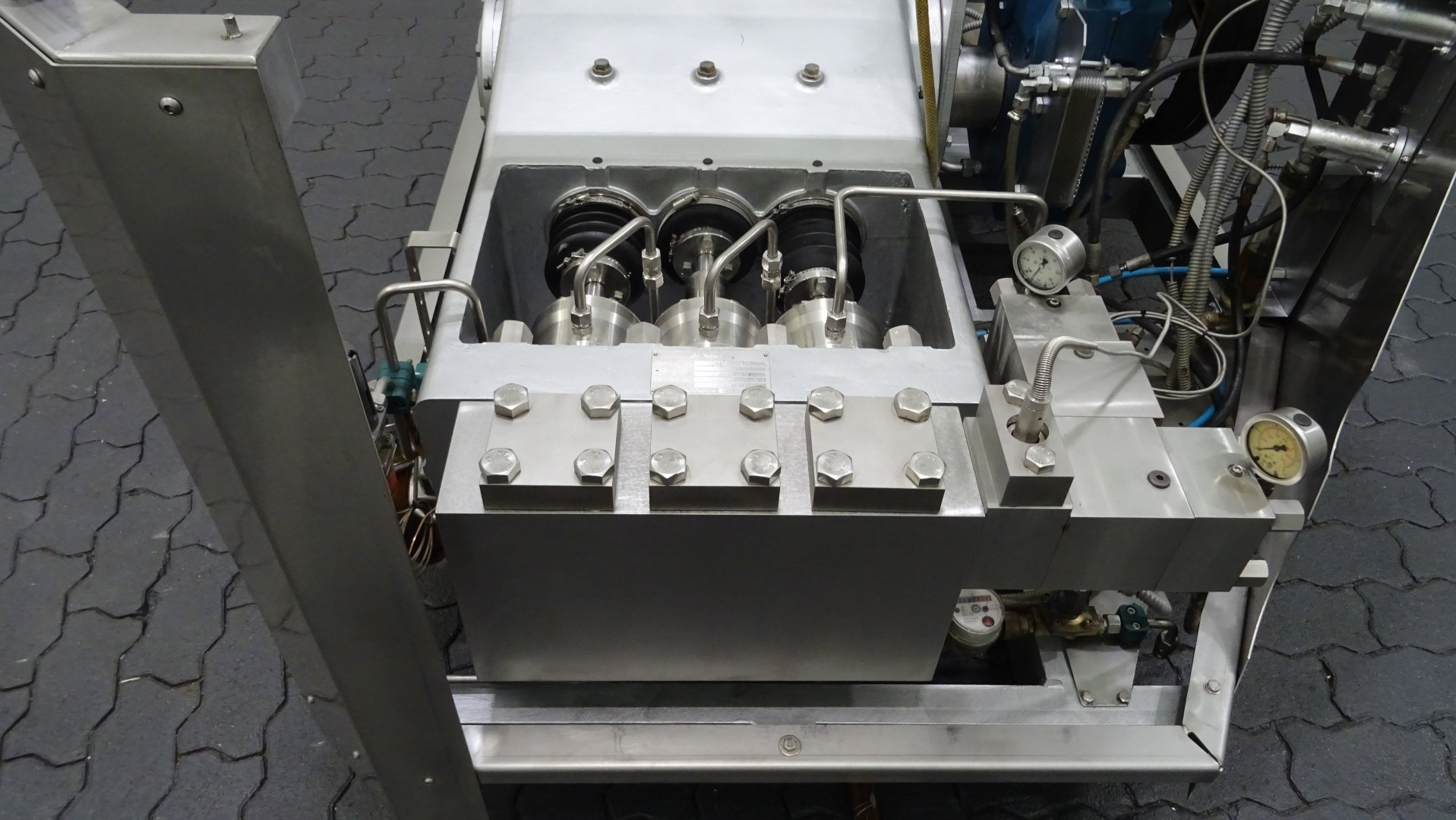

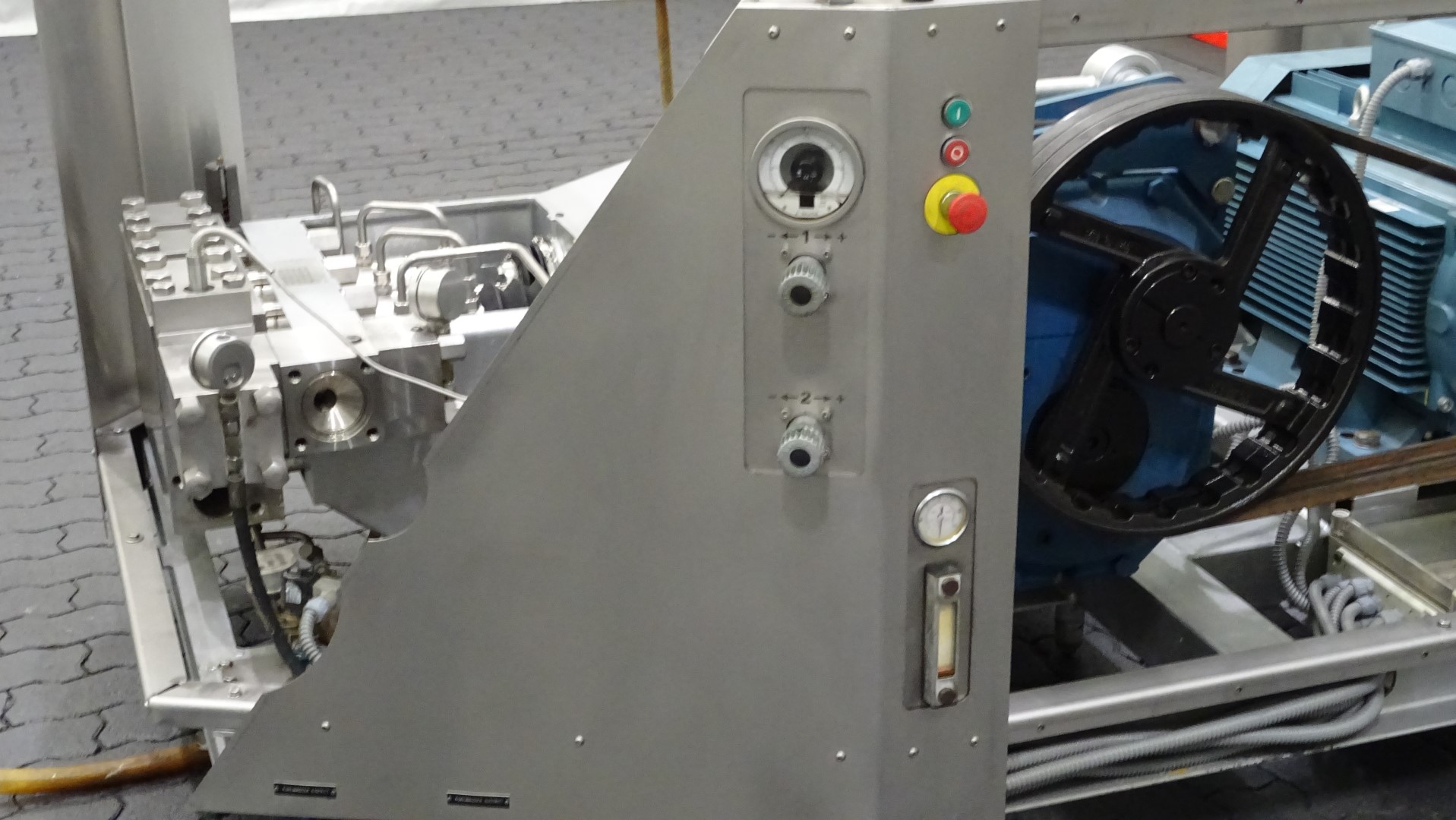

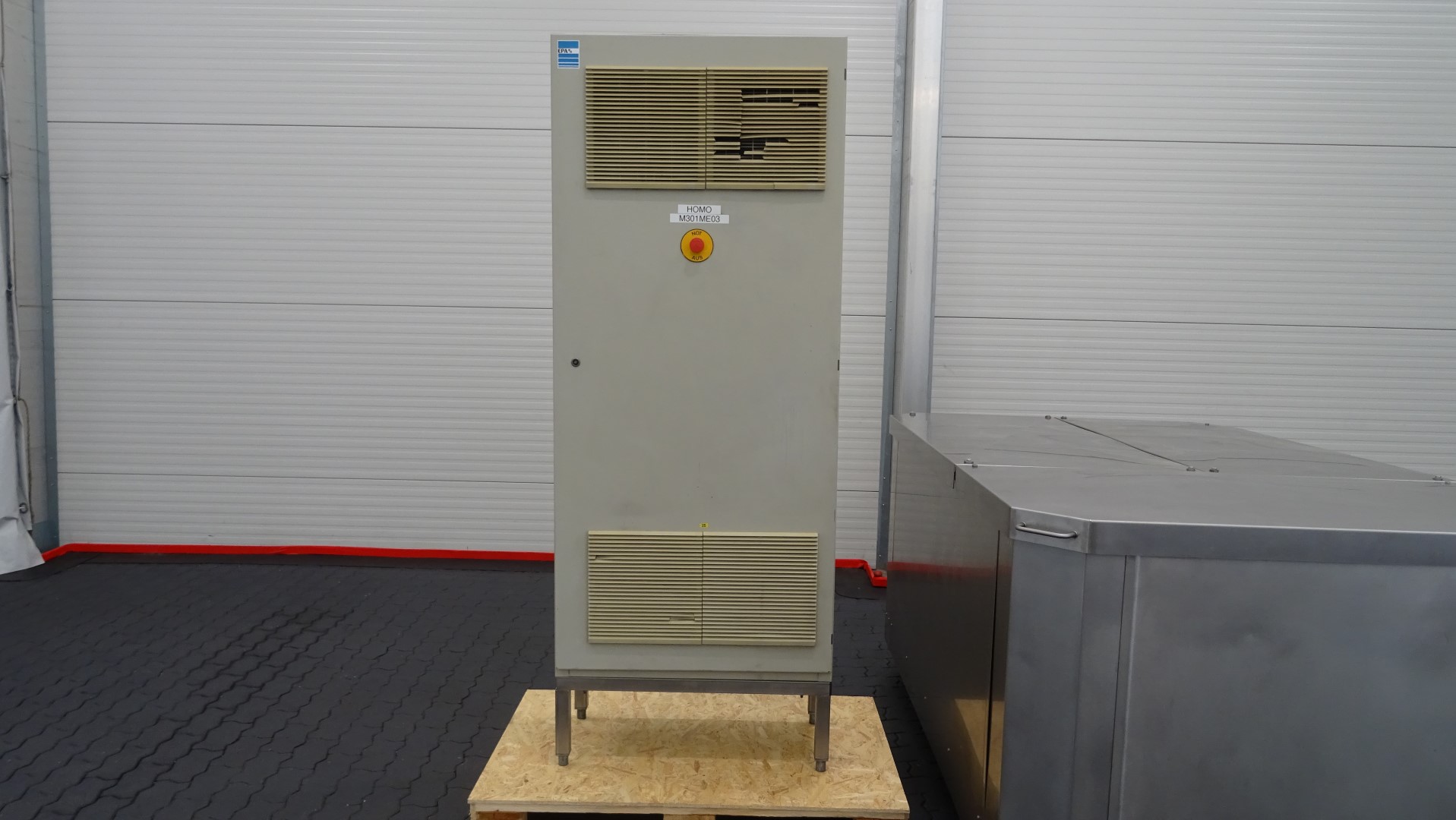

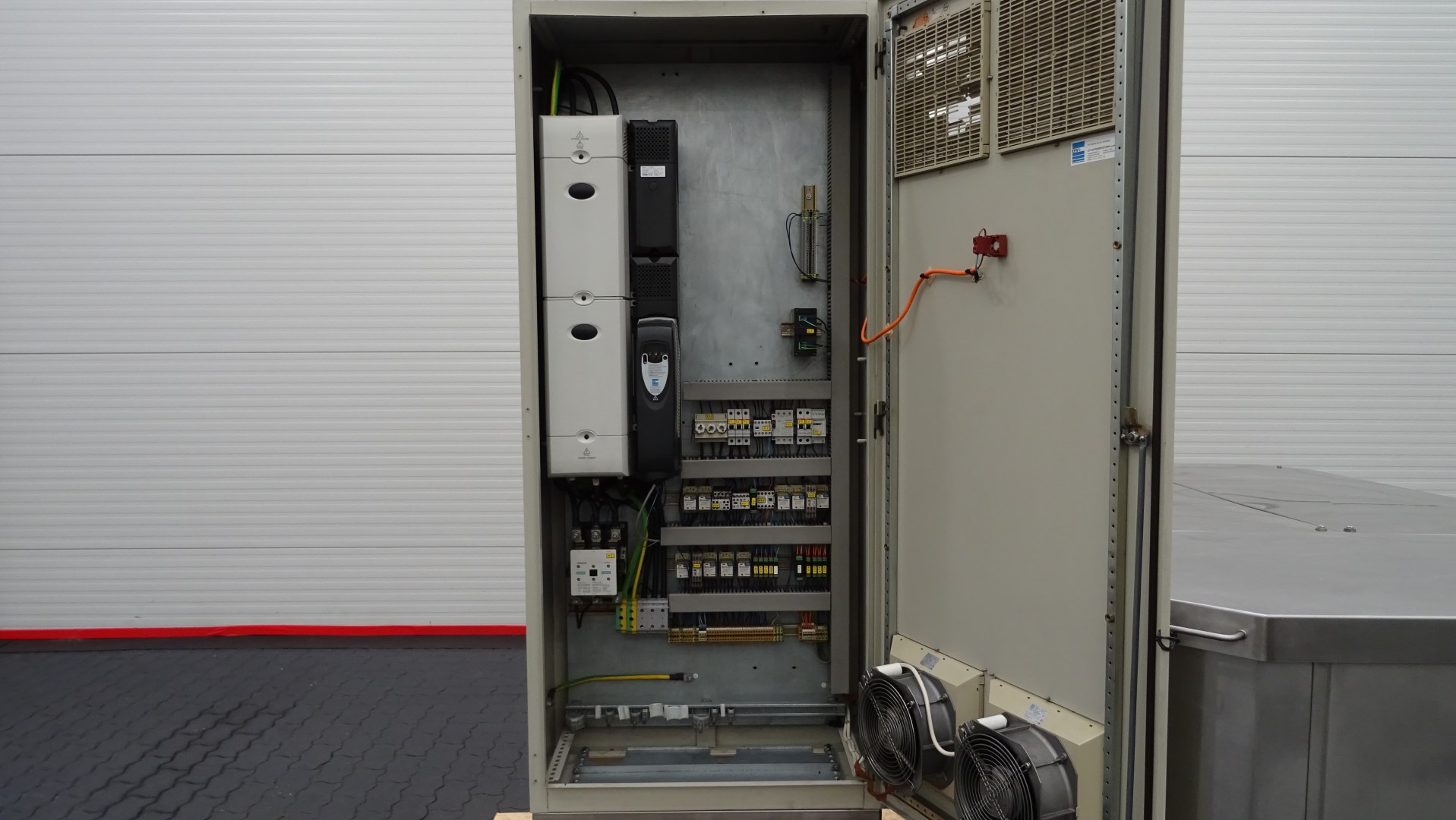

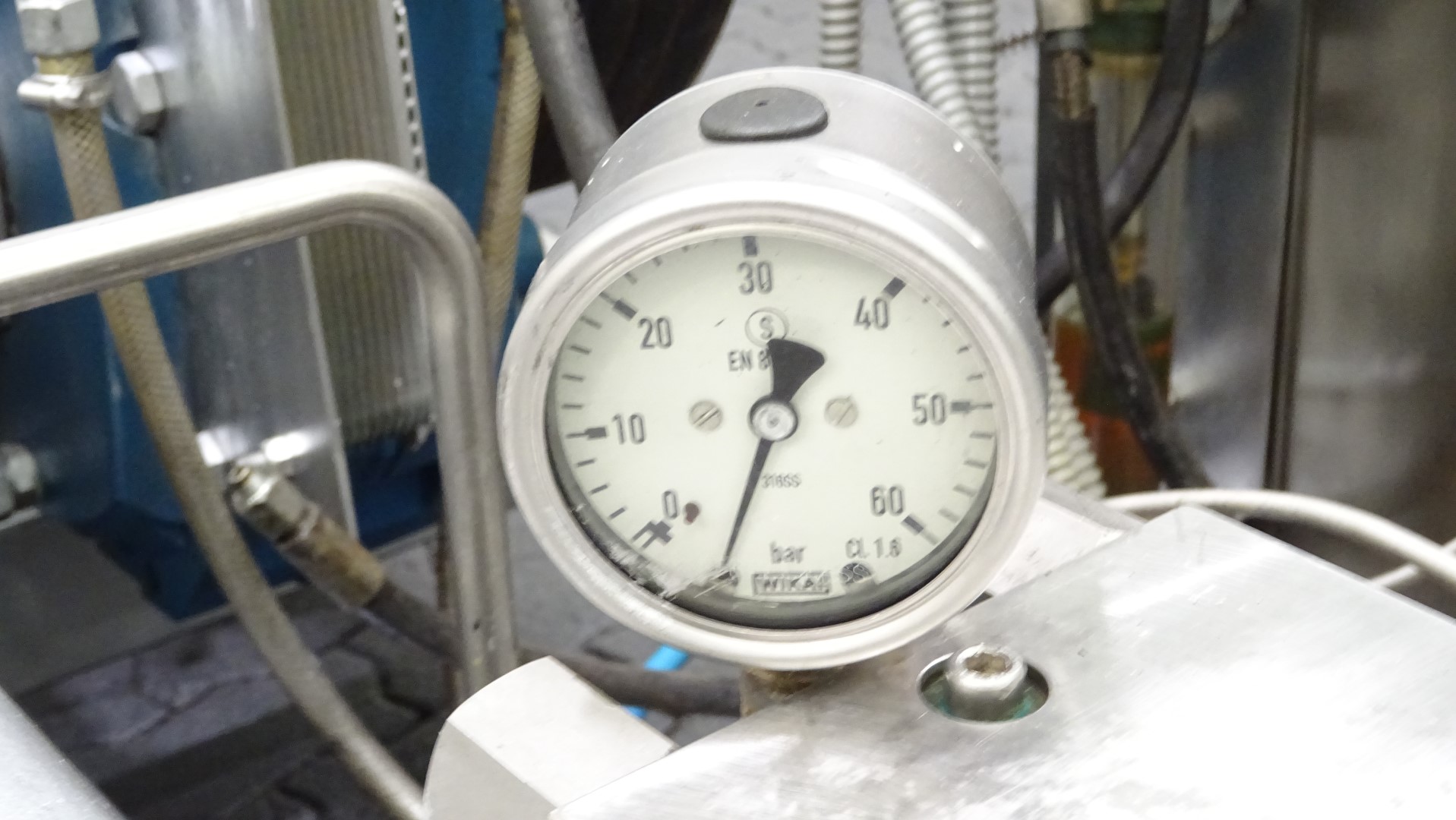

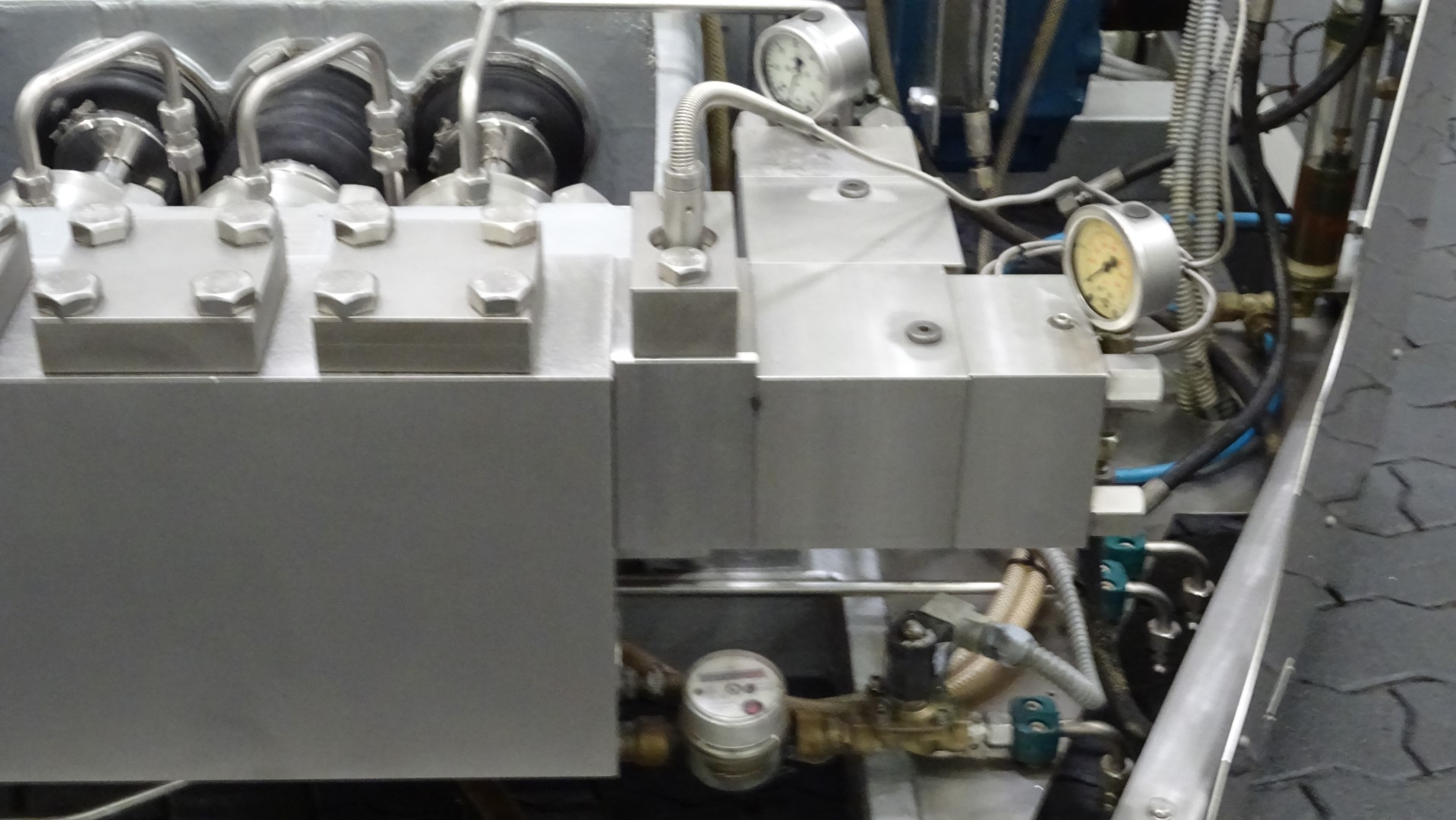

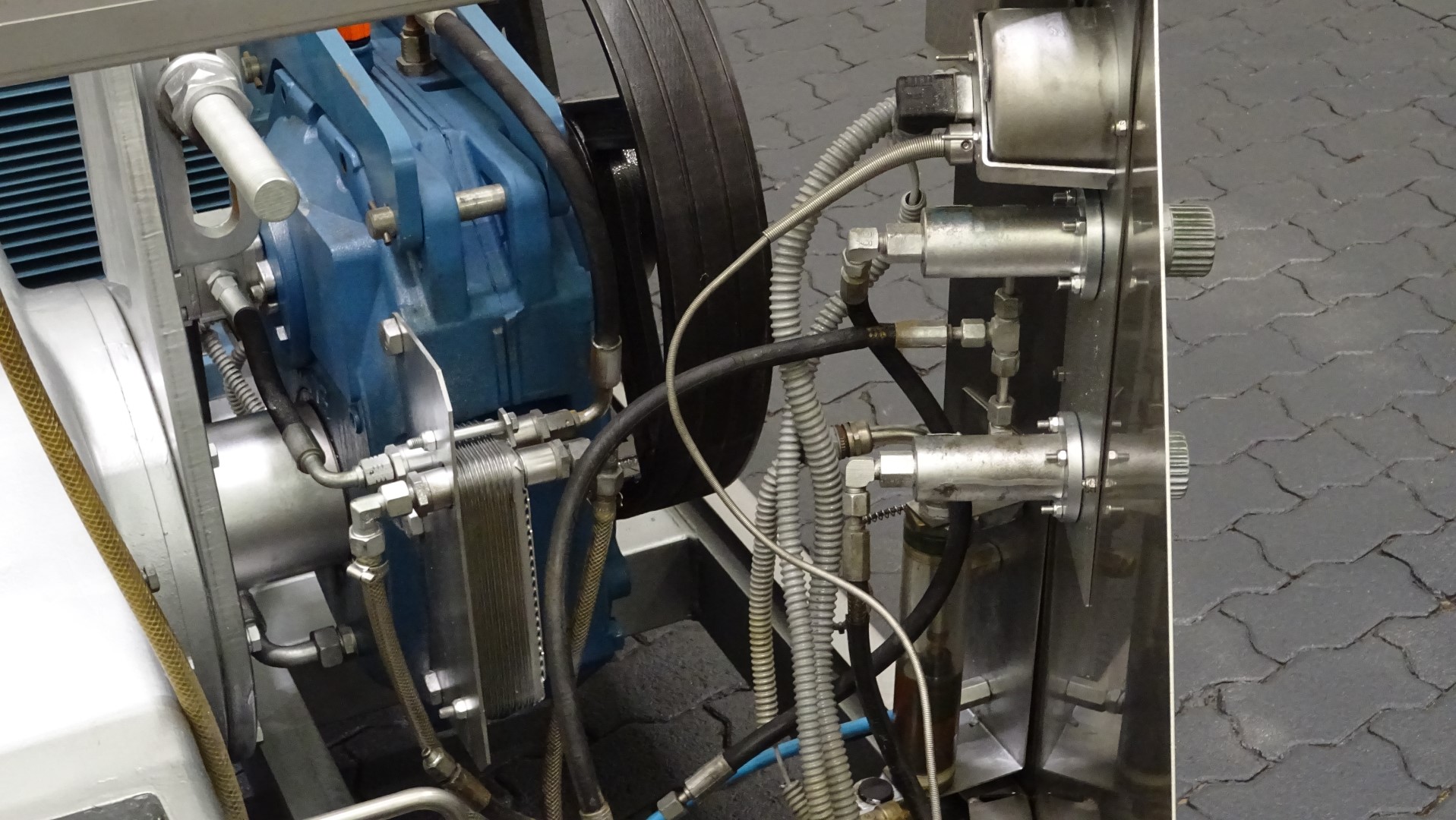

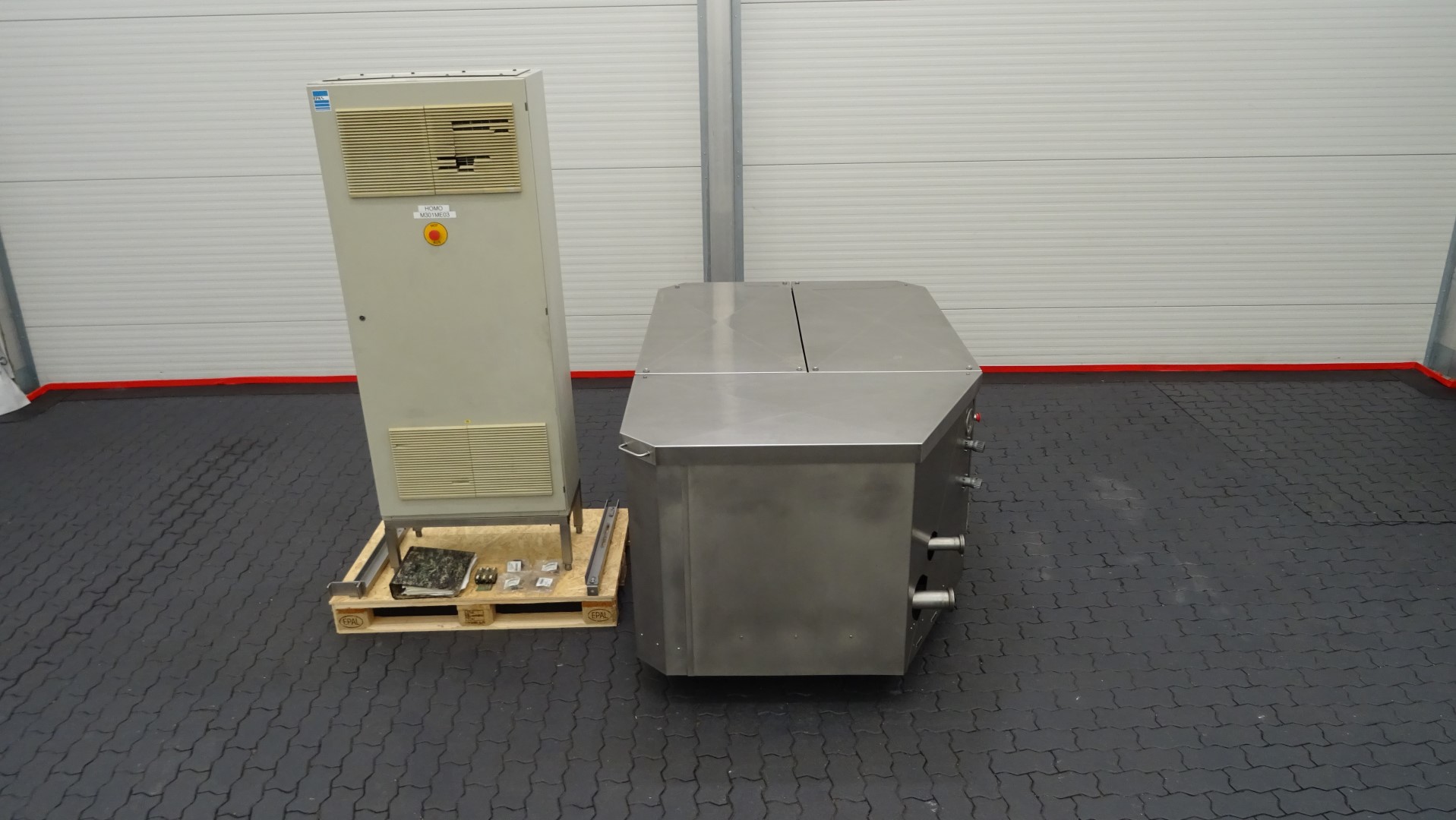

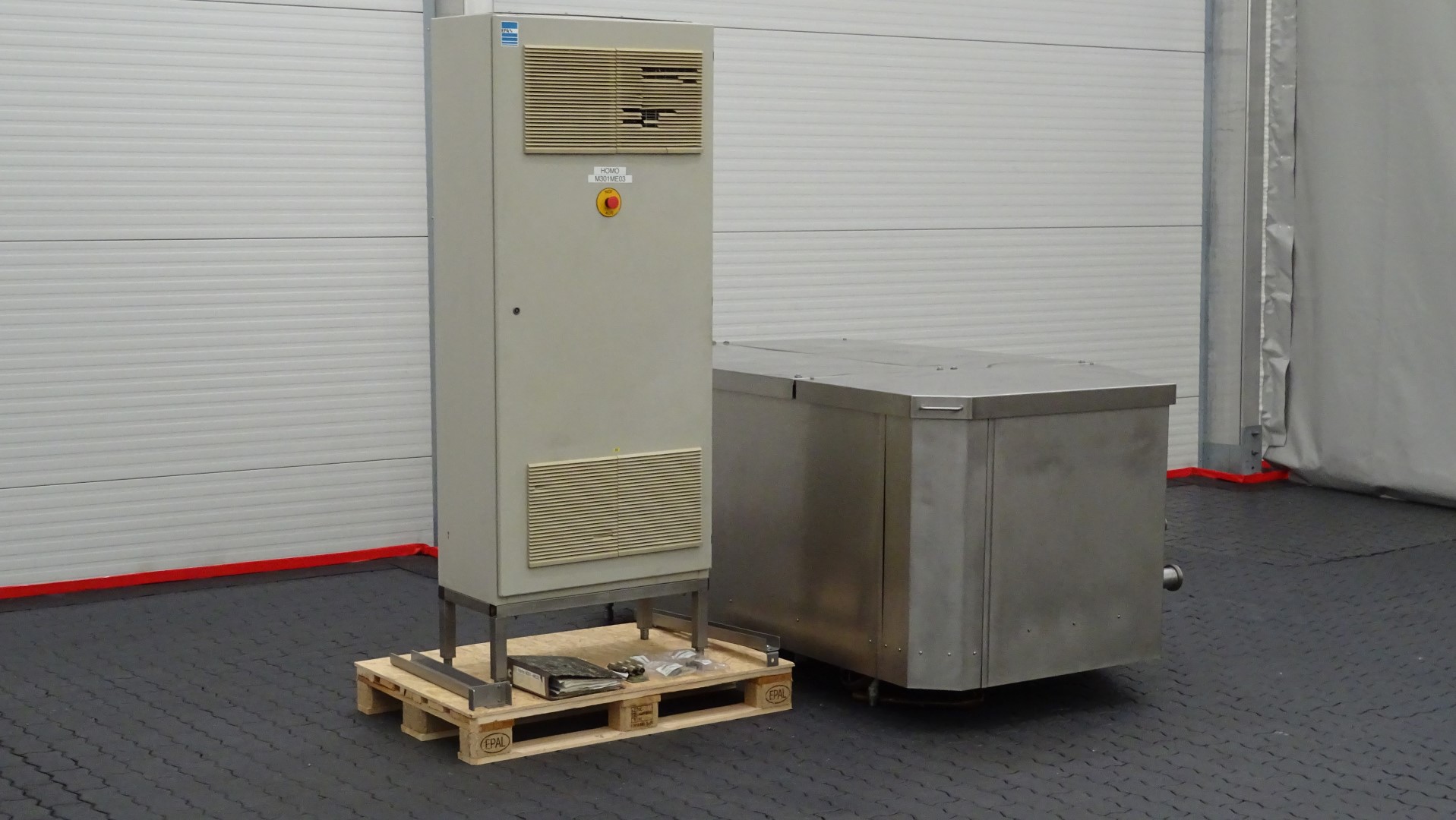

The homogeniser is equipped with a two-stage homogenisation system featuring mushroom-type valve cylinders, ensuring efficient and consistent product homogenisation. The operating pressure can be hydraulically adjusted via the controls on the front panel. Pressure gauges are installed for monitoring the operating pressure. The machine features a stainless steel-clad exterior and an integrated oil pumping system for lubrication. It is driven by a 55 kW electric motor and supplied with a control panel incorporating a frequency converter for adjustable motor speed.
