High Pressure Homogeniser Tetra Pak TA2/200BAR
Specifications
| Manufacturer | Tetra Pak |
| Model | TA2 200BAR |
| Year | 2010 |
| Condition | Used |

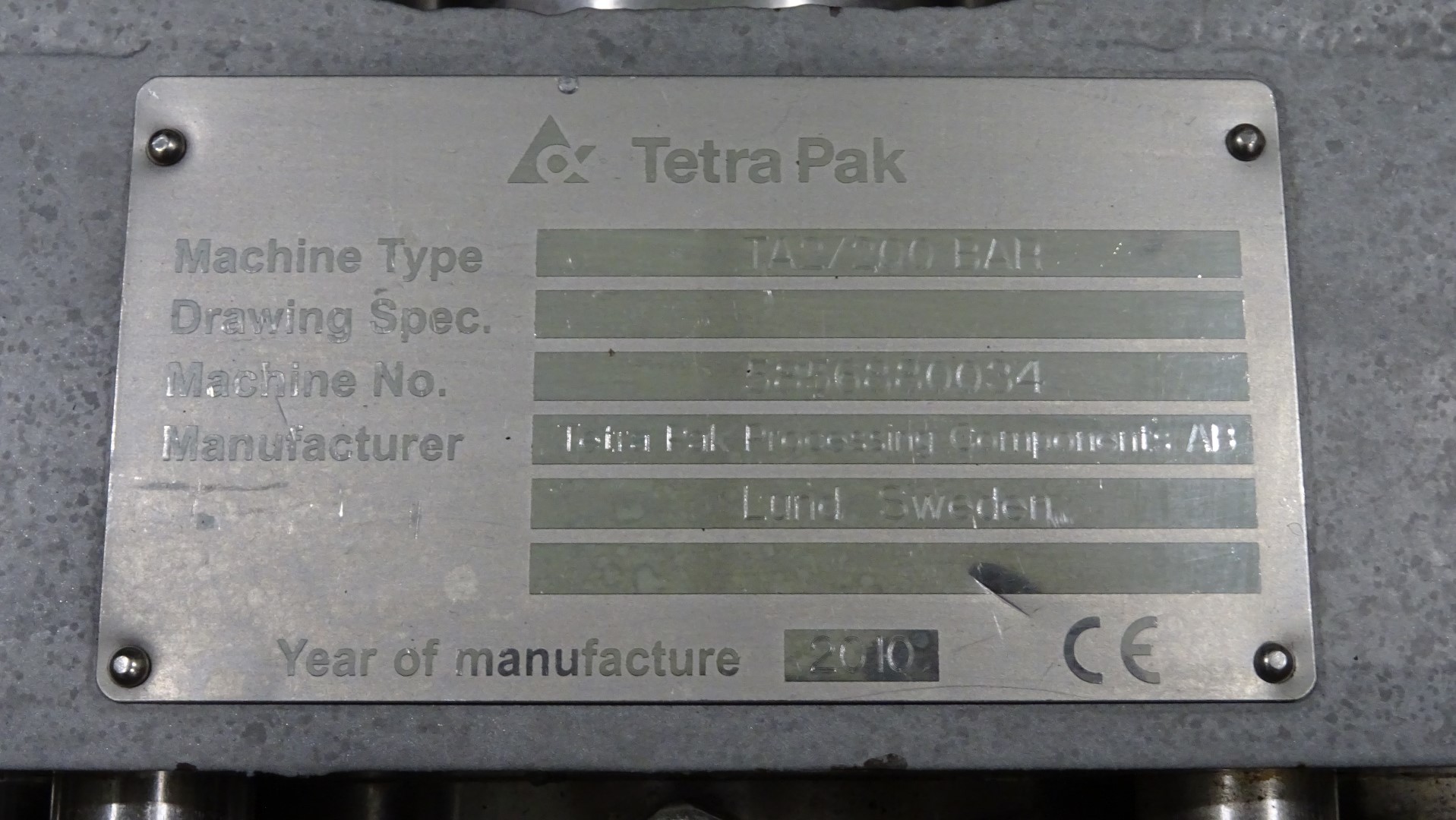

| Serial Number | 5856880034 |
| Stock Number | 1665 |
| Type of Machine | Homogeniser |
| Capacity | 4.000 liter per hour |
| Stages | 1 stage |
| Max. Pressure | 200 bar |
| Valve cylinder | Mushroom valves |
| Piston diameter | 40 mm |

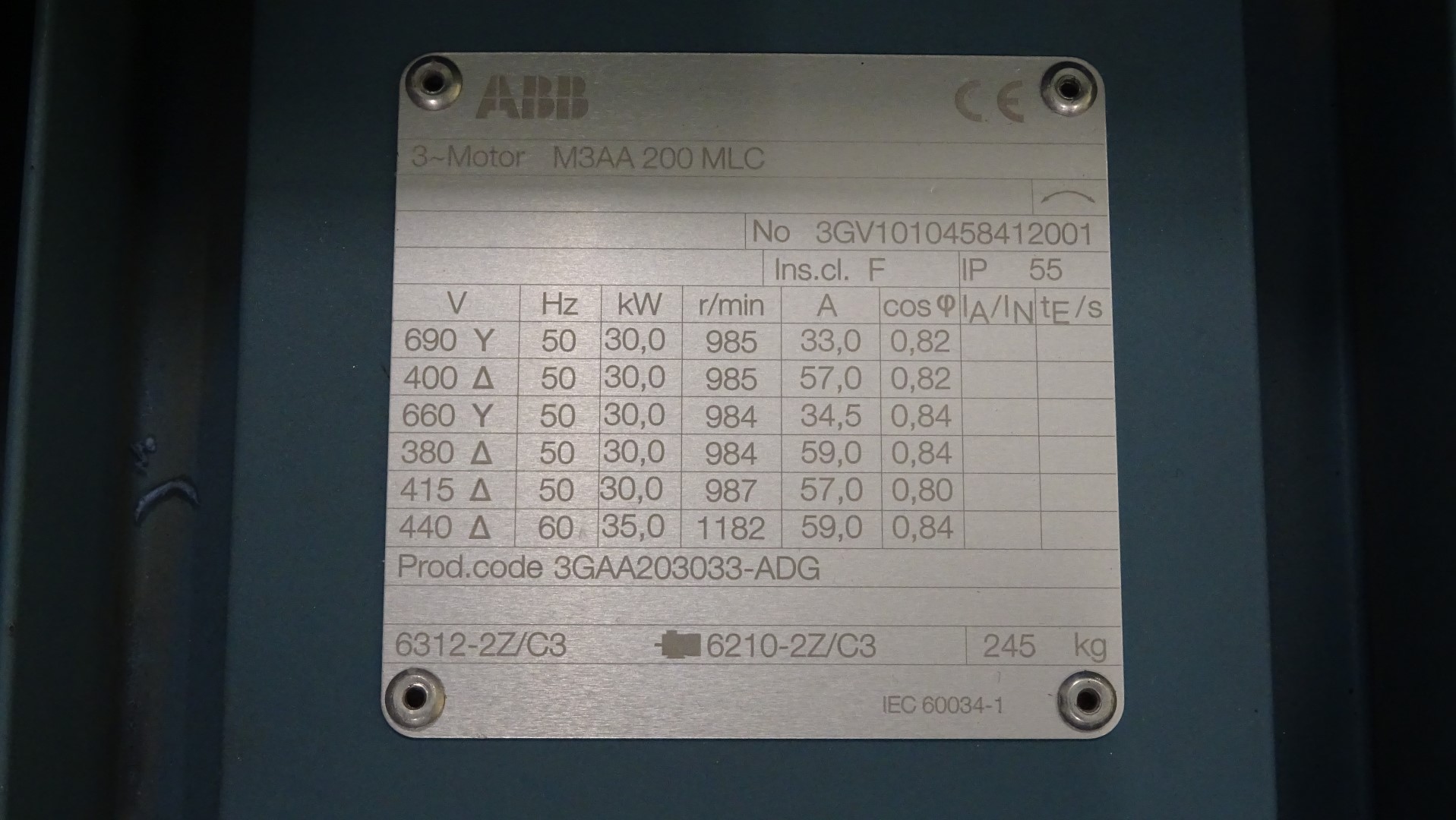

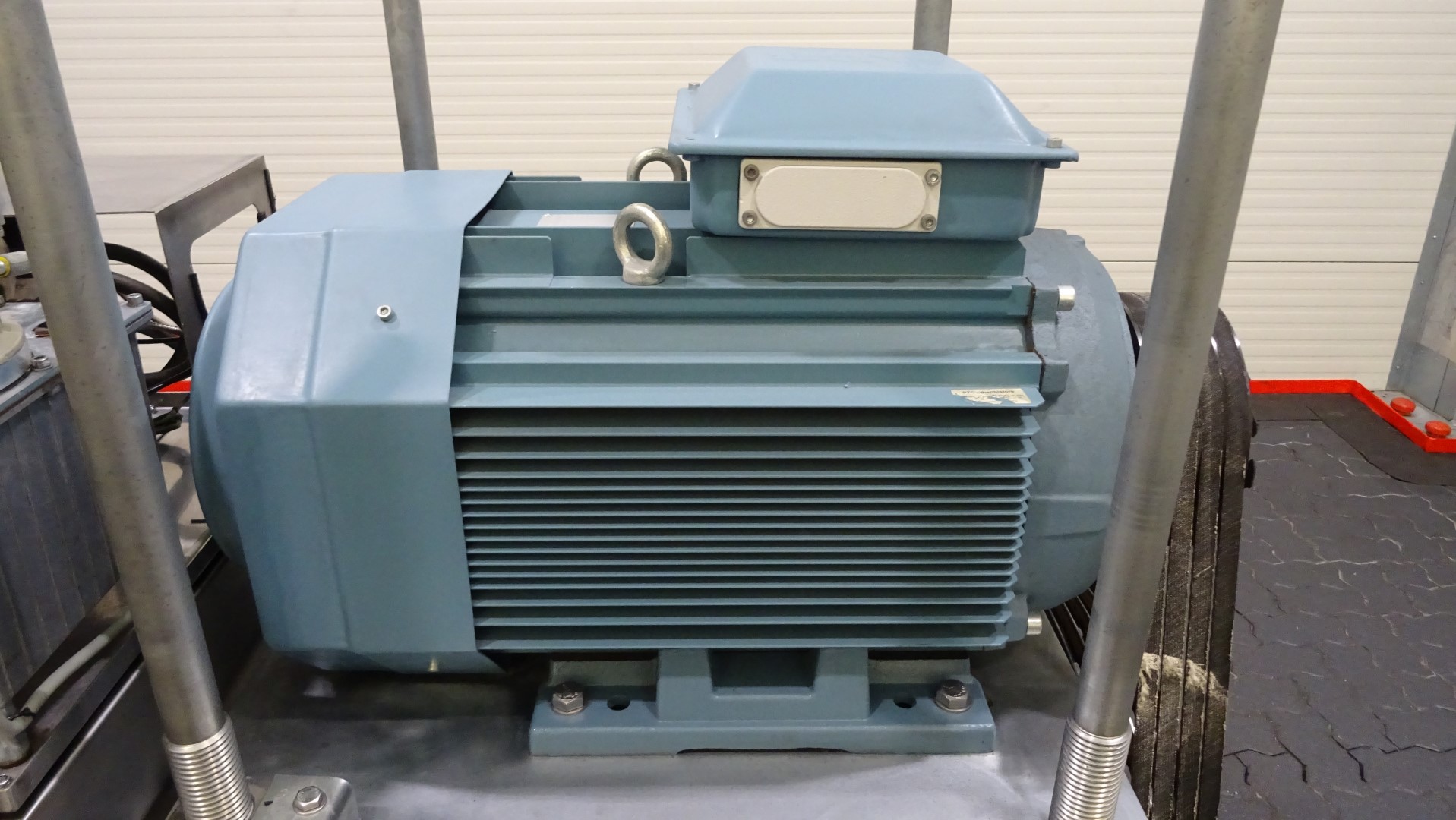

| Motor | 30 kW - 400 V - 57 Amp - 50 Hz - 985 rpm |
| Dimensions | 130 x 145 x 150 cm |
| Weight | 1.200 kg |
Description

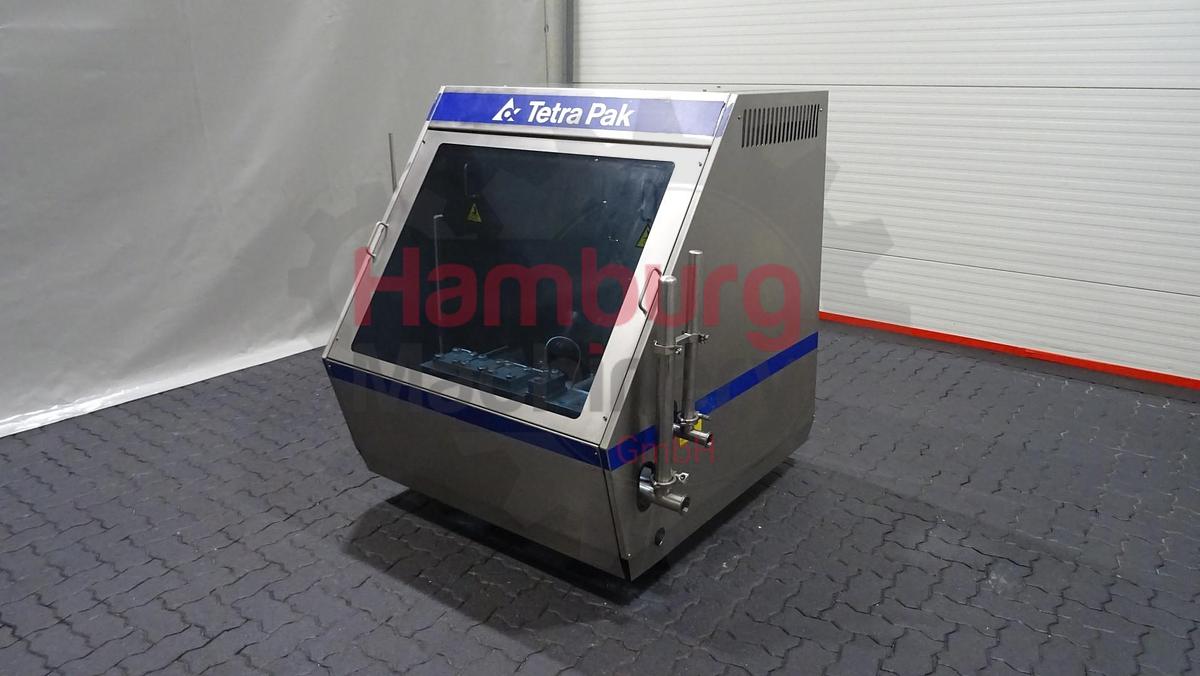

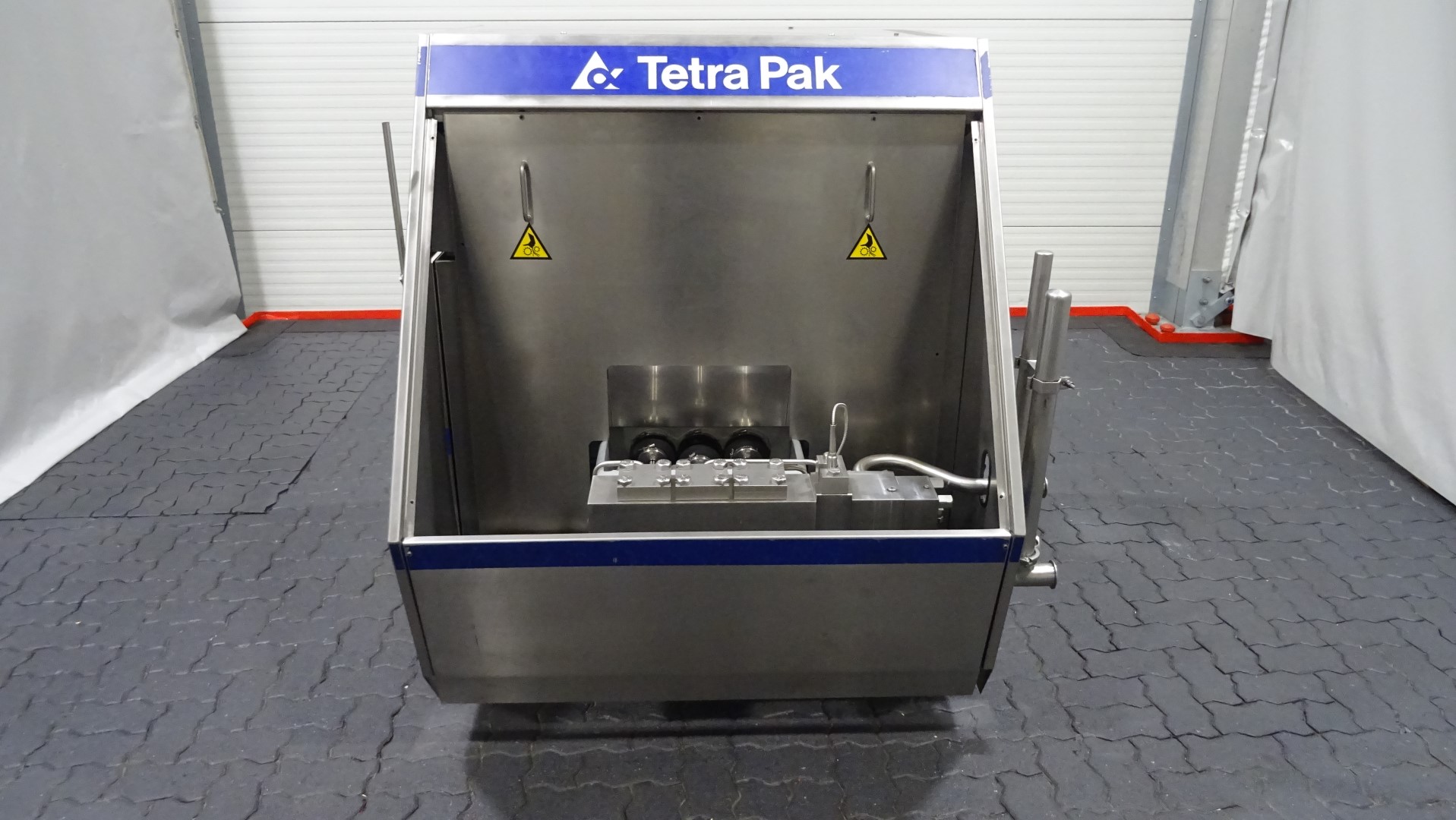

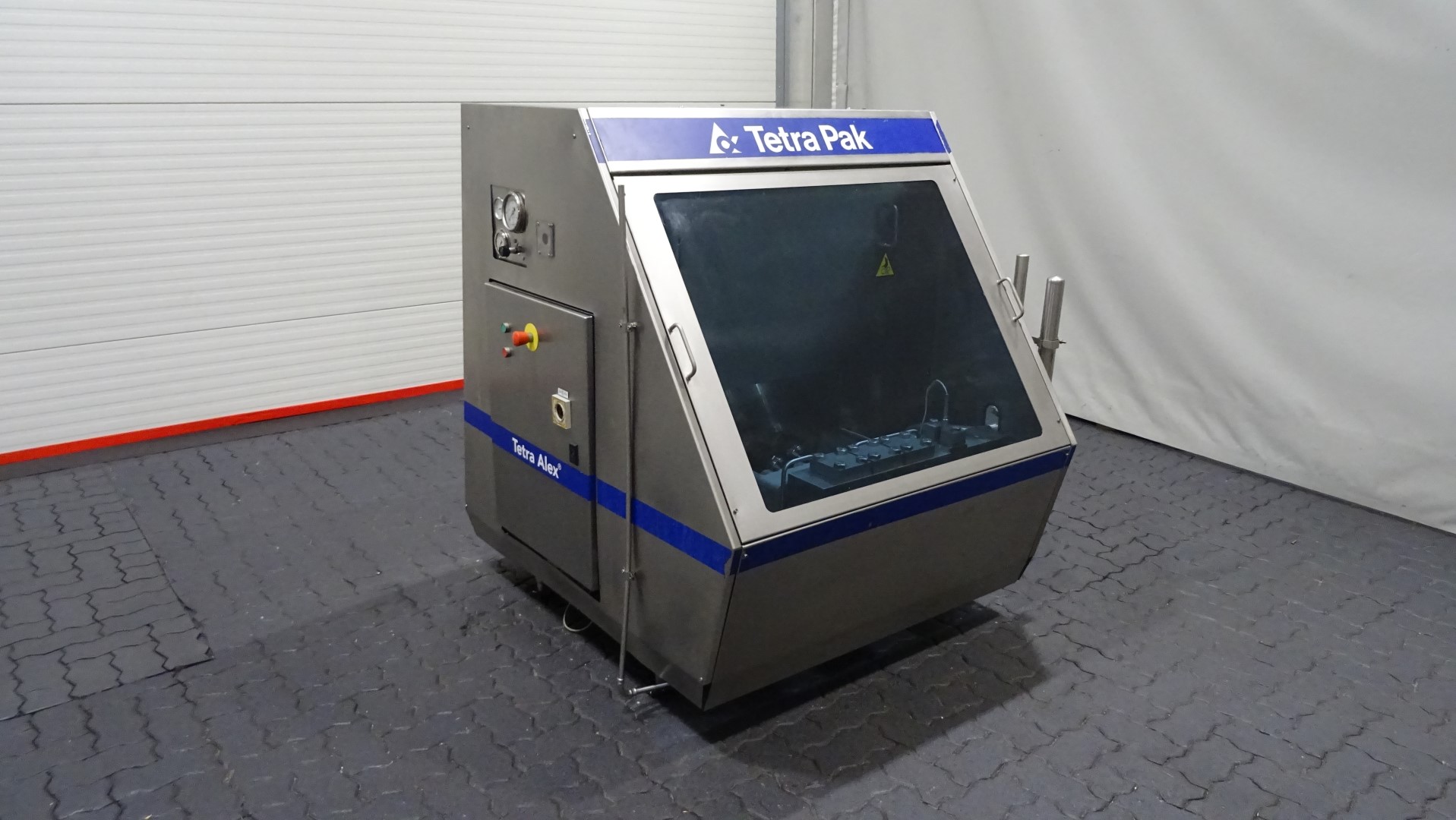

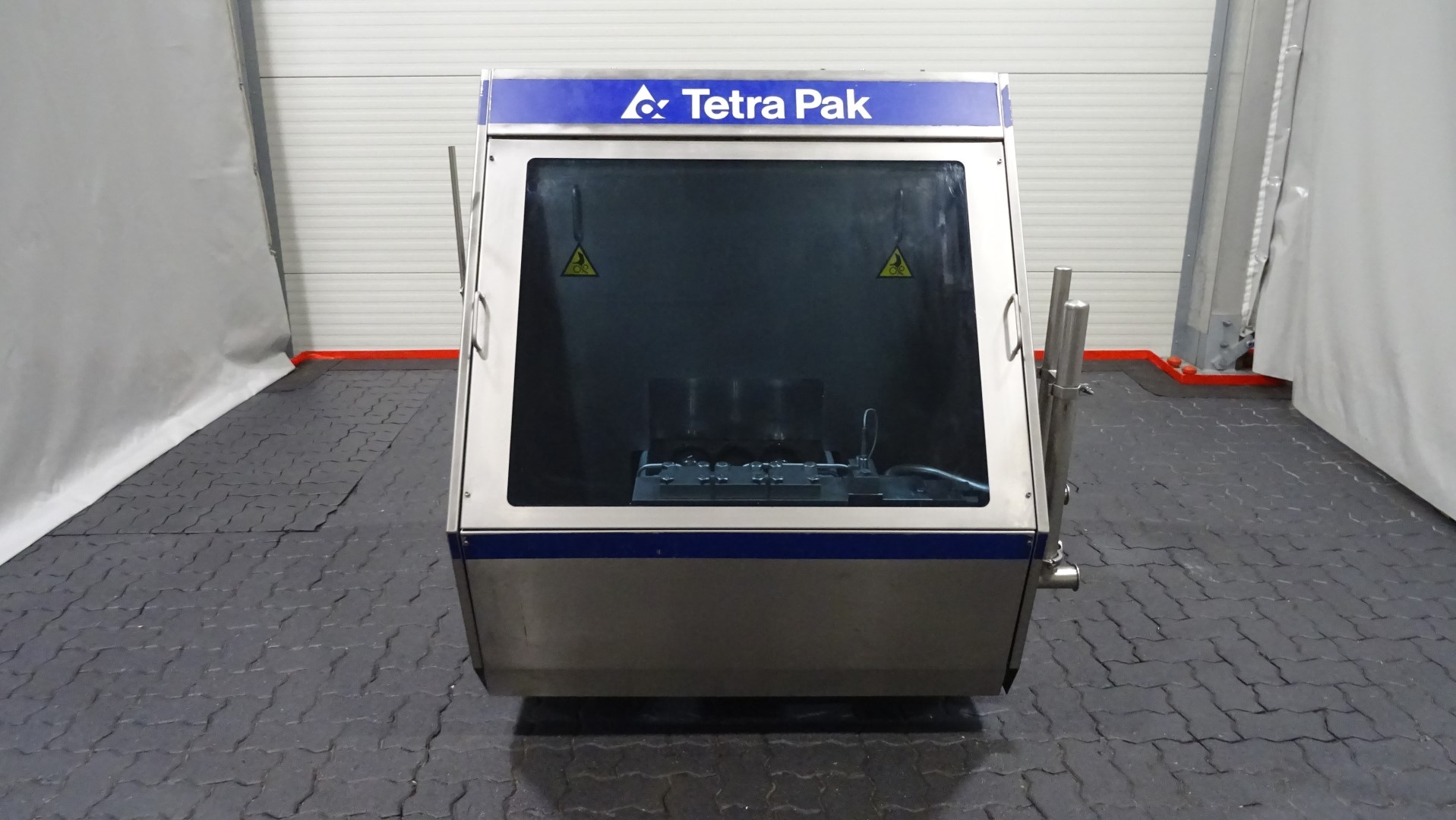

Tetra Pak Tetra Alex 2 (TA2/200BAR) high-pressure homogeniser, designed for the homogenisation of milk, dairy products and other liquid food products.

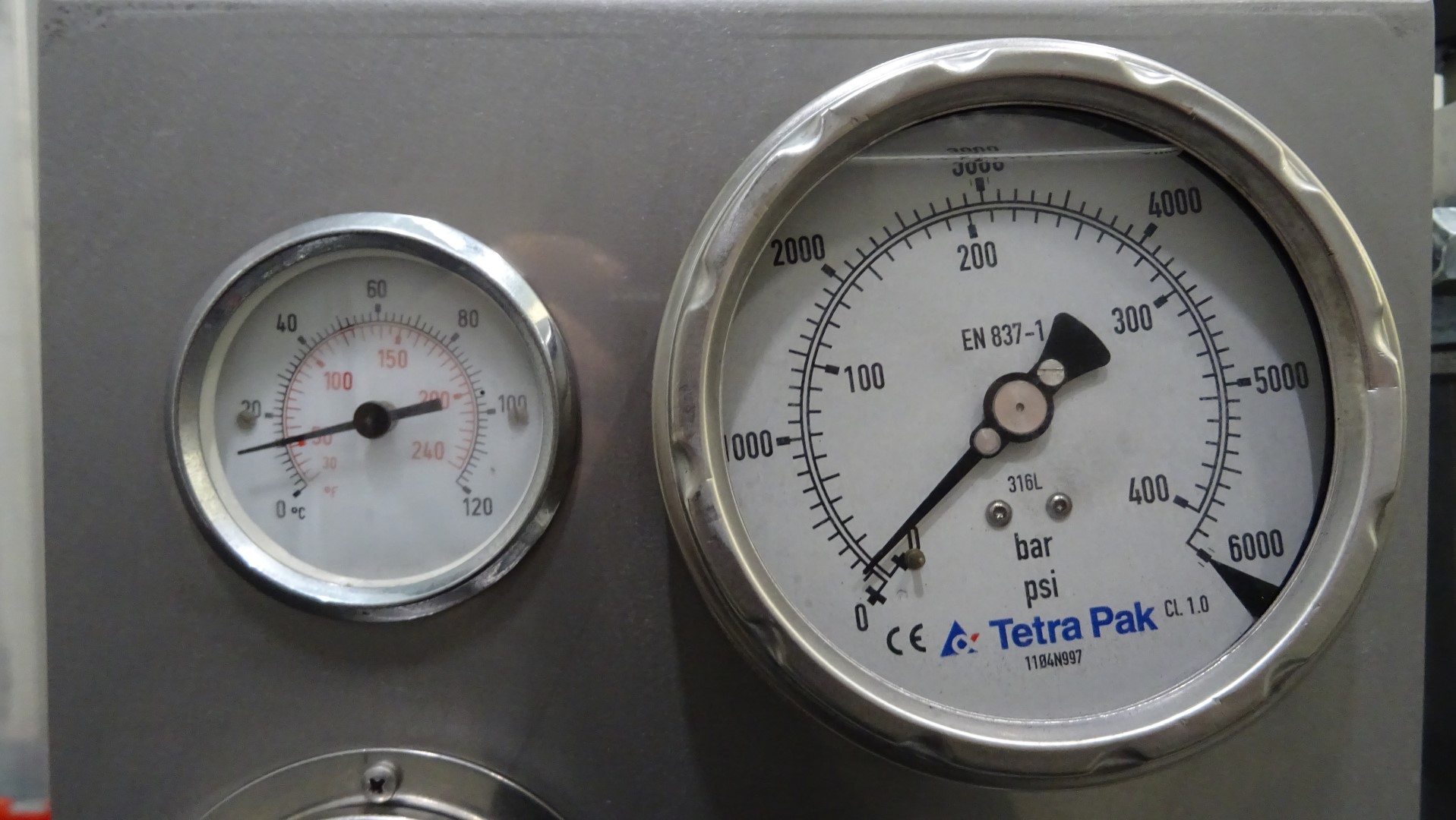

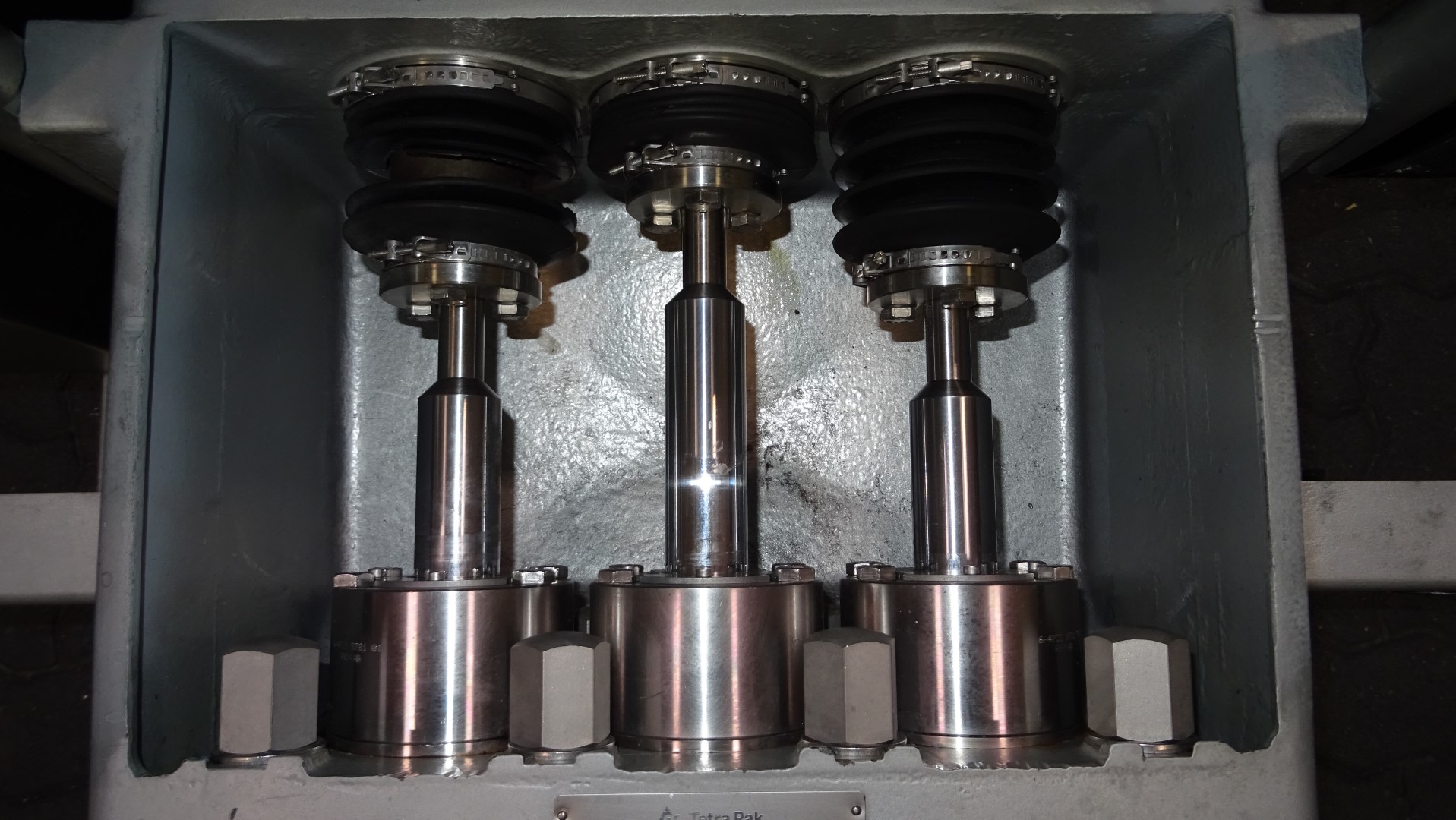

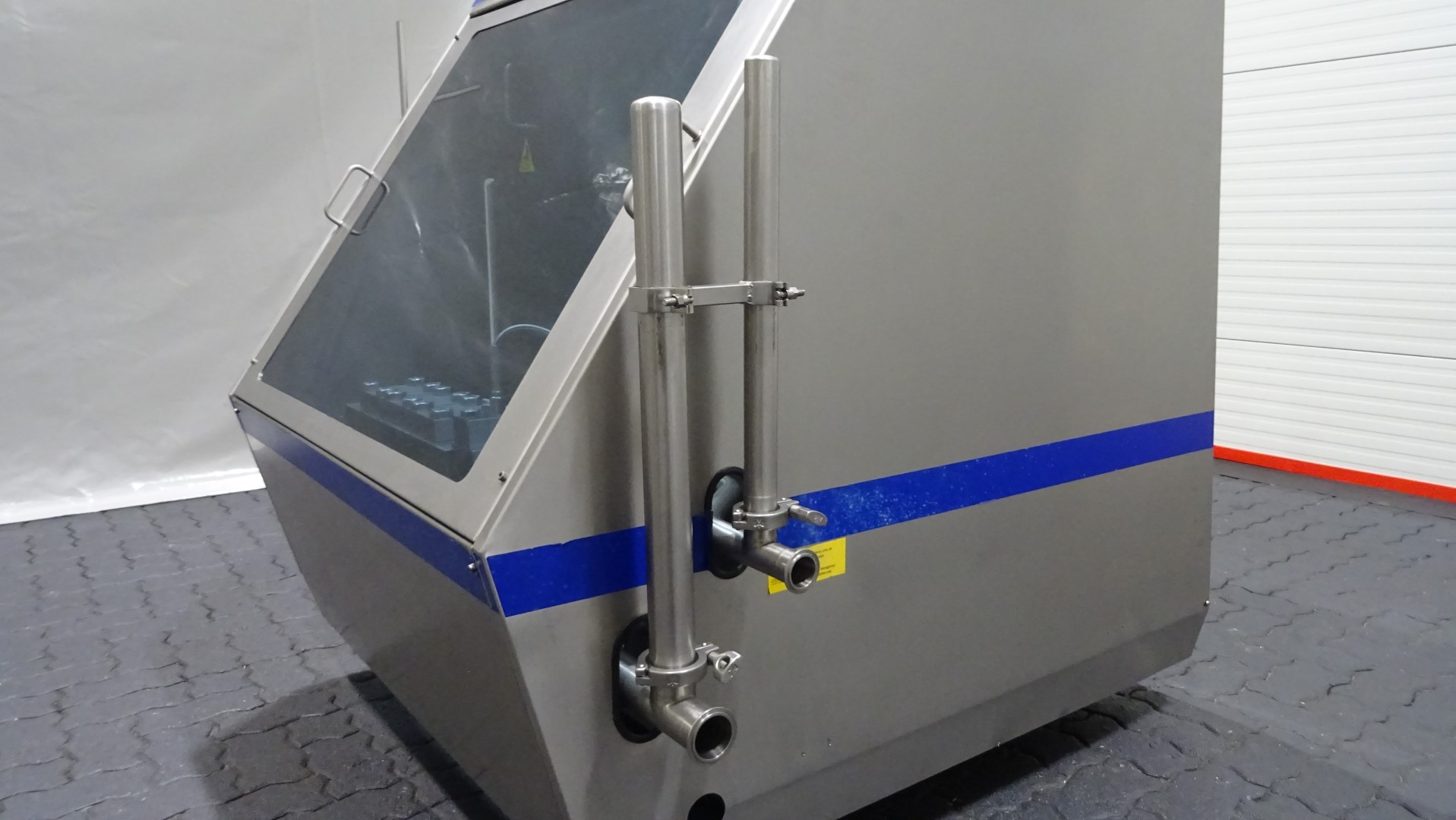

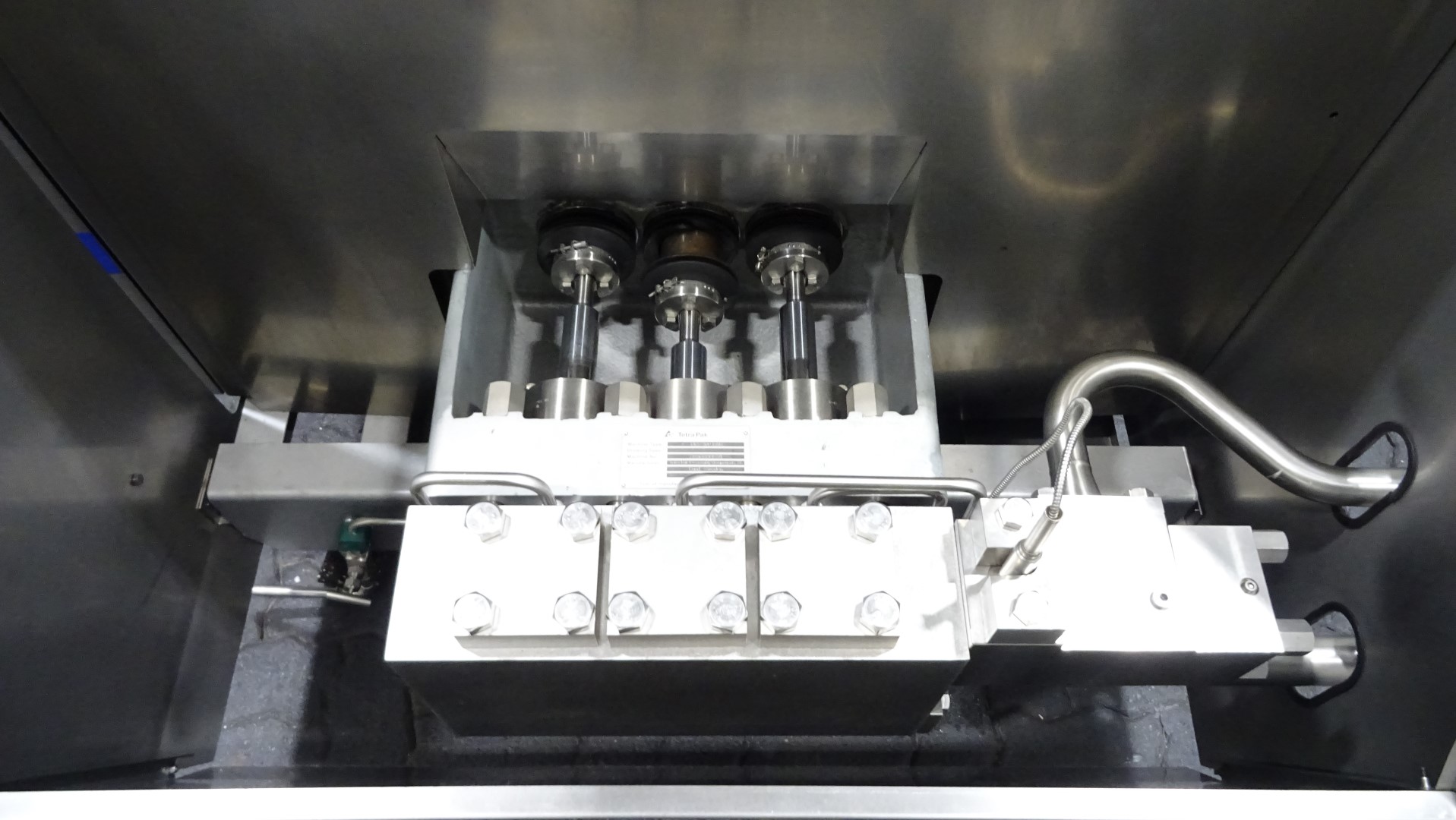

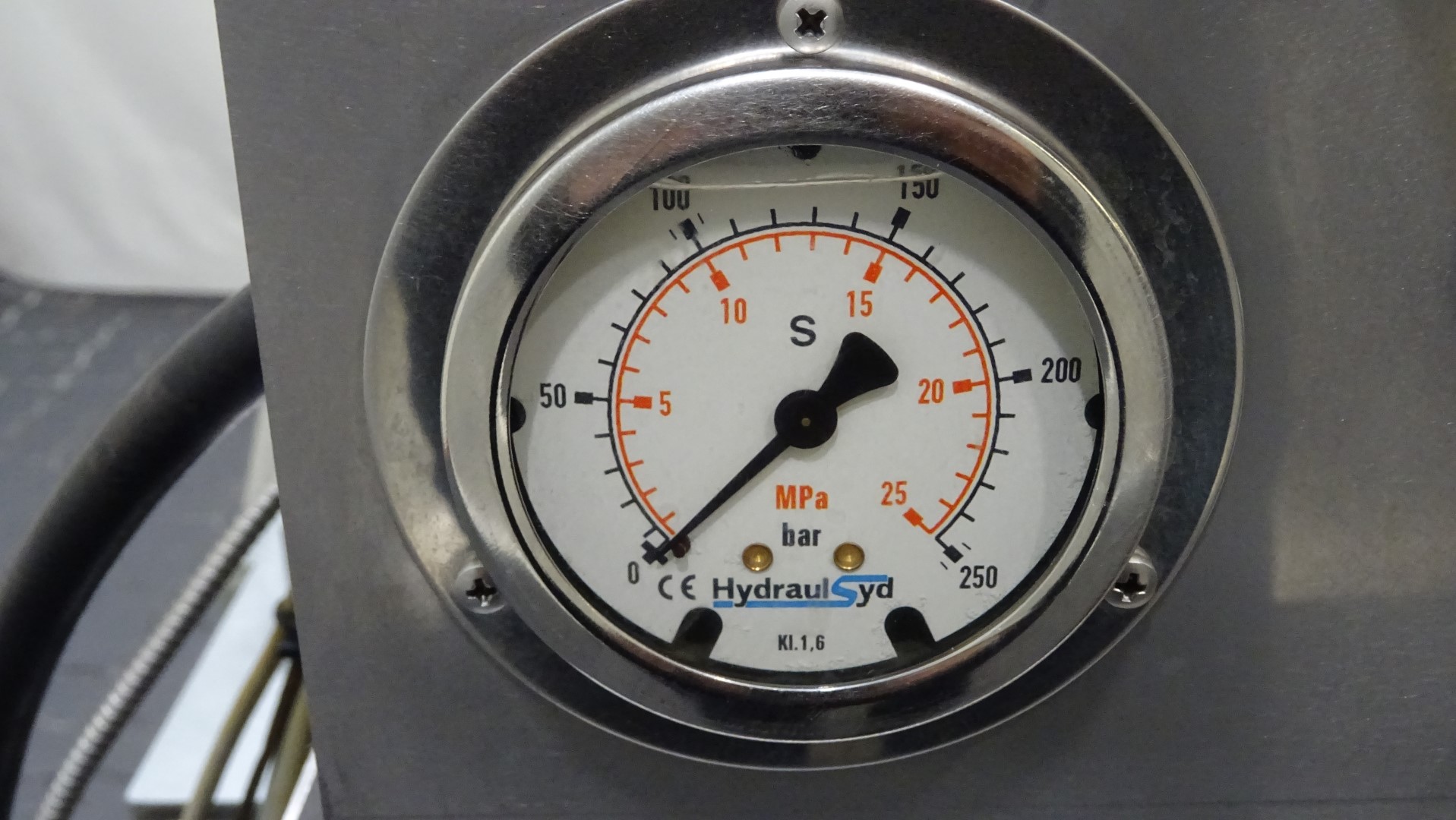

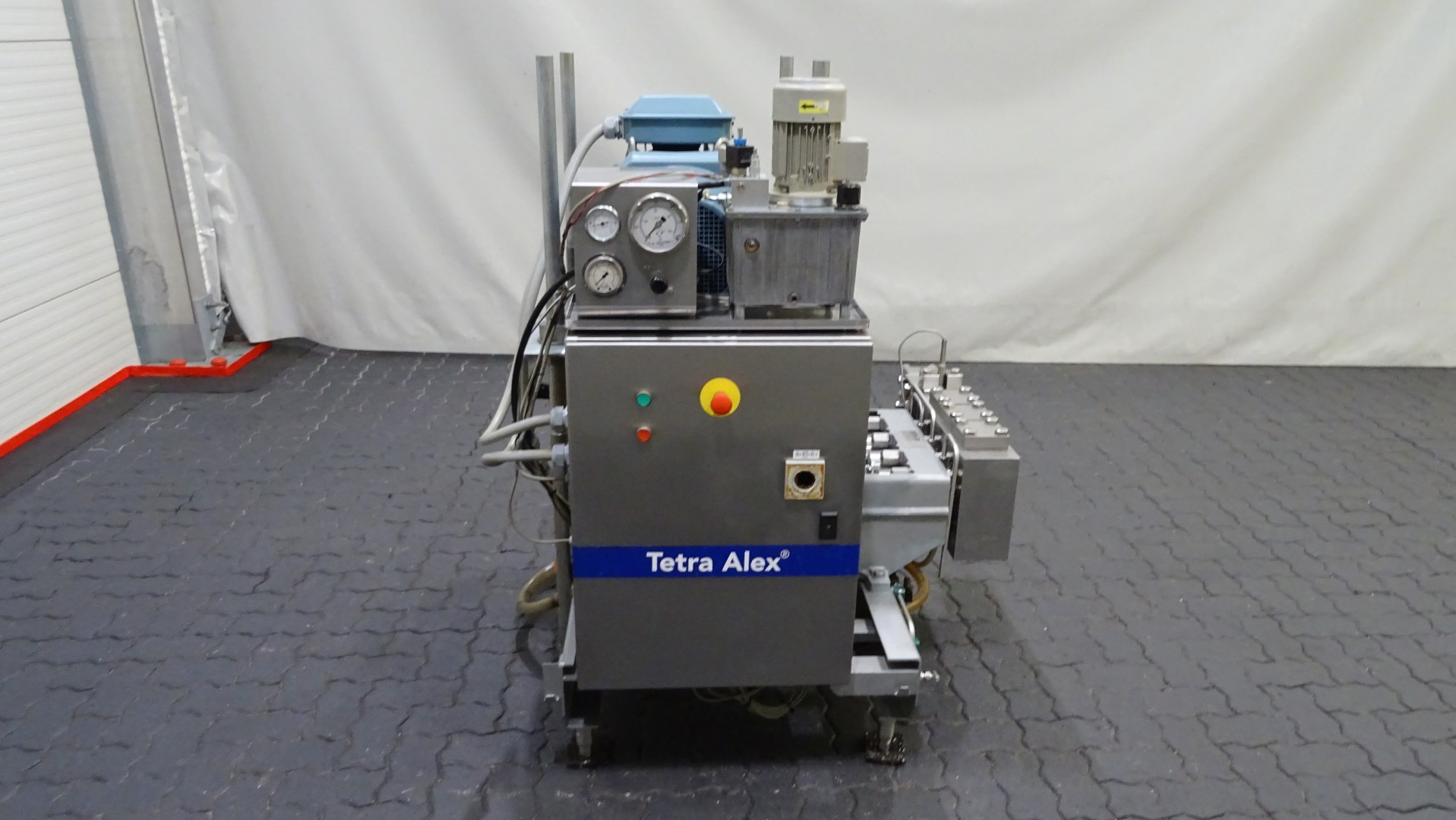

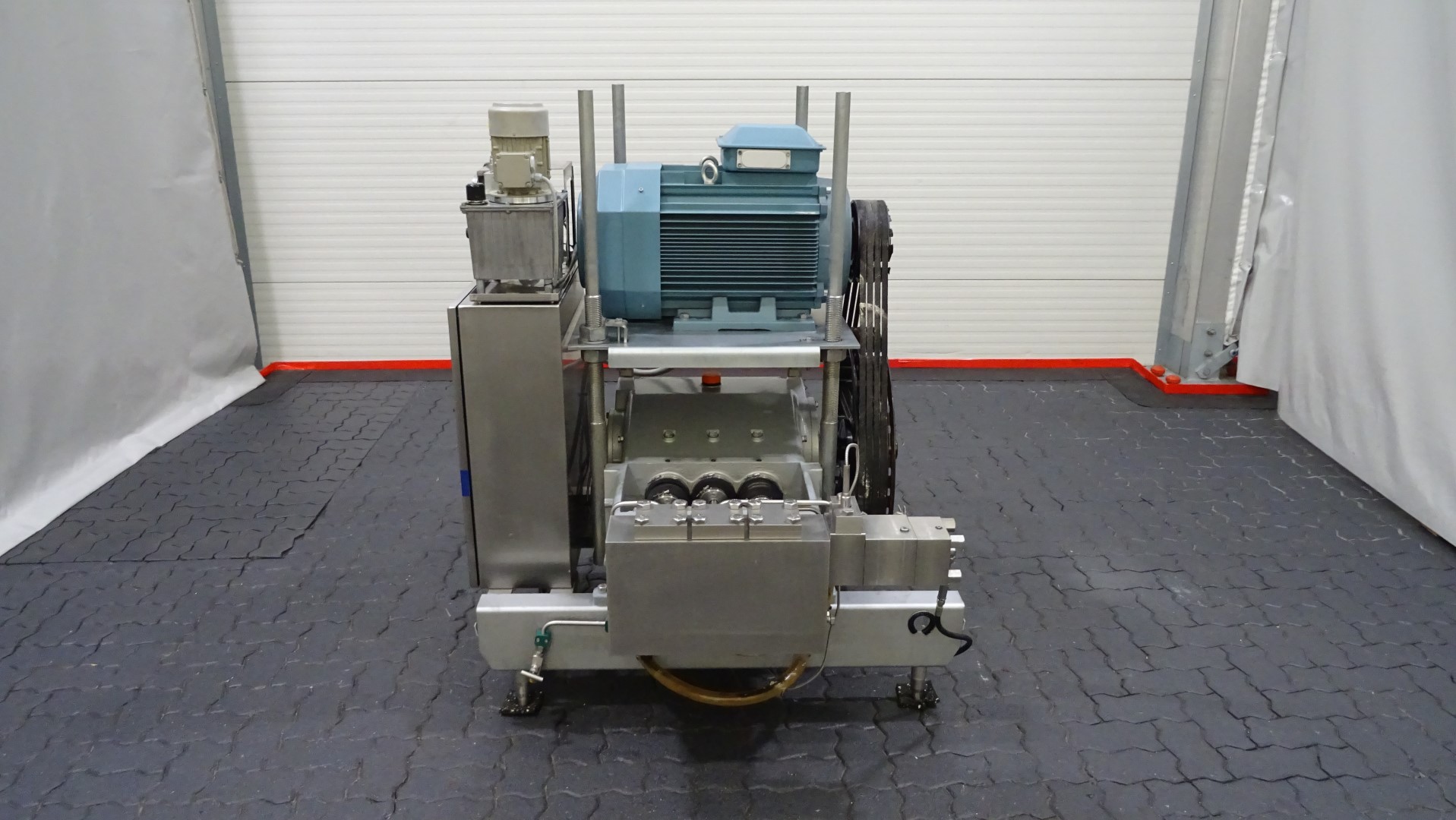

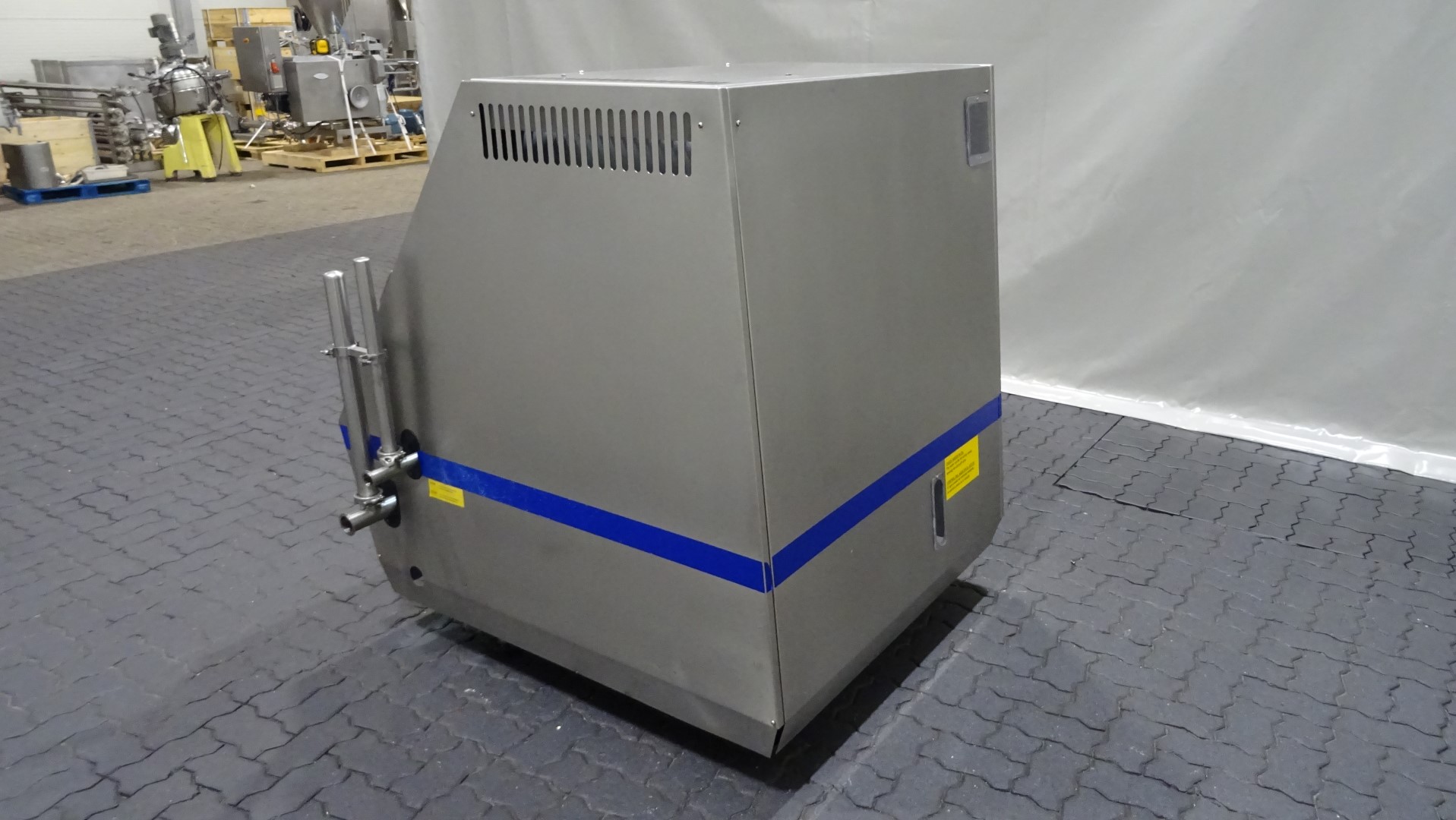

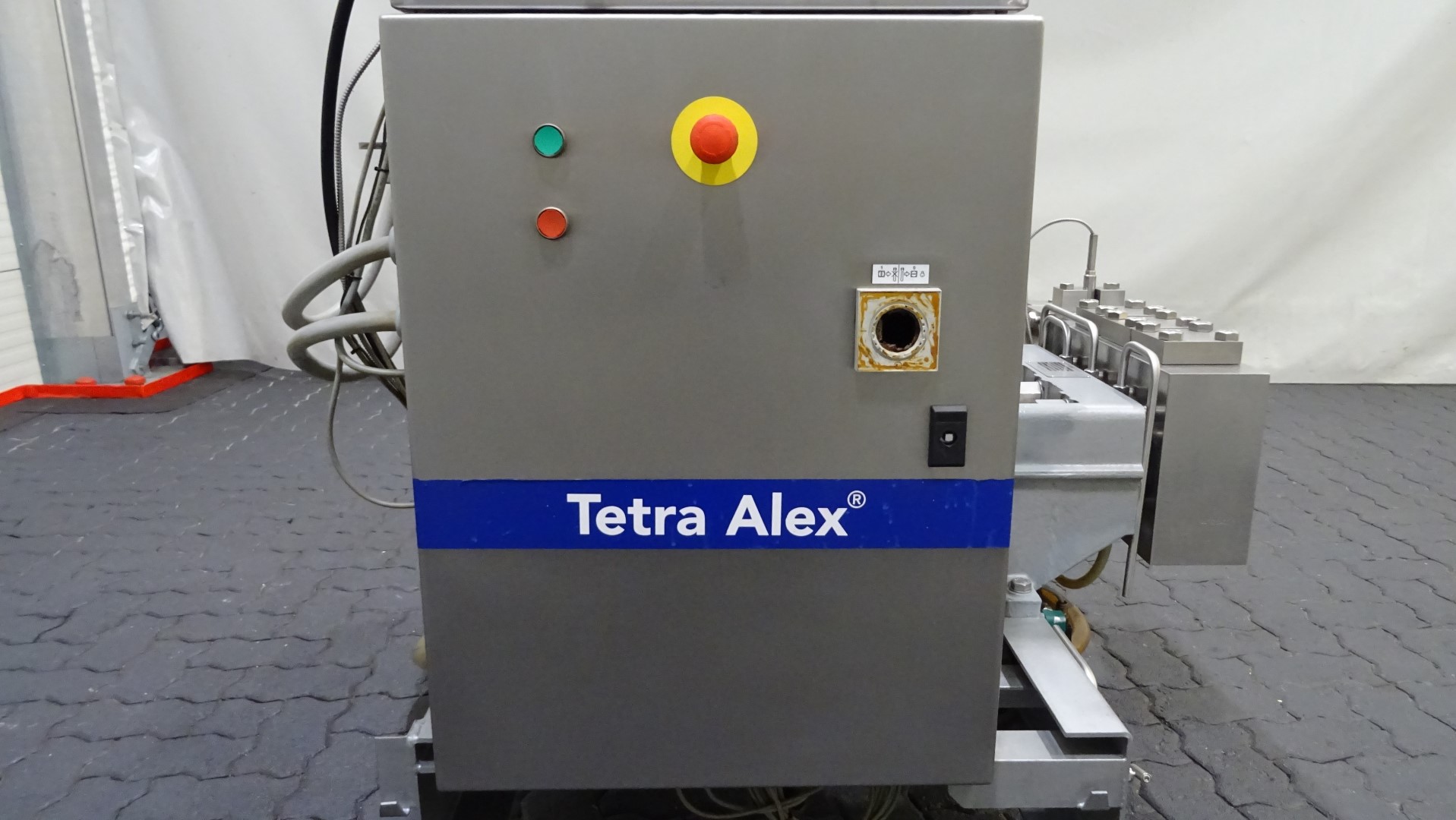

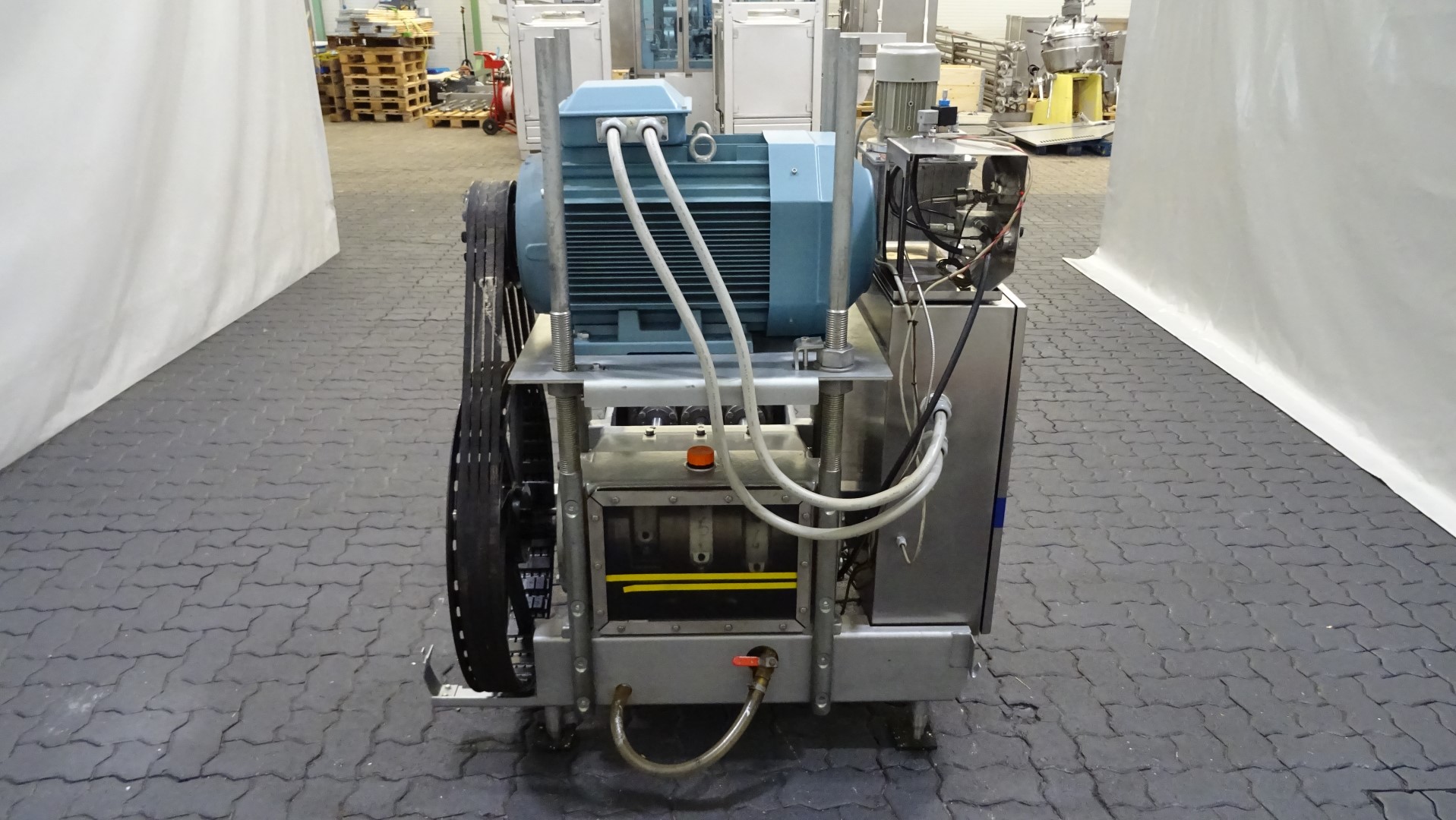

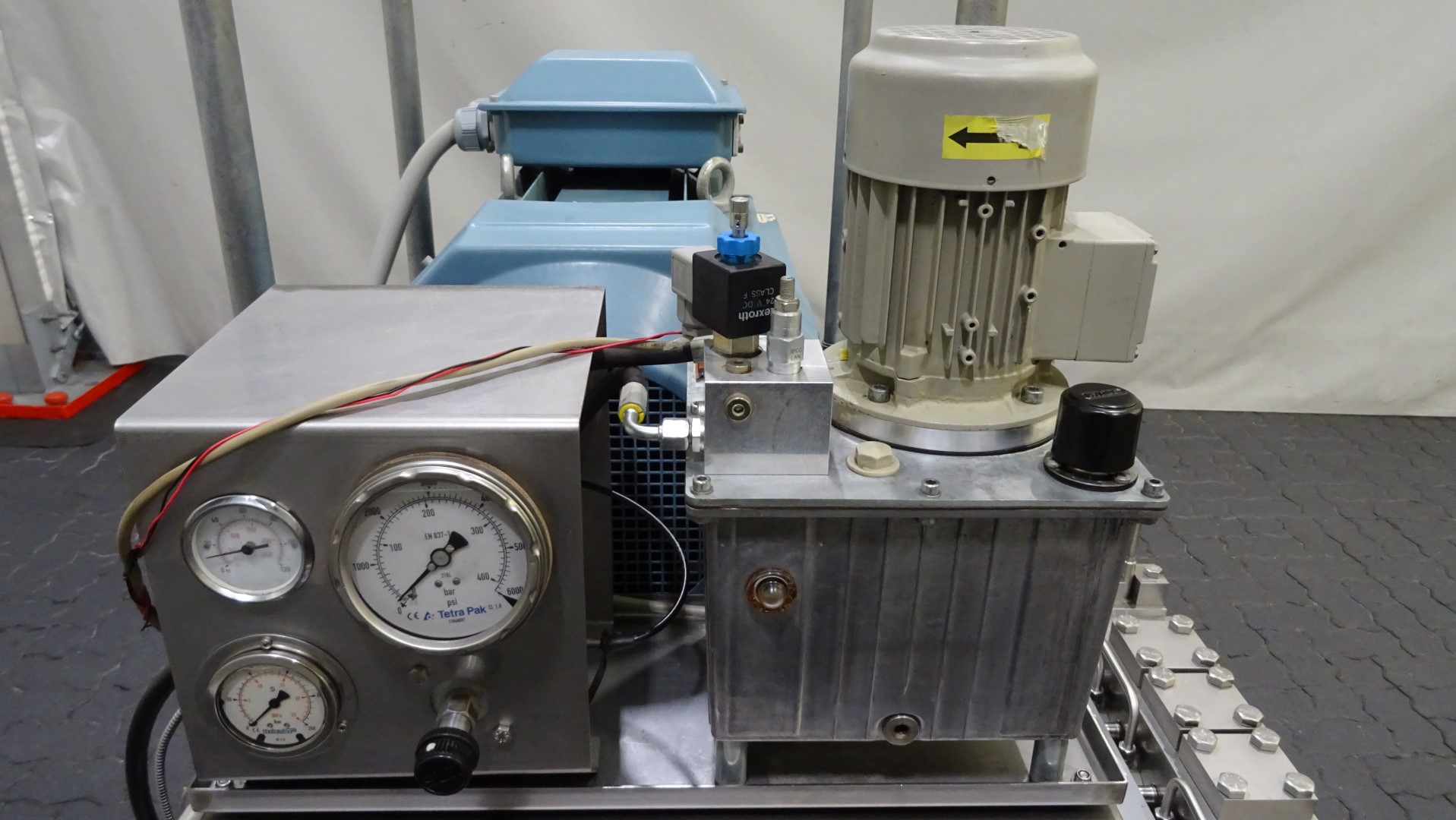

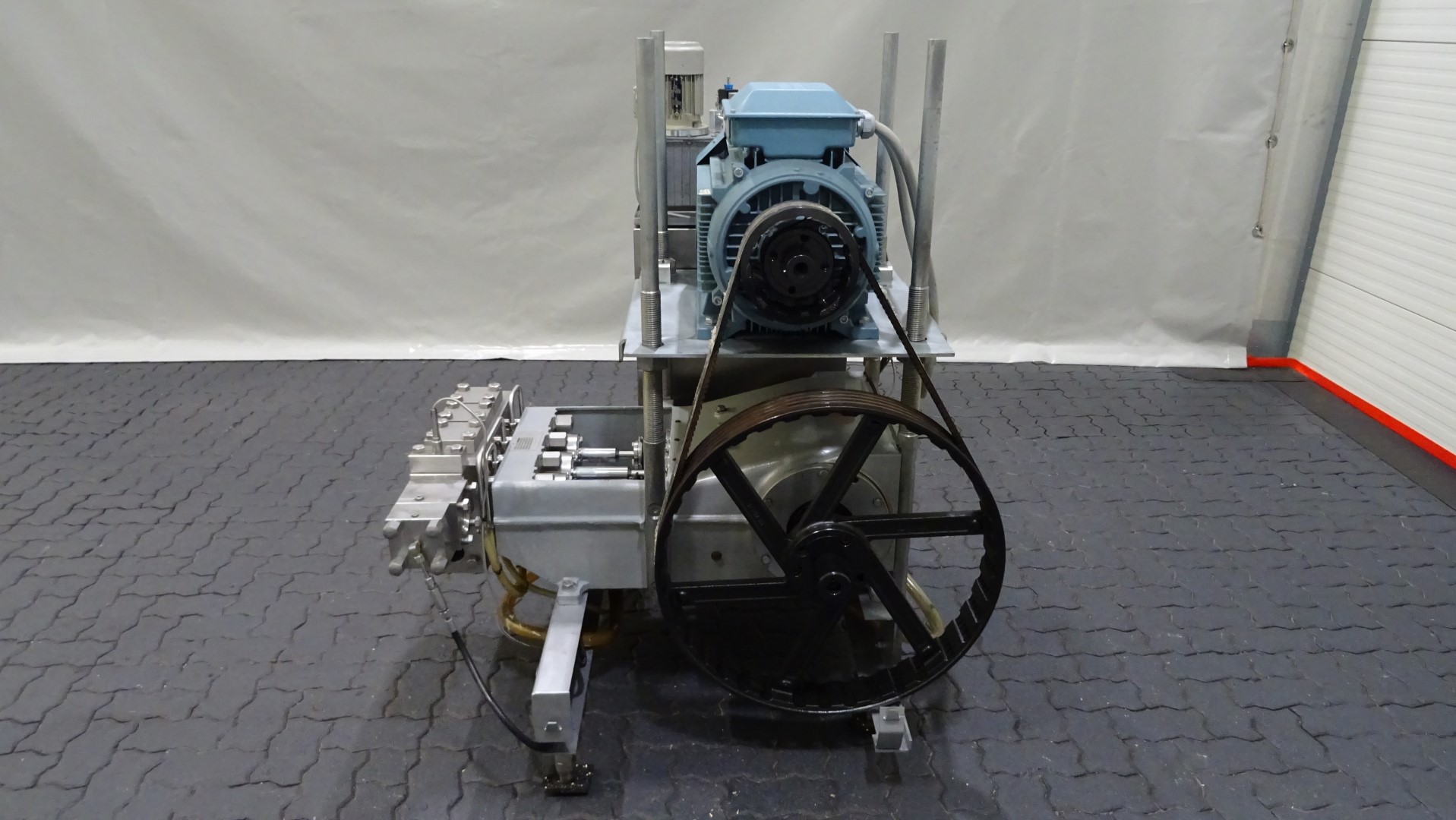

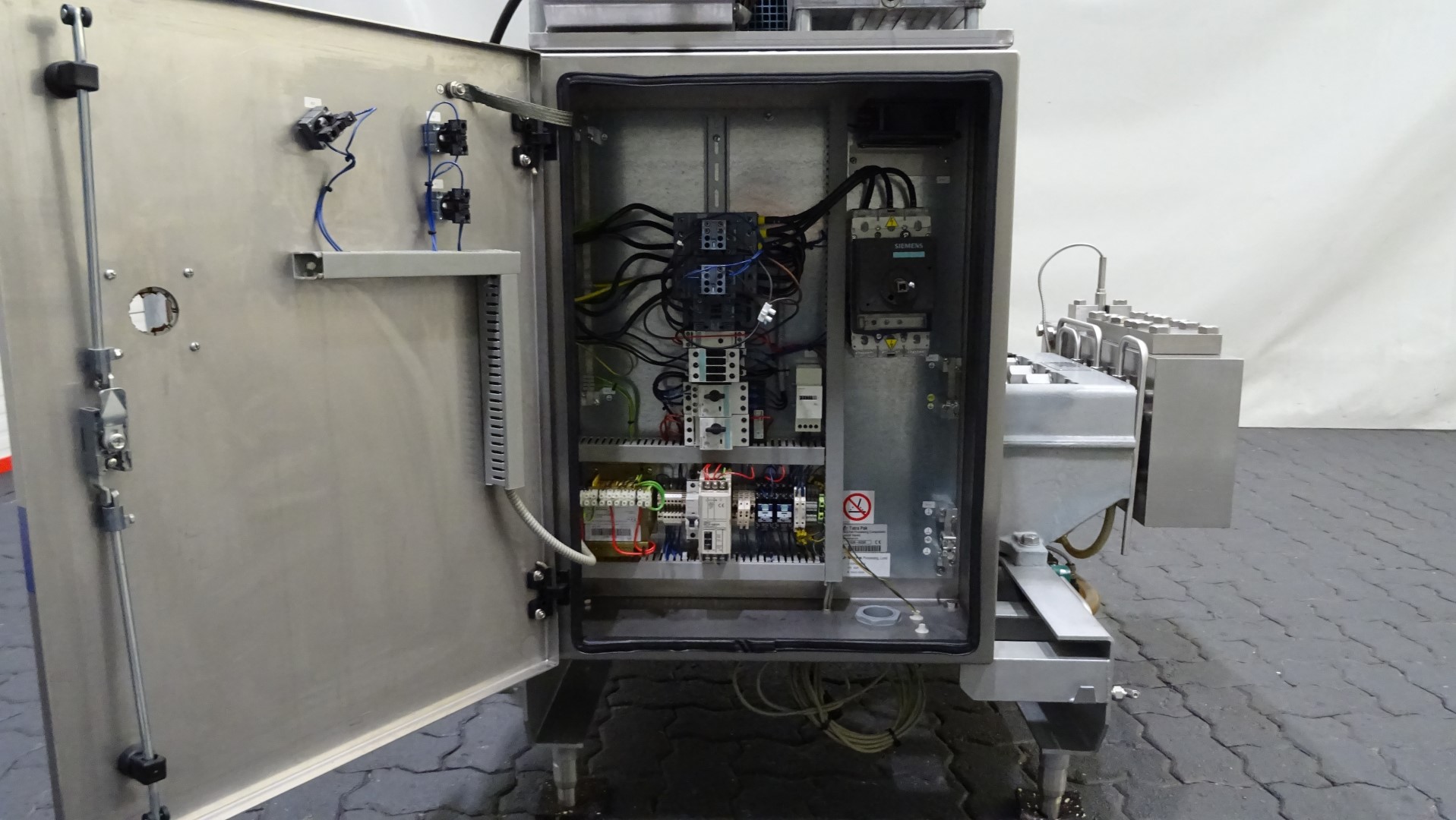

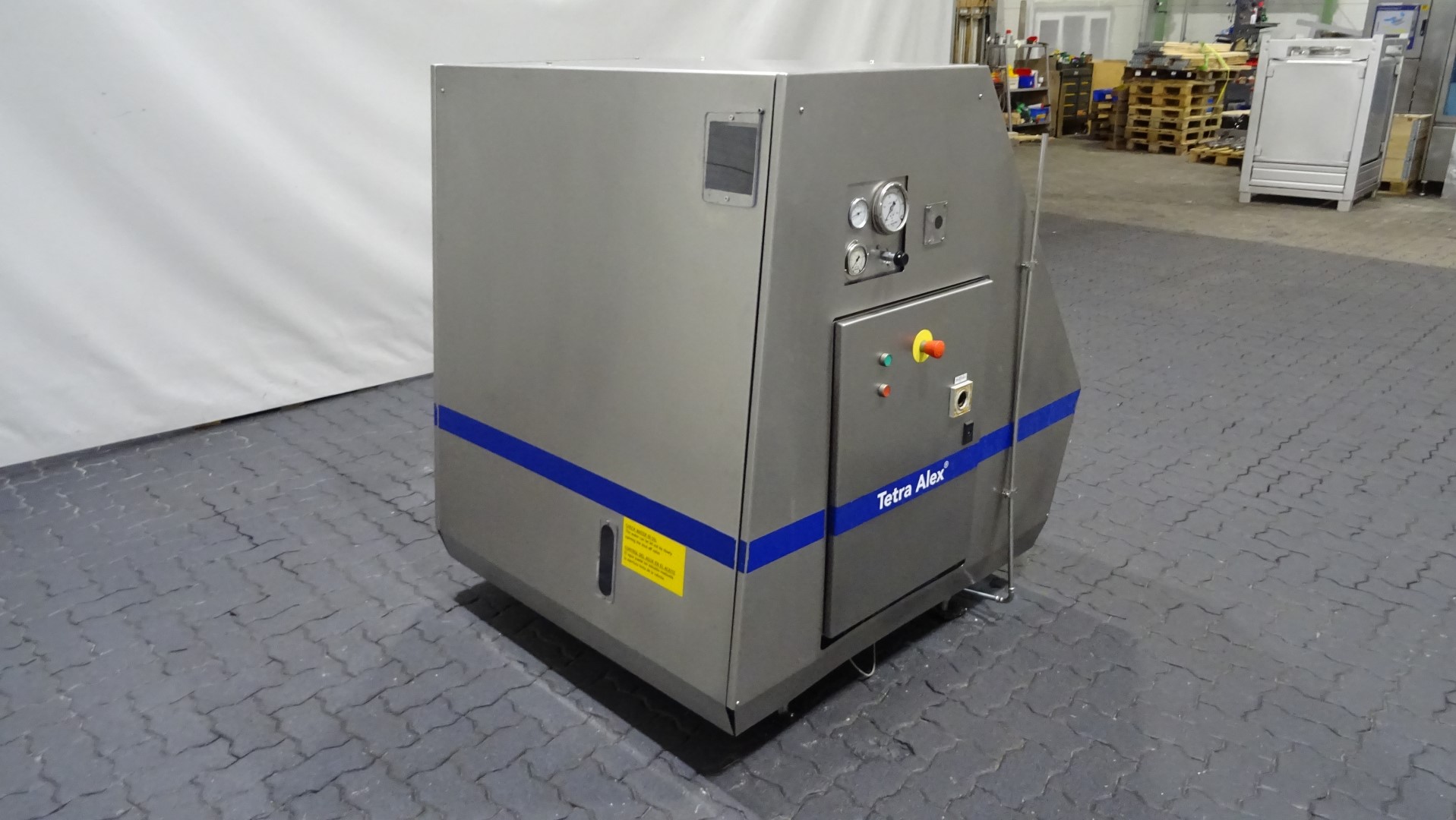

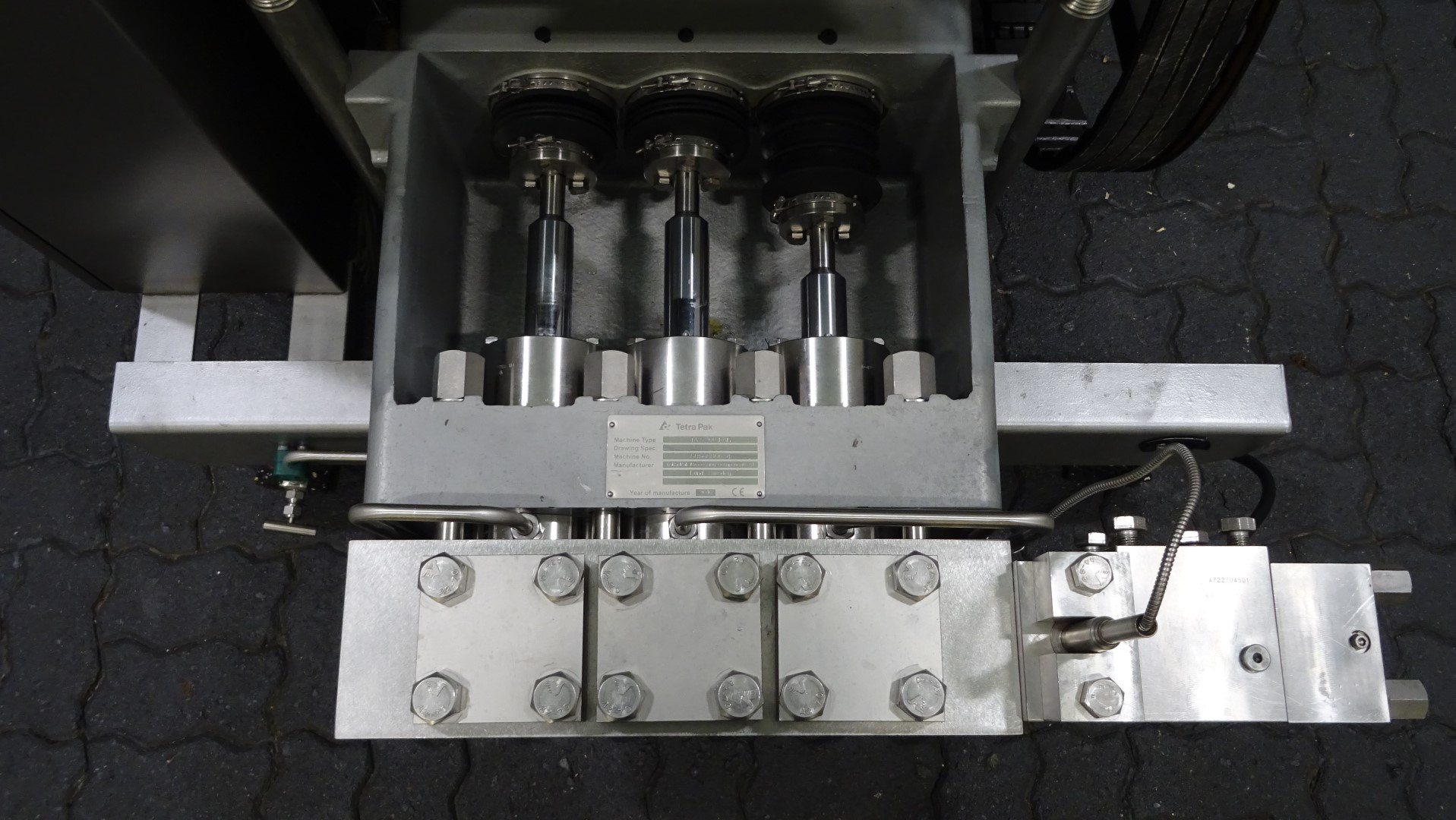

The machine is equipped with a 3-cylinder homogenising block and a single-stage homogenisation system with mushroom-type valves. The maximum design capacity is up to 6,500 litres per hour at a maximum pressure of 160 bar. With the currently installed 30 kW motor, the machine is configured for a capacity of approximately 4.000 litres per hour at an operating pressure of up to 200 bar with a piston diameter of 40 mm. The homogeniser is equipped with hydraulically operated pressure-setting valves, mounted on the side panel, allowing adjustment of the homogenisation pressure. A pressure gauge is installed to monitor operating pressure and pulsation dampers are ensure smooth product flow. The machine also features an integrated oil pumping system and stainless steel cladding. The inlet connections is 51 mm and the outlet connection is 38 mm. The machine is equipped with a stainless steel control panel with main switch and motorgroup.
A robust industrial homogeniser suitable for dairy processing and other food production applications requiring reliable high-pressure homogenisation.
