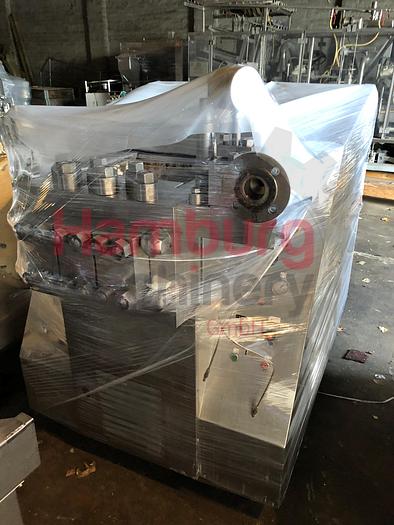

APV Gaulin 1638 MC 30-4TBS

This APV Gaulin MC30 homogeniser is a 3-cylinder machine which is designed for 6.200 liter per hour with a maximum pressure of 280 bar. The homogensier is equipped with 2-stages with ball valve cylinder. Manometer on the stages. Piston diameter: 54 mm. Motor: 55-70 kW (2 speed) - 380 V - 106-184 Amp - 50 Hz - 782-1.470 rpm. Oil pumping system inside the machine. Stainless steel cladded.

General application:

High pressure homogenizers are used to break up the fat globules contained in the milk under high pressure and thus distribute them evenly in the milk. The fat droplets are crushed by forcing the milk through fine nozzles under high pressure. This process prevents a layer of cream from forming on the milk.
