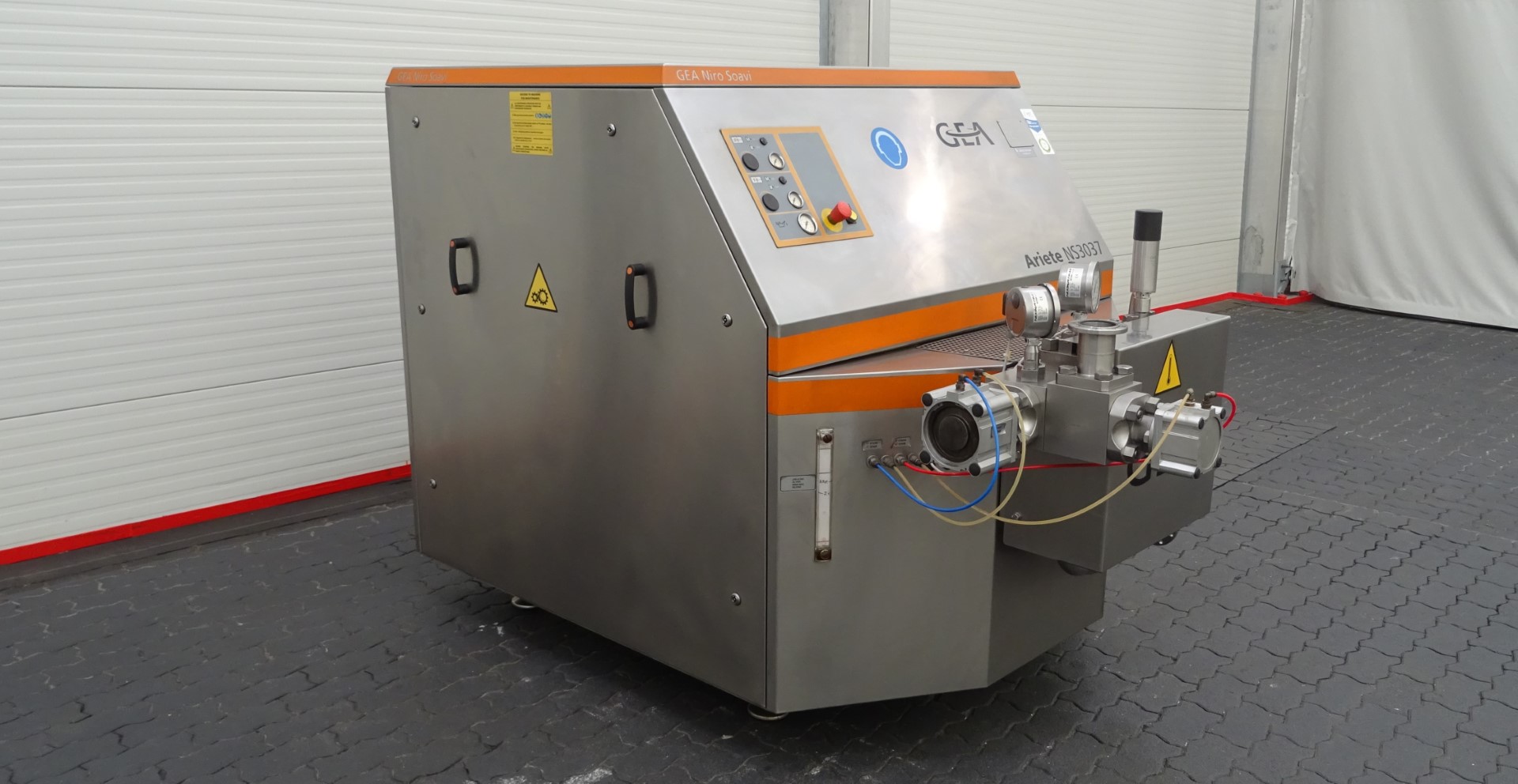

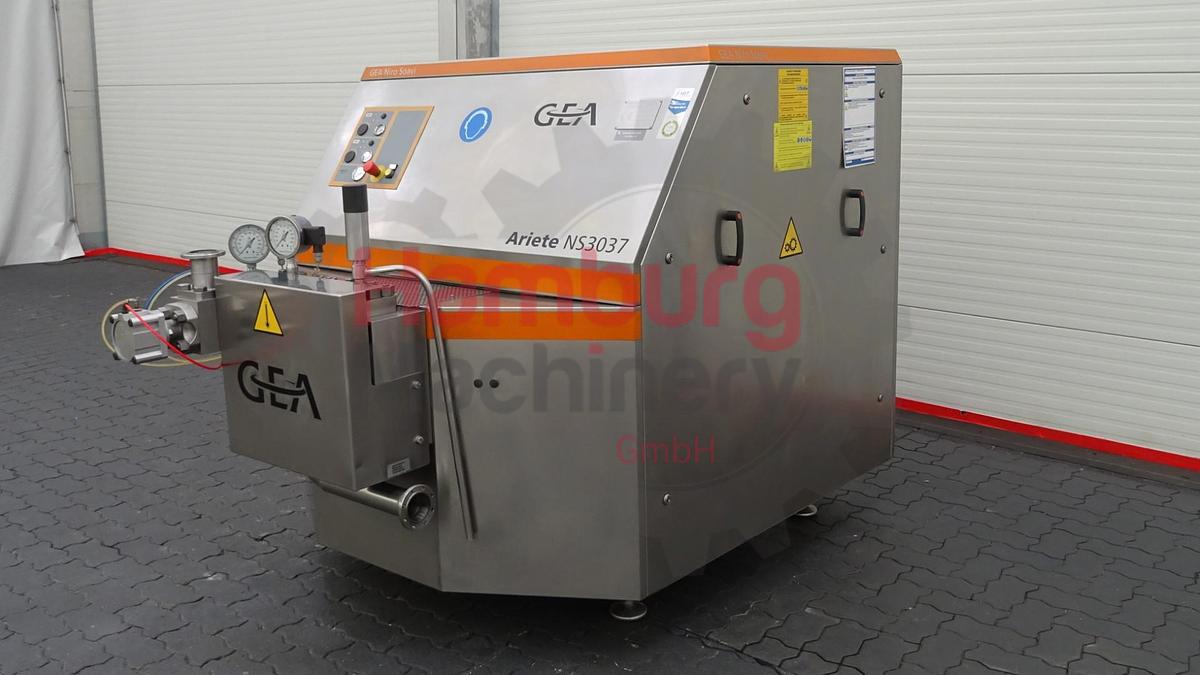

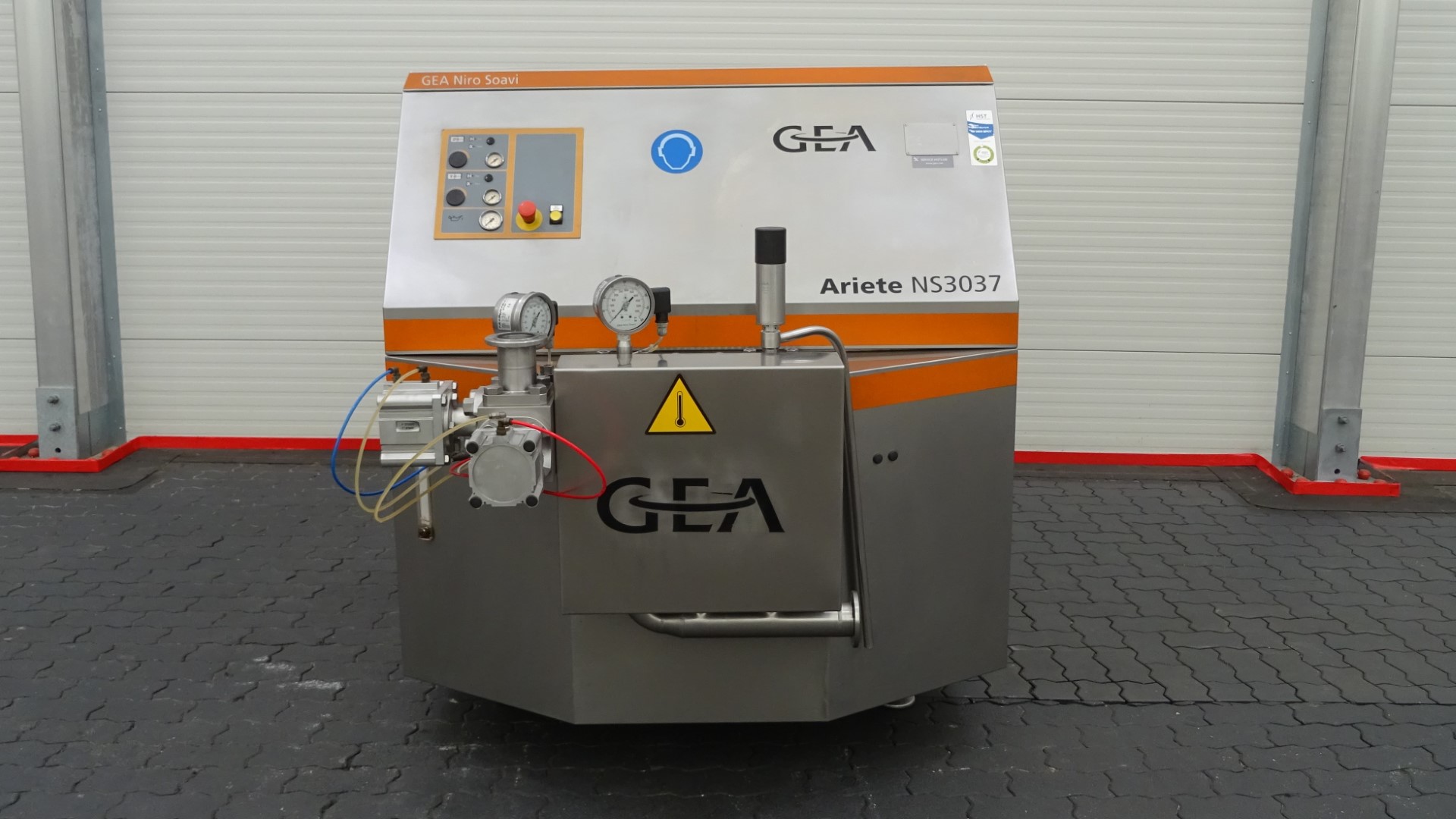

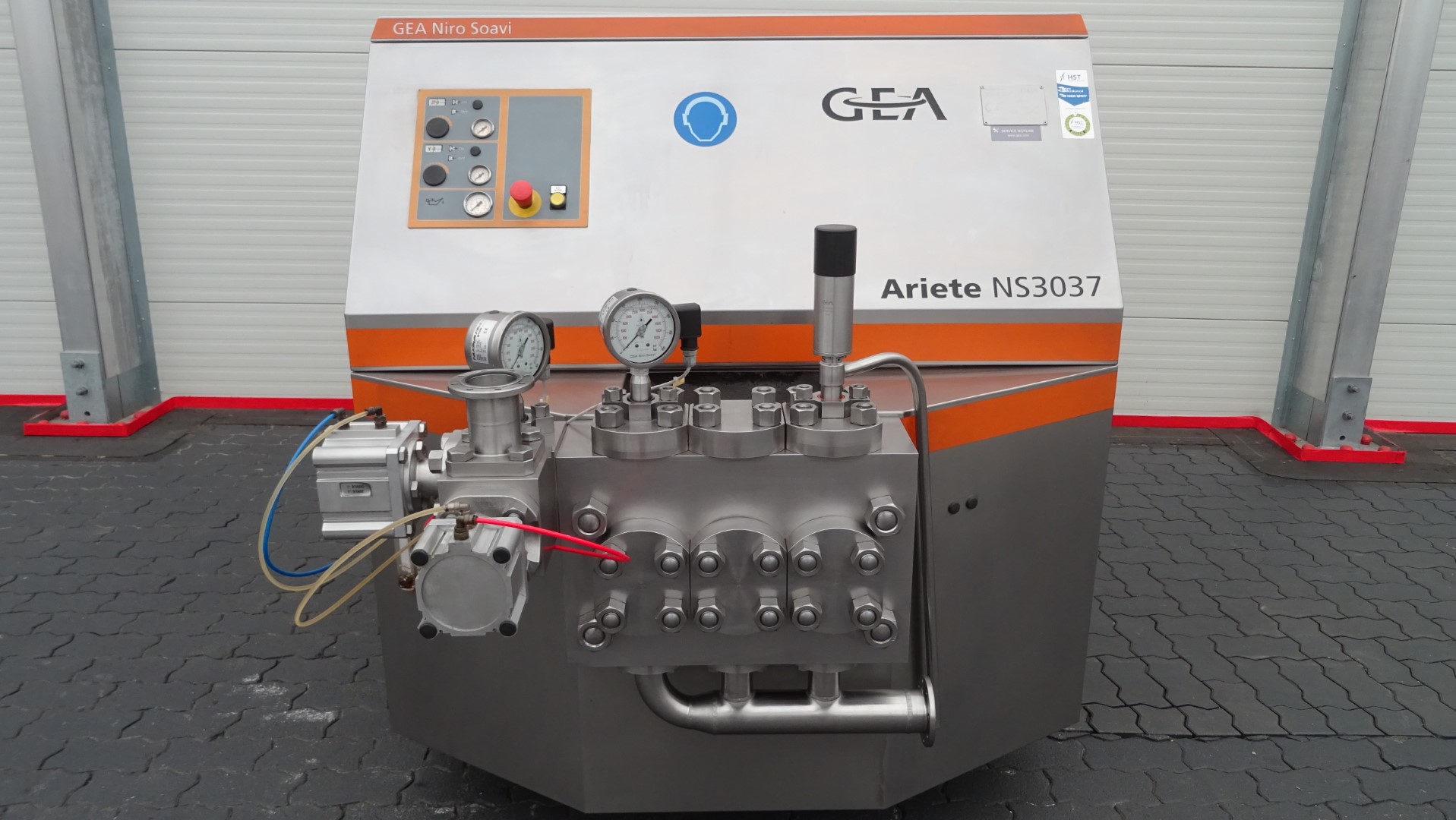

High Pressure Homogeniser GEA Niro Soavi NS3037H
Sold
Specifications

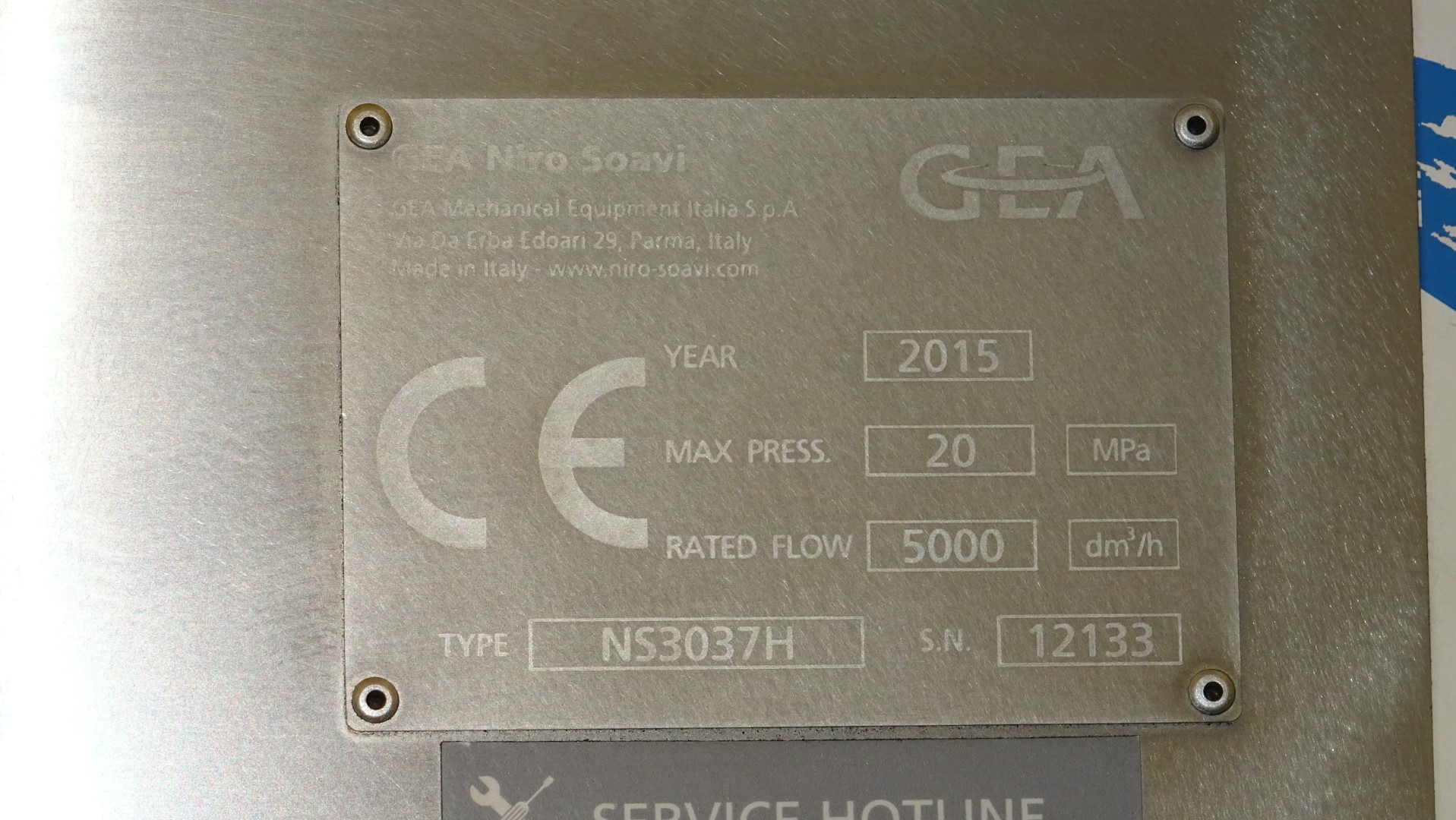

| Manufacturer | GEA Niro Soavi |
| Model | NS3037H |
| Year | 2015 |
| Condition | Used |
| Serial Number | 12133 |
| Stock Number | 1315 |
| Type of Machine | Homogeniser |
| Capacity | 1.500 - 5.000 liter per hour |
| Stages | 2 stages |
| Max. Pressure | 200 bar |
| Pistons | AISI 316 + CR-C |
| Piston diameter | 50 mm |

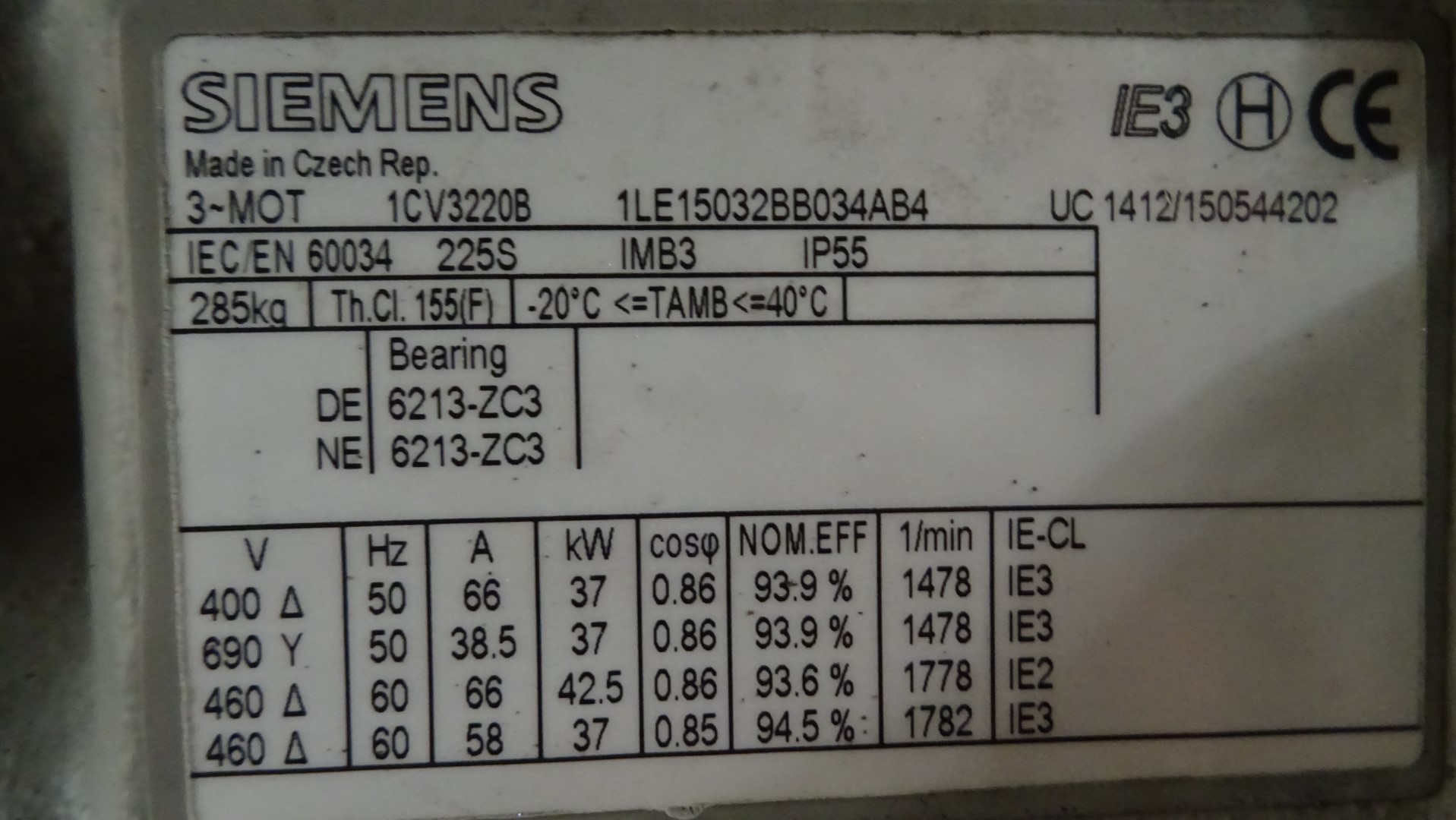

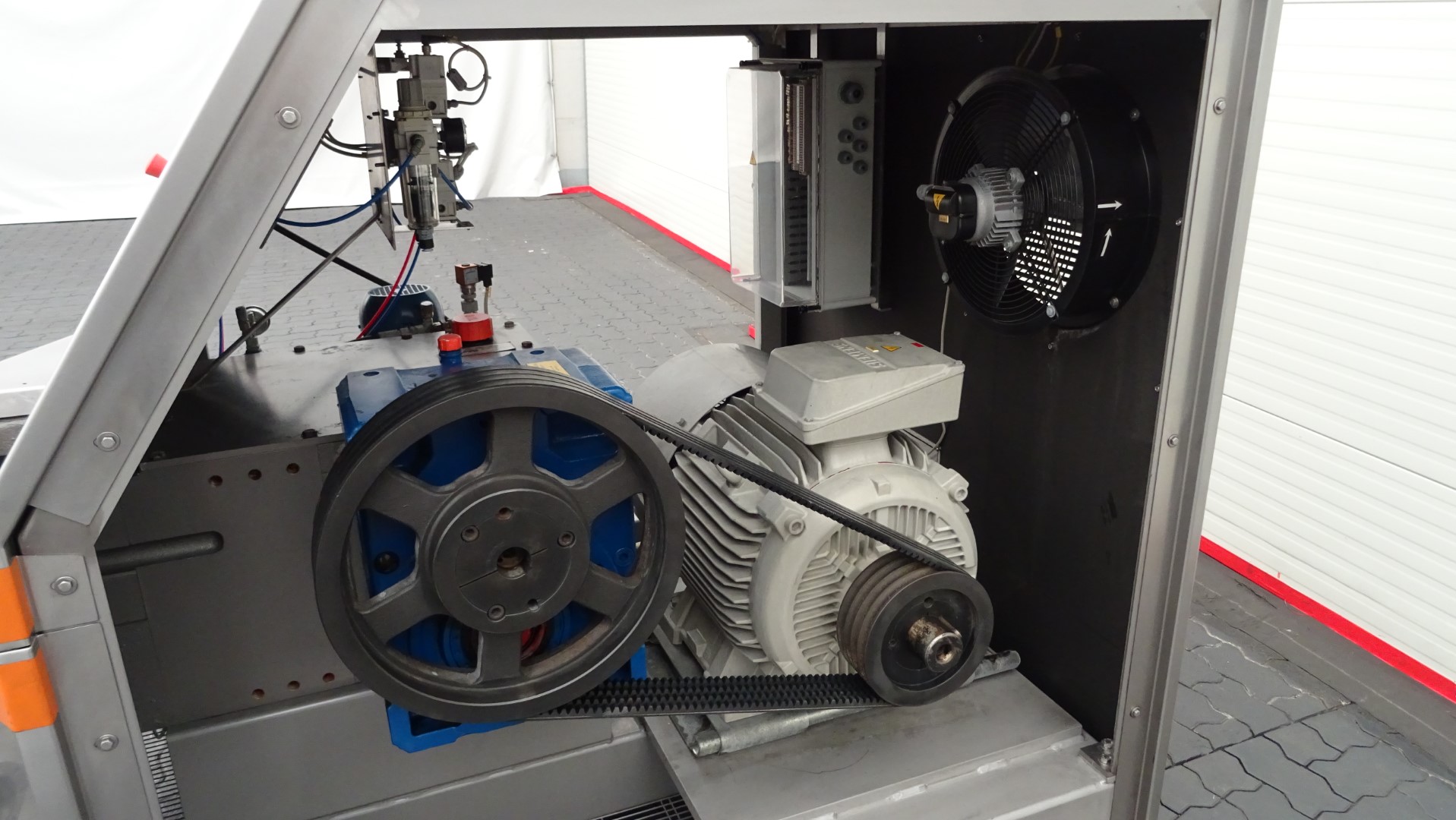

| Motor | 37 kW - 400 V - 66 A - 50 Hz - 1.478 rpm |
| Dimensions | 230 x 150 x 155 cm |
| Weight | 2.000 kg |
Description

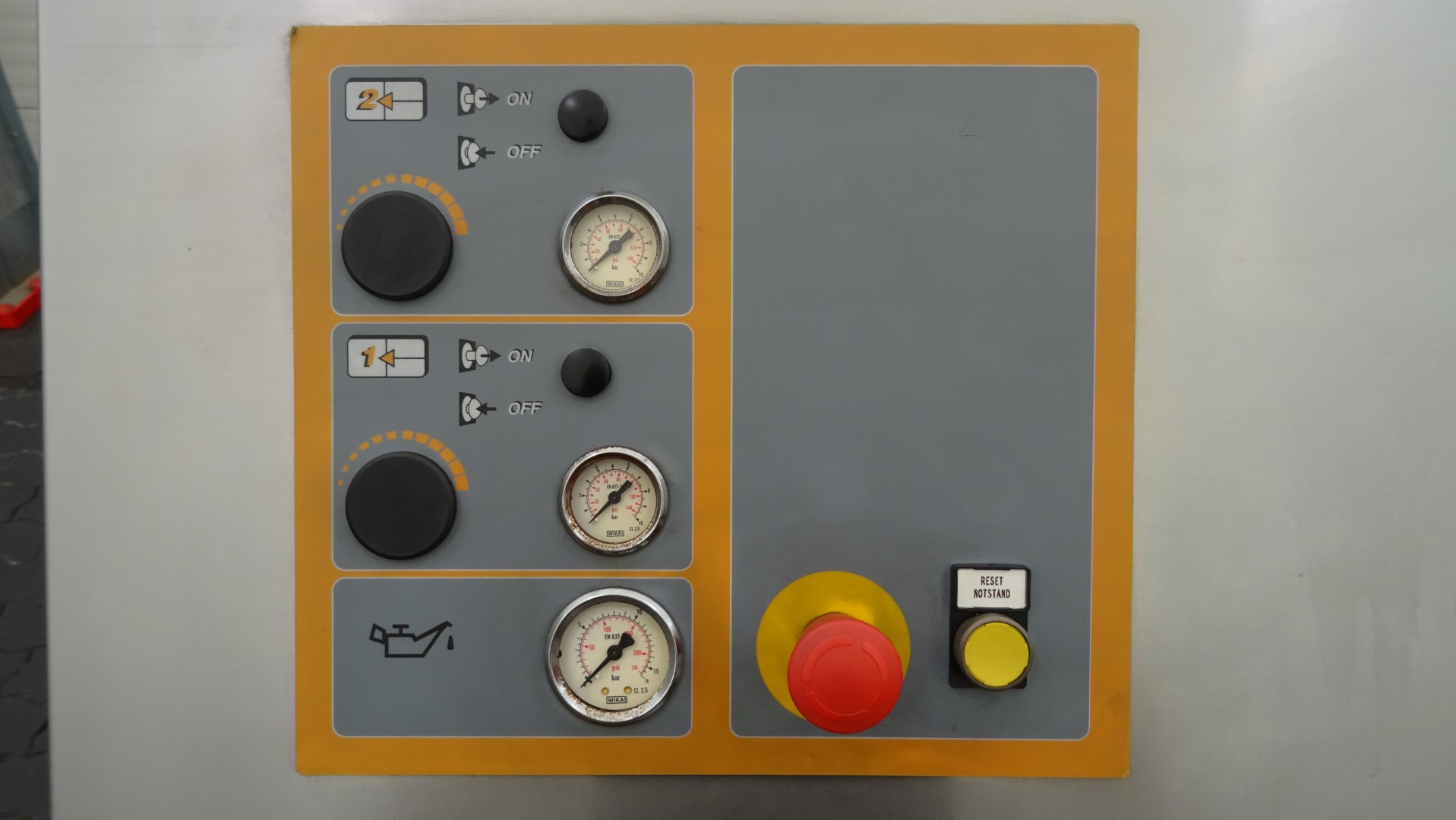

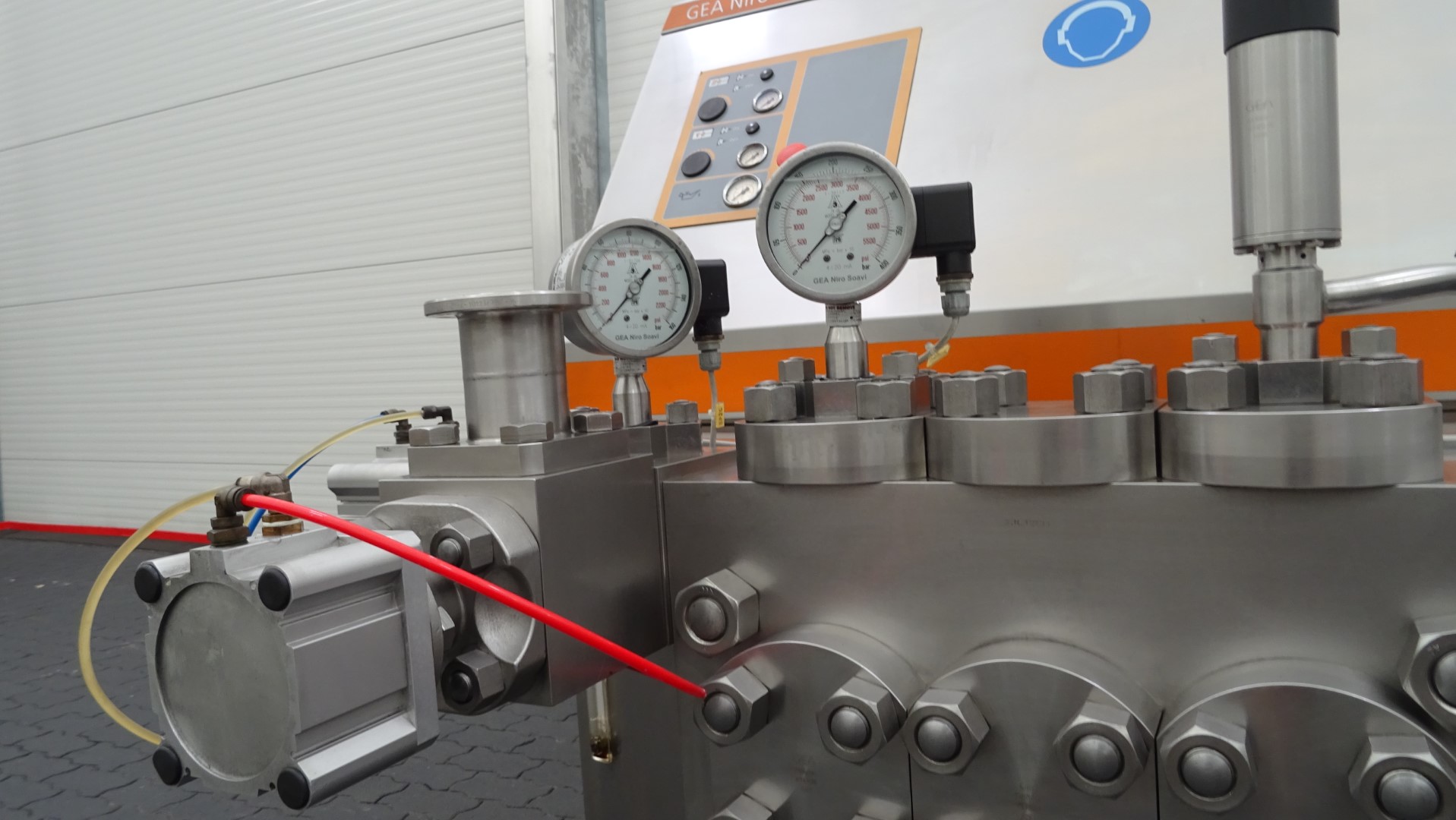

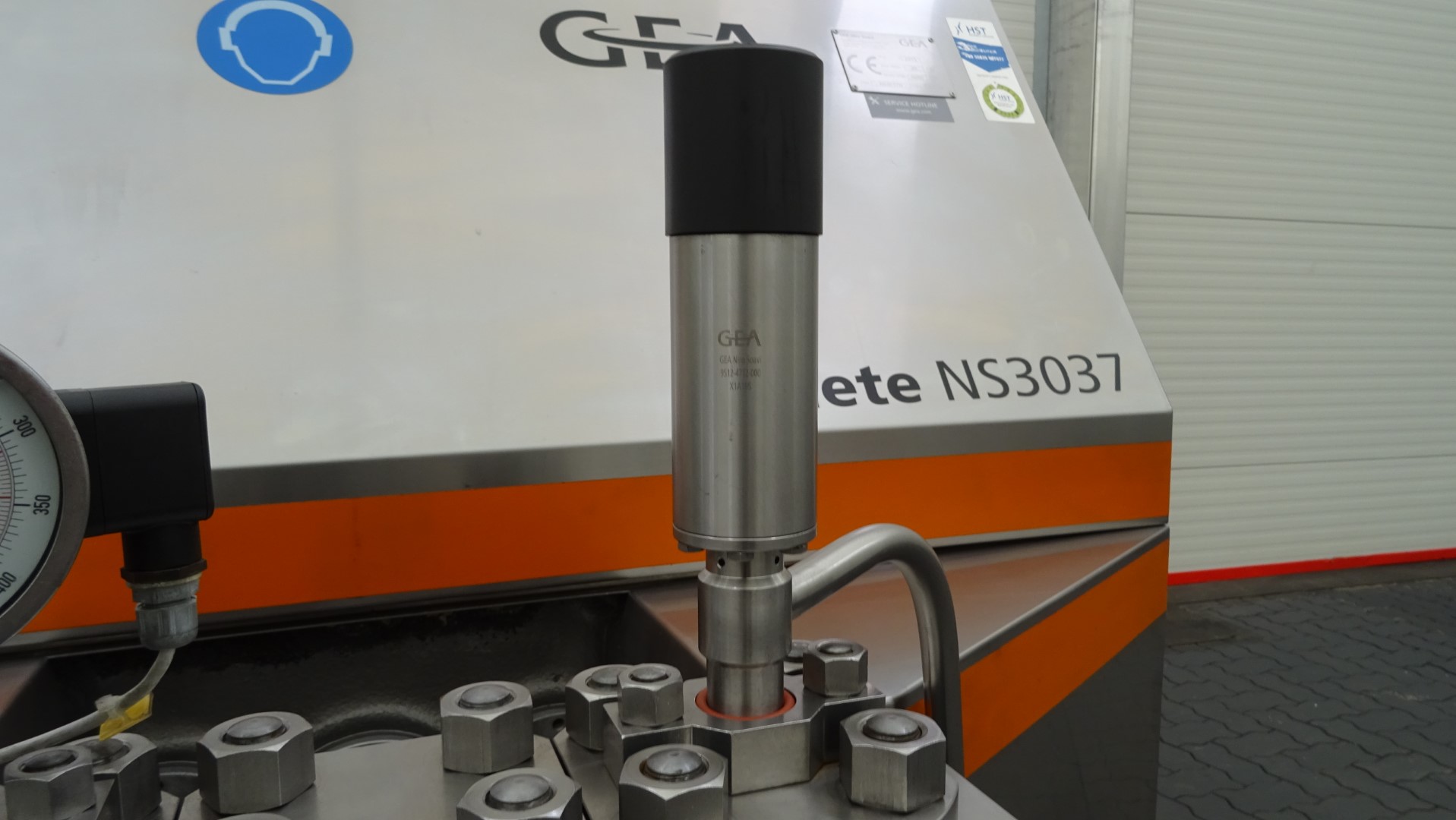

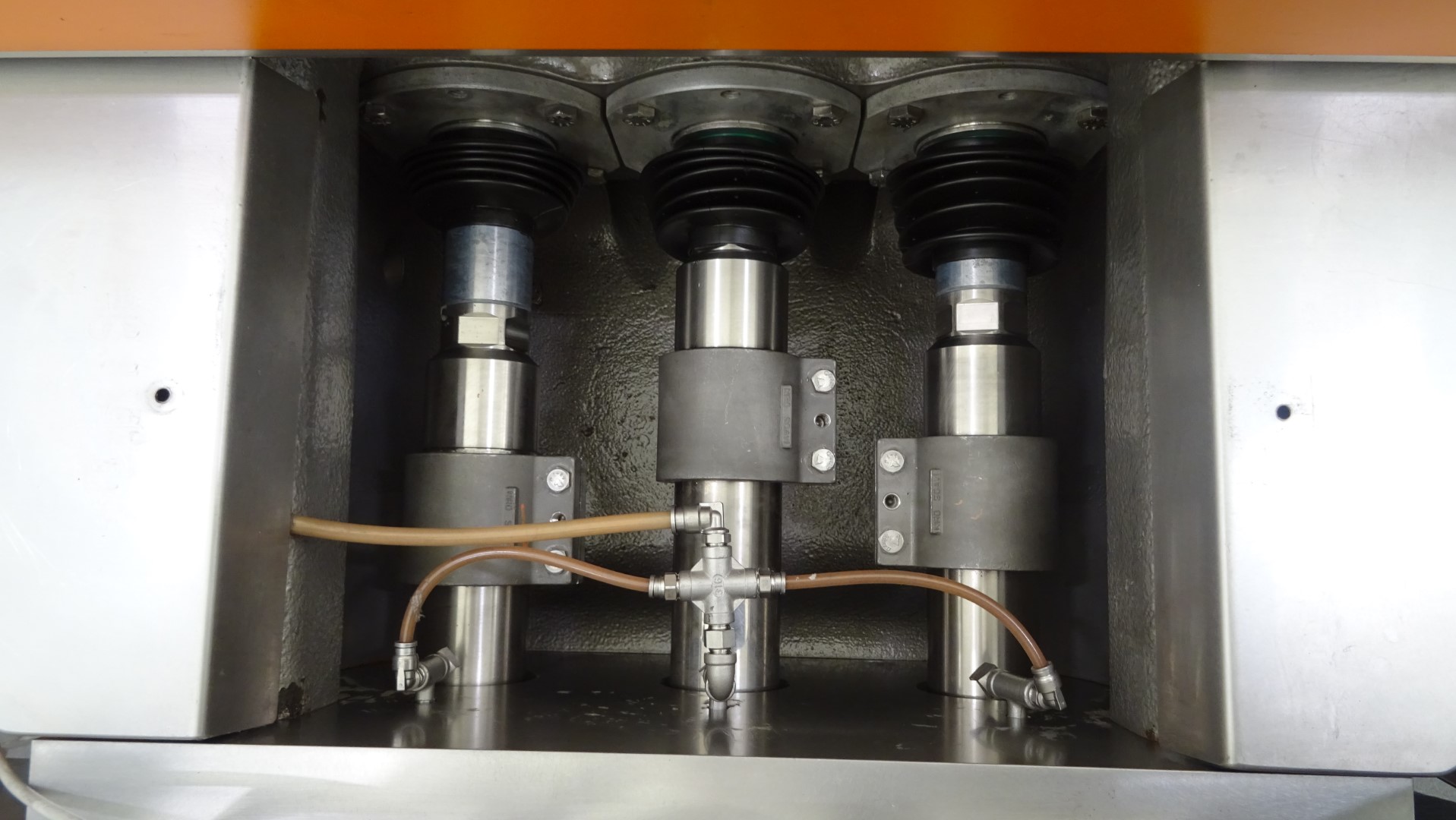

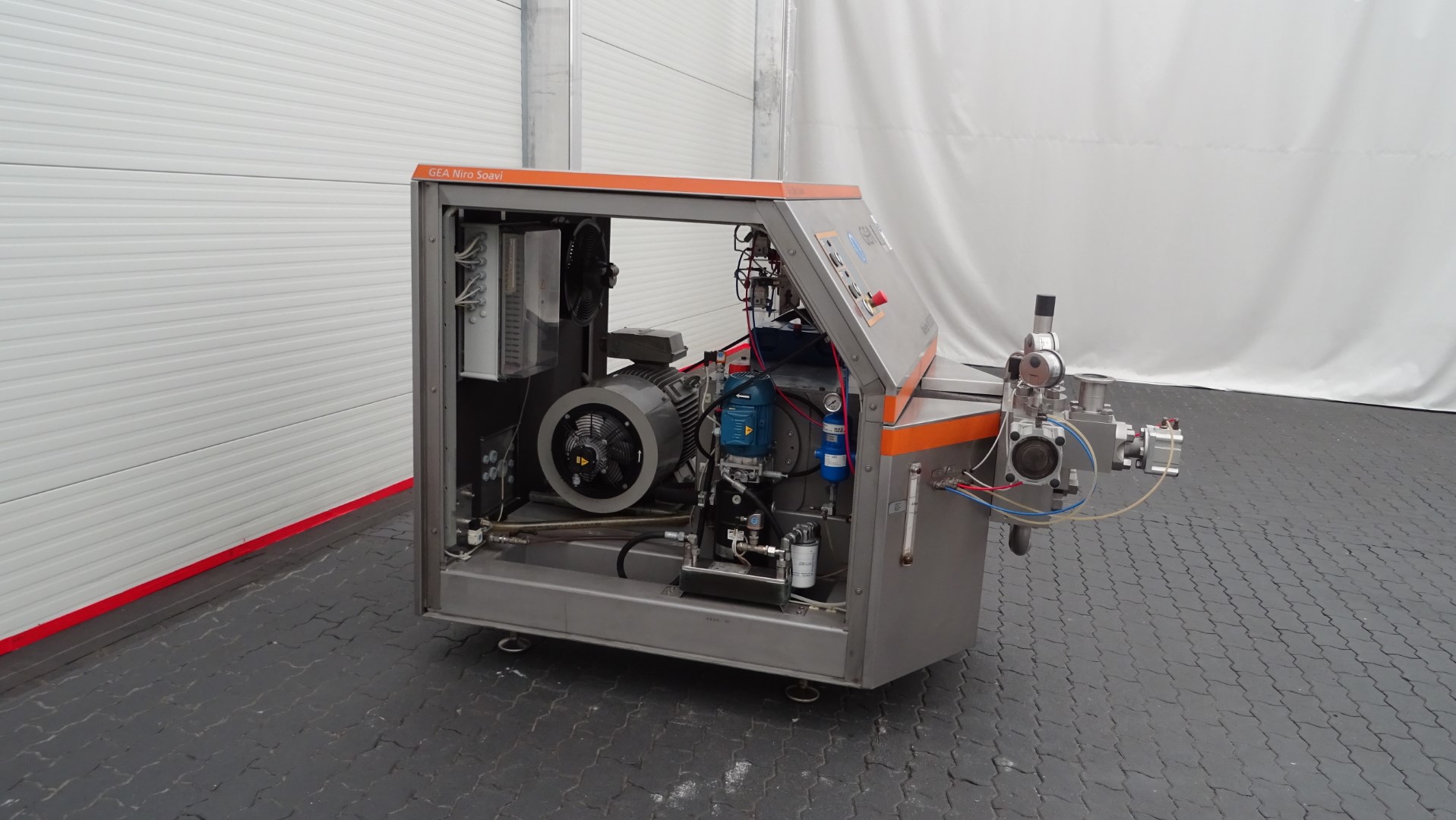

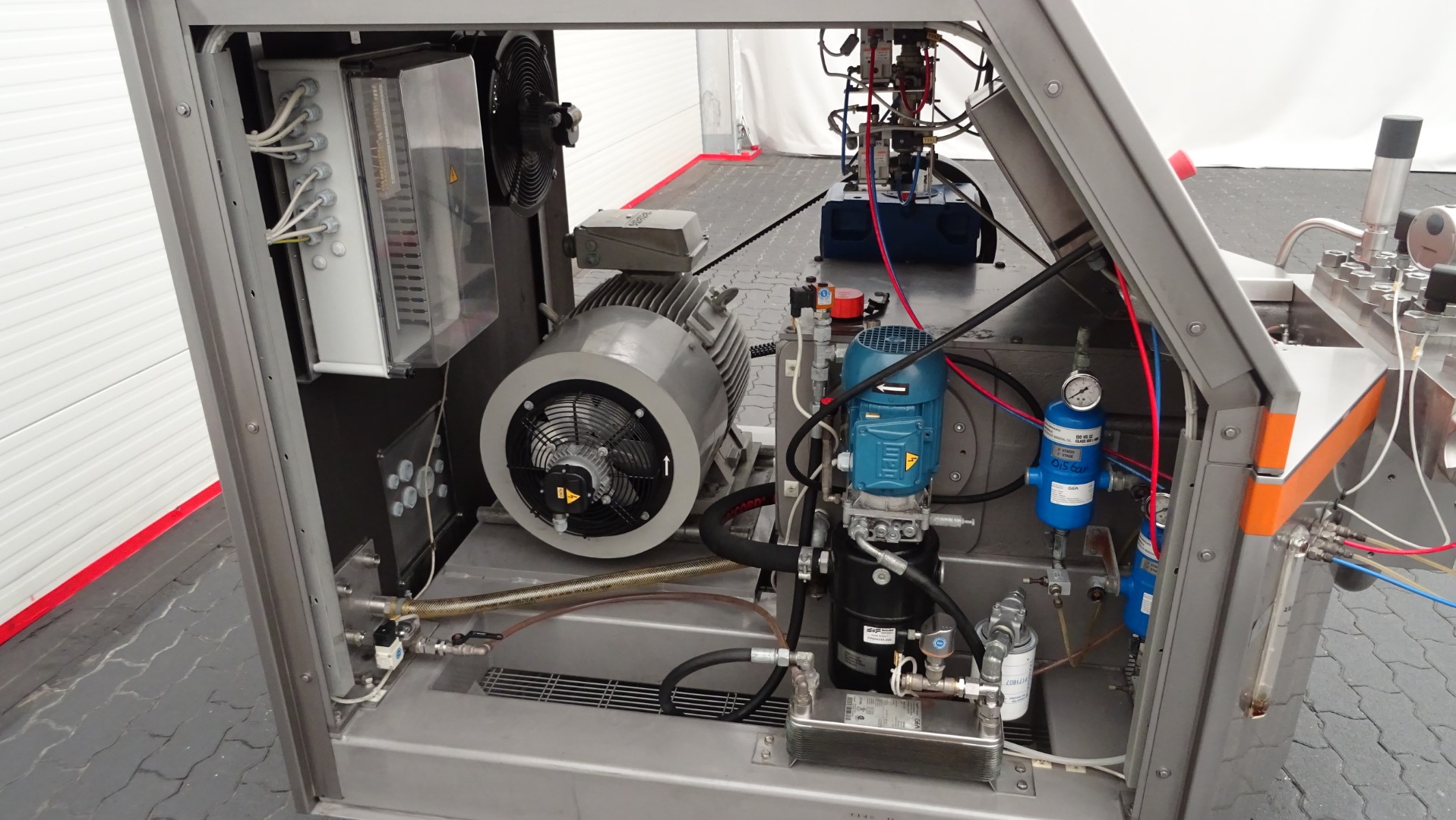

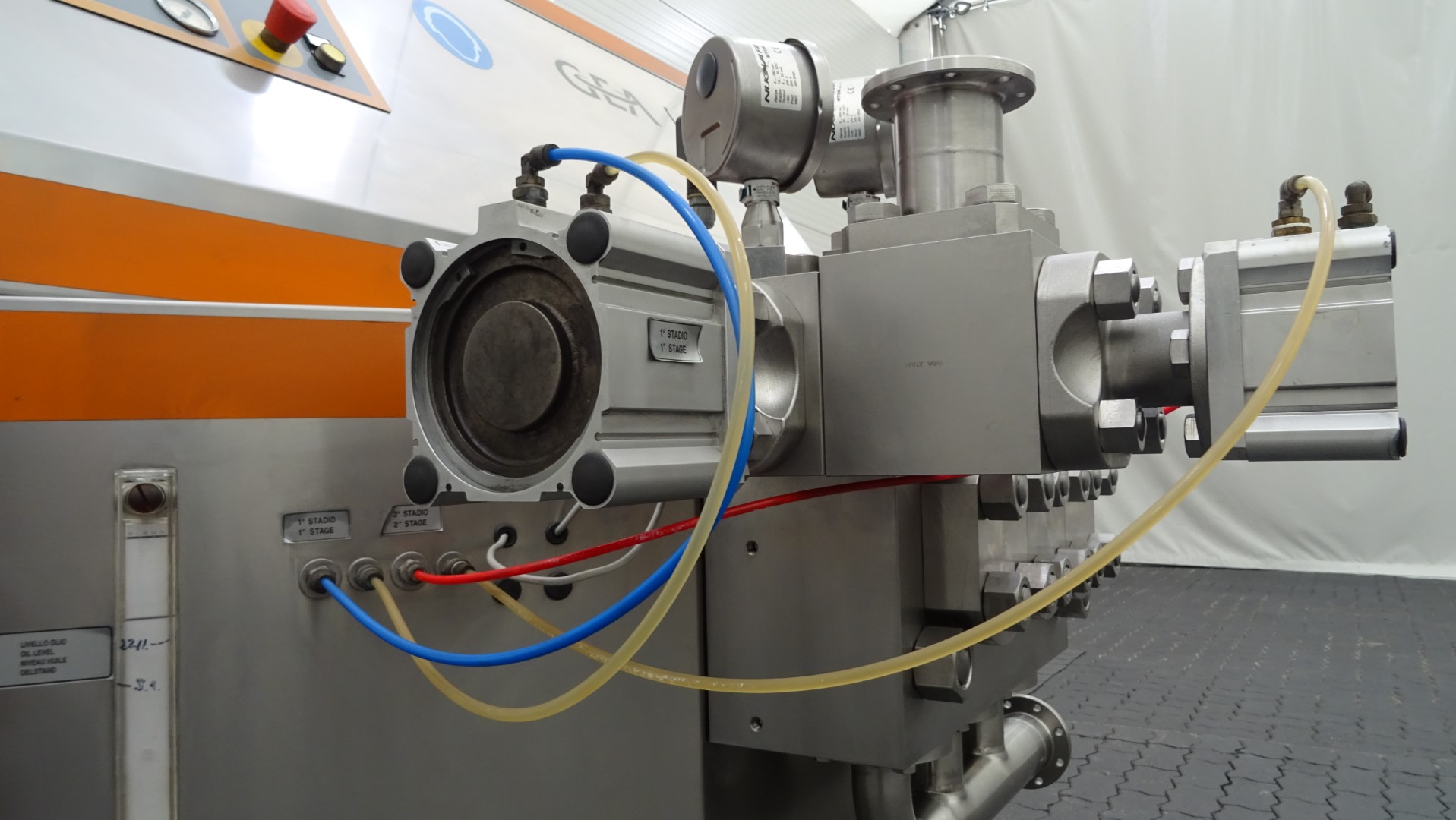

This GEA Niro Soavi NS3037H homogeniser is a 3-cylinder machine which is designed for 1.500 - 5.000 liter per hour with a maximum pressure of 200 bar. Previously used for milk for cheese production (<14% Fatt) with a maximum viscosity of 500 cP and a maximum product temperature of 90 °C. Minimum feed pressure: 4-5 bar and maximum backpressure: 5 bar. The homogensier is equipped with 2-stages, pneumatic controlled. AISI 316 + CR-C pistons. Plunjer diameter 50 mm. Plunjer stroke: 70 mm. Manometers. Overpressure valve. Motor: 37 kW - 400 V - 66 A - 50 Hz - 1.478 rpm. Oil pumping system inside the machine. Stainless steel cladded. Instruction manual available.
