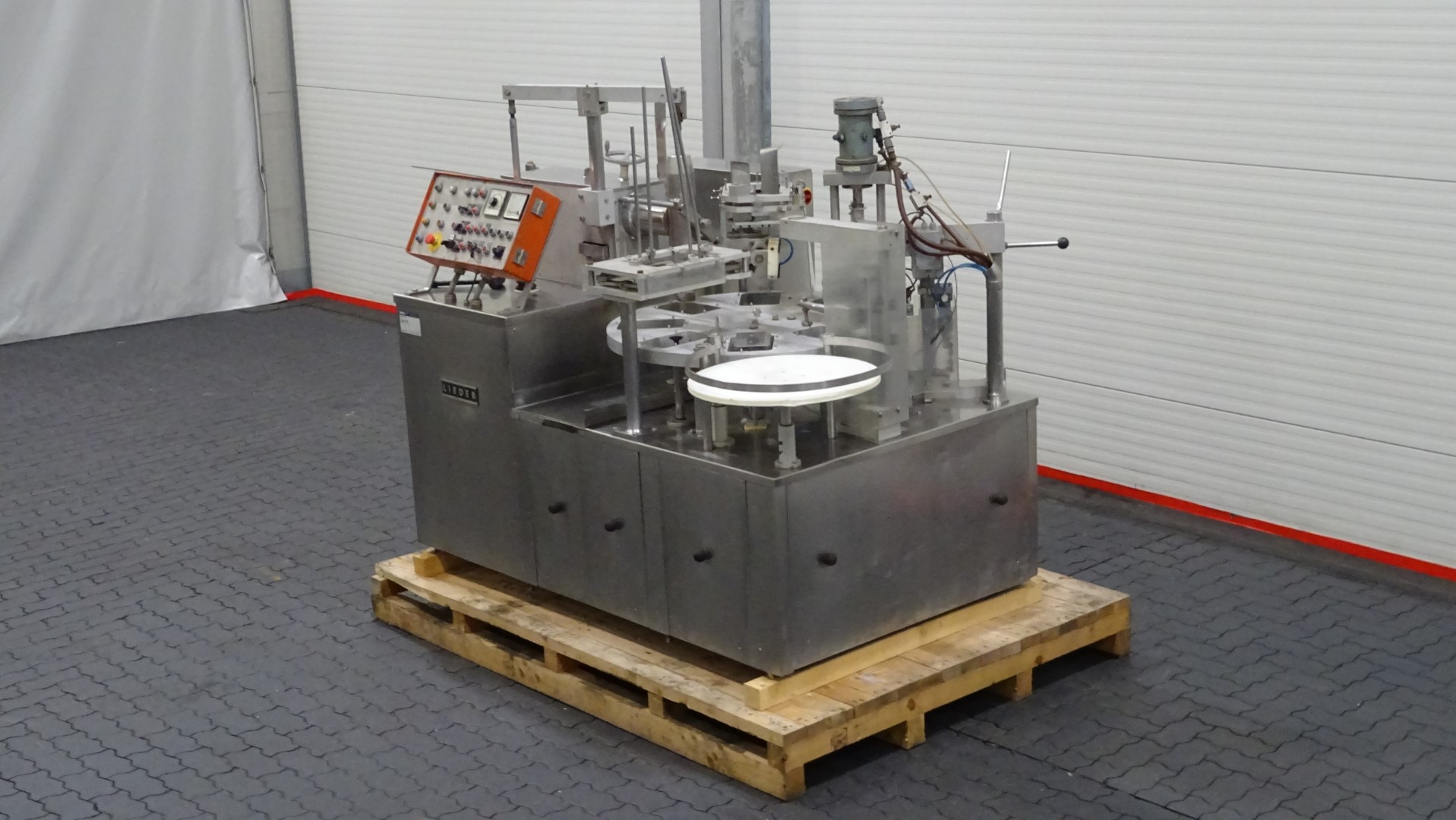

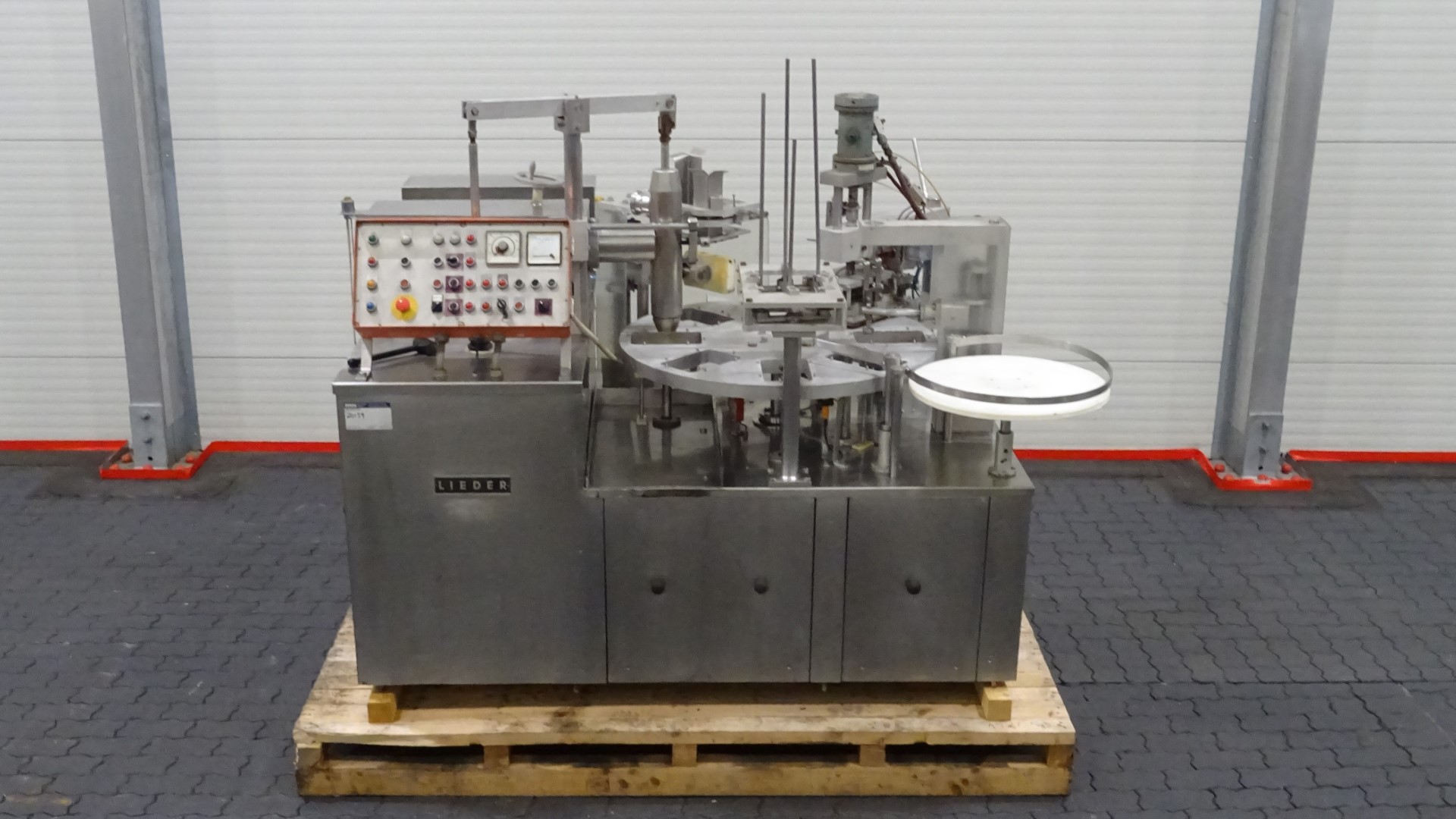

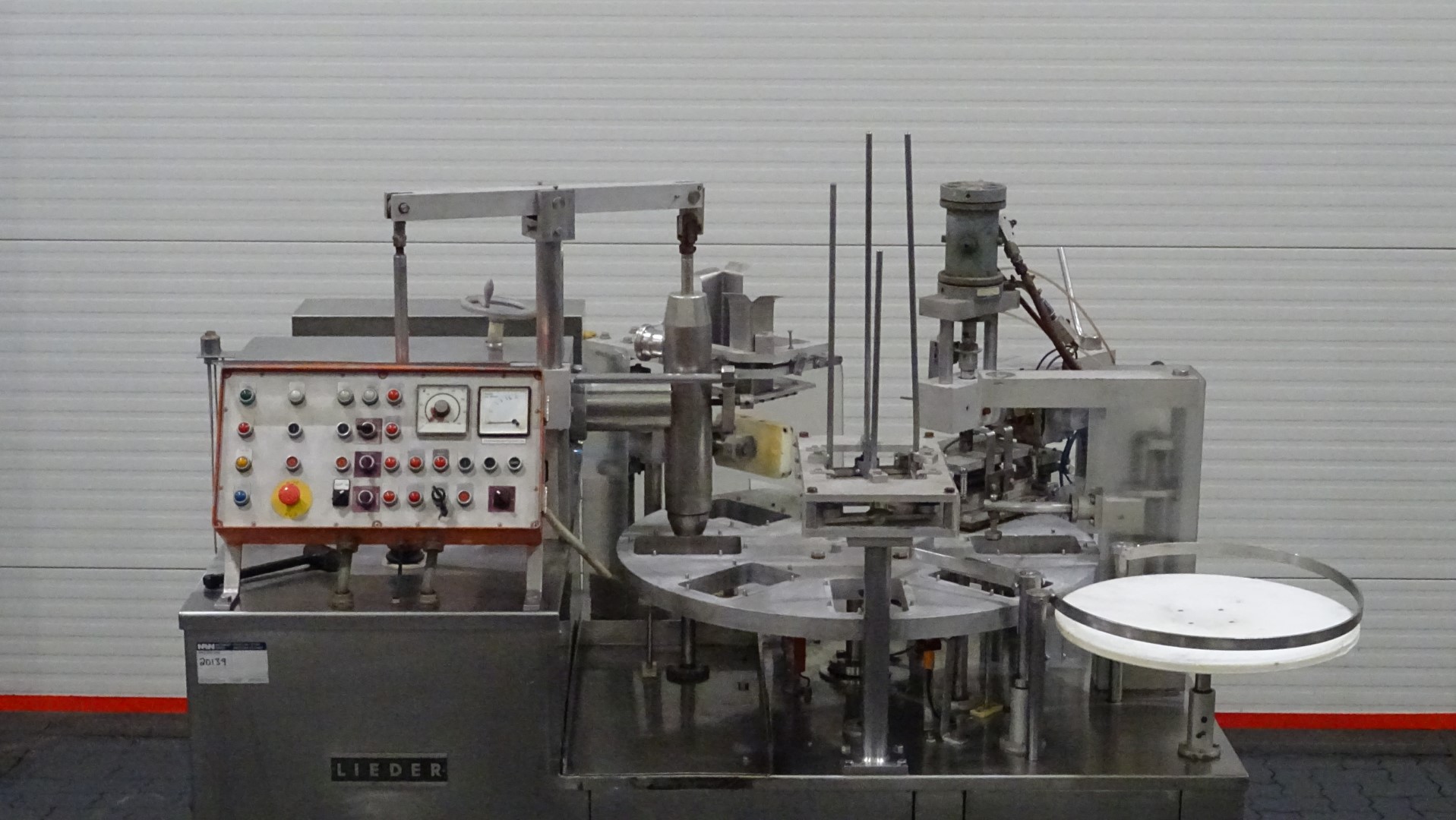

Cup filling and sealing machine - Lieder RL5
Sold
Specifications
| Manufacturer | Lieder |
| Model | RL5 |
| Year | 2001 |
| Condition | Used |
| Serial Number | 4675 |
| Stock Number | 1470 |
| Type of Machine | Cup filling and sealing machine |
| Capacity | up to 3.000 cups/h @ 1 kg |
| Cup Formats | 220 x 140 mm, pre-formed cups |
| Cup volume | 1 kg |
| Seals | No |
| Snap cap | Yes |
| Electric | 380 V - 50 Hz - 3 Ph |
| Weight | 1.600 kg |
| Dimensions | 225 x 165 x 200 cm |
Description

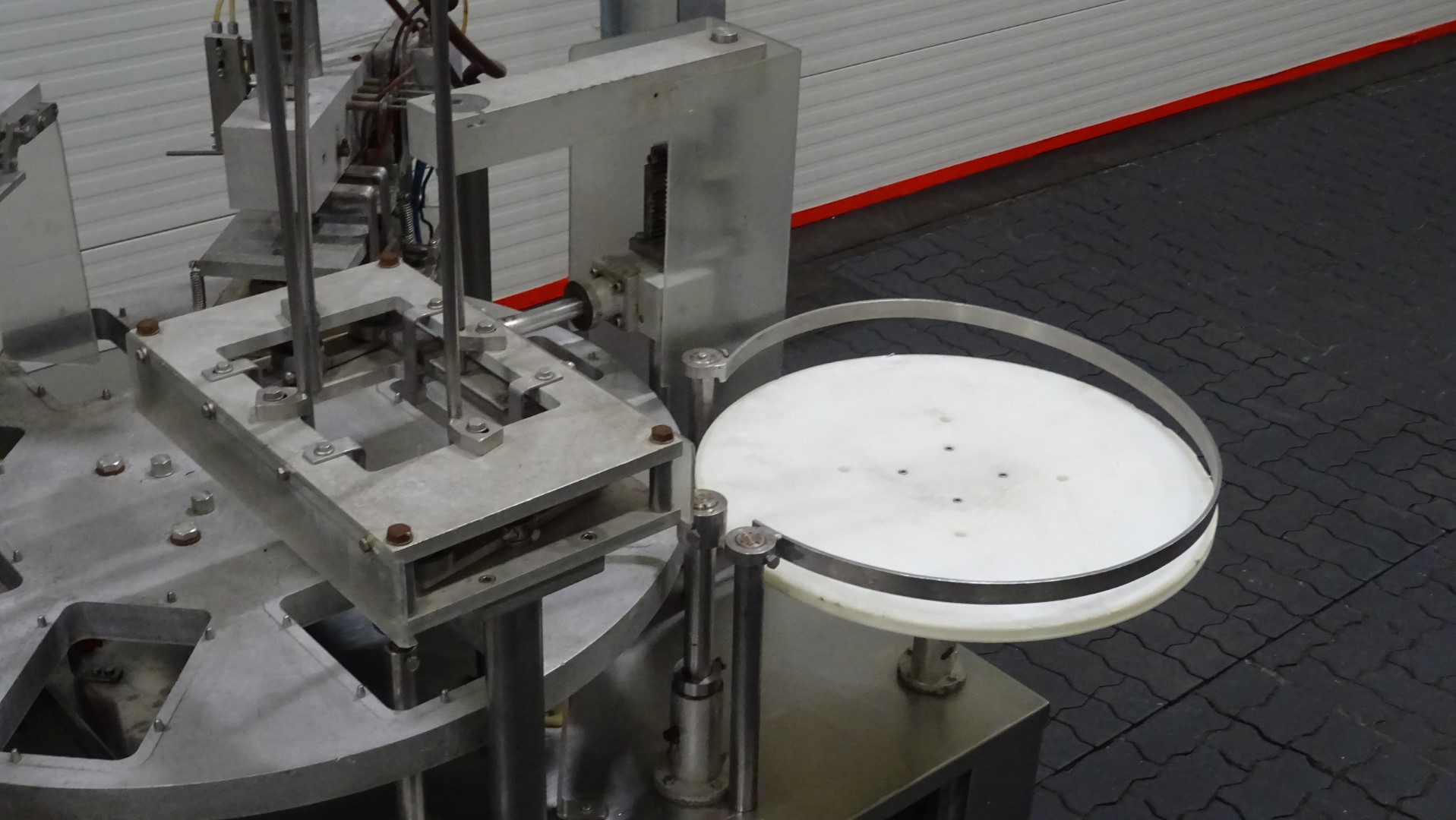

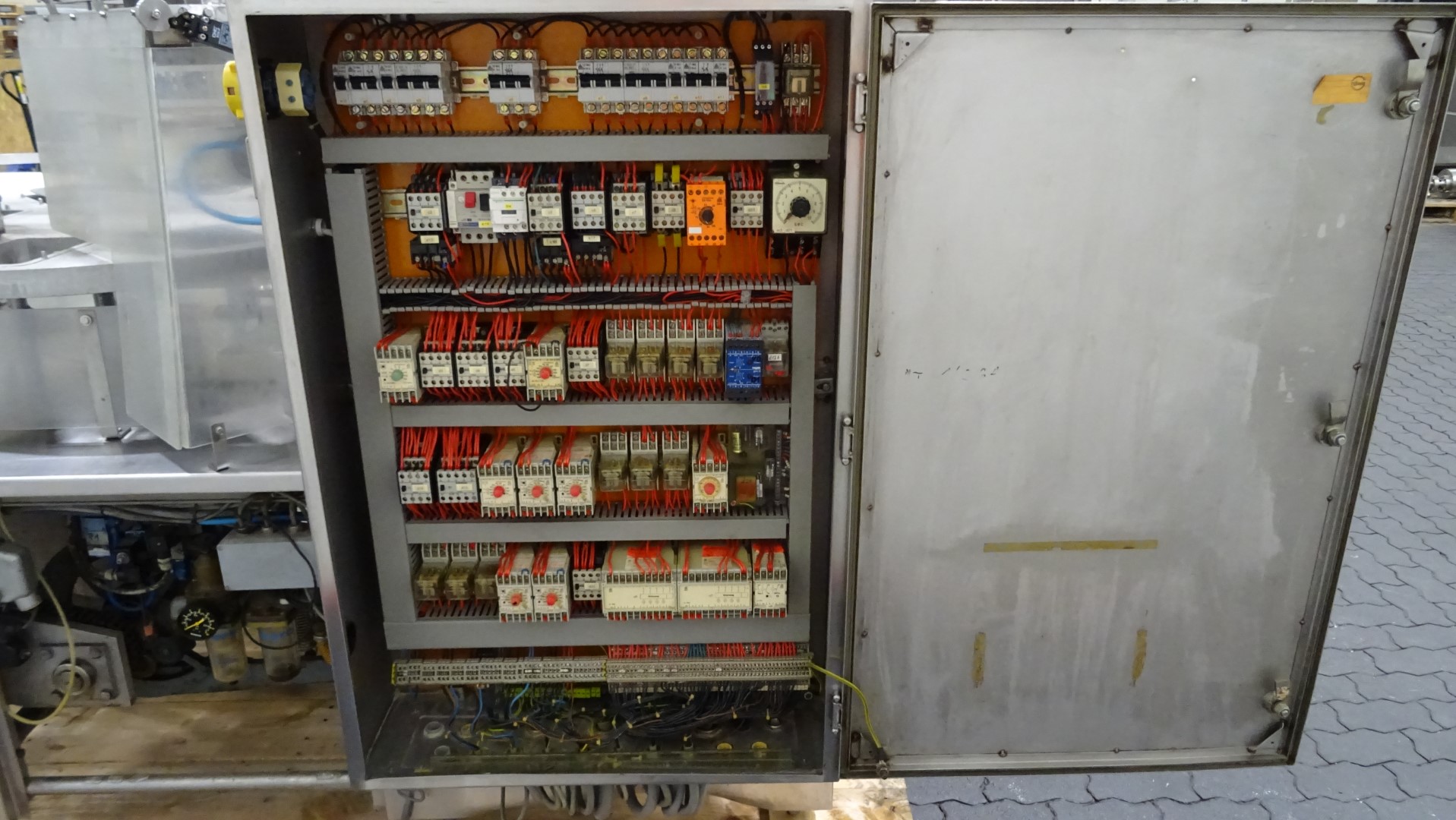

Rotary cup filling and snap capping machine for viscous products. 8-Stations. Preformed cup destacking, empty station (space for a pre doser), main piston doser (current set on 1 kg, manual cleanable), snap cap destacking station, snap cap pressing station, outfeed station and small collection rotary table. Simple control panel with buttons. Capacity: up to 3.000 cups per hour, depending on product, packaging material and headspace in the cup. Pre-fromed cup size: 220 x 140 mm, 1 kg. Manuals available.
