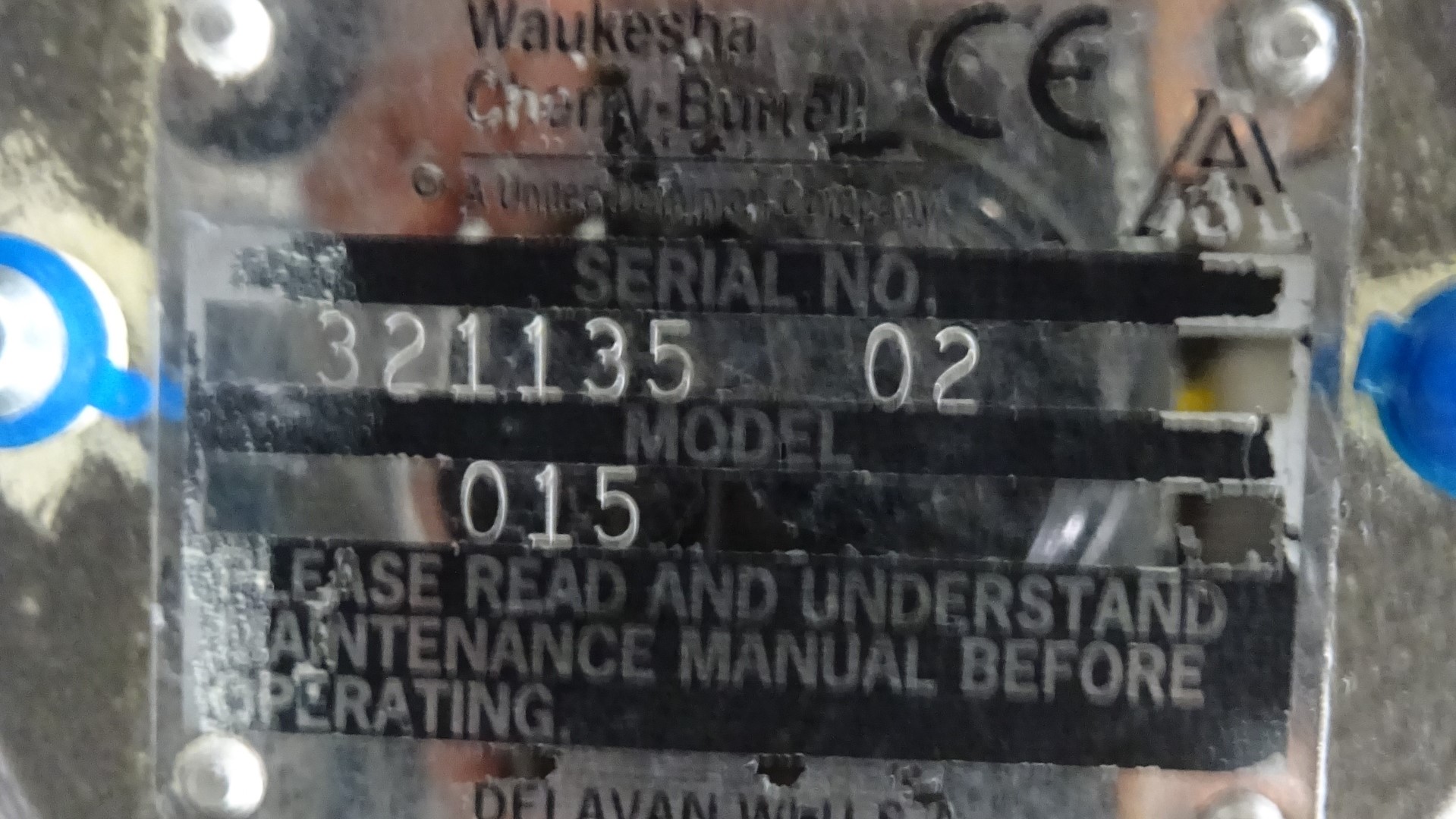

Rotary positive displacement pump / Lobe pump - Waukesha 015

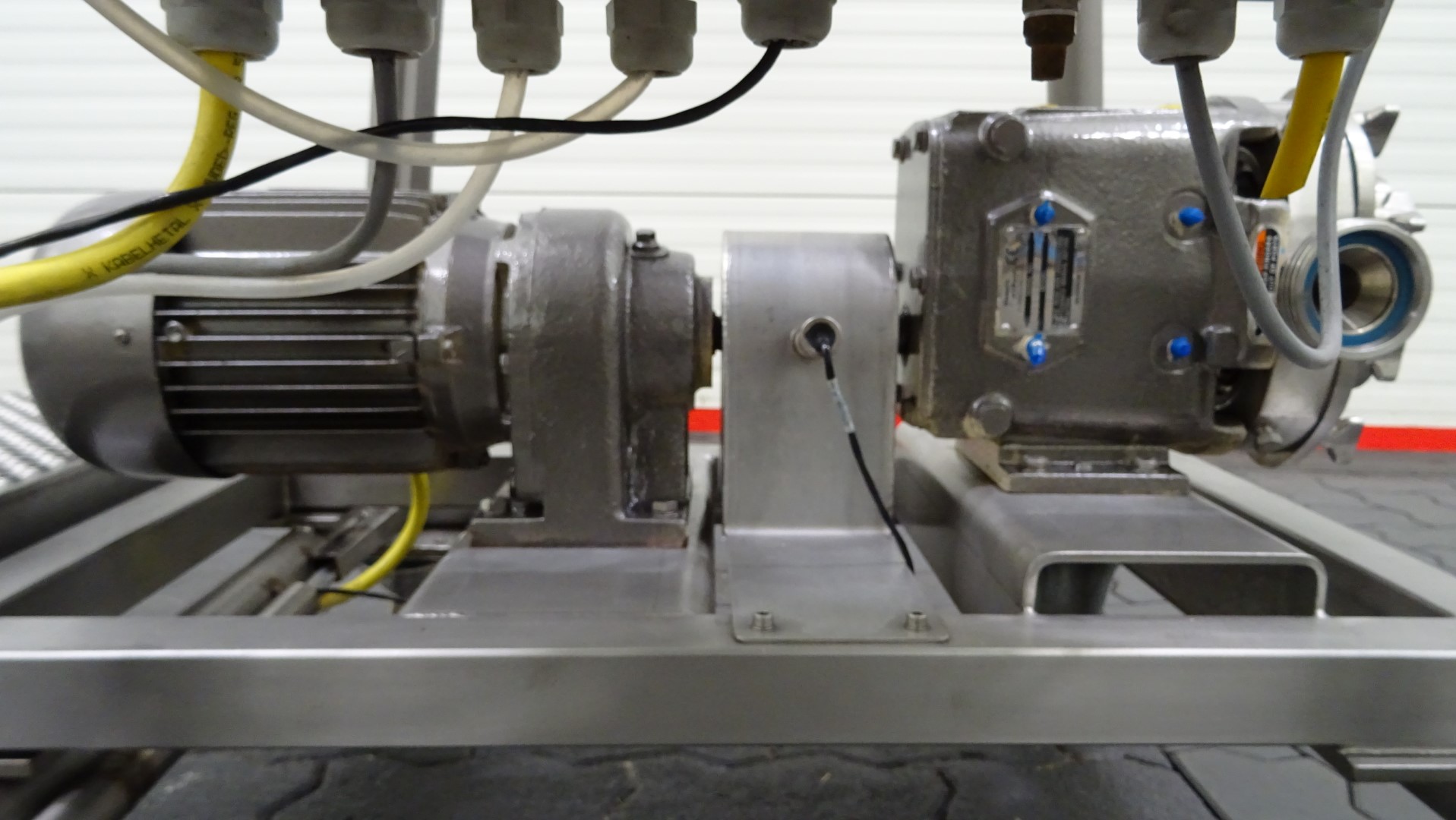

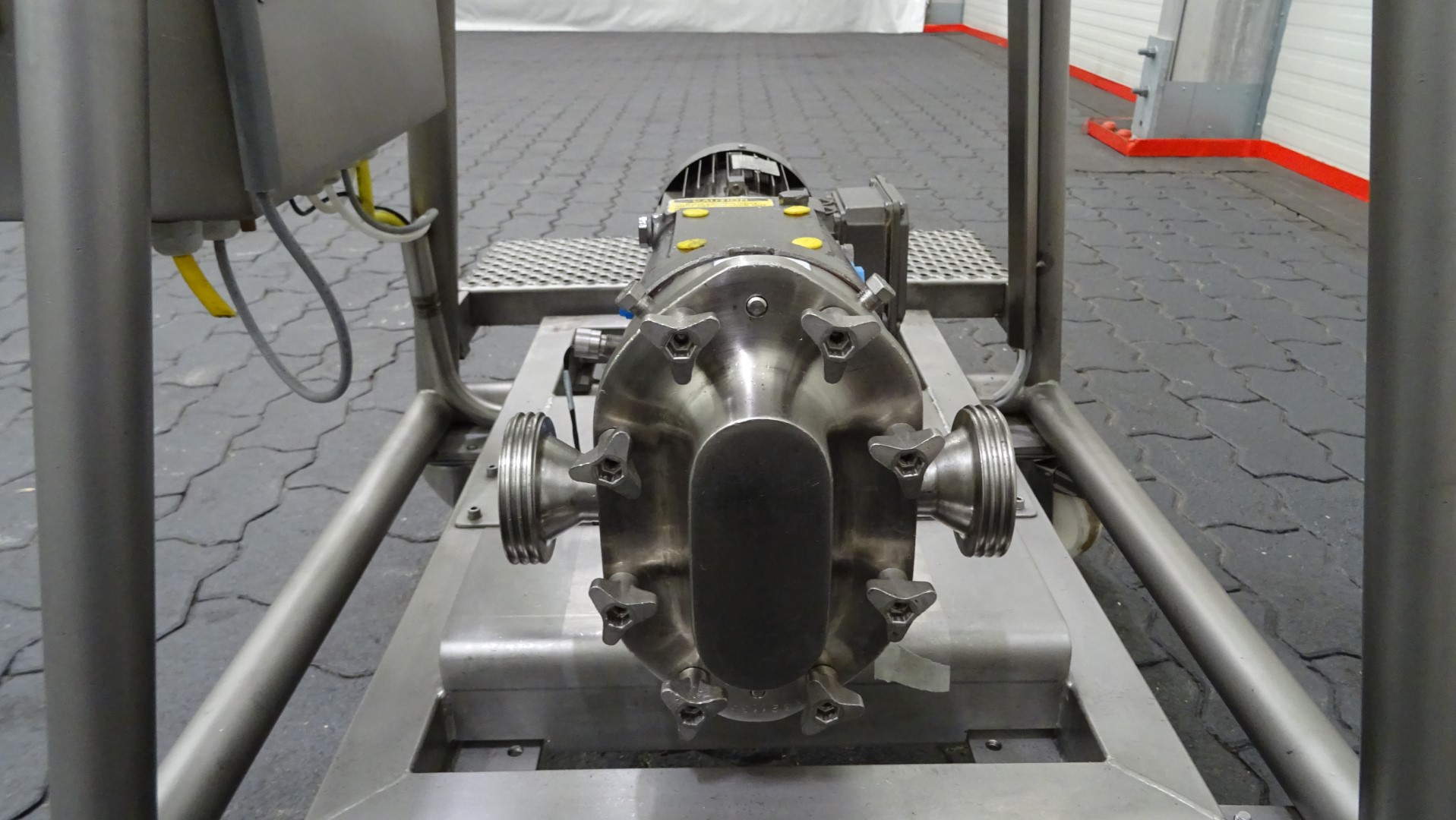

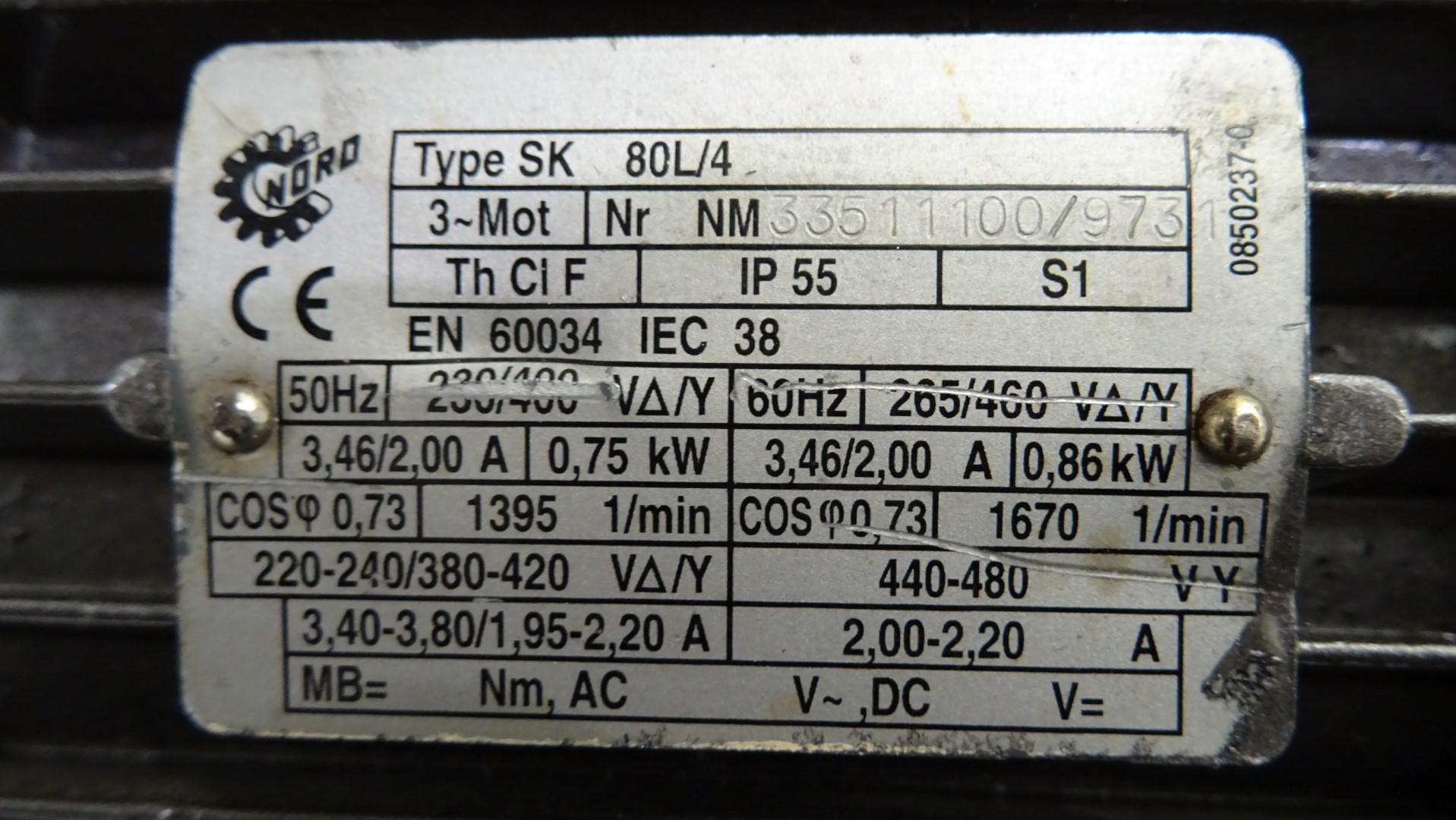

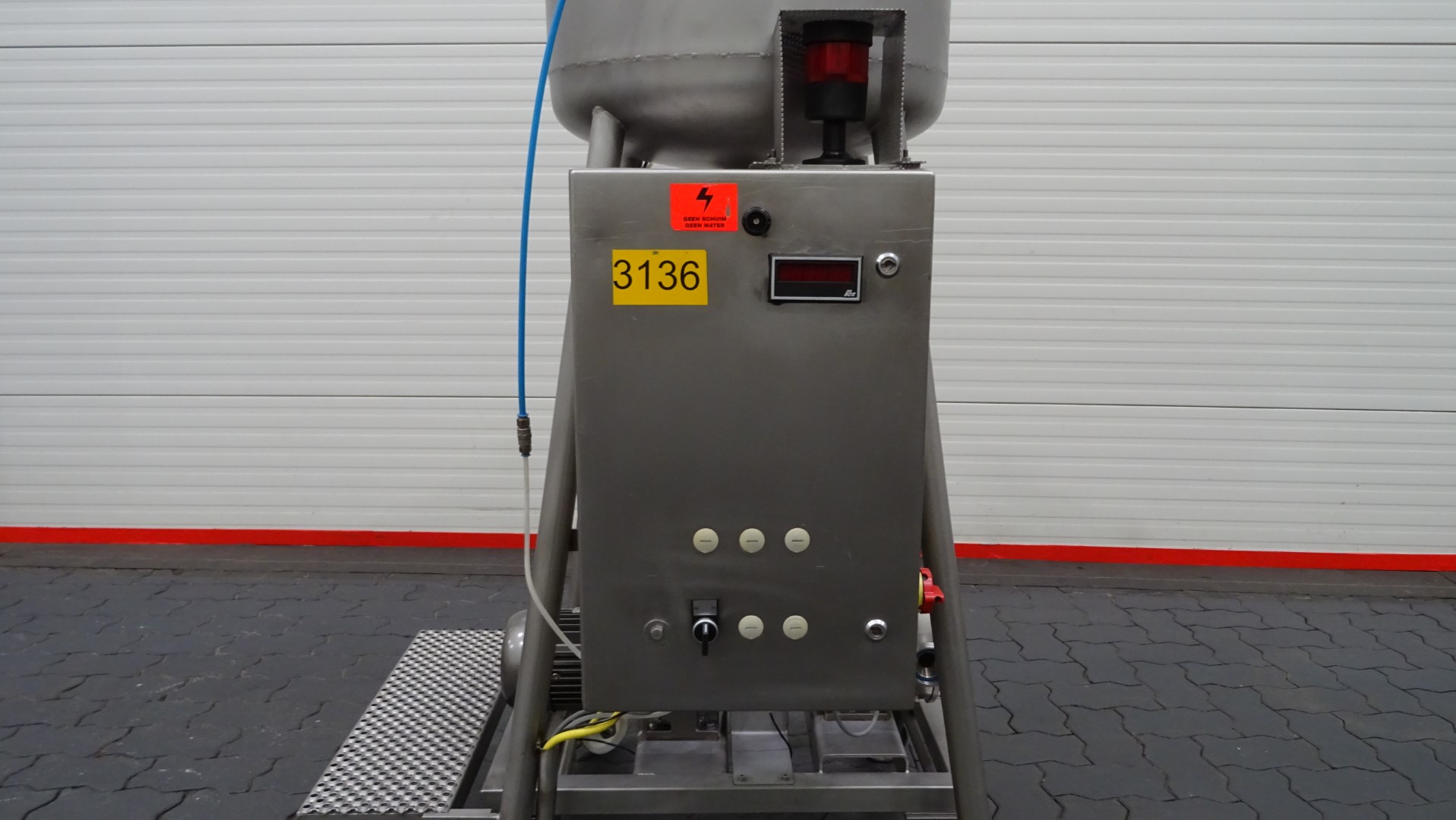

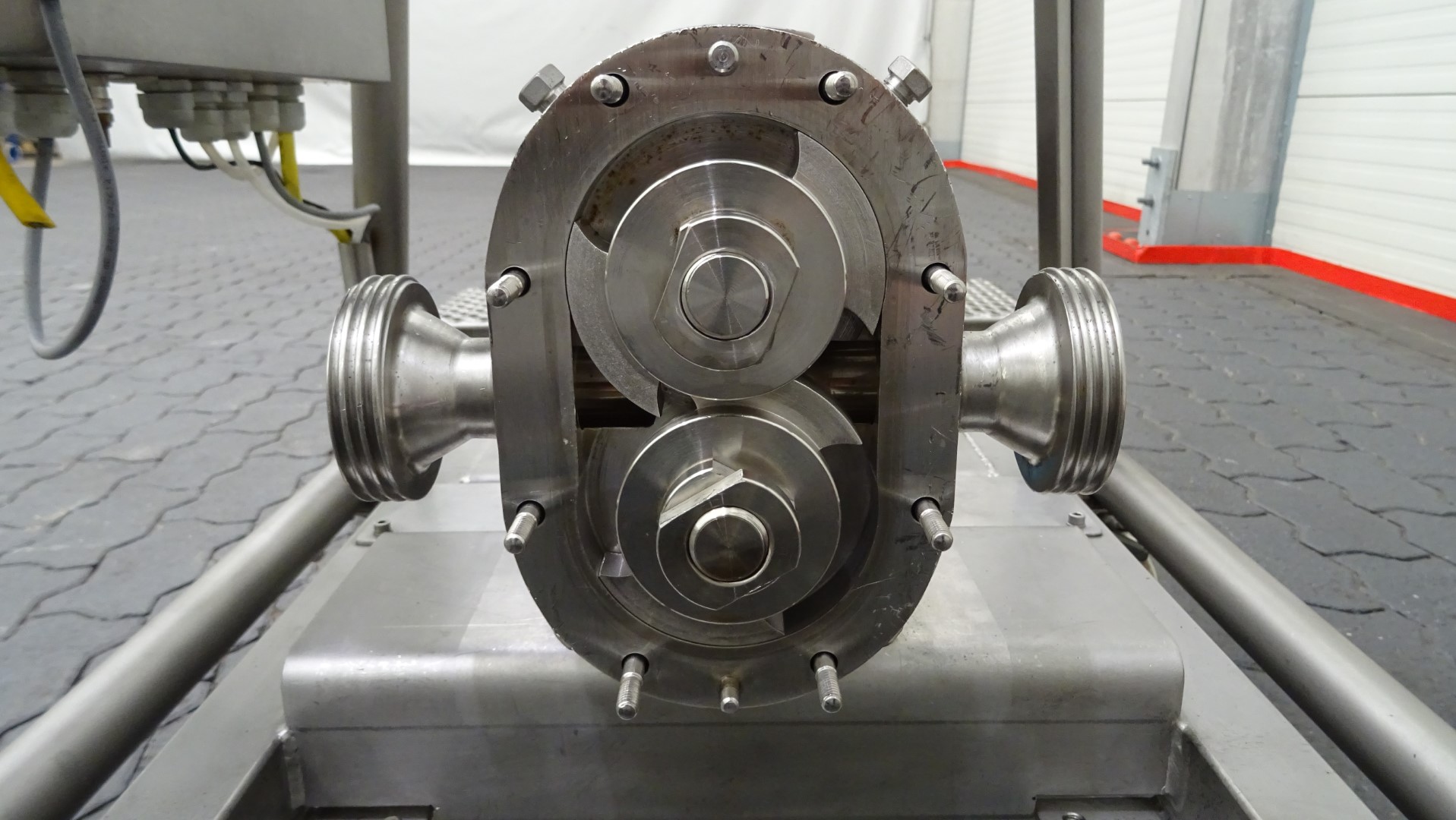

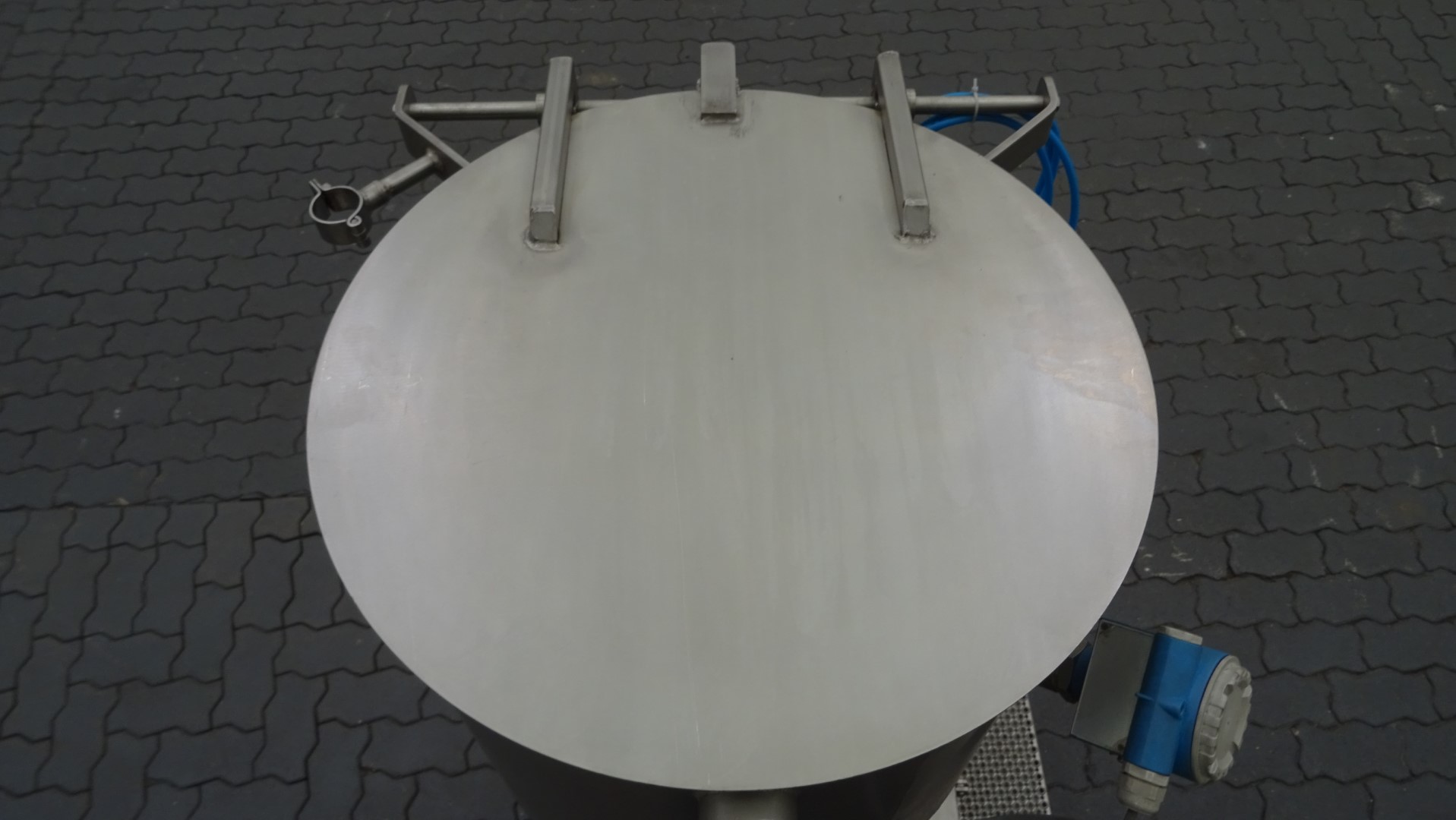

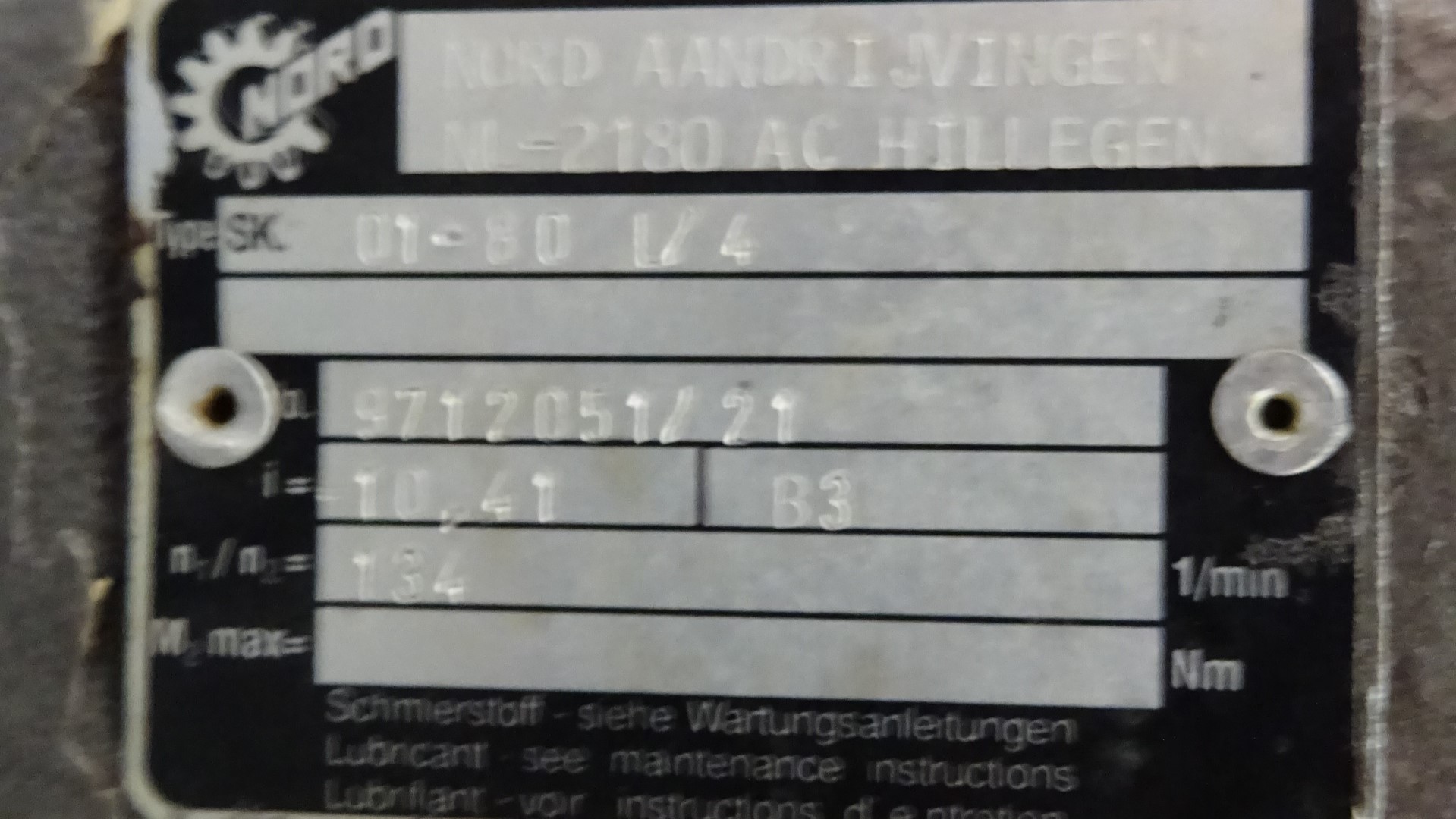

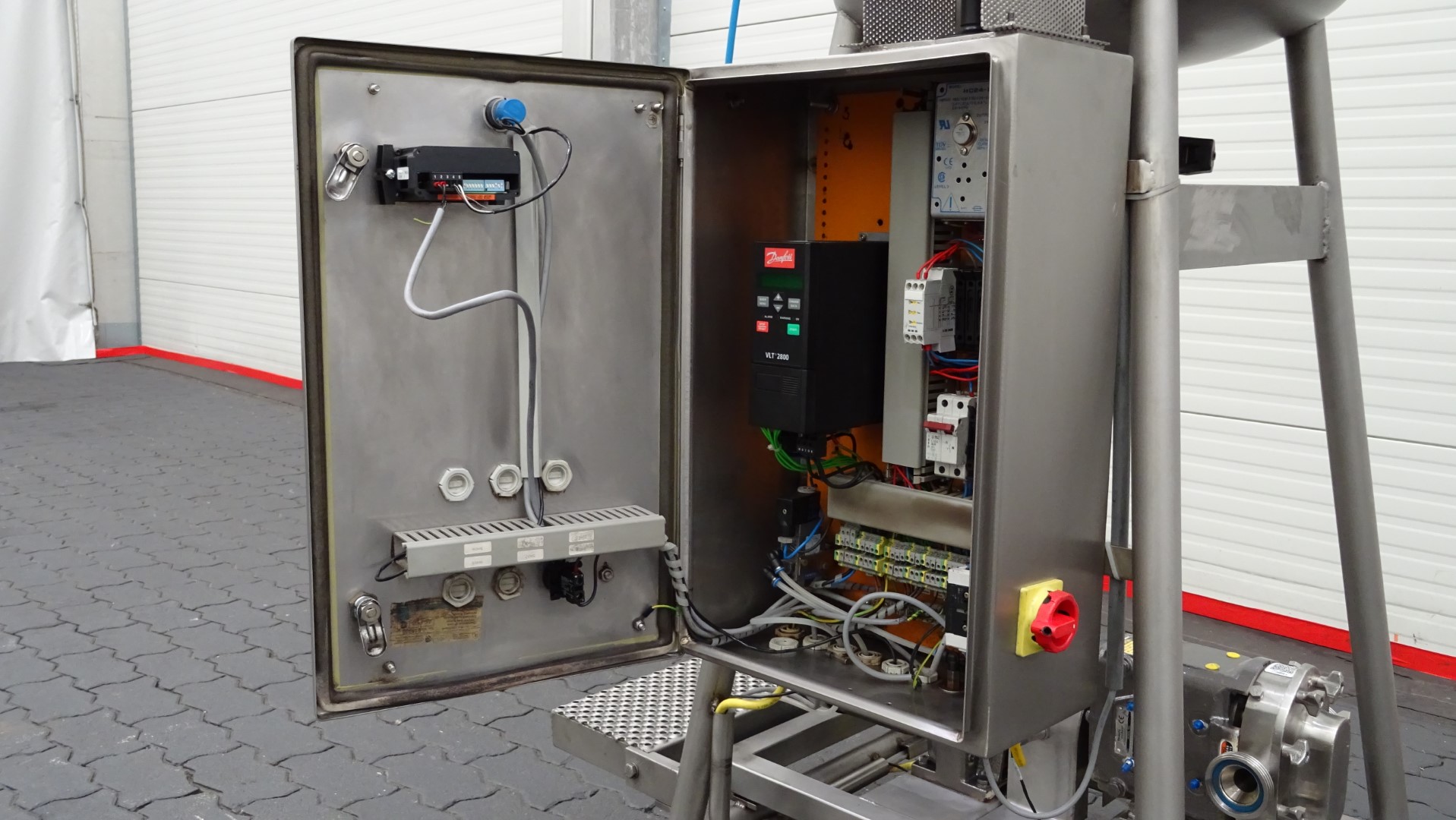

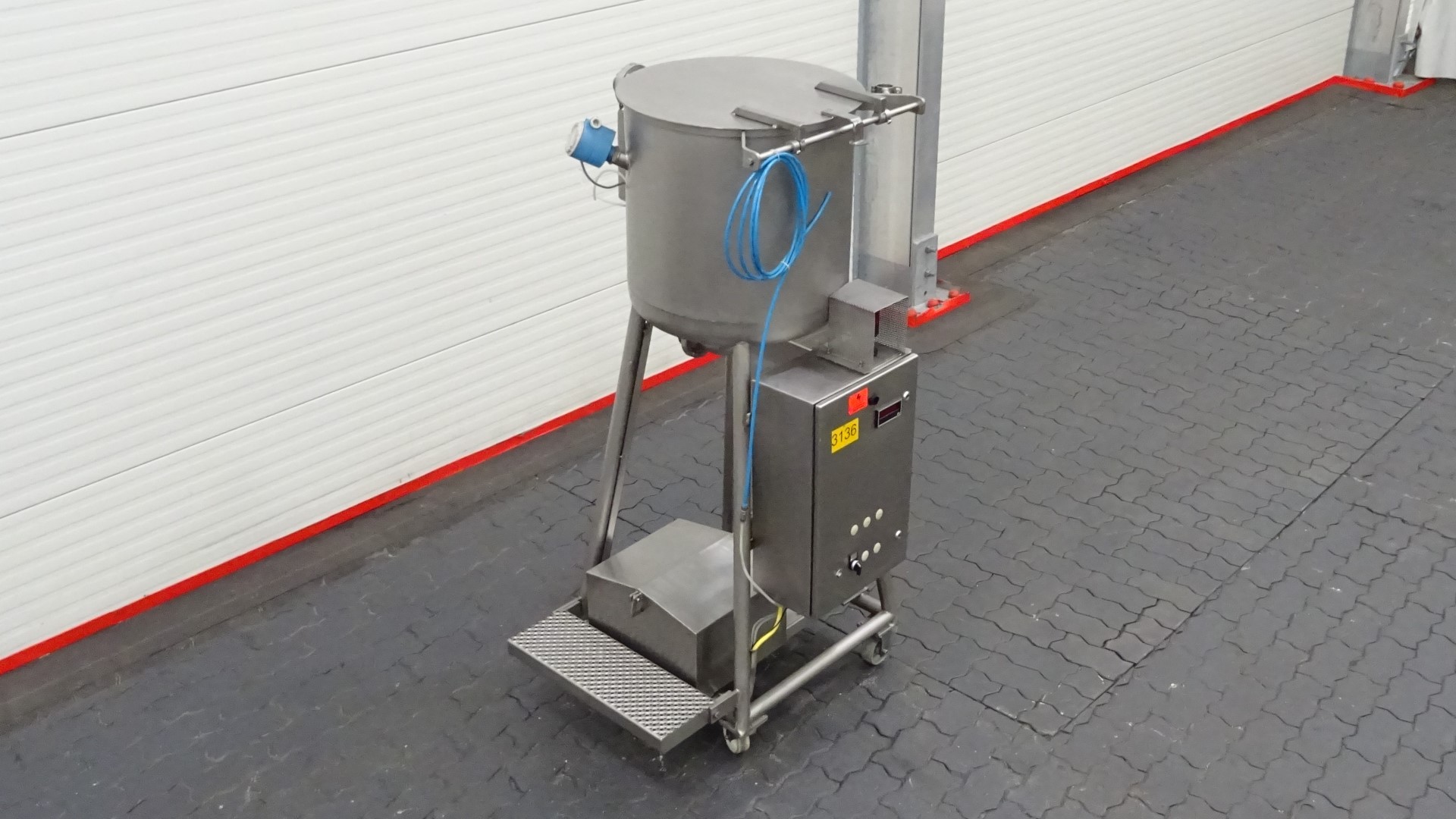

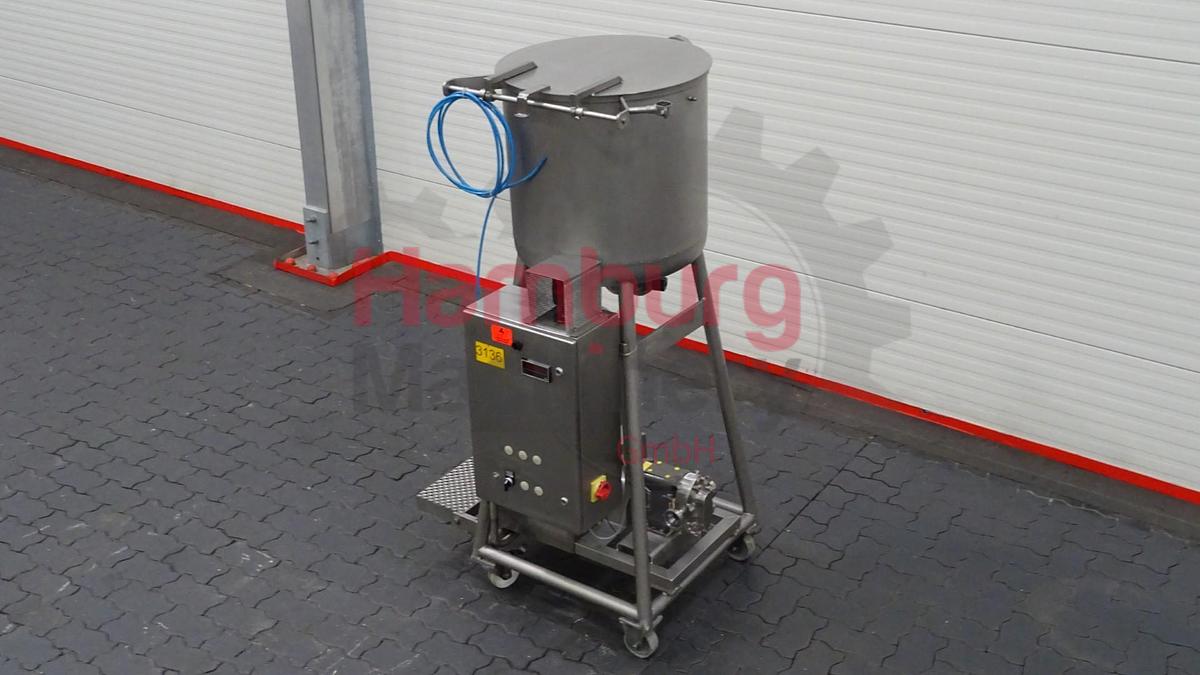

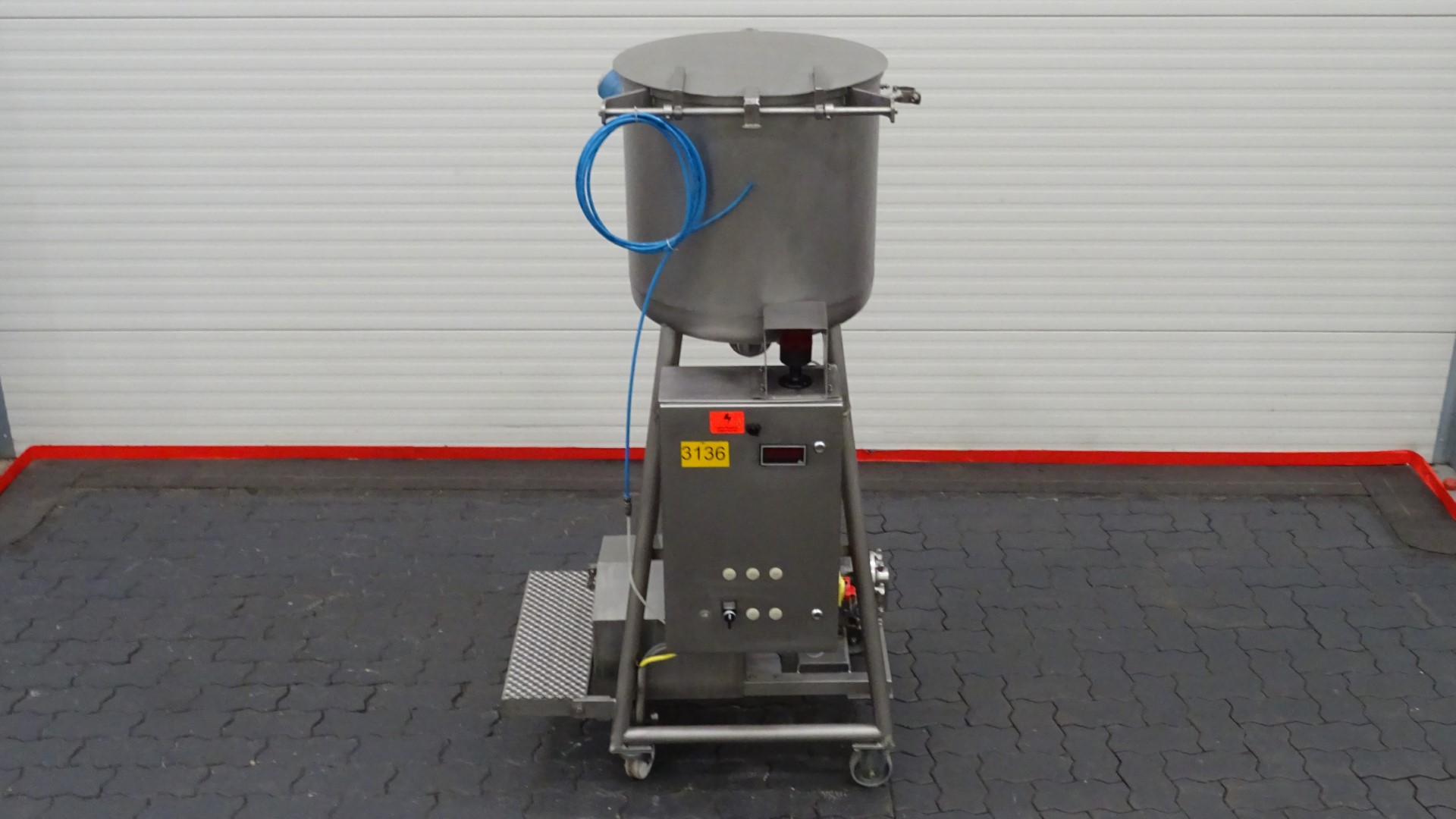

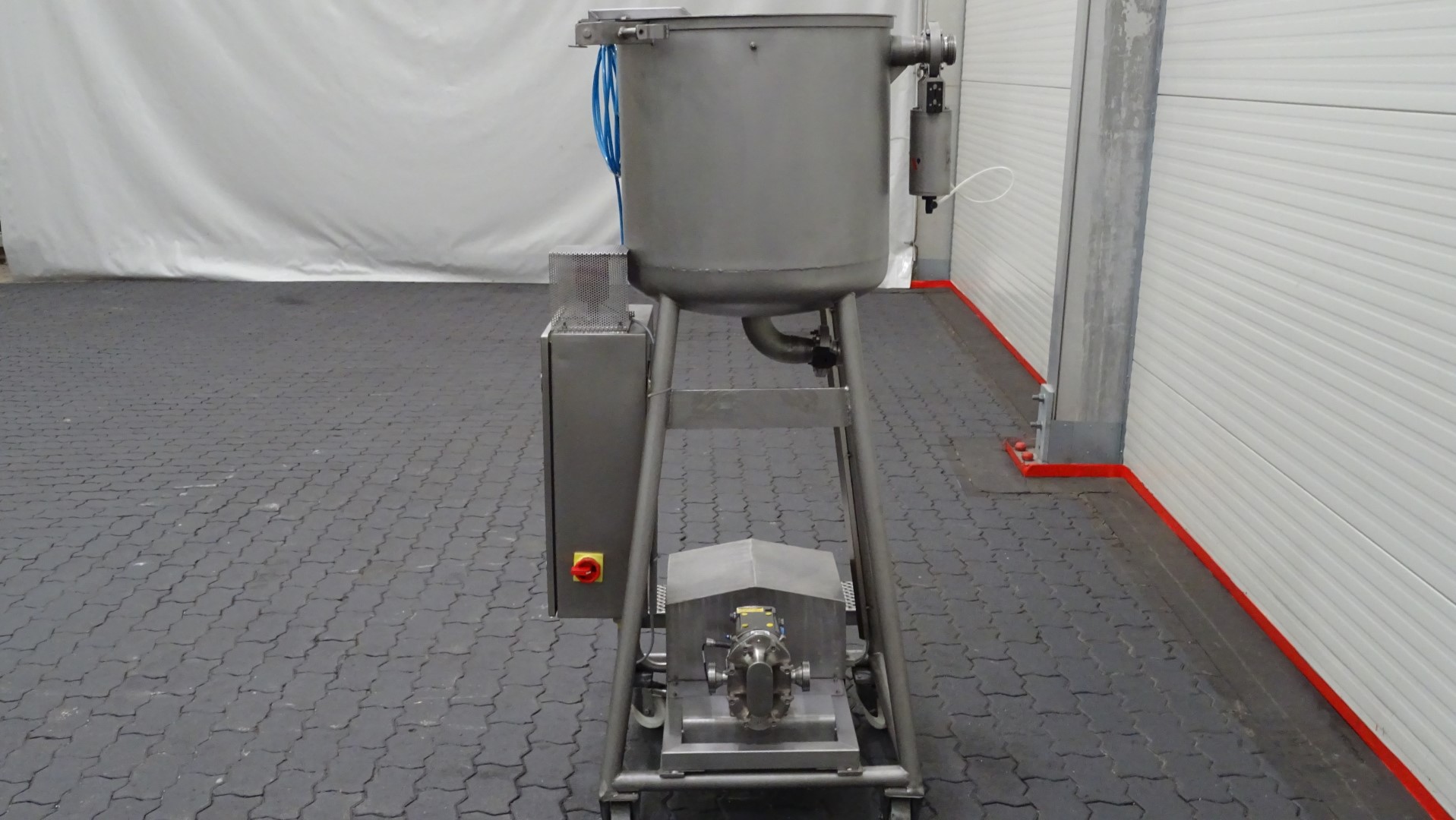

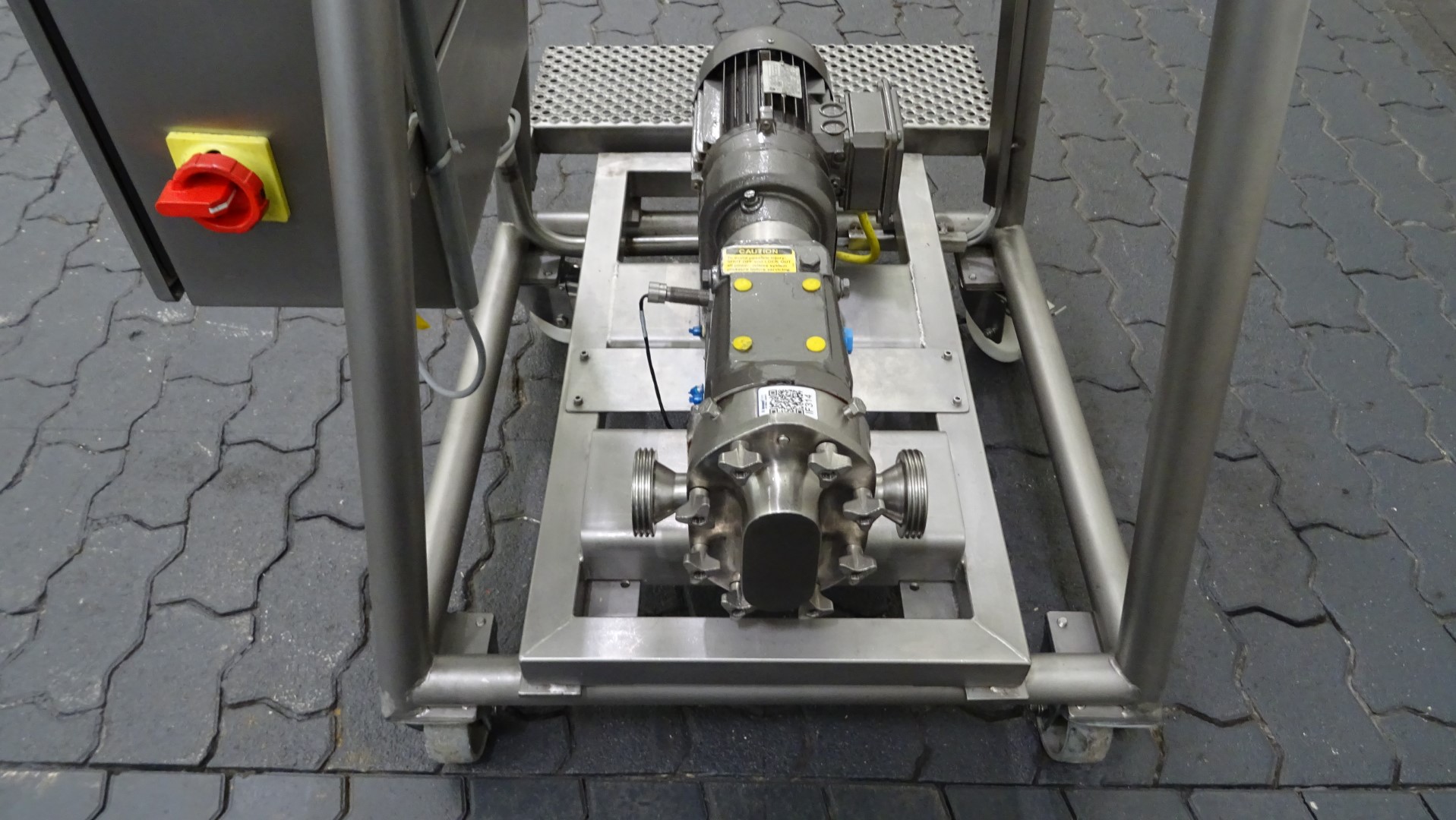

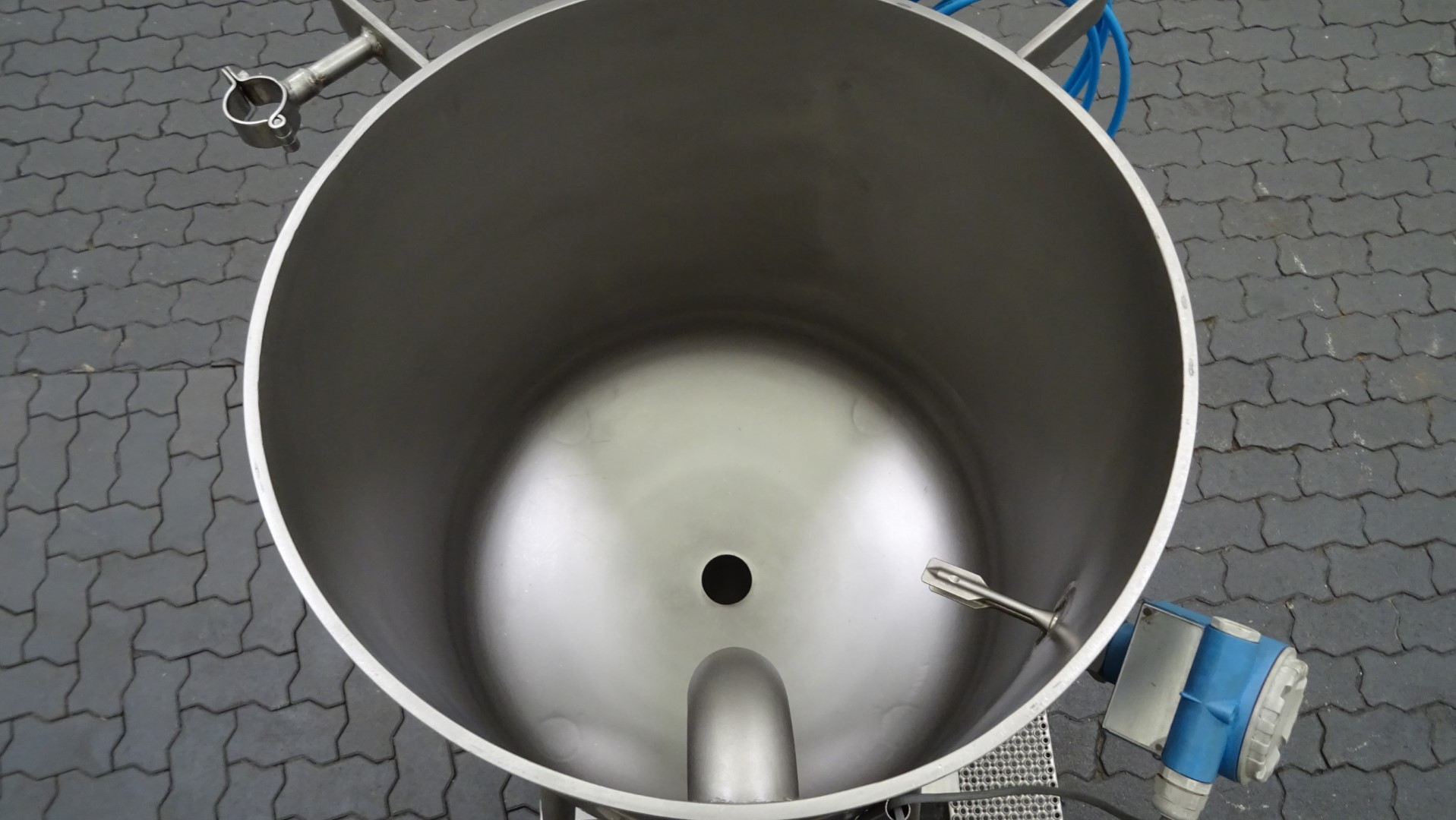

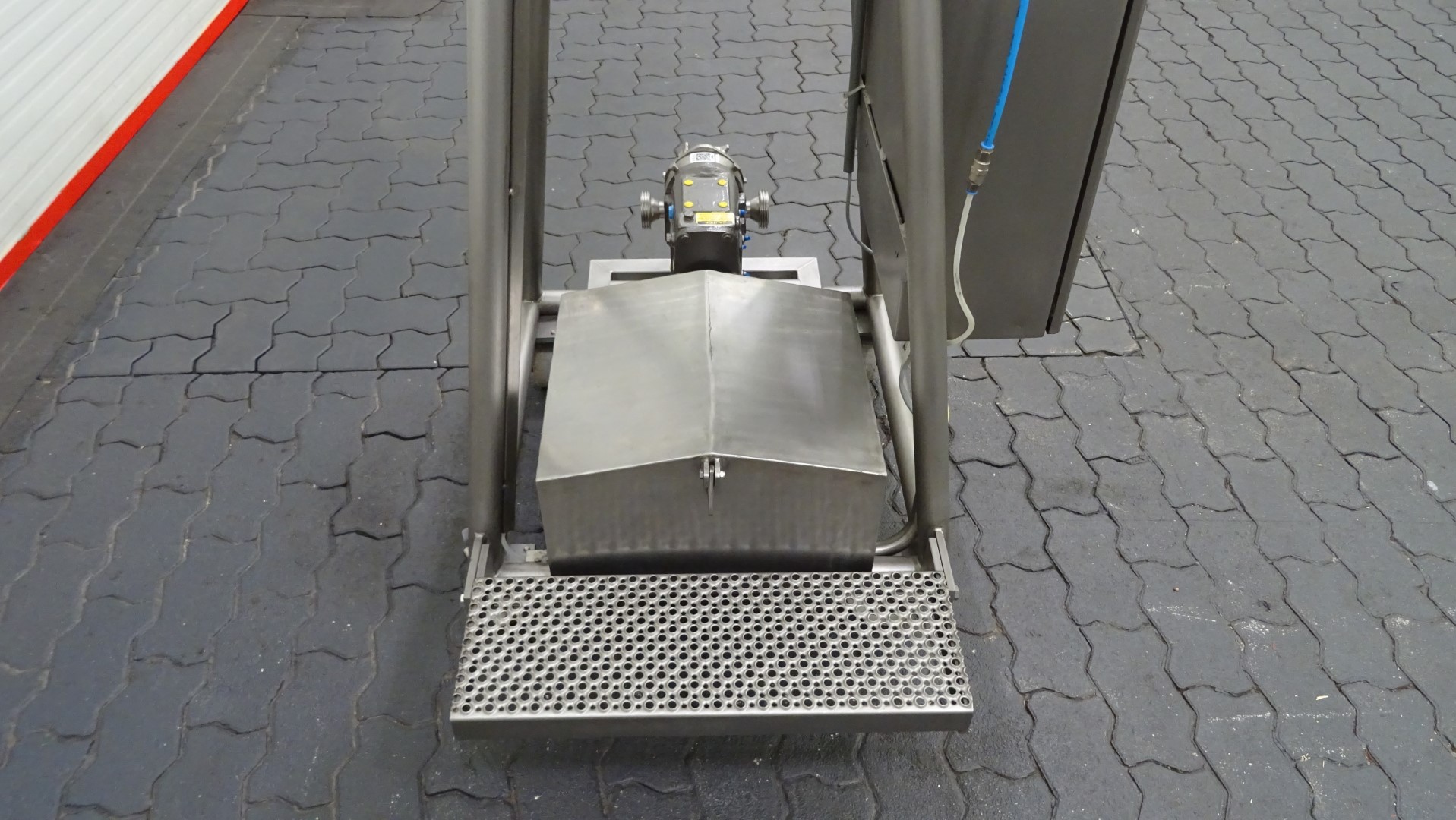

The Waukesha Cherry-Burrell 015 is a rotary positive displacement pump which can handle dairy products (e.g., yoghurt, quark, curd and butter), solids (e.g., cherries and olives), slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure to, so output is relatively constant and continuous. Duo - twin wing stainless steel lobes. Nominal displacement: 0,054 liter per revolution. Maximum nominal capacity: 2,0 m3/h. Inlet / Outlet connection: 1-1/2''. Maximum product pressure: 13,8 bar. Maximum pump speed: 700 rpm. The pump is used in a ice cream factory for product pumping. The current motor with this pump is 0,75 kW - 1,395 rpm - 380/420 V - 50 Hz - 1,95/2,20 A. The lobe speed is converted to 134 rpm, which results in a capacity of 435 ltr/h. Pump and motor mounted on a stainless steel frame with 4x wheels. Control panel with Danfoss frequency converter for speed adjustment. Including singled jacketed hopper with lid of ± 115 liter, diameter 53 cm, internal height: 53 cm, E&H liquiphant FTL 360 levelindicator, pneumatic inlet valve and manual outlet valve.
