Rotary positive displacement pump / Lobe pump - SPX Waukesha Cherry-Burrell 220 U1

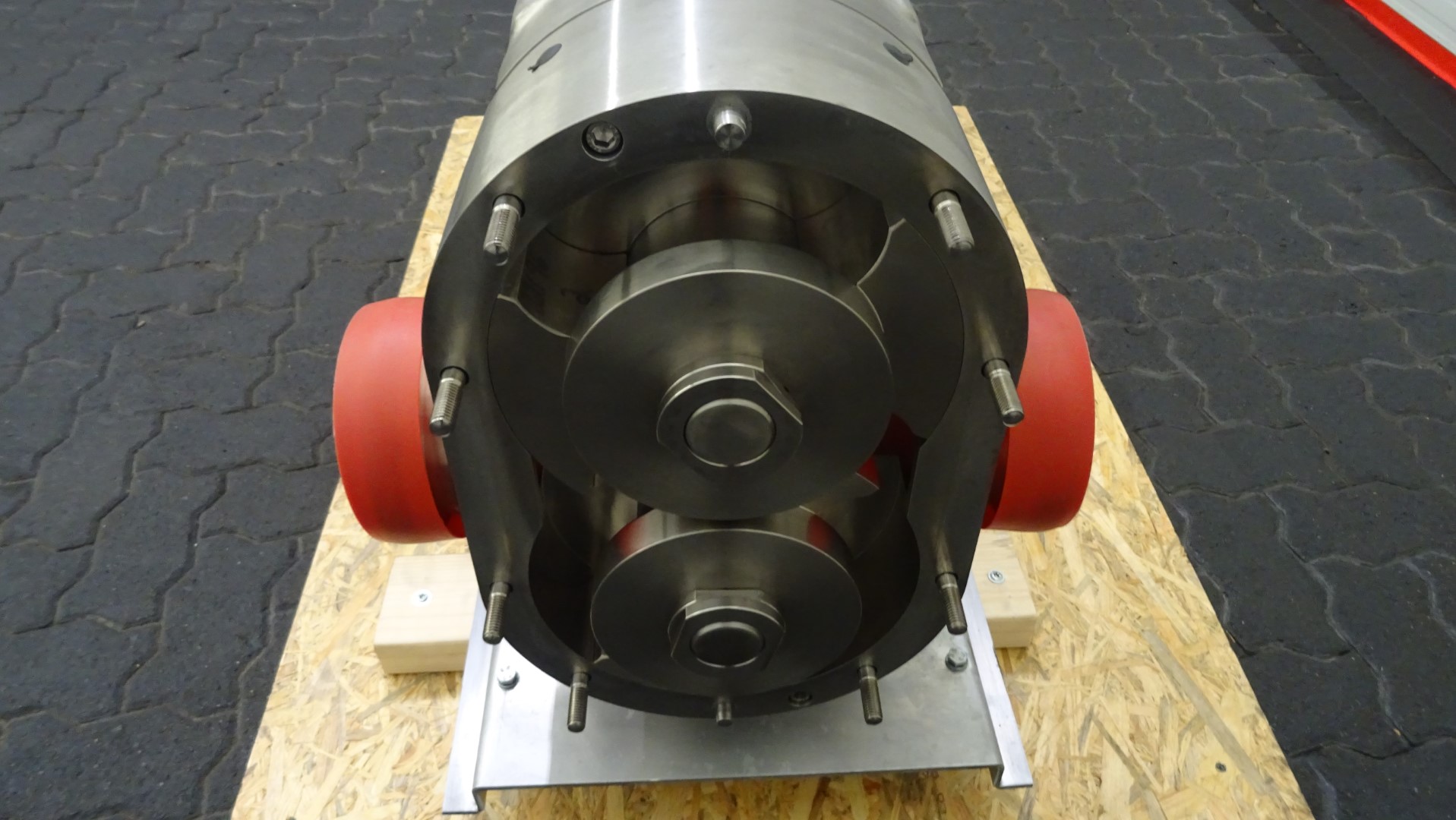

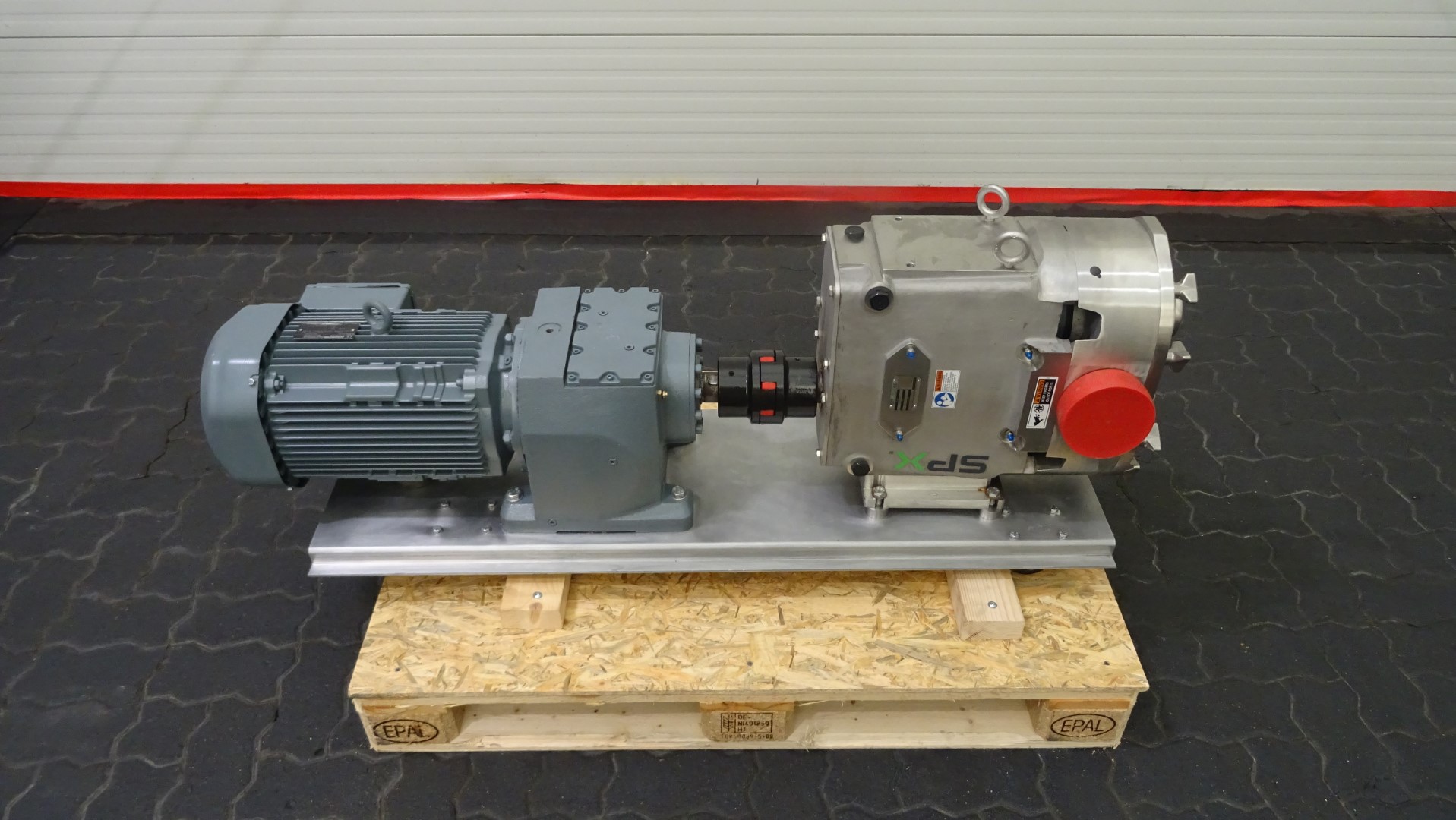

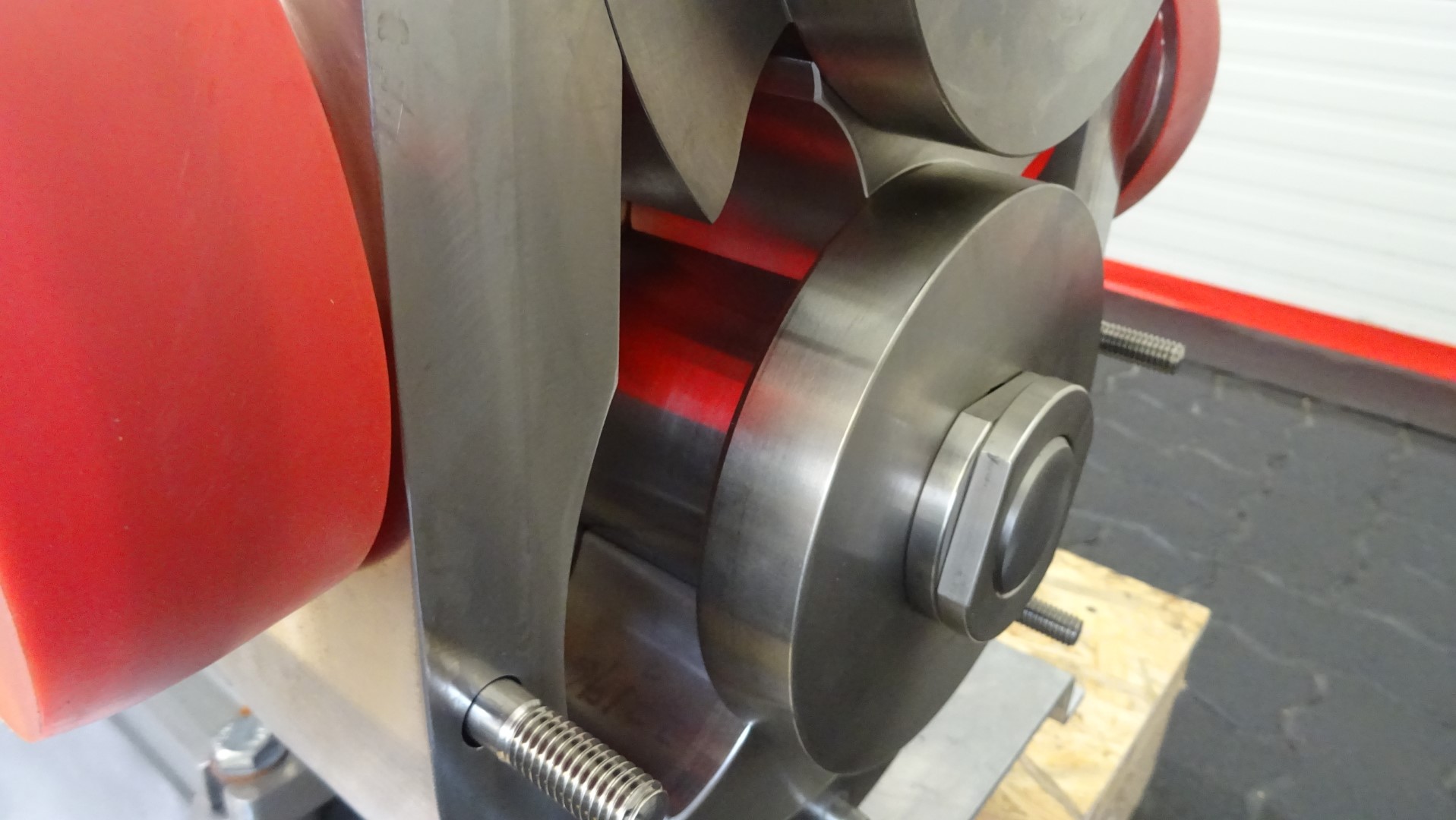

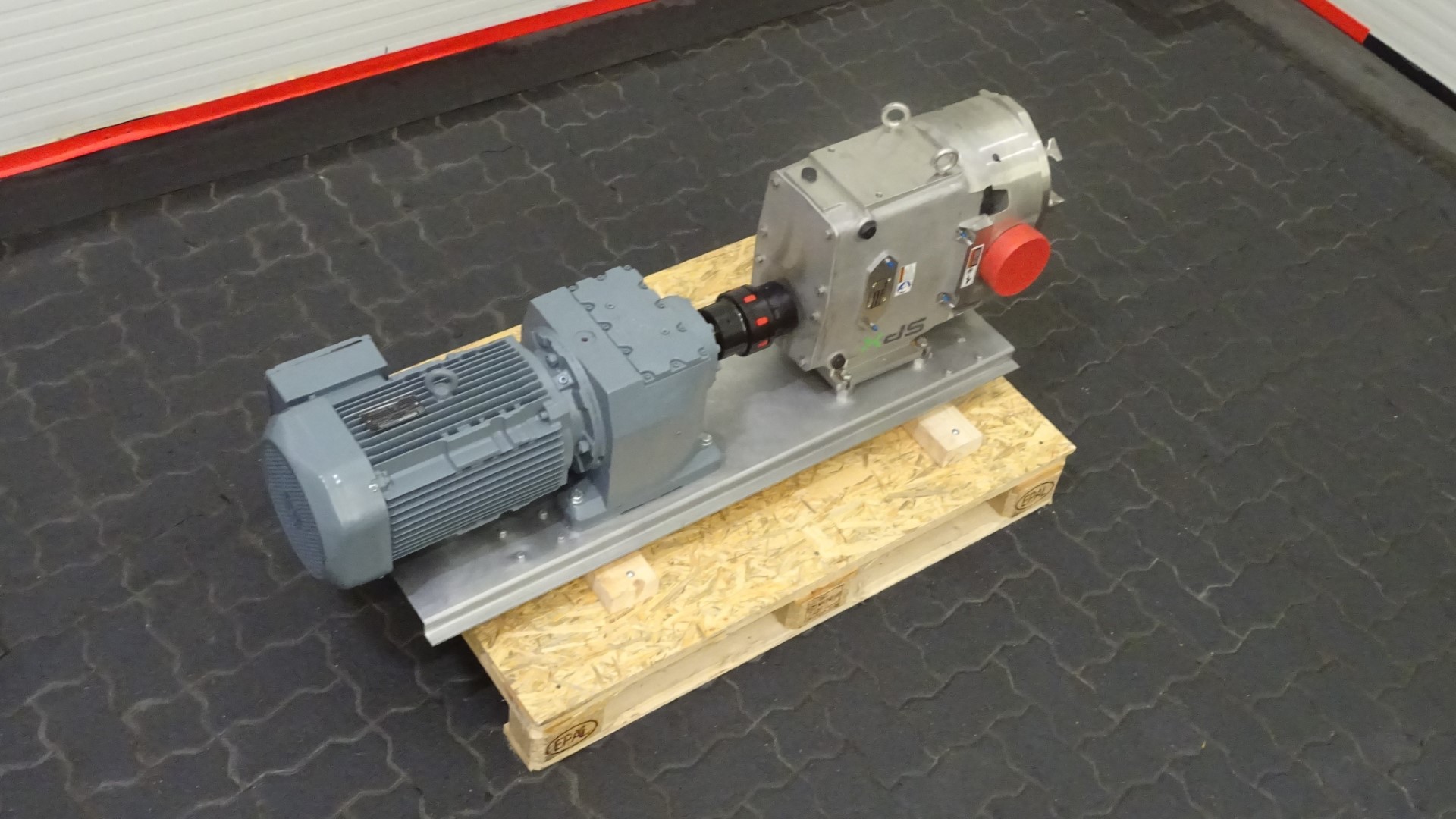

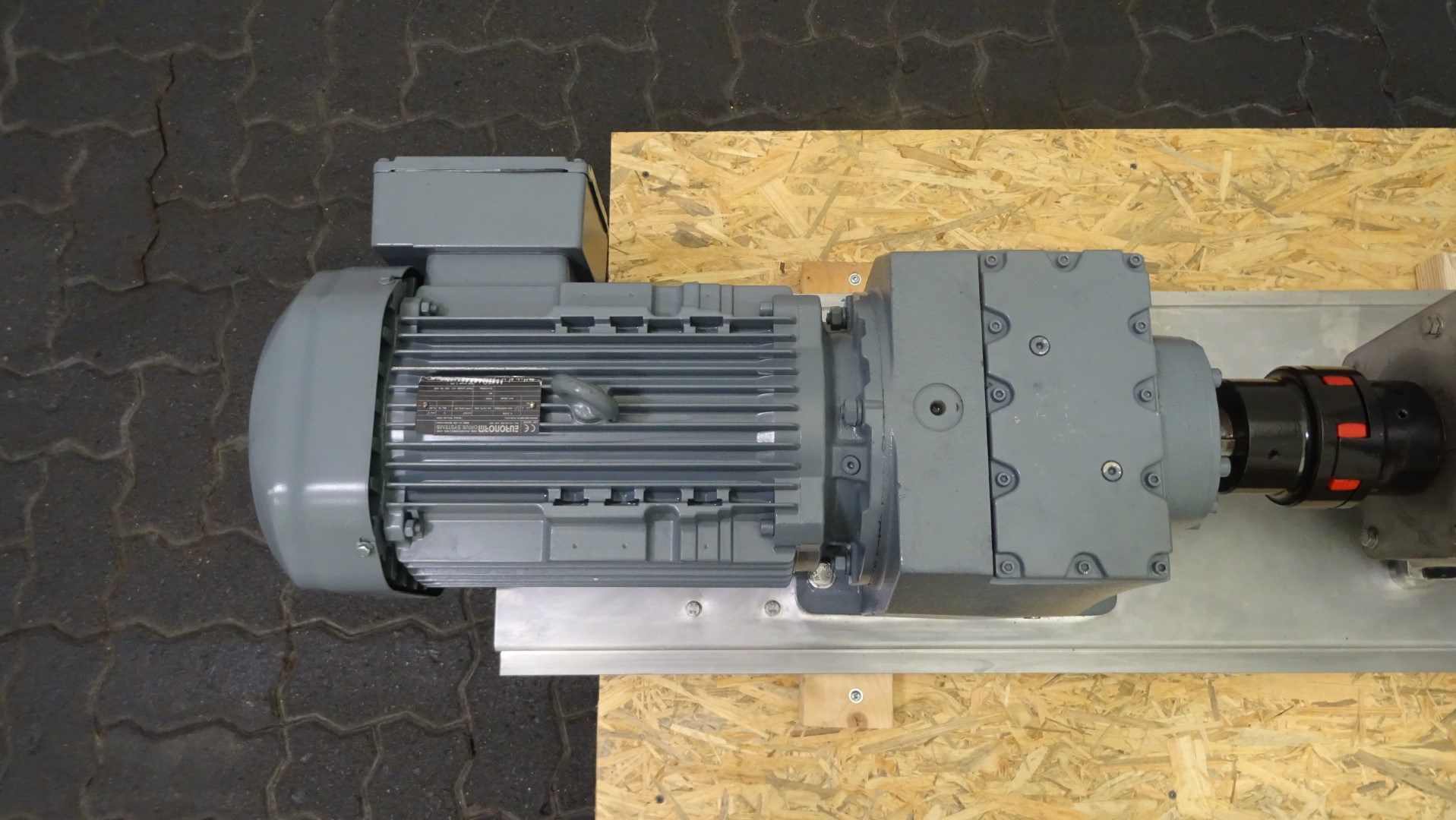

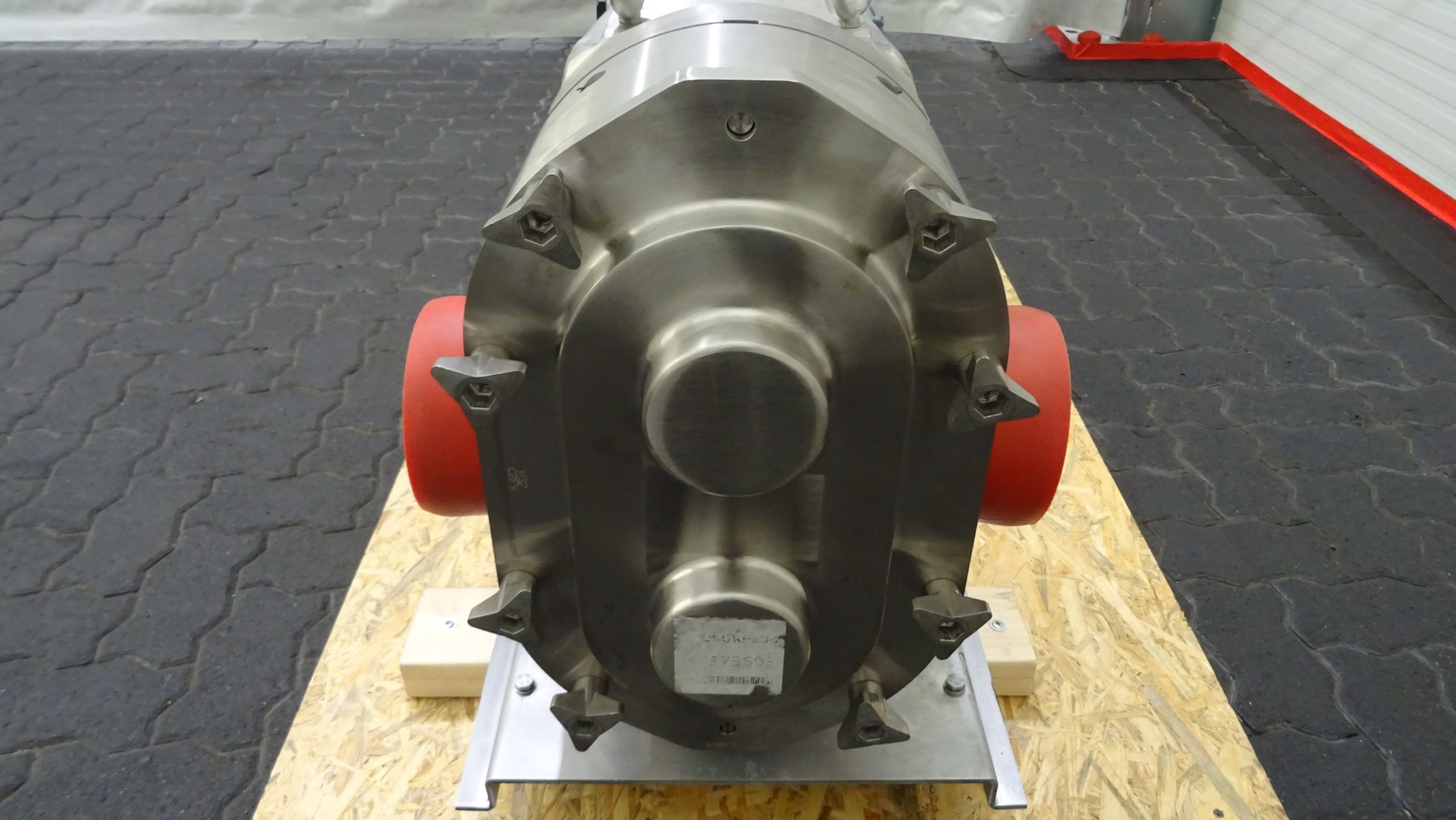

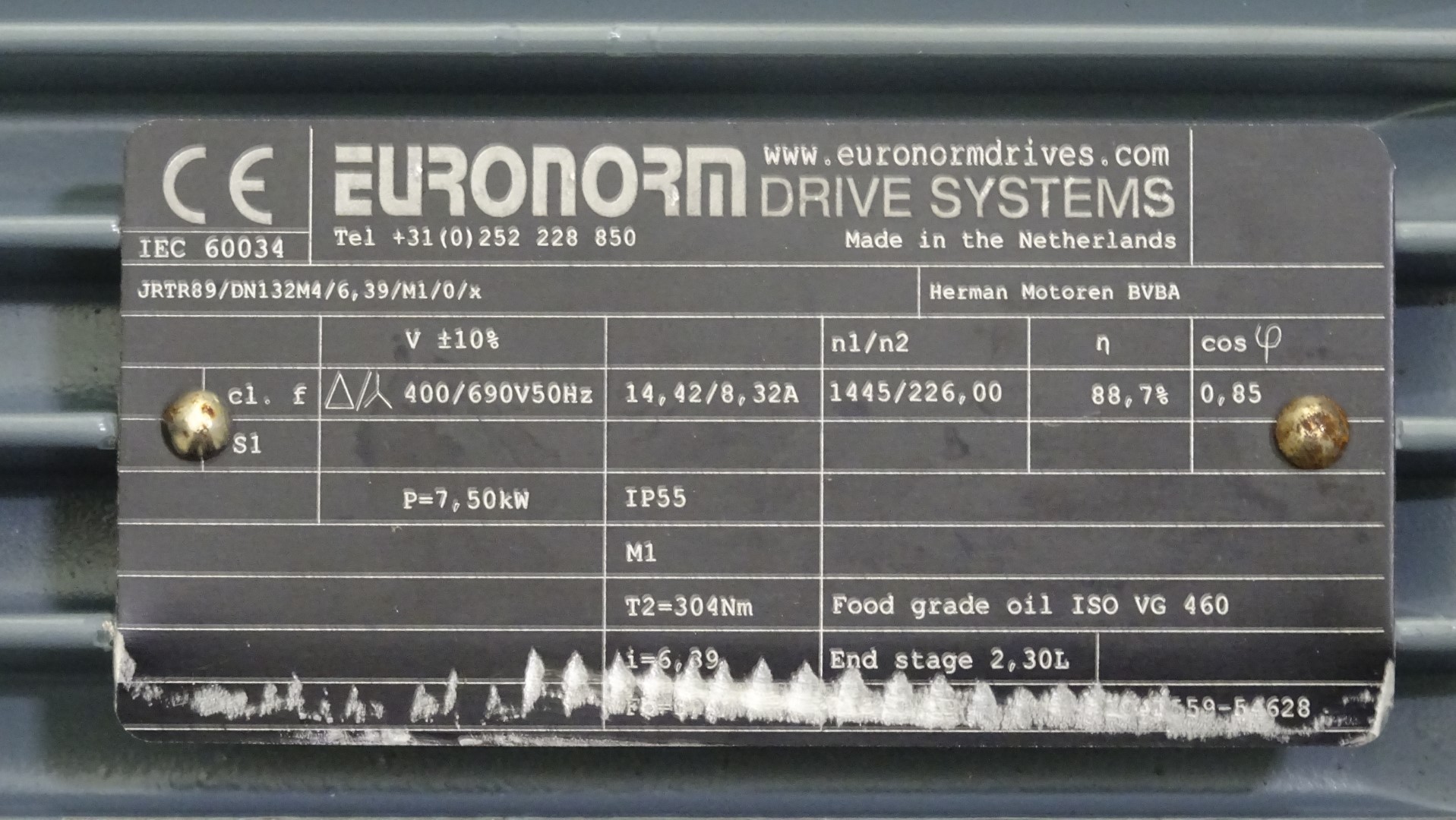

The SPX Waukesha Cherry-Burrell 220 U1 is a rotary positive displacement pump which can handle dairy products (e.g., yoghurt, quark, curd and butter), solids (e.g., cherries and olives), slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure to, so output is relatively constant and continuous. Duo - twin wing stainless steel lobes. Nominal displacement: 1,976 liter per revolution. Maximum nominal capacity: 70,4 m3/h. Inlet connection: 3''. Outlet connection: 3''. Maximum product pressure: 13,8 bar Maximum pump speed: 600 rpm. The pump is used in a dairy for product pumping. The current motor with this pump is 7,5 kW - 1.445 rpm - 400 V - 50 Hz - 14,42 A and the lobe speed is converted to 226 rpm, which results in a capacity of 25 m3/h. Pump and motor mounted on a stainless steel frame with 4x wheels.
