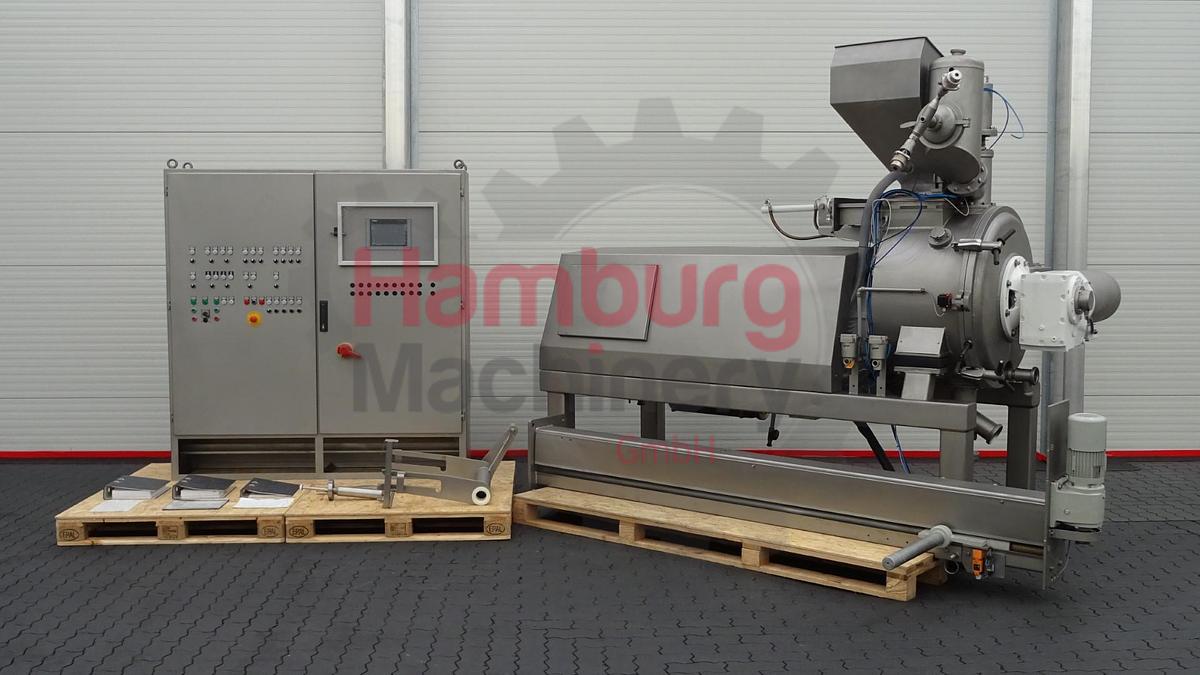

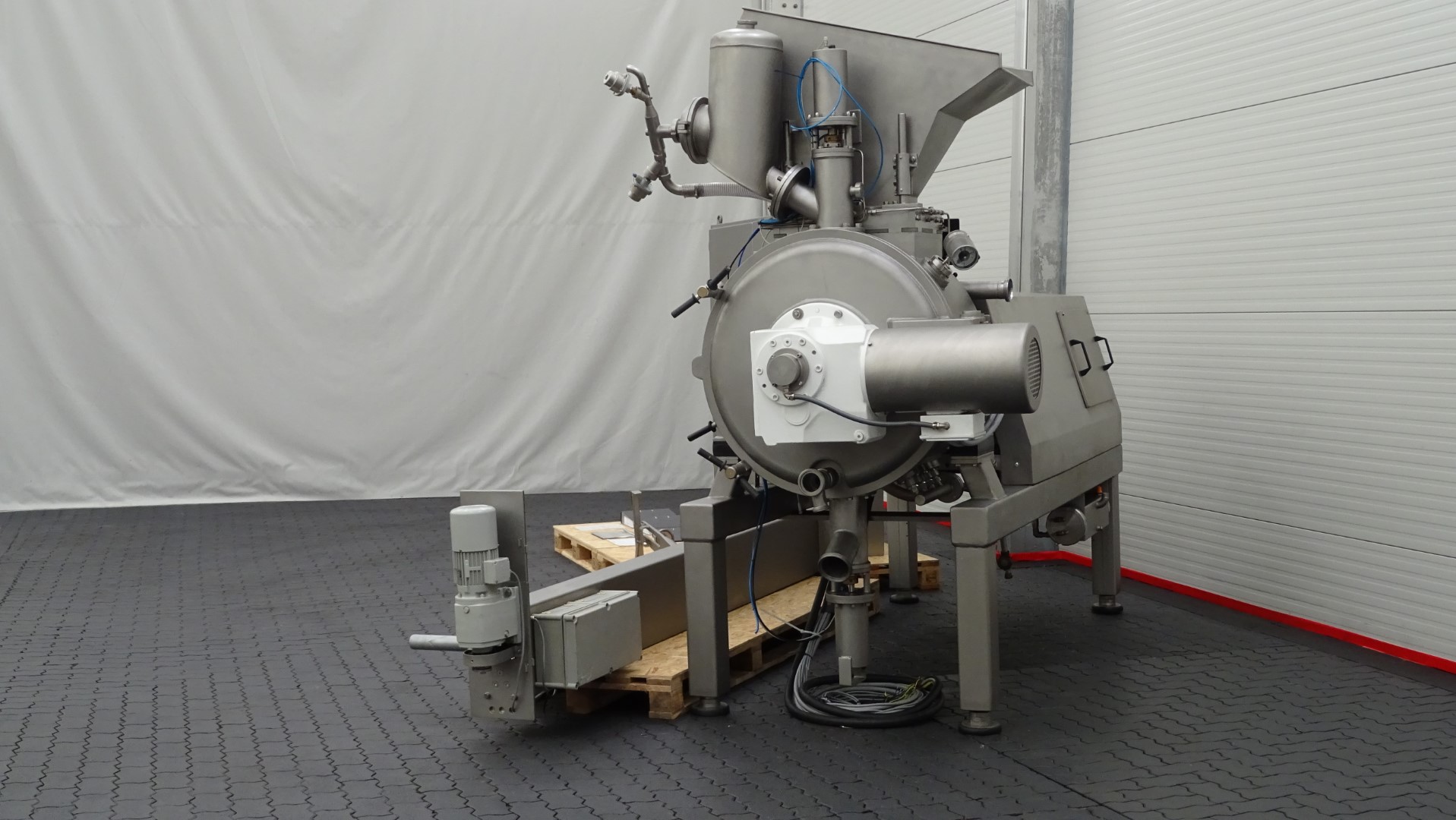

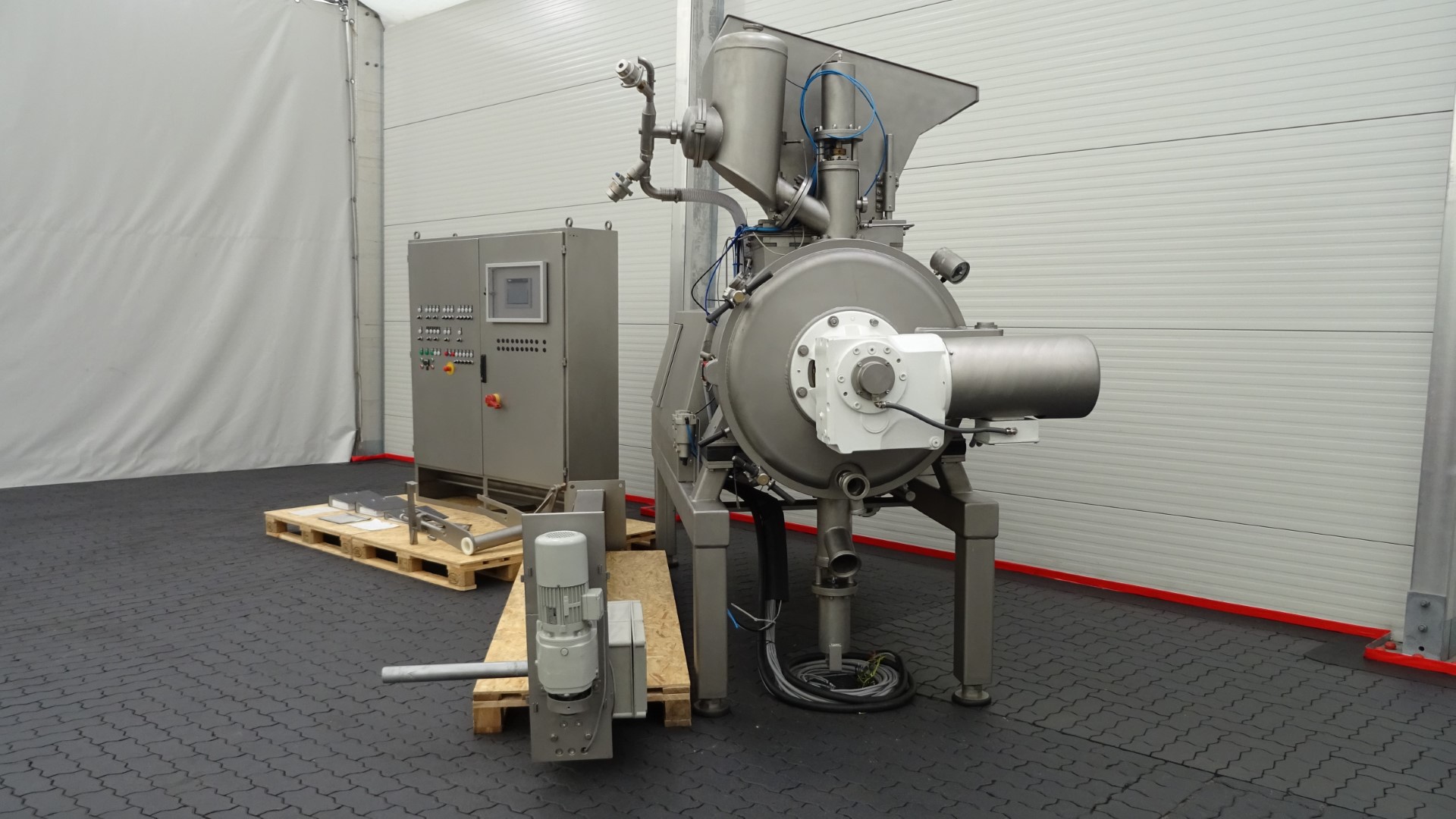

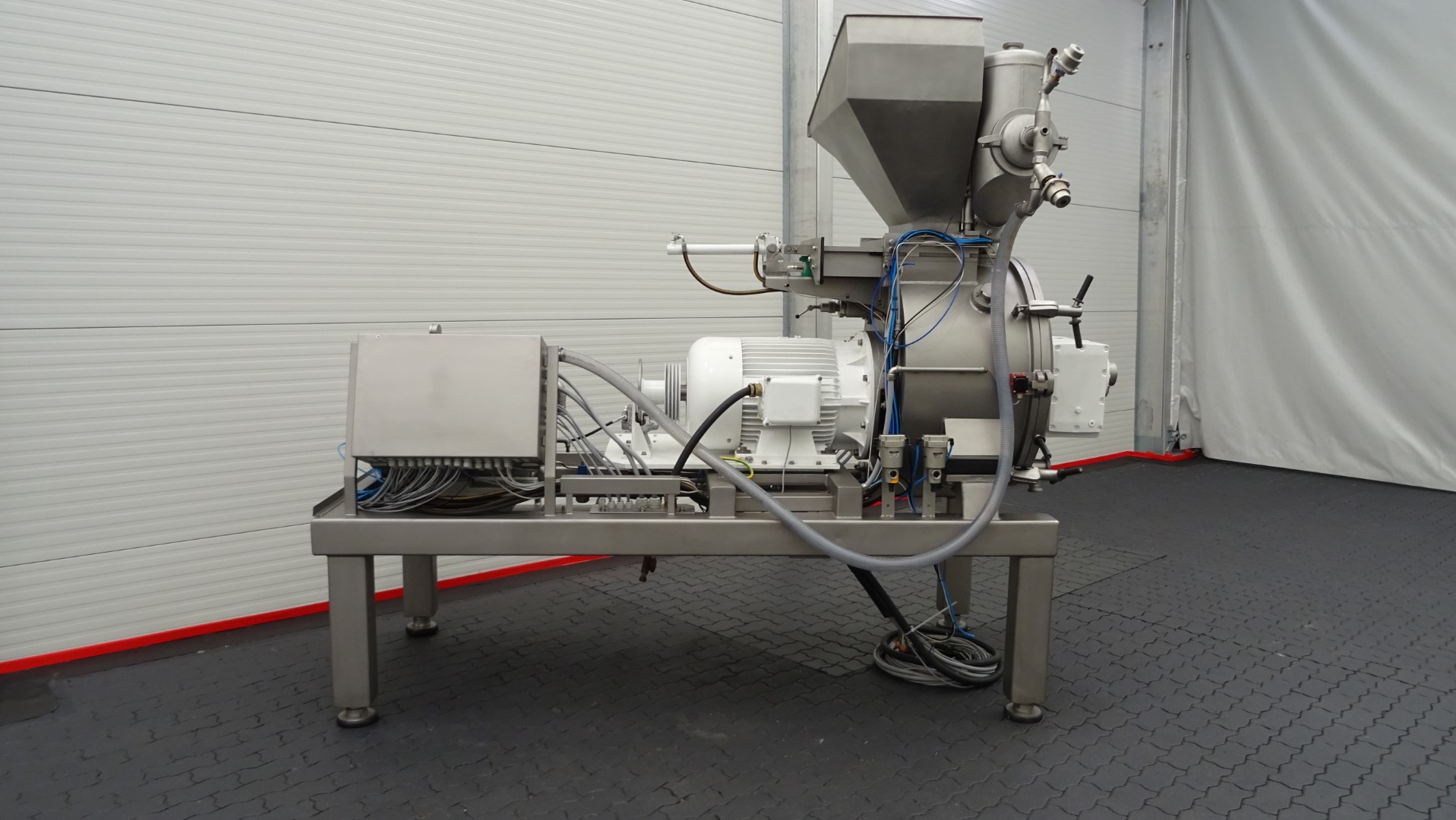

Reconditioned Universal Machine Stephan Combicut TC / SK 300

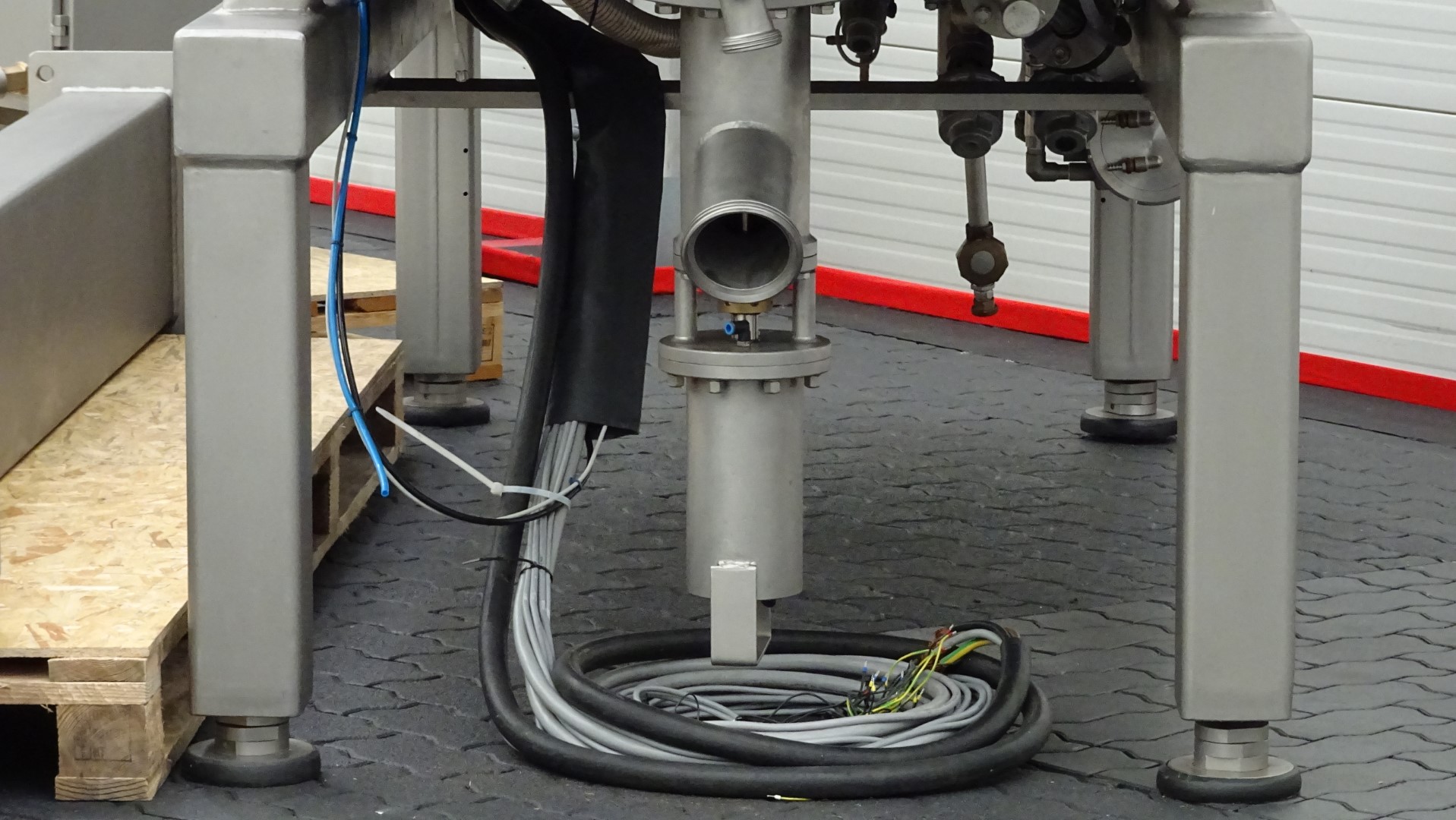

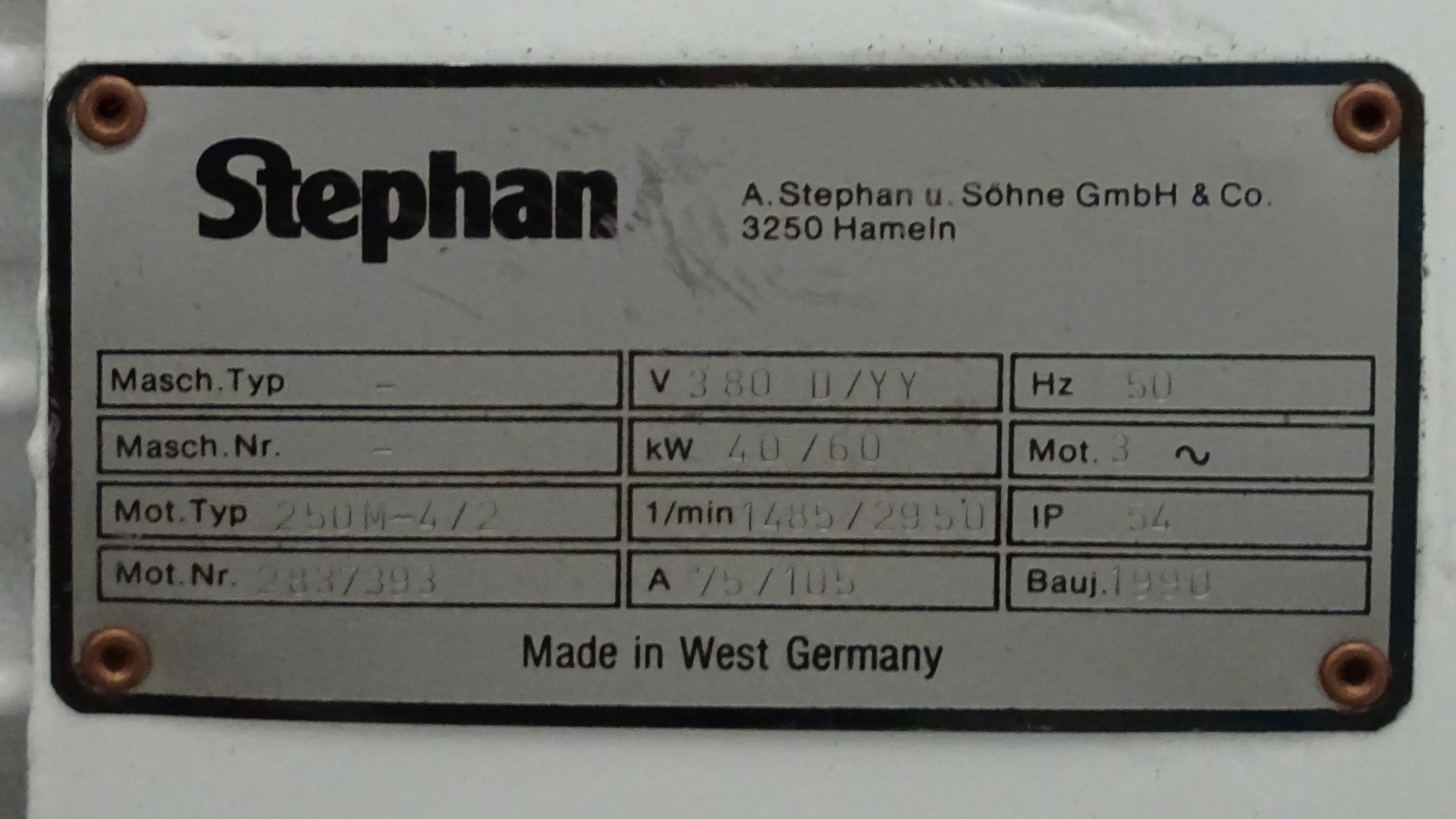

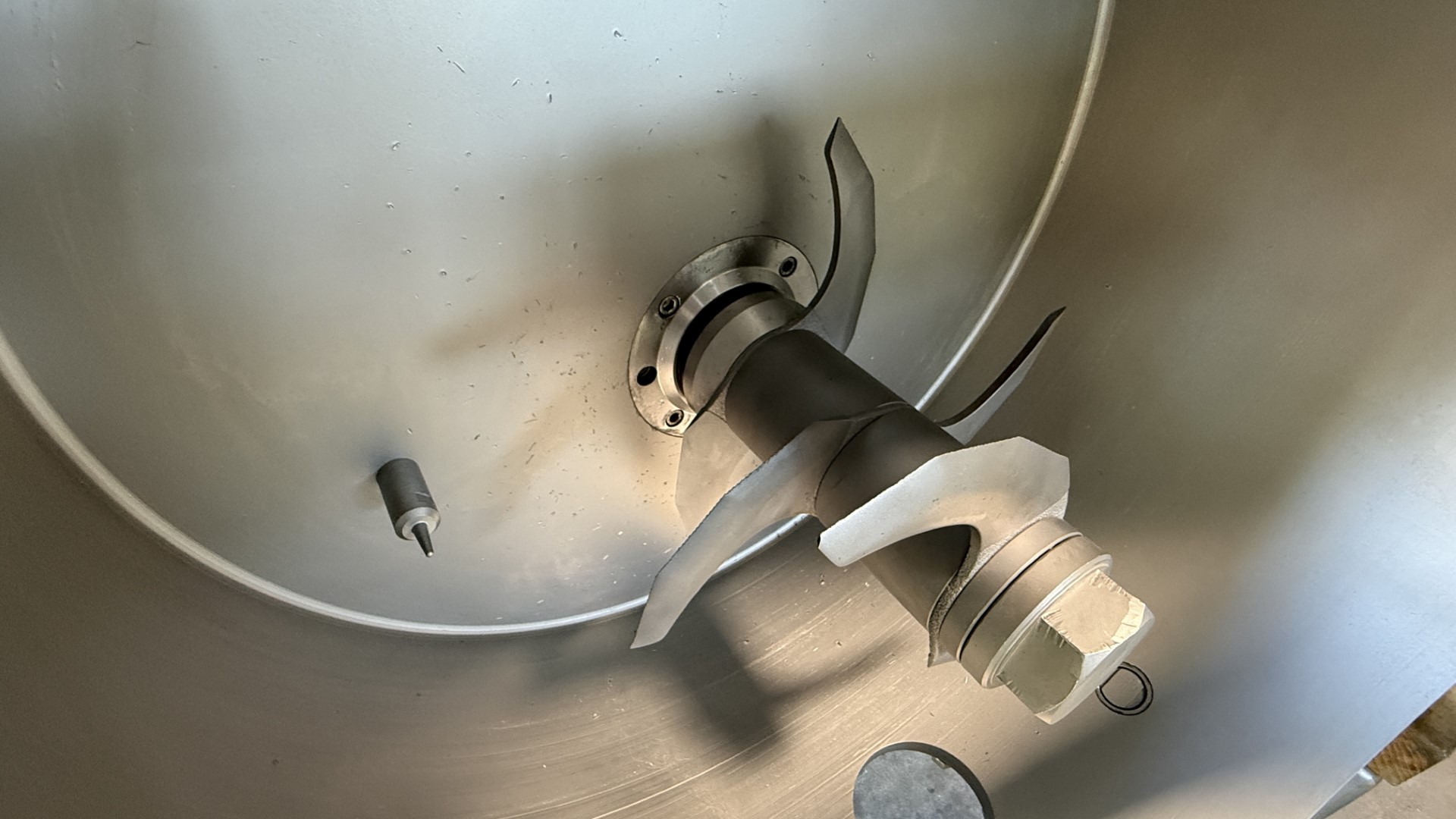

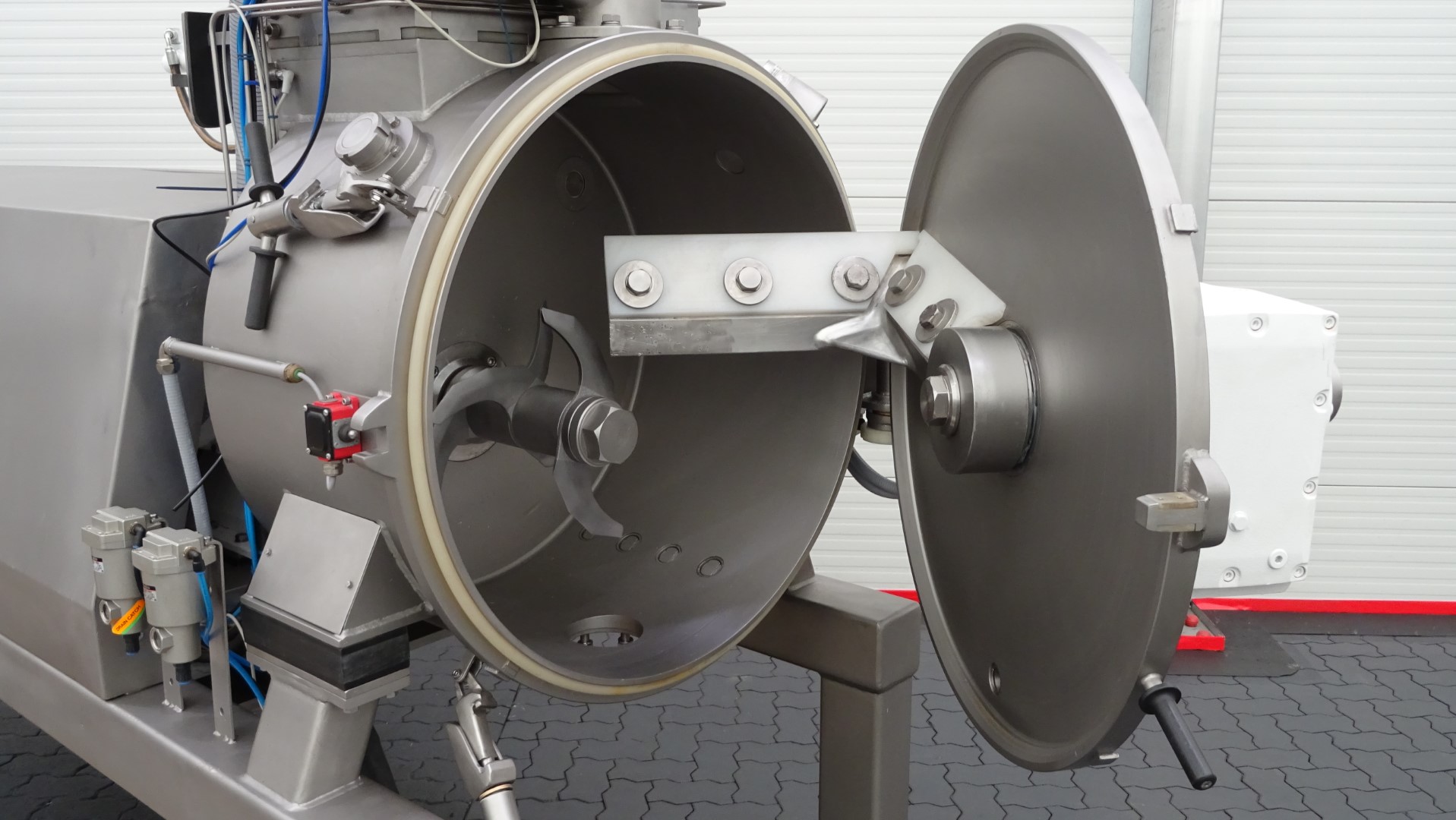

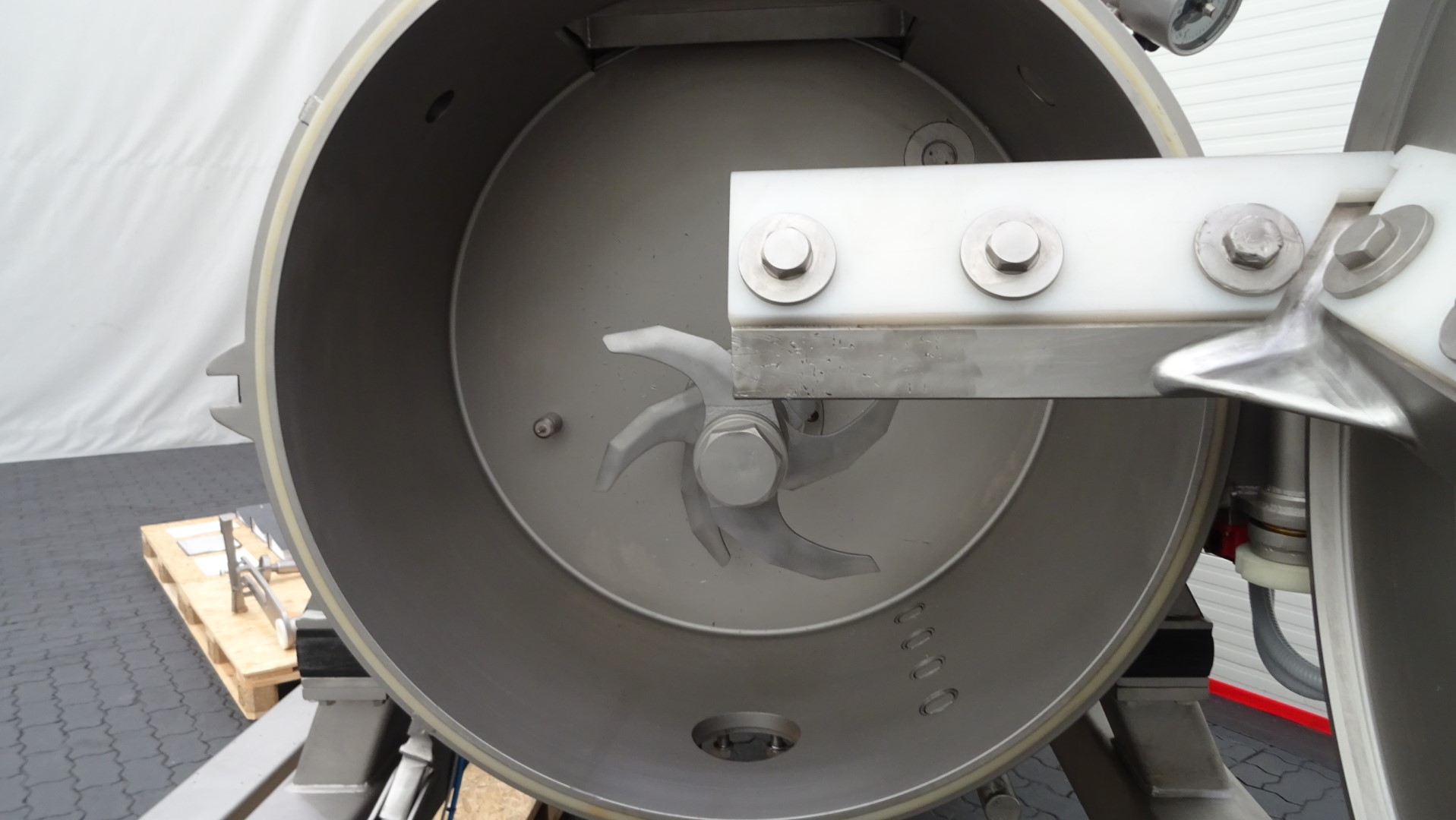

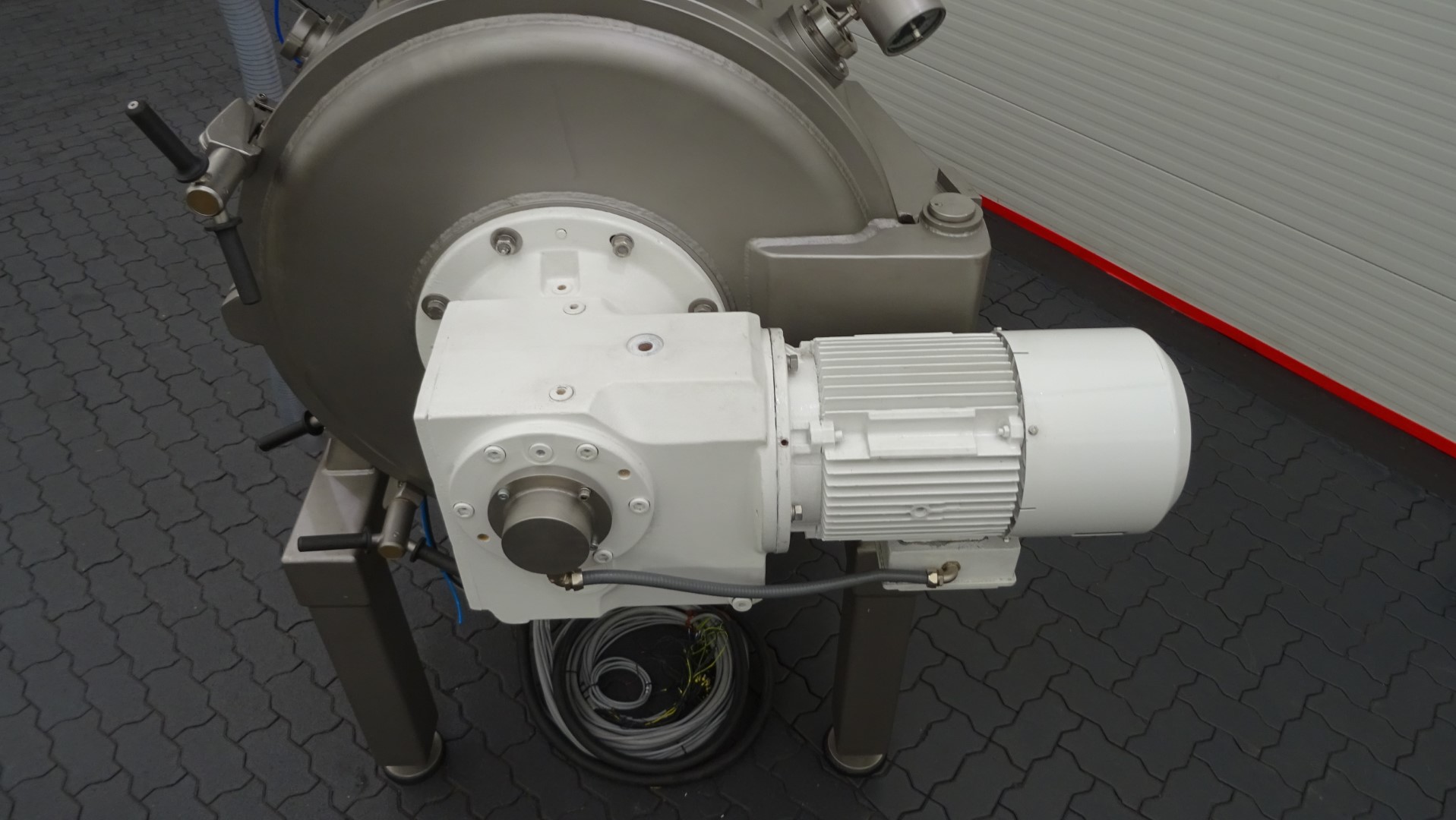

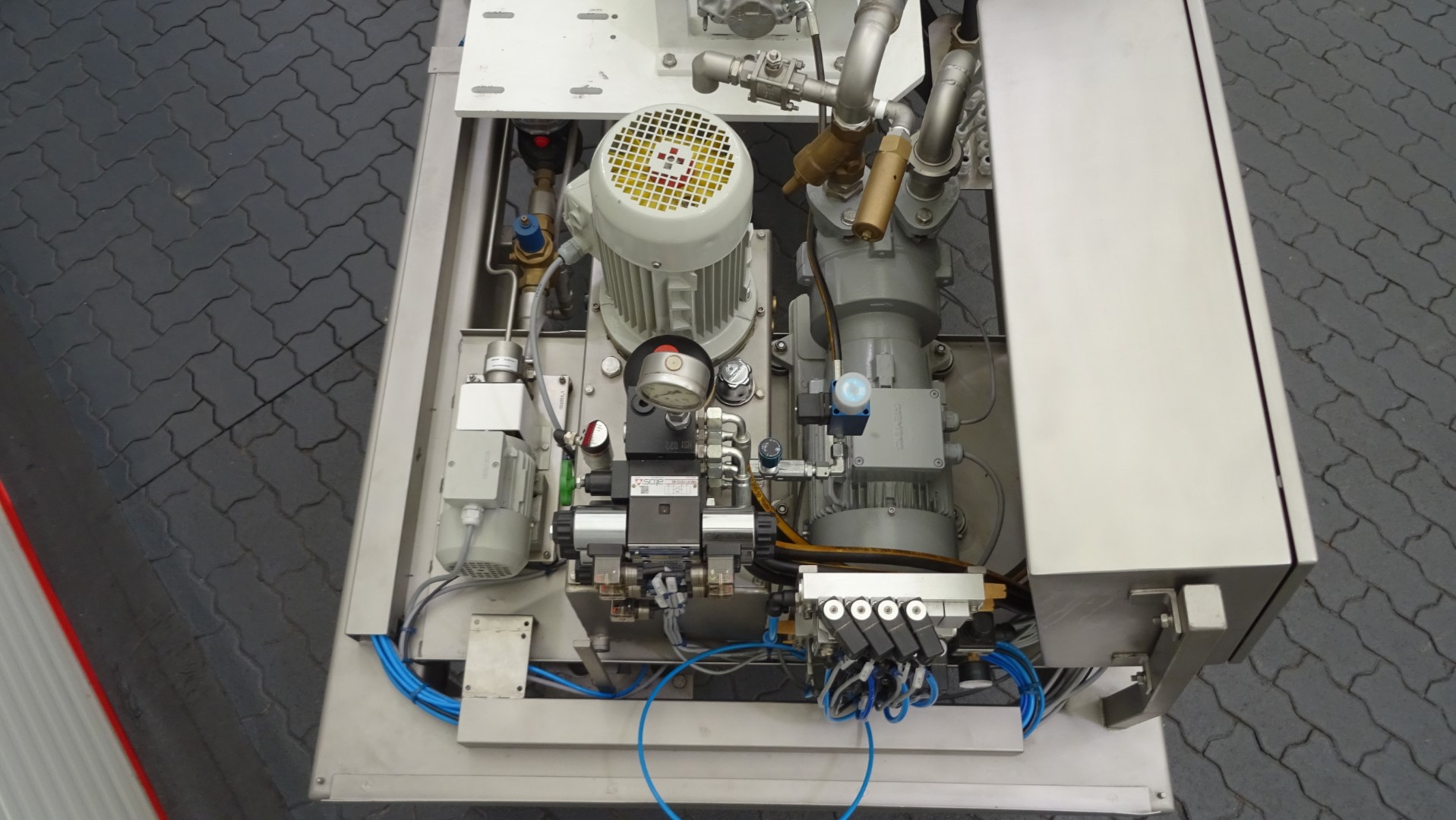

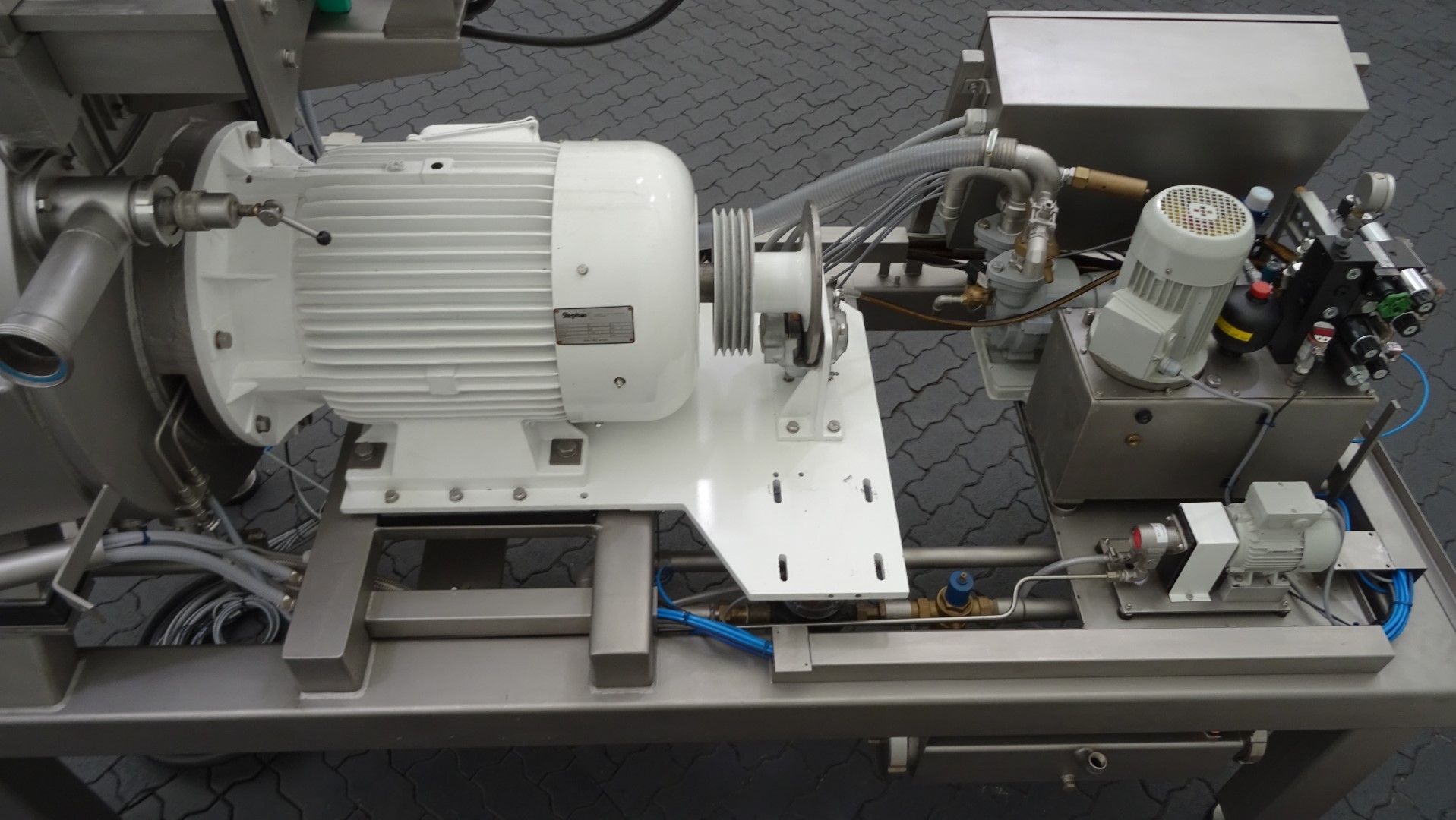

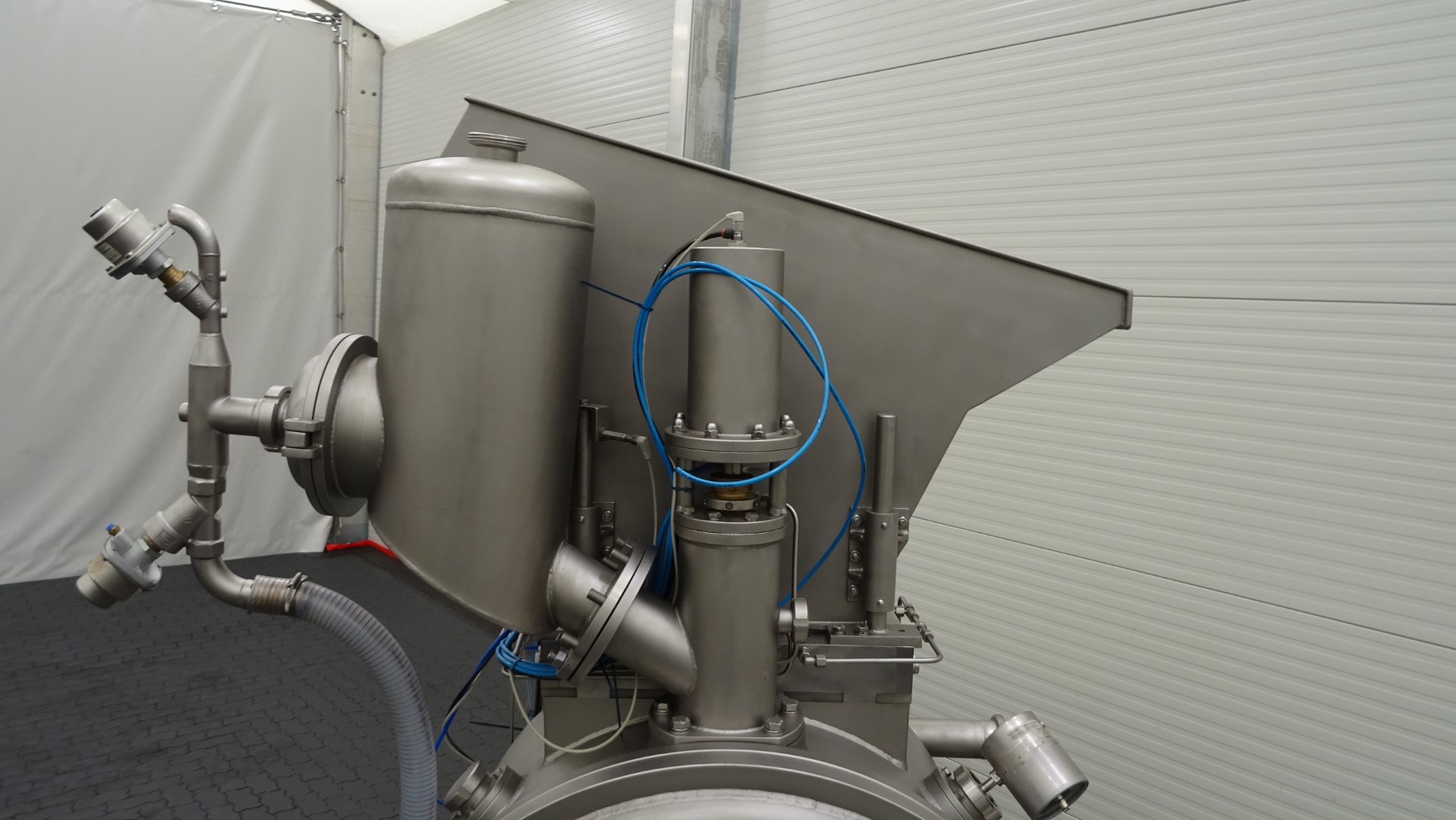

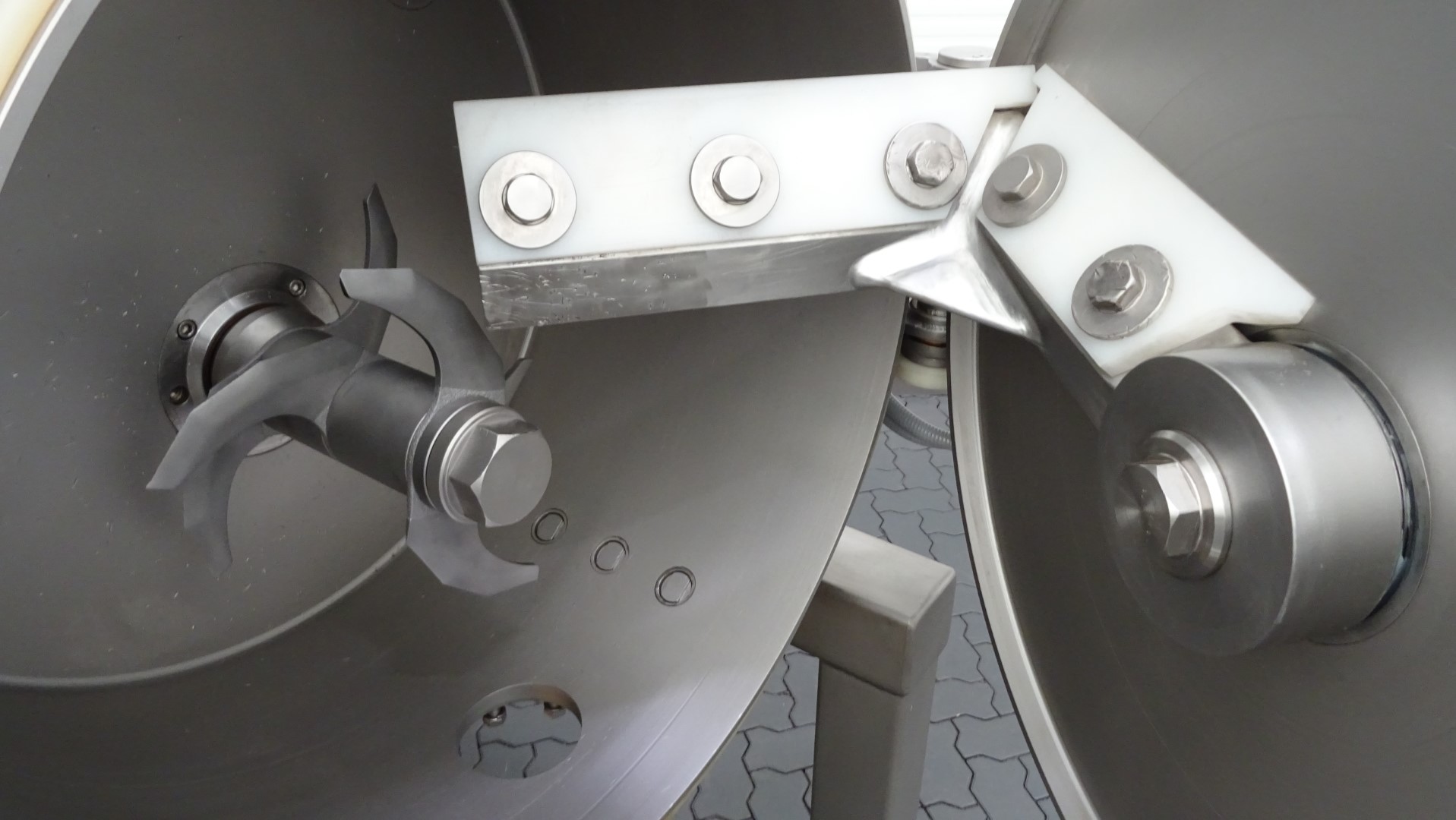

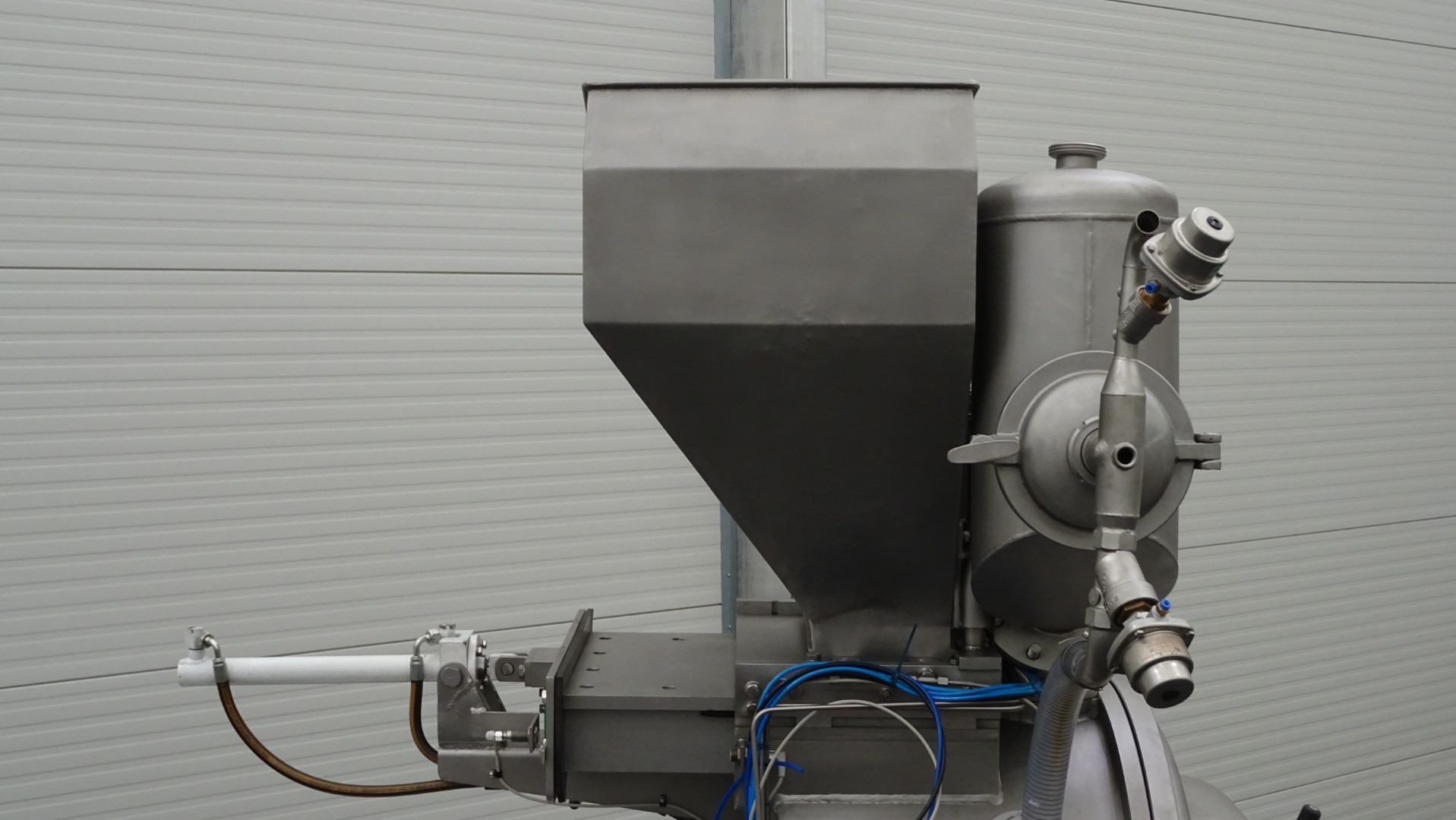

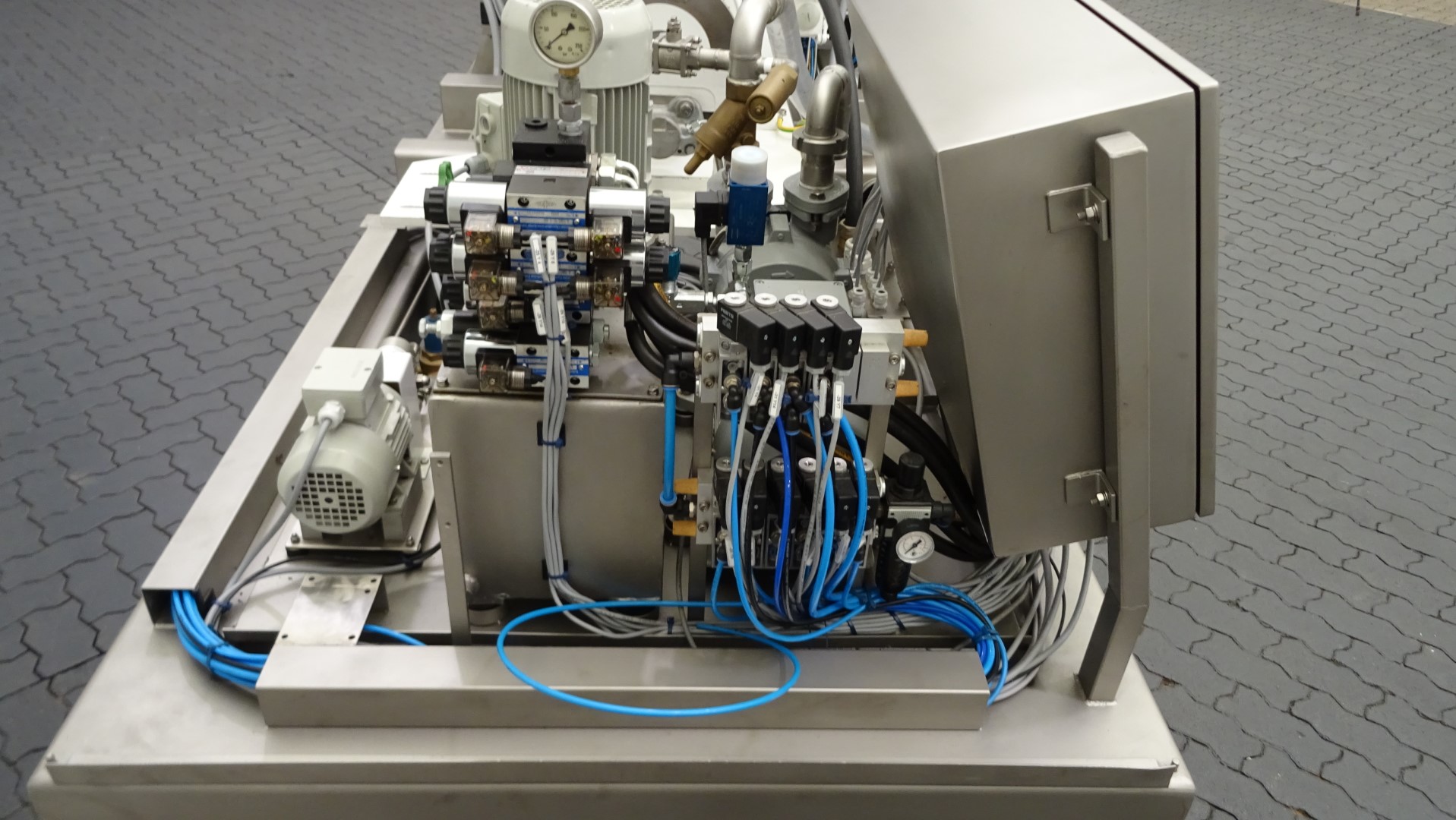

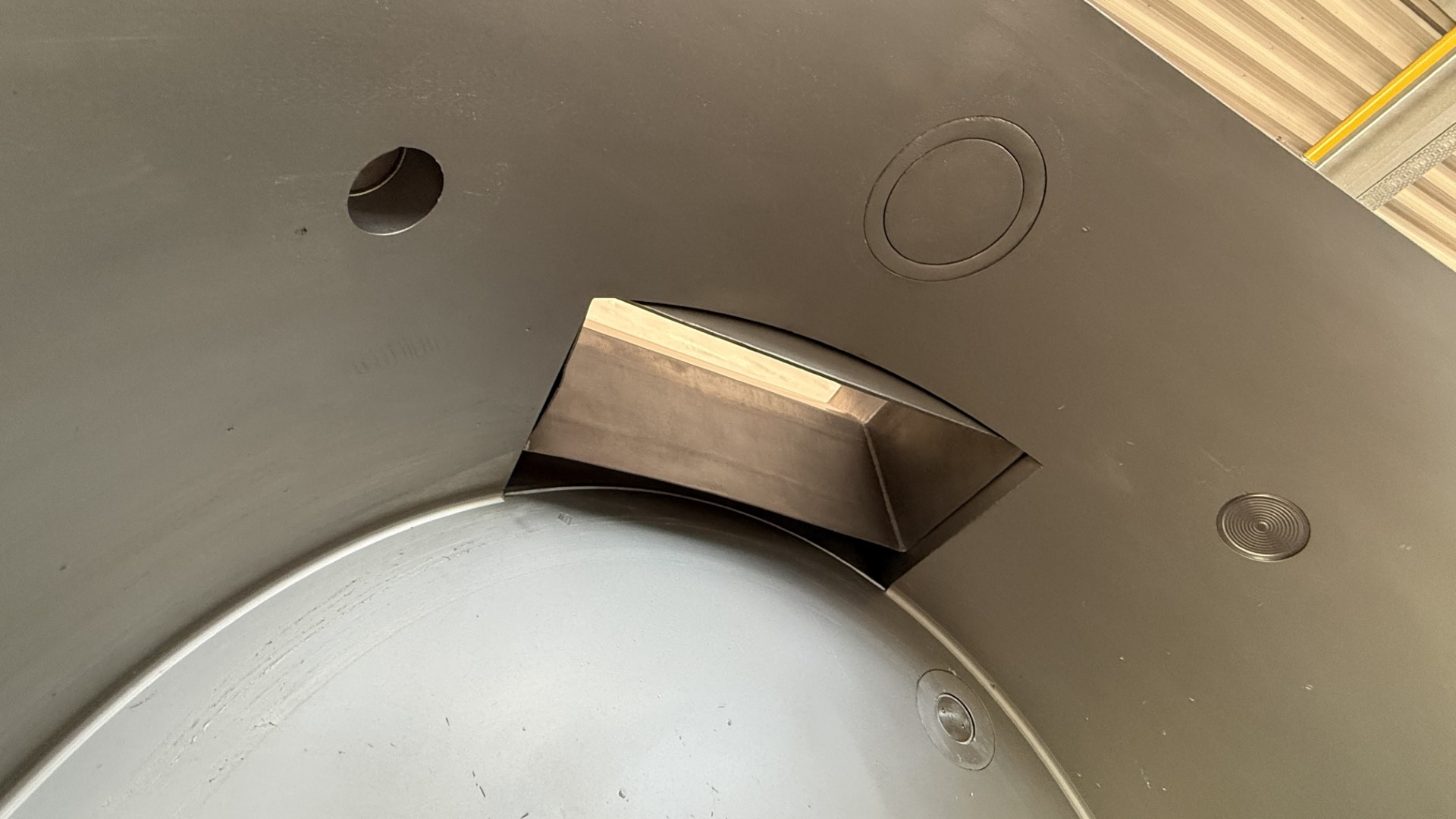

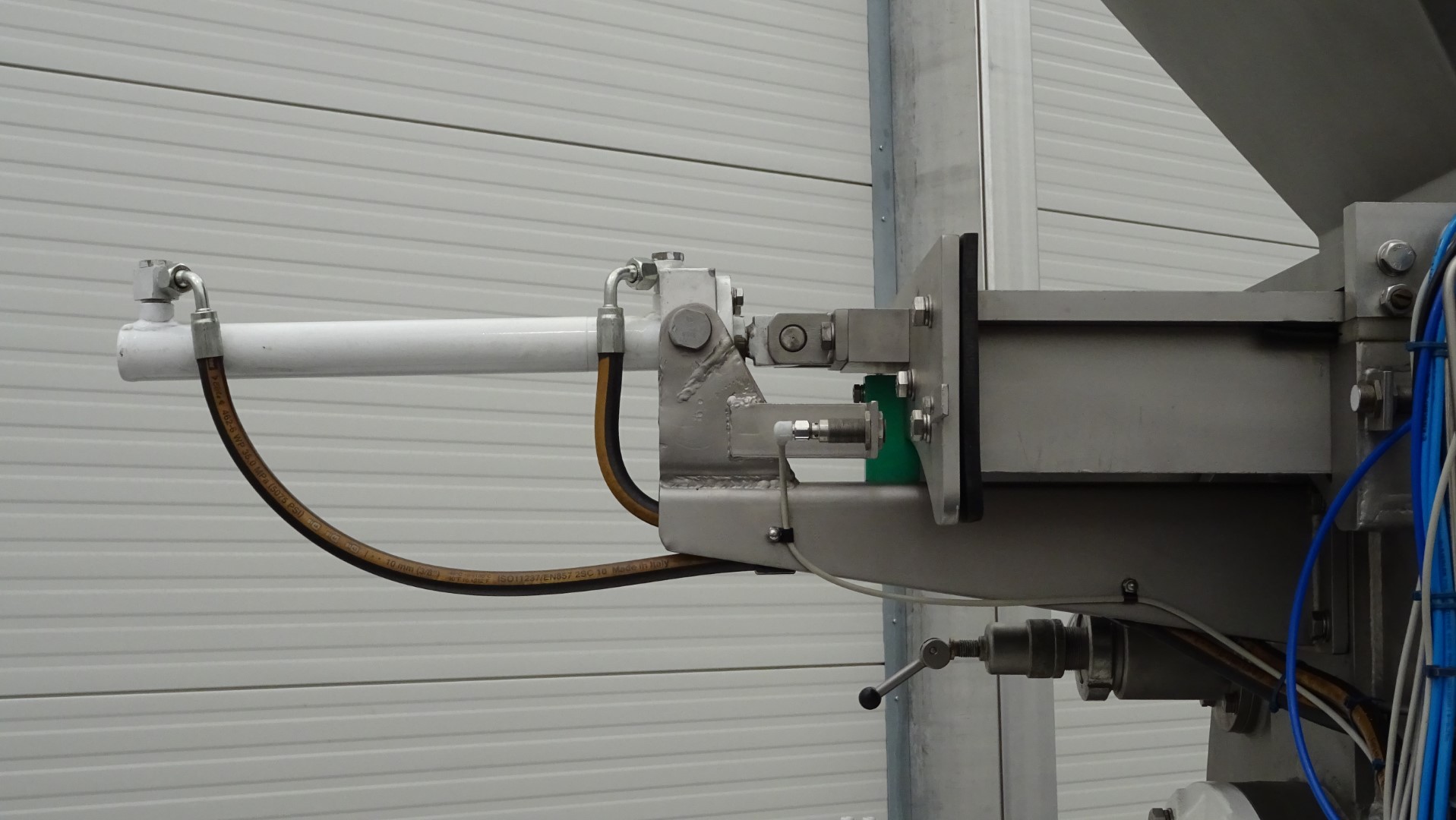

Fully reconditioned Stephan universal machine for producing processed cheese, convenience products, vegan spreads and confectionery. Formerly used in melted and cream cheese production (also vegan). Machine bowl with top slide and a bottom valve. Framework, lid and side covers are all made of stainless steel. The bowl is equipped with a single jacket including all valves, 4x direct steam nozzles for direct injection of (culinary) steam into the product, temperature sensor in the product, 3x double cutting knives, max. working pressure in the bowl -1 / 0.3 bar (protected with pressure relief valve), maximum temperature in the bowl 95 °C, bowl volume: 300 liters, 1x hydraulic inlet slider at the top for the main product, including large funnel, 1x outlet valve at the bottom for the outlet of the finished product, 1x connection for pneumatics controlled ingredient valves on the side of the bowl (excluding pneumatic valve) and 1x connection on top with vacuumtank. Single jacketed lid with scraper on the wall (electric drive ± 25 rpm), 2x manual tension clamps. Main engine for the 3x cutting blade: 400 volts - 50 Hz - 40 / 60 kW - 2-speed motor - 1.485 / 2.950 rpm. Hydraulic system to control the hydraulic slides. Liquid ring vacuum pump. New free standing stainless steel control panel with Siemens S7-1500 PLC control and Siemens Simatic touch screen HMI. The PLC is pre-programmed. Elevator for loading the Stephan machine with standard Normcar carriages made of stainless steel. Documentation available.

Additional features:

Hamburg Machinery bought this machine fully reconditioned from the previous owner. The previous owner can adapt the program to the specific new application and is willing to help with installing / start-up of the machine on additional costs. As it wasn't reconditioned by Hamburg Machinery, we cannot give any warranty or liabilty for defects.
