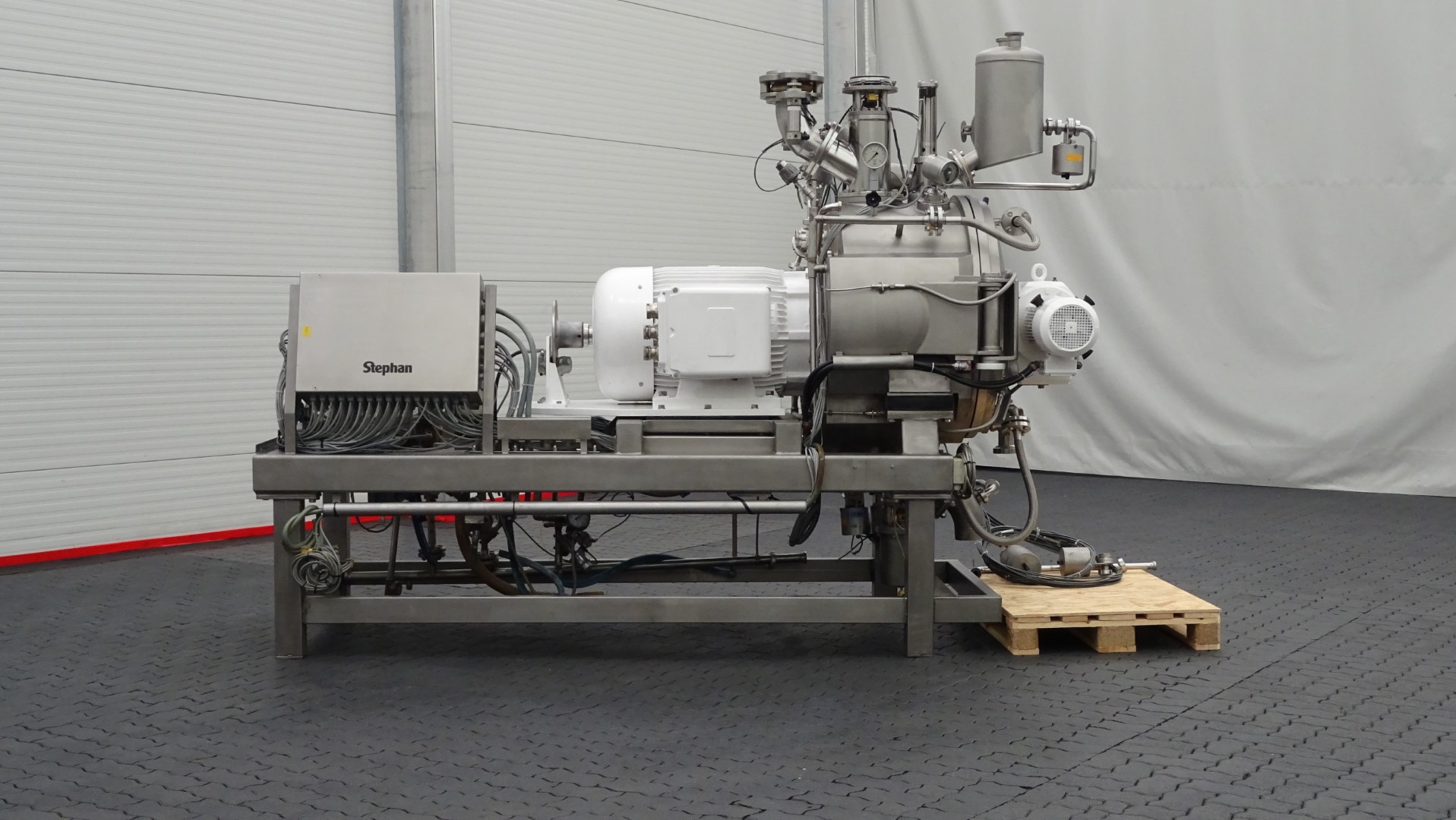

Universal Machine Stephan Combicut TC 300

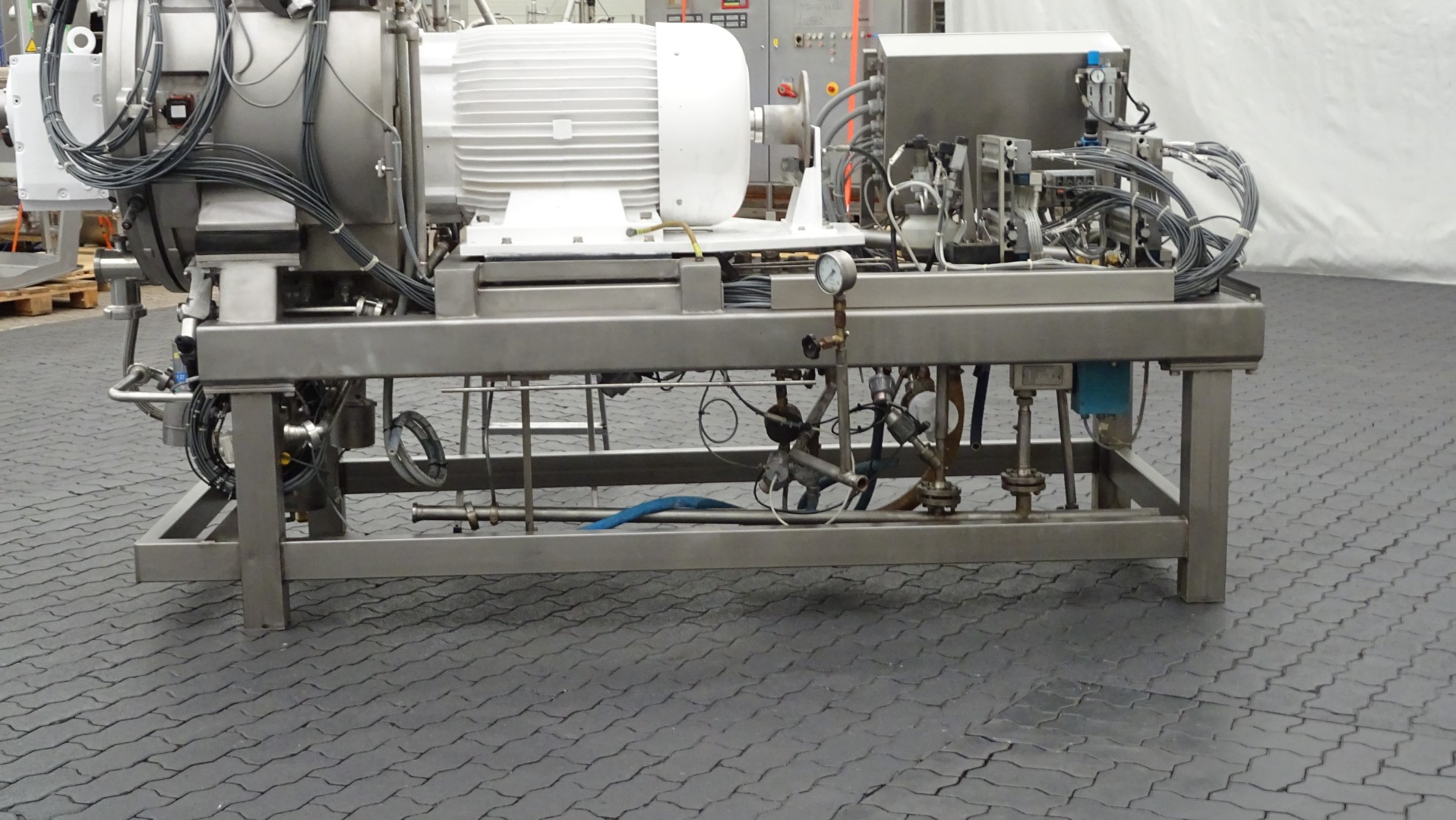

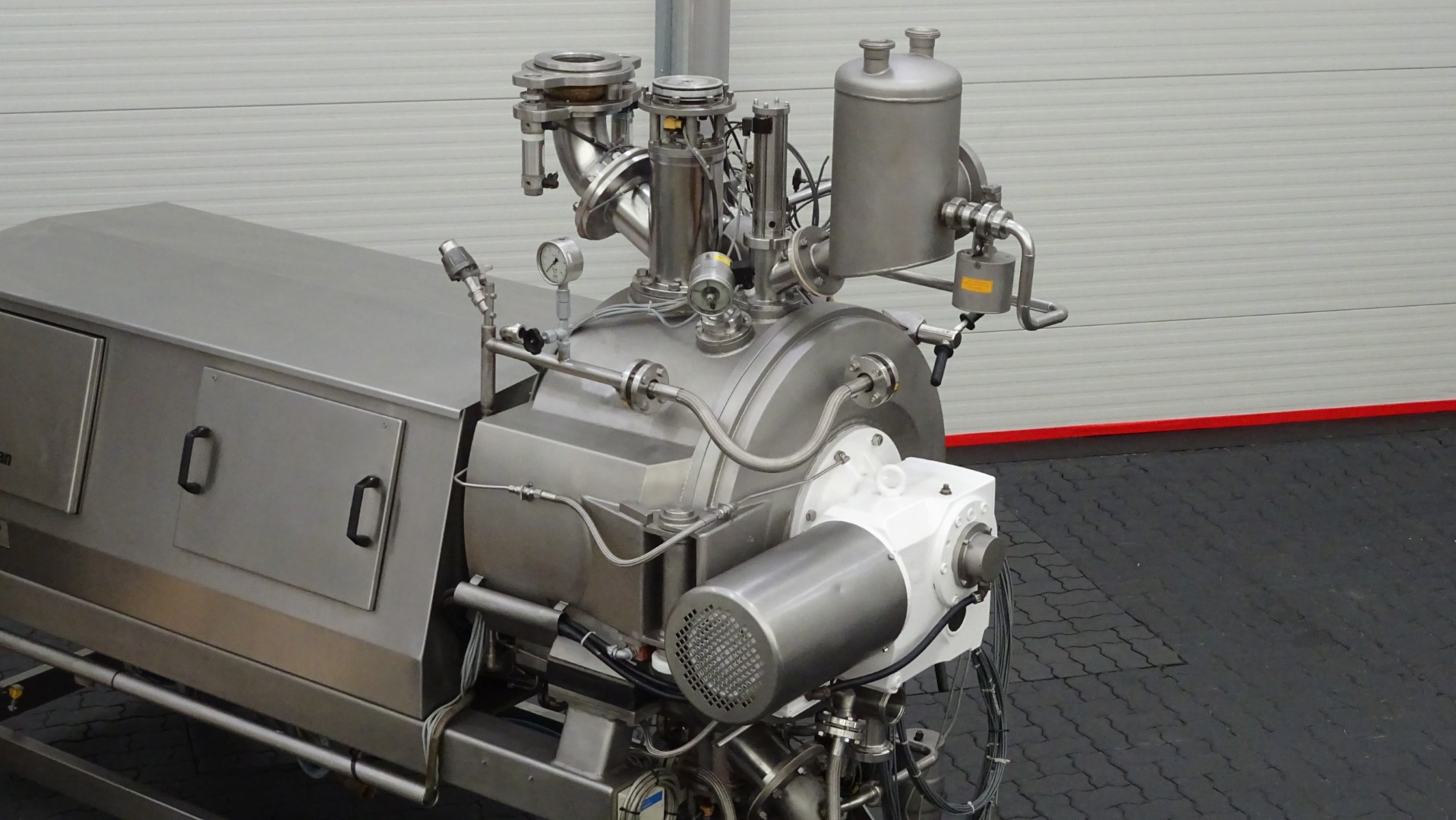

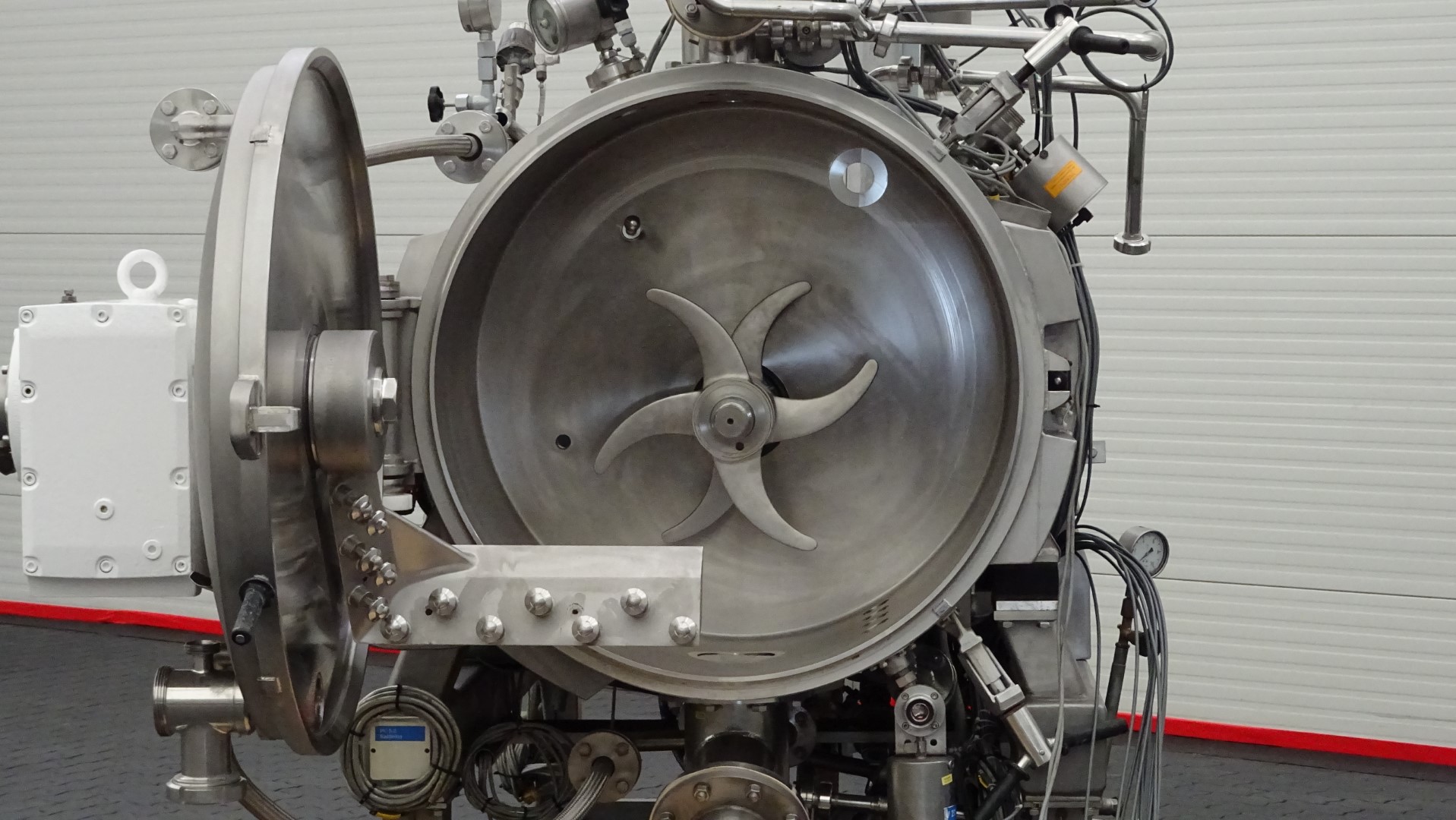

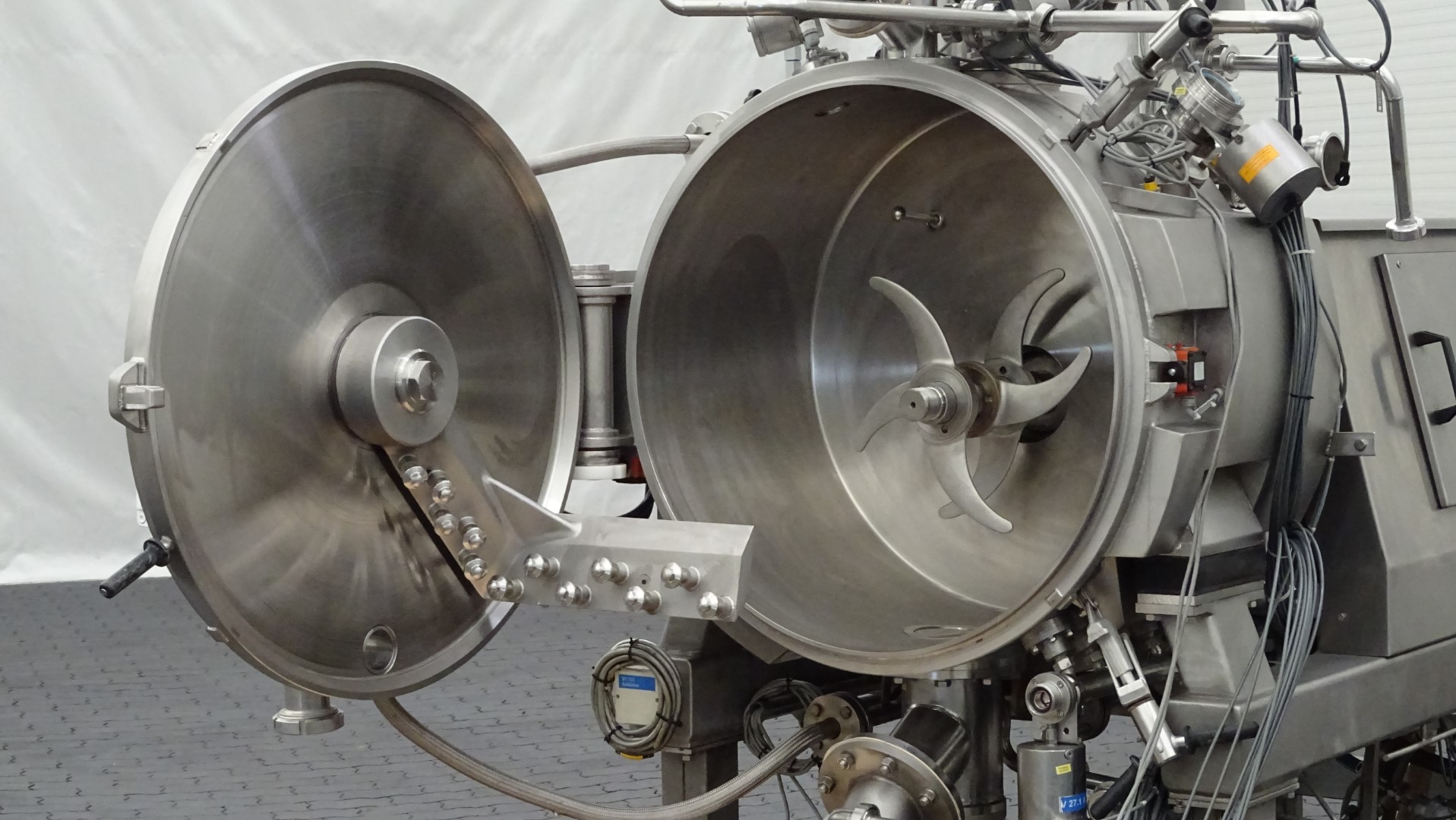

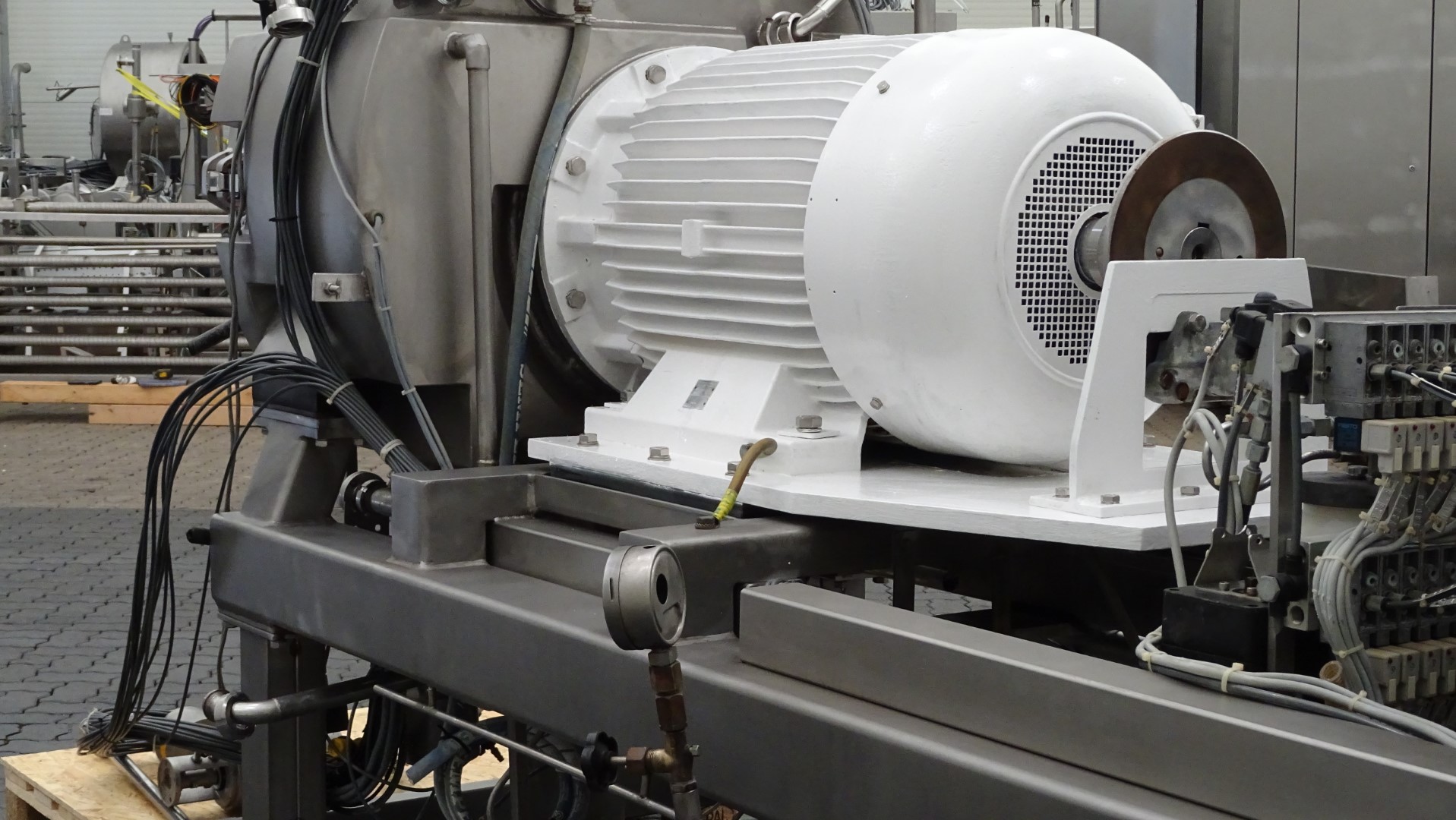

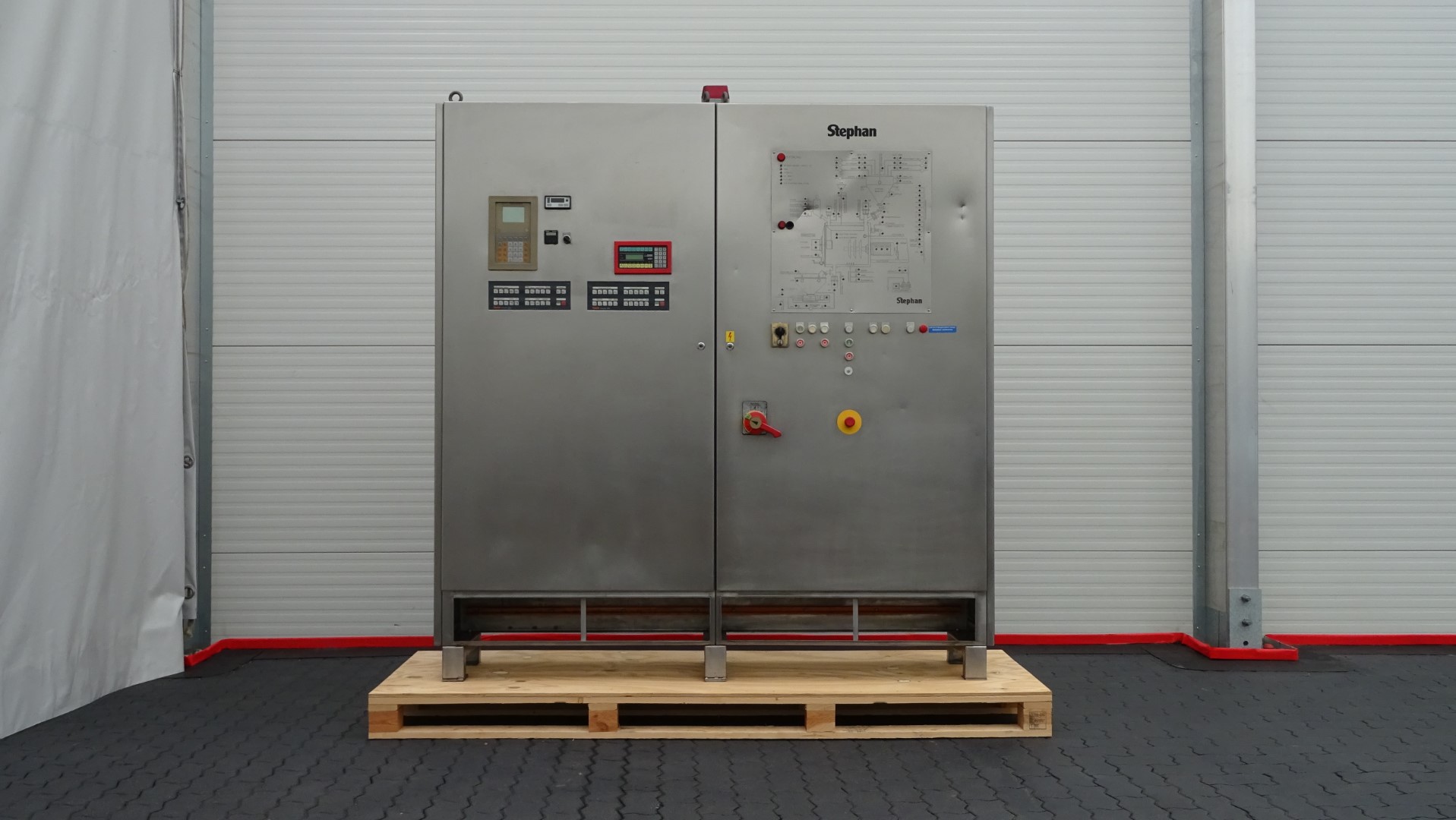

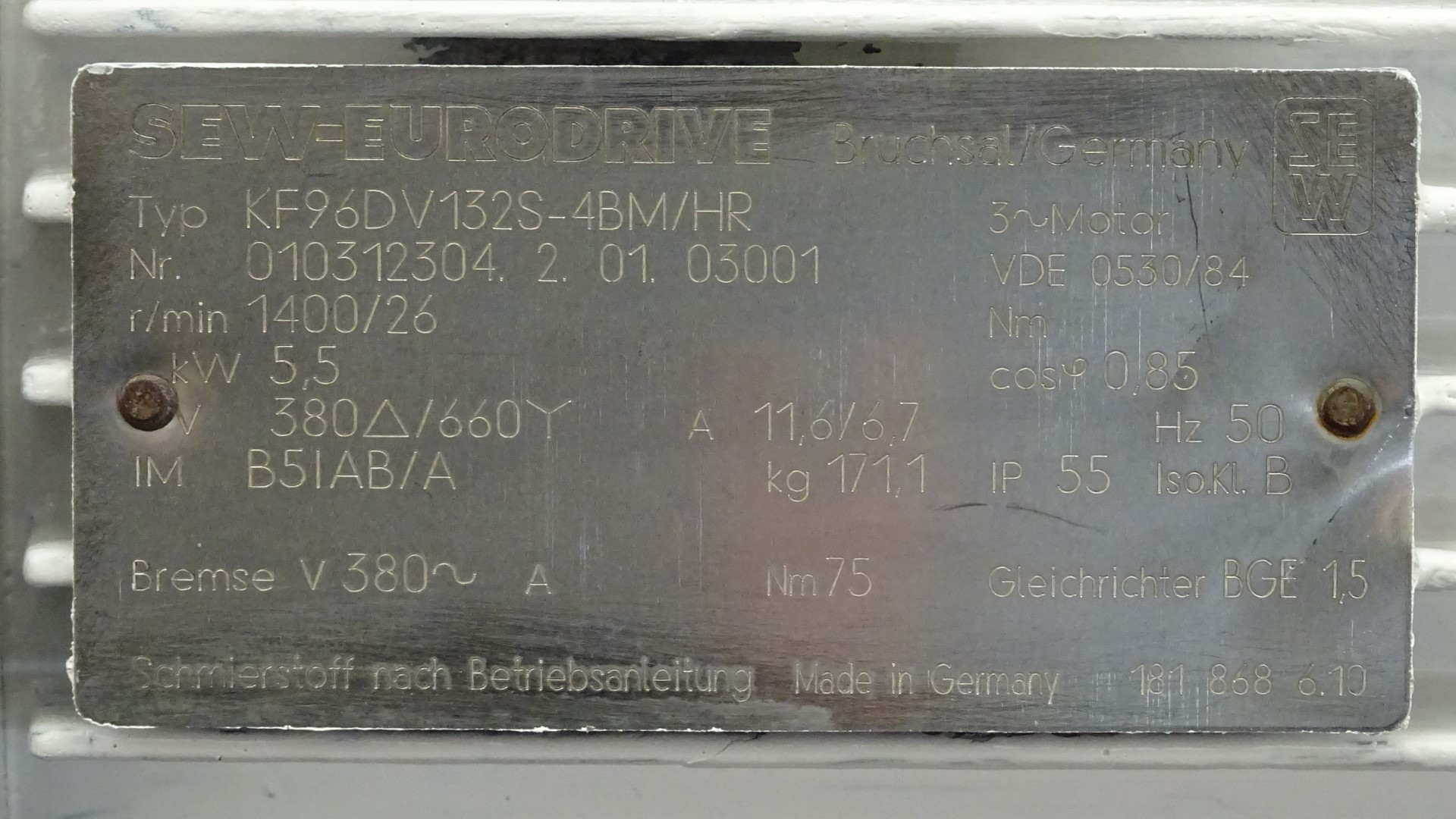

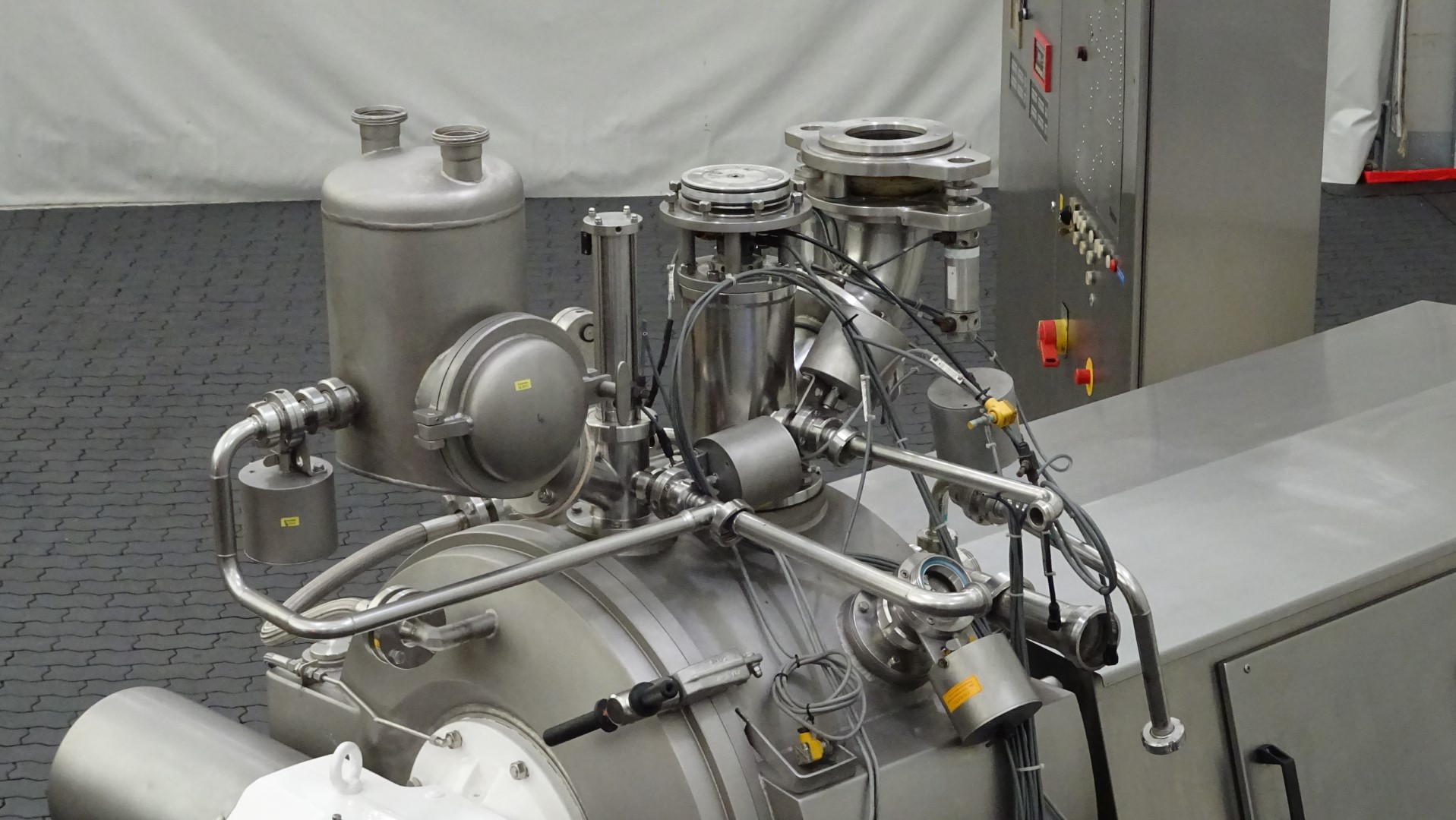

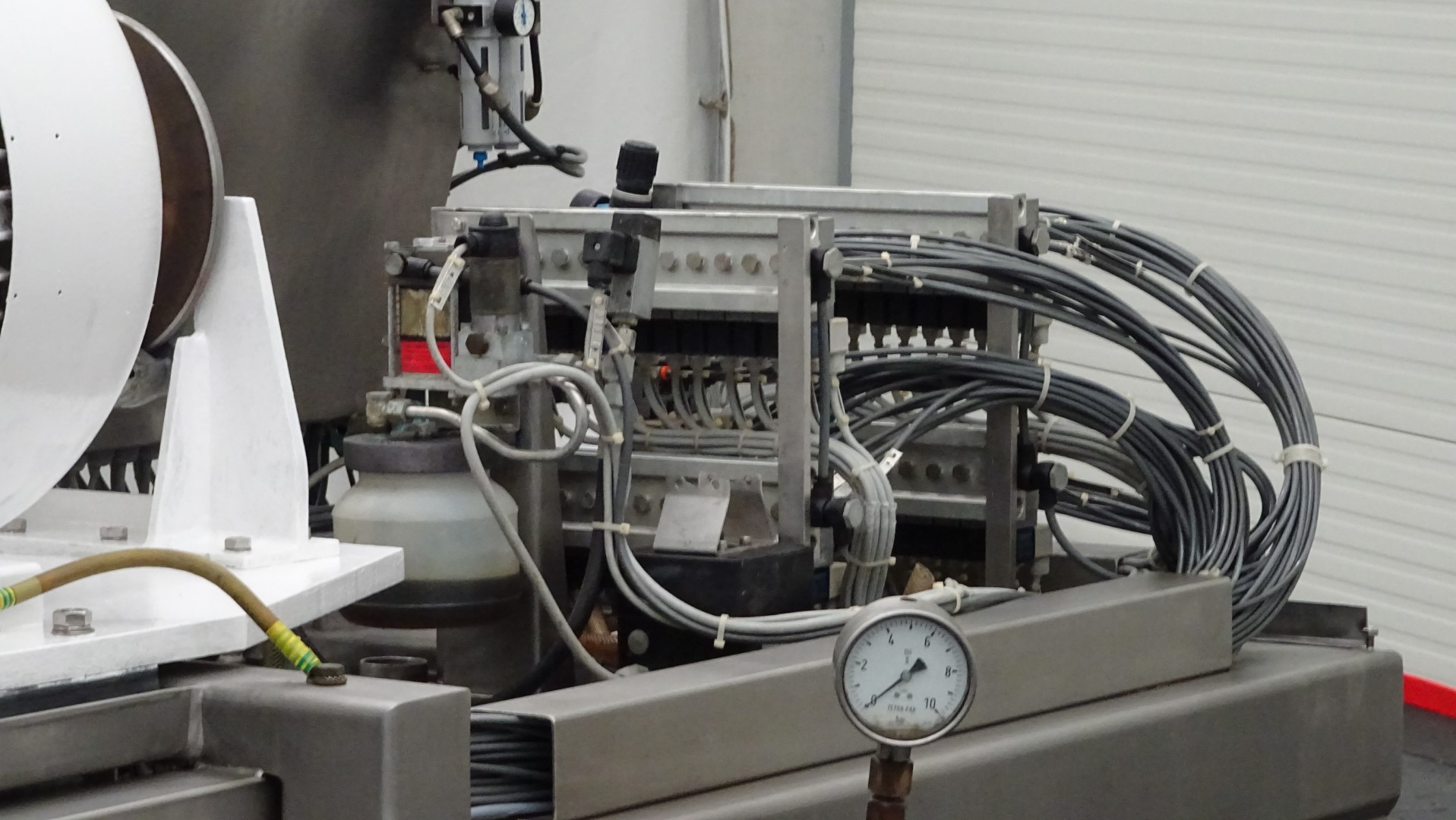

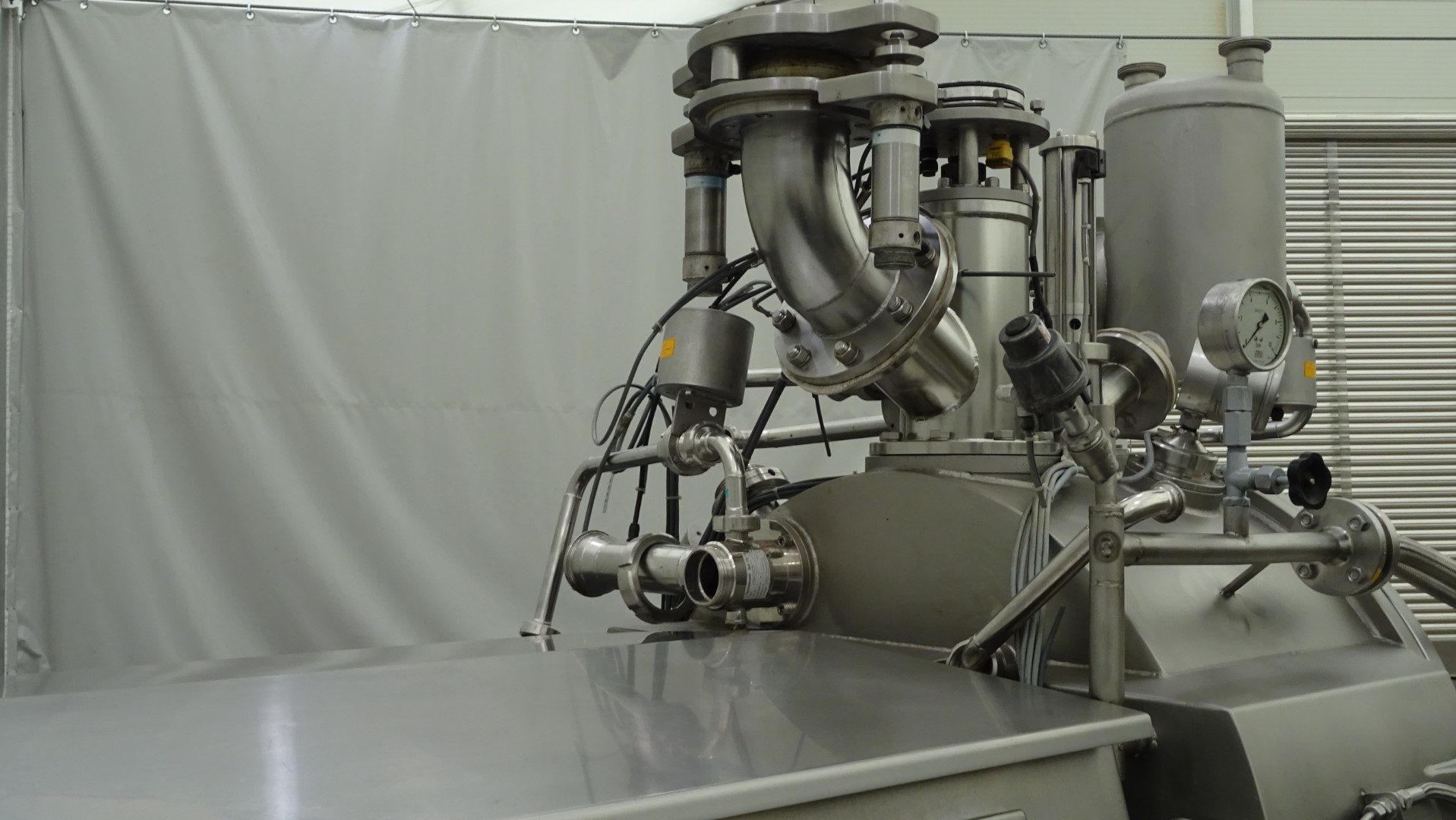

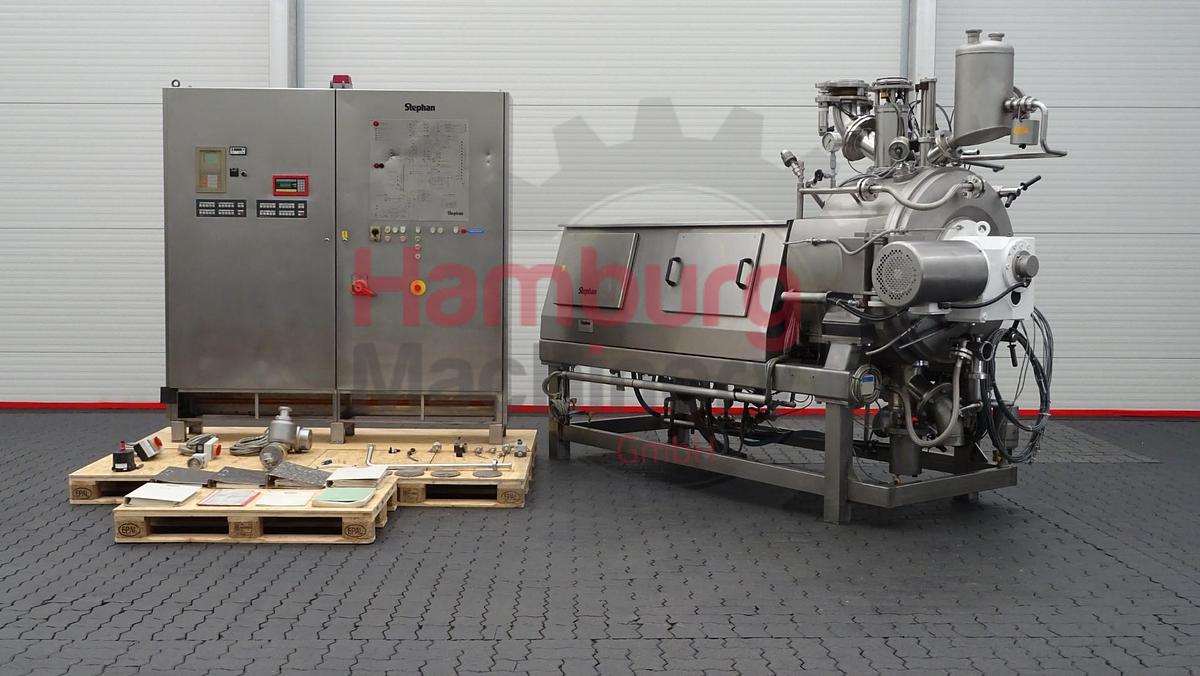

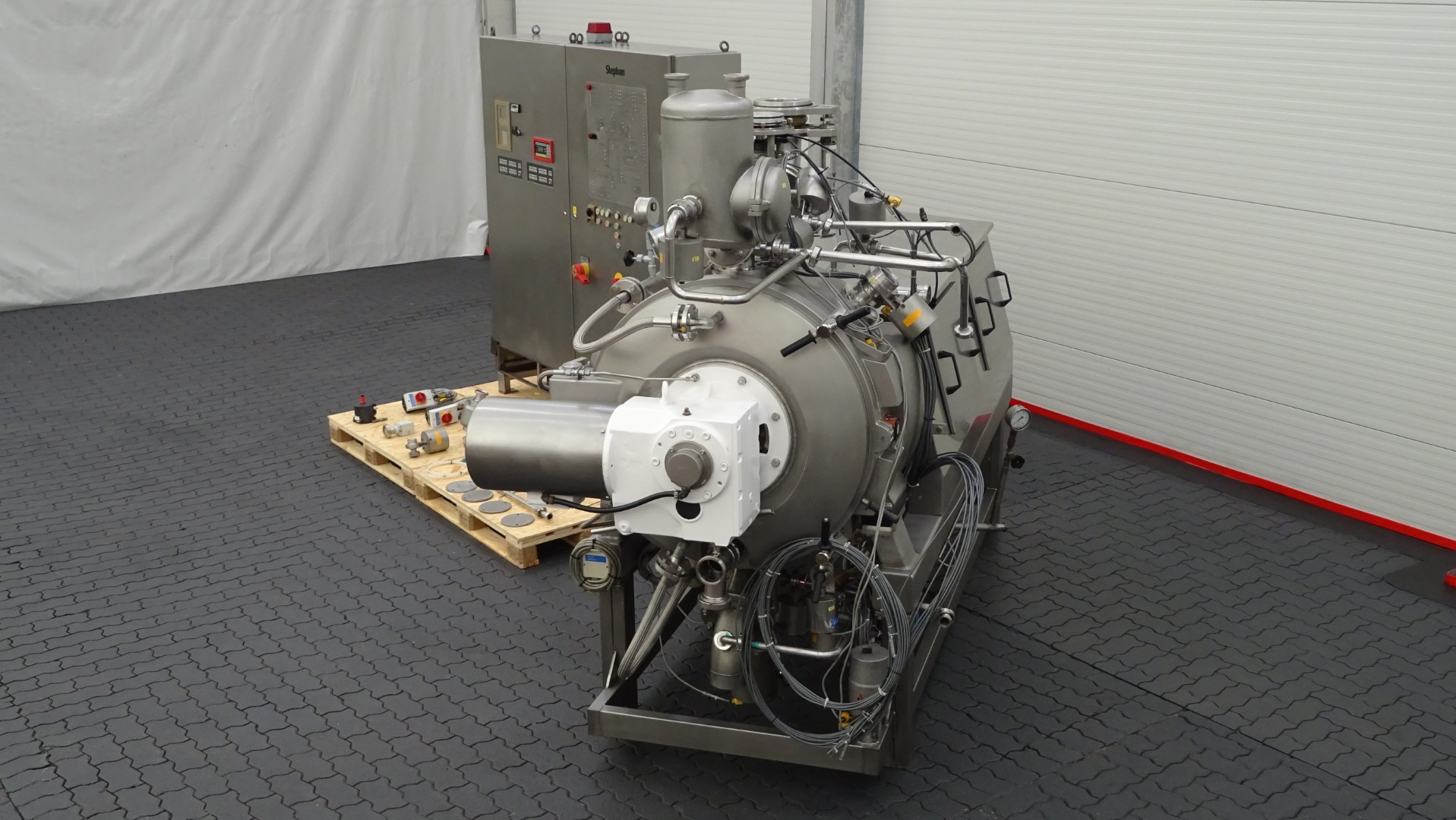

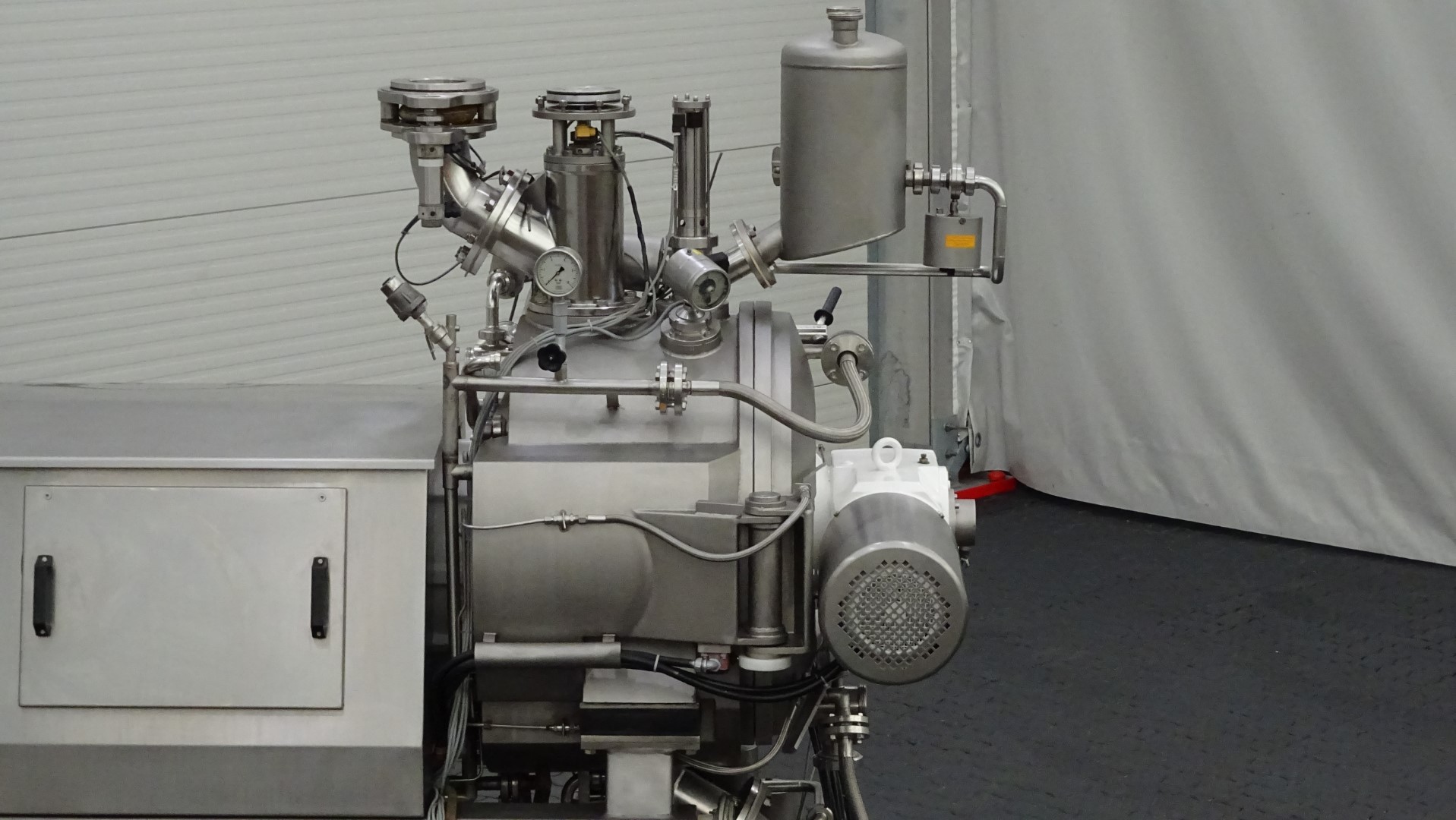

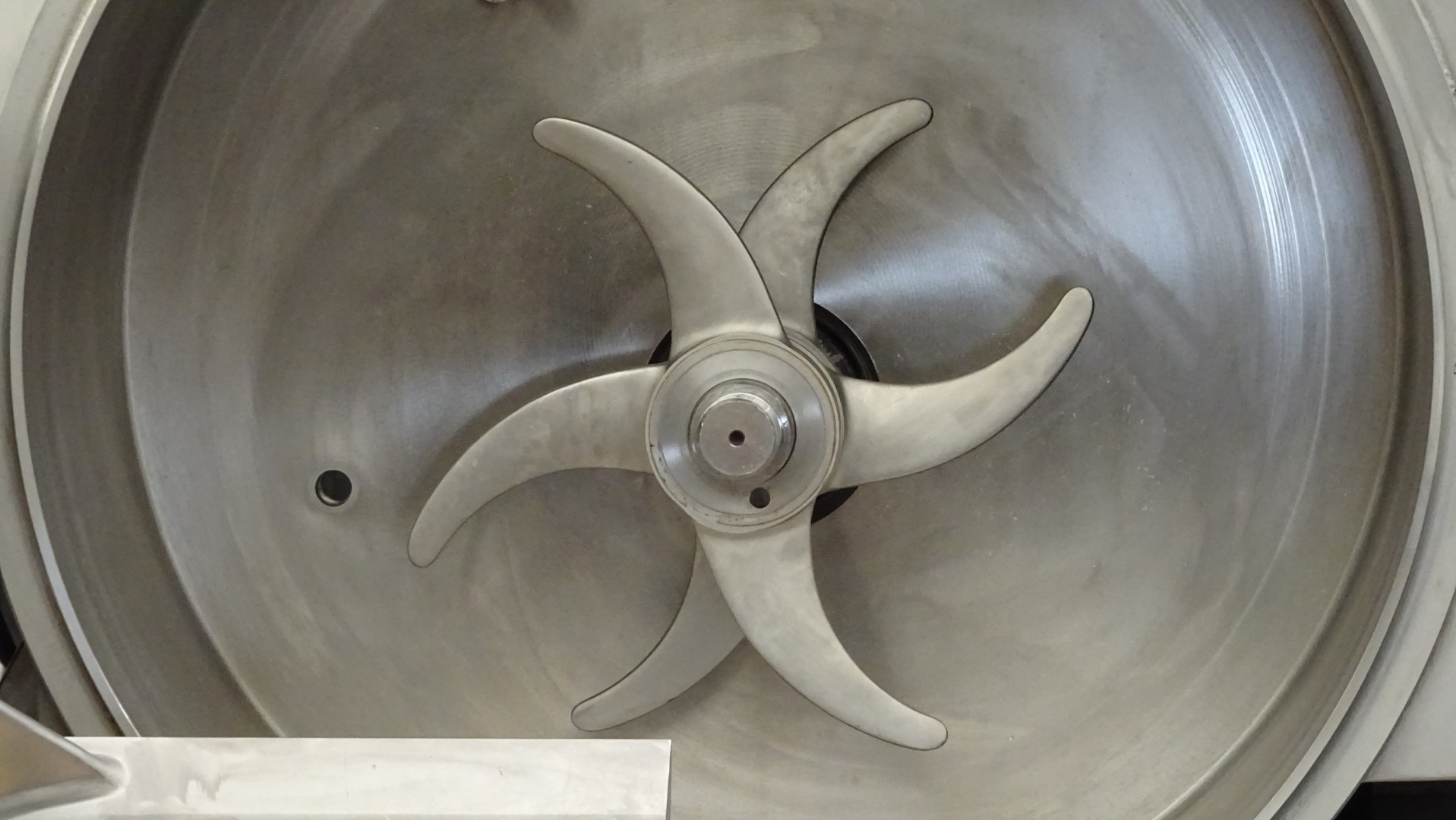

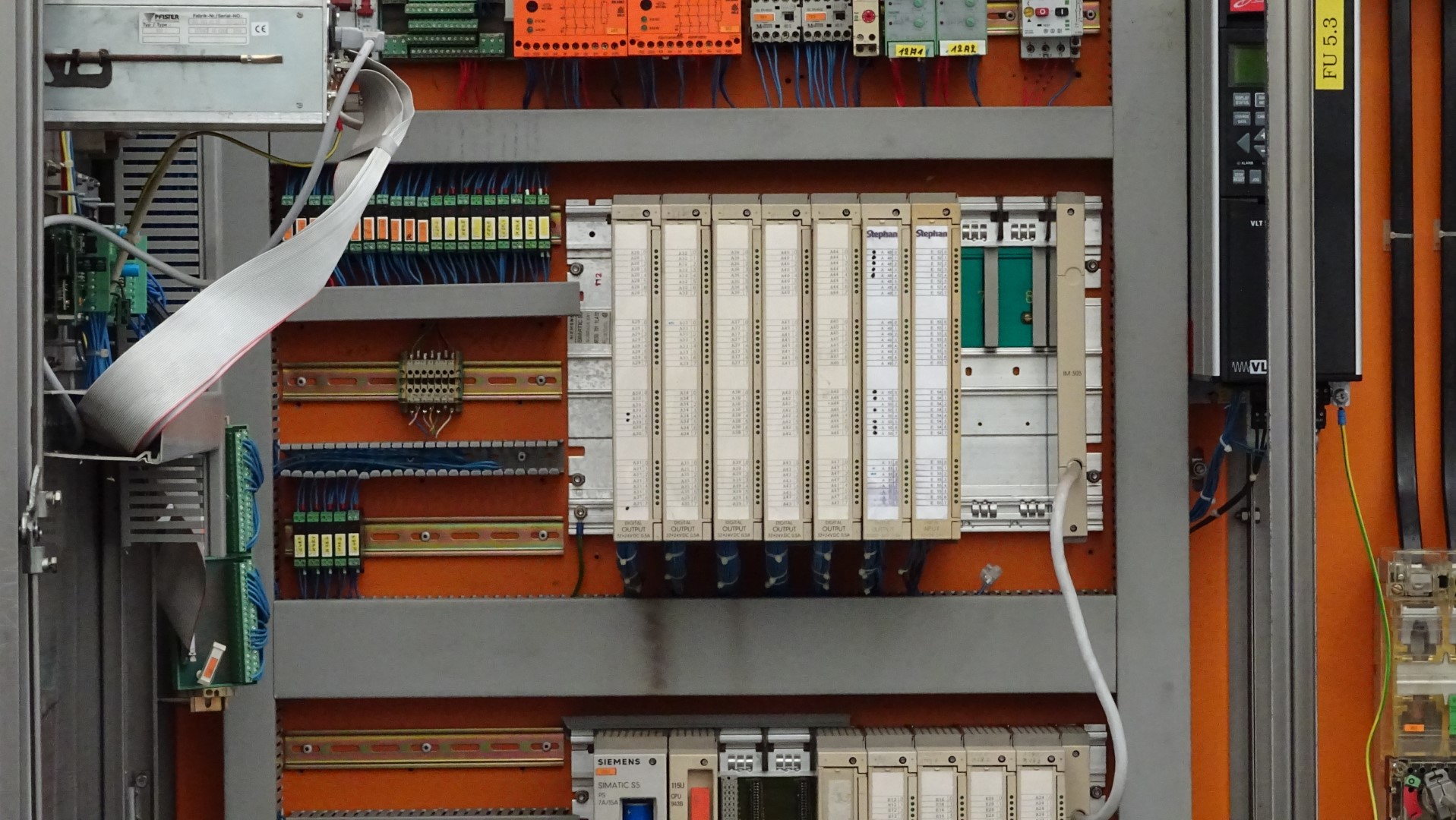

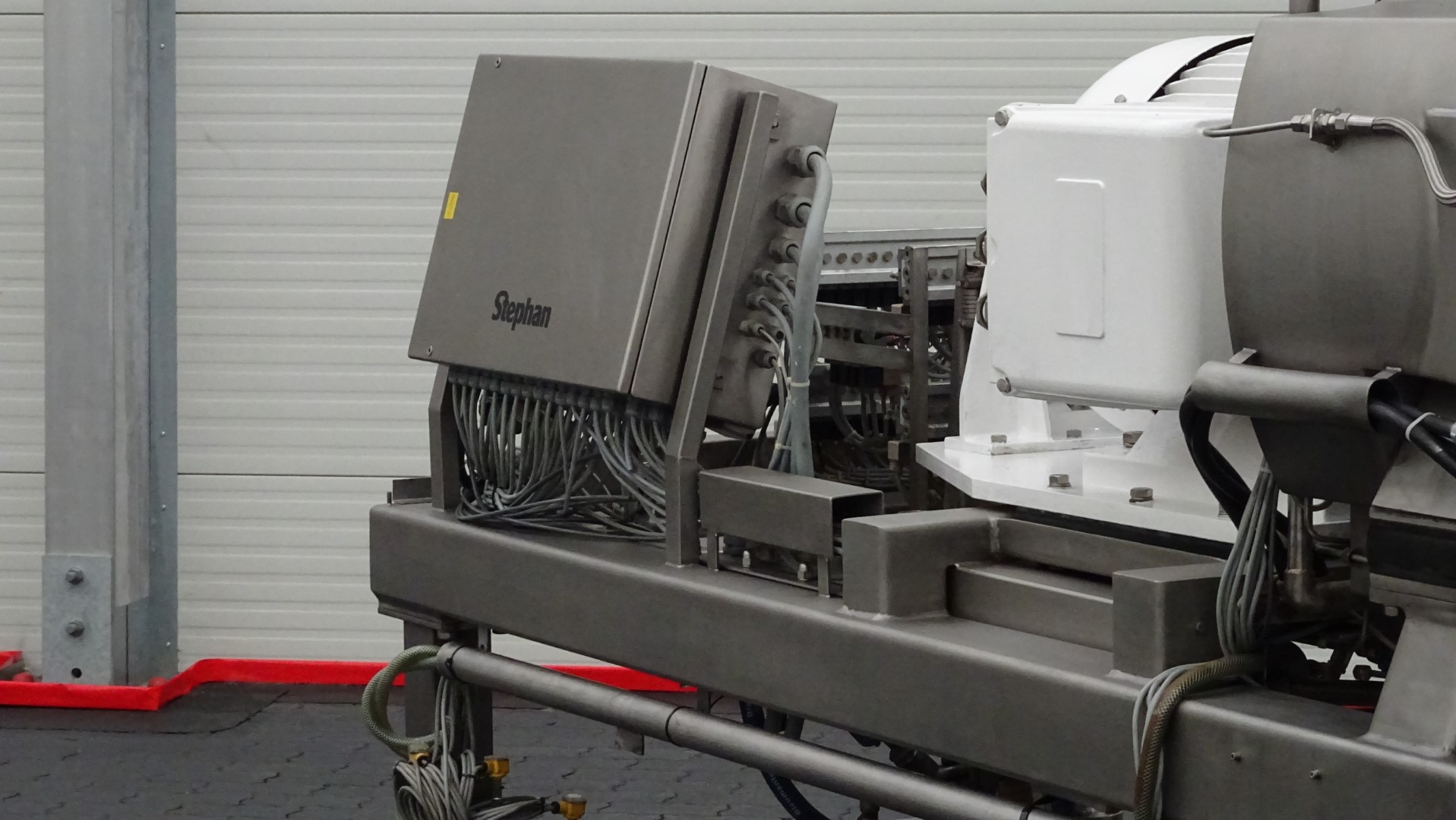

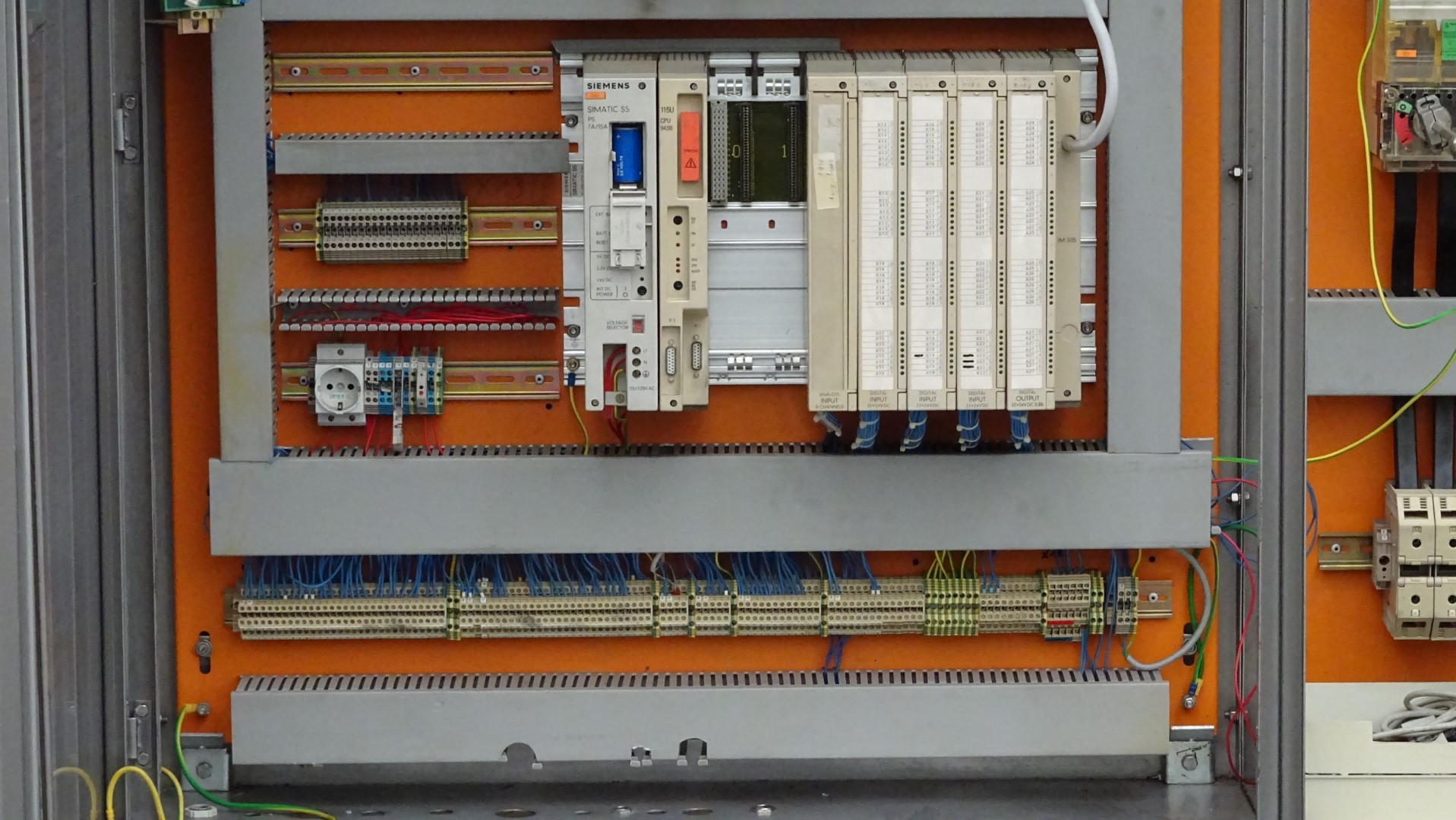

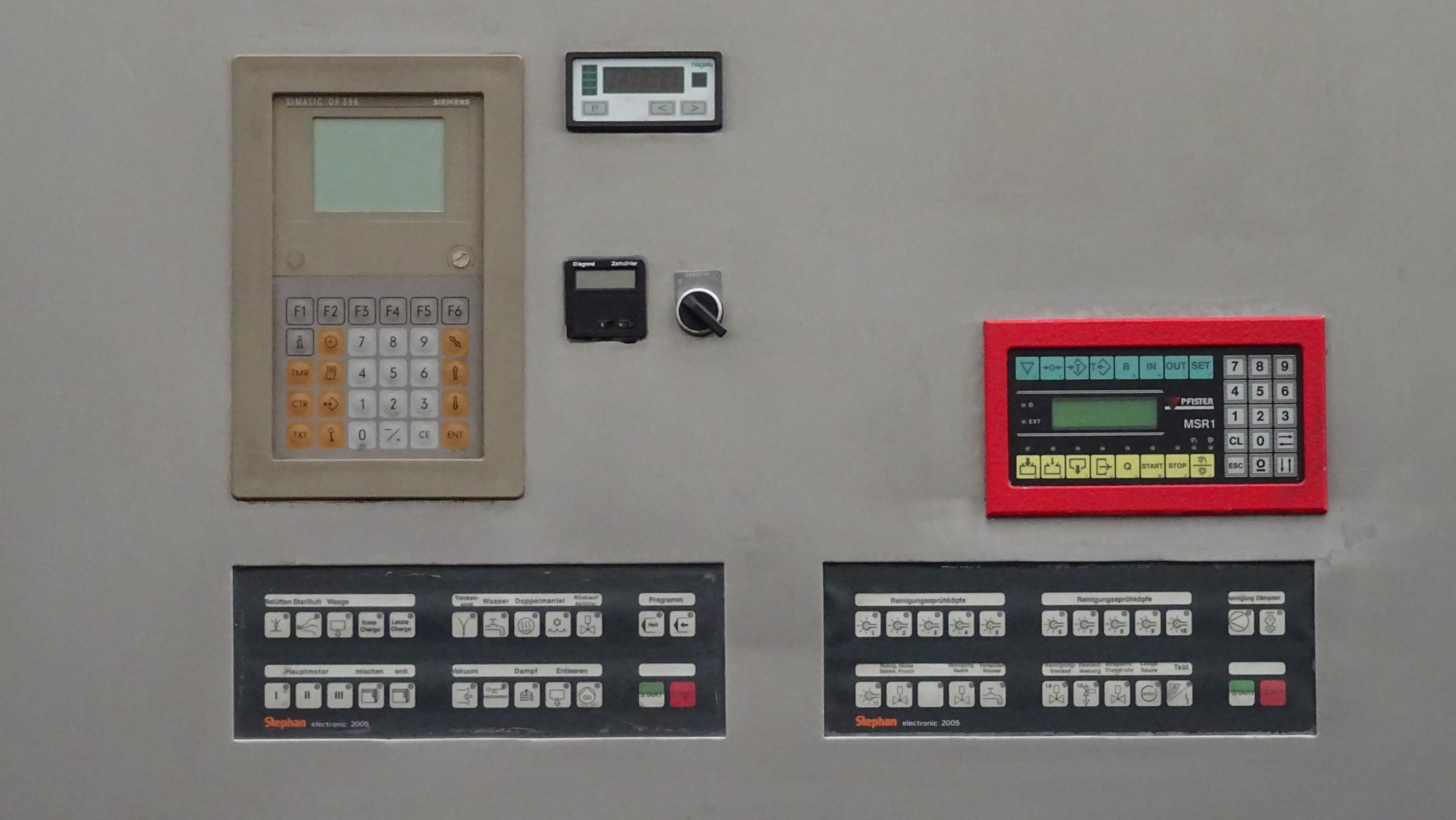

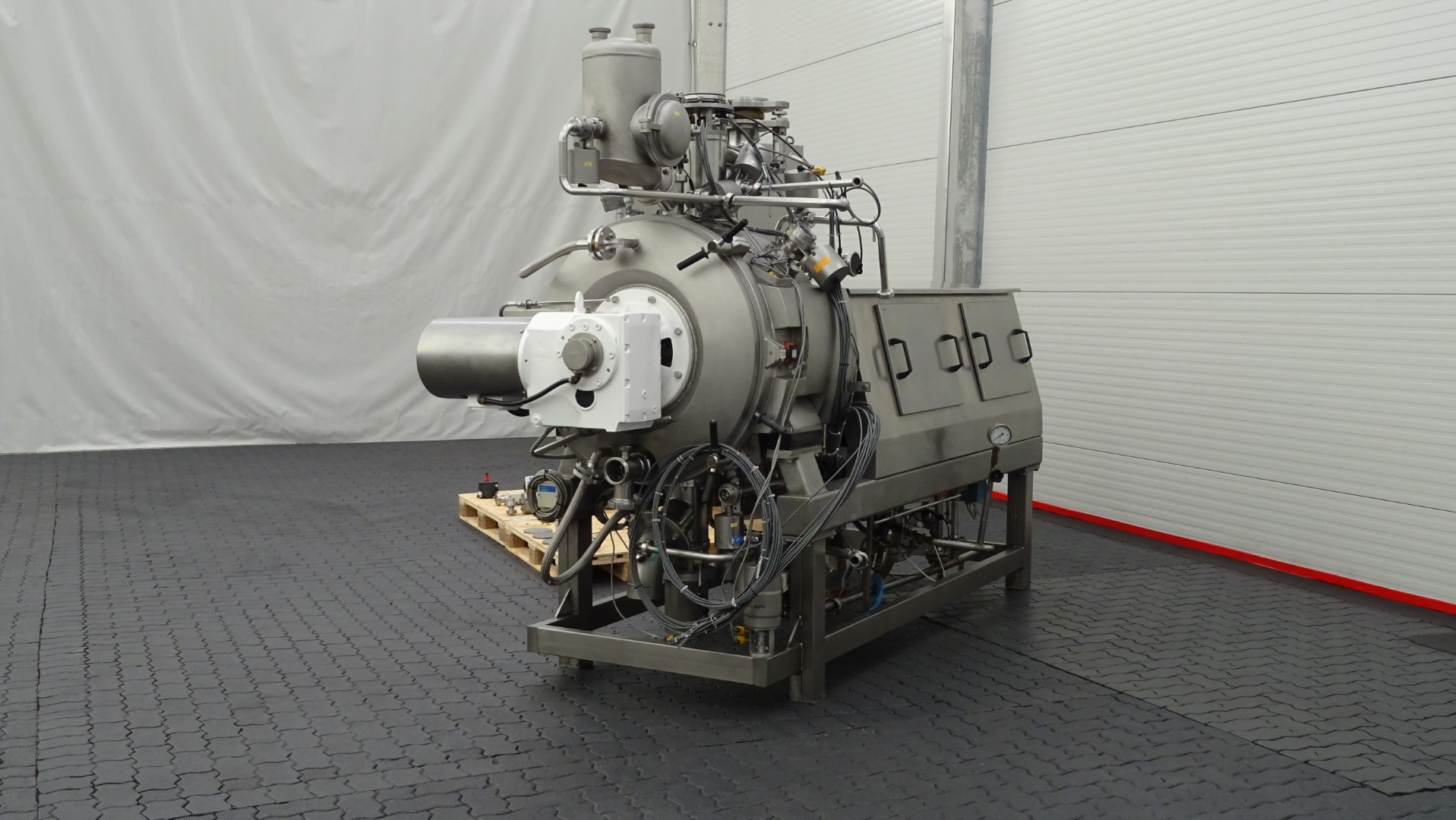

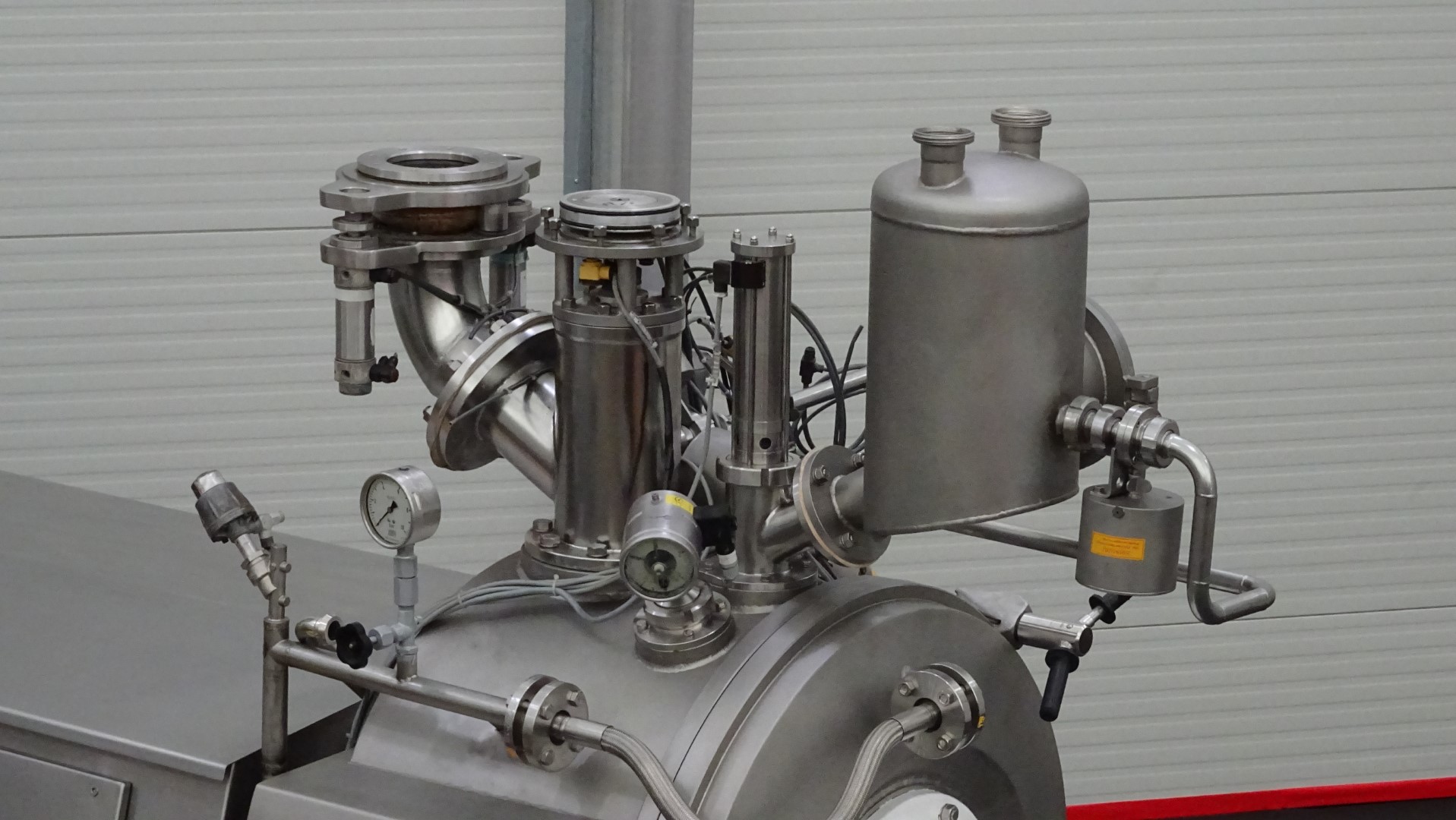

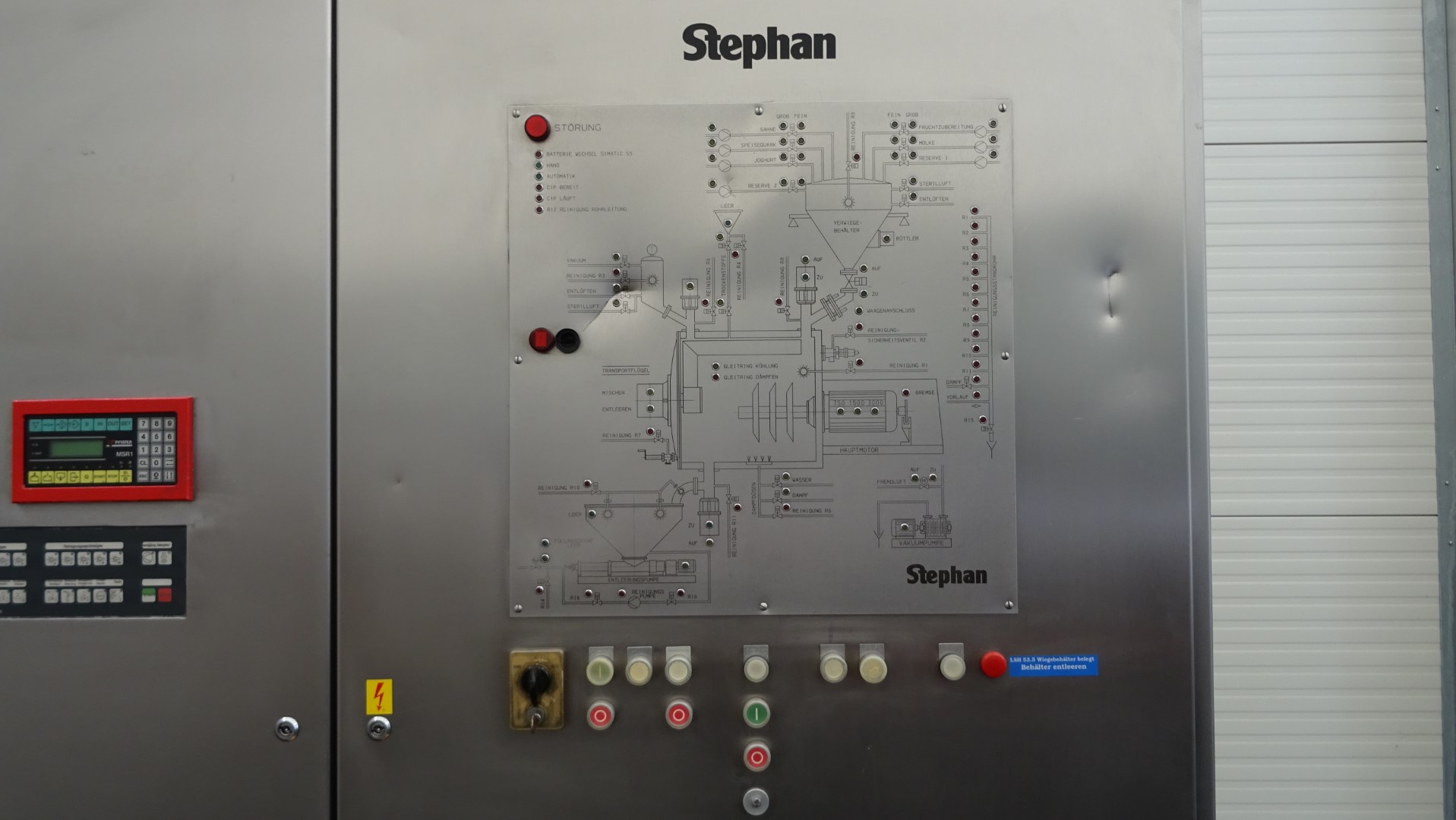

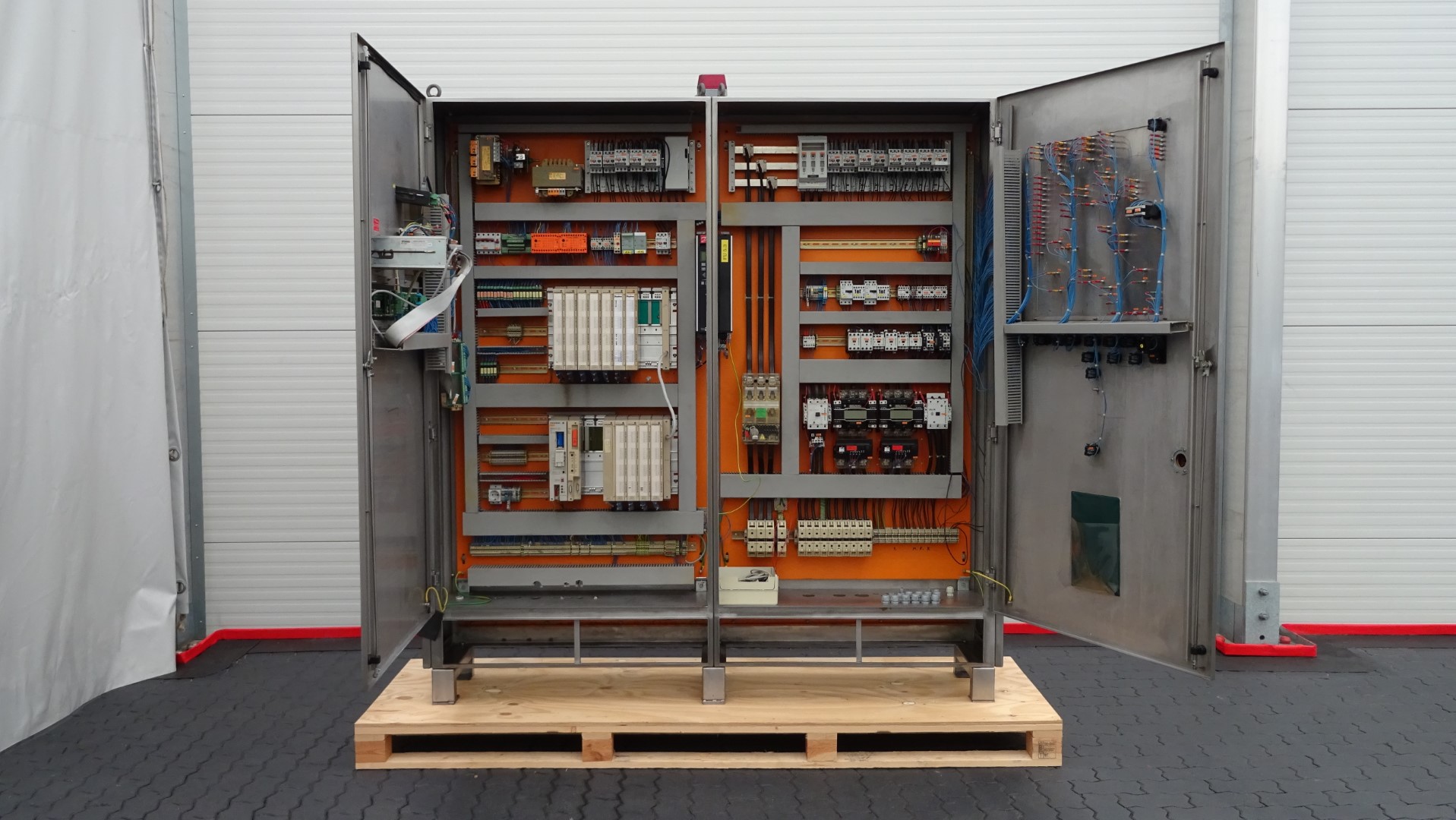

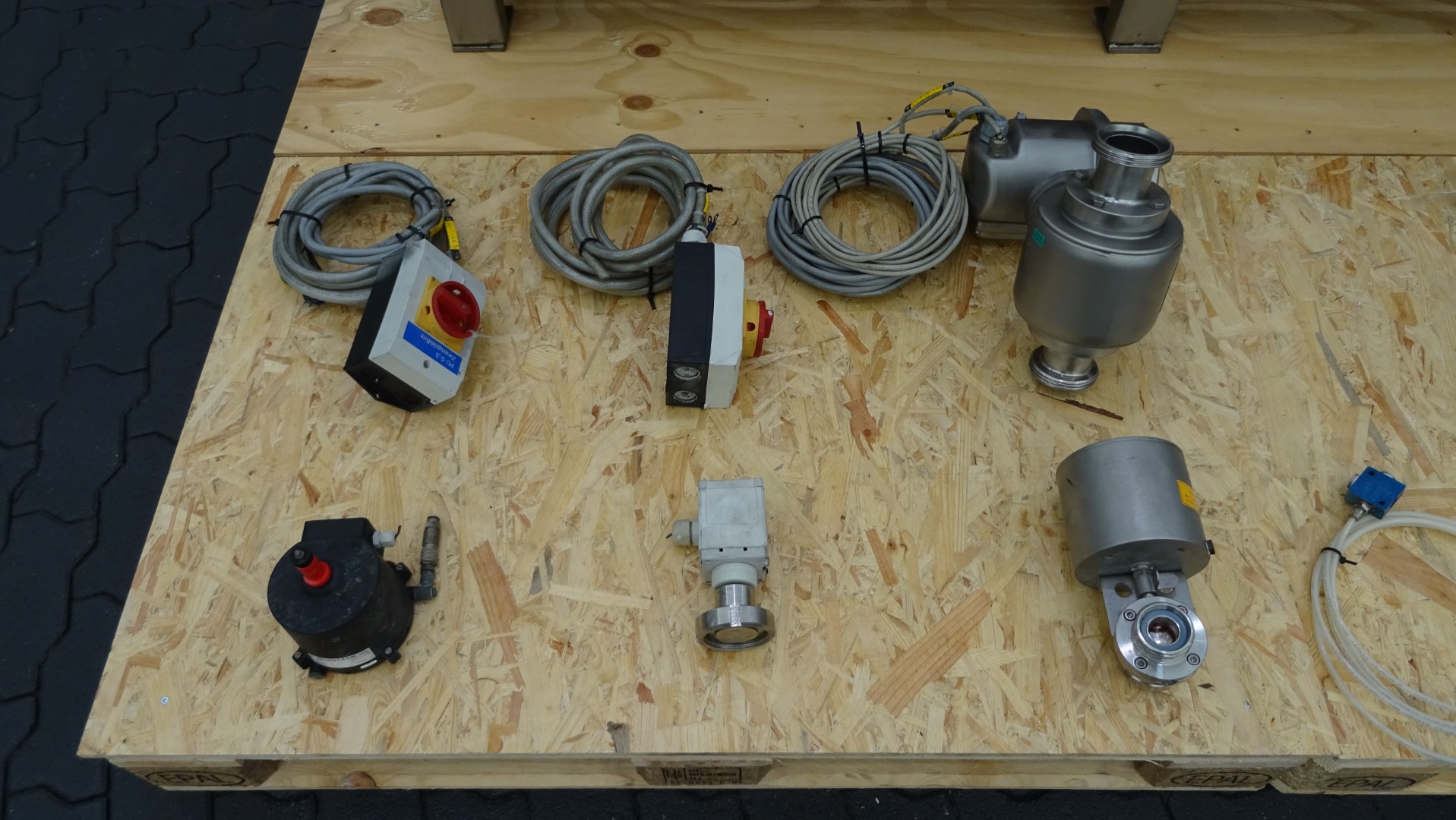

Stephan universal machine for producing processed cheese, convenience products, vegan spreads and confectionery. Formerly used in melted and cream cheese production (also vegan). Machine bowl with top valve (DN125) and bottom valve (DN125), lid, frame, side covers are all made of stainless steel. The bowl is equipped with double jacket for heating/cooling on the jacket including all valves, 4x direct steam nozzles for direct injection of (culinary) steam into the product, 3x double blund knives , max. working pressure in the bowl -1 / 0.3 bar, maximum temperature in the bowl 95 °C, bowl volume: 300 liters, 1x valve at the top for the main product, 1x outlet valve at the bottom for the outlet of the finished product, CIP Spraybowl inside the bowl, 1x connection for pneumatics controlled ingredient valves on the side of the bowl with valve. Vacuum tank on top. Double-walled lid with scraper on the wall (electric drive 5,5 kW - 26 rpm) and 2x manual tension clamps. Main engine for the 3x mixing blades: 380 V - 30 / 45 / 60 kW - 750 / 1.500 / 3.000 rpm - 50 Hz. Control panel with Siemens Simatic S5-115 U PLC control. Operating instructions and copy of the program on diskette.

Additonal Features:

Excluding:

• Spacer bushings between the blades and the nut to lock the blades in place.
• Temperature sensor in the product.
• Pressure relief valve.
• Vacuumpump.
