Gouda Euroblock Cheese Plant for 100.000 liter of milk per day - 10.000 kg of Gouda cheese per day

Gouda Euroblock Cheese Production Line for Sale due to the installation of a larger cheese production line within the existing cheese factory. The plant was designed for a milk intake capacity of approximately 100.000 litres per day, producing around 10.000 kg of Gouda cheese per day. The line manufactures Gouda cheese in Euroblock format, with dimensions of 500 x 300 x approximately 100 mm and an average weight of 15 kg per block. This corresponds to a daily production of approximately 650 Gouda cheese blocks.

The production line consists of the following main components:

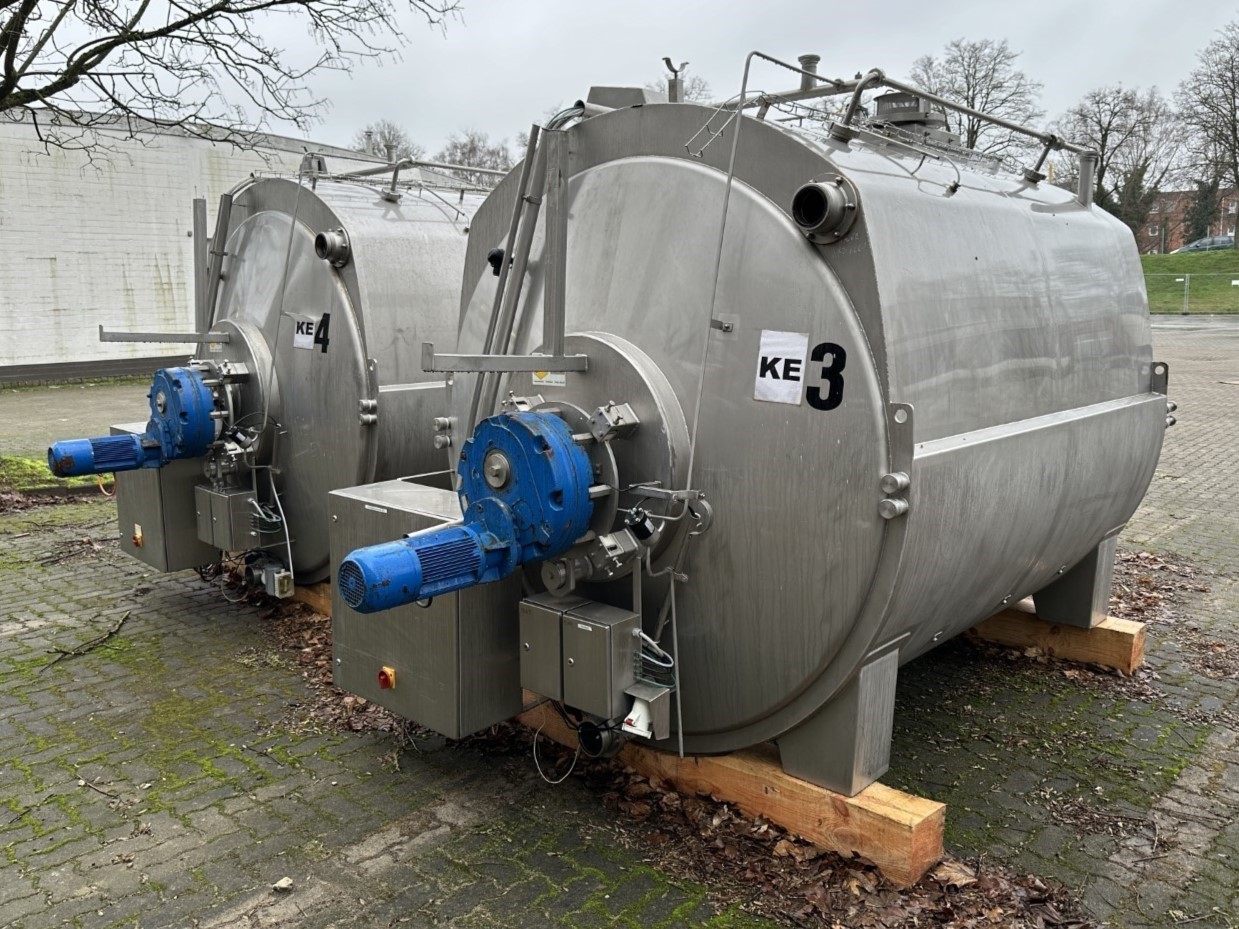

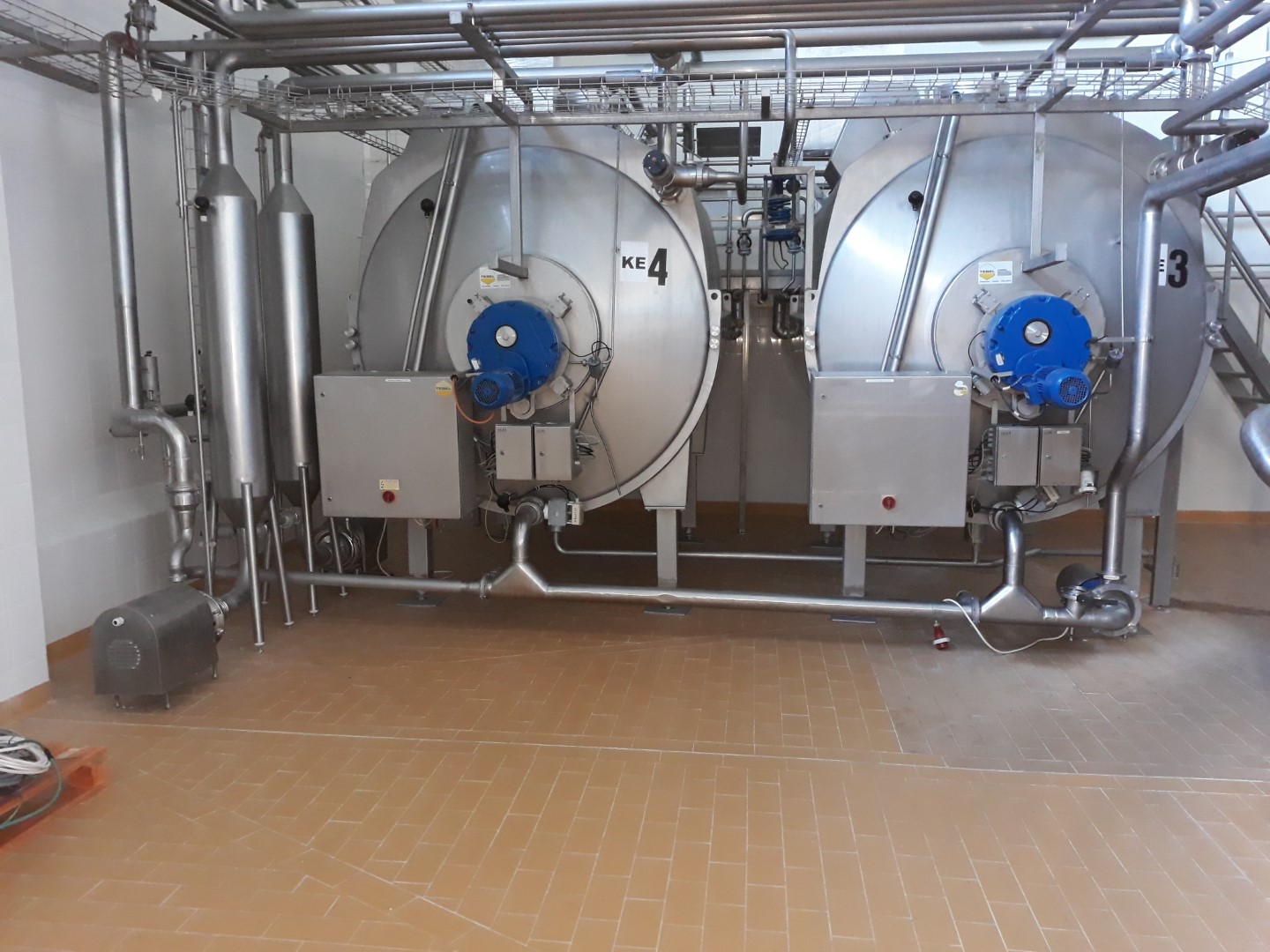

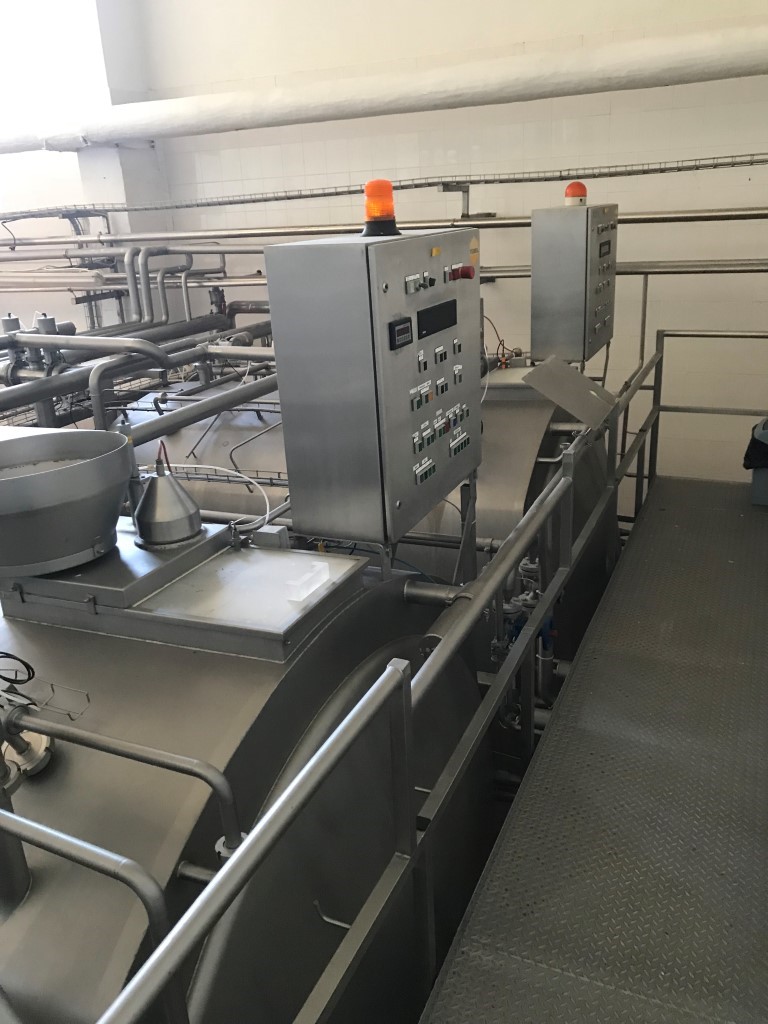

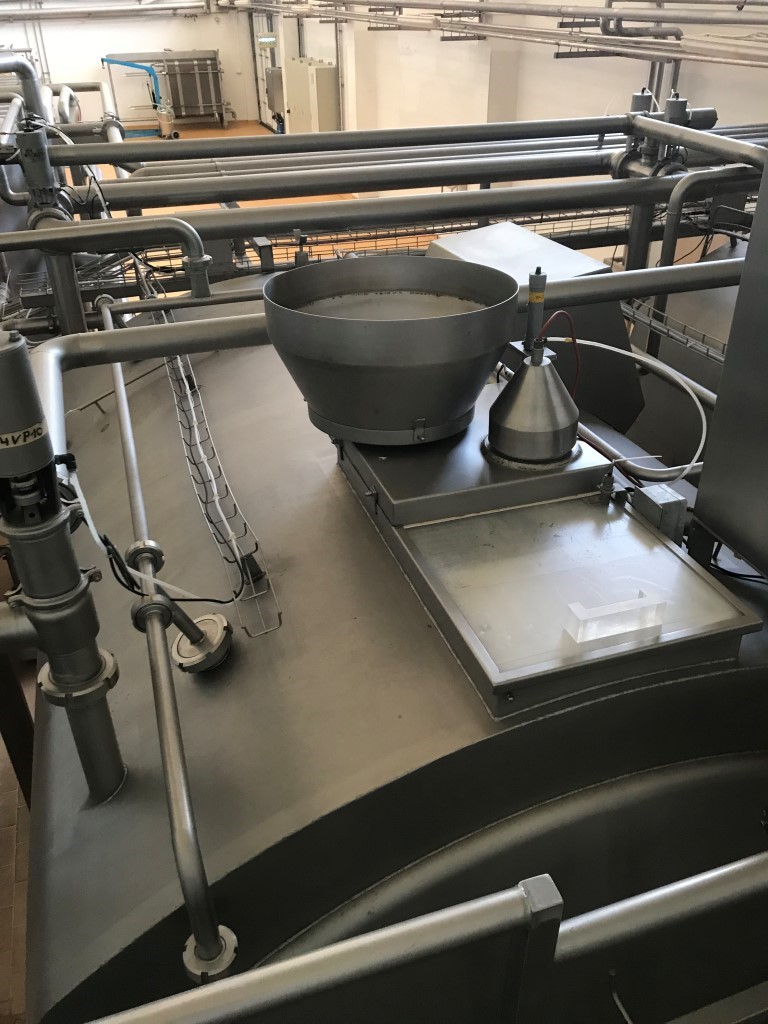

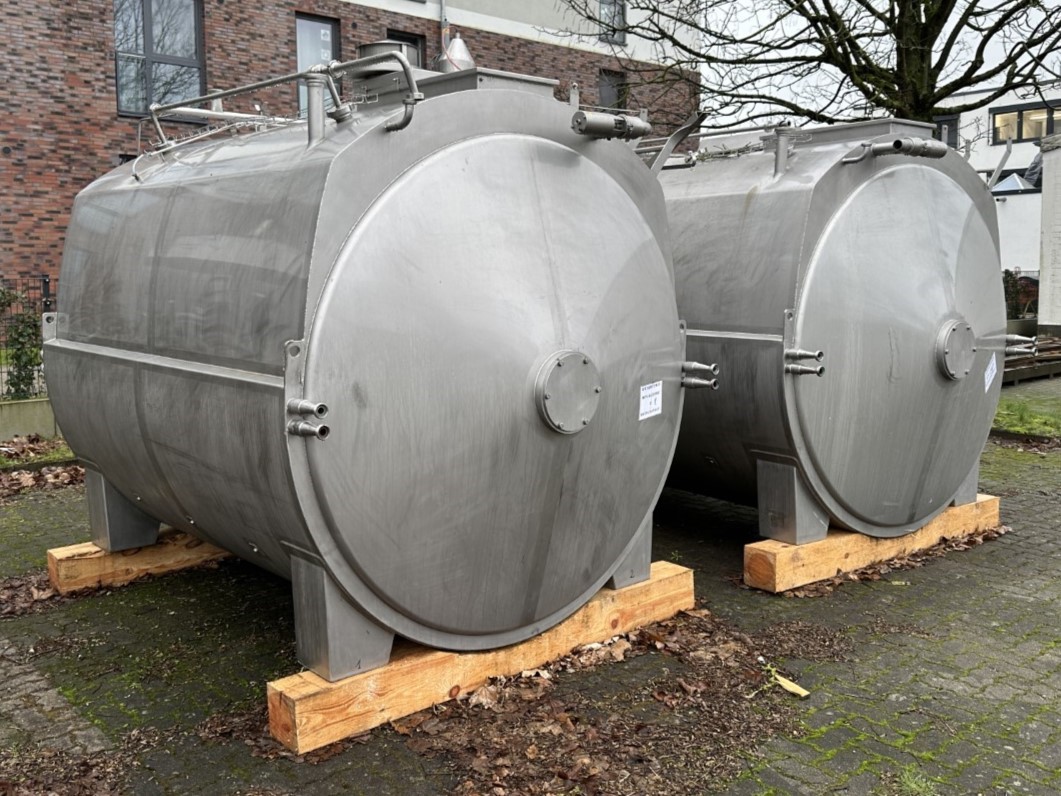

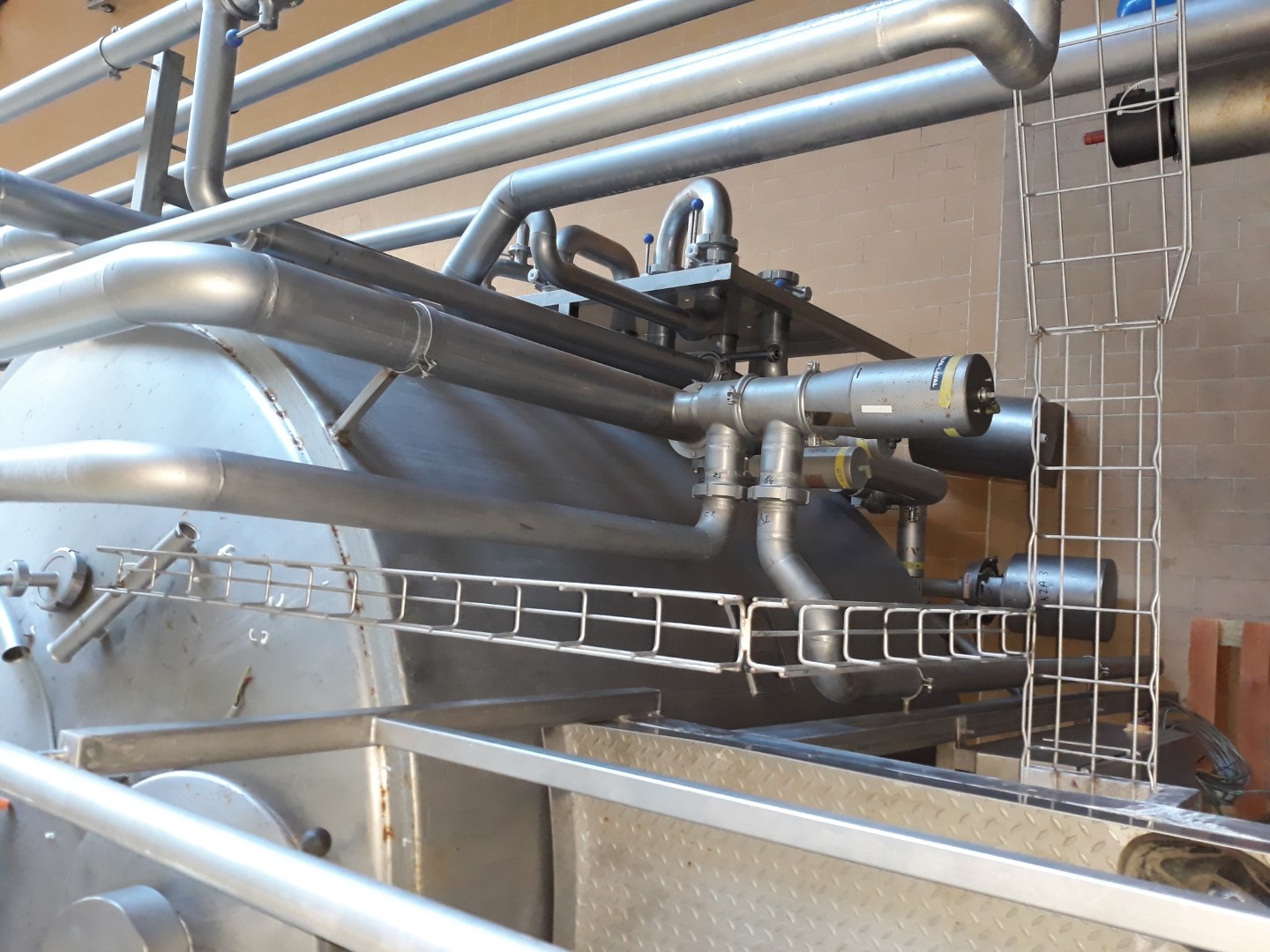

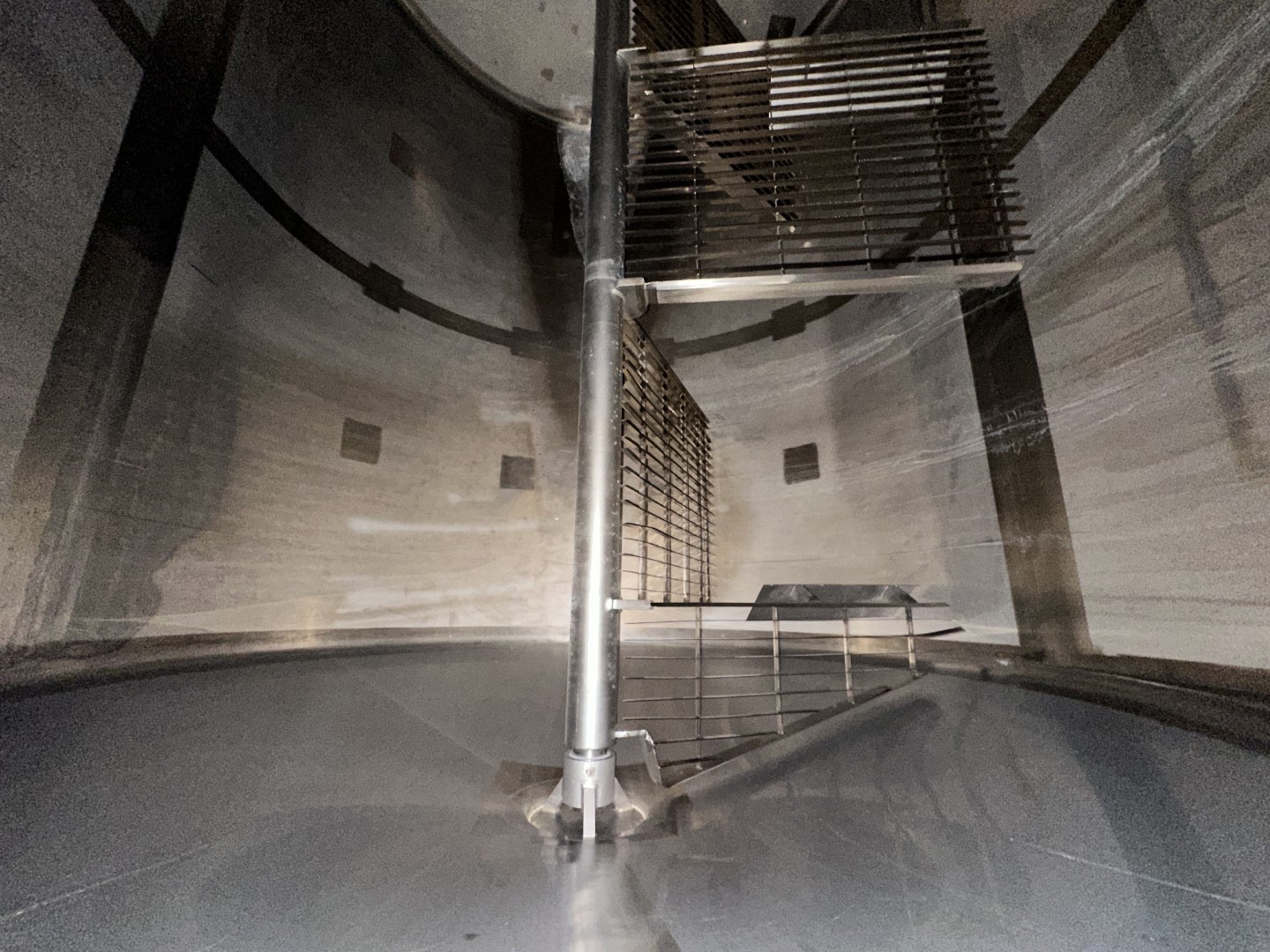

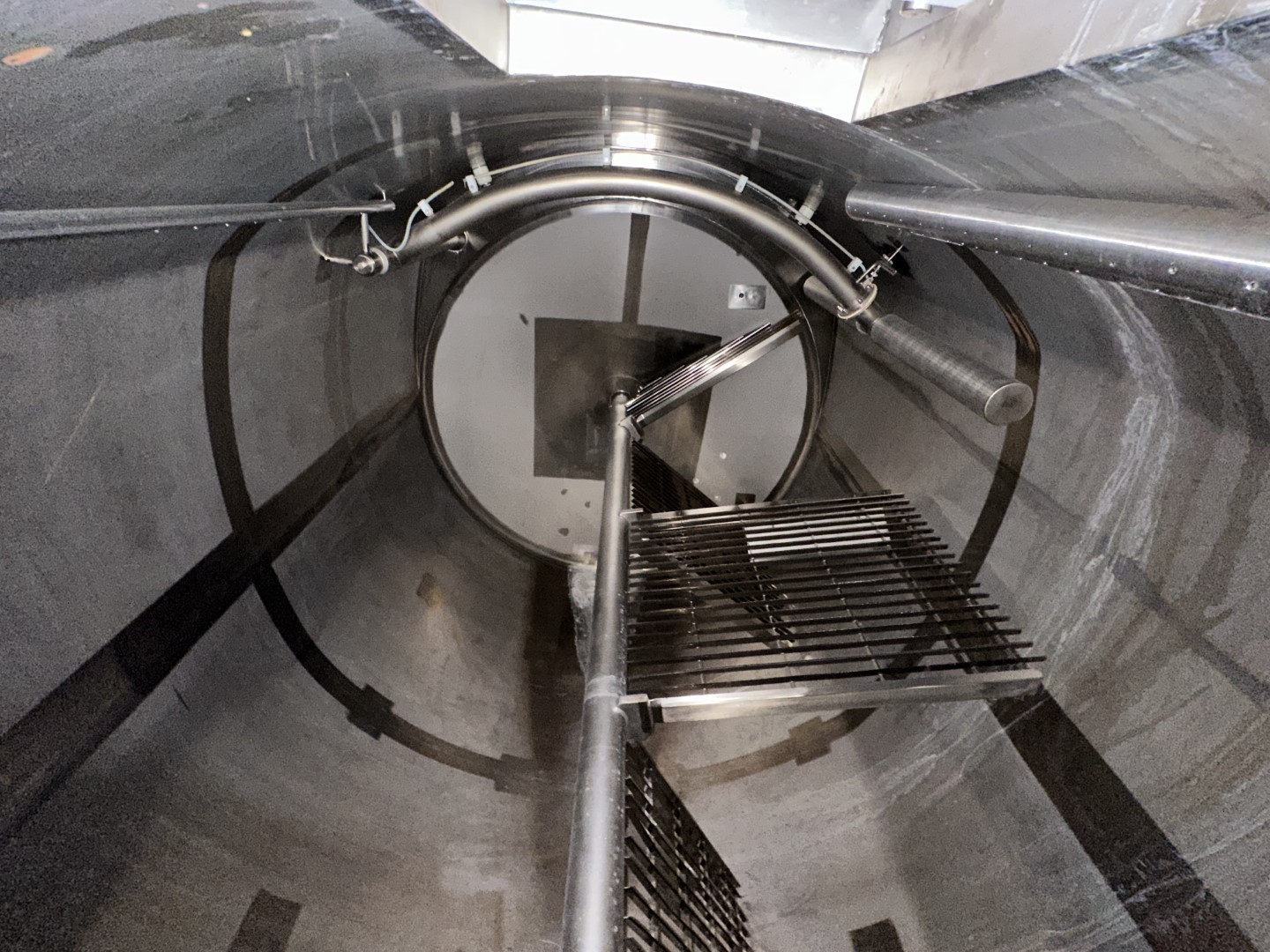

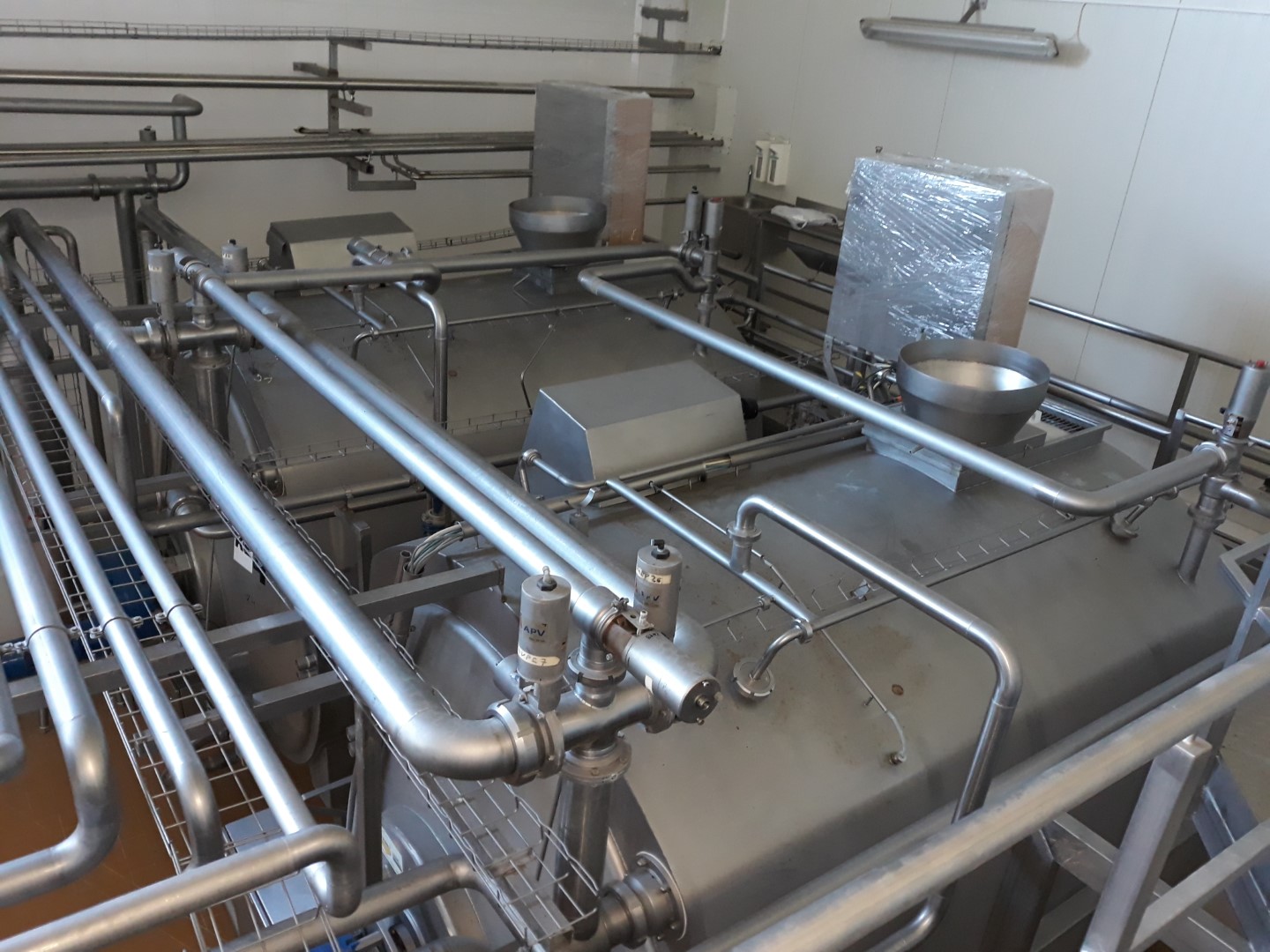

• 2 x Closed Cheese Vats with Whey Extraction Sieve.

Manufacturer: Tetra Pak Tebel

Type: OST IV

Year: 1991

Capacity: 8,000 litres each

Cheese Vat 1:

Stocknumber: #1005

https://www.hamburg-machinery.com/listings/4811812-used-cheesevat-tebel-tetra-pak-ost-iv

Cheese Vat 2:

Stocknumber: #1006

https://www.hamburg-machinery.com/listings/4811819-used-cheesevat-tebel-tetra-pak-ost-iv

• Curd - whey buffer tank.

Volume: ± 10.000 liter.

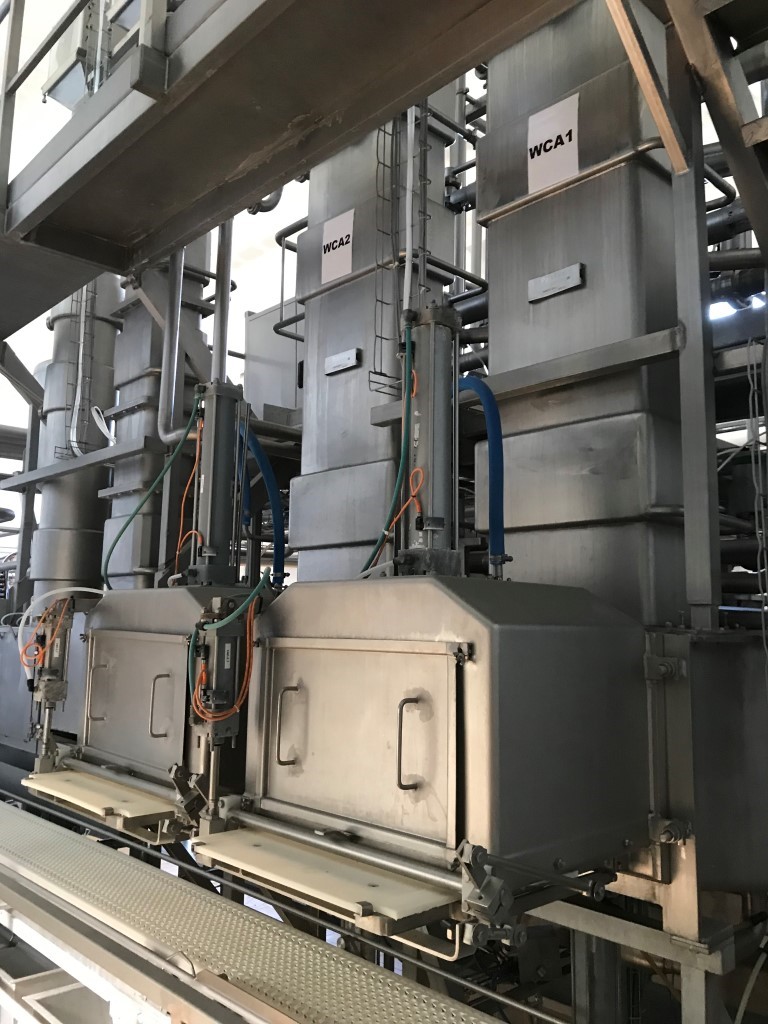

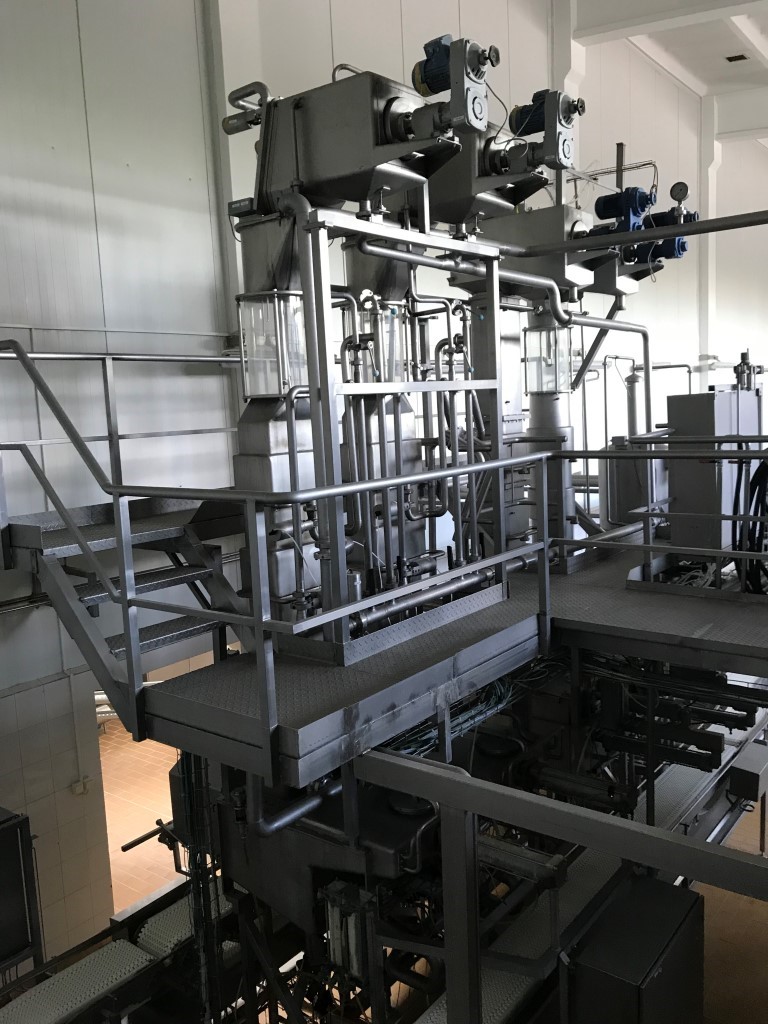

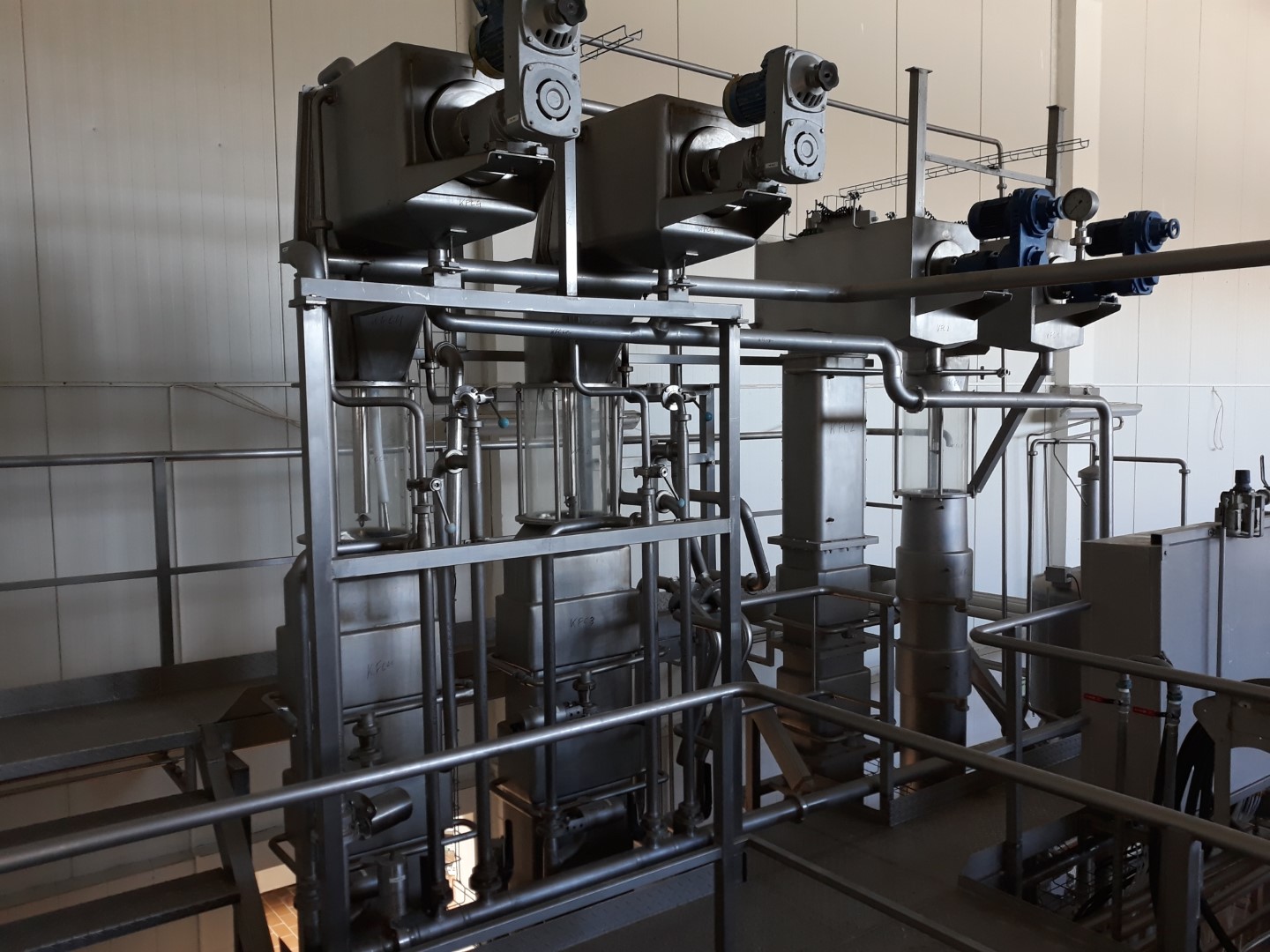

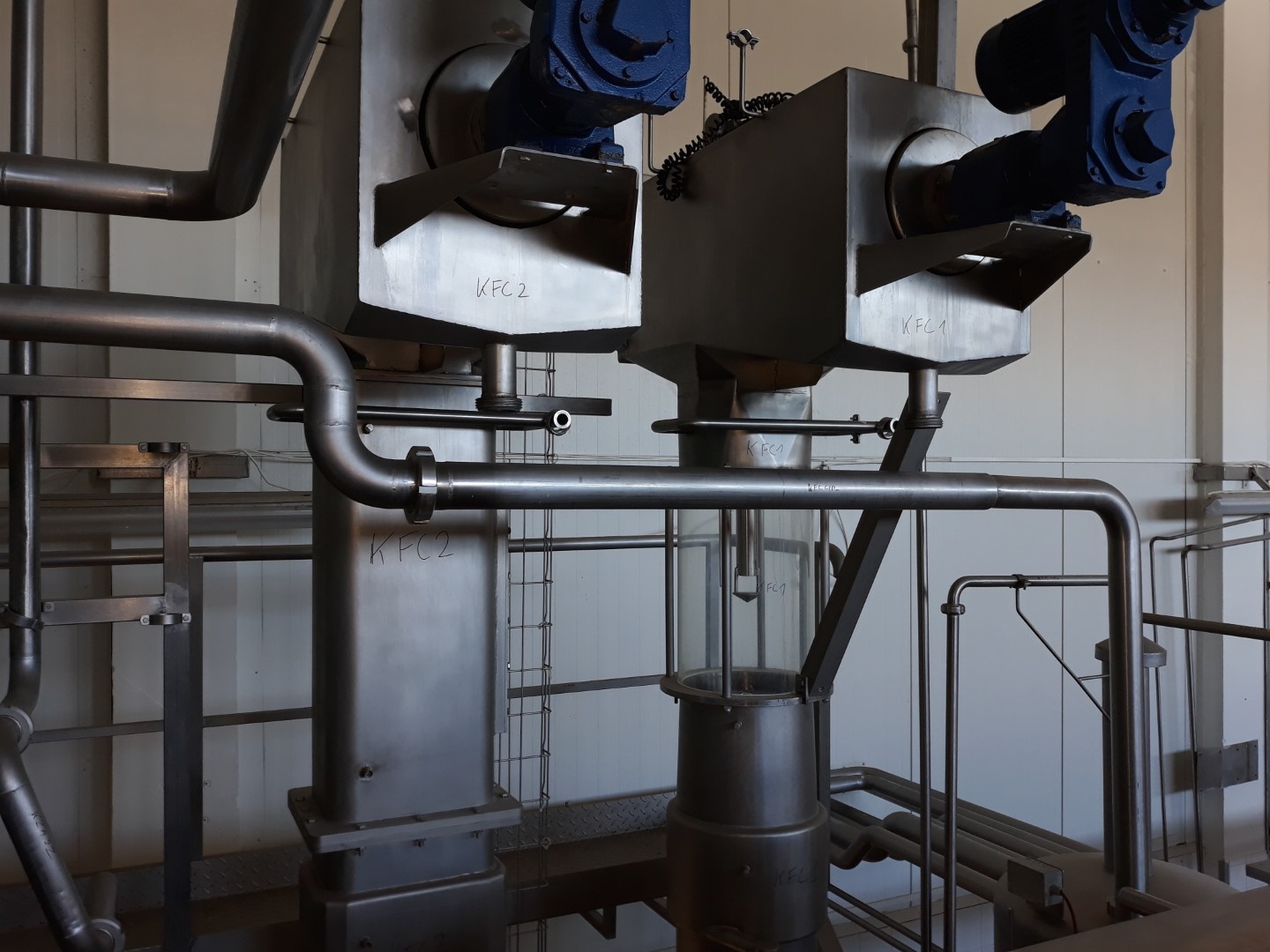

• Vertical continuos whey drainage and cheese forming system

Fully automatic and continuous system for draining of whey, gravity pre-pressing, accurate cheese block formation and mould filling in one sequence.

Manufacturer: Tetra Pak Tebel - Protec

Model: Casomatic with 4 towers

Equipped with 2 Euroblock columns (50x30 cm), 1 round mould column (diameter ± 32 cm) and 1 square mould column.

Please note: the round and square mould columns have not been used in recent years.

• Automatic mould lid placer.

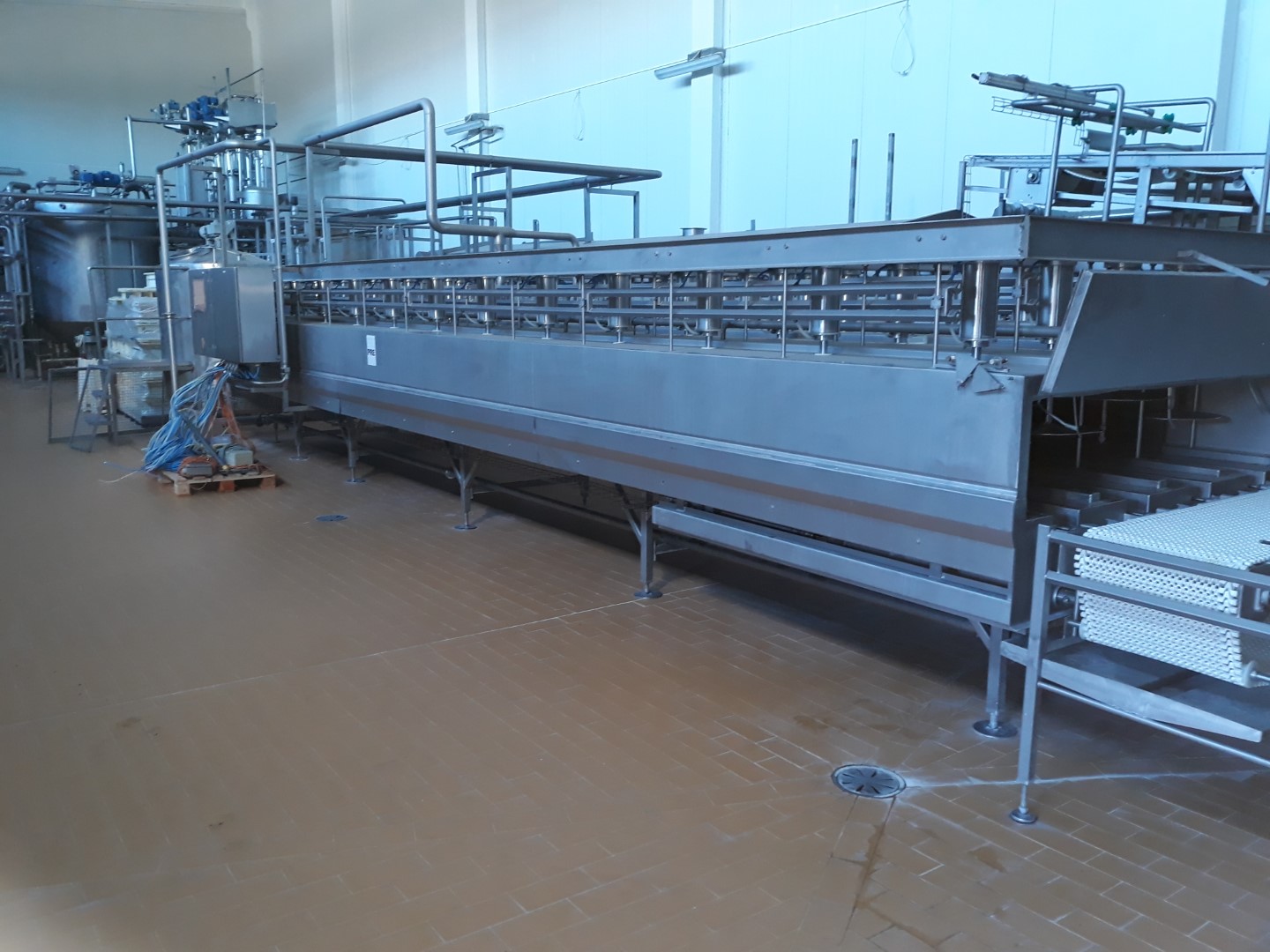

• Pneumatic cheese press.

Manufacturer: Franz Müller

Number of cheese pressing stations: 4x 12 = 48 stations

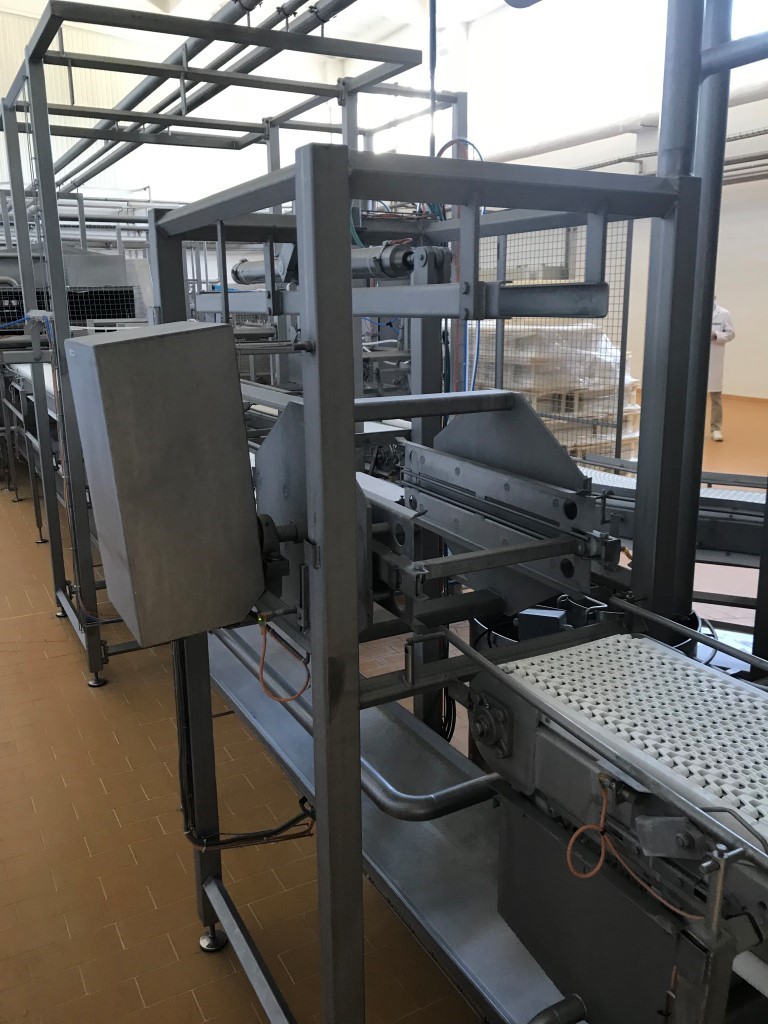

• Lid lifting, mould turning and cheese ejection system.

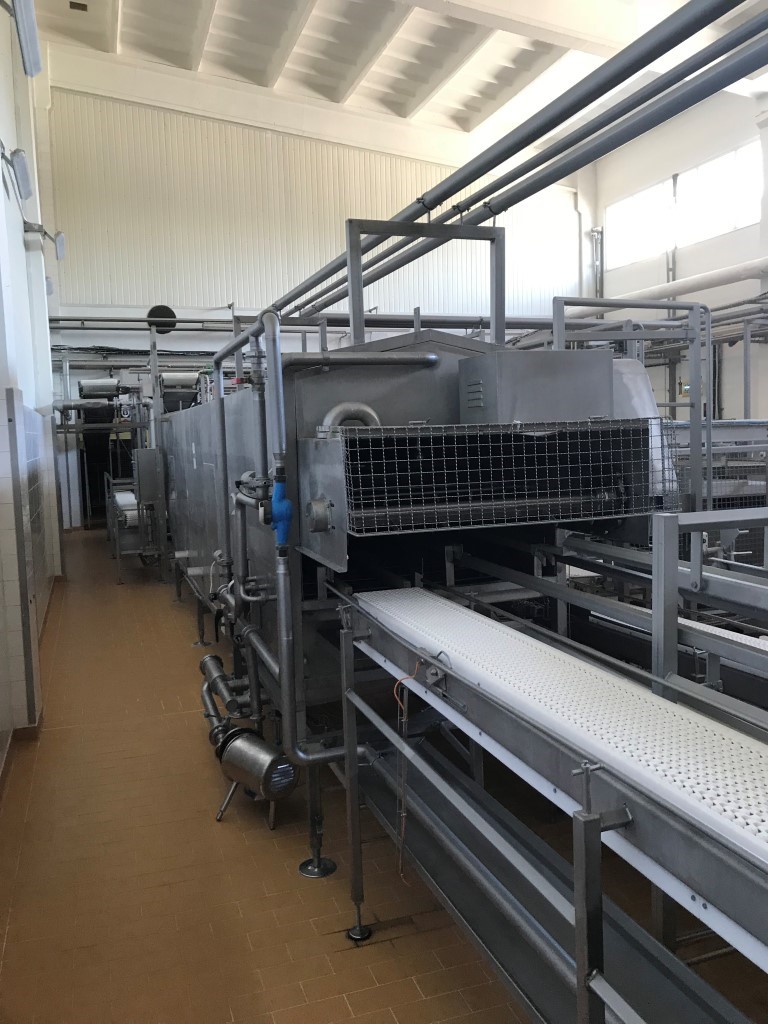

• Cheese mould and lid washer.

Manufacturer: Protec

Type: Waschmaschine

Serial number: 53058-WM

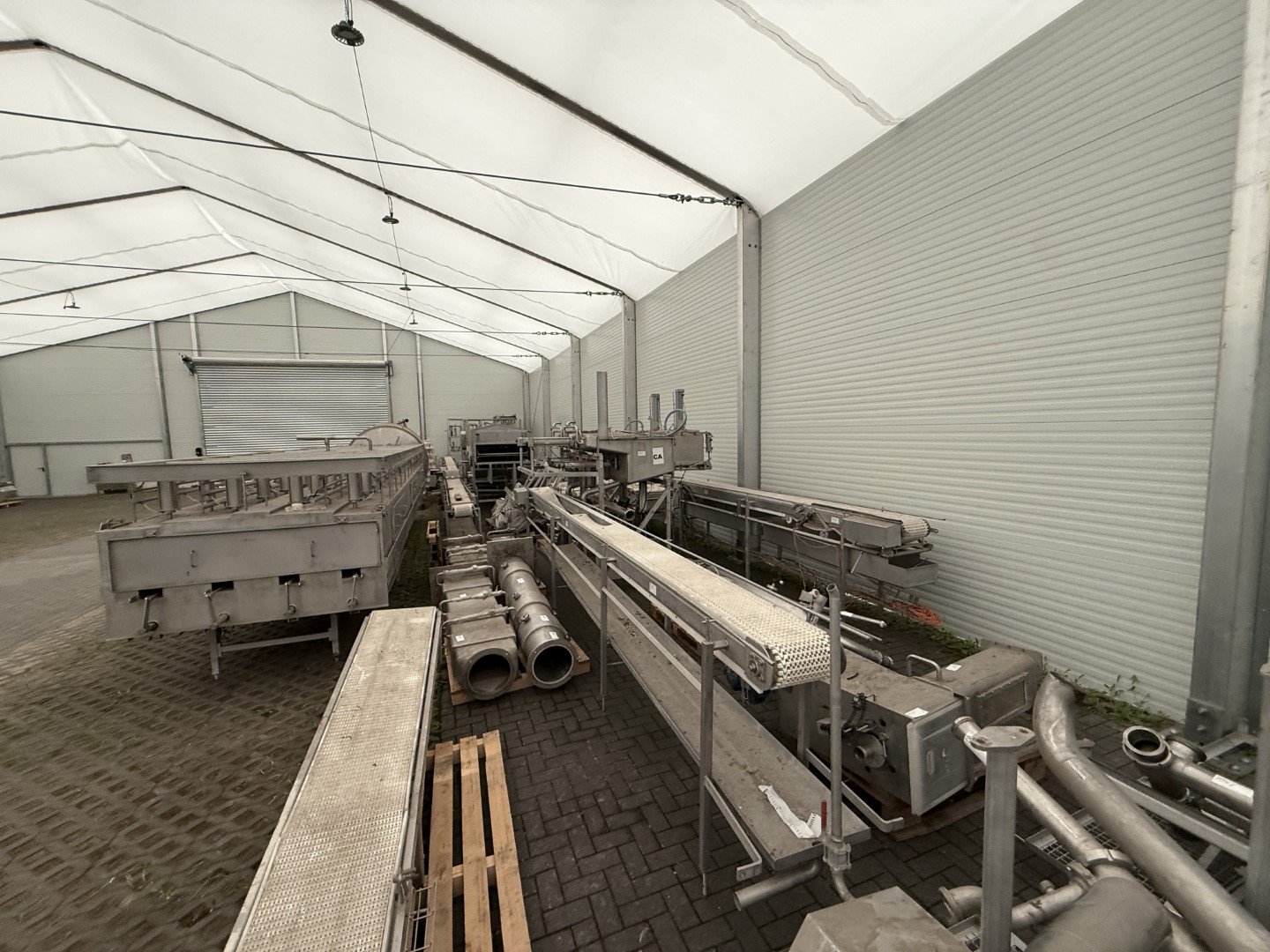

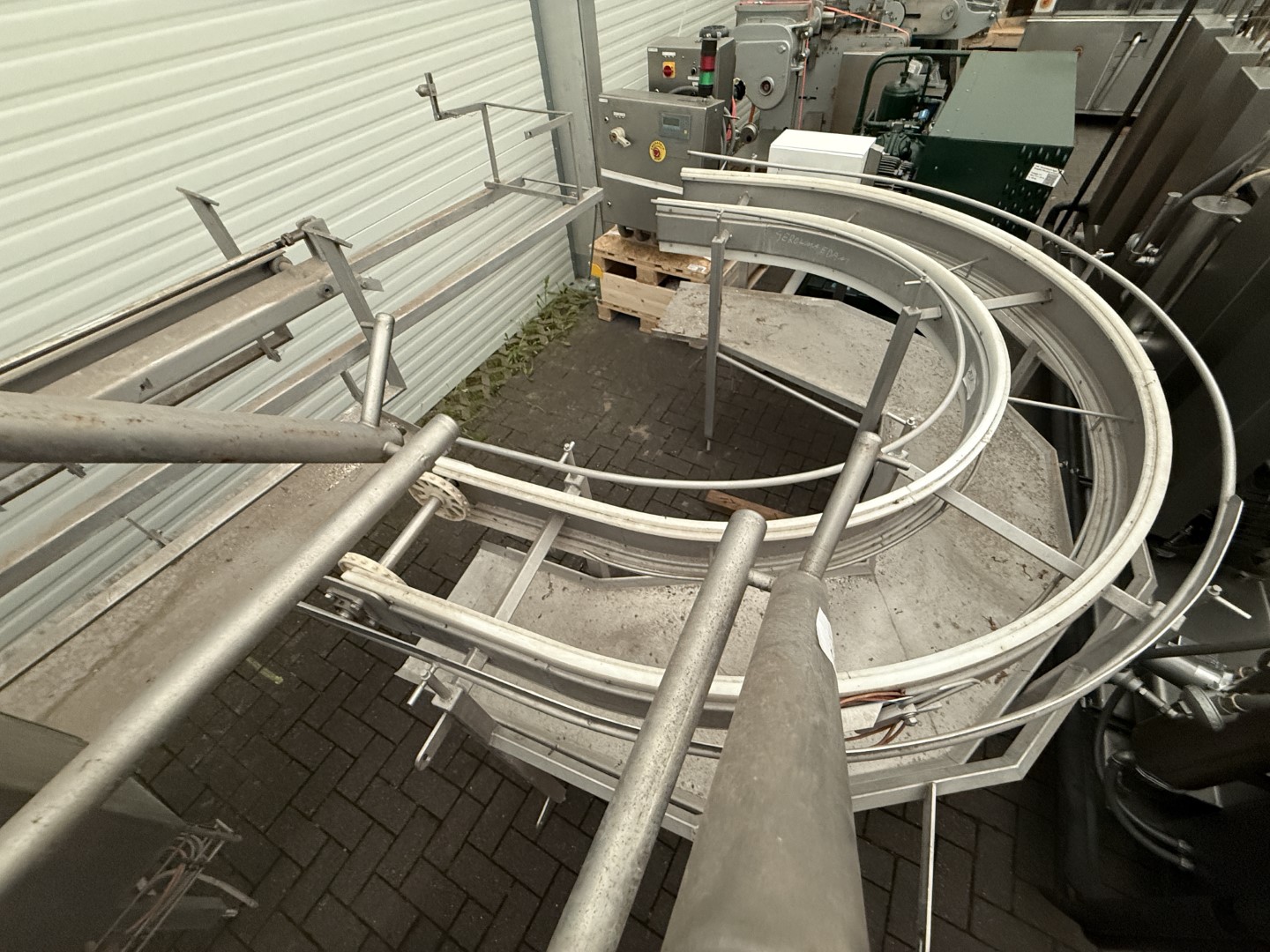

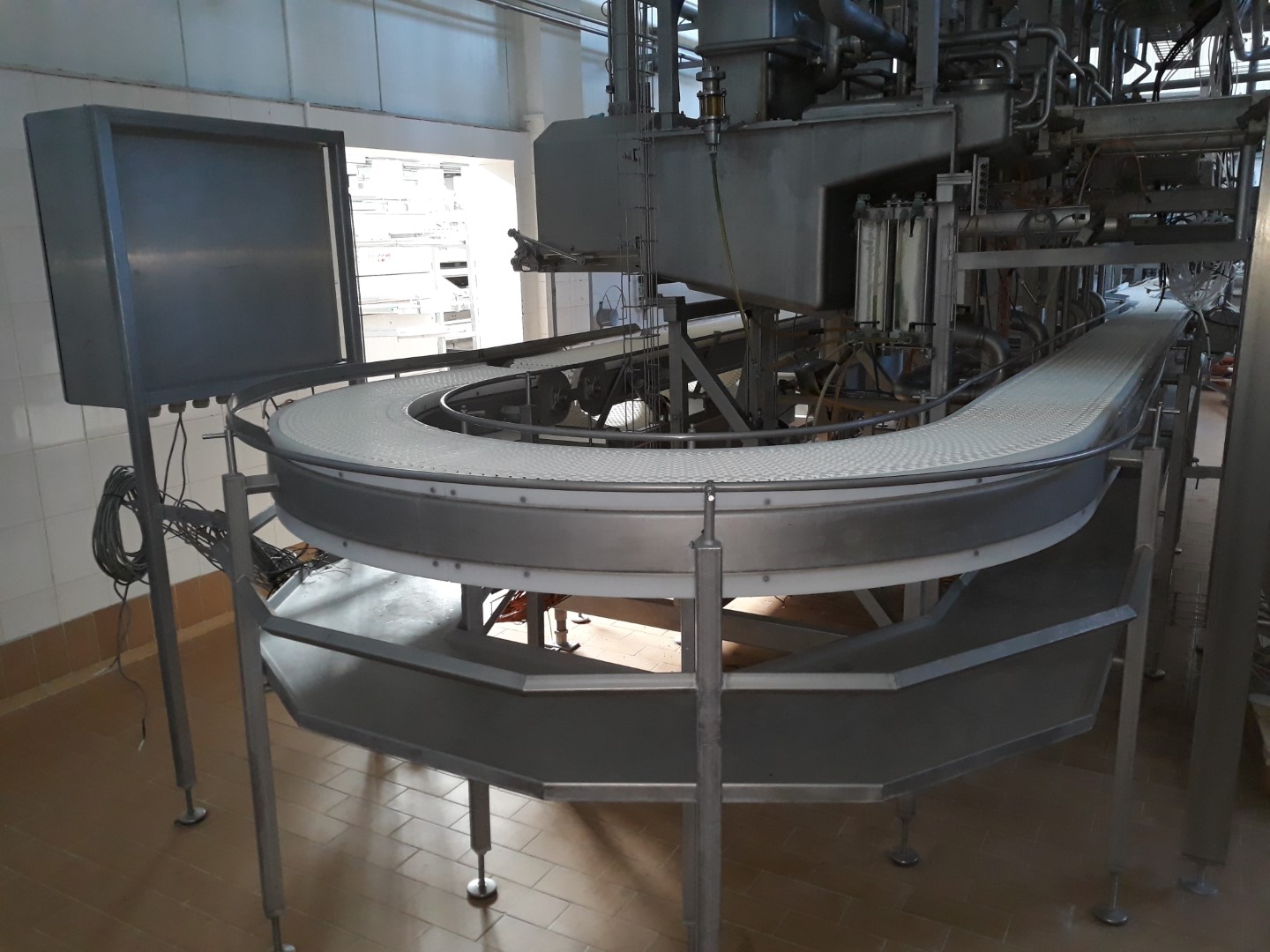

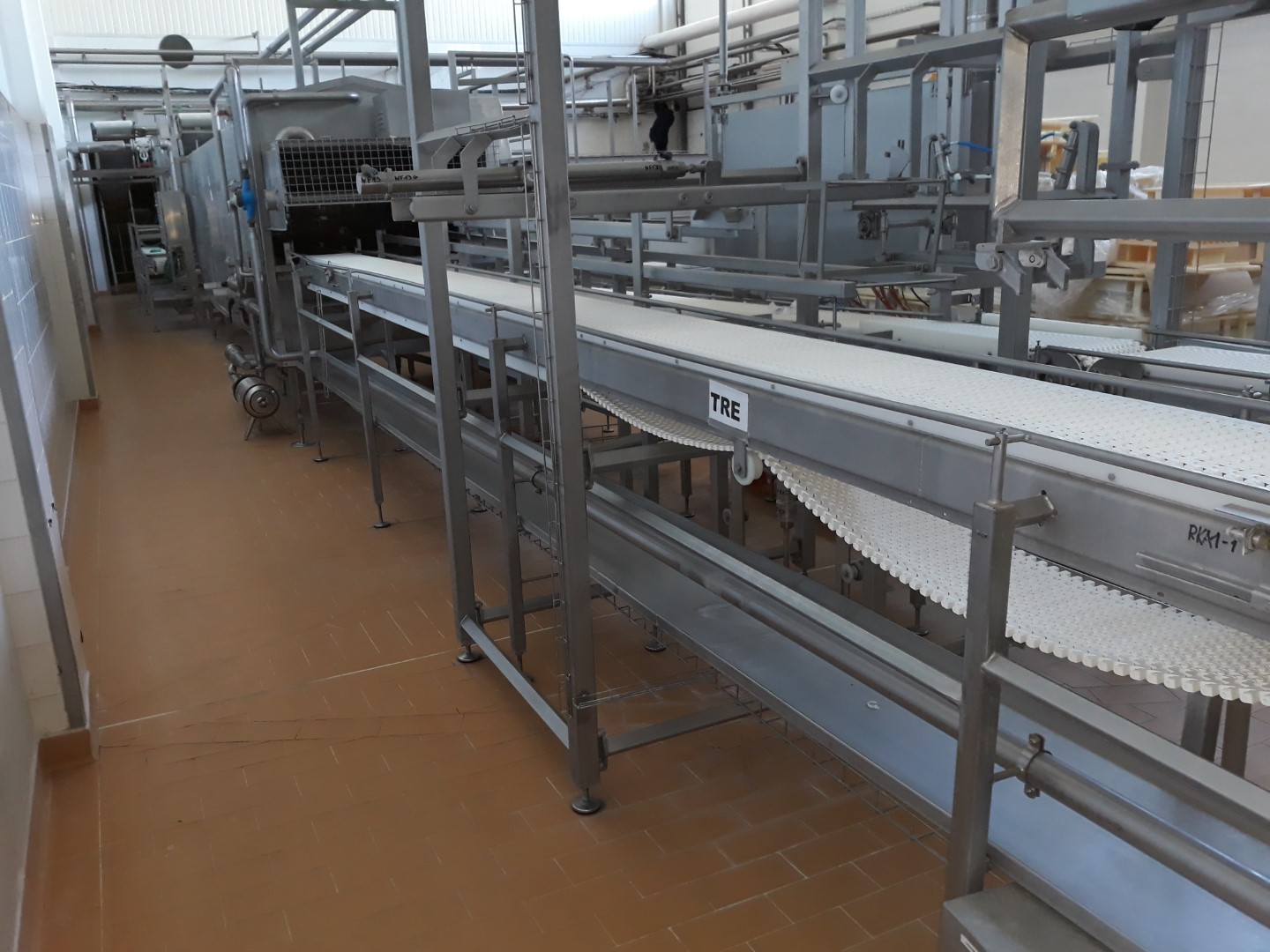

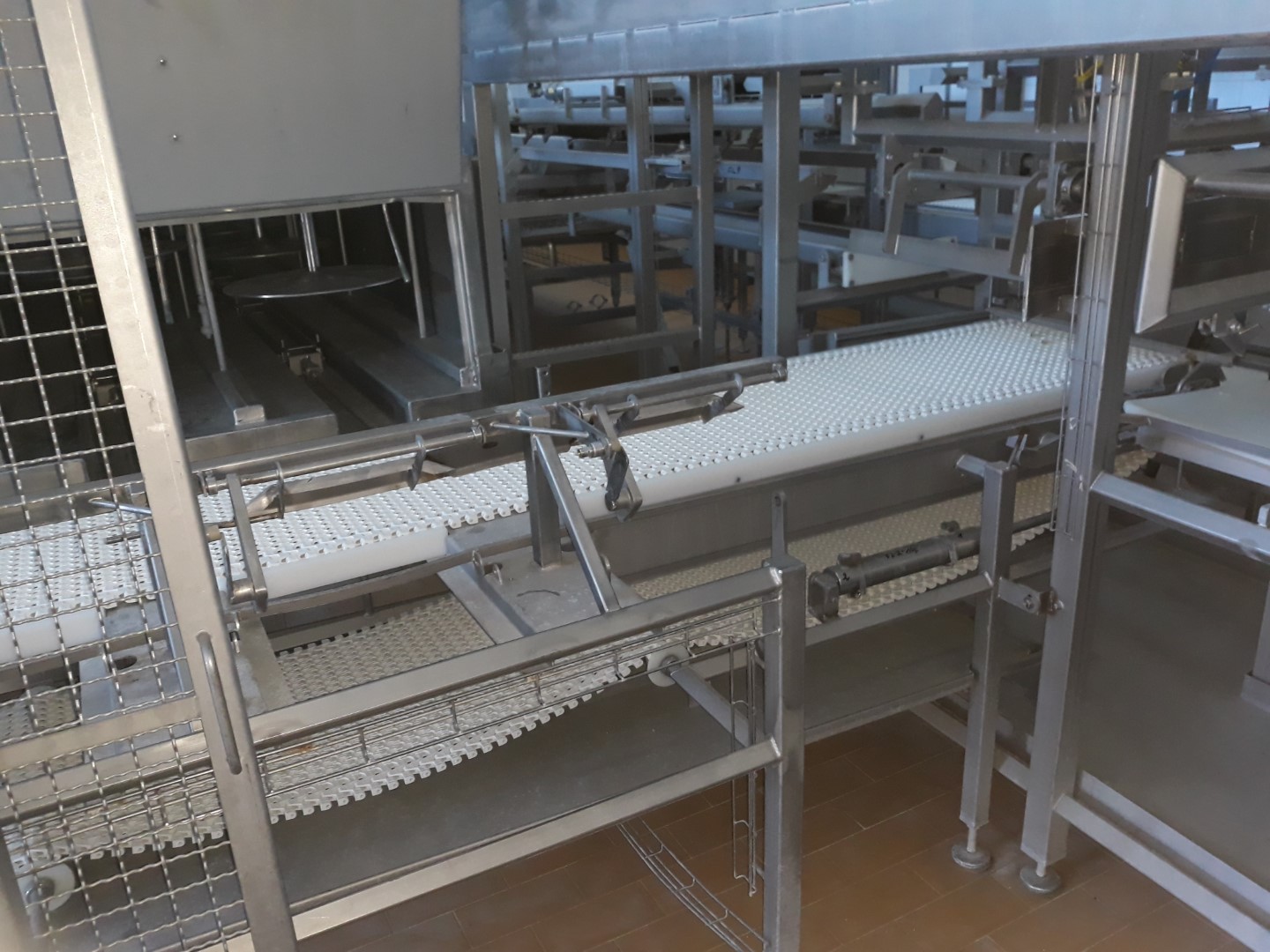

• Interconnecting conveyors (chain).

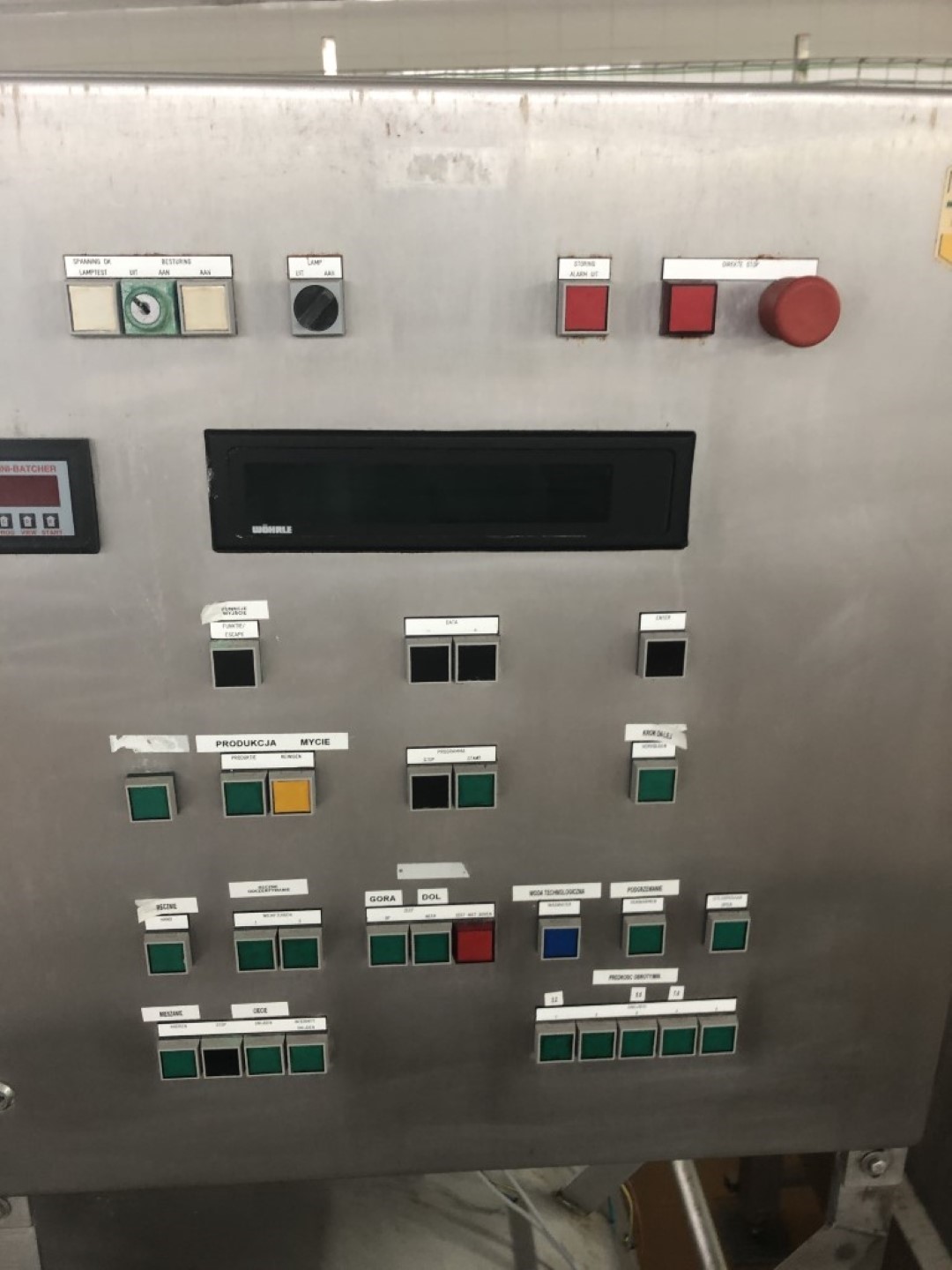

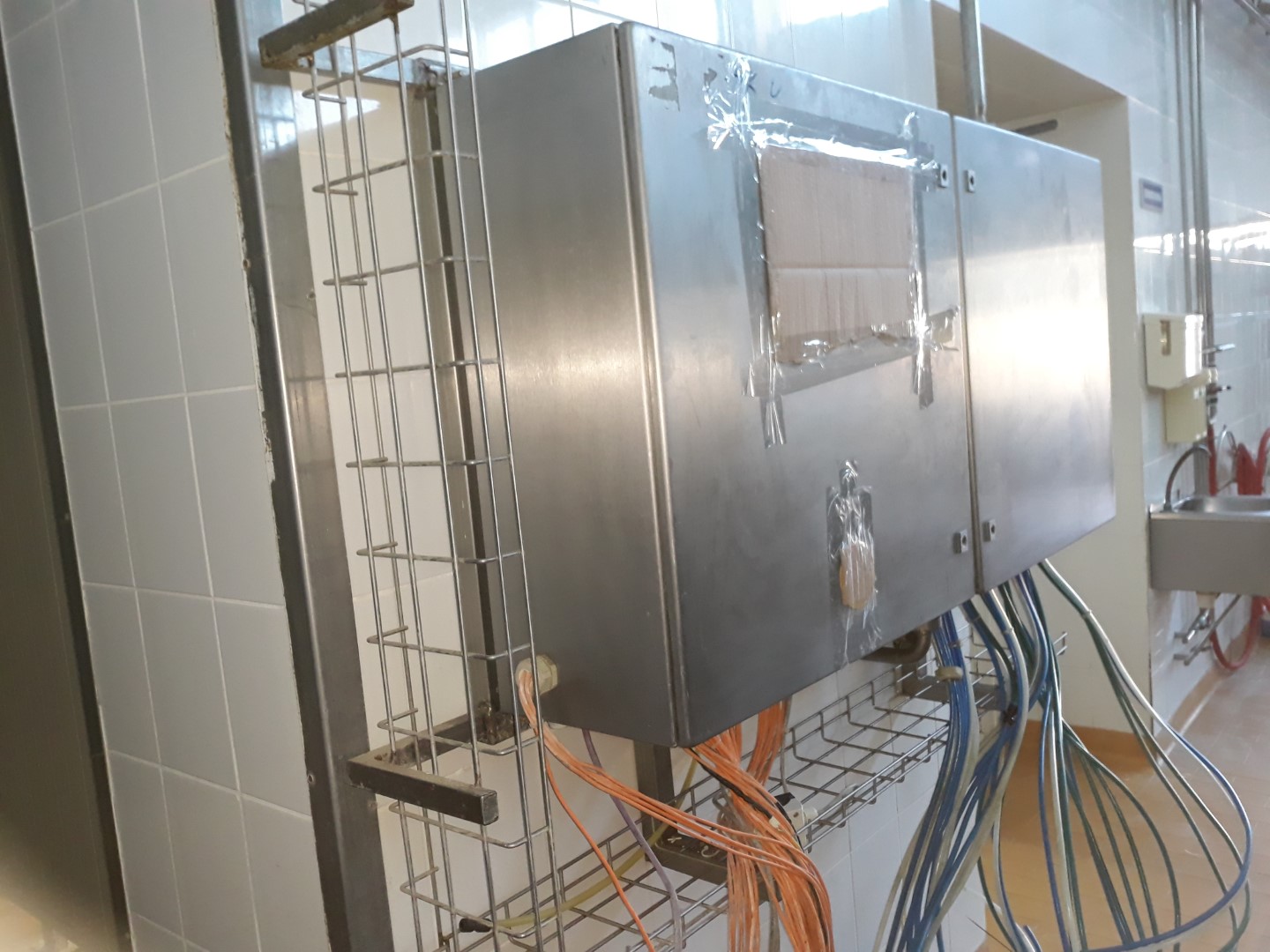

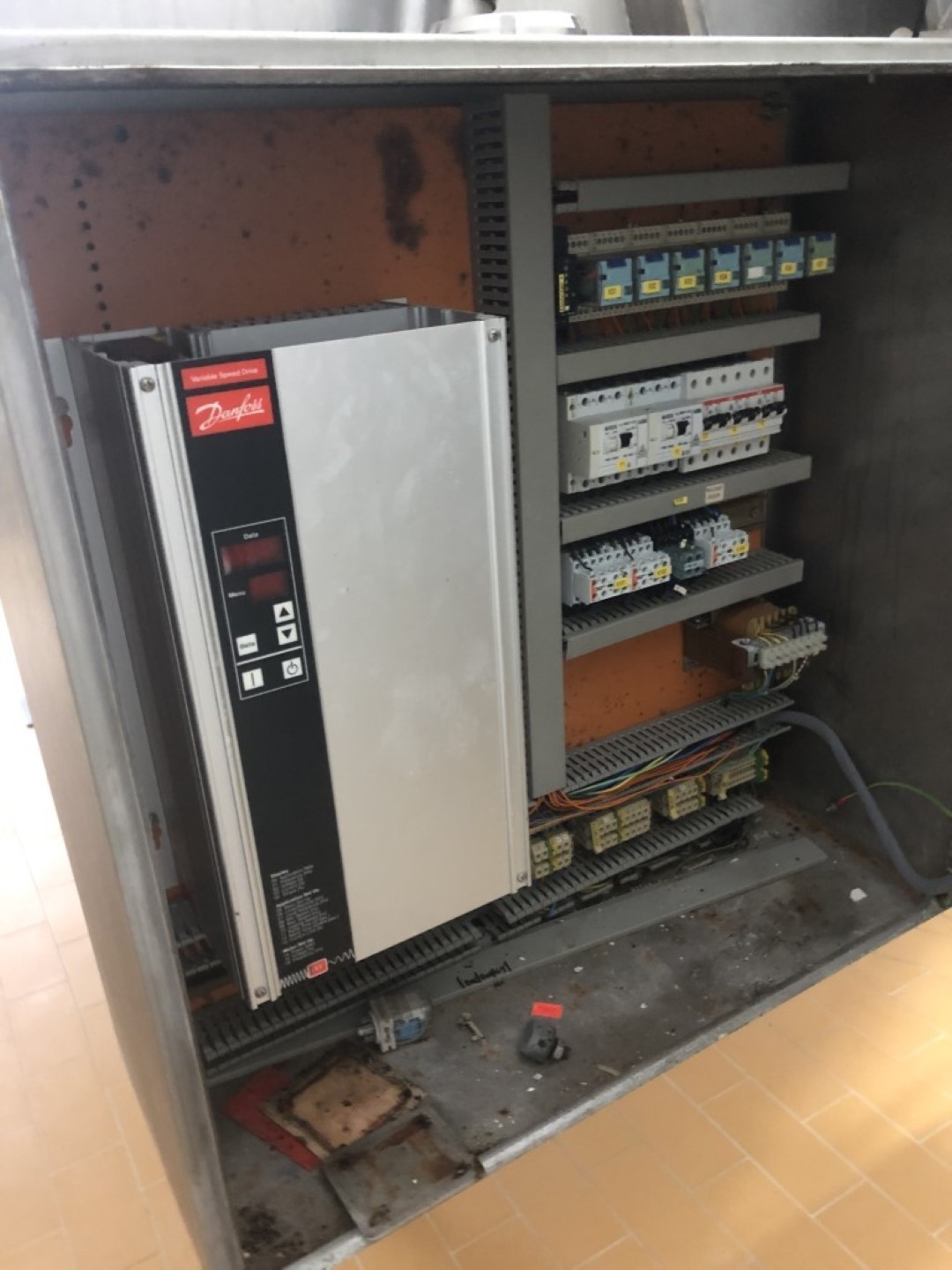

• Controls

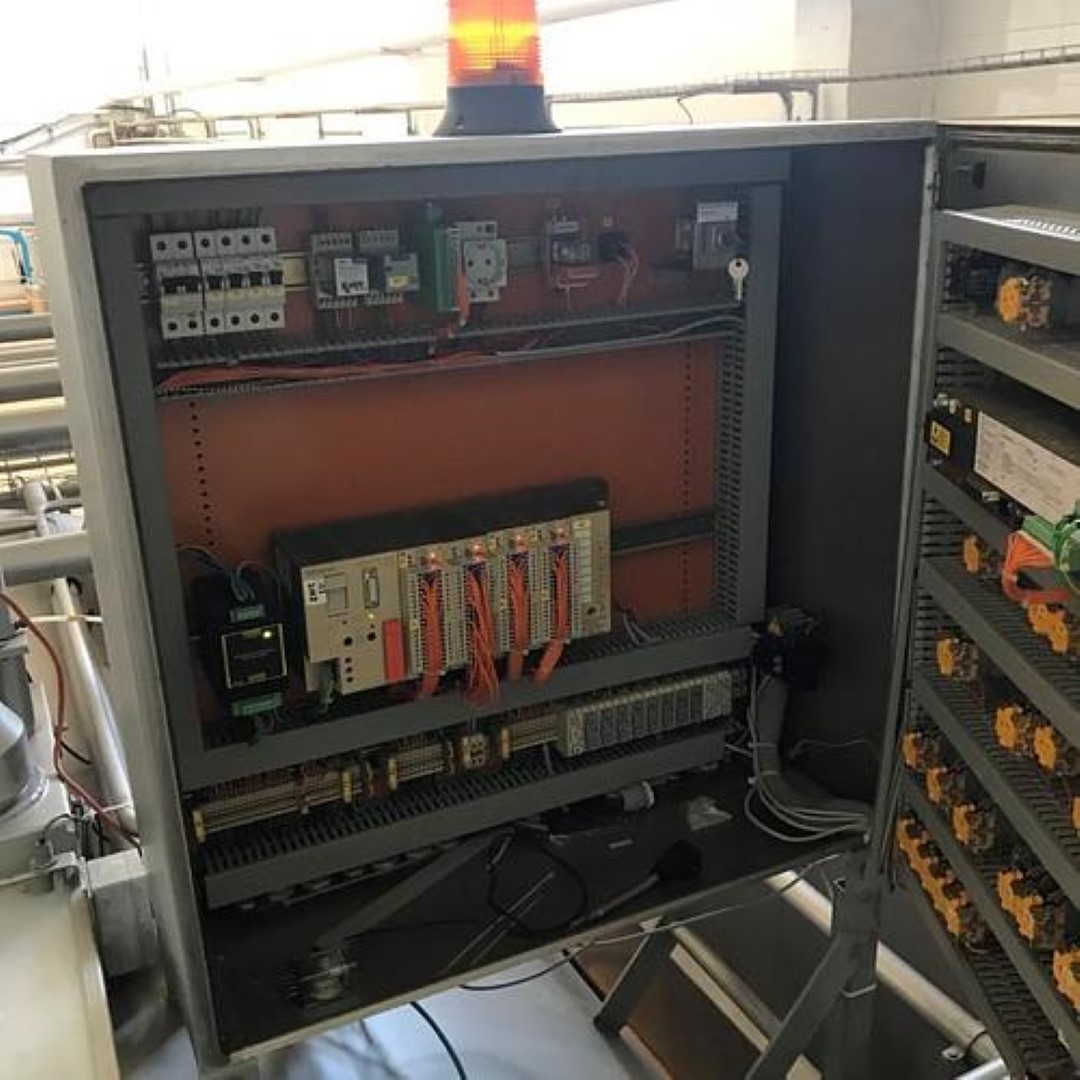

Siemens S7 control system with Profibus communication.

Year of manufacture of controls: 2003

Cabling and sensors.

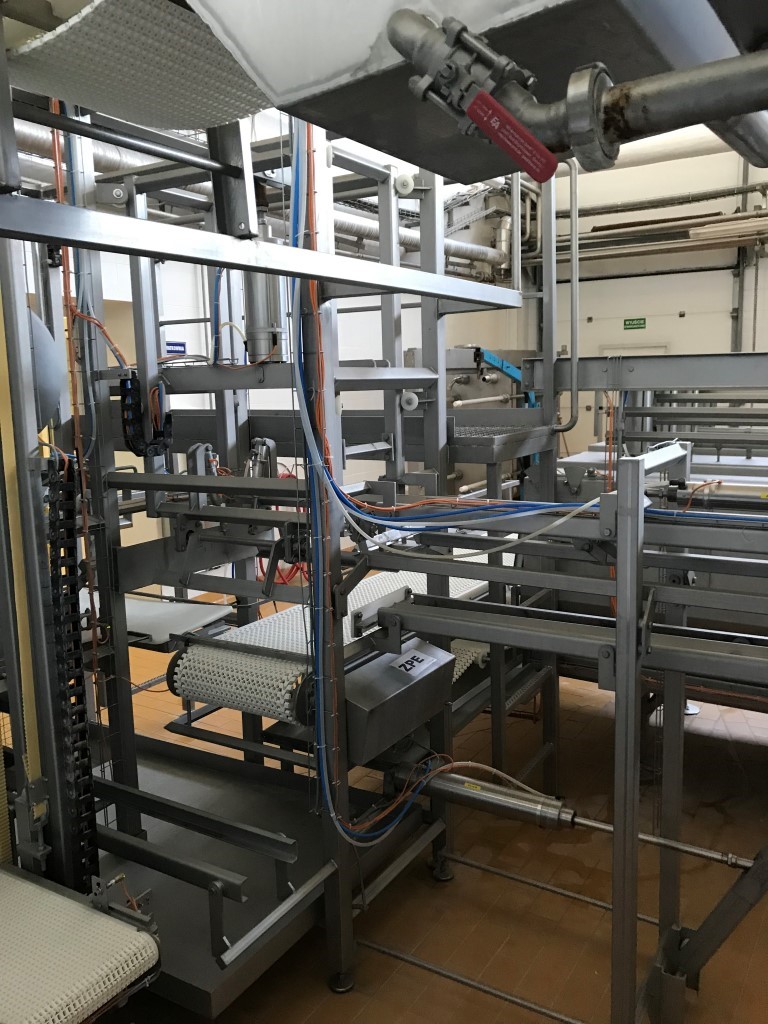

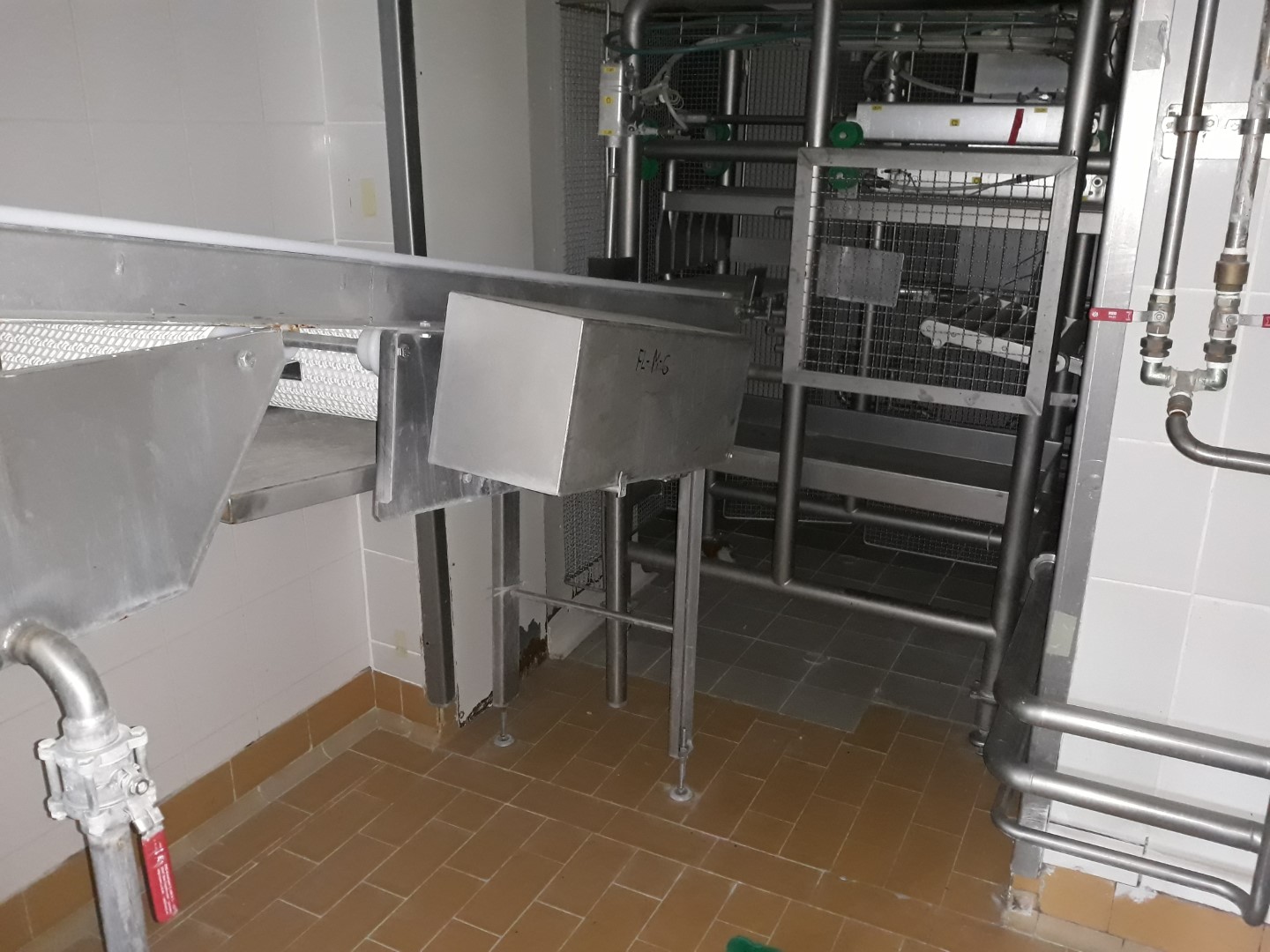

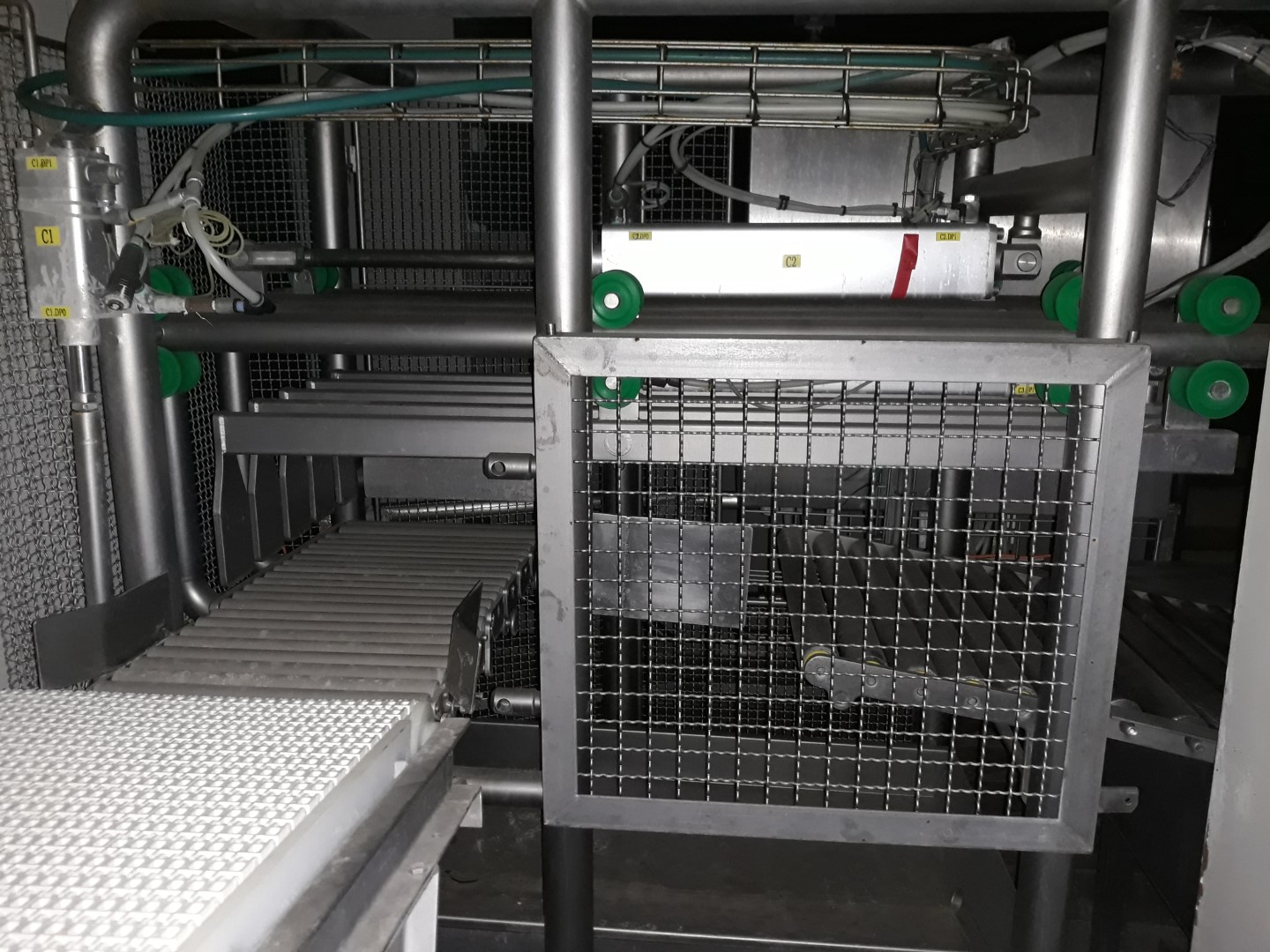

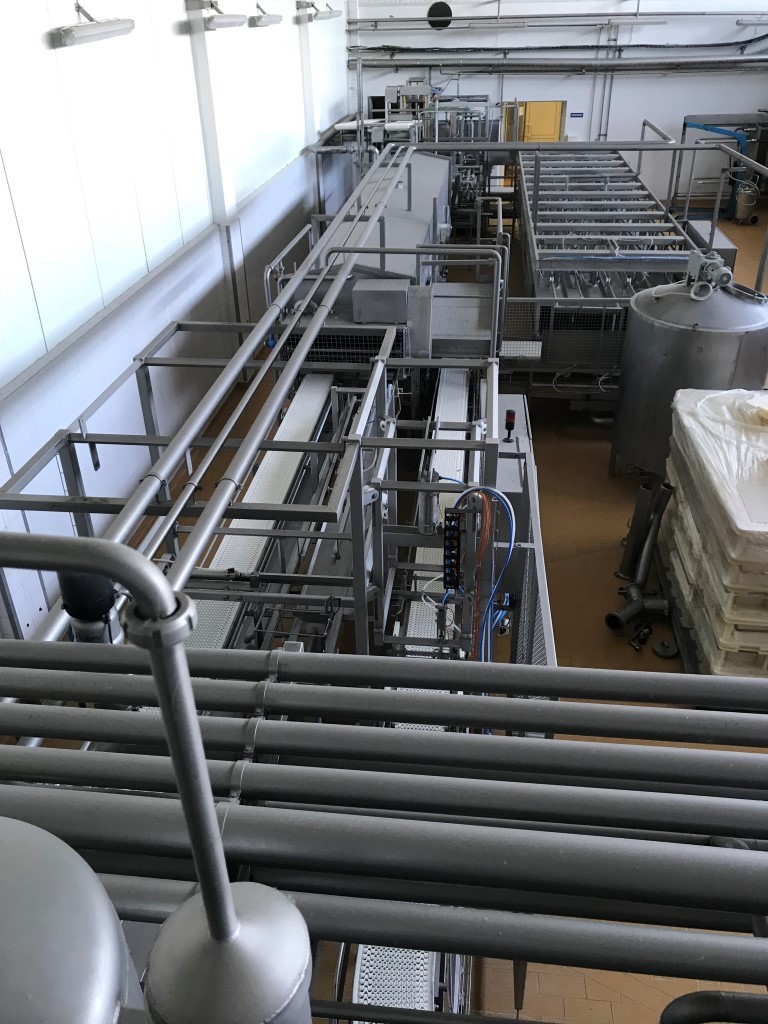

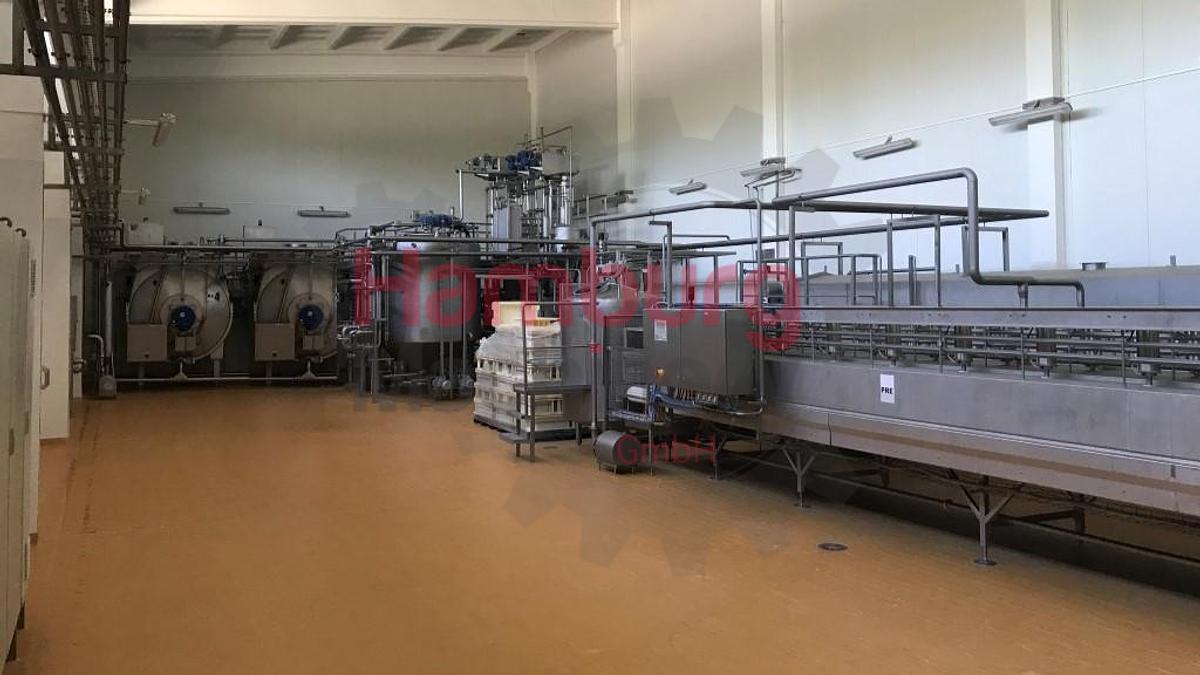

The photographs show the production line both in its operating position within the dairy some years ago and in its current condition.

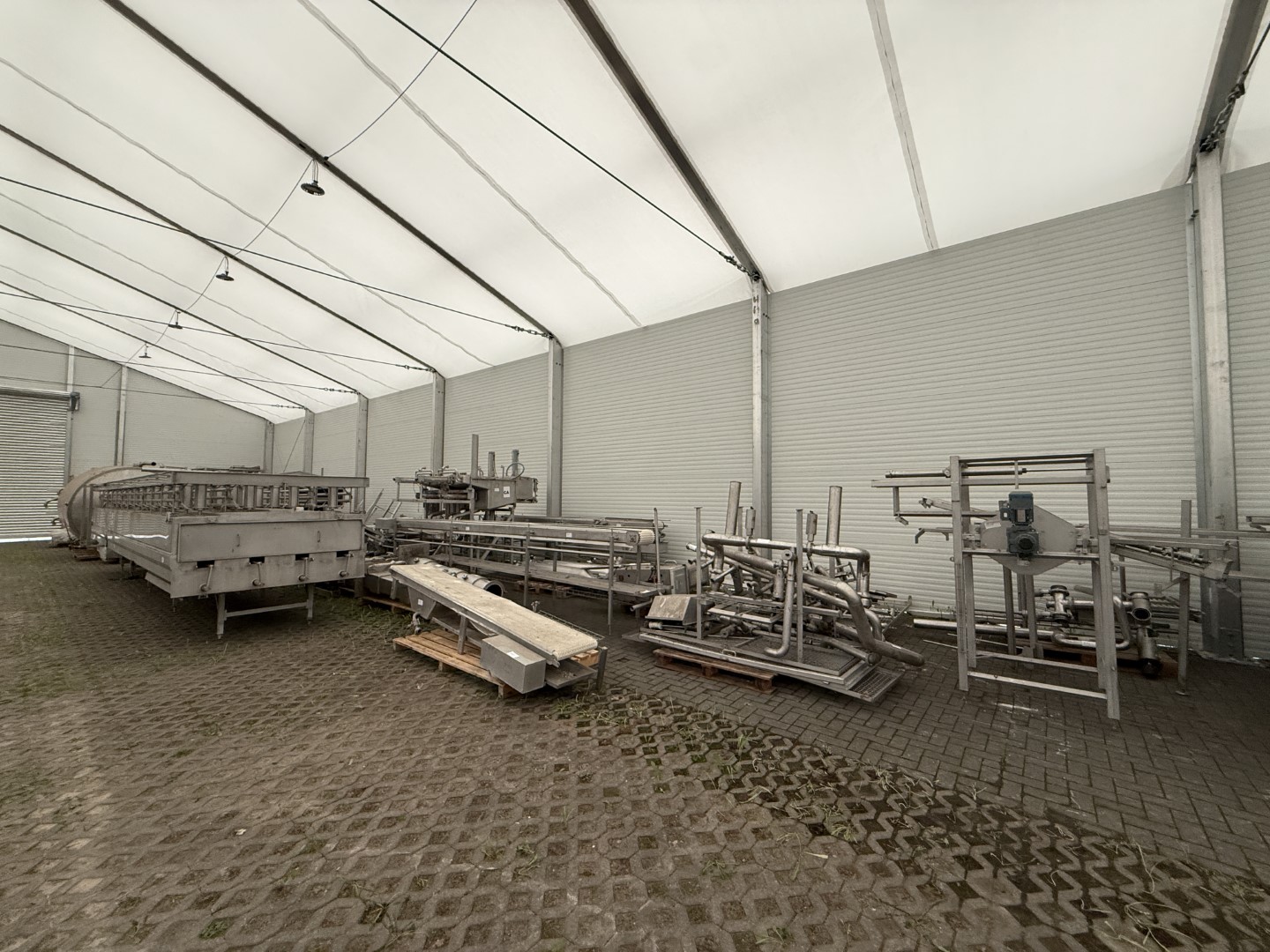

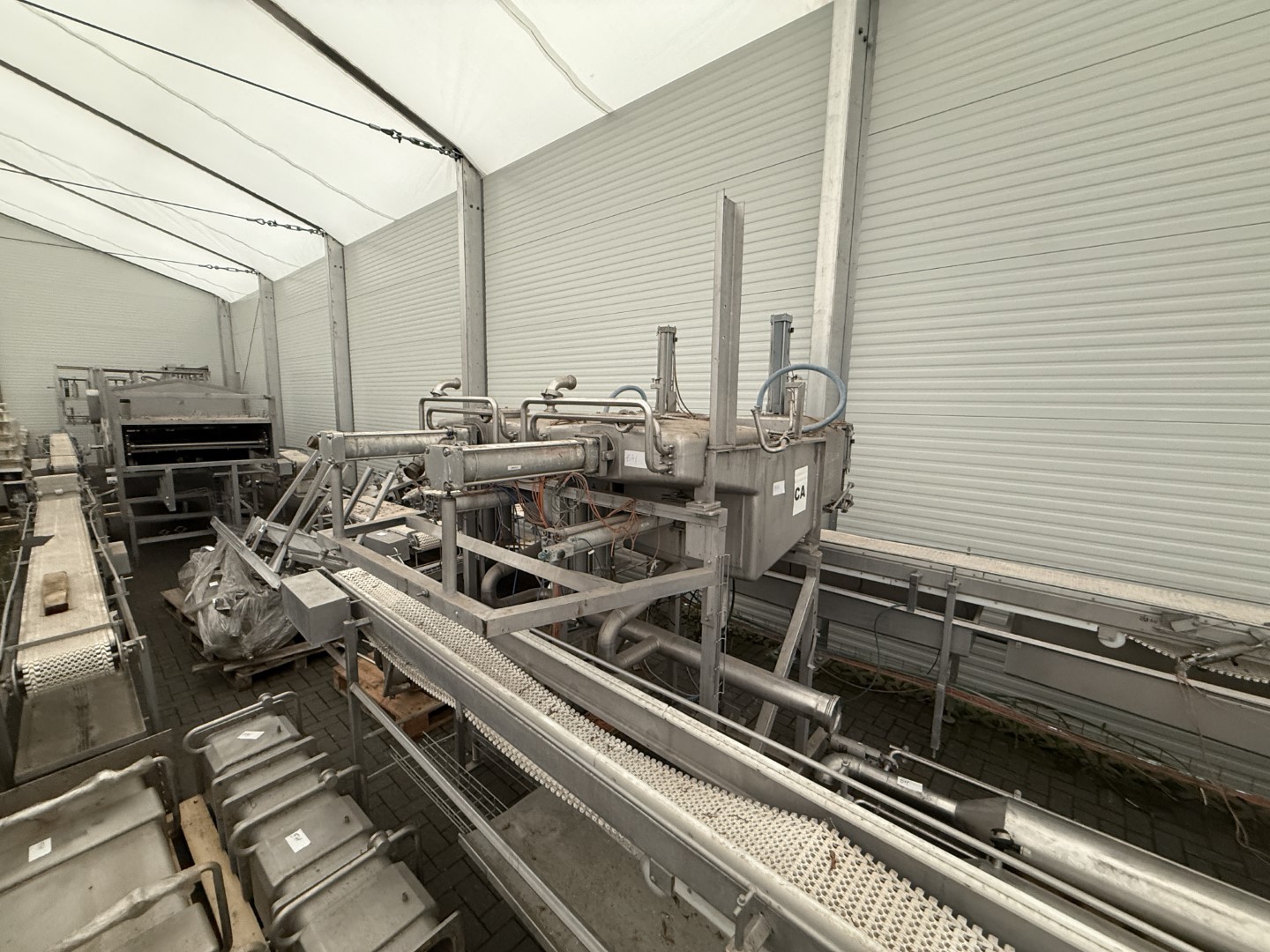

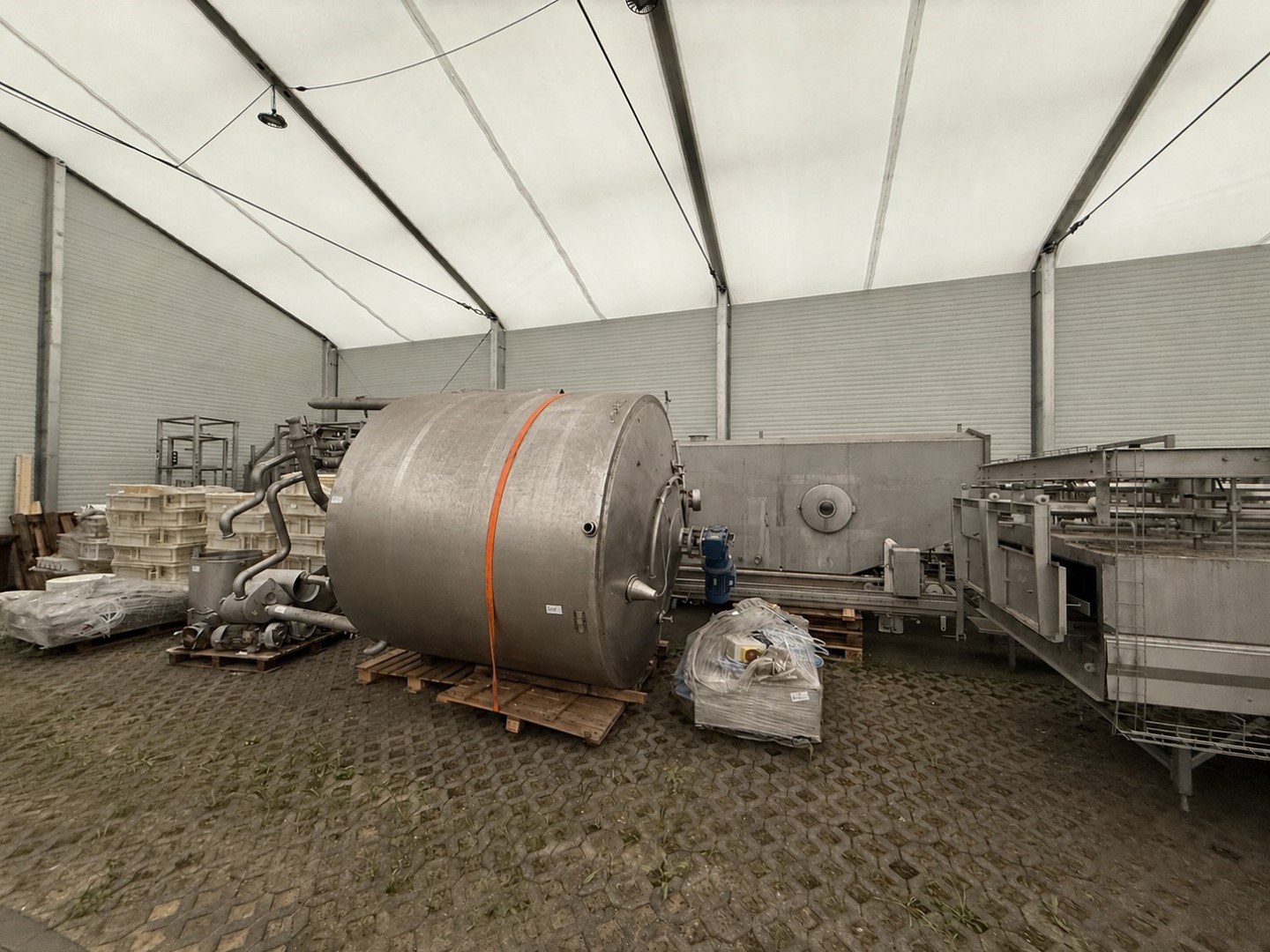

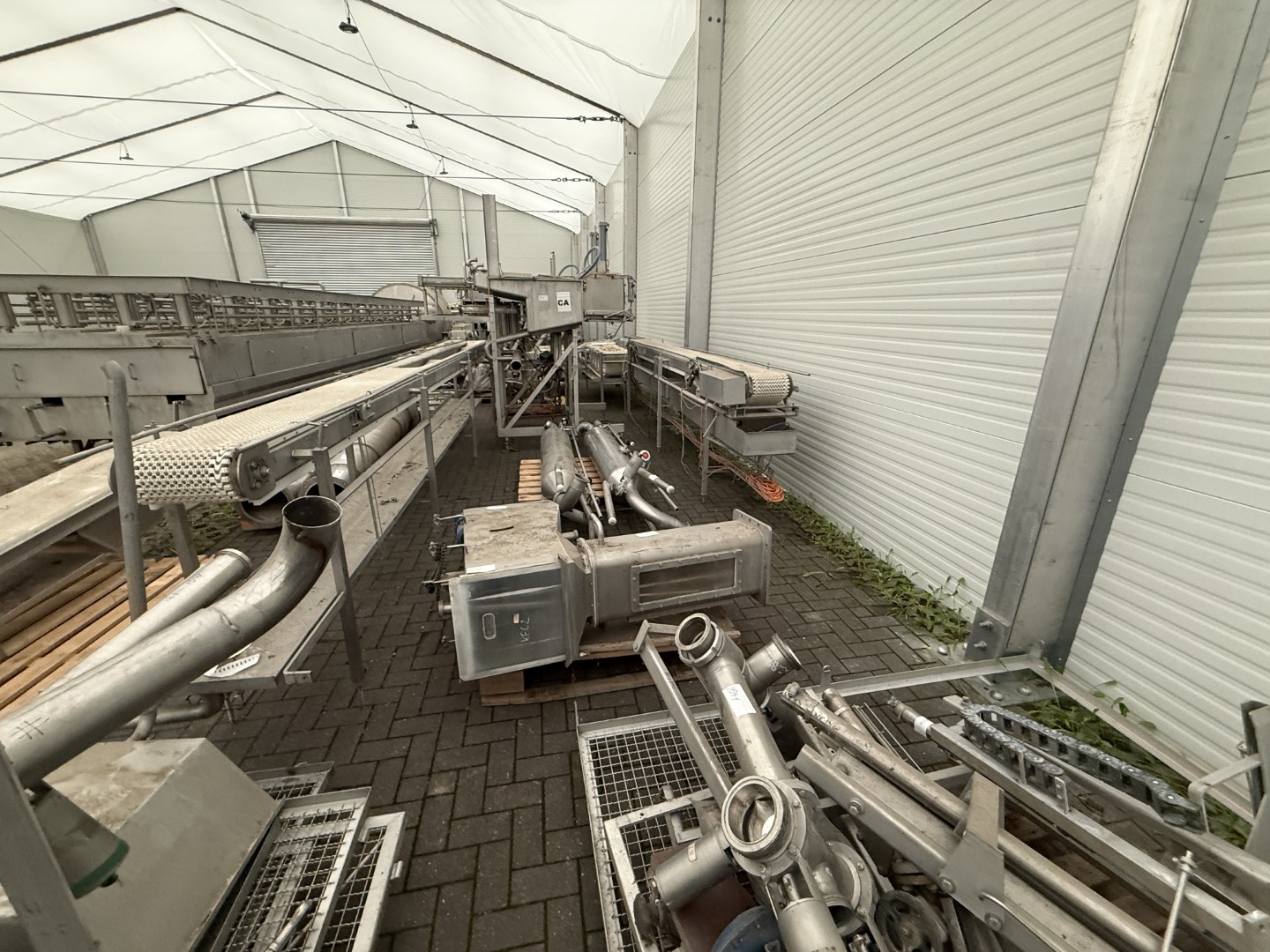

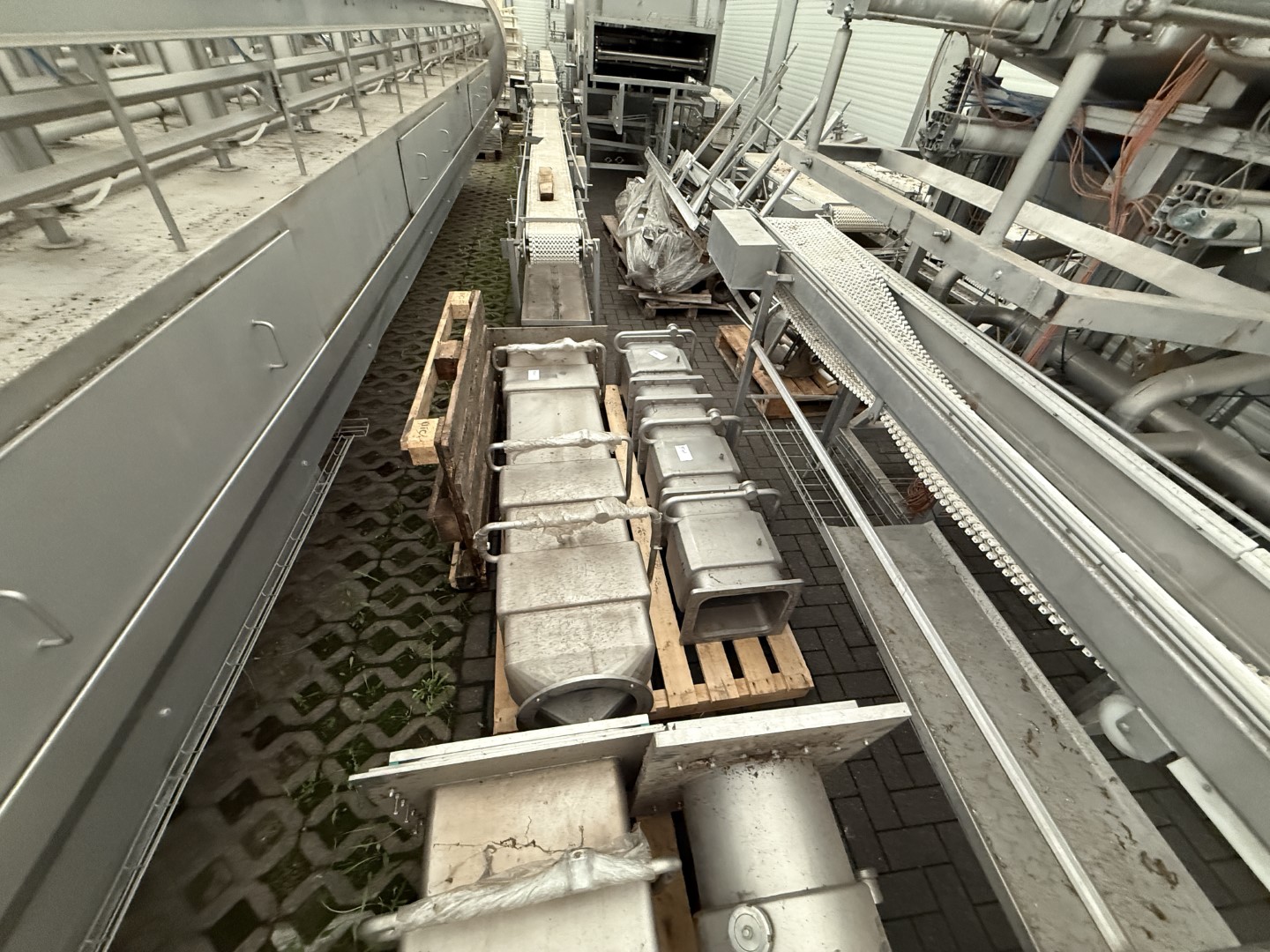

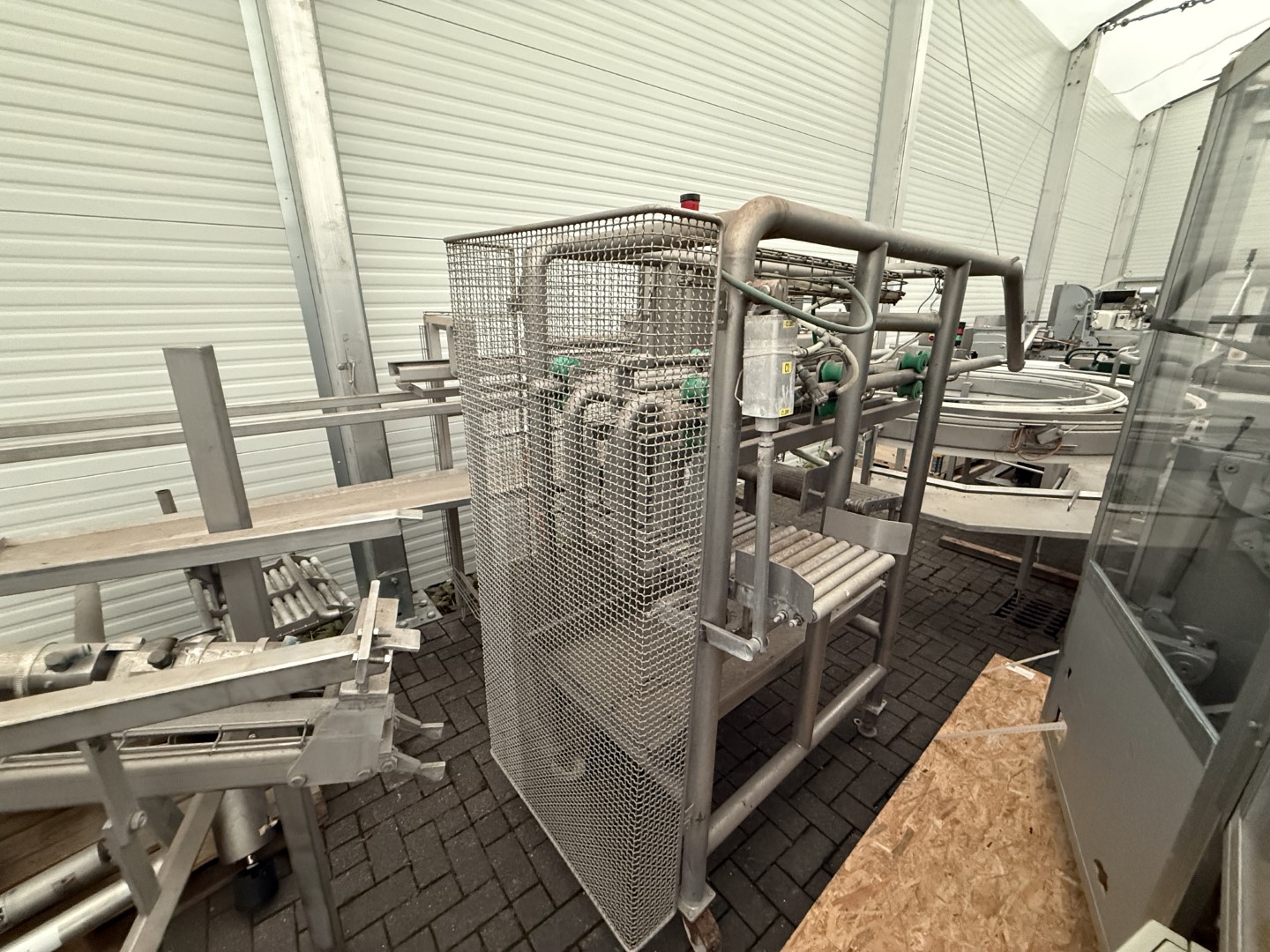

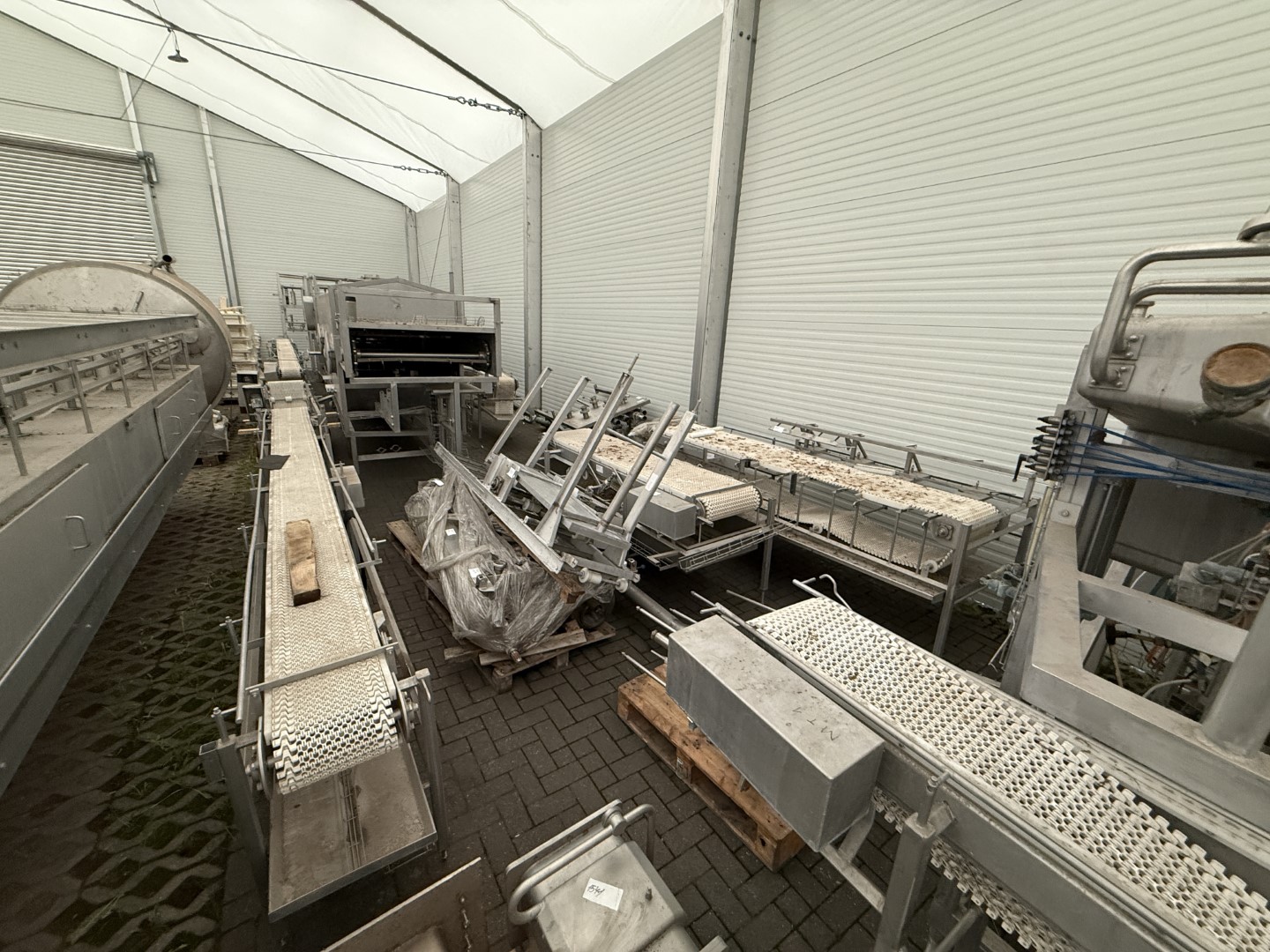

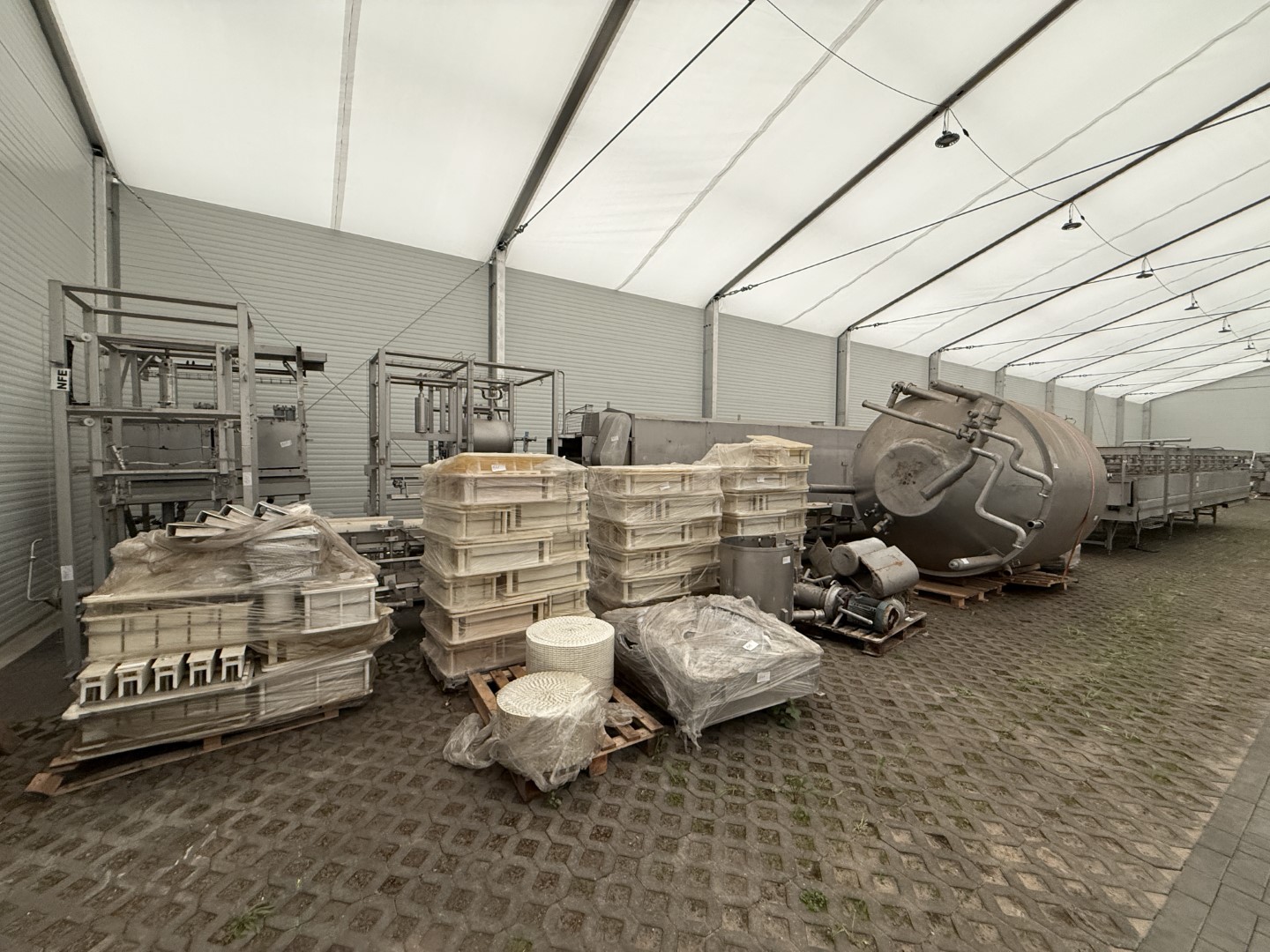

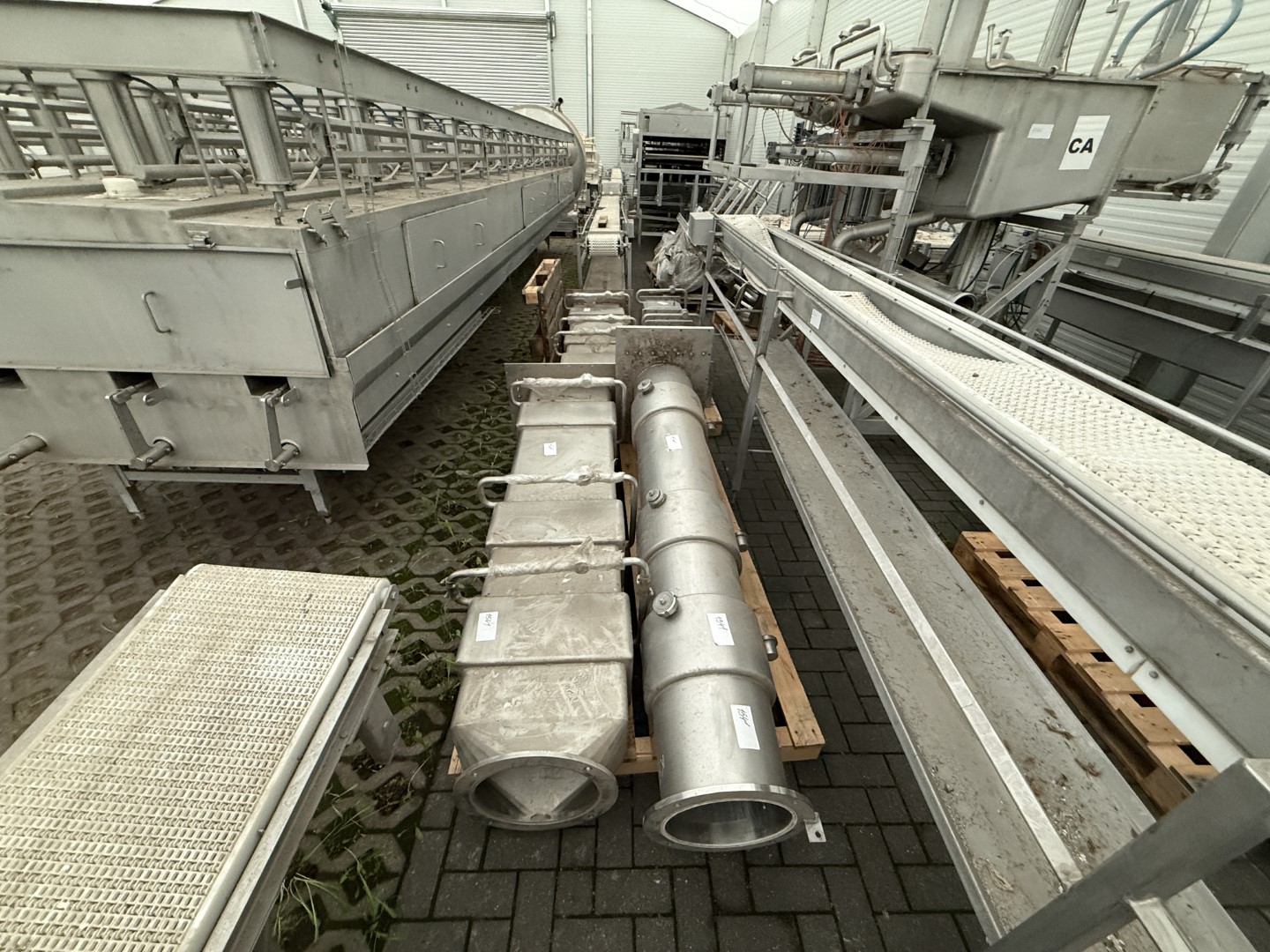

The complete line has already been dismantled by the previous owner and was stored for some time in a warehouse of the cheese factory. Currently the line is stored in our warehouse in Wentorf bei Hamburg, Germany.

Additional Features:

• Each glass "tube" at the top of the 4x Casomatics are missing.

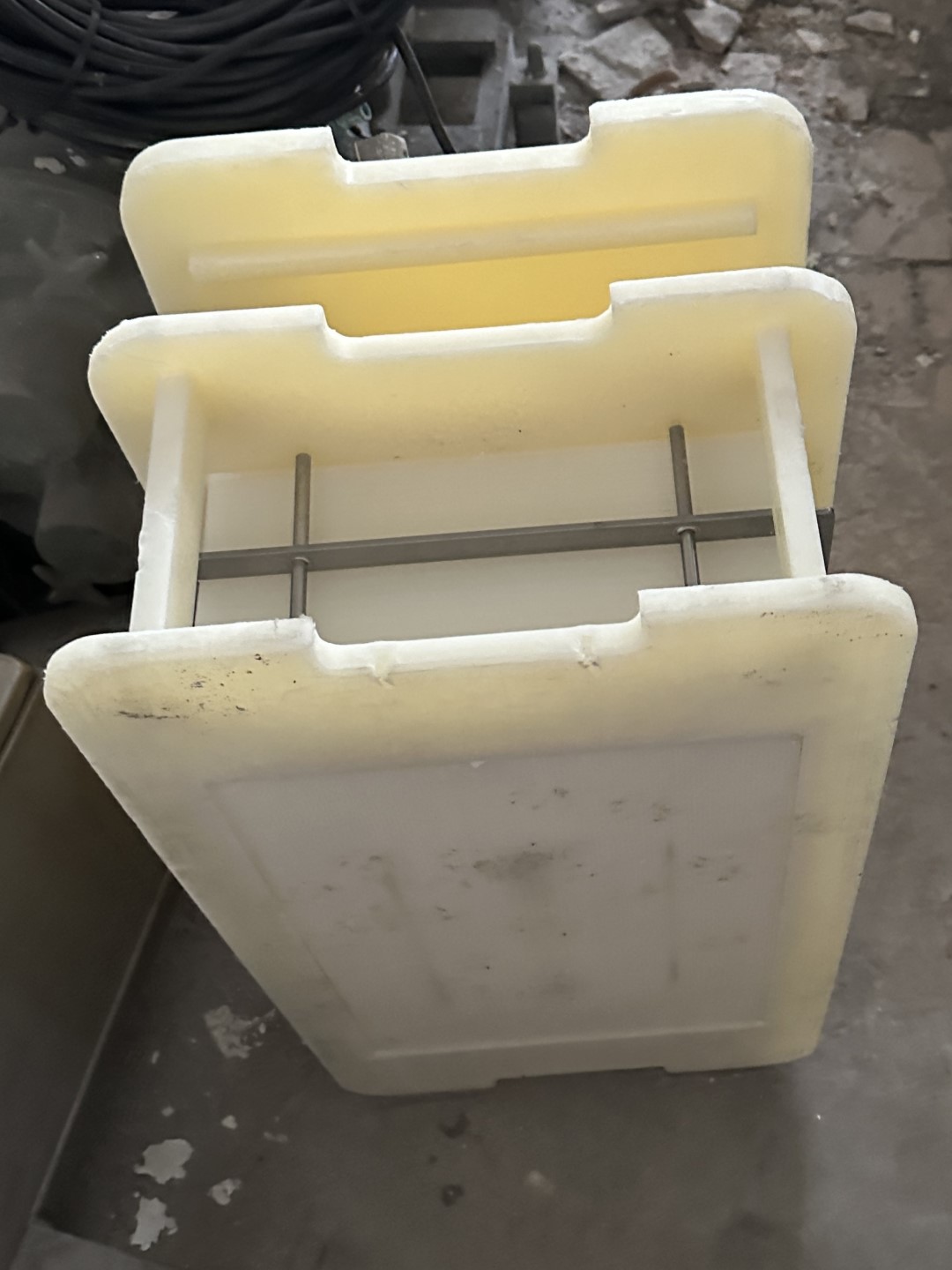

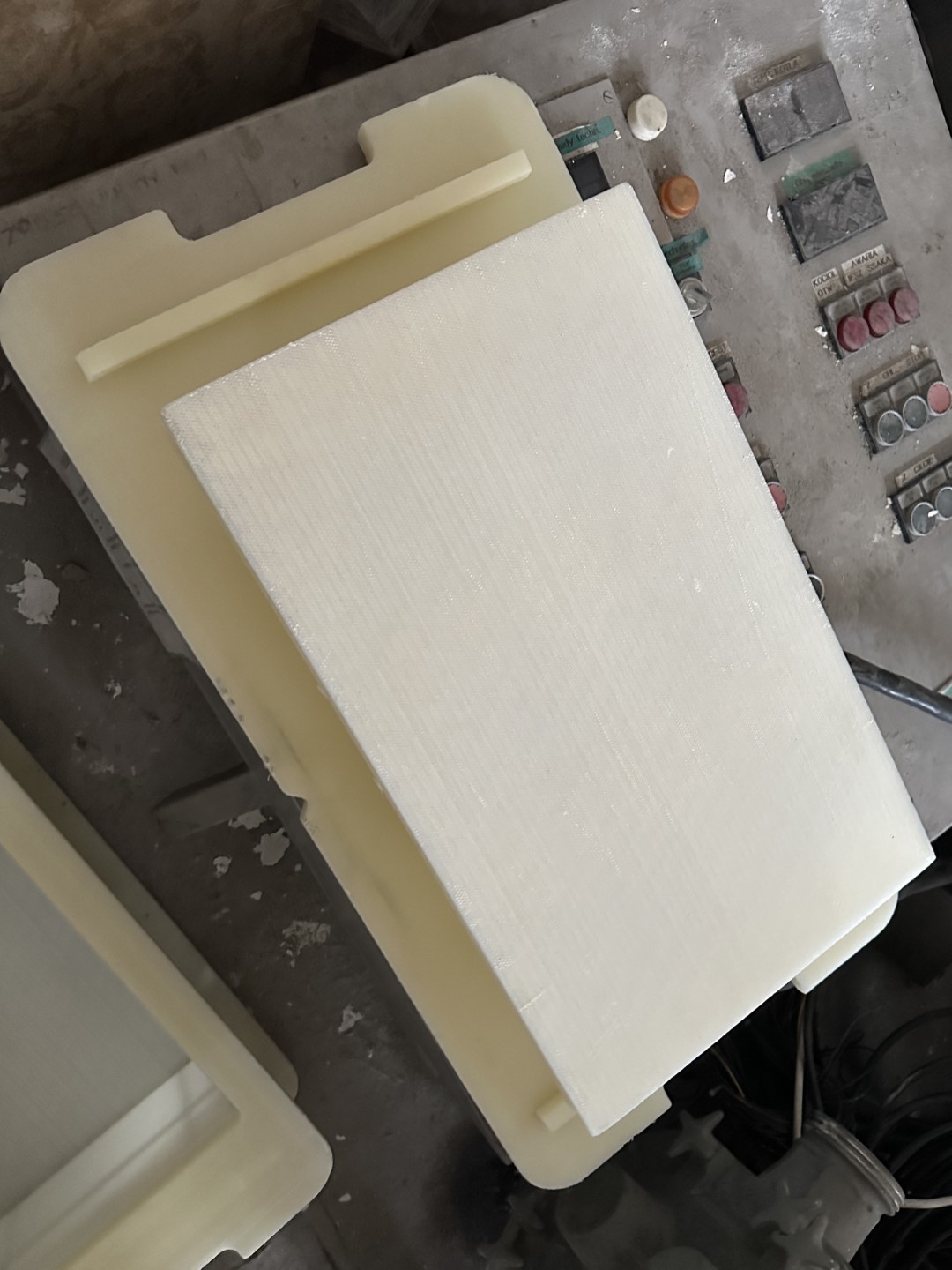

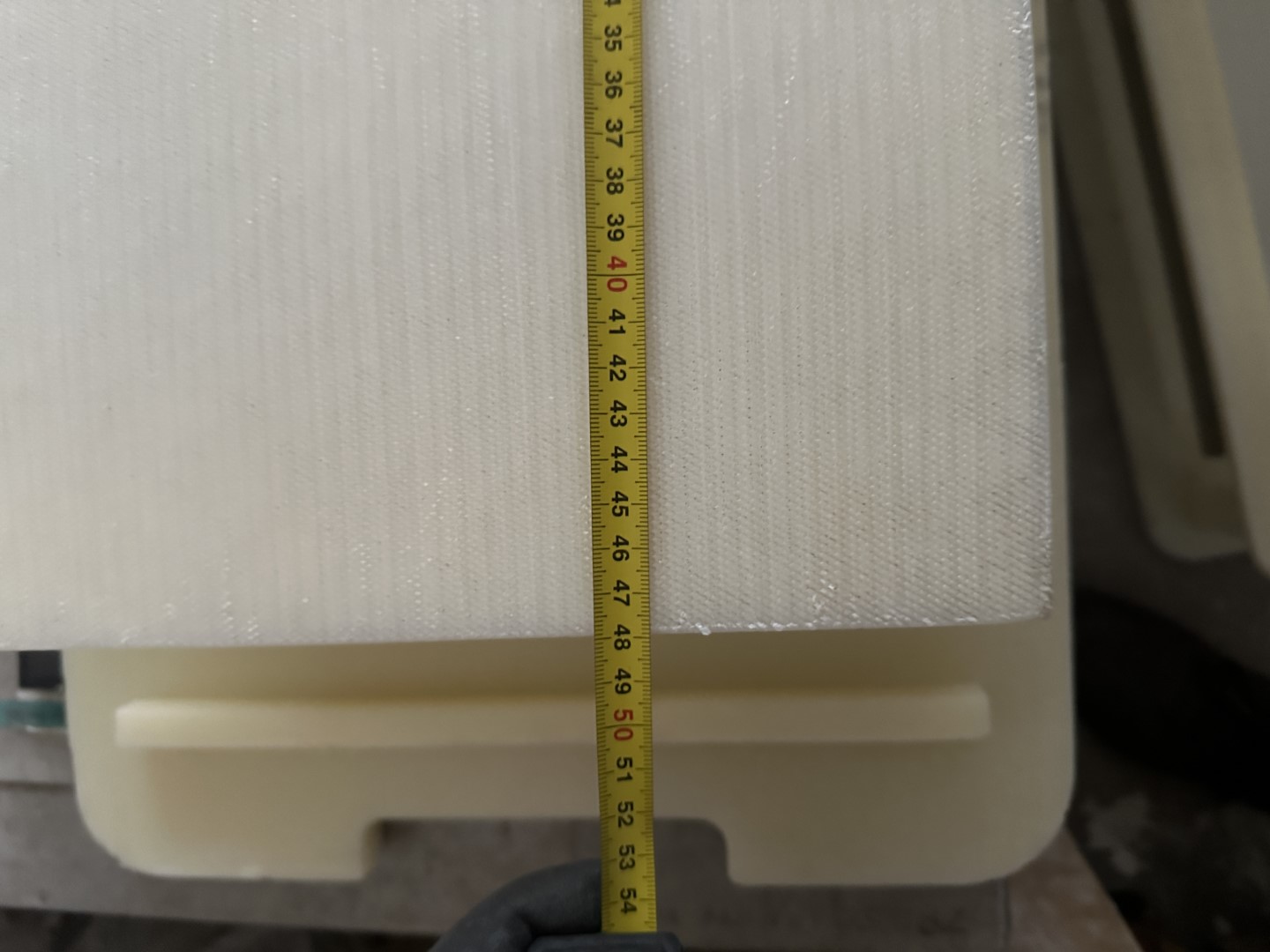

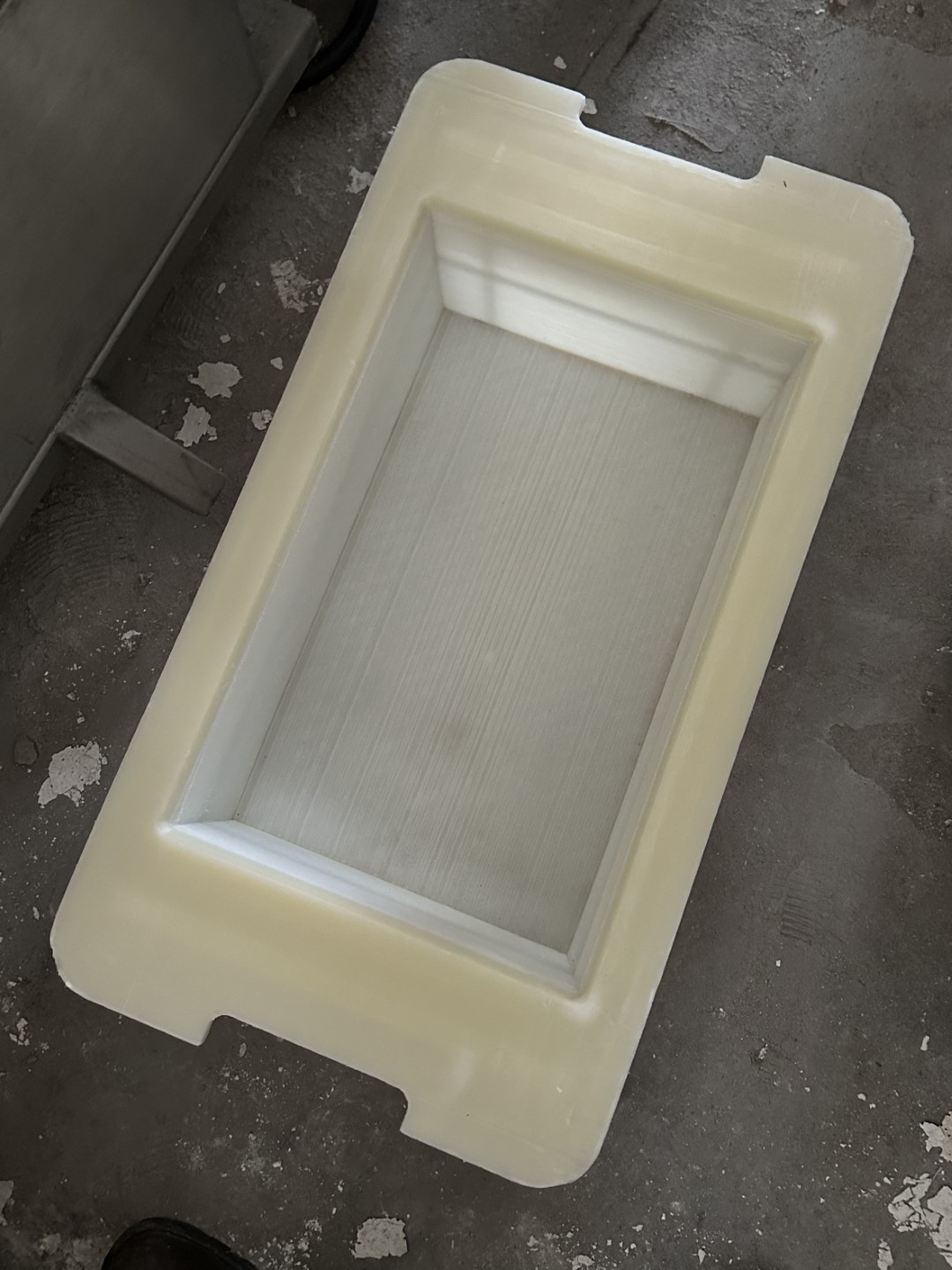

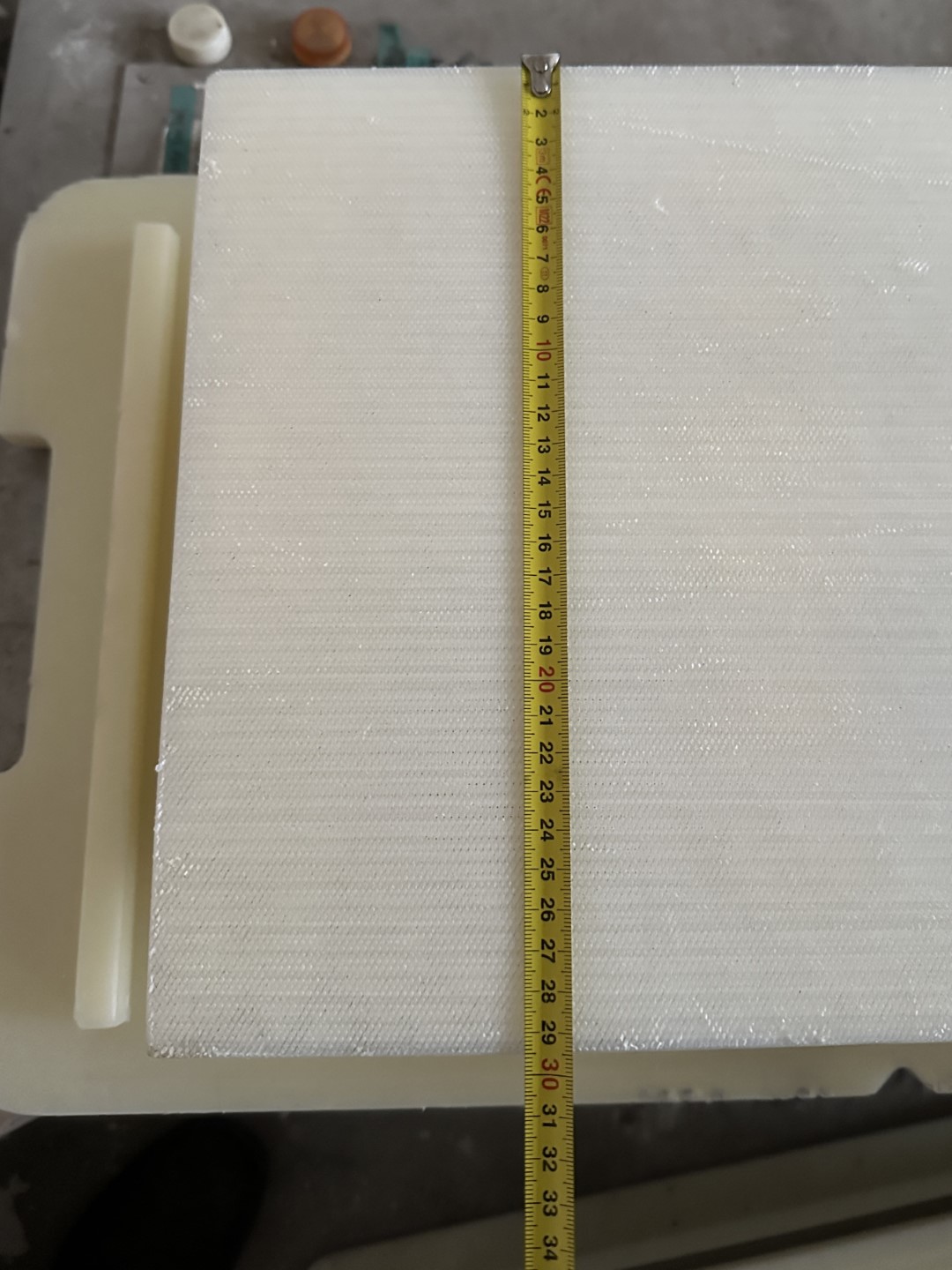

• A limited number of Laude micro-perforated Euroblock moulds with lids are available as examples. For full-scale production, additional moulds will need to be purchased.

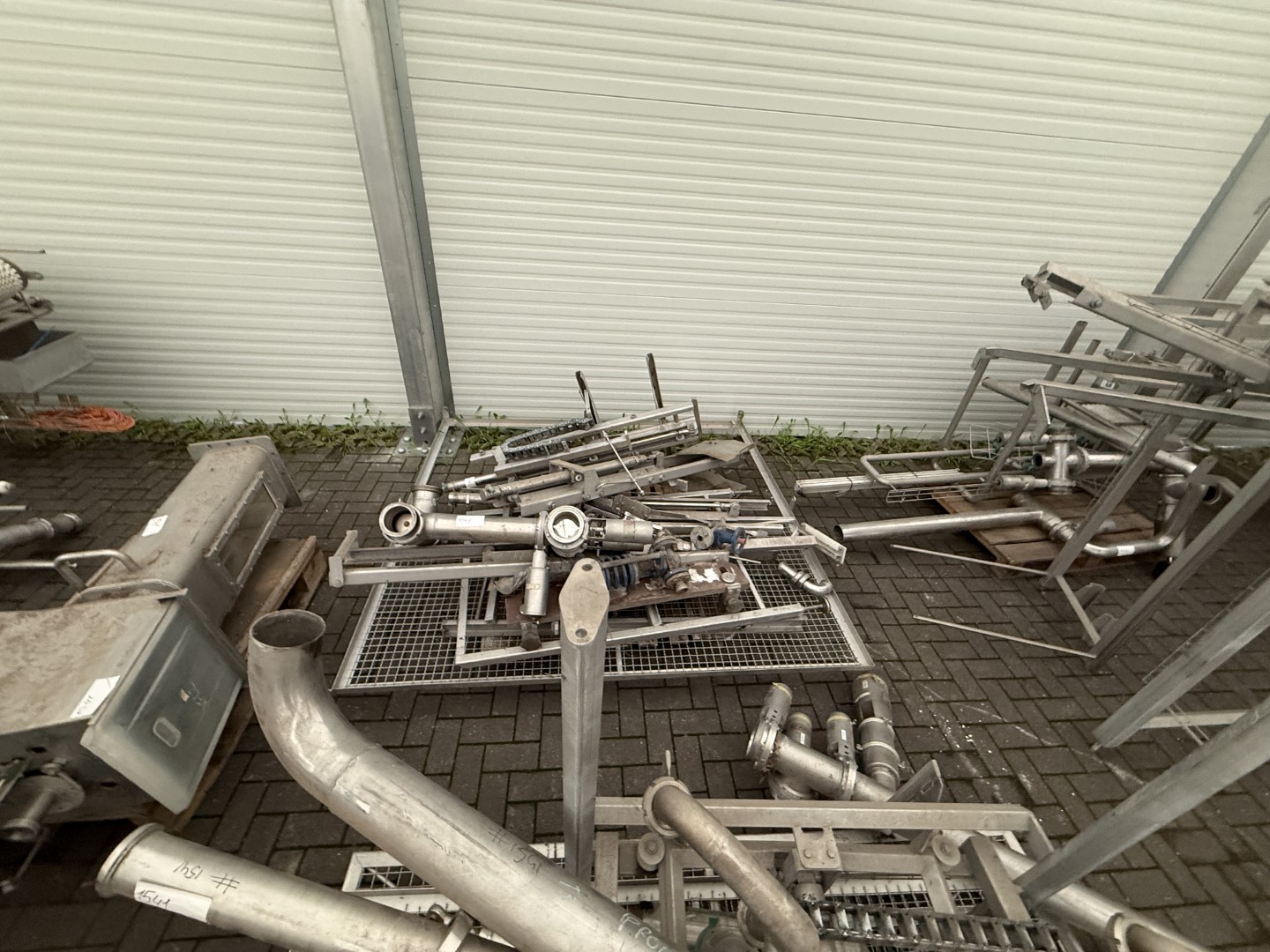

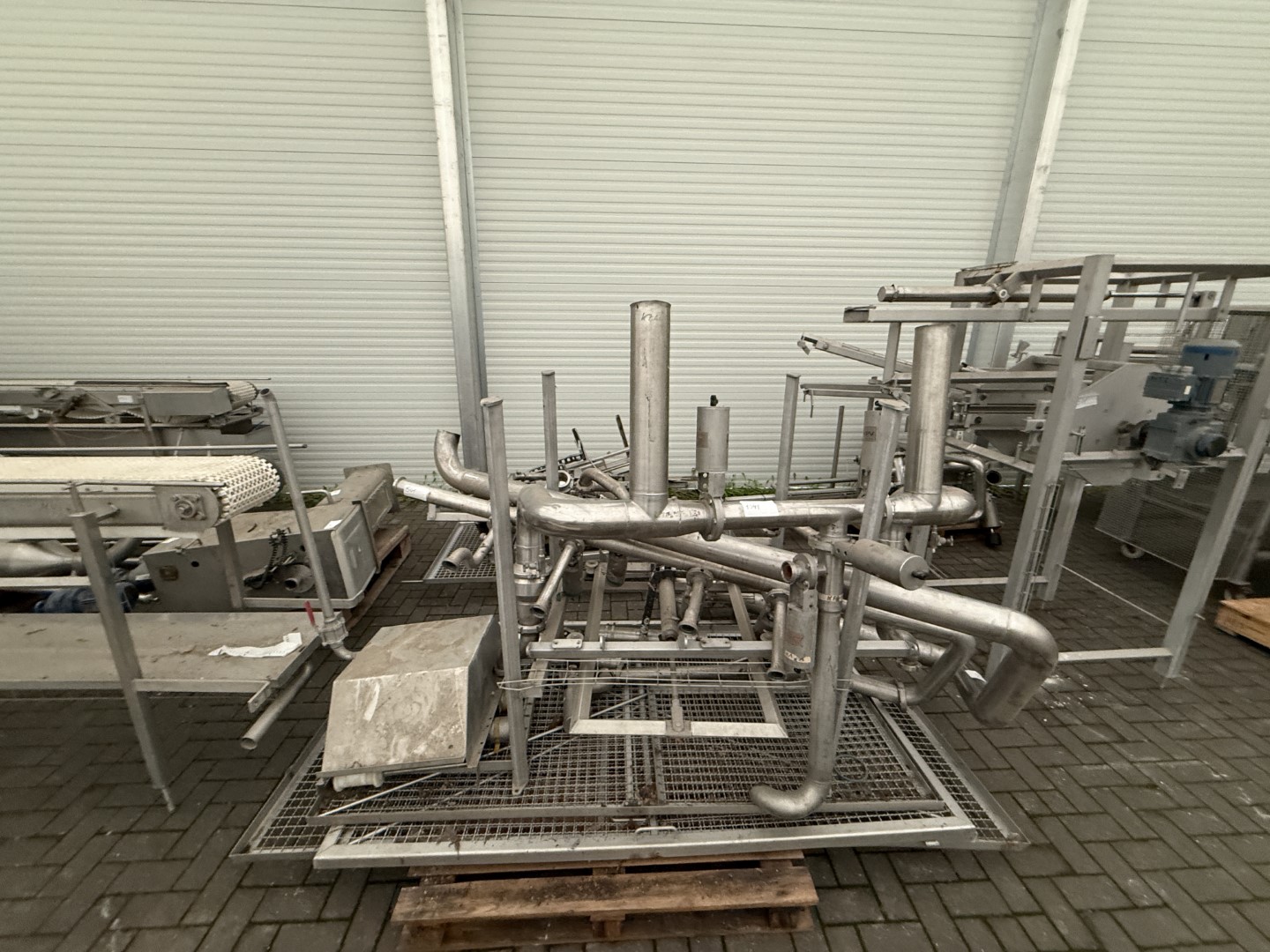

• Several pumps, piping and valves are available, but confirmation if each and every one is available, cannot be given.
• Approximately 30 brine cages can be supplied upon request. These are currently still located at the original dairy facility.
