Processed Cheese Machine Karl Schnell FD Automats FD 9/570 Type 163
Specifications
Manufacturer | Karl Schnell |
Model | 163 (FD 9/570) |
Year | 2002 |
Condition | Used |
Serial Number | 31434 |
Stock Number | 1194 |
Type of Machine | Processed Cheese Machine |
Volume | 570 liter |
Batch size | 430 liter |
Capacity | up to 4.500 kg/h |
Emulsifier motor | 55 / 75 kW - 400 V - 50 Hz - 1.485 / 2.965 rpm - 100 / 135 A |
Pre-shedding motors | 2 pieces, 40 / 55 kW - 400 V - 50 Hz - 1.480 / 2.870 rpm - 72 / 95 A |
Dimensions | Machine: 300 x 220 x 245 cm / Control panel: 250 x 70 x 225 cm |
Total weight | ± 5.800 kg |
Description

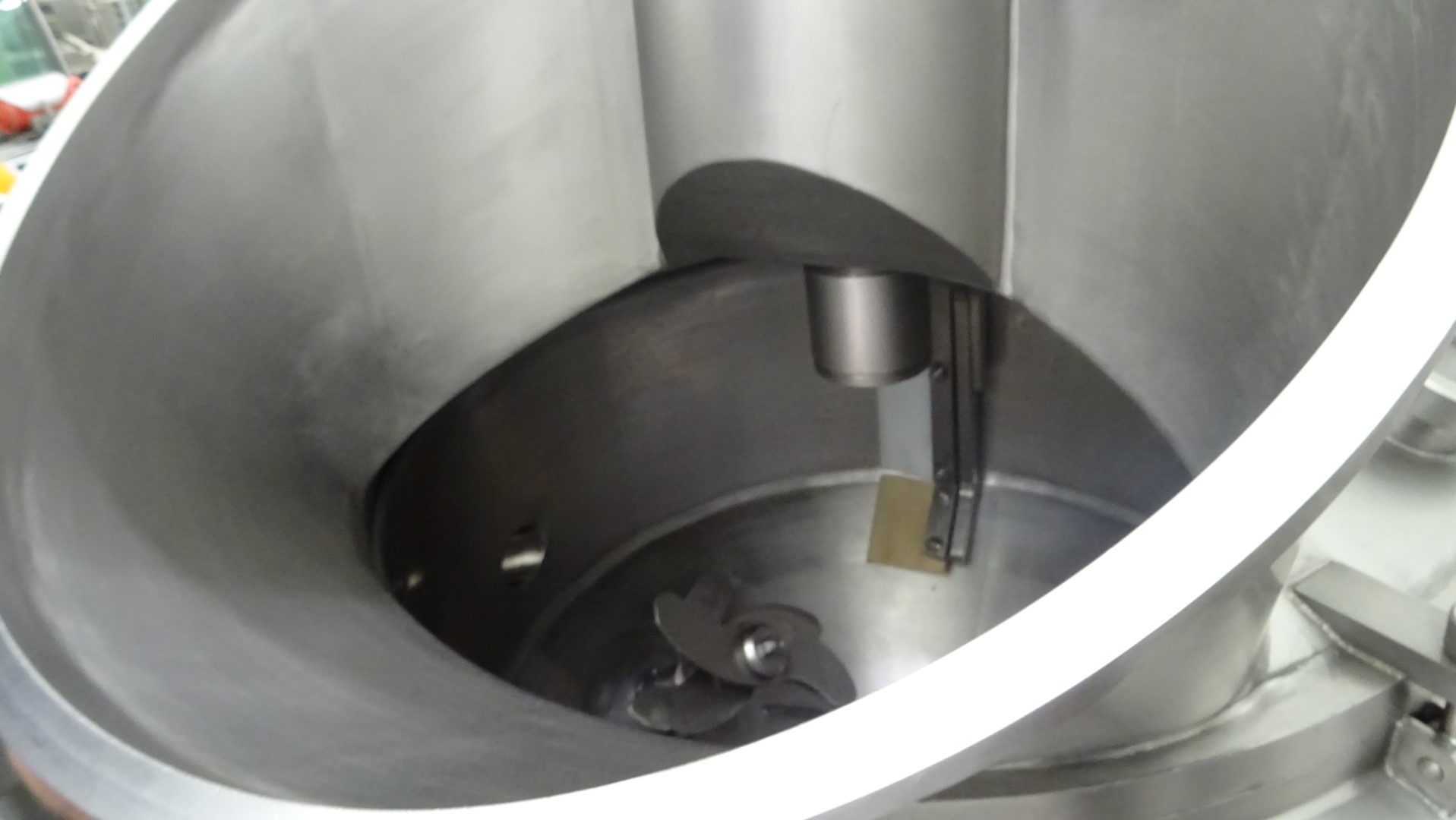

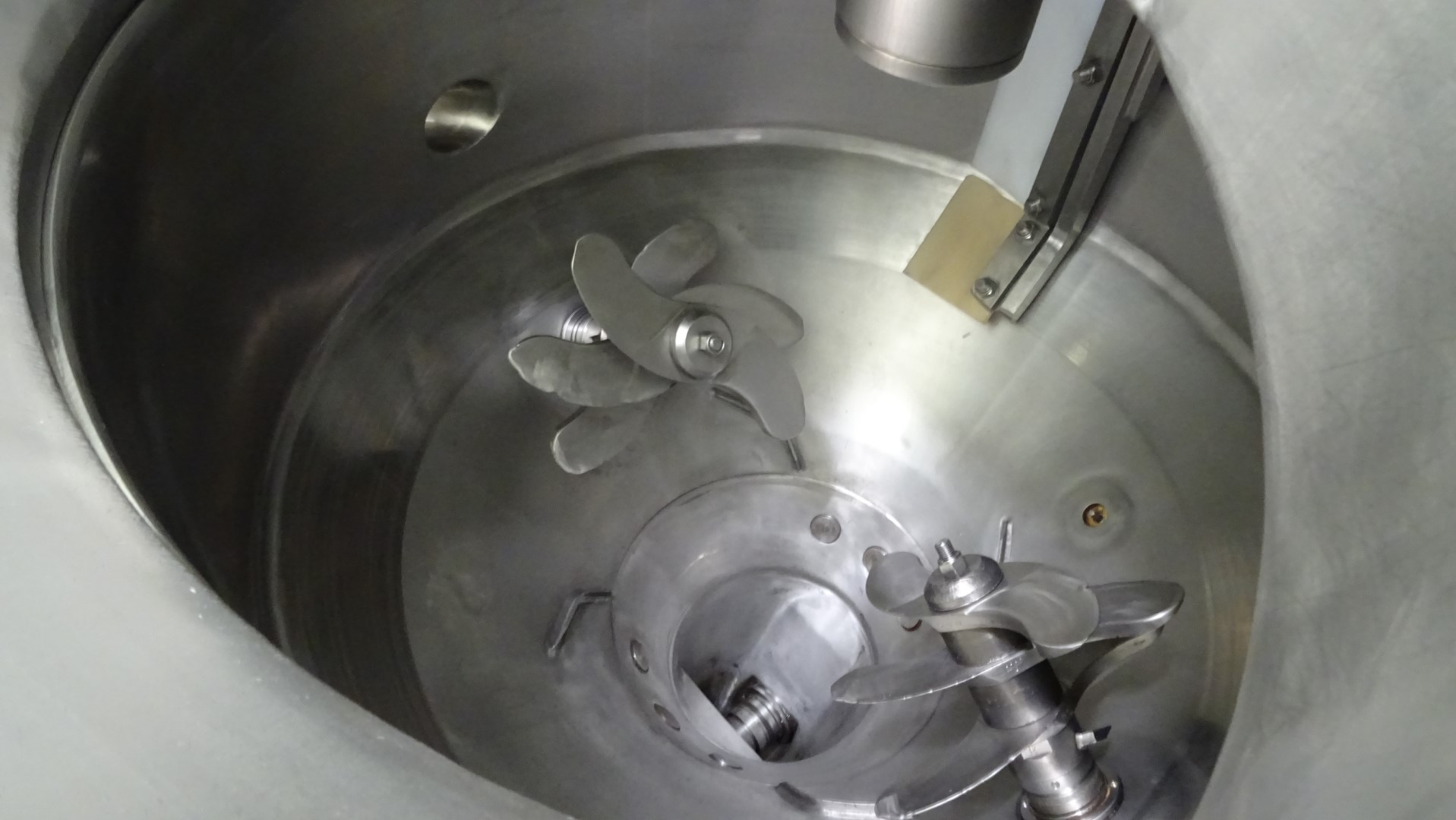

Karl Schnell processed cheese machine (Schmelzkäseautomat) for the production of processed cheese, cream cheese, convenience products, vegan spreads and confectionery. This machine combines in a unique way a mixer, cutter and emulsifier in a closed system. Previously used in a processed cheese plant. Machine frame, bowl, lid and side covers are all made of stainless steel. The product is mixed and preminced under vacuum in the pre-cutting bowl. The bowl (volume 570 liter, effective filling 430 liter) is equiped with a double jacket for heating / cooling on the jacket and 6x direct steam injection nozzles for direct injection of (culinair) steam inside the product. 2x 3 twin cutting blades for pre-shredding with 2x pre-sheddering motors from the side (each 40 / 55 kW - 1.480 / 2.870 rpm) .Afterwards the product is discharged through the internal emulsifier. Emulsifier motor (55 / 75 kW - 1.485 / 2.965 rpm). Scraper agitator against the wall (5,5 kW - n2: 13,5 rpm). Vacuum connection with vacuum pump (5,5 kW). Compressed air controlled cyclinder for opening the lid. Filling of the Karl Schnell machine with raw ingredients by a lifting device / elevator for 200 liter normcar trolleys to a height of ± 1.850 mm. Main control panel with motorgroups and PLC (Siemens S7) and Siemens Simatic Multi Panel to run all process steps fully automatically. Cutting housing: daimeter 225 mm. Perforated plate: diameter 225 mm. Fine grinding: KS-cutting set with 2 hole plates. Total dimensions machine: 300 x 220 x 245 cm and control panel: 250 x 70 x 225 cm. Total weight: ± 5.800 kg. Including a big lot of spare parts and instruction manuals.
This Processed Cheese Machine Karl Schnell FD Automats FD 9/570 Type 163 will empty its finalised product inside the Karl Schnell Creaming tank, our stocknumber #1195 (https://www.hamburg-machinery.com/listings/6452633-used-creaming-tank-karl-schnell-type-251). This can be bought additional with this machine.
