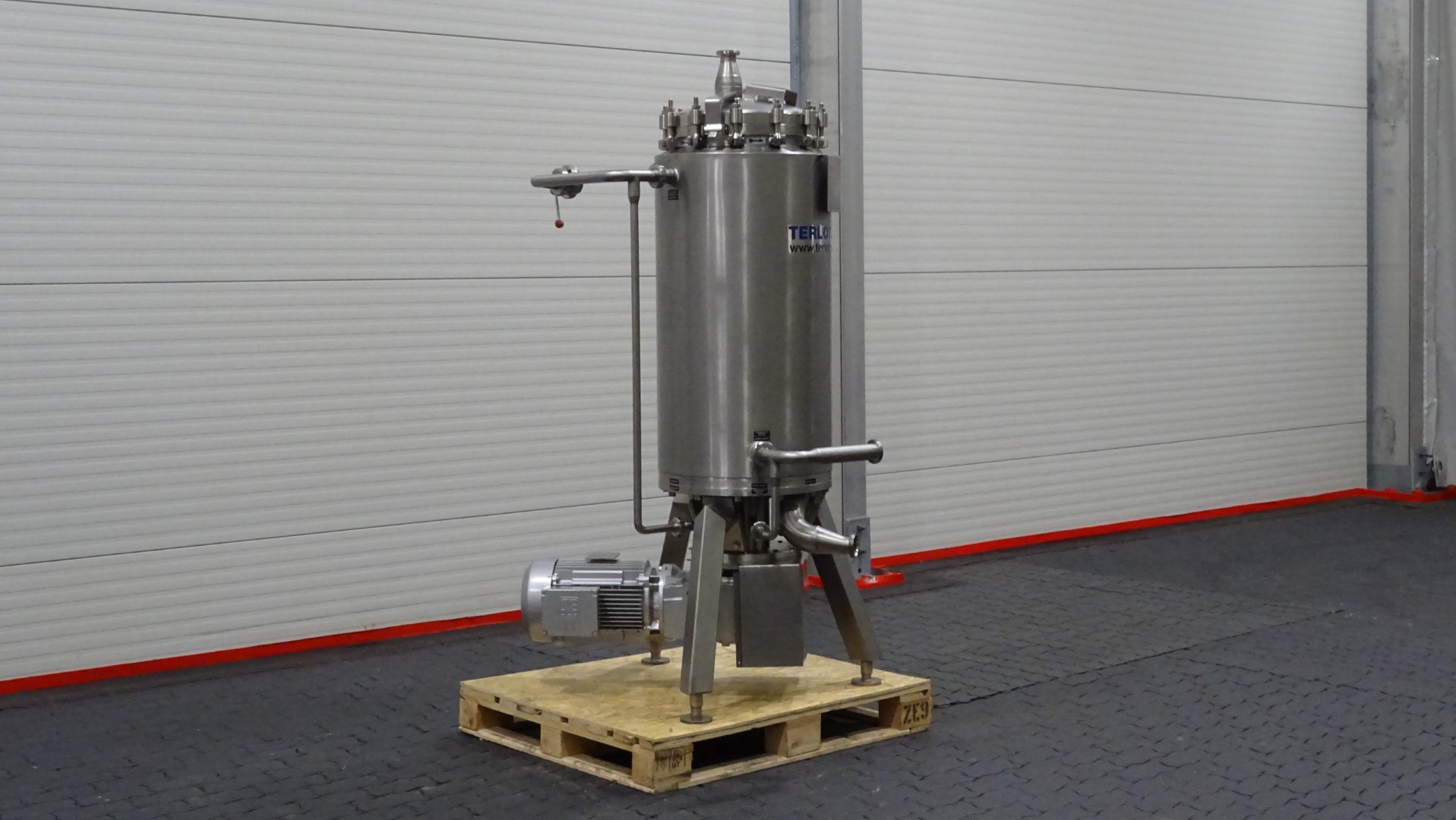

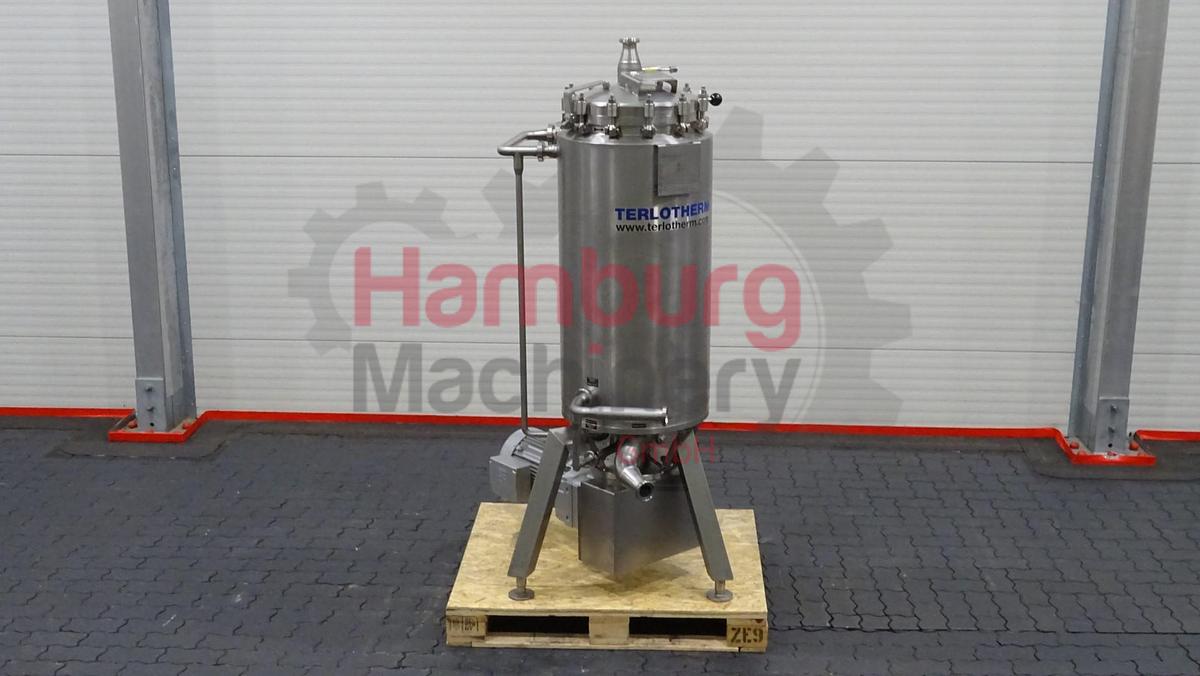

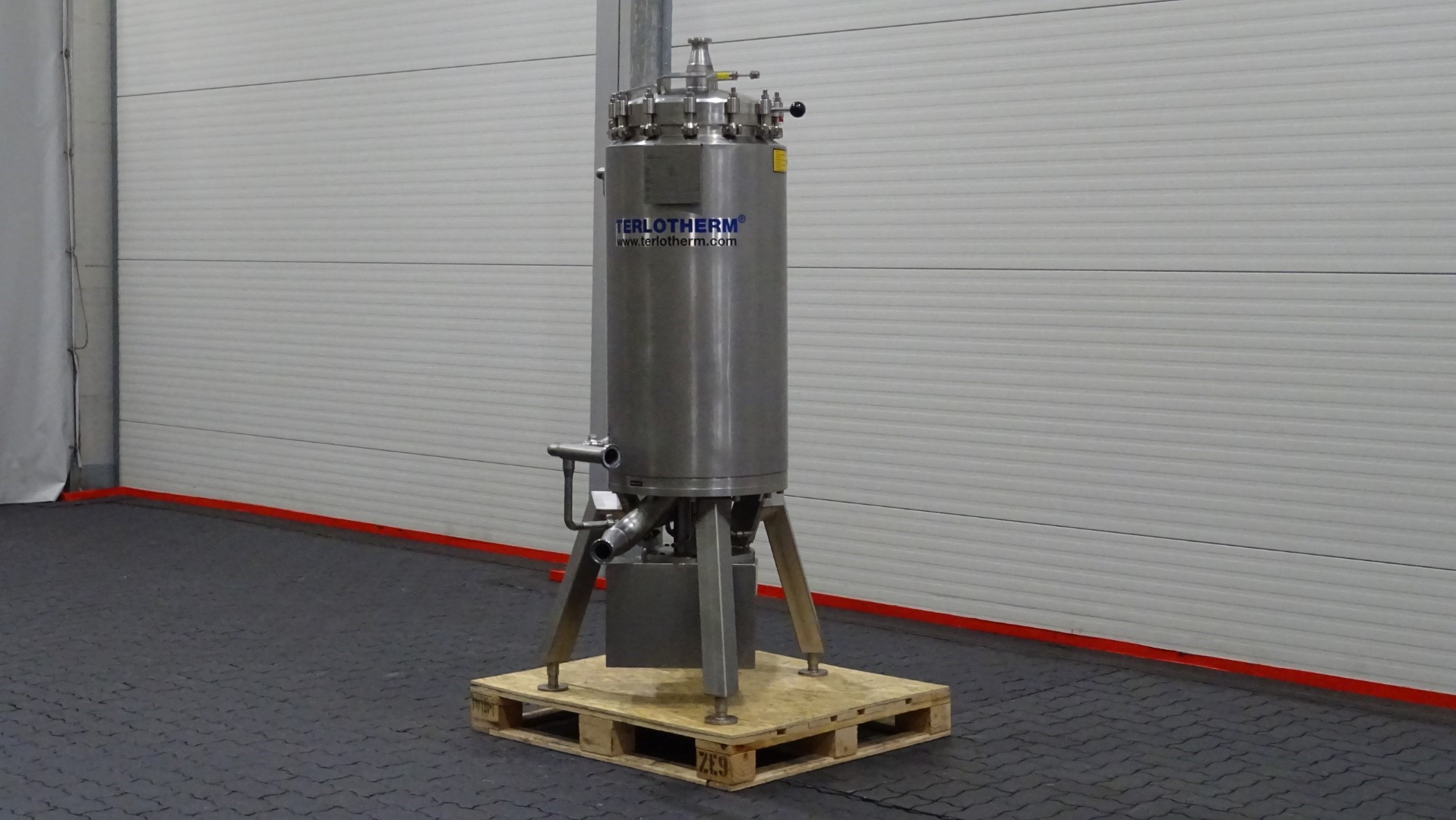

Scraped Surface Heat Exchanger (SSHE) - Terlet Terlotherm T1-4
Specifications

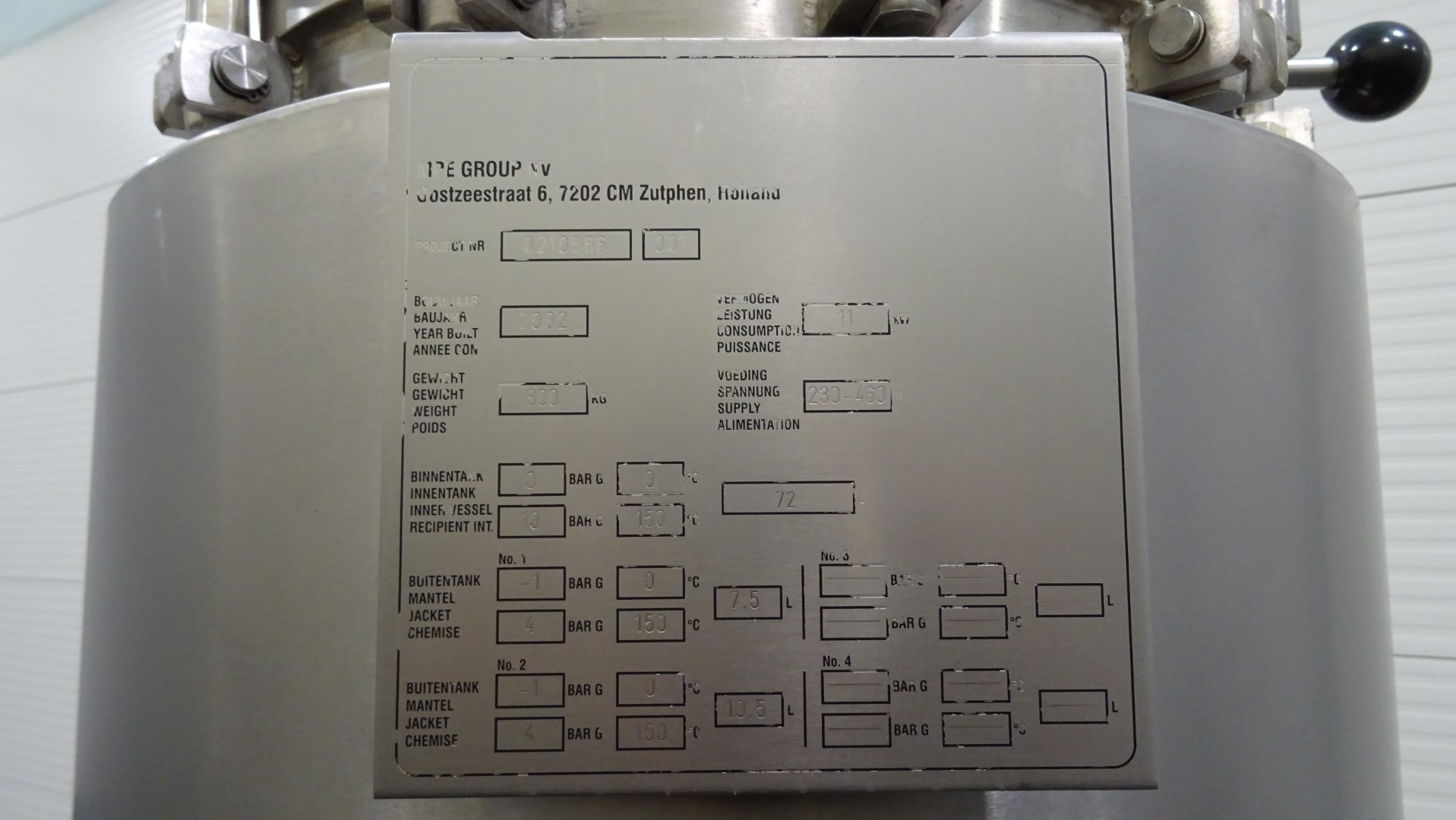

| Manufacturer | Terlet / MPE Group NV / Proxes |
| Model | Terlotherm T1-4 |
| Year | 2002 |
| Condition | Used |
| Serial Number | 0210566 001 |
| Stock Number | 1390 |
| Type of Machine | Scraped Surface Heat Exchanger (SSHE) |
| Volume | 72 liter |
| Heated surface | 2,4 m2 |

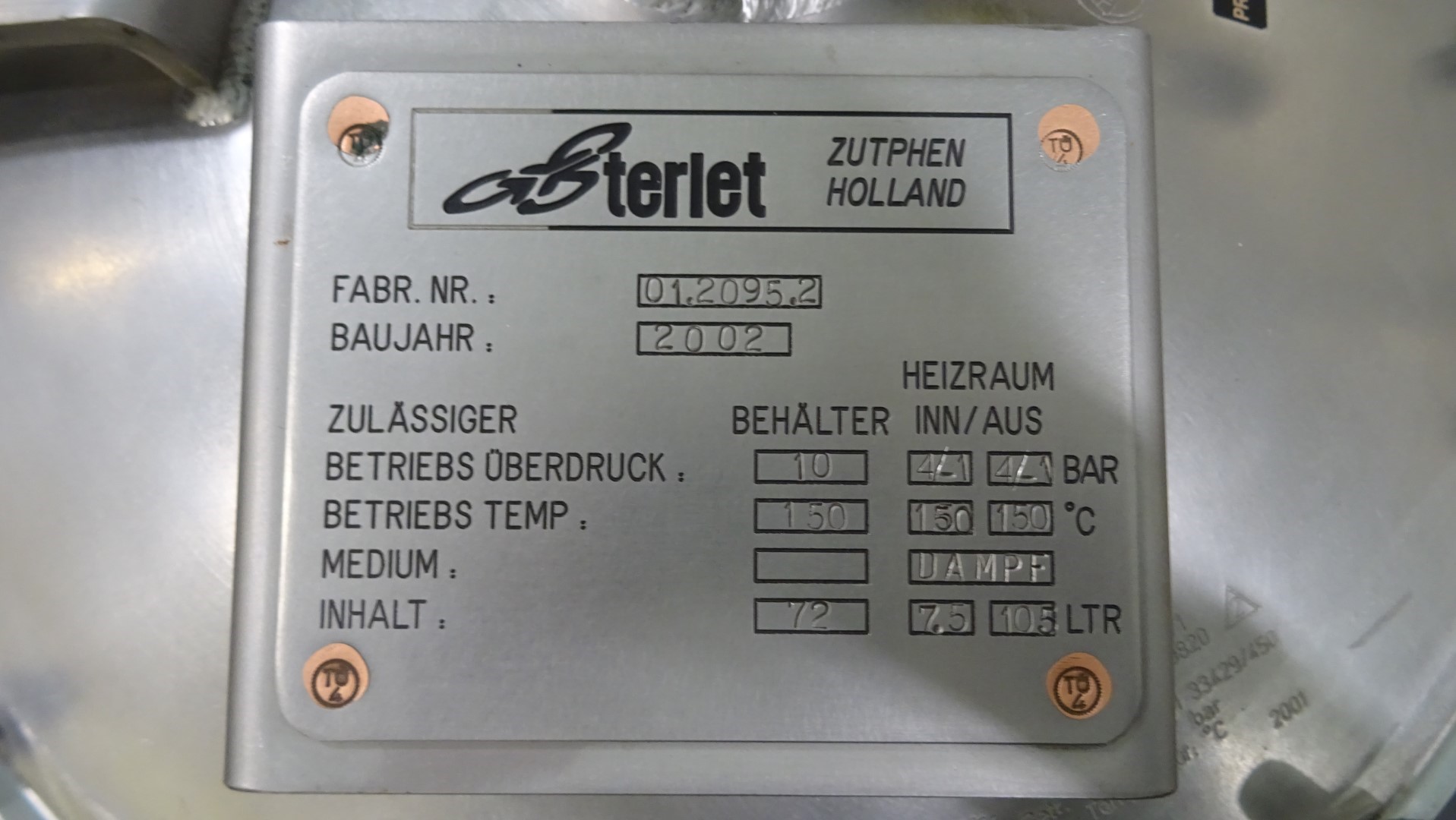

| Inner vessel | 0 / 10 Bar - 0 / 150 °C - 72 liter |
| Jacket 01 | -1 / 4 Bar - 0 / 150 °C - 7,5 liter |
| Jacket 02 | 1 / 4 Bar - 0 / 150 °C - 10,5 liter |

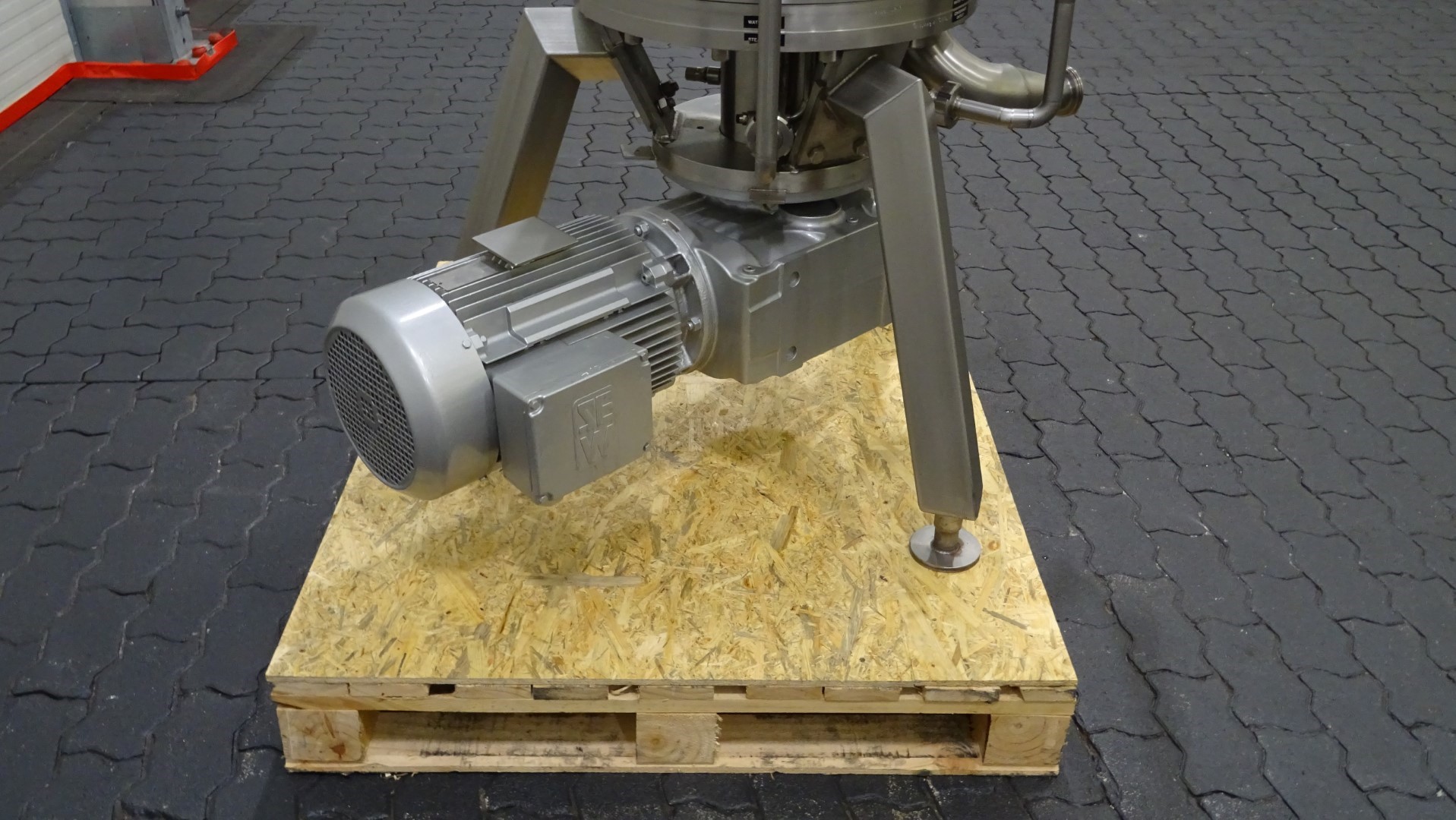

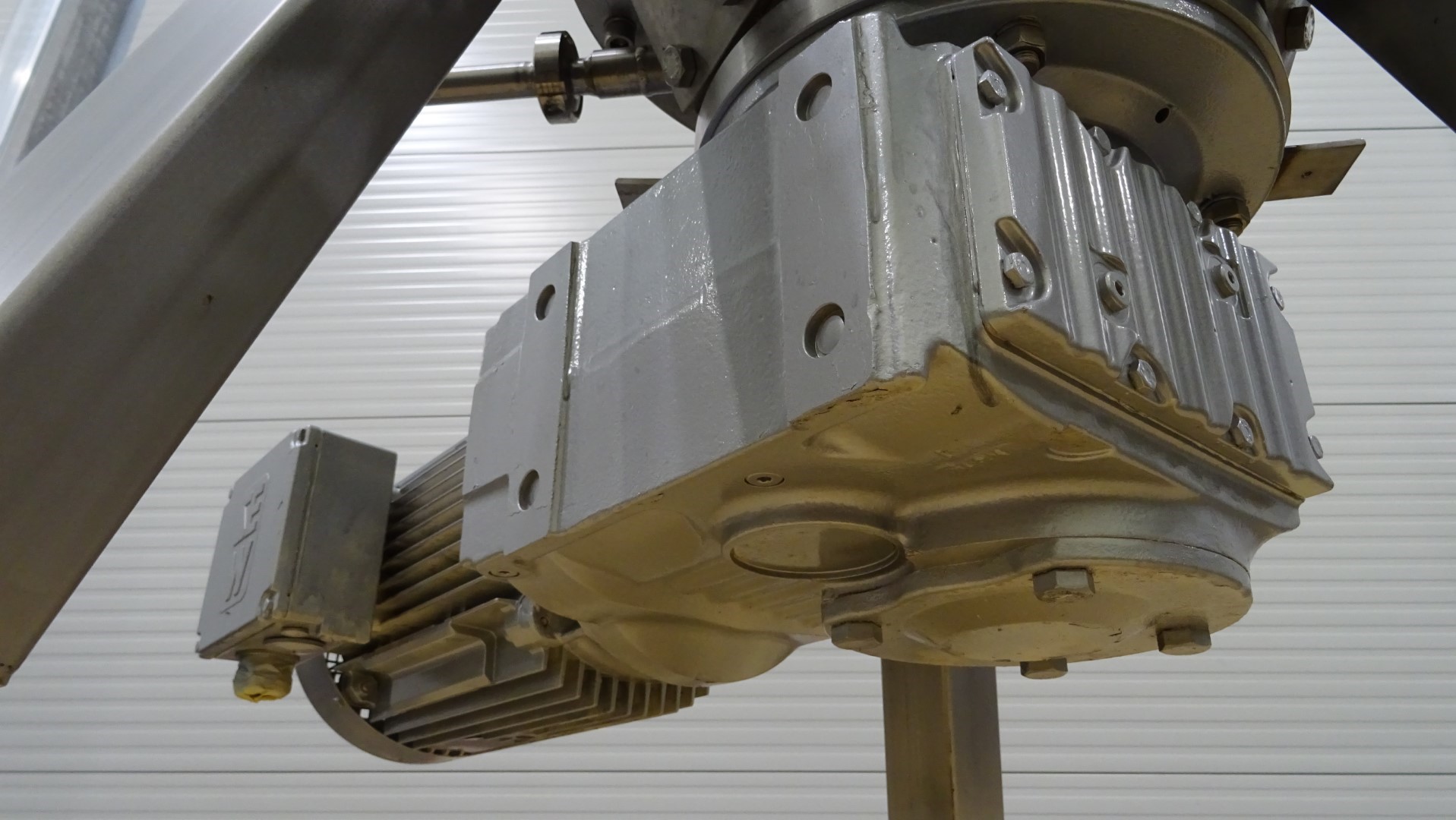

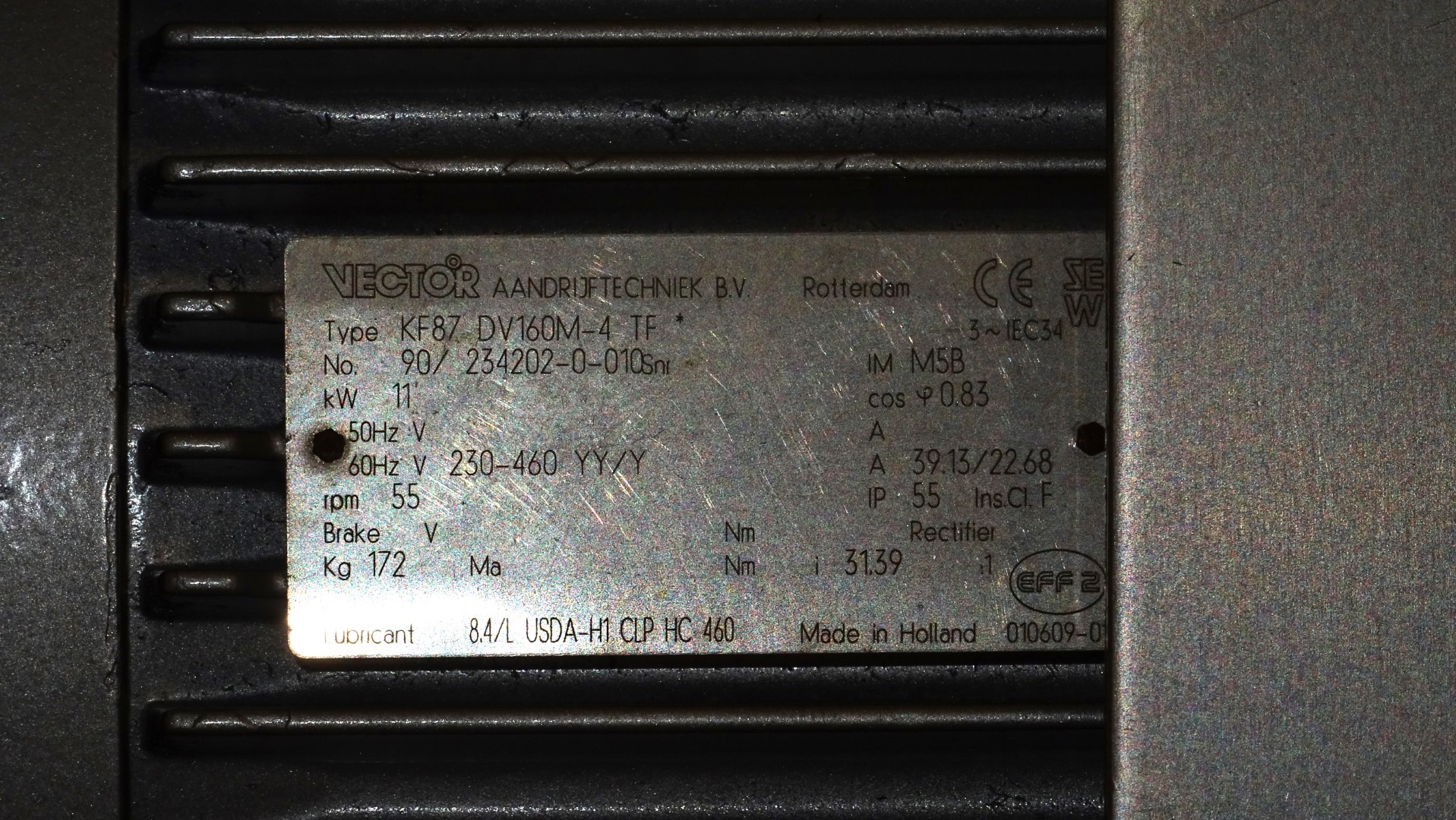

| Motor | 11 kW - i: 31,39 - n2: 55 rpm - 230/460 V - 60 Hz - 39,13 / 22,68 A |
| Dimensions | 150 x 100 x 205 cm |
| Weight | 800 kg |
Description

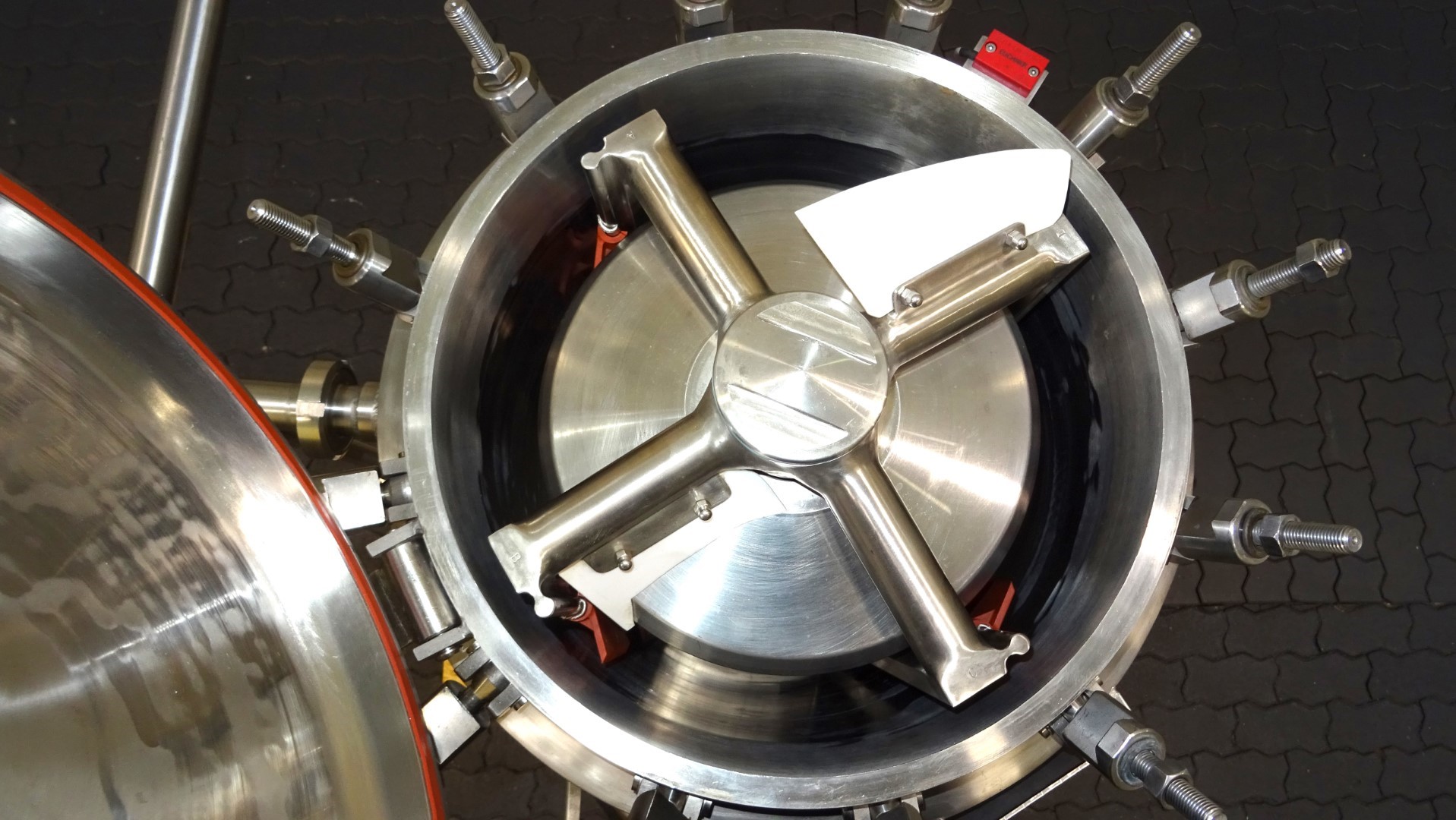

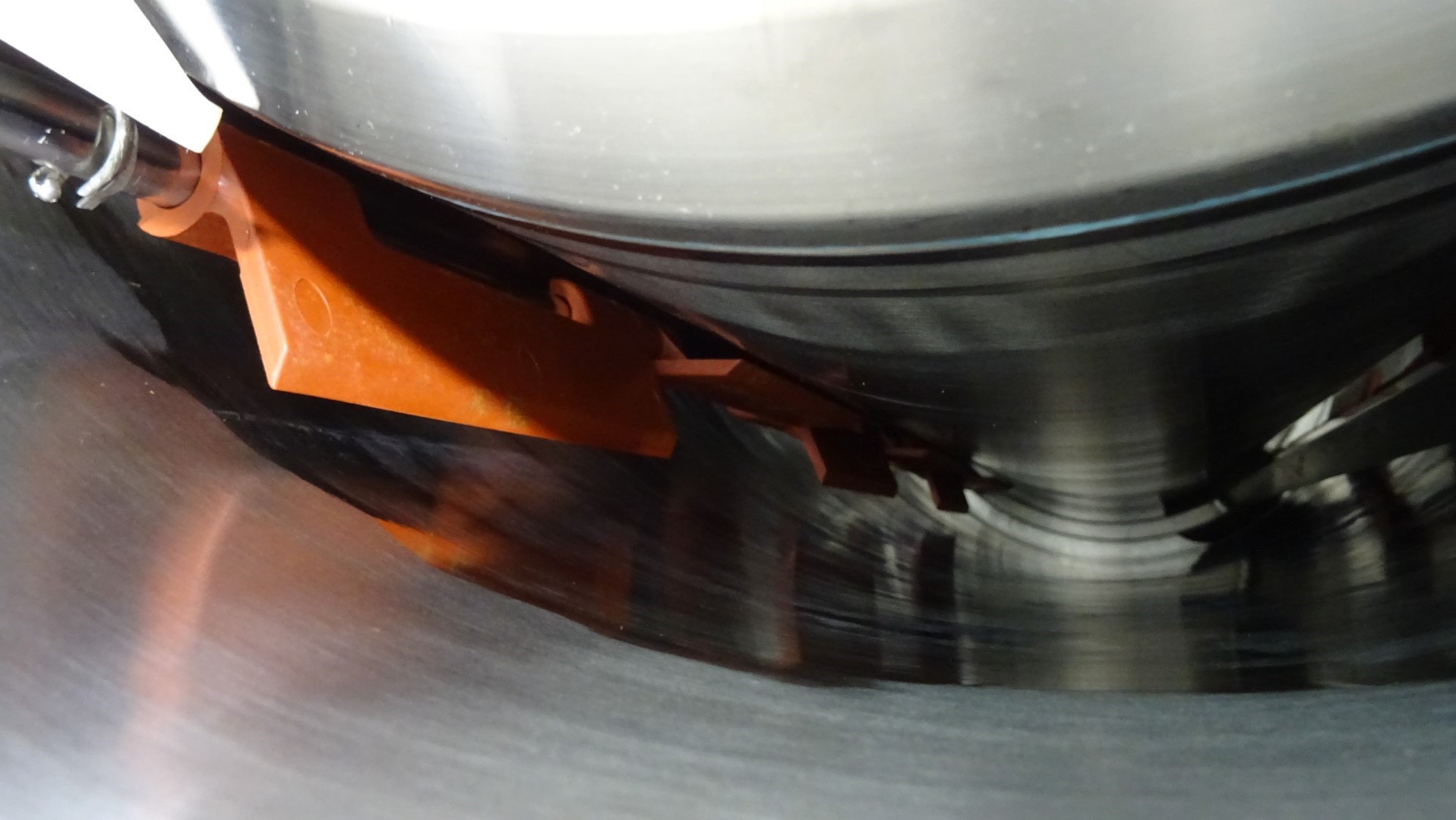

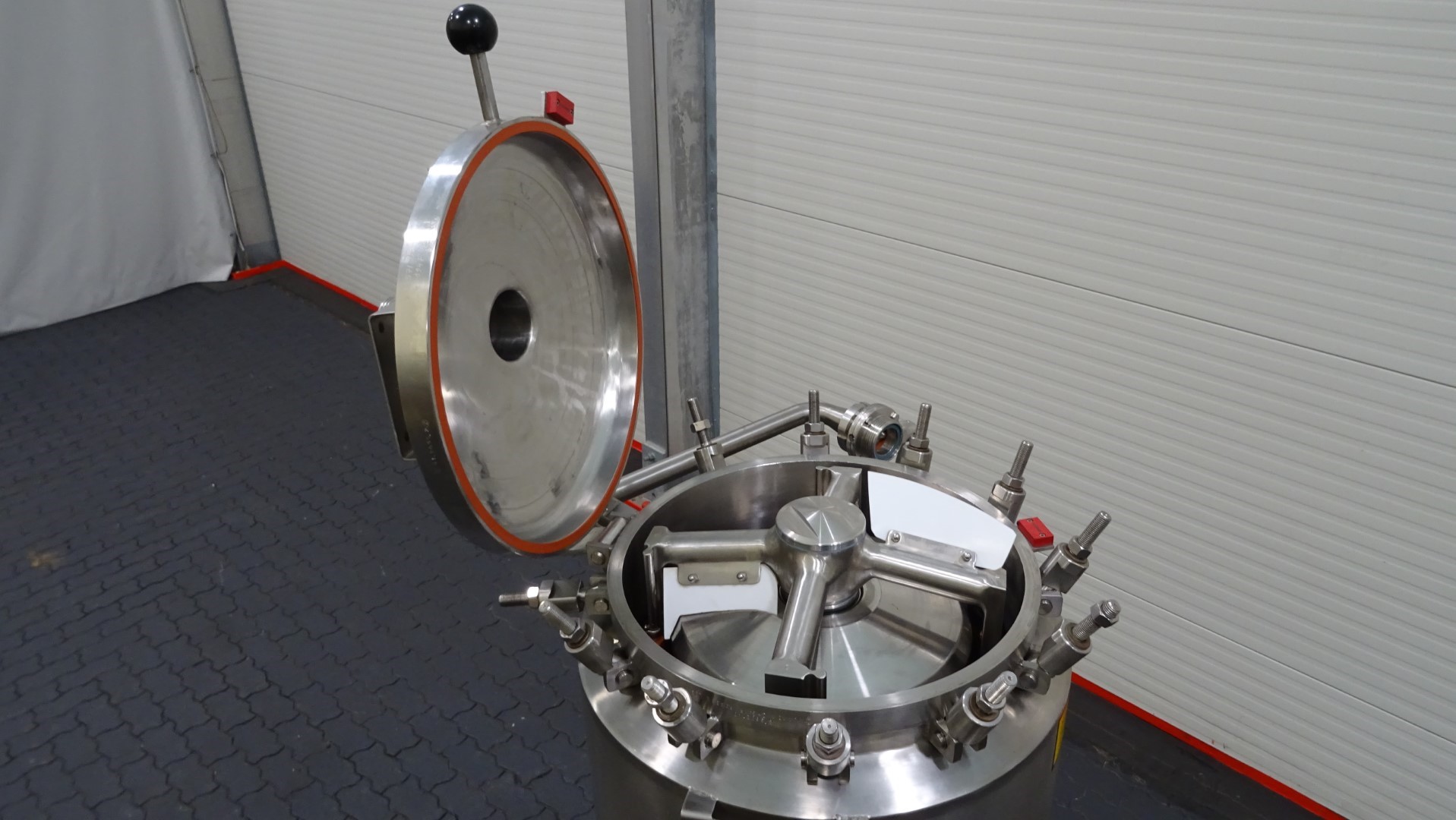

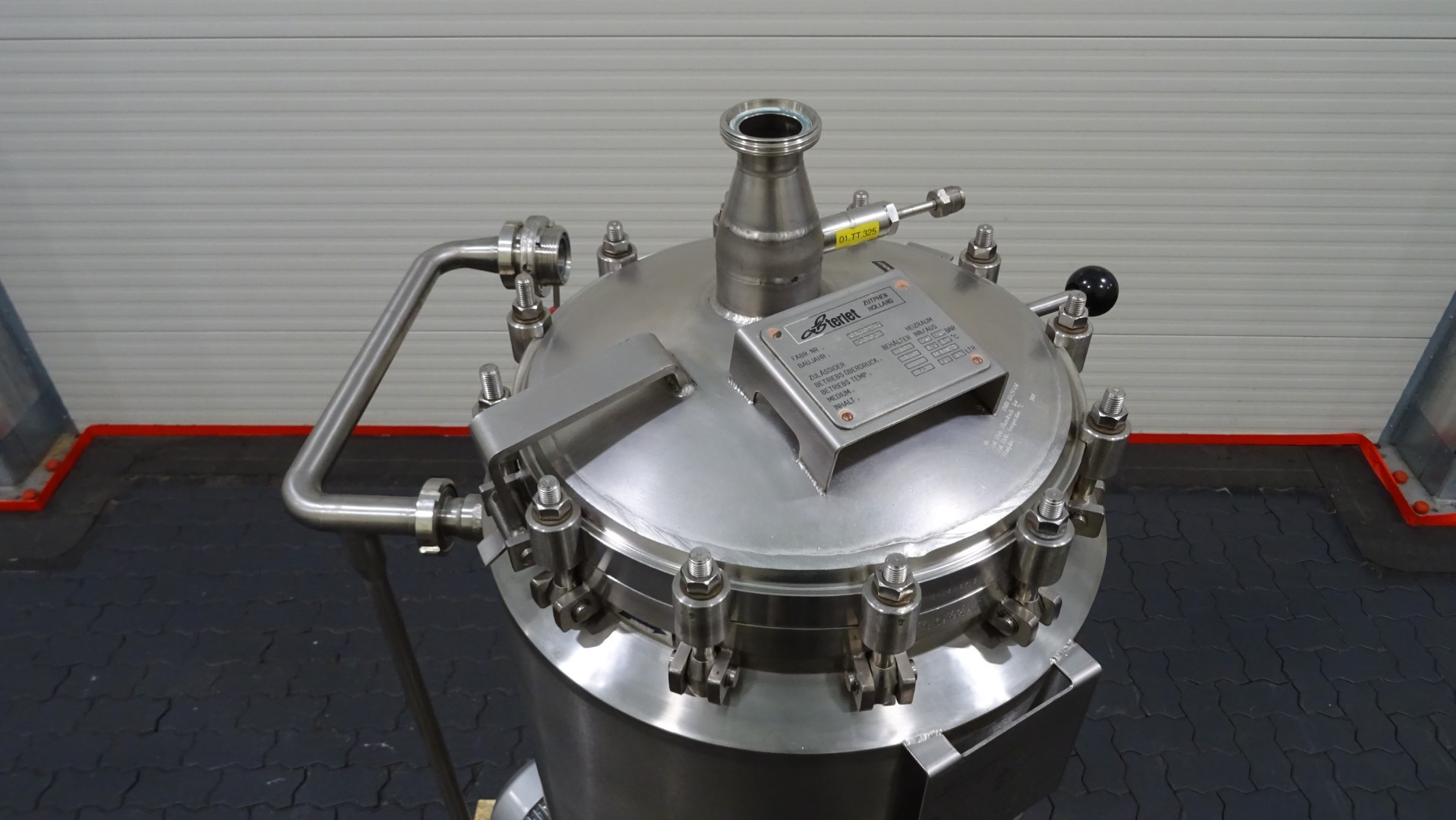

Terlet Terlotherm T1-4 Scraped Surface Heat Exchangers (SSHE) for inline heating and / or cooling of liquid, viscous and high viscous products with or without whole parts (up to 25 mm), like starch preparations, soups, sauces, dairy products etc. Scrapers can be easily replaced. CIP Cleanable. Inspection without removing seal. Lid can be opened with clamps. Large heating area on limited floor area. Tangetiale inlet. Accelaration and deceleration area. No damage to the product. Maintenance friendly, only one seal and one drive. Product volume: 72 liter. Number of scraper rows: 4. Number of scrapers per row: 6. Total number of scrapers: 24. Heated surface: 2,4 m2. Inner vessel: 0 / 10 Bar - 0 / 150 °C - 72 liter. Jacket #1: -1 / 4 Bar - 0 / 150 °C - 7,5 liter. Jacket #2: -1 / 4 Bar - 0 / 150 °C - 10,5 liter. Motor: 11 kW - i: 31,39 - n2: 55 rpm - 230/460 V - 60 Hz - 39,13 / 22,68 A. Product inlet: 80 mm. Product outlet: 80 mm. Ground clearance: ± 675 mm. Cylindrical height: 134 cm. Total height: 202 cm. Weight: 800 kg.
