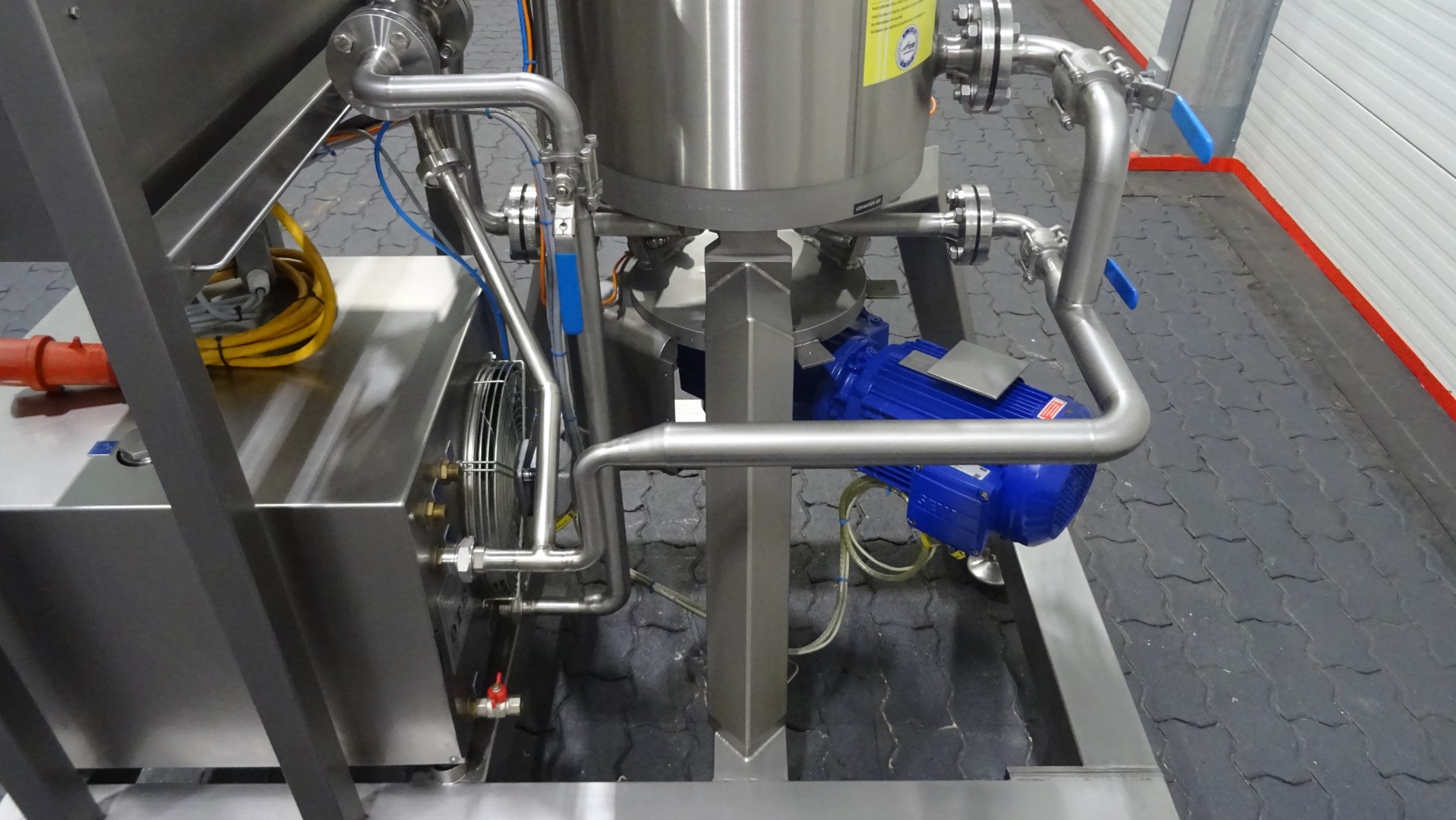

Scraped Surface Heat Exchanger (SSHE) - Terlet Terlotherm Delta 50-4M-EMS (10 bar)

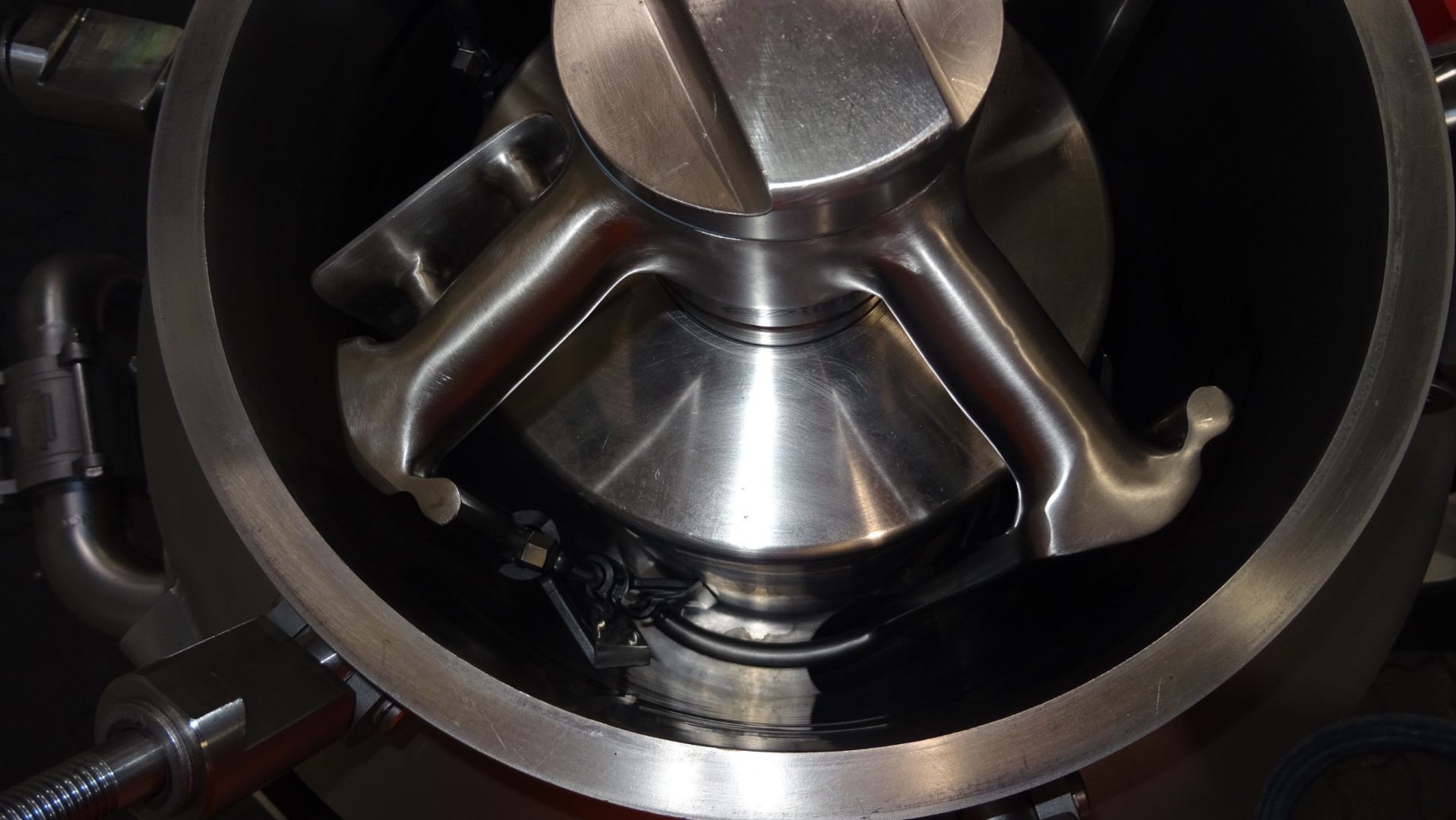

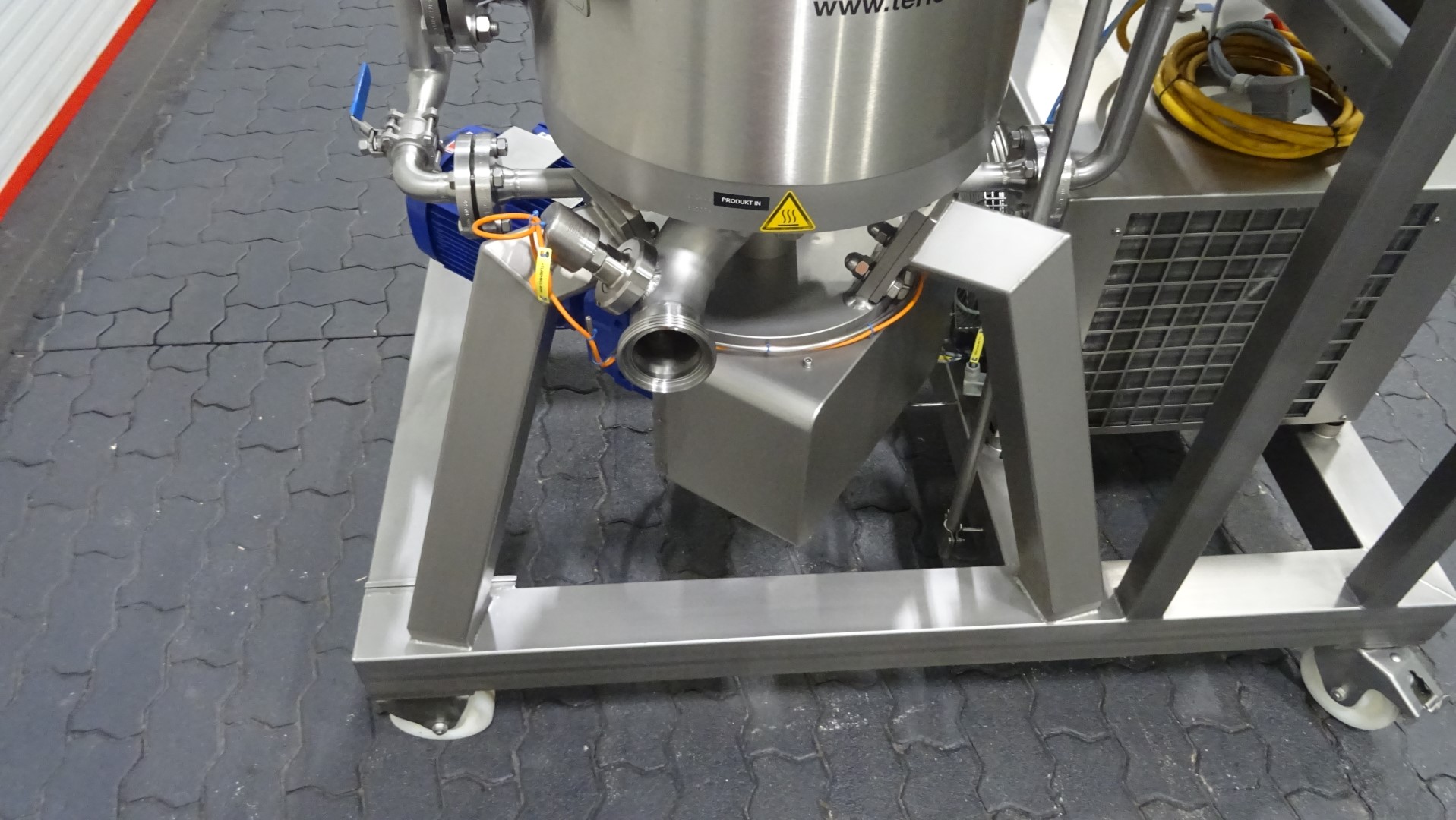

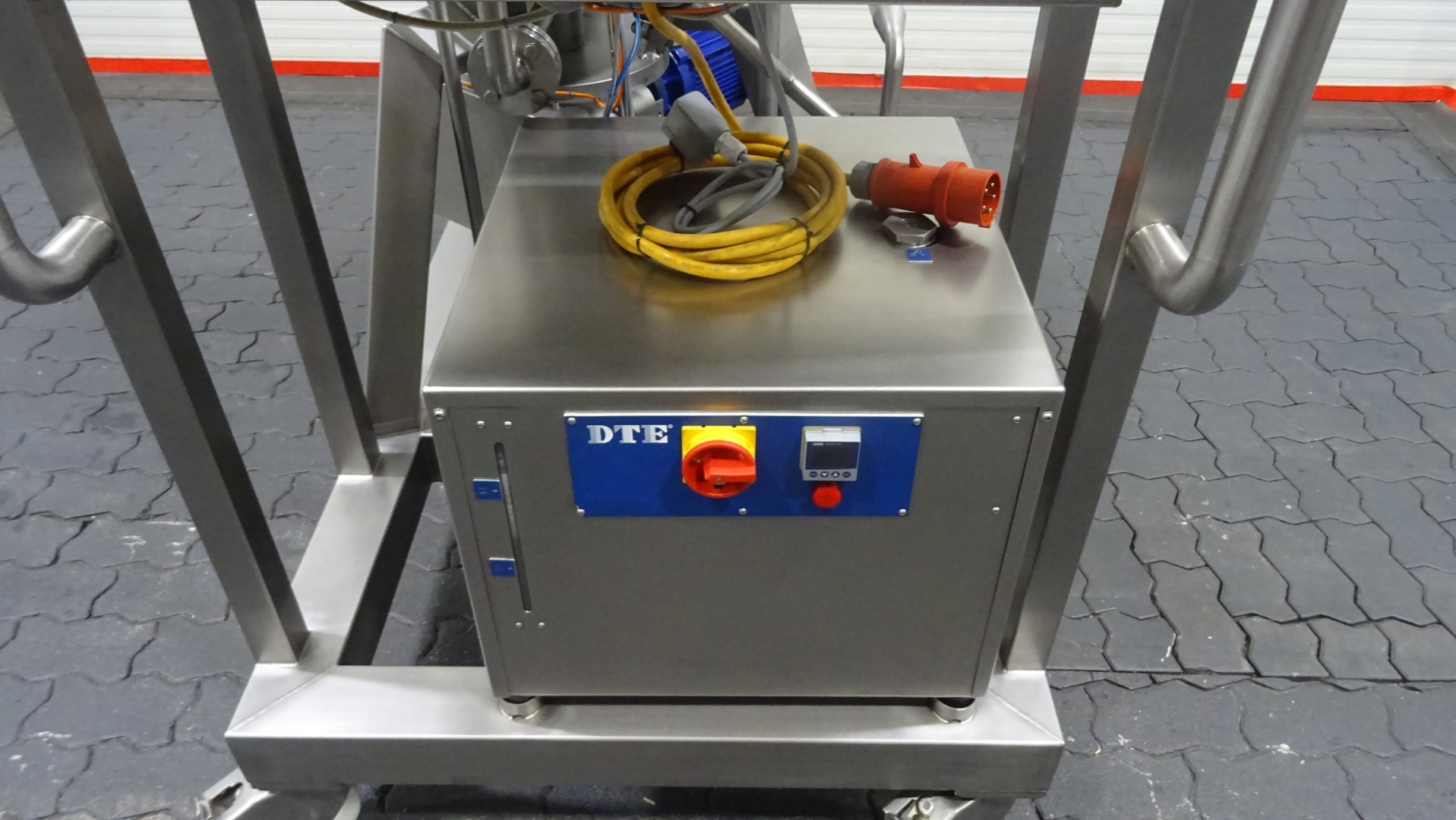

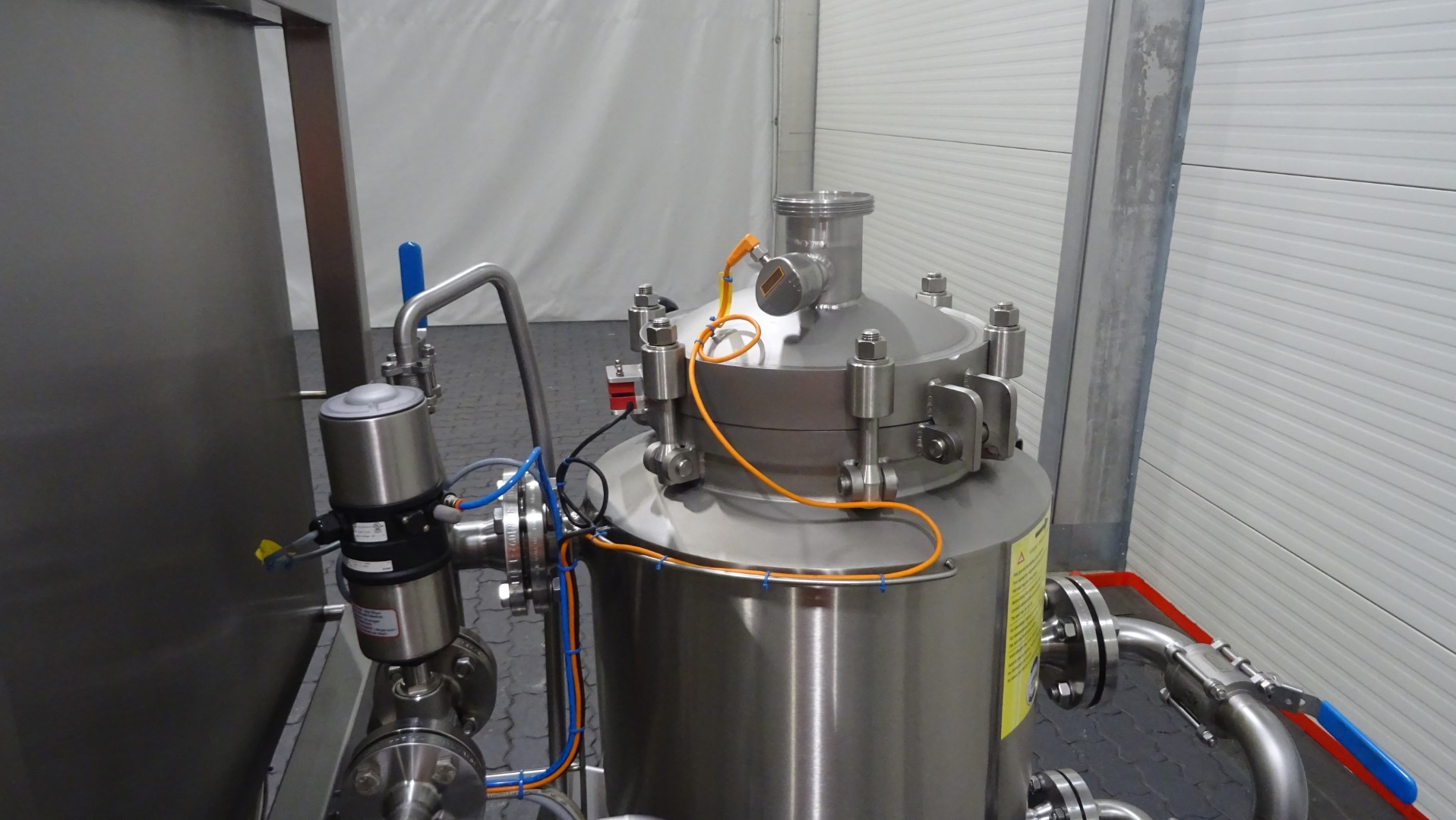

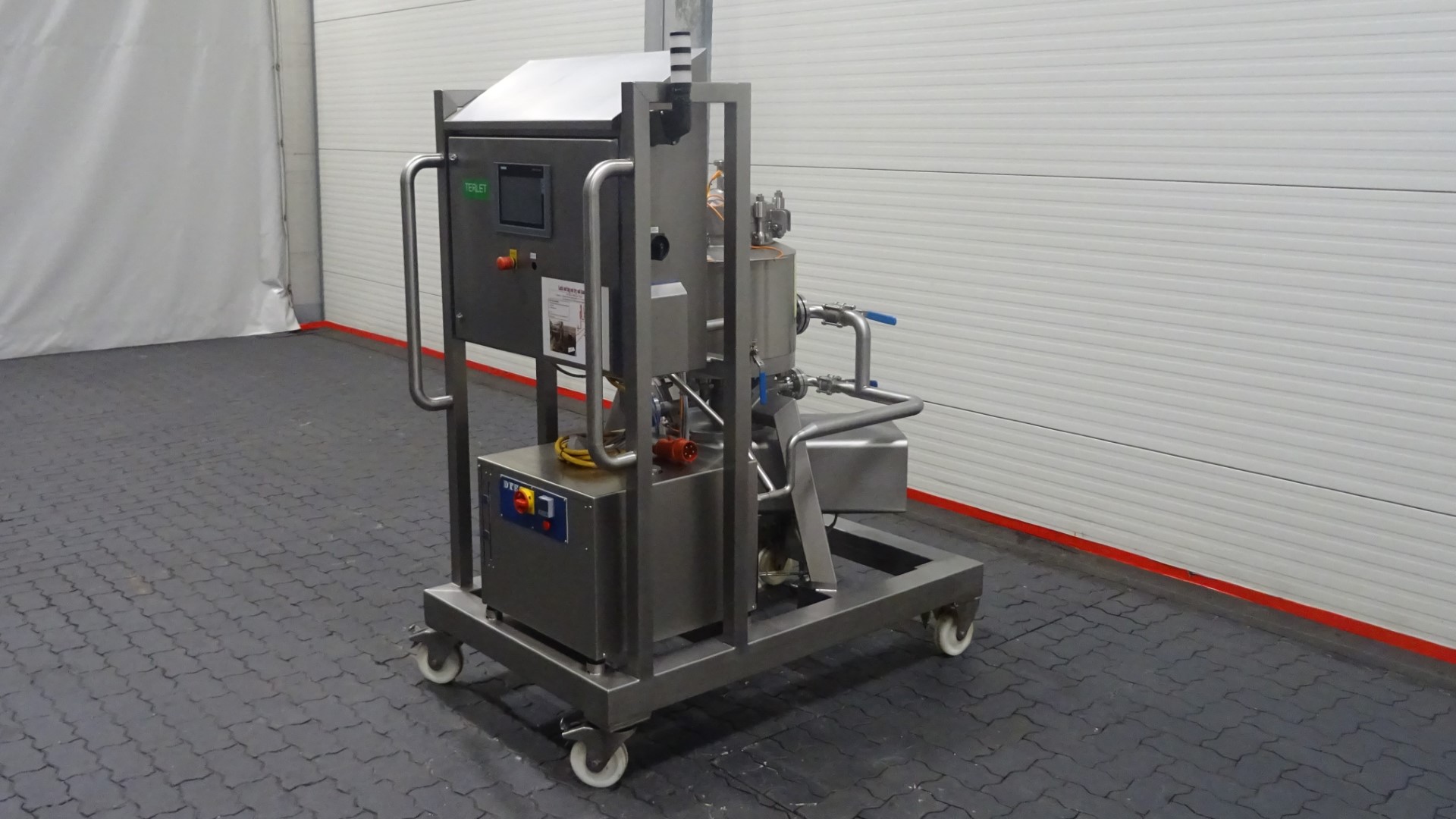

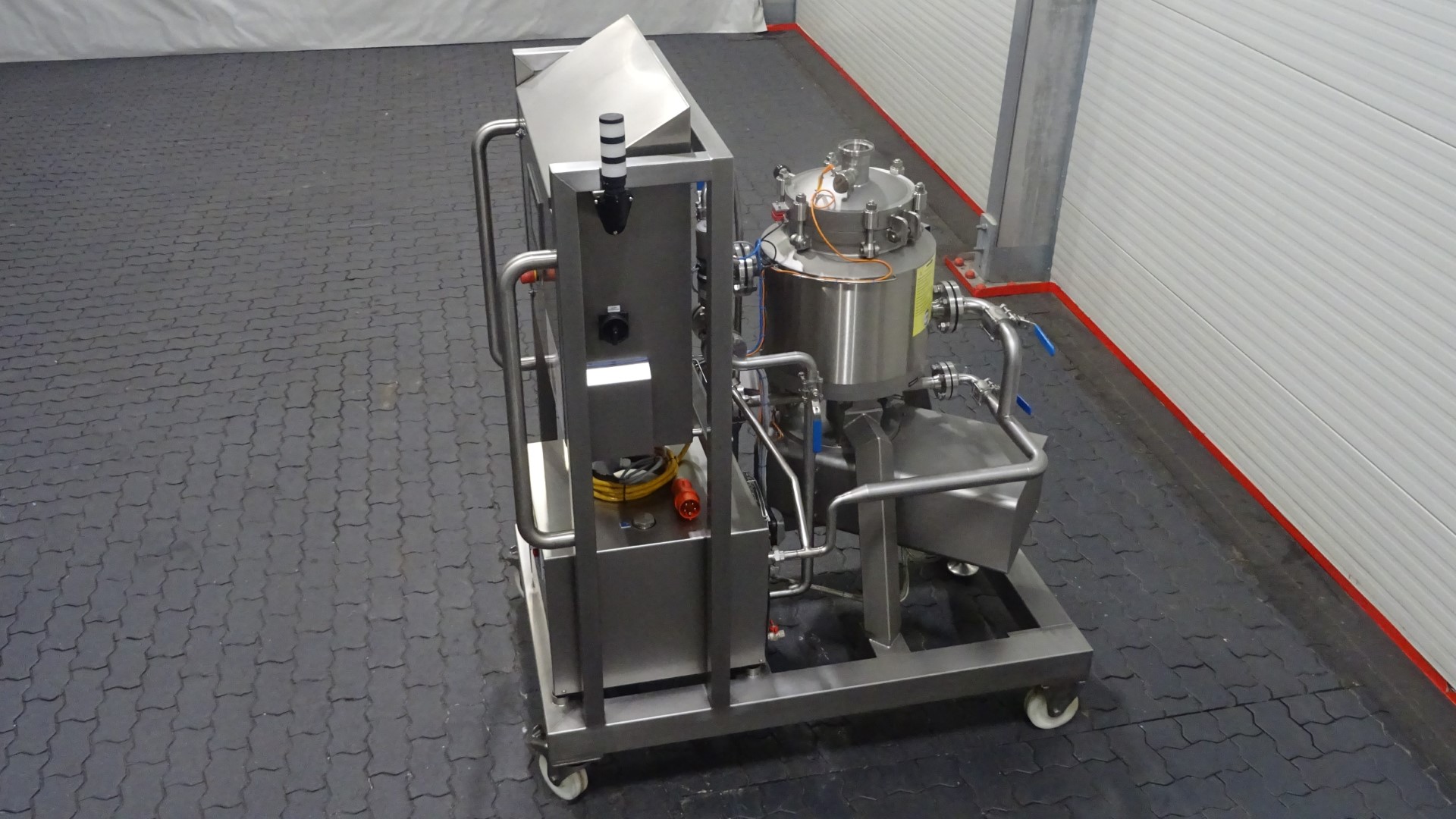

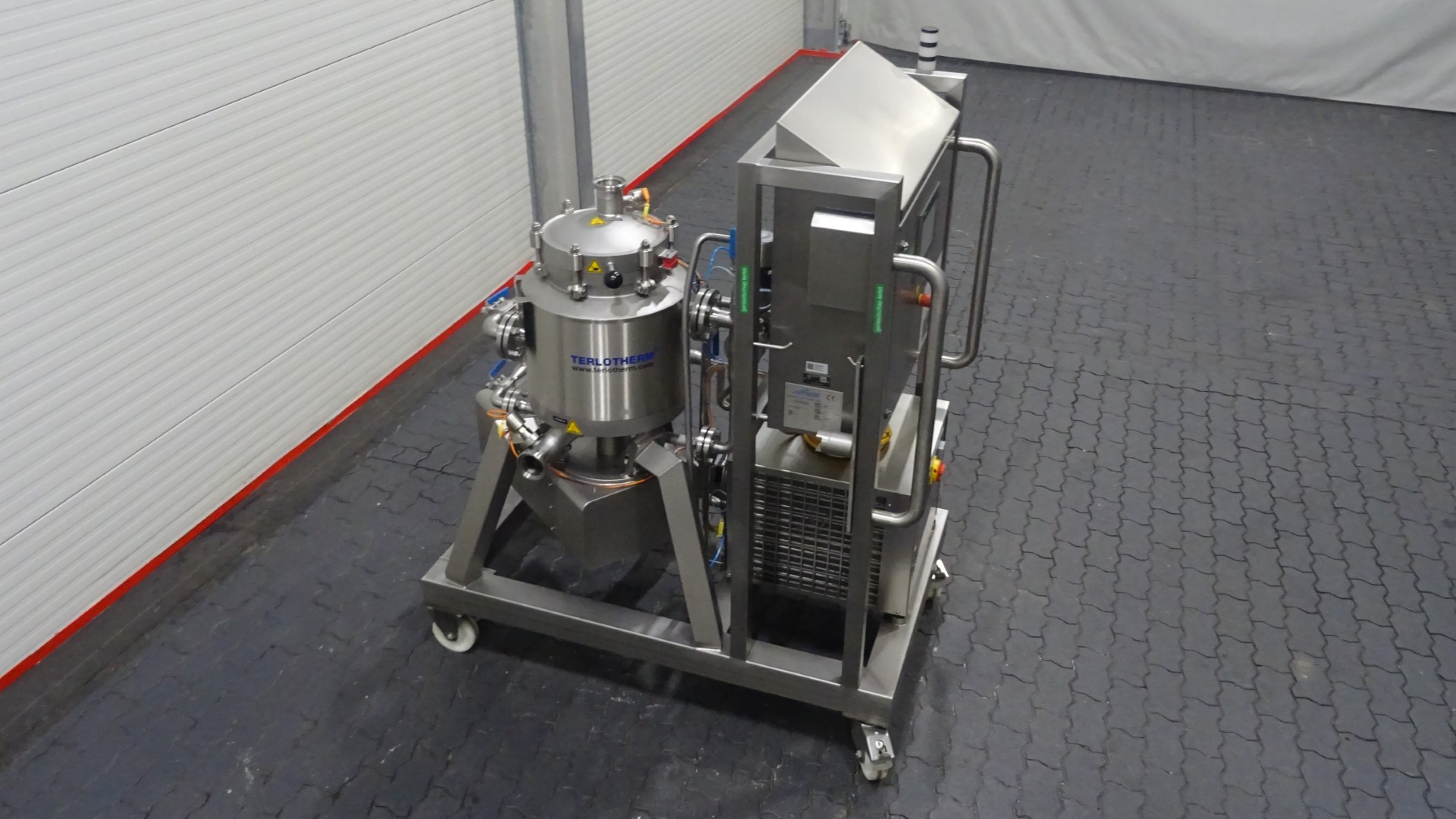

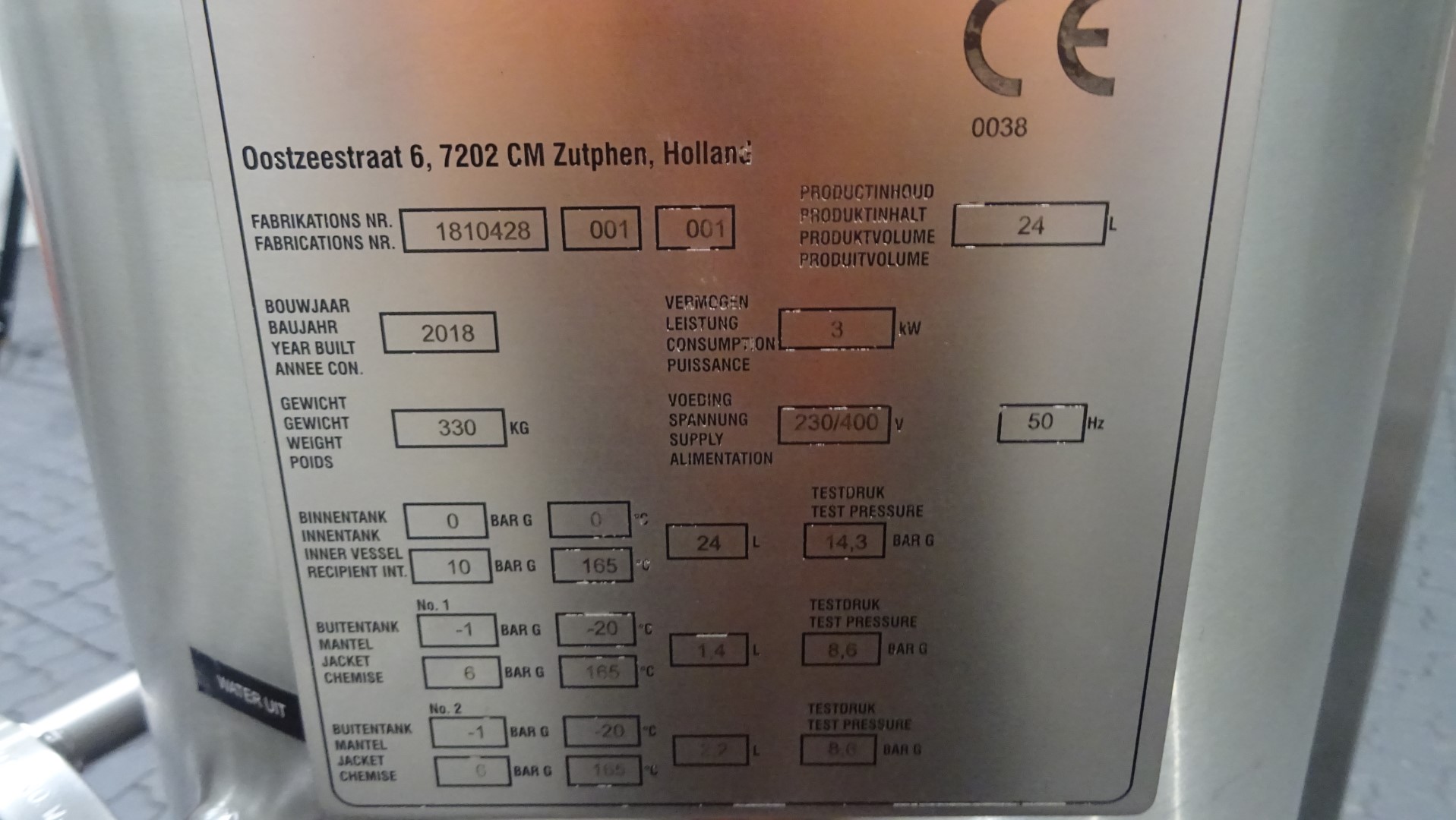

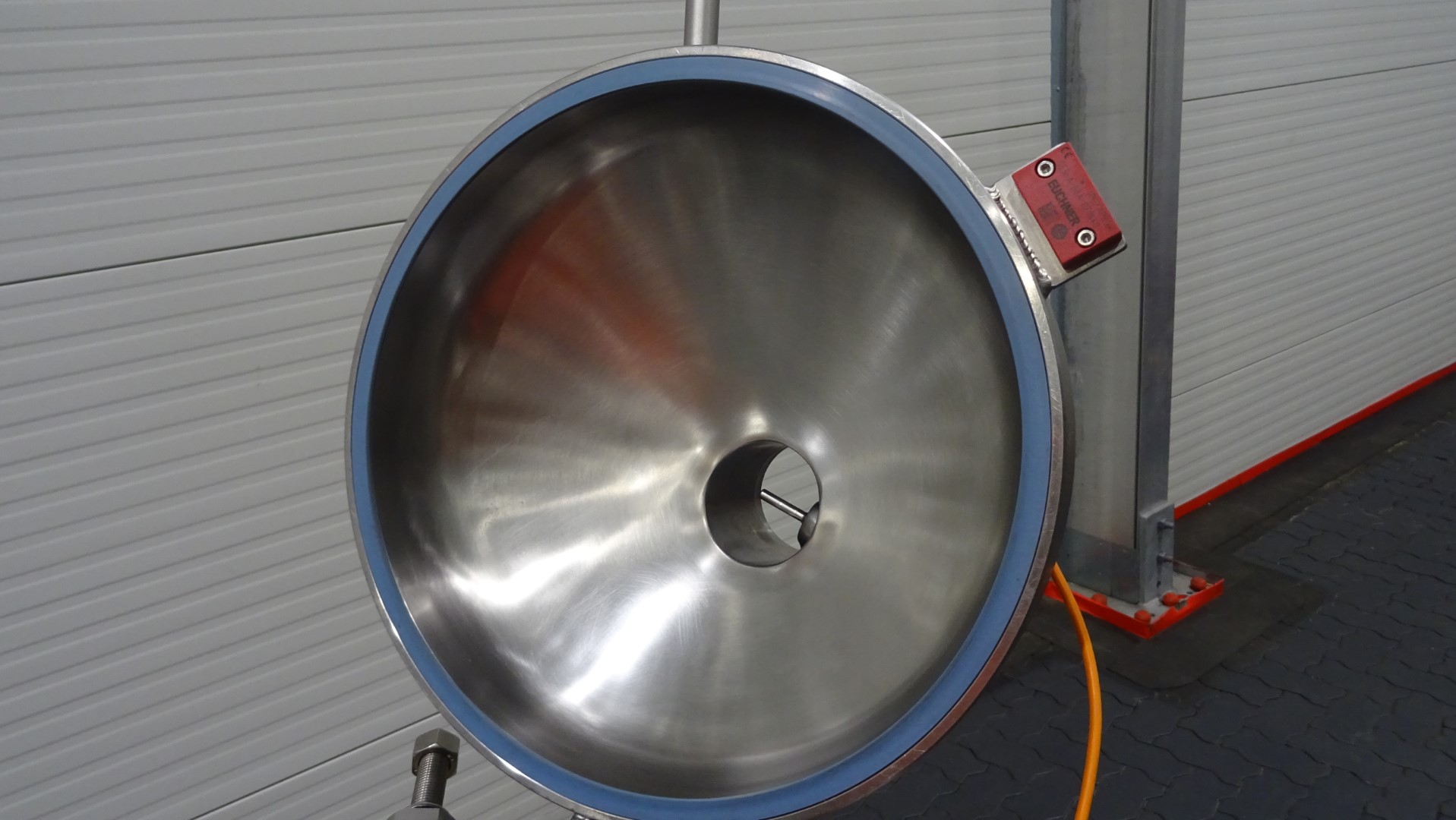

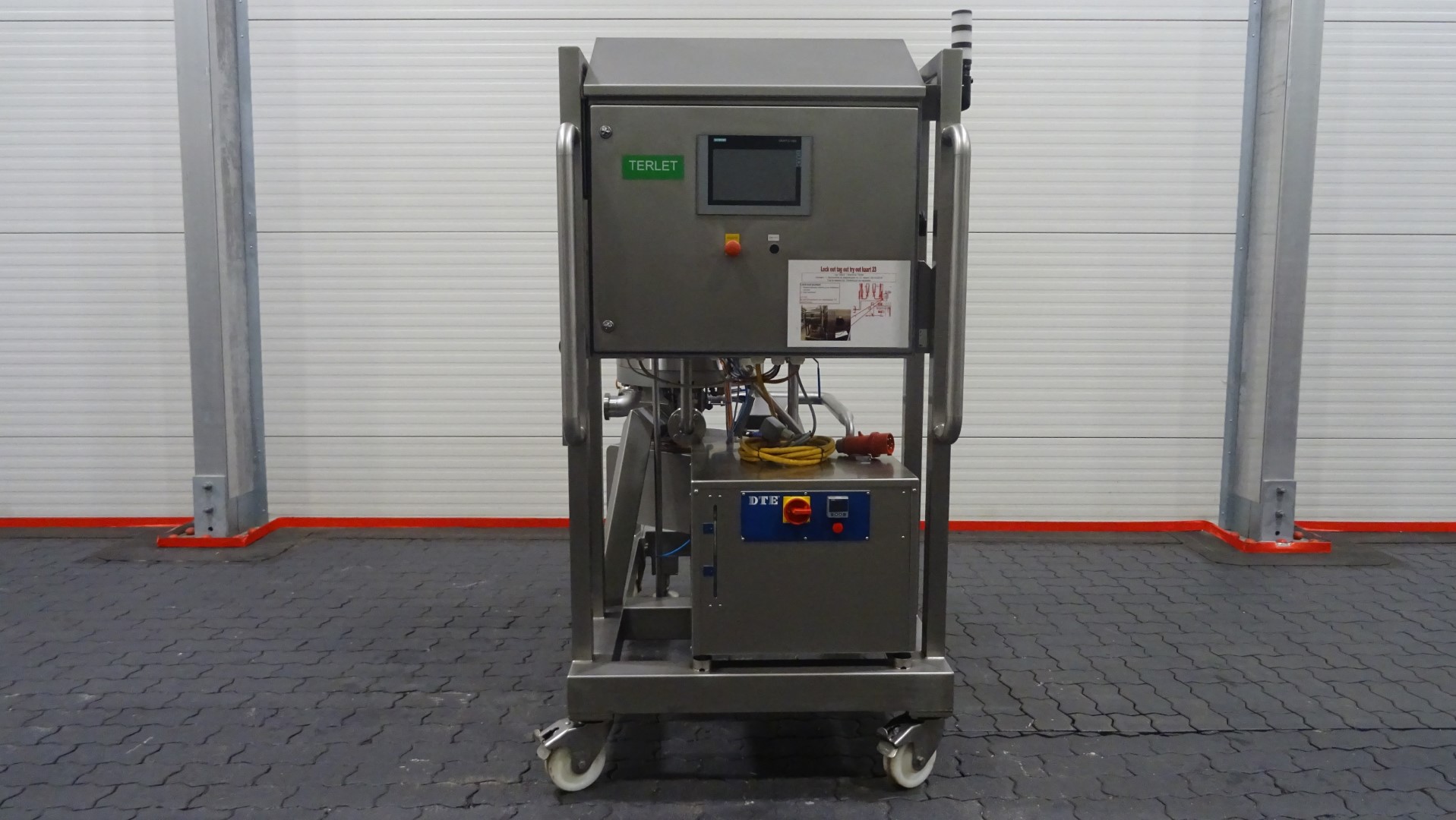

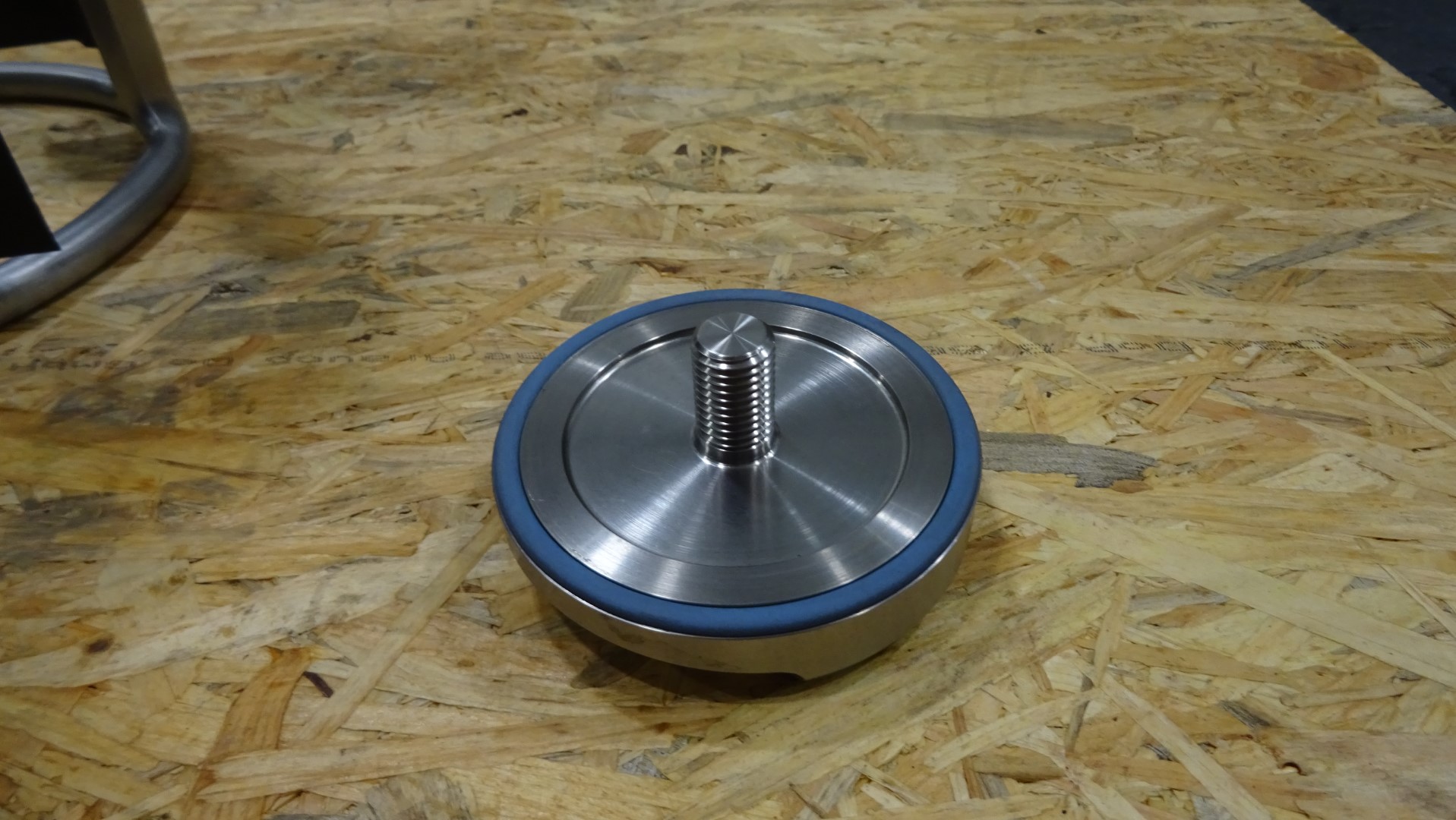

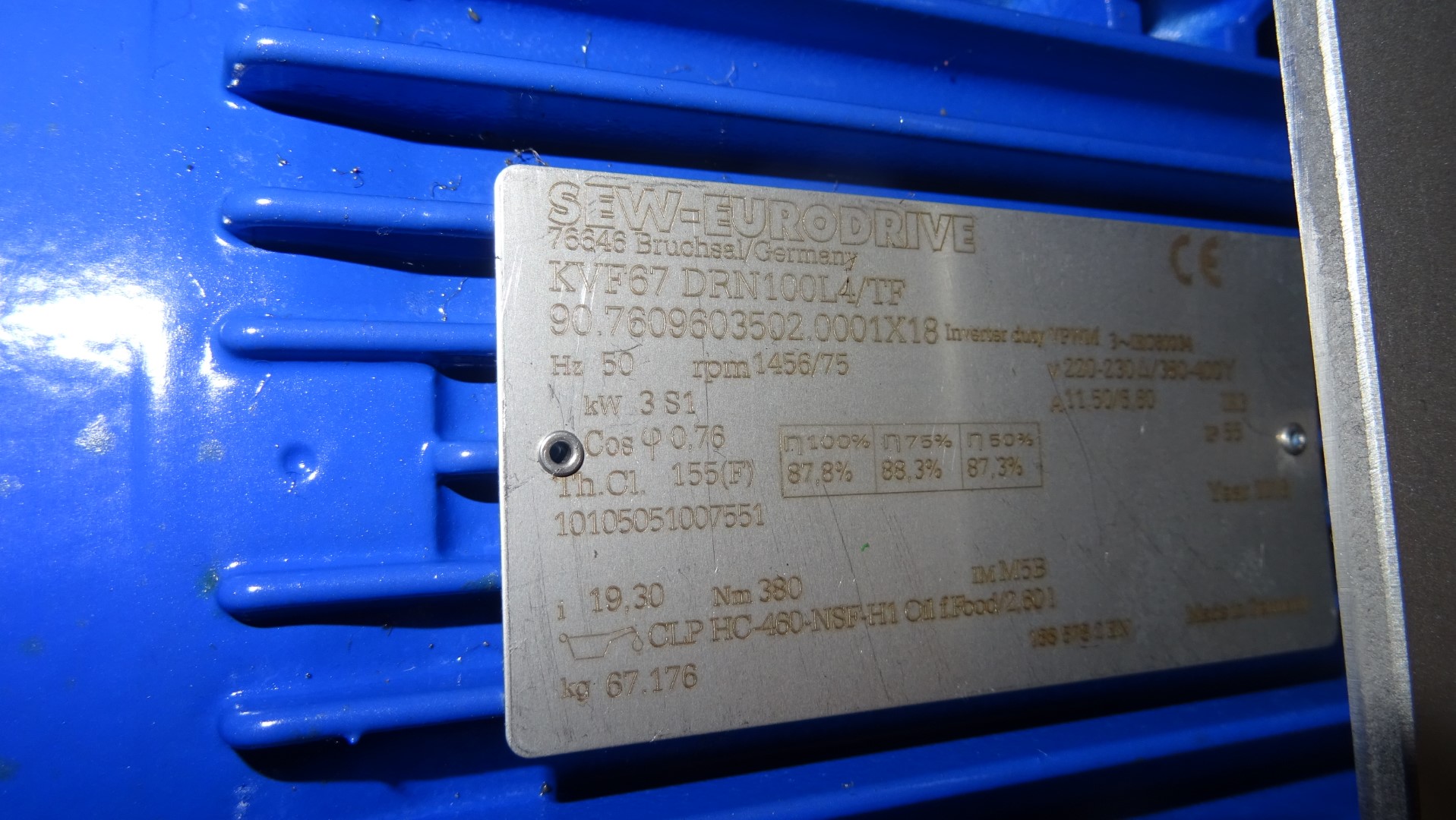

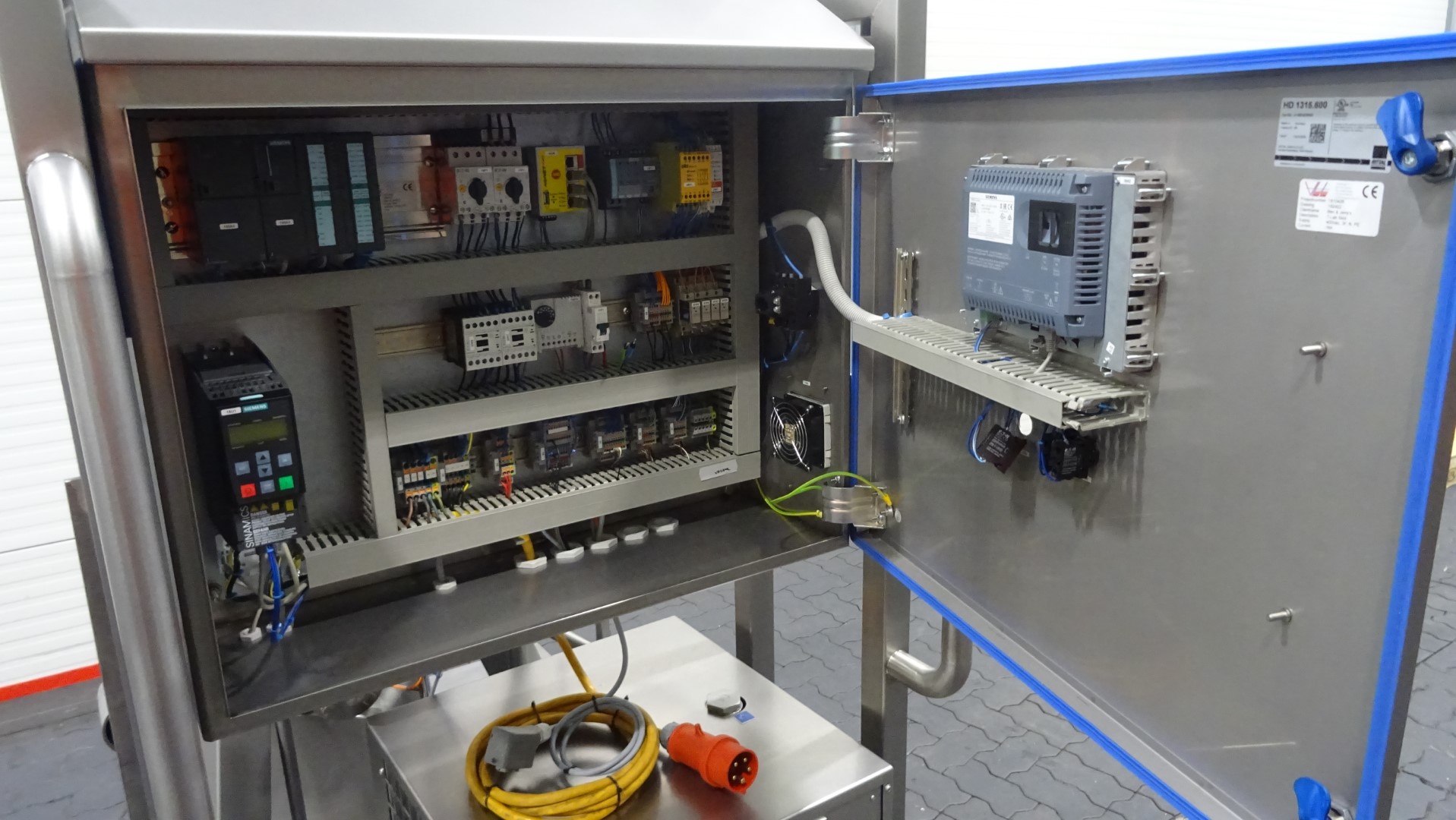

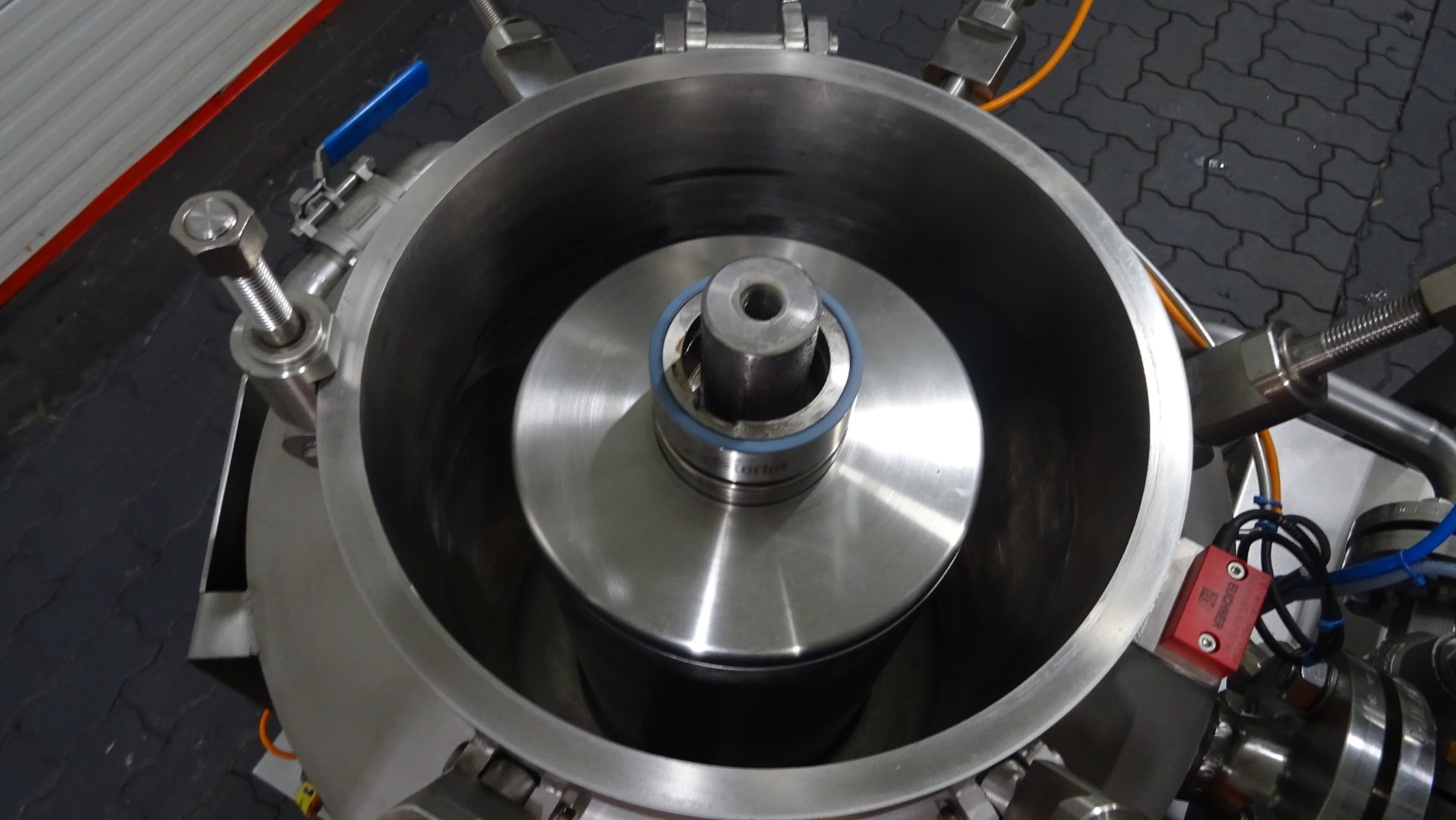

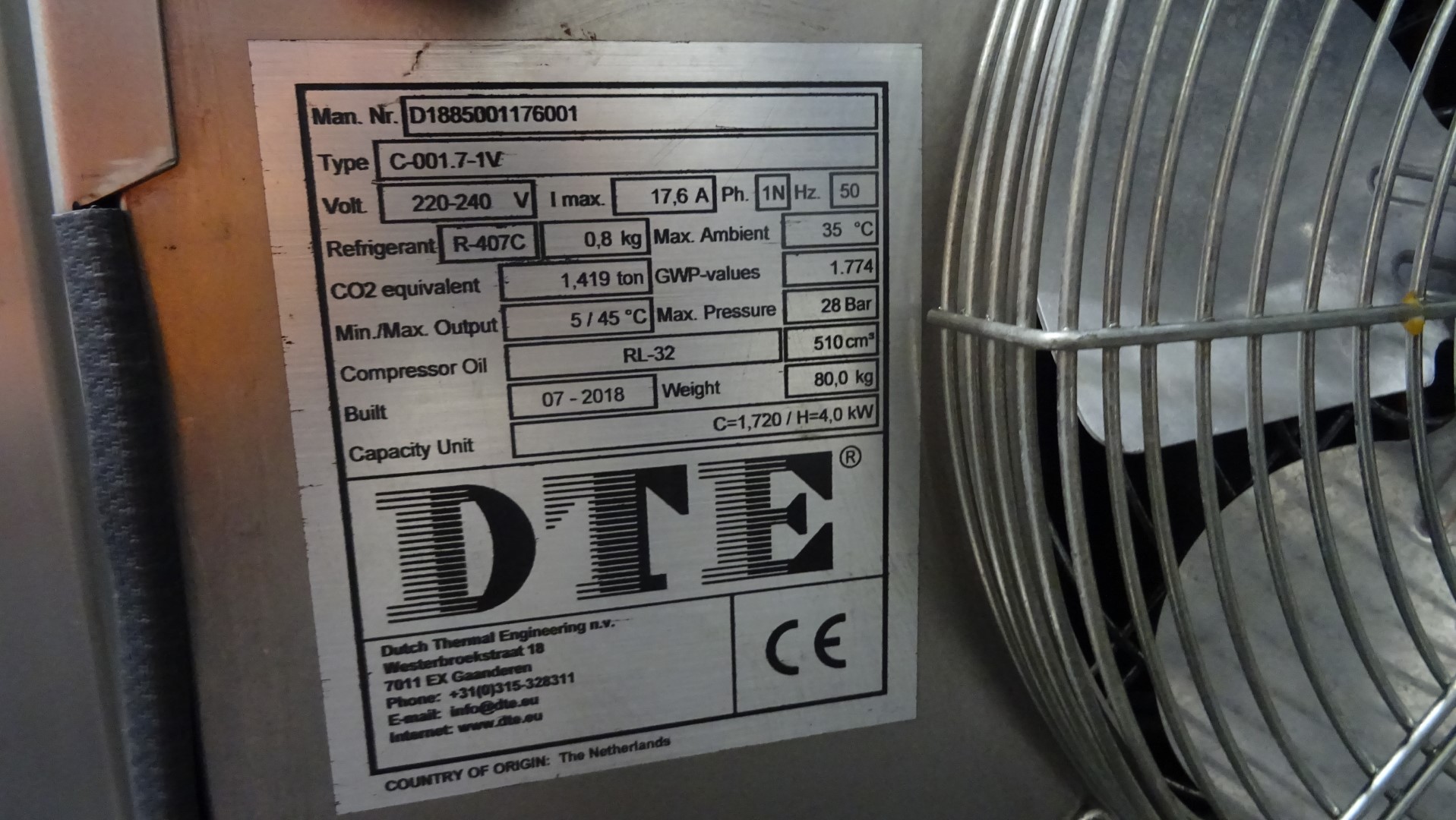

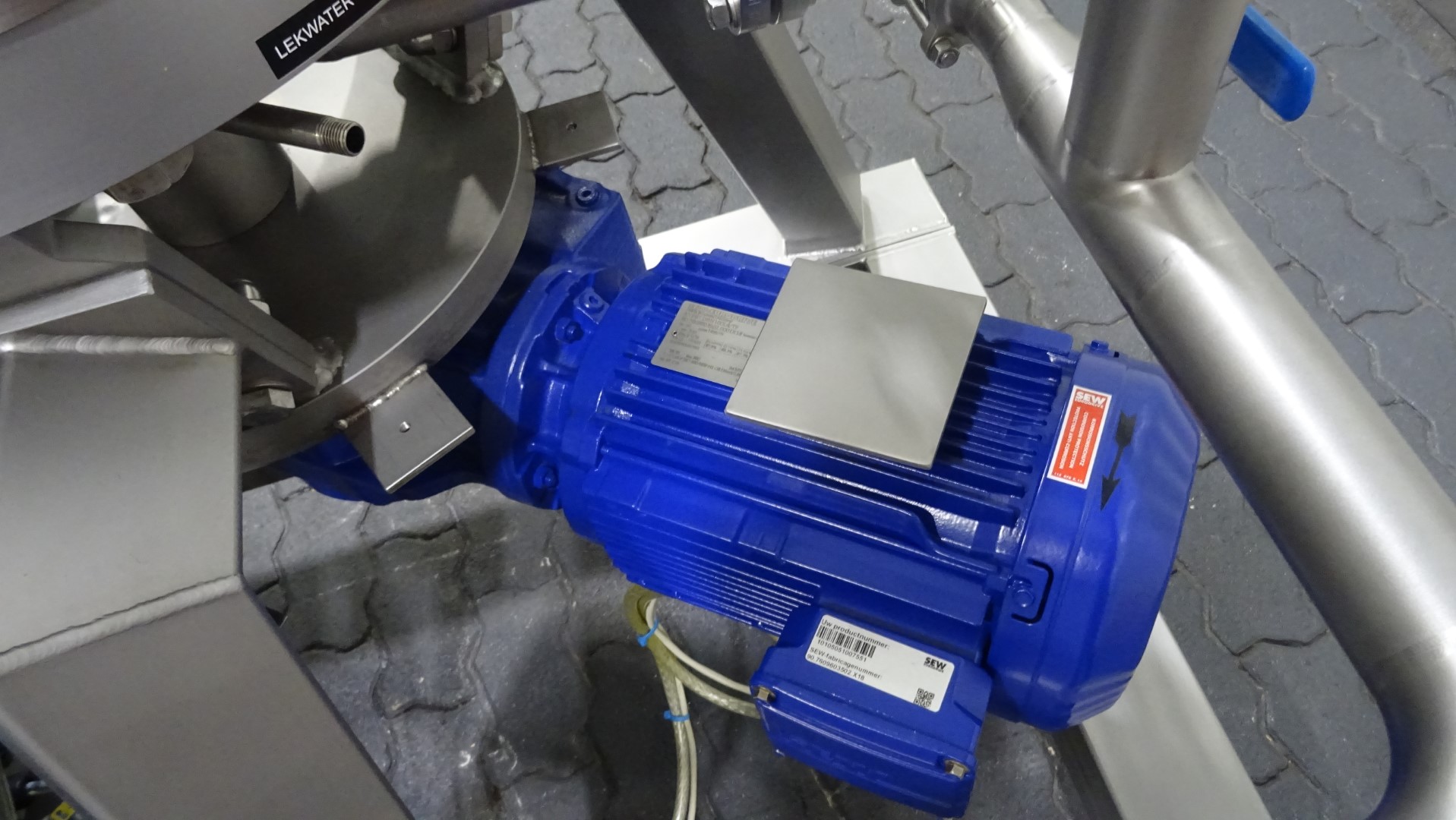

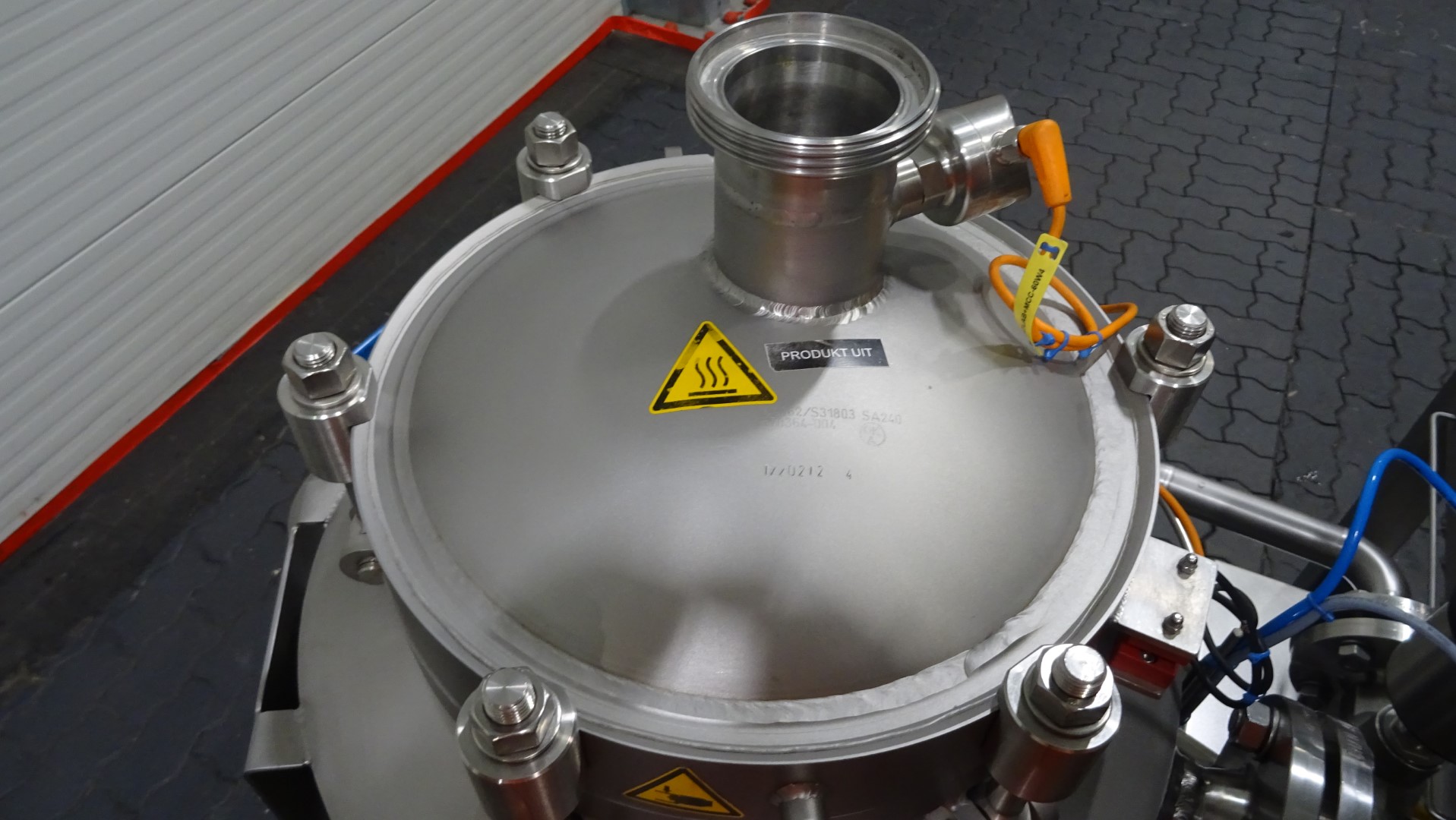

Skid mounted Terlet Terlotherm Delta 50 Scraped Surface Heat Exchangers (SSHE) for inline heating and / or cooling of liquid, viscous and high viscous products with or without whole parts (up to 25 mm), like starch preparations, soups, sauces, dairy products etc. Scrapers can be easily replaced. CIP Cleanable. Inspection without removing seal. Lid can be opened with clamps. Large heating area on limited floor area. Previously used in a ice cream factory for tempering of chocolate. Tangetiale inlet. No damage to the product. Maintenance friendly, only one seal and one drive. Single Mechanical Seal (EMS). Product volume: 24 liter. Number of scraper rows: 4. Number of scrapers per row: 2. Total number of scrapers: 8. Heated surface: 0,5 m2. Inner vessel: 0 / 10 Bar - 0 / 165 °C - 24 liter. Jacket #1: -1 / 6 Bar - -20 / 165 °C - 1,4 liter. Jacket #2: -1 / 6 Bar - -20 / 165 °C - 2,2 liter. Motor: 3 kW - n1: 1.465 rpm - n2: 75 rpm - 230/400 V - 50 Hz - 11,5 / 5,8 A. Product inlet: 65 mm. Product outlet: 65 mm. Weight: 330 kg. Control panel with Siemens PLC and Touch screen Operation Panel. Including Dutch Thermal Engineering Combimaster type C-001.7-1V refrigeration machine with built-in heating or tempering sections. Instruction manuals, electric scheme and spare parts lists available.
