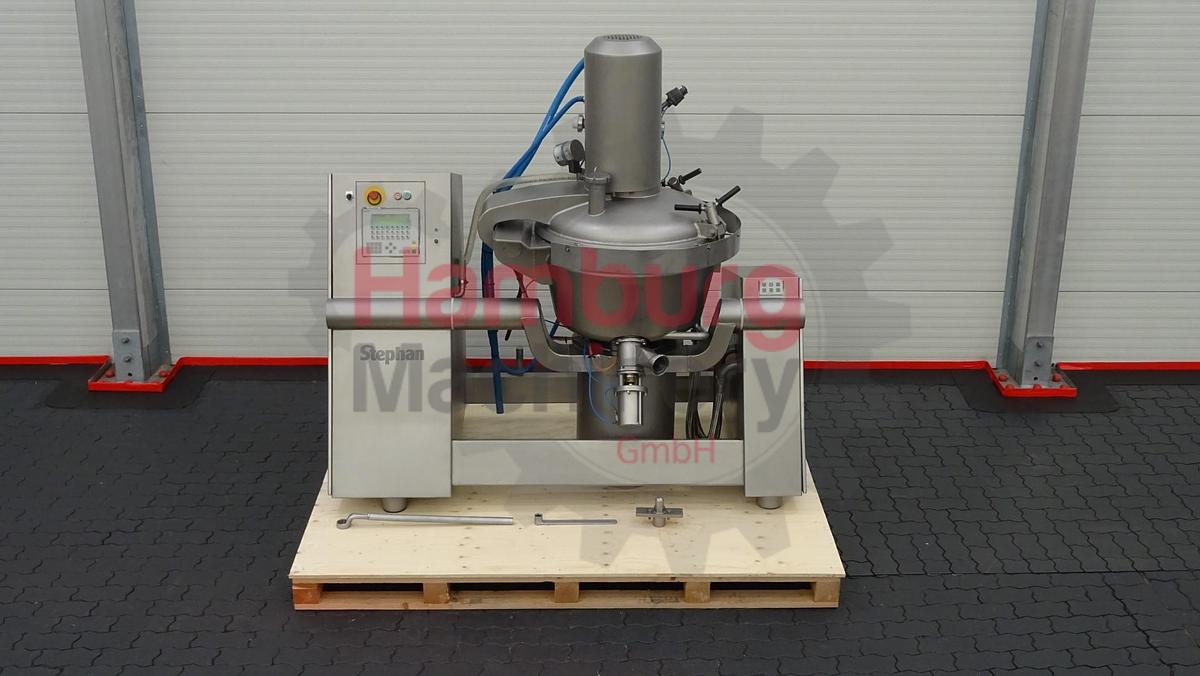

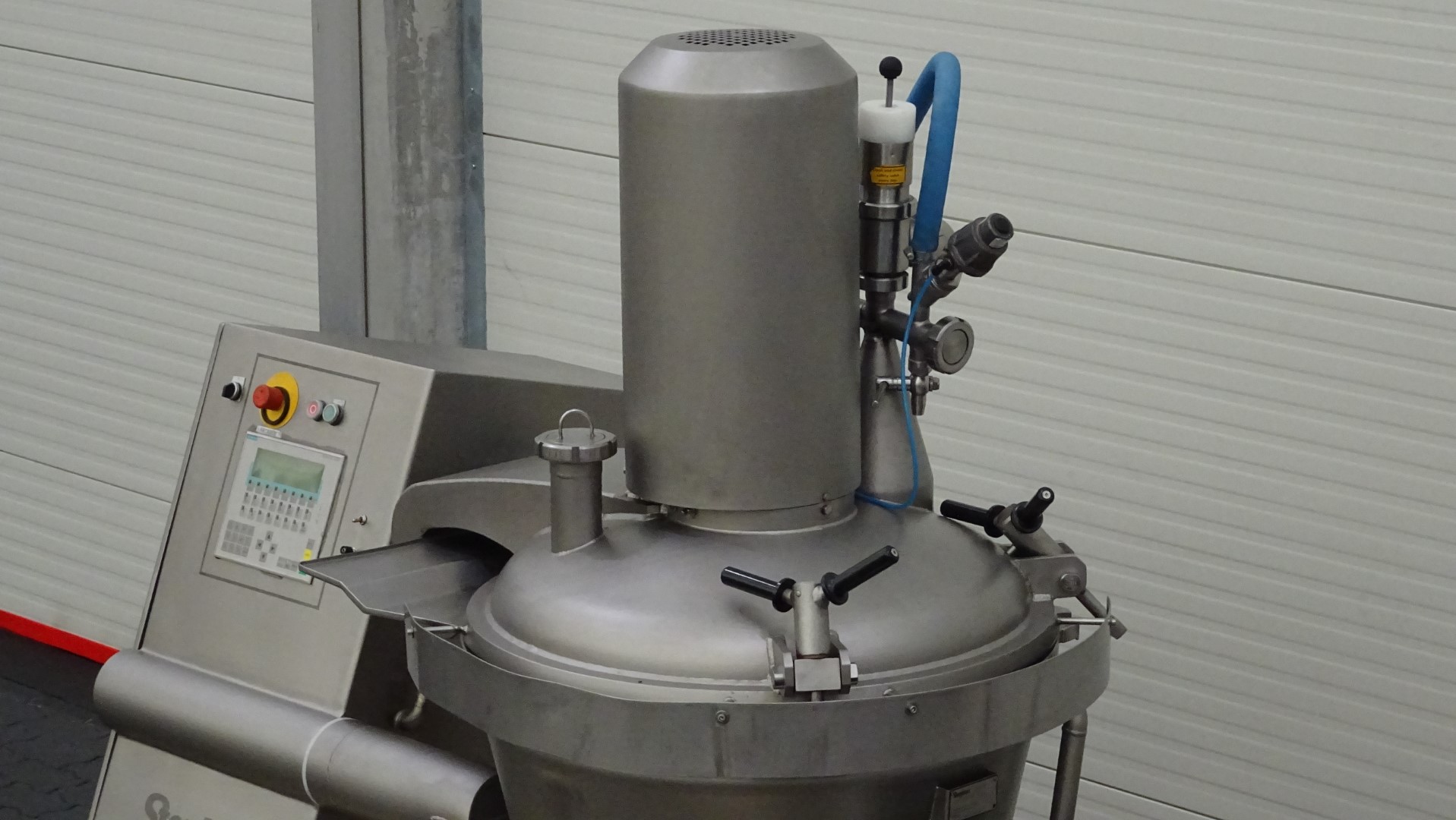

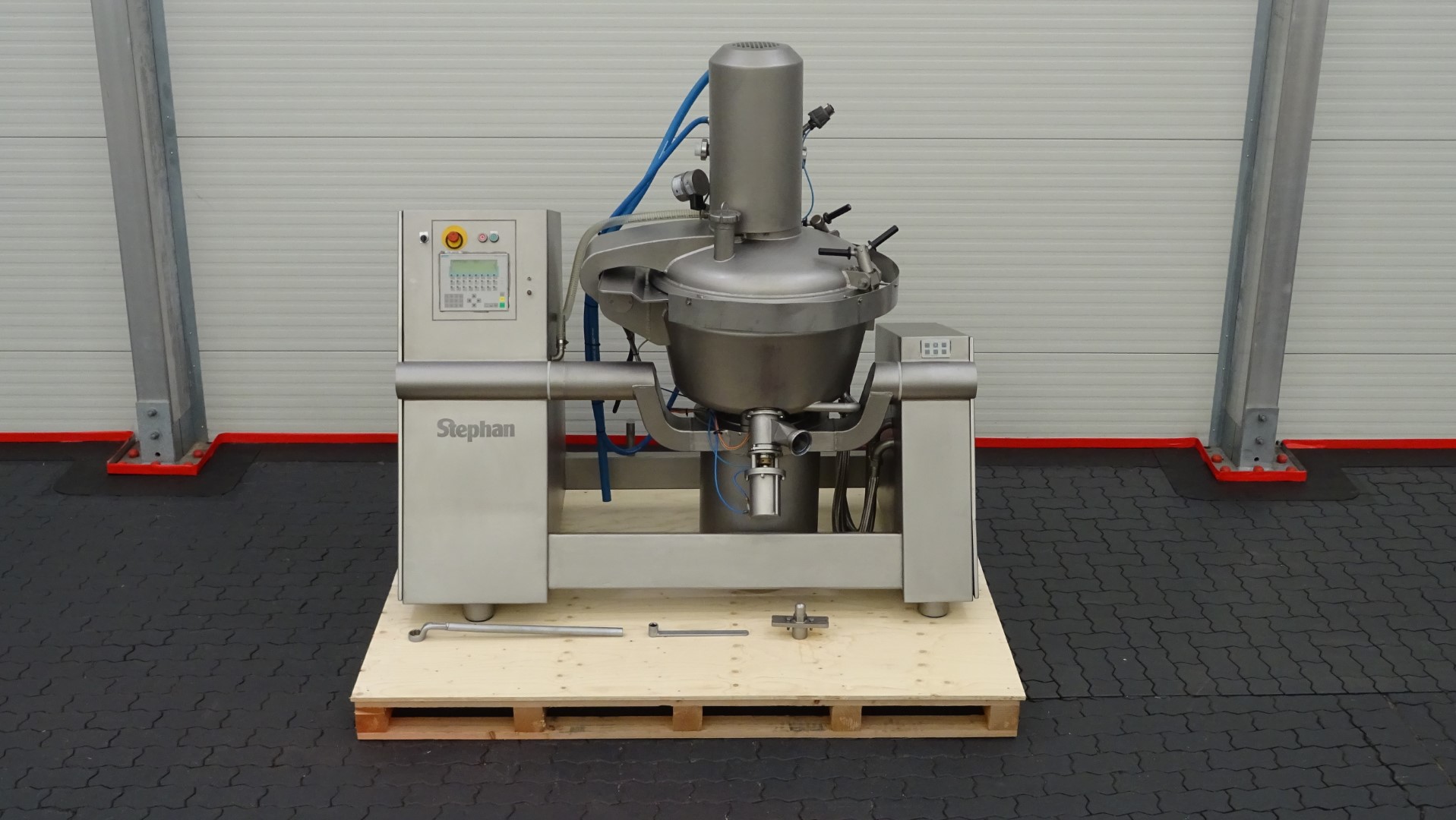

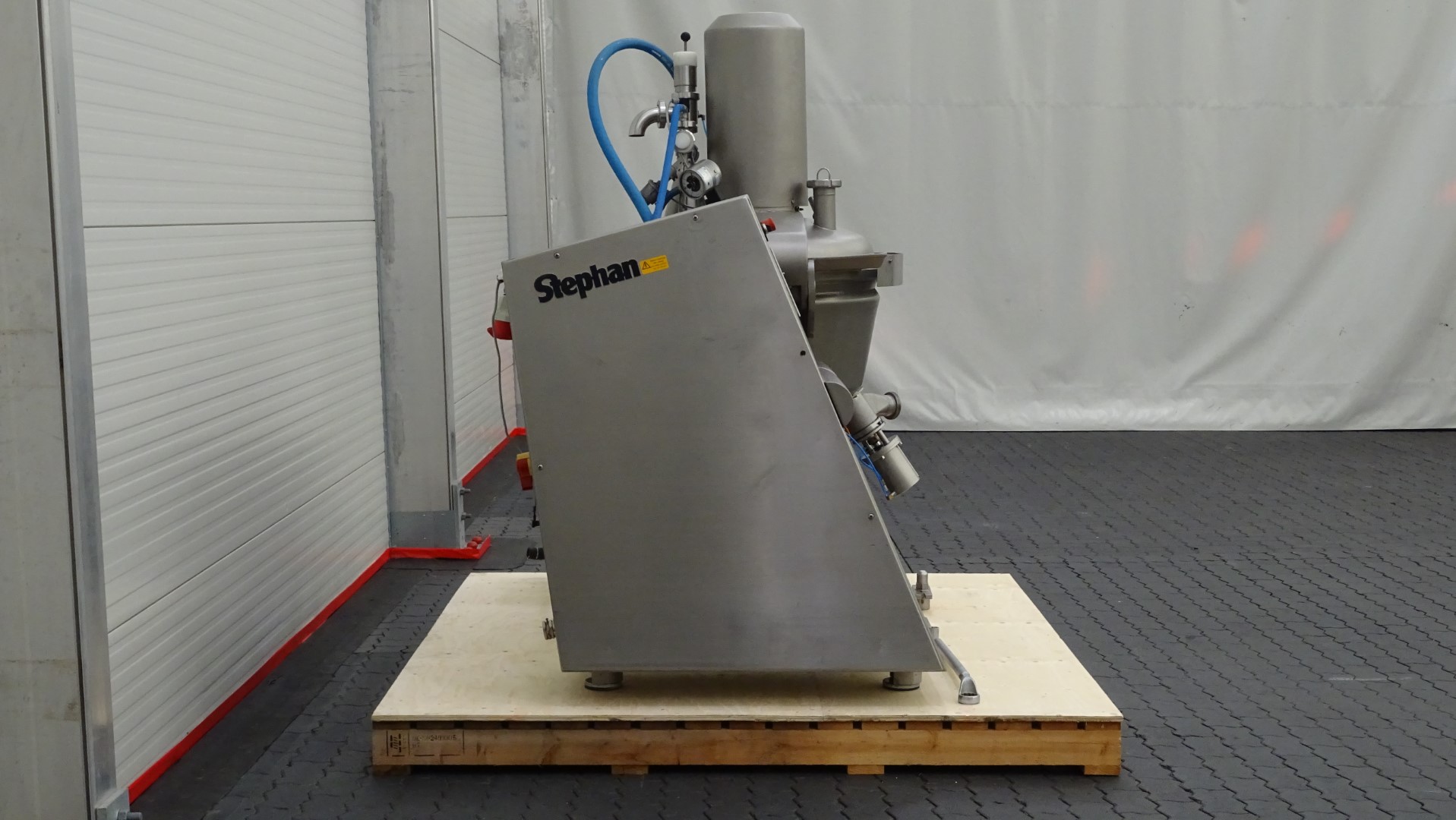

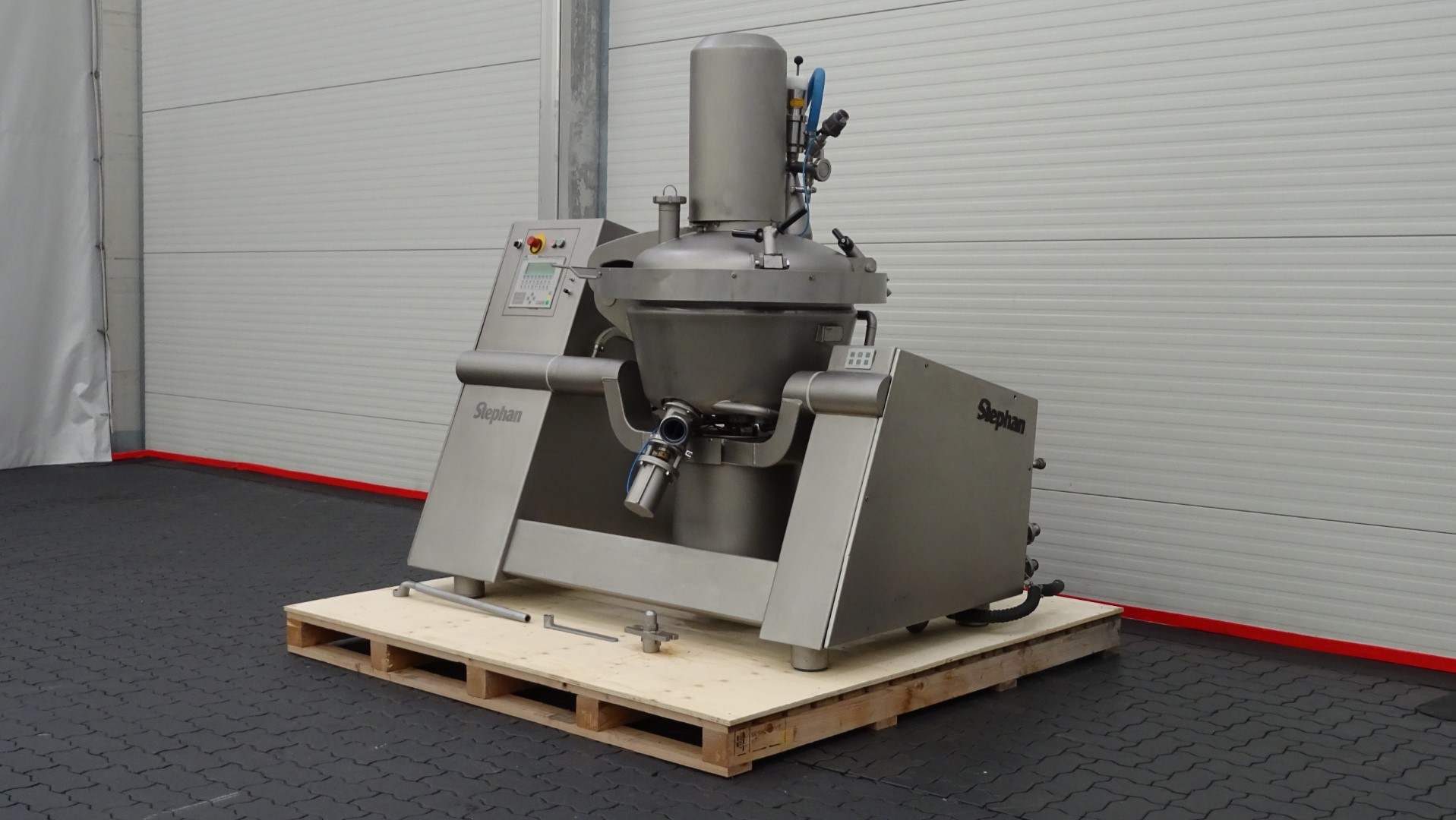

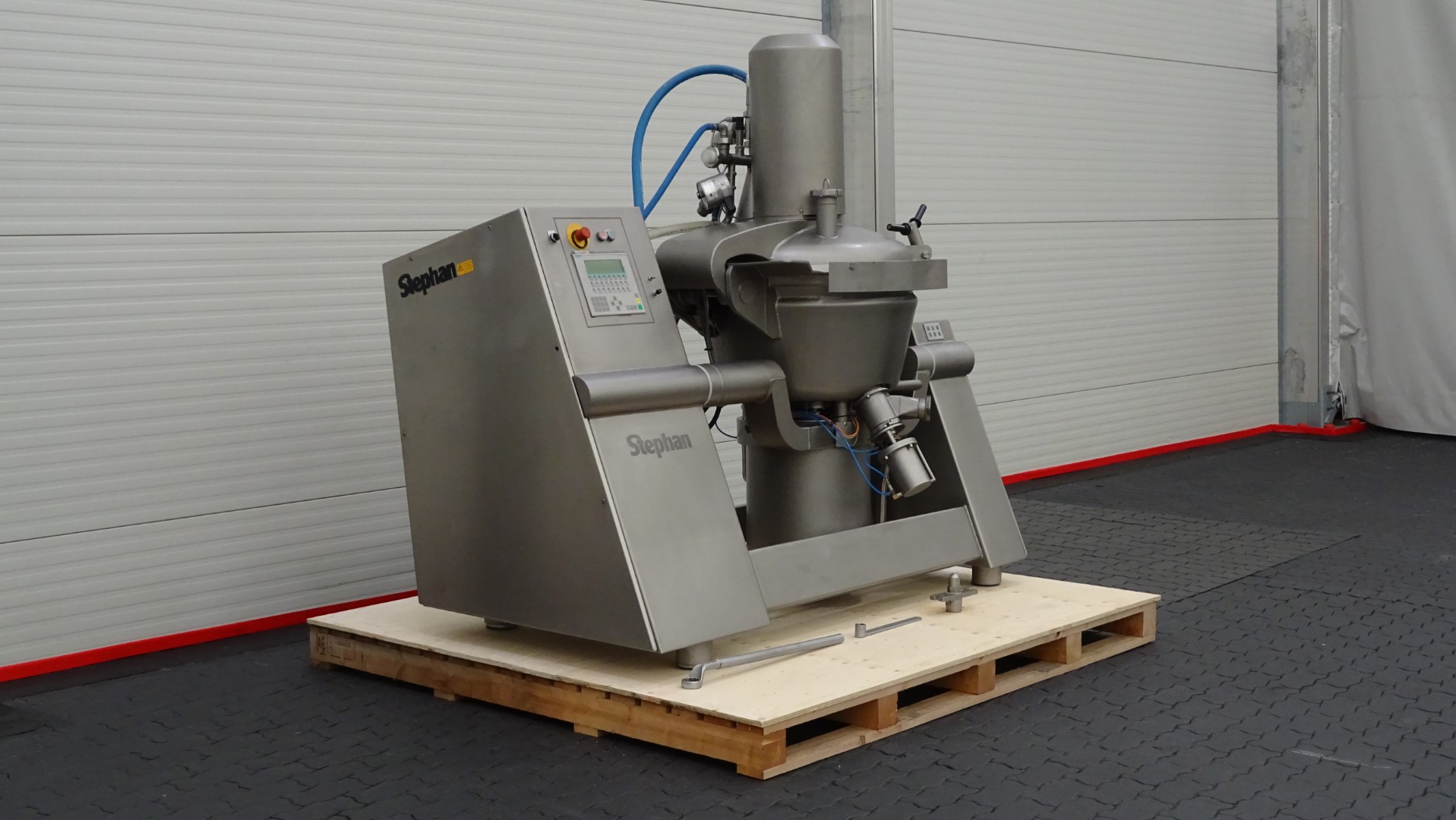

Universal Machine Stephan UM/SK 150
Specifications
| Manufacturer | Stephan |
| Model | UM SK 150 |
| Year | 2000 |
| Condition | Used |

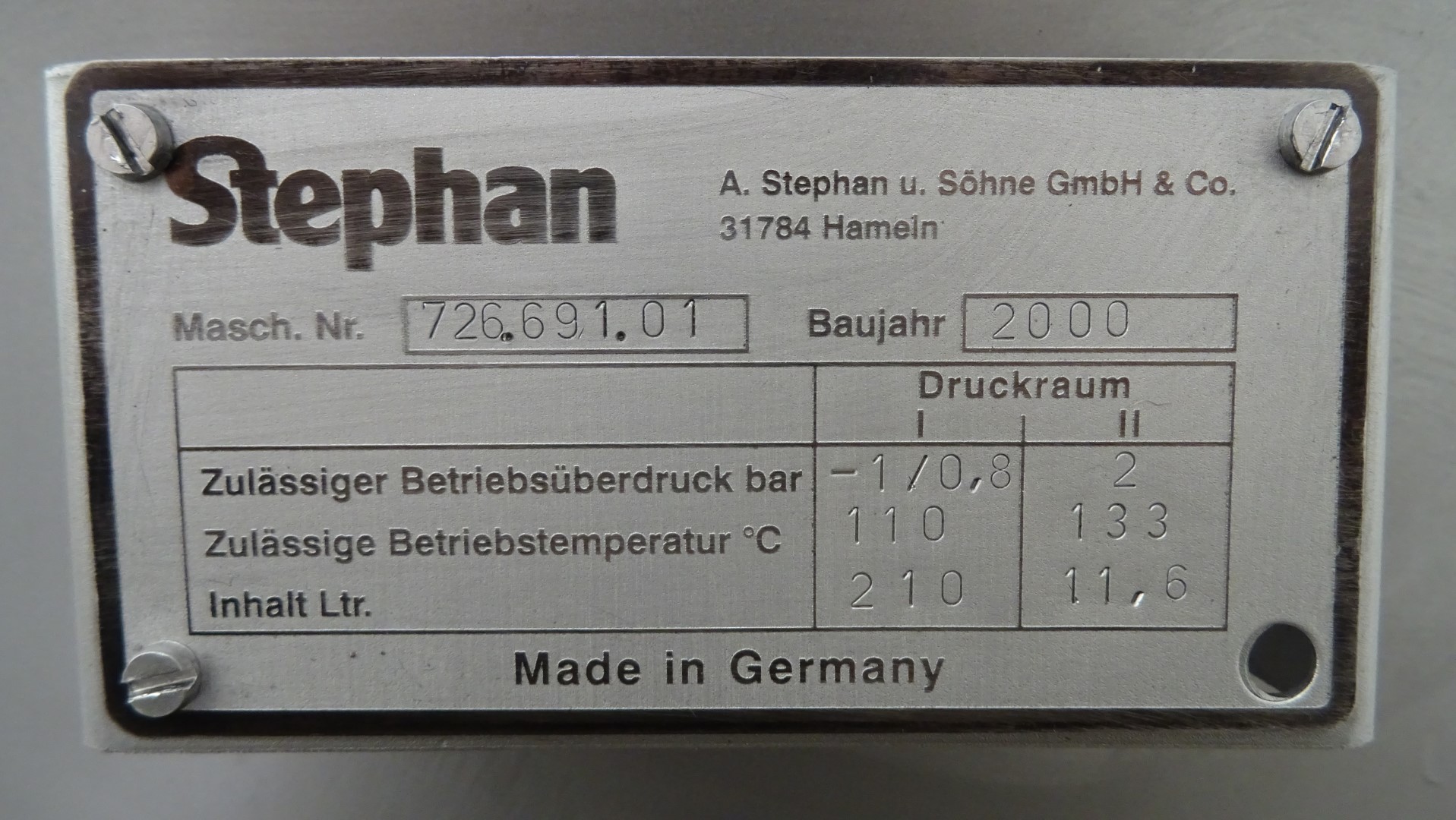

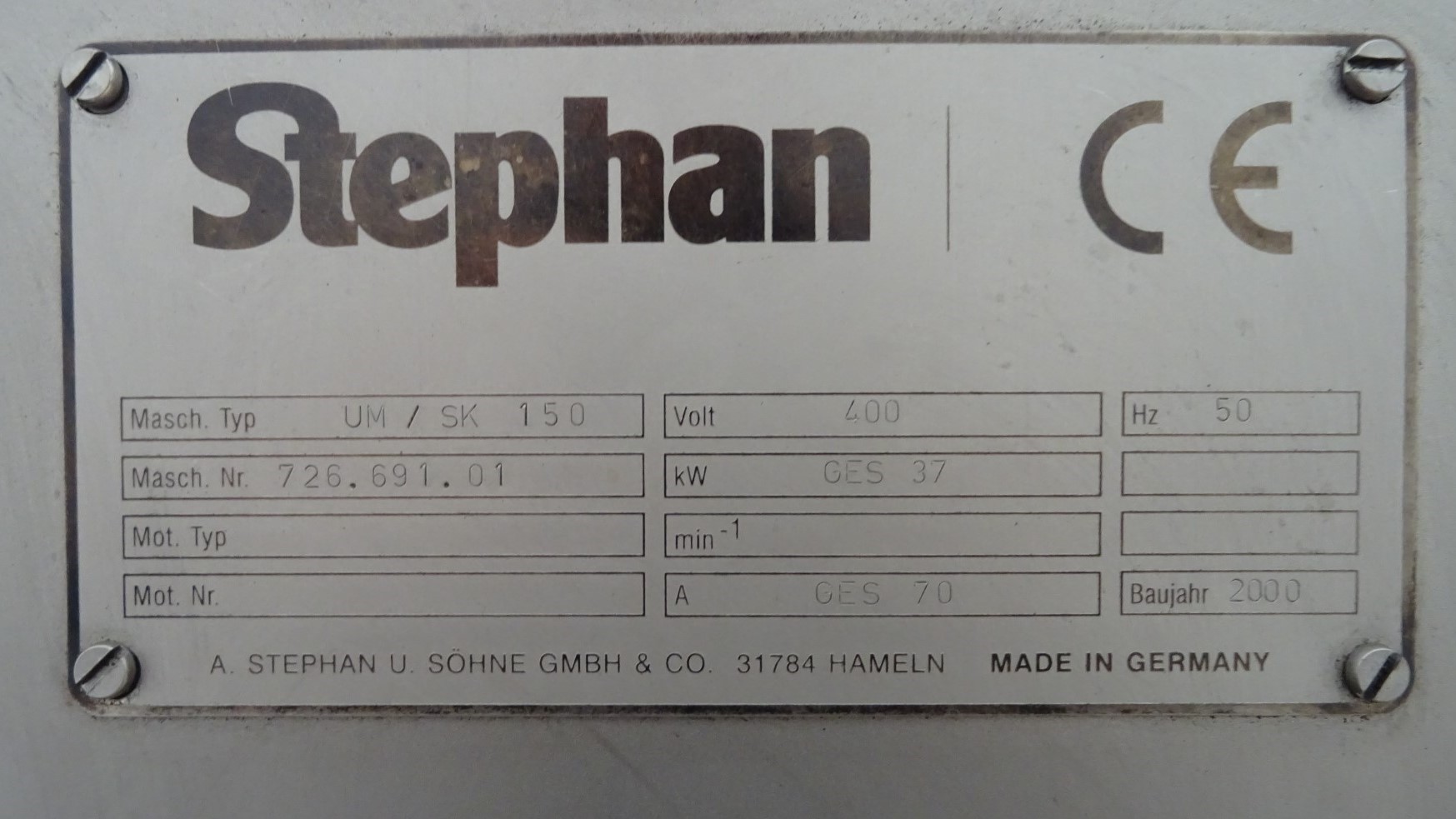

| Serial Number | 726.691.01 |
| Stock Number | 1483 |
| Type of Machine | Universal machine |
| Bowl volume | 150 liter |
| Batch size | ± 120 liter (depending on product) |
| Capacity | ± 480 Kg/h |
| Operating temperature | 110 °C |
| Working pressure | -1 / 0,8 Bar |

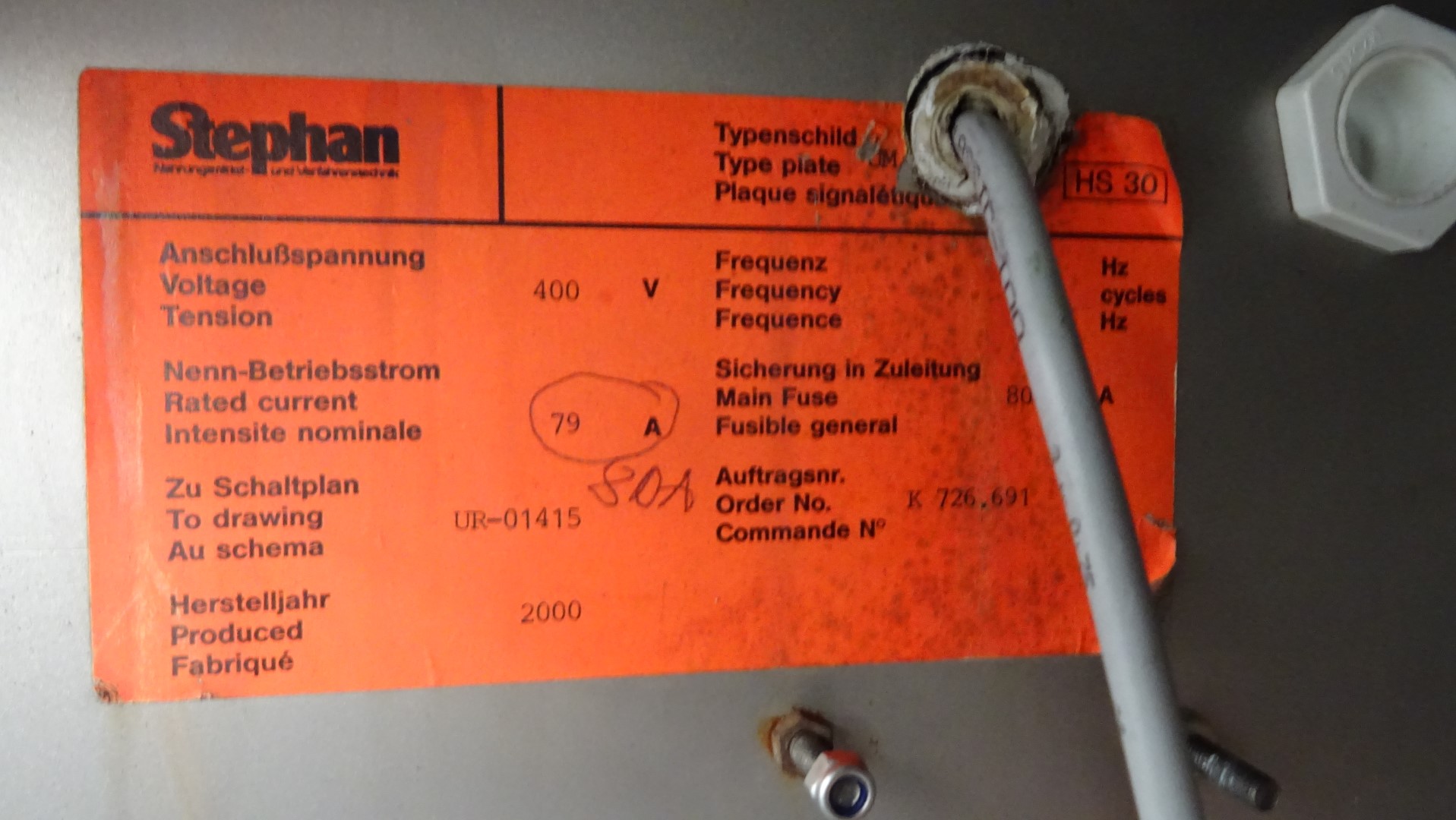

| Main power | 400 V - 50 Hz - 37 kW - 70 A |
| Weight | 1.500 kg |
Description

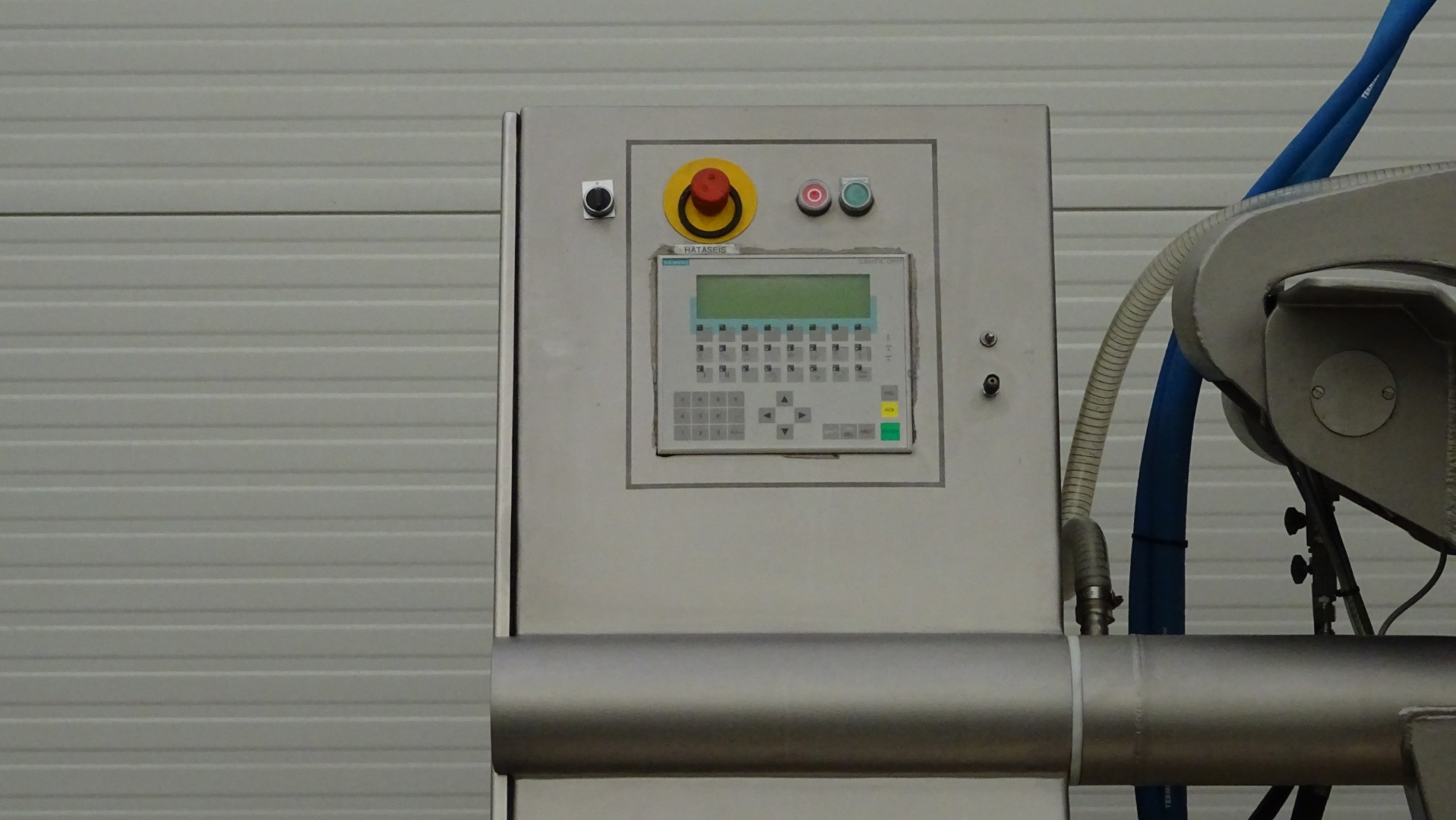

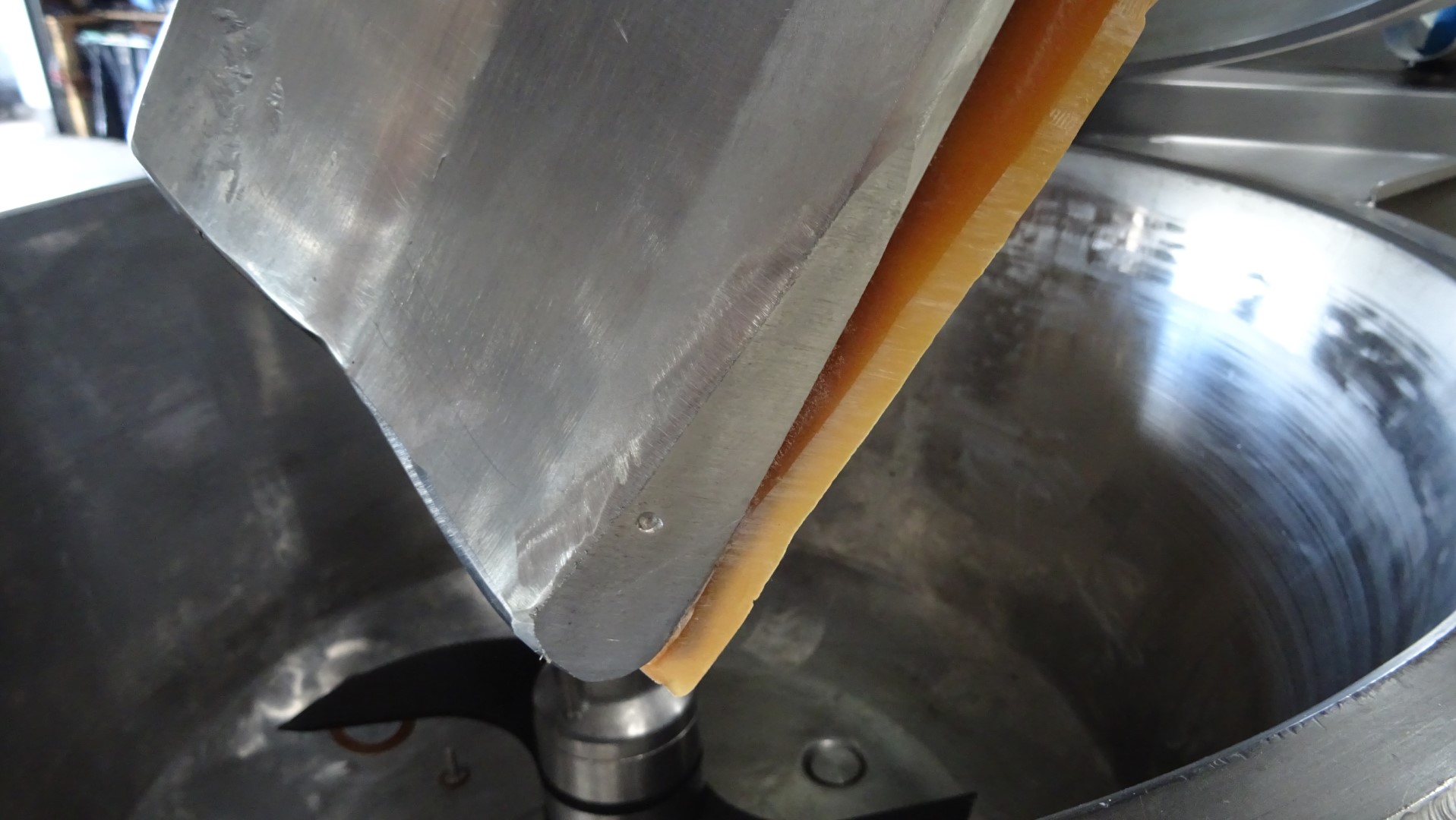

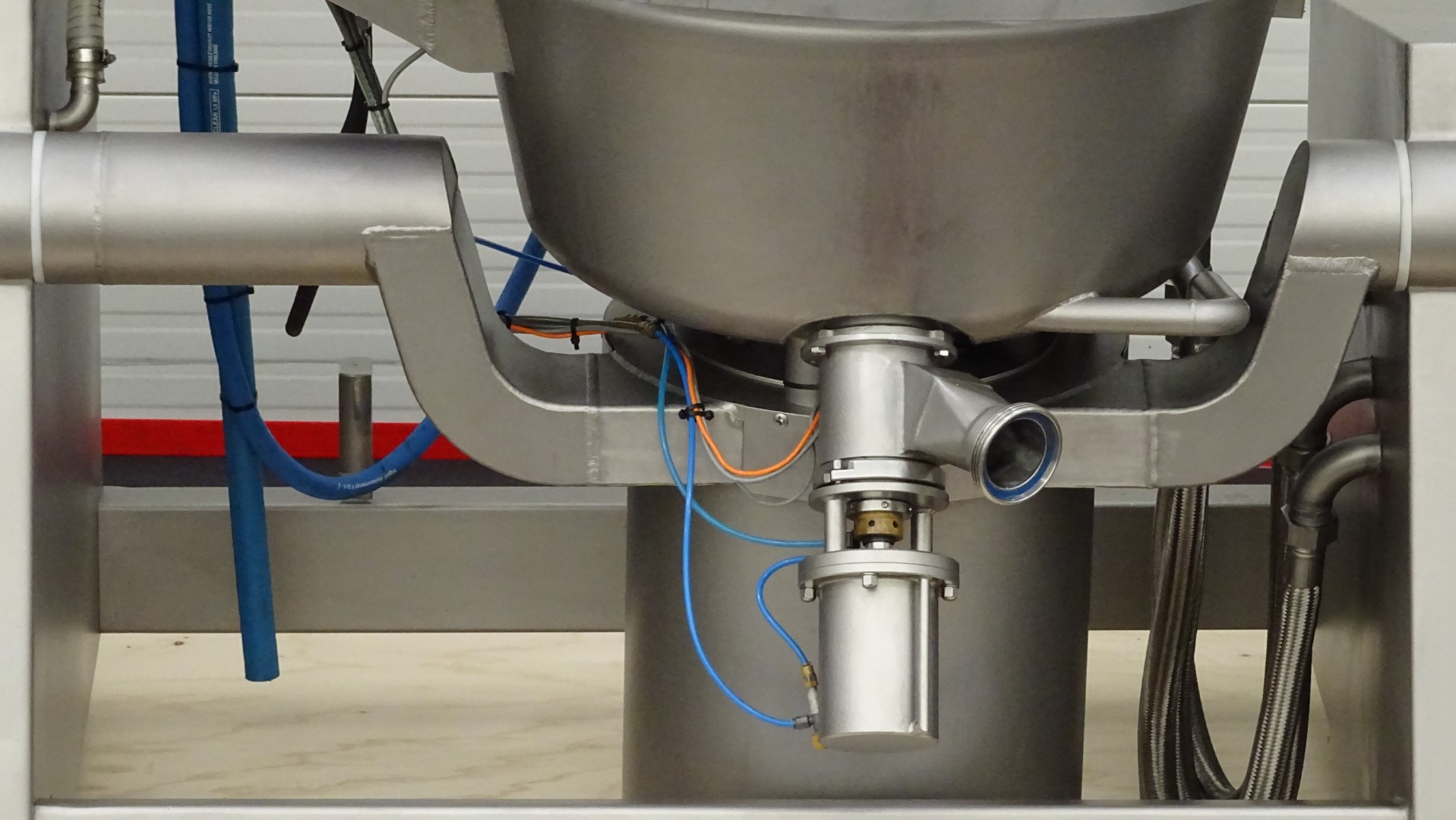

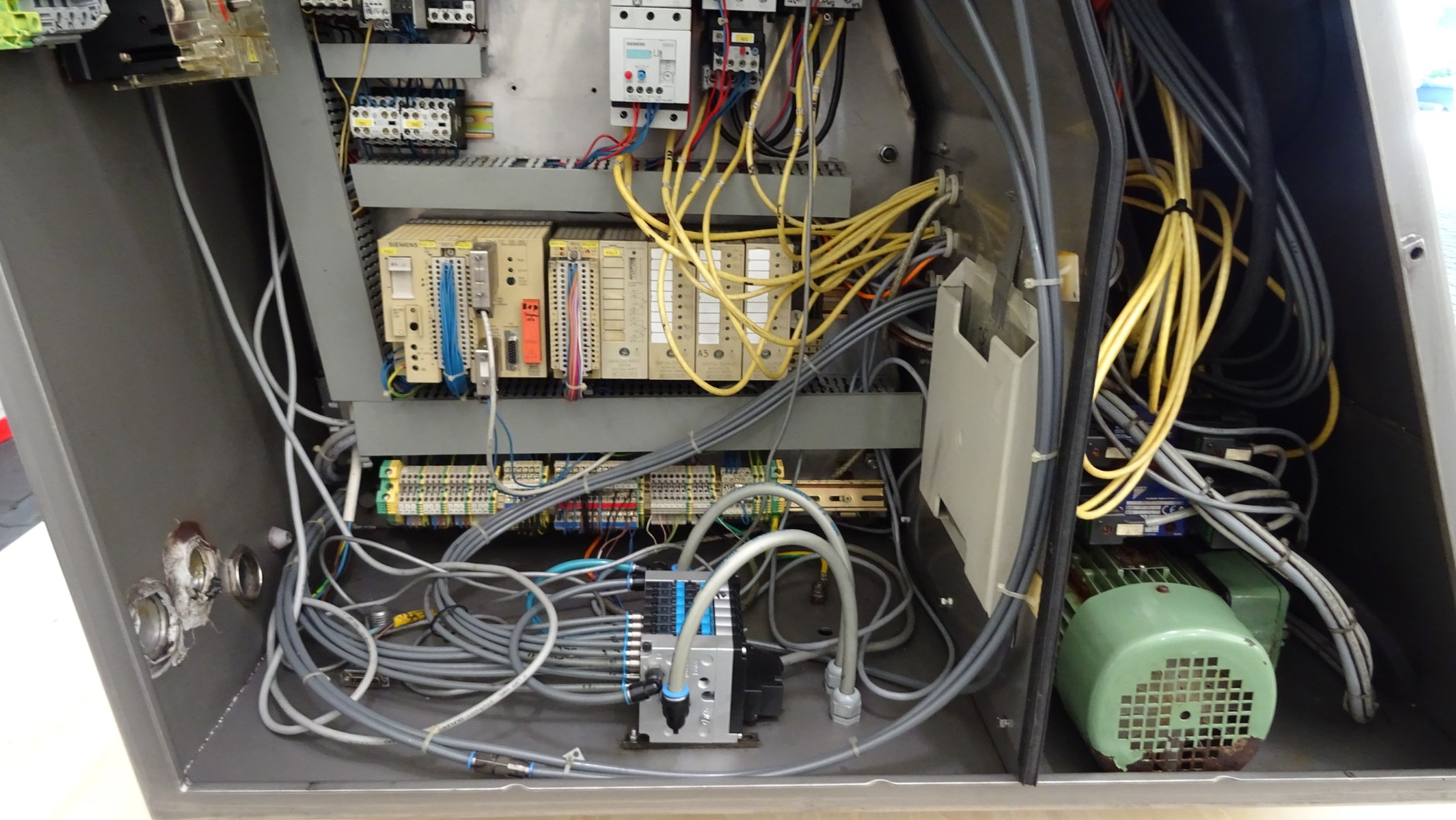

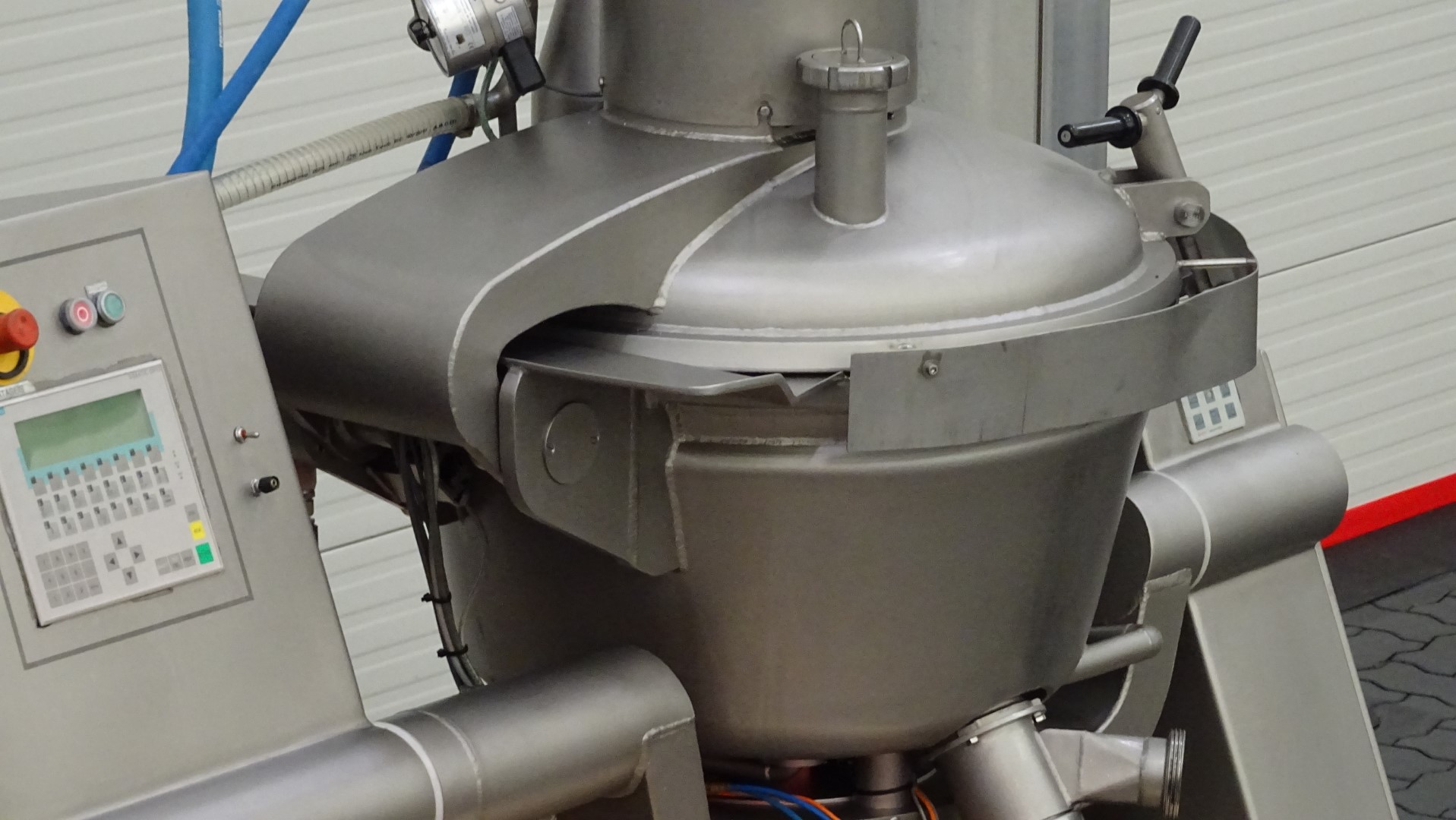

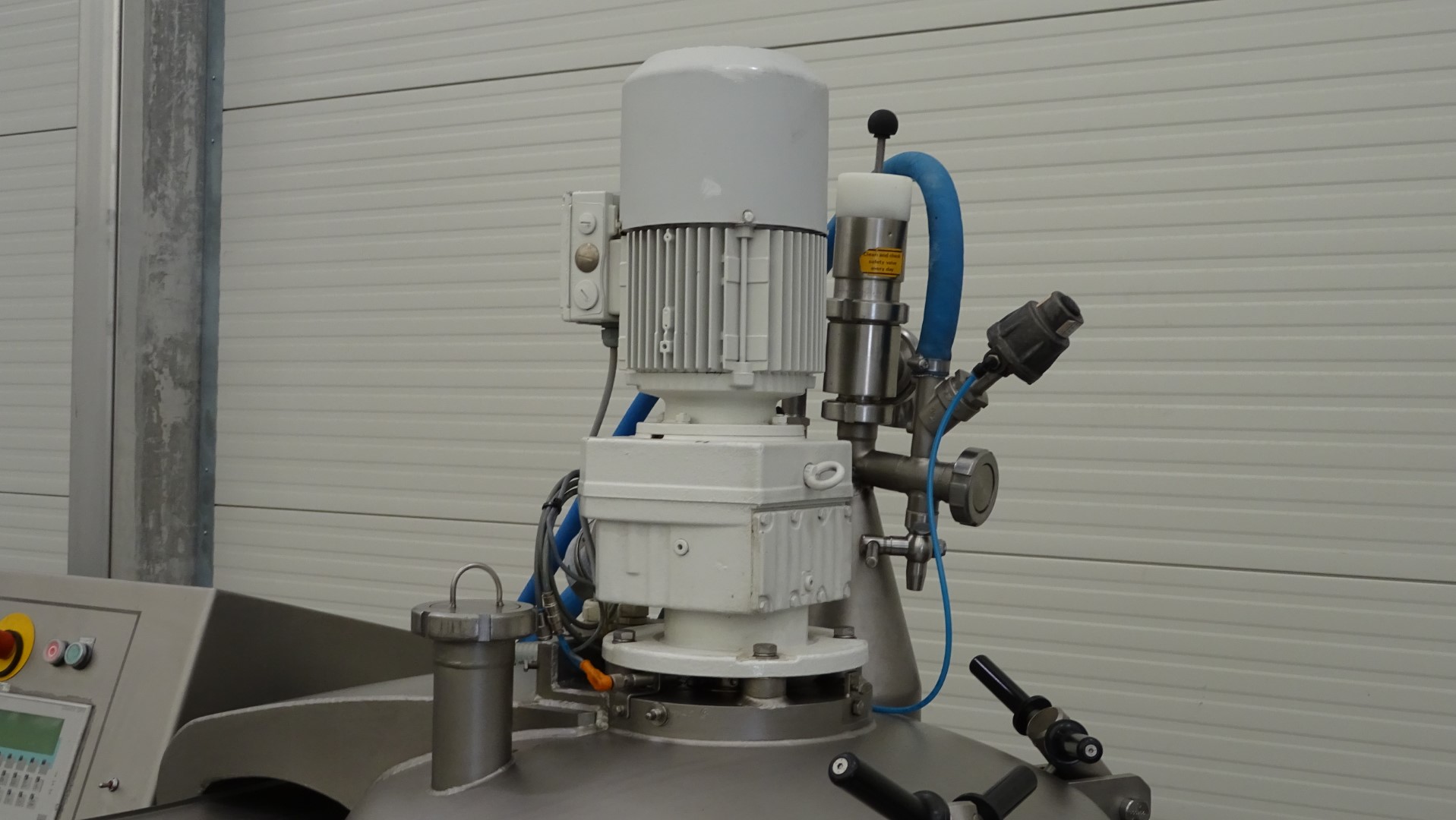

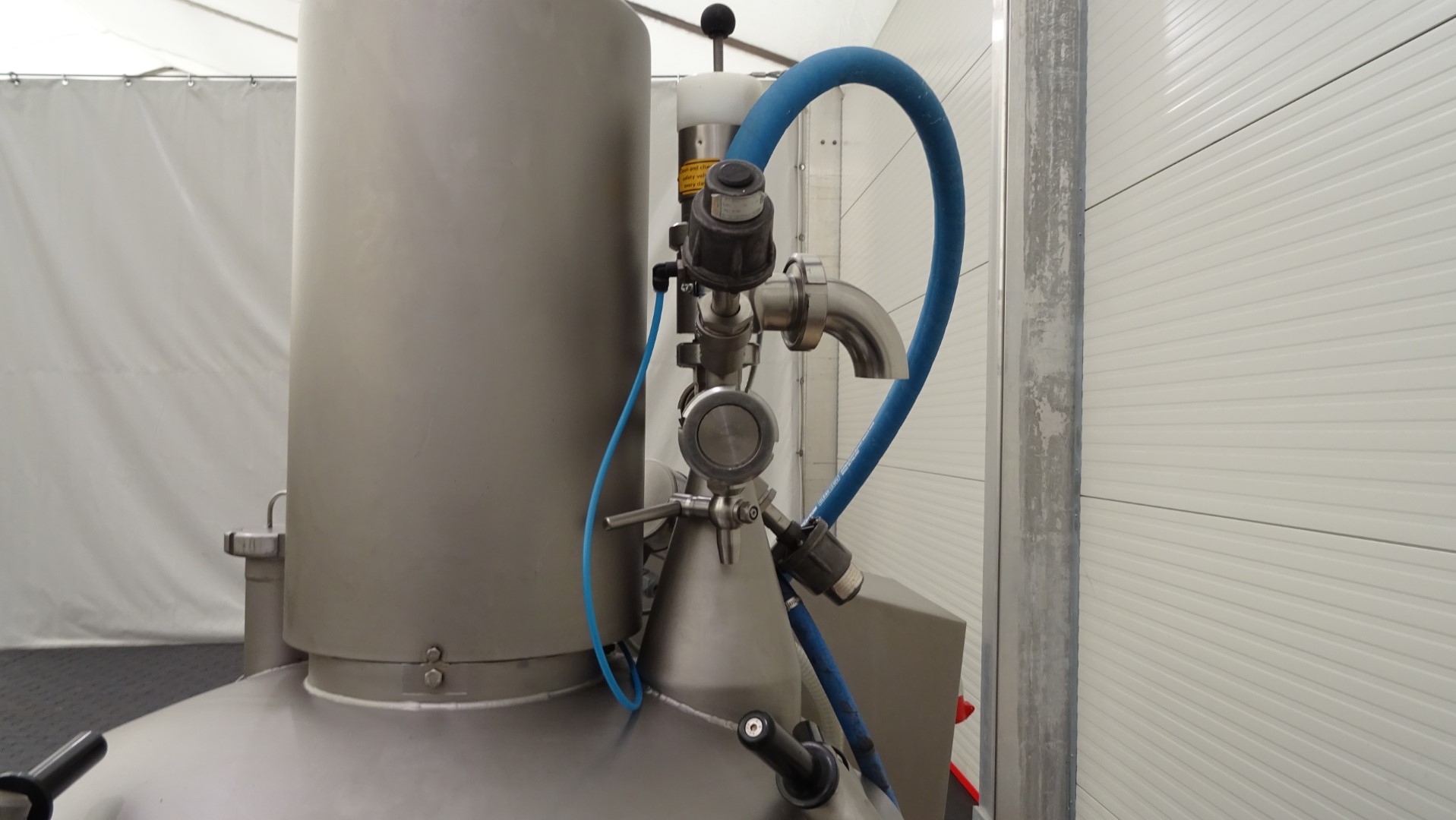

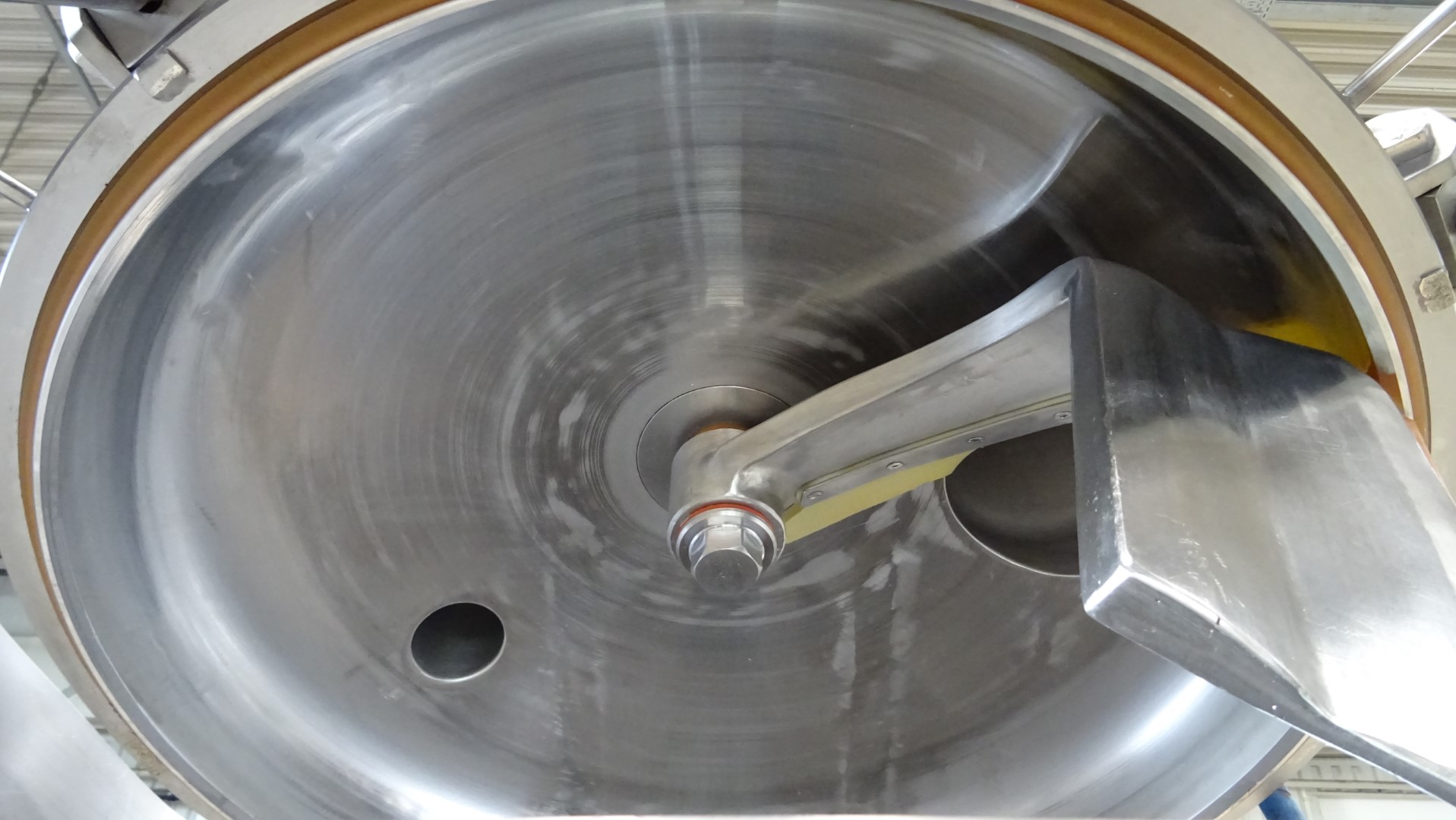

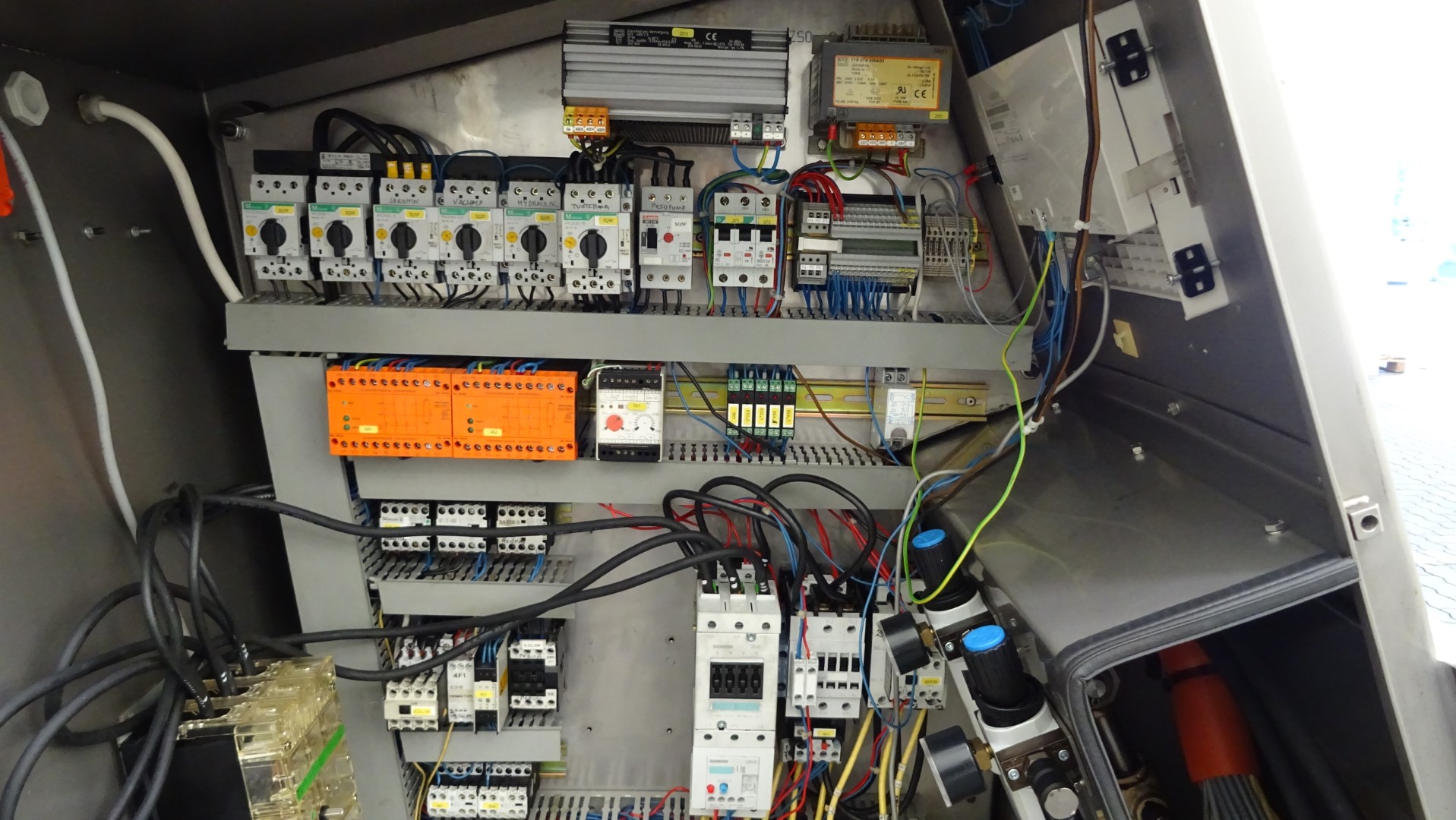

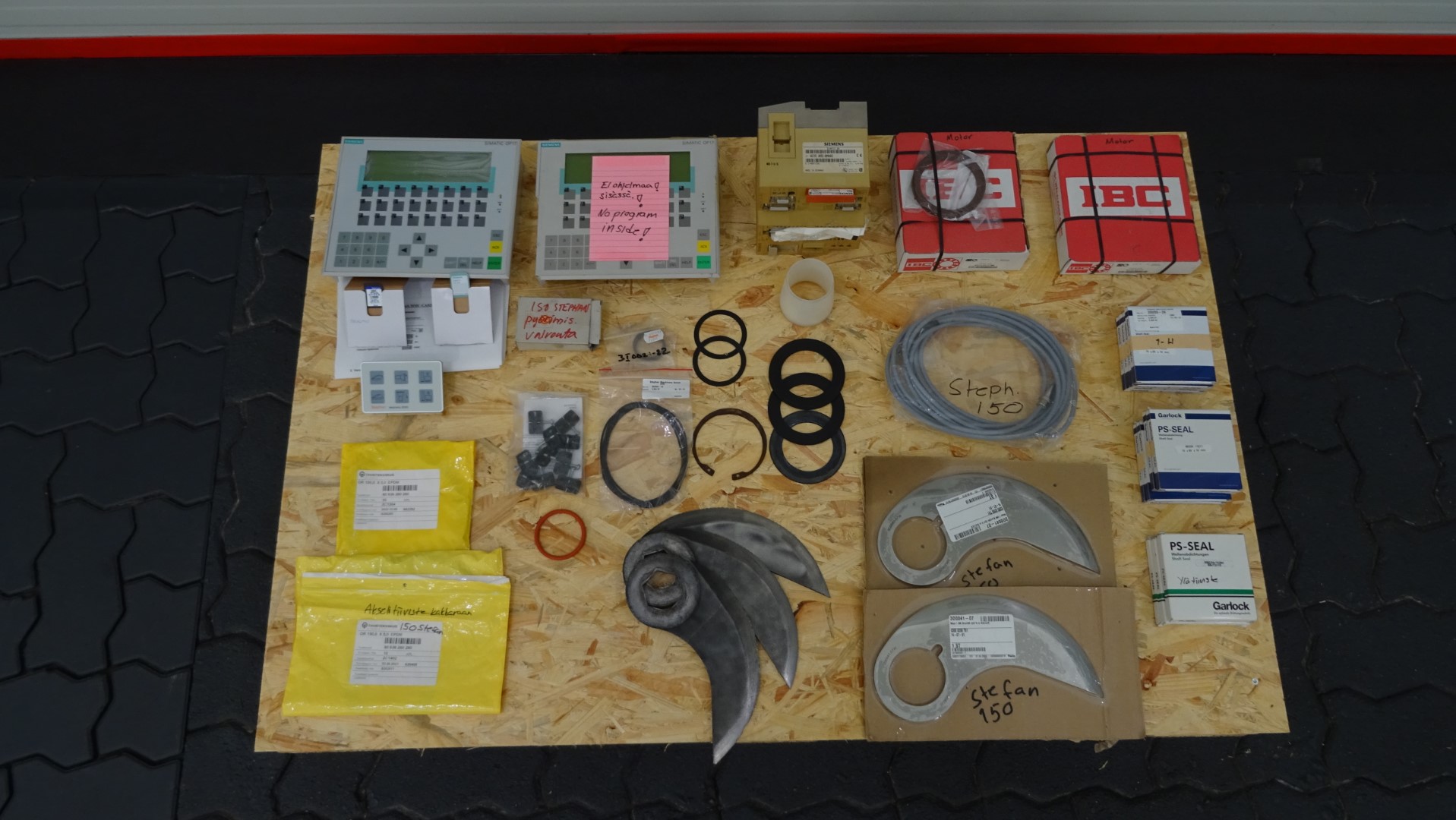

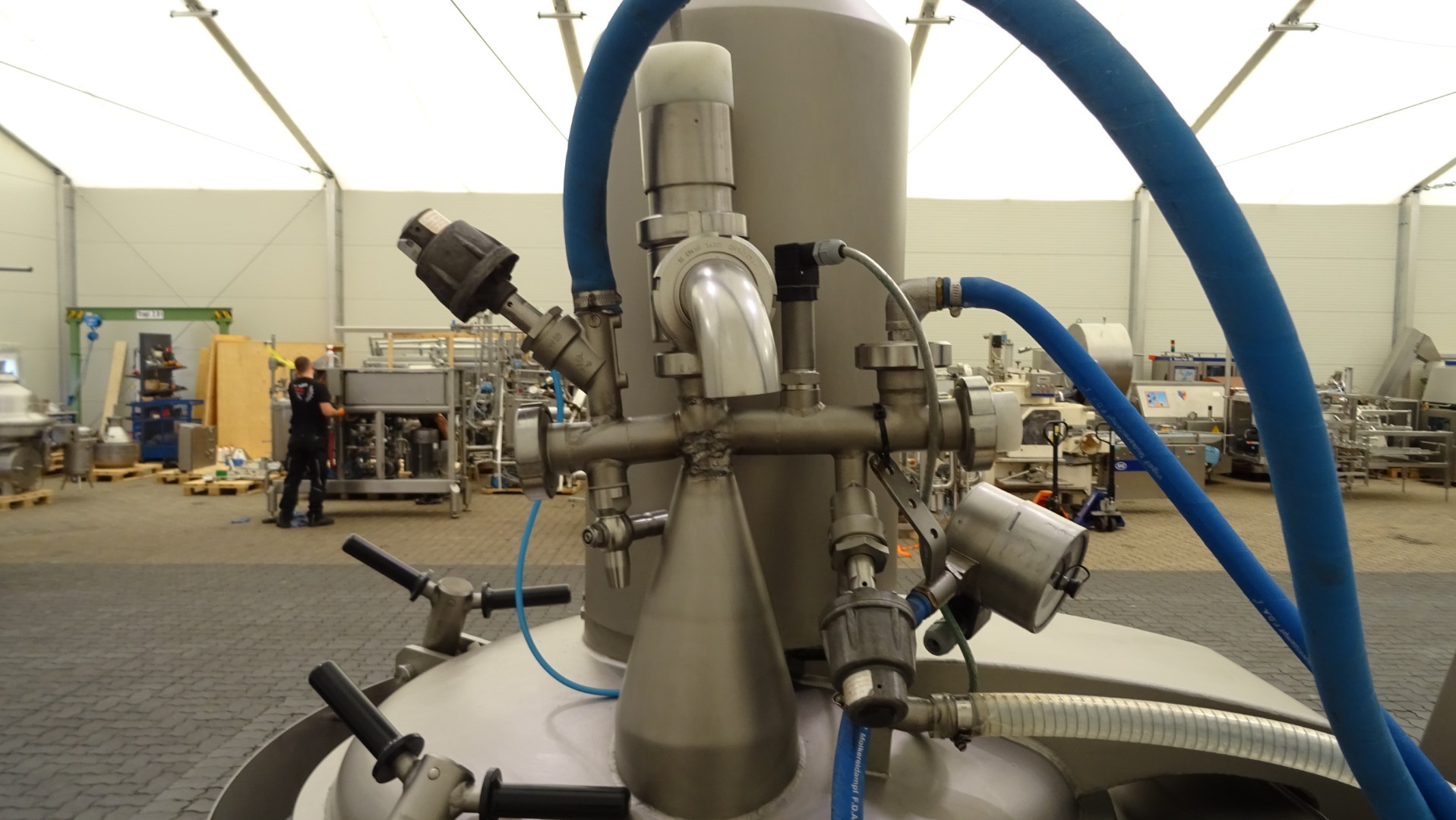

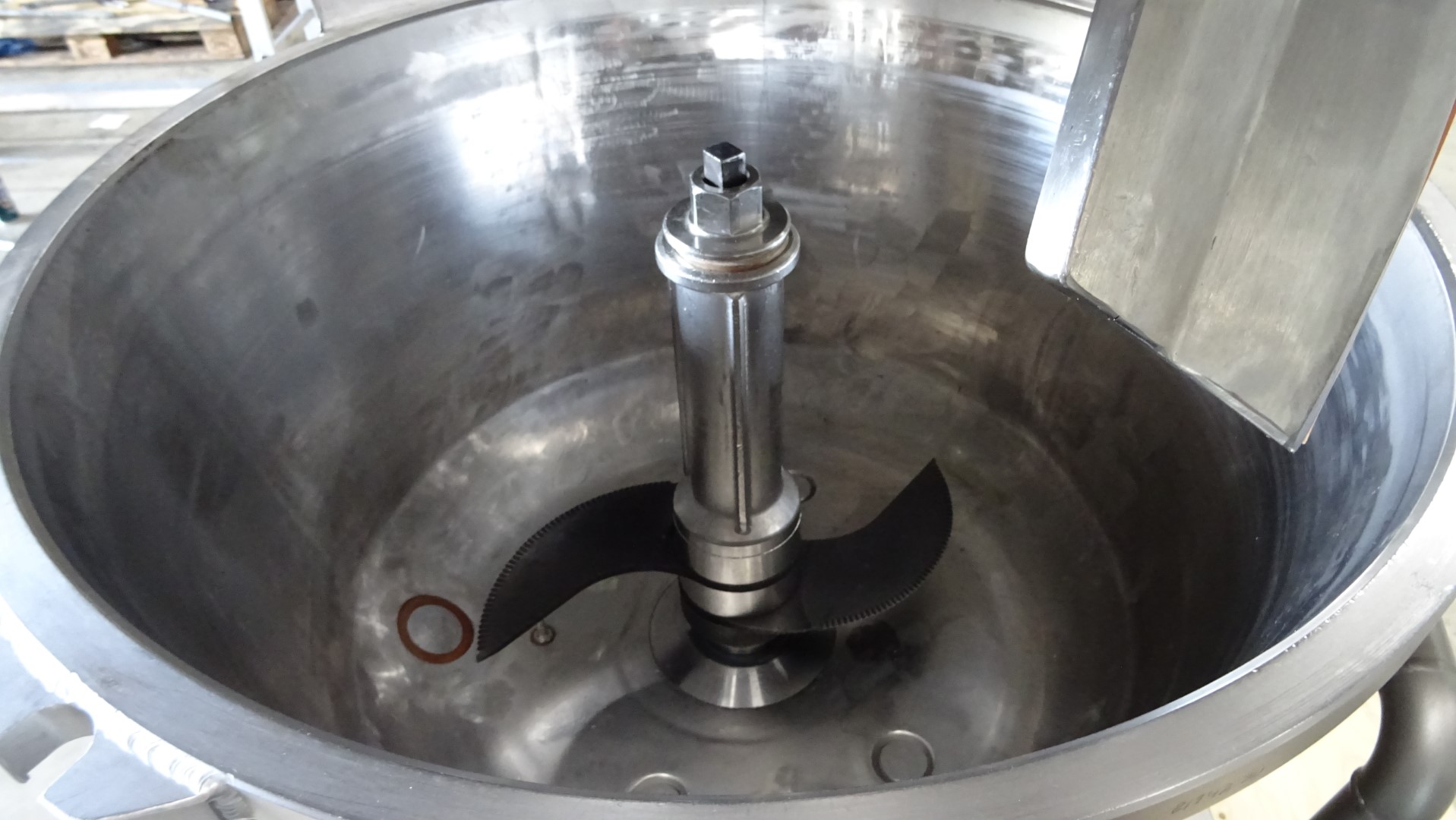

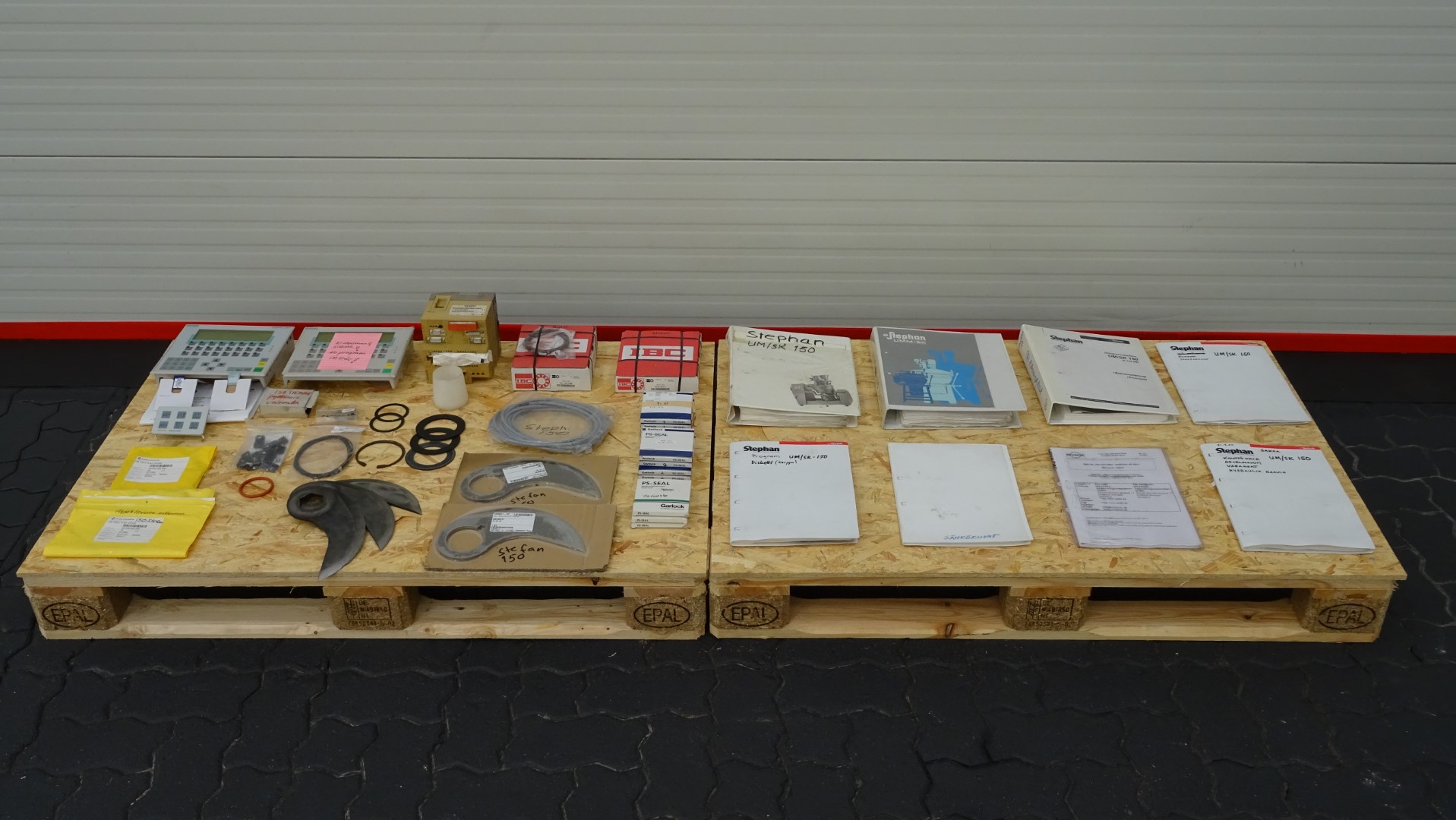

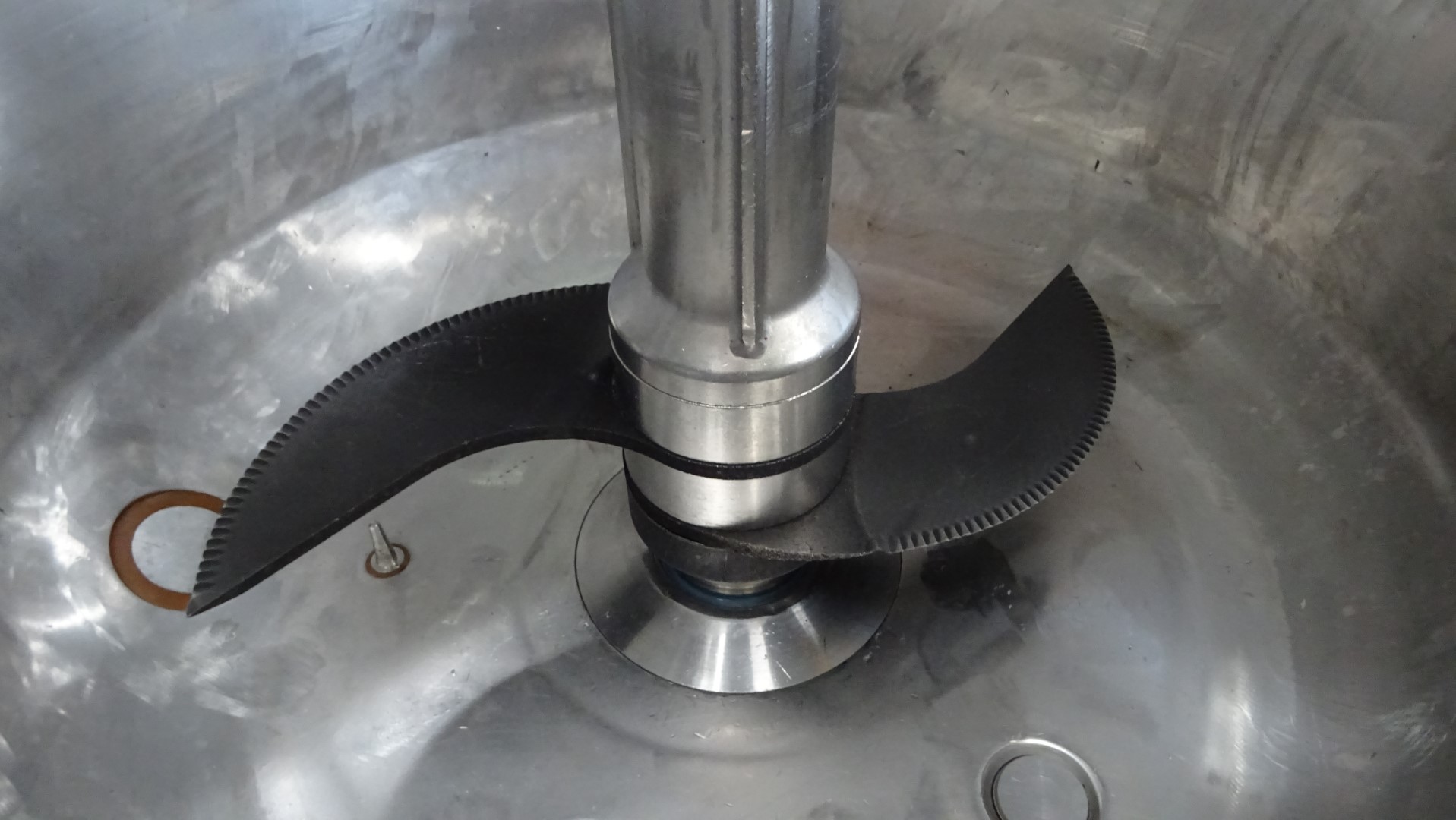

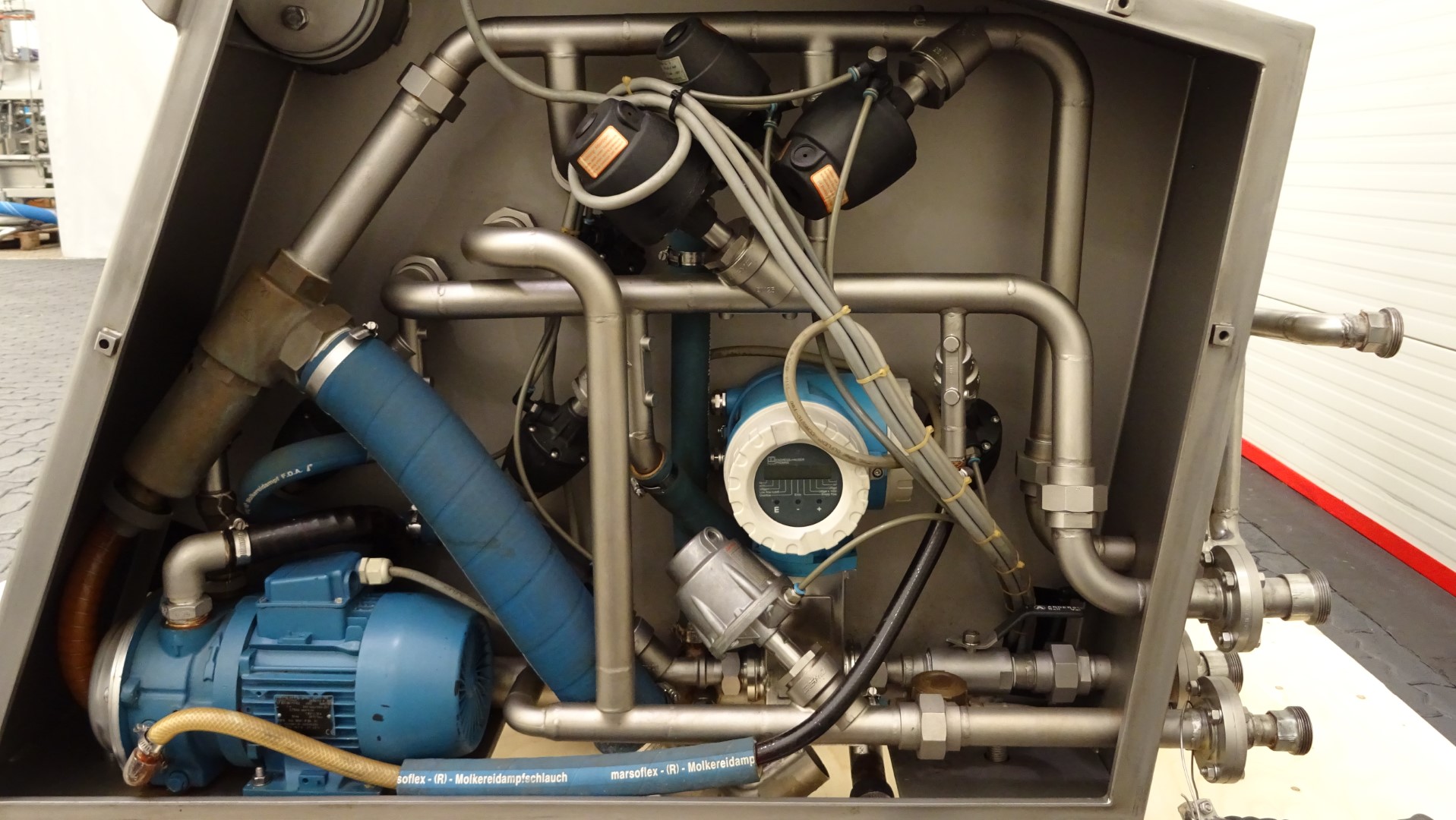

Stephan UM/SK 150 Universal Machine for the production of processed cheese, convenience products, vegan spreads and confectionery. The bowl is equiped with a double jacket for heating / cooling on the jacket, 4x direct steam injection nozzles for direct injection of (culinair) steam inside the product, temperature sensor inside the product, 1x cutting blade, maximum working pressure in the bowl -1 / 0,8 bar, maximum temperature in the bowl 110 °C, vacuum connection on the bowl, mounted on the lid a scraper agitator for the wall, electric driven (1,5 kW - n1: 1.410 rpm - n2: 25 rpm), 2 manual tightening clamp,hydralic cylinder for easy opening the lid, tiltable for emptying the bowl (no pneumatic outlet valve). Main motor for the cutting knife, integrated vacuumpump and a stainless steel control panel with Siemens S5 PLC and Siemens operation panel. Several spare parts included.
