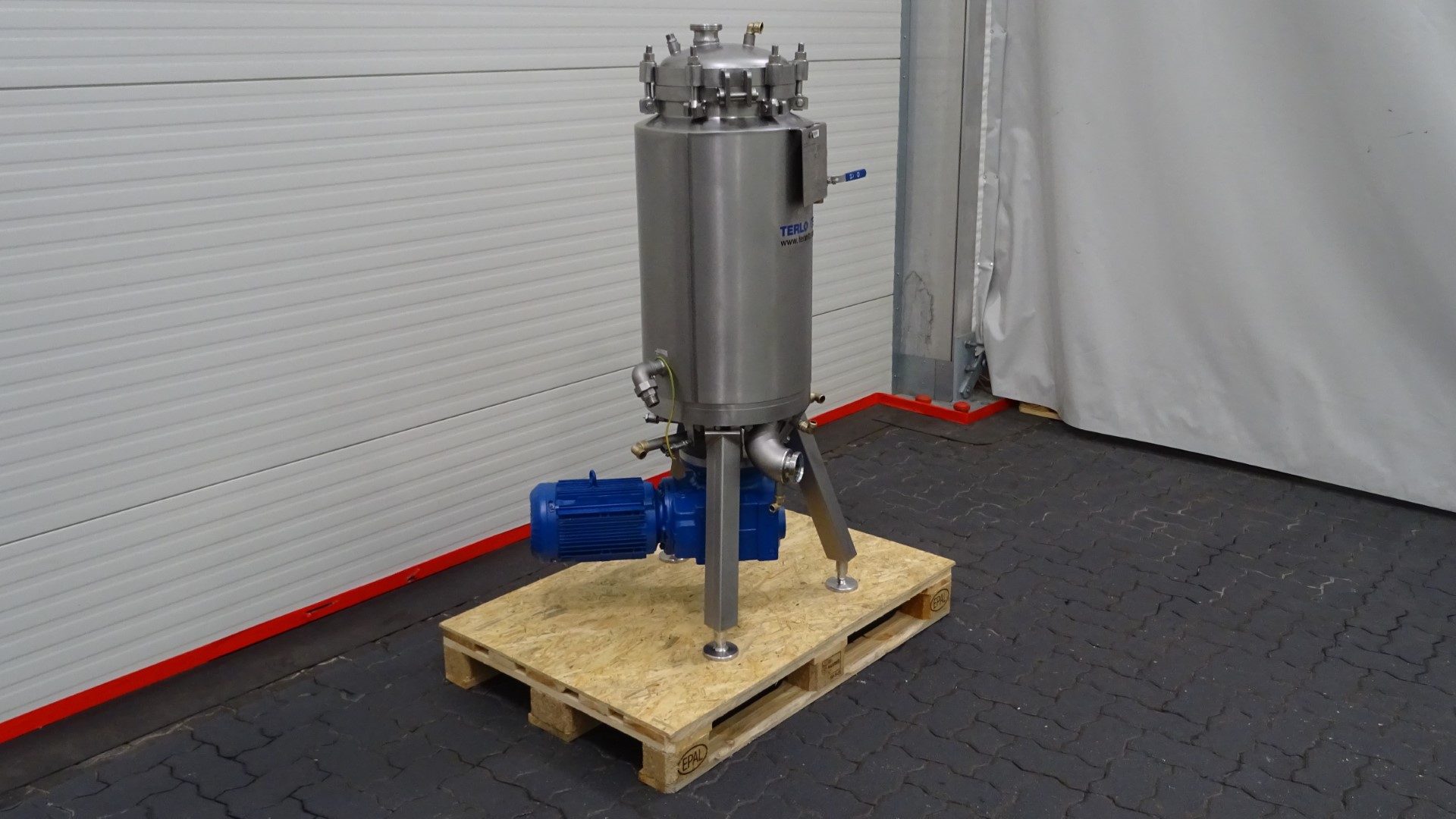

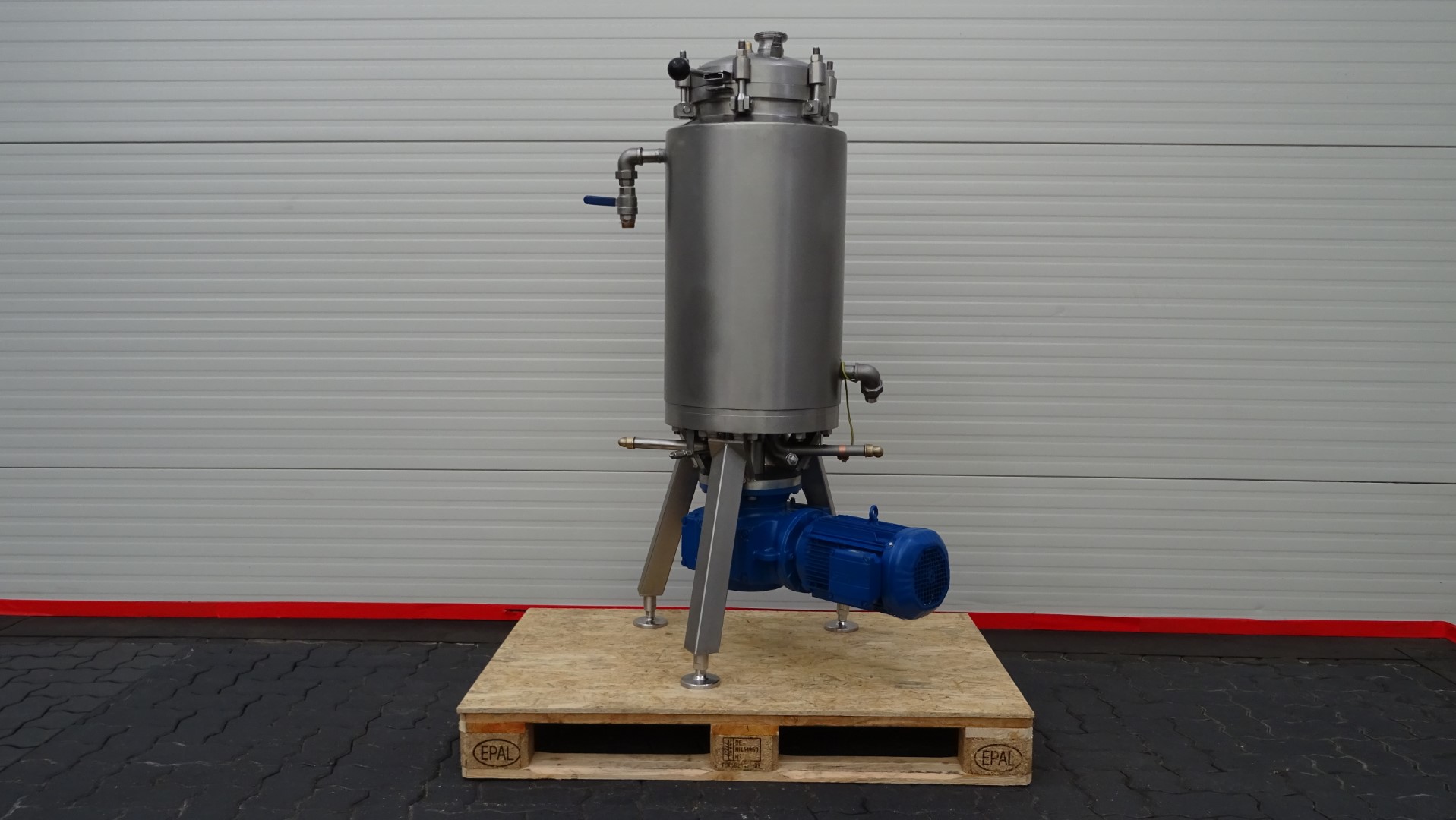

Scraped Surface Heat Exchanger (SSHE) - Terlet Terlotherm T0-4
Specifications
| Manufacturer | Terlet / MPE Group NV / Proxes |
| Model | Terlotherm T0-4 |
| Year | 2011 |
| Condition | Used |
| Serial Number | 1011183 |
| Stock Number | 1520 |
| Type of Machine | Scraped Surface Heat Exchanger (SSHE) |
| Volume | 32 liter |
| Inner vessel | 0 / 10 Bar - 0 / 150 °C - 32 liter |
| Jacket 01 | -1 / 4 Bar - 0 / 150 °C - 2,6 liter |
| Jacket 02 | 1 / 4 Bar - 0 / 150 °C - 4,6 liter |

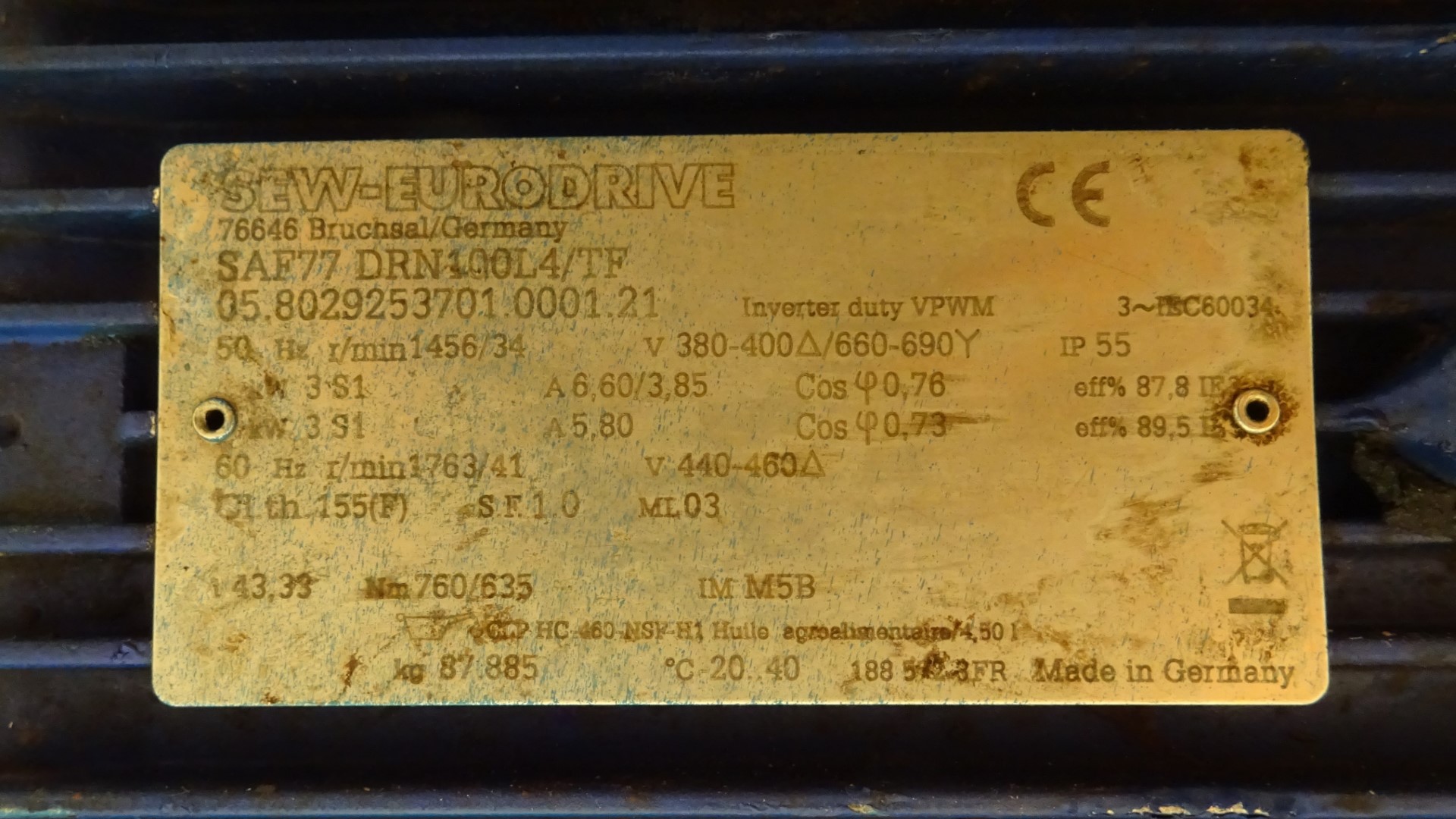

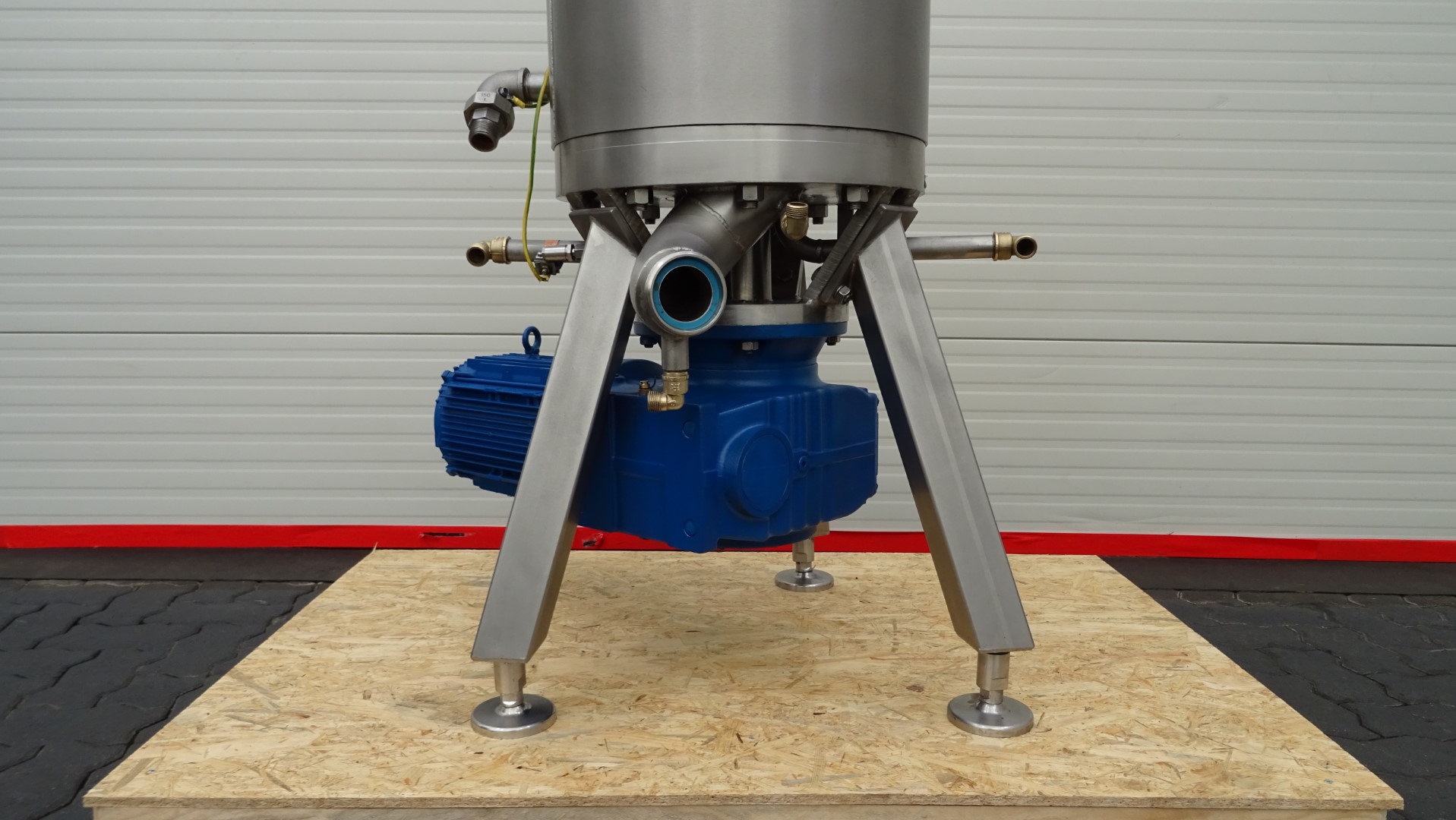

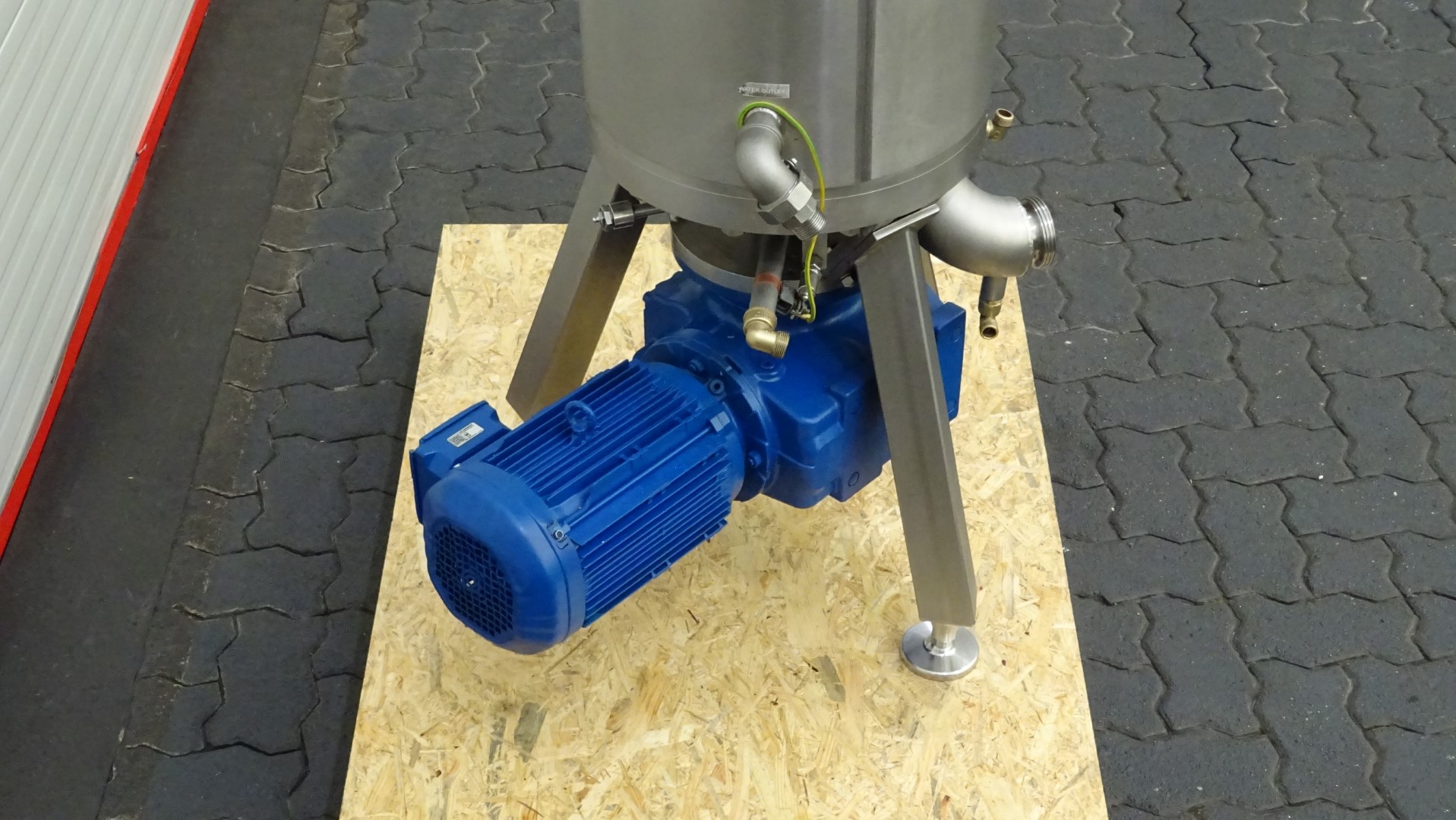

| Motor | 3 kW - n1: 1.456 rpm - i: 43,33 - n2: 34 rpm - 380/400 V - 50 Hz - 6,60 / 3,85 A |
| Weight | 650 kg |
Description

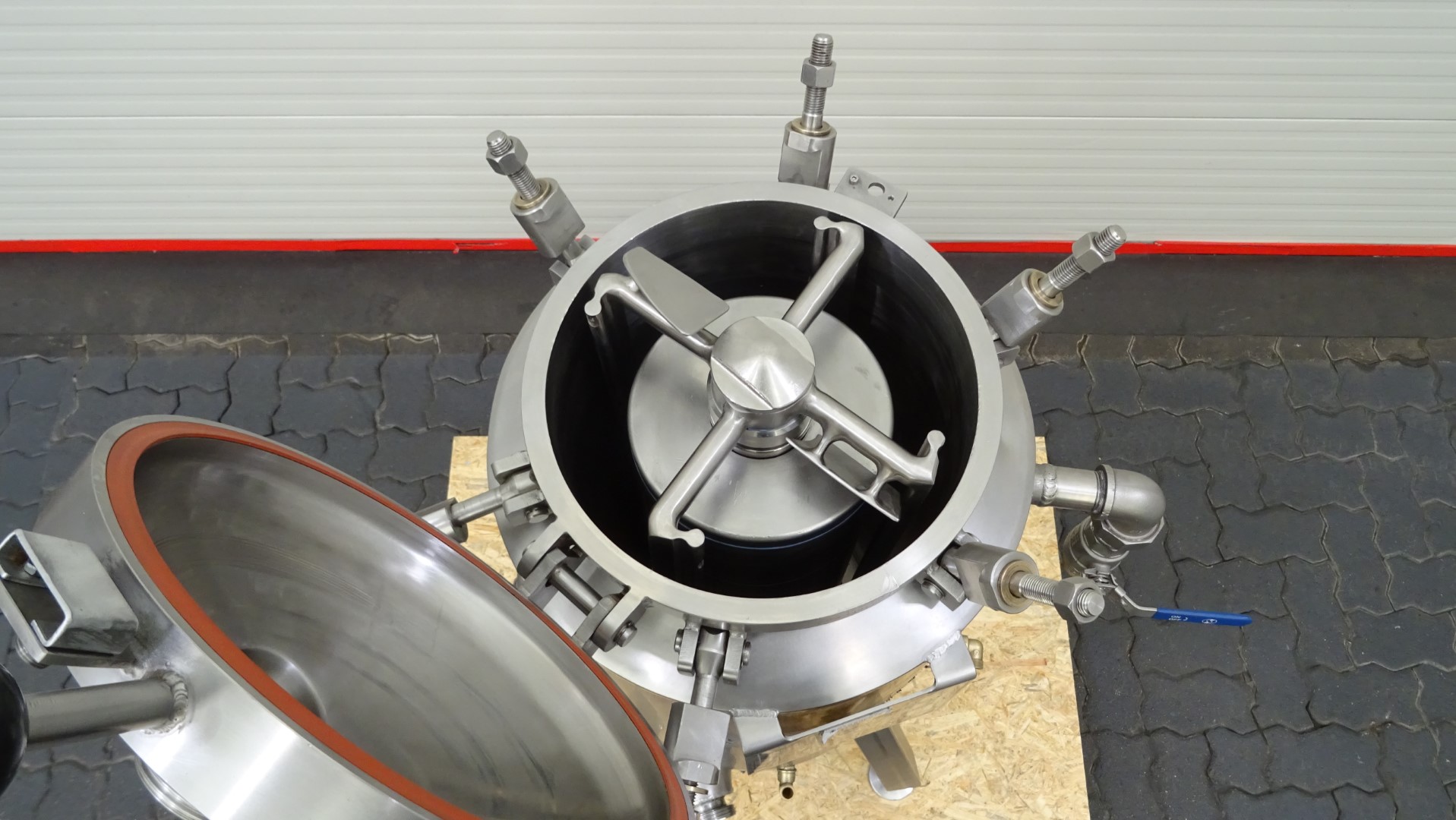

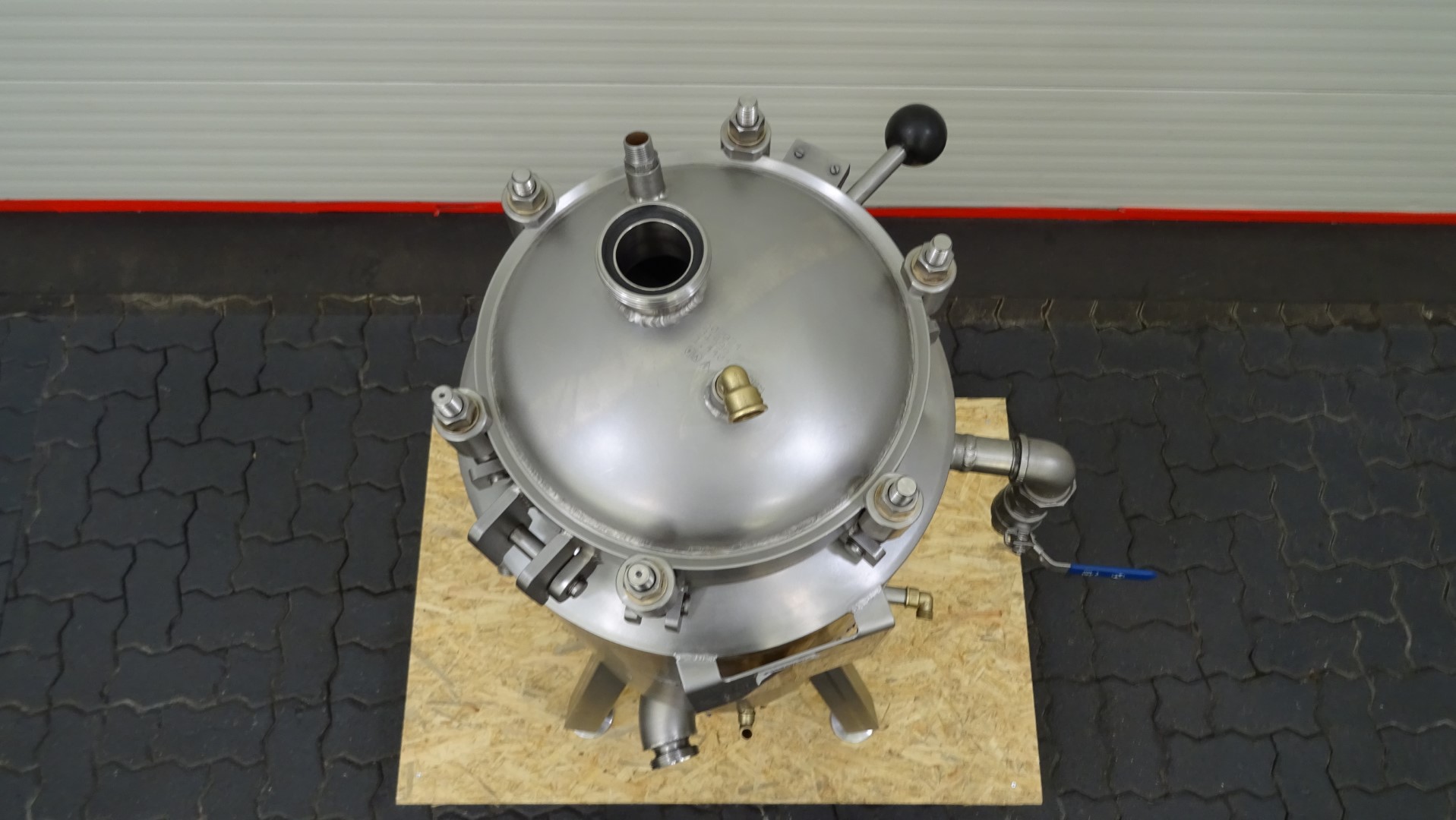

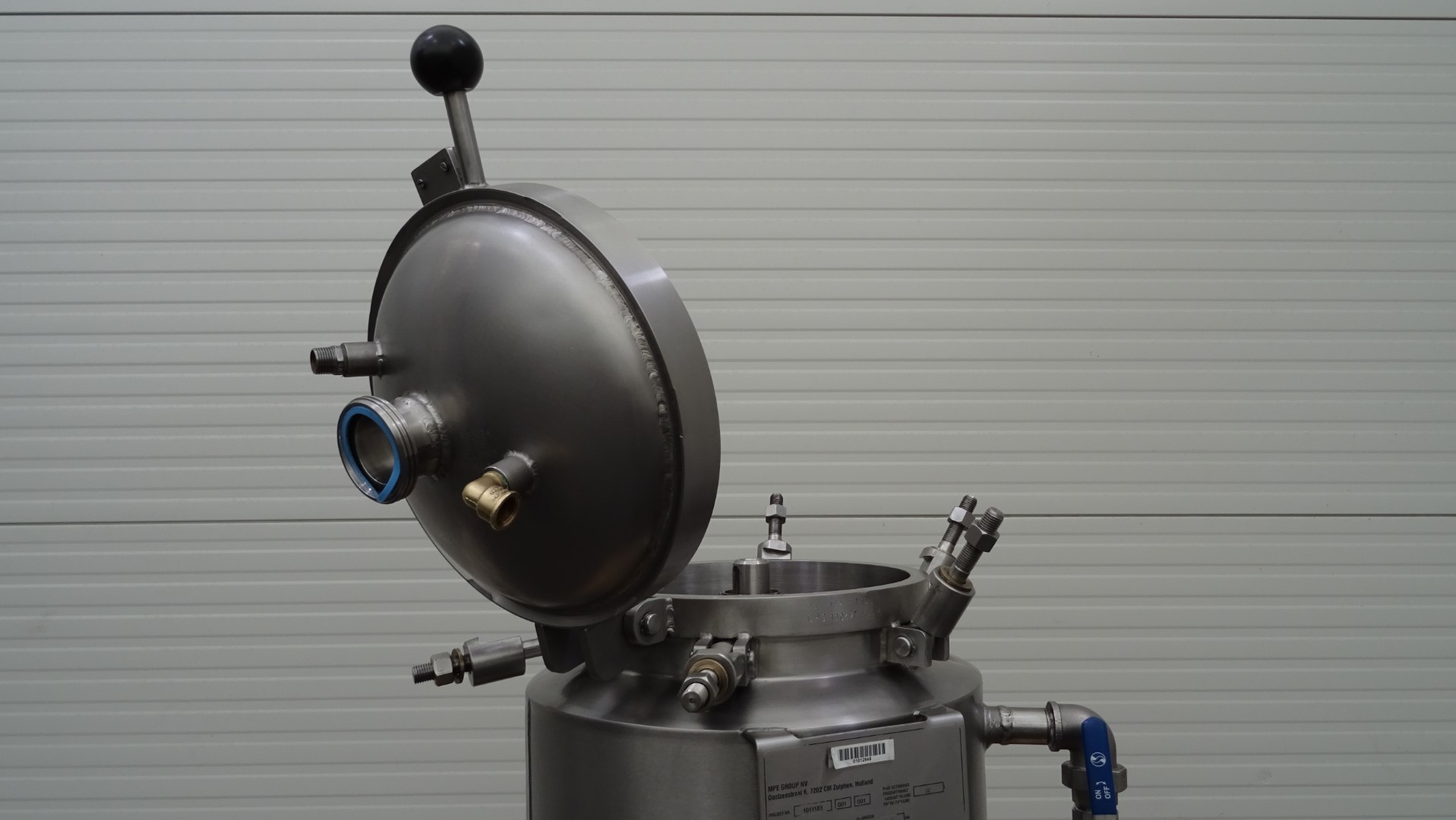

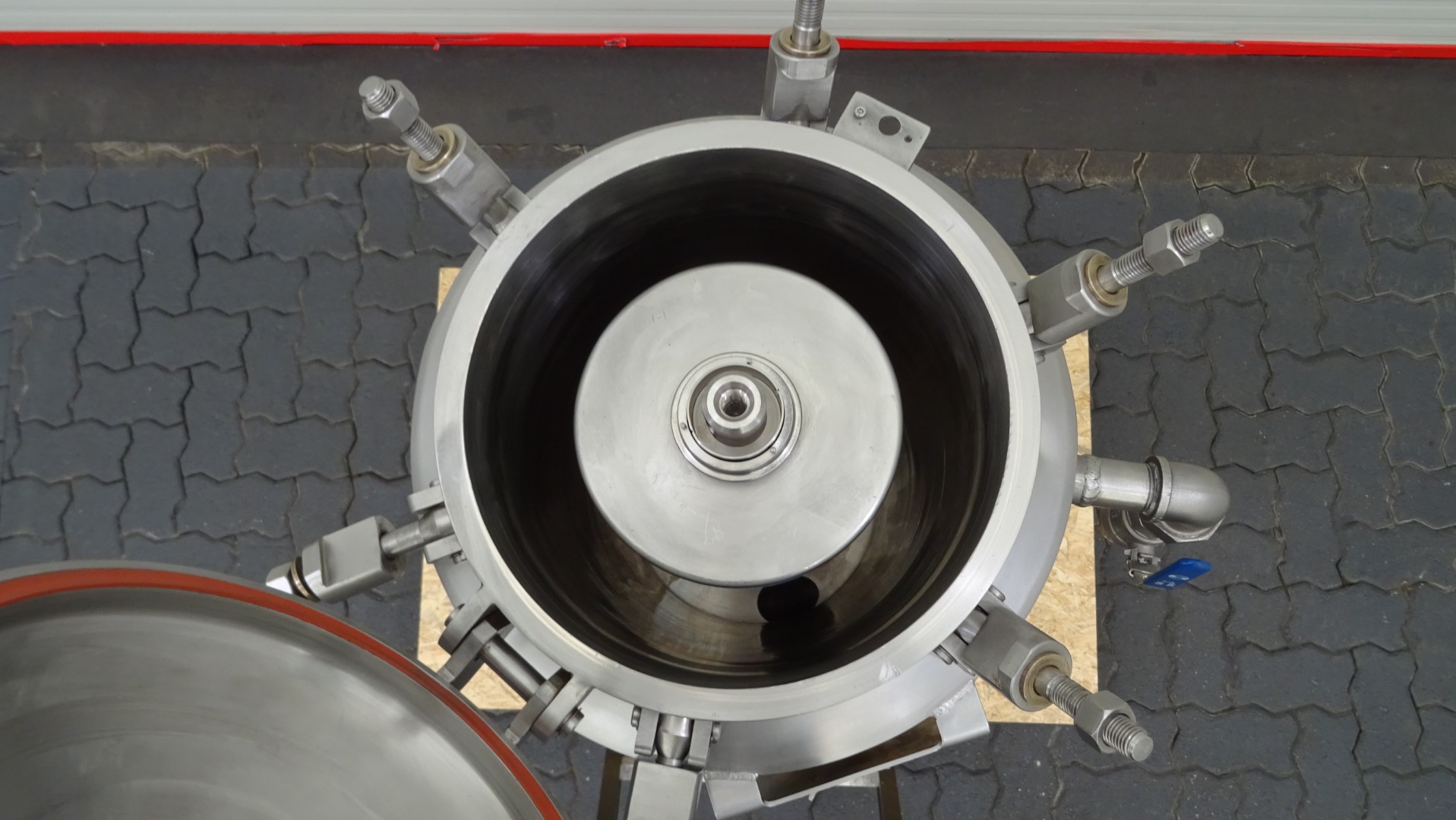

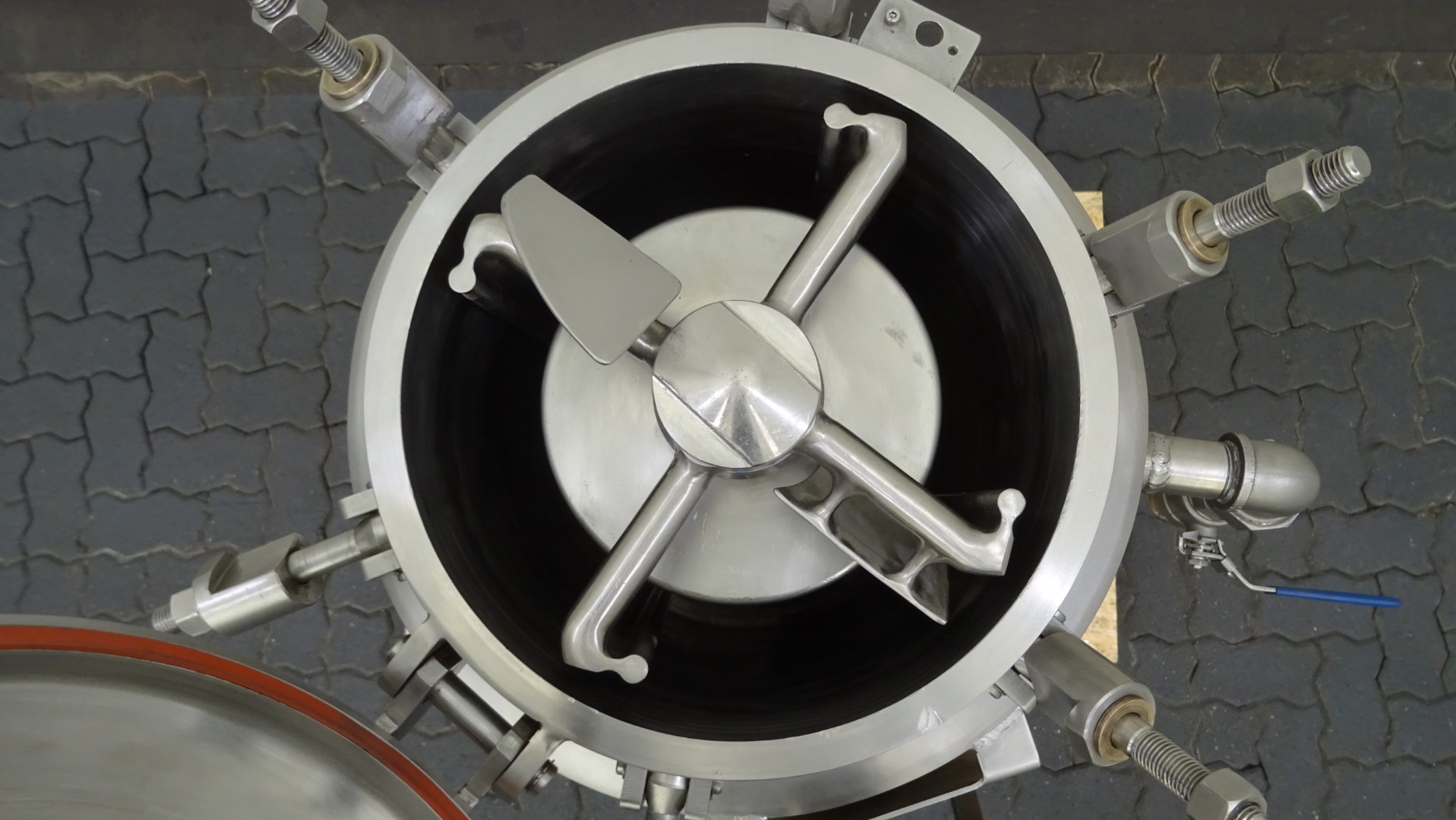

Terlet Terlotherm T0-4 Scraped Surface Heat Exchangers (SSHE) for inline heating and / or cooling of liquid, viscous and high viscous products with or without whole parts (up to 25 mm), like starch preparations, soups, sauces, dairy products etc. Scrapers can be easily replaced. CIP Cleanable. Inspection without removing seal. Lid can be opened with clamps. Large heating area on limited floor area. Tangetiale inlet. Accelaration and deceleration area. No damage to the product. Maintenance friendly, only one seal and one drive. Product volume: 32 liter. Number of scraper rows: 4. Inner vessel: 0 / 10 Bar - 0 / 150 °C - 32 liter. Jacket #1: -1 / 4 Bar - 0 / 150 °C - 2,6 liter. Jacket #2: -1 / 4 Bar - 0 / 150 °C - 4,6 liter. Motor: 3 kW - n1: 1.456 rpm - i: 43,33 - n2: 34 rpm - 380/400 V - 50 Hz - 6,60 / 3,85 A. Product inlet: 50 mm. Product outlet: 50 mm. Ground clearance: ± 556 mm. Cylindrical height: 871 cm. Total height: 145 cm. Weight: 650 kg.
Additional features:

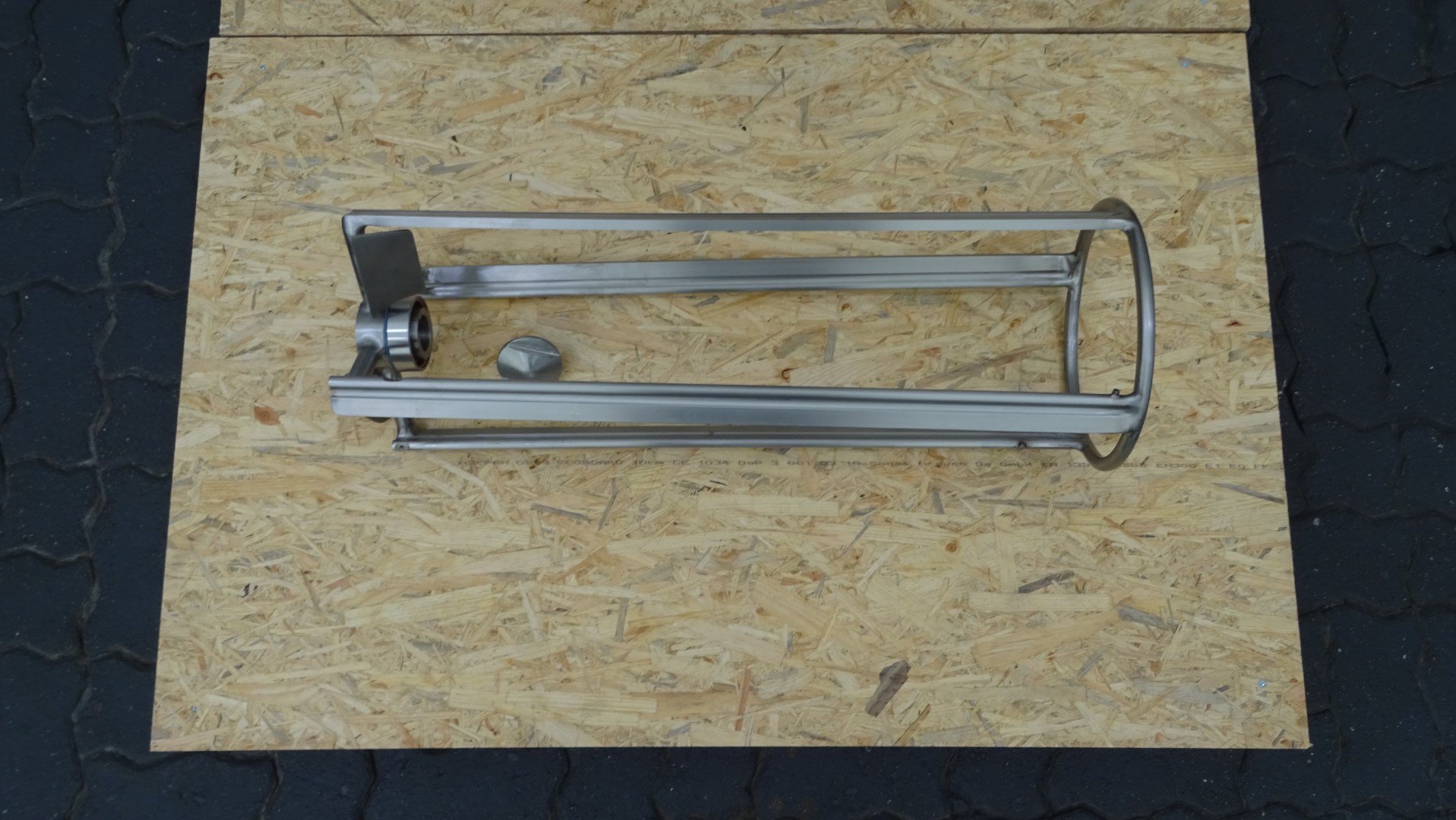

- Scrapers itself excluded.
