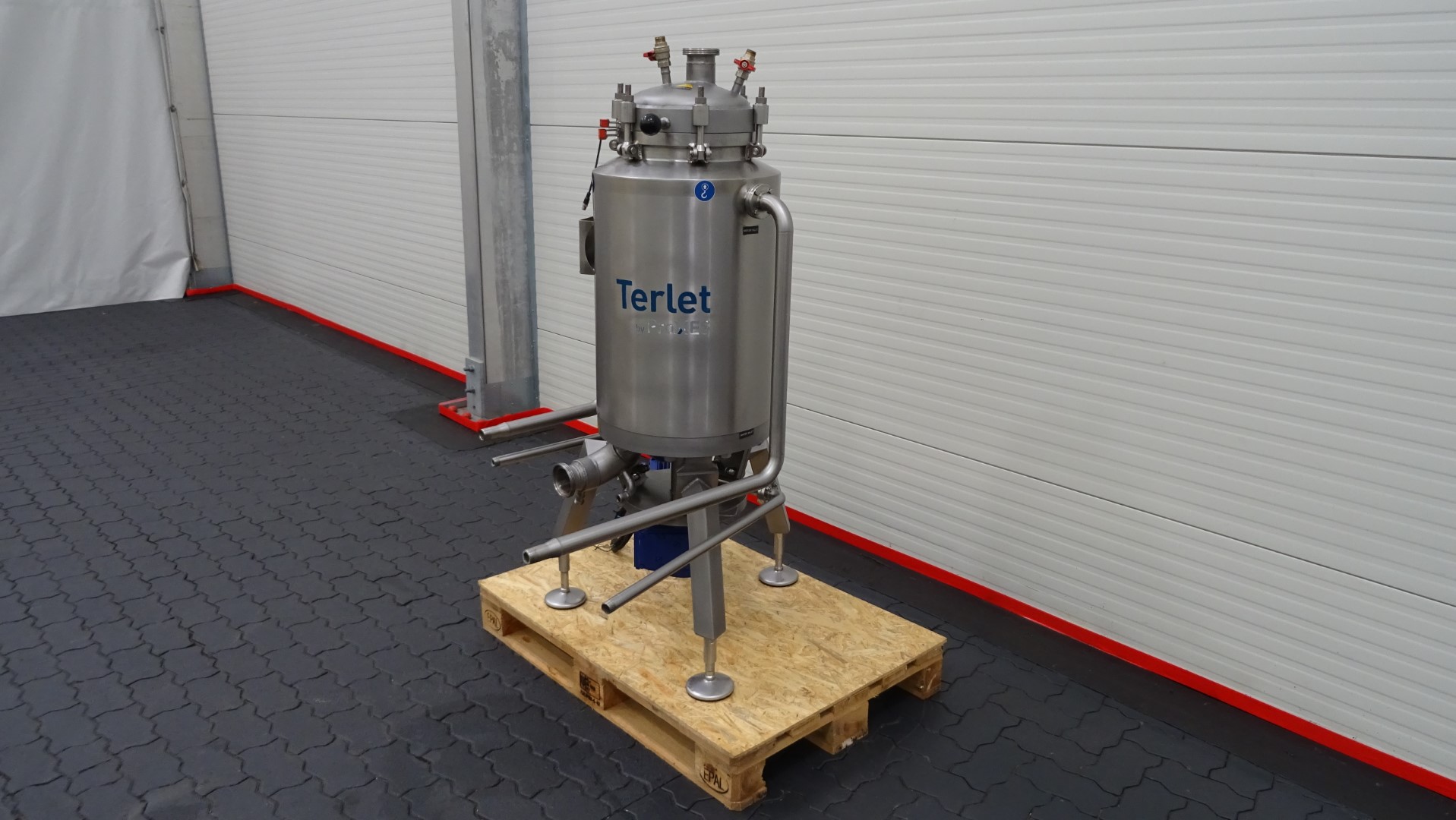

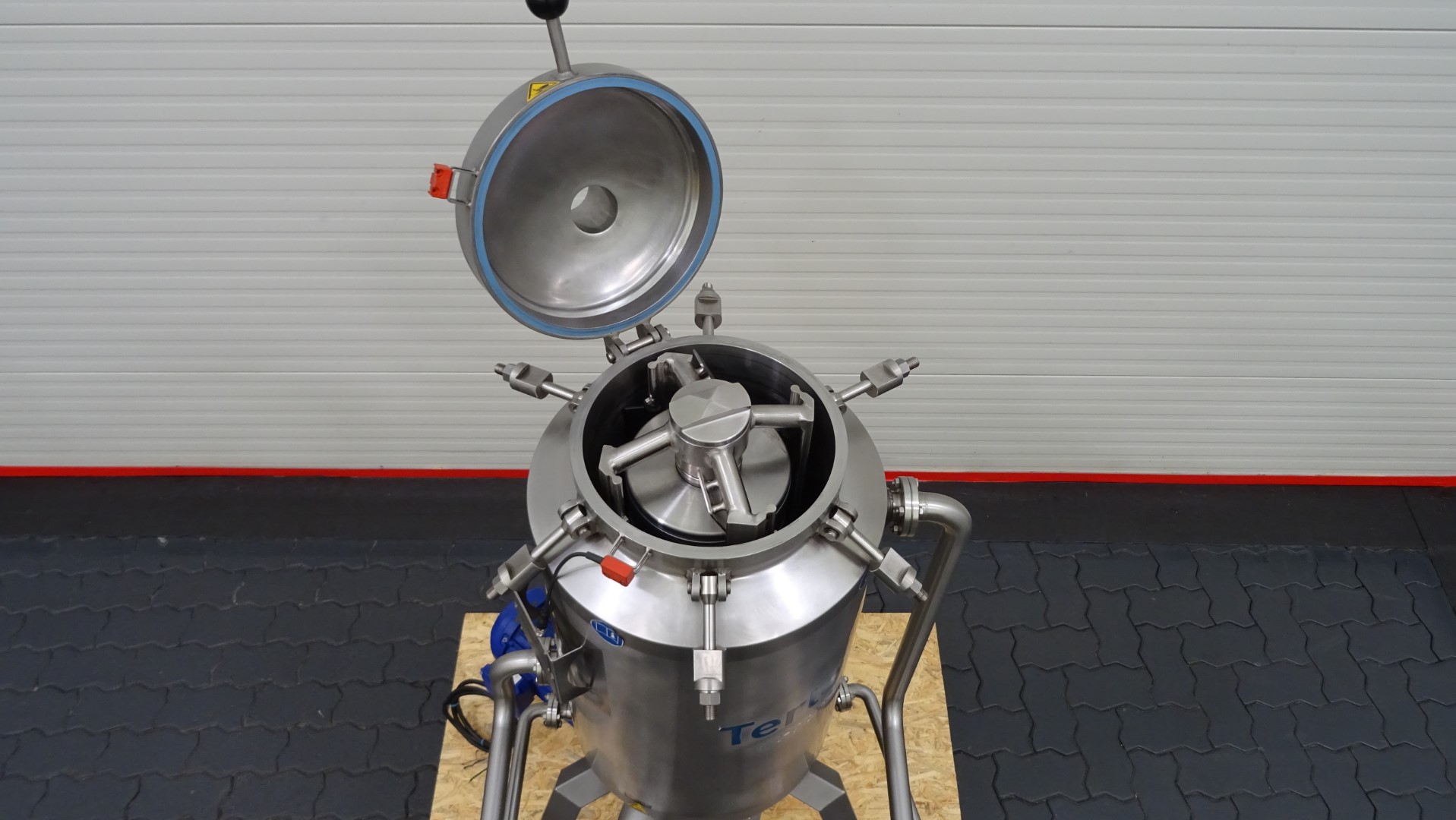

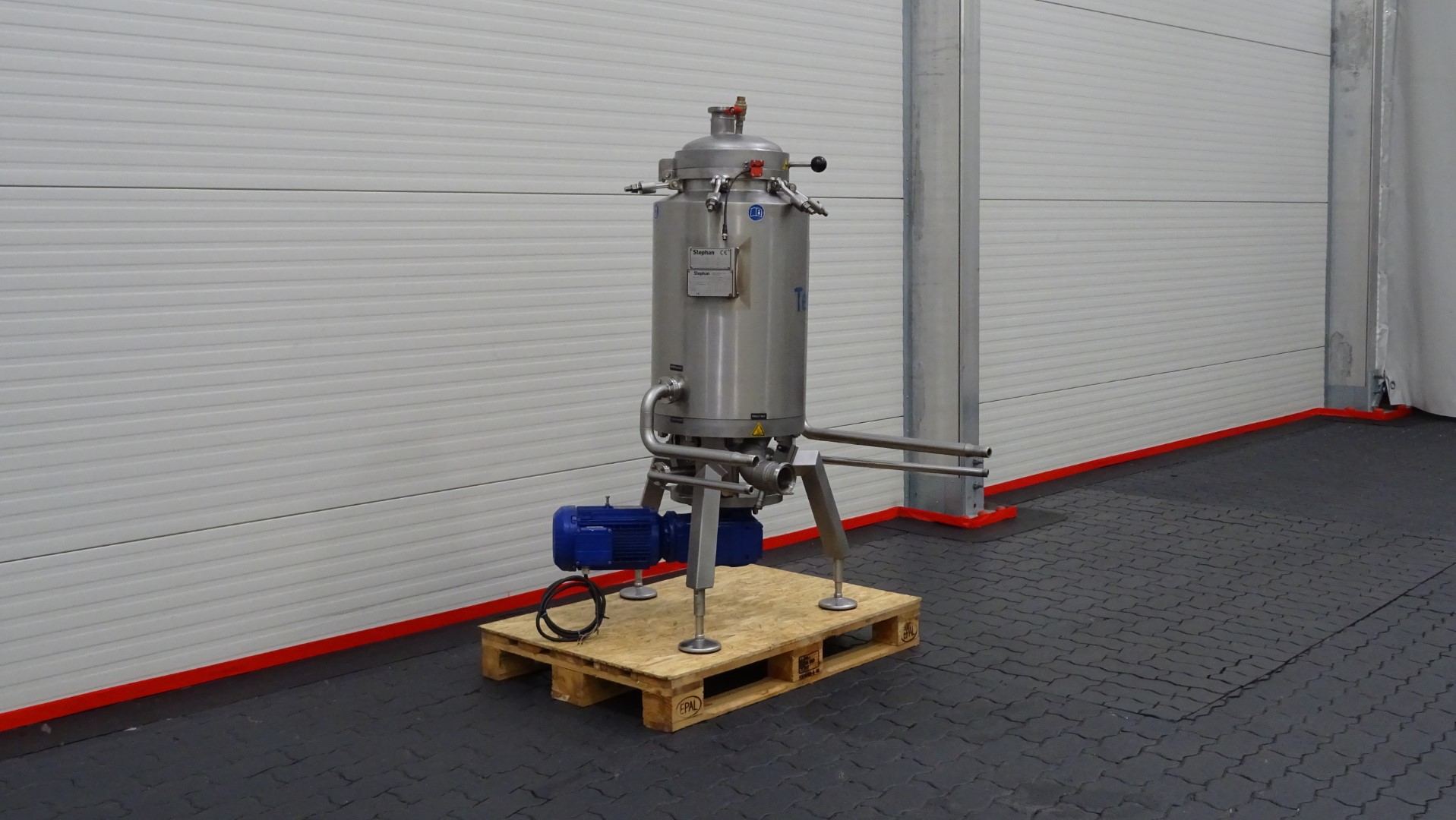

Scraped Surface Heat Exchanger (SSHE) - Stephan Terlotherm TD100
Specifications

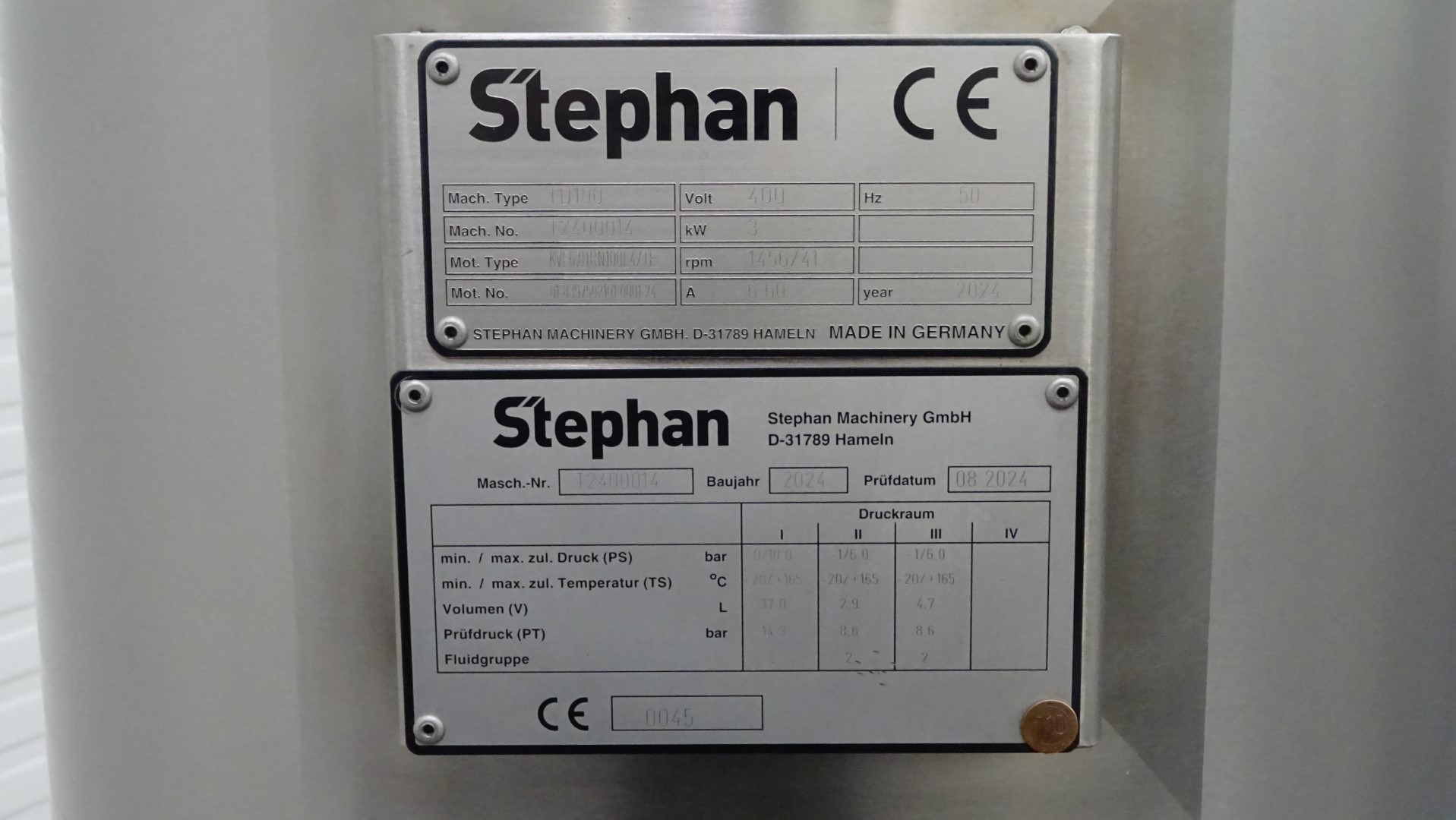

| Manufacturer | Stephan |
| Model | Terlotherm TD100 |
| Year | 2024 |
| Condition | Used |
| Serial Number | T2400014 |
| Stock Number | 1521 |
| Type of Machine | Scraped Surface Heat Exchanger (SSHE) |
| Volume | 37 liter |
| Heated surface | 1,0 m2 |
| Inner vessel | 0 / 10 Bar - -20 / +165 °C - 37 liter |
| Jacket 01 | -1 / 6 Bar - -20 / +165 °C - 2,9 liter |
| Jacket 02 | -1 / 6 Bar - -20 / +165 °C - 4,7 liter |

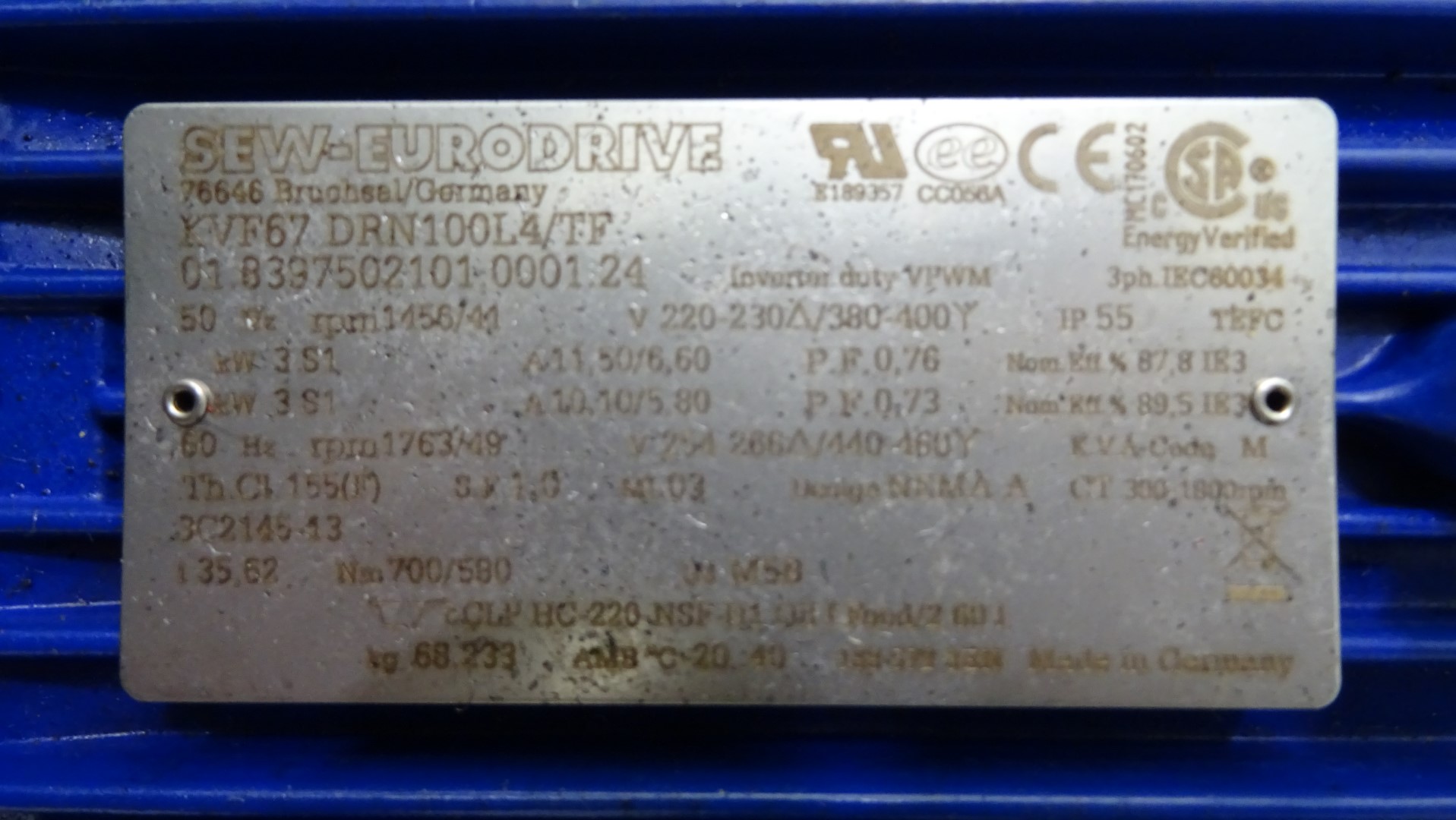

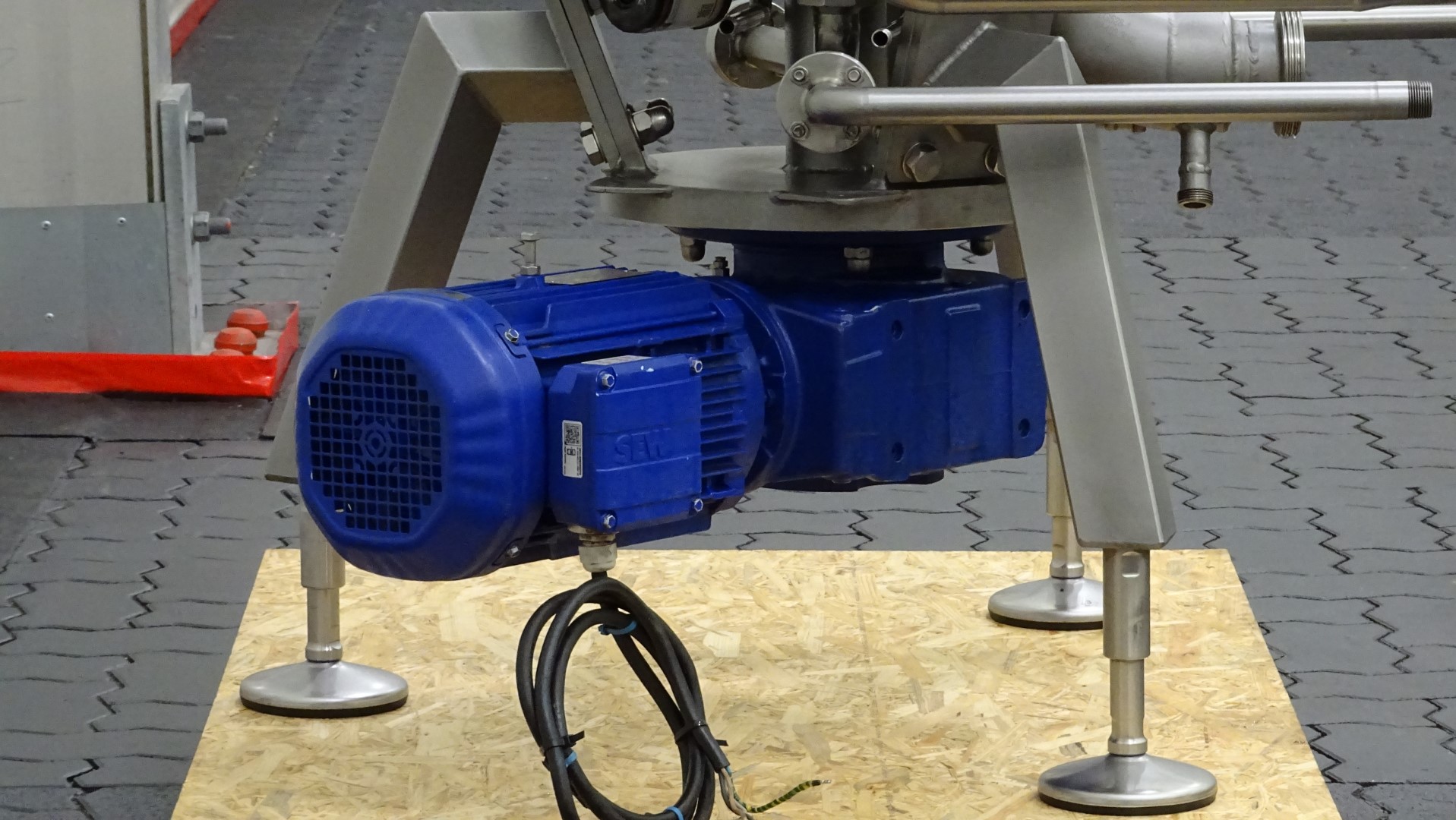

| Motor | 3 kW - n1: 1.456 rpm - n2: 41 rpm - 380/400 V - 50 Hz - 6,60 A |
| Weight | 700 kg |
Description

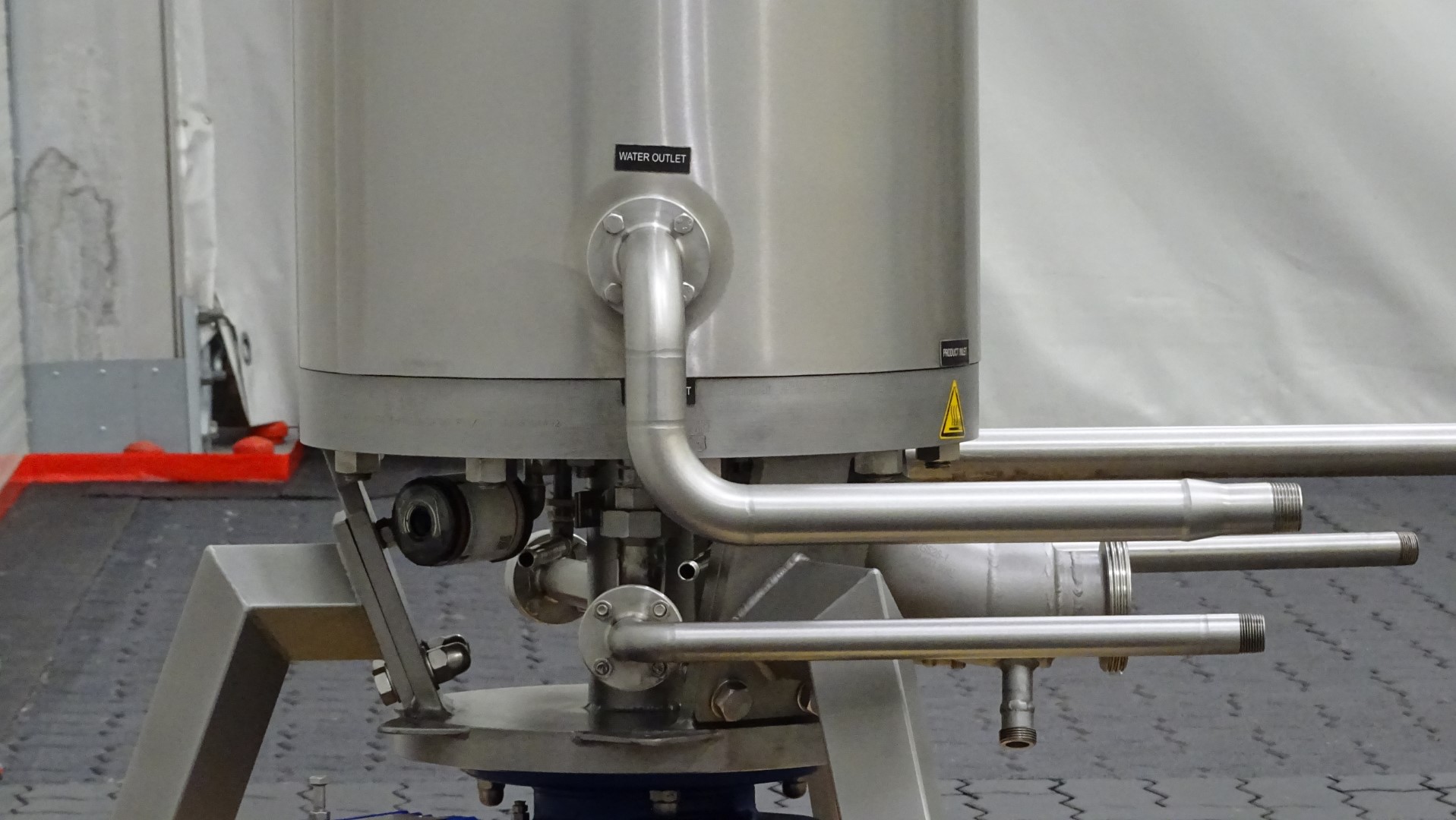

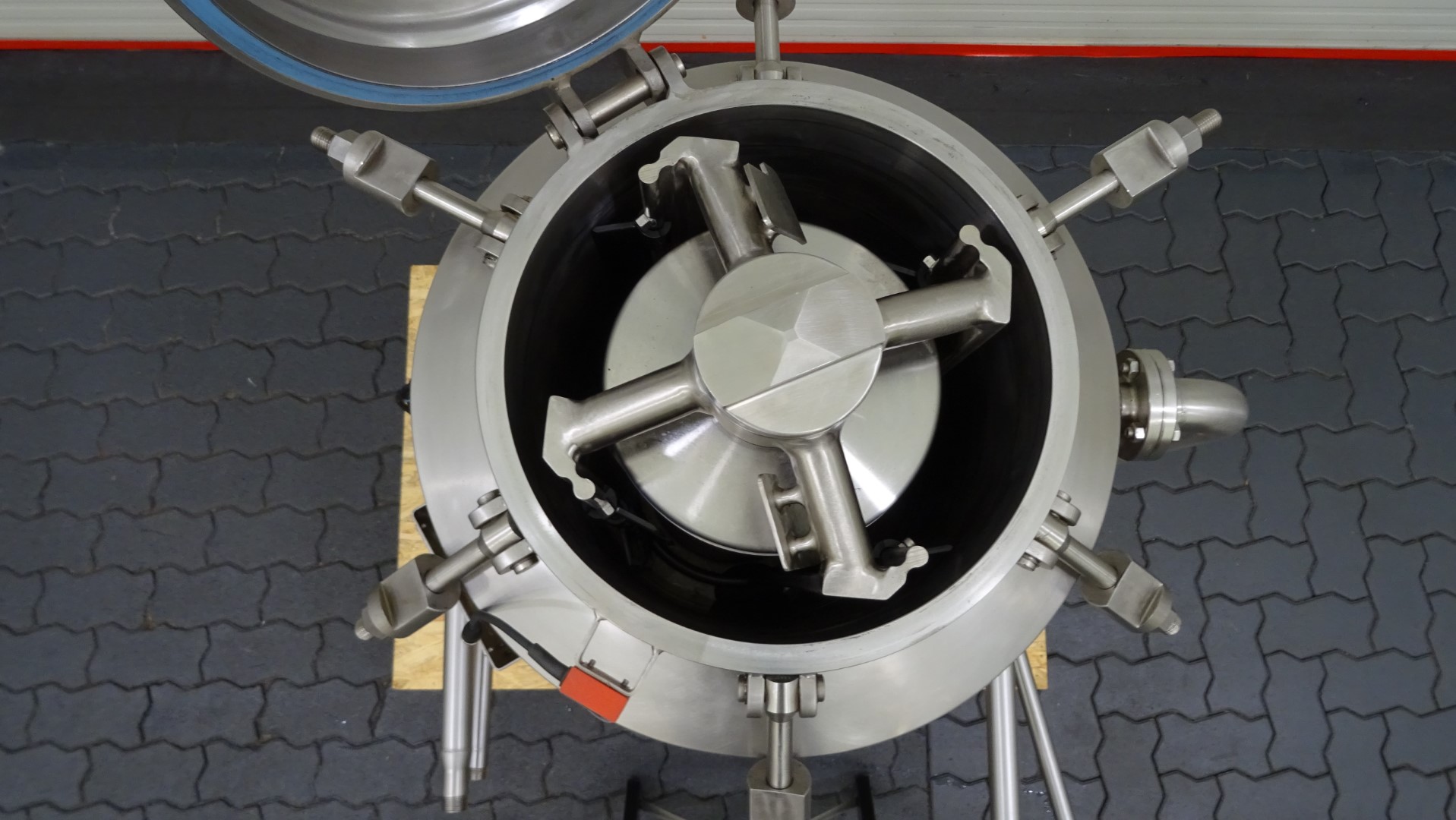

Stephan Terlotherm TD100 Scraped Surface Heat Exchangers (SSHE) for inline heating and / or cooling of liquid, viscous and high viscous products with or without whole parts (up to 25 mm), like starch preparations, soups, sauces, dairy products etc. Scrapers can be easily replaced. CIP Cleanable. Inspection without removing seal. Lid can be opened with clamps. Large heating area on limited floor area. Tangetiale inlet. Accelaration and deceleration area. No damage to the product. Maintenance friendly, only one seal and one drive. Product volume: 37 liter. Number of scraper rows: 4. Number of scrapers per row: 4. Total number of scrapers: 16. Inner vessel: 0 / 10 Bar - -20 / +165 °C - 37 liter. Jacket #1: -1 / 6 Bar - -20 / +165 °C - 2,9 liter. Jacket #2: -1 / 6 Bar - -20 / +165 °C - 4,7 liter. Motor: 3 kW - n1: 1.456 rpm - n2: 41 rpm - 380/400 V - 50 Hz - 6,60 A. Heat exchange surface area: 1,0 m2. Product inlet: 65 mm. Product outlet: 65 mm. Total height: 160 cm.
